AUTOMATIC GENERATION OF OPTIMAL CONTROLLERS

THROUGH MODEL CHECKING TECHNIQUES

Giuseppe Della Penna, Daniele Magazzeni, Alberto Tofani

Dipartimento di Informatica, Universit

`

a di L’Aquila, Italy

Benedetto Intrigila

Dipartimento di Matematica Pura ed Applicata, Universit

`

a di Roma “Tor Vergata”, Italy

Igor Melatti, Enrico Tronci

Dipartimento di Informatica, Universit

`

a di Roma “La Sapienza”, Italy

Keywords:

Controller Synthesis, Controller Optimization, Model Checking, Nonlinear Systems.

Abstract:

We present a methodology for the synthesis of controllers, which exploits (explicit) model checking techniques.

That is, we can cope with the systematic exploration of a very large state space. This methodology can be

applied to systems where other approaches fail. In particular, we can consider systems with an highly non-

linear dynamics and lacking a uniform mathematical description (model). We can also consider situations

where the required control action cannot be speciﬁed as a local action, and rather a kind of planning is required.

Our methodology individuates ﬁrst a raw optimal controller, then extends it to obtain a more robust one. A

case study is presented which considers the well known truck-trailer obstacle avoidance parking problem, in

a parking lot with obstacles on it. The complex non-linear dynamics of the truck-trailer system, within the

presence of obstacles, makes the parking problem extremely hard. We show how, by our methodology, we can

obtain optimal controllers with different degrees of robustness.

1 INTRODUCTION

Control systems (or, shortly, controllers) are small

hardware/software components that control the be-

havior of larger systems, the plants. A controller con-

tinuously analyzes the plant state (looking at its state

variables) and possibly adjusts some of its parame-

ters (called control variables) to keep the system in

a condition called setpoint, which usually represents

the normal or correct behavior of the system.

In the last years, the use of sophisticated controllers

has become very common in robotics, critical systems

and, in general, in the hardware/software embedded

systems contained in a growing number of everyday

products and appliances.

However, since the primary aim of a controller is

to ensure the correct behavior of the controlled plant,

we have to guarantee the efﬁciency and the robust-

ness of controllers. By efﬁciency, we mean the capa-

bility of the controller to bring the system to the set

point in the shortest possible time (also called time

optimality). By robustness, we mean the capability of

the controller to perform well when the state variables

vary outside the design range.

Therefore, the veriﬁcation of these properties is a

crucial task that is being addressed using different for-

mal methodologies (e.g., model checking and theo-

rem proving) developed in different research commu-

nities (e.g., automata theory and artiﬁcial intelligence

(Kautz et al., 2006)). In particular, much work is be-

ing done to provide a methodology for the automatic

(or semi–automatic) synthesis of correct controllers

directly from the plant speciﬁcations.

However, efﬁciency and robustness can hardly be

simultaneously fulﬁlled, especially in critical sys-

tems, where the system dynamics is difﬁcult to un-

derstand and to control.

Therefore a possible approach for approximate a

correct solution, can be to start by synthesizing a very

efﬁcient or even optimal controller and - as a second

step - to make it robust. (Observe, however, that in

case safety is involved, a better approach could be to

choose the best controller in the class of the safe ones

(Lygeros et al., 1999)).

To this aim, in this paper we describe an automatic

methodology composed by:

1. a procedure for the synthesis of an optimal con-

troller;

2. a procedure for the transformation of the optimal

26

Della Penna G., Magazzeni D., Tofani A., Intrigila B., Melatti I. and Tronci E. (2006).

AUTOMATIC GENERATION OF OPTIMAL CONTROLLERS THROUGH MODEL CHECKING TECHNIQUES.

In Proceedings of the Third International Conference on Informatics in Control, Automation and Robotics, pages 26-33

DOI: 10.5220/0001217900260033

Copyright

c

SciTePress

controller into a robust one;

Our methodology exploits explicit model checking

in an innovative way w.r.t the approaches adopted so

far, especially in the AI planning area. In particular,

the ﬁrst procedure - looking for an optimal solution -

actually can also be considered as a planner. Indeed,

this procedure does not simply individuate a good lo-

cal move, but searches for the best possible sequence

of actions to bring the plant to the setpoint. There-

fore, it can be also used as a planner, though we will

not pursue this point in the paper.

2 CONTROLLER SYNTHESIS

TECHNIQUES

In this section we recall some basic notions about

controller synthesis and describe the main results pre-

sented in this ﬁeld by the recent research.

2.1 Controller Synthesis

There are a number of well-established techniques for

the synthesis of controller. For short, we mention only

three of them:

1. PID controllers;

2. fuzzy controllers;

3. dynamic programming techniques.

As it well-known (

˚

Astrom K.J, 2005), PID-based

techniques are very effective for linear systems, while

they badly perform w.r.t. non-linear ones. On the con-

trary our technique is able to cope with such systems,

as shown in the case study.

Fuzzy control is well known as a powerful tech-

nique for designing and realizing control systems, es-

pecially suitable when a mathematical model is lack-

ing or is too complex to allow an analytical treatment

(Li and Gupta, 1995; Jin, 2003). However fuzzy rules

correspond to local actions, so that, in general, they

do not result in an optimal controller. Moreover there

are situations where local actions are not viable at all,

and rather a kind of planning is required. For an ex-

ample of such a situation see the case study.

Dynamic programming techniques are very suit-

able for the generation of optimal controllers (Bert-

sekas, 2005; Sniedovich, 1992). Although our

methodology has a dynamic programming ﬂavor, it

can cope with (and it is especially suitable for) very

rough plant descriptions, whose mathematical deﬁni-

tion cannot be adapted to the dynamic programming

preconditions, when the cost function cannot be de-

composed or the system dynamics function cannot be

inverted. Again, see the case study, where a backward

decomposition of the cost function (in this case, the

length of the path) is hard to perform, due to the com-

plexity of the system dynamics function and to the

presence of obstacles. Indeed, we performed a direct

systematic analysis of the trajectories, using model

checking techniques to support the required compu-

tational effort.

3 OPTIMAL CONTROLLER

GENERATION THROUGH

MODEL CHECKING

Our objective is to build an optimal controller for a

system (or plant) S which, at every state, has a lim-

ited number of allowed actions. Moreover, we sup-

pose that S starts at a given interesting initial state s

0

,

and that the ﬁnal goal is to bring S in a goal state

(however, we can easily generalize to the case with n

initial states). We recall that our optimality criterion

is essentially the time optimality: that is, we want to

bring S in a goal state in the smallest possible number

of steps.

Thus, our controller has to be able to decide, for

every state of S which is reachable from s

0

, which is

the action that brings to the nearest (w.r.t. the num-

ber of steps) goal state. The optimality of the action

chosen implies the optimality of the generated con-

troller. Note that forcing the controller to consider

all the states reachable from s

0

, instead of controlling

only the states in the unique optimal path from s

0

to

a goal state, allows us to handle the cases in which a

bad move is made as a consequence of a given action.

In order to build such a controller, we consider the

transition graph G of S, where the nodes are the

reachable states and a transition between two nodes

models an allowed action between the corresponding

states. In this setting, the problem of designing the op-

timal controller reduces to ﬁnding the minimum path

in G between each state and the nearest goal state.

Unfortunately a transition graph for complex, real-

world systems could be often huge, due to the well-

known state explosion problem. Thus it is likely that

G would not ﬁt into the available RAM memory,

and then the minimum path ﬁnding process could be

highly time-consuming.

However, Model Checking techniques (Burch et al.,

1992; Holzmann, 2003; Dill et al., 1992) developed

in the last decades have shown to be able to deal with

very huge state spaces. Thus, our idea is to reuse such

model checking algorithms, reshaping them to be a

controller generator. Note that in this paper we focus

on protocol-based hybrid systems, so we use model

checking techniques based on an on-the-ﬂy explicit

enumeration of the system under analysis, since for

such kind of systems these algorithms often outper-

form the symbolic ones (Hu et al., 1994).

AUTOMATIC GENERATION OF OPTIMAL CONTROLLERS THROUGH MODEL CHECKING TECHNIQUES

27

More in detail, in our technique we have two

phases, which we describe in the following.

3.1 Optimal Raw Controller

Synthesis Phase

In the ﬁrst phase, an explicit model checking algo-

rithm is used, which performs a Depth First (DF) visit

of all the reachable states of S, starting from s

0

. As

usual, a hash table HT is used in order to store al-

ready visited states. Moreover, the stack holds, to-

gether with states, also the next action to be explored.

However, the DF visit is enriched in order to gen-

erate the controller C. To this aim, HT also stores, for

each visited state, a ﬂag toGoal, initially set to 0.

When a goal state g is reached, then the states in the

current path from s

0

to g (that is to say, the states cur-

rently on the stack) will have this ﬂag set to 1, as soon

as the visit backtracks to them. This is to signify that

such states indeed reach a goal, and may be put in C –

together with the action taken and the number of steps

they need to reach the goal itself. In this way, when a

state s with the toGoal ﬂag set to 1 is reached, then

we can analogously set the toGoal ﬂag on all the

states currently on the stack, and put them on C.

However, this scheme may fail in the following

case. Suppose that a cycle s

1

r

1

. . . r

h

s

2

t

1

. . . t

k

s

1

is

found, were s

1

and s

2

are on the stack. When analyz-

ing t

k

, the toGoal ﬂag of s

1

is not set to 1, since we

have not backtracked from s

2

yet. However, the visit

is truncated, since s

1

is already visited, thus t

k

will

not be inserted in C (unless it was already present, or

it reaches a goal through another path which does not

intersect the stack).

To avoid this, a predecessor table PT is maintained

for each state which is visited again while it is on the

stack. We have that PT stores all the paths leading

from a state on the stack and another state previously

on the stack. Thus, in the situation described above,

the path r

1

. . . r

h

s

2

t

1

. . . t

k

is added to the predeces-

sor table of s

1

. Thus, when the DF visit of s

1

is ﬁn-

ished, all the states in its predecessor table are added

on C by using a backward visit, provided that s

1

in-

deed reaches a goal.

Finally, in order to preserve optimality, each inser-

tion on C is effectively performed only if the number

of steps to be inserted is less than the already stored

one.

3.2 Controller Strengthening Phase

The second phase of our approach performs a

strengthening of the controller C generated by the ﬁrst

phase. In fact, C only contains an optimal plan that

can be used to drive S from s

0

to the goal. That is,

C does not take into account any state outside the op-

timal plan. The ﬁnal controller should be aware of

a larger set of states: indeed, the dynamics of S can

be very complex, and a particular setting of the con-

trol variables may not always drive S to the expected

state. That is, all the state variables usually have a

speciﬁc tolerance, and the reactions to controls are

subject to these tolerances. For this reason, we refer

to the controller C output by the ﬁrst phase as a raw

controller.

Therefore, to ensure the robustness of the con-

troller, in the second strengthening phase we explore a

larger number of states obtained by randomly perturb-

ing the raw controller states. That is, for each state s

in the raw controller table C, we apply a set of small

random changes, bounded by the state variables toler-

ances, and obtain a new state s

′

. Then, from each new

state s

′

, we start a breadth ﬁrst visit of the state space

of S stopping as soon as we reach a state s

′′

that is

already in C. The path from s

′

to s

′′

is stored in C and

the process is restarted.

After some iterations of this process, we have that

C is now able to drive S from any reasonable system

state to the nearest state of the optimal controller and,

from there, reach a goal. That is, C is now our ﬁnal

optimal controller.

4 THE CONTROLLER

GENERATION PROCESS

The CGMurϕ tool is an extended version of the

CMurϕ (Cached Murphi Web Page, 2006; Della

Penna et al., 2004) model checker. It is based on an

explicit enumeration of the state space, originally de-

veloped to verify protocol-like systems. We choose

CMurϕ as a base to develop our controller generator

since it already implements the most common state

space compression techniques, such as bit compres-

sion (Murphi Web Page, 2004) and hash compaction

(Stern and Dill, 1998; Stern and Dill, 1995), use-

ful to decrease the memory requirements of the con-

troller generation process when dealing with large-

dimensional control systems. In particular, when bit

compression is enabled, CMurϕ saves memory by

using every bit of the state descriptor, the memory

structure maintaining the state variables, instead of

aligning the state variables on byte boundaries (this

saves on average 300% of memory). When using hash

compaction, compressed values, also called state sig-

natures, are used to remember visited states instead

of full state descriptors. The compression ratio can

be set to obtain an arbitrary state site (CMurϕ default

is 40 bits), but is lossy, so there is a certain probabil-

ity that some states will have the same signature after

compression.

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

28

Moreover, the CMurϕ code is very easy to mod-

ify: indeed, in order to generate controllers for com-

plex and hybrid systems we added to CGMurϕ some

important extensions, i.e., ﬁnite precision real num-

bers handling (to model systems with continuous vari-

ables) and external linking to C/C++ functions (to

easily model the most complex aspects of the plant, or

even interface the model with a complete plant simu-

lator).

The behavioral part of the plant is modeled in

CGMurϕ through a collection of guarded transition

rules, whereas the goal construct is used to deﬁne

the goal properties, that is “normal” or “safe” states

of the plant, i.e. the states that the controller should to

bring (or maintain) the plant to.

In the following sections we describe the controller

generation algorithm that is the core of CGMurϕ.

In particular, ﬁrst we show the data structures used,

then we illustrate the procedure for the synthesis and

strengthening of the controller table.

4.1 Data Structures

The controller generation algorithm of CGMurϕ uses

the following data structures:

• the stack ST contains pairs (s, r), where s is a state

and r is the index of last transition (i.e., CMurϕ

rule) ﬁred from s.

• each slot of the hash table HT contains a (visited)

state and two special ﬂags: the toGoal ﬂag indi-

cates that a goal can be reached from this state in

one or more steps (transitions), whereas the inPT

ﬂag is true if the state has been saved in the prede-

cessors table.

• the predecessors table PT is an hash table storing

(s, l) pairs where s is a state on the DFS branch

being currently explored, and l is the list of paths

leading from an initial state to s. Each step of the

path contains a state and the action that leads to that

state from the previous step.

• the ﬁnal transitions list FL stores paths to visited

states (similarly to the predecessors table) that are

discovered when such states are outside the current

DFS branch. These paths are merged with the ones

in the predecessors table to compute the shortest

path to the corresponding states at the end of the

state space exploration.

• the controller table CTRL contains, for each

reachable system state s that leads (in one or more

steps) to a goal, a pair < r, c > indicating that the

shortest path leading from s to a goal state has c

steps, where the ﬁrst step is the action given by rule

r.

4.2 Optimal Raw Controller

Synthesis Algorithm

DFS(state p) { //p is the start state

//initialization (start state)

if (isGoal(p)) return;

stack_push(ST,(p,first_enabled_rule(p)));

hashtable_store(HT,p);

HT[p].toGoal = false; HT[p].inPT = false;

//main DFS loop

while (!stack_empty()) {

(p,r) = stack_top(ST);

if (r is not null) {

s = apply_rule(p,r);

stack_top(ST) = (p,next_enabled_rule(p,r));

if (Insert(s,p,r)) UpdatePaths(s,p,r)

} else { //r is null, no more rules for p

UpdatePathsPt(p); stack_pop(ST);

}} //while

UpdatePathsFl();

}

Figure 1: Extended CGMurϕ Depth First Search.

The optimal raw controller synthesis algorithm, as

shown in Fig. 1, consists of an extended depth-ﬁrst

visit of the plant state space. As in a standard DF

visit, each state s to be visited is generated by ap-

plying a particular rule r to the current state p. In

Fig. 1, function first

enabled rule(p)returns

the ﬁrst rule that can be applied on a particular state p,

whereas function next enabled rule(p,r) re-

turns the next rule that can be applied on p after rule

r. Both functions return null if such transition does

not exist.

In addition, during the DF visit our algorithm up-

dates the controller table when a goal is encountered

(in function Insert), when an already visited state

is encountered (in function UpdatePaths), when

all the children of a state have been explored (in func-

tion UpdatePathsPt()) and when the state space

exploration ends (in function UpdatePathsFl).

The function Insert, given a new state s reached

from state p by ﬁring rule r, checks if s is a goal state

and, if so, it creates an entry in the controller table

for the state p using the rule r. When s is not a goal,

Insert behaves as in a standard DFS: if s is non

visited the function pushes it on the stack and stores

it in the hash table; otherwise, the function simply

returns true to indicate that s is a visited state.

Fig. 2 shows the details of function

UpdatePaths that is called when the DFS

reaches an already visited state s by applying a rule r

on a state p. In this case, we may have to update the

controller table CTRL:

• if s reaches a goal, then also p does. Thus, if p

is not in the controller table, we insert it together

AUTOMATIC GENERATION OF OPTIMAL CONTROLLERS THROUGH MODEL CHECKING TECHNIQUES

29

UpdatePaths(state s, state p, rule r) {

if (HT[s].toGoal==true) {

if (p is not in CTRL or CTRL[p].count >= CTRL

[s].count+1) {

HT[p].toGoal = true; CTRL[p].rule = r;

CTRL[p].count = CTRL[s].count+1;

}} else if (s is on the stack ST) {

//s may reach a goal

foreach ((p’,r’) on the stack ST) {

save (p’,r’) in PT[s]; HT[p’].inPT = true;

}} else if (HT[s].inPT == true) {

//s was on the stack

insert (p,r,s) in FL;

}}

Figure 2: Function UpdatePaths.

with r. Otherwise, if p is already present in the

controller table, we update its rule with r if the goal

path through s is shorter than the path previously

set for p in the controller table. This update ensures

the optimality of generated controller.

• if s is in the stack, then it may still reach a goal.

Thus we remember all the states on the path leading

to s that is represented by the current stack content

by saving them in the predecessors table PT.

• ﬁnally, if s is in the predecessors table, but not on

the stack, we save it in the ﬁnal list FL, together

with its parent p and the transition r. This informa-

tion will be later used to resolve cyclic paths in the

predecessor table.

The function UpdatePathsPt is called when a

state s has been completely expanded by the DFS al-

gorithm. If s reached a goal, then for each state p in

the predecessors table of s, we add to CTRL a rule

that allows p to reach the goal through s.

Finally, the function UpdatePathsFl, called at

the end of the visit, completes the controller table by

adding rules for states in the ﬁnal list FL. This is sim-

ilar to what is done by UpdatePathsPt, but is ap-

plied at the end of the state space exploration and on a

separate set of states. Such states belong to intersect-

ing paths of the transition graph, so their shortest path

to the goal can be computed only when all the goal

paths have been generated.

4.3 Controller Strengthening

Algorithm

The controller strengthening is implemented by

the exploreNeighborhood function shown in

Fig. 3. For each state p in the controller table,

the function generates MAX

VARS PER STATE vari-

ations by applying small changes to the state vari-

ables. Then, the algorithm checks if each of the new

ExploreNeighborhood() {

repeat {

complete = true;

foreach (p in CTRL)

for vars = 1 to MAX_VARS_PER_STATE {

s = add_random_variations_to(p);

if (s is not in CTRL) {

complete = false;

//get a path from s to a state in CTRL

path = BFS_lookup(s,CTRL);

//store new path in CTRL

foreach ((s’, r’) in path)

CTRL[s’].rule = r’;

}}} until (complete)

}

Figure 3: Function exploreNeighborhood.

states is in turn in the controller table. If any gen-

erated state s is not yet handled by the controller,

the function performs a BFS search from s until it

reaches a controlled state, and inserts the path from s

to such state in CT RL. The process is repeated until

all the generated variations are found in CTRL. At

this point, CT RL knows how to drive the plant on the

optimal plan and how to bring the plant on the nearest

optimal plan state from a reasonable number of states

outside the optimal plan.

5 TRUCK-AND-TRAILER

OBSTACLES AVOIDING

CONTROLLER

To show the effectiveness of our approach, we show

how it can be applied to the truck and trailer with ob-

stacles avoidance problem.

The goal of a truck and trailer controller is to back a

truck with a trailer up to a parking place starting from

any initial position in the parking lot. This is a non

trivial problem due to the dynamics of the truck-trailer

pair (see the mathematical model in section 5.1).

Moreover, we added to the parking lot some ob-

stacles, which have to be avoided by the truck while

maneuvering to reach the parking place. In this set-

ting, also ﬁnding a suitable maneuver to reach the

goal for any starting position may be an hard task.

On the other hand, ﬁnding an optimal maneuver is a

very complex problem, that cannot be modeled and

resolved using common mathematical or program-

ming strategies, e.g., using a dynamic programming

approach.

Indeed, in the truck-and-trailer-with-obstacles

problem, a backward decomposition of the cost func-

tion (e.g., the length of the path) is hard to perform,

due to the complexity of the system dynamics func-

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

30

tion and to the presence of obstacles, whereas a for-

ward decomposition does not satisfy the optimality

principle, since the presence of obstacles may make

an optimal local maneuver not optimal w.r.t. the ﬁnal

goal. This also makes fuzzy controllers not suitable

for this problem, since fuzzy rules have a local char-

acter.

In the following sections we give details of the

truck and trailer model and show the results ob-

tained by applying the controller generation process

described in section 3 to perform a systematic analy-

sis of the truck trajectories, discretized as a sequence

of forward steps.

5.1 Model Description

θ

s

θ

c

u

(x, y)

x

y

·

·

·

·

·

·

·

·

·

·

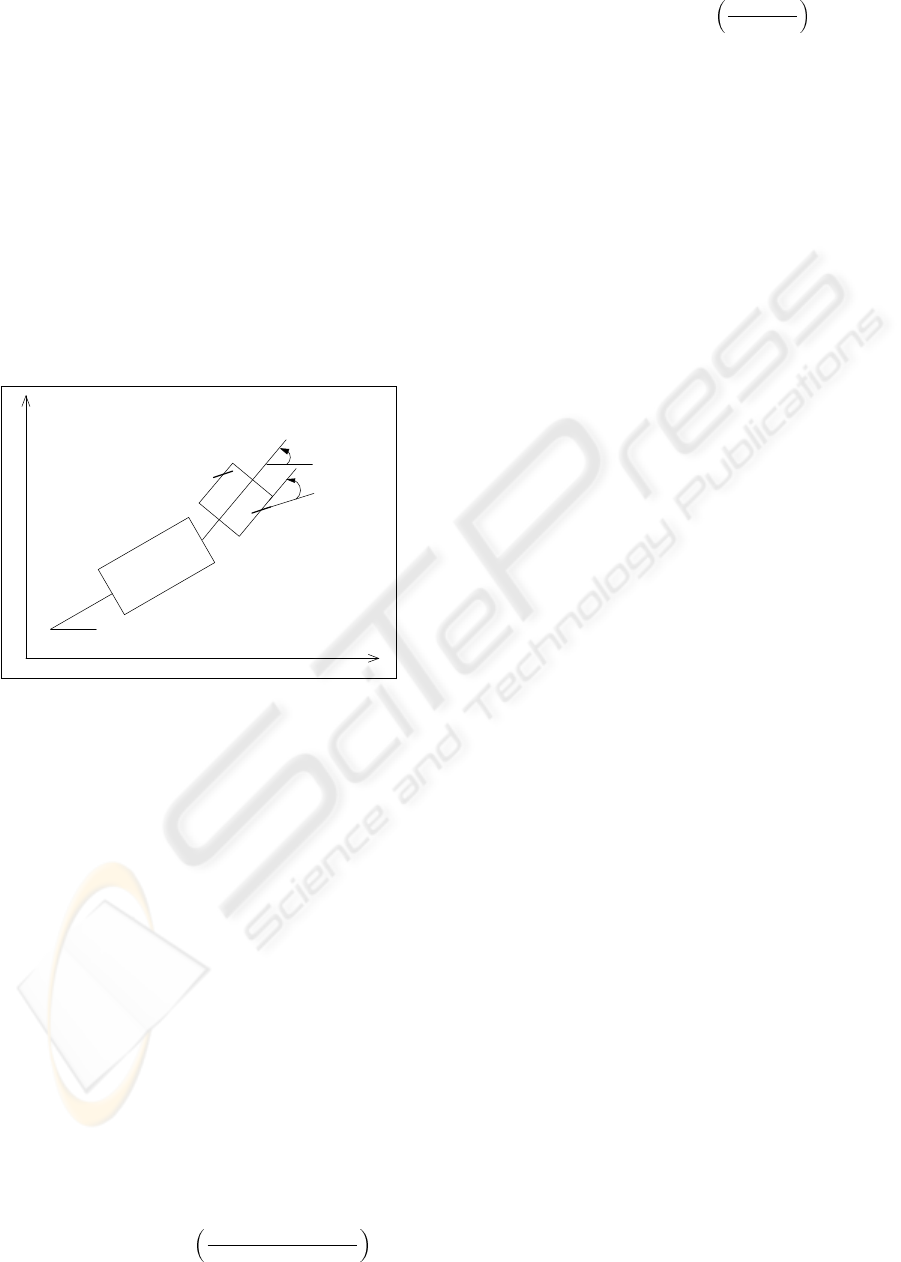

Figure 4: Truck and Trailer System Description.

Our model of the truck and trailer is based on the

set of equations presented in (Nguyen and Widrow,

1989). The system has four state variables, that

is the coordinates of the center rear of the trailer

(x, y ∈ [0, 50]), the angle of the trailer w.r.t. the x-

axis (θ

S

∈ [−90

◦

, 270

◦

]) and the angle of the cab

w.r.t the x-axis (θ

C

∈ [−90

◦

, 270

◦

]). We assume

that the truck moves backward with constant speed

of 2m/s, so the only control variable is the steering

angle u ∈ [−70

◦

, 70

◦

]. Fig. 4 shows a schematic view

of the truck and trailer system with its state and con-

trol variable. Moreover we single out 10 points in the

truck and trailer border (displayed in the Figure 4 by

bold points) representative of the truck and trailer po-

sition.

If the values of the state variables at time t are x[t],

y[t], θ

S

[t] and θ

C

[t], and the steering angle is u , then

the new values of state variables at time t + 1 are de-

termined by following equations:

x[t + 1] = x[t] − B ∗ cos(θ

S

[t]) (1)

y [t + 1] = y[t] − B ∗ sin(θ

S

[t]) (2)

θ

S

[t + 1] = θ

S

[t] − arcsin

A ∗ sin(θ

C

[t] − θ

S

[t])

L

S

(3)

θ

C

[t + 1] = θ

C

[t] + arcsin

r ∗ sin(u)

L

S

+ L

C

(4)

where A = r ∗ cos(u), B = A ∗ cos(θ

C

[t] −θ

S

[t]),

r = 1 is the truck movement length per time step,

L

S

= 4 and L

C

= 2 are the length of the trailer and

cab, respectively (all the measures are in meters).

After computing equations (3) and (4), the new

value of θ

C

is adjusted to respect the jackknife con-

straint: |θ

S

− θ

C

| ≤ 90

◦

.

Note that this model does not consider the obsta-

cles: indeed, embedding the obstacle avoidance in the

mathematical description of the truck and trailer dy-

namics would result in a untractable set of equations.

This feature will be added directly in the CGMurϕ

model described below.

5.2 The CGMurϕ Model

In the CGMurϕ model we use real values to repre-

sent the state variables x and y, whilst for the angle

values (i.e., θ

S

, θ

C

and u) it is sufﬁcient, w.r.t. the

system dimensions, to use integer values. Moreover,

we deﬁne some tolerance constants to set up a range

of admissible ﬁnal positions and angles for the center

rear of the trailer. These tolerances are used to deﬁne

the CGMurϕ goal property.

To embed the obstacles in the model, we approxi-

mate them through their bounding rectangles (or rec-

tangle compositions). Then we consider the repre-

sentative points of the truck-trailer position (deﬁned

above, see Section 5.1) and, each time a new truck

position is computed, we use a function to check if

any of these points has hit the parking lot obstacles or

borders. Therefore, our controller synthesis algorithm

considers only feasible maneuvers to the goal state.

Moreover, in order to obtain a more robust con-

troller we also considered the maneuvering errors due

to the truck-trailer complex dynamic properties (e.g.,

friction, brakes response time, etc.) that cannot be

easily embedded in the mathematic model. We used

such errors to draw a security border around each ob-

stacle and used these augmented obstacles in the col-

lision check described above.

To estimate maximum maneuvering error we ap-

plied a Monte Carlo’s method described as follows.

We consider a large set of valid parking lot positions

S = {s

k

|1 ≤ k ≤ 500000}. Given a position s

k

∈ S,

(1) we apply a random maneuver m

k

obtaining the

new position ¯s

k

. Then (2) we randomly perturb s

k

generating the position s

p

k

and apply the same maneu-

ver m

k

on s

p

k

obtaining the position ¯s

p

k

. Finally, (3)

we compute the distance of the selected truck points

P

i

between the positions s

p

k

and ¯s

p

k

. This process is

repeated 200 times for each position in S, thus analyz-

ing 100 millions of perturbations. The security border

size is the highest distance measured for a point in the

step (3). We found out that this distance is 0.98m.

AUTOMATIC GENERATION OF OPTIMAL CONTROLLERS THROUGH MODEL CHECKING TECHNIQUES

31

5.3 Experimental Results

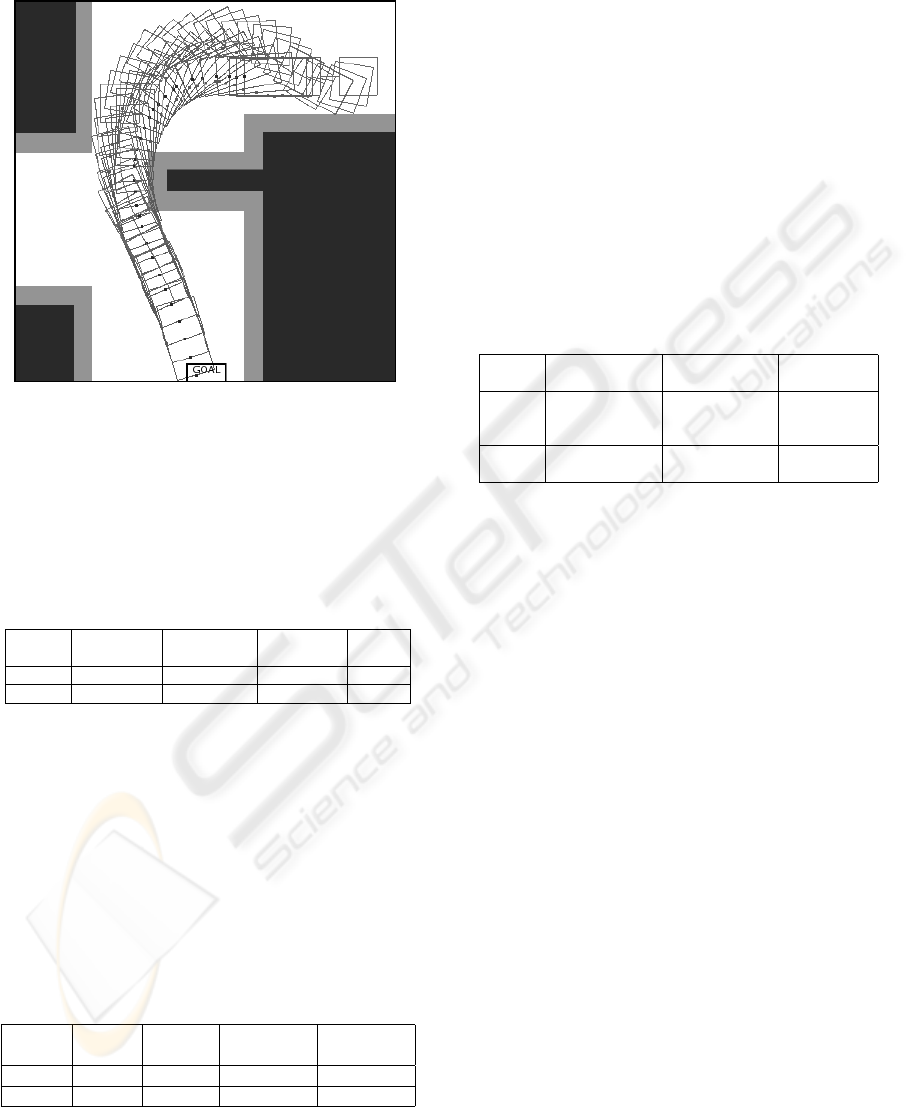

Figure 5: Optimal trajectory generated by CGMurϕ from

initial position x = 12, y = 16, θ

s

= 0, θ

c

= 0.

We tested our methodology using several obstacles

topologies. In this section we present the results rel-

ative to the map shown in Fig. 5 where the obstacles

and the security borders are highlighted.

Table 1: Experimental results for optimal raw controller

synthesis.

Round Reachable Rules Trans. in Time

States Fired Controller Sec

0.5m 2233997 64785913 382262 8160

0.2m 12227989 354611681 1749586 32847

Table 1 shows the results of the ﬁrst phase of our al-

gorithm (see Section 4.2). We repeated the controller

generation using two different approximations for the

real state variables x and y, rounding them to 0.5 and

0.2 meters.

Indeed, an higher precision extends the reachable

state space and, consequently, the number of transi-

tions in the controller. The results in Table 1 show

that we are able to deal with system having millions

of states.

Table 2: Experimental results for controller strengthening.

Round MAX Trans. Trans. in Size of

VARS Added Controller Controller

0.5m 36 257850 640112 14Mb

0.2m 36 646364 2395950 50Mb

In the second phase, we reﬁned the controller by

applying 36 disturbs to each state in the controller ta-

ble and ﬁnding the appropriate rules to reconnect each

new state to the optimal controller paths, as described

in Section 4.3. As shown in Table 2, in this phase a

signiﬁcant number of transitions is added, due to the

complexity of the truck-trailer dynamics.

5.3.1 Controller Robustness

In order to check the controller robustness, we consid-

ered all the trajectories starting from each state in the

controller. For each trajectory state s, we applied a

random disturbance on the state variables, generating

a possibly new state s

p

, and then we applied to s

p

the

rule associated to controller state s

′

that is nearest to

s

p

. A trajectory is robust if, applying the disturbances

above, it eventually reaches the goal state.

Table 3: Check of Controller Robustness.

Round Disturb Range Disturb Range Robust

for x,y for θ

s

,θ

c

Trajectories

0.5m ±0.25m ±1

◦

40%

±0.125m ±0.5

◦

45%

±0.0625m ±0.25

◦

57%

0.2m ±0.1m ±1

◦

74%

±0.05m ±0.5

◦

88%

We checked all trajectories by applying different

disturb ranges. As shown in Table 3, the fraction of

robust trajectories increases with the controller preci-

sion (i.e., the real values approximation). Note that

the percentages of robust trajectories in the second

round are completely satisfying considering:

• the optimality of the trajectories;

• the extreme complexity of this parking problem;

• the unavailability of correction maneuvers.

6 CONCLUSIONS

The controller tables generated through our method-

ology contain millions of state-rule pairs. Thus, if

we are working with small embedded systems, the ta-

ble size could be a potential issue. This problem can

be mitigated by applying various compression tech-

niques on the table.

A completely different solution that we are also ex-

perimenting is the generation of hybrid controllers,

that are optimal controllers working in parallel with

e.g. a fuzzy controller. In this case, the optimal con-

troller ensures the execution of the optimal plans (i.e.,

it is the optimal raw controller generated in Section

4.2), whereas the fuzzy controller is able to bring the

system back to the optimal plans from any state out-

side the optimal raw controller. Thus, the fuzzy con-

troller substitutes the extended knowledge generated

ICINCO 2006 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

32

by the algorithm in Section 4.3 with a set of inference

rules. These rules may be in turn generated by an iter-

ative learning process driven by an algorithm similar

to the one of Section 4.3.

REFERENCES

˚

Astrom K.J, H. T. (2005). PID controllers - Theory, Design,

and Tuning. International Society for Measurement

and Con; 2nd edition.

Bertsekas, D. P. (2005). Dynamic Programming and Opti-

mal Control. Athena Scientiﬁc.

Burch, J. R., Clarke, E. M., McMillan, K. L., Dill, D. L.,

and Hwang, L. J. (1992). Symbolic model checking:

10

20

states and beyond. Inf. Comput., 98(2):142–170.

Cached Murphi Web Page (2006).

http://www.dsi.uniroma1.it/∼tronci/

cached.murphi.html.

Della Penna, G., Intrigila, B., Melatti, I., Tronci, E., and

Venturini Zilli, M. (2004). Exploiting transition local-

ity in automatic veriﬁcation of ﬁnite state concurrent

systems. STTT, 6(4):320–341.

Dill, D. L., Drexler, A. J., Hu, A. J., and Yang, C. H. (1992).

Protocol veriﬁcation as a hardware design aid. In Pro-

ceedings of the 1991 IEEE International Conference

on Computer Design on VLSI in Computer & Proces-

sors, pages 522–525. IEEE Computer Society.

Holzmann, G. J. (2003). The SPIN Model Checker.

Addison-Wesley.

Hu, A. J., York, G., and Dill, D. L. (1994). New tech-

niques for efﬁcient veriﬁcation with implicitly con-

joined bdds. In DAC ’94: Proceedings of the 31st

annual conference on Design automation, pages 276–

282, New York, NY, USA. ACM Press.

Jin, J. (2003). Advanced Fuzzy Systems Design and Appli-

cations. Physica-Verlag.

Kautz, H., Thomas, W., and Vardi, M. Y. (2006). 05241 ex-

ecutive summary – synthesis and planning. In Kautz,

H., Thomas, W., and Vardi, M. Y., editors, Synthe-

sis and Planning, number 05241 in Dagstuhl Seminar

Proceedings.

Li, H. and Gupta, M. (1995). Fuzzy Logic and Intelligent

Systems. Kluwer Academic Publishers.

Lygeros, J., Tomlin, C., and Sastry, S. (1999). Controllers

for reachability speciﬁcations for hybrid systems.

Murphi Web Page (2004). Murphi Web Page:

http://sprout.stanford.edu/dill/murphi.html.

Nguyen, D. and Widrow, B. (1989). The truck backer-

upper: an example of self learning in neural networks.

In In Proceeding of IJCNN., volume 2, pages 357–

363.

Sniedovich, M. (1992). Dynamic Programming. Marcel

Dekker.

Stern, U. and Dill, D. (1998). Using magnetic disk instead

of main memory in the murϕ veriﬁer. In Hu, A. J. and

Vardi, M. Y., editors, Computer Aided Veriﬁcation,

10th International Conference, CAV ’98, Vancouver,

BC, Canada, June 28 - July 2, 1998, Proceedings,

volume 1427 of Lecture Notes in Computer Science,

pages 172–183. Springer.

Stern, U. and Dill, D. L. (1995). Improved probabilis-

tic veriﬁcation by hash compaction. In CHARME

’95: Proceedings of the IFIP WG 10.5 Advanced Re-

search Working Conference on Correct Hardware De-

sign and Veriﬁcation Methods, pages 206–224, Lon-

don, UK. Springer-Verlag.

AUTOMATIC GENERATION OF OPTIMAL CONTROLLERS THROUGH MODEL CHECKING TECHNIQUES

33
