MANET - Auto Configuration with Distributed

Certification Authority models Considering Routing

Protocols Usage

Robson de Oliveira Albuquerque, Maíra Hanashiro, Rafael Timoteo de Sousa Junior,

Claudia J. B. Abbas

Universidade de Brasília - Campus Universitário Darcy Ribeiro - Faculdade de Tecnologia -

Depto de Engenharia Elétrica e Redes de Comunicação - Laboratório de Redes - sala B1 - CEP:

70910-900 - Brasília - DF – Brazil

Luis Javier Garcia Villalba

Universidad Complutense de Madrid (UCM) - Departamento de Sistemas Informáticos y

Programación (DSIP) - Facultad de Informática, Despacho 431- C/ Profesor José García

Santesmases s/n - Ciudad Universitaria - 28040 Madrid - Spain

Abstract. In this paper, we discuss about certification, authentication, auto

configuration and routing for mobile ad hoc networks (MANETs). The proposal

is based on the works of [1] and [3]. We describe distributed certification, MAE

authentication, auto configuration process and routing protocols. Then, we

show some problems of these models and we propose some solutions

considering routing and others protocol modifications.

1 Introduction

Wireless networks are defined as computers networks that are connected to its work

area through wireless links, such as radios frequencies and infrared rays. Wireless

local area networks (WLAN) arised with the main purpose to overcome the

limitations imposed by traditional wired networks, thus permitting faster network

installations and mobility.

According to 802.11 [4] standard, established by the IEEE board founded in 1990,

WLAN can be sorted in independent networks (Ad Hoc) and access point dependent.

In an infrastructured WLAN (based in access point) all communication among

mobile nodes (MN) goes through mobile support stations (MSS) and usually it is

directly connected to a wired network. In this situation MN cannot communicate

among each other directly.

In Ad Hoc WLAN, refered as Mobile Ad Hoc NETwork (MANET) by IETF, MN

can communicate with each other because there is no MSS. In this kind of networks,

de Oliveira Albuquerque R., Hanashiro M., Timoteo de Sousa Junior R., J. B. Abbas C. and Javier Garcia Villalba L. (2005).

MANET - Auto Conﬁguration with Distributed Certiﬁcation Authority models Considering Routing Protocols Usage.

In Proceedings of the 3rd International Workshop on Security in Information Systems, pages 57-66

DOI: 10.5220/0002578800570066

 SciTePress

MN does not require any physical infrastructure and nodes can move freely because

there is no central communication point.

Ad Hoc WLAN are mostly used in situations where it cannot or does not make

any sense, install a fixed wired network, such as disaster situations, hurricanes,

earthquakes, where rescue teams needs coordination and communication. Soldiers in

a battlefield exchanging tactical information, businessman receiving information in

business meetings, students using laptops in classrooms. In a near future, Ad Hoc

networks shall have an important paper in wearable computers interconnection, sort

of future computer that can be attached to human body, for example, a computer

jacket.

An Ad Hoc WLAN can operate isolated or it can be an extension of some wired

network already installed, which, in this case, needs a communication gateway to

connect each other.

As advantages of MANET it has quickly installation (can be installed in areas

with no previous infrastructure because it needs no fixed base to route messages),

fault tolerant (any malfunction or disconnection of a station can be easily solved with

dynamic reconfiguring of the network), connectivity (if two stations are inside the

same area where there is reach of radio waves, there is a communication channel),

mobility and others.

Based in RFC 2501 [5], some characteristics and fragilities are important in these

networks. These characteristics and fragilities are related to dynamic topologies,

restricted bandwidth and variable links capacity, power save consumption operation

and limited physical security.

Due to these problems, MANET needs proper specifications related to

certification, authentication, configuration and routing.

In this paper some proposals related to certification and auto configuration with

routing considerations are presented and fundamented in [1] and [2] developed work.

Besides that, some problems are emphasized and possible solutions are shown as

considerations and possible solutions related to auto configuration and distributed

Certification Authority (CA).

2 MANET routing protocols

Routing protocols are responsible for finding, establishing and keeping routes

between MN that wishes to communicate. It is very important that routing protocols

in MANET creates very few messages as possible, avoiding network overhead and

thus not consuming network bandwidth. These factors are directly connected with the

velocity that network routes are established and the frequency that they are updated.

Different techniques were developed creating protocols that can create and establish

routes faster than others. Others can consume less bandwidth but takes more time to

establish a specific route.

According to IETF MANET workgroup (IEEE, 2004), there is a desirable quality

list that routing protocols are required to supply with: (a) distributed operation, (b) no

routing loops, (c) under demand operations, (d) pro-active operation, (e) security, (f)

inactivity period operation and (g) unidirectional link support.

Basically MANET routing protocols can be classified as reactive and pro-active.

Pro-active are routing protocols that keep information about routes to every MN in the

network. Reactive protocols only create a route when it is requested by origin node.

Four routing protocols are specified by IETF with drafts RFC: (a) TBRPF [6], (b)

OLSR [7], (c) AODV [8] and (d) DSR [9]. Where (a) and (b) are considered pro-

active routing protocols and (c) and (d) are considered as reactive routing protocols.

Topology Dissemination Based on Reverse-Path Forwarding (TBRPF) creates per

hop routing by the shortest path for each destination. Each MN running TBRPF

generates a topology information tree based in information topology that is saved in a

topology table. To minimize network processing, each MN reports only a few portion

of is topology table to neighbor MN. TBRFP uses different combinations and

periodical updates to keep every MN informed about its own topology tree. To reach

and keep robustness in highly mobile environments in the protocol, each MN can

send additional information (complete topology tree) to its neighbors.

Differentiated HELLO messages are used to neighbor discovery that contains only

information about neighbor change. This modified message results in shorter

messages based in link state algorithm.

TBRPF can be divided into two main modules. The first module is called

“neighbor discovery” and the second is called “routing” which does the topology

discovery and computes the routes to every destination.

Optimized Link State Routing Protocol (OLSR) has as key concept the use of

multipoint relays (MPRs). MPRs are MN selected to forward broadcast messages in

the routing protocol flooding mechanism. MPRs are spread throughout MANET to

provide every MN the partial information about the necessary topology that computes

the best route to every MN in the network. MPRs combined with local duplicity

avoidance are used to minimize the number of control packets that should be sent in

the network.

OLSR is projected to work in high scalable networks where traffic is sporadic and

randomly among specifics MN. As a pro-active protocol, it is also adequate to

scenarios where pairs of MN changes very often, but no additional control packet is

generated in the network since the routes are kept and known by all possible

destination.

Ad hoc On-Demand Distance Vector Routing (AODV) is based in Destination-

Sequenced Distance Vector Routing Algorithm (DSDV) protocol. In general AOADV

tries to cut off the need of broadcast routing messages, which limits its own

scalability. Another important AODV point is that it tries to minimize the latency

when new routes are required.

AODV is classified as distance-vector algorithm and is considered as a reactive

protocol because only one route is created if it is necessary. In general, AODV tries to

eliminate the broadcast routing messages flooding, which limits its own scalability.

AODV also tries to minimize latency when new routes are requested. It functions is

similar to traditional algorithms what can facilitate the interconnection with wired

networks. Even though working very closed to traditional protocols, AODV allows

multicast and unicast traffic, however the protocol shows only one route to every

destination what cannot be a good characteristic.

Dynamic Source Routing (DSR) is a simple and efficient routing protocol

designed to multi-hop MANET with up to 200 MN and supports high mobility rates.

It allows the network to organize and auto configure itself without the network

infrastructure administration.

DSR is divided into two main modules: “routing discovery” and “routing

maintenance” that work together to permit that MN discover and keep updated routes.

All aspects of the protocol work under demand, thus not sending periodical messages

to routing exchange information. This characteristic of the protocol allows low

network bandwidth consumption and power saving.

DSR also permit multiple routes to a specific destination and that every sender

selects and control the used routes to forward its packets. Other advantage of the

protocol is that is provides loop-free routing information, supports unidirectional links

and fast convergence when the network topology changes.

3 MANET routing protocols

To avoid malfunction in MANET it is necessary security in message routing. Besides

in [3, 4] and [11] an authentication service for routing protocols is proposed, where

Manet Authentication Extension (MAE) is used and attached to every message in the

routing protocol. All necessary information to authentication are included in MAE.

The main focus of the proposed model was to keep the routing packets and its

messages unchanged. MAE format is shown in Fig. 1.

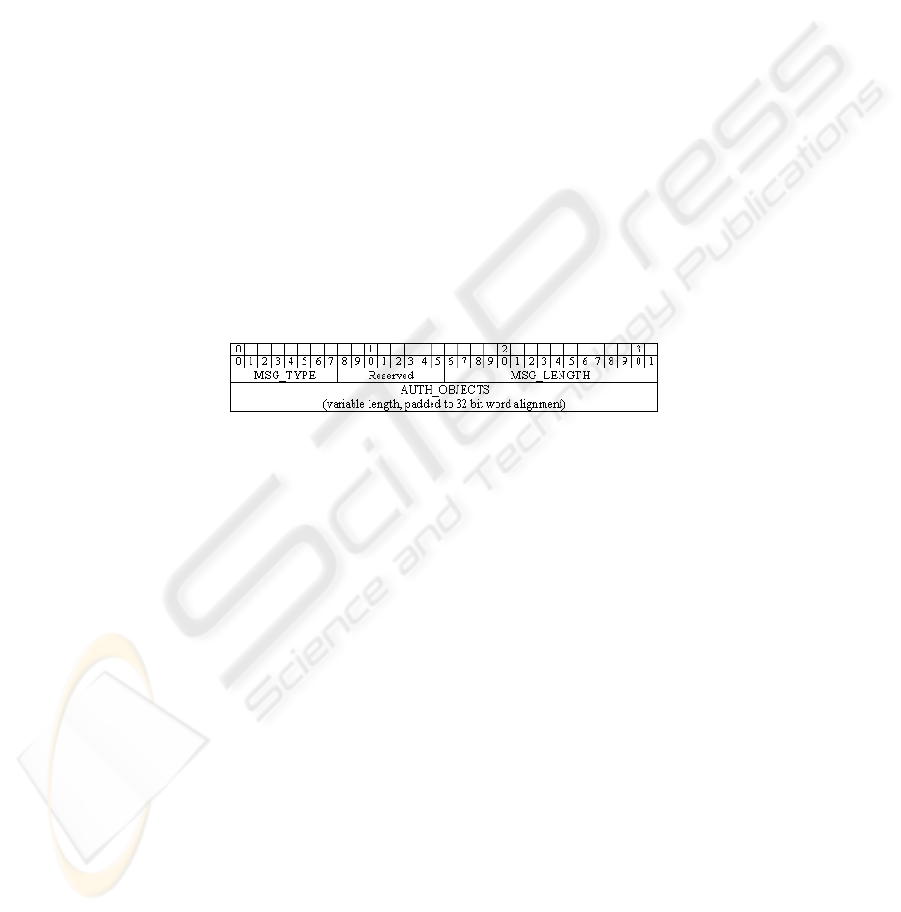

Fig. 1. Mae Syntax

MSG_TYPE field is used to differentiate MAE messages from other routing

protocol messages. MSG_LENGTH field indicates the size of MAE in bytes and

AUTH_OBJECTS has the objects that have authentication information.

4 Distributed Certification

In MANET, due to its characteristics, is heavily not recommended any centralized

service. In [12], [13] and [1] approach a distributed certification model is proposed.

The model proposed uses threshold cryptography theory and pro-active secret key

update based in Shamir [14] schema.

In the system point of view, the whole architecture is fully distributed and the

service is localized using a coalition approach and the cryptographic system is fully

based in RSA model.

It is considered a MANET where every NM

has a personal RSA key pair

},{

pksk

, where

>=<

iii

ndsk ,

is the private key and

>=<

iii

nepk ,

is the

public key that are used in point-to-point transactions.

A Certification Authority (CA) has a key pair

},{ PKSK

, where

>=< ndSK ,

is used to sign all MN certificates. Any certificate in this approach can be verified by

the system public key

, that is know by ever MN in the network.

According to threshold cryptography,

is divided in the network. Every MN

, besides its own key pair, has the partial key

. Any subgroup

MN can

work as a CA. However it is not possible to any MN to know

, but in the system

initialization.

Threshold cryptography is indicated in MANET due to some of its proprieties: (a)

the distribution and decentralized control of the keys fits the profile of Ad Hoc

networks, (b) security omnipresence is guaranteed since the secret is fully distributed

in the network and

intrusion detection is more practical and efficient, (c) the limit

is the balance between the service availability and intrusion tolerance. In other words,

a group of adversaries need to destroy

)1( +− kn

partial key holders to bring the

system down (once it would block one auto configuration) and at least break

partial

keys to steal

secret.

System is initialization is a very careful step to

choosing. As lower the

value

the greater the facility of break

secret. In other hand the greater the value of

the higher the system security, which reduces fault tolerance at the same time. After

all, the most close

is from

, the probability of

)1( +− kn

MN leaving the network

raises, which would forbid the service.

Certificates generated by a CA formed by a subgroup of

MN have the finality

of certificate, as in a normal cryptographic system, the public key of every MN.

Therefore, every MN has its own

cert

certificate that must be signed by

, in

iresignii

TTpkv

exp

,,,

format, where

is the MN identifier,

is its public

key,

sign

is the signature date and

ire

exp

is the expiration certificate date.

To control the certificate validity are used to methods: (a) Implicit certificate

revocation that defines that every MN must renew its certificate at least ever period

renew

where

renewsignire

TTT +≤

exp

, (b) explicit certificate revocation where a

certificate is assumed by Certificate Revocation List (CRL) is not valid anymore even

its

ire

exp

is valid. This implies directly that only revoked certificates that did not

expire must be in CRL.

This model was implemented in [1] which involves only subgroups,

size, of

partial key holders. The basic operations include: (a) secret key negotiation, where the

secret key can be obtained by on MN with the system initialization or with the auto

configuration service. In the first case, both keys and certificates are distributed to

MN by a central negotiator before MANET formation. In the second case, an auto

initialization algorithm where

MN can provide a partial key to new MN in the

network, (b) the secret key update, instead of changing the system key from time to

time, only changes the partial key with the main purpose of protecting the secret key

from being broken. The system supports until

1−k

partial secret breaks because

is obtained with

keys. If in a update situation there is less than

discovered keys,

is protected and does not need to be changed, (c) the certification service permits,

that when a MN requests using the certification service, one subgroup of

(coalition) partial secret key holders is created and every MN

generates a partial

signed certificate to the requesting MN. MN then generates its certificate by grouping

received certificates that represents a signed certificate from

. This service

includes emission, renovation and revocation of certificates, besides, even before the

MANET formation, a security policy for each step should be defined.

5 Auto Configuration

A MN to communicate in a network must have a unique identifier, usually the IP

address. However, in MANET the topology changes dynamically thus creating a

difficult environment for centralized administration that can distribute IP address or

any other identifier. This situation leads to a distributed, dynamically and automatic

service.

Together with security and routing protocols, auto configuration provides a

service that can became MANET more efficient and robust. Even though there are

many approaches related to auto configuration, none has been standardized.

In [14] is proposed an auto configuration model that uses message authentication

considering the distributed CA model in [12, 13] and [1]. In [2] approach a protocol

for auto configuration is developed considering a distributed CA, which avoids that

any intruder MN can produce messages or even change the messages already created

with the purpose to break the protocol or get the service unavailable. To reach this

situation in MANET, according to [2], the MN where already configured with a valid

certificate before they can request and join the auto configuration service.

Therefore to a MN request an IP address or even respond to MN client

solicitation, MN must have a valid certificate. The authentication service of the auto

configuration mechanism is supplied by MAE, which has all the necessary

information to guarantee authenticity, integrity, non-repudiation in all MAE protected

messages.

MAE used for the proposed auto configuration model is the same proposed to

protect the routing messages in MANET routing protocols.

As referenced before MAE has authentication objects which includes Digital

Signature (DS) that is mandatory and authenticate all non-mutable fields of auto

configuration messages. MAE should have one more object, that can be the

certificate. The message sender must use DS with its private key because the

certificate that goes with MAE has the sender public key that can be used to certify

the message sender. If the MN certificate is not locally available, MAE can have a

CERT object, which carries with the message the certificate that created and signed

MAE. Additional objects are used to provide additional services that are beyond the

protocol auto configuration approach.

Every NM that is valid and trustable belonging to MANET has an IP address

identifying its interfaces and a subset of free IP address (FIA) to offer to MN clients

that wishes do associate to the network.

Inside an individual MANET, A MN FIA must be distinguished from others MN

FIA thus avoiding that the same IP address can be distributed by more than one MN,

besides that, every MANET has a unique identifier defined as partition ID (PID),

which, in this situation permits that to MN that has the same PID are in the same

MANET. PID also helps distinguishing different MANET in a specific area and also

helps different MANET to be brought together.

Dynamic Configuration Distribution Protocol (DCDP) is used to distribute

network configuration information such as IP address, network mask and default

gateway, which uses binary division to provide to MN different IP address in the

network. Binary division assures that all MN receives distinguished IP address, thus

avoiding IP address conflicts even in a MANET join situation.

In [2] to obtain and associate an IP address the MN must have received its valid

certificate. When a MN wishes to join a MANET so it can obtain an IP address, it

sends an ADDR_REQ message in broadcast using its MAC address as source address.

Any MN belonging to the MANET answers the message with ADDR_REP that

contains FIA with the biggest free IP quantity because a MN can have more than one

FIA with different quantities. The MN can receive more than one answer from

different other MN and then selects the MN that has the biggest FIA sending a

SERVER_POOL message directly to the chosen MN server, discarding all other

received messages.

The SERVER_POOL message confirms the MN intention of getting an IP

address. The elected MN server then divides its FIA, sending one half to the MN that

requested it and keeping the other half so it can answer future requests. The MN that

received the FIA throughout IP_ASSIGNED message assigns the free IP address in

its own FIA. The first IP address the MN uses for itself associating it with its interface

and using all the rest as FIA to answers MN client requests.

If a MN has more than on FIA, for security and implementation facility reasons,

the MN must mark in which FIA is its own address. The process is finished using an

IP_ASSIGNEMENT_OK message to the server MN.

6 Related problems and proposed solutions

In [1] a MANET distributed CA was created and implemented. The proposed model

relies in

size. This implies directly that

MN must be reached so a MN can have

its certificate signed. If

MN are not reached, the MN cannot join MANET because

it cannot sign its certificate. A routing protocol should then be used to reach

thus permitting the certificate signature.

Another problem related to

is that it has a fixed value that is defined

considering a relative size so that

cannot have a big value (close to the total

amount of MN in the MANET) and neither very short size (related to the quantity of

MN in MANET). However the size of MANET is highly variable thus implying that

an adequate defined

value may become inadequate considering that a MN can

leave or join the MANET at anytime.

An initial solution is that

may vary in function of the size of the percentage of

the network, but alter

is important define maximum and minimum values (both

related to a percentage of the size of the network) of MN in function of the security

necessity of the network and these values should be monitored as the quantity of MN

in the MANET raise or reduce, thus implying directly that if a minimum or a

maximum value is overpast is necessary a redefinition of

. According to the

analyses of the results obtained in [1], the value of

can be defined as an average of

the maximum and the minimum size.

Considering that

may vary from time to time, the model needs improvements in

the CRL because the number of revoked certificates would be much bigger because

the certificates are fully dependent on

. At this point we have the relation that the

most

varies the most will be the emission of revoked certificates and the most will

be the emission and requests of new certificates. This generates more traffic in the

network and thus forcing the MN to process new certificates raising power

consumption. Besides the variation of

, as MN enter and leaves the network, the

certificates are automatically revoked but new certificates needs a new CA

initialization. But according to [1] the process of CA initialization is centralized,

contradicting the MANET’s necessity.

In [1] model approach, to solve out this problem here presented is necessary the

creation of a model of distributed CA initialization that implies in new mathematical

models to the generation of a distributed key.

In other hand if

MN has to be reached, these MN can be reached using routing

protocols to the signature of a previous requested certificate. This problems requires

that a MN can work as a proxy, asking in the MN’s name that others

1−k

MN sign

the certificate request. Considering that the proxy MN already has a valid

configuration in the network related to IP address it could request the certificate to be

signed using routing measures if

1−k

could not be reached for itself.

Another approach considers that it could be used a temporary IP address to request

the certificate signature. This implies that a topology change is required because of

the temporary IP chosen by the MN. To solve out this problem a range of IP network

address (even in CIDR) could be allocated and announced in the network informing

that if a MN wishes to sign a certificate so it can join MANET, it then should use an

IP address range reserved to that finality.

Considering this situation OLSR could be used as routing protocols because of its

pro-active characteristic, besides the information messages to the reserved IP range

could be announced by MPRs. A time-to-live (TTL) should be limited to 2 or 3 hops

because is highly probable that

1−k

nodes could be reached by routing. Another

consideration is that it would limit the traffic related to certification signatures.

Another point is that any pro-active routing protocol could be used in this situation

because the routing information would be easily created because the IP range would

be well-known in the network.

In [2] the distributed CA approach implemented in [1] was used and the routing

considerations where not applied limiting the reach of the auto configuration model

proposed. This returns to the considered approach pointed herein because in

(BUIATI, 2004) is assumed that the MN already has a valid signed certificate. So the

proposed solution to [1] can be easily applied in [2].

Another problem in [2] is that the auto configuration model relies in that every

message sent in the network is broadcast messages. This process makes the proposed

auto configuration model not scalable because in huge MANET the amount of

messages would increase significantly creating problems related to unnecessary

bandwidth consumption and increasing power consumption by the MN.

To solve out this specific problem the protocol should be changed so that only the

first message is broadcasted to reach all close MN. In this message the MAC address

of the MN goes with the frame. As the MN server receives the sender MAC address

the other messages in the communication process can be done in the unicast approach

thus avoiding the flooding of the network.

7 Conclusions

MANET is increasing highly but some problems should be fixed out due to its

characteristics. Related problems about auto configuration, routing measures,

distributed CA are increasing as MANET standards are developed.

The approach studied in this paper is related to the problems found in [1] and [2]

and the proposed solutions considering routing and others protocol modifications so

both models can be more heavily developed and studied.

In [1] approach the proposed solution relies in static

, but in MANET the

number o MN cannot be easily predicted. In other hand

is defined considering

increases or reduces,

cannot vary because the whole process needs an

initialization to secret key creation that is centralized. This approach was not

considered in the implemented model and thus pointed herein to future researches in

this subject. The initial proposed solution is based in new idea that relies in a fully

distributed CA initialization approach so

can vary according to the necessity of

MANET. It is important to say that this model should be heavily studied to validate

the proposed solution.

In [1] the routing measures to reach

is not considered because it assumes that

are close of the requesting MN, which in MANET may not be true due to its

mobility. An initial proposed solution considers that routing protocols can be used as

proxy to reach

MN in order to produce a signed certificate.

In [2] the model is based in broadcasts messages during the whole auto

configuration process. This paper proposes that the protocol should be changed in

order to avoid unnecessary bandwidth consumption and thus avoiding power

consumption. Once the first message is sent the MAC address of the sender can be

easily obtained and the consequent communication process can be done using unicast

approach.

Both [1] and [2] are heavily fundamented and very well work were developed

permitting that new approaches and researches could be conducted using both

proposed models in order to allow secure auto configuration and distributed CA in

MANET.

References

1. SILVEIRA, F. AND HANASHIRO, M., Serviços de Certificação para Redes Móveis Ad

Hoc. UnB, Brazil, 2003.

2. BUIATI, F.M., Protocolo Seguro para Autoconfiguração de Endereços de Redes Móveis Ad

Hoc, UnB, Brazil, 2004.

3. PUTTINI, R.S., ME, L., e SOUZA, R. T. de, Certification and Authentication for Securing

MANET Routing Protocols.

4. IEEE Standard 802.11, Wireless LAN media access control (MAC) and physical layer (PHY)

specifications, First edition, 1999-08-20

5. CORSON, S. e MARKER, J., Mobile ad hoc networking (MANET): Routing protocol

performance issues and evaluation consideration. RFC 2501 (informational), IETF, 1999.

6. OGIER, R., LEWIS, M., TEMPLIN, F. e BELLUR, B., Topology Dissemination Based on

Reverse-Path Forwarding (TBRPF), INTERNET DRAFT, MANET working group, <draft-

ietf-manet-tbrpf-06.txt>, November 2002.

7. CLAUSEN, T. e JACQUET, P. Optimized Link State Routing Protocol, IETF Internet Draft,

MANET working group, version 11, Jul. 2003.

8. PERKINS,C. E., ROYER, E. M. e DAS, S. R.. Ad hoc on-demand distance vector (AODV)

routing. IETF INTERNET DRAFT, MANET working group, Jan. 2002.

draftietfmanetaodv10.txt.

9. JOHNSON, D. B. et al, The dynamic source routing protocol for mobile ad hoc networks

(DSR), INTERNET DRAFT, MANET working group, < draft-ietf-manet-dsr-07.txt>, Feb.

2002.

10. PUTTINI, R.S., ME, L., e SOUZA, R. T. de, An Authentication Protocol to MANET.

11. BUIATI, F.M., PUTTINI, R.S. e SOUZA, R.T.J. de, Secure Autoconfiguration for Móbile

Ad Hoc, 2nd International Information and telecommunication Technologies Symposium

I2TS 2003.

12. LUO, H. AND LU, S. Ubiquitous and Robust Authentication Services for Ad Hoc Wireless

Networks. Technical Report TR-200030, Dept. of Computer Science, UCLA, 2000.

13. KONG, J., ZERFOS, P., LUO, H., LU, S. AND ZHANG, L., Providing robust and

ubiquitous security support for MANET, IEEE ICNP 2001, 2001.

14. SHAMIR, A. How to Share a Secret. Communications of the ACM, 22(11):612-613, 1979.
