THREAT-DRIVEN ARCHITECTURAL DESIGN OF SECURE

INFORMATION SYSTEMS

Joshua Pauli

College of Business and Information Systems, Dakota State University, Madison, SD 57042, USA

Dianxiang Xu

Department of Computer Science, North Dakota State University, Fargo, ND58105, USA

Keywords: Software architecture, Security, Threat model, Use case, Misuse case, UML.

Abstract: To deal with software security issues in the early s

tages of system development, this paper presents a threat-

driven approach to the architectural design and analysis of secure information systems. In this approach, we

model security threats to systems with misuse cases and mitigation requirements with mitigation use cases

at the requirements analysis phase. Then we drive system architecture design (including the identification of

architectural components and their connections) by use cases, misuse cases, and mitigation use cases.

According to the misuse case-based threat model, we analyze whether or not a candidate architecture is

resistant to the identified security threats and what constraints must be imposed on the choices of system

implementation. This provides a smooth transition from requirements specification to high-level design and

greatly improves the traceability of security concerns in high assurance information systems. We

demonstrate our approach through a case study on a security-intensive payroll information system.

1 INTRODUCTION

Software security has been critical to information

assurance. Software security issues in information

systems are traditionally handled in an ad hoc or

afterthought (e.g. ‘penetrate-and-patch’), manner.

This offers little support for validation of desired

security properties due to the lack of a rigorous

process for security requirements analysis and

secure software design. In particular, design-level

vulnerabilities are a major source of security risks in

code. For example, design-level problems accounted

for around 50% of the security problems uncovered

during the Microsoft's "security push" in 2002

(Hoglund, 2004).

To address software risks at the design level, the

threat m

odeling approach centers around

determining and ranking the threats to the system

based on the decomposition of application or an

available architecture design, followed by choosing

techniques for mitigating and responding to the

threats. Since security threats, modeled by attack

trees, often involve much detail of implementation

techniques, it is not clear how the threat model can

be traced back to the application-specific security

requirements. In fact, the current threat modeling

approach does not provide any explicit way for the

elicitation and analysis of security requirements.

Misuse cases, i.e. negative scenarios or use cases

with

hostile intent, appear to be a new avenue to

elicit security requirements (Alexander, 2002, 2003;

Sindre, 2001a, 2001b; McDermott, 1999, 2001;

Firesmith, 2003). Use case modeling is a proven

method for the elicitation of, communication about,

and documentation of functional requirements

(Jacobson, 1994; Bittner, 2003). The integral

development of use cases and misuse cases provides

a systematic way for the elicitation of various

system requirements, both functional and non-

functional (Alexander, 2003). A critical issue is how

misuse case based security requirements

specification can further facilitate the design and

implementation of software systems where security

is a major concern. To our knowledge, no work has

been done to meet this challenge.

This paper presents an approach to bridging the

gap

between misuse case based security

requirements and high-level architecture design. On

one hand, we treat identification of security threats

136

Pauli J. and Xu D. (2005).

THREAT-DRIVEN ARCHITECTURAL DESIGN OF SECURE INFORMATION SYSTEMS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 136-143

DOI: 10.5220/0002549501360143

 SciTePress

as part of requirements elicitation and model them

with misuse cases. UML sequence diagrams (UML

2.0) are exploited to describe the decision-making

process an attacker would go through to compromise

or misuse the system. On the other hand, we drive

architecture design by dealing with the identified

security threats in the process of application

decomposition (as apposed to determining and

mitigating security threats after the decomposition in

the threat modeling approach). According to the

security threats modeled by misuse cases, we

evaluate whether or not a proposed candidate

architecture is able to resistant to the security threats

and what constraints should be imposed on the

choices of implementation techniques in order to

mitigate the threats. The treatment of security threats

in the earlier phases of system development can

reduce overall development cost due to the absence

of a variety of vulnerabilities. We also keep track of

the mapping between the use/misuse cases and the

architectural components. This makes it easier to

locate and fix security defects in later phases of

development. Moreover, since the software security

requirements are already taken into consideration in

the architecture design, the architecture specification

is an invaluable resource for detailed design,

implementation, and validation.

The rest of this paper is organized as follows.

Section 2 gives an overview of our approach.

Section 3 introduces the case study on a payroll

information system (PIS) and discusses the misuse

cases in PIS. Section 4 presents the design and

analysis of architectures for PIS. Section 5 reviews

related work. Section 6 concludes the paper.

2 THREAT-DRIVEN

ARCHITECTURAL DESIGN

Our approach places security as a primary system

goal as opposed to an afterthought or an add-on. It

starts by the elicitation of system requirements in

cases. The overall picture of the system

requirements is captured by use/misuse case

diagrams. Use cases as in (Jacobson, 1994) represent

the tasks that legitimate users perform during

“normal” usage of the system. Misuse cases depict

possible security threats that threaten the normal use

cases of the system. These are the threats that an

attacker may pose to the system to violate security

properties, such as confidentiality, privacy, and

availability. Mitigation use cases indicate the means

for mitigating corresponding misuse cases. Different

from existing work on misuse cases (Alexander,

2002, 2003; Sindre, 2001a, 2001b; McDermott,

1999, 2001), we also model the decision-making

process an attacker would go through to compromise

or misuse the system. UML 2.0 sequence diagrams

are used as a modeling tool for this purpose. The

modeling of attack processes is critical to evaluating

whether and to what extent a software architecture is

resistant to security threats.

Once the requirements are available, we

decompose the tasks into a list of fundamental

services that the system must produce. These

services are the basis for identifying components of

which a candidate software architecture will be

made. It is necessary to check for any overlapping

system tasks, though. If any are found, consolidate

the like tasks into one task that covers all the actions

of the consolidated tasks. Once a complete list of

unique system tasks are in place, identify each

system task as either direct (no changes needed to

the components involved) or indirect (changes

needed to the components involved). If a component

is indirect, then list the components affected and the

changes that need to be made. (Often times these

will be abstract in nature.) A candidate architecture

is formed by including the identified components

and configuring the connections among the

components. To support traceable design and

analysis, our approach uses a table to keep track of

the mapping between the use/misuse cases and the

components, as will be shown in Section 4. Given a

use case, for example, it is easy to know which

components realize the use case.

A candidate architecture is then evaluated

according to the security requirements. Specifically,

for each threat (i.e. misuse case), we check to see if

it can be prevented in the candidate architecture, and

if not, what constraints must be imposed on the

selection of implementation techniques to mitigate

the threat. Based on the evaluation of different

candidate architectures, we can take all the positive

aspects from each candidate and modify them to

make the components fit together into a

comprehensible model. An important factor to

include in this step is to supply the supporting

rational for the changes that were made.

The requirements elicitation and architecture

design in the approach is part of an iterative

development process. In addition, the security

threats modeled by the misuse cases can be rated in

terms of risks, as in the threat modeling approach

(Hoglund, 2004). When limited resources (e.g.

budget and time) are available, more attention can be

paid to mitigating the threats with higher risks. This

is beyond the scope of this paper.

THREAT-DRIVEN ARCHITECTURAL DESIGN OF SECURE INFORMATION SYSTEMS

137

3 MISUSE CASES IN PIS

This section introduces a payroll information system

that could be put in place at any company. We first

describe the basic functionality of PIS and then

discuss the use and misuse cases.

The PIS provides payroll services to every

employee that works for, and is paid by, the

company. The application server, database server,

and web server are responsible for applications,

database transactions, and web access, respectively.

The possible users of the system are administrators,

users, web developers, and auditors. Each employee

must have permissions set for the databases and data

warehouse that control what information each

employee is allowed to access. Also, each employee

will be assigned an access level by his or her

superior that restricts the areas of PIS that he or she

can enter. These two measures are an effort to

control the new information that each employee can

enter and to control the stored information that each

employee can retrieve.

Each employee has different tasks or use cases

that are completed during normal usage of the

system. For example, the tasks of a payroll

administrator include managing employee

information, completing administrative tasks,

generating reports, etc. For each task, we identify if

it is associated with security issues. In addition to

normal use cases, we also identify misuse cases and

mitigation use cases. Misuse cases are use cases with

hostile intent or threats to the normal use cases.

They essentially reflect various ways of violating

desirable security properties, including privacy,

confidentiality, availability, etc. Mitigation use cases

are the means for mitigating the corresponding

threats in order to achieve the security properties.

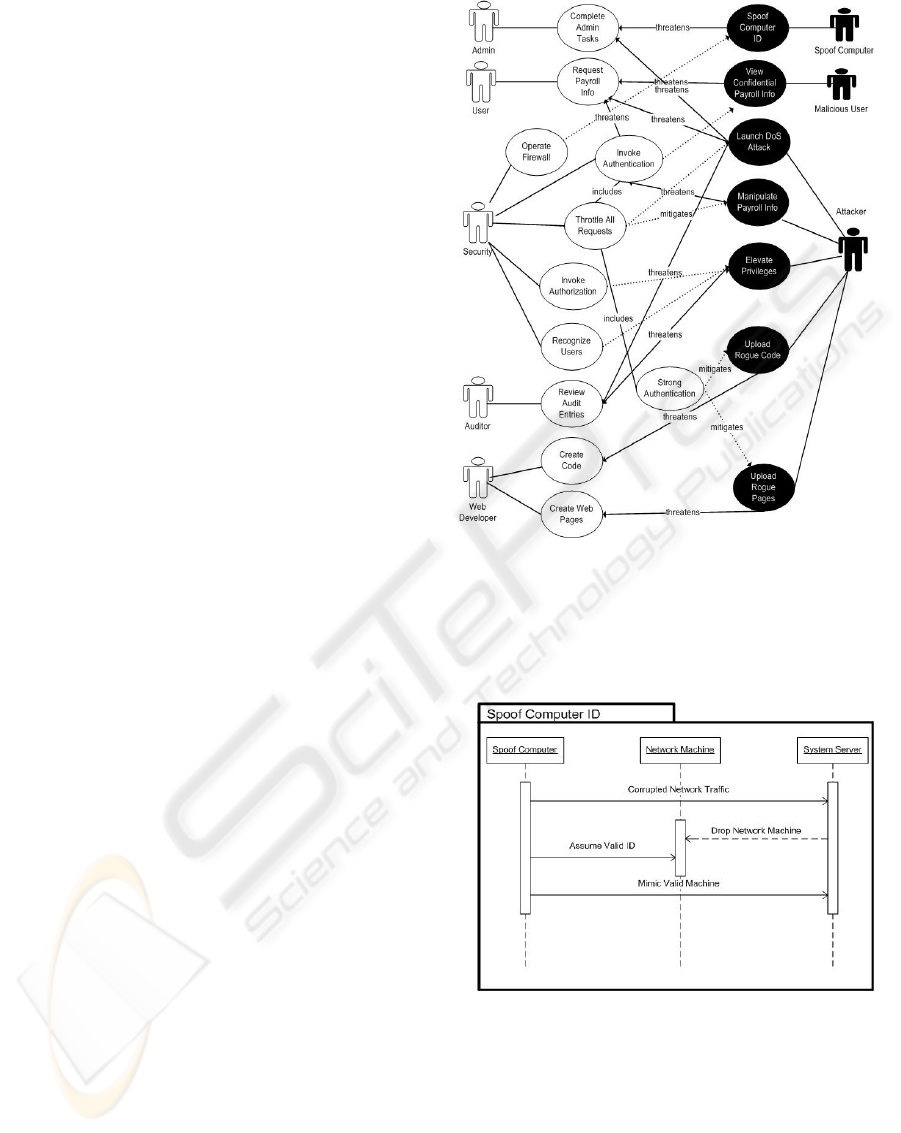

Figure 1: The use/misuse case diagram for PIS

We have identified the use cases, misuse cases,

and mitigation use cases for the PIS. Fig. 1 shows

the overall use/misuse case diagram. Each white

oval represents a use case; either a genuine use of

the system or a mitigation effort. The black ovals

represent misuse cases that are attempting to inflect

harm onto the PIS. They indicate various ways that

misusers would plan to harm the system and the data

within it. A use case connected to a misuse case with

a dashed arrow is a mitigation use case that mitigates

the corresponding threat. For the sake of clarity, the

‘mitigates’ relations are not labeled in the diagram.

We exploit UML sequence diagrams to model

the behaviors of use/misuse cases. In particular, the

sequence diagram of a misuse case describes the

decision making process an attacker or misusers may

go through to compromise or misuse the system. As

an example, Fig. 2 shows the sequence diagram for

the “Spoof Computer ID” misuse case. Each

rectangle across the top of the diagram represents a

business role that is related to the misuse case and

the arrows represent the sequence of actions that

take place between the roles during the execution of

the misuse case. ‘Spoof Computer’ is the computer

that is portraying a valid network computer

(‘Network Machine’), controlled by the misusers,

which is sending out corrupted network traffic in

hopes that the ‘System Server’ will deem it

necessary to simply drop the valid network computer

from the network to eliminate that traffic. Once the

‘Network Machine’ has been dropped by the

Figure 2: The sequence diagram for the misuse case

Spoof Computer ID

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

138

‘System Server’, the ‘Spoof Computer’ assumes the

identity of the dropped ‘Network Machine’.

Each use/misuse case also has a textual

description as in (Sindre, 2001b). Due to the limited

space, we will not elaborate on this.

4 ARCHITECTURE DESIGN AND

ANALYSIS OF PIS

Software design is in general a heuristic process.

Given the system requirements (use cases, misuse

cases, and mitigation use cases), there exist a variety

of possible architecture designs. For secure software

design, it is important to keep in mind not only the

fundamental services that the system must include,

but also those user actions that have a heavy security

influence. For the PIS case study, we have evaluated

three candidate architectures. Due to the limited

space, this section focuses on the design and

evaluation of one candidate architecture and then

describes the recommended architecture, together

with its associated security mechanisms and

constraints.

In general, we create candidate architectures

with the following requirements in mind. 1) The

architecture should include all the main actors from

the use cases and misuse cases. For the PIS, this

would naturally include ‘Administrator’, ‘User’,

‘Web Developer’, ‘Auditor’, etc. 2) The architecture

should include the use cases that the actors

complete. Not only the “normal” use cases such as

‘Complete Administrative Tasks’ and ‘Create Web

Pages’, but also the mitigating use cases such as

‘Invoke Authentication’ and ‘Recognize Users’ for

example.

According to use/misuse cases, a candidate

architecture is formed by including the functional

components and configuring the connections among

them. Fig. 3 shows the candidate architecture #1.

Any actual piece of hardware that had a definite

purpose in the system was classified as a component

such as the firewall and data storage. Also, a group

of related functionality was also classified as a

component such as Log-On Activities, Creating the

Web Site, and Administrative Tasks. Finally, the

core functionality of the system that needed to be

explored in more detail was also classified as

separate components such as Enter Information,

View Information, Request Audit, and Request

Information. While this component identification

process is informal in nature, it is sufficient to start

the process of proposing possible architectures that

meet the overall requirements of the PIS system.

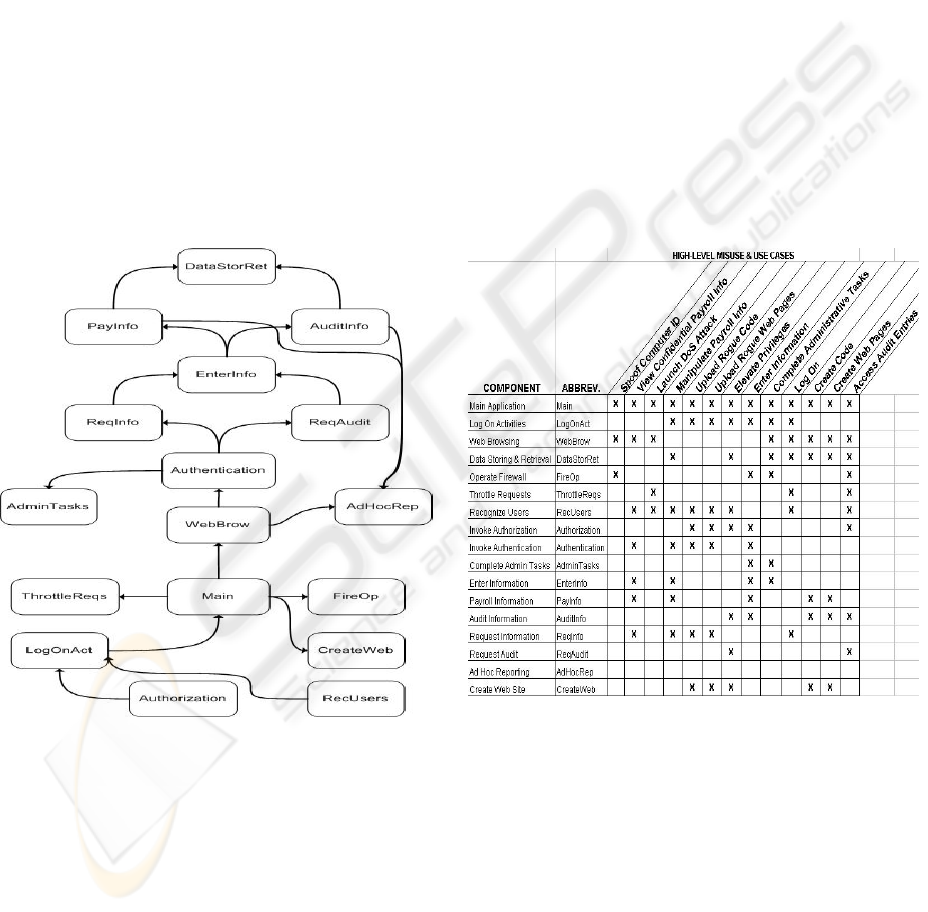

Figure 4: Components vs use/misuse cases for

architecture #1

Figure 3: The candidate architecture #1 for PIS

Fig. 4 depicts the relationship between

use/misuse cases and all the components that appear

in architecture #1. Each component is shown with an

“X” marking what use/misuse case that the

component would be part of.

To evaluate the candidate architecture, we check

to see how well it “fits” the misuse and use cases.

Before further analysis can be done, we need to do

some grouping of system tasks - a determination of

whether each use case or misuse case is direct or

THREAT-DRIVEN ARCHITECTURAL DESIGN OF SECURE INFORMATION SYSTEMS

139

indirect. A direct use case means that a normal

execution of the system will allow the use case or

misuse case to be completed successfully. An

indirect use case means that some change needs to

be made to the architecture in order for the use case

or misuse case to be completed successfully. From

the listing of changes that are needed to each

component, we can tell that certain components

obviously need more changes that others. Table 1

shows part of the tasks and needed changes.

Table 1: Tasks and needed changes

Task Direct/

Indirect

Needed Changes

Invoke

Authorization

Indirect Changes to ‘LogOnAct',

and ‘RecUsers’ to ensure

that the authorization

measures will not interfere

with logging onto the

system and will work with

the recognition of users.

Throttle

System

Requests

Indirect Changes to ‘Main’ to

ensure that the throttling

of system requests will not

interfere with normal

usage of the system.

Recognize

Users

Indirect Changes to ‘LogOnAct’,

‘Authorization’, ‘RecUser’

to ensure that the proper

measures are in place for

user recognition. i.e.

passwords,biometrics, etc)

Using the above idea, we may evaluate and

compare a number of candidate architectures. For

space reasons, we won’t elaborate on other

candidate architectures for the PIS. Here, we briefly

compare architecture #1 with another candidate

architecture (i.e. architecture #2) we have evaluated.

Architecture #2 was much more generic in numerous

components. For example, where #1 had individual

components of ‘ReqInfo’, ‘ReqAudit’, ‘EnterInfo’,

‘PayInfo’, and ‘AuditInfo’, architecture #2 simply

had the components of ‘PayInfo’ and ‘AuditInfo’.

The two latter components would have included all

the functionality of the previous five components.

Because of the vast amount of functionality involved

in the use cases dealing with all audit and payroll

information, it was determined that the final

architecture should include individual components

as stated in the first proposed architecture. Inversely,

architecture #2 proposed the components of

‘HashAuthen’, ‘FormAuthen’, and ‘ACL’ to replace

the ‘Authentication’ component in the first proposal.

These are a few examples of the differences between

the two proposed architectures for PIS. These

differences can be fully seen in the final

architectural recommendation.

Based on the evaluation and comparison of

different candidate architectures, we can recommend

one with the best fit. Obviously, this is a process that

would include many different levels of stakeholders

of the system. In reality, most systems’ architecture

ends up being a combination of the positive points

illustrated by each architectural proposal. The goal

of selecting the architecture with the best fit should

be to extract those strengths and form a final

architecture that makes the most of these strengths.

At the same time, conserving the overall

functionality of the system must also be a very high

priority.

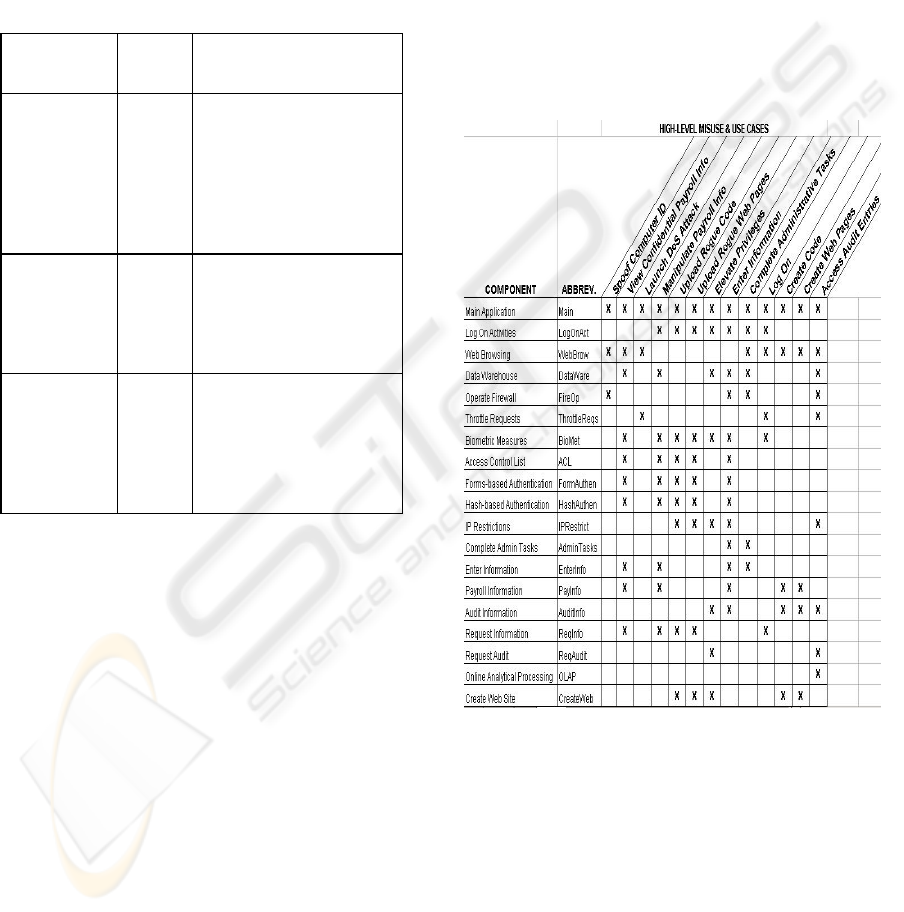

Figure 5: Component checklist of the recommended

architecture for PIS

Fig. 5 shows a recommended component

identification checklist that lists the components and

the use cases and misuse cases that they will interact

with. The architectural diagram to show how these

components are arranged and how they may interact

is unveiled in Fig. 6, which is a UML 2.0 class

(component) diagram with ports. The ports represent

how the components interact and how the

functionality within each component is utilized

during these interactions.

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

140

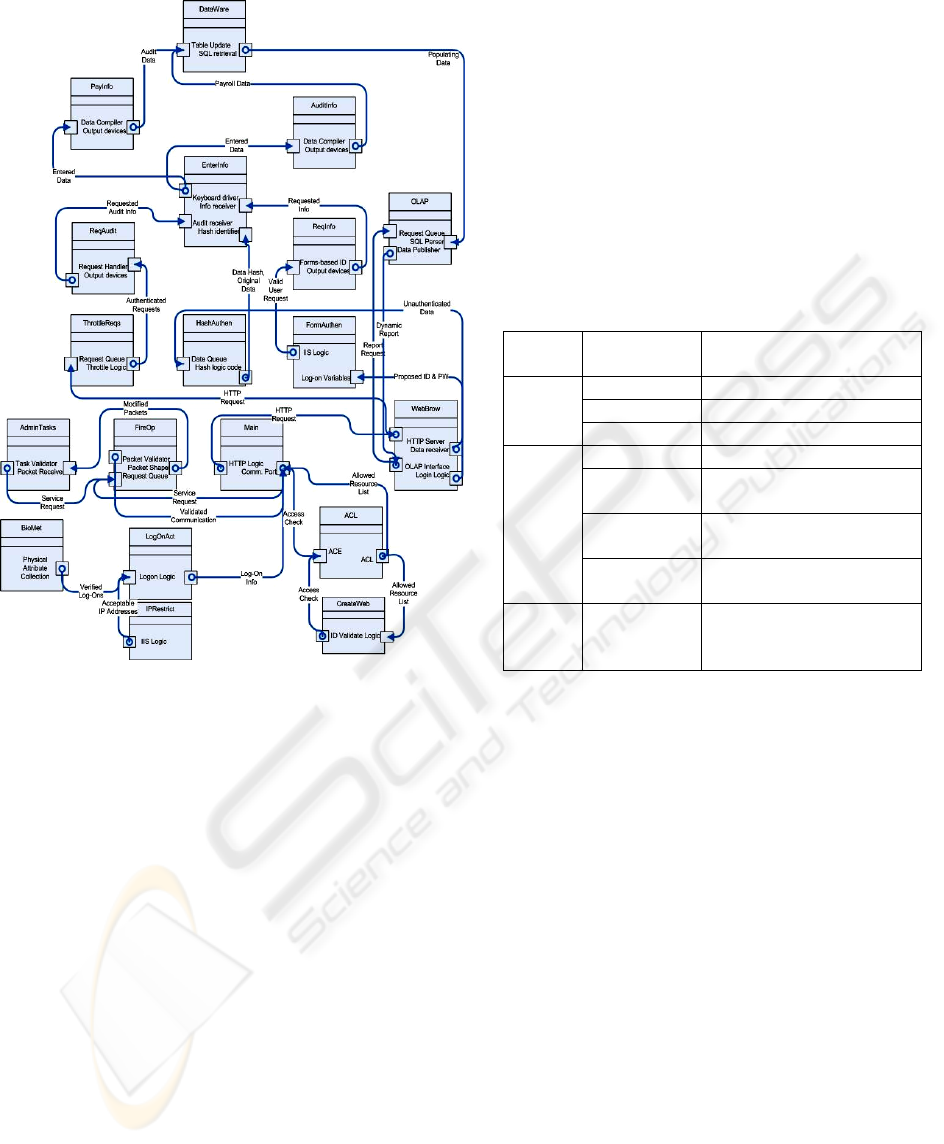

Figure 6: Recommended architecture for PIS

The recommended architecture includes

characteristics of each of the previous proposals in a

way that makes the overall architecture much

stronger and more efficient. For example, it is the

opinion of this case study that using ‘Biometric

Measures’ (from candidate #2) is superior to using

‘Recognize Users’ (from candidate #1), because it

identifies the exact manner in which this architecture

will provide that level of security. Another example

is to use ‘OLAP’ (from candidate #2) instead of

‘Ad-hoc Reporting’ (from candidate #1). Again,

‘OLAP’ is more definite than simply letting the PIS

have ‘Ad-hoc Reporting’ capabilities. Another

notable inclusion is that information pertaining to

payroll information, audit information, and

requesting that information were retained instead of

grouping all these components into more generic

versions. This made it easier to illustrate the

interaction between these components in a manner

that would be understandable. Other additions

include form-based and hash-based authentication,

and access control lists (ACL) for authorization

measure.

The recommended architecture can well protect

the system from the identified possible misuses.

Table 2 shows some components that are threatened

by the misuse cases as well as what components

mitigate the threats.

Further detail is also needed for each mitigating

component to truly know what security mechanisms

are in place to protect the system. Fig. 6 shows the

recommended component interaction architecture

with a more detailed explanation of the security

mechanisms that are present in order to mitigate the

misuse cases. Table 3 shows a detailed explanation

of the security mechanisms that are in place for each

mitigating component in Fig. 6.

Table 2: Misuse cases, threatened components and

mitigating components

Misuse

Case

Threatened

Components

Mitigating Components

Main FireOp, ACL

LogOnAct IPRestrict, BioMet

Spoof

Admin Tasks FireOp

LogOnAct IPRestrict, BioMet

PayInfo ThrottleReqs, HashAuthen,

FormAuthen

AuditInfo ThrottleReqs, HashAuthen,

FormAuthen

View

Payroll

Info

DataWare ThrottleReqs, HashAuthen,

FormAuthen

Launch

DoS

Attack

ReqAudit

ReqInfo

WebBrow

ThrottleReqs,

FormAuthen,

FireOp

THREAT-DRIVEN ARCHITECTURAL DESIGN OF SECURE INFORMATION SYSTEMS

141

Table 3: Security mechanisms for mitigating components

Com-

ponent

Security Mechanisms

BioMet Biometrics use physical attributes of an

individual to initiate three approaches of

protection.

Physical access to resources (logging in)

Entitlement to resources (privileges)

Recording of forensic information (to use

at a later date)

IPRetrict IP Restrictions are a feature of Internet

Information Services (IIS). Any part of a

website can be limited so that only certain

IP addresses, subnets, and DNS names can

access it. Once a user logs into the system,

they are only allowed to access certain

parts of the site.

ACL Access control entities (ACEs) contain

what a user can do within the system (read,

write, create)

The access control list (ACL) is referred to

once a user has begun the authentication

process. An access check is performed

against the ACL when a user requests a

system resource.

FireOp A firewall controls communication (flow

of packets) to and from a group of

networked machines. Based on rules, the

firewall determines what is allowed to

reach the machines. Firewalls can also

modify packets that pass through the

network to disguise the address of the

machines behind the firewall.

Throttle

Reqs

Throttling requests is a measure that aims

to simply reduce the number of requests

made to the system. A small number of

anonymous requests are allowed. A large

number of authenticated requests are

allowed.

Hash

Authen

The main goal of hash-based

authentication is confidentiality. This is

realized by passing data through a

cryptographic function called a hash.

This process yields a relatively small value

that uniquely identifies the original data.

The hash tells nothing about the data; it

simply uniquely identifies it. Tampering is

combated by comparing the hash attached

to the data with a newly computed hash of

the same data. If a match occurs, the

original data has not been tampered with.

Form

Authen

Forms-based authentication is generally an

application-specific implementation. This

process takes places over a secure SSL/

TLS connection.

in a database or XML configuration file.

5 RELATED WORK

Threat modeling (Hoglund, 2004) is a sound

approach to addressing software risks at the design

level. Based on the decomposition of application, it

evaluates the threats and risks to a system and

chooses techniques to mitigate the threats. Security

threats are modeled by attack trees, which describe

the decision-making process attackers would go

through to compromise the system. To make the

current threat modeling a rigorous engineering

process for engineering secure information systems,

the missing link is an explicit way for security

requirements elicitation and a smooth, traceable

transition from security requirements to system

design. From this perspective, our work is obviously

different from the threat modeling approach. Our

approach deals with threat identification and

mitigation during the requirements phase rather than

the design phase. The security requirements are

addressed throughout the process of architecture

design and analysis.

Sindre and Opdahl proposed misuse cases as the

inverse of use cases to model system behavior that

should be avoided (Sindre, 2001a). A misuse case

can be defined as a completed sequence of actions

which results in loss for the organization or some

specific stakeholder. They identified several

relations between ordinary use cases and misuse

cases, such as includes, extends, prevents and

detects. Also they have proposed a general template

for misuse case description (Sindre, 2001b).

Alexander discussed a variety of applications of

misuse cases beyond security requirements

elicitation, such as eliciting general “-ility”

requirements, exceptions, and test cases (Alexander,

2003). Misuse cases are also useful for the trade-off

analysis, the goal of which is to enable stakeholders

to make an informal and correctly-based judgment in

a possibly-complex situation (Alexander, 2002).

Employing a use/misuse case representation may

make such a judgment more likely if it helps people

to visualize the structure of the situation accurately,

and in a way that emphasizes the essential points of

conflict that create the need for a trade-off.

McDermontt and Fox introduced a similar notion,

called abuse cases, for security requirements

analysis (McDermontt, 1999) complete abuse case

defines an interaction between an actor and the

system that results in harm to a resource associated

with one of the actors, one of the stakeholders, or the

system itself. A DAG structure, similar to attack tree

in penetration testing, was used to describe abuse

cases. McDermott further applied the abuse case

based approach to the construction of an assurance

argument as a collection of abuse case refutations

(McDermontt, 2001). Obviously, the above work has

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

142

focused on the elicitation of security requirements; it

has nothing to do with the transition from

requirements and architectural design and analysis.

Determining the extent to which a proposed

software system meets desired quality criteria is

desirable for a decent software development process.

Kazman et al proposed a scenario-based analysis of

software architecture (Kazman, 1996). Scenarios are

used to express the particular instances of each

quality attribute important to the customer of a

system. The architecture under consideration was

analyzed with respect to how well or how easily it

satisfies the constraints imposed by each scenario.

The approach consisted of several steps: 1)

describing candidate architecture; 2) developing

scenarios; 3) performing scenario evaluations; 4)

revealing scenario interaction; and 5) performing

overall evaluation. Kantorowitz et al designed a

framework for use case-oriented software

architecture, which enables a “direct” manual

translation of sufficiently detailed natural language

use case specifications into code (Kantorowitz,

2003). Using this framework, the produced software

centers around use case components that implement

the different use cases of the application. While we

were motivated by the work along this line, our

focus is on dealing with security concerns at the

level of misuse case-based software architecture.

6 CONCLUSIONS

We have presented the threat-driven approach to the

design of secure software architecture, where threats

are modeled by misuse cases. The findings of the

architectural analysis can be used in detailed design

of the system and in validation of the system

implementation. Also, the architectural analysis can

be re-visited at anytime to get a better understanding

of the underlying architecture or to clear up any

confusion amongst system developers. Dealing with

security issues in the earlier phases of software

development lifecycle can make a system more

resistant to vulnerabilities.

Designing software architecture is often a

heuristic process even if the requirements

specification is available. To make our approach

rigorous, we are investigating the formalization of

use cases, misuse cases, mitigation use cases, and

architectural design. This will allow us to gain high

confidence in the system by disproving the existence

of identified threats in the architectural design.

Another aspect of future work is enhancing the

approach with the capability of tradeoff analysis for

conflicting functional and security requirements that

often exist in real-world information systems. As an

integral part of the architecture design process, the

tradeoff analysis is of importance for recommending

a software architecture for detailed design.

ACKNOWLEDGMENTS

This work was supported in part by the NSF under

grant EPS-0132289.

REFERENCES

Alexander, I. 2002. Initial industrial experience of misuse

cases. In Proc. of IEEE Joint International

Requirements Engineering Conference, pp. 61-68.

Alexander, I. 2003. Misuse cases: Use cases with hostile

intent. IEEE Software, pp. 58-66 (January/February

2003).

Bittner, K. and Spence, I. 2003. Use case modeling,

Object Technology Series, Addison-Wesley, 2003.

Firesmith, D. 2003. Security use cases. Journal of Object

Technology, Vol. 2, No. 3, 53-64. (May-June 2003).

Hoglund, G. and McGraw, G. 2004. Exploiting software:

How to break code. Addison-Wesley.

Howard, M. and LeBlanc, D. 2003. Writing secure code.

Microsoft Press. 2nd edition,

Jacobson, I., Christerson, M., Jonsson, P., and Overgaard,

G. 1994. Object-oriented software engineering: A use

case driven approach. Addison-Wesley, 1994.

Kantorowitz, E., Lyakas, A., and Myasqobsky, A. 2003.

Use case-oriented software architecture. CMC03.

Kazman, R., Abowd, G., Bass, L., and Clements, P. 1996.

Scenario-based analysis of software architecture. IEEE

Software. pp.47-55, November 1996.

McDermott, J. 2001. Abuse-case-based assurance

arguments. In Proc. of the 17th Computer Security

Applications Conference (ACSAC'O1). New Orleans

LA USA, pp. 366-374.

McDermott, J. and Fox, C. 1999. Using abuse case models

for security requirements analysis. In Proc. of the 15th

Annual Computer Security Application Conference,

pp. 55-66.

Sindre, G. and Opdahl, 2001a. A.L. Eliciting security

requirements by misuse cases. In Proc. of TOOLS

Pacific 2000, pp. 120-131.

Sindre, G. and Opdahl, A.L. 2001b. Templates for misuse

case description. In Proc. of the 7th International

Workshop on Requirements Engineering, Foundation

for Software Quality (REFSQ’2001).

Swiderski, F. and Snyder, W. 2004. Threat modeling.

Microsoft Press.

UML 2.0. http://www.uml.org/

Viega, J. and M., Gary. 2002. Building secure software:

How to avoid security problems in the right way.

Addison Wesley, 2002.

THREAT-DRIVEN ARCHITECTURAL DESIGN OF SECURE INFORMATION SYSTEMS

143
