APPLYING COMPONENT-BASED UML-DRIVEN

CONCEPTUAL MODELING IN SDBC

Boris Shishkov

Department of Computer Science, University of Twente, 5 Drienerlolaan, Enschede, The Netherlands

Jan L.G. Dietz

Department of Software Technology, Delft University of Technology, 4 Mekelweg, Delft, The Netherlands

Keywords: Software specification; Compon

ent; SDBC; UML

Abstract: Properly aligning business process modelling

and software specification is crucial for correctly and

completely reflecting the business requirements in the design of a software system. Realizing a component-

based alignment between these two aspects seems adequate. The SDBC approach possesses a conceptual

framework, complemented by step-by-step methodological application guidelines, on how to accomplish

this. However, the SDBC framework is yet insufficiently elaborated in terms of (theoretically rooted)

concepts/definitions, which could be an obstacle for relating further SDBC to other relevant modelling

tools. Aiming at overcoming this, we propose in the current paper some theoretically rooted concepts which

are relevant to the approach and are as well useful regarding its application.

1 INTRODUCTION

The current Information and Communication

Technology (ICT) is of significant importance for

the proper flow of processes belonging to a number

of business domains. Software (ICT) applications

are to facilitate the utilization of ICT for the

mentioned purpose. Thus, more and more research

takes place on application development

methodologies, and also more and more industrial

projects appear related to this issue. However, often

such projects are characterized by unrealized goals,

low user satisfaction, and increasing budgets.

It is claimed that one frequent cause of software

project failure

is the mismatch between the business

requirements and the actual functionality of the

delivered application. This problem relates to the

misconception that a business system (process) is a

kind of information system (process). Instead, they

are systems in different categories: social and

rational, respectively. Therefore, in order to

adequately reflect the requirements in the software

system-to-be, one needs to soundly align the

business process modelling and software

specification, mapping a pure business-oriented

model towards the specification of a software

system.

Realizing such an alignment in a component-

base

d way seems feasible and beneficial because

component-based business and software models

would allow for re-use, and also for good modelling

traceability, ease of modifiability and flexible

maintainability (Shishkov & Dietz, 2004-2). Next to

that, a business component would concern business

process modelling concepts while a software

component would concern software concepts; hence,

a rigorous mapping between the two would be a

good foundation for a business-software alignment.

However, to date the component paradigm has

onl

y really penetrated the implementation and

deployment phases of the software life-cycle, and

does not yet play a major role in the earlier analysis

and design activities of large software projects. In

the software context, components are associated

mainly with the current ‘physical’ component

technologies, such as .NET, CORBA, and EJB.

Although some approaches, such as OMG MDA,

ODE

SSA, INSPIRE, and COMET, aim at

overcoming this, they have not completely

succeeded yet, as it is well-known. Hence, the

software community still misses modelling facilities

for adequately addressing the component paradigm

in the mentioned analysis and design phases,

concerning the business-software-alignment context.

417

Shishkov B. and L.G. Dietz J. (2005).

APPLYING COMPONENT-BASED UML-DRIVEN CONCEPTUAL MODELING IN SDBC.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 417-420

DOI: 10.5220/0002519004170420

 SciTePress

This motivates the necessity to propose new

(component-based) modelling solutions related to

the mentioned phases and context.

The SDBC (SDBC stands for

Software Derived

from

Business Components) approach has been

introduced (Shishkov & Dietz, 2004-1; Shishkov &

Dietz, 2004-2), which is capable of adequately

addressing these issues by considering ‘logical’

components that represent the logical building

blocks of a software system. From this position,

SDBC proposes a mechanism for business-software

alignment. In particular, the approach allows for

deriving pure business process models (called

business coMponents) and reflecting them in

conceptual (UML-driven) software specification

models (called software coMponents). In the

business coMponent identification, SDBC follows a

multi-aspect business perspective, guaranteeing

completeness. In the business coMponent – software

coMponent mapping, SDBC follows rigorous rules,

guaranteeing adequate alignment. Being UML-

driven, SDBC is in tune with the latest software

design standards. The application of SDBC is

currently explored in a large Dutch insurance

company, and also through several test case studies.

This paper reports further SDBC-related studies.

In particular, it proposes several concepts/definitions

which are relevant to the SDBC approach,

discussing as well their usability with respect to its

application.

The outline of the paper is as follows: Section 2

suggests several concepts fundamentally important

for the SDBC approach. Section 3 provides

elicitation on their usability in applying the

approach. And finally, Section 4 contains the

conclusions.

2 ESSENTIAL CONCEPTS

As mentioned in the Introduction, this section is to

propose some fundamental SDBC-related concepts.

A system consideration would be needed first,

taking into account that in any (scientific) discipline,

particular kinds of systems need to be studied.

Concerning SDBC and in particular the need to align

business process modelling and software

specification, a consideration of two types of

systems would be required, namely business systems

and information systems. A clear delimitation

between the two is considered necessary, mainly

because of the (observed) misconception that a

business system is a kind of information system.

Instead, as already mentioned, they should be

considered in different ways. Although they both are

basically social systems, they differ in the kind of

production: business services and (internal)

information services, respectively (Dietz, 2003).

Before defining business system and information

system, we would have to propose our system

definition, adopted from the ‘classical’ system

definition of Bunge (Bunge, 1979):

Definition 1. Let T be a nonempty set. Then the

ordered triple σ = <C, E, S> is system over T if and

only if C (standing for composition) and E (standing

for environment) are mutually disjoint subsets of T

(i.e. C ∩ E = ∅), and S (standing for structure) is a

nonempty set of active relations on the union of C

and E. The system is conceptual if T is a set of

conceptual items, and concrete (or material) if T ⊆

Θ is a set of concrete entities, i.e. things.

Taking into account that, considering business

and software issues, SDBC approaches business

activities as realized by humans, and based on

Definition 1, we suggest the following business

system definition.

Definition 2. A system should be considered

being a business system if and only if it is composed

of physical persons (humans) collaborating among

each other through actions which are driven by the

goal of delivering business products to entities

belonging to the environment of the system.

As for the information system concept, it should

be considered not only in an ontological but also in a

functional perspective, because the functional aspect

is essential concerning the way in which an

information system supports (informationally) a

business system. Thus, we will propose an

ontological as well as a functional definition of

information system.

The ontological information system concept

should correspond to our viewing information

systems as composed of humans facilitated by (ICT)

applications, who collaborate in realizing internal

informational support to interorganizational

processes. Based on these considerations as well as

on Definition 1, we propose the following definition:

Definition 3. A system should be considered

being an information system if and only if it is

composed of humans (often facilitated by ICT

applications as well as technical and technological

facilities) collaborating among each other driven by

the goal of supporting informationally a

corresponding business system. Usually the business

system and the information system belong to the

same organization.

The functional information system concept

should correspond to the basic (well-known)

functions characterizing a (current) technological

support: related to data being created, processed,

distributed, and so on. For this reason, we have

adopted the following definition (Simon, 1996):

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

418

Definition 4. Concerning its functional

characteristics, a

n information system is a system

which manipulates data and normally serves to

collect, store, process and exchange or distribute

data to users within or between enterprises or to

people within wider

society.

Based on the essential definitions set out above,

we proceed with introducing the business/software

coMponent concepts, starting with a consideration of

business coMponents, based on certain related

concepts presented below.

Adopting the DEMO transaction concept (Dietz,

2003), we define a business process as being a

structure of (connected) transactions that are

executed in order to fulfil a starting transaction.

Further on, considering a business sub-system as

being a system which is a part of a business system,

we propose the following business component

definition:

Definition 5. A business component is a business

sub-system that comprises exactly one business

process.

Considering SDBC, the theories behind it

(Shishkov & Dietz, 2004-2), and their way of

viewing a model, we regard a complete model as a

model that is elaborated at least in four perspectives

(Shishkov & Dietz, 2004-1), namely structural,

dynamic, factual, and communicative. Hence, we

propose the following definition for business

coMponent:

Definition 6. A business coMponent is a

complete model of a business component.

On the basis of these (introduced above)

concepts an also on our viewing an ICT application

as an implemented software product which realizes a

particular functionality supporting in this way the

humans who are elements of the composition of an

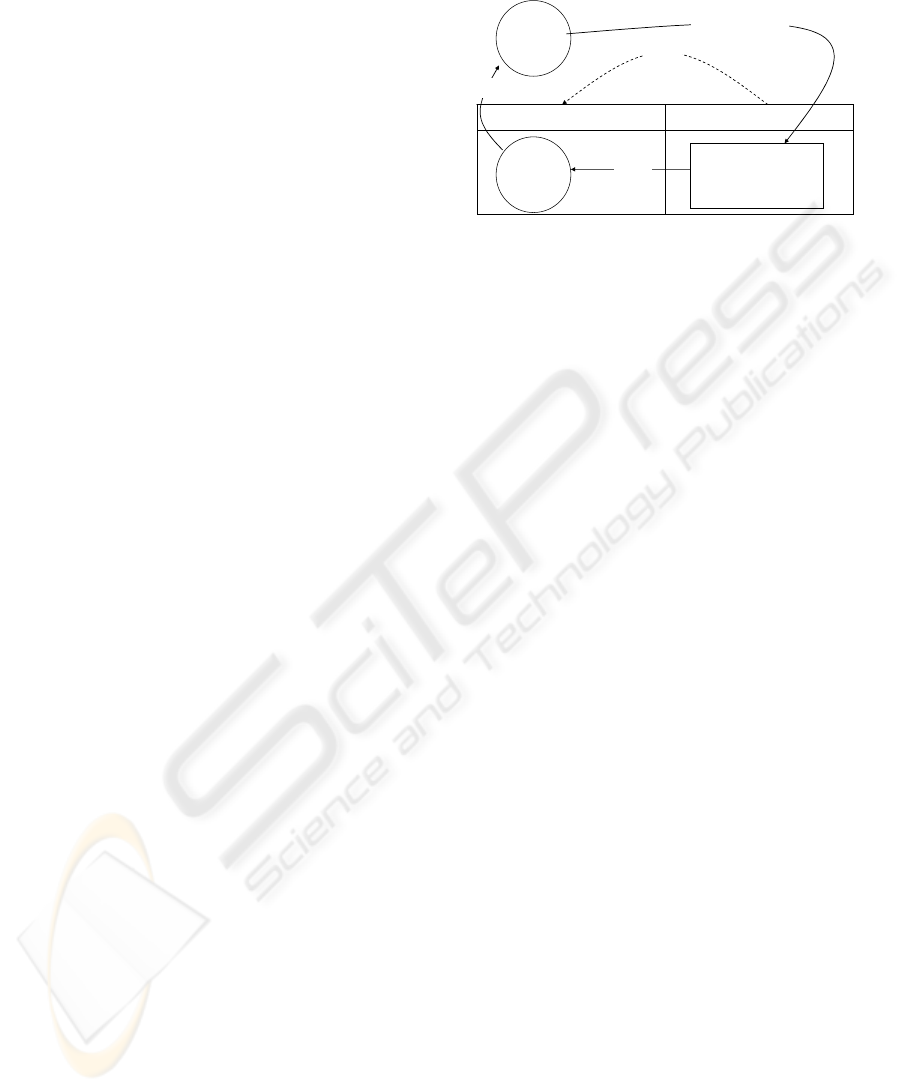

information system, we envision the relation

between a business coMponent and an information

system as shown in Figure 1.

As seen from the Figure, within SDBC, business

coMponents could be used to support the

specification of (ICT) applications, being themselves

identified based on corresponding business

components characterizing the (originally

considered) business system. This is how an

application which is intended to support

informationally a business system is specified being

soundly and methodologically rooted in a relevant

business process model.

From this perspective, a relevant ontological

software component definition (Shishkov & Dietz,

2004-2) is:

Definition 7. Software components are

implemented pieces of software, which represent

parts of an ICT application, and which collaborate

among each other driven by the goal of realizing the

functionality of the application.

BUSINESS SYSTEM <B> INFORMATION SYSTEM <I>

business

component A

business

coMponent T

ICT application Z

support

specification support

modellin

Figure 1: Business coMponents’ supporting the

applications’ specification

Since the software component concept concerns

the implementation phase, we would need to

propose also a functional definition:

Definition 8. Functionally, a software component

is a part of an ICT application, possessing a clearly

defined function and interface to the other parts of

the application.

Since any support from a business coMponent

would concern the specification phase, we should

(thus) consider another relevant concept. Such a

concept must refer to the logical application building

blocks (mentioned before). We introduce the term

‘software coMponent’ to reflect the logical aspect:

Definition 9. A software coMponent is a

conceptual specification model of a software

component.

In summary, we have defined (in this section)

some concepts having a fundamental relevance to

the SDBC approach and its application.

In the following section, we will relate these

concept so the application of the approach.

3 THE CONCEPTS AND SDBC

Aiming at adequately relating the concepts,

introduced in the previous section, to the SDBC

approach and its application, we will briefly

summarize the outline of SDBC and elaborate on the

usefulness (in this context) of the mentioned

concepts. We will realize this with the help of Figure

2. There we have used the following abbreviations:

bc – business component; bk – business coMponent;

glbk – general business coMponent; gcbk – generic

business coMponent; ssm – software specification

model; sc – software component; sk – software

coMponent. For more information on SDBC and

also on those of the above terms which have not

been explained in the previous section, interested

readers are referred to (Shishkov & Dietz, 2004-1;

Shishkov & Dietz, 2004-2).

APPLYING COMPONENT-BASED UML-DRIVEN CONCEPTUAL MODELING IN SDBC

419

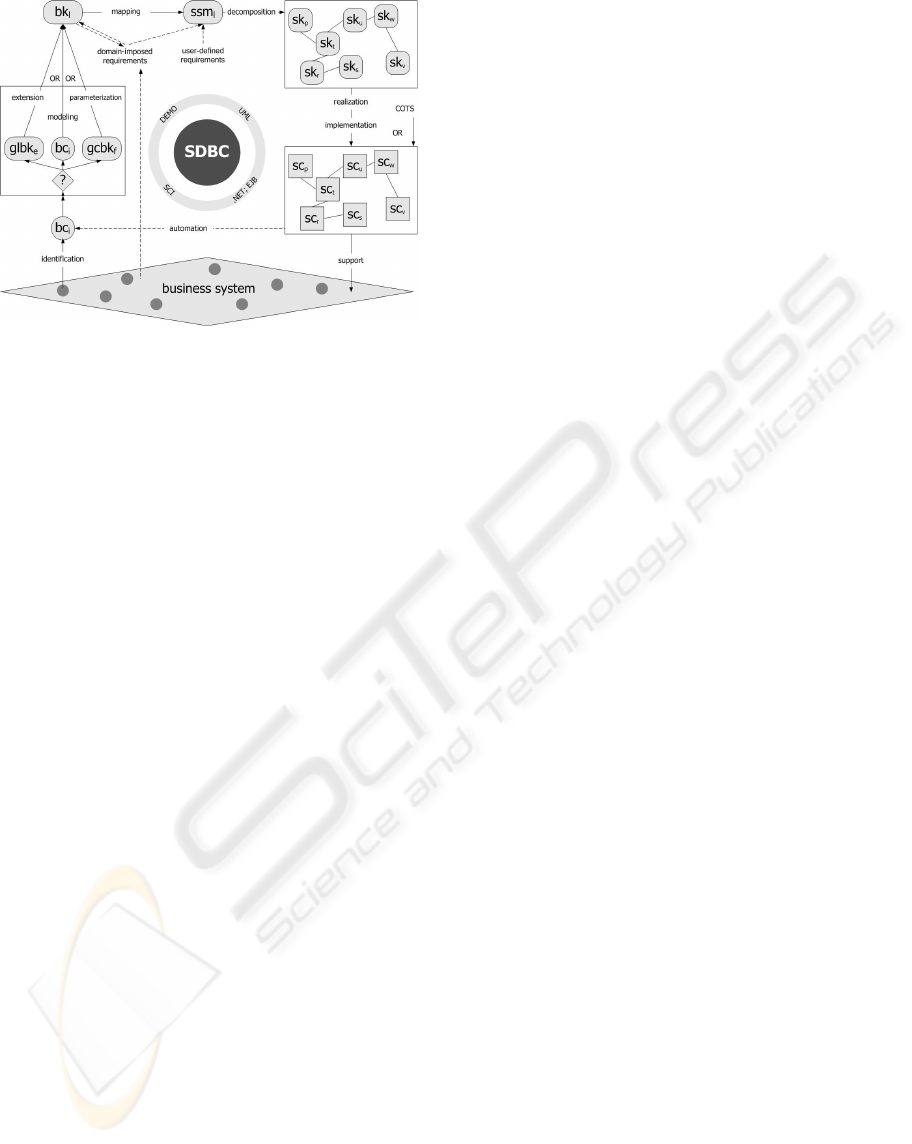

Figure 2: SDBC – outline

As seen from the Figure, we consider a particular

business system from which a business

component(s) is to be identified, using for this

purpose the SCI modelling technique (Shishkov &

Dietz, 2004-2) and other useful (modelling) tools.

The component should be then reflected in a

relevant model – a business coMponent. Another

way for arriving at a business coMponent is by

applying re-use: either extending a general business

coMponent or parameterizing a generic business

coMponent. DEMO and other related modelling

tools are relevant as far as business coMponents are

concerned. The business coMponent should be then

elaborated with the domain-imposed requirements,

for the purpose of adding elicitation on the particular

context in which its corresponding business

component exists within the business system (from

which it has been identified). Then, a mapping

towards a software specification model should take

place, driven by the DEMO-UML transformation

(Shishkov & Dietz, 2004-3). The mentioned

requirements as well as the user-defined

requirements are to be considered here, since the

derived software model should reflect not only the

original business features but also the particular user

demands towards the software system-to-be. The

(UML-based) software specification model would

need then a precise elaboration so that it provides

sufficient elicitation in terms of structure, dynamics,

data, and collaboration. It needs also to be

decomposed into a number of software coMponents

reflecting functionality pieces. These coMponents

are then to undergo realization and implementation,

being reflected (in this way) in software

components. This final set of components might

consist of such components which are implemented

(using software component technologies, such as

.NET or EJB, for instance) based on corresponding

software coMponents and such components which

are purchased. Finally, the (resulting) component-

based application would support informationally the

target business system, by automating anything that

concerns the considered business component

(identified from the mentioned system).

4 CONCLUSIONS

This paper has reported further SDBC-related

studies, by proposing relevant concepts and

providing elicitation on their usability in applying

the SDBC approach.

The paper has brought additional evidence on the

values of SDBC, following other published results

(Shishkov & Dietz, 2004-1; Shishkov & Dietz,

2004-2). All these reported results are supported by

case studies such as a case carried out in a large

Dutch insurance company and a cultural-heritage-

related case considered in another paper within the

current Proceedings. This inspires the authors to go

forward in further developing the conceptual and

application potentials of the SDBC approach.

A significant distinguishable value of the

approach is its being capable of adequately aligning

in a component-based way business process

modelling and software specification.

REFERENCES

Bunge, M.A. Treatise on basic philosophy, Vol. 4:

Ontology II: A world of systems. Reidel Publishing

Company, Dordrecht, 1979.

Dietz, J.L.G. The atoms, molecules, and fibers of

organizations. Data & Knowledge Engineering, vol.

47, pp 301-325, 2003.

Shishkov, B. and J.L.G. Dietz, 2004-1. Aligning business

process modelling and software specification in a

component-based way, the advantages of SDBC. In

ICEIS’04, 6th International Conference on Enterprise

Information Systems. ICEIS Press.

Shishkov, B. and J.L.G. Dietz, 2004-2. Design of software

applications using generic business components. In

HICSS’04, 37th Hawaii International Conference on

System Sciences. IEEE Computer Society Press.

Shishkov, B. and J.L.G. Dietz, 2004-3. Deriving use cases

from business processes, the advantages of DEMO.

Enterprise Information Systems V, Edited by O. Camp,

JB.L. Filipe, S. Hammoudi, and M. Piattini, Kluwer

Academic Publishers, Dordrecht/Boston/London, 2004.

Simon, E. Distributed information systems: From

client/server to distributed multimedia. McGraw-Hill

International Ltd., 1996

ICEIS 2005 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

420
