QUANTITATIVE EVALUATION OF ENTERPRISE

ARCHITECTURAL PATTERNS

Tariq Al-Naeem

, Feras A. Dabous

, Fethi A. Rabhi

, and Boualem Benatallah

School of Computer Science and Engineering, University of New South Wales, Sydney, Australia

School of Information Systems, Technology, and Management, University of New South Wales, Sydney, Australia

Keywords: Quantitative Evaluation, Enterprise Architectural Patterns, and Multiple-Attribute Decision Making.

Abstract: The implementation of enterpris

e and e-business applications is becoming a widespread practice among

modern organizations. A cornerstone activity in implementing such applications is the architectural design

task, which embodies many architectural design decisions. What makes this task quite complex is the

presence of several design approaches that vary considerably in their consequences on various quality

attributes. In addition, the presence of more than one stakeholder with different, often conflicting, quality

goals makes the design process even more complex. To aid in the design process, this paper discusses a

number of alternative architectural patterns that can be reused during the enterprise architectural design

stage. It also proposes leveraging Multiple-Attribute Decision Making (MADM) methods, particularly the

AHP method, to quantitatively evaluate and select among these patterns.

1 INTRODUCTION

The architectural design of enterprise applications is

greatly considered to be a complex activity

(McGovern et al, 2003). This is mainly due to the

intrinsic requirement of such applications, which is

to support multiple Business Processes (BPs) that

often utilize functionalities embedded in disparate

enterprise systems and applications.

When implementing such applications, there are

bviously a number of crucial design issues that

need to be addressed (Al-Naeem et al, 2004, 2005).

This includes deciding about the mechanism of

implementing BPs with activities distributed across

a number of enterprise systems, choosing how to

implement new BP functionalities, deciding on

whether to leverage existing enterprise systems or

reengineer them, etc. Indeed, the choice on every

issue is greatly driven by the project context and

desired quality attributes.

The design activity is made even more complex

by the fact that

a number of stakeholders are usually

involved in the decision process since enterprise

applications often involve the integration of BPs

distributed among different systems often managed

and operated by different departments, sometimes

different organizations.

To facilitate the architectural design task, we

ave identified a number of alternative architectural

patterns that can be reused during the course of

designing enterprise applications. Furthermore, we

have devised a mechanism that allows stakeholders

to express their preferences on quality attributes, and

subsequently use them in ranking these patterns

according to their attainment to desired quality

preferences. In particular, we leveraged rigorous

MADM methods (Yoon and Hwang, 1995) in the

quantitative evaluation of these patterns.

2 ARCHITECTURAL PATTERNS

In this section, we present five coarse-grained

architectural patterns that can be leveraged when

developing an enterprise application comprising

multiple BPs, where each BP often involves

invoking functionalities scattered across different

systems and applications.

All five patterns share the same goal of

sup

porting a number of distributed BPs, thus every

pattern can be considered as an alternative design

option. However, each pattern might be appropriate

under certain conditions, since the applicability of

each pattern is mainly driven by the quality

398

Al-Naeem T., A. Dabous F., A. Rabhi F. and Benatallah B. (2005).

QUANTITATIVE EVALUATION OF ENTERPRISE ARCHITECTURAL PATTERNS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 398-402

DOI: 10.5220/0002511703980402

 SciTePress

requirements desired by different stakeholders.

Since these patterns are in early stages of

development and validation, we would rather call

them proto-patterns. Due to space limitations, we

discuss these patterns informally:

Direct & Local (DL): this pattern considers

accessing the required functionalities across

enterprise systems by direct invocation using native

APIs. On the other hand, each BP implements

locally the activities that have no corresponding

functionality. This pattern is applicable when the

majority of BPs activities have corresponding

functionalities in existing enterprise systems. It is

also applicable when performance and reliability are

the major quality concerns and when redevelopment

cost of existing systems functionalities is quite high.

Direct & Shared (DS): this pattern considers

accessing the required functionalities across

enterprise systems by direct invocation through their

native APIs. It also considers implementing all

activities of BPs that have no corresponding

implementation in any of the existing systems as

shared service-based interfaces. This pattern

applicability is similar to that of DL with the

exception that the majority of BPs activities are not

being implemented in existing systems.

Wrapper & Shared (WS): this pattern considers

providing a unified service-based interface to all

functionalities embedded in all enterprise systems. It

also considers implementing all BPs activities that

have no corresponding implementation as shared

service-based interfaces. This pattern is applicable

when having the majority of BPs activities not being

implemented. It is also applicable when ease of

installation and maintenance cost are primary quality

concerns and when redevelopment cost of existing

systems functionalities is quite high.

Wrapper & Local (WL): this pattern considers

providing a unified service-based interface to all

functionalities across all enterprise systems. On the

other hand, each BP implements locally the

activities that have no corresponding

implementation. This pattern applicability is similar

to that of WS with the exception that the majority of

BPs activities having corresponding implementation.

Migrate (MG): this pattern considers replacing

existing systems with new ones. This involves

migrating the implementation of required

functionalities into shared service-based interfaces

through a re-engineering process. It is applicable

when existing systems are likely to be obsolete in

the near future, and also when maintenance cost is

expected to be high due to significant changes

required. However, the development cost for this

pattern will be far more higher that other patterns.

3 QUANTITATIVE EVALUATION

Our discussion in the previous section shows that

each alternative pattern is impacting differently on a

number of quality attributes. So, in order to evaluate

and rank these alternatives accordingly, we need to

employ some quantitative measures in scoring them

according to their satisfaction to stakeholders’

preferences on relevant quality attributes. To this

end, we borrow from existing methods from the

literature of Multiple-Attribute Decision Making

(MADM) (Yoon and Hwang, 1995). In particular,

we employ the Analytical Hierarchy Process (AHP)

method which relies on pair-wise comparison, thus

making it less sensitive to judgmental errors

common to other MADM methods.

The application of AHP method comprises four

main steps as shown in Figure 1. We now formally

discuss each step:

Preparation: this step articulates the different

elements involved in the process of deciding about

design decision D

(

mj <=

). It involves

identifying stakeholders involved in this decision S

2, …

, potential design alternatives to select from

, A

2, …

, and quality attributes used in the

evaluation process Q

, Q

2, …

Weighting Quality Attributes: the aim of this step

is to determine the relative weight for every quality

attribute Q

(

). Each stakeholder S

(

) will need to provide their preferences

on considered quality attributes, by comparing every

pair of quality attributes (Q

), using a 9-point

weighting scale, with 1 representing equality and 9

representing extreme difference. This will be used to

determine how important Q

is, in comparison to Q

(

kba

= ,1

). For example, if Q

is considered as

"extremely more important" than Q

then we have

the entry (a,b)=9 and adversely (b,a)=1/9.

This means that for k quality attributes, k(k-1)/2

pair-wise comparisons will need to be made by each

stakeholder. At the end, each stakeholder S

will

build up a k x k matrix P

=( )

representing their preferences on quality attributes.

Having gathered all stakeholders’ quality

preferences P

kbaP

<=<= ,1;

, P

, …

, we now aggregate them all

into one k x k matrix P=(

) by

computing the geometric mean for each individual

entry (a,b) using the following formula:

kbaP

<=<= ,1;

abab

∏

(1)

After that we compute the geometric mean G

for

every quality attribute Q

QUANTITATIVE EVALUATION OF ENTERPRISE INTEGRATION PATTERNS

399

Identify

participating

stakeholders

Identify relevant

quality attributes

Consider first

stakeholder

Aggregate all

stakeholders'

preferences on

quality attributes

Derive quality

attributes'

weights

Gather stakeholder’s

relative preferences

on quality attributes

Other

stakeholders

remaining

Yes

Consider next

stakeholder

Preparation

Weighting

Quality Attributes

Weighting

Alternatives’

Quality Support

Computing

Value Scores

Consider first

quality attribute

Consider next

quality attribute

Acquire

alternatives’ relative

support to current

quality attribute

Other quality

attributes

remaining

Yes

Derive

alternatives'

support to every

quality attribute

Compute

alternatives'

value scores

Identify potential

alternatives

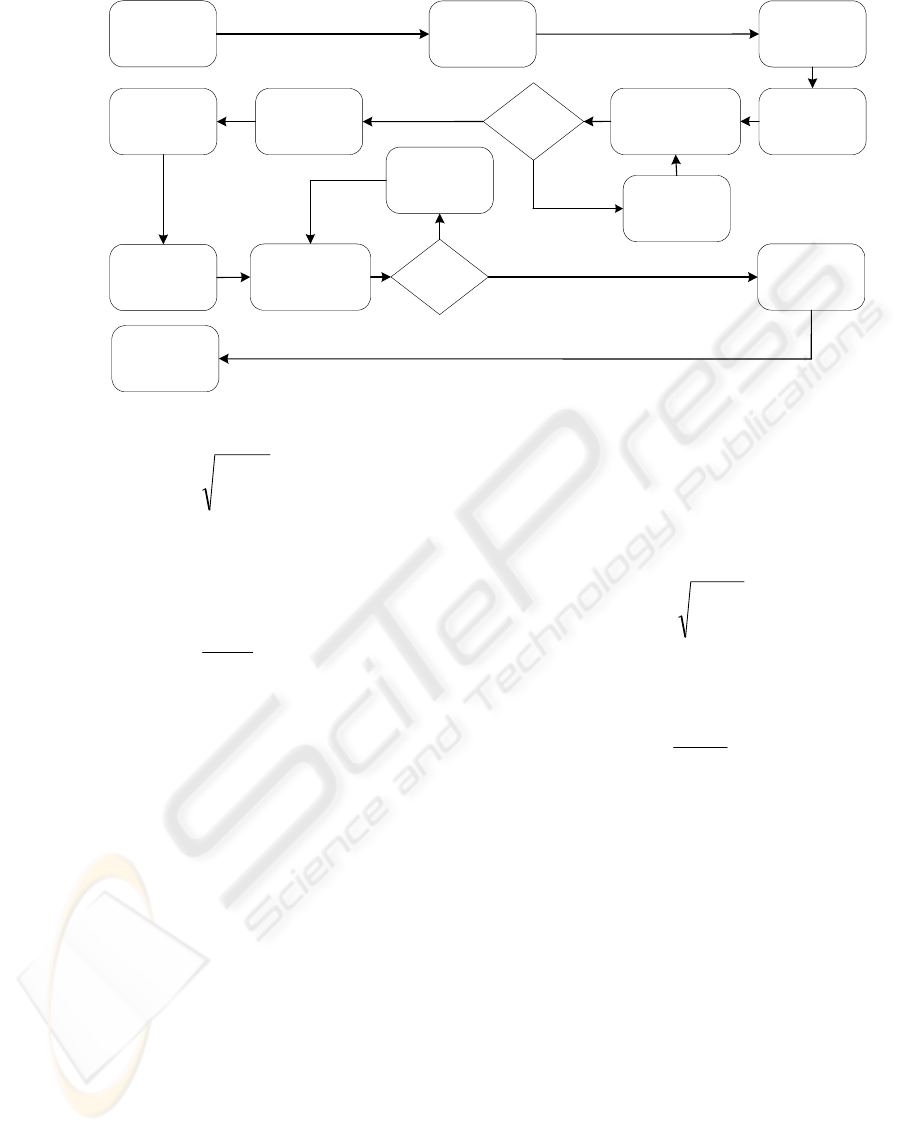

Figure 1: Detailed AHP Process

aza

∏

(2)

Finally, we derive the relative weight W

for

quality attribute Q

by dividing Q

’s geometric mean

) by the total geometric mean for all quality

attributes:

∑

(3)

By applying this to all quality attributes, we

obtain a vector of quality attributes’ relative weights

where W

)1;( kaWW

<=<==

is the relative

weight for quality attribute Q

Weighting Alternatives' Quality Support

: next we

try to determine how each alternative A

(

) is relatively supporting quality

attributes considered. For every quality attribute Q

ni <=<=1

we will need to maintain one n x n quality support

matrix

, where every entry

(x,y) corresponds to how alternative A

),1;( nyxTT

<=<==

is supporting

quality attribute Q

in comparison to alternative A

Similarly, the same 9-point weighting scale is used

for assigning weights. For example, if alternative A

is supporting quality attribute Q

"strongly more

than" alternative A

does, we would have the entry

(x,y)=5 and adversely (y,x)=1/5.

After constructing all quality support matrices

, T

, …

, we can now derive the a new nxk quality

support matrix

where every entry (x,a) corresponds to how

alternative A

)1,1;( kanxTT

<=<=<=<==

is relatively supporting quality

attribute Q

. To build up the T matrix, we first

compute the geometric mean for every alternative A

at each quality support matrix T

, using the

following formula:

xixa

∏

(4)

Then, we derive the relative support alternative

is having on quality attribute Q

using the

following formula:

∑

(5)

Computing Value Scores: having determined the

quality attributes’ weights W and also the

alternatives’ quality support weights T, we can now

compute the value score V

for alternative A

design decision D

using the following formula:

zij

TWV

∑

(6)

Indeed, the alternative yielding highest value

score would represent the best alternative matching

stakeholders' preferences on quality attributes.

4 CASE STUDY

Our case study corresponds to a real capital markets

system, particularly the Australian Stock Exchange

(ASX). Trading in capital markets embodies several

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

400

BPs (e.g. trade formalization and trade execution),

with each often involving the invocation of a

number of functionalities implemented across the

different ASX enterprise systems, e.g. SMARTS,

XSTREAM, FATE, and AUDIT Explorer

(FinanceIT). Recently, a research project has been

initiated with the goal of improving the provision of

existing BP practices.

4.1 Applying AHP Method

To assess the applicability of this research, we

interviewed the Project Manager (PM) from the

development team who works very closely with the

different stakeholders of this project. This made the

PM well-positioned to provide us with the different

perspectives of the various stakeholders.

Preparation: there were three different stakeholders

involved in the decision-making process: business

managers, research teams representing system end

users, and development team. Also, five quality

attributes were suggested in the evaluation process,

namely, development cost, maintenance cost,

performance, ease of installation, and reliability.

Weighting Quality Attributes: the multiple PM’s

discussions with the different project stakeholders

made the PM able of providing us with the different

stakeholders’ quality preferences. It came of no

surprise that stakeholders were having different

views on quality attributes, resulting in different

ranks as shown in Table 1. By applying Formulas 1,

2, and 3 on these preferences we obtained the

aggregated preferences (weights) on quality

attributes shown on last column of Table 1.

Table 1: Quality attributes' weights

Stakeholders

Quality

Attributes

Business

Managers

Research

Teams

Dev.

Team

Aggregated

Dev. Cost

0.400 0.031 0.378

0.195

Maint. Cost

0.202 0.208 0.220

0.240

Performance

0.074 0.149 0.079

0.111

Ease of Install.

0.041 0.140 0.052

0.077

Reliability

0.283 0.471 0.271

0.377

Weighting Alternatives' Quality Support: this

data was provided from the perspective of

development team only, because it required a

technical knowledge on the existing systems as well

as the different alternative patterns. By applying

Formulas 4 and 5 on data provided, we obtained

how every alternative relatively supports different

quality attributes as shown on Table 2.

Computing Value Scores: finally, we applied

Formula 6 to compute alternatives value score and

obtained the following rank: DS, DL, WS, MG, WL,

with value scores 0.313, 0.244, 0.199, 0.129, and

0.116 respectively.

Obtained value scores were highly sensitive to

the project context, such as the number of BPs. For

instance, if the number of BPs in the problem

context is relatively high, then this would affect the

pair-wise comparisons for the alternatives' support to

some quality attributes, particularly the development

cost. Consequently, WS and WL would have

obtained higher value scores in this case.

4.2 Discussion

The feedback we received from the PM was quite

positive. In summary, the following are the key

observations of this study:

• Established patterns have facilitated reusing and

communicating potential solutions among the

different stakeholders. This was especially true

for discussions held among the development

team members.

• Systematic synthesis of different stakeholders’

preferences has yielded aggregated weights that

were fairly acceptable to all stakeholders. In

addition, proposed approach has promoted the

involvement of stakeholders in the design

process, which in turn has improved the

acceptance chances by different participants.

• Obtained ranking results were easily justifiable

to different stakeholders due to the highly

visible decision process.

Table 2: Alternative patterns' support weights

Alternative Patterns

Quality

Attributes

DL DS WS WL MG

Dev. Cost

0.273

0.478 0.031 0.117 0.102

Maint. Cost 0.059 0.088 0.482 0.142 0.229

Performance 0.546 0.200 0.078 0.125 0.051

Ease of Install. 0.039 0.058 0.236 0.135 0.533

Reliability 0.300 0.433 0.137 0.094 0.035

5 CONCLUSION

In this paper, we have presented five enterprise

architectural patterns that can be reused in contexts

involving a number of BPs scattered among various

applications and enterprise systems. We have also

proposed and formalized a quantitative selection

approach that aids participating stakeholders to

determine an architectural alternative that best

matches their desired quality attributes.

QUANTITATIVE EVALUATION OF ENTERPRISE INTEGRATION PATTERNS

401

Our future plans are to develop suitable quality

measurement models that can subsequently be

employed in the quantitative evaluation process.

This would enable the automatic computation of

alternatives’ impacts on quality attributes without

the need for pair-wise comparisons by development

team. Indeed, this would first require implementing

a tool to automate this process.

REFERENCES

Al-Naeem, T. et al, 2004. Systematic Approaches for

Designing B2B Applications. In International Journal

of Electronic Commerce (IJEC), 9(2).

Al-Naeem, T. et al, 2005, A Quality-Driven Systematic

Approach for Architecting Distributed Software

Applications, Accepted in 27

Int’l Conf on Software

Eng (ICSE'05), St Louis, Missouri, USA.

FinanceIT Research Group, The University of NSW.

http://www.financeit.unsw.edu.

McGovern, J. et al, 2003, The Practical Guide to

Enterprise Architecture, Prentice Hall.

Yoon, K.P., and Hwang, C., 1995. Multiple Attribute

Decision Making: An Introduction, Sage Publications.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

402
