ARCHITEKTURE FOR A SME-READY ERP-SOLUTION BASED

ON WEB-SERVICES AND PEER-TO-PEER-NETWORKS

Jorge Marx Gómez, Claus Rautenstrauch

Institute of Technical and Business Information Systems, Faculty of Computer Science, Otto-von-Guericke-Universität

Magdeburg, Universitätsplatz 2, 39106 Magdeburg, Germany

Keywords: ERP, Web Service, SOAP, Business Component, Peer-to-Peer (P2P), CoBCoM, SOA

Abstract: Although the requirements of small- to medium-sized enterprises (SMEs) for enterprise resource planning

systems (ERP) are very similar to those of big corporations, there is still a lack of solutions for SMEs,

because the roll-out as well as the maintenance is very expensive. It has become clear that EDP branch

solutions, application service providing and stripped-down software versions do not offer satisfying

solutions. For solving these problems, we propose an architecture for a distributed ERP-system based on

web-services and peer-to-peer-network technology whose roll-out and maintenance is better affordable for

SMEs than traditional systems.

1 INTRODUCTION

In Germany, small- to medium-sized production-

oriented enterprises (SMEs) are using a

differentiation strategy for staying profitable in the

world-market. This kind of strategy aims to maintain

a leading position by having unique selling

propositions. This can be accomplished by following

efforts:

• production of customized goods,

• adherence to high quality standards,

• providing of product-related services.

Companies following such a strategy must be

able to support all business processes in the context

of production-variation by flexible planning. For

this, the software-industry offers so-called enterprise

resource planning systems (ERP-systems).

Modern ERP-systems, like SAP R/3, Oracle

Applications or Microsoft Navision are complex,

consist of many software components and must be

costly customized to the customers' requirements.

Furthermore, expensive high-end hardware needs to

be deployed, especially in case of application- and

database-servers. During operation the software and

hardware needs to be permanently maintained by

specially-trained staff. The resulting Total Cost of

Ownership (TCO) often is too expensive for SMEs,

although ERP-systems are fulfilling their

requirements, especially the support of flexible

planning. This reveals the real dilemma of ERP-

system usage by SMEs: The requirements of SMEs

regarding functionality, operation and customizing

are very similar to those of large businesses but

SMEs cannot effort the deployment of these systems

(ERP-SME-dilemma).

The software-industry has identified this

dilemma as well and offers following solutions,

whose success is at least doubtful:

• Application Service Providing (ASP): Within

ASP an external service provider operates the

application including all basic systems (system

software and hardware). For this service, the

customer only pays periodically license fees and

needs to install the necessary infrastructure for

the local use of the client software. The risks of

operation is completely assigned to the provider

and the costs is reduced compared to local

operation because the provider can utilize scaling

effects. However, SMEs must give their trade

secrets and internal knowledge to the hands of

the provider, which is the main barrier for

embracing ASP.

• EDP branch solution: Another solution is the

usage of pre-configured systems, so-called EDP

branch solution. The installation and customizing

are simpler and therefore cheaper compared to

383

Marx Gómez J. and Rautenstrauch C. (2005).

ARCHITEKTURE FOR A SME-READY ERP-SOLUTION BASED ON WEB-SERVICES AND PEER-TO-PEER-NETWORKS.

In Proceedings of the Seventh International Conference on Enterprise Information Systems, pages 383-390

DOI: 10.5220/0002507503830390

 SciTePress

the deployment of classical ERP-systems.

However, the maintanance of the systems is still

very complex.

• "Mini-ERP-Systems": Such systems, like SAP

Business One, offer a reduced set of functionality

and customizing options and are offered for

reduced fees. These restrictions contradict the

requirements for flexibility outlined above.

Because of this, a new approach was developed,

which we call "Aldi-ERP-system". This system will

be deployed as a basic version with a graphical user

interface, basic functionality, a workflow-system

and a database, which can - exaggeratedly - be

purchased in a supermarket. Thus the name. The

technical foundation is simply a normal workplace

PC and one server equipped with standard PC

technology. All other domain-related and company-

specific functionality are integrated via web-

services, which are offered via a peer-to-peer-

network (P2P-network). This concept has following

advantages:

• Every none-standard functionality needs to be

implemented as a web-service only once. Several

companies can then subscribe to it via the

Internet. The subscription is considerably

cheaper than developing this functionality

oneself., because web-services can be used by

many customers and are centrally managed by

the developers.

• P2P-technology enables providers to redundantly

offer their web-services and thus the whole

system has a high availability rate.

• All business-critical data and knowledge about

the success-enabling business process are only

stored locally within the SME organisation.

Because of these properties, the system allows to

configure ERP-systems in a way that on the

individual requirements of a specific SME can be

fulfilled without the need to share business critical

data with third parties and with justifiable costs.

2 INITIAL SITUATION

Since the mid-90s ERP-systems are very successful

world-wide and are used within virtually every large

enterprise. The most important software-suppliers of

ERP-software today are Oracle, Peoplesoft,

Microsoft, Baan and SAP AG, whereas SAP AG is

the world-wide market-leader with its SAP R/3

Enterprise system. P2P-networks and web-services

are the foundation on top of which the Aldi-ERP-

concept should be built. Following, the actual

developments in research shall be presented.

2.1 ERP-Systems

An ERP-system (ERP = Enterprise Resource

Planning) is an integrated standard software for

businesses which

• Offers functionality for all parts of the business,

• Is extensible, especially by integrating other

information systems, and

• Is usable in many branches (see Rautenstrauch/

Schulze, 2003, p. 314f.).

Consequently, the business functionality of SAP

R/3 Enterprise is organized in main components.

Those are related to following areas (without

claiming completeness):

• Logistics: Distribution, Materials Management,

Production Planning, Quality Management,

Maintanance

• Human Resource Management: Personell

Management

• Accounting: Finance, Controlling, Treasury,

Asset Management

• General: Project Management, Service

Management

Because ERP-systems need to be independent of

the branch the using company is working in, the

software needs to be adapted before each

deployment to the organizational structure. This

process is called Customizing and is done by

systematically setting parameters. In practice, this is

a very complex task, because one has to find out,

which one of the many combinations of parameters

is the right setting for the specific business. If there

are n possible values of a parameter and m

parameters in total, there are n

possible settings for

the whole system because the parameters are

independent of each other. Within SAP R/3

Enterprise there are hundreds of parameters with at

least 2 possible values.

2.2 Peer-to-Peer-Networks

P2P-Networks are compounds of equitable peers,

which offer one another resources without central

control instances (see Schoder/Fischbach, 2003, p.

313). The term ‚peer-to-peer’ (P2P) refers to a class

of systems and applications that employ distributed

resources to perform a critical function in a

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

384

decentralized manner (see Milojicic et. al., 2002, p.

1).

As a result, the three most important properties

of P2P-networks are (see Schoder/Fischbach, 2003,

p. 313) and (Milojicic et. al., 2002, p. 12):

1. Two way offering of resources: Every peer can

act as a client as well as a server, that means it

can offer or request resources attachted to the

network,

2. Decentralization: direct exchange between

quitable peers without central control,

3. Autonomy: Peers choosing which resources are

offered

Further properties of P2P-networks are:

• Scalabiltiy and ad-hoc compound: P2P-networks

can be reconfigured in run-time, that means peers

can be added or removed,

• Anonymity: By using several techniques users of

P2P-networks can be anonymous,

• Distributed Ownership and distributed property:

The total cost of ownership is reduced because

peers are sharing otherwise unused resources,

• Reliability: Because of the decentral architecture

there is no single point of failure. If one peer

fails others can take over its jobs.

P2P-networks can be categorized within four

categories. Used for distributed computing,

computing intensive tasks are broken down into

small pieces which are solved simultaneously by

many peers. One prominent example of this kind of

network is SETI@Home. File sharing enables the

virtual aggregation of many peers’ storage space.

Popular implementations are Napster and Gnutella.

The third category consists of instant messaging

(IM)-systems and collaborative tools. Examples for

these are ICQ and AOL Instant Messenger. The

fourth category are platforms, e.g. JXTA by Sun

Microsystems and Microsoft’s .NET My Services

(see Milojicic et. al., 2002, p. 7).

2.3 Web-Services

The term web-service has no standard definition (see

Berner Fachhochschule, 2003). Within this paper,

we use the definition of the working group

“Development of web-service-based applications“ of

the German Society for Informatics (German

Society for Informatics, 2003): “Web-Services are

self-descriptive, encapsulated software-components,

which offer an interface which can be used to

remotely invoke their functionality and which can be

loosely combined via the exchange of messages.

There are lots of concepts, protocols and models

for developing web-services, whose standardization

is driven by different consortia, most importantly the

World Wide Web Consortium (W3C) and the Orga-

nization for the Advancement of Structured

Information Standards (OASIS). The following

standards, all based upon the eXtensible Markup

Language (XML), are the foundation of the web-

service infrastructure (see Bettag, 2001):

• Simple Object Access Protocol (SOAP) (see

W3C, 2003): SOAP defines a light-weight

protocol for message-exchange and function

calls between applications and supports

asynchronous and synchronous request/response

communication.

• Web Service Description Language (WSDL)

(see W3C, 2003): Via WSDL the interfaces and

functionality of web-services are described.

• Universal Description, Discovery and Integration

(UDDI) (see OASIS, 2002): In order to find

web-services, the services, their interface- and

functionality-description can be registered in a

central repository. The standard for this as well

as the central global register is called UDDI (see

Beimborn, Mintert and Weitzel, 2002, p. 278).

The connection of web-services is called web-

service-choreography, web-service-composition or

web-service-orchestration. For accomplishing this

task, there is no single accepted standard available.

Instead competing standard proposals by different

vendors exist, e.g. BPEL4WS (see Curbera et al.,

2003), WSFL (see Leymann, 2001), XLANG (see

Thatte, 2001) or WSCI (see Arkin et. al., 2002).

Some of these are built upon workflow-description

languages, like WSFL (IBM). The most important

difference between these, sometimes also referred to

as flow-languages is the support of state: While

WSDL is a stateless language, flow-languages

support different states of the corresponding web-

services (see Aalst , 2003, p. 74).

3 THE COBCOM-

ARCHITECTURE AS

THEORETICAL FOUNDATION

The theoretical foundation for the Aldi-ERP-system

is the CoBCoM-architecture (Common Business

Component Model) (Turowski, 2003 and

Rautenstrauch/Turowski, 2001). A business

component (BC) is thereby defined as a component

ARCHITECTURE FOR A SME-READY ERP-SOLUTION BASED ON WEB-SERVICES AND

PEER-TO-PEER-NETWORKS

385

which offers a set of services of a specific operative

application domain. A component is defined as a

reusable, self-contained, and marketable software

artefact, which offers services via well-defined

interface and can be used in combination with other

components within applications in a manner not

foreseeable in its development. In this way, web-

services can be interpreted as an implementation of

business components.

3.1 BCArch

An orchestration which is based solely on putting

more or less complex business components together,

fails because of the complexity of interface

definition. Because of this, BCArch (Business

Component Architecture) has been developed to

provide a framework for the system design (see

figure 1). Corresponding to BCArch an application

design consists of following parts:

• A Component-Application-Framework is a part

of the system which offers application-domain

specific (standard-)services to the business

components and likewise acts as an integration

plattform for them.

• A Component-System-Framework is a part of the

system, in which business components offer

application-invariant, middleware-related

services.

from the view of BCArch, the (business-related)

basic functionality is placed in the Component-

Application-Framework, whereas domain-invariant

software-artefacts, like database management

software and workflow-systems, belong to the

Component-System-Framework. The workflow-

models are themselves responsible for execution the

components’ services in the right order suitable for

the application (Inter-Component-Coordination).

Thus, they are application-specific and part of the

Component-Application-Framework (see figure 2).

3.2 Business Components versus

Web-Services

Very suitable to differentiate between web-services

and business-components is the definition of

(Krammer/Turowski, 2001, p. 2) following (Bettag,

2001), because it used software-specific properties.

Following, web-services are “…a together-

belonging set of marketable services, which are

offered via the WorldWideWeb to an authorized

group of users using standardized communication

protocols and well-defined interfaces. Web-Services

contain interface-descriptions of the offered

services, which are written in a standardized

description language. Details of the implementation

are hidden from the user.“

The main difference between a business

component and a web-service is that with web-

services only their services are marketed and not the

software itself. Because of this, it is not necessary

that the implementation of a web-service is reusable.

Correspondingly, web-services need not be self-

contained, because it does not matter for the user of

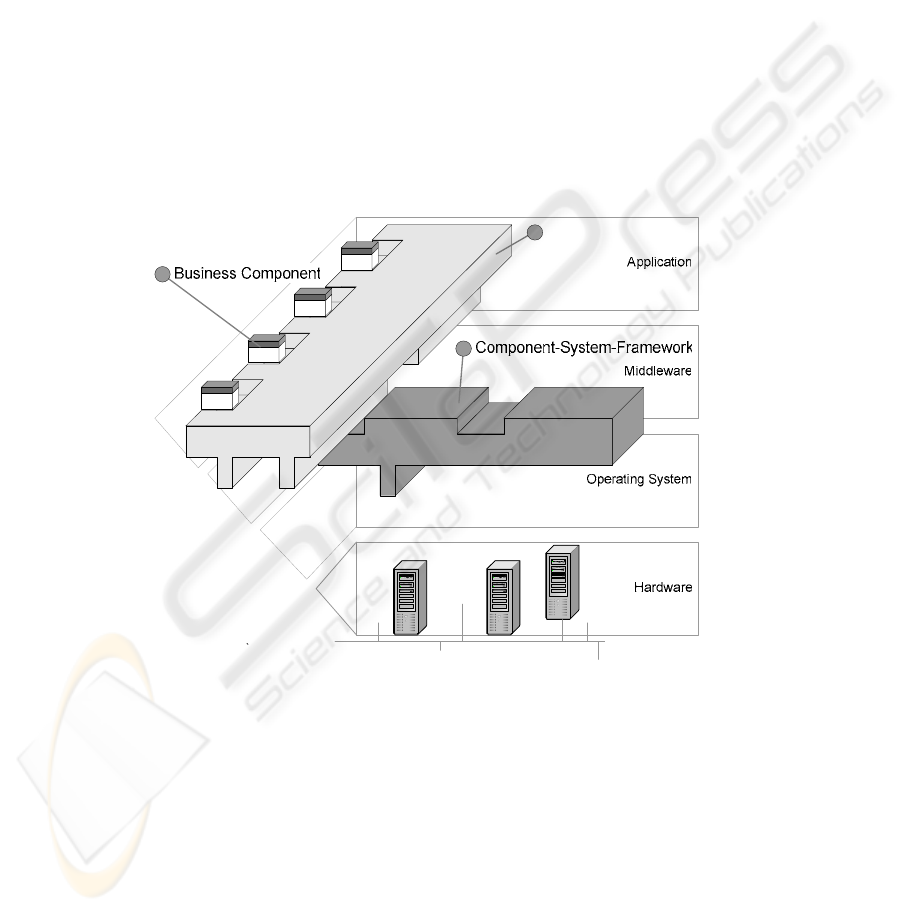

Figure 1: BCArch

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

386

a web-service which web-service offers which

functionality (see Krammer/Turowski, 2001, p. 3f.).

Another difference is the explication of the run-time

environment of web-services. However, business

components and web-services have in common that

• Services are offered via well-defined interfaces,

• The implementation is hidden from the user,

• And Services can be arbitrarily combined.

Therefore, web-services are a special case or an

implementation of business components from the

point of view of software-architecture.

4 ALDI-ERP-SYSTEM

ARCHITECTURE

To solve the ERP-SME-dilemma an architecture

based on BCArch is proposed as illustrated in

figure 3 (according to Marx Gómez et. al., 2004).

Workflowmanagement- and databasemanagement-

systems (WFMS und DBMS) are the system-

framework. The application-frameworks consist of

services for the user-interface and the basic ERP

functionality. Both frameworks will be delivered as

frontend-systems and are pre-installed.

Further functionality can be attached via web-

services, which are offering the implementation for

the corresponding business components. The web-

services themselves are distributed over a P2P-

Network. Depending on availability and

performance criteria defined in Service Level

Agreements (SLAs) between the users and the web-

service-providers, web-services can be redundantly

offered by many peers. These peers can be installed

within the company as well as be installed off-site.

By using a P2P-network with redundantly

distributed web-service, high availability can be

achieved. If one peer fails, another peer can take

over its role and offer the same functionality. The

hardware-requirements are minimal because of the

resource-sharing within the network. In connection

with an out-of-the-box-solution the need for highly-

skilled technical personal for administering and

maintaining the system is low.

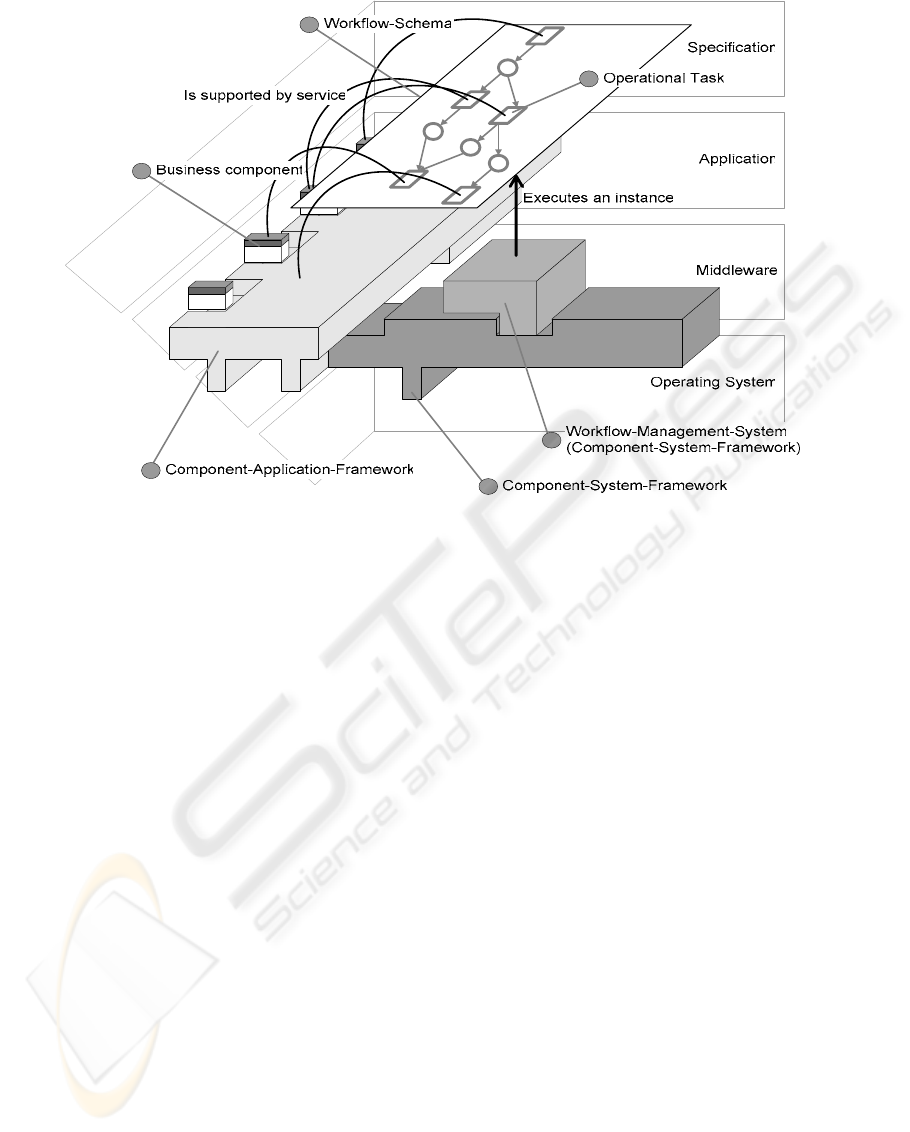

Figure 2: Embedding Workflows into BCAr

ARCHITECTURE FOR A SME-READY ERP-SOLUTION BASED ON WEB-SERVICES AND

PEER-TO-PEER-NETWORKS

387

The communication between the different peers

will be done via SOAP-messages, the web-services

will be described with WSDL and can be retrieved

via UDDI By using these standards, and other offers

of web-services can be easily integrated in the

system. The system can be easily extended with new

functionality by using new web-services which

means that companies can very flexible use and

extend their system. Subscription, execution

ordering and parameterisation of the web-services

will be done via the workflow-component. The

enactment-service of the workflow-component

within the frontend takes over the request for web-

services during run-time.

Access rights to the functionality of the ERP-

system will be managed in the front-end as well.

Because access-rights are relevant when accessing

web-services, a mobile user agent will be used

which has its user’s access rights. The agent will be

sent to the web-service where a static guard agent

will check the permissions and open the service

accordingly. This way, it is assured that the same

security-policies are effective when using local

components or remote web-services.

Another security problem exists, if data are

exchanged between front-end and web-service.

Because the web-service is a shared resource

accessible by different companies, data can

principally be read by third parties. A solution to this

is the usage of XML documents which are encrypted

using the XML Encryption Standard. XML

Encryption was standardized by the W3C in the

XML Encryption Working Group and is a W3C

recommendation since 10

of December 2002.

The coupling of ERP-systems of many

companies in the context of a supply chain is

relatively simple, because it does not differ from

extending the system via new web-services. This

implies, that by constructing ERP-systems out of

web-services the difference between inter- and intra-

enterprise integration vanishes from the technical

point of view.

With conventional ERP-systems the number of

installed systems is roughly the number of the using

enterprises. However, with the proposed concept, all

components exist only once (apart from redundant

installations for high availability). If a company

needs a specific functionality, this can be subscribed

to as web-services or a software-developer can write

a new web-service. This way, an agile ERP-system

is created, which is improved by a development

community all the time similar to the open-source-

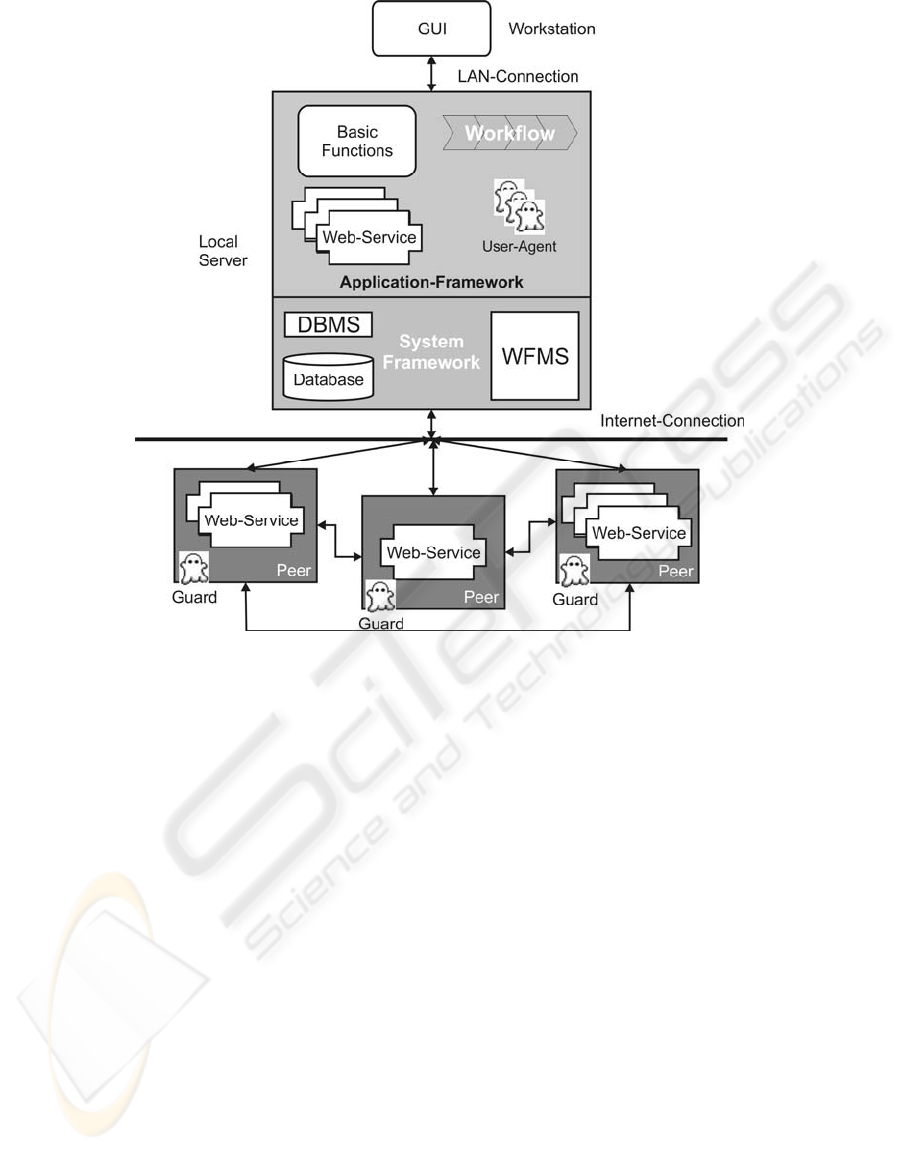

Figure 3: Architecture “Aldi

ERP

System”

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

388

movement. Another side-effect is that the market-

barriers for small software companies are lower.

Innovative solutions for single business

requirements can be directly offered without

building a complete application around the solution.

This improves the competition in the oligopolistic

ERP-market and will finally help the ERP-users.

The proposed architecture fulfils the

requirements for service-oriented architectures

(SOA). According to (Webopedia, 2004) SOAs are

defined as: “Abbreviated SOA, an application

architecture in which all functions, or services, are

defined using a description language and have

invokable interfaces that are called to perform

business processes. Each interaction is independent

of each and every other interaction and the

interconnect protocols of the communicating devices

(i.e., the infrastructure components that determine

the communication system do not affect the

interfaces). Because interfaces are platform-

independent, a client from any device using any

operating

system in any language can use the ser-

vice.“

The main requirement of a SOA is, that

• Functionality is only accessed via standardizes

and platform-independent interfaces,

• the interfaces are defined in a standardized

specification language, and

• the interaction between services must be

independent of the underlying technologies.

These are fulfilled by web-services because only

standards like SOAP, WSDL and XML documents

are used. Because of this, the presented system

architecture is an implementation of a SOA.

Comprising, the presented architecture provides

a flexible and cost-effective alternative, to the

classical, proprietary ERP-systems and are suited to

fulfil the special requirements of SMEs.

5 CONCLUSIONS AND OUTLOOK

The usage of ERP-systems by SMEs has been a

compromise because of the ERP-SME-dilemma:

The usage meant abandonment of functionality (i.e.

the usage of “Mini-ERP-Systems”), the sharing of

critical business knowledge with 3

parties (ASP) or

waiving of individuality (EDP branch solutions).

With the proposed concept, this compromise should

be made unnecessary.

With the Aldi-ERP-System, it is possible to

build and maintain fully functional, high available,

inter- and intra-enterprise integrateable ERP-systems

for SMEs with justifiable costs. The realization of

department- and company-wide business processes

will keep up the competitive position of SMEs in the

world-wide market. Furthermore, ERP-Systems are

the basis for optimizing internal business processes,

for implementing a company-wide controlling and

for participating in supply-chains – advantages

which are realized by larger enterprises for a while.

The architecture also not only affects SMEs but

also influences small and medium software

companies. These are able to offer their innovative

software in form of web-services to the ERP-market

without risking an expensive development of ERP-

systems from scratch themselves. This increases the

number of suppliers in the ERP-market and finally

results in increased competition between software

companies which is attractive for the ERP-users.

The next step will be the development of an

Aldi-ERP-prototype to test the presented concepts.

The BCLifeCycle seems to be suited for this as it is

the proposed method in the CoBCoM model. The

aim is to validate and perhaps adapts the CoBCoM

model to service-oriented architectures.

REFERENCES

Aalst, W. v .d., 2003. Don’t go with the Flow: Web

Services compositions standards exposed, IEEE

Intelligent Systems, January/February.

Arkin et. al., 2001. Web Service Choreography Interface

1.0, http://www.sun.com/software/xml/developers/

wsci/wsci-10.pdf.

Beimborn, D., Mintert, S., Weitzel, T., 200. Web Services

und ebXML, Wirtschaftsinformatik, 3, p. 277-280.

Berner Fachhochschule, 2003. Web Services im

eGovernment,

http://webservice.iwv.ch/definitionen.htm, August.

Bettag, U., 2001. Web-Services, Informatik Spektrum, 5,

p. 304.

Curbera et. al., 2003. Business Process Execution

Language for Web Services Version 1.1, http://www-

106.ibm.com/developerworks/webservices/

library/ws-bpel, September.

Symposium auf der 33. Jahrestagung der GI, 2003.

Entwicklung Web-Services-basierter Anwendungen,

http://www.winf.tu-darmstadt.de/arbeitskreis/

symposium.htm, August.

Günther, O., Tamm, G., Hansen, L., Meseg, T., 2001.

Application Service Providers: Angebot, Nachfrage

und langfristige Perspektiven, Wirtschaftsinformatik

43, p. 555-568.

Krammer, A., Turowski, K., 2001. Spezifikationsbedarf

von Web-Services. In Ortner, E., Overhage, S., 1.

ARCHITECTURE FOR A SME-READY ERP-SOLUTION BASED ON WEB-SERVICES AND

PEER-TO-PEER-NETWORKS

389

Workshop “Entwicklung von Anwendungen auf der

Basis der XML Web-Service Technologie, p. 1-14,

Darmstadt.

Leymann, F., 2001. Web Services Flow Language (WFSL

1.0), http://www-3.ibm.com/software/solutions/

webservices/pdf/WSFL.pdf.

Milojicic et. al., 2002. Peer-to-Peer Computing, HP Labs

(HPL-2002-57), Palo Alto.

Marx Gómez, J., Krüger, O., Kühne, C., Lübke, D.,

Rautenstrauch, C., 2004. Developing a Distributed

ERP System based on Peer-to-Peer-Networks and

Web Services. In ICSC, Engineering of Intelligent

Systems – EIS 2004 (CD-ROM), Funchal.

Organization for the Advancement of Structured

Information Standards (OASIS), 2002. UDDI Version

2.04 API Specification, http://uddi.org/pubs/

ProgrammersAPI-V2.04-Published-20020719.htm.

Rautenstrauch, C., Schulze, T., 2003. Informatik für

Wirtschaftswissenschaftler und

Wirtschaftsinformatiker. Springer, Berlin, Heidelberg.

Rautenstrauch, C., Turowski, K., 2001. Common Business

Component Model (CoBCoM): Generelles Modell

komponentenbasierter Anwendungssysteme. In Buhl,

H.-U., Huther, A., Reitwiesner, B., Information Age

Economy. Heidelberg, p. 681-695.

Schoder, D., Fischbach, K., 2003. Peer-to-Peer-Netzwerke

für das Ressourcenmanagement, Wirtschaftsinformatik

2003(3), p. 313-323.

World Wide Web Consortium (W3C), 2003. Simple

Object Access Protocol (SOAP) 1.1,

http://www.w3.org/TR/SOAP/, Requested in August

2003.

World Wide Web Consortium (W3C), 2003. Web

Services Description Language (WSDL) 1.1.

Webopedia, 2004. Service-oriented Architecture.

http://www.webopedia.com/TERM/S/Service_Oriente

d_Architecture.html, Requested on May 11,

2004.

Thatte, S., 2001. XLANF: Web Services for Business

Process Design,

http://www.gotdotnet.com/team/xml_wsspecs/xlang-

c/default.htm, Microsoft, Redmont, Washington.

Turowski, K., 2003. Fachkomponenten, Shaker. Aachen.

ICEIS 2005 - DATABASES AND INFORMATION SYSTEMS INTEGRATION

390
