SECURE TRANSPARENT MOBILITY

Secure Mobility Infrastructure using Mobile IP

Mark W. Andrews, Ronan J. Skehill, Michael Barry, Sean McGrath

University of Limerick, Limerick, Ireland

Keywords: Mobility, Transparent, Mobile IP, Virtual Private Networks, IP Security, Internet Protocol, Internet Key

Exchange, Agent.

Abstract: Mobility has become an integral part of modern computing. It increases user flexibility by releasing the

potential of fixed data. Reliance on a static computing platform is not sufficient for the future needs of

nomadic users. Portable e-mail devices have become popular in recent years due to their simplicity and

functionality. These devices give the average user transparent access to their e-mail from any location.

Similar transparent access does not exist for general notebook or Personal Digital Assistant (PDA)

computing environments. This paper addresses such access, and details a secure mobility architecture from

which users can extract greater value. It utilises Mobile IP, IP Security, Internet Key Exchange and

Firewalls to provide a comprehensive mobility solution. It evaluates a test-bed in which this secure mobility

solution was deployed, and discusses the viability of a secure, transparent architecture which supports

mobility.

1 INTRODUCTION

Mobile computing is set to be the new growth driver

for overall PC sales worldwide. In 2004 worldwide

notebook sales grew 22.1% compared to 10.6% in

desktop computer growth (THG, 2005). This rapid

increase in demand for mobile hardware has

problems associated with data mobility. By its very

nature TCP/IP was designed for a fixed network

architecture where each computer is assigned a static

IP address. If a computer is moved to a different

network or subnet (i.e. if it changes location), the

computers IP address must be changed to reflect the

new location (Redi, 1998).

The ‘mobile nature’ of computing hardware like

notebooks and PDAs does not integrate in a

satisfactory manner with the static TCP/IP platform.

Accessing information is made more difficult due to

the fact that Mobile Nodes may be constantly

changing network location.

In 1996 C. Perkins published a protocol called

‘Mobile IP’ in Request For Comments (RFC) 2002.

This laid the foundations for mobility support in IP

networks – RFC 2002 has since been updated in

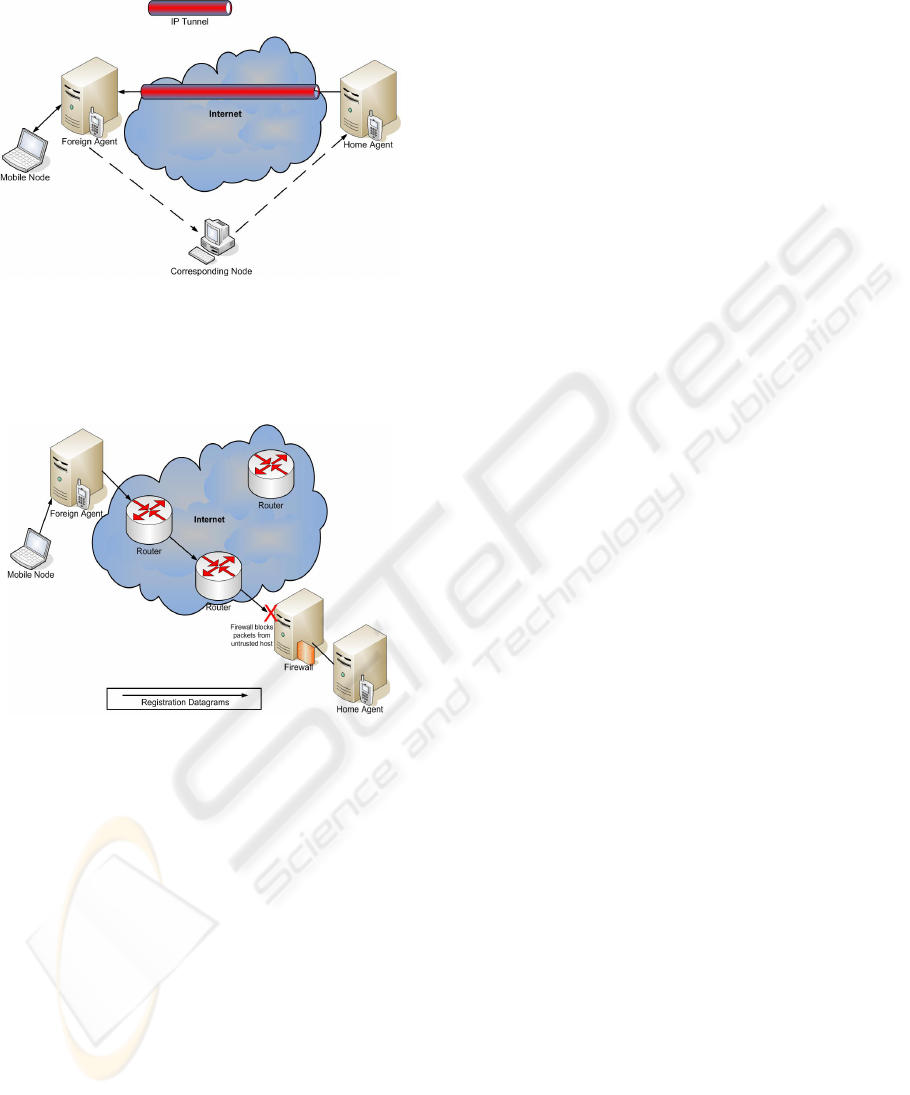

RFC 3344. Mobile IP provides a method for

transparent connectivity between the ‘home

network’ and Mobile Nodes connected to ‘foreign

networks’. However, it was never adopted in any

significant proportion by the computer industry.

Mobile IP’s lack of data encryption and Firewall

support functionality make it untenable for

deployment in most networking environments. Both

Firewalls and data encryption are critical for the

security of users, their ‘home networks’ and their

transmitted data.

This paper details a secure mobility architecture, in

which Mobile IP is adapted to support firewalls,

authentication and data encryption. The resulting

architecture allows individuals to roam between

different foreign networks in a secure, managed

fashion. The paper is presented in the following

manner; Section 2 describes network security, and

the elements of network security which complement

the secure mobility model presented later in the

paper. Section 3 highlights the Mobile IP protocol,

its operation and the effect Mobile IP has on

network security. Section 4 details the network

topology of the secure mobility model. Section 5

demonstrates the functional aspect of the solution, in

terms of the protocol interaction and configuration.

Section 6, analyses the solution in terms of its

operation and performance. Section 7 concludes the

paper by summarising the main points, and the

practical application of this secure transparent

mobility solution.

W. Andrews M., J. Skehill R., Barry M. and McGrath S. (2005).

SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 41-48

DOI: 10.5220/0001410300410048

 SciTePress

2 NETWORK SECURITY

Data security is a pressing concern of users around

the world. CERT recorded 137,529 computer

security incident reports in 2003, compared to 1,334

in 1993. Protection of data is of serious importance

to users, as the increasing number of threats grows

significantly on a yearly basis (CERT, 2004).

The network security elements discussed in this

section are necessary for the successful

implementation of a secure mobility solution.

Computer network security is the process of

preventing and detecting unauthorised use of your

computer network resources. Prevention measures

help to avert unauthorised users from accessing any

part of your computer system or network. Detection

helps determine whether or not someone attempted

to break into a computer network, if they were

successful, and what they may have done to

compromise that system (Valenita, 2005).

Firewalls, Virtual Private Networks, IP Security

and Internet Key Exchange (IKE) are important

security protocols and technologies. A brief

overview of each is given in the following

subsections.

2.1 Firewalls

Firewalls are the principal way a private network is

protected from intrusion by external nodes. A

Firewall is a system or group of systems that

enforces an access control policy between two

networks (CERT, 2001). In simple terms, a Firewall

is a security device that separates an internal

network from and external network. All traffic

passing between the two networks must traverse the

Firewall by virtue of the network topology. The

Firewall enforces security and access control

policies and protects the internal network from

malicious users. The majority of Firewalls today use

stateful inspection, whereby the Firewall tracks the

state of each traffic flow and then determines

whether a packet or connection should be allowed or

dropped. A Firewall monitors traffic from an

external host to a host in a Firewall-protected

network and conversely, monitors traffic from

internal hosts to external ones. Typically,

connections initiated from outside hosts to hosts on

the internal network are severely restricted

(Kopparapu, 2002).

2.2 Virtual Private Networks

A Virtual Private Network (VPN) is a network that

is constructed by using a public network

infrastructure to connect nodes. VPN’s use

encryption and other security mechanisms to ensure

that only authorised users can access the network,

and that the data cannot be intercepted (Webopedia,

2005).

Characteristically VPN’s are used to provide an

encrypted connection between a user’s distributed

sites over the Internet. By contrast, a private

network uses dedicated circuits (via leased lines or

otherwise) and possibly encryption. The encrypted

tunnel a VPN provides, is a secure path for network

applications to transmit data and requires no changes

to those applications.

A VPN generally uses Firewalls, encryption and

authentication to keep data and the connection

secure. The most common protocols that facilitate a

secure VPN connection will now be discussed

(Dunigan, 2004).

2.3 IP Security

The Internet Engineering Task Force (IETF) defined

IP Security (IPSec). It is a standard that provides a

common means of authentication, integrity and IP

encryption. It offers two modes of operation, tunnel

mode and transport mode.

IPSec packets can be routed and switched on any

network that supports IP traffic. No additional

support capabilities are required on the carrier

network. One of the benefits of this protocol is that

it is transparent to the application layer. Therefore,

it can be used in conjunction with existing

application layer security software. In addition,

VPN solutions using IPSec as the basis for a

common protocol can interoperate, opening up new

possibilities for securely sharing data (Atkinson,

1995).

IPSec uses two principal elements to protect

network communications:

• Authentication Header (AH), this

provides source authentication and data

integrity. This ensures the data cannot be

altered without the recipient’s knowledge

and verifies the identity of the sending

node.

• Encapsulated Security Payload

(ESP), this provides confidentiality,

ensuring that data will not be intercepted,

read or copied. This security is provided

through encryption.

2.3.1 IPSec Authentication Header

In Authentication Header (AH) transport mode, an

AH header is inserted between the IP header and the

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

payload. This provides the Security Parameter

Index (SPI), sequence number and other

authentication data required (RFC1826).

2.3.2 IPSec Encapsulated Security Payload

In IPSec Encapsulated Security Payload (ESP)

transport mode, an ESP header is inserted between

the IP header and IP payload. An ESP trailer and

authentication MAC are added to the end of the

packet. In tunnel mode ESP, the entire packet is

encrypted and appended to a new ESP header and IP

header, with an authentication trailer added (Intel

Networking, 1999).

2.4 Internet Key Exchange

Internet Key Exchange (IKE) is defined as an IPSec

(IP Security) standard protocol used to ensure

security for Virtual Private Network (VPN)

negotiation. IKE defines an automatic means of

negotiation and authentication for IPSec SAs

(Security Associations). Security Associations are

security policies defined for communication between

two or more entities (Harkins, 1998). A key

represents the relationship between the entities. IKE

in essence, enables the establishment of a symmetric

key between two entities using a cryptographically

secure key exchange mechanism. This exchange is

called Diffie Hellman, and a key is established in the

following manner:

1. Alice and Bob select a prime

number p and calculate p’s generator g.

These two calculated values are public

2. Alice chooses a large private

number, such that x < p and transmits Bob

the remainder x from the equation:

x = g

mod p

3. Similarly Bob chooses a large

private number, such that y < p and

transmits Alice the remainder y from the

equation:

y = g

mod p

4. Alice calculates the remainder:

s = y

mod p

5. Bob calculates the remainder:

s` = x

mod p

6. The remainders s and s` are equal

because:

s = s`= g

mod p

7. Thus Alice and Bob now share a

symmetric key s, which can be used for

fast encryption by both parties.

8. It is not possible to obtain the

value s from the two public keys passed

over the Internet, since the final value s

also depends on the two private values,

which remain secret (Diffe Hellman, 2004).

IKE also grants the ability to change encryption

keys during an IP Security session. This is useful in

situations where the lifetime of the key should be

changed frequently for security purposes.

2.5 General Comment

The security components discussed are necessary in

order to provide confidentiality, integrity,

authorisation and non-repudiation for the secure

mobility architecture. The final component, Mobile

IP, enables the transparent network connectivity

between mobile nodes and the ‘home network’.

Mobile IP, while not a viable solution by itself, can

be used in conjunction with other protocols such as

those already discussed, to provide a secure

cryptosystem that completes the overall architecture.

3 MOBILE IP

The fundamental need for Mobile IP arises when a

node connected to the Internet changes its point of

attachment (Redi, 1998). This means, when a

mobile node moves from its home network to a

foreign network, such as a public wireless hotspot,

there will be transparent network connectivity to the

home network from the new location.

TCP/IP was not designed to support this type of

connectivity. However, with the use of Mobile IP,

the mobile node can configure itself with the aid of

devices called ‘agents’ for such connectivity. This

process is transparent to users, allowing them to

maintain contact with the ‘home network’ at all

times by any network media.

Each agent device in Mobile IP carries out a

specific function. The ‘Home Agent’ resides on the

users ‘home network’. This device acts as a packet

forwarder. If the Mobile Node is attached to a

‘foreign network’, any packets destined for the

Mobile Node will be intercepted by the Home Agent

using proxy ARP (Address Resolution Protocol),

and forwarded using IP-in-IP encapsulation to the

‘foreign network’ using the mobile nodes Care-Of

Address (Perkins, 2002). Hence, the Home Agent

acts as the Mobile Nodes point of attachment to the

Internet when it is located on a ‘foreign network’.

Once the tunnelled packet reaches the ‘foreign

network’, a Foreign Agent decapsulates the data and

forwards it to the Mobile Node residing on its

network. Figure 2, illustrates the triangular route the

Mobile IP protocol typically uses between the

SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP

mobility nodes, Home Agent, Mobile Node and

Corresponding Node.

Figure 1: Mobile IP Triangular Routing

3.1 Mobile IP and Network Security

3.1.1 Mobile IP & Firewalls

Figure 2: Firewall Blocking Mobile IP Registration

Process

Mobile IP does not interoperate with

Firewalls.Typically, a Firewall severely restricts the

type of connections initiated from outside hosts to

hosts on the internal network. This restriction

prevents a Mobile Node running Mobile IP to

this.

The Foreign Agent will be seen as an

unauthorised host on the Internet, and thus will be

considered untrustworthy. The registration

datagrams cannot negotiate with the Home Agent,

which sits on the ‘home network’ and the mobile

process cannot be initiated.

3.1.2 Mobile IP & Data Security

Data protection has become a high growth market in

the computer systems environment (IT Facts, 2003).

Unprotected data routed around the Internet is no

longer considered safe practice, especially when that

data is of a sensitive nature. Vanilla Mobile IP

transmits data between nodes in plaintext, thus the

data can be intercepted when being routed around

the Internet. This data can then be easily deciphered

and used against the sender and receiver. These

issues make vanilla Mobile IP an unviable protocol,

due to its inadequate data payload security

protection.

3.1.3 Solution

The solution is to use the transparent mobility

functionality of the Mobile IP protocol, coupled with

the authorisation and encryption protocols IKE and

IPSec. In addition, the Firewall must complement

the overall solution to fulfil the security

requirements. Minor alterations can be made which

will support the mobility aspect of the solution,

while limiting the security impact on the private

network. The network design element will now be

discussed.

4 MOBILITY NETWORK

TOPOLOGY DESIGN

The most secure network topology for secure

mobility is for the agent device to be integrated with

the Firewall. This ensures that an optimal security

policy can be enforced at the boundary between the

public and private networks. The Firewall is the

best security device for maintaining perimeter

security. It would be unsafe to place the Home

Agent outside the protection of the Firewall and into

the De-Militarised Zone (DMZ). A knowledgeable

attacker would compromise the Home Agent and

gain access to the home network via this path, thus

bypassing the Firewall.

Figure 3, illustrates the proposed secure

configuration arrangement for the secure Mobile IP

implementation.

4.1 Firewall Design

The Home Agent functionality will be incorporated

within the Firewall design. The overall security

policy can be implemented in a more integrated

manner when one security perimeter device

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

monitors and controls access and security levels

between the private network and the Internet.

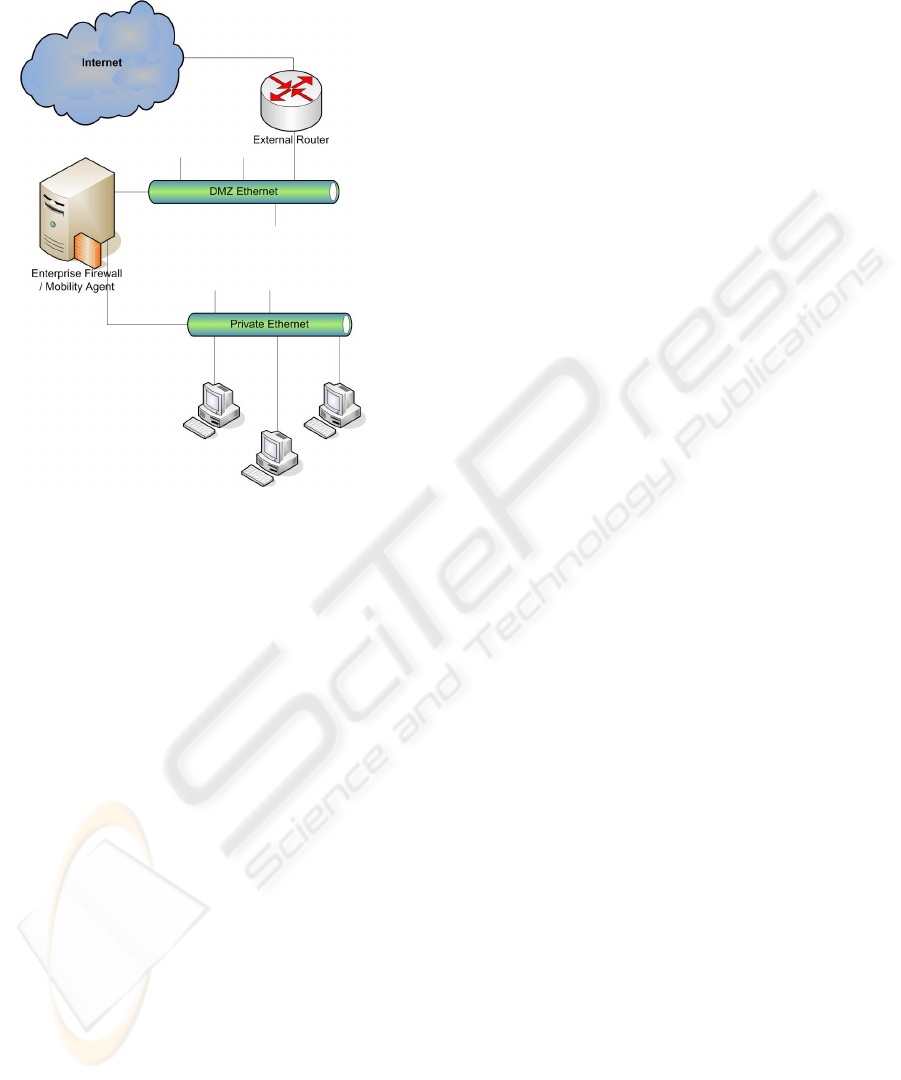

Figure 3: Proposed Home Network Device Architecture

The design of the Firewall must not impact on

the level of security it is designed to provide. It

must not interfere with the operation of the Mobile

IP protocol; it must work in conjunction with it to

provide the best functionality.

Reverse tunnelling is a prerequisite for security

purposes (Montenegro, 2001). Tunnelling back to

the Firewall gives guaranteed secure flow of data in

both directions. Thus the Firewall can enforce a

strict data flow policy, thereby protecting the ‘home

network’.

5 SECURE MOBILITY MODEL

The Firewall stands as the primary defence for the

security of the ‘home network’. However, it is also

critical that the Mobile Node maintain a high level

of security, otherwise this could become the conduit

through which an attack is mounted against the

‘home network’. A software based stateful

inspection Firewall will be installed on the Mobile

Node. This adds the final layer of security into the

integrated network architecture.

5.1 Test-bed

Utilising the various technologies described,

comprising of: Mobile IP, IP Security, IKE and

Firewalls, a working model of these components

was implemented in a test-bed. The test-bed

provided an environment in which the solution could

be analysed. It also provided a data analysis

platform from which real network performance

statistics were obtained.

The test-bed consisted of a Home Agent/Firewall,

Foreign Agent, Corresponding Node, Mobile Node

and a Router. The Linux Open Source environment

was used as the Operating System platform due to

the availability of source code. The protocols were

adapted slightly, without alteration of their design

parameters, to work in conjunction with each other.

In addition, the Linux IPtables Firewall was adjusted

to authenticate Mobile IP datagrams. Details of the

protocol interaction will now be highlighted.

5.2 Protocol Interaction

The Message Sequence Chart (MSC) in figure 5,

illustrates the protocol interaction process. Firstly,

the Mobile node sends a Registration Request in

response to an Agent Advertisement, or as a result of

an Agent Solicitation. The Foreign Agent forwards

the Registration Request to the Firewall/Home

Agent. Once the Firewall detects a UDP

transmission to port 434 (the port Mobile IP uses for

registration), it allows that packet to negotiate with

the Firewall/Home Agent. If the request is accepted

(through authentication HMAC Message Digest 5

(MD5)) the Firewall/Home Agent sends a

Registration Reply, which the Firewall policy

allows. A reverse tunnel is then permitted between

the Care-of Address and the Firewall/Home Agent.

The Firewall restricts traffic in this reverse tunnel. It

only permits UDP traffic (from OpenVPN) to port

5000. Further, OpenVPN only allows this traffic

passage to the private network once the data flow

has been further authenticated and authorised. This

provides security against individuals inserting

unauthorised data into the reverse tunnel payload,

outside the VPN tunnel. Even if this data does enter

the tunnel, the Firewall will immediately disregard

without inspection. Once a location update is

received (i.e. a new Registration Request) the

Firewall closes access to the previous Care-of

Address – thus enforcing the security of the system.

The reverse tunnel acts as the primary data conduit

between the Firewall/Home Agent and the Foreign

Agent. Within this tunnel the VPN is established.

SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP

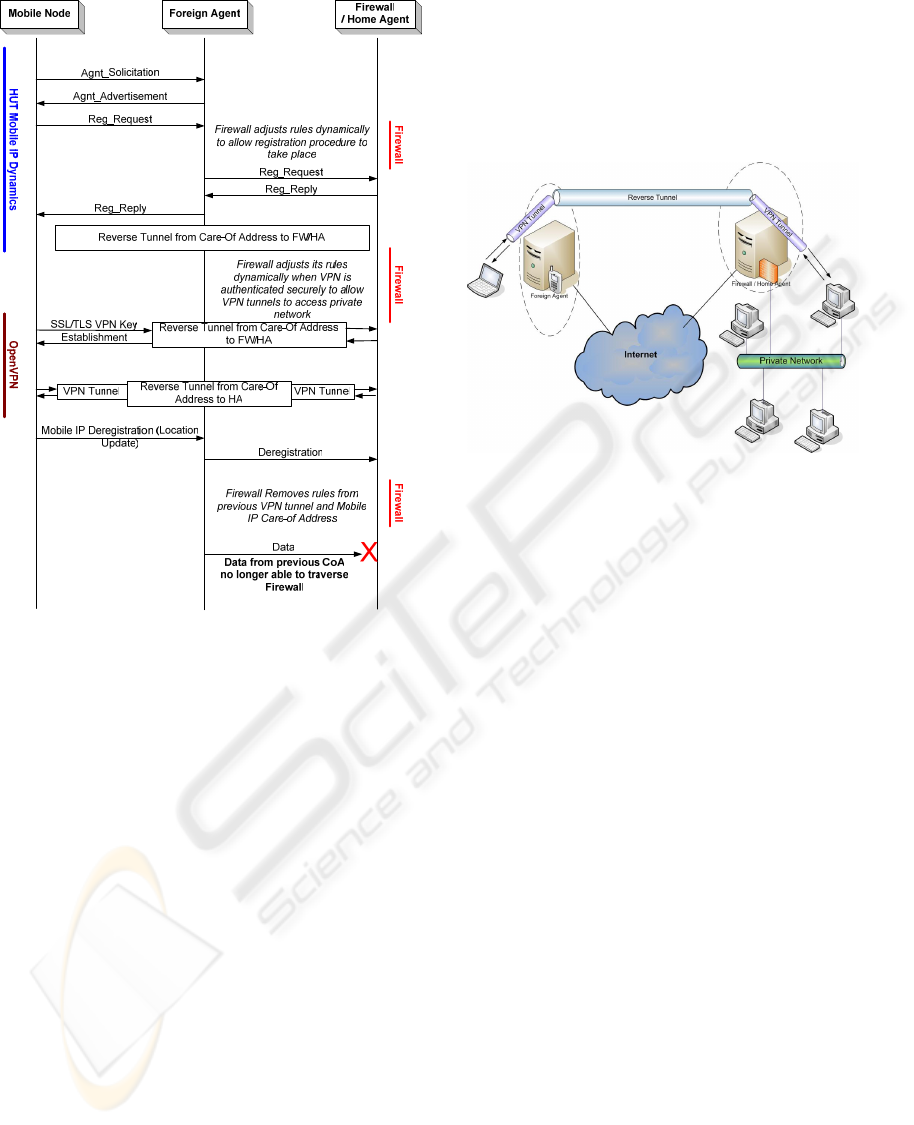

Figure 5: Protocol Interaction Message Sequence Chart

The VPN extends from the Firewall/Home Agent,

through the Foreign Agent and terminates at the

Mobile Node. This prevents nodes on the ‘foreign

network’ from being able to decipher data

transmitted between the Mobile Node and the ‘home

network’. The VPN utilises the technologies IKE

and IPSec to function as a secure extension of the

‘home network’. IKE and IPSec provide:

• Authentication – The sending entity is

verified as the actual sending entity.

• Integrity – Data cannot be intercepted and

changed without the receiving entity

detecting the change.

• Confidentiality – The data transmitted

cannot be deciphered if it is intercepted.

This is achieved through the cryptographic

process of IPSec.

• Non-repudiation – The sending node

cannot deny sending a transmission, when

in fact it did send that transmission. This

is useful in scenarios where auditing is

necessary, for example, in legal or

financial transactions.

When all the technologies are coupled together,

an overall picture of how each of the components

interacts is established; figure 6, illustrates this in

schematic form.

The net result is a cryptographically secure,

transparent, network connectivity solution from the

Mobile Node to hosts on the ‘home network’.

Figure 6: Solution Schematic

6 ANALYSIS

When moving the Mobile Node between the ‘home

network’ and the ‘foreign network’ the protocol

interaction configures the Mobile Node

transparently. The net result is a Mobile Node that

has connectivity to the ‘home network’ without user

alteration of any protocol, or configuration of any

network parameters. In addition, if TCP sessions

were established, when the node moves between

networks, that nodes TCP sessions would be re-

established without loss of the session. In situations

where a Database Management System, for

example, had a TCP connection to the Mobile Node

for update purposes, this feature of the Mobile IP

protocol maintains the connection without the need

to reinitialise it. This is one of the benefits of

Mobile IP. Even though the IP address changes, the

Mobile Node is always reachable, and it is able to

maintain its session connectivity.

6.1 Connection Oriented &

Connectionless Tests

The test-bed was used to evaluate the transparent

mobility functionality Mobile IP provides. This was

achieved through testing connectionless and

connection-oriented network traffic with the

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES

solution. A more detailed network analysis is

undertaken in subsection 6.2.

Firstly, connectionless network traffic was

evaluated via media streaming. A media stream was

initiated and the Mobile Node was transitioned

between different networks. While the data

throughput was not as high as general network

routing, or vanilla Mobile IP; the test effectively

demonstrated that UDP streaming traffic works with

the secure solution.

TCP (connection-oriented) session traffic was

demonstrated using Secure Copy (SCP). Large files

were transmitted between a host on the ‘home

network’ and the Mobile Node. When the mobile

node migrated to the foreign network the SCP file

transfer session was re-established after a short

delay.

In summation, both reliable and unreliable

network traffic effectively worked with the secure

mobility solution. This was critical, since the

transparent aspect of Mobile IP grants users

seamless connectivity to static ‘home network’

resources without configuration. It was important

that the enhanced security and functionality did not

affect Mobile IP’s capabilities. Following the

successful testing of TCP and UDP traffic, network

performance statistics were evaluated.

6.2 Network Performance

Network latency was tested between the Mobile

Node and a host on the ‘home network’. This test

was carried out with normal routing, using vanilla

Mobile IP and with the new secure mobility

solution. The results are illustrated in Figure 7. The

secure mobility solution did introduce a small

amount of lag in comparison to vanilla Mobile IP.

This indicates that the cryptosystem does not

introduce a network latency that would be

undesirable for real-time applications. In addition,

the media streaming test worked effectively and

there was no noticeable delay incurred.

Network throughput was calculated by

transferring various file sizes and data types across

the network. An aggregate throughput was

calculated over all the tests. This gives the average

performance level for general network traffic, and is

a more realistic estimation of actual network

performance, than a specific data transfer test.

Figure 8 illustrates the network throughput results

obtained from the test-bed.

When analysing the test-bed performance it is

clear that the increased authentication and

cryptography overhead impacts the maximum

transfer rate of the secure Mobile IP system. While

the bandwidth of Secure Mobile IP is not as fast as

standard network transfer rates, it is more than

sufficient for most applications. Ultimately, the

enhanced security of the solution was more critical

than its performance. The result is a transparent

secure mobility solution, which offers real benefits

to the end user.

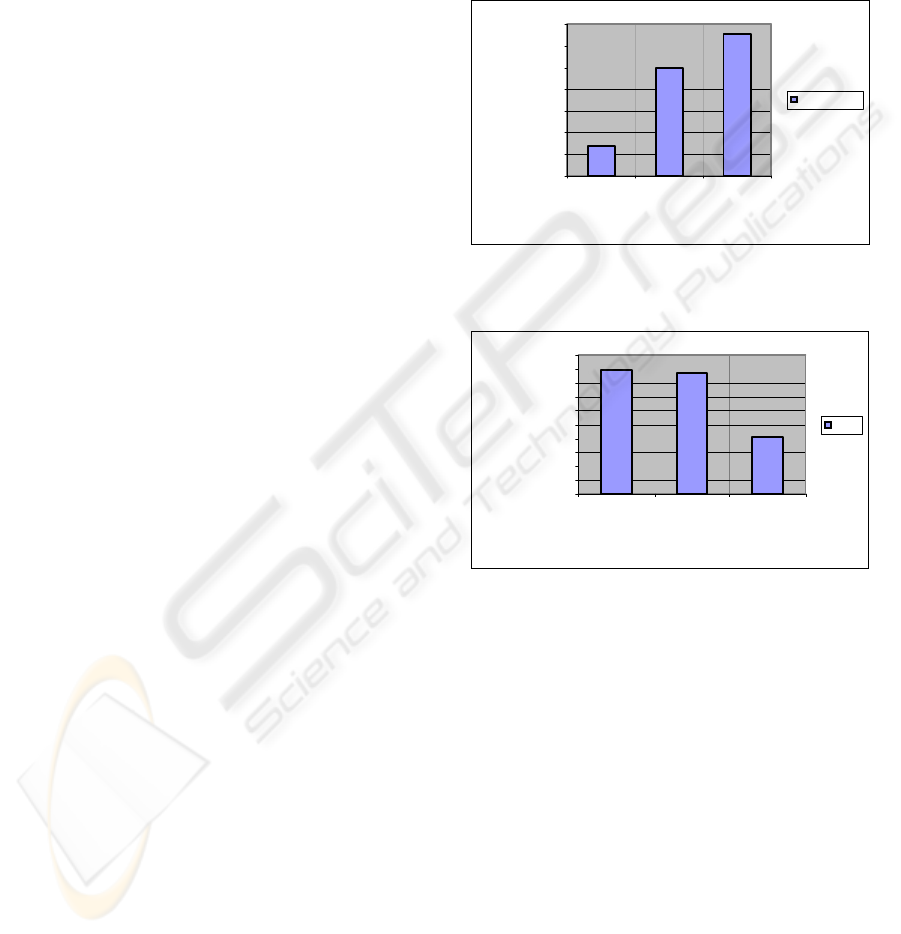

Figure 7: Network Latency

Figure 8: Network Throughput

7 CONCLUSION

The applicability of the secure Mobile IP solution

spans across all areas of mobile computing.

Connectivity to Mobile Nodes throughout the

Internet despite the continuous change of IP address

brings an element of convergence to mobility

hardware and static computing platforms. The

secure element of this solution also brings a feasible

solution to businesses and individuals alike. It

provides transparent connectivity in a secure

manner.

Technology that provides security, functionality

and ease of use, can be adopted by the mass market.

The result is a solution that is user-friendly because

the users do not have to configure it, and secure, so

0,5

1,5

2,5

3,5

Local Vanilla Mobile

Secure

VPN/Mobile IP

Network Arrangement

Ping Latency

(m/s)

Latency Value

Local Vanilla Mobile IP Secure

VPN/ Mobil e IP

Net wor k A r r angement

Speed (Mbps)

Speed

SECURE TRANSPARENT MOBILITY - Secure Mobility Infrastructure using Mobile IP

those users can rest assured that their data is safe

from competitors or eavesdroppers. These critical

elements have been addressed with the secure

mobility model presented.

The result of this research, is a solution which is

based on established standards. Figure 9, illustrates

(in a basic manner) the relationship each component

has with each other.

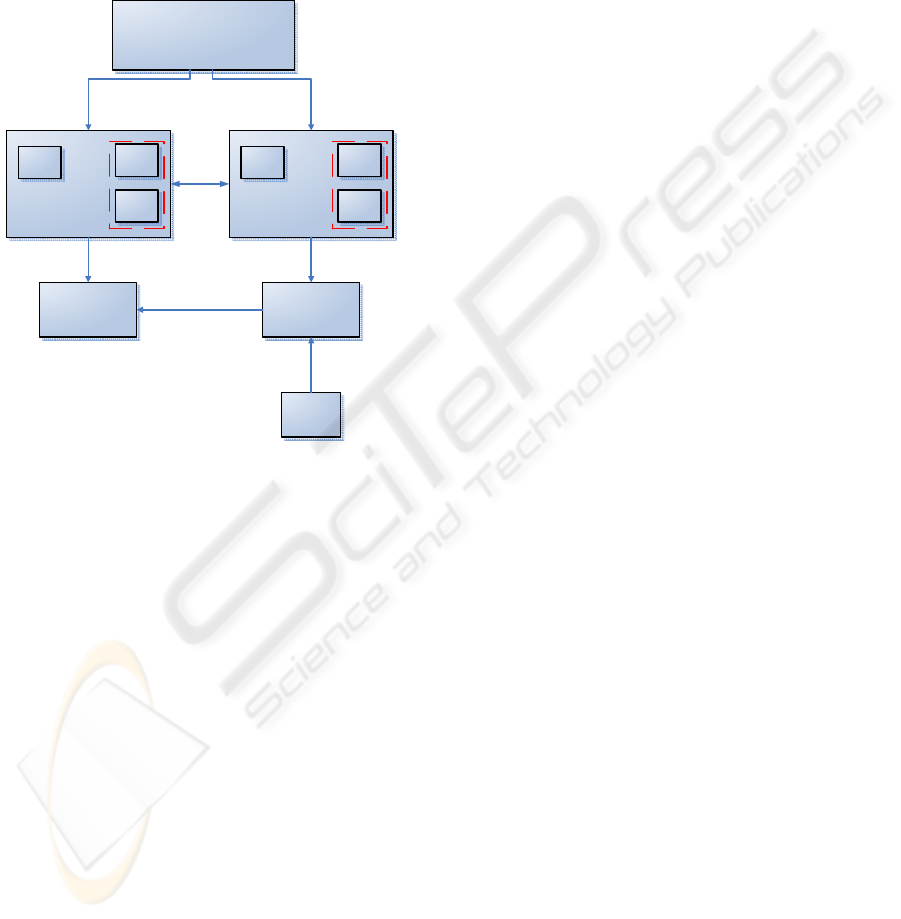

Figure 9: Solution Component Relationships

Further research will be conducted by enhancing

the performance of this solution by utilising VPN

accelerators. This technology should increase the

throughput of the cryptographic process by

removing some of the encryption and decryption

processes from Mobile Nodes, and Firewall/Home

Agents CPU. In addition, Mobile IP can be adapted

to simply use a single VPN tunnel, as opposed to an

unsecured bi-directional tunnel which encapsulates a

VPN tunnel. This will also have a positive effect on

the performance of the solution by decreasing the

encapsulation overhead.

The aim of this research is to evaluate a secure

mobility technology that is useful to the consumer,

and can enhance productivity while providing a safe

environment in which they can conduct their

business.

REFERENCES

Atkinson, R., 1995. RFC 1825. IP Security (IPSec).

Atkinson, R., 1995. RFC 1826. IP Authentication Header

CERT, 2005. CERT Coordination Centre Statistics 1988-

2004. http://www.cert.org/stats/cert_stats.html

CERT, 2001. CERT Coordination Centre Home Network

Security.

http://www.cert.org/tech_tips/home_networks.html#I-

Chandra Kopparapu, 2002. Load Balancing Servers,

Firewalls and Caches. WILEY.

Group 1 Internet, 2004. Firewall Technologies.

http://www.group1ifw.com/fw_tech.html

Harkins. D & Carrel. D, 1998. RFC2409. The Internet

Key Exchange (IKE).

Intel Networking, White Paper IP Security, 1999.

http://www.intel.com/network/connectivity/resources/doc_

library/white_papers/products/ipsecurity/

ITFacts.biz, 2003. Network Security Applicances Sales

Surge. http://www.itfacts.biz/index.php?id=P476

Montenegro, G., 2001. RFC3024. Reverse Tunneling for

Mobile IP.

Perkins, C., 2002. RFC3344. IP Mobility Support for

Ipv4.

Redi, J. & Bahl, P. 1998. Mobile IP: A solution for

transparent, seamless mobile computer

communications.

RocSearch, 2004-2005, Worldwide Market Potential and

Acceptability, RocSearch.

RSA Laboratories, 2004. Diffe Hellman.

http://www.rsasecurity.com/rsalabs/faq/3-6-1.html

Toms Hardware Guide. February 2005. Notebook

shipments at all time high.

http://news.com.com/Notebooks+continue+shipment+gain

s/2100-1044_3-5070313.html

Tom Dunigan, 2004. Virtual Private Networks.

http://www.csm.ornl.gov/~dunigan/vpn.html

Valentia Community College, 2005. Network Security,

http://valencia.cc.fl.us/oit/network_security.cfm

Webopedia, 2005. VPN Definition.

http://www.webopedia.com/TERM/V/VPN.html

TCP/IP

Architecture

Macro

Mobility

IKE

User

Mobile Node

IPSec

Mobile IP

Network

Security

IKE

IPSec

Firewalls

Home Network

ICETE 2005 - GLOBAL COMMUNICATION INFORMATION SYSTEMS AND SERVICES
