HOST IDENTITY PROTOCOL PROXY

Patrik Salmela, Jan Melén

Ericsson Research NomadicLab, Hirsalantie 11, 02420 Jorvas, Finland

Keywords: HIP, identifier-locator split, proxy.

Abstract: The Host Identity Protocol (HIP) is one of the more recent designs that challenge the current Internet

architecture. The main features of HIP are security and the identifier-locator split, which solves the problem

of overloading the IP address with two separate tasks. This paper studies the possibility of providing HIP

services to legacy hosts via a HIP proxy. Making a host HIP enabled requires that the IP-stack of the host is

updated to support HIP. From a network administrator's perspective this can be a large obstacle. However,

by providing HIP from a centralized point, a HIP proxy, the transition to begin using HIP can be made

smoother. This and other arguments for a HIP proxy will be presented in this paper along with an analysis

of a prototype HIP proxy and its performance.

1 INTRODUCTION

The current Internet is based on an over 20-year-

old architecture. That architecture has flaws - some

more serious than others. Many of these issues have

been addressed by tools and methods designed to

patch the flaws of the architecture. Examples of

these new designs are e.g. IPv6 that provides a new

larger addresses space in place of the one currently

used, and IPsec (Kent (1), 1998) that provides

security in the insecure network.

One of the more recent designs is the Host

Identity Protocol (Moskowitz (1), 2004). HIP is still

being researched and is not yet a complete product

and thus not being used in a large scale. Considering

that one of the main benefits of using HIP is secured

communication, one can assume that HIP might

appeal more to companies and organizations rather

than the average home computer user. When HIP

will begin to be utilized by a larger user group than

just the developers and some other interested parties,

as it is today, ease of use will be one factor that will

affect how well and wide HIP will spread. Enabling

HIP in a host requires that the host is updated with a

HIP enabled IP-stack. This might be a disadvantage

of HIP when a network administrator is considering

different methods of protecting the communication

to and from the network.

This paper studies the possibility of providing

HIP services to hosts without having to modify

them. Having legacy hosts communicating with HIP

enabled hosts, using HIP, is possible with a HIP

proxy. However, providing HIP to hosts via a proxy,

with the actual HIP implementation residing outside

of the host, puts some restrictions on the network

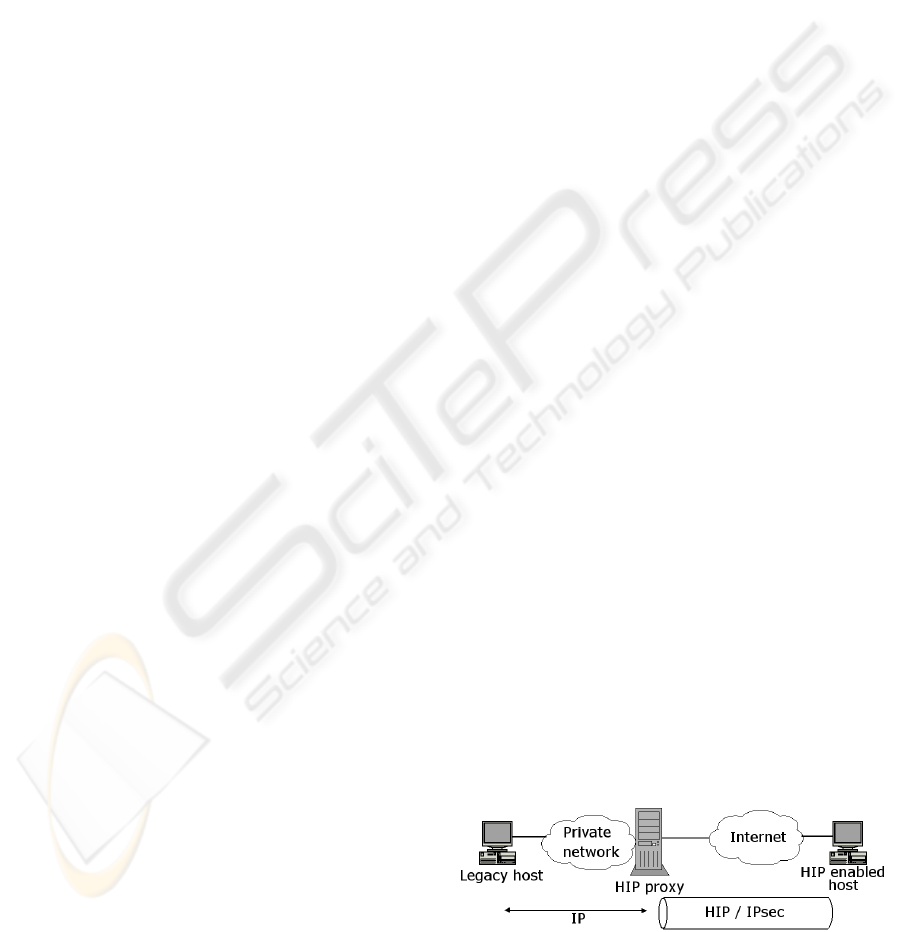

environment. A HIP proxy scenario is shown in

Figure 1.

The paper is structured as follows; first some

background information will be presented, with the

focus on some of the problems of the current

architecture. Different solutions for these problems

will be presented, including HIP. Next follows a

technical view of how HIP works and the reasoning

for a HIP proxy. After that, the functionality of a

HIP proxy is presented, followed by a look at the

design and performance of a prototype HIP proxy.

Then we look at how the prototype could be further

developed, after which the conclusions are

presented.

ure 1: HIP

rox

scenario

222

Salmela P. and Melén J. (2005).

HOST IDENTITY PROTOCOL PROXY.

In Proceedings of the Second International Conference on e-Business and Telecommunication Networks, pages 222-230

DOI: 10.5220/0001409002220230

 SciTePress

2 BACKGROUND

Changing the current Internet architecture is a quite

hot topic, and it has been that for some years

already. The topic has been discussed in various

papers, including the New Arch paper (Braden,

2000) and the Plutarch paper (Crowcroft, 2003).

There are many issues with the current architecture

that have helped to recognize the need for a change.

Maybe the most recognized issues include the lack

of support for security by the IP protocol, address

space depletion, the heavy load on routers and the

overloading of the IP address to serve as both

identifier and locator. Additionally, mobile hosts are

becoming more common which adds demand for an

always better mobility solution.

To some of the aforementioned problems there

are already working solutions; users who want

security can utilize one of the many available

security solutions e.g. IPsec, PGP, SSH or TLS. The

utilization of the IPv4 address space has been

improved with the help of Classless Inter-Domain

Routing (CIDR). Also mobility is possible in the

current Internet. Routers are heavily burdened

because the size of the IPv4 address does not allow

for much address aggregation. IPv6, with its four

times bigger address size compared to IPv4, will

improve the possibility for address aggregation.

However, there is still no widely deployed method

that provides an identifier-locator split.

2.1 Why do we need a change

So what is the big deal with using the IP address

both as an identifier and a locator? The problem can

be spotted by examining how the IP address behaves

when a host is changing its topological position in a

network, while remembering what qualities are

necessary for an identifier and a locator respectively.

Consider a host with the IP address IP

. The locator

of the host, i.e. the information used to route packets

to the host, is the IP address IP

. The same

information is used to identify the host. If the host

moves to another topological position the host has to

change its address to the new address IP

'. When a

host now wants to send packets to this host the new

IP address, IP

', is used to route the packets to the

host. This means that the locator has changed to

match the current location of the host, which is

exactly how a locator should function. However,

since the IP address serves as both an identifier and

a locator the host has now been assigned a new

identifier. This change is not welcome since having

an identifier that can change frequently makes the

identifier useless except for the short timeframe that

it stays constant. A true identifier should stay

constant, if not forever, at least for a very long time,

in the range of years.

Because the notion of an identifier is used in the

Internet, it should also fill the requirements set for

an identifier. Namely that it is constant and uniquely

identifies a host regardless of where in the network

the host is located. This makes the IP address an

unfit candidate for an identifier. What is needed is

another coexistent address space, actually an

``identifier space'', from which hosts are assigned an

identity. Another possibility could be something

along the lines of what was suggested in the GSE

proposal (Crawford, 1999); part of the IP address is

used for identifying the host while the rest is used as

a locator for the host. In this case the identifier part

has to stay constant when the host moves in the

network and updates the locator part to match the

current location of the host.

2.2 The HIP solution

The Host Identity Protocol is one of the new designs

that, amongst other things, target the identifier-

locator split. In addition, HIP also provides security,

mobility and multi-homing. All the features

provided by HIP are based on the solution for the

identifier-locator split.

HIP separates the identifier from the locator by

introducing a new name space for identifiers. The

entities in that set are called Host Identities (HI) and

are of variable length. A HI is the public key of an

asymmetric key-pair, which is used to provide

security in HIP. Because the HIs are of variable

length it is difficult to use them as such in HIP, so

instead a 128-bit hash over the HI, called a Host

Identity Tag (HIT), is used. When operating in an

IPv4 network a 32-bit hash over the HI, a Local

Scope Identifier (LSI), is used. Because of its length,

the LSI cannot be considered to be globally unique.

When a HIP enabled host sends a packet to another

HIP enabled host the packet is sent to a HIT, or an

LSI respectively, but the packet is transported using

the locator i.e. the IP address.

The use of HITs and LSIs is made possible by

introducing a new layer to the IP-stack. The HIP-

layer finds its place between the internetworking

layer and the transport layer, and is sometimes

referred to as layer 3,5. At the layers above the HIP-

HOST IDENTITY PROTOCOL PROXY

223

layer HITs, or LSIs, are used instead of IP addresses.

At the HIP-layer a translation takes place; from

HITs or LSIs to IPv6 or IPv4 addresses, or vice

versa. In the remaining layers the IP addresses are

used. Using HIP, the Host Identifier (HIT or LSI) of

a host is always constant as it should be, and the

locator can change when the peer moves to another

position.

2.3 Other similar solutions

HIP is one of the more complete solutions that

provide the identifier-locator split. However, there

are also some other proposals that target the same

problem. In this subsection three other solutions will

be presented: the Forwarding directive, Association,

and Rendezvous Architecture (FARA) (Clark,

2003), PeerNet (Eriksson, 2003) and the Internet

Indirection Infrastructure (I

) (Stoica, 2002).

FARA is a framework that can be used when

designing a new architecture. The FARA model is

divided into two layers; the upper layer contains the

communicating entities and the communication

endpoints, the lower layer handles the packet

forwarding. The communication link between two

entities is stateful and is called an Association. Each

Association is identified by a locally unique

Association ID (AId). When an entity moves its

AIds stay constant while the information used to

forward the packets to the entity changes. It is easy

to draw some parallels between this and how HIP

uses constant HIs while the IP address can change to

reflect the current position. In the FARA paper

(Clark, 2003) HIP is actually suggested as

something that could be used in a FARA

architecture.

PeerNet is based on peer-to-peer thinking. The

hosts are located as leafs in a binary tree, with the

path from the root presenting the address of the host.

When a new host attaches to the network it asks one

of the hosts in its vicinity for an address. The asked

host splits its address space into two and assigns one

of them to the new node and keeps the other for

itself. The hosts also have an identity that stays

constant regardless of node movements. PeerNet

uses distributed peer-to-peer routing with each host

storing some routing information, i.e. identity-to-

address mappings. PeerNet is not a ready solution, it

does have the identifier-locator split, but security

issues have not been addressed.

The I

design introduces some new elements to

the network, the I

servers. To be able to receive

packets hosts have to register their identity and

current locator into an I

server. This is called

inserting a trigger. The trigger has a limited lifetime

and thus it has to be updated periodically by the host

if it wishes to continue to receive packets via it. In I

packets are sent to identities and the sent packet

searches the I

servers for a trigger that matches the

destination identity. Once a match is found the

destination of the packet is changed for the IP

address found in the trigger. By updating the trigger

supports mobility, and by letting multiple hosts

is achieved. But just as PeerNet, I

is not a complete

solution. The biggest concern of I

is the lack of

security. To provide security for I

a combination of

HIP and I

, called Hi3, is being researched

(Nikander, 2004).

2.4 Problems with having a new

architecture

Even if these new designs might sound very good,

creating them is only part of the job, getting the

design deployed is also a big challenge. Deploying a

new architecture is not the same as deploying a new

standalone, e.g. security solution. Deploying the

design in a small test network which one has full

control over is easy, but when the target is a global

public network, the Internet, there is not really any

good way to get it done. The problem of deploying

e.g. HIP is similar to getting IPv6 deployed globally.

An ideal solution would be to get all of Internet

updated by the flick of a switch, moving from an all

IPv4 network to an all IPv6 network in a neglectable

time interval. However, this is not possible, not for

IPv6 nor HIP. An update of this proportion will

proceed incrementally, requiring some sort of

compatibility between the new and the old

architecture. Deploying HIP is not as difficult as the

IPv6 problem since HIP enabled hosts can still

communicate with legacy hosts using regular IP.

However, to truly benefit from all the features of

HIP, it would be desirable that as many hosts as

possible were HIP enabled.

3 HIP

To enable HIP in a host the IP-stack of the host has

to be updated to a HIP modified one. An asymmetric

key-pair has to be generated and the public key will

serve as the identity of the host, with hashes of the

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

224

key resulting in HITs and LSIs. To initiate a HIP

connection with another HIP enabled host the HIT

of the peer has to be obtained. This can be done

from a HIP modified DNS or other similar lookup

service.

The creation of a HIP connection between two

HIP enabled hosts is called the HIP base exchange

(Moskowitz (2), 2004) and it is depicted in Figure 2.

When the Initiator wants to establish a connection it

sends an I1 packet to the Responder. The packet

contains the HIT of the Initiator (HIT

), and if the

HIT of the Responder (HIT

) has been obtained it is

also included in the message. If the Initiator does not

know HIT

it is set to NULL in the I1 packet. This is

called opportunistic mode HIP. The I1 packet is

actually just an initiation message for the

connection.

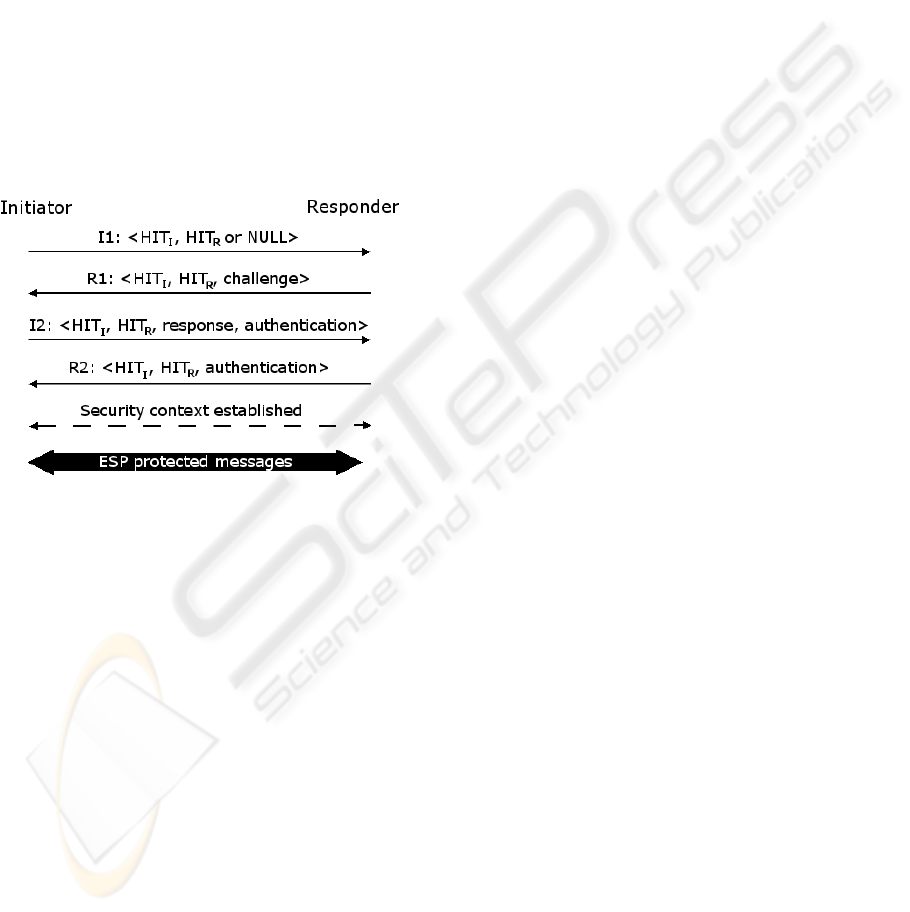

Figure 2: The HIP base exchange

The Responder responds with an R1 packet

which contains the HITs used in the I1 packet, the

HI of the Responder and a challenge. If the Initiator

is attempting opportunistic mode HIP the Responder

has now added its HIT to the packet instead of the

received NULL HIT. The R1 packet also initiates

the Diffie-Hellman (Rescorla, 1999) exchange and

gives the preferences of the Responder in respect of

which IP Encapsulating Security Payload (ESP)

(Kent (2), 1998) mode to use. The supported

integrity and encryption algorithms are also

presented. The challenge in the packet is a puzzle

that the Initiator has to solve to prove that it is

serious about creating a connection. The Responder

can have in advance prepared R1 packets to ease its

load, while the puzzle requires the Initiator to do

heavy calculations. This makes connection initiation

expensive and is thus a form of Denial of Service

(DoS) protection.

When the Initiator has solved the puzzle it sends

an I2 packet to the Responder. The packet again

contains the two HITs and now also the solution to

the puzzle. Also the HI of the Initiator is included, it

is encrypted using the selected algorithms and

generated keys. Based on the information that the

Responder receives in the packet it can decrypt the

HI. The Responder also receives the Security

Parameter Index (SPI) to use when sending packets

to the Initiator.

The last packet of the HIP base exchange, the R2

packet sent to the Initiator, contains the SPI that the

Initiator should use along with the two HITs.

Similar to all but the first packet of the base

exchange, the R2 packet contains a digital signature,

and in addition a HMAC (Krawczyk, 1997)

calculated over the packet. Besides that, also other

consistency checks are done on each packet,

including checking that the received HITs are the

correct ones. The result of the HIP base exchange is

a pair of IPsec ESP security associations (SA). After

the base exchange all traffic between the Initiator

and the Responder is ESP protected.

The four packets used during the base exchange

(I1, R1, I2, R2) are HIP specific packets. Apart from

these packets there are also some other HIP specific

packets of which the Update packet is the most

important one. The Update packet is used for

signaling rekeying when the old SA needs to be

replaced, e.g. if the ESP sequence number is getting

too big. The Update packet is also used for handling

location updates by sending location update

messages.

The security provided by HIP is basically very

similar to IPsec without IKE. The HI of a host, and

the corresponding private key, are used for

authentication purposes and for negotiating security

parameters and SAs. The SAs are established

between two HITs, so when sending a packet the SA

is located based on the HITs found in the outgoing

packet. When receiving a packet the SA is located

based on the SPI, and the HITs for the connection

are found from the SA.

4 WHY A HIP PROXY

The difficulty of deploying a new architecture was

mentioned earlier; all hosts in a global network

cannot simultaneously be update to support a new

architecture, the migration to a new architecture will

take time. HIP does not need to spread to all hosts in

HOST IDENTITY PROTOCOL PROXY

225

the Internet, and it probably never will, but the wider

it spreads the more useful HIP is for its users. A HIP

proxy that makes it possible for a HIP host to

communicate with a legacy host, using HIP between

the HIP host and the HIP proxy, could help to

promote HIP. The more possibilities there are for

using HIP the more appeal it will have. The problem

with a HIP proxy is that if it is located in a public

network the security features of HIP are rendered

useless. The connection between the proxy and the

legacy host is not protected in any way. If one would

like, some other form of security could of course be

applied between the HIP proxy and the legacy host.

To be able to benefit from the security

functionality provided by HIP, when using a HIP

proxy, the proxy would have to be situated in a

secure network. One likely scenario might be a

private network, e.g. the internal network of a

company. By having a HIP proxy at the border

between the private network and the Internet, the

users of the private network could contact HIP

enabled hosts in the Internet using HIP. Because the

private network is considered to be secure the only

difference of this scenario, compared to two HIP

enabled hosts communicating with each other, is that

the legacy host cannot take advantage of all the

features provided by HIP, e.g. HIP mobility.

If the hosts of a private network do not need all

the features provided by HIP, a HIP proxy might

even be considered the preferred alternative

compared to enabling HIP in all the hosts. Enabling

HIP in all hosts might be considered to generate too

much work compared to having a HIP proxy

solution. With a static network configuration the

work estimates might actually be correct. However,

most networks are not static, and having a HIP

proxy in a dynamic network will generate excess

work in the form of keeping the proxy

configurations up-to-date. A HIP proxy is not the

preferred solution but it is well suited as a stepping-

stone when going from an all legacy network to an

all HIP network.

5 THE HIP PROXY PROTOTYPE

As a proof of concept a HIP proxy prototype has

been implemented. The implementation was done

for FreeBSD 5.2, and tested with the HIP

implementation developed at Ericsson Finland

(http://hip4inter.net). Besides implementing the HIP

proxy application also the kernel of FreeBSD had to

be modified; a new feature, divert sockets for IPv6,

had to be implemented. To perform its task the

proxy utilizes divert sockets and the firewalls (ipfw

and ip6fw) of FreeBSD. The network environment

where the proxy operates is between two small

LANs, one acting as a private network containing

the legacy hosts and the other acting as the Internet

containing the HIP enabled hosts. If the proxy was

to function in one network in which there are both

kinds of hosts the legacy hosts would have to be

configured to route all their packets via the HIP

proxy.

5.1 Functionality of a HIP proxy

When looking at the HIP proxy as a host in the

network its task is to serve as the endpoint for HIP

associations between itself and HIP enabled hosts.

HIP hosts connected via it believe that they are

communicating with the legacy host using HIP while

the legacy hosts believe that they are communicating

with the HIP host using plain IP. For the

communicating endpoints the HIP proxy is invisible.

The proxy itself can be seen as a host that performs

translation between the two communication formats;

plain IP and HIP.

When a legacy host wishes to communicate with

one of the HIP enabled hosts it queries DNS for the

IP address of the peer. The query travels through the

HIP proxy and on to a HIP modified DNS in the

Internet. The reply contains the IP address and the

HIT of the HIP host. When the reply passes the

proxy it caches the IP-HIT mapping for future use

when it possibly has to initiate a HIP base exchange

with the host. The legacy host receives the IP

address and can now use it to contact the HIP

enabled host. HIP enabled hosts can contact legacy

hosts via the proxy if the IP address of the proxy,

and the HITs assigned to the legacy hosts, are

registered into DNS. Thus a HIP enabled host will

receive an IP address and a HIT, as expected, when

querying the information about one of the legacy

hosts.

When a packet passes through the HIP proxy

host the packet must be diverted from its path and

sent to the HIP proxy application. If the packet is on

its way from a legacy host to a HIP enabled host the

proxy checks if there is an SA available for the

connection. If a matching SA is found the packet is

sent out using the SA. Otherwise the proxy has to

initiate the HIP base exchange to establish SAs for

the connection. Using the IP-HIT mapping it has

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

226

gotten from the DNS query, and the IP address of

the legacy host along with the HIT assigned to the

legacy host, the proxy can initiate the base

exchange. When the HIP association has been

established the packet sent by the legacy host can be

sent to the HIP enabled host and the communication

between the peers can begin. When a packet is

received over an SA, from a HIP enabled host, the

proxy decrypts the ESP packet and forwards it as a

plain IP packet with the IP addresses of the peers.

The packet is then sent to the legacy host whose IP

address was found based on the destination HIT. The

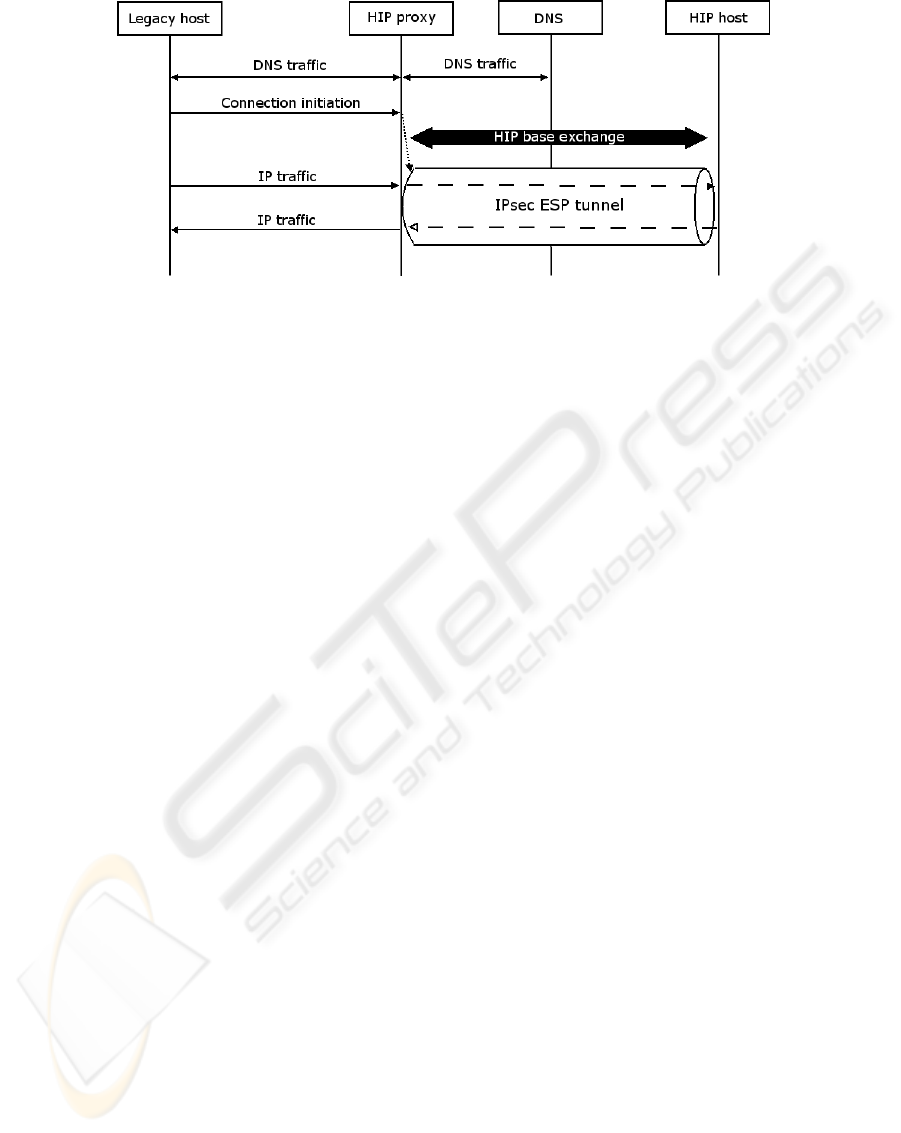

connection initiation is depicted in Figure 3.

When a HIP enabled host initiates a connection

to a legacy host it uses the information it has

received from DNS. The HIP host believes that it is

connecting to the legacy host, although the actual

HIP connection is established to the HIP proxy.

When the SAs have been established the HIP host

begins sending packets over them. The HIP proxy

converts the received packets to plain IP packets and

forwards them to the correct legacy host.

5.2 The prototype design

The prototype HIP proxy does not function

exactly as described in the previous section. We did

not have a HIP enabled DNS so the IP-HIT

mappings of both the legacy hosts and the HIP

enabled hosts were added to a configuration file for

the HIP proxy The proxy reads the configuration file

and stores the HIT-IP mappings into two linked lists,

one for legacy hosts and one for HIP enabled hosts.

Apart from the DNS issue the HIP proxy works as

described.

To get the received packets diverted to the proxy

application we use the IPv4 and IPv6 divert sockets

and the firewalls. Basically we tell the firewalls to

divert all packets received from the private network

except for broadcast packets and other packets that

we intuitively know that are not meant for the proxy.

This will result in that all connection initiations from

the legacy hosts, and the subsequent packets of the

connections, go through the proxy. To receive the

ESP packets sent from the HIP enabled hosts we tell

the proxy to divert all packets that have an address

prefix of 01

bin

for both source and destination

addresses. This is a characteristic of HITs; a HIT

always has the prefix 01

bin

(there is also a secondary

format for HITs with a 10

bin

prefix). Even if the

packets have IP addresses in the IP header while

they travel the Internet, IPsec processing, where the

IP addresses are replaced by HITs, happens before

the firewall rules are checked. Finally, to allow HIP

initiations from the HIP host, we tell the firewall to

allow all traffic that uses the HIP protocol, i.e. the

packets for the base exchange and the other HIP

specific packets such as the Update packet.

The structure of the application is divided into

two parts; in the first part the proxy is initialized, the

second part consists of a read/write loop where the

packets are processed. During the initialization part

the configuration file is read and the mappings found

in it are recorded. Before a HIP base exchange can

begin the Initiator has to have a HIP context for that

particular connection. A context consists of the

Initiator HIT along with the HIT and IP address of

the responder. The prototype creates the needed HIP

contexts after the configuration file is read. Before

the read/write loop begins the proxy also creates the

divert sockets so that it can receive packets.

In the read/write loop the proxy waits for packets

diverted to it. Once the proxy receives a packet it

examines the source and destination addresses of the

packet. Using the two linked lists with HIT-IP

mappings the proxy can conclude where the packet

Figure 3: Connection initiation via a HIP proxy

HOST IDENTITY PROTOCOL PROXY

227

is coming from and where it is going to, e.g. from

the legacy network to the HIP network. If either of

the addresses is not found in the linked lists the

proxy cannot process the packet correctly, in that

case the packet is forwarded unchanged by the

proxy. If mappings for both addresses are found, and

both addresses in the packet are found to be either

HITs or IP addresses (a mix of one IP and one HIT

is not accepted, it indicates an erroneous packet), the

proxy changes the IPs for HITs or vice versa. After

recalculating the checksums the packet is sent out

again. If the packets are going to the legacy host

they are forwarded via the output handling to the

private network. If the packet is going to one of the

HIP hosts it will have HITs as addresses in the IP

header. In this case the packet will be sent to IPsec

handling. If no SA is found for the specific

connection the HIP daemon is signaled to perform

the HIP base exchange after which the packet is sent

out utilizing the newly created SAs.

Before the read/write loop starts over again the

proxy checks if the configuration file should be re-

read. This makes it possible to add information

about new hosts without restarting the proxy. The

prototype uses a very basic method for finding out if

the file should be re-read; for each n packets the

configuration file is re-read. When testing this

feature, the value for n was set to 10. The value

should be adjusted based on how heavy traffic there

is through the proxy and the length of the list of

hosts entered into the file. With heavy traffic n

should be increased so that the re-read does not

happen very frequently. Also with a long list of

hosts n should be increased because with a longer

list the updating of the linked lists takes longer. A

more appropriate solution would be to check if the

file has been updated, and only when an update has

occurred should the file be re-read.

5.3 Performance

To measure how the HIP proxy prototype performs

some tests were conducted. The first test was done

to check how having the proxy in the path of the

packets affects the round trip times (RTT). First the

round trip times for ping6 were measured as an

average over 20 packets with the packets going

through the proxy but not being processed by it. To

get values to compare against the average round trip

times were also measured for the case when the

packets did not have to go via the proxy, the host

with the HIP proxy just forwarded the packets.

Finally we measure how the use of the HIP proxy,

and having it process packets affected the round trip

times. The results from these measurements are

presented in Table 1.

It can be concluded from the two first entries that

introducing the proxy does add delay; with the proxy

we get approximately 12% longer round-trip times.

This is something that can be expected since having

the packets go via the proxy adds processing on the

path. Having to pass a packet to an application in

user space, compared to only handling it in kernel

space, adds delay.

The last entry in Table 1 concentrates on how

applying IPsec ESP to the packets affect the delay.

Based on the result we can see that when the HIT-IP

mappings are found in the linked lists of the proxy

the round-trip time increases approximately by 22%

compared to having he proxy sending the packet to

output handling without any processing. When we

compare the delays of sending packets without using

the proxy and the case when the proxy is used and it

processes the packets we can see that the increase in

delay is approximately 36%. This increase in delay

includes both the added delay of having to send the

packet to user space, approximately 0,070ms, and

the delay that results from performing cryptographic

functions, approximately 0,150ms. The by the HIP

proxy added delay is mostly a result of doing the

cryptographic functions on the data. This is

something we cannot affect; if we want security it

will cost us time. The total delay added by the proxy

is not at an alarming level, and is as such acceptable.

Another interesting aspect of the performance of

the proxy is how the amount of entries in the linked

lists affects the delay. In the measurements

presented in Table 1 there were a total of three

entries, two in the HIP hosts list and one in the

legacy hosts list. In the next set of measurements we

had first 10 then 100 and finally 1000 entries per list.

The correct information was situated last in the

respective list so that the proxy would have to go

through all of the lists. For each packet both the

linked lists have to be examined. The results from

these measurements are presented in Table 2.

From the measured values we can see that if

we add enough entries to the lists it will show in the

round-trip times. But since the prototype proxy is

not meant for huge networks the delay added by

looking up mappings from long lists should not be

an issue. The values in Table 2 differ somewhat

from the corresponding values in Table 1. The

reason for the differing values is that the

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

228

measurements were performed at different times, so

the load on the network was different.

When the proxy reads the host information from

a configuration file, as is the case with this

prototype, the amount of hosts should be kept small

to keep the configuration file manageable. If some

automatic updating procedure is implemented it

allows for more hosts. Still, the delay caused by

having to look up host information from very long

lists will sooner or later add too much delay.

However, when the amount of hosts configured into

the proxy reaches that level it will probably be the

amount of traffic that the proxy has to handle that

will be the performance bottleneck, not the delay

from looking up the correct mappings.

6 FURTHER WORK

In the previous section we concluded that

approximately a third of the added delay that results

from using a HIP proxy compared to plain IP is a

result of the proxy application. This is one aspect of

the proxy that could be improved; by moving the

application from user space to kernel space the delay

induced by the proxy could probably be decreased.

Overall the proxy still performs well and as

expected. With a small set of hosts the delays are

kept at an acceptable level, keeping the RTTs in

roughly the same range as for legacy connections.

However, one must remember that a HIP proxy is

only a solution for a small set of nodes. When the

amount of nodes configured into the proxy gets too

big, either a second proxy should be introduced, and

the load balanced between the proxies, or then the

legacy hosts should be made HIP enabled. When a

HIP modified DNS is available it will increase the

limits of a HIP proxy by being able to dynamically

add HIT-IP mappings when they are needed. Also

old mappings that are considered obsolete can be

deleted since they can be re-fetched from DNS if

necessary. The amount of legacy hosts that the proxy

can serve will still be a limiting factor.

If the HIP proxy is situated in a public network

the security provided by HIP is in effect useless

since all the information also travels unencrypted in

the network, namely between the proxy and the

legacy host. This is quite alright as long as both

parties are aware of this. However, when using a

HIP proxy the HIP enabled host does not know that

it is communicating with a proxy but believes that it

is actually communicating with another HIP enabled

host. This puts the HIP enabled host at a

disadvantage, and it is a problem that needs to be

solved; the HIP enabled host must know when it is

communicating via a HIP proxy so that it knows that

the information it sends might not be secured all the

way to the actual endpoint.

A last issue that will be mentioned regarding the

HIP proxy is a problem that arises when the HIP

host, that is using the services of the HIP proxy, is

mobile. When a HIP host is mobile and moves to

another location, and thus gets a new locator, it

informs its communication parties of its new

location. With two HIP enabled hosts this works

well. However, when one of the endpoints is a HIP

proxy the location update message sent to the proxy

modifies established SAs as necessary, but the

information does not reach the proxy. If a

connection was established between a legacy host

and the HIP host before the location change, the

connection will continue to work even after the HIP

host has moved. If another legacy host now tries to

initiate a connection to the mobile host, using its

new locator, the connection will not be established

since the proxy has not gotten the new locator of the

mobile HIP host. This can be solved by updating the

proxy configuration file with the new information of

the mobile HIP host. This works well if there are no

connections established from legacy hosts to the old

locator of the HIP host. However, if there still are

connections to the old locator the result is that the

legacy host using the old locator of the mobile HIP

host will begin receiving packets from the HIP host's

new locator without knowing that it actually is the

same host. A solution for this problem could be that

the HIP proxy would keep a record of previous

locators of each HIP host, and state information for

each connection. Using this information all

connections could be maintained. All this of course

adds delay to the system. The solution presented

Table 2: The effects of serving many hosts

Hosts/list Avg. RTT

10 0,676ms

100 0,705ms

1000 0,770ms

Table 1: How the proxy affects round-trip times

Using

proxy

Using HIP Avg. RTT

No No 0,624ms

Yes No 0,698ms

Yes Yes 0,851ms

HOST IDENTITY PROTOCOL PROXY

229

here is probably not the optimal one and some more

research in this area is needed.

7 CONCLUSIONS

The HIP proxy prototype was constructed as a

proof-of-concept for a HIP proxy. The proxy

performs well and fills its tasks. However, as

mentioned in the previous section there are still

many areas in which the proxy may, and should, be

improved. The preferred solution for using HIP is of

course to have HIP enabled hosts. However, a HIP

proxy might be a good tool to help HIP get

spreading. The HIP proxy prototype described in

this paper is probably not something that should be

used as such for a HIP proxy. However, it might be a

good starting point for developing a new and

improved version that better fits the requirements of

a HIP proxy.

REFERENCES

Kent (1), Atkins, 1998. Security Architecture for the

Internet Protocol. RFC 2401

Moskowitz (1), Nikander, 2004. Host Identity Protocol

Architecture. Internet-draft, draft-moskowitz-hip-arch-

06 (work in progress).

Braden, Clark, Shenker, Wroclawski, 2000. Developing a

Next-Generation Internet Architecture.

Crowcroft, Hand, Mortier, Roscoe, Warfield, 2003.

Plutarch: An Argument for Network Pluralism.

Crawford, Mankin, Narten, Stewart, Zhang, 1999.

Separating Identifiers and Locators in Addresses: An

Analysis of the GSE Proposal for IPv6. Internet-draft.

Clark, Braden, Falk, Pingali, 2003. FARA: Reorganizing

the Addressing Architecture.

Eriksson, Faloutsos, Krishnamurthy, 2003. PeerNet:

Pushing Peer-to-Peer Down the Stack.

Stoica, Adkins, Ratnasamy, Shenker, Surana, Zhuang,

2002. Internet Indirection Infrastructure.

Nikander, Arkko, Ohlman, 2004. Host Identity Indirection

Infrastructure (Hi3).

Moskowitz (2), Nikander, Jokela, Henderson, 2004. Host

Identity Protocol. Internet-draft, draft-ietf-hip-base-00

(work in progress).

Rescorla, 1999. Diffie-Hellman Key Agreement Method.

RFC 2631.

Krawczyk, Bellare, Canetti, 1997. HMAC: Keyed-

Hashing for Message Authentication. RFC 2104.

Kent (2), Atkins, 1998. IP Encapsulating Security Payload

(ESP). RFC 2406.

HIP for BSD project, http://hip4inter.net [Referenced

11.02.2005].

ICETE 2005 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

230
