AN INNOVATIVE TOOL TO EASILY GET USABLE WEB SITES

Cosimo Antonio Prete, Pierfrancesco Foglia

Dipartimento di Ingegneria dell’Informazione, Facoltà di Ingegneria, Università di Pisa, Via Diotisalvi 2

56126 Pisa (PI), Italy

Michele Zanda

Scienze ed Ingegneria dell’Informatica, IMT Alti Studi Lucca, V. San Micheletto 3, 55100 Lucca (LU), Italy

Keywords: Web usability, development tool, navigation, fast prototyping, presentation, colour.

Abstract: This paper describes the actual methodologies to develop usable web sites. We consider significant tools to

model web sites and pages, and then we propose an innovative approach to create usable web sites rapidly

and easily. Our goal has been the inclusion of new methodologies in the web application development

process.

1 INTRODUCTION

Making a site that follows the guidelines of the web

usability theory is one of the key factors to have a

web site with a high goal completion rate (Nielsen,

2003). Despite the simplicity of the statement, it's

hard to find a good approach to make web sites

usable. The two main reasons may be: researchers

and web developers have focused their attention on

code generation and in a second phase on web

presentation; web usability is thought to be mainly

an 'art' and thus it cannot be managed by the

software. The first part of this work wants show the

actual tools, while in the second one we present

Easy Usable Web sIte (EUWI), a new development

environment for web sites.

2 PROBLEM STATEMENT

The main problem in the industrial approaches is

that usability is usually faced at the end of the web

development process, with high costs and growing

times to the final release. The lifecycle of a web

application has been well depicted in figure 1

(Fraternali, 1999), and we are showing his scheme

slightly changed.

High costs and growing development times are

generated by the two loops. These refinement loops

are caused by different opinions and visions about

the final structure and presentation of the web site

between the web developer, the client and the final

users (if asked).

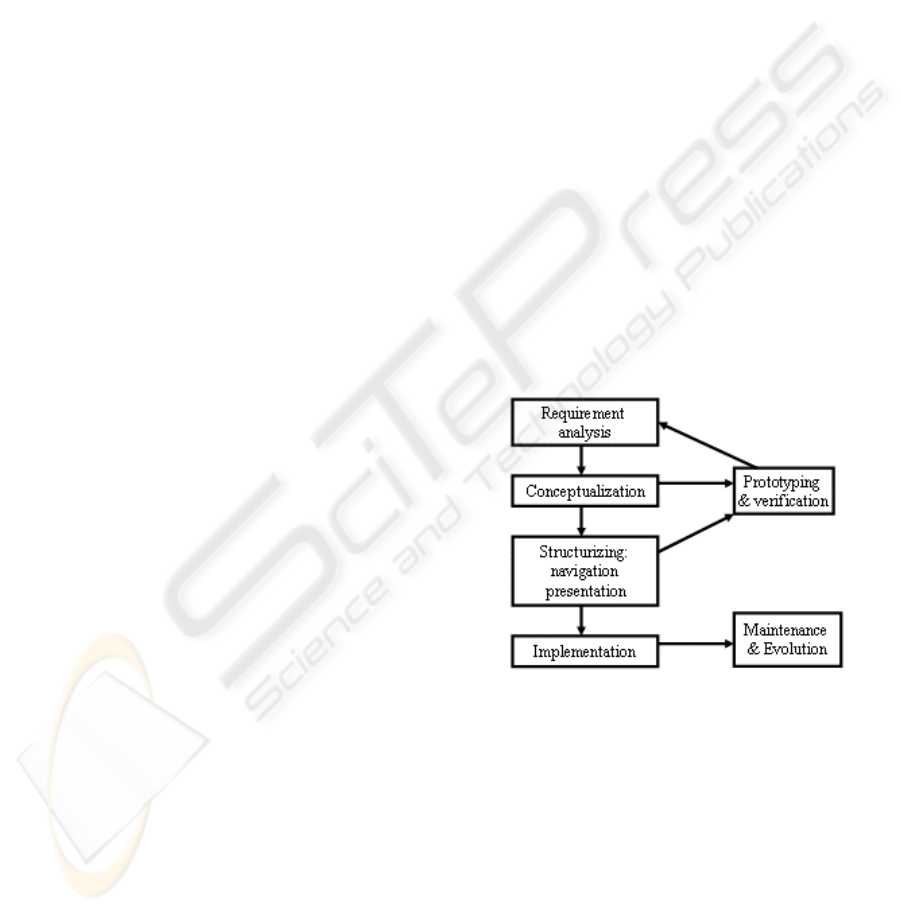

Figure 1: The lifecycle phases of a web application. It can

be seen that there are two close loops that postpone the

implementation phase

This paper tries to propose a methodology and a

tool to avoid these loops by including usability

factors at the beginning of the web development

process, rather than at the end.

3 EXISTING METHODOLOGIES

At the moment there are a lot of development tools

and methodologies, already released or under

development.

373

Antonio Prete C., Foglia P. and Zanda M. (2005).

AN INNOVATIVE TOOL TO EASILY GET USABLE WEB SITES.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 373-376

DOI: 10.5220/0001236503730376

 SciTePress

Rapid Application Design and Testing (RAD-T (

Becker, 2002)) is an innovative development tool

mainly thought to include usability requirements

inside the HTML source code. Since the traditional

HTML provides little support for the usability

constraints, the Berkeley researchers have created

the Self Testing - HTML (ST-HTML) to extend the

HTML functions. ST-HTML pages acts as a sort of

active ones. The main drawback in this approach is

that ST-HTML is not supported by current browser,

so at the moment it can be used only as a

specification tool. The research group is trying to

map ST-HTML onto XML to use it with XML

enabled browsers.

Web Modelling Language (WebML (Ceri, 2003)

models data intensive applications in short time. Its

main purpose is code generation, so as to obtain a

working site, possibly even the definitive site. Later

the CASE tool WebRatio has been developed to

work with WebML. The web pages are rapidly

structured and traversed in a GUI, and then

presented by page templates or by XSL descriptions.

At the end, with XML and XSL, the pages source

code is generated. In the overall process, usability

aspects are faced at the end, when the web developer

writes or imports the presentation code.

The tool DENIM (Newman, 2000), considering

the common practice of paper prototyping,

especially in the initial phases of a web site

development, wants to combine the paper

prototyping properties with the digital qualities.

DENIM consists of an electronic blackboard with

pages drawn roughly and connected with arrows.

The blackboard area has different zoom levels, to

visualize different aspects of the site: from a general

navigation structure, to storyboards, to single pages.

It is also present a simple navigation facility.

To provide a better support to the

communication between web designers and

developers, the traditional UML Use Case diagrams

have been enriched to include new features: usability

requirements, pre and post conditions, controls

properties, tab order, colours range ... (Hammar

Cloyd, 2001) The use of WWW Use Cases can help

to reduce the web applications time to market.

The need to model the interaction between web

application and final user has brought Conallen to

develop his User eXperience modelling (Conallen,

2003). The UX diagrams model the storyboards and

the dynamic information of the web pages; by

looking at the diagrams it is clear how the user will

reach his goals and how wide and deep is the web

structure.

4 THE EASY USABLE WEB SITE

SOLUTION

Looking at the actual development tools and

methodologies, we have realized that the market

needed a web pages fast prototyping tool, enriched

with a navigation editor and a way to naturally

enforce the usability requirements.

The Easy Usable Web sIte (EUWI) tool manages

to automate many areas. Here is a short list:

- storyboard depths, according to the users

access frequency and goals;

- pages maximum sizes (in terms of bytes and

screens), according to the type of page, to ensure a

short loading time;

- presence of web objects (links to home page,

backward and forward buttons,…);

- ‘alt’ text that must be included within the

images;

- the elements of the menus must be between 3

and 10 units;

- font family and size to ensure good

readability;

- text colour and background colour chosen to

ensure good readability;

- ‘tab’ order, as to ensure that a first form field

would have the focus selected automatically;

- status bar notifications.

The EUWI tool has been developed under the

framework of the Model View Controller (MVC), so

the web site can be seen with 5 different views: the

navigation editor where the pages are created and

linked, the fast prototyping environment, the ‘style

and colour’ chooser, the source code window and a

simple browser preview window.

The navigation editor (figure 2) is thought as a

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

374

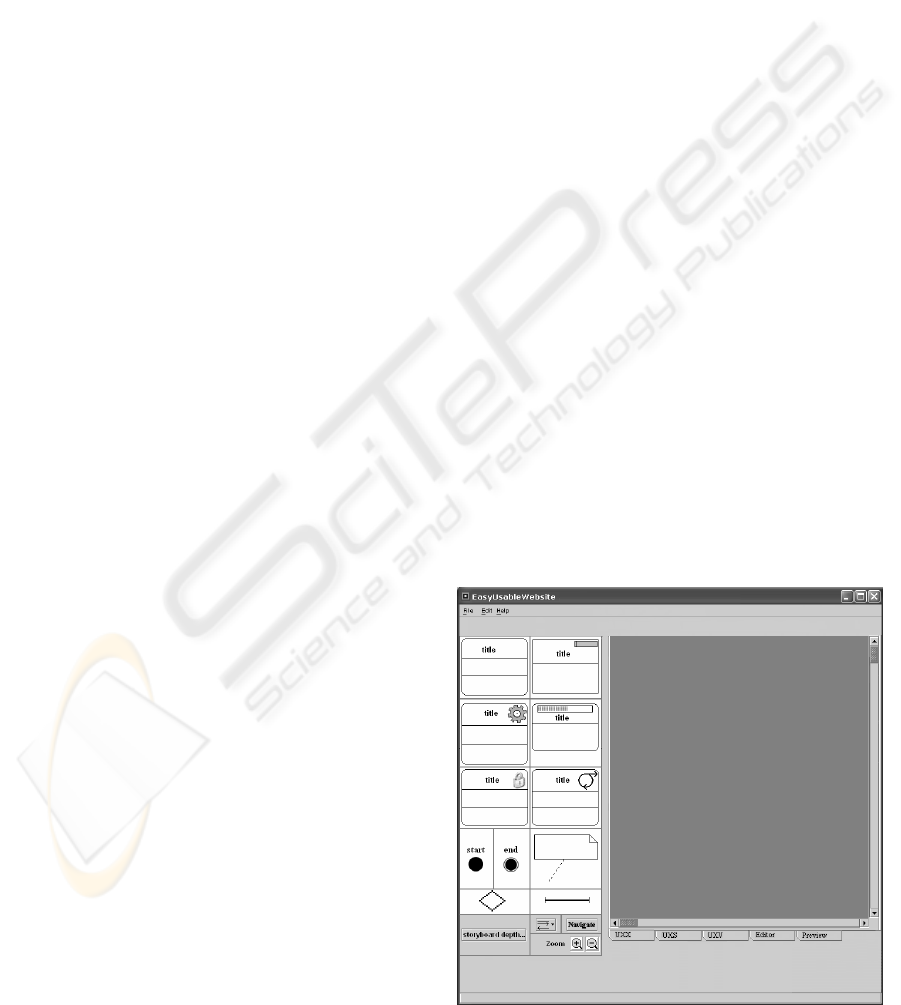

Figure 2: The UXX Navigation Editor. In this

environment the web developer can depict the navigation

structure of the site. Once the site pages are dragged in the

central area, they are linked according to the required

paths. The diagrams offer a navigation facility, and a table

to choose the right wizard length.

'drag&drop' environment based on the User

eXperience eXtended model.

The main UXX features are an easyreading

layout (with class stereotypes being represented by

different frames and start and end icons) and strong

form data typing to be easily integrated in a

development environment. The data types that have

been codified for the forms fields are: String,

Password, Text, Number, Date, Time, CCN (Credit

Card Number), Email.

Multiple elements are handled with the suffix [].

Further input specifications can be included with

three keywords: combobox, checkbox, radiobutton.

The UXX navigation editor is used to draw

navigation diagrams. The navigation diagrams

(figure 3) show the site depth and the storyboards;

these diagrams can be then presented to the web

developer client to give him a glance of the site

structure.

Once the pages are created and described in their

dynamic content, they can be completed by setting

the static information with the fast prototyping tool.

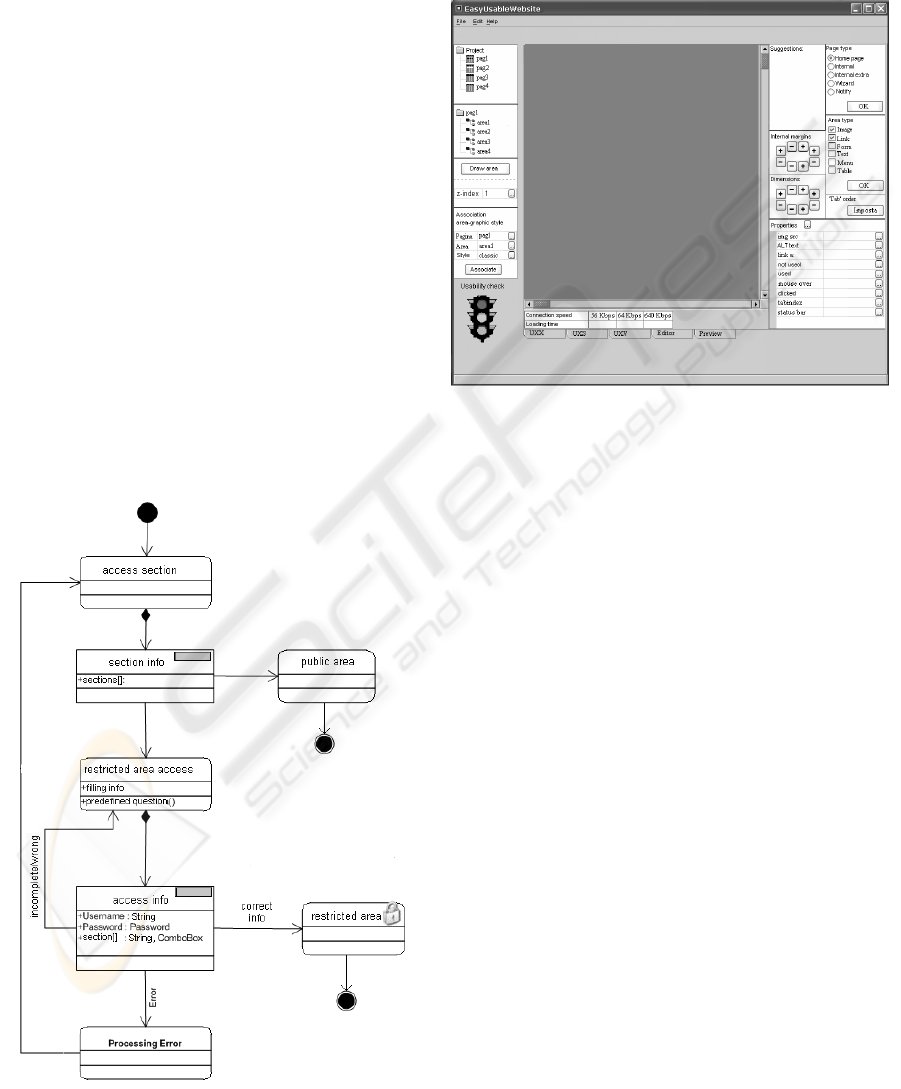

Figure 3: A navigation diagram with the User eXperience

eXtended (UXX) model. The access pages are composed

by input forms. If the Internet user inserts correctly login

and password, he can enter the restricted area with a

secure connection. The diagram has one entry point and

two exit points.

Figure 4: The Fast Prototyper environment. As shown by

the above screenshot, the web developer can choose (in

the top left corner) the page to describe among the pages

inserted in the UXX navigation diagrams. The developer

can draw rectangles in the central area to prototype the

static (with its presentation) structure of the pages. The

rectangles can be chosen with a check box from: image,

link, text, form, menu, table. The type of page can be

chosen between: Home page, Internal, Internal extra,

Wizard and Notify. In the bottom left corner there’s a

traffic light for usability warnings.

The fast prototyping tool (figure 4) is thought as

to provide a central window to define the page

working areas. Then the set areas can be specified

by choosing their types (checkbox choice at the top

right), their static information and relative attributes.

The attributes that can be set are suggested to follow

usability requirements.

For example, if the developer draws an ‘image

and link’ area, he will be able to set the relative

properties: image source file, alternative text, CSS

link selectors (link, visited, hover, active), tabindex

and status bar text.

The page structures can be saved and used later

as templates for new pages to accelerate the

development process.

Finally, it is foreseen an interface (an addon to

the former one) to set the colours of text and

background so as to ensure a readable text, and to

communicate the chosen sensations (figure 5). The

colours constraints have been taken from the W3C

AN INNOVATIVE TOOL TO EASILY GET USABLE WEB SITES

375

(W3C, 2004) and included in the GUI based

software.

The styles of the text characters are yet suggested

to satisfy usability guidelines: Times, Verdana,

Tahoma, Arial, Helvetica.

To ensure perfect readability, even the size of the

characters can be chosen among a minimum of 8 pts,

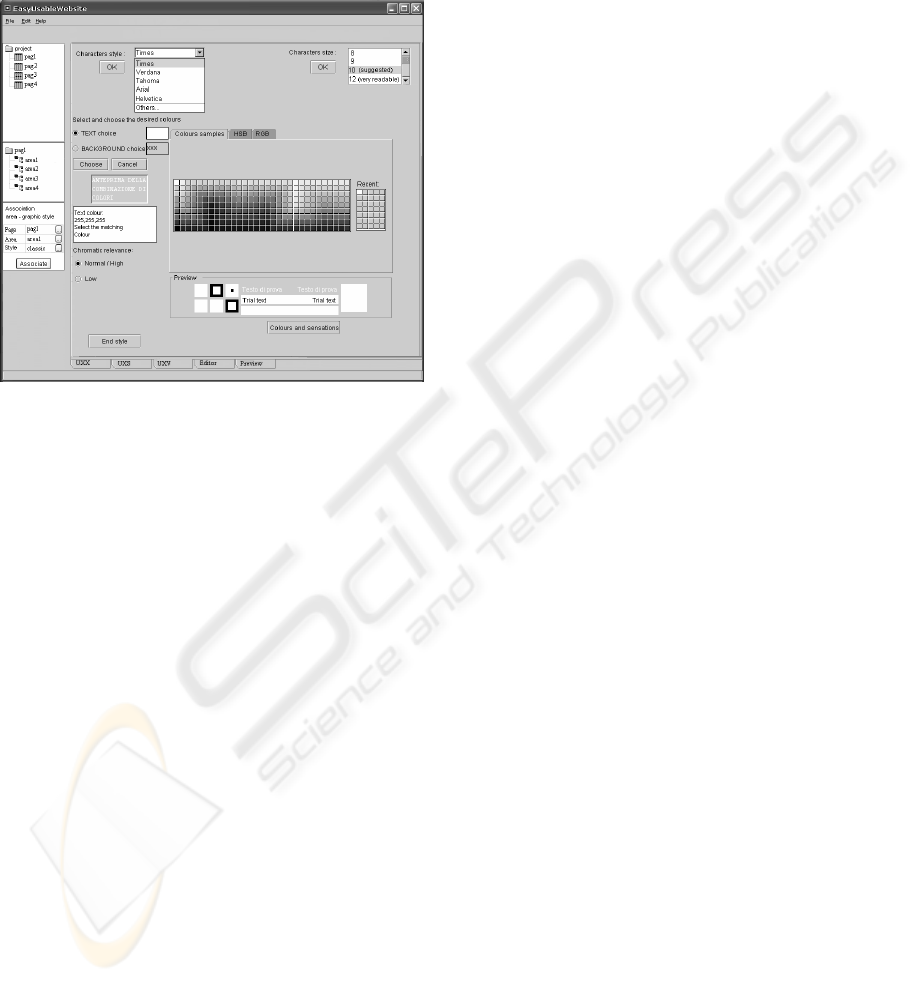

Figure 5: The fast style prototyper. In this environment

the web developer can choose some presentation aspects

about the page areas drawn before. The developer can set

text and background colours to ensure a good reading. The

colours can also be chosen according to the sensations that

the site must transmit, depending on the culture of the

typical Internet user. On the left the created styles can be

associated with the page areas drawn in the prototyping

tool.

10 pts (preferable), 12 pts for people with visual

deficiencies or bigger ones. Since at the moment the

human computer interaction is not as complete as in

real world, every web object must be carefully

chosen to make the final user feel fine. So it is

important to choose colours correctly to

communicate the right sensations. Our software

helps the web developer by giving him the

correspondence between every colour and its

meaning in various cultures (western, oriental, ...).

That is very useful if the web site is not a world site,

but a regional site or a site for a specific group of

users.

5 CONCLUSIONS

The idea to include the colours constraint for text

and background proves to be valuable, since,

according to a web analysis, at least the 33% of the

observed pages doesn't satisfy the colours

requirements. Forcing (or warning) the web

developer to follow usability guidelines, produces

better web presentations, and shorter release times.

However it must be kept in mind that the presence of

usability professionals might still be a necessity, as

in complex cases the software can only help the

human decisions.

The code generation has been thought to be

based on HTML plus CSS, since the CSS and the

box model are an easy way to generate the page

areas drown in the fast prototyping environment.

The tool under evaluation, and the

methodologies illustrated, will improve the Internet

users satisfaction and will shorten the web sites

time-to-market with advantages for developers and

clients.

The EUWI CASE tool still needs to be properly

tested for a final release. The usability

methodologies (the ones that could be automated)

have been identified, specified and included in our

tool.

REFERENCES

Nielsen, J., 2003. Designing Web Usability: The practice

of simplicity, New Riders Press.

Fraternali, P., 1999. Tools and Approaches for developing

Data-Intensive Web Applications: A Survey, ACM

Computing Surveys, Vol. 31, No. 3, September 1999.

Becker, S. A., Berkemeyer, A., 2002. Rapid Application

Design and Testing of Web Usability, Multimedia

IEEE, Vol.9, Issue:4, Oct.-Dec. 2002, Pages: 38-46.

Ceri, S., Fraternali, P., Bongio, A., Brambilla, M., Comai,

S., Matera, M., 2003. Progettazione di dati e

applicazioni per il web, McGraw-Hill, Milano.

Internet: http://www.webml.org

Internet: http://www.webratio.com

Newman, M. W., Landay, J. A., 2000. Sitemaps,

Storyboards, and Specifications: A Sketch of Web Site

Design Practice, Symposium on Designing Interactive

Systems, Proceedings of the Conference on Designing

Interactive Systems: Processes, Practices, Methods,

and Techniques, New York City, United States,

Pages:263-274, ACM Press.

Hammar Cloyd, M., 2001. Designing User-Centered Web

Applications in Web Time, Software IEEE, Vol.18,

Issue:1, Jan.-Feb. 2001, Pages:62-69.

Conallen, J.,2003. Building Web Applications with UML,

Addison-Wesley Object Technology Series, Boston.

W3C, 2004. Techniques for Accessibility Evaluation and

Repair Tools. (n.d.). Retrieved November 8, 2004,

from: http://www.w3.org/TR/AERT

WEBIST 2005 - WEB INTERFACES AND APPLICATIONS

376
