A WEB-BASED ALGORITHM ANALYSIS TOOL

An Online Laboratory for Conducting Sorting Experiments

James TenEyck

Department of Computer Science, Marist College, Poughkeepsie, NY, USA

Keywords: Sorting algorithms, Algorithm analysis, Asymptotic behavior of algorithms, Big-oh notation.

Abstract: In this paper, an on-line laboratory is described in which students can test theoretical analyses of the run-

time efficiency of common sorting algorithms. The laboratory contains an applet that allows students to

select an algorithm with a type of data distribution and sample size and view the number of compares

required to sort a particular instance of that selection. It provides worksheets for tabulating the results of a

sequence of experiments and for entering qualitative and quantitative observations about the results. It also

contains a second applet that directly measures the goodness of fit of recorded data with common functions

such as cn

2

and cn(lg(n)). The laboratory is intended to reinforce classroom learning activities and other

homework assignments with a practical demonstration of the performance of a variety of sorting algorithms

on different kinds of data sets. It is a singular on-line tool that complements other online learning tools such

as animations of various sorting algorithms and visualizations of self-adjusting data structures. The

laboratory has been used in algorithms courses taught by the author at Marist College and Vassar, and is

available on-line for use by a more general audience.

1 INTRODUCTION

Algorithm analysis is a particularly difficult concept

for many computer science students to learn.

Despite the fact that students are taught to analyze

the run-time efficiency of algorithms using big-oh

notation early in their course of study, many upper-

level students are uncomfortable using this analysis

tool. Many students find the study of algorithm

analysis to be too abstract and consider it to be not

particularly relevant to their prospective career.

Students often state that when they need to find an

efficient algorithm to apply to a particular problem,

they can find one in a book or on the web, even

though, without the appropriate analytical skills,

they are relying more on the authority of their source

than on their own assessment.

This sorting laboratory attempts to make the

study of algorithm analysis more concrete by

providing students with a hands-on experience of

comparing the observed run-time behavior of

various sorting algorithms with results obtained

from analysis of asymptotic behavior. It also

requires the students to evaluate how the various

algorithms perform upon varying data sets.

Sorting algorithms are well suited for an

algorithm analysis laboratory. They are familiar to

students and provide a good basis for comparing

alternative approaches. Sorting algorithms are

among the first algorithmic procedures that students

encounter in their course of study, and by the time

they are ready to take a class in Algorithm Analysis

and Design; they are usually familiar with several

alternative approaches that they can choose from to

perform a sort. With a number of different

algorithms that can be used to sort the same initial

data set, a comparison of the relative performance of

each is easily made. Students are able to observe for

themselves that choosing an appropriate sorting

algorithm for a particular application is not strictly

pre-determined, but requires an analysis of the data

set to be sorted and a familiarity with the strengths

and weaknesses of the various algorithmic

approaches. With this laboratory experience

accompanying classroom instruction and other

homework assignments, the student should obtain a

more comprehensive appreciation of sorting

algorithms.

2 COMPARISON WITH OTHER

AVAILABLE TOOLS

The sorting laboratory is different from most of the

other on-line material augmenting courses in

Algorithms in that it deals with the analysis rather

485

TenEyck J. (2005).

A WEB-BASED ALGORITHM ANALYSIS TOOL - An Online Laboratory for Conducting Sorting Experiments.

In Proceedings of the First International Conference on Web Information Systems and Technologies, pages 485-489

DOI: 10.5220/0001233304850489

Copyright

c

SciTePress

than the step-by-step display of the workings of an

algorithm. Animation tools are readily located on

the web by performing a search using algorithm

animation or sorting algorithms as a key. Analysis

tools on the web are far scarcer, and it requires a

much deeper traversal of the list of possible matches

to find anything similar to this laboratory.

The most similar tool to the laboratory described

here is one produced by Carol Wellington at

Shippensburg University (Wellington, 1998). It also

focuses on sorting algorithms. It allows the user to

select a sorting algorithm, a data set and a sample

size, and it combines an animation with a report of

the number of compares and swaps that were

executed. It encourages the user to perform an

analysis of the results, but it does not produce a

worksheet to assist in that effort.

Another prominent example of an algorithm

analysis tool is the KLYDE workbench developed at

DePauw University (Berque, 1994). It is one in a

line of locally implemented laboratories (Collins,

1991; Baldwin, 1992; Epp, 1992) developed at the

time in response to the Computing Curricula 1991

Report of the ACM/IEEE Joint Curriculum Task

Force (Tucker, 1990) that recommended

experiences involving experimentation should be

included in the undergraduate computer science

curriculum. The original KLYDE system was

developed in Turbo Pascal to run under DOS on the

x86 based platforms of the time. It supported a

varied collection of algorithms, and used execution

time as the metric for evaluating performance.

KLYDE is not an on-line tool, but is available from

the developers.

The intent of the sorting laboratory described in

this paper differs from the two previously cited in

several important ways:

• Its only focus is analysis. It does not do

animations. Animations are useful for

explicating the algorithmic approach and links

to other animation sites are provided on the

initial page, but this tool uses larger sample

sizes that would make animation impractical.

• It reinforces the teaching of asymptotic analysis.

The laboratory experience allows the student to

compare empirical results with the worst-case

asymptotic bounds developed in class. The

algorithms are implemented essentially as they

appear in the standard text, and are not specially

modified to enhance their execution speed. The

metrics used here are comparison and swap

counts, as is the case in the classroom

discussion.

• The applets and all of the supplementary

material for performing experiments are

available online..

3 DESCRIPTION OF THE SORTING

LABORATORY

The laboratory consists of an initial html page with

links to the various resources it provides. The

laboratory has two main components. The first is an

applet in which the student may repeatedly select a

sorting algorithm, a sample size and a data set, and

read from the display the number of comparisons

and swaps needed to perform the sort. At present

the choice of algorithms consists of insertion sort,

selection sort, bubble sort, quicksort, and mergesort.

The data sets include randomly generated integers,

highly degenerate data, almost sorted data, and

reverse ordered integer values; and the sample sizes

are all the even powers of two from 16 to 4096. A

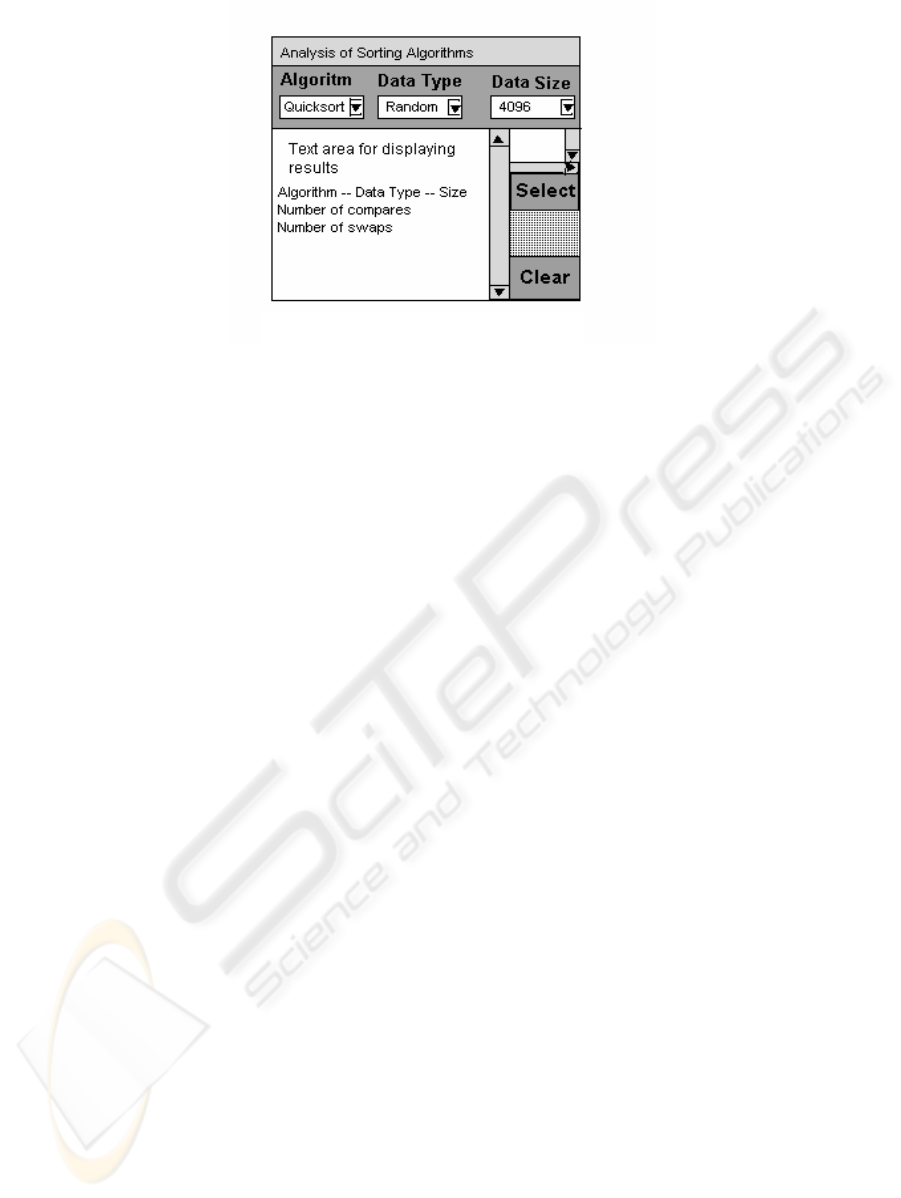

Figure 1: User Interface for Main Applet

WEBIST 2005 - E-LEARNING

486

depiction of the applet’s interface is shown in Figure

1 on the previous page.

In performing an experiment, the student selects

an algorithm, a data type, and a sample size from the

three JList objects located beneath their respective

labels. When a selection has been made, the student

clicks on the Select button in the panel at the right of

the screen, and an output string is appended to the

text area at the bottom-left (center) of the display.

The output indicates the algorithm selected, the type

of data set operated upon, the sample size chosen,

and the number of compares and swaps that were

counted during the run. The applet appends the

output string from each new selection to the contents

of the text area. The text area can be cleared at any

time by the student clicking on the Clear button at

the bottom of the panel at the right of the screen.

This panel also contains a small text area above the

Select button containing the instructions for the user.

The student may obtain downloadable

worksheets for recording data and making

qualitative and quantitative observations about that

data by clicking on one of the other primary links on

the first page. The worksheet provides boxes for

entering data and lines for student responses to

questions about the performance of the various

algorithms on each of the different data sets. The

worksheet also provides the values of n

2

and n lg(n)

for each of the sample sizes in one of the questions

and contains instructions for how to compare the

recorded data points with a multiple of either of

these two common functions. The laboratory does

not presently provide its own graphing tool, but the

worksheet provides instructions to the students on

how to use the graphing facility in Excel to visualize

comparisons between different algorithmic

approaches and between curves generated from the

data and plots of the two standard functions.

However, because there is such a wide disparity

between the range of sample sizes and the range of

comparison counts, the difference in scale between

the horizontal and vertical axes distorts the shape of

the curves and makes visual recognition of the

algorithmic behavior less transparent.

The second component directly measures the

goodness of fit of the generated data points to the

functions n

2

and n lg(n) and automatically generates

the parameters of the best fitting curve. The selected

algorithm is run over a range of sample sizes of

randomly generated data, and the best-fitting curve

for the resulting data points is determined. In this

approach, data points for ten different sample sizes

are obtained. These samples sizes range from 400 to

4000 and for each sample size the average of five

runs is used to determine the number of

comparisons. Curvilinear regression is used to

determine a best fit to one of the two standard

curves, and the parameters of this curve are

appended to an output string (Miller, 1965).

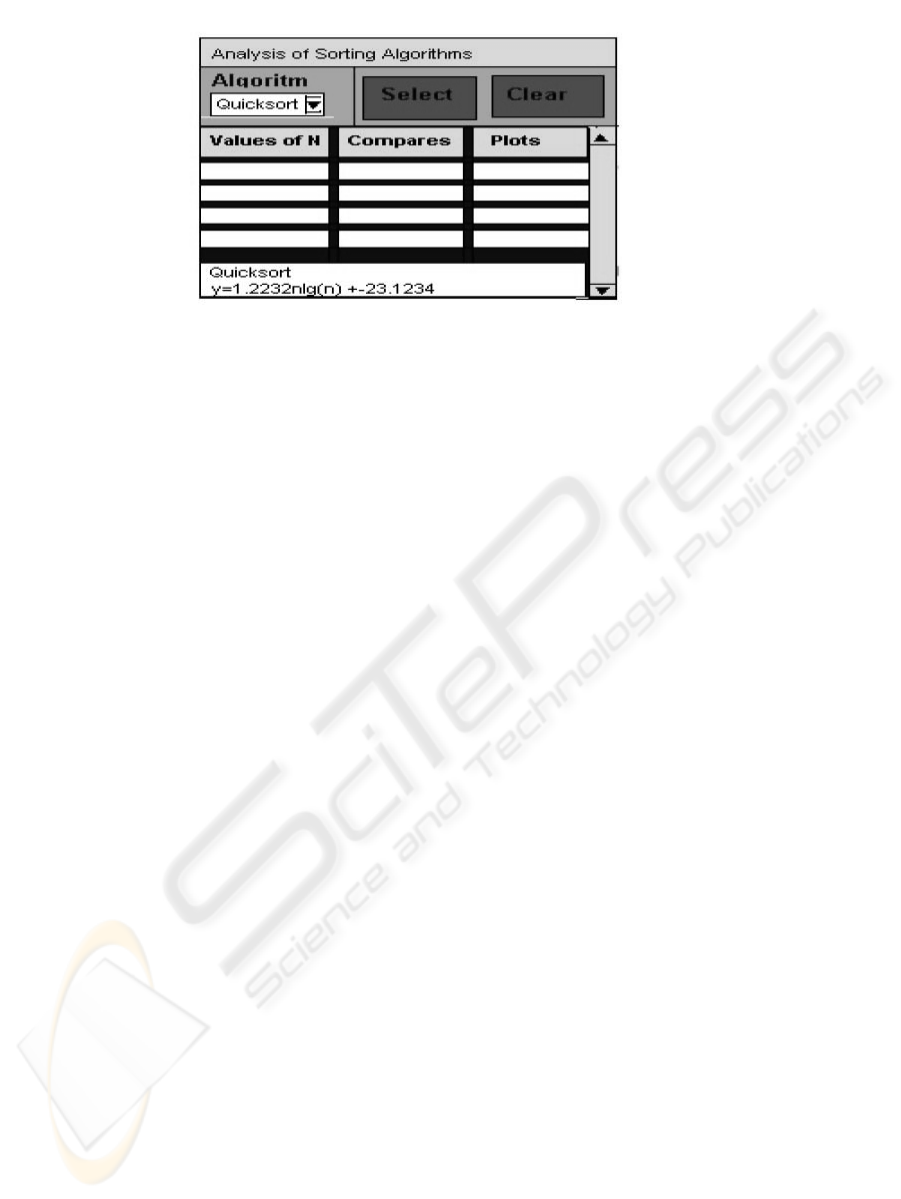

In figure 2, the interface for this second applet is

displayed. The general features are consistent with

those of the first applet. The student using this

applet need only select the sorting algorithm and the

program will run multiple sorts, collecting the data

points to be used in the regression analysis. When

the program completes, the parameters of the best

fitting curve are appended to the output string and

displayed in the text area at the bottom of the applet.

The average number of compares and the predicted

number for each sample size are copied into the

table located in the center of the applet. The only

data set type is the randomly generated distinct

integers, and the sample sizes are pre-set.

This second component eliminates the role of the

student in recording observations and evaluating the

data that he or she has collected. It effectively

automates out the traditional role of the

experimenter. Its principal value is that it provides

an immediate comparison between the average case

performance of the algorithm with the worst-case

performance (in the case of quicksort, the average

case performance) predicted by big-oh analysis. It

can also be used by the student to quickly check the

reasonableness of the results obtained from doing his

or her own calculations on random data sets.

Figure 2: User Interface for the Second Applet

A WEB-BASED ALGORITHM ANALYSIS TOOL - An Online Laboratory for Conducting Sorting Experiments

487

4 INTEGRATION OF THE

LABORATORY INTO THE

CURRICULUM

In the Algorithm Analysis and Design course in

which the sorting laboratory has been used, it has

been integrated into a learning module with the

following objectives:

• Reinforce the student’s grasp of algorithm

analysis.

• Develop the student’s appreciation of the

strengths and weaknesses of the various sorting

algorithms.

• Provide a learning experience in which the

student applies the knowledge acquired through

the classroom and laboratory activities to a new

situation.

The study of sorting algorithms directly follows

a unit on asymptotic analysis and solving recurrence

relations. The laboratory activity is assigned after

an initial lecture that emphasizes the design of

iterative algorithms using loop invariants and a

homework assignment that includes implementing

insertion sort and quicksort, clearly stating and

adhering to appropriate loop invariants.

At the completion of the unit the students are

asked to write a program that will efficiently sort a

suite of data sets supplied by the instructor. They

are not told the exact composition of this suite but

they do know that each of the data set types they

encountered in the sorting laboratory are represented

to one extent or another. They are in competition

with each other to either select the algorithm with

the best overall performance or produce an efficient

hybrid that uses a different algorithm for large and

small segments of the data. The student algorithms

are incorporated into a benchmark program provided

by the instructor and run on a common platform on

the common suite of data sets. The algorithm that

realizes the best performance "wins" the

competition, and the student that submitted it

receives bonus points that are added directly to his

or her final grade-point average.

At this writing there is only a qualitative

judgment that the laboratory experience augmented

by the programming competition has enhanced the

learning experience of the students. They seem to

enjoy the exercise and have a better on-time

completion percentage than they achieve on other

assignments.

5 EVOLUTION OF THE SORTING

LABORATORY

This laboratory evolved from an activity that was

created to give visiting high school students a taste

of an aspect of computer science. It was one of a

number of activities designed to be fun as well as

educational. The initial activity ran as a standalone

menu-driven Pascal program and required the

students to tabulate the results of the sorts and

answer some qualitative questions.

A number of years after this event, the program

was rewritten as a java applet with a GUI interface

and incorporated into an expanded laboratory

exercise for students in an Algorithm Analysis and

Design class. The applet directly displaying the

parameters of the least squares best-fit curve to a

standard function was added recently.

The plan for the near future is to add shellsort

and heapsort to the set of algorithms, and replace the

too small text area displaying user instructions with

a pop-up message dialog box. With shellsort, the

student will have an additional option of selecting

the step size. A more long-range objective is to

augment the printable worksheet with an interactive

spreadsheet. The goal is to remove as much of the

routine drudgery in the calculations as possible with

the student retaining control over which calculations

to perform. Ultimately the sorting laboratory serves

as a model for an algorithm analysis laboratory

encompassing other kinds of algorithms.

6 CONCLUSIONS

A search of the internet has revealed few similar

online tools for evaluating the performance of

algorithms. Several of the more frequently

referenced animations of sorting algorithms indicate

the sample size and number of comparisons and

swaps in performing the sort, but they do not attempt

to evaluate performance on a range of sample sizes.

This laboratory is a contribution to a niche of online

learning tools that has yet to be adequately filled.

The laboratory for analysis of sorting algorithms

described in this paper enhances student learning in

the following ways:

• It is easy to use and provides a rather enjoyable

learning experience.

• It provides concrete examples of the run-time

behavior of the various algorithms on a variety

of data set types.

• It uses the scientific method of collecting and

analyzing data and using the results to test

hypotheses. It provides a worksheet with a set

WEBIST 2005 - E-LEARNING

488

of questions that require students to observe and

write out salient features of the performance of

the algorithms on the different data sets.

• It augments other learning activities in the unit

teaching about the design, implementation, and

analysis of performance of sorting algorithms.

This tool has been used several times by the

author in courses in the analysis of algorithms.

While no quantitative measure of the benefit it

provides has been attempted, the qualitative

observations of the benefit include greater student

interest and more timely completion of assignments.

The sorting laboratory is available online for use by

the academic community at the web site listed

below.

www.academic.marist.edu/~jzbv/algorithms/sorts

REFERENCES

Berque, D., Bogda, J., Fisher, B., Harrison, T., and Rahn,

N., 1994. The KLYDE Workbench for Studying

Experimental Algorithm Analysis. Proceedings of the

Twenty-fifth SIGSCE Symposium on Computer

Science Education, pp 83-87. Pheonix, AZ.

Collins, W., 1991. Estimating Execution Times: A

Laboratory Exercise for CS2. SIGSCE Bulletin, pp

358-363, Vol23, No. 1, March 1991.

Epp, E., 1992. Yet Another Analysis of Algorithms

Laboratory. SIGSCE Bulletin, pp 11-14, Vol. 24, No.

4, December 1992.

Miller, I. and Freund, J. E., 1965. Probability and

Statistics for Engineers, Prentice-Hall.

Tucker, A. (editor), 1990. Computing Curricula 1991:

Report of the ACM/IEEE-CS Joint Task Force. IEEE

Computer Society Press.

Wellington, C. http://www.ship.edu/~cawell/Sorting/

A WEB-BASED ALGORITHM ANALYSIS TOOL - An Online Laboratory for Conducting Sorting Experiments

489
