Introducing Simulation Middle Size: A New Soccer
League to RoboCup
Mansour Jamzad and Mahdi Asadpour
Sharif University of Technology
Department of Computer Engineering
Azadi Ave. Tehran, Iran.
Abstract. There is a big difference between Simulation League and Middle Size
League in RoboCup, that is, a program written for the former can not be easily
transferred to the latter. Since the final aim is real robotics, in this paper we sug-
gest a new match for RoboCup Soccer which can fill this gap. We designed and
implemented a Modeled Robot Soccer Server most like Middle Size RoboCup
that contains a Soccer Field, Ball, Referee, etc. Each participated team should
provide not only his robots controller program but also the hardware model of
own robots in VRML97 format, using which our system will model a simulation
version of them. As an implementation of our ideas, we modeled and simulated
two teams of soccer robots and present the set up method for the match between
them. According to these setups, two teams will play and the scores are calculated
by the automated referee.
1 Introduction
RoboCup soccer competition is divided into two categories: Real Robots and Simula-
tion. The main goal of any simulation as a testbed is to facilitate the trial and evaluation
of ideas that have promise in the real world [1]. But there is a big difference between
the style of simulation league and the real robot league, so that a program written for
the former can not be easily transferred to the latter.
In this paper, we will introduce a new league for RoboCup that we call Simulation
Middle Size. In this new league we can use the advantages of the simulation soccer
league. In addition it gives many advantages to researchers to model real robots, add
new parts and capabilities to them, design advanced software algorithms and actually
see the result of implementation of these algorithms on the simulated robots. We believe
that this league can fill the big gap between simulation league and real robot league, so
that the programs developed for the new league can be easily ported to real robots.
For this new league, each team should provide his robots controller program and
also the hardware model of own robots in VRML97 format. Using these data our system
enables the simulated robots to play soccer according to middle size league rules. We
have modeled and simulated two teams of robots and in this paper we present the set up
method for the match.
The rest of this paper is organized as follows: In next section, we present the reasons
for introducing a new league, in section three we introduce elements of this new league.
Jamzad M. and Asadpour M. (2005).
Introducing Simulation Middle Size: A New Soccer League to RoboCup.
In Proceedings of the 1st International Workshop on Multi-Agent Robotic Systems, pages 122-131
DOI: 10.5220/0001193501220131
In section four we describe how to set up a competition between two teams of modeled
robots. In the conclusion section we discuss the limitations and present our suggestions
for the future works.
2 A New League Can Be a Solution

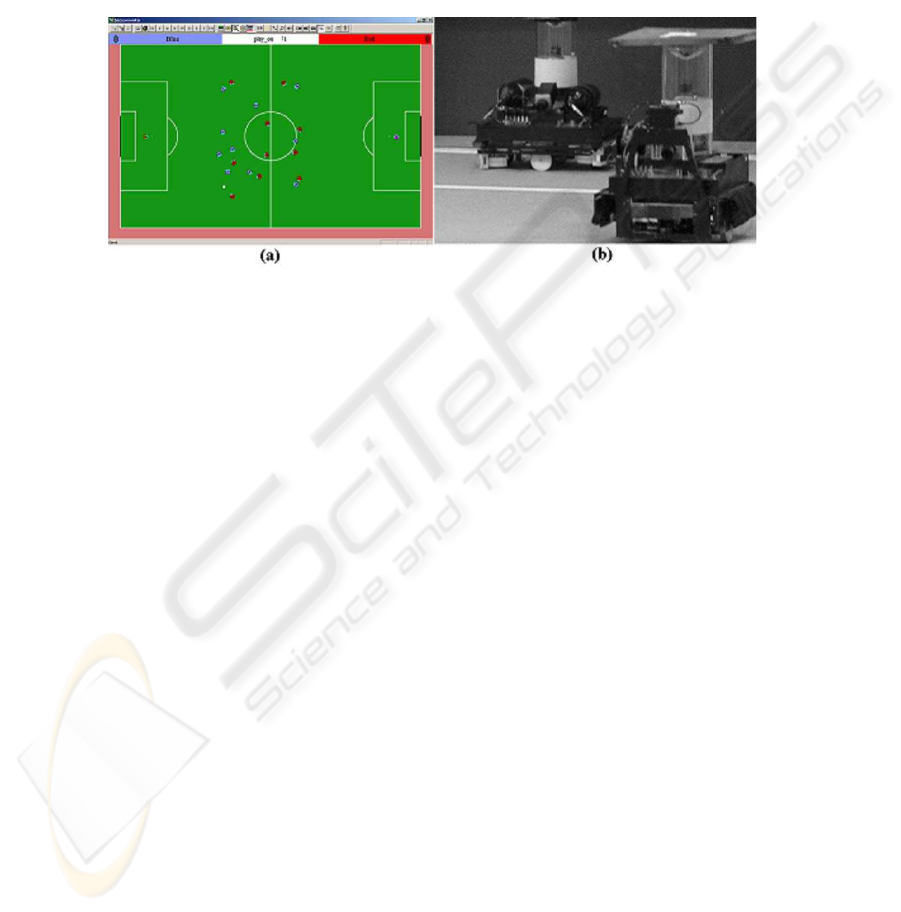

Fig.1. (a) A typical view of a Simulation League (b) One snapshot of robots in a Real Robots
The main differences between Simulation and Middle Size leagues can be listed as
1. An important part of the real robot soccer is how to recognize the environment el-
ements and their positions according to soccer field; participated teams generally
use real time machine vision algorithms for this purpose. But in simulation league,
there is a Soccerserver which provides the field, ball and players position informa-
tion [6].
2. In real robot league, a robot may be damaged during the game, impose serious
damage to others, or it may not work properly due to hardware or software failures.
However, in simulation league such failures are either not considered or might be
of limited importance.
3. There has been many advances in designing and implementing new ideas in simula-
tion league that are based on AI methods and multiagent systems. But in real robot
league, due to the construction problems and limits in implementation of advanced
algorithms, its speed of progress is somehow limited.
However, although the 3D Simulation League provides a 3D shape for robots and
the ball movement in 3D space, but the users can not model their own robots in this
environment. In addition it can not provide any solution for the above mentioned limi-
We have a clear goal in RoboCup, that is to make robots that can win the human
soccer champion team by 2050. Having a look at the present leagues, we see a great
progress in designing and implementing ideas based on AI, multiagent systems, includ-
ing cooperative behavior, path planning, team work, etc that can be easily implemented
in soccer simulation league. On the other hand there are many limitations in imple-
menting most advanced methods used in simulation league in middle size. The reason
is due to the hardware and mechanical limitation of robots. If we continue the leagues
as they are, by the time that we could build better robots, we might face some serious
limitations, that is we might not be able to apply the advanced software algorithms on
those robots.
In the other hand, many research groups who are interested in middle size, but be-
cause of the high cost of purchasing real robots, or difficulties in constructing own ro-
bots, the number of teams that have been participated in middle size league are limited.
The trend in recent years shows that there might not be much change in this regard.
Therefore, in order to speed up many research ideas in related fields, the need for a
Simulation Middle Size league seems to be a reality.
In this new league, two teams of modeled robots can play according to middle size
league rules. Each team should provide the model of his robot(s) in VRML97
and also its controller program using which the server will model a simulation version
of them. At this stage the server will arrange a match between these two teams in an
environment similar to that of middle size league.
We highly recommend the reader to look at the movies in the web page of this paper
). These movies show the matches played
in the new league environment. Also, the controller programs source codes (in C/C++
language) are ready to download from this web page.
All our design and implementations were done using Webots
, a commercial mobile
robot simulation software that provides a rapid prototyping environment for modeling,
programming and simulating mobile robots. Using the libraries of this software one can
transfer his control programs to several commercially available real mobile robots[3].
The reason that at this stage we have used Webots, was because we were familiar
with its usage in mobile robots applications. But, there are other simulations tools such
as Player/Stage which is an open source, that can be used for this purpose, or even
a group of researches might develop a special purpose simulations tool for RoboCup
However, although most middle size teams might have their own simulation soft-
ware tools, but such tools are limited to test some specific functionality of their robots.
In addition due to the hard schedule of most teams in developing practical software and
hardware and also mechanical fix ups, there is very limited time left for testing many
available methods and new ideas, for example, path planning, cooperative behavior,
distributed AI, etc, on real robots.
Virtual Reality Modeling Language, version 97: Most 3D modeling software, like 3D Studio
Max, Maya, AutoCAD or Art Of Illusion, include the VRML97 export feature.
3 Elements of Simulated League
Elements of this new league and its rules are based on Middle Size League. Its most
important rules are listed in the web page of this paper, [11]. The complete middle size
league rules is available in [2].
3.1 The Field of Play
As shown in figure 2, the color of the field surface is green. Dimensions of the field is
rectangular and marked with white lines.

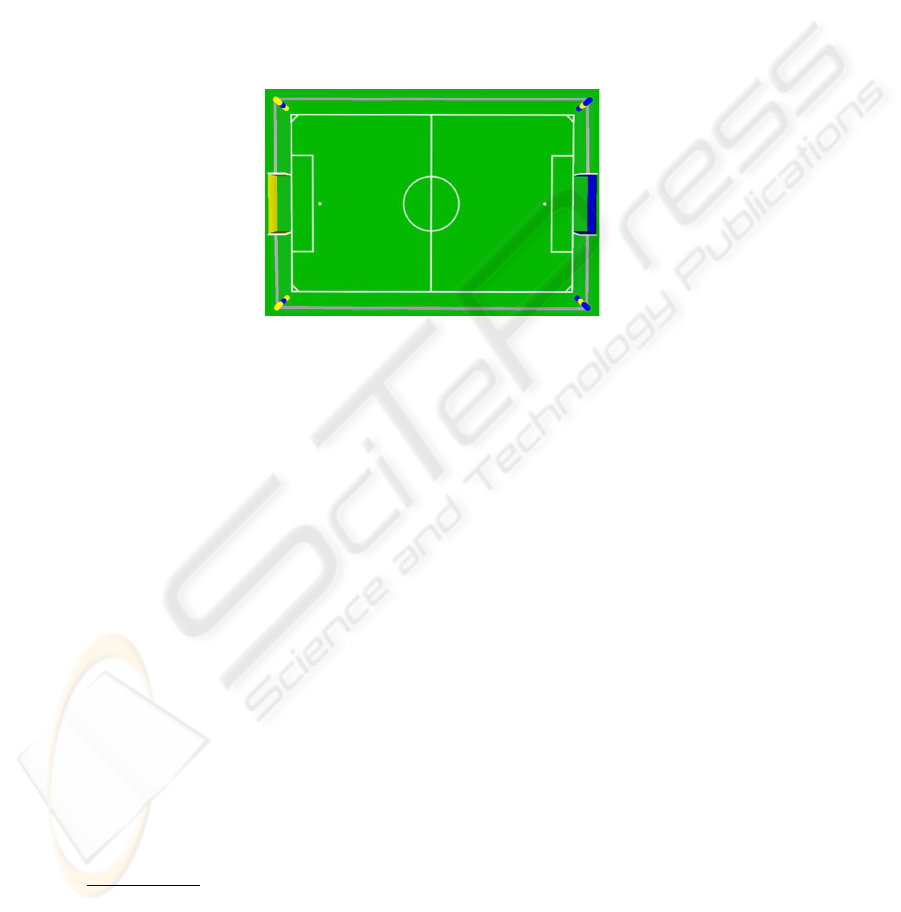

Fig.2. Top view of the field of play with white lines, yellow and blue goals, goal area, corner
flagposts, safety boundaries, etc.
A goal area is defined at each end of the field and cylinders are used instead of
flagposts. As you see in the figure 2, the corner cylinders are painted in the same color
as the nearest goal. A wall is placed around and behind the goal and the interior of one
goal is blue, the other is yellow. The exterior of the goal, the goalposts and the crossbar
are painted white.
3.2 The Ball
The ball is spherical and its color is red, as is shown in figure 3 in front of the robots.
3.3 Players
A match is played by two modeled teams, each consisting of not more than six players
including a goalkeeper. The maximum difference of number of players between the two
teams starting a match is defined as 1, if the team with less robots has 4 or more players.
Each Player/Robot carries the markers, which include Color Markers and Number
Markers. The color marker is one of the two predetermined official colors. The official
colors are with RGB
(0, 255, 255) for blue robots and with RGB(255, 220, 130) for
yellow robots, painted in figure 4.
Red, Green and Blue color numbers

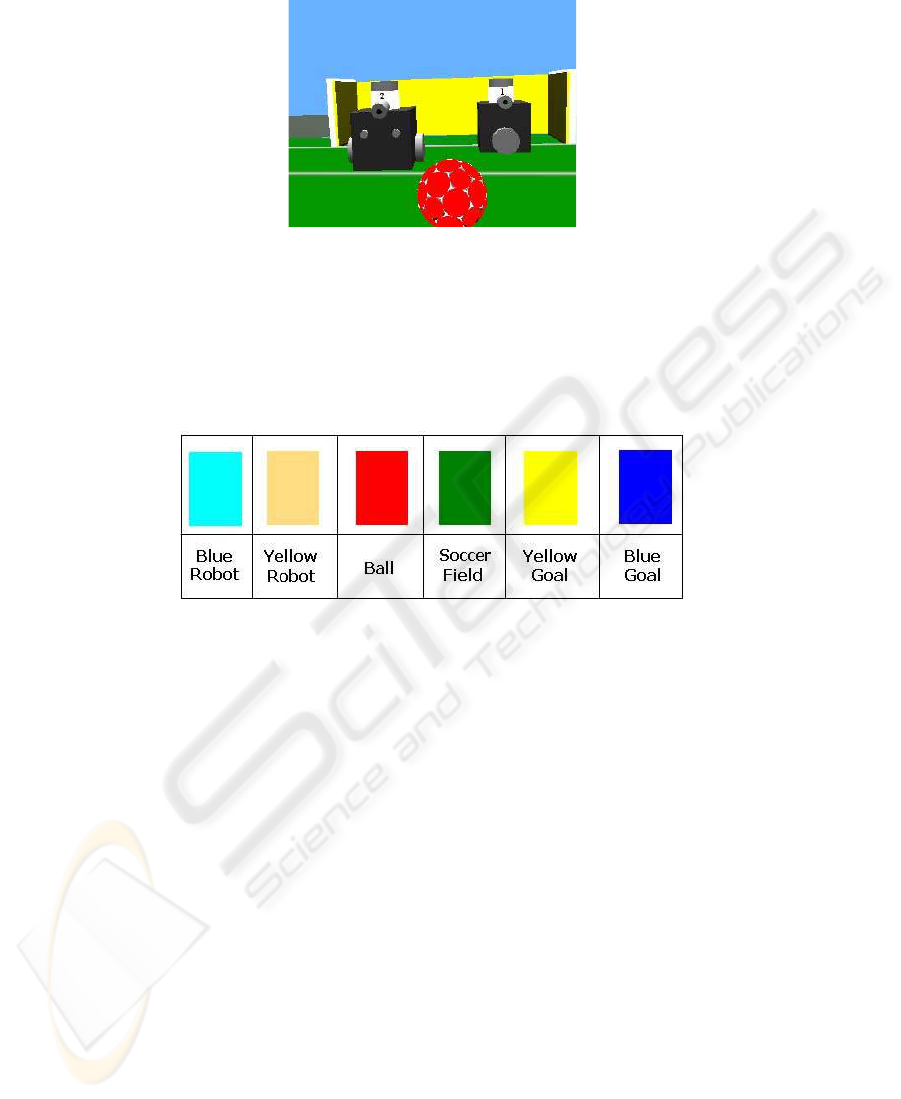

Fig.3. The yellow team: player and goalkeeper plus the ball and number markers above each
Also each robot carries a number marker. The number 1 is reserved for goalkeepers
(as shown on top of robots in figure 3).
Fig.4. The used colors in this match.
3.4 The Referee
In this league, two referees control each match: Automated Referee and Human Referee.
Rules Judged by The Automated Referee The Automated Referee is a controller/supervisor
program that manages the game. It does the following tasks:
1. Starts the game.
2. Assigns blue or yellow color to one team randomly. The blue team starts the match.
3. Imports the model of robots to game and load their controllers programs.
4. Acts as timekeeper and keeps a record of the match.
5. When a team scores, the referee performs a number of tasks. It updates the score
(showing in the top of simulation scene), moves the ball to the center mark and
moves the players to start predefined positions.
6. When the ball goes out of the field, the referee moves the ball to a proper position.
7. Finishes the game and saves the result of game to a storage file.
Rules Judged by The Human Referee The Human Referee sets up a match firstly.
During the match, some errors may occur for the league system, in the other word, there
are some fouls like ”obstruction” which are difficult to judge automatically. To resolve
such situations, the human referee is allowed. Other responsibilities are when intention-
ally blocking the movement of other players, inappropriate behavior and blocking the
goal with too many players [6].
4 How to Setup a Match
In this section, we mention the way of setting up the match from the ground up. Figure
5 shows a scene of match between two teams.

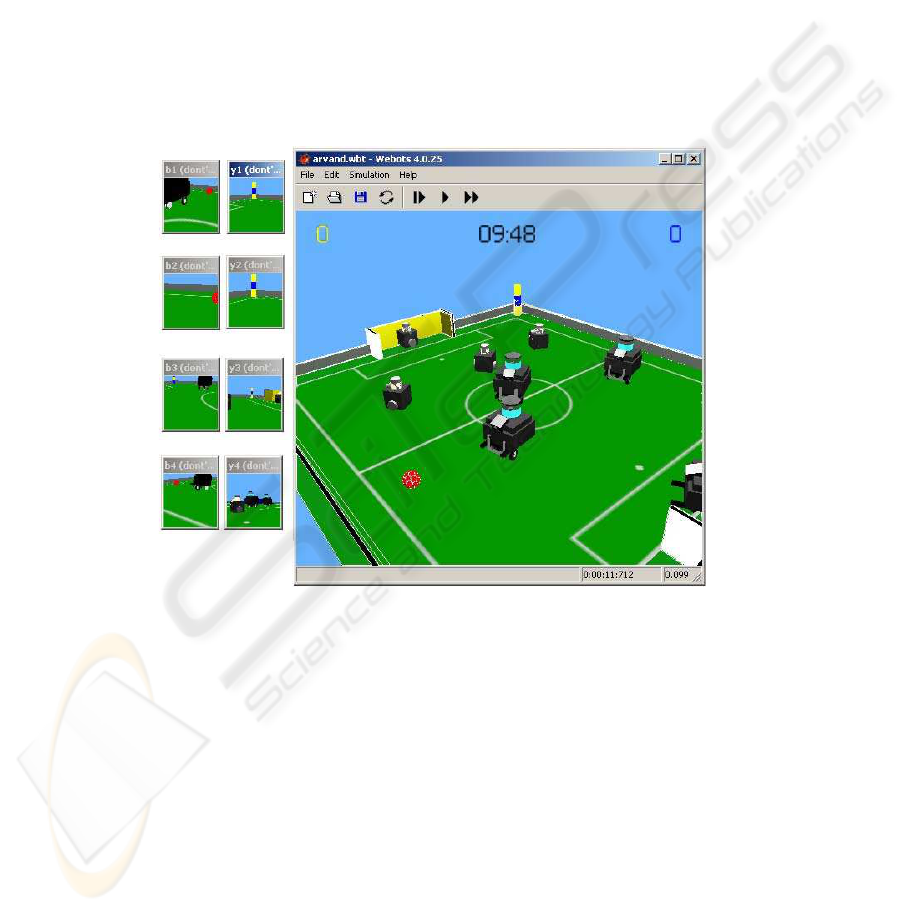

Fig.5. One scene of the match including images, at the right side, which were captured by each
robot camera.
Before setting up a competition, two participated teams should provide their robots
models and controlling programs.
We modeled and simulated two teams of robots to show:
1. The ability to construct complex and impressive robots, and
2. To provide a good sample for enthusiastic researchers to use it as it is or modify it
as desired.
To run a simulation in Webots, you need three things:
1. Define a 3D virtual world containing one or more 3D virtual robots to be saved as
a .wbt file.
2. Write C/C++ or Java programs to control each robot called Controller Program,
and optionally, a supervisor program to control the simulation.
3. Use Webots to run simulations for your robots and controllers [5].
4.1 An Example of How Teams Participate in The League
For the first team participated in our league, the Arvand robots are selected. Arvand
is the name of robots designed and constructed by Sharif CE team for playing in the
middle size league [9]. Two different types of robots were made, players and the goal-
keepers. These robots showed a high performance in Robocup-99: became champion

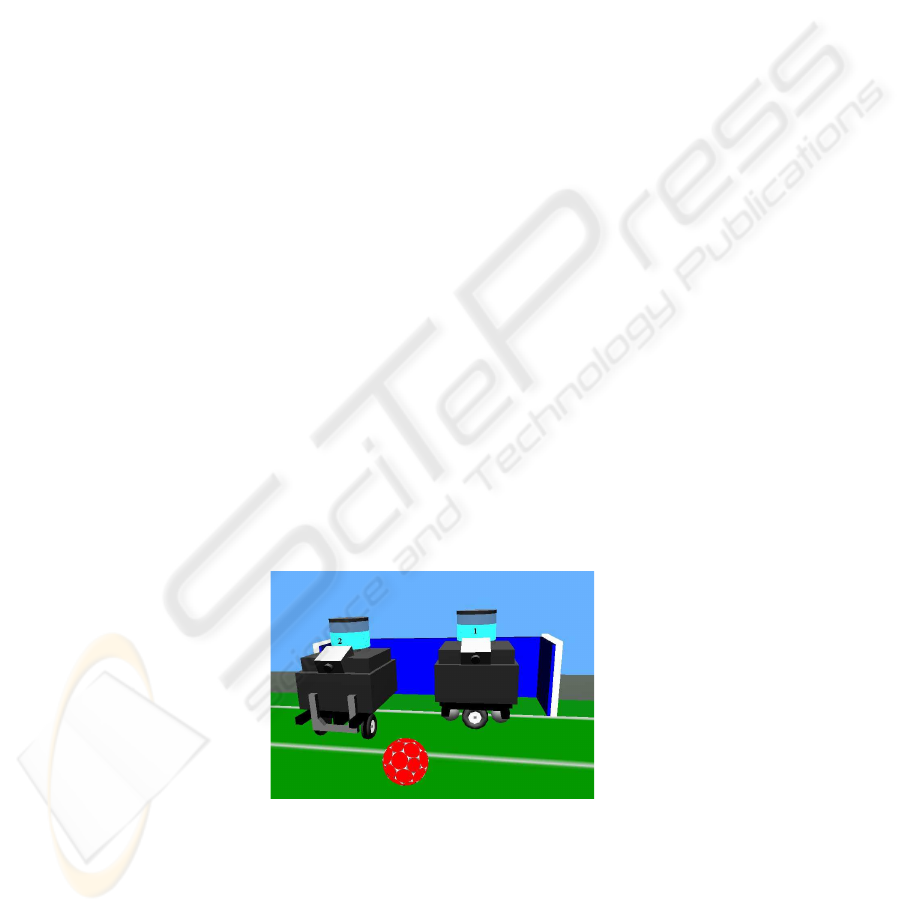

Arvand Players We modeled the players as below (see figure 6):
1. The front camera captures an image in the field of view of 90 degrees (1.57 radians)
with size of 64 × 64 pixels (used the Camera node of Webots).
2. The kicker kicks the ball (used the Servo node of Webots).
3. Two servo motors for each wheel for driving left/right and forward/backward (used
the Servo node of Webots). The combination of drive units movement and proper
settings provides the robot with continuous rotational move around any point [7].
4. Castor wheel is used for balancing the robot (used the Solid node of Webots).
5. Communication between robots by Emitting and Receiving messages (used the
Emitter and Receiver nodes of Webots).
The controller program of this robot is a simple image processing algorithm that
recognizes the ball and opponent goal positions. Its C source code is freely available at
We use three copies of this robot plus a goalkeeper for establishing a team.
Fig.6. A simulation model of Arvand player plus its goalkeeper robot and the match ball: team
color markers and number markers are included.
Arvand goalkeeper We modeled the goalkeeper as below (see figure 6):
1. Front camera is similar to the player one.
2. Two castor wheels is similar to the player one.
3. Two servo motors for each wheel, similar to the player one but are used for driving
according to the goal line.
The controller program of the goalkeeper recognizes the ball position and tries to
prevent the ball from passing over the goal line. You can find some sample codes for
this goalkeeper in [11].
4.2 The Needed Settings
After you constructed
all the robots, you must observe the following settings before
1. Prepare two copies of your team; one with blue marking, and one with yellow
2. Choose the DEF name
of B
for robots in blue team, and so on for Y
3. Export
the VRML97 model of your robots to files b
.wbt for the robots of blue
team and y
.wbt for the robots of yellow team which n indicates the number mark
of that robot. Number 1 is reserved for goalkeepers.
4. You should deliver b
.wbt, y
.wbt and controller programs in a folder with your
team name.
4.3 The Match Routine
When two teams deliver the needed files to human referee,
1. He records the names of two teams.
2. He runs the simulation program.
3. The automated referee select one of teams as the starter (blue team) randomly.
4. It imports b
.wbt files of starter team and y
.wbt files of other one to the soccer
5. Places the players to start predefined positions.
6. Kick off the match.
7. During the match, two teams compete with each other, and
8. Referees do their tasks respectively.
9. After the game finished, the automated referee shows the game result as seen in
figure 7, and also saves it in a log file.
Modeling the hardware and writing controller program
DEF is a field defined in each node of Webots
By using ”Export” item in Webots software

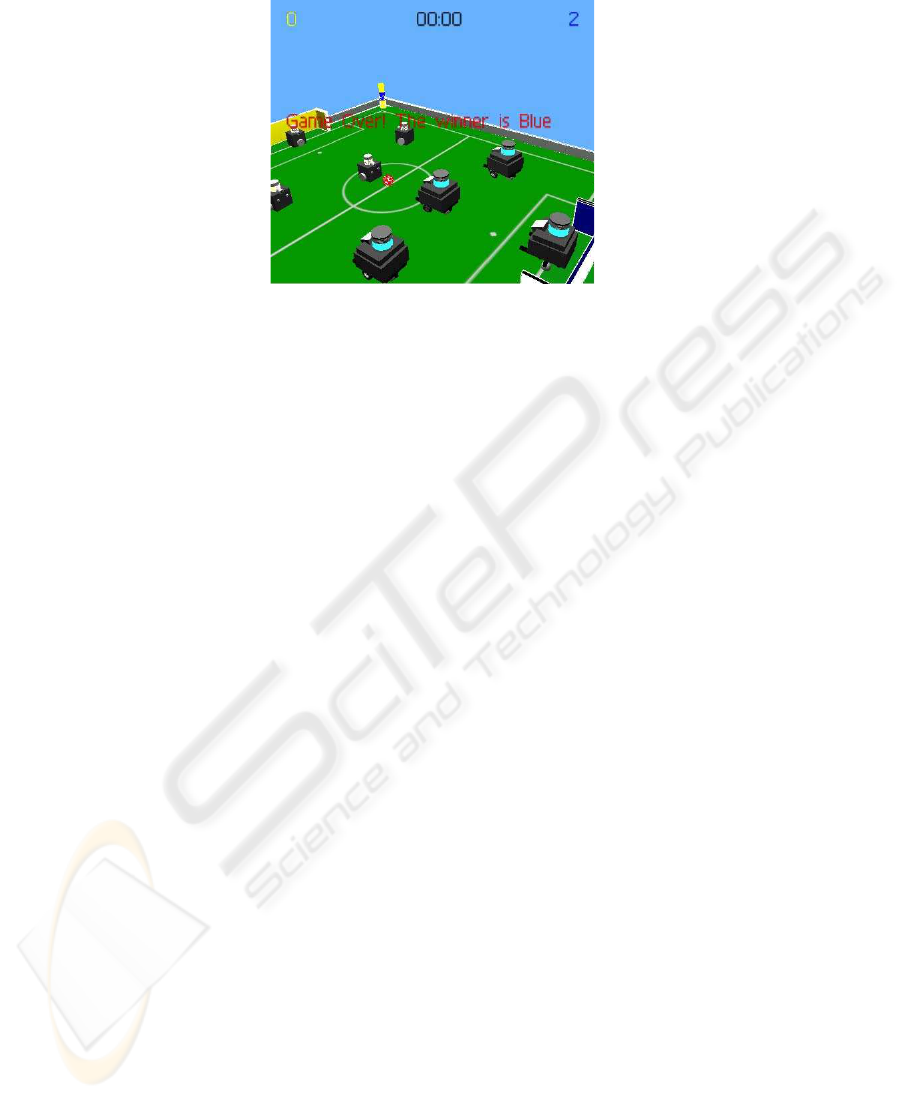

Fig.7. At the end of match, the automated referee shows/saves the match result.
5 Conclusion
In this paper we suggested to start a new league called Simulation Middle Size. Not
only it can use the advantages of the simulation soccer league, but also it gives many
advantages to researchers such as modeling their real robots, adding parts and capa-
bilities to them, designing advance software algorithms and studying how they will be
implemented on their modeled robot.
As a result the researches can evaluate the performance of such algorithms in shorter
period of time with higher accuracy.
We believe that if the suggested league is presented as a new match in RoboCup, we
will see a high improvement in the real robots league. We can design our robots in such
a way that certain algorithms that have proven to be efficient in the simulation, could be
easily applied on them.
We conclude that our suggestion can be improved as follows:
1. The rules that are not currently applied in Middle Size e.g. Offside, Penalty Kick
[2], can be applied here to evaluate its practical effectiveness.
2. Such league can easily be set up for Small Size and Humanoid RoboCup.
3. In order to evaluate the performance of algorithms on real robots, we can program
a fault injection mechanism to be added to hardware and mechanical parts of the
simulated robots. These faults can be injected with the predefined probabilities dur-
ing the match. At the end of a match, the overall performance evaluation will be
informed to each team.
4. The image acquisition of Webots provides noise free images. That is, we can always
get the exact predefined fixed colors for corner flagposts, land marks, robots, etc.
However, in order to have a realistic simulation of the robot vision system, we can
introduce a new option for adding noise and degradation to the images.
5. At this stage the match is setup as a local game. Therefore, there are restrictions
on programming languages used by teams. To solve this problem, the match can
be carried out in a client-server style and using communication via UDP/IP (or
The authors would like to thank Masoud Asadpour from EPFL university (Switzer-
land), Olivier Michel from Cyberbotics Ltd. and all members of Sharif CE Middle Size
RoboCup team for their sharing of knowledge and cooperation.
1. P. Stone and M. Veloso, Multiagent Systems: A Survey from a Machine Learning Perspective,
Journal of Autonomous Robots, Vol. 8, No. 3, pp 345-383, 2000.
2. MSL Technical Committee, Middle Size Robot League Rules and Regulations for 2004, Draft
Version pre-8.2, May 18, 2004.
3. Olivier Michel, WebotsTM: Professional Mobile Robot Simulation, Journal of Advanced Ro-
botics Systems, Vol. 1, No. 1, pp 39-42, 2004.
4. Itsuki Noda, Soccer server : a simulator of robocup, Proceedings of AI symposium 95, pp
2934. Japanese Society for Artificial Intelligence, December 1995.
5. Cyberbotics Ltd., Webots 4.0.5 User Guide, 2004.
6. Mao Chen et al., Users Manual RoboCup Soccer Server version 7.07, 2001.
7. Mansour Jamzad et al., ARVAND: a Soccer Player Robot, AI Magazine, Vol. 21, No.3, pp
47-51, Fall 2000.
8. Mansour Jamzad et al., A Goal Keeper for Middle Size RoboCup, Lecture Notes in Artificial
Intelligence: RoboCup-2000: Robot Soccer World Cup IV, pp 583-586, Springer 2001.
9. Mansour Jamzad et al., A Fast Vision System for Middle Size RoboCup, RoboCup-2001:
Robot Soccer World Cup V, Peter Stone, et al (Eds), Springer, pp. 76-85, 2001.
10. Mahdi Asadpour, Simulating ARVAND Middle Size Soccer Player Robot with Webots, BS
thesis, Sharif University of Technology, Department of Computer Engineering, Feb 2005.
