EVOLUTIONARY COMPUTATION FOR DISCRETE AND

CONTINUOUS TIME OPTIMAL CONTROL PROBLEMS

Yechiel Crispin

Department of Aerospace Engineering

Embry-Riddle University

Daytona Beach, FL 32114

Keywords:

Optimal Control, Rocket Dynamics, Goddard’s Problem, Evolutionary Computation, Genetic Algorithms.

Abstract:

Nonlinear discrete time and continuous time optimal control problems with terminal constraints are solved

using a new evolutionary approach which seeks the control history directly by evolutionary computation.

Unlike methods that use the ﬁrst order necessary conditions to determine the optimum, the main advantage of

the present method is that it does not require the development of a Hamiltonian formulation and consequently,

it eliminates the requirement to solve the adjoint problem which usually leads to a difﬁcult two-point boundary

value problem. The method is veriﬁed on two benchmark problems. The ﬁrst problem is the discrete time

velocity direction programming problem with the effects of gravity, thrust and drag and a terminal constraint

on the ﬁnal vertical position. The second problem is a continuous time optimal control problem in rocket

dynamics, the Goddard’s problem. The solutions of both problems compared favorably with published results

based on gradient methods.

1 INTRODUCTION

An optimal control problem consists of ﬁnding the

time histories of the controls and the state variables

such as to maximize an integral performance index

over a ﬁnite period of time, subject to dynamical con-

straints in the form of a system of ordinary differential

equations (Bryson, 1975). In a discrete-time optimal

control problem, the time period is divided into a ﬁ-

nite number of time intervals of equal duration ∆T .

The controls are kept constant over each time inter-

val. This results in a considerable simpliﬁcation of the

continuous time problem, since the ordinary differen-

tial equations can be reduced to difference equations

and the integral performance index can be reduced to

a ﬁnite sum over the discrete time counter (Bryson,

1999). In some problems, additional constraints may

be prescribed on the ﬁnal states of the system.

Modern methods for solving the optimal control

problem are extensions of the classical methods of the

calculus of variations (Fox, 1950). These methods are

known as indirect methods and are based on the max-

imum principle of Pontryagin, which is a statement of

the ﬁrst order necessary conditions for optimality, and

results in a two-point boundary value problem (TP-

BVP) for the state and adjoint variables (L.S. Pon-

tryagin and Mishchenko, 1962).

It has been known, however, that the TPBVP is

much more difﬁcult to solve than the initial value

problem (IVP). As a consequence, a second class of

solutions, known as the direct method has evolved.

For example, attempts have been made to recast the

original dynamic optimization problem as a static

optimization problem by direct transcription (Betts,

2001) or some other discretisation method, eventually

reformulating the original problem as a nonlinear pro-

gramming (NLP) problem. This is often achieved by

parameterisation of the state variables or the controls,

or both. The original differential equations or differ-

ence equations are reduced to algebraic equality con-

straints. A signiﬁcant advantage of this method is that

the Hamiltonian formulation is completely avoided,

which can be advantageous to practicing engineers

who have not been exposed to the theoretical frame-

work of optimal control. However, there are some

problems with this approach. First, it might result in a

large scale NLP problem which might suffer from nu-

merical stability and convergence problems and might

require excessive computing time. Also, the para-

meterisation might introduce spurious local minima

which are not present in the original problem.

With the advent of computing power and the

45

Crispin Y. (2005).

EVOLUTIONARY COMPUTATION FOR DISCRETE AND CONTINUOUS TIME OPTIMAL CONTROL PROBLEMS.

In Proceedings of the Second International Conference on Informatics in Control, Automation and Robotics, pages 45-54

DOI: 10.5220/0001171200450054

Copyright

c

SciTePress

progress made in methods that are based on op-

timization analogies from nature, it became pos-

sible to achieve a remedy to some of the above

mentioned disadvantages through the use of global

methods of optimization. These include stochas-

tic methods, such as simulated annealing (Laarhoven

and Aarts, 1989), (Kirkpatrick and Vecchi, 1983)

and evolutionary computation methods (Fogel, 1998),

(Schwefel, 1995) such as genetic algorithms (GAs)

(Michalewicz, 1992), see also (Z. Michalewicz and

Krawczyk, 1992) for an interesting treatment of the

linear discrete-time problem.

Genetic algorithms provide a powerful mechanism

towards a global search for the optimum, but in many

cases, the convergence is very slow. However, as will

be shown in this paper, if the GA is supplemented

by problem speciﬁc heuristics, the convergence can

be accelerated signiﬁcantly. It is well known that

GAs are based on a guided random search through

the genetic operators and evolution by artiﬁcial se-

lection. This process is inherently very slow, be-

cause the search space is very large and evolution pro-

gresses step by step, exploring many regions with so-

lutions of low ﬁtness. However, it is often possible to

guide the search further, by incorporating qualitative

knowledge about potential good solutions. In many

problems, this might involve simple heuristics, which

when combined with the genetic search, provide a

powerful tool for ﬁnding the optimum very quickly.

The purpose of the present work is to incorporate

problem speciﬁc heuristic arguments, which when

combined with a modiﬁed hybrid GA, can solve

the discrete-time optimal control problem very eas-

ily. There are signiﬁcant advantages to this approach.

First, the need to solve a difﬁcult two-point boundary

value problem (TPBVP) is completely avoided. In-

stead, only initial value problems (IVP) need to be

solved. Second, after ﬁnding an optimal solution,

we verify that it approximately satisﬁes the ﬁrst-order

necessary conditions for a stationary solution, so the

mathematical soundness of the traditional necessary

conditions is retained. Furthermore, after obtaining

a solution by direct genetic search, the static and dy-

namic Lagrange multipliers, i.e., the adjoint variables,

can be computed and compared with the results from

a gradient method. All this is achieved without di-

rectly solving the TPBVP. There is a price to be paid,

however, since, in the process, we are solving many

initial value problems (IVPs). This might present a

challenge in more advanced and difﬁcult problems,

where the dynamics are described by higher order

systems of ordinary differential equations, or when

the equations are difﬁcult to integrate over the re-

quired time interval and special methods of numer-

ical integration are required. On the other hand, if

the system is described by discrete-time difference

equations that are relatively well behaved and easy

to iterate, the need to solve the initial value problem

many times does not represent a serious problem. For

instance, the example problem presented here , the

discrete velocity programming problem (DVDP) with

the combined effects of gravity, thrust and drag, to-

gether with a terminal constraint (Bryson, 1999), runs

on a 1.6 GHz pentium 4 processor in less than one

minute CPU time.

In the next section, a mathematical formulation of

the discrete time optimal control problem is given.

This formulation is used to study a speciﬁc example

of a discrete time problem, namely the velocity di-

rection programming of a body moving in a viscous

ﬂuid. Details of this problem are given in Section 3.

The evolutionary computation approach to the solu-

tion is then described in Section 4 where results are

presented and compared with the results of an indi-

rect gradient method developed by Bryson (Bryson,

1999). In Section 5, a mathematical formulation of

the continuous time optimal control problem for non-

linear dynamical systems is presented. A speciﬁc il-

lustrative example of a continuous time optimal con-

trol problem is described in Section 6, where we study

the Goddard’s problem of rocket dynamics using the

proposed evolutionary computation method. Finally

conclusions are summarized in Section 7.

2 OPTIMAL CONTROL OF

DISCRETE TIME NONLINEAR

SYSTEMS

In this section, a formulation is developed for the

nonlinear discrete-time optimal control problem sub-

ject to terminal constraints. Consider the nonlinear

discrete-time dynamical system described by differ-

ence equations with initial conditions

x(i + 1) = f[x(i), u(i), i] (2.1)

x(0) = x

0

(2.2)

where x ∈ R

n

is the vector of state variables, u ∈

R

p

, p < n is the vector of control variables and i ∈

[0, N − 1] is a discrete time counter. The function f

is a nonlinear function of the state vector, the control

vector and the discrete time i, i.e., f : R

n

x R

p

x

R 7→ R

n

. Next, deﬁne a performance index

J[x(i), u(i), i, N] = φ[x(N)]+Σ

M

i=0

L[x(i), u(i), i]

(2.3)

where M = N − 1, φ : R

n

7→ R, L : R

n

x R

p

x

R 7→ R

Here L is the Lagrangian function and φ[x(N)] is

a function of the terminal value of the state vector

ICINCO 2005 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

46

x(N). In some problems, additional terminal con-

straints can be prescribed through the use of functions

ψ of the state variables x(N)

ψ[x(N)] = 0, ψ : R

n

7→ R

k

k ≤ n (2.4)

The optimal control problem consists of ﬁnding the

control sequence u(i) such as to maximize (or mini-

mize) the performance index deﬁned by (2.3), subject

to the dynamical equations (2.1) with initial condi-

tions (2.2) and terminal constraints (2.4). This formu-

lation is known as the Bolza problem in the calculus

of variations. In an alternative formulation, due to

Mayer, the state vector x

j

, j ∈[1, n] is augmented by

an additional state variable x

n+1

which satisﬁes the

initial value problem:

x

n+1

(i + 1) = x

n+1

(i) + L[x(i), u(i), i] (2.5)

x

n+1

(0) = 0 (2.6)

The performance index can then be written in the

following form

J(N) = φ[x(N)] + x

n+1

(N) ≡ φ

a

[x

a

(N)] (2.7)

where x

a

= [x x

n+1

]

T

is the augmented state

vector and φ

a

the augmented performance index. In

this paper, the Meyer formulation is used.

We next deﬁne an augmented performance index

with adjoint constraints ψ and adjoint dynamical con-

straints f [x(i), u(i), i]−x(i+1) = 0, with static and

dynamical Lagrange multipliers ν and λ, respectively,

in the following form:

J

a

= φ + ν

T

ψ + λ

T

(0)[x

0

− x(0)]+

+Σ

M

i=0

λ

T

(i + 1){f[x(i), u(i), i] − x(i + 1)} (2.8)

Deﬁne a Hamiltonian function as

H(i) = λ

T

(i + 1)f [x(i), u(i), i] (2.9)

Rewriting the augmented performance index in

terms of the Hamiltonian function, we get

J

a

= φ + ν

T

ψ − λ

T

(N)x(N ) + λ

T

(0)x

0

+

+Σ

M

i=0

[H(i) − λ

T

(i)x(i)] (2.10)

A ﬁrst order necessary condition for J

a

to reach a

stationary solution is given by the discrete version of

the Euler-Lagrange equations

λ

T

(i) = H

x

(i) = λ

T

(i+1)f

x

[x(i), u(i), i] (2.11)

with ﬁnal conditions

λ

T

(N) = φ

x

+ ν

T

ψ

x

(2.12)

The control u(i) satisﬁes the optimality condition:

H

u

(i) = λ

T

(i + 1)f

u

[x(i), u(i), i] = 0 (2.13)

If we deﬁne an augmented function Φ as

Φ = φ + ν

T

ψ (2.14)

then the ﬁnal conditions can be written in terms

of the augmented function Φ in a similar way to the

problem without terminal constraints

λ

T

(N) = Φ

x

= φ

x

+ ν

T

ψ

x

(2.15)

The indirect approach to optimal control uses the

necessary conditions for an optimum to obtain a solu-

tion. In this approach, the state equations (2.1) with

initial conditions (2.2) need to be solved together with

the adjoint equations (2.11) and the ﬁnal conditions

(2.15), where the control sequence u(i) is to be de-

termined from the optimality condition (2.13). This

represents a coupled system of nonlinear difference

equations with part of the boundary conditions speci-

ﬁed at the initial time i = 0 and the rest of the bound-

ary conditions speciﬁed at the ﬁnal time i = N. This

is a nonlinear two-point boundary value problem (TP-

BVP) in difference equations. Except for some spe-

cial simpliﬁed cases, it is usually very difﬁcult to ob-

tain solutions for such nonlinear TPBVPs in closed

form. Therefore, many numerical methods have been

developed to tackle this problem.

Several gradient based methods have been pro-

posed for solving the discrete-time optimal con-

trol problem (Mayne, 1966). For example, Mur-

ray and Yakowitz (Murray and Yakowitz, 1984) and

(Yakowitz and Rutherford, 1984) developed a differ-

ential dynamic programming and Newton’s method

for the solution of discrete optimal control problems,

see also the book of Jacobson and Mayne (Jacobson

and Mayne, 1970), (Ohno, 1978), (Pantoja, 1988) and

(Dunn and Bertsekas, 1989). Similar methods have

been further developed by Liao and Shoemaker (Liao

and Shoemaker, 1991). Another method, the trust

region method, was proposed by Coleman and Liao

(Coleman and Liao, 1995) for the solution of uncon-

strained discrete-time optimal control problems. Al-

though conﬁned to the unconstrained problem, this

method works for large scale minimization problems.

In contrast to the indirect approach, in the present

proposed approach, the optimality condition (2.13)

and the adjoint equations (2.11) together with their

ﬁnal conditions (2.15) are not used in order to obtain

EVOLUTIONARY COMPUTATION FOR DISCRETE AND CONTINUOUS TIME OPTIMAL CONTROL PROBLEMS

47

the optimal solution. Instead, the optimal values of

the control sequence u(i) are found by a modiﬁed ge-

netic search method starting with an initial population

of solutions with values of u(i) randomly distributed

within a given domain of admissible controls. Dur-

ing the search, approximate, not necessarily optimal

values of the solutions u(i) are found for each gen-

eration. With these approximate values known, the

state equations (2.1) together with their initial condi-

tions (2.2) are very easy to solve as an initial value

problem, by a straightforward iteration of the differ-

ence equations from i = 0 to i = N − 1. At the

end of this iterative process, the ﬁnal values x(N)

are obtained, and the ﬁtness function can be deter-

mined. The search than seeks to maximize the ﬁtness

function F such as to fulﬁll the goal of the evolution,

which is to maximize J(N), as given by the follow-

ing Eq.(2.16), subject to the terminal constraints as

deﬁned by Eq.(2.17).

maximize J(N) = φ[x(N )] (2.16)

subject to the dynamical equality constraints, Eqs.

(2.1-2.2) and to the terminal constraints (2.4), which

are repeated here for convenience as Eq.(2.17)

ψ[x(N)] = 0

ψ : R

n

7→ R

k

k ≤ n (2.17)

Since we are using a direct search method, condi-

tion (2.17) can also be stated as a search for a maxi-

mum, namely we can set a goal which is equivalent to

(2.17) in the form

maximize J

1

(N) = −ψ

T

[x(N)]ψ[x(N)] (2.18)

The ﬁtness function F can now be deﬁned by

F (N) = αJ(N ) + (1 − α)J

1

(N) =

= αφ[x(N)] − (1 − α)ψ

T

[x(N)]ψ[x(N)] (2.19)

with α ∈ [0, 1] and x(N ) determined from a solu-

tion of the original initial value problem for the state

variables:

x(i + 1) = f[x(i), u(i), i], i ∈ [0, N − 1] (2.20)

x(0) = x

0

(2.21)

3 VELOCITY DIRECTION

CONTROL OF A BODY IN A

VISCOUS FLUID

In this section, we treat the case of controlling the mo-

tion of a particle moving in a viscous ﬂuid medium

by varying the direction of a thrust vector of constant

magnitude. We describe the motion in a cartesian sys-

tem of coordinates in which x is pointing to the right

and y is positive downward. The constant thrust force

F is acting along the path, i.e. in the direction of the

velocity vector V with magnitude F = amg. The ac-

celeration of gravity g is acting downward in the pos-

itive y direction. The drag force is proportional to the

square of the speed and acts in a direction opposite

to the velocity vector V . The motion is controlled

by varying the angle γ, which is positive downward

from the horizontal. The velocity direction γ is to be

programmed such as to achieve maximum range and

fulﬁll a prescribed terminal constraint on the vertical

ﬁnal location y

f

. Newton’s second law of motion for

a particle of mass m can be written as

mdV/dt = mg(a + sinγ) −

1

2

ρV

2

C

D

S (3.1)

where ρ is the ﬂuid density, C

D

is the coefﬁcient

of drag and S is a typical cross-section area of the

body. For example, if the motion of the center of

gravity of a spherical submarine vehicle is considered,

then S is the maximum cross-section area of the ve-

hicle and C

D

would depend on the Reynolds number

Re = ρV d/µ , where µ is the ﬂuid viscosity and d the

diameter of the vehicle. Dividing (3.1) by the mass m,

we obtain

dV/dt = g(a + sinγ) − V

2

/L

c

(3.2)

The length L

c

= 2m/(ρSC

D

) is a typical hydro-

dynamic length. The other equations of motion are:

dx/dt = V cosγ (3.3)

dy/dt = V sinγ (3.4)

with initial conditions and ﬁnal constraint

V (0) = 0, x(0) = 0, y(0) = 0 (3.5)

y(t

f

) = y

f

(3.6)

In order to rewrite the equations in nondimen-

sional form, we introduce the following nondimen-

sional variables, denoted by primes:

t = (L

c

/g)

1/2

t′, V = (gL

c

)

1/2

V ′

ICINCO 2005 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

48

x = L

c

x′, y = L

c

y′ (3.7)

where we have chosen L

c

as the characteristic

length. Substituting the nondimensional variables

(3.7) in the equations of motion (3.2-3.4) and omit-

ting the prime notation, we obtain the nondimensional

state equations

dV/dt = a + sinγ − V

2

(3.8)

dx/dt = V cosγ (3.9)

dy/dt = V sinγ (3.10)

In order to formulate a discrete time version of this

problem, we ﬁrst rewrite (3.8) in separated variables

form as dV/(a + sinγ − V

2

) = dt. Integrating and

using the conditionV (0) = 0, we get

(1/b)argtanh(V/b) = t (3.11)

Solving for the speed, we obtain

V = btanh(bt) (3.12)

b = (a + sinγ)

1/2

(3.13)

We now develop a discrete time model by dividing

the trajectory into a ﬁnite number N of straight line

segments of ﬁxed duration ∆T = t

f

/N along which

the control γ is kept constant. The time at the end of

each segment is given by t(i) = i∆T , with i a time

step counter at point i. The time is normalized by

(L

c

/g)

1/2

, so the nondimensional ﬁnal time is t′

f

=

t

f

/(L

c

/g)

1/2

and the nondimensional time at step i

is t′(i) = it′

f

/N. The nondimensional time interval

is (∆T )′ = t′

f

/N. Writing (3.12) at t(i + 1) = (i +

1)∆T , we obtain the velocity at the point (i+1) along

the trajectory

V (i + 1) = b(i)tanh[b(i)(i + 1)t′

f

/N] (3.14)

b(i) = (a + sinγ(i))

1/2

(3.15)

Similarly, substituting the time t′(i) = it′

f

/N in

(3.11), the following expression is obtained, which we

deﬁne as the function G

0

(i).

ib(i)t′

f

/N = argtanh[V (i)/b(i)] ≡ G

0

(i) (3.16)

Introducing a second function G

1

(i) deﬁned by

G

1

(i) = G

0

(i) + b(i)t′

f

/N (3.17)

Eq.(3.14) can be written as

V (i + 1) = b(i)tanh[G

1

(i)] (3.18)

We now determine the coordinates x and y as a

function of time. Using the state equation (3.9) to-

gether with the result (3.12) and deﬁning θ = bt, we

obtain

dx = V cosγdt = bcosγtanh(bt)dt =

= cosγtanhθdθ (3.19)

Integrating along a straight line segment between

points i and i + 1, we get

x(i + 1) = x(i)+

+cosγ(i)[logcoshθ(i + 1) − logcoshθ(i)] (3.20)

θ(i) = ib(i)t′

f

/N = G

0

(i) (3.21)

θ(i + 1) = b(i)(i + 1)t′

f

/N = ib(i)t′

f

/N+

+b(i)t′

f

/N = G

0

(i) + b(i)t′

f

/N = G

1

(i) (3.22)

Substituting (3.21-3.22) in (3.20), we obtain the

following discrete-time state equation (3.24) for the

location x(i + 1). The equation for the coordinate

y(i+1) can be developed in a similar way to x(i+1),

with cosγ(i) replaced by sinγ(i). Adding the state

equation (3.18) for the velocityV (i + 1), which is re-

peated here as Eq.(3.23), the state equations become:

V (i + 1) = b(i)tanh[G

1

(i)] (3.23)

x(i + 1) = x(i)+

+cosγ(i) log[coshG

1

(i)/coshG

0

(i)] (3.24)

y(i + 1) = y(i)+

+sinγ(i)log[coshG

1

(i)/coshG

0

(i)] (3.25)

with initial conditions and terminal constraint

V (0) = 0, x(0) = 0, y(0) = 0 (3.26)

y(N) = y′

f

= y

f

/L

c

(3.27)

The optimal control problem now consists of ﬁnd-

ing the sequence γ(i) for i ∈ [0, N − 1] such as to

maximize the range x(N ), subject to the state equa-

tions (3.23-3.25), the initial conditions (3.26) and the

terminal constraint (3.27), where y′

f

is in units of L

c

and the ﬁnal time t′

f

in units of (L

c

/g)

1/2

.

EVOLUTIONARY COMPUTATION FOR DISCRETE AND CONTINUOUS TIME OPTIMAL CONTROL PROBLEMS

49

4 EVOLUTIONARY APPROACH

TO OPTIMAL CONTROL

We now describe the proposed direct approach which

is based on a genetic search method. As was previ-

ously mentioned, an important advantage of this ap-

proach is that there is no need to solve the two-point

boundary value problem described by the state equa-

tions (2.1) and the adjoint equations (2.11), together

with the initial conditions (2.2), the ﬁnal conditions

(2.15), the terminal constraints (2.4) and the optimal-

ity condition (2.13) for the optimal control u(i).

Instead, the direct evolutionary computation

method allows us to evolve a population of solutions

such as to maximize the objective function or ﬁt-

ness function F (N). The initial population is built

by generating a random population of solutions γ(i),

i ∈ [0, N − 1], uniformly distributed within a domain

γ ∈ [γ

min

, γ

max

]. Typical values are γ

max

= π/2 and

either γ

min

= −π/2 or γ

min

= 0 depending on the

problem. The genetic algorithm evolves this initial

population using the operations of selection, mutation

and crossover over many generations such as to max-

imize the ﬁtness function:

F (N) = αJ(N ) + (1 − α)J

1

(N) =

= αφ[ξ(N)] − (1 − α)ψ

T

[ξ(N )]ψ[ξ(N)] (4.1)

with α ∈ [0, 1] and J(N ) and J

1

(N) given by:

J(N) = φ[ξ(N)] = x(N) (4.2)

J

1

(N) = ψ

2

[ξ(N )] = (y(N) − y

f

)

2

(4.3)

For each member in the population of solutions,

the ﬁtness function depends on the ﬁnal values x(N)

and y(N), which are determined by solving the initial

value problem deﬁned by the state equations (3.23-

3.25) together with the initial conditions (3.26). This

process is repeated over many generations. Here, we

run the genetic algorithm for a predetermined num-

ber of generations and then we check if the terminal

constraint (3.27) is fulﬁlled. If the constraint is not

fulﬁlled, we can either increase the number of gener-

ations or readjust the weight α ∈ [0, 1].

We now present results obtained by solving this

problem using the proposed approach. We ﬁrst treat

the case where x(N)is maximized with no constraint

placed on y

f

. We solve an example where the value

of the thrust is a = 0.05 and the ﬁnal time is t

f

= 5.

The evolution of the solution over 50 generations

is shown in Fig.1. The control sequence γ(i), the op-

timal trajectory and the velocity V

2

(i) are displayed

in Fig.2. The sign of y is reversed for plotting. It

can be seen from the plots that the angle varies at the

beginning and at the end of the motion, but remains

constant in the middle of the maneuver, resulting in

a dive along a straight line along a considerable por-

tion of the trajectory. This ﬁnding agrees well with

the results obtained by Bryson (Bryson, 1999) using

a gradient method.

0 5 10 15 20 25 30 35 40 45 50

−2.75

−2.7

−2.65

−2.6

−2.55

−2.5

Best f

0 5 10 15 20 25 30 35 40 45 50

−2.8

−2.7

−2.6

−2.5

−2.4

Generations

Average f

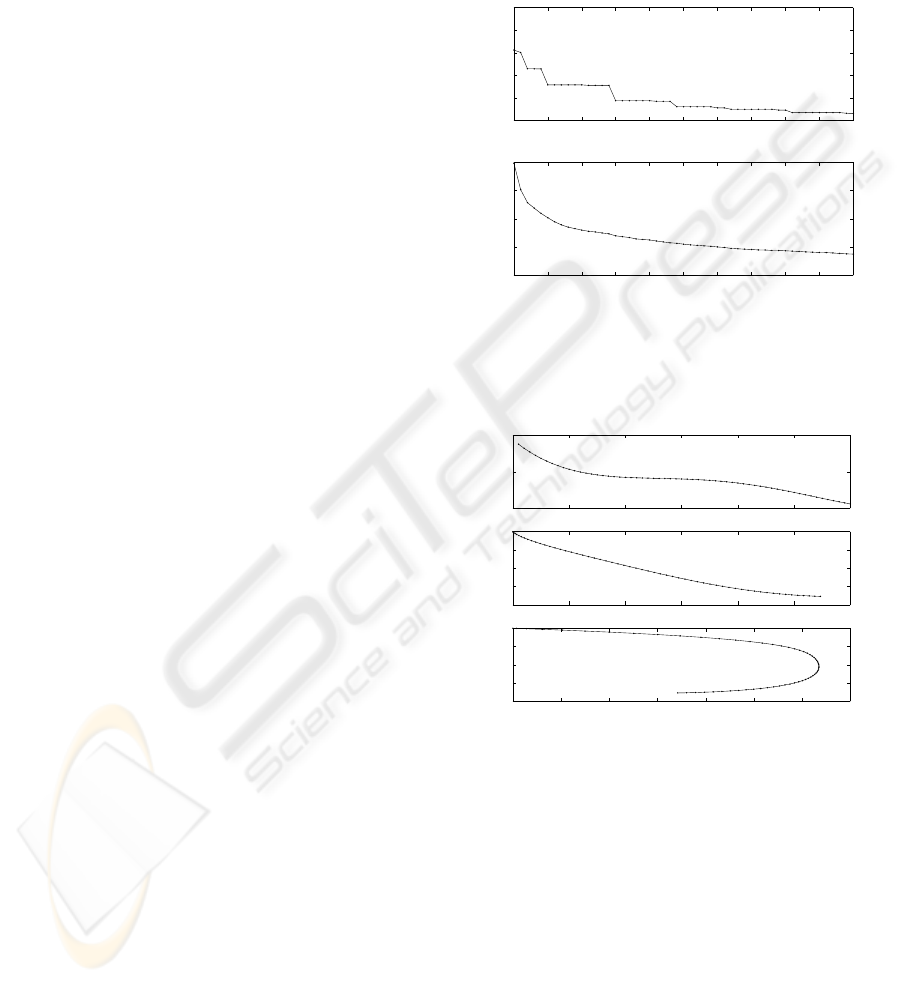

Figure 1: Convergence of the DVDP solution with gravity,

thrust a=0.05 and drag, with no terminal constraint on y

f

.

x(N) is maximized. With ﬁnal time t

f

= 5.

0 10 20 30 40 50 60

0

0.5

1

i

gama / ( pi/2 )

0 0.5 1 1.5 2 2.5 3

−2

−1.5

−1

−0.5

0

x / L

c

y / L

c

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35

−2

−1.5

−1

−0.5

0

v

2

/ 2 g L

c

y / L

c

Figure 2: The control sequence, the optimal trajectory and

the velocity V

2

(i) for the DVDP problem with gravity,

thrust a=0.05 and drag. No terminal constraint on y

f

. Final

time t

f

= 5. The sign of y is reversed for plotting.

5 NONLINEAR CONTINUOUS

TIME OPTIMAL CONTROL

In this section, a formulation is developed for the non-

linear continuous time optimal control problem sub-

ject to terminal constraints. Consider the continuous

time nonlinear problem described by a system of or-

dinary differential equations with initial conditions

ICINCO 2005 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

50

dx/dt = f [x(t), u(t), t] (5.1)

x(0) = x

0

(5.2)

where x ∈ R

n

is the vector of state variables,

u ∈ R

p

, p < n is the vector of control variables and

t ∈ [0, t

f

] is the continuous time. The function f is a

nonlinear function of the state vector, the control vec-

tor and the time t, i.e., f : R

n

x R

p

x R 7→ R

n

.

Next, deﬁne a performance index

J[x(t), u(t), t

f

] = φ[x(t

f

)] +

tf

∫

0

L[x(t), u(t), t]dt

(5.3)

φ : R

n

7→ R, L : R

n

xR

p

xR 7→ R

Here L is the Lagrangian function and φ[x(t

f

)] is

a function of the terminal value of the state vector

x(t

f

). In some problems, additional terminal con-

straints can be prescribed through the use of functions

ψ of the state variables x(t

f

)

ψ[x(t

f

)] = 0, ψ : R

n

7→ R

k

, k ≤ n (5.4)

The formulation of the optimal control problem ac-

cording to Bolza consists of ﬁnding the control u(t)

such as to maximize the performance index deﬁned

by (5.3), subject to the state equations (5.1) with ini-

tial conditions (5.2) and terminal constraints (5.4). In

the alternative formulation, due to Mayer, the state

vector x

j

, j ∈[1, n] is augmented by an additional

state variable x

n+1

which satisﬁes the following ini-

tial value problem:

dx

n+1

/dt = L[x(t), u(t), t] (5.5)

x

n+1

(0) = 0 (5.6)

The performance index can then be written as

J(t

f

) = φ[x(t

f

)] + x

n+1

(t

f

) ≡ φ

a

[x

a

(t

f

)] (5.7)

where x

a

= [x x

n+1

]

T

is the augmented state

vector and φ

a

the augmented performance index. We

next deﬁne an augmented performance index with ad-

joint constraints ψ and adjoint dynamical constraints

f [x(t), u(t), t ]−dx/dt = 0, with static and dynam-

ical Lagrange multipliers ν and λ as:

J

a

(t

f

) = φ[x(t

f

)]+ν

T

ψ[x(t

f

)]+λ

T

(0)[x

0

−x(0)]

+

tf

∫

0

λ

T

(t)[f[x(t), u(t), t] − dx/dt]dt (5.8)

Introducing a Hamiltonian function

H(t) = λ

T

(t)f[x(t), u(t), t] (5.9)

and rewriting the augmented performance index in

terms of the Hamiltonian, we get

J

a

(t

f

) = φ + ν

T

ψ − λ

T

(t

f

)x(t

f

) + λ

T

(0)x

0

+

+

tf

∫

0

[H(t) − λ

T

(t)x(t)]dt (5.10)

A ﬁrst order necessary condition for J

a

to reach

a stationary solution is given by the Euler-Lagrange

equations

dλ

T

/dt = −H

x

(t) = −λ

T

(t)f

x

[x(t), u(t), t]

(5.11)

with ﬁnal conditions

λ

T

(t

f

) = φ

x

[x(t

f

)] + ν

T

ψ

x

[x(t

f

)] (5.12)

The control u(t) satisﬁes the optimality condition:

H

u

(t) = λ

T

(t)f

u

[x(t), u(t), t] = 0 (5.13)

If we deﬁne an augmented function Φ[x(t

f

)] as

Φ[x(t

f

)] = φ[x(t

f

)] + ν

T

ψ[x(t

f

)] (5.14)

then the ﬁnal conditions can be written in terms

of the augmented function Φ in a similar way to the

problem without terminal constraints

λ

T

(t

f

) = Φ

x

[x(t

f

)] = φ

x

[x(t

f

)] + ν

T

ψ

x

[x(t

f

)]

(5.15)

In the indirect approach to optimal control, the nec-

essary conditions are used to obtain an optimal solu-

tion: the state equations (5.1) with initial conditions

(5.2) have to be solved together with the adjoint equa-

tions (5.11) and the ﬁnal conditions (5.15). The con-

trol history u(t) is determined from the optimality

condition (5.13). Consequently, this approach leads

to a coupled system of nonlinear ordinary differential

equations with the boundary conditions for the state

variables speciﬁed at the initial time t = 0 and the

boundary conditions for the adjoint variables speci-

ﬁed at the ﬁnal time t = t

f

. This is a nonlinear two-

point boundary value problem (TPBVP) in ordinary

differential equations. Except for some special sim-

pliﬁed cases, it is usually very difﬁcult to obtain solu-

tions for such nonlinear TPBVPs analytically. Many

numerical methods have been developed in order to

obtain approximate solutions to this problem.

EVOLUTIONARY COMPUTATION FOR DISCRETE AND CONTINUOUS TIME OPTIMAL CONTROL PROBLEMS

51

6 GODDARD’S OPTIMAL

CONTROL PROBLEM IN

ROCKET DYNAMICS

We now illustrate the above approach with a contin-

uous time optimal control example. We apply the

optimal control formulation described in the previous

section for continuous time dynamical systems to the

study of the vertical climb of a single stage sound-

ing rocket launched vertically from the ground. This

is known in the literature as the Goddard’s problem.

The problem is to control the thrust of the rocket such

as to maximize the ﬁnal velocity or the ﬁnal altitude.

There are two versions to this problem: in the ﬁrst

version, the ﬁnal mass of the rocket is prescribed and

the ﬁnal time is free. In the second version, the ﬁ-

nal time is prescribed and the ﬁnal mass is free. The

second version of this problem will be presented.

Let h(t) denote the altitude of the rocket as mea-

sured from sea level and v(t) and m(t) the velocity

and the mass of the rocket, respectively. Here the

time t is continuous. The trajectory of the rocket is a

vertical straight line. The forces acting on the rocket

are the thrust T (t), which is used as the control vari-

able or control history, the aerodynamic drag force

D(h, v), which is a function of altitude and speed

and the weight of the rocket m(t)g, where m(t) is

the mass and g is the acceleration of gravity, assumed

constant. The equations of motion are:

dh/dt = v (6.1)

mdv/dt = T − D − mg (6.2)

dm/dt = −T/c (6.3)

where the drag force is given by

D(h, v) = D

0

v

2

exp(−h/h

r

) (6.4)

Hereh

r

= 23800 ft is a characteristic altitude and

D

0

is a characteristic drag force given by

D

0

= 0.711T

M

/c

2

(6.5)

where T

M

is the maximum thrust developed by

the rocket. The speed c is the propellant jet exhaust

speed. An important parameter in rocket dynamics is

the thrust to weight ratio τ = T

M

/(m

0

g), where m

0

is the initial mass of the vehicle and g = 32.2 ft/s

2

.

In this example, a ratio of 2 is chosen:

τ = T

M

/(m

0

g) = 2 (6.6)

Here we take a value of m

0

= 3 slugs for a small

experimental rocket. A typical value of the exhaust

speed c and the speciﬁc impulse I

sp

for an early

rocket such as the one tested by Goddard is given by

c = (3.264gh

r

)

1/2

= 1581ft/s

I

sp

= c/g = 49.14sec (6.7)

The initial conditions are

h(0) = 0, v(0) = 0, m(0) = m

0

= 3 slugs

(6.8)

The optimal control problem is to ﬁnd the control

history T (t) such as to maximize the ﬁnal altitude (or

the altitude at burnout) h(t

f

) in a given time t

f

, where

a value t

f

= 18 sec was used in this example. The

state equations (6.1-6.3) with the initial conditions

(6.8) are to be solved in the optimization process. Be-

fore solving this problem, we ﬁrst restate the problem

in non-dimensional form. Choosing the characteristic

speed (gh

r

)

1/2

= 875 ft/s and the characteristic time

(h

r

/g)

1/2

= 27.2 sec, we introduce nondimensional

variables, denoted here by primes:

h = h

r

h′, v = (gh

r

)

1/2

v′, t = (h

r

/g)

1/2

t′

m = m

0

m′, T = T

M

T ′, D = T

M

D′ (6.9)

Introducing the variables from Eq.(6.9) in the state

equations (6.1-6.3) and simplifying, the following

system of non-dimensional equations is obtained:

dh/dt = v (6.10)

mdv/dt = τ T − τσ

2

v

2

exp(−h) − m (6.11)

dm/dt = −1.186 στ T (6.12)

In this system of equations (6.10-6.12) all the vari-

ables are non-dimensional and the prime notation has

been omitted. Two independent non-dimensional pa-

rameters characterizing this problem are obtained: the

thrust to weight ratio τ, introduced before and a ratio

of two speeds σ deﬁned by

τ = T

M

/(m

0

g) = 2, T

M

= 193 lbs

σ = (0.711gh

r

)

1/2

/c = 0.467 (6.13)

The non-dimensional initial conditions are:

h(0) = 0, v(0) = 0, m(0) = 1 (6.14)

The optimal control problem is to ﬁnd the control

history T (t) such as to maximize the ﬁnal altitude (the

altitude at burnout) h(t

f

) in a given normalized time

ICINCO 2005 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

52

t′

f

= t

f

/(h

r

/g)

1/2

= 0.662

subject to the state equations (6.10-6.12) and the

initial conditions (6.14). The results of this contin-

uous time optimal control problem are given in Fig-

ures (3-4). Figure 3 shows the control history of the

thrust as a function of the time in seconds. In the

genetic search, the search range for the normalized

thrust was between a lower bound of (T/T

max

)

L

= 0.1

and an upper bound (T/T

max

)

U

= 1. It can be seen that

the thrust increases sharply during the ﬁrst two sec-

onds of the ﬂight and remains closer to 1 afterwards.

Figure 4 displays the state variables, the altitude, the

velocity and the mass of the rocket as a function of

time. The mass of the rocket decreases almost linearly

during the ﬂight due to the optimal control which re-

quires an almost constant thrust. This is in agreement

with the results of Betts (J. Betts and Huffman, 1993)

and (A.S. Bondarenko and More, 1999) who used a

nonlinear programming method. See also (Dolan and

More, 2000).

0 2 4 6 8 10 12 14 16 18 20

0.65

0.7

0.75

0.8

0.85

0.9

0.95

1

T/Tmax

0 2 4 6 8 10 12 14 16 18 20

120

140

160

180

200

Thrust (lbs)

time (sec)

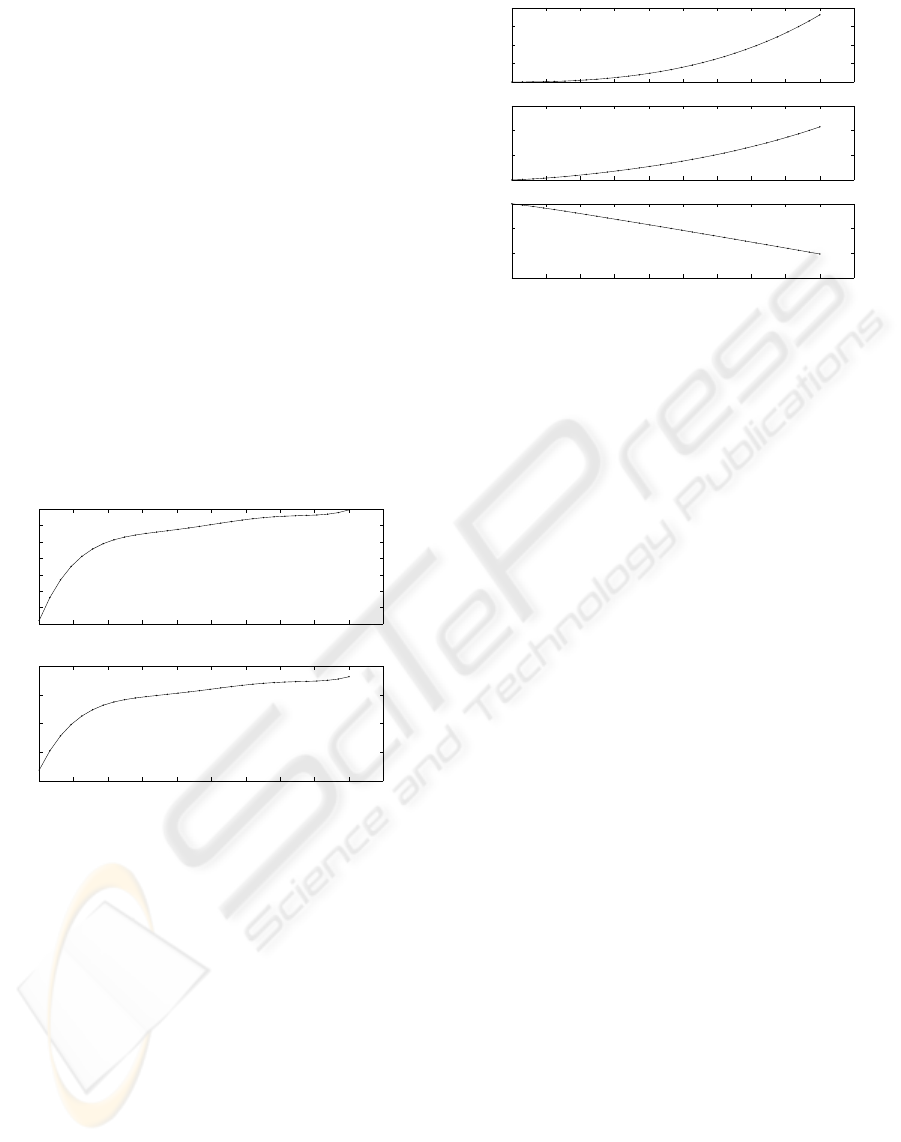

Figure 3: The thrust control history. The upper graph dis-

plays the value of the thrust normalized by maximum thrust.

The lower graph shows the actual thrust in lbs.

7 CONCLUSIONS

A new method for solving both discrete time and con-

tinuous time nonlinear optimal control problems with

terminal constraints has been presented. Unlike other

methods that use the ﬁrst-order necessary conditions

to ﬁnd the optimum, the present method seeks the best

control history directly by a modiﬁed genetic search.

As a consequence of this direct search approach, there

is no need to develop a Hamiltonian formulation and

therefore there is no need to solve a difﬁcult two-point

boundary value problem for the state and adjoint vari-

ables. This has a signiﬁcant advantage in more ad-

0 2 4 6 8 10 12 14 16 18 20

0

2000

4000

6000

8000

h (ft)

0 2 4 6 8 10 12 14 16 18 20

0

500

1000

1500

v (ft/sec)

0 2 4 6 8 10 12 14 16 18 20

0

1

2

3

time (sec)

m (slugs)

Figure 4: The state variables, the altitude, velocity and mass

of the rocket as a function of time

vanced and higher order problems where it is difﬁ-

cult to solve the two point boundary value problem

(TPBVP) with large systems of ordinary differential

equations. There is a computational price to be paid,

however, since the method involves repetitive solu-

tions of the initial value problem (IVP) for the state

variables during the evolutionary process.

The method was demonstrated by solving a

discrete-time optimal control problem, namely, the

discrete velocity direction programming problem

(DVDP) of a body with the effects of gravity, thrust

and hydrodynamic drag. Benchmark problems of this

kind were pioneered by Bryson who used analytical

and gradient methods. This discrete time problem was

solved easily using the proposed approach and the re-

sults compared favorably with the results of Bryson.

The method was also applied to a continuous time

nonlinear optimal control problem, the Goddard’s

problem of rocket dynamics. The results compared

favorably with published results obtained by a non-

linear programming method.

REFERENCES

A.S. Bondarenko, D. B. and More, J. (1999). Cops: Large

scale nonlinearly constrained optimization problems.

In Argonne National Laboratory Technical Report

ANL/MCS-TM-237.

Betts, J. (2001). Practical Methods for Optimal Control Us-

ing Nonlinear Programming. SIAM, Society for In-

dustrial and Applied Mathematics, Philadelphia, PA.

Bryson, A. (1999). Dynamic Optimization. Addison-

Wesley Longman, Menlo Park, CA.

Coleman, T. and Liao, A. (1995). An efﬁcient trust region

method for unconstrained discrete-time optimal con-

trol problems. In Computational Optimization and

Applications, 4:47-66.

EVOLUTIONARY COMPUTATION FOR DISCRETE AND CONTINUOUS TIME OPTIMAL CONTROL PROBLEMS

53

Dolan, E. and More, J. (2000). Benchmarking optimization

software with cops. In Argonne National Labo-ratory

Technical Report ANL/MCS-TM-246.

Dunn, J. and Bertsekas, D. (1989). Efﬁcient dynamic pro-

gramming implementations of newton’s method for

unconstrained optimal control problems. In J. of Op-

timization Theory and Applications,63, pp. 23-38.

Fogel, D. (1998). Evolutionary Computation, The Fossil

Record. IEEE Press, New York.

Fox, C. (1950). An Introduction to the Calculus of Varia-

tions. Oxford University Press, London.

J. Betts, S. E. and Huffman, W. (1993). Sparse nonlin-

ear programming test problems. In Technical Report

BCSTECH-93-047. Boeing Computer Services, Seat-

tle, Washington.

Jacobson, D. and Mayne, D. (1970). Differential Dynamic

Programming. Elsevier Science Publishers, Amster-

dam, Netherland.

Kirkpatrick, G. and Vecchi (1983). Optimization by simu-

lated annealing. In Science, 220: 671-680. AAAS.

Laarhoven, P. and Aarts, E. (1989). Simulated Annealing:

Theory and Applications. Kluwer, Amsterdam.

Liao, L. and Shoemaker, C. (1991). Convergence in uncon-

strained discrete-time differential dynamic program-

ming. In IEEE Transactions on Automatic Control,

36, pp. 692-706. IEEE.

L.S. Pontryagin, V.G. Boltyanskii, R. G. and Mishchenko,

E. (1962). The Mathematical Theory of Opti-

mal Processes. translated by K.N. Trirogoff, L.W.

Neustadt (Ed.), Moscow, interscience, new york edi-

tion.

Mayne, D. (1966). A second-order gradient method for

determining optimal trajectories of nonlinear discrete

time systems. In International Journal of Control, 3,

pp. 85-95.

Michalewicz, Z. (1992). Genetic Algorithms + Data Struc-

tures= Evolution Programs. Springer-Verlag, Berlin.

Murray, D. and Yakowitz, S. (1984). Differential dynamic

programming and newton’s method for discrete opti-

mal control problems. In J. of Optimization Theory

and Applications, 43:395-414.

Ohno, K. (1978). A new approach of differential dynamic

programming for discrete time systems. In IEEE

Transactions on Automatic Control, 23, pp. 37-47.

IEEE.

Pantoja, J. (1988). Differential dynamic programming and

newton’s method. In International Journal of Control,

53: 1539-1553.

Schwefel, H. (1995). Evolution and Optimum Seeking. Wi-

ley, New York.

Yakowitz, S. and Rutherford, B. (1984). Computational as-

pects of discrete-time optimal control. In Appl. Math.

Comput., 15, pp. 29-45.

Z. Michalewicz, C. J. and Krawczyk, J. (1992). A mod-

iﬁed genetic algorithm for optimal control problems.

In Computers Math. Appl., 23(12),8394.

ICINCO 2005 - INTELLIGENT CONTROL SYSTEMS AND OPTIMIZATION

54
