Integration of Heterogeneous Web Service

Components

Xinjian Xu, Peter Bertok

School of Computer Science and IT, RMIT University, GPOBox 2476V, Melbourne,

Victoria 3001, Australia

Abstract. Integrated value-added Web services can be developed by

combining existing Web service components that are often heterogeneous in

many aspects, such as having different interfaces and data encoding schemes.

Web service integration also has to face the challenge that Web service

components evolve frequently in response to business needs. This paper

describes a three-layer-structured model for building reliable Web service

compositions. The proposed layered structure can significantly reduce the

complexity of integrating heterogeneous service partners. Furthermore, the

evolution of a Web service component can be supported by making a rather

minor amendment to the mapping file corresponding to this particular

component.

1 Introduction

To provide value-added Web services multiple components may need to be

integrated. However, different Web service components can be heterogeneous in

many aspects: such as programming languages used, platforms, communication

methods (synchronous and asynchronous), interfaces, data formats, data encoding

schemes, content capabilities, supporting platforms, etc. In this paper we focus on two

facets of heterogeneity: on capabilities, when different components provide different

services, and on semantics, when some Web service components provide a similar, or

exactly the same service.

Integration of service partners enhances a web-based service-oriented framework

by providing a composite service over several existing services. However, building

such a composite service can be difficult. Due to the dynamism and modularity of the

environment in which Web service components operate, current models and solutions

used in traditional component based distributed systems (CBDS) can not be applied to

the Web services directly.

This paper presents a multi-layered model for integration of web services with

heterogeneous interfaces. The model adopts interface conversion for building

connection between Web service components. Method mapping, parameter mapping

and return value mapping ensure good adaptability in dynamic environments. Our

model divides the integration of heterogeneous Web service components into two sub-

tasks: (i) building a layer of homogenized Web service components over the pool of

components and (ii) building a composition on top of the layer of homogenized Web

Xu X. and Bertok P. (2004).

Integration of Heterogeneous Web Service Components.

In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 87-94

DOI: 10.5220/0002678600870094

 SciTePress

service components. The proposed method simplifies web service integration

considerably, both in static and in dynamic environments.

The next section gives an overview of existing approaches to web service

integration, and briefly explains different approaches. It is followed by a description

of the proposed model, and implementation details are also provided. Finally,

discussion and conclusion are presented.

2 Existing Work

There have been two different approaches to web service integration. The first

approach adjusts the relationships between components without breaking them. The

most frequently used solutions with this approach are the following [1].

1. Manipulating the parameters of components to provide variant services.

2. Providing multiple classes of service.

3. Re-customizing the services according to user profiles

4. A dedicated object takes care of the integration of components.

With this approach adaptation to changes is faster, as there is no need to establish new

trust relationships. Redundancy is also reduced when components’ basic

functionalities are the same but constraints are different. The price for this better run-

time performance is paid at service creation time, as more comprehensive

specification of components is needed. The approach offers only limited fault

tolerance, as unavailability of a particular service cannot be predicted at service

creation time.

The second approach breaks up the relationship between the composed components

and performs re-composition by rebinding [1]. This can be performed in the following

ways.

5. Replacing one component at a time, such as replacing the old component

with a new component. In this sense, the composition structure is relatively

static.

6. Breaking the composition structure by replacing two or more components at a

time.

This solution solves the problems from a different point of view than the previous

approach. It stores multiple integration plans that offer the flexibility of selecting the

most suitable Web service components, because one sub-request could be served by

one or more Web service components. This approach also supports dynamism, as the

selection decision will not be made until the last minute. However, this solution also

has some disadvantages. Similarly to the previous solution, fault tolerance is also a

problem here as outsource agents do not check the availability of the selected Web

service components and the invocation of a selected Web service component can fail

due to the unavailability of that component.

3 Proposed Model

3.1 Issues

Providing interoperability between Web service components is a more difficult task

than it is in a traditional Component Based Distributed environment because the

interaction between Web service components is driven by a business logic that is

affected by market or business objectives, and thus can change from time to time.

This leads to possibly dynamic connections between Web service components and can

affect their behavior. To cater for these, several issues need to be addressed when

integrating service partners.

• Compatibility with current XML-based standards

• Support for Web service component dynamism

• Dealing with semantic differences

• Handling service capability differences

• Quality of Service (QoS)

3.2 Structure of the Proposed Model

The proposed model employs a layered structure to reduce the complexity of the

solution. It separates the integration of Web Service components into two sub-tasks,

as integrating semantically equivalent service components and integrating

semantically non-equivalent service components are performed in different layers.

The model has three layers: pool of Web service components, service collector layer,

and composite service collector layer. The structure of the model is shown in Figure

In this model, application programs interact with the layer of composite service

collector, which provides a composite service on top of the service collector layer.

The homogenized interface for the top layer is produced by a set of service collectors

via performing an interface conversion for the several semantically equivalent Web

service components below. To perform the task, this layer contains relevant mapping

information about interface conversion and also contains relevant mechanisms to

handle the key issues discussed in the previous section.

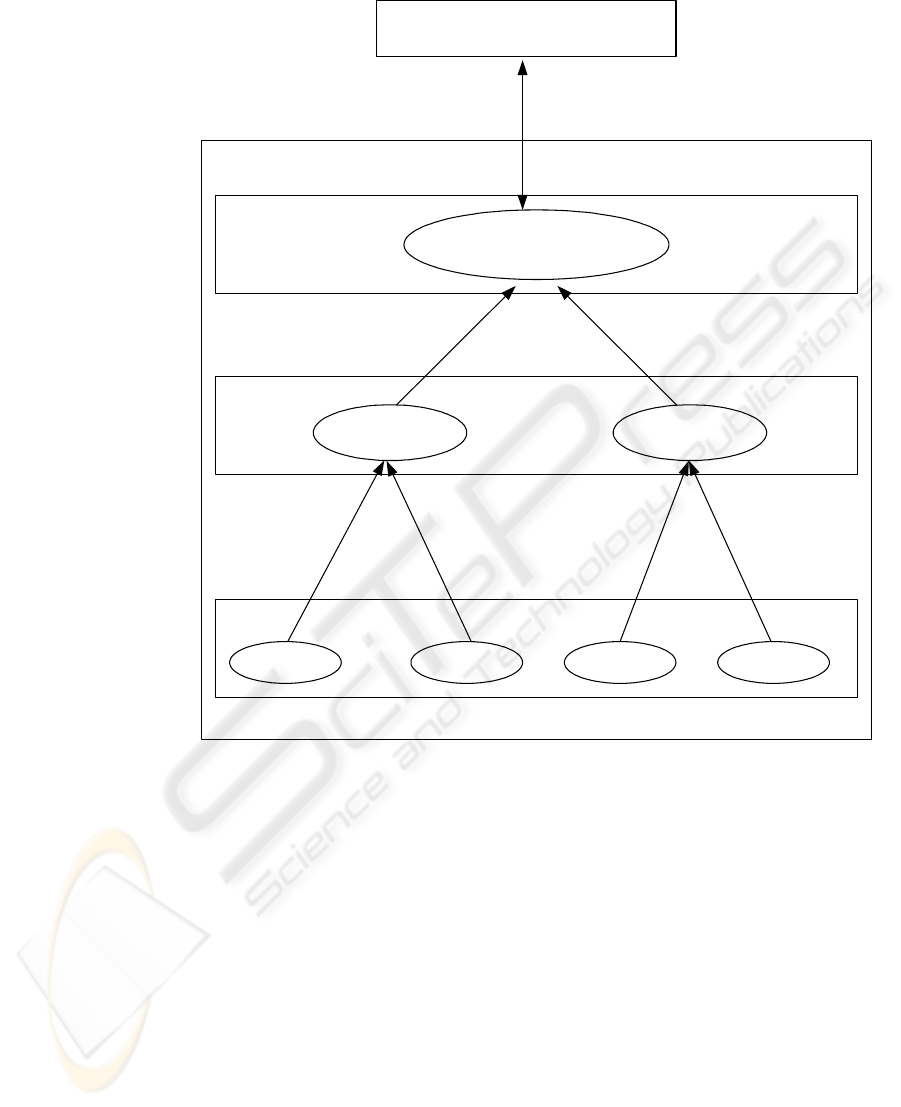

The proposed model

Composite service

collector layer

Composite service collector

Application Program

Service collector

layer

Service collector A Service collector B

Pool of Web service

components

Web service

component A

Web service

component B

Web service

component D

Web service

component C

Fig. 1. Structure of the proposed model

3.3 Details of the Proposed Model

The Pool of Web service components

The Web service components form the bottom layer of the model. They services are

distributed across the Internet. Each component is an individual application that does

not rely on any other service components. We assumed that every Web service

component had a WSDL defined interface, regardless of the programming language

used to implement it. The services are registered with UDDI, which accepts SOAP

query messages and returns the description (including the location) of the required

component. The Web service components can be heterogeneous in many aspects. The

proposed model, however, addresses only heterogeneity in their interfaces.

The Service Collector Layer

Interface heterogeneity is handled mainly in this layer. The service collector layer

consists of multiple service collectors, which aggregate semantically equivalent or

alternative components. The service collectors themselves are semantically non-

equivalent, since there are no two service collectors providing similar or the same

services in the proposed model.

The major responsibility of a service collector is to implement interface conversion

by building a homogenized interface based from the interfaces of the aggregated

components. It is performed by mapping the interfaces of aggregated Web service

components to a new interface, as shown in figure 2. A service collector has the

following components: a service collector coordinator, mapping file(s) and a

description file.

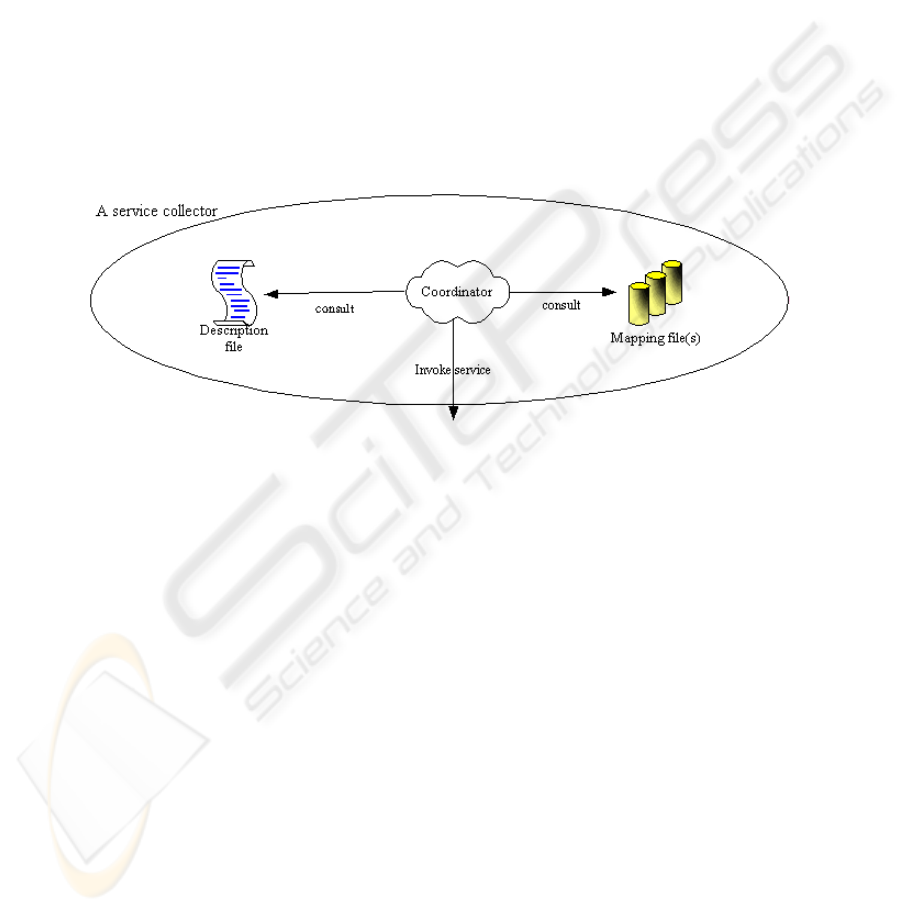

Fig. 2. Components of a service collector

The service collector coordinator

The service collector coordinator communicates with the upper layer, accepts requests

from there and sends the results back. It also selects the most suitable component to

serve the request, based on the content of the request and the service description file

of the aggregated components. Based on the relevant mapping file, it converts the

interface of the service collector to the interface of the selected Web service

component. The service collector also communicates with the lower layer, invokes the

selected components and accepts the returned data. It also interacts with the

coordinator of other service collectors, if the invocation of other service collectors

depends on the result of invoking the current service collector. Finally, it exchanges

messages with the UDDI service to retrieve the WSDL interface of the selected Web

service component.

Mapping file(s)

There is a map file created by the “implementer” for each aggregated component

respectively to do the mapping between the interfaces dynamically. When the service

collector coordinator selects a specific Web service component, it loads the relevant

mapping file.

Description file

This file, also in XML format, contains specification about the aggregated

components. The specifications consist of the information about the service

component, including service description, name, location, interface data, and rank.

WSDL interface vs. Java Interface

In addition, there are two options to create the interface of a service collector. One is

to create a WSDL interface and a Java interface, the other is to only build a Java

interface. The advantage of the availability of a WSDL interface is that the service

collector can also advertise its service through the UDDI server. Therefore, external

users can access the service collector directly (no need to use the service of the upper

layer). In contrast, the advantage of having only a Java interface is that the mapping

between a Java interface (of the service collector) and a WSDL interface (of

aggregated Web service components) is simpler.

The Composite Service Layer

The composite service layer is built on top of the Service collector layer. It provides

the end user with general access to its composite service, which aggregates multiple

service collectors. Compared with the aggregation in the service collector layer, the

aggregation in this layer is more straightforward. Since different service collectors

provide different services, the likelihood that their services may overlap is low.

Therefore, the composite service layer just extracts interface data from all the service

collectors and “glues” them together.

In this layer, metadata about all of the aggregated service collectors is used.

Metadata describes capability, location and access information of services collectors.

Therefore, this layer contains the following components: a composite service

coordinator, metadata storage, and an execution model file.

The composite service coordinator

In the top layer the coordinator decomposes the requests into several sub-tasks. Then

it assigns each sub-task to a service collector for processing, after checking the stored

metadata. In the next step it invokes service collectors via exchanging information

with the service collector coordinator. Finally, it synthesizes the results from

collectors and returning the synthesized results to the calling application.

Metadata Storage

This storage file serves the same purpose as the description file residing in the service

collector layer. It describes capability, location and access information of the services

collectors. The coordinator uses these metadata to locate, browse and invoke the

service collectors.

Execution model file

This file is about how to compose service collectors and is created manually.

According to this file, the coordinator invokes the service collectors in the format of

sequence, parallel, or combined. It can be also presented in an XML file format.

Implementation

To test the feasibility of the proposed model, the proposed model has been

implemented in Java programming language under JWSDP1.2. Our implementation

has concentrated on the interface conversion, which is carried out by the service

collector layer.

4 Discussion

The proposed model is compatible with current XML-based technology. In our

solution, each Web service component has a WSDL interface, which is accessible

from the web and published on the UDDI registry server. In this way, the requester of

a Web service can first query with the UDDI registry server for the location and

description of the requested Web service component by using JAXR APIs, and then

invoke the Web service component by using JAX_RPC APIs. The middle layer does

not know which Web service components will be selected until runtime since it has to

dynamically make the selection based on the selection policy and the data input by the

end user. Consequently, a dynamic invocation interface (DII) had to be adopted by the

service collector that acts as a DII client. The invocation between the top layer and

the middle layer is different, since the location and interface of the service collectors

are relatively static. Each service collector has a stub object, which is generated by

“wscompile” from the WSDL interface of the service collector and resides in the top

layer. This local stub object acts as a proxy for the service collector as shown in figure

3. In our implementation, a dynamic proxy client is created for the top layer to interact

with the middle layer.

In the proposed model, the change made to the interface and location of one Web

service component does not have any significant affect on the integration of service

partners; all we have to do is to make a rather minor amendment to the mapping file

corresponding to that particular Web service component.

Composite service

collector

JAX_RPC Stub

Tie

DII

Web service

components

Service collectors

JAX_RPC Tie

SOAP Message / HTTP

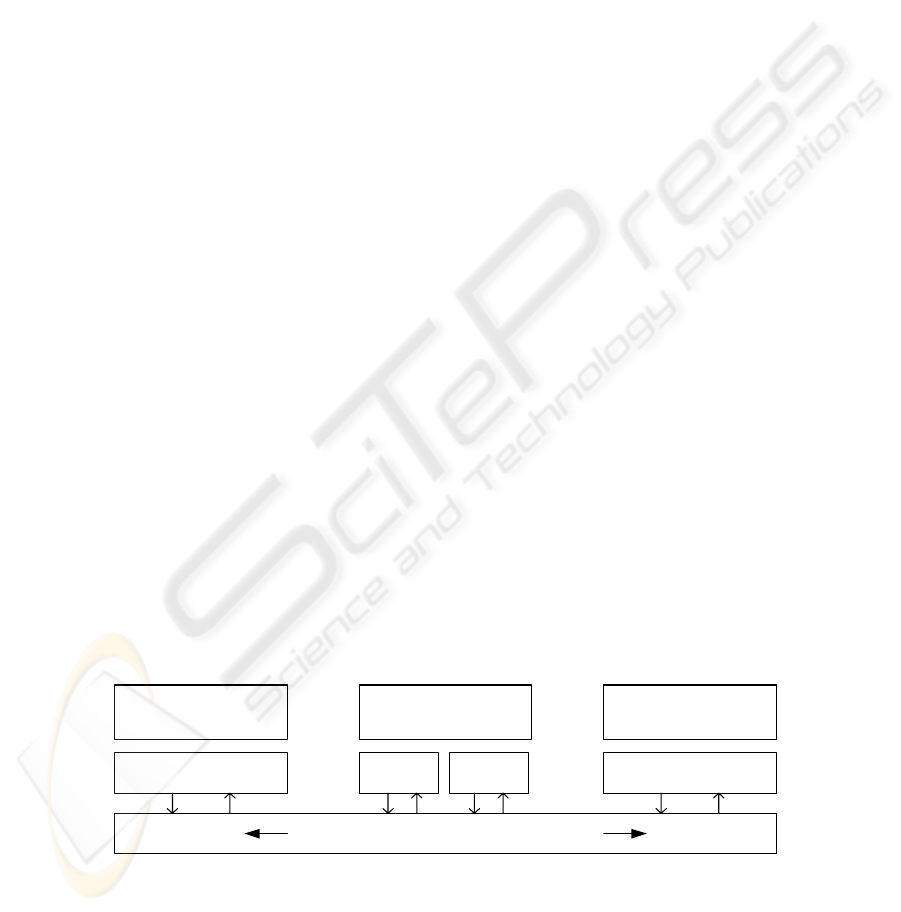

Fig.3. Invocations between three layers of the proposed model

5. Conclusion and Future Work

Our implementation has shown that the proposed solution is feasible and can be

implemented in JWSDP. Interface conversion proved to be a stable and efficient

method to build connections between components in an ad-hoc environment. With the

layered structure, the task of providing a composite service is decomposed into two

sub-tasks: (i) creating a service collector layer, to homogenize the semantically

equivalent Web service components, and (ii) aggregating the different service

collectors, and providing a common access to service requesters. During runtime, the

coordinators of the service collectors can dynamically select a Web service

component and perform the conversion by using mapping files.

Security is not addressed by the model described here, it will be addressed in

future extensions.

References:

1. V. Tosic, B. Pagurek, B. Esfandiari and K. Patel, “On Various Approaches to Dynamic

Adaptation of Distributed Component Compositions”, Technical Report OCIECE-02-02,

Ottawa-Carleton Institute for Electrical and Computer Engineering (OCIECE), June 2002

2. Benchaphon Limthanmaphon and Yanchun Zhang, “Web Service Composition With Case-

Based Reasoning”, in Proceedings of the 14

Australian Database Conference

(ADC2003), Conferences in Research and Practice in Information Technology, Vol. 17,

Page(s): 201-208, 2003

3. Francisco Curbera, Ignacio Silva-Lepe and Sanjiva Weerawarana, “On the Integration of

Heterogeneous web service partners”, in Proceedings of the OPPSLA 2001 Workshop on

Objected-Oriented Web Services (OOWS2001), 2001,

http://www.research.ibm.com/people/b/bth/OOWS2001/curbera.pdf

4. Paolo Predonzani, Alberto Sillitti and Tullio Vernazza, “Components and Data-Flow

Applied to the Integration of Web Services”, Industrial Electronics Society, 2001. IECON

'01. The 27th Annual Conference of the IEEE, Volume: 3, 29 Nov.-2 Page(s): 2204 –

2207, Denver, USA, Dec. 2001.

5. Paulo F. Pores, Mario R.F. Benevides and Marta Mattoso, “Mediating Heterogeneous Web

Services”, in Proceeding of the 2003 Symposium on Applications and Internet Workshops

(SAINT'03 Workshops), pp 344 - 347, Orlando, USA, Jan. 2003.

6. Peer Hasselmeyer, “Managing Dynamic Service Dependencies”, in Proceeding of 12

International Workshop on Distributed Systems: Operation and Management

DSOM’2001, pp 141-150, Nancy, France, 2001
