Development Life Cycle of Web Service-based Business

Processes. Enabling Dynamic Invocation of Web Services

at Run Time

Dimka Karastoyanova

and Alejandro Buchmann

Technische Universität Darmstadt,

Department of Computer Science

Wilhelminenstrasse 7,

64283 Darmstadt, Germany

Abstract. Web service technology aims at application integration by providing

stable service interfaces and standardized communication protocol. However,

this is not yet a mature technology; it lacks certain features, among which

ability to compose services in the most flexible way. We begin with a

comparison of traditional workflow and the existing Web Services-based

process technologies; the advantages of the emerging technologies and how

they meet the new requirements imposed by both the business and Web services

worlds are pointed out. We revise the process life cycle by including additional

phases to the traditional division in only build time and run time. This fosters

standardization, and allows for modeling adaptable business processes. We

concentrate on the dynamic invocation of WSs from within a process instance

and present a new way of finding, binding to and invoking WSs during process

runtime. For this we introduce an additional run time sub-phase to

accommodate the so-called “find and bind” mechanism, which involves policy-

based selection of services and binding to them at run time. The implications of

the “find and bind” mechanism on the process model and the implementation of

the execution environment are also discussed.

1 Introduction

Web services are the newest technology for application integration. This

technology’s main advantage is facilitating the application integration across

organizational boundaries and using the Web – a cheap, simple and ubiquitous

communication medium. Service interface description and communication protocol

specifications for Web services (WSs) already exist (WSDL [25], SOAP [23]), as

well as a specification for Web services registry (UDDI [4]). The technology is

however still immature. It exhibits characteristics of conventional middleware but

there are still some missing or not completely specified or implemented features [1],

[18] such as reliable messaging, caching, conversational support, coordination and

transactional support, compositions made up of Web services, and others, which

Karastoyanova D. and Buchmann A. (2004).

Development Life Cycle of Web Service-based Business Processes. Enabling Dynamic Invocation of Web Services at Run Time.

In Proceedings of the 2nd International Workshop on Web Services: Modeling, Architecture and Infrastructure, pages 9-22

DOI: 10.5220/0002678200090022

 SciTePress

would make Web services as important and reliable as the existing middleware

services.

In this paper we focus on compositions of WSs, also known as Web Service Flows

(WS-flows) [17]. There are quite successful attempts to define Web service

compositions and some corresponding implementations. Even though we find certain

similarity between the available WS composition specifications and the traditional

workflow technology, the WS compositions do not yet support all needed features.

The existing WS composition languages do not yet define distributed business

processes [9], and do not provide dynamic invocation of WSs during runtime.

Moreover, the existing specifications provide insufficient support for flexibility and

adaptability of processes to the continuously changing business environment. To

provide this support a strictly specified methodology for development and execution

of WS-flows is necessary, in addition to a common process meta-model for WS-

flows.

In section 2 we provide a brief comparison of traditional workflow technologies

and the features of the emerging business process technologies for WSs. Based on this

comparison we comment on the additional requirement imposed on the design of the

WS-based processes determined by the characteristics of highly distributed

environments.

The definition of a business process development life cycle and its distinct phases

is not fully explored in the fields of traditional workflow and WS-based processes.

We refine the process life cycle known from conventional workflow and so adapt it to

processes involving WSs (section 3). Each of the phases accommodates particular

approaches addressing different aspects of creating flexible WSs-based business

processes. It is meaningful to present such a revised formulation of a process life

cycle, for it provides useful directions for modeling and developing flexible WS-

flows, and facilitates reusability of process definitions. The life cycle definition

provides also clear guidance and framework for defining a methodology for creation

and execution of WS-flows and motivates the creation of a common process model.

In section 4 we pay special attention to the additional “find and bind” run-time

sub-phase that helps solving some problems of the existing systems, rooted in their

lack of dynamic features during process execution. We conclude with a simple

example of how the “find and bind” mechanism functions in practice in the context of

a BPEL process.

2. Web services and traditional workflow

Web services are currently used to perform only very simple computations. For

mission critical applications it is required to combine today’s simple WSs into

complex ones and enable complex coordinated interactions among them; such

complex WSs would be more suitable for achieving complicated business goals.

Therefore a common business process model and corresponding definition language

specification are necessary. For the purposes of our further discussion in this respect,

this section gives a brief overview of the existing WS-based composition technologies

while comparing them to the traditional workflow approaches.

Usually, when composition of tasks is discussed one thinks of the existing

workflow technologies. Workflow technology has matured in the last decade. It has

been the subject of extensive standardization and is broadly accepted. The most

prominent workflow standardization community is represented by the Workflow

Management Coalition (WfMC). The WfMC has provided a reference model for

Workflow Management Systems (WfMS) that allows for the interoperability between

WfMSs developed by different vendors. Interoperability is assured by implementing

standardized APIs exposed by the WfMSs and all auxiliary tools supporting the

development and execution of workflows [14]. There is no standardized model for the

process definition itself, and therefore all vendors are free to develop their own

workflow models. However, the WfMC specifies the XML Process Definition

Language (XPDL) that is used for exchange of process definitions across different

WfMC-compliant workflow engine implementations [15], [23]. Apart from the

WfMC’s there are other models and approaches for defining workflows [12], [16].

In the field of WSs there are two competing industry-driven specifications for

service compositions. These are the Business Process Execution Language for WSs

(BPEL4WS, shortly BPEL) [9] and the Business Process Modeling Language

(BPML) [3]. They specify languages for defining business processes that use WSs for

performing certain tasks on behalf of the process, i.e. WS-flows [17]. Either of the

two specifications has the potential of becoming a de facto standard.

When comparing the traditional workflow technology with the newly developed

technologies involving the use of WSs, considerable similarities are recognized.

Basically, the WS-flows technologies are following the traditional workflow

technology terminology and general principles. For example, a business process

defined by BPEL or BPML is described in terms of the same general aspects a

traditional workflow description exhibits. Even though there is no terminologically

established explicit distinction of the perspectives of a process definition, both

BPEL4WS and BPML define control and data flows [20] (corresponding to

behavioural and information perspectives), distinguish between simple and complex

activities (reflecting super- and sub-workflows, i.e. functional aspect), and specify the

WSs that are going to perform on behalf of a particular process activity (operational

perspective [16]). There are however differences, which can be ascribed to the basic

principles of the WSs paradigm; WS-flows do not describe a process in terms of its

relationship to some organizational structure – WSs are meant to provide an

organization-neutral, transparent access to services over the Web.

To the differences counts the fact that the existing WS-flow languages are block-

structured [22], whereas the traditional workflow languages (XPDL, MOBILE [16])

are based on a directed-graph model. These are two groups of languages, based on

different process calculi [10] and therefore they have distinct operational semantics.

The differences in the semantics have important implications. Block-structured

languages are more suitable for expressing much more complex control flows.

Moreover, they are able to provide support for distributed business processes in which

exception handling can be interleaved with the business logic [13]. It is very

important to realize that block-structured process definition languages are more

suitable for enabling transactional support for long-running business interactions. In

the case of long-running transactions compensating activities have to take a

meaningful corrective action that allows the process execution to continue, rather than

simply reversing the effect of completed activities and terminating the whole process.

Even better, in this respect, is the approach BPEL4WS provides, which is a hybrid-

solution combining language elements corresponding to both block-structured and

graph-based models [10]. There are two other specifications closely related to

BPEL4WS that add features to the capabilities the applied process calculus provides.

These are WS-Coordination [6] and WS-Transaction [7]. They provide a coordination

framework and pluggable transaction protocols, respectively, extending the

capabilities of BPEL4WS represented explicitly by the concept of scopes.

Since WSs is a technology meant to support application integration across

organizational boundaries it is relevant to consider both traditional workflow and WS-

flows according to their suitability for business-to-business (B2B) interactions. In

addition to the potential exception handling and transactional support capabilities

WS-flows meet some additional requirements imposed by the B2B environment [21].

WSs enable inter-enterprise interactions in a standardized way (standardized

communication protocols and formats). On the one hand WS-flows take advantage of

this by involving WSs to perform on behalf of a process, as opposed to conventional

workflow, where WSs are not among the set of applications and resources responsible

for performing tasks. On the other hand, some WS-flow languages carry this further

by exposing the business processes as WSs (e.g. BPEL4WS), thus ensuring the reuse

of functionality among enterprises, via a uniform interface and using a standardized

communication protocol.

Certainly, WS-flows have advantages over conventional workflow processes in a

distributed business environment but there is a lot more to be done for them to qualify

for mission critical applications. There is no specification that states completely how

dynamic invocation of services (from within a business process instance) is to be

performed. Processes are currently modeled as collections of activities bound to

specific WS instance (or at least to their abstract description). This proves restrictive

for providing flexible and adaptable processes based on WSs. Therefore, a meta-

model for defining WS-flows is needed. The existence of such a model would enable

the creation of abstract process definitions that would allow postponing the binding of

the process definition to particular WSs instances to a later phase of the process life

cycle. To relate to the exact point in time in which the process definition is bound to

specific WSs, special attention has to be paid to the life cycle phases of a WS-flow.

In the field of traditional workflow the life cycle is divided into two stages: build

time and run time (

Figure 1) [14], [16], [20]. This division is important but it is not

sufficient enough for the purposes of developing flexible WS-flows; a more detailed

specification of a process life cycle is needed. Therefore in the next section we revise

the phases of the process life cycle; it simplifies and clarifies the development of

adaptable processes. It gives also guidance about what kind of process model is

needed and what transformations its computerized representation must undergo before

becoming an executable process definition. Such an explicit definition of distinct

process life cycle phases fosters process definition reusability and allows for clear

separation of concerns of process and system developers.

3 Revision of the WS-Flow development life cycle

The WfMC’s standardizing effort is mainly focused on standardization for

interoperability among WfMSs; hence it did not put any restrictions on the process

model the WfMSs vendors use, and did not specify any standard procedure to guide

the development of a process. As a result it specified only the distinction between

build time and runtime (

Figure 1).

Process Model

Build Time

Business Process Modeling,

Workflow Definition Tools

Run Time

Workflow Engine

Applications

& IT Tools

Database

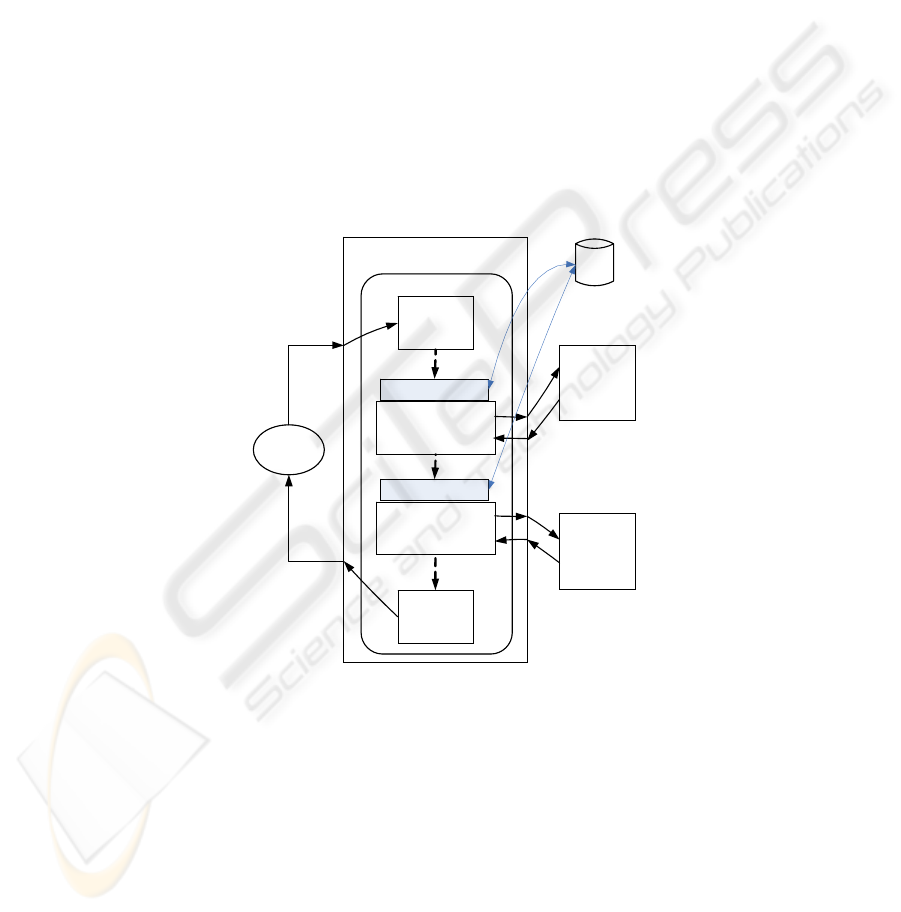

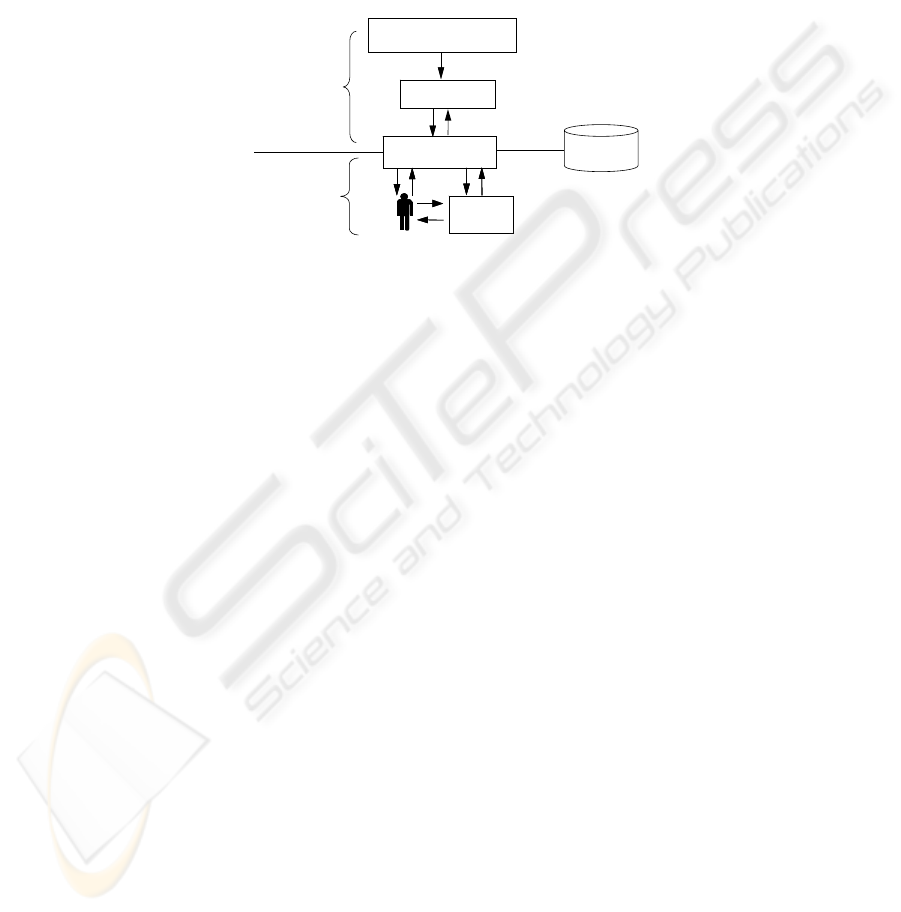

Figure 1 Development life cycle of a traditional workflow.

This is quite a general view which should be explored and refined further. The

detailed statement of a process development life cycle is not a new way of

considering application development, as process development certainly is. Typical

phases in the life cycle of an application include production time, compile time, link

time, load time, run time, and post-runtime [11] in a continuum. The application

phases depend on the application programming model used. For instance, the above

mentioned division is not relevant for highly available distributed systems, because

they are almost always at runtime; but for components being replaced in the system,

those life cycle phases are relevant. In the context of typical C++ applications slightly

different life cycle phases are distinguished; these are source time, pre-processing

time, compile time, link time, load time, and run time [8]. Component generation, as

another example, might require two more phases: code generation and code assembly.

3.1 Model considerations

Given our goal is to create adjustable business processes and the corresponding

process management systems to execute those processes, it is necessary to develop a

common process model. Such a model has to define a process without precisely

specifying the WSs to be invoked; in other words, no locations of WSs should be

incorporated into the process definition. For an even more flexible, and of course

more complex solution, the model might also exclude any explicit statement of the

abstract definitions of a WS such as portTypes, operation names etc. In order to get an

executable definition of the WS-flow the abstract process definition based on the

model should undergo different transformations in a predefined order, specified by

the process life cycle. During the various transformations the process definition will

be enriched with the necessary data, and in some cases meta-data might be required

depending on the process model used; for instance, the moment a WS-flow is

executed, it might be necessary to supply it with meta-data related to the WSs it

invokes, or meta-data might also be required during transformations in the phases

prior to run-time. It is necessary to relate the model development, as well as the

process definition transformations to a standardized methodology supporting process

development. Such a methodology should be guided by a precisely specified process

life cycle. Such a procedure does not yet exist; moreover process development life

cycle is a topic not fully explored in the context of both traditional workflow and WS-

flows. Therefore in the following section we introduce our view on the development

life cycle for a WS-Flow and its phases.

3.2 WS-flow life cycle

To accommodate the above mentioned considerations we introduce a detailed and

refined WS-flow life cycle (

Figure 2).

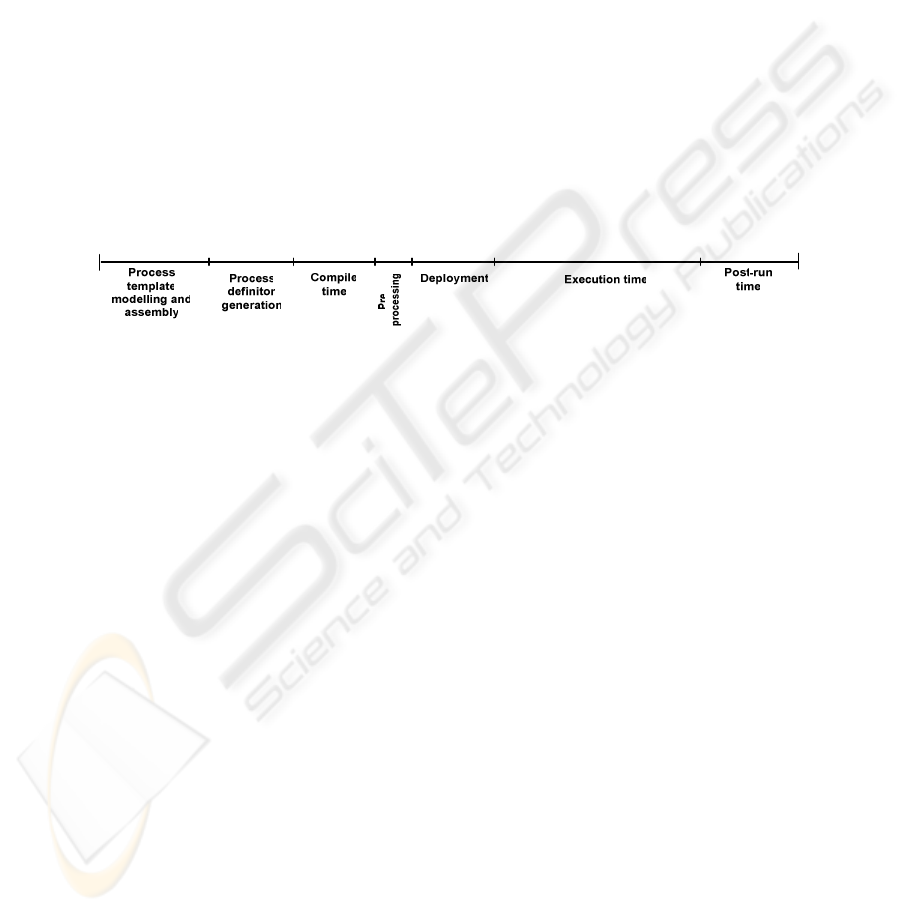

Figure 2 WS-flow life cycle phases.

It includes the following phases:

• Process template modeling and assembly phase

• Process definition generation

• Compile time

• Pre-processing time

• Deployment

• Execution time

• Post-run time

Depending on the application scenario these phases may be further split into sub-

phases; phases can also be skipped.

The process template modeling and assembly phase is the one in which the process

is modeled and a process definition template is created. The WS-flow template is a

collection of activities, defining the process abstractly. Depending on the process

model, the activities comprising the process template may themselves be templates,

e.g. representing frequently used complex activities, design patterns, decision

activities, algorithms, business rules, place holders, etc. To reflect this fact, this life

cycle phase might be split into two sub-phases, for example: template generation - for

creating templates for design patterns, special business logic activities, and others,

and template assembly – combining those templates into process definitions. The

process definition resulting at the end of this phase should exclude any specification

of the exact WSs instances, as well as any commitment to a process definition

language. In other words, the output of the first life cycle phase is a non-executable

abstract process definition. It is created on the basis of a common meta-model and

common model constructs represented by the elements of a corresponding definition

language. In order to obtain an executable computerized representation of the process

additional details have to be inserted. This is done during the next step.

During the process definition generation phase the process definition created in the

previous phase is transformed into an executable process definition. The process

definition might undergo several transformations, and during each transformation it is

enriched with further details and data related to the executable process. Again, this

phase may also be split into several separate sub-phases. Each of these sub-phases

corresponds to a particular transformation imposed on the process definition. Those

sub-phases involve the use of meta-programs performing transformations based on a

meta-model, e.g. code generators, compilers and so on. As a result a much more

detailed process description is obtained. It might also be a description of a WS-flow in

one of the existing languages; this in turn might result in skipping some of the

succeeding phases, due to the characteristics of those existing technologies. This

phase could also be used to translate a process definition written in one language into

another one. Enabling such conversion fosters the reuse of process definitions on

different workflow engines based on the process model, rather than on language

mappings.

Depending on the implementation approach the process definition can be enhanced

by meta-programs during compile time, too; but this is not to be considered an

obligatory step. For instance, if a process definition in BPEL has to be created and

executed, the compile phase would not be relevant to the process definition itself.

However, this step may include compilation of parts of the process definition.

In some application scenarios a pre-processing step could also be required. Pre-

processing involves enriching the process definition with additional data, as well as in

some cases providing interface descriptions of WSs participating in the process.

Usually upon deployment the process definition is enhanced with execution

environment-specific information. In some cases during that phase the system is

provided with auxiliary information related to the application execution; take for

example component models such as the J2EE one. Such a declarative specification of

properties can also be useful for WS-flows development. Depending on the process

model and the implementation approach different data can be appended to the process

definition during the deployment phase. For instance, the BPEL4WS specification

requires that the WSDL documents of all participating WSs are provided, as well as

the WSDL interface of the process itself. Moreover, additional code is generated

within the process interface definition that states the binding information necessary to

access the process as a WS – port locations, access mechanism.

After being deployed a process can be executed. During run time a process

instance is created and runs according to the process schema. In traditional workflow

all applications, resources and human participants are stated prior to the execution, or

as it is the case with some more flexible systems, participants and resources can be

picked up dynamically from a pool of available ones. The existing WS-flows

specifications do not yet provide a fully dynamic invocation of WS for performing a

task; either the exact location of the WS is specified together with all the binding

information (BPEL4WS), or at least the abstract description of WSs is stated. These

cases do not provide for fully adaptable and flexible WS-flows. The latter case is

difficult to deal with having in mind the state of the WSs technology. It is not yet

possible to search for WSs according to the functionality they provide, due to the lack

of sufficient semantic description approaches for WSs; therefore it is not yet feasible

to postpone the binding to an abstract WS (i.e. its functionality, portType) up until run

time and that is why it has to be done during some of the stages before the execution.

The former case, in which the binding to a concrete WS location is involved, is more

restrictive with respect to adaptability features but can easier be dealt with. Under

certain assumptions (reflected by the process model as well) it is possible to choose

an instance of a WS that can perform work on behalf of a process activity, based on

its abstract description. In general, to do this a search for WS instance has to be done

before each single invocation of a WS, and when found its binding information (WS

instance location) has to be incorporated into the activity definition, in order to

perform the service invocation itself. This is a recurrent sub-phase that we call “find

and bind” phase. We draw the attention to this particular life cycle phase in the next

section. Note that this phase is a part of the runtime of a WS-flow and in principle it

has to take place immediately before each WS invocation.

As a final phase in the WS-flow life cycle we define the post-runtime phase, which

allows making changes in the process definition, depending on the progress and

results of the execution of a process instance, and on changes in the business

requirements. Such changes are classified as static (process) configuration [11].

Having stated clearly the framework for WS-flow development and execution

allows us to concentrate on the different approaches and tools needed for addressing

each step in the life cycle. In the next section we discuss an approach for enabling

dynamic invocation of WSs during the run time of a business process.

4 Dynamic choice and invocation of a WS. Find and Bind sub-

phase

In this section we consider in more detail the “find and bind” sub-phase of the

process run time phase. We explain how it accommodates and enables dynamic

invocation of WSs by WS-flows, and what the advantages and disadvantages of this

approach are. We comment on the implications of this sub-phase on the process

model and the infrastructure implementation.

We include a “find and bind” sub-phase within process run time to enable dynamic

invocation of WSs. Note that in this paper we refer to dynamic invocation as the

combined action of selecting a particular instance of a WS and subsequently invoking

it during the run time phase of the process life cycle. These are in essence the actions

that have to be performed during each “find and bind” phase before each WS

invocation (see

Figure 3). The selection of a WS instance should be based on various

criteria such as: compliance to a WS abstract description (WSDL abstract

description), availability at the moment of process execution, cost, performance and

other quality of service (QoS) characteristics. This approach has several implications

on both the process model and the infrastructure for modeling and execution of the

WS-flows. Moreover it is related to other complex issues such as the ability to

describe QoS characteristics of WSs, selection policy description and the respective

description language, and WSs discovery mechanisms.

The modeling implications are in the fact that the process model has to support

generic activities that perform the search and selection of a WS on the one hand, and

on the other invoke a WS (

Figure 3).

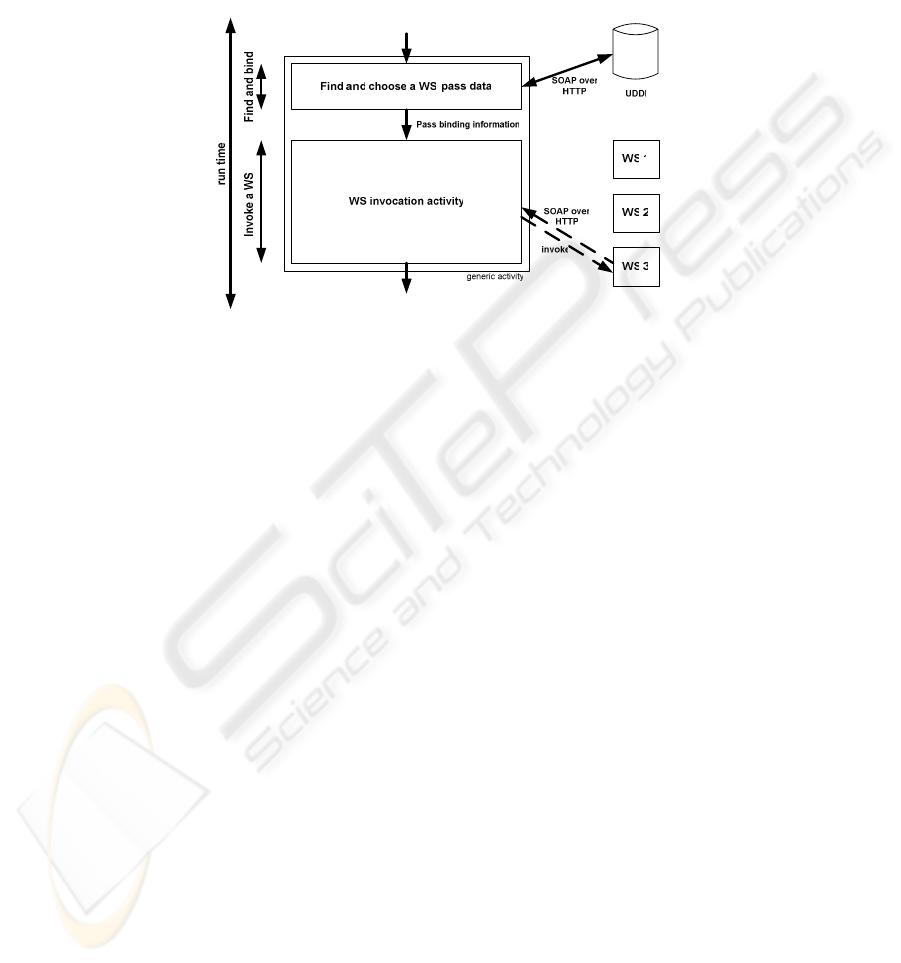

Figure 3 WS invocation activity extended with a “find and bind” element

Process definitions based on such a model should not include any reference to

concrete WS instances, meaning that the definitions should be describing a WS-flow

only on the basis of abstract information about the participating WSs. The existing

specifications of WS-flow languages (BPEL, BPML) involve WSs invocation from

within a process instance, but they do not enable dynamic invocation in the meaning

of this term we defined above. However, it is possible to extend those specifications

with such activities/constructs that either search for and invoke a WS, or only search

for an appropriate WS and pass the necessary information to the already available

activities that perform service invocation. We provide a simple example of a possible

extension in the context of BPEL in section 4.1.

As regards the implementation characteristics, a suitable mechanism is needed to

perform the look up of Web service instances and selection of a single WS according

to (probably parameterized) criteria specifications, and then bring the information to

the activities invoking the services. Consider that it might be necessary to keep this

mechanism transparent for the users in order to hide the complexity of the whole

approach. The basic idea behind the find and bind approach is similar to the one

implemented by the Web Service Invocation Framework (WSIF). WSIF provides a

mechanism to access WSs based on their abstract description (WSDL portTypes and

operations), i.e. independent of their binding information (access mechanism and

protocol) and port addresses. The goal of this client-side framework is however

different; it aims at providing the WSs clients with the possibility to invoke services

using different invocation mechanisms and communication protocols (SOAP, java

calls etc.) depending on their needs [2]. Following the idea of WSIF to use only the

abstract descriptions of WSs and providing only this description to the process

(without any detail on the concrete WS instances), a mechanism for finding all WSs

implementing a given WSDL abstract description in a UDDI registry [4] can be

developed (

Figure 3). Having found all these services a single WS instance can be

selected based on the given criteria. Then, after already having parsed the concrete

definition of the selected WS, and having found the port at which it is available, we

can pass this information to the activity dealing with the invocation of this particular

service. In practice this can be done in two ways: the engine implementation could

use variables and store the information there, or process variable can be used instead

for the same purpose.

In the general case the finding and binding must be performed before each process

activity that invokes a WS is started. However this might again have implications on

both the process model and the execution environment (

Figure 3). As a simple

example, consider the idea of incorporating such an approach into a BPEL4WS

process. Having in mind the specification, an extension to the language schema is

required to accommodate the look-up for the most appropriate WS and the selection

procedure, either for each WS invocation activity (invoke, reply, receive) or in some

generic way. This influences inevitably the implementation of the process engine as

well.

Introducing this additional repeating sub-stage during the run time phase has the

advantage of allowing the process to select the most appropriate service at run time.

Thus at least the availability of the invoked WS can be ensured, because the service’s

appropriateness depends on various criteria, including its availability. Each time a WS

is not available for some reason, the find and bind approach can ensure that another

WS implementing the same abstract WSDL description is used; compare this to the

case in which the service location (port) is determined upon deployment – no other

service can be used instead, and the process description has to be changed and

redeployed. This provides a WS-based process with additional flexibility and

increases the degree of availability of the process as a whole. A model that ensures

this kind of flexibility at run time can also be considered an adaptable one; even

though it is a quite restricted representation of adaptability, the WS-flow can adjust to

changes in the environment, in this case exhibited by the changing QoS characteristics

of a WS and more importantly its availability. To the flaws of the approach counts

mainly the one additional call to the UDDI registry (SOAP over HTTP) executed

before each WS invocation. This is a disadvantage that results in performance loss of

the overall process. The realization of the approach is complicated by the lack of

specifications related to QoS issues in the WSs world; therefore it is difficult to

provide feasible selection policies today; and even if they existed, it would take

computational time for the evaluation of the WS appropriateness.

Even though in this generic approach it is required to perform the “find and bind”

phase before each WS invocation, in practice a more efficient implementation

solution can be provided. The solution can be optimized with respect to performance

by performing search for and binding to a WS only when it is needed. Usually in a

B2B environment business partners know each other’s processes and services;

therefore they do not need to check the QoS characteristics of a partner’s service each

time it is used. This means that a process should find and bind to services it invokes

ones and perform subsequent search and selection only if a drastic change in the

service’s QoS characteristics happens. The trade-off between dynamic features at run-

time and performance of the process depends on the implementation specifics. The

success of the approach depends also on how the system is informed about the

changes in the environment and the way the changes are described.

4.1 Example

To make the approach clearer we show an example. Consider a simple WS-flow

implemented in the BPEL4WS language; the process implements a simple currency

converter, and invokes two WSs with simple functionalities provided by partners – a

service providing cross-currency rate quotes, and a service that does the calculation

[17]. The most important steps in the process control flow are shown in

Figure 4. A

client sends a message to the WS-flow that is exposed as a WS; upon receiving the

message the WS-flow invokes a partner WS that generates and returns a cross-

currency rate quote; the WS-flow then sends the received cross-currency rate value to

a simple converter WS (performing a simple multiplication) and gets as a result a

value that it subsequently sends to the customer. The figure represents the WS-flow

with the find and bind functionality already inserted as additional activities.

Figure 4 Currency converter WS-flow – an example

An example of a BPEL activity that invokes a WS can be seen in the next code

listing; the code presents a BPEL process definition (details are omitted due to space

limitations). The search for and binding to a WS is mapped to a language element,

which can be appended to the BPEL4WS schema.

converter

Web Service

rate

generator

client

Process

invoke

rate generator

invoke

converter

invoke

receive

find and bind

UDDI

...

…

<find>

<bpws-uddi:find_businessService()/>

<bpws-uddi:get_bindingTemplate()/>

<bpws-uddi apply_policy()/>

<wsdl:message name="URL-Return">

</wsdl:message>

</find>

<invoke partner="converter"

portType="nsws:CurrencyConvService"

operation="usd2eur"

inputContainer="Currency_and_Rate"

outputContainer="result"

name="ConversionRequest"/>

…

</process>

The functions used to query the UDDI registry (qualified by the bpws-uddi

namespace) can also be defined in an appendix to the BPEL specification. Of course

this is a sample definition of those functions, the syntax can be different; moreover

they can also be provided by the process engine and performed before any service

invocation activity, and therefore the process developer would not need to care about

coding but would lose the flexibility of specifying choice policies. As for the location

of the chosen service, there are some alternatives for passing the information to the

invocation activities. We can declare additional process variables in the BPEL process

to store the WS endpoint address. It is also possible to make the engine care about the

port address. Whatever alternative is chosen for the implementation, it is very

important to allow the WS-flow to choose from a set of services providing the same

functionality at run time.

5 Conclusions

In the developing field of WS-based business processes there is a need for a

precise methodology for their development and execution. Such a methodology is

closely related to and guided by the process life cycle. The development life cycle of

business processes is an issue not completely explored in the field of traditional

workflows. In this paper we refine the traditional view on the division of the life cycle

phases and adapt it to the WS-based processes. The detailed description of the life

cycle phases is meant to guide the creation and execution of WS-flows with desired

features. Among those features are flexibility of the WS-flows and adaptability to

changes in the environment. One way to provide those features is to enable dynamic

selection of WS instances and their subsequent invocation during the execution time

of a process. For this, we introduced an additional sub-phase in the run time phase of

the life cycle. It is named the “find and bind” phase, and as the name implies it

accommodates a mechanism for finding the most appropriate WS instance for

performing on behalf of the process and binding to it; the mechanism should be

represented appropriately in the process model and its instances. The “find and bind”

mechanism is related to the concepts of QoS characteristics and selection policies.

This approach aims on the one hand at providing dynamic features to the WS-flows

but on the other hand it requires that a common process meta-model be developed and

extensions to the existing technologies and their implementations be made. The

success of the “find and bind” approach is largely dependent on its influence on the

overall WS-flow - it should be performed only when it is needed. This issue, however,

is related to how the system is informed about changes in the environment and how it

reacts on these changes.

References:

1. Alonso, G., Casati, F., Kuno, H., Machiraju, V., “Web Services. Concepts, Architectures

and Applications”, Springer-Verlag. Berlin Heidelberg New York, 2003.

2. Apache <Web Services/> Project, “WSIF – Introduction”, 2002. http://ws.apache.org/wsif/

3. Arkin, A. et al., “Business Process Modeling Language”, BPMI.org, 2002.

4. Bellwood, T., Clément, L., Ehnebuske, D., Hately, A., Hondo, M., Husband, Y.L.,

Januszewski, K., Lee, S., McKee, B., Munter, J., von Riegen, C., “UDDI Version 3.0”,

IBM, HP, Intel, Microsoft, Oracle, SAP. 2002. http://uddi.org/pubs/uddi_v3.htm

5. Brittenham, P. Cubrera, F., Ehnevuske, D., Graham, S., “Understanding WSDL in a UDDI

registry”, IBM, 2001.

6. Cabrera, F. et al., “Web Services Coordination” (WS-Coordination), 2002.

http://www.ibm.com/developerworks/library/ws-coor/

7. Cabrera, F. et al., “Web Services Transaction” (WS-Transaction), 2002.

http://www.ibm.com/developerworks/library/ws-transpec/

8. Coplien, J. O., 1998. “Multi-Paradigm Design for C++”, Addison-Wesley, Reading, MA,

USA. (as cited in [Czarnecky, 2002])

9. Curbera, F., Goland, Y., Klein, J., Leyman, F., Roller, D., Thatte, S., Weerawarana, S.,

“Business Process Execution Language for Web Services (BPEL4WS) 1.0”, August 2002,

http://www.ibm.com/developerworks/library/ws-bpel

10. Curbera, F., Khalaf, R., Leymann, F., Weerawarana, S., “Exception Handling in the

BPEL4WS Language”, In Proceedings of the BPM2003, 2003.

11. Czarnecki, K., Eisenecker, U., “Generative Programming: methods, tools, and

applications”, Addison-Wesley. 2nd edition, 2002.

12. Dayal, U., Hsu, M., Ladin, M., “Business Process Coordination: State of the art, trends, and

open issues” In Proceedings of VLDB 2001, 2001.

13. ebPML.org, “XPDL”, 2001. http://www.ebpml.org/xpdl.htm

14. Hollingsworth, D., “The Workflow Reference Model”, Document Number TC00-1003. The

Workflow Management Coalition, 1995. www.wfmc.org

15. Hollingsworth, D., “Events”, A White Paper, The Workflow Management Coalition. 1999.

www.wfmc.org

16. Jablonski, S., Bussler, C., “Workflow Management. Modelling Concepts, Architecture and

Implementation”, International Thomson Computer Press, London, 1996.

17. Karastoyanova, D., “Creation and Deployment of Web Services and Web Service Flows”,

A Tutorial, In Proceedings of iiWAS2003, Austrian Computer Society, September 2003.

18. Karastoyanova, D., Buchmann, A., “Components, Middleware and Web Services”, In

Proceedings of IADIS International Conference WWW/Internet 2003, Volume II, IADIS

Press, 2003.

19. Leymann, F., Roller, D., “A quick overview of BPEL4WS”, IBM Developer Works, 2002.

http://www-106.ibm.com/developerworks/

20. Leymann, F., Roller, D., “Production Workflow. Concepts and Techniques.”, Prentice Hall

Inc., 2000.

21. Peltz, Ch., “Web Services Orchestration and Choreography”, IEEE Computer, October

2003, Volume 38, Number 10, pp. 46-52.

22. Shapiro, R. “A Comparison of XPDL, BPML, and BPEL4WS”, Cape Vision, May 2002,

http://xml.coverpages.org/Shapiro-XPDL.pdf

23. Workflow Management Coalition, “Workflow Process Definition Interface – XML Process

Definition Language”, Document Number WFMC-TC-1025, Version 0.03, 2001.

www.wfmc.org

24. World Wide Web Consortium (W3C), “SOAP Version 1.2”, W3C Recommendation, 2003.

http://www.w3.org/TR/soap12-part0/

25. W3C, “Web Services Description Language (WSDL) Version 2.0 Part 1: Core Language”,

W3C Working Draft, 2003. http://www.w3.org/TR/wsdl20
