AN INFORMATION SYSTEM DEVELOPMENT TOOL BASED

ON PATTERN REUSE

Agnès Front-Conte, Ibtissem Hassine, Dominique.Rieu et Laurent Tastet

LSR-IMAG Laboratory, SIGMA team, BP 72, 38402 SAINT MARTIN D’HERES CEDEX – France

Keywords: Pattern, patterns system, reuse, pattern-based development tool.

Abstract: A pattern is a general and consensual solution to solve a problem frequently encountered in a particular

contex

t. Patterns systems are becoming more and more numerous. They offer product patterns or process

patterns of varied range and cover (analysis, design or implementation patterns, and general, domain or

enterprise patterns). New application development environments have been developed together with these

pattern-oriented approaches. These tools address two kinds of actors: patterns engineers who specify

patterns systems, and applications engineers who use these systems to specify information systems. Most of

the existing development environments are made for applications engineers; they offer few functionalities

allowing definition and organization of patterns systems. This paper presents AGAP, a development

environment for defining and using patterns. Not only does AGAP address applications engineers, but it

also allows patterns engineers to define patterns systems.

1 INTRODUCTION

For several years, in many domains, the increasingly

permanent use of the information systems has

revealed the need to capitalize and reuse the

professional know-how. From this need emerges, in

information systems engineering, a new activity that

is the components reuse. A wide variety of reusable

component models have already been proposed to

integrate reuse in all applications development

processes: generic domain models (Maiden, 1994),

analysis patterns (Fowler, 1997), design patterns

(Gamma, 1995), frameworks (Johnson, 1992), etc.

In this paper, particular interest is given to the

pattern approach.

A pattern is consi

dered as a tested and accepted

solution to a problem which occurs frequently in

information systems development. Patterns are

generally organized in patterns systems (Rieu,

2002). A patterns system defines a pattern collection

with rules allowing to combine them (exp. Gamma

patterns system, Ambler process patterns system

(Ambler, 1998) or Gzara PIS patterns system

(Gzara, 2000).

Several works integrate patterns in application

devel

opment environments (Borne, 1999). This

integration aims to automate their use and their

application in concrete design contexts. Different

kinds of pattern-based tools exist, research

prototypes (Pattern Tool (Meijers, 1996), FACE

(Meijers, 1997), etc) as well as commercial tools

(Rational XDE, TogetherJ, etc). Nevertheless, the

majority of existing tools only integrate E. Gamma’s

patterns system and don’t take into account the

patterns engineers needs.

This paper presents a reaserch project: AGAP, a

devel

opment environment based on pattern reuse

which combines the needs of applications engineers

who specify information systems by patterns

applications, and the needs of patterns engineers,

who specify patterns and patterns systems by using

the same formalism or by reusing items of existing

formalisms. The second section presents, functional

specification of AGAP, its architecture and resumes

its features and its functionalities by some screens

examples. To conclude, section 4 presents two

AGAP industrial experiences and proposes future

prospects of our research.

2 AGAP : A PATTERN-BASED

TOOL

The main goal of AGAP is to meet needs of the

pattern and application engineer.

548

Front-Conte A., Hassine I., Rieu D. and Tastet L. (2004).

AN INFORMATION SYSTEM DEVELOPMENT TOOL BASED ON PATTERN REUSE.

In Proceedings of the Sixth International Conference on Enterprise Information Systems, pages 548-551

DOI: 10.5220/0002643605480551

 SciTePress

2.1 Actors

- The patterns engineer’s goal (figures 1) is to

create and define pattern. Moreover, he aims to

define patterns formalisms and patterns systems (PS)

described according to these formalisms. A pattern

system is applied to a given applicative domain (ex.

banking IS) according to a given technological

domain (ex. object-oriented).

Domain

Formalisme

Patterns S

stem

Cre ate

Dom ain

Create

Formalism

Patterns en

ineer

Cre ate

Delete

Modify

Validate

Visualize

Cre ate

Pattern

«include»

Duplica t e

Pattern

«include»

Visualize

Pattern

«include»

Delete

Pattern

Modify

Pattern

«include»

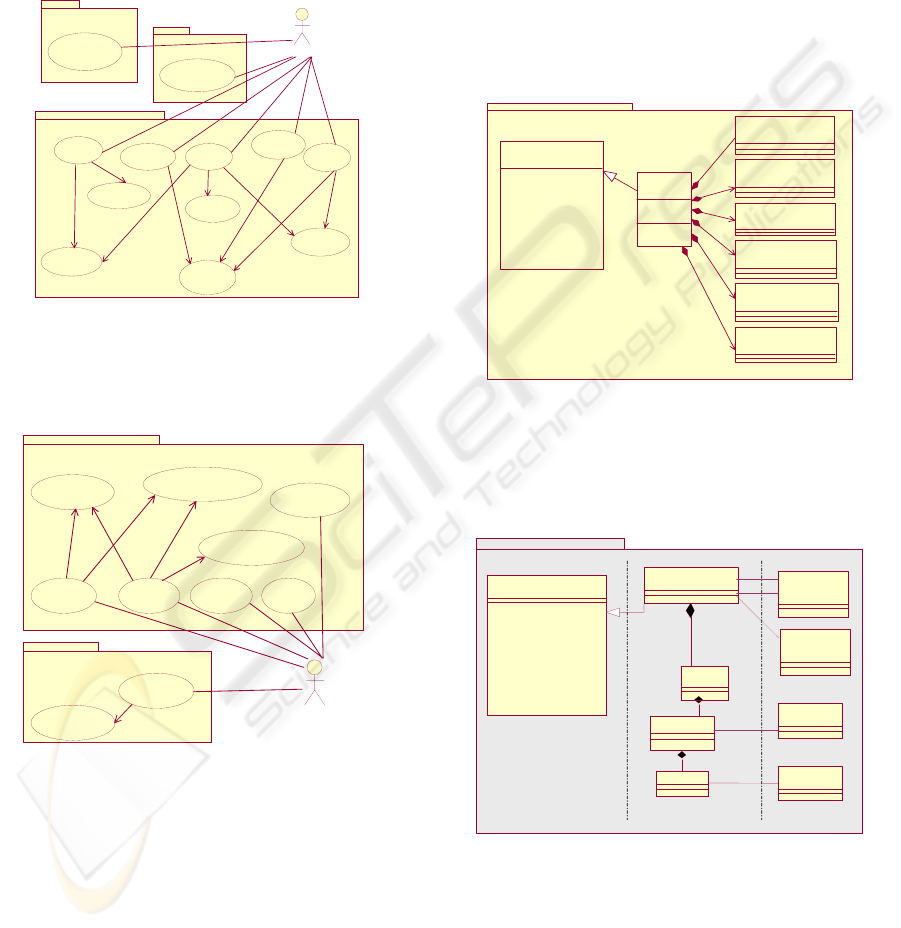

Figure 1: A few patterns engineer use cases

- The main goal of the applications engineer is to

imitate pattern in order to model and design

information systems (IS). This imitation is based on

one or more PS available in AGAP. (figure 2).

Information S

stem

A pplic at ions Engine er

Create

Modify

alida te

Delete

Pattern

«include»

Create Pattern

Imitation

Delete Pattern

Imitation

Visualize

IS Trace

«include»

Patterns S

stem

Visualize

Pattern

«include»

Figure 2: Applications engineer use cases

- The administrator manage AGAP by assuring :

connection to the data base, user management and

finally deletion of validated components, for

example, a validated pattern system can be deleted

only by the administrator who will make sure that no

more user wants to use it.

2.2 Functional Specification

AGAP is composed of 7 business components: Tool,

User, Field-type, Domain, Formalism, Patterns

system and Information System. Only Tool and

Patterns system components will be described in this

paper. The structure of each component conforms to

the business components structuring of the

Symphony process (Hassine, 2002).

2.2.1 Component « Tool »

The component « Tool » is the base component of

AGAP. It plays the role of a mediator between the

user and the other business components. The

interface includes the features expected by the user.

These features correspond to all the use cases quoted

in the section 0.

Tool

«interface»

ToolService

For Field Type, Formalisme,

IS, PS : Create, Visualize,

Modify, Validate and Delete

For Domain : Create,

Visualize, Modify, Enrich,

Valida t e and De lete

For User : Create, Visualize,

Modify and Delete

«Master»

Tool

«Role»

Field Type

«Role»

Domain

«Role»

For ma lis

«Role»

patterns System

«Role»

Info rma t ion s y st e

«Role»

Us er

(W hat I can do) (W hat I am ) (W hat I Use )

Figure 3: Component « Tool »

2.2.2 Component « Patterns system »

A pattern system is composed of patterns. described

in a given formalism.

Pattern System

Pattern System Service

<<Interface>>

Domain

<<Role>>

Patterns system

<<Master>>

<<Part>>

Pattern

<<Role>>

Item

Item-Value

<<Role>>

Field

Field-Value

1..*

create_pattern_system()

visualize_ pattern_system()

modify_ pattern_system()

validate_ pattern_system()

delete_ pattern_system()

create_pattern()

duplicate_pattern()

visualize_pattern()

modify_pattern()

delete_pattern()

(What I can do)

(What I am)

(What I use)

Formalism

<<Role>>

1..*

Figure 4: Component “Pattern system”

Each pattern has a given number of items whose

fields are defined in the associated formalism. The

value of every field has to respect the definition

given in the field type associated to the field.

Application : The Figure 5 shows the creation

screen of «GAMMA pattern system».

AN INFORMATION SYSTEM DEVELOPMENT TOOL BASED ON PATTERN REUSE

549

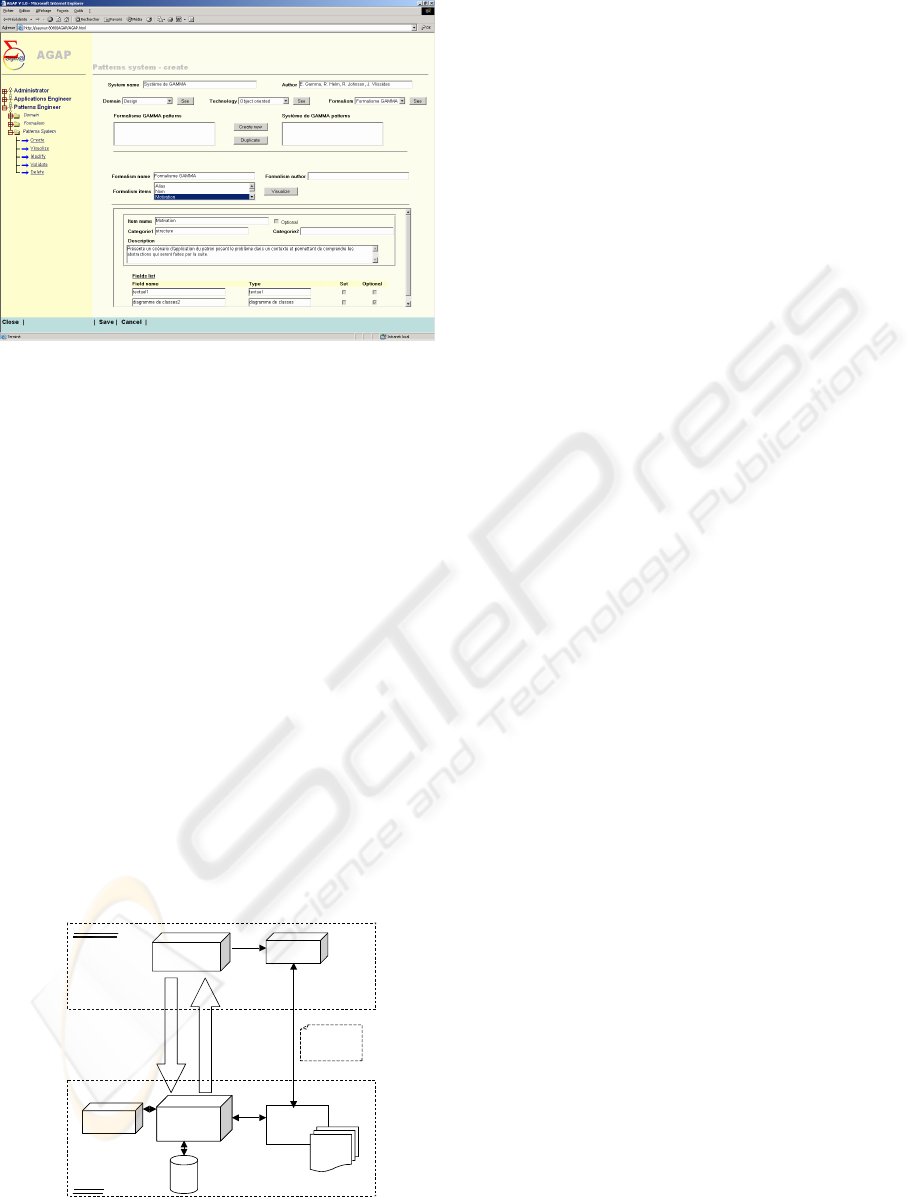

Figure 5 : Creation screen of «GAMMA PS»

2.3 Architecture

The current version of AGAP is an evolution of

some last versions (Conte, 2001). This evolution

takes into account applications engineer aims which

is the creation of its information system. To realize

this task, the application engineer needs to look for a

solution described by a pattern specified in a given

patterns system. Then, he realizes the imitation and

the integration of this pattern in its information

system. He must also be able to visualize the

integration traceability.

2.3.1 Cooperation with other modeling tools

AGAP has to allow to manage various diagrams

types : class diagrams, sequence diagrams, etc. He

must also be able to modify and to manipulate their

contents. In this purpose AGAP is coupled with

other evolved existing tools specialized to realize

these tasks (Rose, Objecteering, etc.).

A first cooperation mode proposes the following

architecture (figure 7):

AGAP

TOMCATTOMCAT

Case

tool

Shared

directory

Figure 6: Cooperation AGAP/UML case tool

In the server part are defined a shared directory

accessible by AGAP users, a common data base in

which the link between the diagram file and the

pattern will be protected (its name, its protection

place) and Java servlets which ensure the

management of the diagrams files within the shared

directory: creation of pattern workspace, naming of

the diagrams files, validation of the diagrams files,

etc. Diagrams are saved in XMI files. XMI (XML

Metadata Interchange) allows to exchange logical

UML models between various distributors of UML

case tools.

2.3.2 Pattern exchange format

Each pattern belongs to a patterns system, which

itself represented in a particular formalism. One or

several items of the formalism contain the solution

of the pattern. To allow a better imitation and

integration, a field is added to the item solution

which will contain the pattern constraints. This

solutions are created in case tools as ArgoUML,

Rational Rose, etc. Each case tool allows to save

UML diagrams in XMI. However, the result file is

not completely compatible between the various

tools. Indeed, it is based on a normalized DTD

(UML 1.3 and UML 1.4), but each case tool adds

extensions to allow for example the diagram

drawing. To be case tool independent, AGAP

generates an XMI file which contains only the

necessary data for the UML diagram. To couple a

case tool to AGAP, it is necessary to associate to it

all the features allowing to generate this generic

XMI file, as well as the invert features.

2.3.3 Imitation and Integration

An imitation is an adaptation of the solution

preserving the essence of the pattern problem.

Solution imitation is made from the generic XMI file

of the solution. The integration is the result of the

fusion of two XMI files, the pattern XMI file and the

information system XMI file.

ICEIS 2004 - INFORMATION SYSTEMS ANALYSIS AND SPECIFICATION

550

AGL

Allows to seize a UML

diagram

Patterns Engineer

XMI

Tool

created

integrate

merge

AGL

Allows to modify a UML diagram

Applications Engineer

XMI

credits

duplicated

XMI

credits

duplicated

imitate

YES

Information

System

Class

Diagram

Class

Diagram

XMI

AGAP

generate

Pattern

Class

Diagram

Class

Diagram

Xmi

AGAP

generate

XMI

Tool

created

AGAP Catalog

Validated

pattern

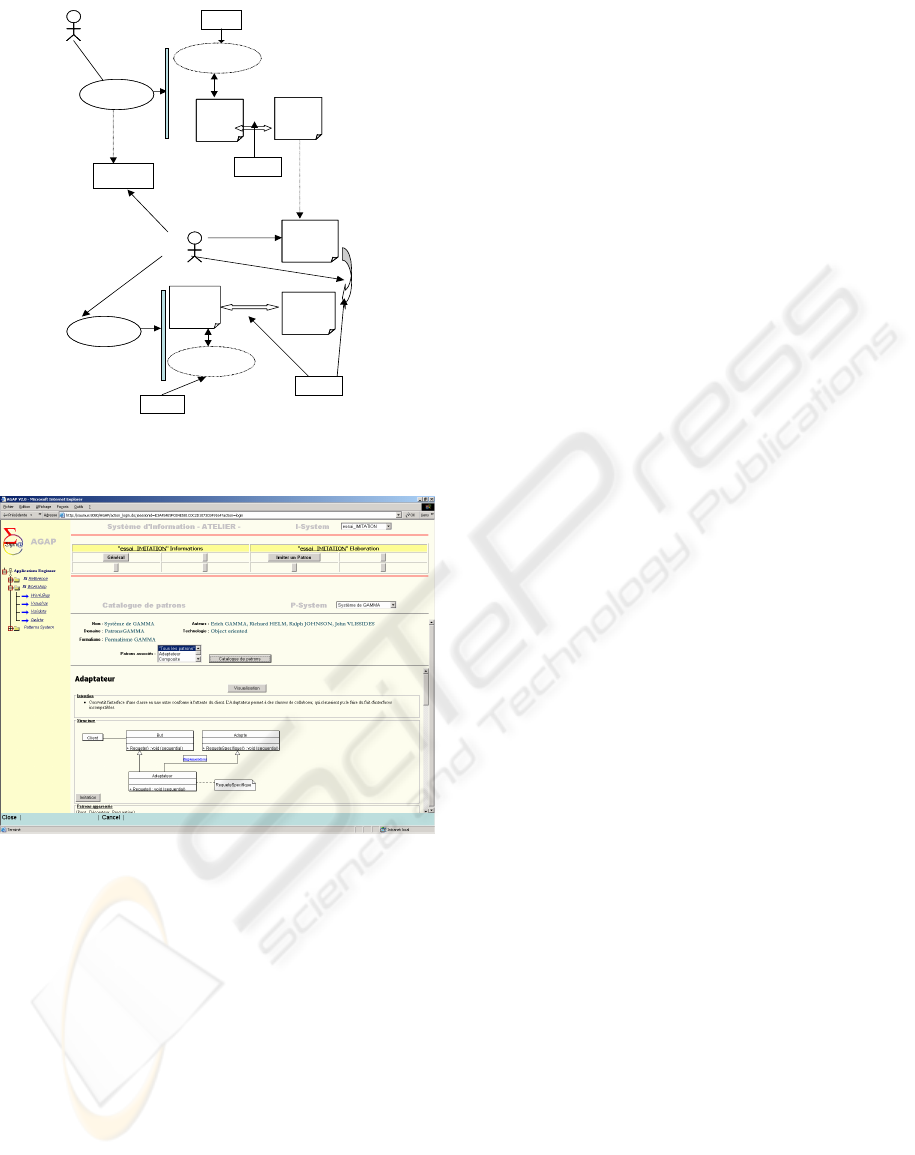

Figure 7: AGAP imitation and integration processes

Application : The shows the imitation screen of

«Adapter pattern ».

Figure 8 : Imitation screen of «Adapter Pattern»

3 CONCLUSION

This article presented AGAP, a development

environment suited to two types of actors,

applications engineers and patterns engineers.

AGAP addresses therefore two types of processes:

- a process by reuse allowing the AE to define

information systems by selecting, applying and

integrating patterns applications,

- a process for reuse allowing the PE to define and to

organize patterns systems.

AGAP evolved from a prototype model to a

functional product and was used wright now to

specify two formalisms: P-Sigma (Conte, 2001) and

Gamma as well as Gamma patterns system (Gamma,

1995) and two patterns systems written in P-Sigma.

These patterns systems result from applied

researches on two projects in collaboration with

industrial companies. The first one focuses on the

engineering of Product Information Systems (PIS) of

industrial enterprises (Gzara, 2000) and was

developed in collaboration with Schneider Electric

company (project CNRS PROSPER-POSEIDON).

The second patterns system concerns the

specification of Symphony, a development process

based on business components proposed by the

UMANIS company.

From these first validated results, other research

works were initiated to facilitate reuse in

information systems engineering field and to

guaranty a traceability between design choices and

software products resulting from the design.

REFERENCES

Ambler, S.W., 1998. Process Patterns building Large

Scale Systems using Object technology, SIGS Books,

Cambridge University Press.

Borne, I., Revault, N., 1999. Comparaison d’outils de mise

en oeuvre de design patterns, Object-oriented

Patterns, Vol5, num2.

Conte. A, Giraudin J .P., Hassine I., Rieu D. 2001, Un

environnement et un formalisme pour la définition, la

gestion et l’application de patrons, Revue ISI vol 6

n°2.

Fowler, M., 1997. Analysis Patterns – Reusable Object

Models, Addison-Wesley.

Gamma, E., Helm, R., Johnson, R.E., Vlissides, J., 1995.

Design patterns: Elements of Reusable Object-

Oriented Software, Addison-Wesley,

Gzara L., Rieu D. 2000. Tollenaere M., Pattern Approach

To Product Information Systems Engineering,

Requirements Engineering Journal, Editors: Peri

Loucopoulos & Colin Potts, Springer- Verlag,

London.

Hassine I., Rieu D., Bounaas F., Seghrnouchni O. ,

« Symphony : Un modèle conceptuel de composants

métier» Revue ISI, volume 7, numéro 4, Hermès,

2002.

Johnson, R.E., 1992. Documenting Frameworks using

Patterns, OOPSLA'92.

Maiden, N., Sutcliffe, A., Taylor, C., Till, D., 1994. A set

of formal problem abstractions for reuse during

requirements engineering, ISI, Hermes, vol. 2, n° 6.

Meijers M., 1996. Tools Support for Object-Oriented

Design Patterns, Master's Thesis, Utrecht University.

Meijler, S. Demeyer, R. Engel, 1997. Making design

patterns explicit in Face, ESEC/FSE 97.

Rieu, D., Giraudin, J.P., Conte A., 2002. Pattern-Based

Environments for Information Systems Development,

The Sciences of Design, Lyon, France.

AN INFORMATION SYSTEM DEVELOPMENT TOOL BASED ON PATTERN REUSE

551
