THE IMPACT OF PREEMPTIVE PRIORITY IN GPRS ON TCP

PERFORMANCE: A MEASUREMENT STUDY

Annika Wennstr

om, Anna Brunstrom

Dept. of Computer Science, Karlstad University

SE-651 88 Karlstad, Sweden

Juan Rend

Technology Dept., Pompeu Fabra University

Passeig de Circumvalaci

o 8, 08003 Barcelona, Spain

Jan H. Gustafsson

Telia Mobile AB

Lagergrens gata 7, SE-651 15 Karlstad, Sweden

Keywords:

Wireless Internet, TCP, GPRS, preemption.

Abstract:

GPRS extends the widely deployed GSM system with a more efﬁcient wireless Internet access. In this paper

we investigate how a TCP transmission over GPRS is affected when it loses all its resources due to preemption

by circuit-switched calls with higher priority. The results indicate that TCP performance is degraded more than

necessary, as buffered data is ﬂushed immediately when the GPRS trafﬁc is preempted. The time required for

error recovery is considerable also for very short preemption periods. The situation would improve if data was

buffered during preemption and if the data was transmitted immediately as GPRS resources become available

again.

1 INTRODUCTION

The General Packet Radio Service

(GPRS) (GSM03.60, 2000), (Bettstetter et al.,

1999) is a packet-oriented extension to the Global

System for Mobile Communications (GSM) that

provides its users with an ”always on” wireless

access to the Internet. As most applications on the

Internet rely on the Transmission Control Protocol

(TCP) (Postel, 1981) for transport, it is important that

TCP works efﬁciently in GPRS.

In this paper, we consider TCP over GPRS in the

case when the GPRS trafﬁc is preempted by trafﬁc

with higher priority, such as circuit-switched calls.

The results show that TCP suffers more than neces-

sary due to preemption when GPRS resources are lost

even for a very short time. In the testbed and in many

commercial networks, the buffer in the Base Station

Controller (BSC) is ﬂushed immediately when there

are no resources left for GPRS trafﬁc. In many situ-

ations, TCP performance would improve if the BSC

waited for a timeout interval before it ﬂushed its

buffer.

The impact of buffering in intermediate nodes on

TCP performance is described in e.g. (Chakravorty

et al., 2002), (Gurtov et al., 2002), (Sagfors et al.,

2003). In (Sagfors et al., 2003) an active queue man-

agement scheme optimized for third generation cellu-

lar networks is proposed and evaluated through sim-

ulation. In (Chakravorty et al., 2002), (Gurtov et al.,

2002) GPRS measurements are presented. The mea-

surements do not focus exclusively on buffering, but

as real networks are used aspects of buffering are

taken into account. Neither of these studies investi-

gate preemption. The analysis and simulation study

in (Chen et al., 2002) suggests buffering of GPRS

data as a means to reduce the blocking probability for

GPRS when the GPRS trafﬁc is preempted by circuit-

switched calls with higher priority. However, TCP is

not directly considered in (Chen et al., 2002).

In contrast to related work, we evaluate in detail

how TCP is affected by GPRS buffering during pre-

emption. Our work is based on measurements in a

GPRS testbed consisting of real network nodes with

real protocol implementations and an emulated radio

environment.

The rest of the paper is structured as follows. Some

background on GPRS and TCP is given in Section 2.

430

Wennström A., Brunstrom A., Rendón J. and H. Gustafsson J. (2004).

THE IMPACT OF PREEMPTIVE PRIORITY IN GPRS ON TCP PERFORMANCE: A MEASUREMENT STUDY.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 430-436

DOI: 10.5220/0001404804300436

 SciTePress

In Section 3, an overview of the test environment is

provided. The parameter settings used in the measure-

ments are described in Section 4. In Section 5, the re-

sults are presented. The results and their implications

are discussed in Section 6. Finally, in Section 7, some

conclusions are drawn and plans for future work are

presented.

2 BACKGROUND

In this section some background on GPRS and TCP

is provided. The main purpose is to provide the infor-

mation required for the rest of the paper, not to give a

complete picture of either GPRS or TCP.

2.1 Overview of GPRS

GPRS provides more efﬁcient sharing of radio re-

sources and higher data rates than circuit-switched

GSM. The GPRS system requires two new nodes:

the Gateway GPRS Support Node (GGSN) and the

Serving GPRS Support Node (SGSN). A GSM time

slot allocated for GPRS is called a packet data chan-

nel (PDCH). The radio resources are more efﬁciently

used than in GSM, since the PDCHs in a cell are

shared between the GPRS users, and not, as in GSM,

reserved for one user at a time. Access to the PD-

CHs is controlled by the Radio Link Control/Medium

Access Control (RLC/MAC) protocol (GSM04.60,

2000) which provides a link between the mobile sta-

tion (MS) and the Base Station Subsystem (BSS). The

MAC protocol is similar to slotted ALOHA. In addi-

tion, the Logical Link Control (LLC) protocol pro-

vides a logical link between the MS and its associ-

ated SGSN. RLC and LLC support both acknowl-

edged and unacknowledged data transmission. The

Base Station Subsystem GPRS Protocol (BSSGP) op-

erates between the SGSN and the BSS. BSSGP is fur-

ther described in Section 3.

2.2 Overview of TCP

The TCP protocol provides reliable data transport. Er-

ror recovery is triggered by a timeout event or by three

duplicate acknowledgments. The timeout value is dy-

namically adjusted based on estimates of the round

trip time (RTT). In order to prevent congestion in the

network, the amount of data the TCP sender can inject

into the network is limited by a congestion window

(cwnd) and several algorithms for congestion control

are employed (Allman et al., 1999).

After a timeout event, the missing data is retrans-

mitted and the slow start algorithm is used. The cwnd

is ﬁrst set to one segment, and then it is increased

with one segment for each incoming acknowledgment

which results in an exponential increase in the trans-

mission rate. When a slow start threshold (ssthresh)

value is reached, the congestion avoidance algorithm

is used instead. Here, one new segment is added to the

cwnd each RTT. After retransmission due to three du-

plicate acknowledgments fast retransmit and fast re-

covery are used. The cwnd is reduced to half of the

value it had before the data loss. After the TCP sender

receives an acknowledgment covering all the retrans-

mitted data, the congestion avoidance algorithm is

used.

The performance of TCP may be enhanced by the

use of optional features. The selective acknowledg-

ments (SACK) option (Mathis et al., 1996) gives the

TCP sender precise information about the TCP seg-

ments that have arrived at the receiver. The times-

tamps option (Jacobson et al., 1992) provides an addi-

tional means to identify segments and their acknowl-

edgments.

3 TEST ENVIRONMENT

The GPRS testbed used for the measurements is

shown in Figure 1. The testbed consists of a client,

a GPRS network, and a server. The client uses the

GPRS network to access services provided by the

server. The client in this testbed is a laptop connected

with a serial cable to a GPRS terminal at the R ref-

erence point. The GPRS terminal accesses the GPRS

network over the radio interface. In order to provide

controllable and repeatable radio conditions, an em-

ulated radio environment is used at the radio inter-

face. The emulated radio environment interconnects

the client with the BSS which consists of a BSC and at

least one Base Transceiver Station (BTS). The GPRS

terminal communicates with the BTS in the cell on

which it currently camps. The BTS is connected at

the Abis interface with a BSC which provides control

functions and physical links over the Gb interface to

an SGSN. The SGSN is connected to a GGSN over

the Gn interface. The GGSN connects the GPRS net-

work to the server, over the Gi interface.

Measurement data can be gathered at several places

in the testbed. On the client and the server machines,

Ethereal (Ethereal, 2004) captures packets which are

further analyzed with Tcptrace (Ostermann, 2004).

Between the BTS and the BSC, the NetHawk ana-

lyzer (NetHawk, 2004) captures GPRS data and con-

trol information, such as RLC/MAC blocks.

Since the server is placed in a wired network which

is faster than the GPRS network, data from the server

is buffered in the GPRS network before it is transmit-

ted over the radio interface to the client. The max-

imum time that user data may be buffered before it

is transmitted over the radio interface, is determined

THE IMPACT OF PREEMPTIVE PRIORITY IN GPRS ON TCP PERFORMANCE: A MEASUREMENT STUDY

431

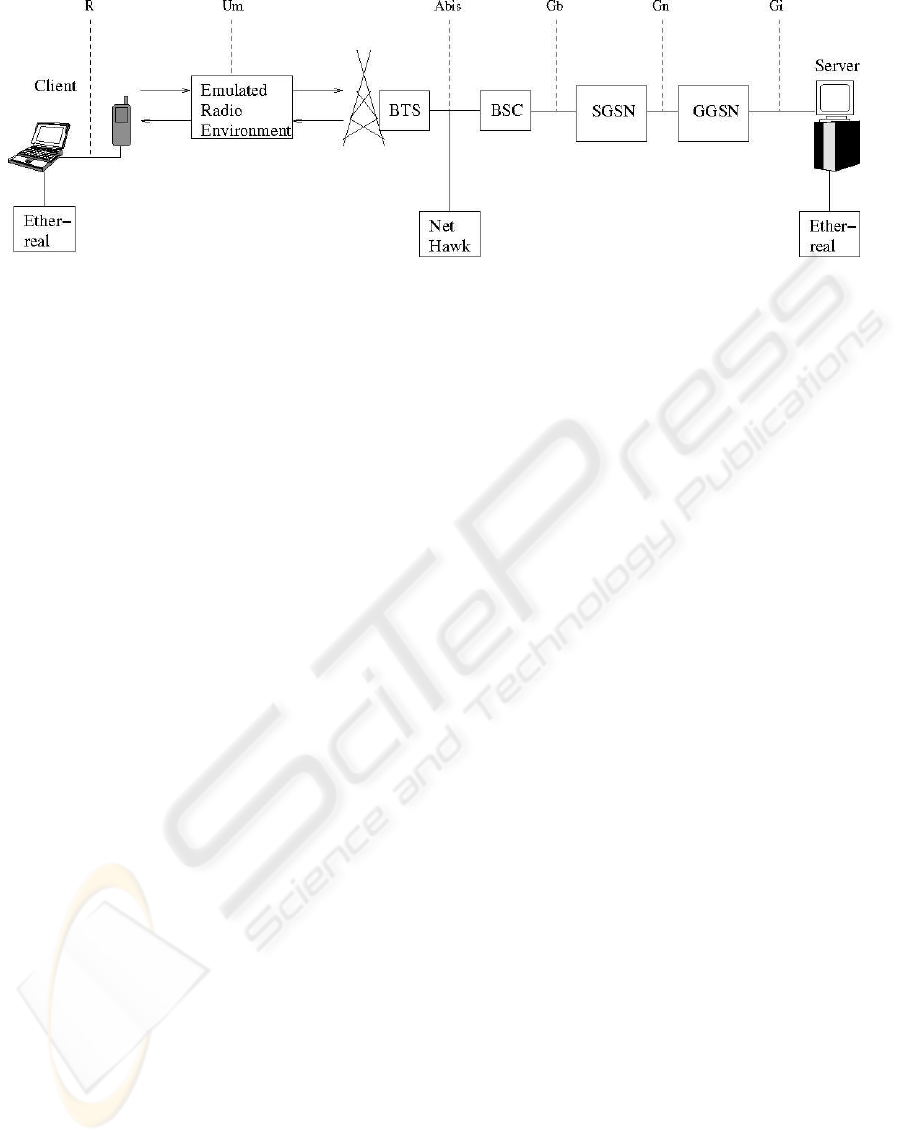

Figure 1: GPRS testbed

by the maximum holding time (GSM03.60, 2000).

The buffer management in the GPRS network is co-

ordinated between the SGSN and the BSC. The rate

of the data transmitted from the SGSN to the BSC

in the downlink is limited by BSSGP ﬂow control.

The SGSN keeps track of the time that user data is

buffered and when user data is transmitted in BSSGP

protocol data units (PDUs) to the BSC, the time that

is left of the maximum holding time is indicated in

the PDU lifetime header ﬁeld (GSM08.18, 2000). Af-

ter the maximum holding time data is considered old

and is discarded from the SGSN or the BSC buffer,

depending on where data is resided. It is then up to

the end hosts or LLC to retransmit the discarded data

if necessary. In the experiments presented, the end

hosts use TCP to recover discarded data.

4 PARAMETER SETTINGS

For the presented measurements, the GPRS system is

conﬁgured as follows. The maximum holding time

is set to 63 seconds. The coding scheme is CS-2,

LLC is run in unacknowledged mode, and RLC in

acknowledged mode. These parameter settings were

chosen, since they are commonly used in commercial

GPRS networks. Compression is disabled, since com-

pression complicates the analysis of the data trafﬁc,

and because header compression may degrade perfor-

mance in case of data loss (Inamura et al., 2003). The

radio quality is nearly optimal with a received signal

level of -80dBm and a C/I of 20dB.

The measurements are conducted with only one

GPRS client in the system, and the application model

used is bulk transfer over one TCP connection. Data

is transmitted in the downlink from the server in the

wired network to the GPRS client. The end hosts run

Linux 2.4.2-2 with the default settings of TCP options

and parameters. This implies that SACK and times-

tamps are used, as recommended in (Inamura et al.,

2003). The size of IP packets is 1500 bytes, which,

due to enabled options, results in a maximum seg-

ment size of 1448 bytes. The receiver window is set

to 64KB. The TCP implementation in Linux 2.4 is

further described in (Sarolahti and Kuznetsov, 2002).

The GPRS terminal is capable of using three PD-

CHs in downlink and one in uplink. The raw data rate

over three PDCHs is 40.2kbps with CS-2. The maxi-

mum data rate achievable on higher protocol layers is

much lower due to overhead, such as protocol head-

ers of all underlying protocols. The maximum rate of

TCP data in the test environment with the chosen pa-

rameter settings is 31kbps, which is consistent with

values reported for other test environments (Taferner

and Bonek, 2002), (Gurtov et al., 2002).

The purpose of the measurements is to investigate

how a GPRS data transfer is affected when it loses all

its resources due to preemption by circuit-switched

calls with higher priority. In order to preempt the

GPRS resources, circuit-switched calls are set up be-

tween GSM terminals located in the cell. The GPRS

client itself does not take part in any of the circuit-

switched calls. We use the term preemption period

to denote the time interval during which there are no

resources available for GPRS trafﬁc, because all re-

sources are occupied by circuit-switched calls. The

preemption periods tested are 3, 6, and 15 seconds.

Each measurement lasts in total for 40 minutes and

during this time the GPRS resources are preempted

completely at least 30 times. The time between two

consecutive preemption periods is one minute and

during this time data is transmitted to the client over

three PDCHs.

5 MEASUREMENT RESULTS

In this section, we ﬁrst give an overview of the mea-

surement results. Then, the results for 3 and 15 sec-

onds preemption periods are described in further de-

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

432

Table 1: Overview of results

Preemption Throughput Retransmitted RTT avg

period (secs) (kbps) packets (%) (ms)

3 21.64 6.96 2911

6 22.20 6.55 3081

15 21.27 7.03 3316

tail. Finally, buffering and TCP error recovery are dis-

cussed.

5.1 Overview of Results

Table 1 gives an overview of the performance of TCP.

The table shows throughput, percentage of retrans-

missions, and average round trip times for the tested

preemption periods. In contrast to our expectations,

the performance of TCP is similar for preemption pe-

riods of 3, 6, and 15 seconds. As compared to the

maximum achievable throughput, the repeated pre-

emptions lead to a reduction in throughput of roughly

30% even when the preemption period is as short as

3 seconds. The traces of captured trafﬁc indicate that

data losses occur every time the GPRS data transfer is

preempted. This is due to the BSC buffer being im-

mediately ﬂushed when the GPRS resources are pre-

empted. The data losses are unrelated to the BSSGP

buffer setting, since data is not stored long enough in

the BSSGP buffer for the maximum holding time to

expire. Depending on the length of the preemption

periods, buffered data may also be discarded from

the GPRS terminal. The transmission is stalled dur-

ing the preemption period and in order to restart the

transmission again after the preemption period, new

data transmitted from the server or an acknowledg-

ment from the client is required. This is further ex-

plained below.

Even if the TCP performance is almost the same

for all preemption periods, slightly different scenar-

ios were found in the trace ﬁles. The traces for pre-

emption periods of 3 and 6 seconds show a similar

pattern of TCP behavior and GPRS signaling. For 15

seconds preemption another series of events are trig-

gered. Other GPRS signaling messages are transmit-

ted and TCP uses another strategy for error recovery.

As the results are similar for 3 and 6 seconds, we dis-

cuss only the results for 3 and 15 seconds preemption

in more detail.

5.2 Preemption Periods of 3 Seconds

The results for 3 seconds preemption are shown in

Figure 2. Figures 2(a), 2(b), and 2(c) show the se-

quence number evolution, the outstanding data, and

the round trip time values, respectively. The time-

sequence graph shows all segments captured on the

server. The graph conﬁrms that retransmissions oc-

cur every minute which is each time the GPRS data

transfer is preempted. This is visible, because the se-

quence number does not increase when a segment is

retransmitted which makes the graph look jagged. If

no data was retransmitted, we would see a straight

line instead. The outstanding data graph shows the

amount of unacknowledged data. Before the trans-

fer is preempted for the ﬁrst time, the outstanding

data reaches the capacity of the receiver window of

64KB, and then, after a few minutes, it stabilizes with

peaks at 16KB. As shown in the RTT values graph,

the round trip time varies between 1 and 4 seconds.

A closer examination of the captured TCP data indi-

cates that, in the typical case for preemption periods

of 3 seconds the transmission is restarted after a pre-

emption period by an acknowledgment that has been

buffered in the GPRS terminal. The NetHawk trace

supports this scenario, since it indicates that the ﬁrst

RLC/MAC event after preemption is a request for an

uplink channel from the client.

5.3 Preemption Periods of 15

Seconds

Figure 3 shows the detailed results for 15 seconds pre-

emption. The results are similar to those for 3 seconds

preemption. Packet losses occur at regular intervals

that coincide with the preemption periods. After the

initial slow start phase the transfer stabilizes and the

outstanding data reaches levels of about 16KB, and

the round trip time peaks at 4 seconds. However, in

contrast to the typical scenario for the shorter preemp-

tion periods, a closer examination of the trace ﬁles

indicate that the ﬁrst event after a 15 seconds preemp-

tion period is a retransmission from the server, not an

acknowledgment from the client. A preemption pe-

riod of 15 seconds is long enough for the GPRS ter-

minal to empty its buffer, and therefore there are no

buffered acknowledgments to transmit after the pre-

emption period. The ﬁrst RLC/MAC event captured

in the NetHawk trace after the preemption period is a

request for a downlink channel from the server side.

THE IMPACT OF PREEMPTIVE PRIORITY IN GPRS ON TCP PERFORMANCE: A MEASUREMENT STUDY

433

(a) Time sequence graph

(b) Outstanding data

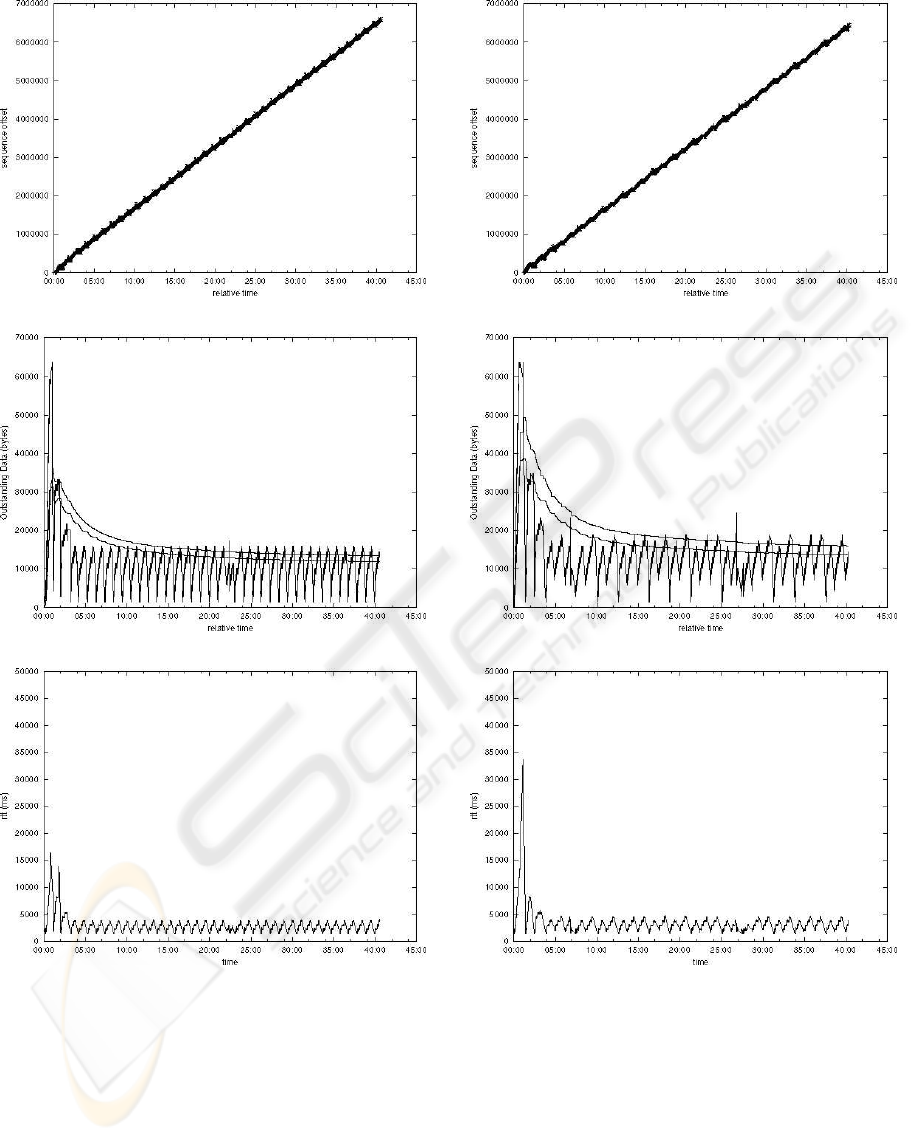

Figure 2: Preemption periods of 3 seconds

5.4 Loss of Buffered Data

Only data buffered in the BSC is lost due to preemp-

tion, which is clearly illustrated in Figure 4. The de-

tailed time-sequence graph, taken from a client trace,

shows the ﬁrst preemption period of 3 seconds. Trans-

mitted segments are represented by diamonds, the ad-

(a) Time sequence graph

(b) Outstanding data

Figure 3: Preemption periods of 15 seconds

vertised receiver window by the upper stair shaped

line, and cumulative acknowledgments by the stair

shaped line below the segments. Selective acknowl-

edgments are marked with an S and out of order seg-

ments with an O. As seen in the ﬁgure, after 41 sec-

onds, there is a gap in the sequence of incoming seg-

ments. The missing segments are discarded from the

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

434

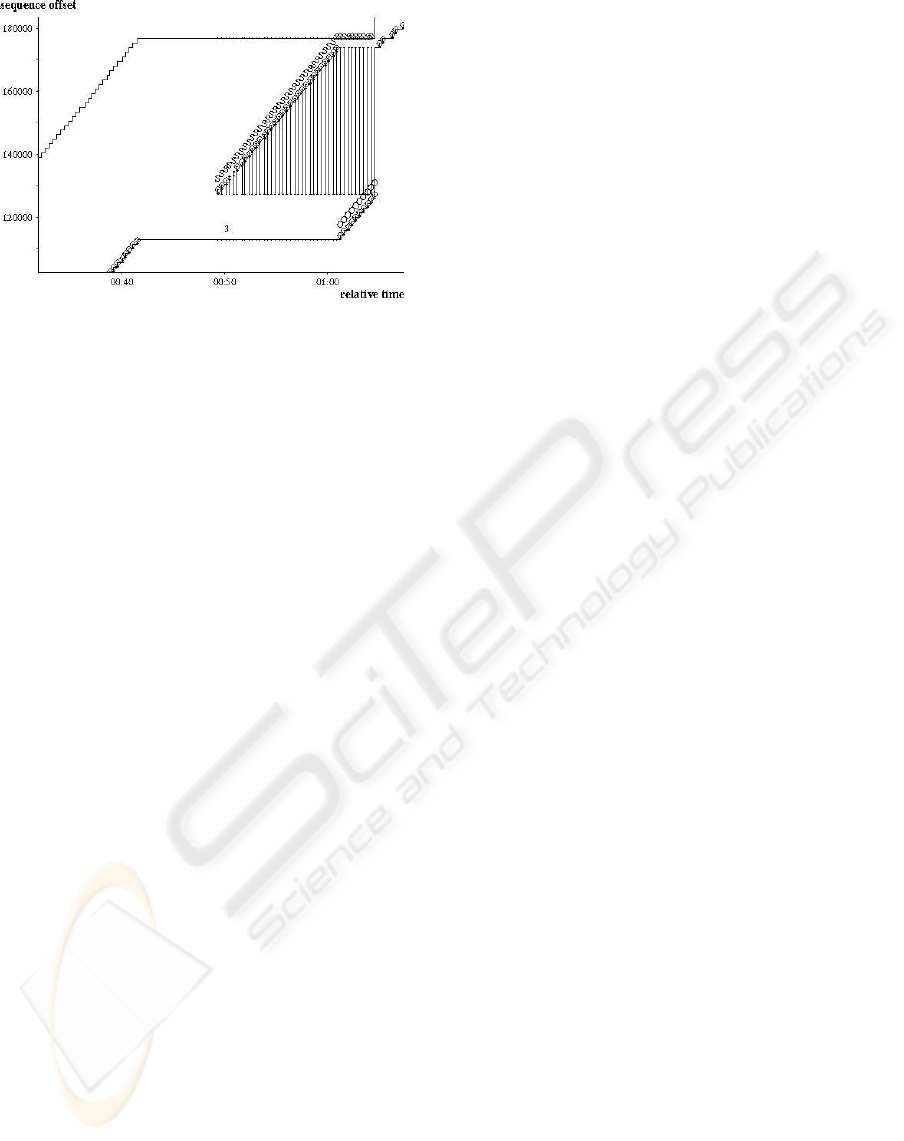

Figure 4: The ﬁrst preemption period of 3 seconds

BSC buffer when the transfer is preempted. The seg-

ments received after the gap are buffered in the SGSN

until the transfer is resumed after the preemption pe-

riod. In this case, even though a large amount of data

is buffered in the SGSN, the transfer is not restarted

until the client transmits a buffered acknowledgment.

The NetHawk trace indicates that the client requests

an uplink channel after the preemption period.

5.5 TCP Error Recovery

A comparison of the results indicates that TCP perfor-

mance is similar for the tested preemption periods. It

takes 15 to 20 seconds for TCP to recover all the lost

data, even for preemption periods of 3 and 6 seconds.

The reason is that TCP uses different algorithms for

congestion control when recovering from the losses.

Preemption periods of 15 seconds result in slow start

in most cases. After the shorter preemption periods,

on the other hand, fast retransmit and fast recovery are

used instead. Almost ten consecutive segments are

lost each time preemption occurs for all settings tested

(3, 6 and 15 seconds). Slow start leads to quicker re-

covery in this case which compensates for the longer

preemption periods. Note that this is not an indica-

tion that performance in general is independent of the

length of the preemption period. Even longer preemp-

tion periods than 15 seconds would of course lead to

worse performance.

6 DISCUSSION

In the measurements the BSC discards buffered data

immediately as the GPRS transfer is preempted, and

then new data is required in order to start the GPRS

transfer again after the preemption period. Since sev-

eral TCP segments get lost when the BSC buffer is

ﬂushed it takes a substantial amount of time to re-

cover even for short preemption periods. This prob-

lem could potentially be avoided by applying a time-

out period before ﬂushing data from the BSC buffer

when the GPRS resources are preempted. Another

alternative would be to leave the data in the buffer un-

til resources become available again. Data buffered in

the SGSN buffer should also be immediately transmit-

ted when resources for GPRS become available again.

The TCP implementation in Linux 2.4 has many

new features which have not been widely deployed

yet. Measurements for other TCP implementations

with less advanced congestion control would proba-

bly yield slightly different results. However, the main

problem that a whole window of data is lost would

still remain and lead to performance degradation.

A GPRS measurement testbed that combines the

use of real network equipment and protocol imple-

mentations with a precise control over radio channel

conditions is used for the experiments. Unlike simu-

lations and live measurements, the testbed supports

TCP performance measurements over a real GPRS

network, yet it provides a repeatable environment in

which a wide range of parameter settings can be ex-

plored. At the same time, we must be aware that

the presented results are not directly applicable for all

GPRS systems. The GPRS speciﬁcations do not al-

ways put strict requirements on buffering, which im-

plies that the handling of buffering is partly system

dependent. A testbed with a different hardware and

software conﬁguration may therefore produce differ-

ent results. Still, we feel that real measurements in

a controllable environment are invaluable for the un-

derstanding and enhancement of TCP performance in

the GPRS system.

7 CONCLUSIONS AND FUTURE

WORK

In this paper we present measurements of TCP over

GPRS when GPRS trafﬁc is preempted by circuit-

switched calls with higher priority. In this situation

data that is buffered in the BSC is immediately dis-

carded when the GPRS resources are lost. New data,

either in the form of a retransmitted segment or in the

form of an acknowledgment buffered in the GPRS ter-

minal, is needed to start up the transfer again after

the preemption period ends. Since several TCP seg-

ments get lost when the BSC buffer is ﬂushed it takes

a substantial amount of time to recover even for short

preemption periods. The TCP performance could po-

tentially be improved if the BSC waited for a short

time before it ﬂushes its buffer, and if data buffered in

the SGSN was transmitted as soon as GPRS resources

became available again after a preemption period.

THE IMPACT OF PREEMPTIVE PRIORITY IN GPRS ON TCP PERFORMANCE: A MEASUREMENT STUDY

435

Our plans for future work include further experi-

ments on the impact of GPRS buffering and how it

affects various application models. Measurements of

mobility would allow for interesting comparison with

the results from the preemption measurements.

ACKNOWLEDGMENTS

The authors would like to thank Bojne Svensson and

Jonas Eriksson at Telia Mobile AB. This work has

been partly funded by the Swedish graduate school

PCC++ and the research program CMIT.

REFERENCES

Allman, M., Paxson, V., and Stevens, W. (1999). Rfc

2581:tcp congestion control.

Bettstetter, C., Vgel, H.-J., and Eberspcher, J. (1999). Gsm

phase 2+ general packet radio service gprs: Architec-

ture, protocols, and air interface. IEEE Communica-

tion Surveys, 2(3).

Chakravorty, R., Cartwright, J., and Pratt, I. (2002). Prac-

tical experience with tcp over gprs. In In Proceed-

ings of IEEE Global Telecommunications Conference

(GLOBECOM ’02), pages 1678–1682, Taipei,Taiwan.

Chen, W.-Y., Wu, J.-L. C., and Liu, H.-H. (2002). Per-

formance analysis of radio resource allocation in

gsm/gprs networks. In In Proceedings of IEEE Ve-

hicular Technology Conference (VTC-02 Fall), pages

1461–1465, Vancouver, Canada.

Ethereal (2004). A network protocol analyzer. Retrieved

April 26, 2004, from http://www.ethereal.com/.

GSM03.60 (2000). Digital cellular telecommunications

system (phase 2+). General Packet Radio Ser-

vice(GPRS), Service description, Stage 2 (GSM 03.60

version 6.7.0 Release 1997).

GSM04.60 (2000). Digital cellular telecommunications

system (phase 2+). General Packet Radio Service

(GPRS), Mobile Station (MS) - Base Station System

(BSS) interface; Radio Link Control/Medium Access

Control (RLC/MAC) protocol (GSM 04.60 version

6.9.0 Release 1997).

GSM08.18 (2000). Digital cellular telecommunications

system (phase 2+). General Packet Radio Service

(GPRS), Base Station System (BSS) - Serving GPRS

Support Node (SGSN); BSS GPRS Protocol (BSSGP)

(GSM 08.18 version 6.7.1 Release 1997).

Gurtov, A., Passoja, M., Aalto, O., and Raitola, M. (2002).

Multi-layer protocol tracing in a gprs network. In

In Proceedings of IEEE Vehicular Technology Con-

ference (VTC-02 Fall), pages 1612–1616, Vancouver,

Canada.

Inamura, H., Montenegro, G., Ludwig, R., Gurtov, A., and

Khaﬁzov, F. (2003). Rfc 3481: Tcp over second (2.5g)

and third (3g) generation wireless networks.

Jacobson, V., Braden, R., and Borman, D. (1992). Rfc 1323:

Tcp extensions for high performance.

Mathis, M., Mahdavi, J., Floyd, S., and Romanow, A.

(1996). Rfc 2018: Tcp selective acknowledgment op-

tions.

NetHawk (2004). Nethawk gsm analyser. Retrieved April

26, 2004, from http://www.nethawk.ﬁ/.

Ostermann, S. (2004). Tcptrace. Retrieved April 26, 2004,

from http://www.tcptrace.org/.

Postel, J. (1981). Rfc 793: Transmission control protocol.

Sagfors, M., Ludwig, R., Meyer, M., and Peisa, J. (2003).

Queue management for tcp trafﬁc over 3g links. In In

Proceedings of IEEE Wireless Communications and

Networking Conference (WCNC ’03), pages 1663–

1668, New Orleans, Louisiana, USA.

Sarolahti, P. and Kuznetsov, A. (2002). Congestion control

in linux tcp. In In USENIX Annual Technical Confer-

ence, FREENIX Track, pages 49–62, Monterey, Cali-

fornia, USA.

Taferner, M. and Bonek, E. (2002). Wireless Internet Access

over GSM and UMTS. Springer-Verlag.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

436
