DESIGN OF INTRUSION DETECTION SYSTEM AT USER LEVEL

WITH SYSTEM-CALL INTERPOSING

Toshihiro TABATA and Kouichi SAKURAI

Faculty of Information Science and Electrical Engineering, Kyushu University

6-10-1 Hakozaki, Higashi-ku, Fukuoka 812-8581, Japan

Keywords:

Dynamic Linker, Intrusion detection system, Library function call, ELF

Abstract:

As computers have become widely used, software vulnerability is now one of the most serious security threats.

In particular, viruses and worms that use buffer overﬂow vulnerabilities are serious threats to computers.

Therefore, techniques to detect the execution of malicious code are required when taking measures to prevent

intrusion using such software vulnerabilities. An intrusion detection system is an example of such a defence

mechanism against such attacks. The improvement in both false positive and false negative ratios, together

with reduction of overhead are the problems to be overcome in an intrusion detection system. This paper

presents the design of a user level intrusion detection system. This system can monitor the execution of target

programs at both user and kernel levels. The access control function is divided between user and kernel.

Access rights may also be checked with appropriate timing and with low overhead.

1 INTRODUCTION

Improvement in the performance of computers has

lead to their widespread use. Computers connections

to networks have also increased with widespread use

of the Internet. In addition, with the spread of com-

puters and the Internet the numbers of reports of soft-

ware vulnerabilities increase year by year. In particu-

lar, viruses and worms using buffer overﬂow vulner-

abilities pose serious threats to computers. For ex-

ample, viruses and worms spread rapidly through the

Internet and, as a result, many computers will be se-

riously damaged. Therefore, various defense mecha-

nisms against such malicious programs have been ac-

tively studied.

Most current software possesses potential vulnera-

bilities that are represented by buffer overﬂow vulner-

abilities. For example, much vulnerability has been

found in most of open source software. Therefore, in

order to prevent intrusion using such software vulner-

abilities, techniques that can detect the execution of

malicious code are required.

Intrusion detection systems (IDS) represent an ex-

ample of such techniques. IDS monitor the behavior

of programs and detect malicious behavior such as the

abuse of software vulnerabilities. There are two types

of intrusion detection systems. An anomaly detection

system (Sekar et al., 2001) is based on a database con-

taining knowledge of the normal behavior of the sys-

tem being monitored. However, it is difﬁcult to gen-

erate such knowledge of normal behavior for a sys-

tem. One of the advantages, however, is that system

does not require a database of attack signatures that

must be kept up-to-date. One of the disadvantages is

that the false positive ratio is signiﬁcant. It alarms

on detection of an unusual event. By contrast, a mis-

use detection system is based on the database of pre-

viously known attack signatures. One advantage is

that the alarms contain diagnostic information about

the cause. One of the disadvantages is that system

cannot detect new attacks that are not contained in

the database. In intrusion detection systems, the im-

provement in both false positive and false negative ra-

tios, together with reduction of overhead, is the prob-

lems. As a consequence, monitoring the execution of

the target program with appropriate timing and the re-

duction in veriﬁcation time both are required to solve

such problems.

Curry (Curry, 1994) developed a set of tools named

Shared Library Interposer (SLI) that works for dy-

namic libraries. SLI has the loader resolve addresses

as a wrapper of the library function. After an address

resolution, SLI calls the real library function. One

of the advantages is that an accurate trace of call se-

263

Tabata T. and Sakurai K. (2004).

DESIGN OF INTRUSION DETECTION SYSTEM AT USER LEVEL WITH SYSTEM-CALL INTERPOSING.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 263-268

DOI: 10.5220/0001397602630268

 SciTePress

Figure 1: Interposed library.

quences can be logged.

Kuperman et al. (Kuperman and Spafford, 1998)

applied Curry’s technique to IDS for detecting buffer

overﬂow. Figure 1 shows a sequence when a library

call is encountered. The IDS acquires audit data at

user level using an interposed library. Every library

function is thus intercepted. The interposed library

can acquire audit data at the user level without need-

ing to modify either application or system libraries.

The authors show the cost of audit on their approach

is low, and report that this approach is suitable for

buffer overﬂow detection.

However, in their system there are two problems.

The ﬁrst problem is that malicious attackers can easily

bypass the interposed library, because only the library

function is checked. If the attacker calls any system-

call directly, the system-call will not be checked by

their system. The secondly, every library function is

checked every time. As a result, the interposed library

adds an overhead to every library function.

This paper discusses an intrusion detection system

with interposed system-calls and a user level access

control mechanism using a dynamic linker. This in-

trusion detection system resolves the ﬁrst problem de-

scribed above. The system is based on the access con-

trol mechanism at the user level. It operates in con-

junction with the interposing of system-calls. As a re-

sult, our intrusion detection system can detect system-

calls that bypass the library interposition.

The proposed access control mechanism can re-

solve the second problem described above. The

mechanism monitors the execution of target programs

at appropriate timing using dynamic linker. Dynamic

linking is employed, such that a program and a partic-

ular library referenced by the program are not com-

bined together by the linker at link-time. In the pro-

posed mechanism, a dynamic linker resolves a refer-

ence to call the access control module. The module

runs at the user level and decides to grant or deny the

library function after the check of access rights. If the

module denies the access, the library function is not

called. In addition, the checkpoint of library functions

can be selected arbitrarily. Important library functions

that call system-calls, can be controlled by the mech-

anism with a little overhead. The reference of non-

important routines that do not call system-calls such

as math functions, are resolved to call the module. As

a result, the library functions are called directly with-

out overhead. Generally, library functions that cause

security problems invoke system-calls. Therefore, it

is believed that this approach is reasonable.

2 RELATED WORK

IDS are an example of a defense mechanism against

attacks that abuse software vulnerabilities (Wagner

and Dean, 2001) (Hofmeyr et al., 1998) (Wagner and

Soto, 2002). IDS observe program execution and

detect malicious behavior of the program. As men-

tioned previously, because an anomaly detection sys-

tem is based on a normal behavior database, the dis-

advantages is that the false positive ratio is signiﬁcant.

Therefore, main issue of intrusion detection systems

is reduction of overhead and false positive and false

negative ratios.

Sekar et al. (Sekar et al., 2001) reported an over-

head due to the execution of learning and/or detection

code of between 3% and 4%. Sekar et al. also re-

ported that the overhead due to system-call interposi-

tion is between 100% and 250%. In addition, Ooyama

et al. (Oyama et al., 2003) reported that the run-time

of httpd increased 47%. These IDS are based on the

kernel. By contrast, the IDS proposed in this paper is

based on both the user and the kernel. Kuperman et

al. reports that the overhead is between 3.2%. Thus,

IDS based on user level possess overhead advantages.

However, Kuperman reports the overhead of 57.2% in

the worst case.

Jain et al. (Jain and Sekar, 2000) presented an ap-

proach to developing a user-level infrastructure for

system-call interception and extension. This approach

requires a process switch to intercept system-calls. As

a result, there is a high overhead. The mechanism

proposed here does not involve process switching to

intercept library functions and system-calls.

3 REQUIREMENT OF

INTRUSION DETECTION

SYSTEM

3.1 Problem

Most of the existing kernel based IDS detect intrusion

using history of system-call sequence. In the IDS, the

false positive ratio is a crucial problem. The reduction

in the false positive ratio facilitates their introduction

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

264

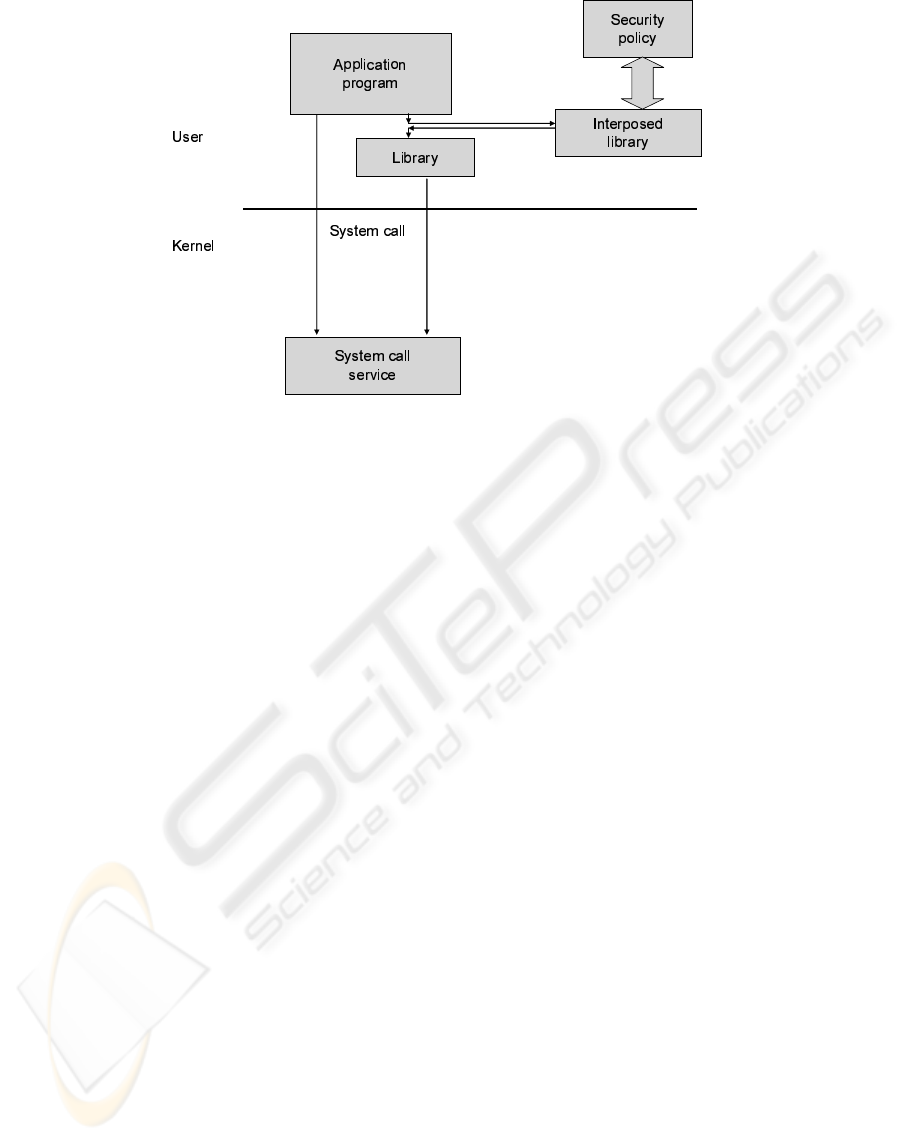

Figure 2: An intrusion detection system based on Curry’s approach.

and maintenance. Ooyama et al. (Oyama et al., 2003)

presented a mechanism to analyze functions for the

reduction in the false positive ratio in the kernel. It

achieves the capture of the behavior of the program in

detail. However, the cost of analysis of the behavior

is not sufﬁciently low to allow detection in real-time.

The reason is as follows. The mechanism searches the

stack recursively when a system-call is called. This

adds to the cost penalty of the search. In other words,

the reason for the time penalty is the need to search

the stack to analyze the sequence of library functions.

3.2 Requirement

It is proposed that low overhead detection and ﬁne ac-

cess control are required for intrusion detection sys-

tems and access control mechanisms.

Low overhead is necessary for real-time detection

and real-time access control. Fine access control im-

plies that detailed information of program behavior is

effective in intrusion detection systems or other ac-

cess control systems.

4 PROPOSED INTRUSION

DETECTION SYSTEM

4.1 Overview

It is proposed that the inspection of library functions

is effective and convenient, because functions calls

are too small to audit and system-calls are too large

to audit appropriately. As mentioned above, existing

kernel based systems search a stack to detect library

functions recursively. These systems involve searches

of all functions and result in an increase in audit cost.

These systems also audit library functions in non-real-

time, because the searches are delayed until a system-

call is made. Therefore, an access control mechanism

at the user level is required to audit library functions

in real-time.

An access control mechanism at user level is pro-

posed using a dynamic linker. The dynamic linker re-

solves a reference at user level when a function is ﬁrst

called. The proposed mechanism uses the resolution

of reference. It can decide whether it should interpose

into the library function. In the proposed mechanism,

the access control module is called before a routine is

called. This module can decide whether to grant or

deny the routine call.

As mentioned previously, Curry’s approach uses li-

brary interposition. Figure 2 shows an intrusion de-

tection system based on Curry’s approach. In this

paper, an intrusion detection system at user level

is also proposed to be combined with interposition

of system-calls. The system is based on an access

control mechanism using dynamic linker which co-

operates with a system-call access control mechanism

that exists in the kernel. This approach also uses a dy-

namic linker run-time program. The system prevents

an attacker from bypassing library interposition. Fig-

ure 3 shows the proposed intrusion detection system.

DESIGN OF INTRUSION DETECTION SYSTEM AT USER LEVEL WITH SYSTEM-CALL INTERPOSING

265

Figure 3: Overview of the proposed intrusion detection system.

4.2 Processing of Dynamic Linker on

Program Execution

There follows a brief description of dynamic linker.

Most current operating systems support Executable

and Linking Format (ELF) (Levine, 2000) as the ob-

ject ﬁle format and dynamic linking to delay the pro-

cessing of linking by program execution. In operating

systems supporting dynamic linking, most of refer-

ences are not resolved before programs start. When

unresolved references are referred, the dynamic linker

places information into the executable that informs

the loader of the code for shared object module. In

contrast, a run-time linker ﬁnds and binds the refer-

ences at run-time before the program starts.

ELF is supported in current UNIX and Linux as

an object ﬁle format. In program execution environ-

ments that support ELF and dynamic linking, a run-

time linker is called to resolve undeﬁned references,

when a library function is ﬁrst called. After the reso-

lution, the run-time linker is not called, and the func-

tion is called directly.

4.3 Address Resolution

In this subsection, the processing of address resolu-

tion is described. Figure 4 shows address resolution in

general operating systems. In general, operating sys-

tem such as Linux, the run-time dynamic linker pro-

gram is called when a library function is ﬁrst called.

The run-time program ﬁnds the symbol of the library

function and stores the address of the symbol into

Global Offset Table (GOT) entry that corresponds to

the Procedure Linkage Table (PLT) entry. After the

address resolution, the library function is called di-

Figure 4: Address resolution in general operating systems.

rectly without executing the dynamic linker run-time

program.

Figure 5 shows the processing of the proposed ad-

dress resolution. In the ﬁrst address resolution, the

run-time program of dynamic linker is called in the

same way. Next, the run-time program ﬁnds the sym-

bol of the library function and stores the address of ac-

cess control module into GOT entry that corresponds

to the PLT entry. Then the run-time program stores

the address of the symbol into local table in the dy-

namic linker. After the address resolution, the ac-

cess control module is called before the library func-

tion is called. This module can gather the informa-

tion of the library function call and decide whether to

grant or deny the library function call. The module

calls library function, when the library function call

is granted.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

266

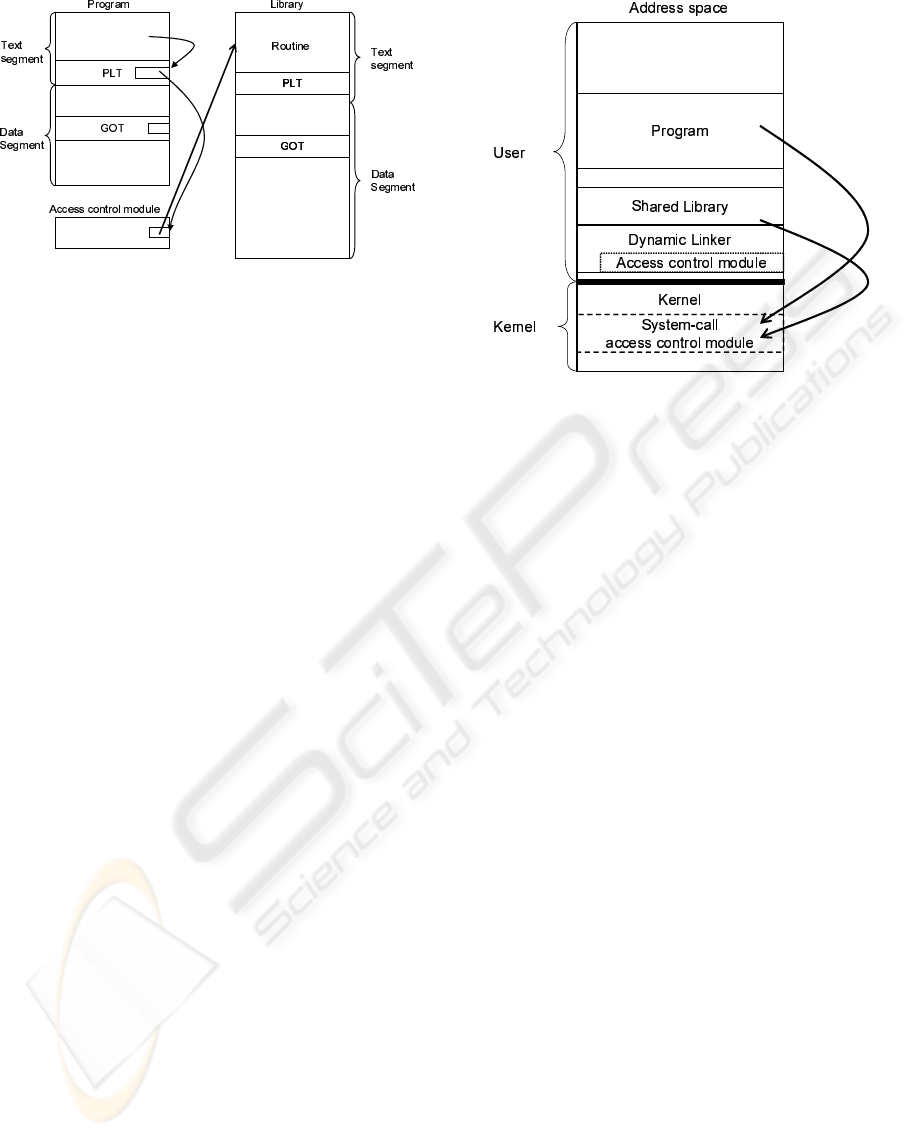

Figure 5: The proposed address resolution.

4.4 Selection of Address Resolution

Access control involves some overhead. Thus, it is

desirable that the overhead of access control is kept

to a minimum. Curry’s approach interposes every li-

brary function call. Here, selectable interposition is

presented, using dynamic linker.

The operating systems provide many functions as

system-calls. Thus, system-calls can have an effect

on the security of computer systems. On the other

hand, not every library function executes system-

call. It is important to control library functions in-

volving the execution of a system-call. The library

functions involving the execution of system-call are

named important library routines in ﬁgure 3. Non-

important library functions do not involve the execu-

tion of system-calls.

When an important library function is called ﬁrst,

the address is resolved. When a non-important library

is called ﬁrst, the address is resolved by a general

approach. The run-time dynamic linker program de-

cides whether use the proposed technique or a general

approach. In the proposal, there is no overhead when

non-important routine is called after the address reso-

lution. Therefore, this proposal is able to reduce the

overhead of access control.

4.5 Access Control Module

The access control module exists within the dynamic

linker. This module is called before the library func-

tion calls and can gather the state of library function

calls. The states consist of the name of the caller rou-

tine, the name of the callee routine and the string of

arguments of the callee routine. In addition, users can

write the rules of access control. The module decides

whether to grant or deny a library function call by fol-

lowing it. Anomaly detection or misuse detection can

both be implemented in the proposed system.

Figure 6: A system-call access control module.

4.6 System-call Access Control

Module

The interposition mechanism at user level can be by-

passed by executing a system-call directly. To prevent

an attacker from bypassing the interposition mecha-

nism at the user level, a system-call access control

function is required in the kernel. Introducing the

interposition mechanism at the user level renders the

implementation of system-call access control module

a simple task.

Recently, most attackers abuse buffer overﬂow vul-

nerabilities. A program that has some vulnerability

can be easily hijacked. Using the buffer overﬂow vul-

nerabilities, the attacker sends a malicious code. The

code may include a direct system-call.

For this reason, Figure 6 describes a system-call

access control module. This module traps the address

of the system-call. If the address is included within

shared library text segment, the module knows that

the system-call request is safe. All of the important

library function calls have already been checked by

the access control module in the dynamic linker. If

the address is included within the stack segment or

heap segment of a program, the request of the system-

call is suspicious. As described above, the system-call

access control module checks the address of the code

executing the system-call. Thus, the overhead due to

execution of the codes of system-call access control

module is small.

DESIGN OF INTRUSION DETECTION SYSTEM AT USER LEVEL WITH SYSTEM-CALL INTERPOSING

267

4.7 Advantage of Proposed

Mechanism

1. Library function calls may be intercepted with low

overhead.

2. User level access control mechanisms are se-

lectable. Audit is only important for library func-

tion calls with low overhead. A non-important li-

brary function is called with no overhead after ad-

dress resolution.

3. An intrusion detection system is combined with

user and kernel modules. Using access control

module at user level simpliﬁes the structure of

system-call access control module at kernel.

5 CONCLUSION

This paper has addressed the design of an intrusion

detection system at the user level with system-call in-

terposition. An access control mechanism has also

been proposed which uses a dynamic linker.

The proposed intrusion detection system uses this

access control mechanism. The overhead of the ac-

cess control process at the user level is low. However,

it can be seen that the access control mechanism at

user level can be easily bypassed. Thus, an intrusion

detection system at user level has been combined with

system-call interposition. As a result, proposed IDS

can prevent attacker from bypassing the interposition

mechanism. Proposed intrusion detection system pos-

sesses both low overhead and ﬁne access control.

The feature of proposed access control mechanism

is selectable interposition using a dynamic linker.

Thus, it can be decided which library function should

be controlled.

ACKNOWLEDGMENT

This research was partly supported by the 21st Cen-

tury COE Program ’Reconstruction of Social Infras-

tructure Related to Information Science and Electrical

Engineering’.

REFERENCES

Curry, T. W. (1994). Proﬁling and tracing dynamic library

usage via interposition. In USENIX Summer 1994

Technical Conference.

Hofmeyr, S. A., Forrest, S., and Somayaji, A. (1998). In-

trusion detection using sequences of system calls. In

Journal of Computer Security, Vol.6, No.3.

Jain, K. and Sekar, R. (2000). User-level infrastructure for

system call interposition: A platform for intrusion de-

tection and conﬁnement. In In ISOC Network and Dis-

tributed System Security.

Kuperman, B. A. and Spafford, E. (1998). Generation of ap-

plication level audit data via library interposition. In

CERIAS TR 99-11, COAST Laboratory, Purdue Uni-

versity, West Lafayette.

Levine, J. (2000). Linkers and Loaders. Morgan Kaufmann.

Oyama, Y., Wei, W., and Kato, K. (2003). Modularizing

normal behavior databases in anomaly detection sys-

tems. In IPSJ Transactions on Advanced Computing

Systems, Vol.44CNo.SIG 10(ACS 2).

Sekar, R., Bendre, M., Bollineni, P., and Dhurjati, D.

(2001). A fast automaton-based method for detecting

anomalous program behaviors. In IEEE Symposium

on Security and Privacy.

Wagner, D. and Dean, D. (2001). Intrusion detection via

static analysis. In Proc. of the 2001 IEEE Symposium

on Security and Privacy.

Wagner, D. and Soto, P. (2002). Mimicry attacks on host

based intrusion detection systems. In Proc. of Ninth

ACM Conference on Computer and Communications

Security.

ICETE 2004 - SECURITY AND RELIABILITY IN INFORMATION SYSTEMS AND NETWORKS

268
