FAST EVENT DETECTION IN MPEG VIDEO

Rui Marcelino, Vitor Silva and Sérgio Faria

School of Technology, University of Algarve, Faro, Portugal

Institute of Telecommunications, DEEC, University of Coimbra, Coimbra, Portugal

School of Technology and Management, Polytechnic Institute of Leiria, Leiria, Portugal

Keywords: MPEG video, video compression, video surveillance, motion detection

Abstract: Many video applications, such as surveillance systems are continuously increasing and the amount of

processed and stored data has risen exponentially

. In order to manage efficiently this video information,

motion detection is necessary. This feature is required to analyze, organize and store compressed video. In

this paper, we present an effective video event detection method, which uses information embedded in the

MPEG-4 bit stream to detect true motion in the scenario, avoiding other features like scene cuts and camera

translation, zooming, pan, tilt and oscillations These events can be detected very fast and with low

computational complexity, as only few parameters of the compressed data are processed. This algorithm

mainly relies on the amount of signal variation of AC coefficients, between co-localized intra coded blocks,

and the amount of motion compensated coded macroblocks within inter coded frames. Our results have

shown that this algorithm can perform not only accurate motion detection, but also identifying false motion

due to camera movements.

1 INTRODUCTION

Video motion detectors for digital compressed

domain interfaces are a key tool in modern

surveillance system architectures (C. S. Regazzoni et

al, 2001). They allow remote sensing over data

networks and the processed data can be easily

recorded and integrated in computer applications,

for helping human operators in supervision tasks.

A typical surveillance scenario may include a

deo camera, or a set of cameras, pointing to a quite

zone, for long periods of time. Thus, most of the

time, the received visual information is useless.

However, when an important image change occurs,

like human intrusion, the operator should be

automatically warned and the recording system must

be triggered. When these cameras are installed in

remote places, video compression is required, prior

to the transmission. At the receiver, the compressed

signal (bit stream) can be either decompressed and

visualized by an operator or stored. Usually it has to

be decompressed down to the pixel domain, either

for human visualization or to be processed for

feature extraction. However, most of the feature

extraction can be performed using parameters

included in the compressed data, without completely

decompressing the video bit stream. This task can be

performed by an efficient and intelligent method

using a motion detector.

Several methods and approaches for motion

detection have been proposed in the literature

(I.

Koprinska et al, 2001). Motion detection can be

performed in pixel domain, or uncompressed

domain, using features extracted from the digital

spatio-temporal video representation, with very

computational demanding techniques (I. Koprinska

et al, 2001), (A. Albiol et al, 2003).

Since we assume the digital video signal is

com

pressed using MPEG-x standards (F. Pereira and

T. Ebrahimi, 2002), the motion detection can be

done using the information embedded in the bit

stream (I. Koprinska et al, 2001), (J. Pons et al,

2002), (B. Yeo and B. Liu, 1995), (S. Pei and Y.

Chou, 1999), (S. Lee et al, 2000). By partially

decoding (parsing) the coded bit stream, one can

find quickly and easily the useful information to

build a motion detector (J. Pons et al, 2002). Such

techniques are designated by compressed domain

solutions.

264

Marcelino R., Silva V. and Faria S. (2004).

FAST EVENT DETECTION IN MPEG VIDEO.

In Proceedings of the First International Conference on E-Business and Telecommunication Networks, pages 264-268

DOI: 10.5220/0001386002640268

 SciTePress

The main purpose of this work is to use, as much

as possible, the embedded information, taking

advantage of the huge amount of analysis work

performed by the MPEG video encoder.

Furthermore, only few parameters have to be

adjusted in the detector, regarding to the class of the

moving object in scene. This class is related to the

dimension of the moving object in scene and to the

distance between the object and the camera. This

image classification will increase the accuracy of the

motion detector.

In the following sections we will describe an

efficient and low complexity scene change detector

algorithm, which is able to detect significant visual

events from a partially decoded MPEG bit stream. In

section 2 we introduce MPEG standard and in

section 3 the proposed algorithm is described. Some

results are shown in section 4 and conclusions are

presented in section 5.

2 MPEG BIT STREAM

INFORMATION

MPEG encoders use a hybrid algorithm to compress

video, by classifying and processing each frame as

intra coded (I frame) or motion compensated inter

coded (P and B) (F. Pereira and T. Ebrahimi, 2002).

Intra frame pictures are encoded only using pixels

within a frame, exploring the spatial redundancy

with 8×8 DCT (Discrete Cosine Transform) blocks

are transformed and DC and AC coefficients are

entropy coded. P frames are encoded using motion

compensated prediction from a past I/P frame, in

order to remove the temporal redundancy. B frames

are encoded using motion compensation prediction

from both past and/or future encoded I/P frames.

Video frames are organized in regular structures

called group of pictures (GOP). Each frame (VOP)

is divided into blocks of 16×16 pixels, called

macroblocks (MB). Furthermore, each macroblock

is divided into six 8×8 pixel blocks. After motion

compensation, the residual image may also be

divided into 8×8 pixel blocks, which are intra coded.

Thus, a macroblock contains information about the

type of temporal prediction used (or not) for motion

compensation, which can be classified as intra

coded, forward referenced, backward referenced,

interpolated or direct. While MBs inside an I frame

are intra coded, each MB in a P frame is either

forward predicted, intra coded or skipped. Similarly,

each MB in a B frame is either forward predicted,

backward predicted, bidirectionally predicted, intra

coded or skipped.

3 COMPRESSED DOMAIN

MOTION DETECTION

In this section, we explain how motion detection is

performed without fully decoding the bit stream.

The proposed method mainly relies on the analysis

of AC coefficient’s signal of I frames (section 3.1)

and on the motion vector information of P and B

coded frames (section 3.2). The main objective is to

detect only motion related to the moving objects in

the scene, eliminating camera switching (scene cuts)

and some typical camera movements, which occurs

in video surveillance scenes.

3.1 Motion detection

In most surveillance applications, systems acquire

and store images continuously, then a huge amount

of information is required to be stored. In this case a

high compression ratio is desirable. It is also

common, that for long periods of time there are no

motions in the scene. Thus, VOPs of type I can be

sparser, which increases significantly the

compression ratio. In this sense, we propose a

hierarchical algorithm that processes the compressed

video information in two stages.

At the first stage, only I VOPs are analyzed, in

order to check the signal variations between AC

coefficients of two co-localized blocks in

consecutive I VOPs. In order to speed up the

process only a small set of significant coefficients

are checked, and blocks with a number of

coefficients with signal variation larger than 5 is

used. When a number of blocks in this condition

exceed a certain threshold, the image is regarded as

containing a moving object. This threshold is

obtained regarding the average and the variance of

the number of blocks containing more than 5 signal

variations. We also have to deal with homogeneous

surfaces and illumination changes, which tend to be

detected as motion. When a VOP of type I is

detected with moving objects, the algorithm moves

to the second stage for a motion detection

refinement.

At the second stage, motion vectors of P and B

VOPs are analyzed, in order to check the amount of

motion vectors (MV) used to encode each inter

frame. If the number of non-zero MVs exceeds a

threshold given for that class (section 3.3) of

surveillance scene, then the VOP is regarded to

contain a moving object.

After this step, it may happen that some motion

detections are false, due to camera switching (scene

cuts) or camera motions. These false motion

FAST EVENT DETECTION IN MPEG VIDEO

265

detection events have to be eliminated, in order to

increase the algorithm efficiency. Thus, a scene cut

detection method is used (A. Hanjalicl, 2002), (J.

Calic and E. Izquierdo, 2002), (Y. Haoran et al,

2003) and the camera motion is detected (R. Wang

and T. Huang, 1999), as explained in section 3.2.

Finally, a report is generated and objects in a

moving scene are decoded for visualization.

3.2 Camera motion

Camera movements like: pan, tilt, zoom, shaking

and vibration, caused by wind in outdoor

environments, are sources of false positives motion

detections. In order to remove such false positives,

we have incorporated in our method a camera

motion estimation module.

The camera motion, mentioned above, is well

characterized in a frame analysis, by a large number

of forward predicted MB and near homogeneous

vector fields.

Figure 1: Motion vectors field for a zoom-in and zoom-out

movement (static background MBs are dark colored)

In Figure 1, the CIF “Telex” sequence represents

a zoom-in (left image) and zoom-out (right image)

camera motion focusing a Telex equipment. This

type of motion generates a large amount of motion

vectors, which can be divided in various sub-sets of

vectors with radial direction. When the image

texture is not homogeneous, a large number of MBs

are encoded with motion vectors, whose intensity

depends on the camera motion. Otherwise, when

there are homogeneous texture the number of

motion compensated (MC) coded MB is reduced, as

can be seen in figure 2, where static background

MBs are dark colored.

Figure 2: Motion vector’s field for a camera oscillation

Using VOPs 216 and 219 of the CIF video

sequence called “Room121”, we have tested the

algorithm for detection of false motion when camera

oscillation occurs. In the left image of Figure 2, we

have a zoom-in and in the right image a zoom-out.

From the analysis of the motion vector’s direction,

the MVs inversion in the direction can be detected

between both images.

100

200

300

400

500

111

VOP Nº

Nº of MB with 0MV

Figure 3: Oscillation detection

Additionally in Figure 3, we show the huge

reduction in the amount of MBs with null MVs,

when a camera motion occurs. For example the

oscillation in VOP 219 can be clearly detected.

3.3 Scene classification

The scene classification is an important issue, as it is

directly related to the motion detection. This task

must be performed by an operator, regarding the

surveillance camera system, namely, distance from

the scene, zoom lens and target object’s size. Thus,

we have divided the surveillance scenes in three

classes: A, B and C. These classes have a direct

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

266

correspondence to the number of expected blocks or

macroblocks with non-zero motion vectors, within a

VOP. The chosen threshold directly determines the

detection performance. Due to such direct mutual

dependence, the detection performance is highly

sensitive to specified parameter values. Beside the

threshold sensitivity, the problem of specifying such

a precise value remains and, consequently, the scope

of the validity of such an accurate threshold is

highly questionable. Clearly, manual threshold

specification cannot be avoided in practical

implementations. Thus, there must have an

installation and set-up phase where the sensitivity of

the motion sensor must be adjusted. However, the

influence of these parameters on the detection

performance can be diminished and the detection

can be made more robust if we use lower threshold

levels. In fact, it is preferable a false alarm rather

than a missed alarm.

4 EXPERIMENTAL RESULTS

In this section, we evaluate our motion detector for

video surveillance systems. We have performed a

set of experiments using videos obtained from

surveillance systems installed in the campus, which

have been encoded in MPEG-4 format with CIF

spatial resolution.

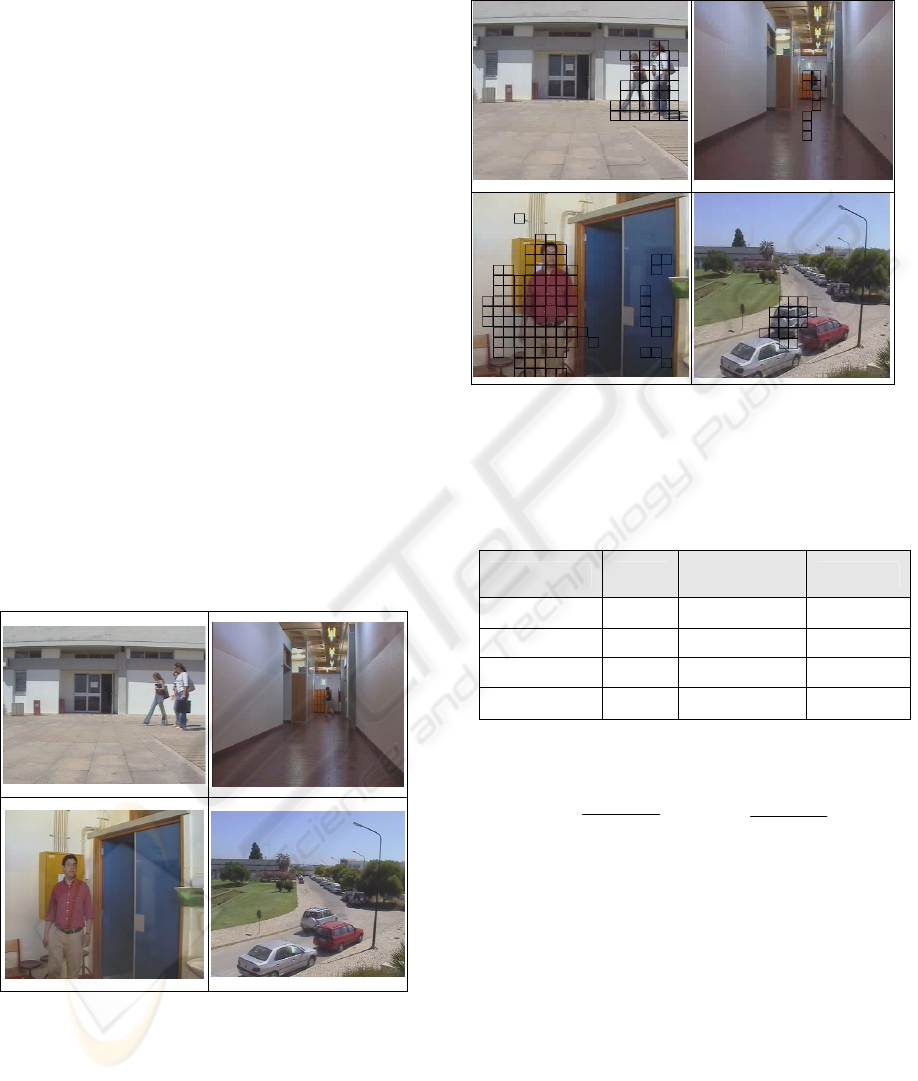

Figure 4: Test sequences: Pupils, Hall, Door125 and Park,

in this order

The length of these videos is between 241

(Pupils) and 846 (Park) frames long. The original

sequences are illustrated in figure 4 as Pupils, Hall,

Door125 and Park, were carefully obtained in order

to include many effects, covering the largest number

of different situations. The experimental results

demonstrate the efficiency of the proposed motion

detection algorithm.

Figure 5: Encoded MBs referenced as black squares

Figure 5 gives an example of motion detection

results in various sequences scenes. No filter is used

and some MBs have been coded due to noise and

object’s shadow.

Table 1: Precision and recall results

The performance is given in terms of precision

and recall parameters (U. Gargi et al, 2000),

precision

recall

, (1)

where N

is the number of correct motion

detections, N

is the number of incorrect motion

detections and N

is the number of missed motion

detections.

These results from our experiments presented in

table 1, illustrate precision and recall values very

close to 100% and 90%, respectively, for most

sequences. Although rates of true and missed

detections are not precisely the same for all

sequences, there are no outliers in the performance.

We can say that the performance of this detector

remains relatively consistent over all sequences.

Those values of Park sequence are related to the

appearance in scene of moving objects of distinct

classes. These are cars in the natural plane of the

Sequence Length

Precision

(%)

Recall (%)

Pupils 241 100 90

Hall 308 100 87

Door125 392 97 92

Park 846 79 65

FAST EVENT DETECTION IN MPEG VIDEO

267

scene and other cars parking at a long distance from

the camera, almost indistinguishable points in the

scene.

5 CONCLUSIONS

In this paper we propose an efficient and low

complexity unsupervised hierarchical motion

detection algorithm for surveillance systems, and

showed its performance using MPEG-4 video

compression data. The key idea of this motion

detector is to analyze the motion vector information,

embedded in the compressed data and decide if they

represent object’s motion in the scene.

In case it does not represent true motion in the

scene, motion vectors data is analyzed to determine

the meaning of the false motion detection. Various

techniques have been implemented to detect: scene

cuts, zoom, camera translation and camera

oscillation. These methods strongly reduce the

incorrect motion detection rate.

REFERENCES

C. S. Regazzoni, V. Ramesh and G. L. Foresti (Eds.),

“Special Issue on Video Communications, Processing

and Understanding for Third Generation Surveillance

Systems”, Proceedings of IEEE, vol. 89, nº. 10,

October 2001.

I. Koprinska and S. Carrato, “Temporal Video

Segmentation: A Survey”, Signal Processing: Image

Communication, vol. 16, pp. 477-500, 2001.

A. Albiol, C. Sandoval, A. Albiol, V. Naranjo and J. M.

Mossi, “Robust Motion Detector for Video

Surveillance Applications”, in Proc. IEEE ICIP 2003,

September 2003.

F. Pereira and T. Ebrahimi (Eds.), The MPEG-4 Book,

Prentice Hall PTR, 2002.

J. Pons, J. P. Nebot, A. Albiol and J. Molina, “Fast Motion

Detection in Compressed Domain for Video

Surveillance”, Electronics Letters, vol. 38, nº. 9, pp.

409-411, April 2002.

B. Yeo and B. Liu, “Rapid Scene Analysis on Compressed

Video”, IEEE Trans. on Circuits and Systems for

Video Technology, vol. 5, nº. 6, pp. 533-544,

December 1995.

S. Pei and Y. Chou, “Efficient MPEG Compressed Video

Analysis Using Macroblock Type Information”, IEEE

Trans. on Multimedia, vol. 1, nº. 4, pp. 321-333, Dec.

1999.

S. Lee,Y. Kim and S.Choi,“Fast Scene Detection using

Direct Feature Extraction from MPEG Compressed

Videos”, IEEE Trans. on Multimedia, vol. 2, nº. 4, pp.

240-254, Dec. 2000.

A. Hanjalic, “Shot Boundary Detection: Unraveled and

Resolved?”, IEEE Trans. on Circuits and Systems for

Video Technology, vol. 12, nº. 2, pp. 90-105, February

2002.

J. Calic and E. Izquierdo, “Temporal Segmentation of

MPEG Video Streams”, EURASIP Journal on Applied

Signal Processing, nº. 6, pp. 561-565, 2002.

Y. Haoran, D. Rajan and C. L. Tien, “A Unified Approach

to Detection of Shot Boundaries and Subshots in

Compressed Video”, in Proc. IEEE ICIP 2003, Sep.

2003.

R. Wang and T. Huang, “Fast Camera Motion Analysis in

MPEG Domain”, in Proc. IEEE ICIP 1999, vol. 3, pp.

691-694, October 1999.

U. Gargi, R. Kasturi and S. Strayer, “Performance

Characterization of Video Shot Change Detection

Methods”, IEEE Trans. on Circuits and Systems for

Video Technology, vol. 10, nº. 1, pp. 1-13, February

2000.

ICETE 2004 - WIRELESS COMMUNICATION SYSTEMS AND NETWORKS

268
