Restoring Eye Contact to the Virtual Classroom with Machine Learning

Ross Greer

1 a

and Shlomo Dubnov

2 b

Department of Electrical & Computer Engineering, University of California, San Diego, U.S.A.

Department of Music, University of California, San Diego, U.S.A.

Keywords:

Gaze Estimation, Convolutional Neural Networks, Human-Computer Interaction, Distance Learning, Music

Education, Telematic Performance.

Abstract:

Nonverbal communication, in particular eye contact, is a critical element of the music classroom, shown to

keep students on task, coordinate musical ﬂow, and communicate improvisational ideas. Unfortunately, this

nonverbal aspect to performance and pedagogy is lost in the virtual classroom. In this paper, we propose a

machine learning system which uses single instance, single camera image frames as input to estimate the gaze

target of a user seated in front of their computer, augmenting the user’s video feed with a display of the esti-

mated gaze target and thereby restoring nonverbal communication of directed gaze. The proposed estimation

system consists of modular machine learning blocks, leading to a target-oriented (rather than coordinate-

oriented) gaze prediction. We instantiate one such example of the complete system to run a pilot study in a

virtual music classroom over Zoom software. Inference time and accuracy meet benchmarks for videocon-

ferencing applications, and quantitative and qualitative results of pilot experiments include improved success

of cue interpretation and student-reported formation of collaborative, communicative relationships between

conductor and musician.

1 INTRODUCTION

Teaching music in virtual classrooms for distance

learning presents a variety of challenges, the most

readily apparent being the difﬁculty of high rate tech-

nical synchronization of high quality audio and video

to facilitate interactions between teachers and peers

(Barat

e et al., 2020). Yet, often left out of this dis-

cussion is the richness of nonverbal communication

that is lost over teleconferencing software, an element

which is crucial to musical environments. Conductors

provide physical cues, gestures, and facial expres-

sions, all of which are directed by means of eye con-

tact; string players receive eye contact and in response

make use of peripheral and directed vision to antici-

pate, communicate, and synchronize bow placement;

wind and brass instrumentalists, as well as singers, re-

ceive conducted cues to coordinate breathe and artic-

ulation. While the problem of technical synchroniza-

tion is constrained by the provisions of internet ser-

vice providers and processing speeds of conferencing

software servers and clients, the deprivation of non-

verbal communication for semantic synchronization,

https://orcid.org/0000-0001-8595-0379

https://orcid.org/0000-0003-0222-1125

that is, coordination of musicians within the ﬂow of

ensemble performance, can be addressed modularly

to restore some pedagogical and musical techniques

to distance learning environments.

This problem is not limited to the musical class-

room; computer applications which beneﬁt from un-

derstanding human attention, such as teleconferenc-

ing, advertising, and driver-assistance systems, seek

to answer the question ‘Where is this person look-

ing?’ (Frischen et al., 2007). Eye contact is a power-

ful non-verbal communication tool that is lost in video

calls, because a user cannot simultaneously meet the

eyes of another user as well as their own camera,

nor can a participant ascertain if they are the target

of a speaker’s gaze. Having the ability to perceive

and communicate intended gaze restores a powerful,

informative communication channel to inter-personal

interactions during live distance learning.

The general problem of third-person gaze estima-

tion is complex, as models must account for a contin-

uous variety of human pose and relative camera posi-

tion. Personal computing applications provide a help-

ful constraint: the user is typically seated or stand-

ing at a position and orientation which stays approxi-

mately constant relative to the computer’s camera dur-

698

Greer, R. and Dubnov, S.

Restoring Eye Contact to the Virtual Classroom with Machine Learning.

DOI: 10.5220/0010539806980708

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 1, pages 698-708

ISBN: 978-989-758-502-9

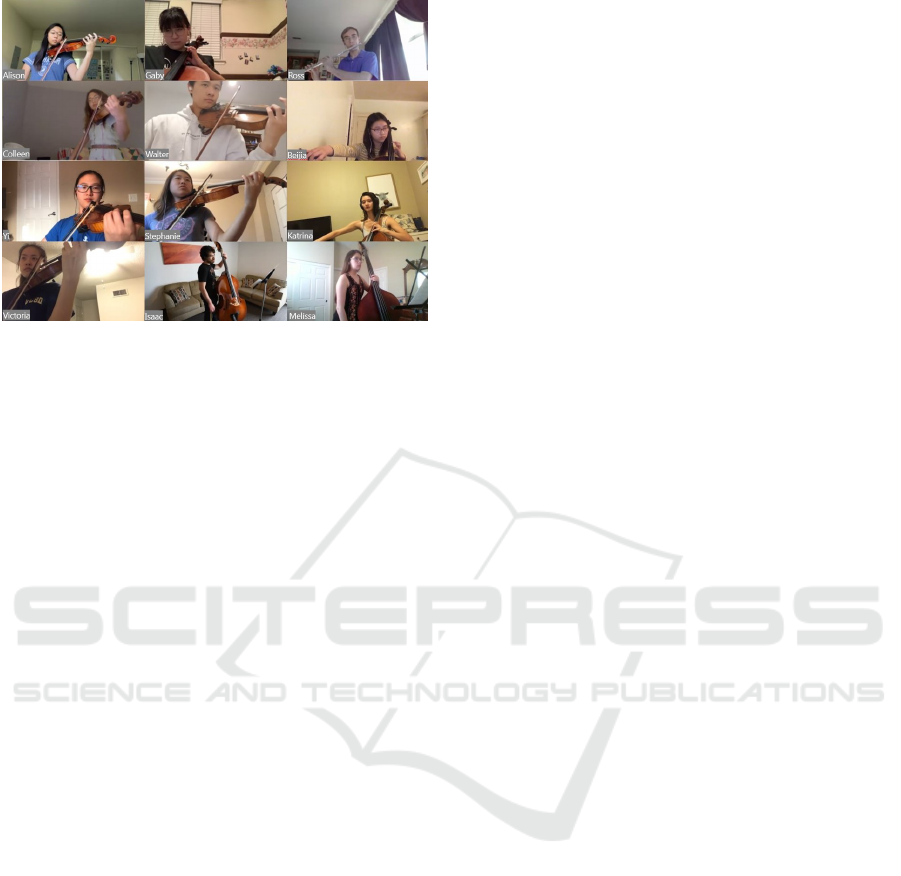

Figure 1: Even though these chamber musicians may look

to their concertmaster Alison (upper left) during video re-

hearsal, her gaze will appear arbitrary as she turns her eyes

to a particular player in her view. If she tries to cue by look-

ing at her camera, it will incorrectly appear to all players

that they are the intended recipient of her eye contact. From

this setup, she is unable to establish a nonverbal commu-

nicative connection with another musician.

ing and between uses. Gaze tracking becomes fur-

ther simpliﬁed when the gaze targets are known; in

this way, the system’s precision must only be on the

scale of the targets themselves, rather than the level

of individual pixels. As an additional consideration,

for real-time applications such as videoconferencing

or video performances, processing steps must be kept

minimal to ensure output fast enough for application

requirements. In this work, we present a system de-

signed to restore eye contact to the virtual classroom,

expanding distance pedagogy capabilities. Stated in a

more general frame, we propose a scheme for real-

time, calibration-free inference of gaze target for a

user-facing camera subject to traditional PC seating

and viewing constraints.

2 RELATED RESEARCH

2.1 Eye Contact in the Music Classroom

Many students and educators experienced ﬁrsthand

the differences between traditional in-person learning

environments and synchronous distance learning en-

vironments in response to the COVID-19 pandemic.

Studies report lower levels of student interaction and

engagement, with “the absence of face-to-face contact

in virtual negotiations [leading] students to miss the

subtleties and important visual cues of the non-verbal

language.” (de Oliveira Dias et al., 2020). These sub-

tleties are critical to musical education, with past re-

search examining this importance within a variety of

musical relationships.

Within the modality of teacher-ensemble relation-

ships, in review of historical research and their own

experiments of conductor eye contact for student en-

sembles, Byo and Lethco explain the plethora of mu-

sical information conveyed via eye contact, its impor-

tance in keeping student musicians on task, and its

elevated value as musician skill level increases (Byo

and Lethco, 2001). In their work, they categorize

musical situations and respective usage of eye con-

tact, ranging from use as an attentive tool for group

synchronization or an expressive technique for styl-

ized playing. A study by Marchetti and Jensen re-

states the importance of nonverbal cues as fundamen-

tal for both musicians and teachers (Davidson and

Good, 2002), reframing the value of eye contact and

directed gestures within the Belief-Desire-Intention

model adopted by intelligent software systems (Rao

et al., 1995), and pointing to nonverbal communica-

tion as a means to provide instruction and correction

without interruption (Marchetti and Jensen, 2010).

Within the modality of student chamber music, a

study of chamber musicians led to categorization of

nonverbal behaviors as music regulators (in particu-

lar, eye contact, smiles, and body movement for at-

tacks and feedback) “demonstrated that, during musi-

cal performance, eye contact has two important func-

tions: communication between ensemble members

and monitoring individual and group performance”

(Biasutti et al., 2013). In a more conversational duet

relationship, a study of co-performing pianists found

eye contact to be heavily used as a means of sharing

ideas among comfortable musicians by synchronizing

glances at moments of musical importance (Willia-

mon and Davidson, 2002).

Within the modality of improvised music, an ex-

amination of jazz students found eye contact to be

a vehicle of empathy and cooperation to form cre-

ative exchanges, categorizing other modes of com-

munication in improvised music within verbal and

nonverbal categories as well as cooperative and col-

laborative subcategories (Seddon, 2005). Jazz clar-

inetist Ken Peplowski remarks in The Process of Im-

provisation: “...we’re constantly giving one another

signals. You have to make eye contact, and that’s

why we spend so much time facing each other in-

stead of the audience” (Peplowski, 1998). Even im-

provisatory jazz robot Shimon comes with an expres-

sive non-humanoid head for musical social communi-

cation, able to communicate by making and breaking

eye contact to signal and assist in musical turn-taking

(Hoffman and Weinberg, 2010).

Restoring Eye Contact to the Virtual Classroom with Machine Learning

699

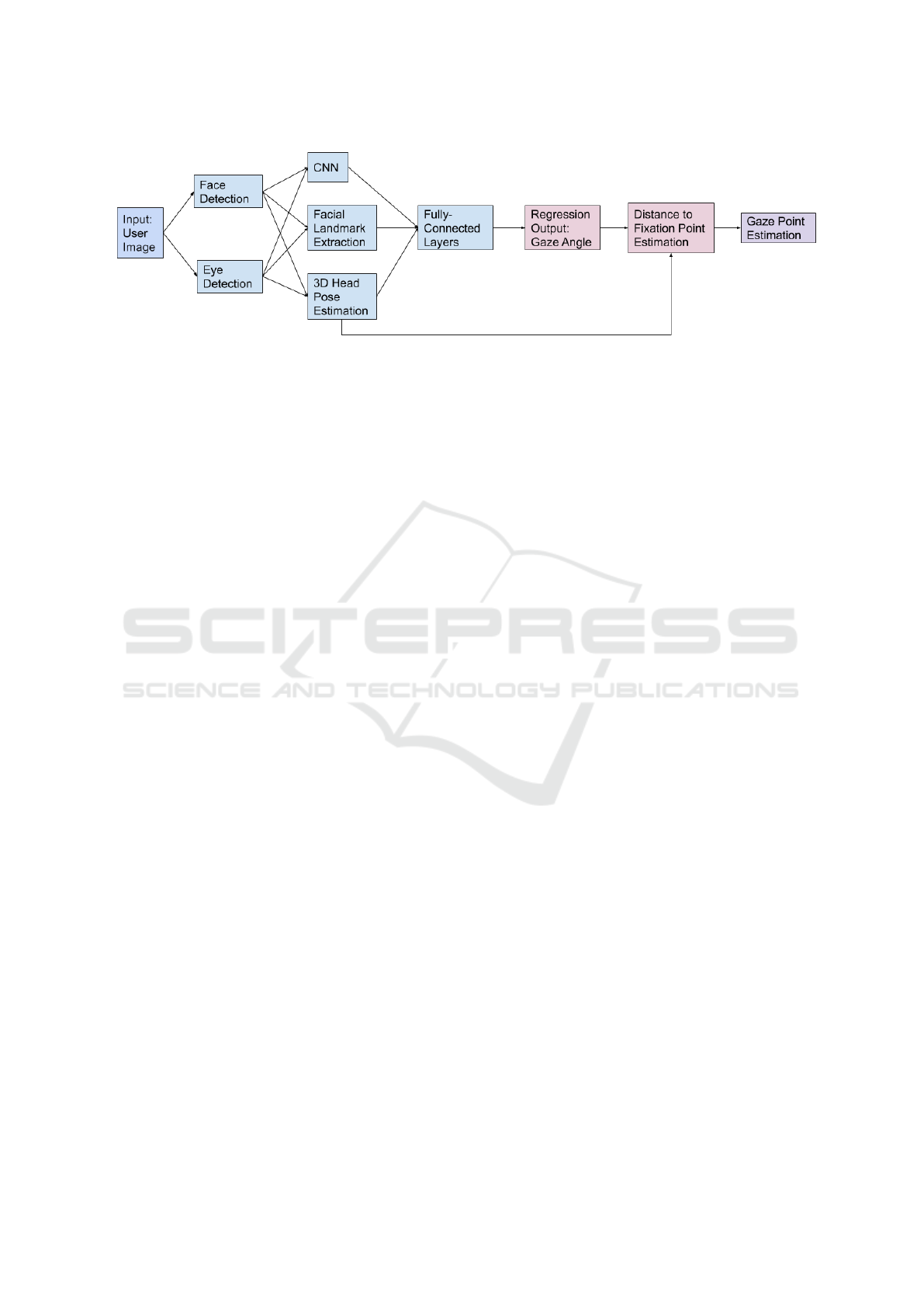

Figure 2: In previous works, a typical pipeline for regression-based gaze estimation methods may involve increased feature

extractions to provide enough information to learn the complex output space. Some models discussed in the related works

section estimate only up to gaze angle, while others either continue to the gaze point, or bypass the mapping from gaze angle

to gaze point and instead learn end-to-end.

2.2 Personal Computing Gaze

Classiﬁcation

Vora et al. have demonstrated the effectiveness of

using neural networks to classify gaze into abstract

“gaze zones” for use in driving applications and at-

tention problems on the scale of a full surrounding

scene (Vora et al., 2018). Wu et al. use a similar

convolutional approach on a much more constrained

scene size, limiting gaze zones to the segments span-

ning a desktop computer monitor (Wu et al., 2017). In

their work, they justify the classiﬁcation-based model

on the basis that the accuracy of regression-based

systems cannot reach standards necessary in human-

computer interaction (HCI). In their work, they pro-

pose a CNN which uses a left or right eye image to

perform the classiﬁcation; to further improve perfor-

mance, Cha et al. modify the CNN to use both eyes

together (Cha et al., 2018).

While these approaches are effective in determin-

ing gaze to approximately 15 cm by 9 cm zones, this

predeﬁned gaze zone approach contains two major

shortcomings to identifying the target of a user’s gaze.

First, multiple objects of interest may lie within one

gaze zone, and second, an object of interest may lie

on the border spanning two or more gaze zones. Our

work addresses these issues by constraining user gaze

to a particular target of interest mapped one-per-zone

(in the case of the classroom, an individual student

musician).

2.3 Gaze Estimation by Regression

In contrast to gaze zone methods, which divide the

visual ﬁeld into discrete regions, regression-based

methods better address user attention by opening gaze

points to a continuous (rather than discretized) space,

but at the expense of taking on a more complex learn-

ing task, since the mapping of input image to gaze

location becomes many-to-many instead of many-to-

few. To address this complexity, many regression

models rely on additional input feature extractions

from the user image, and regress to estimate the gaze

angle, rather than target, to eliminate estimation of an

additional uncertainty (distance from eye to object of

ﬁxation). Fig. 2 shows an example pipeline for re-

gression approaches to this problem; though speciﬁc

works may include or exclude particular features (or

stop at gaze angle output), there is still an apparent

increase in complexity relative to the end-to-end clas-

siﬁcation models.

Zhang et al. and Wang et al. use regression ap-

proaches with eye images and 3D head pose as input,

estimating 2D gaze angle (yaw and pitch) as output

(Zhang et al., 2015), (Wang et al., 2016). In our work,

we generate direct estimation of 2D gaze target coor-

dinates (x, y) relative to the camera position. Zhang

et al. contributed a dataset appropriate to our task,

MPIIGaze, which contains user images paired with

3D gaze target coordinates; in their work, they use

this dataset to again predict gaze angle (Zhang et al.,

2017). Though we develop our own dataset to meet

the assumption of a user seated at a desk, with the

optical axis approximately eye level and perpendicu-

lar to the user’s seated posture, the MPIIGaze dataset

could also be used with our method. Sugano et al. use

a regression method which does map directly to target

coordinates, but their network requires additional vi-

sual saliency map input to learn attention features of

the associated target image (Sugano et al., 2012).

Closest to our work, Krafka et al. created

a mobile-device-based gaze dataset and end-to-end

gaze target coordinate regressor (Krafka et al., 2016).

Their input features include extracted face, eyes, and

face grid, which we reduce to extracted face and 4

bounding box values. They report a performance of

10-15 fps, which falls behind the common videocon-

ferencing standard of 30 fps by a factor of two. In

CSME 2021 - 2nd International Special Session on Computer Supported Music Education

700

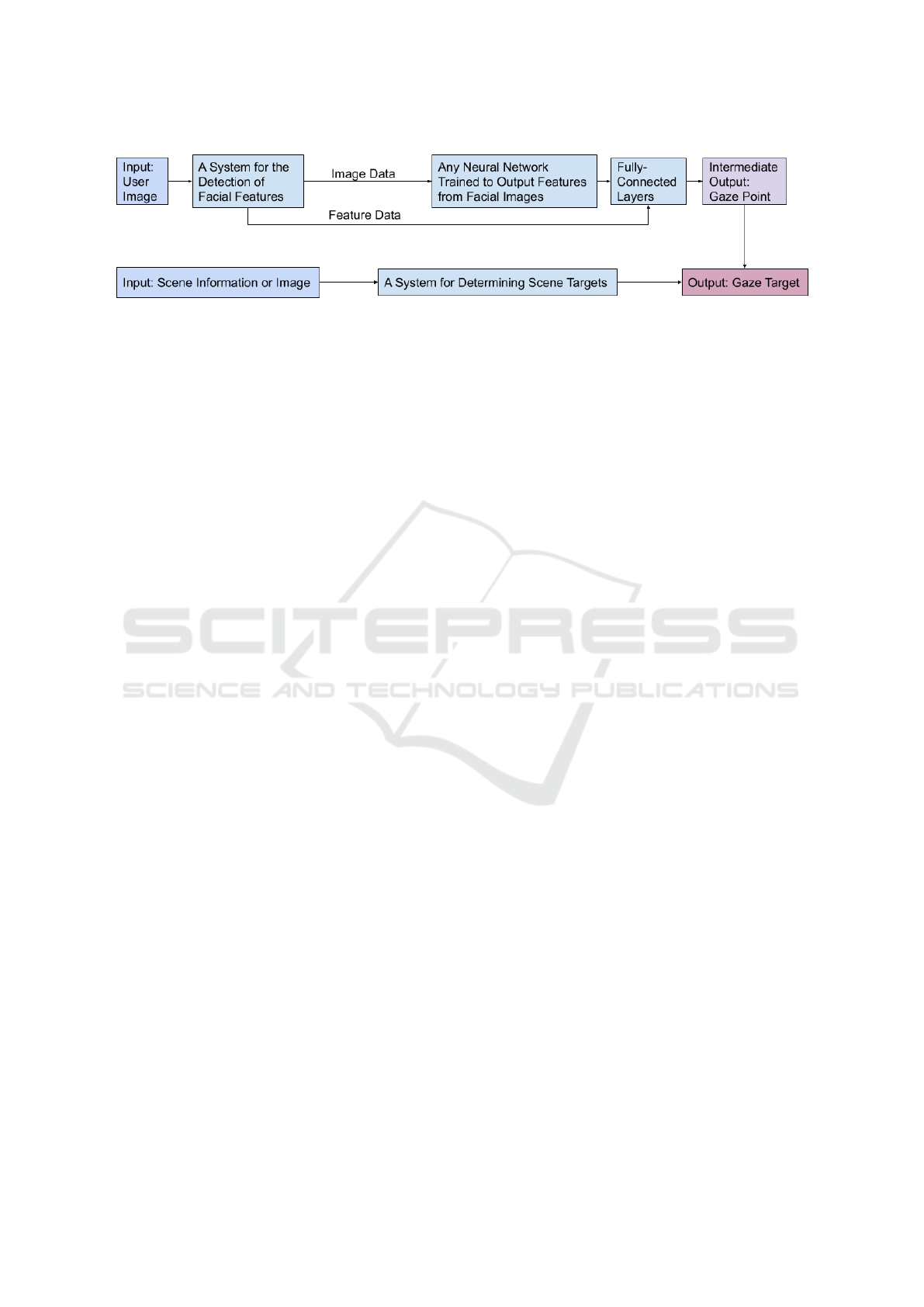

Figure 3: Our pipeline reduces input feature extractions and learns a 2D gaze target coordinate. The simpliﬁed model performs

with accuracy and speed suitable for videoconferencing applications.

contrast to the previous methods illustrated in Fig. 2,

our proposed system marries the simplicity of end-to-

end, minimal feature classiﬁcation approaches with

the continuous output of regression models to create

a fast and accurate solution to gaze target estimation

suitable for videoconferencing applications.

2.4 Gaze Correction

Some applications may seek to artiﬁcially modify

the speaker’s eye direction to have the appearance

of looking directly at the camera, giving the im-

pression of eye contact with the audience. A tech-

nology review by Regenbrecht and Langlotz evalu-

ates the beneﬁts of mutual gaze in videoconferencing

and presents proposed alterations of workstation se-

tups and hardware to make gaze correction possible.

Such schemes include half-silvered mirrors, projec-

tors, overhead cameras, and modiﬁed monitors with a

camera placed in the center, all of which, while effec-

tive, may exceed constraints on simplicity and phys-

ical environment for typical remote classroom users

(Regenbrecht and Langlotz, 2015).

Without modifying hardware, researchers at In-

tel achieve gaze correction using an encoder-decoder

network named ECC-Net (Isikdogan et al., 2020).

The model is effective in its task of modifying a user

image such that the eyes are directed toward the cam-

era; it is therefore reasoned that the system interme-

diately and implicitly learns the gaze direction in the

training process. However, their work has two clear

points of deviation from our research. First, ECC-

Net does not take into account distance from the user

to the camera, so though a gaze vector may be pos-

sible to infer, the gaze target cannot be directly esti-

mated. Second, while the impression of eye contact

is a valuable communication enhancement, our work

seeks to communicate to whom the speaker is look-

ing, which is negated if all users assume the speaker

to be looking to them. This intermediate step of target

determination is critical to communicating directed

cues and gestures to individuals. To make this dis-

tinction with gaze correction, it becomes necessary to

stream a separate video feed of the speaker to each

participant with an appropriately corrected (or non-

corrected) gaze toward the individual, which is not

practical for integration with existing videoconferenc-

ing systems that may allow, at best, only for modiﬁ-

cation of the ego user’s singular video feed.

3 METHODS

3.1 Network Architecture

Illustrated in Fig. 3, our proposed system takes a sam-

pled image or video stream as input. The image is ﬁrst

resized and used as input to a face detection system.

From this block, we receive extracted facial features

to be passed forward in parallel with cropped facial

image data. The cropped facial image data is itself

passed through a convolutional neural network which

extracts further features. The output of the convolu-

tional neural network block is concatenated with the

earlier parallel extracted facial features, and passed

to a fully-connected block. The output of this fully-

connected block corresponds to a regression, mapping

the input data to physical locations with respect to the

camera origin. Finally, this regression output is fed

to a block which determines the user gaze target from

a computed list of possible gaze targets. Primarily,

our innovations to address gaze detection are in the

reduction to lightweight feature requirements and the

computation of possible gaze targets (i.e. student mu-

sicians in a virtual classroom). In the Implementation

Details section, we outline one complete example in-

stance of our general system, which we used in a pilot

study with undergraduate students in a remote intro-

ductory music course and trained musicians in a re-

mote college orchestra.

3.2 From Gaze Point to Gaze Target

Conversion of the regression estimate to gaze target

requires scene information. As our work is intended

Restoring Eye Contact to the Virtual Classroom with Machine Learning

701

for videoconferencing applications, we have identi-

ﬁed two readily available methods to extract scene in-

formation:

• Process a screencapture image of the user display

image to locate video participant faces using a

face detection network or algorithm.

• Leverage software-speciﬁc system knowledge or

API tools to determine video participant cell lo-

cations. This may use direct API calls or image

processing over the user display image.

From either method, the goal of this step is to generate

N coordinate pairs (x

, y

) corresponding to the esti-

mated centroids, measured in centimeters from cam-

era (0, 0), of the N target participant video cells t

Additionally, a threshold τ is experimentally selected,

such that any gaze image whose gaze point is located

further than τ is considered targetless (t

). The gaze

target t is therefore determined using

∗

= argmin

{(x − x

)

+ (y − y

)

} (1)

t =

(

∗

(x − x

∗

)

+ (y − y

∗

)

≤ τ

otherwise

(2)

A consequence of this method is that the predicted

gaze point does not need to be precisely accurate to its

target– the predicted gaze point must simply be closer

to the correct target than the next nearest target (and

within a reasonable radius).

3.3 Implementation Details and

Training

In our experimental instance of the general gaze target

detection system, we use as input a stream of images

sampled from a USB or integrated webcam, with res-

olution 1920x1080 pixels. Each image is ﬁrst resized

to 300x300 pixels, then fed to a Single-Shot Detector

(Liu et al., 2016) with a ResNet-10 (He et al., 2016)

backbone, pre-trained for face detection. From this

network, we receive the upper left corner coordinates,

height, and width of the found face’s bounding box,

which we map back to the original resolution and use

to crop the face of the original image. This face-only

image is then resized to 227x227 and fed to a mod-

iﬁed AlexNet, with the standard convolutional lay-

ers remaining the same, but with 4 values (bounding

box upper left corner position (x

, y

), bounding box

height h, and bounding box width w) concatenated to

the ﬁrst fully-connected layer. Our architecture is il-

lustrated in Fig. 4. We propose that the face location

and learned bounding box size, combined with the

face image, contain enough coarse information about

head pose and 3D position for the network to learn the

mapping from this input to a gaze point. The 2D out-

put of AlexNet represents the 2D coordinates (x, y),

in centimeters, of the gaze point on the plane through

the camera perpendicular to its optical axis (i.e. the

computer monitor), with the camera located at (0, 0).

For the modiﬁed AlexNet stage, our neural net-

work is implemented and trained in PyTorch (Baydin

et al., 2017). We use a batch size of 32 and Adam

optimizer (Kingma and Ba, 2015), using the standard

mean squared error loss function. The combined face

detection and gaze target model is run in Python using

the publicly available, pretrained OpenCV ResNet-10

SSD (Bradski, 2000) for the face detection stage.

3.3.1 Dataset

Data was collected from a group of ﬁve male and fe-

male participants, ages ranging from 20 to 58, with

various eye colors. Three of the subjects shared one

desktop setup, while the remaining two used individ-

ual desktop setups, giving variation in camera posi-

tion and orientation relative to the subject (in addition

to the variation associated with movement in seating

position). 91 gaze locations relative to the camera po-

sition are deﬁned, spanning a computer screen of di-

mension 69.84 cm by 39.28 cm. Subjects with smaller

screen dimensions were given the subset of gaze loca-

tions which ﬁt within their screen. Participants were

asked to sit at their desk as they would for typical

computer work, and to maintain eye contact with a

designated spot on the screen while recording video

data. Participants were free to move their head and

body to any orientation, as long as eye contact was

maintained.

At this stage in data collection, the participants’

videos were stored by gaze location index, with a sep-

arate table mapping a gaze location index to its asso-

ciated displacement from the camera location (mea-

sured in centimeters displacement along the hori-

zontal and vertical axes originating from the camera

along the screen plane). Each frame of the video for

a particular gaze location was then extracted. From

each frame, the subject’s face was cropped using the

aforementioned SSD pretrained on ResNet-10, then

resized to 227x227 pixels. The location and dimen-

sions of the facial bounding box are recorded. The

dataset is thus comprised of face images, and for each

image an associated gaze position relative to the cam-

era and bounding box parameters.

A total of 161634 image frames were annotated

with one of 91 gaze locations. These images were di-

vided into 129,103 frames for training, 24,398 frames

for validation, and 8,133 frames for testing. The

CSME 2021 - 2nd International Special Session on Computer Supported Music Education

702

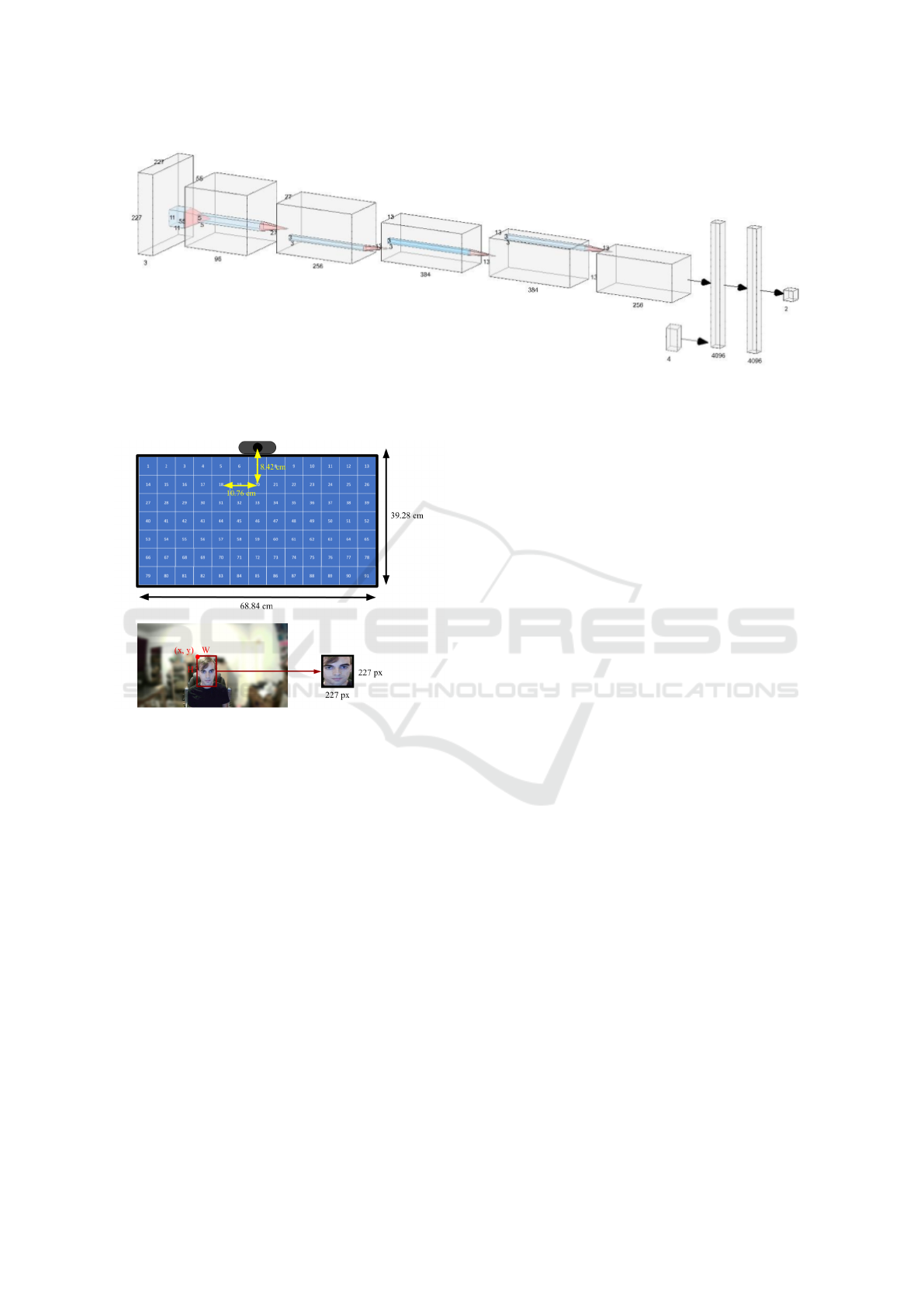

Figure 4: An illustration of one possible facial-image-based convolutional neural network block (the second stage to our

system). For our experiments, we use an augmented AlexNet architure. Before the typical fully-connected layers, a 4-vector

representing the position and size of the facial bounding box is concatenated to the ﬂattened convolutional output.

Figure 5: The data capture setup, including a sample da-

tum. The computer monitor displays different indexed gaze

locations for which the subject maintains eye contact. The

camera captures a video of the subject for each gaze loca-

tion. Frames are extracted, with the face then detected and

cropped. With each facial image, we store the bounding box

parameters (red) as well as the gaze location (yellow).

data collection setup with an example datum from the

training set is shown in Fig. 5.

3.3.2 Processing Video Layout

Our system was deployed for experiments over Zoom

videoconferencing services (Zoom Video Communi-

cations Inc., 2019). Because Zoom offers a set aspect

ratio for participant video cells, a consistent back-

ground color for non-video-cell pixels, and a ﬁxed lo-

cation for video participant name within each video

cell, we were able to use the second listed method of

Section 3.2 (leveraging system knowledge and image

processing) to extract gaze targets with the following

steps:

1. Capture the current videoconference display as an

image.

2. Filter the known background color to make a bi-

nary mask.

3. Label connected components in the binary mask.

4. Filter out connected components whose aspect ra-

tio is not approximately 16:9.

5. Find the centroid of each of the remaining con-

nected components

To associate each target with a corresponding in-

dex (in the case of our musicians, their name), we

crop a predeﬁned region of each discovered video

cell, then pass the crop through the publicly avail-

able EasyOCR Python package to generate a name

label. Depending on the underlying videoconference

software employed, such names may be more readily

(and accurately) available with a simple API call.

3.3.3 Augmenting User Video with Gaze

Information

To communicate the user’s gaze to call participants,

the user’s projected video feed is augmented with an

additional text overlay. This overlay changes frame-

to-frame depending on the estimated gaze target, us-

ing the name labels found in the previous section.

For our example system, we extract each frame from

the camera, add the overlay, then feed each modi-

ﬁed frame as a sequence of images to a location on

disk. We then run a local server which streams the im-

ages from this location, and using the freeware Open

Broadcaster Software (OBS) Studio, we generate a

virtual camera client to poll this server. The virtual

camera is then utilized as the user’s selected camera

for their virtual classroom, resulting in a displayed

gaze as illustrated in Fig. 6.

Restoring Eye Contact to the Virtual Classroom with Machine Learning

703

Figure 6: With our system running on her device, concert-

master Alison (upper left) is able to nonverbally commu-

nicate to the ensemble that she is looking towards Walter

(second row, center). When any students observe Alison’s

video feed for cues, they will see continuous updates as her

gaze changes, establishing nonverbal communication with

the ensemble.

Table 1: Test Set Error from Gaze Estimate to Truth.

MSE 1.749 cm

Average Horizontal Error 0.678 cm

Average Vertical Error 1.457 cm

4 EXPERIMENTS

4.1 Computational Performance

4.1.1 Inference Time

Using the Python performance counter timing library,

we tested the time for the program to pass a cam-

era image through the face detection and gaze regres-

sion model for 1000 trials. The average inference

time was approximately 0.03235 seconds, equivalent

to 30.9095 frames per second. This satisﬁes our de-

sired benchmark of 30 fps.

4.1.2 Regression Metrics

The ﬁrst metric we report is the MSE, i.e. the mean

absolute distance from the ground truth gaze location

to the predicted gaze location, measured in centime-

ters relative to the camera. Included with this measure

in Table 1 are the absolute distance between truth and

prediction in the horizontal (x) direction and the ver-

tical (y) direction. These results show stronger dis-

crimination along the x-axis, motivating the structure

of our next video-conference based metrics.

The second metric we use is video user hit rate.

For each sample, we form a truth target (the nearest

video cell to the known gaze point), and a predic-

tion target (the nearest video cell to the estimated gaze

point). If these two targets are equal, we classify the

sample as a hit, otherwise, a miss. We perform this

experiment over two conﬁgurations (Zoom Standard

Fullscreen Layout and Horizontal Full-Width Lay-

out), over a range of 2 to 8 displayed users. In the

Horizontal Full-Width Layout, the video call screen

is condensed along the y-axis but kept at full-width

along the x-axis, causing all video cells to align in

a horizontal row. We maintain this window at the

top of the computer screen for consistency. As sug-

gested in Table 1, because model performance is bet-

ter at discriminating between gazes along the x-axis,

the horizontal layout shows better performance than

the fullscreen layout. These hit-rates are provided

in Table 2. As more users are added to the system,

the target points require greater accuracy to form a

hit, so performance decreases. Additional variance

in performance within a layout class occurs due to

the reshaping of the video cell stacking geometry as

the number of users change; for example, non-prime

numbers of participants lead to a symmetric video

cell arrangement, while prime numbers of partici-

pants cause an imbalance between rows. When these

shapes are well-separated and align around the trained

gaze markers, the model performs better, but chal-

lenges arise when the video cell layout places borders

near trained points.

4.2 Classroom Performance

4.2.1 Telematic Soundpainting Pilot Setup

Our system was evaluated among an undergraduate

introductory music course, Sound in Time. Most stu-

dents in the survey course are interested in music, but

do not have extensive prior musical training.

Prior to the pilot study, all students in the course

were presented with a brief overview lecture of com-

poser Walter Thompson’s improvisatory composi-

tional language, Soundpainting (Thompson, 2016).

In Soundpainting, a conductor improvises over a set

of predeﬁned gestures to create a musical sketch;

students interpret and respond to the gestures using

their instruments. For the pilot, student volunteers

were assigned at random to one of eight performing

groups, with 8-9 students per group (and a ﬁnal over-

ﬂow group of 15 musicians), for a total of 72 student

subjects. Each of these performing groups was led

through a Soundpainting sketch by a conductor using

the augmented gaze system.

CSME 2021 - 2nd International Special Session on Computer Supported Music Education

704

Table 2: Experimental hit-rate of estimated gaze to known targets.

Number of Displayed Users: 2 3 4 5 6 7 8

Fullscreen Layout Hit Rate: 0.982 0.917 0.711 0.865 0.715 0.689 0.693

Horizontal Layout Hit Rate: – 0.975 0.967 0.868 0.943 0.908 0.885

Throughout each sketch, the performers observed

and followed the directions of the conductor, keeping

either a conductor-only view or a gallery view on their

screens. Within the sketch, students performed from

a set of gestures which referred to different group-

ings of performers, selected from whole group, indi-

viduals, and live-deﬁned subgroups. For whole group

play, the conductor would join his hands over his head

in an arch, with no speciﬁc eye contact necessary. In

the case of individuals, the conductor would look at

and point to the individual expected to play. In the

case of live-deﬁned subgroups, the conductor would

look at an individual, assign the individual a sym-

bolic gesture, and repeat for all members of this sub-

group. Then, the subgroup’s symbol would later be

presented, and all members of the subgroup are ex-

pected to play. For individual cues and live-deﬁned

subgroup formation, the name of the individual be-

ing addressed via eye contact is displayed over the

conductor, communicating the conductor’s intended

recipient to the group.

Four of these group performances were recorded

for quantitative analysis, and all students completed

a post-performance survey for qualitative analysis.

Though the survey was administered by an experi-

menter outside of the course instructional staff, it is

always possible that there may be bias reﬂected in

student responses. Additionally, students unfamiliar

with Soundpainting may provide responses which ad-

dress a combination of factors from both the aug-

mented gaze system and their level of comfort with

the Soundpainting language. This same unfamiliarity

may have also affected students’ ability to respond to

gestures for quantitative analysis; a student who for-

gets a gesture’s meaning may freeze instead of play-

ing, even if they recognize it is their turn.

4.2.2 Quantitative Measures

During the sketches of the four recorded performing

groups, a total of 43 cues were delivered from the con-

ductor to the musicians. For each cue and for each

musician, a cue-musician interaction was recorded

from the following:

• Hit (musician plays when cued)

• Miss (musician does not play when cued)

• False Play (musician plays when not cued)

Table 3: Student-Cue Response Statistics (n = 114).

Hit Rate 0.851

Miss Rate 0.149

Precision 0.990

Accuracy 0.952

• Correct Reject (musician does not play, and musi-

cian was not cued)

In cases where the student was out of frame and

thus unobservable, data points associated with the

student are excluded. In total, 114 cue-musician in-

teractions were observed. Binary classiﬁcation per-

formance statistics are summarized in Table 3. Hit

Rate describes the frequency in which students play

when cued, while Miss Rate describes the frequency

in which students fail to play when cued. Precision

describes the proportion of times a musician was play-

ing from a cue, out of all instances that musicians

were playing (that is, if precision is high, we would

expect that any time a musician is playing they had

been cued). Accuracy describes the likelihood that a

student’s action (whether playing or silent) was the

correct action. While there is no experimental bench-

mark, our statistics suggest that the musicians were

responsive to cues given to individuals and groups

through nonverbal communication during their per-

formances.

In addition to recorded performance metrics, stu-

dent responses to the post-performance survey in-

dicated that 87% of respondents felt they estab-

lished a communicative relationship with the con-

ductor (whose gaze was communicated), while only

42% felt they established a communicative relation-

ship with other musicians (who they could interact

with sonically, but without eye contact). Reﬂecting

on previously cited works discussing the importance

of eye contact in improvised and ensemble music, our

experimental results suggest that having eye contact

as a nonverbal cue signiﬁcantly improves the estab-

lishment of a communicative relationship during per-

formance in distance learning musical environments.

4.2.3 Qualitative Results

Overall, students were able to successfully perform

Soundpainting sketches over Zoom when conducted

with an augmented gaze system. In addition to under-

graduate students in the pilot study, trained student

Restoring Eye Contact to the Virtual Classroom with Machine Learning

705

musicians of a college orchestra gathered on Zoom to

give a similar performance. The group of trained mu-

sicians responded positively to the performance, com-

menting that this was the ﬁrst time they felt they were

partaking in a live ensemble performance since the

beginning of their distance learning, since previous

attempts at constrained live performance tended to be

meditative rather than interactive. Student feedback

towards performing with the augmented gaze system

include the following remarks:

• “Able to effectively understand who [the conduc-

tor] was looking at”

• “Easy to follow because the instructions were vis-

ible”

• “It was as good as it would get on Zoom, in my

opinion. We were able to see where [conductor]

was looking (super cool!) and I think that allowed

us to communicate better.”

• “...Easy for us to understand the groupings with

the name projection...”

• “I was able to communicate and connect with the

conductor, because it was essentially like a con-

versation, where he says something and I answer.”

• “All I had to do was pay attention and follow”

To an ensemble musician, these remarks suggest

a promising possibility of interactive musicianship

previously lost in the virtual classroom by restor-

ing channels of nonverbal communication to the dis-

tanced ensemble environment.

5 FUTURE WORK

To improve technical performance of the gaze tar-

get system in both precision and cross-user accuracy,

a logical ﬁrst step is the extension of the training

dataset. Collecting data on a diverse set of human

subjects and over a greater number of gaze targets can

provide greater variance to be learned by the model,

more closely resembling situations encountered in de-

ployment. Augmenting our miniature dataset with

the aforementioned MPIIGaze dataset may also im-

prove model performance and provide an opportunity

to compare performance to other models.

In addition to increasing the number of subjects in

the dataset, there is also room for research into op-

timal ways to handle pose diversity. Musicians per-

form with different spacing, seating, and head posi-

tion depending on their instrument, and having a gaze

system which adapts according to observed pose for

increased accuracy is important for use among all mu-

sicians.

To improve inference time of the system, future

research should include experimentation with multi-

ple neural network architectures. In this work, we use

an AlexNet base, but a ResNet or MobileNet architec-

ture may also learn the correct patterns while reduc-

ing inference time. Other extracted features may also

prove useful to fast and accurate inference.

Further experiments that would provide informa-

tion about system performance in its intended en-

vironment would include testing on computer desk

physical setups which are not part of the training

dataset to capture a diversity of viewing distances and

angles, and testing the system on human subjects who

are not part of the training dataset to measure the sys-

tem’s ability to generalize to new faces and poses.

From an application standpoint, there is a need

to expand communication channels from conductor-

to-musician (or speaker-to-participant) to musician-

to-musician (or participant-to-participant). While the

current system was designed around a hierarchical

classroom structure, peer-to-peer interaction also pro-

vides value, and adding this capability will require

changes in the indication design to avoid overwhelm-

ing a student with too many sources of information.

Practically speaking, development of a plugin which

integrates with existing video conferencing software

and works cross-platform is another area for further

development.

In addition to musical cooperation, another appli-

cation of the system lies in gaze detection to man-

age student attention. Such a system could provide a

means for a student to elect to keep their camera off to

viewers, while still broadcasting their attention to the

presenter. Such a capability would allow teachers to

monitor student attention even in situations when stu-

dents wish to retain video privacy among their peers.

Finally, ethical considerations of the proposed

system must be made a priority before deployment in

any classroom. Two particular ethical concerns which

should be thoroughly researched are the ability of the

system to perform correctly for all users (regardless of

difference in physical appearance, skin color, or abil-

ity), and provisions to protect privacy on such a sys-

tem, including the readily available option for a user

to turn off the gaze tracking system at any time.

6 CONCLUDING REMARKS

In this paper, we introduced a fast and accurate system

by which the object of a user’s gaze on a computer

screen can be determined. Instantiating one possi-

ble version of the system, we demonstrated the ca-

pability of an extended AlexNet architecture to es-

CSME 2021 - 2nd International Special Session on Computer Supported Music Education

706

timate the gaze target of a human subject seated in

front of a computer using a single webcam. Possi-

ble applications of this system include enhancements

to videoconferencing technology, enabling communi-

cation channels which are otherwise removed from

telematic conversation and interaction. By using pub-

licly available Python libraries, we read video user

names and cell locations directly from the computer

screen, creating a system which both recognizes and

communicates the subject of a person’s gaze.

This system was then shown to be capable of

restoring nonverbal communication to an environ-

ment which relies heavily on such a channel: the mu-

sic classroom. Through telematic performances of

Walter Thompson’s Soundpainting, student musicians

were able to respond to conducted cues, and experi-

enced a greater sense of communication and connec-

tion with the restoration of eye contact to their virtual

music environment.

ACKNOWLEDGEMENTS

The authors would like to thank students and teach-

ing staff from the Sound in Time introductory music

course at the University of California, San Diego; mu-

sicians from the UCSD Symphonic Student Associa-

tion; and students of the Southwestern College Or-

chestra under the direction of Dr. Matt Kline.

This research was supported by the UCOP Innova-

tive Learning Technology Initiative Grant (University

of California Ofﬁce of the President, 2020).

REFERENCES

Barat

e, A., Haus, G., and Ludovico, L. A. (2020). Learning,

teaching, and making music together in the covid-19

era through ieee 1599. In 2020 International Confer-

ence on Software, Telecommunications and Computer

Networks (SoftCOM), pages 1–5.

Baydin, A. G., Pearlmutter, B. A., Radul, A. A., and

Siskind, J. M. (2017). Automatic differentiation in

machine learning: a survey. The Journal of Machine

Learning Research, 18(1):5595–5637.

Biasutti, M., Concina, E., Wasley, D., and Williamon, A.

(2013). Behavioral coordination among chamber mu-

sicians: A study of visual synchrony and communica-

tion in two string quartets.

Bradski, G. (2000). The OpenCV Library. Dr. Dobb’s Jour-

nal of Software Tools.

Byo, J. L. and Lethco, L.-A. (2001). Student musicians’ eye

contact with the conductor: An exploratory investiga-

tion. Contributions to music education, pages 21–35.

Cha, X., Yang, X., Feng, Z., Xu, T., Fan, X., and Tian, J.

(2018). Calibration-free gaze zone estimation using

convolutional neural network. In 2018 International

Conference on Security, Pattern Analysis, and Cyber-

netics (SPAC), pages 481–484.

Davidson, J. W. and Good, J. M. (2002). Social and

musical co-ordination between members of a string

quartet: An exploratory study. Psychology of music,

30(2):186–201.

de Oliveira Dias, M., Lopes, R. d. O. A., and Teles, A. C.

(2020). Will virtual replace classroom teaching?

lessons from virtual classes via zoom in the times of

covid-19. Journal of Advances in Education and Phi-

losophy.

Frischen, A., Bayliss, A. P., and Tipper, S. P. (2007). Gaze

cueing of attention: visual attention, social cognition,

and individual differences. Psychological bulletin,

133(4):694.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

ual learning for image recognition. In Proceedings of

the IEEE conference on computer vision and pattern

recognition, pages 770–778.

Hoffman, G. and Weinberg, G. (2010). Shimon: an in-

teractive improvisational robotic marimba player. In

CHI’10 Extended Abstracts on Human Factors in

Computing Systems, pages 3097–3102.

Isikdogan, F., Gerasimow, T., and Michael, G. (2020). Eye

contact correction using deep neural networks. In Pro-

ceedings of the IEEE/CVF Winter Conference on Ap-

plications of Computer Vision, pages 3318–3326.

Kingma, D. P. and Ba, J. (2015). Adam: A method for

stochastic optimization. In Bengio, Y. and LeCun,

Y., editors, 3rd International Conference on Learn-

ing Representations, ICLR 2015, San Diego, CA, USA,

May 7-9, 2015, Conference Track Proceedings.

Krafka, K., Khosla, A., Kellnhofer, P., Kannan, H., Bhan-

darkar, S., Matusik, W., and Torralba, A. (2016). Eye

tracking for everyone. In 2016 IEEE Conference on

Computer Vision and Pattern Recognition (CVPR),

pages 2176–2184.

Liu, W., Anguelov, D., Erhan, D., Szegedy, C., Reed, S.,

Fu, C.-Y., and Berg, A. C. (2016). Ssd: Single shot

multibox detector. In European conference on com-

puter vision, pages 21–37. Springer.

Marchetti, E. and Jensen, K. (2010). A meta-study of mu-

sicians’ non-verbal interaction. International Journal

of Technology, Knowledge & Society, 6(5).

Peplowski, K. (1998). The process of improvisation. Orga-

nization Science, 9(5):560–561.

Rao, A. S., Georgeff, M. P., et al. (1995). Bdi agents: From

theory to practice. In ICMAS, volume 95, pages 312–

319.

Regenbrecht, H. and Langlotz, T. (2015). Mutual gaze sup-

port in videoconferencing reviewed. Communications

of the Association for Information Systems, 37(1):45.

Seddon, F. A. (2005). Modes of communication during jazz

improvisation. British Journal of Music Education,

22(1):47–61.

Sugano, Y., Matsushita, Y., and Sato, Y. (2012).

Appearance-based gaze estimation using visual

saliency. IEEE transactions on pattern analysis and

machine intelligence, 35(2):329–341.

Restoring Eye Contact to the Virtual Classroom with Machine Learning

707

Thompson, W. (2016). Soundpainting: Introduction. Re-

trieved April.

University of California Ofﬁce of the President (2020). In-

novative learning technology initiative.

Vora, S., Rangesh, A., and Trivedi, M. M. (2018). Driver

gaze zone estimation using convolutional neural net-

works: A general framework and ablative analysis.

IEEE Transactions on Intelligent Vehicles, 3(3):254–

265.

Wang, Y., Shen, T., Yuan, G., Bian, J., and Fu, X. (2016).

Appearance-based gaze estimation using deep fea-

tures and random forest regression. Knowledge-Based

Systems, 110:293–301.

Williamon, A. and Davidson, J. W. (2002). Exploring

co-performer communication. Musicae Scientiae,

6(1):53–72.

Wu, X., Li, J., Wu, Q., and Sun, J. (2017). Appearance-

based gaze block estimation via cnn classiﬁcation. In

2017 IEEE 19th International Workshop on Multime-

dia Signal Processing (MMSP), pages 1–5.

Zhang, X., Sugano, Y., Fritz, M., and Bulling, A. (2015).

Appearance-based gaze estimation in the wild. In Pro-

ceedings of the IEEE conference on computer vision

and pattern recognition, pages 4511–4520.

Zhang, X., Sugano, Y., Fritz, M., and Bulling, A. (2017).

Mpiigaze: Real-world dataset and deep appearance-

based gaze estimation.

Zoom Video Communications Inc. (2019). Zoom meetings

& chat.

CSME 2021 - 2nd International Special Session on Computer Supported Music Education

708
