Customizable Navigation on Mobile Devices for

Physically Impaired People

Christoph Boßmann and Bettina Harriehausen-M

uhlbauer

Dept. of Computer Science, Univ. of Applied Sciences, Sch

offerstraße 8B, 64295 Darmstadt, Germany

Keywords:

WheelScout, Wheelchair, Navigation, Mobile, Barrier-free, Impaired, Mobility-impaired, Routing, Outdoor,

Customization, Proﬁle.

Abstract:

Physical disability means for affected persons a substantial restriction in their everyday life. A signiﬁcant

number of people throughout Germany were physically disabled, a not inconsiderable proportion of whom are

in wheelchairs. Current market-relevant navigational systems such as Google Maps still do not provide proﬁles

for mobility-impaired people or people in wheelchairs. With WheelScout it aims to create a navigational

system for mobile devices that enables these people to make their way alone, meaning without being routed

across barriers such as stairways or uneven surfaces. In this paper, it is shown how such a system can be

developed and how its essential features, including the ability of individual customization for its users, can be

realized.

1 INTRODUCTION

In 2019, more than 4.6 million people are physically

disabled across Germany (Destatis Statistisches Bun-

desamt, 2020). Among, approximately 1.4 million

people are in wheelchairs. This corresponds to 17.7%

of the severely disabled and 1.68% of the total popu-

lation in Germany (nullbarriere.de, nd).

In article 9 of the United Nations Convention on

the Rights of Persons with Disabilities, the declaration

states that the member states shall take appropriate

measures to ensure that persons with disabilities have

access to the physical environment and transporta-

tion as well as facilities and services that are open or

provided to the public (United Nations, 2006). That

about half of the more than 1700 reported barriers

on the map called Weg mit den Barrieren, in English

Get rid of the barriers, is caused by lack of mobility,

makes an otherwise sobering impression concerning

those claims (Sozialverband VdK Deutschland e.V.,

2016).

Further, article 20 states that member nations shall

take adequate measures to ensure personal mobility

with the highest possible independence for persons

with disabilities. That also includes facilitation of

new technologies (United Nations, 2006). If disabled

persons are familiar with their surroundings, they can

beneﬁt from structural changes towards accessibility.

However, in many cases, people want to be able to be

mobile independently, even in unfamiliar areas. Al-

though using a conventional navigational system such

as Google Maps is convenient for citizens without any

impairment, it might be somewhat frustrating for in-

dividuals with physical impairments, as those apps

do not yet provide proﬁles, designated for people in

wheelchairs.

Therefore, with WheelScout it was the aim to cre-

ate an alternative to conventional navigational sys-

tems in terms of the accessibility of route for phys-

ically impaired people. Thus, in a way, the develop-

ment of a navigational system for physically impaired

people seeks to take the independence of personal mo-

bility by assistive technologies into account which is

claimed in article 20 of the United Nations Conven-

tion on the Rights of Persons with Disabilities men-

tioned above.

In the development of this project, Darmstadt

University of Applied Sciences is working closely

with the Independent Association of Civil Invalids

(LAPIC-UVZ Onlus: Independent Association of

Civil Invalids) in Bolzano, which is providing advi-

sory as well as ﬁnancial support for the development

of this navigational system named WheelScout.

244

Boßmann, C. and Harriehausen-Mühlbauer, B.

Customizable Navigation on Mobile Devices for Physically Impaired People.

DOI: 10.5220/0010527002440255

In Proceedings of the 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2021), pages 244-255

ISBN: 978-989-758-506-7

2 RELATED WORK

In this section related products as well as useful com-

ponents involved in the development of this naviga-

tional system are introduced and described.

2.1 OpenStreetMap

Fundamental for the realization of a navigation sys-

tem is a suitable map material. OpenStreetMap

(OSM) has proven to be a suitable source for the pur-

pose. It is a free project that collects and structures

geodata and makes them available for use by any-

one for any purpose (Open Data). The map mate-

rial is created by its diverse, passionate, and every

day growing community (Community Driven) (Open-

StreetMap, 2021).

Besides that, the major advantage of this particular

purpose is a large amount of data about potential bar-

riers such as stairways or uneven surfaces. The share

of the most popular surface types in OSM worldwide

among highways is illustrated in ﬁgure 1. Highways

are any type of path, road, or street in OSM (Open-

StreetMap contributors, 2021).

79,96%

8,46%

2,08%

1,23%

0,88%

0,85%

0,68%

0,10%

1,87%

no data

surface=asphalt

surface=paved

surface=ground

surface=gravel

surface=concrete

surface=paving_stones

surface=cobblestone

other surface

Figure 1: Own visualization of data from https:// taginfo.

openstreetmap.org/ : Proportion of surface information

among highways worldwide on OSM.

It is noted that for a proportion of about twenty

percent details about the surface type are entered in

OSM. Comparing ﬁgure 2 and ﬁgure 3, it can be fur-

ther seen that in Darmstadt, Germany, for example,

many stairways are tagged but further details, such as

the number of steps or the presence of a handrail, are

not entered in most cases.

In conclusion, even taking into account the fact

that the information on roads and trails is far from

complete, OSM data can still be used as a source of

data regarding barrier information.

Figure 2: Overpass Turbo: Stairways in Darmstadt and sur-

roundings.

Figure 3: Overpass Turbo: Stairways in Darmstadt and sur-

roundings tagged either with handrail or step count infor-

mation.

2.2 GraphHopper

Further, it is necessary for the realization of a naviga-

tion system to use a suitable routing engine in order to

process routing requests accordingly. With regard to

the realization of a navigation system for people with

limited mobility, it is advisable to use an engine that

works with OSM data to take advantage from its fea-

tures described in section 2.1.

GraphHopper is a fast and memory-efﬁcient rout-

ing engine programmed in Java that uses OSM data to

compute routes, which makes the routing engine plat-

form independently usable. It is licensed with Apache

license so it can be used modiﬁed and embedded into

other applications free of charge. It supports several

routing algorithms such as Dijkstra and A* as well as

the integration of elevation providers to consider in-

clines during route computation. A major advantage

Customizable Navigation on Mobile Devices for Physically Impaired People

245

of GraphHopper is its customizability concerning the

creation of different proﬁles for instance to represent

different vehicles as different proﬁles in GraphHop-

per (Karich, 2019b)(Karich, 2019a). For example, a

proﬁle can be created that corresponds to the pedes-

trian proﬁle but additionally avoids all stairways that

are tagged as such in OSM.

2.3 Open Route Service

Open Route service, developed and provided by

Heidelberg Institute for Geoinformation Technology

(HeiGIT), offers routing services by using user-

generated, collaboratively collected free geographic

data from OSM (Heidelberg Institute for Geoinfor-

mation Technology, 2019). The platform provides

the function of routing, based on proﬁles, including a

wheelchair proﬁle, also through its newly developed

mobile application. This wheelchair proﬁle is cus-

tomizable by its users, directly on the platform. For

instance, it can be customized to avoid cobblestone or

ﬂattered cobblestone as ground surface during rout-

ing. Parameters such as the width or the incline of

a path can be customized as well. Furthermore, it is

possible to examine the percentage of a path consist-

ing of a particular type of surface. However it does

currently not support adding new barriers to the sys-

tem which is a major requirement four the work, see

section 3, and the proﬁle settings are not fully cus-

tomizable (Google, 2021b).

2.4 Wheelmap and Accessibility.cloud

Wheelmap is a charity-based navigational service

available to the public for reading requests. The map

helps to ﬁnd wheelchair-accessible places similar to

points of interest on Google Maps. Lots of places

such as grocery stores, shops, hotels, bars, restau-

rants, pharmacies, public parking garages, and many

more are listed in four different categories depend-

ing on whether the place is entirely, partially, or not

at all accessible or if the accessibility is unknown

(Krauthausen, 2010). While Wheelmap itself serves

as the frontend, the API named accessibility.cloud is

both backend and data source of it. The accessibility

information from this API is provided to the public to

be used in other applications as well. For scientiﬁc

purposes, its usage is free of charge. Both projects,

Wheelmap and accessibility.cloud are initiatives of

the non-proﬁt organization SOZIALHELDEN e.V.

(accessibility.cloud, 2021).

Even though it is shown whether the place itself is

wheelchair accessible or not, the map does not show

if a wheelchair can handle the way to the place. Al-

though it hence cannot be used for routing directly, it

can help to ﬁnd barrier-free points of interest such as

restrooms or stores that the user can navigate to.

2.5 Google Maps

The most popular navigation service, at least in the

western world, is Google Maps. Today, it is an in-

dispensable companion for almost anyone in daily

life (Poleshova, 2020). Although its usage is conve-

nient for vehicle drivers, cyclists, or just pedestrians

since suitable proﬁle exists for each of those differ-

ent ways of transport, no such proﬁle is available for

wheelchair users. This is a big limitation, considering

that stairways, uneven surfaces, and other insupera-

ble barriers may require users to ﬁnd alternative ways

around them on their own. Even though Google intro-

duced a feature to ﬁnd wheelchair accessible routes,

the service is currently only available in six cities, and

none of them is in Germany (Akasaka, 2020). Bring-

ing this together with the fact, that their API usage is

not free of charge (Google, 2021a), it is currently nei-

ther utilizable as a source for map material nor as a

navigational system for physically limited people it-

self.

3 METHODOLOGY

In this section, the feature requirements, the strategy

for the development process, and its resulting design

and architecture is explained.

3.1 Requirement Analysis

Since the navigation system is being developed in col-

laboration with this LAPIC association, mentioned in

section 1, the desired features were evaluated primar-

ily through surveys with mobility-impaired individu-

als from the association. Based on the result of the

surveys the following core features were elaborated:

• Routing under consideration of barriers such as

stairways, uneven surfaces, bottlenecks, and in-

clines.

• Creation of individual proﬁles to take into account

the physical limitations of the user in the routing

process accordingly.

• Adding new barriers or modiﬁcation of existing

barriers to the system by its users. This includes

as well temporarily existing barriers such as fallen

trees or road constructions.

Since it turned out, as described in section 2.1, that

the database of OSM already contains a lot of relevant

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

246

data for ﬁnding an accessible route, the integration of

the data of OSM is also a central requirement.

3.2 Design and Architecture

In this section, the design and architecture of

WheelScout is described. The basis for the design

process of the navigation system for WheelScout is

the chosen routing engine GraphHopper. Therefore,

all design, architectural and technical decisions must

ﬁt the technical design and properties of GraphHop-

per. It is important to point out that due to newly

gained knowledge concerning the technical possibil-

ities of GraphHopper, the design of WheelScout has

changed multiple times. Corresponding designs were

always implemented to test the technical possibilities

of GraphHopper and the functionality accordingly.

3.2.1 First Design Approaches

It is important to point out here, that the underlying

routing algorithms of GraphHopper are graph-based,

meaning that all settings regarding routing behavior

must be set before the graph is rendered. That means

that whether a way or path should be considered as a

barrier and thus avoided or not must be decided in ad-

vance to the rendering of the graph, see section 4.1.1.

The ﬁrst design based on this technical limitation is

described below:

• The routing process takes place on the server-side.

• The requirement for complete individual proﬁles

is waived, instead, various ﬁxed proﬁles are cre-

ated among which the user can choose.

• Changes to barriers are stored in a database.

• Periodically, the graph is re-rendered to apply the

updated barriers to the graph so that they are taken

into account in future routing processes.

The disadvantage is, however, that on the server-

side, no ﬁne-granular settings are possible, e.g. an

exact setting of the maximum number of manageable

steps on stairways depending on the existing handrail.

Also, the graph must be re-rendered each time barri-

ers are added, which must be considered a major dis-

advantage with a rendering time of about one hour

(Germany).

Another design approach is based on the possibil-

ity of setting the accessibility of edges after rendering

the graph which is possible through the GraphHop-

per high-level API. The design for this approach is

described below:

• The routing process takes place on the client-side.

• Barrier information are again stored in the server-

side database. Pre-rendered graphs are stored on

the server-side as well.

• The requirement of complete individual proﬁles

can be full-ﬁlled since the client stores the graph

on the client. If a user updates his or her proﬁle,

the particular barrier information is fetched from

the database and applied to the graph locally.

A major disadvantage of this approach is that it re-

quires GraphHopper to run locally on the client which

limits its usage on platforms where Java can be exe-

cuted. That is why worthwhile development would

be limited to Android as it is the only market relevant

operating system for mobile devices which allows to

run Java code.

Therefore, a third and ﬁnal design approach has

been developed where the routing engine has been

moved back to the server-side. To take advantage of

the 1st and 2nd approaches, i.e. server-side platform-

independent route computation together with en-

abling ﬁne-granular proﬁle adaptation, the design was

adjusted again which is described in section 3.2.2.

3.2.2 Final Design

Fundamental for the ﬁnal design approach is that

GraphHopper allows setting accessibility of certain

edges of a graph to either true, meaning accessible, or

false, meaning not accessible, as already described in

section 3.2.1. Accordingly, in advance of each routing

request, only the accessibility of those barriers that do

not ﬁt the user’s physical limitation, e.g., its proﬁle, is

set to false. In ﬁgure 4 and ﬁgure 5 a minimal exam-

ple visualizes the edges taking normal route and tak-

ing a longer route if a certain edge is not accessible

e.g. there is a barrier.

Start

Destination

Edges passed for Route:

Other Edges:

Figure 4: Normal route.

A further issue that needs to be addressed is that

updating the accessibility can take multiple seconds

depending on the number of edges, e.g., barriers. Fur-

thermore, during this process, the GraphHopper in-

stance cannot compute any other route because the

Customizable Navigation on Mobile Devices for Physically Impaired People

247

Destination

Start

Edges passed for Route:

Other Edges:

Figure 5: Route if certain edge is not accessible.

updated accessibility would affect all routing requests

processed by GraphHopper on the same graph. That

is why the accessibility should only be updated for

those barriers that are situated in the surroundings of

the actual route. Since the exact route is not known

before its computation, squares alongside the linear

distance with an appropriate buffer are calculated as

displayed in ﬁgure 6.

1 km:

Considered

Barrier:

Not considered

Barrier:

Figure 6: Calculated squares along-side of airline between

start and destination of route.

To speed up the process, only barriers within these

squares are considered for the route computation.

Considering that limited people often ﬁnd their ways

in urban areas, a signiﬁcant route deviation from the

airline was assessed as very unlikely and negligible,

based on numerous example routes. If such a doubtful

case would occur, it is still possible to inform the user

about the impossibility of computing the route. A fur-

ther approach is to pre-compute the regular route for

pedestrians to situate the squares as mentioned above

alongside this route to cover a route that deviates too

much from the airline. However, this approach has

not yet been pursued further. Instead, the mentioned

airline approach has been chosen.

3.2.3 Architecture

Under consideration of the feasibility study, described

in section 4.2, the in ﬁgure 7 visualized architecture

for WheelScout has been chosen. The architecture

consist of a mobile client as frontend that communi-

cates with an application kernel facade on the back-

end.

This system consists of several clusters on the

backend side, where each cluster is responsible for a

different area of the offered map material. An evident

subdivision is, for instance, the division by countries.

Accordingly, a cluster corresponds to a single coun-

try. The reason for preferring this approach is the in

section 3.2.2 already mentioned computation time of

a route. If a cluster’s load is expected to be higher,

a cluster can also be equipped with more than one

routing engine to enable parallel computation of more

than one routing request.

Further details concerning the implementation of

processing routing requests are outlined in section 4.

3.3 Testing

To verify the functionality of the system’s logic, re-

garding its correct computation of the route with

corresponding proﬁle settings, the developed mobile

client is used by analyzing various computed routes

for various proﬁle settings. However, to verify the

accuracy of computed routes without yet an existing

client, a tool named umap was used. umap enables

the visual representation of geographic information in

the GeoJSON format (OpenStreetMap contributors,

2019). The results of computed routes are presented

and discussed in section 5.

4 IMPLEMENTATION

In this section, the implementation of WheelScout is

outlined. First of all, the required adjustments to the

chosen routing engine GraphHopper are explained in

order to realize the in section 3.1 mentioned require-

ments of custom proﬁles. Then its integration into

a web server and the database for storing the barrier

data will be explained.

4.1 Routing Engine

GraphHopper and thus also OSM are set as compo-

nents, due to their advantages pointed out in sections

2.1 and 2.2. As the underlying algorithm of Graph-

Hopper for computation of routes is graph-based, the

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

248

Application Kernel

Facade / Loadbalacer

Mobile Client

Cluster 1

Barrier

Database

Application Kernel /

Routing Instance

Application Kernel /

Routing Instance

Cluster 2

Barrier

Database

Application Kernel /

Routing Instance

Application Kernel /

Routing Instance

Figure 7: Architecture of WheelScout.

graph needs to be rendered in advance to route com-

putation. GraphHopper organizes its graph in edges

and nodes whereby each edge is connected to two

nodes or one node if there is no further connected

edge meaning the edge is an end. Contracted Hier-

archies (CH) are an additional mode that allows to

speed up the route computation process for longer

routes by creating so-called shortcut edges. However

they must be disabled in the usercase of WheelScout,

due to pre-procession the graph. It might result in

wrong routes if certain edges are being marked as not

accessible but CH is enabled 3.2.1 (Karich, 2020b).

4.1.1 Graph Rendering and Extraction of

Barrier Information

The creation of a custom proﬁle is done by creating

a new FlagEncoder class that extends from another

FlagEncoder (Karich, 2019a) The method getAccess

can be overridden to deﬁne the accessibility for the

certain ﬂagEncoder in the resulting graph based on

OSM tags which are consumed as parameters in the

method, as shown in the code extract below:

public EncodingManager.Access

getAccess(ReaderWay way) {

//[...]

if (way.hasTag("foot",

intendedValues))

return EncodingManager.Access.WAY;

//[...]

if (!allowedHighwayTags.contains(

highwayValue))

return EncodingManager.Access.

CAN_SKIP;

//[...]

return EncodingManager.Access.WAY;

To accomplish the in 3.1 demanded possibility of

individual adjustable user proﬁles on client side based

on their physical capabilities certain proﬁle settings

should not be applied on the graph directly. That is

why potential barriers information are extracted dur-

ing the rendering process of the graph to be stored in

a database and then indivdually fetched and applied

for each routing request. To achieve that, the process

of extracting barriers through the method called ap-

plyWayTags is provided by the FlagEncoder as well.

This method is called for each edge together with its

particular associated OSM-Way that contains all the

parameters from OSM. In the code extract below the

extraction of a stairway and its number of steps is ex-

emplarily shown:

public void applyWayTags(ReaderWay way,

EdgeIteratorState edge) {

if(way.hasTag("highway", "steps")) {

Integer edgeId = edge.getEdge();

Integer baseNode = edge.getBaseNode();

Integer adjNode = edge.getAdjNode();

Long osmWayId = way.getId();

Integer number_of_steps = null;

if(way.hasTag("step_count")) {

number_of_steps = Integer.

valueOf(way.getTag("step_count"));

}

//[...]

//Write values into temp csv file

}

After ﬁnishing the graph’s rendering process, but

prior to the upload of them to the database, the coordi-

nates, meaning latitude and longitude values of each

edge, need to be extracted from the created graph.

Customizable Navigation on Mobile Devices for Physically Impaired People

249

The extraction is done through the usage of NodeAc-

cess as displayed below:

GraphHopper hopper; //object reference

NodeAccess nodeAccess = hopper.

getGraphHopperStorage().

getNodeAccess();

double baseNodeLat = Double.valueOf(

nodeAccess.getLat(baseNode)).

doubleValue();

double baseNodeLon =

Double.valueOf(nodeAccess.

getLon(baseNode)).

doubleValue();

double adjNodeLat =

Double.valueOf(nodeAccess.

getLat(adjNode)).

doubleValue();

double adjNodeLon =

Double.valueOf(nodeAccess.

getLon(adjNode)).

doubleValue();

double latitude =

Double.valueOf(

(baseNodeLat + adjNodeLat) / 2.0D));

double longitude =

Double.valueOf(

(baseNodeLon + adjNodeLon) / 2.0D));

4.1.2 Apply Barrier Information on the Graph

during Routing

In order to consider barriers during a routing request,

the particular barriers need to be applied prior to the

processing of the routing request. After the rout-

ing request has been processed, the prior application

of barriers needs to be undone. The technical im-

plementation is that the edge information stored in

the database, which consists of the edge id, the base

node id, and adjective node id, is ﬁrst fetched from

the database. Subsequently, the accessibility of all

fetched barriers or edges is set to false. Those barri-

ers that belong to the edges will be considered as not

passable in the following route computation. After

the route computation, the process is reversed accord-

ingly. This whole procedure is visualized in the ﬂow

chart diagram in ﬁgure 8.

In the code extract below the implementation

of the edge accessibility adjustment under usage of

GraphHopper is shown:

GraphHopper hopper; //GraphHopper reference

FlagEncoder encoder; //FlagEncoder reference

private static EdgeExplorer edgeExplorer =

hopper.getGraphHopperStorage().

createEdgeExplorer();

private static BooleanEncodedValue e =

encoder.getAccessEnc();

Receive routing

request from client

Fetch barriers from

database according to

filters

Apply fetched barriers

(set accessibility to

false)

Compute route

Reset fetched barriers

(set accessibility to

true)

Respond with

computed route

Figure 8: Processing a routing request including applying

individual proﬁle settings.

public static EdgeIteratorState getEdge(

int baseNode, int adjNode {

EdgeIterator iter = edgeExplorer.

setBaseNode(baseNode);

do {

if(iter.getAdjNode() ==

adjNode) {

return iter.getEdge();

}

while(iter.next());

throw new Exception(

"adjNode not found!");

}

public static setAccessibility(

int baseNode, int adjNode,

boolean access) {

EdgeIteratorState edge =

getEdge(baseNode, adjNode

edge.set(e, access);

//forward

edge.setReverse(e, access);

//backward

}

4.1.3 Handling of Barrier Related Information

from OSM

In this section, the handling of relevant information

is explained. Currently, Stairway and Uneven Surface

are the two considered barrier types in WheelScout.

A stairway is tagged as Highway:steps. The at-

tributes, considered as relevant for stairways are:

step

count, handrail, ramp, width, step depth and

step height. Potential uneven surfaces are tagged with

either Key:surface or Key:smoothness. surface corre-

sponds to the type of surface and smoothness is the

passability of the way or path (OpenStreetMap con-

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

250

tributors, 2021).

While the stairways’ attributes are suitable to be

ﬁltered directly, it has been found that another at-

tribute Key:tracktype, especially in the countryside,

is clearly more present. Although not as accurate as

Key:surface, it is useful to consider this attribute as

a substitute when Key:surface or Key:smoothness are

not available.

For this reason, a ﬁlter called intell-surface-type is

developed to assign each intell-surface-type a suitable

value for Key:tracktype and Key:smoothness to each

surface-type.

4.2 Database

To store barrier information in order to fulﬁll the re-

quirements as described in section 3.1, the relational

database MariaDB, which is well established on the

market, was chosen for this purpose.

In the following, the core functionalities that

the database provides for the navigation system are

brieﬂy summarized:

• Adding new and modifying existing barriers

• Removal of barriers

• Receiving barriers for either displaying them on

the client or applying them to GraphHopper, see

section 4.1.2.

• Importing barriers extracted during the graph ren-

dering process into the database.

4.3 Application Layer

In this section, the application layer consisting of the

application kernel and the application kernel facade /

loadbalancer is described.

4.3.1 Application Kernel

In addition to smaller, less essential functions, two

necessary functionalities are provided by the applica-

tion kernel. One is the functionality to provide the

client with the interfaces, mentioned already in sec-

tion 4.2, to access the barrier information stored in the

database. Client in this context refers to the end-user,

e.g., the mobile application, but also to the maintainer,

for instance, to update the barriers after updating the

map material. Second, the provision of an interface

for accepting and responding to routing requests by

forwarding them to the routing engine. Since the ac-

cess of the barrier database, is also used by the rout-

ing engine GraphHopper, it was decided to combine

the entire logic, including GraphHopper, in one com-

ponent. In ﬁgure 7, this entire logic is labeled as Ap-

plication Kernel / Routing Instance.

The interfaces were implemented as REST API

using the embedded Webserver Jetty. As data ex-

change format for barriers, routing requests, and other

minor functionalities JSON (JavaScript Object Nota-

tion) has been chosen. The combination of REST

and JSON is a common way to exchange data be-

tween client and server in business applications (Af-

sari, Kereshmeh et al., 2016).

The request below, shows an example routing re-

quest. The example request asks for a route between

two points. The ﬁlter parameters attached to the re-

quest allow only routes where passed stairways either

are equipped with a ramp for wheelchairs or have less

than 12 steps and a handrail:

curl --location --request GET ’{{host}}/route?

point=49.8712,8.6403&point=49.86772,8.64233&

vehicletype=wheelchair&instructions=true&

filter=ramp-wheelchair*EQ*true&filter=or&

filter=number-of-steps*LT*12&

filter=handrail*EQ*true’

Below, another example for a request, to receive

barriers in a certain radius, here 500 meters, for in-

stance to display them on the client:

curl --location --request GET {{host}}/

barriers?point=49.8712,8.6403&distance=0.5’

4.3.2 Application Kernel Facade / Load

Balancer

As described in the 3.2.3 section, the WheelScout ar-

chitecture supports running different maps on differ-

ent clusters to take advantage of scaling. For this

reason, it is necessary to actually forward all incom-

ing requests from the mobile client to the appropriate

cluster, e.g., Germany or Italy. To achieve that, the fa-

cade, which is implemented using Spring Boot needs

to be aware of the boundaries of each existing cluster.

The boundaries are represented as a polygon. Now,

the determination is actually done using an algorithm

called Ray casting algorithm. The algorithm sends

out a ray of the point in the direction to the minimum

square border of the polygon and counts the cross-

ings. If the number is odd, the point is situated within

the polygon, otherwise not (Taylor, G., 1997). In case

of no coordinates are provided in the request, such as

modifying an existing barrier by its id, the id has a

preﬁx to identify the cluster.

The second task is, as the name suggests, load bal-

ancing if more than one application kernel exists for

a certain cluster. As there are no special requirements

for load balancing, except that writing requests shall

only be processed by the ﬁrst application kernel in a

Customizable Navigation on Mobile Devices for Physically Impaired People

251

cluster, a simple Round-robin scheduling is used for

all non-writing requests.

4.4 Client

In section 3.1, a client-side approach that performs

the routing on the client has been described. For this

approach, it was necessary to use Android as an oper-

ating system since Android is currently the only mar-

ket relevant operating system for mobile devices that

allows running Java code on it which is a must to ex-

ecute GraphHopper.

However, since the ﬁnal approach requires to run

GraphHopper on the server and not on the client,

the Cross-Platform Mobile App Development Frame-

work called Ionic had been chosen for the develop-

ment of the client.

5 RESULTS

In this section, the results gained from the implemen-

tation for WheelScout, described in section 4, are pre-

sented and discussed.

5.1 Routing Results

A great number of different routes was continuously

tested to verify the functionality of the system. For

example, two different routes in Darmstadt have been

tested. One rather short route in the surroundings of

Hochschule Darmstadt with three different proﬁles

and one longer route with a single proﬁle from

Darmstadt to Darmstadt-Wixhausen. Each route and

proﬁle has been tested three times and was evaluated

with the number of passed nodes, distance, comput-

ing time, and total request time. The measured results

of the ﬁrst route are shown for each proﬁle setting

in the tables 1, 2 and 3. The route is also visualized

in a different color per proﬁle setting in ﬁgure 9.

The range of barriers that are applied for the route

is visualized as an orange square in ﬁgure 10. The

measured results for the second route are shown in

table 4 and also visualized with its barrier range in

ﬁgure 11:

Route 1: Start: 49.86779,8.64460;

Destination: 49.87047,8.64016

Route 2: Start: 49.86779,8.64460;

Destination: 49.9335,8.6571

Table 1: Route color: blue, Applied ﬁlters: No ﬁlters.

Number

of passed

nodes

Distance Com-

puting

time

Total

request

time

1 14 580m 177ms 253ms

2 14 580m 188ms 364ms

3 14 580m 176ms 238ms

Table 2: Route color: green, Applied ﬁlters: Number of

steps < 12; only always accepted surface types.

Number

of passed

nodes

Distance Com-

puting

time

Total

request

time

1 14 615.85m 231ms 376ms

2 14 615.85m 244ms 380ms

3 14 615.85m 227ms 288ms

Table 3: Route color: red, Applied ﬁlters: Number of

steps < 12; accepted surface types: ﬁne gravel, compacted,

pebblestone and always accepted surface types.

Number

of passed

nodes

Distance Com-

puting

time

Total

request

time

1 10 624.6m 236ms 519ms

2 10 624.6m 229ms 368ms

3 10 624.6m 242ms 306ms

Figure 9: Route 1, ﬁrst proﬁle: blue, second proﬁle: green,

third proﬁle: red -

 umap,

 OpenStreetMap contribu-

tors.

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

252

Figure 10: Route 1, three routes, barrier range visualized as

orange square -

 umap,

 OpenStreetMap contributors.

Figure 11: Route 2, barrier range visualized as orange

squares -

 umap,

 OpenStreetMap contributors.

It can be seen that the barrier related information

about ways and paths from OSM, as already stated in

section 2.1, are sufﬁcient to compute different routes

Table 4: Applied ﬁlters: Number of steps < 12; accepted

surface types: ﬁne gravel, compacted, pebblestone and al-

ways accepted surface types.

Number

of passed

nodes

Distance Com-

puting

time

Total

request

time

1 120 8.4km 1366ms 1443ms

2 120 8.4km 1358ms 1503ms

3 120 8.4km 1348ms 1496ms

depending on the proﬁle settings. Further, it is no-

ticeable that the computation time clearly increases

with the length of the route because of more needed

squares and thus more barriers to be considered.

5.2 Resulting Mobile App

Figures 12, 13 and 14 show some of the core func-

tionalities of the WheelScout app. Figure 12 shows

the above-introduced route but with uneven surfaces

allowed and stairways to be avoided. All existing bar-

riers in the surroundings are displayed by blue mark-

ers. The type of barrier depends on the symbol dis-

played on the marker. Figure 13 shows an example of

how the proﬁle settings for stairways can be adjusted

in the app. Figure 14 shows how a missing stairway

can be added within the app.

Figure 12: Main screen of the app, route avoiding stairways.

Customizable Navigation on Mobile Devices for Physically Impaired People

253

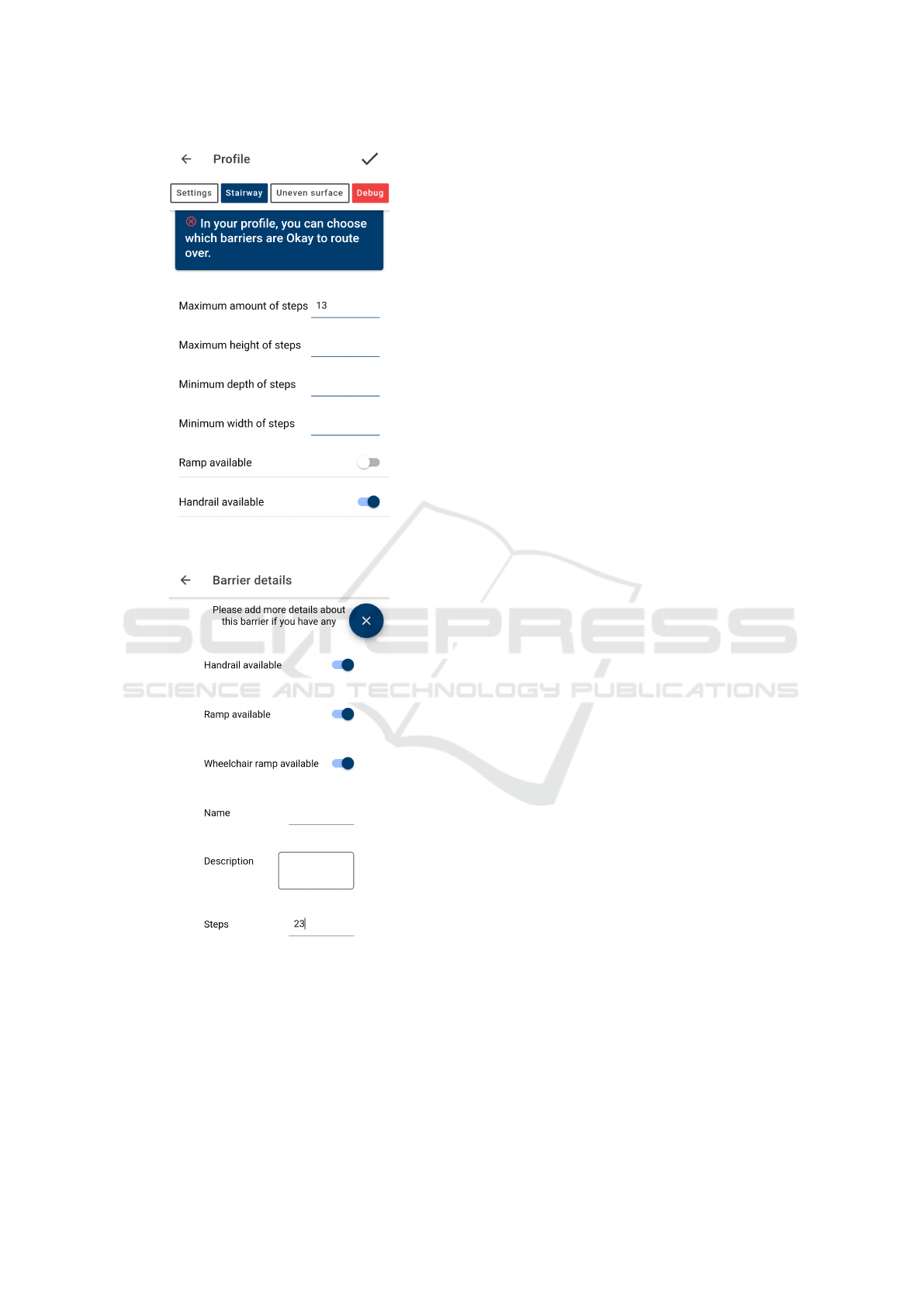

Figure 13: Adjusting proﬁle settings screen, maximum al-

lowed steps 13, stairways must provide a handrail.

Figure 14: Adding new barrier screen, add a new stairway

that has 23 steps and that provides a handrail, a ramp and a

ramp for wheelchairs.

6 DISCUSSION AND OUTLOOK

WheelScout is still in an early stage of development.

Nevertheless, this work proved that it is possible not

only to develop a navigation system for physically im-

paired people with GraphHopper but also to make it

interactive, i.e., users can collaborate by extending the

barrier information. Moreover, it is shown that new

barriers are directly taken into account without caus-

ing delays, for example, due to the need to rerender

the map. This fact is a big advantage since OSM al-

ready provides much barrier related data. Anyway,

there is still a lot of data missing or not up-to-date,

see section 2.1.

The problem caused by the fact that longer routes,

i.e., 10km and more, have a longer computation time,

is less relevant, since wheelchair users mostly move

on short, inner-city routes. Furthermore, the provi-

sion of multiple routing engines within a cluster and

thus the ability to process parallel routing requests

can counteract the issue. Nevertheless, additional

routing engines also mean more resource consump-

tion. With an average computation time of 500ms,

the number of simultaneously processable routing re-

quests is therefore still limited. That is why the new

possibility added by GraphHopper to individually in-

ﬂuence the computed route with properties such as al-

lowed surface-types or stairways could be very help-

ful (Karich, 2020a).

With the integration of Point of Interests (POIs)

functionality, which currently under development us-

ing data from the Accessibility Cloud, see section 2.4,

it will additionally be possible for users to navigate

for example to accessible restrooms or stores. This is

a great advantage for the user group, as not only the

accessibility of the POI itself but also the way to get

there can be determined in an uncomplicated way.

The option of using speech to operate WheelScout

is important as well for the user group since po-

tential users often have limited motoric abilities and

therefore cannot use the smartphone in the usual way

(Padır, Tasskın, 2015).

Finally, the integration of real-time trafﬁc infor-

mation is also of high importance, especially for peo-

ple in wheelchairs, as it can be difﬁcult for them to

make their way through crowds in busy pedestrian ar-

eas. As a result, trafﬁc can also be a potential barrier

(Ding, Dan et al., 2007).

ACKNOWLEDGEMENTS

We thank the LAPIC and its members for their coop-

eration and support.

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

254

REFERENCES

accessibility.cloud (2021). accessibility.cloud: Home.

https://accessibility.cloud/. Last checked on Feb 16,

2021.

Afsari, Kereshmeh et al. (2016). Javascript object nota-

tion (json) data serialization for ifc schema in web-

based bim data exchange. doi:10.1016/j.autcon.2017.

01.011. Last checked on Feb 16, 2021.

Akasaka, R. (2020). Introducing “wheelchair ac-

cessible” routes in transit navigation. https:

//www.blog.google/products/maps/introducing-

wheelchair-accessible-routes-transit-navigation/.

Last checked on Feb 16, 2021.

Destatis Statistisches Bundesamt (2020). Schwerbehinderte

menschen am jahresende.

Ding, Dan et al. (2007). Design considerations for a per-

sonalized wheelchair navigation system. doi:10.1109/

IEMBS.2007.4353411.

Google (2021a). Google Cloud. https://cloud.google.com/.

Last checked on Feb 16, 2021.

Google (2021b). OpenRouteService: Services. https:

//openrouteservice.org/services/. Last checked on

Feb 16, 2021.

Heidelberg Institute for Geoinformation Technol-

ogy (2019). openrouteservice.org: About.

https://maps.openrouteservice.org. Last checked

on Feb 16, 2021.

Karich, P. (2019a). Graphhopper routing engine: How to

create new routing proﬁle aka a new ﬂagencoder?

https://github.com/graphhopper/graphhopper/blob/

master/docs/core/create-new-ﬂagencoder.md. Last

checked on Feb 16, 2021.

Karich, P. (2019b). Graphhopper routing engine: Readme.

https://github.com/graphhopper/graphhopper/blob/

master/README.md. Last checked on Feb 16, 2021.

Karich, P. (2020a). Examples for customizable rout-

ing. https://www.graphhopper.com/blog/2020/05/31/

examples-for-customizable-routing. Last checked on

Feb 16, 2021.

Karich, P. (2020b). Technical overview of graphhop-

per. https://github.com/graphhopper/graphhopper/

blob/master/docs/core/technical.md. Last checked on

Feb 16, 2021.

Krauthausen, R. (2010). Wheelmap.org: Faq. https://news.

wheelmap.org/en/faq/. Last checked on Feb 16, 2021.

nullbarriere.de (n.d.). Bedarf an barrierefreien woh-

nungen in deutschland. https://nullbarriere.

de/bedarf-barrierefreie-wohnung.htm#:

∼

text=Danach%20sind%20insgesamt%20rund%

201,in%20Deutschland%20im%20Jahr%202019.

Last checked on Feb 16, 2021.

OpenStreetMap (2021). About. https://www.

openstreetmap.org/about. Last checked on Feb 16,

2021.

OpenStreetMap contributors (2019). umap/guide/import

data ﬁles. https://wiki.openstreetmap.org/wiki/UMap/

Guide/Import data ﬁles. Last checked on Feb 16,

2021.

OpenStreetMap contributors (2021). Key:highway. https:

//wiki.openstreetmap.org/wiki/Key:highway. Last

checked on Feb 16, 2021.

Padır, Tasskın (2015). Towards personalized smart

wheelchairs: Lessons learned from discovery in-

terviews. doi:10.1109/EMBC.2015.7319518. Last

checked on Feb 16, 2021.

Poleshova, A. (2020). accessibility.cloud: Home.

https://de.statista.com/statistik/daten/studie/1174791/

umfrage/unverzichtbaren-apps-nach-altersgruppen/.

Last checked on Feb 16, 2021.

Sozialverband VdK Deutschland e.V. (2016). Barrierefreie

mobilit

at ist den menschen am wichtigsten. https://

www.vdk.de/deutschland/pages/72149/barrierefreie

mobilitaet ist den menschen am wichtigsten. Last

checked on Feb 16, 2021.

Taylor, G. (1997). Point in polygon test. doi:10.31030/

2250588.

United Nations (2006). United nations conven-

tion on the rights of persons with disabili-

ties. https://www.un.org/disabilities/documents/

convention/convention accessible pdf.pdf. Last

checked on Feb 16, 2021.

Customizable Navigation on Mobile Devices for Physically Impaired People

255
