Machine Learning Techniques for Knowledge Tracing: A Systematic

Literature Review

Sergio Iván Ramírez Luelmo

, Nour El Mawas

and Jean Heutte

CIREL, Centre Interuniversitaire de Recherche en Éducation de Lille, Université de Lille,

Campus Cité Scientifique, Bâtiments B5 – B6, Villeneuve d’Ascq, France

Keywords: Machine Learning, Knowledge Tracing, Learner Model, Literature Review, Technology Enhanced Learning.

Abstract: Machine Learning (ML) techniques are being intensively applied in educational settings. They are employed

to predict competences and skills, grade exams, recognize behavioural academic patterns, evaluate open

answers, suggest appropriate educational resources, and group or associate students with similar learning

characteristics or academic interests. Knowledge Tracing (KT) allows modelling the learner's mastery of skill

and to meaningfully predict student’s performance, as it tracks within the Learner Model (LM) the knowledge

state of students based on observed outcomes from their previous educational practices, such as answers,

grades and/or behaviours. In this study, we survey commonly used ML techniques for KT figuring in 51

papers on the topic, out of an original search pool of 628 articles from 5 renowned academic sources,

encompassing the latest research, based on the PRISMA method. We identify and review relevant aspects of

ML for KT in LM that help paint a more accurate panorama on the topic and hence, contribute to alleviate the

difficulty of choosing an appropriate ML technique for KT in LM. This work is dedicated to MOOC

designers/providers, pedagogical engineers and researchers who need an overview of existing ML techniques

for KT in LM.

1 INTRODUCTION

Evidence from several studies has long linked having

a Learner Model (LM) can make a system more

effective in helping students learn, and adaptive to

learner’s differences (Corbett et al., 1995).

LMs represent the system’s beliefs about the

learner’s specific characteristics, relevant to the

educational practice (Giannandrea & Sansoni, 2013),

encoded using a specific set of dimensions (Nakić et

al., 2015). Ultimately, a perfect LM would include all

features of the user’s behaviour and knowledge that

effect their learning and performance (Wenger,

2014). Modelling the learner has the ultimate goal of

allowing the adaptation and personalization of

environments and learning activities (El Mawas et al.,

2019) while considering the unique and

heterogeneous needs of learners. We acknowledge

the difference between Learner Profile (LP) and LM

in that the former can be considered an instantiation

https://orcid.org/0000-0002-7885-0123

https://orcid.org/0000-0002-0214-9840

https://orcid.org/0000-0002-2646-3658

of the latter in a given moment of time (Martins et al.,

2008).

Knowledge Tracing (KT) models students’

knowledge as they correctly or incorrectly answer

exercises (Swamy et al., 2018), or more generally,

based on observed outcomes on their previous

practices (Corbett & Anderson, 1994). KT is one out

of three approaches for student performance

prediction (Yudelson et al., 2013). In an Adaptive

Educational System (AES), predicting students’

performance warrants for KT. This allows for

learning programs recommendation and/or level-

appropriate, educational resources personalization,

and immediate feedback. KT facilitates personalized

guidance for students, focusing on strengthening their

skills on unknown or less familiar concepts, hence

assisting teachers in the teaching process (Juntao

Zhang et al., 2020).

Machine Learning (ML) is a branch (or subset) of

Artificial Intelligence (AI) focused on building

Ramírez Luelmo, S., El Mawas, N. and Heutte, J.

Machine Learning Techniques for Knowledge Tracing: A Systematic Literature Review.

DOI: 10.5220/0010515500600070

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 1, pages 60-70

ISBN: 978-989-758-502-9

applications that learn from data and improve their

accuracy over time without being programmed to do

so (IBM, 2020). To achieve this, ML algorithms build

a model based on sample data (a.k.a. input data)

known as ‘training data’. Once trained, this model can

then be reused with other data to make predictions or

decisions.

ML techniques are currently applied to KT in vast

and different forms. The goal of this literature review

is to survey all available works in the field of

“Machine Learning for Knowledge Tracing used in a

Learner Model setup” in the last five years to identify

the most employed ML techniques and their relevant

aspects. This is, in general terms, what common ML

techniques and their relevant aspects, designed to

trace a learner’s mastery of knowledge, also account

for the creation, storage, and update of a LM.

Moreover, we aim to identify relevant ML aspects to

consider insuring KT in a LM. The motivation behind

this work is to present a comprehensive panorama on

the topic of ML for KT in LM to our target public. To

our knowledge, currently there is no research work

that addresses the literature review of ML techniques

for KT accounting for the LM.

Thus, we decided to focus our literature review on

the terms “machine learning”, “knowledge tracing”

and “learner model”, a.k.a. “student model” (SM).

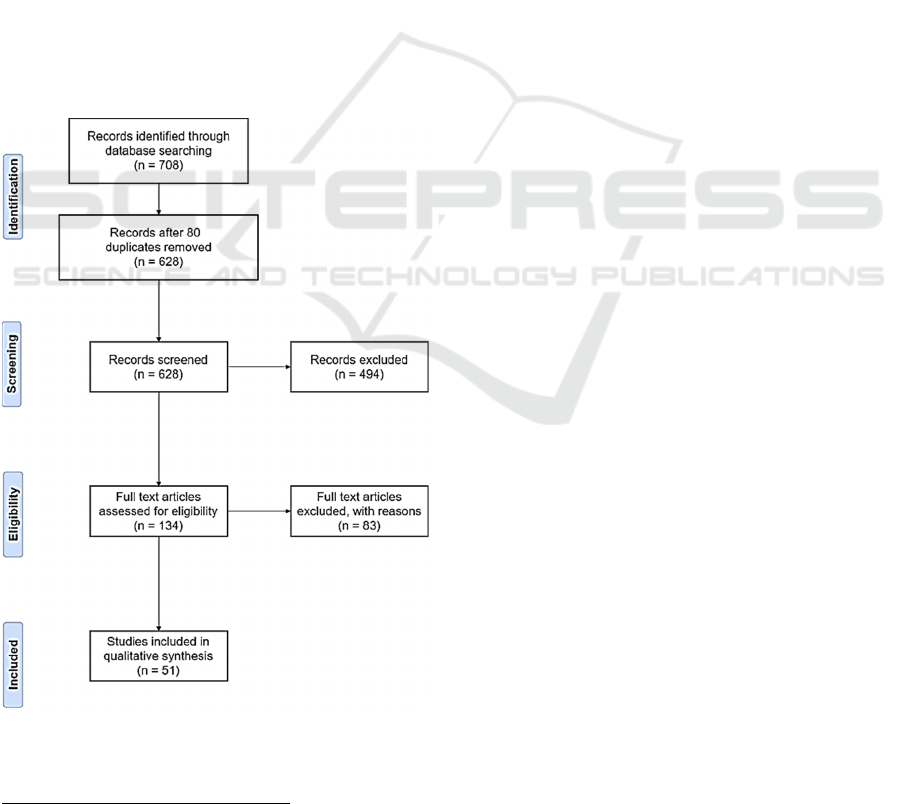

Using the PRISMA method (Moher et al., 2009), we

performed this research in the IEEE, Science Direct,

Scopus, Springer, and Web of Science databases

comprising the 2015-2020 period. The thought

behind these choices is to obtain the most recent and

high-quality corpus on the topic.

This work differs from other literature reviews

(Das & Behera, 2017; Olsson, 2009; Shin & Shim,

2020) on two accounts. First, we focus exclusively on

ML techniques for KT accounting for the LM. That

is, we do not cover pure Data Mining (DM)

techniques, nor AI intended for purposes other than

KT, such as Natural Language Processing (NLP),

gamification, computer vision, learning styles

prediction, nor any processes that make pure use of

LP data (instead of LM data), nor other User Model

data, such as sociodemographic, biometrical,

behavioural, or geographical data

. Second, we do not

review nor compare the mathematical inner workings

of ML techniques: we feel (a) the research field and

the literature corpus found cover it extensively, and

(b) our target public might be unable to exploit

appropriately such complex form results. Instead, we

Please note that we did include such works, if they also

employed ML for KT (the core of this paper).

shift the focus to a pragmatic report on ML for KT in

a LM application and purpose(s).

The remainder of this article is structured as

follows. Section 2 of this paper oversees the

theoretical framework concerning this paper, namely

the definition of ML and its categorization. Section 3

details the methodology steps taken. Section 4

presents the findings of this research, Section 5

discusses the results and, finally Section 6 concludes

this paper and presents its perspectives.

2 THEORETICAL

BACKGROUND

In this section we present the theoretical background

put in motion behind this research, namely the

definition of ML and how it is categorized.

2.1 Machine Learning

ML is a branch (or subset) of AI focused on building

applications that learn from data and improve their

accuracy over time without being programmed to do

so (IBM, 2020). Additional research (Chakrabarti et

al., 2006; Schmidhuber, 2015) to this definition

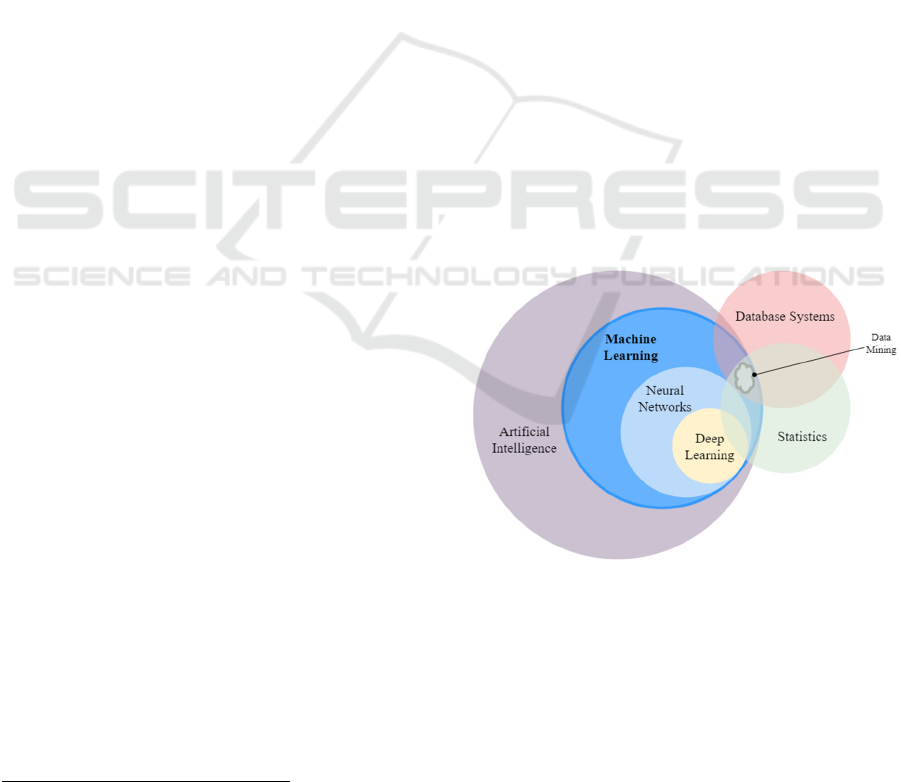

allows us to present Figure 1 to illustrate and discern

the situation of ML against other common terms used

in the field.

Figure 1: Situational context of ML.

2.2 ML Methods / Styles / Scenarios

Although some authors (Das & Behera, 2017; Mohri

et al., 2018) admit several more ML methods (or

styles or paradigms or scenarios), we retain the

following categorization: Supervised ML, Semi

Machine Learning Techniques for Knowledge Tracing: A Systematic Literature Review

Supervised ML, Unsupervised ML, Reinforcement

Learning, and Deep Learning (IBM, 2020). The first

three differentiate each other on the labelling of the

input training data while creating the model. The two

latter constitute special cases altogether (Brownlee,

2019; IBM, 2020; Mohri et al., 2018).

First, in Supervised Learning (SL) labels are

provided (metadata containing information that the

model can use to determine how to classify it).

However, properly labelled data is expensive

prepare, and there is a risk of creating a model so tied

to its training data that it cannot handle variations in

new input data accurately (“overfitting”) (Brownlee,

2019).

Second, Unsupervised Learning (UL) must use

algorithms to extract meaningful features to label,

sort and classify its training data (which is unlabelled)

without human intervention. As such, it is usually

used to identify patterns and relationships (that a

human can miss) than to automate decisions and

predictions. Because of this, UL requires huge

amounts of training data to create a useful model

(Brownlee, 2019).

Third, Semi Supervised Learning (SSL) is at the

middle point of the two previous methods: it uses a

smaller labelled dataset to extract features and guide

the classification of a larger, unlabelled dataset. It is

usually used when not enough labelled data is made

available (or it is too expensive) to train a preferred,

Supervised Model (van Engelen & Hoos, 2020).

Fourth, Reinforcement Learning (RL) is a

behavioural machine learning model akin to SL, but

the algorithm is not trained using sample data but by

using trial and error. A sequence of successful

outcomes will be reinforced to develop the best

recommendation or policy for a given problem. RL

models can also be deep learning models (IBM,

2020).

Lastly, Deep Learning (DL) is a subset of ML

(all DL is ML, but not all ML is DL). DL algorithms

define an artificial neural network

that is designed to

learn the way the human brain learns. DL models

require a large amount of data to pass through

multiple layers of calculations, applying weights and

biases in each successive layer to continually adjust

and improve the outcomes. DL models are typically

unsupervised or semi-supervised (IBM, 2020). For

clarity reasons, the figure illustrating this ML

categorization is available in the Appendix.

Mostly in terms of computational resource allocation.

In this subsection we covered the ML definition

and a categorization of ML techniques. In the

following subsection we deepen into the relevant

aspects in ML for KT in LM.

2.3 ML for KT in LM

An overwhelming number of ML techniques have

been designed and introduced over the years (Das &

Behera, 2017). They usually rely on more common

ML techniques, within optimized pipelines. As such,

we identify the ML techniques (or algorithms) upon

which any new research is based.

Additionally to performing KT in LM,

researchers have acknowledged that ML techniques

can reliably determine the initial parameters when

instantiating a LM (Eagle et al., 2016; Millán et al.,

2015). This led us to consider this purpose when

reviewing ML techniques. Different ML techniques

are applied at different stages of the ML pipeline, and

not all stages are responsible for KT (other

applications can be NLP, computer vision, automatic

grading, demographic student clustering, mood

detection, etc.) We differentiate purposes related to

KT and/or learner modelling, specifically if the ML

technique is used for (1) either grade, skills, or

knowledge prediction (and hence later, clustering,

personalizing, or suggesting resources), (2) either for

LM creation (or instantiation), or (3) both.

Studies highlight the importance of justifying the

rationale when choosing a ML technique (Chicco,

2017; Wen et al., 2012; Winkler-Schwartz et al.,

2019). We note such rationale, when made explicit,

and contrast it to other authors’ rationale for

commonalities, on the same technique. This allows us

to present and weigh known, favourable, and

unfavourable features specific to ML techniques

applied to KT accounting for the LM.

Research studies stress the ultimate importance of

the input data (dataset) and the effects of the chosen

programming language software employed for ML

(Chicco, 2017; Domingos, 2012). Indeed, ML

techniques require input data for creating a model.

The feature engineering of this input data (dataset)

might be determinant for a ML project to succeed or

fail (Chicco, 2017). We compile and verify the

availability of all public datasets presented in the

reviewed articles. Furthermore, the choice of the

programming language for ML plays a role in

collaboration, licensing, and decision-making

A quite complete and updated chart of many neural

networks was made available by (van Veen & Leijnen,

2019).

CSEDU 2021 - 13th International Conference on Computer Supported Education

processes: it helps to determine the most appropriate

choices for ML implementation (purchasing licences,

upgrading hardware, hiring a specialist, or

considering self-training). Hence, we highlight the

family of ML programming languages used by

researchers on their proposals.

Thus, based on this state-of-the-art, we identify

relevant aspects to consider in ML for KT in LM: the

ML technique employed, its purpose, the

contextual, known rationale for choosing it, the

programming language software used for ML, and

the dataset(s) employed for KT. We consider that

these aspects are relevant for our target public when

choosing a ML technique for KT in LM.

3 REVIEW METHODOLOGY

This review of literature follows the PRISMA (Moher

et al., 2009) methodology, comprising: Rationale,

Objectives & Research questions, Eligibility criteria,

Information sources & Search strategy, Screening

process & Study selection, and Data collection &

Features.

3.1 Rationale, Objectives & Research

Questions

The goal of this literature review is to present a

comprehensive panorama on the topic of ML for KT

in LM. This is, in general terms, what ML techniques

designed to trace a learner’s mastery of skill also

account for the creation, storage, and update of the

LM.

This article aims thus to answer the following two

research questions (RQ):

• RQ1: What are the most employed ML

techniques for KT in LM?

• RQ2: How do the most employed ML techniques

fulfil the considered relevant aspects (identified

in section 2.1.2) to insure KT in LM?

3.2 Eligibility Criteria, Information

Sources & Search Strategy

In this section we describe the inclusion and

exclusion criteria used to constitute the corpus of

publications for our analysis. We also detail and

justify our choice of in-scope publications, the search

terms, and the identified databases.

In this research, we focus on recent ML

techniques (and/or algorithms) that explicitly “learn”

(with minimal or no human intervention) from its data

input to perform KT, while accounting for the LM.

Thus, we do not cover all predictive statistical

methods (as they are not all ML), nor pure DM

techniques, nor AI intended for purposes other than

KT (such as NLP, gamification, computer vision,

learning styles prediction, etc.), nor any processes

that make pure use of LP data (instead of LM data),

nor other User Model data, such as

sociodemographic, biometrical, behavioural, or

geographical data.

On one hand, our Inclusion criterion are: Works

that present a ML technique for KT while accounting

for the LM, in the terms presented in the previous

paragraph. On the other hand, our chosen Exclusion

criterion consist of: Works written not in English,

under embargo, not published or in the works. We

choose to keep subsequent works on the same subject

from the same research team because they represent a

consolidation of the techniques employed.

We performed this research at the end of October

2020 in the following scientific databases: IEEE,

Science Direct, Scopus, Springer, and Web of

Science, comprising 2015-2020. The thought behind

these two choices is to have the most recent and

quality-proven scientific works on the subject. Our

general search terms were

(("learner model" OR

"student model" OR "knowledge tracing")

AND "machine learning")

, declined for the

specificities of each scientific database (search

engines parse and return verbal, noun, plural, and

continuous forms of search terms). We used their

‘Advanced search’ function, or we queried them

directly, if they allowed it. Some direct queries did

not allow for year filtering, so we applied it manually

on the results page. For accessibility reasons, we

explicitly selected “Subscribed content” results for

the scientific databases supporting it.

3.3 Screening Process & Study

Selection

The paper selection process happened as follows:

First, we gathered all the results in two known

Citation Manager programs to benefit from the

automatic metadata extraction, the report creation,

and duplicate merging. We also used a spreadsheet to

record, based on section 2.1.2, the following

information:

doi, title, year, purpose,

ml_method, method_rationale, software,

data_source, and observations

. Second, we

screened the abstracts of all 708 results: three

categories appeared: obvious Out-of-scope results,

clear Eligible results, and Pending (verification

Machine Learning Techniques for Knowledge Tracing: A Systematic Literature Review

needed) results. Third, using the institutional

authentication, we downloaded all the papers in the

Eligible and Pending categories. Fourth, we read the

full papers in the Eligible and Pending categories and

re-classified them as Eligible or Out-of-scope, as

needed.

We used the papers’ titles and keywords metadata

fields to discern if they satisfy the inclusion criteria,

when the abstract was ambiguous. We highlighted the

text in the abstract that made it Eligible. We

registered the reason(s) for rejection NO_ML: no ML

is involved but instead other prediction or classifying

mechanism, NO_KT: ML is not used for KT, and

NO_LM: no LM/SM accountability.

Figure 2 presents a PRISMA flow diagram of the

process presented in this section. From a total of 708

results from the five academic search engines, 628

articles were collected (i.e., duplicates removed) and

their abstracts read: 134 publications were thus

categorized either Eligible or Pending; 494

publications were excluded. After full text read, 83

publications were again removed as they were out of

scope, leading to a core of 51 papers.

Figure 2: PRISMA Flow diagram of the publication

screening process.

With more than five applications in the last five years.

3.4 Data Collection & Features

In this section we review the relevant features of

interest described in subsection 2.1.2 found in the

reviewed literature.

During the full text read, we extracted the

following information from the selected papers: (1)

ML technique employed; (2) purpose of the ML

technique; (3) rationale for employing that specific

ML technique; (4) software employed for ML; and

(5) dataset employed for KT, if any.

We note here that rarely a single, known

technique ML is employed, but it is rather

implemented in a pipeline, connected with another

secondary ML (probabilistical, or DM) techniques. In

such cases, we focused on the technique(s) employed

for KT and on the reasons given for choosing it over

other techniques acknowledged by the authors.

We surveyed the software used to perform the

calculation of ML and we grouped them by

programming language, which is a rather meaningful

description, compared to combinations of libraries

and platforms. We think this result shows a clear

tendency on the necessary requirements to implement

and perform ML for KT in LM.

We surveyed all datasets presented in the 51

reviewed papers and checked for their existence. We

understand that our target public may not have data

made available to perform ML for KT accounting for

the LM and we feel that this resource may be

invaluable when evaluating their results.

In this section we presented our literature review

methodology, the considered features, and the train of

thought behind them. The following section details

our literature review results.

4 RESULTS

We aggregated the data collected (described in the

previous section) to make it easier to digest.

First, we quickly present the seven most

employed

ML techniques for KT in LM found in the

reviewed publications. These comprise based-upon

techniques for the paper proposal, techniques used as

baselines, and techniques used for comparison.

Bayesian Knowledge Tracing (BKT) (Corbett

& Anderson, 1994) is the most classical method used

to trace students’ knowledge states.

Deep Knowledge Tracing (DKT) was proposed

by (Piech et al., 2015) to trace students’ knowledge

using Recurrent Neural Networks (RNNs), achieving

CSEDU 2021 - 13th International Conference on Computer Supported Education

great improvement on the prediction accuracy of

students’ performance.

Long Short-Term (LSTM) is a special type of

RNN, effective in capturing underlying temporal

structures in time series data and long-term

dependencies more effectively than conventional

RNN (Mao et al., 2018).

Bayesian Networks (BN) are graphical models

designed to explicitly represent conditional

independence among random variables of interest and

exploit this information to reduce the complexity of

probabilistic inference (Pearl, 1988). They are a

formalism for reasoning under uncertainty that has

been widely adopted in AI (Conati, 2010).

Support Vector Machines (SVM) are one of the

most robust prediction methods, based on statistical

learning frameworks (Vapnik, 1998). The primary

aim of this technique is to map nonlinear separable

samples onto another higher dimensional space by

using different types of kernel functions (Hämäläinen

& Vinni, 2010). They distinctively afford balanced

predictive performance, even in studies where sample

sizes may be limited.

Dynamic Key Value Memory Network

(DKVMN) is a memory augment neural network-

based model, which uses the relationship between the

underlying knowledge points to directly output the

student's mastery of each knowledge point (Jiani

Zhang et al., 2017).

Performance Factor Analysis (PFA) is one

specific model from a larger class of models based on

a logistic function (Pavlik et al., 2009). In PFA, the

probability of learning is computed using the previous

number of failures and successes.

This list answers then RQ1. “What are the most

employed ML techniques for KT in LM?”. Figure 3

shows a yearly heatmap of the most used techniques:

the number indicates the total number of applications

in all 51 combined-and-reviewed papers, per year.

DKT was applied eight times in 2019 (emerging of

two consecutive zero years) while BKT was mostly

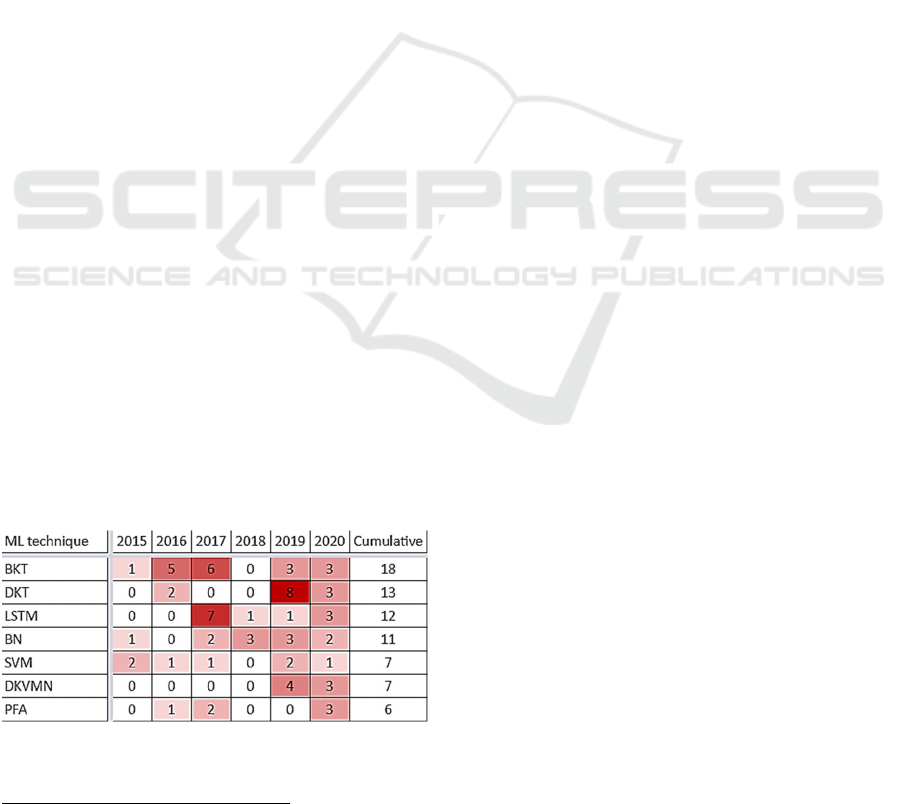

Figure 3: Yearly heatmap of the most employed ML

techniques.

Programming and teaching the ML model with input data.

applied in 2016 and 2017, five and six times

respectively, decreasing since. LSTM peaked in

2017, with 7 applications, and has decreased since.

BN remains with a steady application since 2017. For

clarity reasons, the 29 ML techniques found in the 51

papers issued from this study are available in the

Appendix.

Second, we noted the rationale (if any) given by

authors when choosing a ML technique. We do not

account for the rationale of the paper’s unique ML

proposal if its improvements are related to parameter

fine-tuning, or if the justification is à posteriori.

Instead, we account rationale for the general

application of the original, unmodified technique.

Also, very few publications detail the shortcomings

of their choice. We grouped these rationales in the

following categories:

R1-Uses Less Data and/or Metadata. These

techniques handle sparse data situations better

compared to others, according to the authors, e.g.

DKT (Jiani Zhang & King, 2016).

R2-Extended Tracing. These techniques provide

additional attributes and/or dimensional tracing with

ease when compared to other techniques, according

to authors, e.g. LSTM (Sha & Hong, 2017).

R3-Popularity. These techniques were chosen

because of their popularity, e.g. BN (Millán et al.,

2015).

R4-Persistent Data Storage. These techniques

explicitly save their intermediate states to long-term

memory, e.g. DKVMN (Trifa et al., 2019).

R5-Input Data Limitations. These techniques have

been acknowledged to lack when the number of peers

is “too high”, e.g. BN (Sciarrone & Temperini, 2020).

R6-Modelling Shortcomings. Techniques in this

category face difficulties when modelling either

forgetting, guessing, multiple-skill questions, time-

related issues, or have other modelling shortcomings,

e.g. BKT (Crowston et al., 2020).

A heatmap illustrating the number of publications

mentioning each of these rationales, for each of the

most common ML techniques, is shown in Figure 4.

Machine Learning Techniques for Knowledge Tracing: A Systematic Literature Review

Figure 4: Heatmap of most employed ML techniques,

categorized by Method (SL, UL, SSL, RL, DL) and number

of publications sharing a Rationale (R1-R6).

This heatmap includes the ML categorization

presented in 2.1.1 (SL, UL, SSL, RL, DL). BKT faced

mostly R6 rationales, englobing the whole of RL as

well. DKT and BKT were mostly commented on R1

and R2, respectively. This leads to the DL

categorization (DKT + LSTM + DKVMN) to be

extensively justified in the literature, while UL (PFA)

is sparsely commented, and SVM not at all, despite

its non-negligeable number of applications (7). BN

had the highest R3 count of all and carries all the

justifications related to SL.

Third, we looked over the intended purpose of the

ML implementation, besides KT. Out of the 51

publications reviewed, seven (~15%) employ ML for

initializing the LM (e.g., for another course, academic

year, or for determining the ML parameters in a

pipeline) by accounting previous system interactions,

grades, pre-tests or other data. 44 publications, the vast

majority (~85%) perform some form of prediction.

Finally, only one proposal (~2%) incorporates both a

prediction and/or recommendation mechanism as well.

A pie chart of ML techniques purpose distribution is

presented in Figure 5.

Figure 5: Pie chart distribution of ML purpose.

Fourth, we surveyed the software used to perform

the ML calculations. Note that many publications

(~50%) do not mention their software of choice.

Python (comprising Keras, TensorFlow, PyTorch and

scikit-learn) is the largest group, with 13 papers. Ad-

hoc solutions follow with five papers, and finally C,

Java (-based), Matlab and R, with 2 publications each.

Outliers were SPSS and Stan, with 1 paper each. A

pie chart illustrating the distribution of programming

languages is shown in Figure 6.

Figure 6: Pie chart distribution of ML programming

language.

Fifth, we highlighted (and checked for existence)

the public datasets employed, shown in Table 1. All

the datasets we found in the literature were online and

accessible when reviewed. We made the version

Table 1: Public datasets found.

Name URL

ASSISTments2009

https://sites.google.com/site/assist

mentsdata/home/assistment-2009-

2010-data/skill-builder-data-2009-

2010

ASSISTments2013

https://sites.google.com/site/assist

mentsdata/home/2012-13-school-

data-with-affect

ASSISTments2015

https://sites.google.com/site/assist

mentsdata/home/2015-

assistments-skill-builder-data

KDD Cup

https://pslcdatashop.web.cmu.edu/

KDDCup/downloads.jsp

DataShop

https://pslcdatashop.web.cmu.edu/

DataShop: OLI

Engineering Statics -

1.14 (Statics2011)

https://pslcdatashop.web.cmu.edu/

DatasetInfo?datasetId=507

The Stanford

MOOCPosts Data Set

https://datastage.stanford.edu/Stan

fordMoocPosts/

Hour of Code

https://code.org/research

DeepKnowledgeTracing

dataset

https://github.com/chrispiech/Dee

pKnowledgeTracing

DeepKnowledgeTracing

dataset - Synthetic-5

https://github.com/chrispiech/Dee

pKnowledgeTracing/tree/master/d

ata/synthetic

MOOC [Big Data and

Education on the EdX

platform]

https://github.com/davidjlemay/Ed

X-Video-Feature-Extraction

CSEDU 2021 - 13th International Conference on Computer Supported Education

distinction (yearly or topic) of datasets from the same

source (DeepKnowledgeTracing and ASSISTments,

respectively) because they differ on either number of

features, dimensioning, or creation method.

Thus, the elements presented here-in, namely the

ML techniques, their chosen rationale, their KT in

LM purpose, the most usual programming language

software employed, and the subsequent required

datasets, found in the 51 reviewed publications

constitute the answer to “RQ2: How do the most

employed ML techniques fulfil the considered

relevant aspects (identified in section 2.1.2) to insure

KT in LM?”

5 DISCUSSION

In this section we present our observations on the ML

techniques addressed in the precedent section, issued

from the 51 reviewed publications. This discussion

covers the five elements mentioned in subsection

2.1.2.

ML Technique: We begin by noting that, in the

reviewed papers, rarely a clear, well-defined, single

ML technique is employed: very often additions or

variants are employed (which make the point of the

paper). Research teams seem to focus their attention

on fine-tuning parameters (to improve prediction)

rather than on expanding the application of ML for

KT to other educational data sources or contexts.

Authors recognize that additional features (or

dimensions) would encumber the learning phase for

limited gains, compared to parameter fine-tuning. As

such, many papers propose pipelines (‘chains’) of ML

techniques to optimize the process without increasing

the calculation load. Performance improvements

aside, this brings up two inconveniences: the

difficulty of identifying the ML technique suitable for

KT, and the difficulty to evaluate and compare any

two papers employing different pipelines, as the

intermediary inputs and outputs of the chain elements

are quite different between papers.

ML Purpose: We distinguish two families of

stated purposes in the reviewed ML techniques for

KT: prediction and LM creation. Prediction is often

portrayed as a probability, which can be interpreted

as a mastery (or degree) of a skill (0-100), a grade (0-

10), or a likelihood (0-1) of getting the answer right

(in binary answers). In LM creation, ML predicts

parameters for initializing the LM. We noticed that

clustering, personalization, and/or resource

suggestion (or other ML techniques, such as NLP)

were performed once the predicting phase had taken

place.

ML Choice Rationales: We condense the

rationales exposed by the authors when choosing a

ML technique. We omit rationales based on novelty,

status-quo, or generalities, e.g., “nobody had done it

before”, “the existing system already uses this

mechanism”, “because it helps predict students’

performance”. The choice of BKT’s was mostly

driven by popularity, although it had issues on

learners’ individuality, multi-dimensional skill

support and modelling forgetting. BN also seemed to

be a common, popular choice. Its main advantage was

its ability to model uncertainty, although it seems to

reach its limits if the number of students is kept

relatively low. On the contrary, DKT may benefit

from large datasets and has proven being able to

model multi-dimensional skills, although lacking in

consistent predicted knowledge state across time-

steps. DKVMN (based on LSTM) can model long-

term memory and mastery of knowledge at the same

time, as well as finding correlations between

exercises and concepts, although it does not account

for forgetting mechanisms. LSTM appears to

additionally handle tasks other than KT satisfactory.

It also models forgetting mechanisms over long-term

dependencies within temporal sequences. It is then

well suited for time series data with unknown time lag

between long-range events. PFA does not consider

answers’ order (which is pedagogically relevant), nor

models guessing, nor multiple-skills questions.

Finally, RNNs are well suited for sequential data with

temporal relationships, although long-range

dependencies are difficult to learn by the model,

hence the resurgence of LSTM.

Software for ML: Python (frameworks and

libraries merged) is the most common programming

language employed for ML, more than doubling the

number of papers employing Ad-hoc languages. We

think that employing platform-specific programming

languages for ML assures lack of code portability

(licensing issues, steep learning curve, little

replicability, code isolation, etc.) and thus, little to no

adoption of these research proposals. However,

specialized ML software, designed by experts on the

field, tends to be performance optimized for diverse

hardware and software, which an ad-hoc solution

cannot compete with. We were taken aback by two

facts: the sparse use of specialized mathematical

software (Matlab, R, SPSS) in ML, and to learn that

about 50% of all reviewed publication do not specify

what software was employed for their ML

calculations, leaving little room for independent

replication, results verification, and additional

development.

Machine Learning Techniques for Knowledge Tracing: A Systematic Literature Review

Datasets: We noticed that frameworks proposal

papers aim to prove the performance of their

approach using publicly available datasets. An

overview of the found public datasets is in Table 1, in

previous section. The chosen datasets are static,

mostly contain grades (or other evaluating

measurements), opposed to behavioural or external

sensor data, and provide the non negligeable

advantages of being explained in detail and having

their data already labelled, often by experts. This

contrasts with the “organic” data employed in

publications where ML is addressed for an existing,

live system, even if it is for testing purposes. Both

variants could benefit from each other’s approaches,

but this would require diverse, detailed, copious high-

quality data that many institutions simply cannot

afford to generate nor stock, let alone analyse.

One of most recurring datasets is the

ASSISTment (Razzaq et al., 2005) (employed in 11

publications), of which there are different versions. A

noteworthy fact is that this dataset has been

acknowledged to have two main kind of data errors:

(1) duplicate rows (which are removed if

acknowledged by the authors) and (2)

“misrepresented” skill sequences. Drawbacks of this

issue have been discussed: while this does not affect

the final prediction, it nevertheless might conduce the

learner to being presented with less questions on one

of the merged skills (the less mastered) because the

global (merged) mastery of skill is achieved mainly

through the mastery of the most known skill (Pelánek,

2015; Schatten et al., 2015). This raises the

importance of the data cleaning process (Chicco,

2017), which processing time is not negligeable and

should be accounted at early data mining stages.

6 CONCLUSION AND

PERSPECTIVES

This review of literature presents a current panorama

of ML techniques for KT in LM for the last five years.

To our knowledge, there is no research work that

addresses the literature review of such topic between

2015 and 2020. This study intents to fill in that gap

by reviewing the most recent and high-quality

academic publications on ML for KT that account for

the LM. Its primary goal is to survey currently used

ML techniques for KT in LM (methods and

algorithms), their intended purpose, and their

required software resources. It helps to paint a picture

of the current trends in the research field, and to

https://moocgdp.gestiondeprojet.pm/

prepare the target public of this paper to the task of

selecting a ML technique based on an argued choice.

Out of an academic database search result pool of

628 publications, 51 papers were reviewed, their

employed ML technique extracted, and their

employment rationale highlighted. We found a large

variety of ML techniques, the most common ones are

BKT (18 applications), DKT (13 applications),

LSTM (12 applications), BN (11 applications), SVM

(7 applications), DKVMN (7 applications), and PFA (6

applications). We found authors rationale for favouring

one over another is seldomly described in publications,

or very lightly. Additionally, we highlighted that

combinations of ML techniques in pipelines are a

common practice, with the most recent research

focusing on optimizing combinations or parameter

tweaking, and not in new techniques. We also noticed

a steady use of public datasets, containing usually

grades or other evaluating metrics, but no other

pedagogical relevant data. Moreover, we insist that

additional pre-treatment and cleaning is often required

in these datasets before their use. Finally, our results

show that ML programming language of choice is

Python (libraries & frameworks combined).

This review of literature is inscribed in the context

of the “Optimal experience modelling” research

project, conducted by the University of Lille. This

research project (Ramírez Luelmo et al., 2020)

models and traces the Flow psychological state,

alongside KT, via behavioural data, using the generic

Bayesian Student Model (gBSM), within an Open

Learner Model.

The current challenge is to incorporate the ML

relevant aspects highlighted in this study, and the

behavioural and psychological aspects (log traces and

Flow state determination) specifically linked to the

project. Namely, a ML technique supporting the

gBSM, capable to initialize the LM and perform KT,

supported by the most common programming

language for ML, based on a sound rationale. The

originality of such research lies in the use of live,

behavioural, Flow-labelled data issued from the

French-spoken international MOOC “Project

Management”

ACKNOWLEDGEMENTS

This project was supported by the French government

through the Programme Investissement d’Avenir

(I-SITE ULNE / ANR-16-IDEX-0004 ULNE)

managed by the Agence Nationale de la Recherche.

CSEDU 2021 - 13th International Conference on Computer Supported Education

REFERENCES

Brownlee, J. (2019, August 11). A Tour of Machine

Learning Algorithms. Machine Learning Mastery.

https://machinelearningmastery.com/a-tour-of-

machine-learning-algorithms/

Chakrabarti, S., Ester, M., Fayyad, U., Gehrke, J., Han, J.,

Morishita, S., Piatetsky-Shapiro, G., & Wang, W.

(2006). Data Mining Curriculum: A Proposal (version

1.0). ACM SIGKDD. https://www.kdd.org/curriculum/

index.html

Chicco, D. (2017). Ten quick tips for machine learning in

computational biology. BioData Mining, 10(1), 35.

https://doi.org/10.1186/s13040-017-0155-3

Conati, C. (2010). Bayesian Student Modeling. In R.

Nkambou, J. Bourdeau, & R. Mizoguchi (Eds.),

Advances in Intelligent Tutoring Systems (pp. 281–

299). Springer. https://doi.org/10.1007/978-3-642-

14363-2_14

Corbett, A., & Anderson, J. (1994). Knowledge tracing:

Modeling the acquisition of procedural knowledge.

User Modeling and User-Adapted Interaction, 4(4),

253–278.

Corbett, A., Anderson, J., & O’Brien, A. (1995). Chapter 2

-Student modeling in the ACT programming tutor. In P.

Nichols, S. Chipman, & R. Brennan (Eds.), Cognitively

diagnostic assessment. Lawrence Erlbaum Associates:

Hillsdale, NJ.

Crowston, K., Osterlund, C., Lee, T. K., Jackson, C.,

Harandi, M., Allen, S., Bahaadini, S., Coughlin, S.,

Katsaggelos, A. K., Larson, S. L., Rohani, N., Smith, J.

R., Trouille, L., & Zevin, M. (2020). Knowledge

Tracing to Model Learning in Online Citizen Science

Projects. Ieee Transactions on Learning Technologies,

13(1), 123–134. https://doi.org/10.1109/TLT.2019.29

36480

Das, K., & Behera, R. N. (2017). A Survey on Machine

Learning: Concept, Algorithms and Applications.

International Journal of Innovative Research in

Computer and Communication Engineering, 5(2).

https://doi.org/10.15680/IJIRCCE.2017. 0502001

Domingos, P. (2012). A few useful things to know about

machine learning. Communications of the ACM, 55(10),

78–87. https://doi.org/10.1145/2347736.2347755

Eagle, M., Corbett, A., Stamper, J., McLaren, B. M.,

Wagner, A., MacLaren, B., & Mitchell, A. (2016).

Estimating Individual Differences for Student

Modeling in Intelligent Tutors from Reading and

Pretest Data. In A. Micarelli, J. Stamper, & K.

Panourgia (Eds.), Lecture Notes in Computer Science

(including subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics) (Vol.

9684, pp. 133–143). Springer International Publishing.

https://doi.org/10.1007/978-3-319-39583-8_13

El Mawas, N., Gilliot, J.-M., Garlatti, S., Euler, R., &

Pascual, S. (2019). As One Size Doesn’t Fit All,

Personalized Massive Open Online Courses Are

Required. In B. M. McLaren, R. Reilly, S. Zvacek, & J.

Uhomoibhi (Eds.), Computer Supported Education (Vol.

1022, pp. 470–488). Springer International Publishing.

https://doi.org/10.1007/978-3-030-21151-6_22

Giannandrea, L., & Sansoni, M. (2013). A literature review

on intelligent tutoring systems and on student profiling.

Learning & Teaching with Media & Technology, 287,

287–294.

Hämäläinen, W., & Vinni, M. (2010). Chapter 5—

Classifiers for educational data mining. In Handbook of

Educational Data Mining (pp. 57–74). CRC Press;

Taylor & Francis.

IBM. (2020, December 18). What is Machine Learning?

IBM Cloud Learn Hub. https://www.ibm.com/cloud/

learn/machine-learning

Mao, Y., Lin, C., & Chi, M. (2018). Deep Learning vs.

Bayesian Knowledge Tracing: Student Models for

Interventions. Journal of Educational Data Mining,

10(2).

Martins, A. C., Faria, L., De Carvalho, C. V., &

Carrapatoso, E. (2008). User modeling in adaptive

hypermedia educational systems. Journal of

Educational Technology & Society, 11(1), 194–207.

Millán, E., Jiménez, G., Belmonte, M. V., & Pérez-De-La-

Cruz, J. L. (2015). Learning Bayesian networks for

student modeling. Lecture Notes in Computer Science

(Including Subseries Lecture Notes in Artificial

Intelligence and Lecture Notes in Bioinformatics),

9112, 718–721. https://doi.org/10.1007/978-3-319-

19773-9_100

Moher, D., Liberati, A., Tetzlaff, J., Altman, D. G., & The

PRISMA Group. (2009). Preferred Reporting Items for

Systematic Reviews and Meta-Analyses: The PRISMA

Statement. PLOS Medicine, 6(7), e1000097.

https://doi.org/10.1371/journal.pmed.1000097

Mohri, M., Rostamizadeh, A., & Talwalkar, A. (2018).

Foundations of Machine Learning, second edition. MIT

Press.

Nakić, J., Granić, A., & Glavinić, V. (2015). Anatomy of

student models in adaptive learning systems: A

systematic literature review of individual differences

from 2001 to 2013. Journal of Educational Computing

Research, 51(4), 459–489.

Olsson, F. (2009). A literature survey of active machine

learning in the context of natural language processing.

SICS Technical Report, 59.

Pavlik, P. I., Cen, H., & Koedinger, K. R. (2009).

Performance Factors Analysis—A New Alternative to

Knowledge Tracing. Online Submission, 8.

Pearl, J. (1988). Probabilistic reasoning in intelligent

systems: Networks of plausible inference (2nd ed.).

Morgan Kaufmann.

Pelánek, R. (2015). Metrics for Evaluation of Student

Models. https://doi.org/10.5281/ZENODO.3554665

Piech, C., Bassen, J., Huang, J., Ganguli, S., Sahami, M.,

Guibas, L. J., & Sohl-Dickstein, J. (2015). Deep

Knowledge Tracing. In C. Cortes, N. Lawrence, D. Lee,

M. Sugiyama, & R. Garnett (Eds.), Advances in Neural

Information Processing Systems (Vol. 28, pp. 505–

513). Curran Associates, Inc. https://proceedings.neu

rips.cc/paper/2015/file/bac9162b47c56fc8a4d2a51980

3d51b3-Paper.pdf

Machine Learning Techniques for Knowledge Tracing: A Systematic Literature Review

Ramírez Luelmo, S. I., El Mawas, N., & Heutte, J. (2020).

Towards Open Learner Models Including the Flow

State. Adjunct Publication of the 28th ACM

Conference on User Modeling, Adaptation and

Personalization, 305–310. https://doi.org/10.1145/

3386392.3399295

Razzaq, L., Feng, M., Nuzzo-Jones, G., Heffernan, N. T.,

Koedinger, K., Junker, B., Ritter, S., Knight, A.,

Mercado, E., Turner, T. E., Upalekar, R., Walonoski, J.

A., Macasek, M. A., Aniszczyk, C., Choksey, S., Livak,

T., & Rasmussen, K. (2005). Blending Assessment and

Instructional Assisting. Proceedings of the 2005

Conference on Artificial Intelligence in Education:

Supporting Learning through Intelligent and Socially

Informed Technology, 555–562.

Schatten, C., Janning, R., & Schmidt-Thieme, L. (2015).

Vygotsky Based Sequencing Without Domain

Information: A Matrix Factorization Approach.

Communications in Computer and Information

Science, 510, 35–51. https://doi.org/10.1007/978-3-

319-25768-6_3

Schmidhuber, J. (2015). Deep learning in neural networks:

An overview. Neural Networks, 61, 85–117.

https://doi.org/10.1016/j.neunet.2014.09.003

Sciarrone, F., & Temperini, M. (2020). K-OpenAnswer: A

simulation environment to analyze the dynamics of

massive open online courses in smart cities. Soft

Computing, 24(15), 11121–11134. https://doi.org/

10.1007/s00500-020-04696-z

Sha, L., & Hong, P. (2017). Neural knowledge tracing.

Lecture Notes in Computer Science (Including

Subseries Lecture Notes in Artificial Intelligence and

Lecture Notes in Bioinformatics), 10512 LNAI, 108–

117. https://doi.org/10.1007/978-3-319-67615-9_10

Shin, D., & Shim, J. (2020). A Systematic Review on Data

Mining for Mathematics and Science Education.

International Journal of Science and Mathematics

Education. https://doi.org/10.1007/s10763-020-10085-7

Swamy, V., Guo, A., Lau, S., Wu, W., Wu, M., Pardos, Z.,

& Culler, D. (2018). Deep knowledge tracing for free-

form student code progression. Lecture Notes in

Computer Science (Including Subseries Lecture Notes

in Artificial Intelligence and Lecture Notes in

Bioinformatics), 10948 LNAI, 348–352.

https://doi.org/10.1007/978-3-319-93846-2_65

Trifa, A., Hedhili, A., & Chaari, W. L. (2019). Knowledge

tracing with an intelligent agent, in an e-learning

platform. Education and Information Technologies,

24(1), 711–741. https://doi.org/10.1007/s10639-018-

9792-5

van Engelen, J. E., & Hoos, H. H. (2020). A survey on semi-

supervised learning. Machine Learning, 109(2), 373–

440. https://doi.org/10.1007/s10994-019-05855-6

van Veen, F., & Leijnen, S. (2019). The Neural Network

Zoo. The Asimov Institute. https://www.asimov

institute.org/neural-network-zoo/

Vapnik, V. (1998). Statistical Learning Theory (S. Haykin,

Ed.). John Wiley & Sons, Inc.

Wen, J., Li, S., Lin, Z., Hu, Y., & Huang, C. (2012).

Systematic literature review of machine learning based

software development effort estimation models.

Information and Software Technology, 54(1), 41–59.

https://doi.org/10.1016/j.infsof.2011.09.002

Wenger, E. (2014). Artificial Intelligence and Tutoring

Systems: Computational and Cognitive Approaches to

the Communication of Knowledge. Morgan Kaufmann.

Winkler-Schwartz, A., Bissonnette, V., Mirchi, N.,

Ponnudurai, N., Yilmaz, R., Ledwos, N., Siyar, S.,

Azarnoush, H., Karlik, B., & Del Maestro, R. F. (2019).

Artificial Intelligence in Medical Education: Best

Practices Using Machine Learning to Assess Surgical

Expertise in Virtual Reality Simulation. Journal of

Surgical Education, 76(6), 1681–1690. https://doi.org/

10.1016/j.jsurg.2019.05.015

Yudelson, M. V., Koedinger, K. R., & Gordon, G. J. (2013).

Individualized Bayesian Knowledge Tracing Models.

In H. C. Lane, K. Yacef, J. Mostow, & P. Pavlik (Eds.),

Artificial Intelligence in Education (pp. 171–180).

Springer. https://doi.org/10.1007/978-3-642-39112-

5_18

Zhang, Jiani, & King, I. (2016). Topological order

discovery via deep knowledge tracing. Lecture Notes in

Computer Science (Including Subseries Lecture Notes

in Artificial Intelligence and Lecture Notes in

Bioinformatics), 9950 LNCS, 112–119. https://doi.org/

10.1007/978-3-319-46681-1_14

Zhang, Jiani, Shi, X., King, I., & Yeung, D.-Y. (2017).

Dynamic key-value memory networks for knowledge

tracing. Proceedings of the 26th International

Conference on World Wide Web, 765–774.

Zhang, Juntao, Li, B., Song, W., Lin, N., Yang, X., & Peng,

Z. (2020). Learning Ability Community for

Personalized Knowledge Tracing. Web and Big Data,

176–192. https://doi.org/10.1007/978-3-030-60290-

1_14

APPENDIX

The Appendix is composed of: (a) the ML

categorization figure, (b) the summary table of ML

for KT in LM (for clarity reasons, the extensive

column ‘rationale’ has been removed), and (c) the full

table of the 29 ML techniques.

It can be found at the following address:

https://nextcloud.univ-lille.fr/index.php/s/pDSX4c7

QgDT8mdT

CSEDU 2021 - 13th International Conference on Computer Supported Education
