Towards Proﬁling Runtime Architecture Code Contributors

in Software Projects

Quentin Perez

1 a

, Alexandre Le Borgne

2 b

, Christelle Urtado

1 c

and Sylvain Vauttier

1 d

EuroMov Digital Health in Motion, Univ. Montpellier, IMT Mines Ales, Ales, France

Digital Services, Altran Technologies, Blagnac, France

Keywords:

Empirical Software Engineering, Code Ownership, Software Architecture.

Abstract:

Empirical software engineering has leveraged open software repositories to proﬁle and categorize project

contributors. The objective of our work is to conduct a similar but original study, focused on architectural

contributions, to evaluate the proﬁles of contributors playing this speciﬁc development role and their evolution

over time. This paper presents an approach to study a ﬁrst kind of architectural contributions: deployment

descriptors that deﬁne runtime architectures of applications. A categorization model is proposed, reﬂecting

the importance of contributions based on data mined from code repositories (contents, timestamps, authors,

etc.). Then, it groups contributors in several categories (proﬁles) and studies their evolution in projects over

time. A case study is conducted on a selected long-life, quality project. It shows that the speciﬁc architectural

development responsibility we measure is chosen and sustained by experienced and committed contributors.

As a proof of concept, these results are very promising and will lead to broader scale studies in order to classify

projects based on their management policies regarding architectural contributors.

1 INTRODUCTION

Architecture is regarded as a major concern for soft-

ware quality (Garlan and Shaw, 1993; Taylor et al.,

2009). Architects deﬁne roadmaps, technologies,

components and their connections. They are mak-

ers and keepers of major design decisions. Accord-

ing to Booch (1996), ”every project should have ex-

actly one identiﬁable architect, although for larger

projects, the principal architect should be backed up

by an architecture team of modest size”. Abrahams-

son et al. (2010) advocate that the architectural ac-

tivity on a project also depends on contextual factors

such as project size, business model, team distribu-

tion, rate of changes, etc.

On the other hand, empirical studies, fueled by

open software repositories such as GitLab or GitHub,

have shown that there are two categories of develop-

ers: minor contributors and major contributors (Bird

et al., 2011; Foucault et al., 2014, 2015b). The evo-

lution and management of these two categories over

time impact project health and software quality. To

our best knowledge, no comparable empirical study

focuses on contributions to architecture development.

https://orcid.org/0000-0002-1534-4821

https://orcid.org/0000-0002-1823-2091

https://orcid.org/0000-0002-6711-8455

https://orcid.org/0000-0002-5812-1230

This paper presents a ﬁrst step towards proﬁling archi-

tecture code contributors, focused on a speciﬁc kind

of contribution: the runtime architecture of applica-

tions. This architectural contribution is explicitly sup-

ported by frameworks such as Spring

thanks to archi-

tecture deployment descriptors.

The remainder of this paper is organized as fol-

lows. Section 2 details the research questions ad-

dressed in this paper along with our main hypotheses.

Section 3 presents the proposed code contributor cate-

gorization model. Section 4 deﬁnes a concrete imple-

mentation of this model in our chosen experimental

context. Section 5 analyzes the results obtained em-

pirically on a case study. Section 6 discusses threats

to validity. Section 7 presents related work while Sec-

tion 8 concludes with future work.

2 RESEARCH QUESTIONS

Different kinds of contributions can be mined to cate-

gorize and measure architectural activities in projects.

For instance, contributions to architectural design

decisions may be mined from the semantic content

of issue tickets or messages (Poncin et al., 2011).

https://docs.spring.io/spring/docs/current/spring-frame

work-reference/

Perez, Q., Borgne, A., Urtado, C. and Vauttier, S.

Towards Proﬁling Runtime Architecture Code Contributors in Software Projects.

DOI: 10.5220/0010495804290436

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 429-436

ISBN: 978-989-758-508-1

429

Contributions to project architecture (e.g., modules,

dependencies) may be mined from Maven ﬁles

(Teyton et al., 2012). In the same way, contributions

to code architecture may be mined from source code

(Teyton et al., 2014; Mockus and Herbsleb, 2002).

In this paper, we focus on yet another kind

of architectural contribution: the deﬁnition of the

runtime architecture of applications. Our choice is

driven by the existence of frameworks dedicated

to application architecture deﬁnition, as the Spring

framework in the Java ecosystem (Gupta and Govil,

2010; Le Borgne et al., 2018; Perez et al., 2019),

commonly used in software industry. This framework

provides tools (such as a set of Java annotations) and

languages (such as a deployment descriptor XML

dialect) that support the deﬁnition of the architecture

instantiated to execute an application. These runtime

architecture deﬁnitions are explicit and contributions

to them are thus easy to measure.

: Can contributor proﬁles be mined from

contributions to runtime application architecture

deﬁnitions?

So, our ﬁrst hypothesis is that building metrics from

these speciﬁc core architectural contributions may

be signiﬁcant enough to characterize contributors,

and in turn projects, regarding architecture code

development.

: Is there a link between runtime architecture

and code contribution importance?

Our second hypothesis is that in quality projects,

architectural contributions should mainly be de-

veloped and maintained by dedicated and skilled

members. RQ

aims at verifying that this hypothesis

is true for runtime application architecture deﬁnitions.

: What is the turnover within the different con-

tributor categories?

Turnover is a crucial issue for software development

quality. Foucault et al. 2014, 2015b proved that ex-

ternal turnover has a negative impact on open source

software projects whereas internal turnover has a pos-

itive impact on team development and quality. We

study turnover in the different contributor categories

to qualitatively examine their evolution.

3 CONTRIBUTOR

CATEGORIZATION MODEL

3.1 Software Contribution Model

Changes between a project version and its predeces-

sors (whether immediate or indirect) can be described

by a set of contributions which link each modiﬁed

line of code in each ﬁle to its author. Each contri-

bution also identiﬁes the nature, the content, the date

and time of the change. Formally, a contribution c is

deﬁned as sextuplet c( f , l, n, e, a,t) where:

• f is a ﬁle,

• l is the modiﬁed line of code in f ,

• n is the line number of l in ﬁle f ,

• e is the nature of the change on l: addition (ADD),

deletion (DEL) or modiﬁcation (MOD),

• a is the author of the contribution,

• t is the timestamp of the contribution.

As mentioned in Section 2, we focus on the code that

manages the instantiation of the runtime architecture

of the software. When an architectural framework is

used, explicit architecture descriptions can be char-

acterized in the code by a set of distinctive markers

(such as XML tags or Java annotations). Code con-

tributions are thus split in two sets: those that deﬁne

the runtime architecture — that will be called archi-

tectural contributions — and others — non archi-

tectural contributions.

3.2 Contributor Importance

Measurement

In order to measure the importance of the contribution

of a developer, several works have deﬁned ownership

metrics. Bird et al. (2011) consider that a developer

contributes to the authorship of a code library to the

extent of a ratio calculated as the number of his / her

contributions over the total number of contributions

made on this library. Foucault et al. (2014) have gone

a step further by providing a formal model to compute

such an ownership ratio.

In our work, the model proposed by Foucault et al.

2014 is adapted in two ways. Firstly, our proposed

ownership metrics is global to (a version of) a project.

This global scope better assesses contributions to the

runtime architecture, as they are not local but span on

the whole project. Secondly, it proposes an adaptation

of this metrics to architectural contributions.

According to Foucault et al. (2014), the ownership

ratio for a developer d on a software module m is de-

ﬁned as follows. Let:

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

430

• M be the set of modules of a given (version of a)

software project,

• D be the set of developers for this (version of a)

project,

We deﬁne:

• w(m, d) as the number of contributions made by

developer d ∈ D on module m ∈ M

• w(m) as the total number of contributions made

on module m ∈ M by all developers of D

The ownership ratio for developer d on module m

computes as:

own(m, d) =

w(m, d)

w(m)

Global Contribution Ownership. Firstly, to express

a global ownership ratio for a contributor d on the

whole (version of a) project, we deﬁne:

• w(d) as the number of all contributions made by

contributor d on the whole project.

• w

as the number of all contributions made by all

contributors in D on the whole project.

The global ownership of contributor d on the whole

project computes as:

own(d) =

w(d)

Minor and Major Contributors. As presented in

Bird et al. (2011), contributors are then split into two

categories, based on the proposed global ownership

measure and on a 5% threshold. This threshold has

been validated by Bird et al. (2011) with a sensitivity

analysis. We checked that a threshold variation in the

range 2 to 10 gives similar results. Contributors are

considered minor contributors for a project version

when their ownership ratio is lower or equal to 5%.

They are conversely major contributors when their

ownership ratio is strictly greater than 5%. In the

remaining, minor contributors will be abbreviated

mCs and major contributors MCs.

Global Runtime Architecture Code Ownership.

We propose an original global runtime architecture

code ownership measure derived from Foucault et al.

(2014). We deﬁne:

• w

(d), as the number of runtime architecture code

contributions made by contributor d on the whole

project.

• w

, as the number of all runtime architecture

code contributions made by all contributors D on

the whole project.

The global runtime architecture code ownership

ratio own

for contributor d, computes as:

own

(d) =

(d)

Non / Minor / Major Runtime Architecture Code

Contributors. Developers are split into two three

categories regarding the importance of their contribu-

tion to the code of the runtime architecture. Non run-

time architecture contributors have authored no line

of code related to the deﬁnition of the runtime archi-

tecture up to the current analyzed version in the his-

tory of the project. Runtime architecture contributors

are them split into two categories, major and minor,

based on a 5% threshold. This threshold is chosen

to be coherent with categories already calculated for

code contributors.

In the remaining, non runtime architecture code

contributors will be abbreviated NRACs, minor run-

time architecture code contributors mRACs and major

runtime architecture code contributors MRACs.

4 PROPOSED APPROACH

Project ﬁles are ﬁrst extracted from the repository.

The result is a raw set of code and deployment de-

scriptor ﬁles for each analyzed version of the project.

Two independent treatments are then executed for

each ﬁle. First, a complete history of its modiﬁcations

is retrieved, as a list of code line changes along with

their authors and contents. Second, a syntactic anal-

ysis is realized as a transformation of the ﬁle content

into an Abstract Syntax Tree (AST). Next step con-

sists in mapping the AST nodes to their corresponding

line changes in order to identify which contributions

relate to the runtime architecture deﬁnition (semantic

analysis). Contribution importance is then calculated

for each developer.

This process has been implemented with the fol-

lowing technologies: Git as the project repository,

Git-blame to retrieve ﬁle change histories, Java De-

velopment Tool (JDT) to parse code ﬁles or deploy-

ment descriptors and to handle the resulting ASTs and

Python and R languages to extract contributor roles

and run statistical analyses. None of these implemen-

tation choices is restrictive: these technologies are

based on general principles and could either be used

in other ecosystems (Git and Git-blame) or have some

equivalent (Spring framework or JDT).

5 EMPIRICAL CASE STUDY

This section presents a case study run on the

BroadleafCommerce open-source project retrieved

Towards Proﬁling Runtime Architecture Code Contributors in Software Projects

431

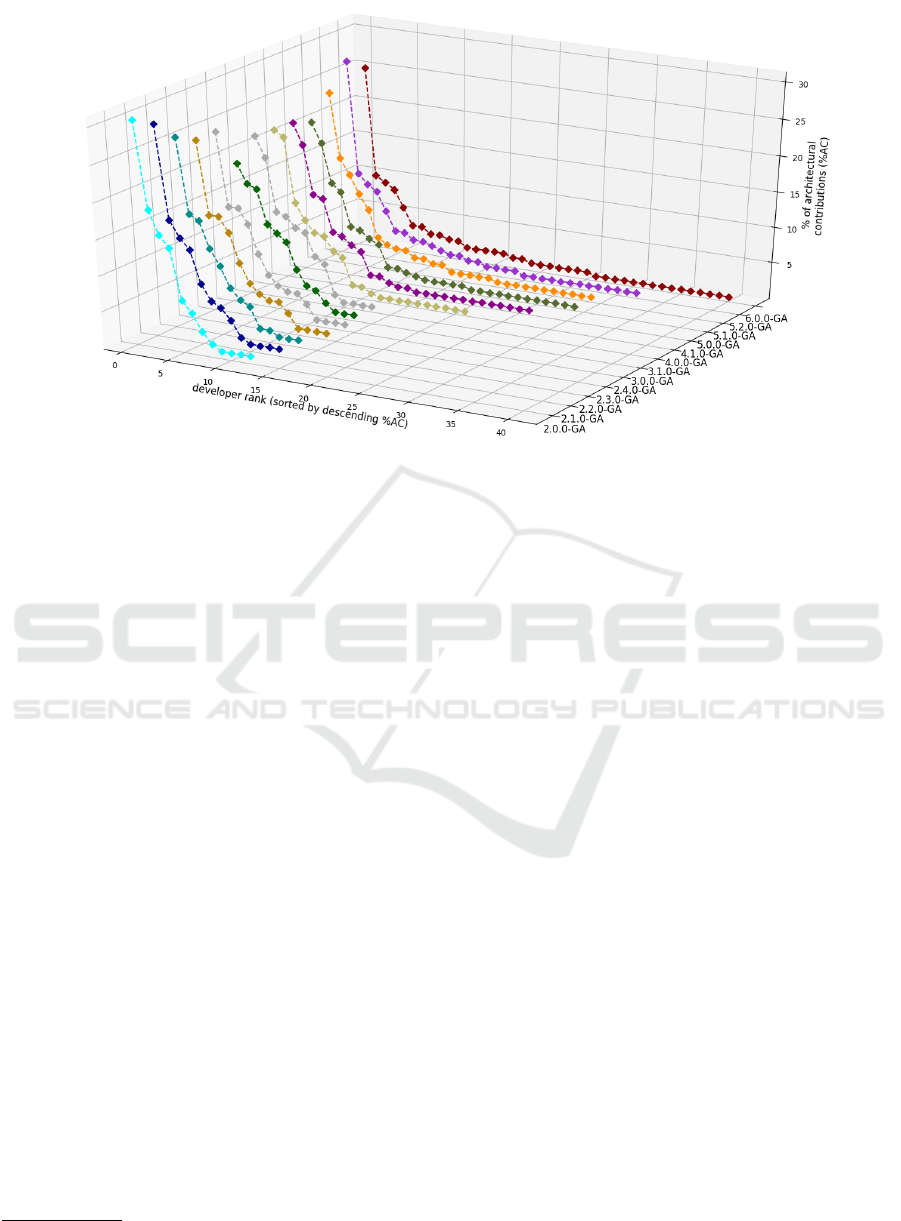

Figure 1: Percentages of contributions to runtime architecture by versions and by contributors.

from GitHub. This project has been selected for its

use of the Java Spring Framework and its confor-

mance with the criteria proposed in Jarczyk et al.

(2014) to identify signiﬁcant projects. Indeed, the

BroadleafCommerce project has 1285 stars (greater

than 100) and it has been forked 1036 times (greater

than 10). These criteria characterize a corpus of 524

GitHub projects. BroadleafCommerce also has many

contributors — over 70 in versions 6.X.Y — and a

long history — 184 branches and 323 released ver-

sions. Finally, BroadleafCommerce is an open-source

but industrial project, providing a framework for the

development of professional e-commerce websites.

Using Git we have extracted 13 General Availabil-

ity versions of BroadleafCommerce (from 2.0.0-GA

to 6.0.0-GA) for analysis. These versions correspond

to stable, production-ready versions developed over

7 years. Data used to perform empirical analysis are

available online

Answers to our proposed research questions are

discussed in the following sections.

: Can contributor proﬁles be mined from con-

tributions to runtime application architecture def-

initions?

Figure 1 gives the percentages of contributions to the

runtime architecture for each contributor and each

version. To better show tendencies, contributors are

sorted by their level of contributions for all ver-

sions. For all versions, the metrics clearly sepa-

https://anonymous.4open.science/r/

a390e5b2-fb34-4f2f-b8ed-d758c4430b8c/

rates three sets of contributors: developers that do

not have any contribution to the runtime architecture

(i.e., NRACs which are actually not plotted), develop-

ers with scarce contributions (i.e., mRACs, plotted on

the ﬂat right part of the curves) and developers with

signiﬁcant contributions (i.e., MRACs, plotted on the

higher left part of the curves). Moreover, Figure 1

graphically conﬁrms that 5% is a relevant threshold

to separate mRACs from MRACs.

We also measure global ownership ratios to sepa-

rate major code contributors from minor code contrib-

utors. Figure 2 presents the evolution of the resulting

contributor categories over the different analyzed ver-

sions. The metrics enable to separate the contributors

in all possible categories combinations, except for the

NRAC-MC category that do not seem to exist in the

project. We observe that the MRAC-MC category is

rather stable over time and that a signiﬁcant number

of contributors are (and remain) mRACs or NRACs.

These ﬁgures show that our proposed metrics,

based on the ownership of the runtime architecture

code, is relevant to proﬁle contributors on this project.

Although simple, it appears to be not over sensitive as

it is able to detect mRACs and NRACs in every ver-

sion, spanning over 7 years, and thus different con-

texts (from a small starting project to a large stable

one). Its simplicity is probably balanced by the very

speciﬁc nature of the code that is measured (our ﬁrst

hypothesis). Conversely, our metrics does not seem to

be over speciﬁc, as the MRAC category is quite stable

over the time and may correspond to a core team of

developers with a speciﬁc level of responsibility re-

garding architecture code development.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

432

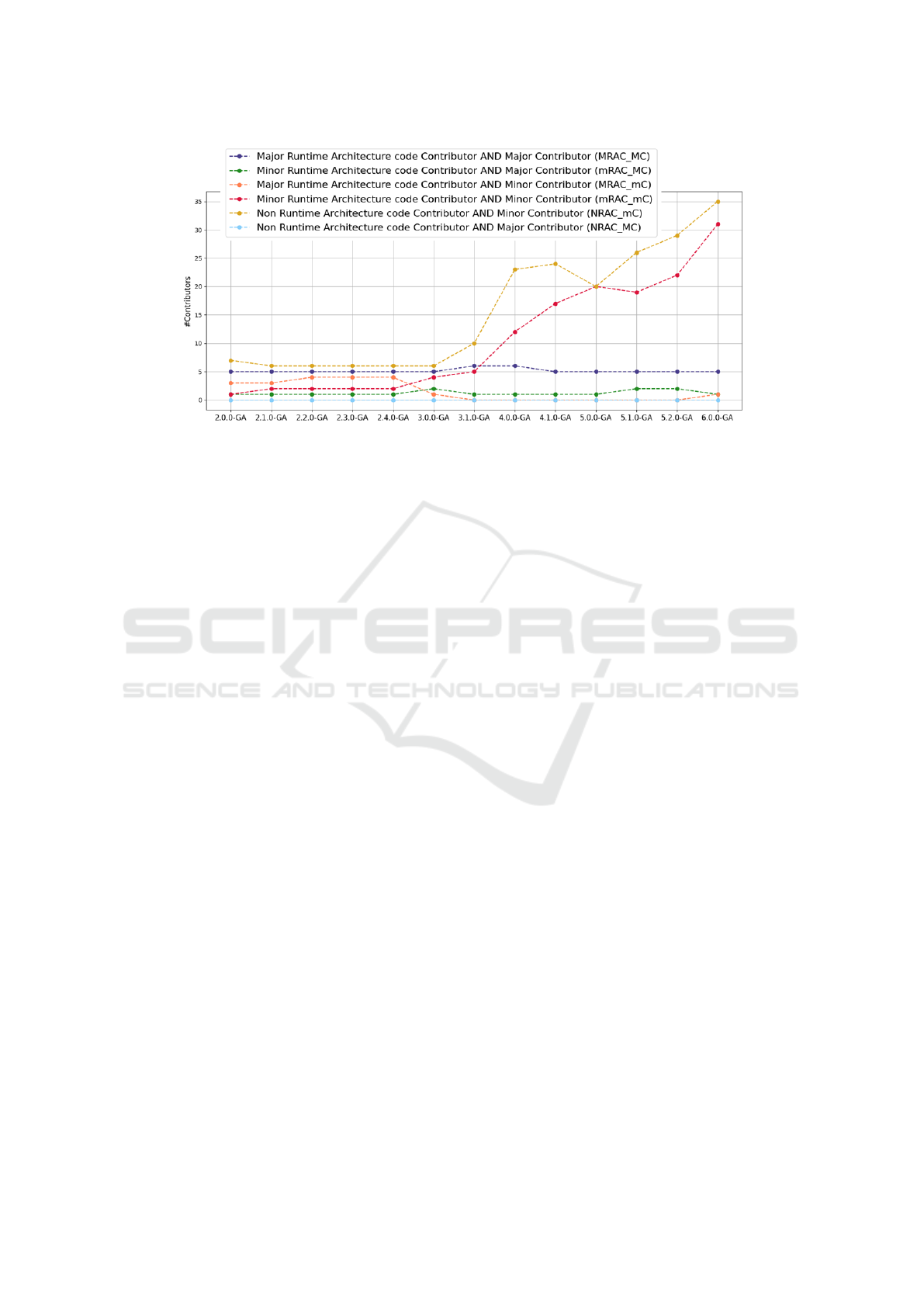

Figure 2: Architectural contributions by categories of developers.

This is a promising proof of concept for RQ1. A full

validation on a large set of projects is a near perspec-

tive for this work. This will also be an opportunity to

further study and adapt the threshold values used in

order to ﬁne tune the separation between contributor

categories.

: Is there a link between runtime architecture

and code contribution importance?

As our runtime architecture contribution metrics is

based on speciﬁc contributions to the project code, it

is necessary to study how these two kinds of contri-

butions may be linked.

Figure 2 shows that NRACs are always mCs. How-

ever, the opposite implication is not true. Indeed, mCs

are rather equally distributed between non contribu-

tors and contributors to the runtime architecture. mCs

that are MRACs also exist signiﬁcantly in early project

versions (prior to version 3.0.0).

In the same way, MCs are mostly MRACs. As

stated above, the opposite implication is not true for

early project versions because of MRACs being mCs.

To analyze the situation objectively, we conduct a sta-

tistical test on the following hypothesis:

• H

: Being a MRAC is independent of being a mC

or MC (null hypothesis)

• H

: Being a MRAC is dependent of being a mC or

MC (alternative hypothesis)

Fisher tests are performed with risk α = 0.05 on

the 13 analyzed versions of the BroadleafCommerce

project. Table 1 presents the results. The test is sig-

niﬁcant when p-value< α (bold ﬁgures).

The test conﬁrms a relation between MCs and MRACs

after the project reaches version 3.1.0. For earlier

versions, relation cannot be statistically assessed

because of the signiﬁcant MRAC-mC category, as

compared to the size of the MRAC-MC category and

of project size.

These results give positive answers to RQ

. As

expected, MCs are generally also MRACs. This

seems natural as the most experienced and committed

developers are expected to be in charge of the most

sensitive concerns (our second hypothesis). But

interestingly, MRACs may also signiﬁcantly be mCs

in some versions. Being a MRAC is therefore not a

simple consequence of being a MC. On the contrary,

it seems to be an actively chosen role, as shown by

the constant existence of NRACs and the stability

of the MRAC-MC category. This observation is

conﬁrmed by RQ

: What is the turnover within the different con-

tributor categories?

Figure 2 highlights interesting evolution for contribu-

tor categories: the MRAC-MC category is stable over

time; MRAC-mC category disappears and the NRAC

category grows signiﬁcantly after version 3.1.0. RQ

investigates the turnover between categories to better

understand the dynamics of these phenomena. To do

so, we observe contributor movements between cat-

egories for each analyzed project version. An extra

category named External is introduced to take into

account contributors who come in or go out of the

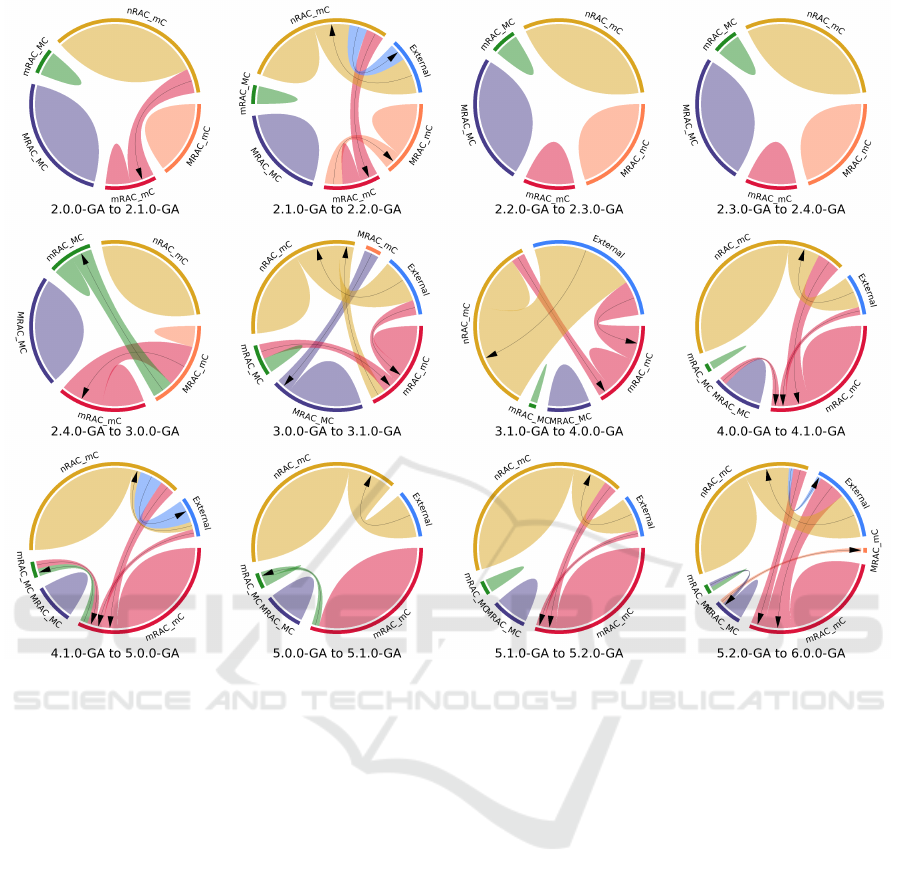

project. Figure 3 shows the results as chord diagrams.

A category is represented by an arc on the border cir-

cle. A category change is materialized by an arrow

pointed from the source to the target category. The

amount of changes is represented by the width of the

link between two categories. The unchanged popula-

tion in a category is represented as an inner colored

region. As an example, between version 2-0-0-GA

and 2-1-0-GA, a part of the NRAC-mC category mi-

Towards Proﬁling Runtime Architecture Code Contributors in Software Projects

433

Table 1: Results of Fisher test on 13 versions of the BroadleafCommerce project.

version 2.0.0-GA 2.1.0-GA 2.2.0-GA 2.3.0-GA 2.4.0-GA 3.0.0-GA 3.1.0-GA

p-value 1 0.54545 1 1 1 0.24242 0.01515

version 4.0.0-GA 4.1.0-GA 5.0.0-GA 5.1.0-GA 5.2.0-GA 6.0.0-GA

p-value 4.5566

−6

0.00017 9.12131

−5

0.00031 0.00017 6.99102

−5

grates to the mRAC-mC category. The NRAC-MC cat-

egory is not plotted because its population is null in

all releases as seen in Figure 2. Figure 3 shows a

very low turnover on the MRAC-MC category. This

reveals that its stable size comes from the stability of

its group of contributors. Determining whether this

results from an explicit policy is beyond the scope

of this paper but is a relevant future work. Nonethe-

less, the few new members in this category come from

the MRAC-mC or the mRAC-MC categories (i.e., only

experienced and noticeable contributors). This may

conﬁrm the existence of a policy for the management

of the core team of the project and, as a consequence,

for the contributors to the runtime architecture code

(as an industrial project, BroadleafCommerce is very

likely driven by a small professional team correspond-

ing to the detected MRAC-MC category).

The main part of the MRAC-mC category becomes

mRAC-mCs in version 3.0.0 and the remaining mem-

ber of the category becomes a member of the MRAC-

MC category in version 3.1.0. This may show that re-

maining a MRAC in the long term implies to be or be-

come a MC. However, the stability and low turnover

of the MRAC-mC category in the early versions, as

long as its re-appearance in version 6.0.0, thanks to

a contributor coming from the MRAC-MC category,

may also suggest that very specialized code contribu-

tors, focused on the runtime architecture, are required

in speciﬁc phases of a project (one more interesting

question for future work).

Another observation is that all external contrib-

utors join mainly as NRACs and never as MRACs.

Moreover, most NRACs never become mRACs.

All these observations conﬁrm the relevance of

our metrics. Indeed, it is able to separate the project

members into three categories with stable cores. Of

course, this metrics is not intended for measuring all

the architectural contributions. We nonetheless ex-

pect as a futurework that it can be used to estimate the

level of architectural quality management in projects.

6 THREATS TO VALIDITY

Construct Validity. Software architectures are man-

aged at several structural levels (project modules,

source code, runtime deployment / instantiation, etc.)

and depend on technological or conceptual choices.

Architectural contributions are variable and multi-

faceted. Our metrics detects contributors that work

signiﬁcantly on the runtime architecture deﬁnition.

Our metrics can thus at least measure signiﬁcant con-

tributions to architecture development. As previously

mentioned, this is a starting point for proﬁling code

contributors, with the perspective of analyzing the

management of architecture development.

Internal Validity. As our metrics is based on speciﬁc

code ownership, measures could be biased by code

contribution importance. This validity threat is ad-

dressed by RQ2. RQ2 shows that there is no system-

atic relation between the importance of contributions

to code and to runtime architecture deﬁnition.

External Validity. For now, presented results are

limited to a proof of concept validated on a unique

project. To extract broad empirical knowledge, it is

required to analyze a large number of projects that

use the Spring framework but also others architec-

tural frameworks (e.g., Apache Struts, OSGi or JEE).

A bias may also be induced by the chosen program-

ming language and its ecosystem. To overcome this

issue, projects programmed with languages other than

Java (e.g., Javascript or C++) could be analyzed.

Reliability. The presented results have been cross-

checked, thanks to two separate implementations of

the mining process. Despite the fact that remaining

bugs cannot be be formally excluded, results have

been consistently reproduced.

Statistical Threats. In our hypothesis test using

Fisher’s test, we use a risk α of 5%. Such a risk

leaves 5% of chances to ﬁnd identical results with

random values. It is a commonly accepted value for

such studies. Another issue concerns the considered

versions of the BroadleafCommerce project. In order

to limit the size and computation time of the experi-

mental case study, we consider only sampled versions

(those tagged as General Availability). This might

constitute a bias but contribution measures are always

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

434

Figure 3: Chord diagrams illustrating changes in contributor categories between two successive versions.

calculated on complete histories of changes.

7 RELATED WORK

Expertise browser (Mockus and Herbsleb, 2002) is

one of the earliest system created to ﬁnd developer

expertise from various data sources such as organi-

zation product list, source code, repository data and

documentation. Three other approaches, (Sindhgatta,

2008; Schuler and Zimmermann, 2008; Teyton et al.,

2014), use source code as their main data source to

proﬁle developers. Teyton et al. (2014) implements

a domain speciﬁc language to model developer ex-

pertise. Other approaches do not use source code

but data that indirectly qualify the code. Di Bella

et al. (2013) propose a clustering approach based on

software metrics and repository data to split develop-

ers in four groups according their contribution levels.

Hauff and Gousios (2015) use GitHub metatada and

ReadMe ﬁles to match job advertisements with de-

veloper proﬁles. CVExplorer (Greene and Fischer,

2016) uses the same inputs to produce a word list rep-

resenting the developer’s domain of expertise. Only

XTic (Teyton et al., 2014) and CVExplorer (Greene

and Fischer, 2016) proﬁle software architects.

Bird et al. (2011) are the ﬁrst to use a contribution

threshold to classify developers into two categories.

Foucault et al. (2014) have conducted a study that

uses the protocol of Bird et al. (2011) on open-source

projects.

Developer turnover is a long standing problem

that was ﬁrst tackled in the 90’s with a study on the

impact of staff turnover on software project perfor-

mance (Abdel-Hamid, 1992). Robles and Gonzalez-

Barahona (2006) develop a deep study on turnover

in large software projects. The impact of turnover

on knowledge loss is measured by Izquierdo-Cortazar

et al. (2009). Foucault et al. (2015a) also study

the impact of developer turnover on software quality

and mine contribution patterns that are correlated to

turnover.

Towards Proﬁling Runtime Architecture Code Contributors in Software Projects

435

8 CONCLUSION AND

PERSPECTIVES

This empirical analysis performed on the Broadleaf-

Commerce project is a proof of concept for our pro-

posed approach. It shows the existence of a core of

major contributors to the runtime architecture deﬁ-

nition that is globally stable over the studied history

of the project and correlated with the existing stable

core of major code contributors. Moreover, our met-

rics is precise enough to detect non and minor con-

tributors to runtime architecture deﬁnition, that also

form stable categories. As observed with our ap-

proach, runtime architecture development thus seem

to obey management policies in the BroadleafCom-

merce project. This is very promising and opens many

perspectives.

A ﬁrst perspective is to conduct an empirical study

on a large panel of projects. This would not only en-

able to fully validate our approach but also to char-

acterize projects according to their architecture de-

velopment management policies, as observed through

our proposed metrics. Another perspective is to mea-

sure contributions to other architectural concerns and

study complementarities and disparities between vari-

ous architecture contributor proﬁles. In the same way,

mapping contributions with architecture elements and

structures would enable to study the existence of

hotspots (areas that concentrate more contributions

and contributors). The goal would be to advise the

ideal number of contributors according to project size,

chosen technology and contributor proﬁles.

REFERENCES

Abdel-Hamid, T. K. (1992). Investigating the impacts of

managerial turnover / succession on software project

performance. Journal of Management Information

Systems, 9(2):127–144.

Abrahamsson, P., Babar, M. A., and Kruchten, P. (2010).

Agility and architecture: Can they coexist? IEEE

Software, 27(2):16–22.

Bird, C., Nagappan, N., Murphy, B., Gall, H., and Devanbu,

P. (2011). Don’t touch my code! examining the effects

of ownership on software quality. In 19th ACM SIG-

SOFT FSE, pages 4–14, Szeged, Hungary. ACM.

Booch, G. (1996). Object solutions: managing the object-

oriented project. Addison-Wesley.

Di Bella, E., Sillitti, A., and Succi, G. (2013). A multivari-

ate classiﬁcation of open source developers. Informa-

tion Sciences, 221:72–83.

Foucault, M., Falleri, J.-R., and Blanc, X. (2014). Code

ownership in open-source software. In 18th EASE,

pages 1–9, London, UK. ACM.

Foucault, M., Palyart, M., Blanc, X., Murphy, G. C., and

Falleri, J.-R. (2015a). Impact of developer turnover on

quality in open-source software. In 10th ESEC / FSE,

pages 829–841, Bergamo, Italy. ACM.

Foucault, M., Teyton, C., Lo, D., Blanc, X., and Falleri, J.-

R. (2015b). On the usefulness of ownership metrics

in open-source software projects. Inf. Softw. Technol.,

64:102–112.

Garlan, D. and Shaw, M. (1993). An Introduction to Soft-

ware Architecture, chapter 1, pages 1–39. on Soft-

ware Engineering and Knowledge Engineering, vol.

2. World scientiﬁc.

Greene, G. J. and Fischer, B. (2016). CVExplorer: Iden-

tifying candidate developers by mining and exploring

their open source contributions. In 31st IEEE/ACM

ASE, pages 804–809. ACM.

Gupta, P. and Govil, M. C. (2010). Spring Web MVC frame-

work for rapid open source J2EE application develop-

ment: a case study. IJEST, 2(6):1684–1689.

Hauff, C. and Gousios, G. (2015). Matching GitHub de-

veloper proﬁles to job advertisements. In 12th MSR,

pages 362–366, Florence, Italy. IEEE.

Izquierdo-Cortazar, D., Robles, G., Ortega, F., and

Gonzalez-Barahona, J. M. (2009). Using software

archaeology to measure knowledge loss in software

projects due to developer turnover. In 42nd HICSS,

page 10, Waikoloa, USA. IEEE.

Jarczyk, O., Gruszka, B., Jaroszewicz, S., Bukowski, L.,

and Wierzbicki, A. (2014). GitHub projects. qual-

ity analysis of open-source software. In 6th SocInfo,

pages 80–94, Barcelona, Spain. Springer.

Le Borgne, A., Delahaye, D., Huchard, M., Urtado, C.,

and Vauttier, S. (2018). Recovering three-level ar-

chitectures from the code of open-source java Spring

projects. In 30th SEKE, pages 199–202, Redwood

City, USA. KSI Research.

Mockus, A. and Herbsleb, J. D. (2002). Expertise browser:

a quantitative approach to identifying expertise. In

24th ICSE, pages 503–512, Orlando, USA. ACM.

Perez, Q., Le Borgne, A., Urtado, C., and Vauttier, S.

(2019). An empirical study about software archi-

tecture conﬁguration practices with the java spring

framework. In 31st SEKE, pages 465–593, Lisbon,

Portugal. KSI Research.

Poncin, W., Serebrenik, A., and Van Den Brand, M. (2011).

Process mining software repositories. In 15th CSMR,

pages 5–14, Oldenburg, Germany. IEEE.

Robles, G. and Gonzalez-Barahona, J. M. (2006). Contrib-

utor turnover in libre software projects. In 2nd IFIP

OSS, pages 273–286, Como, Italy. Springer.

Schuler, D. and Zimmermann, T. (2008). Mining usage ex-

pertise from version archives. In 5th MSR, pages 121–

124, Leipzig, Germany. ACM.

Sindhgatta, R. (2008). Identifying domain expertise of de-

velopers from source code. In 14th ACM SIGKDD

KDD, pages 981–989, Las Vegas, USA. ACM.

Taylor, R. N., Medvidovic, N., and Dashofy, E. (2009).

Software architecture: foundations, theory, and prac-

tice. Wiley & Sons.

Teyton, C., Falleri, J.-R., and Blanc, X. (2012). Mining

library migration graphs. In 19th WCRE, pages 289–

298, Kingston, Canada. IEEE.

Teyton, C., Palyart, M., Falleri, J.-R., Morandat, F., and

Blanc, X. (2014). Automatic extraction of developer

expertise. In 18th EASE, page 8, London, UK. ACM.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

436
