Querying Brazilian Educational Open Data using a

Hybrid NLP-based Approach

Marco Antoni

1 a

, Andrea Schwertner Char

1 b

and Maria Helena Franciscatto

2 c

Department of Languages and Computer Systems, Federal University of Santa Maria, Santa Maria, Brazil

Department of Computer Science, Federal University of Paran

a, Curitiba, Brazil

Keywords:

Question Answering, Open Data, Educational Information Retrieval, Natural Language Processing.

Abstract:

The need for capturing information suitable to the user has favored the development of Question Answering

(QA) systems, whose main goal is retrieving a precise answer to a question expressed in Natural Language.

Thus, these systems have been adopted in many domains to make data accessible, including Open Data.

Although there are many QA approaches that access Open Data sources, querying Brazilian Open Data is still

a research gap, possibly motivated by the complexity that Portuguese language presents to Natural Language

Processing (NLP) approaches. For this reason, this paper proposes a hybrid NLP-based approach for querying

Open Data of Brazilian Educational Census. The proposed solution is based on a combination of linguistic and

rule-based NLP approaches, that are applied in two main processing stages (Text Preprocessing and Question

Mapping) to identify the meaning of an input question and optimize the querying process. Our approach was

evaluated through a QA prototype developed as a Web interface and showed feasible results, since concise and

accurate answers were presented to the user.

1 INTRODUCTION

With the large amount of data being produced and

stored every day, there has been an increasing search

for new ways to organize data in order to extract

information that is useful in several application do-

mains. Information Retrieval approaches (IR) are a

common way to capture information suitable for the

user’s needs, by analyzing, structuring, and accessing

information from large data sets (Sy et al., 2012).

However, they present some challenges, e.g., they

often retrieve information that are not relevant or

cannot be easilyF processed (Utomo et al., 2017;

Ferr

andez and Peral, 2010).

Question Answering (QA): systems have been

considered to be able to minimize these problems,

since they aim at providing a precise answer that

satisﬁes a speciﬁc question (Bouziane et al., 2015;

Ferr

andez and Peral, 2010). These systems are con-

sidered a specialized subarea of IR, aiming to satisfy

the users needs for speciﬁc information, by means of

questions expressed in Natural Language.

https://orcid.org/0000-0002-7881-5715

https://orcid.org/0000-0003-3695-8547

https://orcid.org/0000-0002-5054-196X

Retrieving the information the user expects re-

quires accessing structured and unstructured data,

which lose signiﬁcance if they are not presented

clearly and meaningfully (Beniwal et al., 2018). QA

systems can be very valuable as a way to make data

accessible and exploitable, thus they have been in-

vestigated in many domains where transparent infor-

mation is needed, such as Open Data (Wendt et al.,

2012).

In the Open Data domain – especially Open Gov-

ernment Data – it is desirable that public information

can be analyzed and used. In other words, with Open

Data processing, many problems of the citizens can

be solved through different services, projects and ac-

tivities that improve the government’s economy, ef-

ﬁciency and transparency (Mouromtsev et al., 2013).

With the evolution of linked open data sources and

the challenge of analyzing extremely large datasets,

several QA researches are conducted in this domain,

aiming to extract meaningful information (Marx et al.,

2014; Yao and Van Durme, 2014; Charton et al.,

2016; de Castro et al., 2019).

Although there are many QA approaches in the

literature that access and process Open Data, min-

ing Brazilian Open Data is still barely investi-

gated (Oliveira et al., 2016). One possible reason

120

Antoni, M., Charão, A. and Franciscatto, M.

Querying Brazilian Educational Open Data using a Hybrid NLP-based Approach.

DOI: 10.5220/0010486201200130

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 120-130

ISBN: 978-989-758-509-8

for that is that Natural Language Processing (NLP)

tools are limited or underperform when dealing with

Brazilian Portuguese, due to its particular and com-

plex structure (Rodrigues et al., 2018; Rocha and

Lopes Cardoso, 2018). An example of this complex-

ity is shown in Table 1: whereas in English the word

Student is applied for all genders, the equivalent word

in Portuguese language is inﬂected according to the

gender. In addition, Portuguese has many synonyms,

which are less frequent in other languages such as En-

glish.

Therefore, the investigation of NLP techniques

applied to Portuguese is highly valuable, as it can

leverage the mining of Brazilian Open Data and the

availability of useful data.

Table 1: Differences between the word “Student” in English

and Portuguese.

English Portuguese Gender

Student

Aluno Masculine

Aluna Feminine

Estudante Masculine/Feminine

Motivated by this research gap, this paper presents

a hybrid NLP-based solution for querying Brazil-

ian Open Data, speciﬁcally the Brazilian Educational

Census. The Educational Census is the main tool

for surveying the country education, as it gathers

data from different stages and modalities of basic and

professional education in Brazil (INEP, 2020). For

querying Brazilian Open Data, our solution is based

on a combination of two NLP approaches (linguistic

and rule-based) that were applied in Text Preprocess-

ing and Question Mapping stages for identifying the

meaning of an input question.

Considering the lack of QA systems for accessing

Brazilian Open Data, we also implemented a QA pro-

totype as a Web interface for evaluating our hybrid

solution. The prototype accesses speciﬁc tables of the

Brazilian Educational Census related to schools, stu-

dents, and courses, obtaining satisfactory answers. To

the best of our knowledge, there is not yet a study for

retrieving information from these data sets using a hy-

brid NLP approach, thus the present work can poten-

tially contribute to Brazilian Open Data mining.

The structure of the paper is presented as follows.

In Section 2, the main concepts related to this research

are presented. In Section 3 we report our NLP-based

approach for querying Brazilian Open Data, and in

Section 4 we discuss the results and limitations found.

Lastly, in Section 5, we present the conclusions and

ﬁnal remarks.

2 BACKGROUND AND RELATED

WORK

2.1 Natural Language Processing

Natural Language (NL) is the way that humans use to

communicate, and has been increasingly investigated

to mediate interactions between them and comput-

ers (Henderson et al., 2017). With respect to search

engines, queries in the form of questions have grown

considerably (including voice-based questions), thus

leveraging the development of QA systems capable

of answer NL questions (White et al., 2015).

The importance of understanding NL brought up

the Natural Language Processing (NLP), a research

domain that focuses on the development of computa-

tional models that allow human-computer interaction

through NL (Ruiz et al., 2020). Speciﬁcally, the NLP

domain comprises a set of computational techniques

for inspecting and representing texts that occur nat-

urally at one or more levels of linguistic analysis, in

order to achieve human-like language processing for

a variety of tasks or applications (Liddy, 2001).

The related literature discusses several approaches

that aim to ﬁnd the meaning of a question or informa-

tion posed by the user, i.e., the rule-based approach

and the linguistic approach.

The rule-based approach considers patterns used

in the question formulation to identify the informa-

tion need, i.e., a word or sequence of words contained

in the question will deﬁne its core, meaning or what

it refers to (Gupta and Gupta, 2012). For this task,

rules are created using domain knowledge, then the

information is extracted from the input question by

means of matching with the rules (Lee et al., 2019).

In its turn, the linguistic approach involves methods

of lexical analysis, syntactic analysis, exploiting also

semantic features (Nesi et al., 2015). We can mention

several linguistic methods such as:

• Spell Checking: spelling and typing errors,

slangs, regional terms, and word abbreviations are

common in human language. Spell checking iden-

tiﬁes these errors and replace them with the best

possible combination of correct words, in order to

avoid unexpected results in the processing (Kaur

et al., 2014).

• Named-Entity Recognition (NER): this technique

involves recognizing and classifying entities in a

sentence according to the class it belongs to. This

classiﬁcation can be split into three main groups:

entities (i.e., people, organizations, and loca-

tions), temporal expressions (dates and times), as

Querying Brazilian Educational Open Data using a Hybrid NLP-based Approach

121

well as quantities (numeric values, monetary val-

ues, and percentages) (Goyal et al., 2018).

• Stemming e Lemmatization: both techniques are

related to morphological analysis, aiming to sim-

plify the analysis of a word by reducing its vari-

ants. Stemming is used to remove derivational

sufﬁxes and inﬂections of a word, obtaining a

common root (Balakrishnan and Lloyd-Yemoh,

2014), whereas Lemmatization tries to remove in-

ﬂectional endings, returning the word in its dictio-

nary form (Singh and Gupta, 2017). These tech-

niques are very important in languages of com-

plex morphology, e.g., Portuguese.

• Stopwords Removal: Stopwords are words that

add little or no value to the text analysis, i.e., ar-

ticles, pronouns, adverbs, prepositions, conjunc-

tions and vowels (Khosrow-Pour and Khosrow-

pour, 2009). They can be removed from the sen-

tence without prejudice to the processing.

Linguistic and rule-based approaches are commonly

applied in QA systems, for recognizing the informa-

tion that the user really wants in an input question.

Thus, by performing this recognition, the QA system

is able to provide right answers to the user, being ef-

fective in several application domains. Question An-

swering systems will be discussed in the next section.

2.2 Question Answering Systems

Question Answering systems aim to retrieve concise

answers to the user for meeting a speciﬁc information

need expressed in Natural Language (Utomo et al.,

2017). These systems differ from common search en-

gines, which deliver a set of results to the user rather

than an accurate answer, in a way the user must ﬁnd

the most appropriate answer by himself. The main

characteristic of QA, therefore, is the ability to return

compact, comprehensible and correct answers, which

may refer to a word, sentence, paragraph, or an entire

document (Kolomiyets and Moens, 2011).

Question Answering domain has grown steadily,

and in the present-day it is integrated in many per-

sonal assistants like Siri, Cortana, Alexa, and Google

Assistant (Roy and Anand, 2020). Recent advances

in NLP and Artiﬁcial Intelligence have powered

these systems with more comprehensive interactions

and effective analysis, driving QA-based proposals

in many areas (Yin et al., 2019). E.g., the study

in (Masseroli et al., 2014) presents an approach to

support integrated search of distributed biomedical-

molecular data, aimed at answering multi-topic com-

plex biomedical questions. The QA system in (Mani

et al., 2018) provides IT support to users’ questions

by exploring multimedia data, also allowing an au-

tomation to be attached to an answer. QA is also used

in educational contexts, as an alternative to discussion

forums for mediating online discussions (Srba et al.,

2019).

In our work, we constructed a prototype of Ques-

tion Answering system implemented as a Web inter-

face, for querying Brazilian Open Data sets using both

rule-based and linguistic NLP approaches (i.e, the

computational techniques mentioned in Section 2.1).

Further information about Open Data will be given as

follows.

2.3 Open Data

Open Data is strategy that encourages mostly pub-

lic organizations to release factual and nonperson-

speciﬁc data (generated through the delivery of pub-

lic services) to anyone, allowing the free use of

these data without any copyright restrictions (Hos-

sain et al., 2016; Murray-Rust et al., 2010). In ad-

dition, Open Data allow interdisciplinary scientiﬁc

cooperation, helping researchers to make decisions

based on data, integrate and analyze heterogeneous

data sources, as well as solve complex problems in

several areas (Sowe and Zettsu, 2015).

Sharing Open Data with the public has led to

the need to maintain numerous databases for stor-

ing important information, making the manipulation

and processing of this data a non-trivial task (Zhang

and Yue, 2016). Considering the importance of the

subject, many studies have investigated the manipu-

lation of Open Data to extract relevant information

from large datasets. The work described in (Sowe

and Zettsu, 2015) presents an Open Data develop-

ment model that addresses limitations in the extrac-

tion and integration of data from different sources.

The model demonstrates possibilities of using and

reusing data, inserting functionalities and transform-

ing data for building a new generation of open data

repositories. With respect to Open Data and Ques-

tion Answering, the study in (Molina Gallego, 2018)

applies NLP techniques in a Conversational Agent

to recognize conversation topics, identify data sets

within Open Data based on these topics, and present

the information to the user.

Despite the existing proposals, mining Brazilian

Open Data is still little investigated, possibly moti-

vated by the format in which these data are made

available, the incompleteness of information, as well

as particularities of the Portuguese language for NLP

processing (Oliveira et al., 2016; dos Santos Brito

et al., 2015). Thus, in the next section we present

our linguistic and rule-based approach for querying

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

122

Brazilian Open Data.

3 HYBRID NLP-BASED

APPROACH FOR QUERYING

BRAZILIAN OPEN DATA

3.1 Data Characterization

Our NLP-based solution for querying Brazilian Open

Data focuses on the Brazilian Educational Census

which surveys education in Brazil by gathering data

from different modalities of basic and professional

education, covering data about teachers, schools,

classes, and education administrators. For exploration

purposes, we used a reduced set of data contained in

the 2019 Census, thus applying a collection of evalu-

ation questions on the data tables Students, Schools

and Courses (details about the questions are given in

subsection 3.2.2).

The Schools table has approximately 230 thou-

sand records, and allows to access information related

to identiﬁcation, location, infrastructure and places

offering in Brazilian schools. The Students table al-

lows to access information on students identiﬁcation

and their educational context (e.g., if the student has

special needs, which means of transportation she/he

uses, and which modalities of education she/he is

linked to). The data in this table are divided accord-

ing to the region of the country, so we used the set

referring to students from the state Rio Grande do

Sul, which has approximately 7 million records. Fi-

nally, the Courses table is an auxiliary table

that con-

tains information about all technical courses present

in the National Catalog of Technical Courses (i.e., 240

records). The relation of this table with the Students

table is optional, as not every student is enrolled in a

technical course.

Although the data used in our approach are freely

available, they do not follow all W3C (World Wide

Web Consortium) recommended guidelines

: they are

not linked nor are in RDF format, which makes it dif-

ﬁcult to use a standard query language (Isotani and

Bittencourt, 2015). Despite that, data are available

in CSV and tabular format, thus they can be stored

in relational databases and accessed by our QA-based

prototype, by means of NL questions.

https://www.gov.br/inep/pt-br/acesso-a-informacao/

dados-abertos/microdados/censo-escolar

The Courses table is an auxiliary table since its data is

not collected in Brazilian Census.

https://www.w3.org/standards/

3.2 Design and Implementation

Many studies have focused on translating NL ques-

tions to SQL syntax (Giordani and Moschitti, 2012),

however, approaches of this nature demand knowl-

edge about the data dictionary and the metadata in-

volved in the dataset. Thus, we apply a combination

of linguistic and rule-based NLP approaches, since

their main advantage is the provision of accurate an-

swers within a speciﬁc application domain (Utomo

et al., 2017).

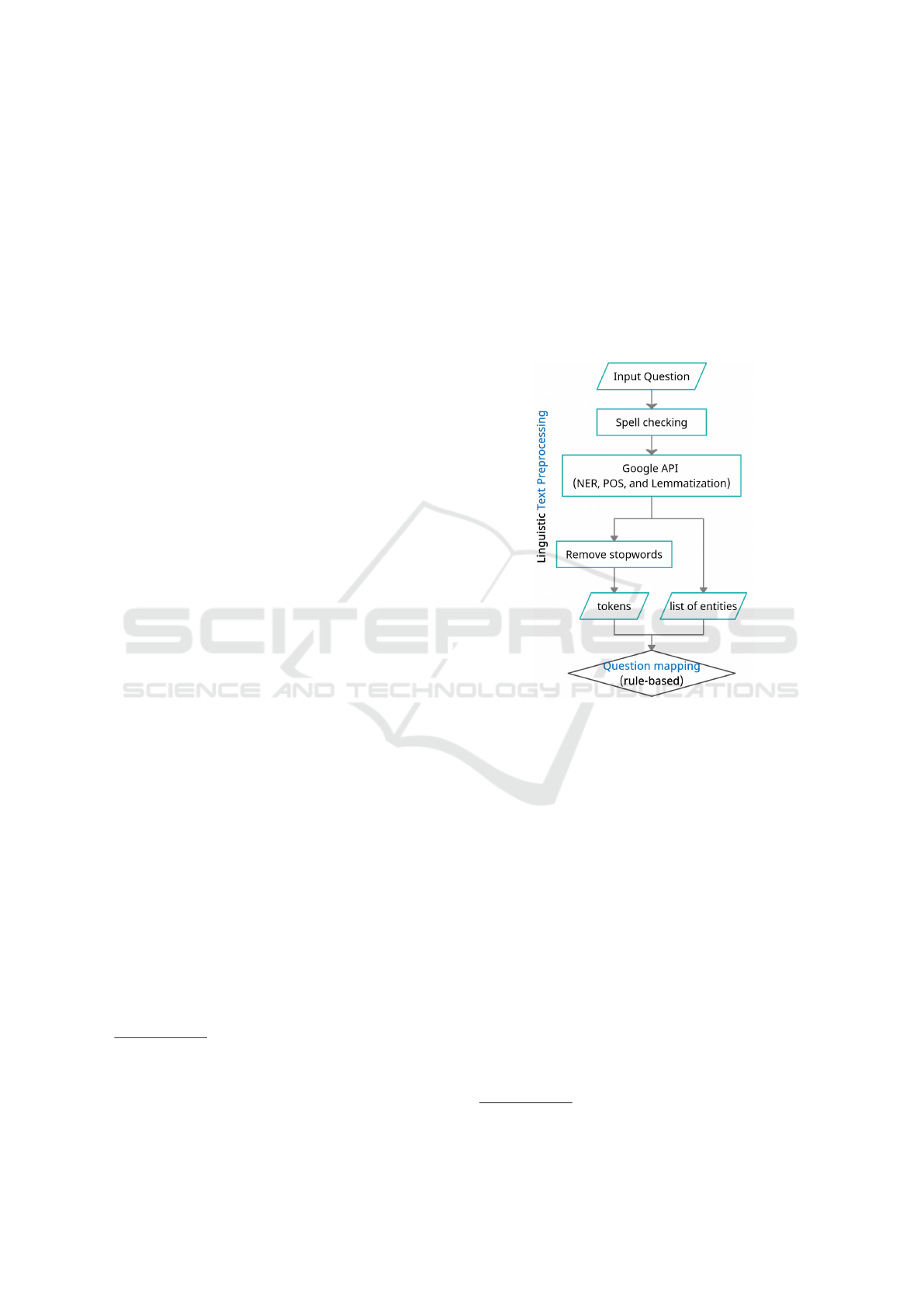

Figure 1: Overview of the hybrid NLP-based approach for

querying Brazilian Open Data.

In Figure 1, we present an overview of our hybrid so-

lution, covering two main stages of execution named

Text Preprocessing and Question Mapping, where lin-

guistic NLP and rule-based NLP are applied, respec-

tively. The Figure shows that given an input sentence

(i.e., a question) posed on our QA prototype, the Text

Preprocessing stage executes linguistic methods such

as Spell Checking, NER and POS (Part-Of-Speech)

tasks, Lemmatization, and Stopwords removal, thus

obtaining a list of entities and tokens that represent

the meaningful part of the sentence. The entities and

tokens are then given as input to the next processing

stage, Question Mapping, that applies a set of rules

for querying speciﬁc data tables and ﬁnd the required

information.

In Preprocessing stage, we choose Google Natural

Language API

, seeing that it offers a set of resources

that are favorable to our approach. E.g., it supports

multiple languages and allows to run NER, Part-Of-

https://cloud.google.com/natural-language

Querying Brazilian Educational Open Data using a Hybrid NLP-based Approach

123

Speech and Lemmatization tasks, which are essen-

tial for our proposal. Also, the API does not demand

any particular training, as it provides the same Deep

Learning technology used by Google search engine

for analyzing natural language texts (Google, 2021).

Although the chosen approaches are suitable for

the nature of the data used, the Portuguese language

involves a complex process of grammatical and map-

ping rules construction, due to its particularities. To

face this complexity, we adopted relaxed conditions

on the rules applied to the input questions, allowing

that sentences written differently, but with the same

semantics can obtain the same answer. For example,

if the QA prototype receives the questions “how many

students are there at the Visconde de Cairu School

in Santa Rosa?” or “how many students are there in

Santa Rosa, at the Visconde de Cairu School?”, the

answer presented should be the same, since they are

equivalent questions.

Given this overview about the design of our pro-

posed solution, the next subsections address details of

its two main stages: Text Preprocessing and Question

Mapping.

3.2.1 Text Preprocessing

The Text Preprocessing stage aims to perform the ﬁrst

treatments on the input question, in order to obtain a

cleaner sentence. Thus, given the user question posed

on our QA prototype, a Spell Checking is ﬁrstly per-

formed; then, the text is analyzed through Google NL

API for lemmatizing the words, removing the stop-

words, and identifying the named entities in the sen-

tence.

The Figure 2 exempliﬁes this sequence of steps:

the input question is ﬁrstly analyzed by the spell

checking, so the word “quants” is modiﬁed to “quan-

tos” (Portuguese word for how many), as highlighted

in blue color. After this step, the Google API per-

forms Named Entity Recognition and Part-of-Speech

extraction, resulting in a list of tokens. Some tokens

are lemmatized, e.g., the word “tem” is modiﬁed to

“ter” in the sentence (Portuguese word for the verb to

have). Finally, the stopwords are removed from the

sentence, resulting in a list of tokens that are stored

for further processing.

It is worth mentioning that extracting entities from

a sentence is one of the most important tasks in our

approach, since the entities referred to locations are

present in all possible questions and directly interfere

in answers accuracy. In the best use case, cities are

informed along with the state abbreviation in capi-

tal letters (e.g., “Santa Rosa/RS”), thus we identify

a Location entity. When this occurs, it is necessary

to discover if this location is actually a Brazilian city,

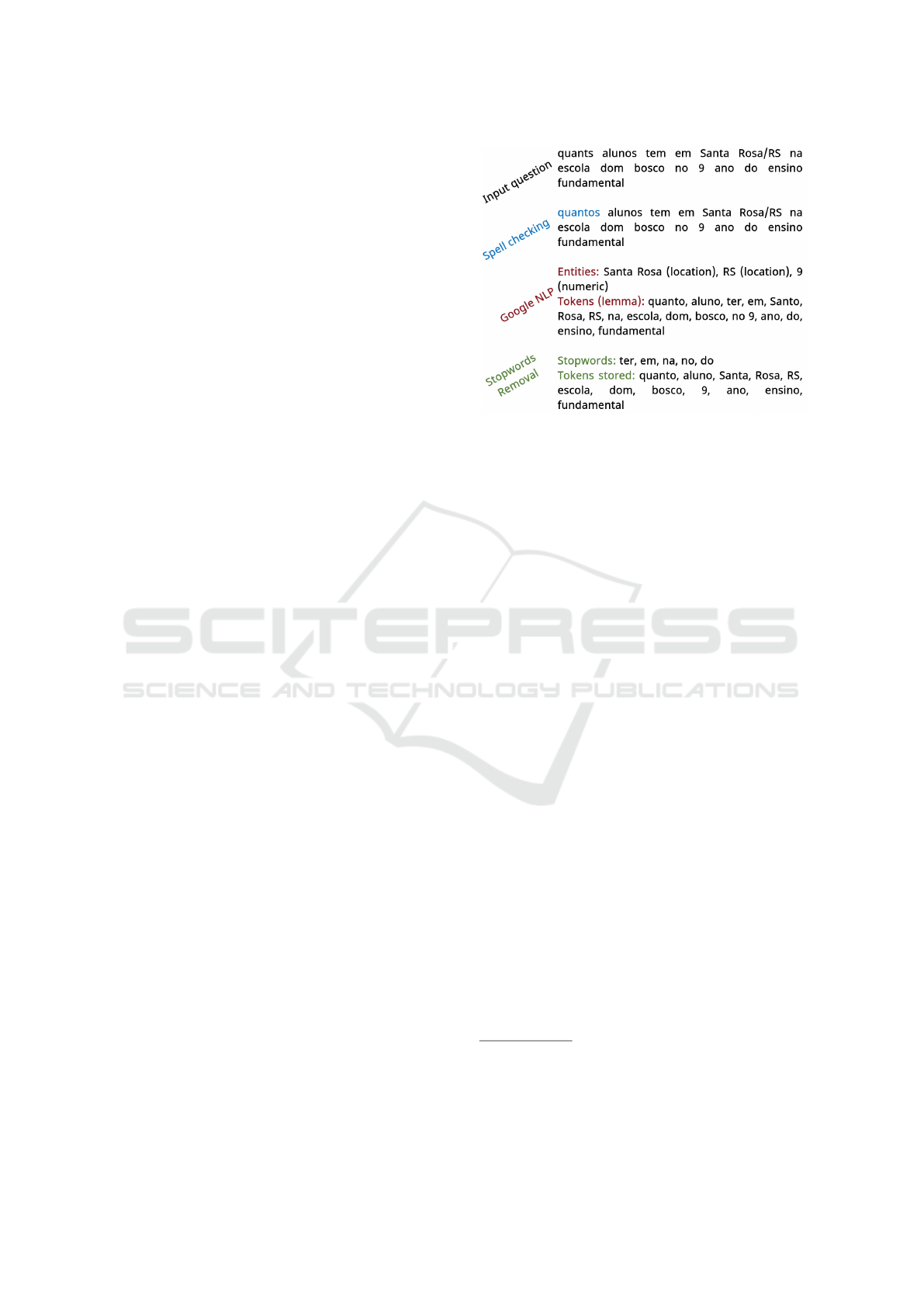

Figure 2: Steps of Text Preprocessing applied to an input

question.

by querying an auxiliary database

. When the state

is not informed by the user, ambiguities may occur,

since there are cities with the same name em different

states of the country. This will trigger an entity classi-

ﬁcation error. In these cases, we use the user location

obtained through IP address to identify the interest re-

gion, thus improving the precision of the search.

As shown in Figure 2, Text Preprocessing outputs

a list of tokens, which is given as input to the next step

of our approach, i.e., Question Mapping. This step

identiﬁes keywords in the resulting list for knowing

the information need of the user question, and will be

discussed in the next subsection.

3.2.2 Question Mapping

To identify the meaning of the question, i.e., the in-

formation that the user really wants, it is necessary to

extract keywords that give clues about this expected

information. In other words, this step takes as input

the resulting list of tokens from Text Preprocessing

stage, and tries to identify (from the left to the right)

keywords in this list that refer to Census data tables.

As mentioned in subsection 3.1, we have the ta-

bles Students, Schools and Courses, so valid ques-

tions should contain one of these keywords, or equiv-

alent words. If one of these keywords is not identi-

ﬁed, the processing will be stopped, since we infer

that the question is not related to the application do-

main. Otherwise, when keywords are found, the rule-

based NLP is triggered: each keyword found is linked

This querying is carried out in an auxiliary table named

Cidades (cities, in English), which is not part of the edu-

cational data. The table contains data collected in another

government survey, thus the codes for cities, states and re-

gions are the same as the ones used in Brazilian Census.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

124

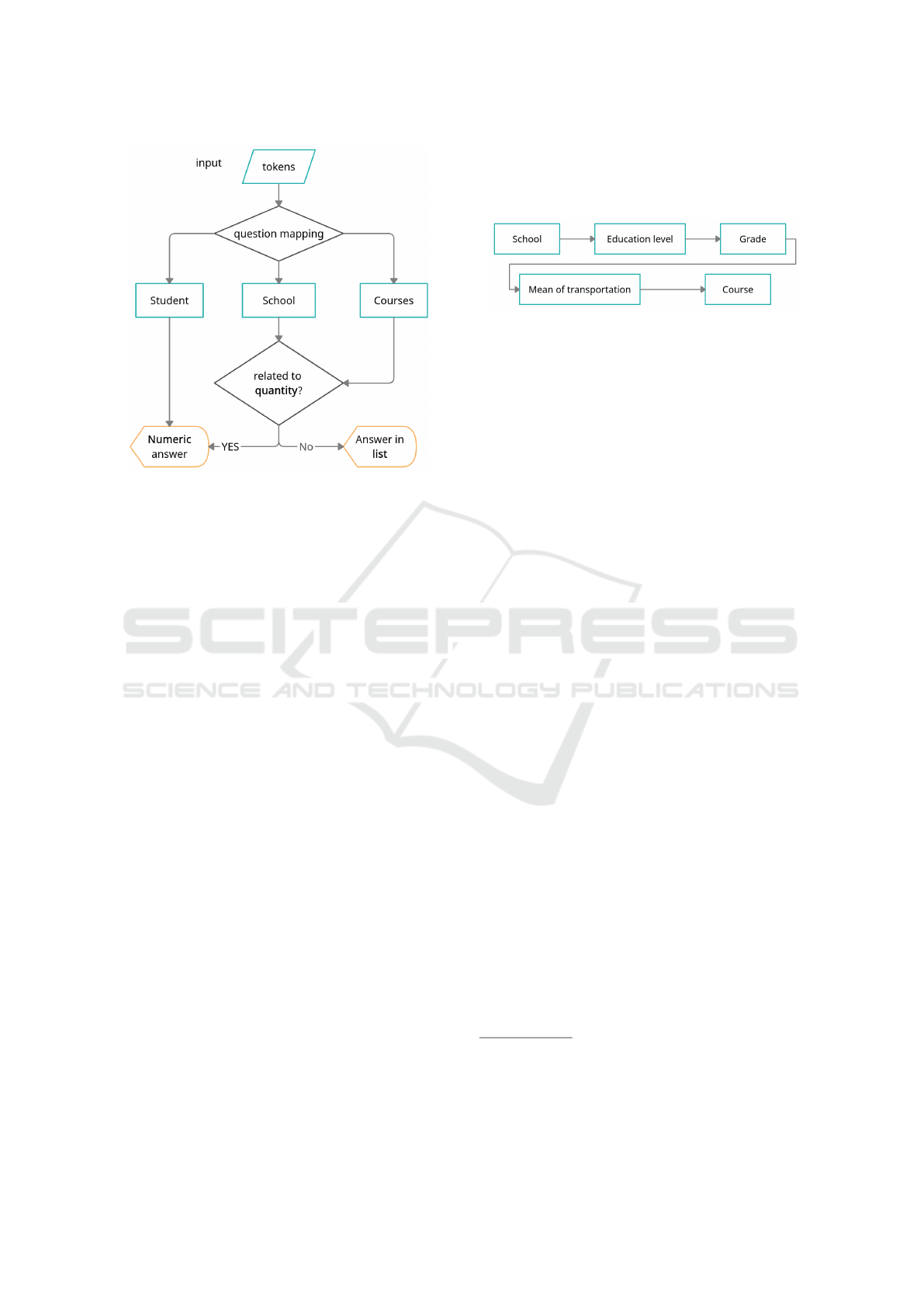

Figure 3: Question Mapping ﬂowchart.

to a speciﬁc rule concerning different queries on the

three data tables, as demonstrated in Figure 3.

The task of identifying the meaning of a question

and providing the appropriate answer usually covers

many steps that must be executed in sequence, which

are called pipelines (Marx et al., 2014). Thus, for

our rule-based mapping, we constructed pipelines for

each type of keyword found (i.e., Student, School and

Course). For exemplifying, in the resulting list of to-

kens from Figure 2, the second token “aluno” (Por-

tuguese word for student) will trigger the processing

pipeline for Student, which involves query attributes

related to students. Similarly, if the keywords School

or Course are found, their respective pipelines will be

executed.

In the last processing stage of Figure 3, the infor-

mation need regarding Schools and Courses may be

related to quantity. We identify this relation when the

token “quanto” (i.e., how many) is present in the list

of tokens, thus we infer that the user is asking for val-

ues or quantities. If this token is not present, then the

answer is given as a list.

Models of questions in Portuguese related to stu-

dent, school, or course are presented in the Appendix

of this paper, and are applied in our prototype of QA

system developed as a Web page. In the next sub-

sections, details of pipelines covered by each type of

question will be minutely addressed.

Student-related Questions. These questions are

limited to quantitative answers (see Figure 3) related

to students information, i.e., number of students (1)

enrolled in a given school, (2) linked to a speciﬁc

educational modality/level, and (3) that use a spe-

ciﬁc mean of transportation. The Figure 4 shows the

pipeline for answering student-related questions. The

pipeline includes the following data:

Figure 4: Student-related pipeline.

• School. The question may require information on

a speciﬁc school. For identifying whether there

is a school in the question, all tokens are exam-

ined and tested over the School table, consider-

ing a location. If any result is returned, we as-

sume the presence of school in the question. In

this step, it is necessary to ignore tokens that are

not stopwords for Portuguese, but usually appear

in the schools names. E.g., virtually all Brazilian

schools have in their names the words Escola, Es-

tadual, Ensino M

edio

, which are ignored since

they are not relevant for the processing.

• Educational Level. It retrieves information on

the educational level within a question. When the

term Ensino Fundamental

is found, a ﬁlter is ap-

plied for searching for students aged 6 to 15 years.

• Grade. Elementary, Middle and High schools

cover many grades. In case of the retrieved edu-

cational level is Ensino Fundamental, we consider

grades within a range of 1 to 9. Otherwise, if the

educational level is Ensino M

edio

, we consider

grades within a range of 1 to 3.

• Mean of Transportation. It allows to retrieve in-

formation about students that use means of trans-

portation to get to school. Keywords related to

valid means of transportation are identiﬁed in the

input question.

• Course. The question may require information

on number of students enrolled in a given course,

which can refer to a school or location/region. In

this case, we examine all tokens from the sen-

tence, testing them over the table Courses, simi-

larly to the process performed for schools.

School-related Questions. The focus of these

questions is discovering which schools are private or

Portuguese words and expression for School, Public

School, and High School, respectively.

Portuguese expression for Elementary School and Mid-

dle School together.

Portuguese expression for High School.

Querying Brazilian Educational Open Data using a Hybrid NLP-based Approach

125

public in a region (city or state). Besides that, it is

possible to ﬁnd public schools by informing their type

of linkage with the State (e.g., informing if the school

is municipal or national), and applying ﬁlters accord-

ing to the educational level (childhood education, ele-

mentary school, high school, etc.) or modalities (pro-

fessional education, e-learning). The Figure 5 shows

the pipeline for answering school-related questions,

which includes:

• School Type. The queries concerning School

Type ﬁlter schools according to their linkage with

the State. Thus, a school can be private or public.

If the school is public, either the city, the state or

the country governments can be responsible for its

resources.

• Educational Offer. It allows to discover schools

by applying ﬁlters related to which target au-

dience is served, e.g., Elementary and Middle

Schools offer education for students of the 1st to

the 9th grade.

• Ordination. It allows to order decreasingly the

answer in list. This resource is only possible for

school-related questions, since the list of schools

is much more extensive than the other answers

lists. For this, we search for the words “desc” (i.e.,

descending) or “inverso” (i.e., inverse) informed

in the question to perform ordination.

Figure 5: School-related pipeline.

Course-related Questions. These questions

present a variation in their structure, since they

require the discovery of three types of information:

courses offered in a location, courses offered by

a school, or schools that offer a given technical

course. There is only one pipeline responsible for the

decision, and the answer for this type of question can

be related to courses or schools.

The Figure 6 presents the ﬂowchart with the de-

cisions taken for answering course-related questions:

questions that begin with the interrogative adverb

Onde (Portuguese word for Where) express the idea of

requiring information about a place, thus we infer that

this place is a school where a given course is offered.

When “where” token is found, we identify the pres-

ence of a valid technical course in the sentence. We

execute this task by examining all tokens and check-

ing if one of them corresponds to a valid entry in the

Courses table, according to an identiﬁer. A distinct

SQL query is performed on the Students table, adding

Figure 6: Course-related ﬂowchart.

the Course identiﬁer as restriction, thus retrieving the

school’s name.

In case where the question does not contain

“where”, we ﬁrst search for a valid school in the sen-

tence

, then we perform a distinct SQL query in

the Students table, adding the School identiﬁer as re-

striction for retrieving the school’s name.

If no school is valid, it is necessary to search for

all courses offered in that location. For this, we exe-

cute the same SQL query without adding the school

identiﬁer.

4 DISCUSSION

In this section we evaluate the success rate of answers

obtained with our NLP-based approach, consider-

ing the three types of questions presented in subsec-

tion 3.2.2: student-related questions, school-related

questions, and course-related questions. Models of

questions in Portuguese accepted in our QA prototype

are shown in the Appendix.

With respect to the school-related questions, the

Figure 7 shows an example of input question, where

it is informed the Portuguese sentence for public

schools in Santa Maria/RS, where “Santa Maria” is a

city, and RS means “Rio Grande do Sul”, a Brazilian

state. The question aims to retrieve a list of schools

maintained by the federal government, thus it ap-

plies the School Type ﬁlter in the school pipeline, as

demonstrated in Figure 5. Concerning the results pre-

sentation, the lack of keywords indicating descending

order means that the answer follows an ascending or-

der, which is the ordination standard.

The Figure 8 presents an example of course-

related question, whose objective is searching for

schools that offer the Technical Nursing Course in

This processing is sent to the Student/School pipeline,

since the searching rules are the same.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

126

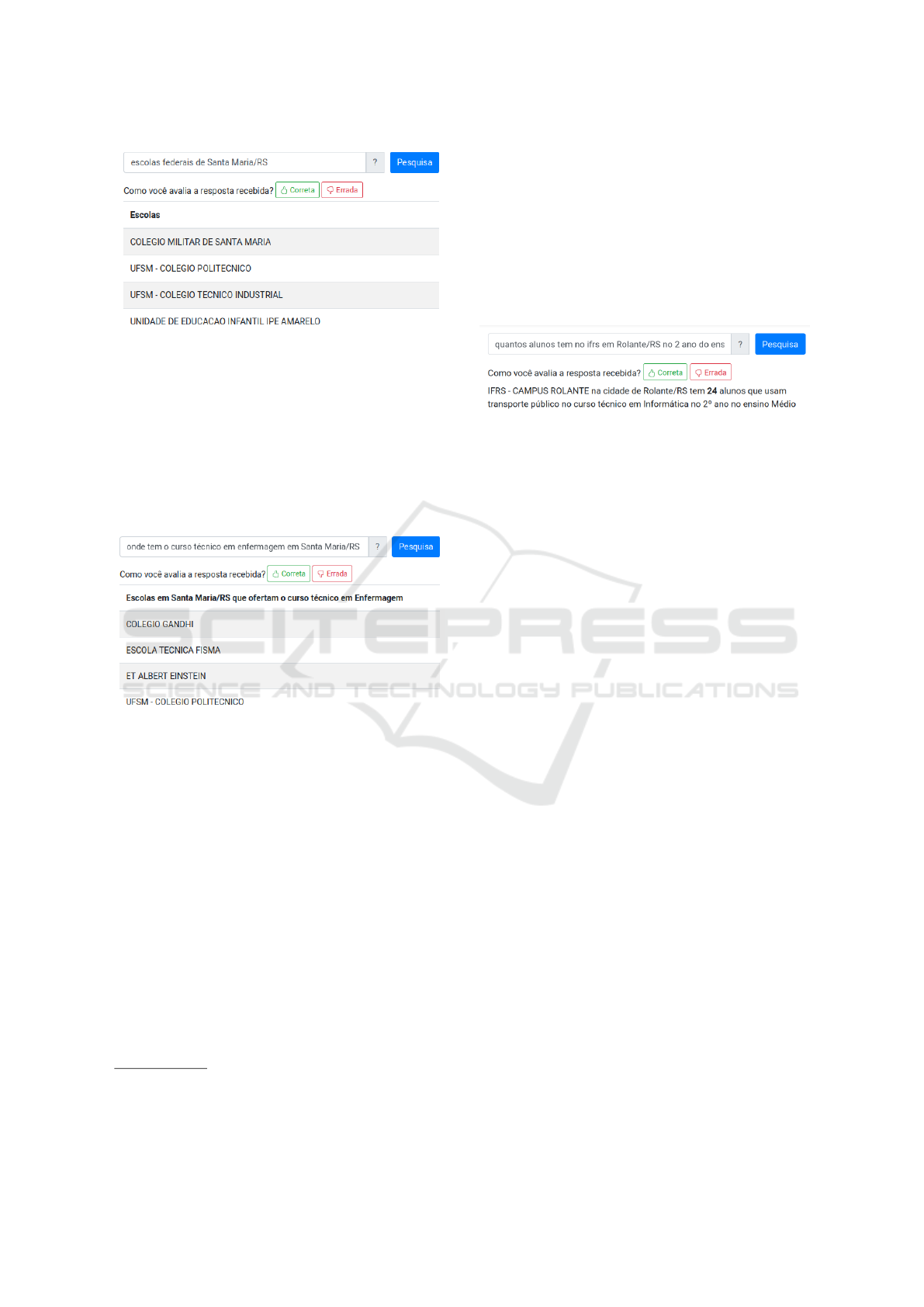

Figure 7: Results obtained from a school-related question.

Santa Maria. We can observe that this question starts

with the term “onde” (where), thus it requires infor-

mation about a place, as shown in Figure 6. By fol-

lowing the course-related ﬂowchart, the answer lists

all schools located in Santa Maria that offer the Tech-

nical Nursing Course. The results were validated

through searches performed in the websites of the in-

stitutions, which conﬁrmed the veracity of answers.

Figure 8: Results obtained from a course-related question.

Finally, the Figure 9 presents an example of student-

related question that combines the other pipelines,

i.e., school and course. The input question shown

in the Figure aims to discover “how many stu-

dents attending the 2nd year of the Computing

Technical Course

are there in IFRS

, located in

Rolante/RS

, and that use public transportation?”.

The answer obtained from this question highlights

that 24 students match the conditions informed. This

result shows that although the possible queries are not

highly complex to execute, the proposed model al-

lows to give complete answers by combining different

pipelines, which increases the usefulness of informa-

tion retrieved.

For improving our proposal and future evalua-

tions, our QA prototype allows the user to give feed-

back about the retrieved answers: above each list of

High School course.

Name of public school.

City and state in Brazil.

answers in ﬁgures 7, 8 and 9, there is the Portuguese

sentence “Como voc

e avalia a resposta recebida?”,

which asks to the user how he/she evaluates the an-

swer received. The sentence is accompanied by two

buttons for the user to inform if the answer is Cor-

rect or Incorrect, allowing to assess the success rate

of our approach. In addition, the user can leave com-

ments in our QA prototype about the consistency of

answers, contributing for the system improvement.

Figure 9: Results obtained from a student-related question

that includes information from school and course pipelines.

4.1 Limitations

In the evaluation phase of our proposal, we identiﬁed

limitations that affected the accuracy of some ques-

tions. First, in some cases, the Spell Checking erro-

neously changed a city name that was correct, pro-

ducing an unexpected output. Errors also occurred

in NER tasks, e.g., in the Portuguese question cor-

responding to “how many students are there in IFRS

and Sagrada Fam

ılia located in Rolante/RS?”, IFRS

and Sagrada Fam

ılia correspond to schools in the

Rolante city. However, the QA prototype searches for

the city named Sagrada Fam

ılia, not the school as ex-

pected. As Sagrada Fam

ılia city does not have any of

the two schools mentioned, an unexpected output is

produced.

A possible solution for facing this limitation could

be adding a third module in our proposal, responsi-

ble for disambiguating the question meaning. This

could be done by retrieving, e.g., names of valid lo-

cations within a sentence, and asking the user a con-

ﬁrmation about which location is correct. This ap-

proach has been applied in several NLP-based ap-

proaches, achieving satisfactory results (Mani et al.,

2018; Damljanovic et al., 2011; Park et al., 2015).

5 CONCLUSIONS AND FUTURE

WORK

In this work we presented a NLP-based approach for

querying Open Data from Brazilian Educational Cen-

sus, which is the most important educational statisti-

cal research in the country. Brazilian Open Data are

available in Portuguese language, which is still a re-

Querying Brazilian Educational Open Data using a Hybrid NLP-based Approach

127

search gap in the NLP domain due to its complex-

ity and particular structure. Also, there is a lack of

QA approaches for accessing and processing Brazil-

ian Open Data.

For facing these issues, we implemented a QA

prototype developed as a Web interface for querying

Brazilian Educational Census, proposing a hybrid so-

lution that applies linguistic and rule-based NLP in

two main stages of question processing: Text Prepro-

cessing and Question Mapping. In Text Preprocess-

ing, we applied techniques such as Spell Checking

and stopwords removal, as well as Google NLP API

for Lemmatization and entity recognition tasks. In

Question Mapping, we discovered the meaning of the

input question, recognizing keywords related to spe-

ciﬁc data tables from the Brazilian Census (schools,

courses, and students), and following their respective

pipelines (i.e., sets of rules) for retrieving the correct

answer.

Our approach was validated through questions re-

lated to the data tables, and posed on our QA proto-

type

. The answers obtained with our hybrid NLP

approach were satisfactory, since they presented pre-

cise information, with the possibility of combining in-

formation from more than a pipeline.

As future work, we aim to validate and promote

the effective use of our approach, by including edu-

cation professionals (and other users who are inter-

ested) in evaluation tasks, so that inconsistencies in

the answers can be better handled. Particularly, we

aim to include a disambiguation module in our hybrid

approach, for dealing with both Spell Checking and

NER limitations, in which human participation can be

highly effective. We also aim to expand the number

of questions accepted by our prototype, and investi-

gate other NLP techniques for optimizing aspects of

accuracy, response time and clarity of answers.

REFERENCES

Balakrishnan, V. and Lloyd-Yemoh, E. (2014). Stemming

and lemmatization: a comparison of retrieval per-

formances. Lecture Notes on Software Engineering,

2:262–267.

Beniwal, R., Gupta, V., Rawat, M., and Aggarwal, R.

(2018). Data mining with linked data: Past, present,

and future. In 2018 Second International Confer-

ence on Computing Methodologies and Communica-

tion (ICCMC), pages 1031–1035. IEEE.

Bouziane, A., Bouchiha, D., Doumi, N., and Malki, M.

Our QA prototype for querying Brazilian Educational

Census is available in the following address: https://

censoindex.duckdns.org.

(2015). Question answering systems: survey and

trends. Procedia Computer Science, 73:366–375.

Charton, E., Ghoula, N., and Meurs, M.-J. (2016). Open

data for local search: Challenges and perspectives.

In Proceedings of the 25th International Conference

Companion on World Wide Web, pages 641–644.

Damljanovic, D., Agatonovic, M., and Cunningham, H.

(2011). Freya: An interactive way of querying linked

data using natural language. In Extended semantic

web conference, pages 125–138. Springer.

de Castro, B. P. C., Rodrigues, H. F., Lopes, G. R., and

Campos, M. L. M. (2019). Semantic enrichment and

exploration of open dataset tags. In Proceedings of

the 25th Brazillian Symposium on Multimedia and the

Web, pages 417–424.

dos Santos Brito, K., da Silva Costa, M. A., Garcia, V. C.,

and de Lemos Meira, S. R. (2015). Is brazilian open

government data actually open data?: An analysis

of the current scenario. International Journal of E-

Planning Research (IJEPR), 4(2):57–73.

Ferr

andez, A. and Peral, J. (2010). The beneﬁts of the inter-

action between data warehouses and question answer-

ing. In Proceedings of the 2010 EDBT/ICDT Work-

shops, pages 1–8.

Giordani, A. and Moschitti, A. (2012). Generating sql

queries using natural language syntactic dependencies

and metadata. volume 7337, pages 164–170.

Google, L. (2021). Cloud natural language.

https://cloud.google.com/natural-language.

Goyal, A., Gupta, V., and Kumar, M. (2018). Recent named

entity recognition and classiﬁcation techniques: A

systematic review. Computer Science Review, 29:21–

43.

Gupta, P. and Gupta, V. (2012). A survey of text question

answering techniques. International Journal of Com-

puter Applications, 53:1–8.

Henderson, M., Al-Rfou, R., Strope, B., Sung, Y.-H.,

Luk

acs, L., Guo, R., Kumar, S., Miklos, B., and

Kurzweil, R. (2017). Efﬁcient natural language re-

sponse suggestion for smart reply. arXiv preprint

arXiv:1705.00652.

Hossain, M. A., Dwivedi, Y. K., and Rana, N. P. (2016).

State-of-the-art in open data research: Insights from

existing literature and a research agenda. Journal of

organizational computing and electronic commerce,

26(1-2):14–40.

INEP (2020). Censo escolar. http://portal.inep.gov.br/web/

guest/censo-escolar. Accessed: 2020-12-30.

Isotani, S. and Bittencourt, I. I. (2015). Dados Abertos

Conectados: Em busca da Web do Conhecimento. No-

vatec Editora.

Kaur, A., Singh, P., and Rani, S. (2014). Spell checking

and error correcting system for text paragraphs written

in punjabi language using hybrid approach. Interna-

tional Journal of Engineering and Computer Science,

3(09).

Khosrow-Pour, M. and Khosrowpour, M. (2009). Ency-

clopedia of information science and technology, vol-

ume 1. IGI Global Snippet.

Kolomiyets, O. and Moens, M.-F. (2011). A survey

on question answering technology from an infor-

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

128

mation retrieval perspective. Information Sciences,

181(24):5412–5434.

Lee, J., Yi, J.-S., and Son, J. (2019). Development of

automatic-extraction model of poisonous clauses in

international construction contracts using rule-based

nlp. Journal of Computing in Civil Engineering,

33(3):04019003.

Liddy, E. D. (2001). Natural language processing.

Mani, S., Gantayat, N., Aralikatte, R., Gupta, M., Dechu,

S., Sankaran, A., Khare, S., Mitchell, B., Subrama-

nian, H., and Venkatarangan, H. (2018). Hi, how can

i help you?: Automating enterprise it support help

desks. In Thirty-Second AAAI Conference on Artiﬁ-

cial Intelligence.

Marx, E., Usbeck, R., Ngomo, A.-C. N., H

offner, K.,

Lehmann, J., and Auer, S. (2014). Towards an open

question answering architecture. In Proceedings of the

10th International Conference on Semantic Systems,

pages 57–60.

Masseroli, M., Picozzi, M., Ghisalberti, G., and Ceri, S.

(2014). Explorative search of distributed bio-data to

answer complex biomedical questions. BMC bioin-

formatics, 15(S1):S3.

Molina Gallego, G. (2018). Analysis, discovery and ex-

ploitation of open data for the creation of question-

answering systems. Undergraduate Thesis, Universi-

dad de Alicante.

Mouromtsev, D., Vlasov, V., Parkhimovich, O., Galkin,

M., and Knyazev, V. (2013). Development of the

st. petersburg’s linked open data site using informa-

tion workbench. In Open Innovations Association

(FRUCT), 2013 14th Conference of, pages 77–82.

IEEE.

Murray-Rust, P., Neylon, C., Pollock, R., and Wilbanks, J.

(2010). Panton principles, principles for open data in

science. Panton Principles.

Nesi, P., Pantaleo, G., and Sanesi, G. (2015). A hadoop

based platform for natural language processing of web

pages and documents. Journal of Visual Languages &

Computing, 31:130–138.

Oliveira, M. I. S., de Oliveira, H. R., Oliveira, L. A., and

oscio, B. F. (2016). Open government data portals

analysis: the brazilian case. In Proceedings of the

17th International Digital Government Research Con-

ference on Digital Government Research, pages 415–

424.

Park, S., Kwon, S., Kim, B., Han, S., Shim, H., and Lee,

G. G. (2015). Question answering system using mul-

tiple information source and open type answer merge.

In Proceedings of the 2015 Conference of the North

American Chapter of the Association for Computa-

tional Linguistics: Demonstrations, pages 111–115.

Rocha, G. and Lopes Cardoso, H. (2018). Recognizing

textual entailment: challenges in the portuguese lan-

guage. Information, 9(4):76.

Rodrigues, R., Gonc¸alo Oliveira, H., and Gomes, P. (2018).

Nlpport: a pipeline for portuguese nlp (short pa-

per). In 7th Symposium on Languages, Applications

and Technologies (SLATE 2018). Schloss Dagstuhl-

Leibniz-Zentrum fuer Informatik.

Roy, R. S. and Anand, A. (2020). Question answering

over curated and open web sources. arXiv preprint

arXiv:2004.11980.

Ruiz, M., Rom

an, C., Garrido,

A. L., and Mena, E. (2020).

uais: An experience of increasing performance of nlp

information extraction tasks from legal documents in

an electronic document management system. In ICEIS

(1), pages 189–196.

Singh, J. and Gupta, V. (2017). A systematic review of text

stemming techniques. Artiﬁcial Intelligence Review,

48(2):157–217.

Sowe, S. K. and Zettsu, K. (2015). Towards an open

data development model for linking heterogeneous

data sources. In Knowledge and Systems Engineer-

ing (KSE), 2015 Seventh International Conference on,

pages 344–347. IEEE.

Srba, I., Savic, M., Bielikova, M., Ivanovic, M., and

Pautasso, C. (2019). Employing community ques-

tion answering for online discussions in university

courses: Students’ perspective. Computers & Edu-

cation, 135:75–90.

Sy, M.-F., Ranwez, S., Montmain, J., Regnault, A., Cram-

pes, M., and Ranwez, V. (2012). User centered and

ontology based information retrieval system for life

sciences. BMC bioinformatics, 13(1):1–12.

Utomo, F., Suryana, N., and Azmi, M. S. (2017). Ques-

tion answering system: A review on question analy-

sis, document processing, and answer extraction tech-

niques. Journal of Theoretical and Applied Informa-

tion Technology, 95:3158–3174.

Wendt, M., Gerlach, M., and D

uwiger, H. (2012). Linguis-

tic modeling of linked open data for question answer-

ing. In Extended Semantic Web Conference, pages

102–116. Springer.

White, R. W., Richardson, M., and Yih, W.-t. (2015).

Questions vs. queries in informational search tasks.

In Proceedings of the 24th International Conference

on World Wide Web, WWW ’15 Companion, page

135–136, New York, NY, USA. Association for Com-

puting Machinery.

Yao, X. and Van Durme, B. (2014). Information extrac-

tion over structured data: Question answering with

freebase. In Proceedings of the 52nd Annual Meet-

ing of the Association for Computational Linguistics

(Volume 1: Long Papers), pages 956–966.

Yin, Z., Zhang, C., Goldberg, D. W., and Prasad, S.

(2019). An nlp-based question answering framework

for spatio-temporal analysis and visualization. In Pro-

ceedings of the 2019 2nd International Conference on

Geoinformatics and Data Analysis, pages 61–65.

Zhang, C. and Yue, P. (2016). Spatial grid based open

government data mining. In Geoscience and Remote

Sensing Symposium (IGARSS), 2016 IEEE Interna-

tional, pages 192–193. IEEE.

APPENDIX

Models of questions in Portuguese accepted by the

QA prototype:

Querying Brazilian Educational Open Data using a Hybrid NLP-based Approach

129

School-related Questions.

• Quais escolas federais tem em Santa Maria/RS?

(Which federal schools are there in Santa

Maria/RS?)

• Quais escolas particulares existem em Frederico

Westphalen/RS? (Which private schools are there

in Frederico Westphalen/RS?)

• Quais escolas p

ublicas existem em Frederico

Westphalen/RS? (Which public schools are there

in Frederico Westphalen/RS?)

Student-related Questions.

• Quantos alunos tem na cidade de Rolante/RS?

(How many students are there in Rolante/RS

city?)

• Quantos alunos tem na escola Visconde de Cairu

em Santa Rosa/RS? (How many students are

enrolled at Visconde de Cairu school in Santa

Rosa/RS?)

• Quantos alunos tem em Rolante/RS que usam

transporte p

ublico? (How many students in

Rolante/RS use public transportation?)

• Quantos alunos tem no IFRS Rolante/RS no curso

ecnico em inform

atica? (How many students are

enrolled in the Computing Technical Course at

IFRS located in Rolante/RS?)

• Quantos alunos tem na pr

e-escola em Santa

Rosa/RS? (How many nursery school students are

there in Santa Rosa/RS?)

• Quantos alunos tem em Santa Rosa/RS na es-

cola Dom Bosco no 9 ano do ensino fundamen-

tal? (How many students at Dom Bosco school in

Santa Rosa/RS are in the 9th grade of Elementary

School?)

Course-related Questions.

• Onde

e ofertado o curso t

ecnico em inform

atica

em Porto Alegre? (Where is the Computing Tech-

nical Course offered in Porto Alegre?)

• Quais cursos tem na cidade de Taquara/RS?

(Which courses are there in Taquara/RS city?)

• Quais cursos tem no IFRS em Rolante/RS?

(Which courses are offered at IFRS in

Rolante/RS?)

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

130
