Improving Web Application Vulnerability Detection Leveraging

Ensemble Fuzzing

ao Caseirito and Ib

eria Medeiros

LASIGE, Faculdade de Ci

encias,Universidade de Lisboa, Portugal

Keywords:

Fuzzing, Web Applications, Vulnerability Discovery.

Abstract:

The vast majority of online services we use nowadays provide their web application to the users. The correct-

ness of the source code of these applications is crucial to prevent attackers from exploiting its vulnerabilities,

leading to severe consequences like the disclosure of sensitive information or the degradation of the availability

of the application. Currently, multiple existent solutions analyse and detect vulnerabilities in the source code.

Attackers, however, do not usually have access to the source code and must work with the information that is

made public. Their goals are clear – exploit vulnerabilities without accessing the code –, and they resort of

black-box fuzzing tools to achieve such. In this paper, we propose an ensemble fuzzing approach to check the

correctness of the web applications from the point of view of an attacker and, in a posterior phase, analyse the

source code to correlate with the collected information. The approach focuses ﬁrst on the quality of fuzzers’

crawlers and afterwards on fuzzers capabilities of exploiting the results of all crawlers between them, in order

to provide better coverage and precision in the detection of web vulnerabilities. Our preliminary results show

that the ensemble performs better than fuzzers individually.

1 INTRODUCTION

The Internet is currently part of our daily life, and so

web applications are built upon it. There are over 1.8

billion websites active in the wild, and every month

this number increases by hundreds of thousands as

new web services and applications emerge online

Companies are constantly faced with the deci-

sion to choose between functionality and security for

their web services, as the time for security assessment

may exceed the planned service launch time and of-

ten companies choose to release applications with in-

complete security testing. Sohoel et al. (Sohoel et al.,

2018) studied how startups consider software security

in their applications. The applications tested had sig-

niﬁcant security breaches, and those who had the low-

est awareness about good practices and well-known

vulnerabilities had the most critical security holes.

Also, none of the companies had done prior security

testing and relied on secure code from third parties.

Web applications’ development is getting easier,

even for those who lack programming knowledge.

WordPress

(WP) is a content management system

https://www.internetlivestats.com/total-number-of-

websites/

https://wordpress.com/

(CMS) used to create blogs and web applications eas-

ily and intuitively, making it very appealing to inexpe-

rienced users. It is written in PHP, the server-side lan-

guage mainly used to manage back-end data in web

applications. Almost 80% of websites use PHP as

their server-side language, and almost 40% of them

use WP to manage their systems

. Despite their us-

age, PHP has not a speciﬁcation language, turning it

poor and limited for data validation, requiring the pro-

grammers to use the right functions and have a stable

set of good practices. Pairing this lack of knowledge

and bad practices with the existing vulnerabilities and

limitations of the language, web applications are left

with security bugs that are in the wild, vulnerable and

open for anyone willing to explore their ﬂaws.

Cross Site Scripting (XSS)

and SQL injection

(SQLi)

are injection web vulnerabilities that con-

tinue to be very prevalent, specially in applications

with legacy code. In fact, they are in ﬁrst place in the

OWASP (Open Web Application Security Project)

Top 10 2017, a report of the top vulnerabilities found

https://w3techs.com/

https://owasp.org/www-community/attacks/xss/

https://owasp.org/www-community/attacks/SQL

Injection

https://owasp.org/

Caseirito, J. and Medeiros, I.

Improving Web Application Vulnerability Detection Leveraging Ensemble Fuzzing.

DOI: 10.5220/0010484904050412

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 405-412

ISBN: 978-989-758-508-1

405

in the wild (Williams and Wichers, 2017). Its im-

pact is huge and can result in information disclosure,

data loss, denial of service, between others. XSS vul-

nerabilities, despite having a more moderate impact,

were found in around two thirds of the applications

in the OWASP study, revealing their big prevalence.

Although this vulnerabilities are really well known,

there are recent cases with some of them in applica-

tions used by millions (Ryan, 2020).

Static analysis examines the source code and

identiﬁes vulnerabilities without executing the code

(Chess and McGraw, 2004; Jovanovic et al., 2006;

Medeiros et al., 2014). Although it ﬁnds a big per-

centage of the vulnerabilities, it has a considerable

amount of false positives. Fuzzing, on the other

hand, is an (semi)automatic software testing tech-

nique to ﬁnd vulnerabilities without having access to

the source code, which involves providing invalid and

unexpected inputs to the application and monitoring

for exceptions (Sutton et al., 2007). It has an inferior

false positives’ rate and is able to detect issues caused

by the code’s interactions with other components and

vulnerabilities that may be too complicated to static

analysis to ﬁnd (Duchene et al., 2014). However, one

of the biggest challenges in black-box fuzzing tools

is to determine the interactions that can change the

application’s state. For example, sending the same

requests in a different order or with different inputs

can result in different paths explored. Without tak-

ing this into account, a big portion of the applica-

tion code could be missed and multiple vulnerabilities

overlooked (Doup

e et al., 2012).

This paper presents an ensemble fuzzing approach

for discovering vulnerabilities in web applications

written in PHP, and, in a posterior phase, to iden-

tify the code that contain the vulnerabilities exploited.

To the best of our knowledge, it is the ﬁrst ensemble

approach of fuzzing for web applications. The ap-

proach focuses ﬁrst on the quality of fuzzers’ crawlers

and then on fuzzers’ capabilities to exploit the re-

sults of all crawlers between them, in order to pro-

vide better code coverage and precision in detecting

vulnerabilities. The ensemble fuzzing is composed

of three open-source fuzzers, namely, OWASP ZAP

w3af

, and Wapiti

, and aims to address the issue

stated above. In a second phase, the approach will be

extended to identify the vulnerabilities in the applica-

tions’ code by correlating information on how to char-

acterize and exploit vulnerabilities with data provided

by fuzzers’ attacks and the monitoring of target appli-

cations. Our preliminary results show that it performs

https://www.zaproxy.org/

http://w3af.org/

https://wapiti.sourceforge.io/

better than fuzzers individually and the fuzzers’ per-

formance vary with the complexity of applications.

The contributions of the paper are: (1) an ensem-

ble fuzzing approach to ﬁnd ﬂaws in web applica-

tions, with better code coverage and accuracy; (2) an

implementation of the approach with three fuzzers;

(3) an experimental evaluation providing distinct re-

sults with fuzzers in the ensemble and individually.

2 WEB APPLICATION

VULNERABILITIES

The difﬁculty of protecting the code of web appli-

cation relies on treating the user inputs unduly (e.g.,

GET), leaving applications vulnerable and an easy

target for attackers. Attackers inject malicious data

through the application attack surface and check if

they exploit some bug existent in the target appli-

cation. Vulnerabilities associated with user inputs

are called input validation vulnerabilities, because

user inputs are improperly validated or sanitized, or

surface vulnerabilities, because they are exploited

through the attack surface of the application.

SQLi and reﬂected XSS are two vulnerability

classes of this kind. SQLi is associated with mal-

crafted user inputs (e.g., ’, OR) used in SQL state-

ments without any sanitization, and then executed

over the database through an appropriated function

(e.g., mysqli query in PHP). XSS injects malicious

scripts (e.g., JavaScript) which are used in output

functions (e.g., echo), allowing the exploitation of

vulnerabilities that reﬂect data from the browser’s vic-

tim to the attacker. Another type of XSS is the stored

XSS, which is made in two steps. First, the malicious

script is stored in some place in the target application

(e.g., database, blog ﬁle), and later it is loaded and

used in an output function.

3 RELATED WORK

Black-box fuzzing is a software testing technique that,

without accessing the source code of the program, in-

jects random inputs to ﬁnd bugs in it (Miller et al.,

1990), which involves monitoring for exceptions,

such as crashes, memory leaks, and information dis-

closure (Sutton et al., 2007). The injected inputs are

generated based on two approaches: generation and

mutation. In the former, the fuzzer generates inputs

without relying on previous inputs or existing seeds,

usually learning input models and generating new in-

puts based on the learned models. In the latter, the

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

406

fuzzer modiﬁes inputs based on deﬁned patterns and

existing seeds (Sutton et al., 2007).

Chen et al. (Chen et al., 2019) proposed an en-

semble fuzzing approach to increase the performance

in bug discovery. First, they selected fuzzers based

on their input generation strategies, seed selection and

mutation processes, and the diversity of coverage in-

formation granularity. Secondly, they implemented

a system global asynchronous and local synchronous

that periodically synchronizes fuzzers attacking the

same application, sharing between these fuzzers in-

teresting seeds that cover new paths or generate new

crashes. WAF-A-Mole (Demetrio et al., 2020) is a

tool that models the presence of an adversary based on

a guided mutation fuzz approach. The tool explores

failing tests, which are repeatedly mutated with muta-

tion operators. Sargsyan et al (Sargsyan et al., 2019)

and Araujo et al (Ara

ujo et al., 2020) presented a di-

rected fuzzing approach with the goal of executing in-

teresting code fragments as fast as possible. All these

approaches are for C/C++ code, and not applicable

for web applications. Our approach aims to explore

the latter’s ﬂaws and uses the ensemble fuzzing con-

cept by sharing all the different requests between the

ensemble and then using each fuzzer’s capability to

explore those requests.

KameleonFuzz (Duchene et al., 2014) is an exten-

sion of LigRE (Doup

e et al., 2012; Duch

ene et al.,

2013), a fuzzer that performs control ﬂow analysis to

detect reﬂected and stored XSS vulnerabilities. Lang-

Fuzz (Holler et al., 2012) is a blackbox fuzzing tool

for script interpreters. Vimpari et al (Vimpari, 2015)

presented a study of open-source fuzzers, analysing

the differences between them from the perspective

of someone with basic knowledge in software test-

ing and their usability. They ended up selecting 6

fuzzers: Radamsa, MiniFuzz, Burp Suite, JBroFuzz,

w3af and OWASP ZAP, being the last four web ap-

plication fuzzers. However, they did not explored the

fuzzers’ ability to exercise the results of the different

crawlers between them, which is what we make.

4 ENSEMBLE FUZZING

APPROACH

The ensemble fuzzing aims to improve the detection

of web vulnerabilities and increase the code cover-

age. Also, it intents to minimize the problem of in-

teractions that can change the application’s state, pre-

sented previously (Doup

e et al., 2012), by increasing

the probability of exploiting a vulnerability by using

several fuzzers that will exercise the same requests.

Web application fuzzers before attacking the ap-

plication under test, need to inspect its attack surface

to extract the URLs (web requests) they need to per-

form the attacks. These fuzzers contain two compo-

nents – crawler and scanner

– to perform, respec-

tively, the inspection of the attack surface and the at-

tacks. In addition, the latter depends on the results

from the former. However, there is no guarantee that

the crawler extracts all entry points from the attack

surface and compose with them all valid URLs the

application contains. On the other hand, there is also

no guarantee that the scanner has the ability to exer-

cise the URLs with the correct injected code, capable

of exploiting the existing vulnerabilities in the appli-

cation through these URLs.

Therefore, we propose an approach that combines

different fuzzers and resorts from the best they have

in order to improve the resolution of these issues. The

approach comprises two phases – Crawling and Scan-

ning – and their interactions are illustrated in Figure

1, respectively, by the orange and the black arrows.

Web application

Fuzzers

Request

extractor

Request

uniformizer

Distributor

Vulns.

exploited

Web application

Fuzzers

Request

extractor

Request

uniformizer

Distributor

Vulns.

exploited

crawler

scanner

Figure 1: Overview of the ensemble fuzzing approach.

Crawling Phase. This phase starts with the initial

URL of the target application. Based on this URL,

the crawlers explore recursively the attack surface of

the web application in order to discover all requests

that the application receives. The Request extractor

module extracts the requests they made, analyses the

content of their responses and collects the entry points

they contain, i.e., the application points that receive

user inputs. Next, the Request Uniformizer module

compares the requests in order to remove the dupli-

cated ones, and then converts the distinct ones into an

uniform format that will allow to be used by different

fuzzers in the attack phase. At the end of this phase, a

list of distinct requests (uniformized) is obtained, in-

dicating for each one which fuzzers found it. Despite

We denominate scanner instead fuzzer to distinguish it

from the fuzzer as a whole.

Improving Web Application Vulnerability Detection Leveraging Ensemble Fuzzing

407

the duplicated requests being eliminated, the list con-

tains all fuzzers that found them. Also, in order to get

the best results of each crawler and to ensure that the

results obtained from a crawler are not being inﬂu-

enced by other crawler’s execution, the application’s

data is reset after each execution.

Attack Phase. This phase aims to attack the web

application to exploit existing vulnerabilities in its

source code, using the requests resulting from the pre-

vious phase. The Distributor module receives the list

of request and distributes it to the fuzzers. However,

as each fuzzer has a different format to store the re-

quests found by its crawler in its database, the dis-

tributor, before distributing the requests, must prepare

each one according to the format of each fuzzer. Next,

each fuzzer delivers the requests to its scanner for this

latter to exercise them with malcraft inputs and ex-

ploit some vulnerability. At the end, for each fuzzer,

a list of the vulnerabilities found is provided, as well

as the request that exploited them.

Assessment. We evaluated the fuzzers based on the

coverage and precision of their crawler and scanner.

We compared the crawlers through the number of

URL’s (requests) and the type of endpoints explored.

The scanners were assessed for their ability to ex-

ploit vulnerabilities, given the same list of requests

for all fuzzers and their unique vulnerability ﬁndings.

Note that, since all scanners use the same requests,

we are able to detect limitations in the capability of

exploring vulnerabilities by comparing the results of

each fuzzer, as the results are not crawling dependent.

Also, for the results found by each scanner, we manu-

ally inspected them to verify what vulnerability each

scanner (fuzzer) found (see Section 6).

5 IMPLEMENTATION AND

CONFIGURATION

The proposed approach was implemented with three

fuzzers, namely the Wapiti 3.0.3, with the Web Spider

plugin for crawling, the w3af 2019.1.2, with the

Web Spider plugin for crawling, and the OWASP

ZAP 2.9.0 (ZAP for short) with the Spider tool for

crawling and the active-scan tool for attacking. For

attacking, all tools were conﬁgured for sqli and xss.

ZAP was also conﬁgured with xss persistent and

xss reﬂected modules. The plugin xss of the ﬁrst two

fuzzers also allows the discovery of persistent XSS.

Fuzzers must be correctly conﬁgured to achieve

a better performing and vulnerability exploitation.

One important conﬁguration they contain, besides the

URL of the target application, is the user authenti-

cation way on the application, as nowadays several

web applications have a user authentication process

for preventing unauthorized users from gaining ac-

cess to sensitive information. Hence, next we describe

the authentication forms each fuzzer offers, which we

opted and how we conﬁgured it. In addition, to avoid

bias analysis conclusions, the crawlers’ depth level

was set to the same level and they were run only once.

Wapiti authentication is based on session cookies.

The utility wapiti-getcookie, given the login URL, can

fetch the session cookies from the application that are

later imported to the wapiti scanner. However, this

utility, in some cases, does not detect the hidden val-

ues that are sent in the authentication process. To cir-

cumvent this issue, we created a script that generates

the cookie with the mandatory values.

w3af offers two authentication modes: autocom-

plete and cookie-based. For the former, the user pro-

vides the login URL, the authentication parameters

and some information about a successful login. It

works well most of times, however, when it does not,

we use the second mode which its conﬁguration is

very similar to Wapiti and where the cookie needs to

be converted to the w3af-readable format.

ZAP has multiple ways of dealing with authenti-

cation. We explored two of them: form-based and

script-based. In both, we must supply some applica-

tion context, such as the login and logout regex, and

the username and password. The form-based mode

automatically detects the data and format required for

authentication, given the login page, and anti-CSRF

tokens if the name of the tokens used by the website

is in the ZAP Anti-CSRF list. Although this automa-

tion seems useful, in some cases it is unable to ﬁnd the

correct data format, resulting in failed authentication

attempts. The script-based mode resolves this issue.

In this mode, the authentication data is provided in a

script that, when executed, will perform the actions

required for authentication. This mode achieves bet-

ter results than the ﬁrst, and so we opted by it.

6 EXPERIMENTS AND

EVALUATION

The objective of the experimental evaluation was to

answer the following questions: (1) Can the ensem-

ble fuzzing lead to the discovery of vulnerabilities that

would be missed if the fuzzers used only the requests

found by their crawler? (2) Can the ensemble fuzzing

improve the overall coverage and precision of the vul-

nerability detection?

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

408

6.1 Tested Web Application

The ensemble fuzzing was evaluated with three

known vulnerable open-source web applications.

DVWA. Damn Vulnerable Web App (DVWA

) is a

PHP/MySQL web application designed to be vulner-

able to SQL injections, XSS and other vulnerability

classes. The application requires user authentication,

few pages can be accessed without an active session,

and the different pages can be accessed via simple hy-

perlink tags inside of list items. It has also the option

of changing the level of security used. For our testing

purposes we used the level “low” (no security).

Mutillidae. Mutillidae

is a deliberately vulnera-

ble web application that contains at least one vulner-

ability type belonging to OWASP Top 10 (Williams

and Wichers, 2017). To access its different pages,

nested HTML unordered lists, that change with “on-

mouseover” events, are used. There is a base URL

and most of the pages are accessible by changing the

value of a variable in the query string.

bWAPP. Buggy Web Application (bWAPP

) is a

vulnerable web application with over one hundred

vulnerabilities, including those described in OWASP

Top 10. Such as DVWA, it also requires authentica-

tion and the pages accessible without it are limited

and vulnerability free.

6.2 Crawlers Evaluation

This section has the goal of assessing the capabilities

of the crawlers and understanding their discrepancies.

Before crawling the web applications, a man-

ual analysis was made to identify how is performed

the authentication process, and the entry points that

would modify the application’s state in an unwanted

way, as for example the logout endpoint. Although

this last identiﬁcation requires some manual work, it

leads to more constant results, and so to a more fair

and complete crawler comparison.

The evaluation of the crawlers was based on the

results provided by the Request Uniformizer module,

where we compared the requests executed by each

crawler pursuing the following criteria: (i) requests

with the same method (eg., GET); (ii) requests with

the same base URL; (iii) requests with the same vari-

ables and same values in the query string, despite

http://www.dvwa.co.uk/

https://github.com/webpwnized/mutillidae

http://www.itsecgames.com/

order. Initially we considered similar requests that

had the same variables in the query string, despite it’s

value. Although the majority of the requests with the

same variables lead to the same page, in some cases

the value determined the page to be presented. To

avoid missing this endpoints, we compared the values

as well. (iv) requests with the same post data. This

criteria was deﬁned for simplistic reasons, as com-

paring the data parameters with all the types that are

possible to send is not trivial.

Based on these four criteria, we were able to auto-

matically compare the requests made by all crawlers

and verify which ones represent the unique and sim-

ilar requests between crawlers. Figure 2 presents the

results of this comparison for each web application.

As we can observe, there is no crawler that is the

best. All crawlers had different results. The rate of

common requests discovered by all crawlers was 28%

(29) in DVWA, 20% (90) in Multilidae, and 13% (52)

in bWAPP. However, the number of equal requests

outputted by two crawlers was grater compared with

the previous rate. For example, for Multilidae and

bWAPP it was, respectively, 35% (161 out of 461)

and 45% (182 out of 405). Almost or even more than

50% of the requests found by each crawler were only

discovered by it (called the unique requests).

Some interesting unique requests were found in

DVWA and Mutillidae. For DVWA, ZAP unique

URL’s are related to the login page and pages that

are accessible from there, in which w3af and Wapiti

excluded from their results. Of the few unique re-

quests found by Wapiti, one has an entry point only

accessible through a redirect Javascript function. ZAP

misses this completely and w3af reaches the function

but excludes the URL due to an erroneous redirect. As

we will see in Section 6.3 this request will allow the

exploitation of vulnerabilities. w3af unique requests

are mainly images that are missed or ignored by the

other fuzzers. For Multilidae, the unique URLs for

ZAP and Wapiti are related to a public phpmyadmin

service that they were able to detect, while for w3af

are related to folders that have common names, such

as “/javascript” or “/webservices”.

These results denote the existing discrepancy in

what crawlers can discover. Also, in the ﬁrst instance,

we can say that there are advantages in crawling appli-

cations with an ensemble fuzzing, because there are

requests that are missed by some crawlers that may

contain vulnerabilities and that would not be found

by the fuzzers whose crawlers have lost.

Improving Web Application Vulnerability Detection Leveraging Ensemble Fuzzing

409

(a) DVWA (b) Mutillidae (c) bWAPP

Figure 2: Number of URLs found by crawlers of each fuzzer when inspect each web application.

Table 1: Number of successfully explored vulnerabilities in the tested web applications.

Web App Vulnerability Wapiti Wapiti-EF W3af W3af-EF ZAP ZAP-EF False Positives

DVWA

SQLi 2 2 3 3 3 3 1

Reﬂected XSS 5 5 1 5 7 8 1

Stored XSS 0 0 0 2 2 2 0

Mutillidae

SQLi 17 17 4 12 9 9 0

Reﬂected XSS 52 54 26 43 22 24 1

Stored XSS 17 17 1 11 3 3 1

bWAPP

SQLi 1 1 0 1 0 0 0

Reﬂected XSS 9 21 1 13 19 20 11

Stored XSS 1 4 0 2 1 1 0

6.3 Scanners Evaluation

In this section it is assessed the capabilities of the

fuzzers’ scanners, individually and in the ensemble.

Also, the section intents to ﬁnd out if scanners have

the ability to explore requests found by other crawlers

than their own fuzzer and, hence, exploit vulnerabili-

ties from them.

For the individual evaluation, each scanner was

run as standalone with the requests that its crawler

discovered. On the other hand, in the ensemble, each

scanner run with the requests found by the ensemble

fuzzing and provided by the distributor, after they be-

ing formatted according to the fuzzer format. Hence,

having a list of requests gotten by the three fuzzers’

crawlers, each fuzzer was fed with the list, and each

fuzzer’s scanner used the requests, exercised them

with diverse inputs and carried out attacks on the web

applications to try to exploit SQLi and XSS.

Table 1 summarize the results obtained from the

scanners on both evaluations, where columns 3, 5 and

7 regard individual fuzzers and columns 4, 6, and

8 to fuzzers in the ensemble (EF). The results vary

with the complexity of each web application. Again,

there is no scanner that is the best. It is visible that

fuzzers within the ensemble improves their precision

on discovering vulnerabilities, denoting thus that they

are able to explore request that were found by other

crawlers. Also, w3af-EF was the fuzzer that had its

precision more increased. ZAP-EF exploited more

vulnerabilities in DVWA, while in the Mutillidae and

bWAPP applications, Wapiti-EF had better results.

In order to assess the quality of the scanners, we

compared the reported vulnerabilities between each

other, identifying the unique and common ﬁndings.

Figure 3 displays the vulnerability distribution for

each application. The common ﬁndings ranges 27%

– 50% between all scanners, and 14% – 49% between

two scanners. The unique ﬁndings in average are

39%. Wapiti-EF and ZAP-EF had a greater number

of unique ﬁndings, varying according to the applica-

tion tested. w3af-EF, on the other hand, had a low rate

of unique ﬁndings (1 or 0).

During the analysis we found interesting cases

when we compared the results of the scanners and the

requests of the crawlers. Also, we tried all outputted

results on the tested web applications (i.e., we per-

formed the attacks manually) and we found that some

of them were false positives. The next two sections

we present some of these cases.

6.3.1 Identifying Interesting Cases

We considered an attack interesting if it ﬁts in one of

the following cases: (i) the crawler of the fuzzer F

missed the URL

and the remaining crawlers found it

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

410

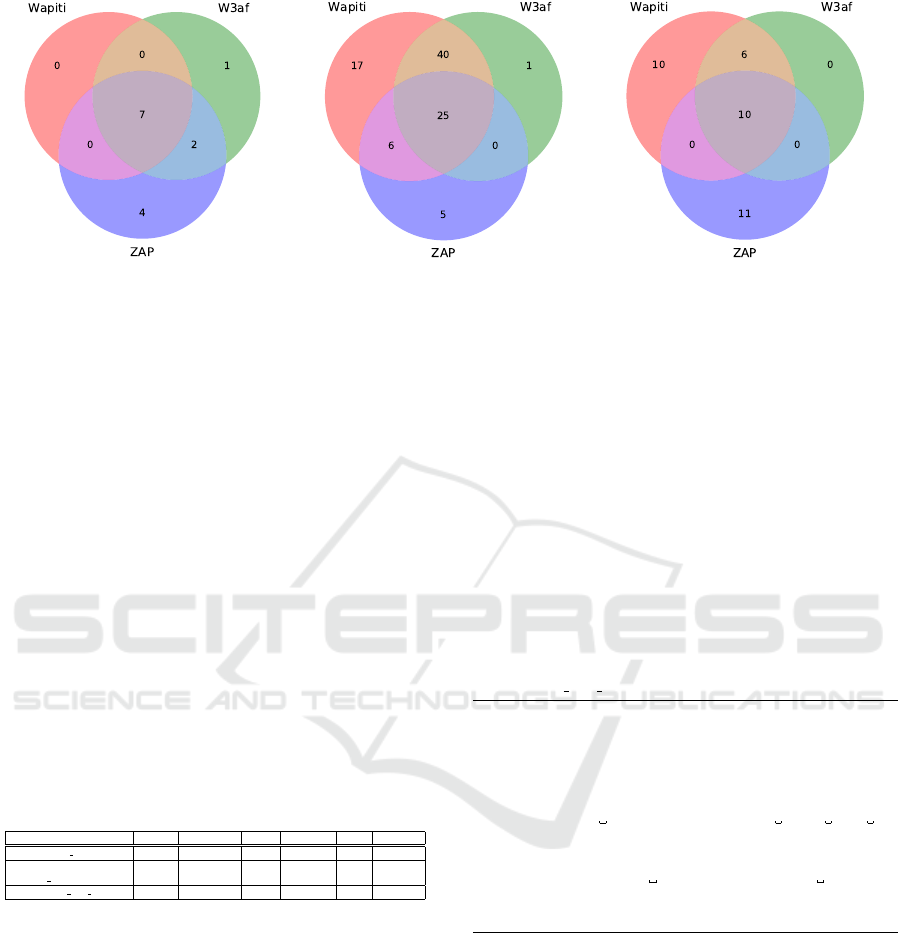

(a) DVWA (b) Mutillidae (c) bWAPP

Figure 3: Vulnerability distribution by each fuzzer when attacking each web application.

but were unable to explore it. In the ensemble, only

was able to explore the U RL

and found the vulner-

ability; (ii) only the crawler of the fuzzer F

was able

to ﬁnd the URL

and explored it. In the ensemble, all

fuzzers were able to explore URL

and found the vul-

nerability. (iii) both fuzzers F

and F

found the same

base URL, however F

was not able to retrieve a valid

request from it because F

missed a variable or sent

an erroneous value. F

discovered the correct request

(URL

) and was able to explore it. In the ensemble, F

also was able to explore URL

We found 18 interesting cases, namely 6 from the

ﬁrst case, 11 from the second and 1 from the last.

Table 2 presents an interesting XSS vulnerability we

found of each case. We used a binary representation

to identify if the vulnerability was explored or not.

The ”–EF” columns represent the attacks performed

in the ensemble, and the others columns represent the

attacks performed by the fuzzer individually.

Table 2: An example of XSS of each case.

URL Wapiti Wapiti-EF W3af W3af-EF ZAP ZAP-EF

/bWAPP/csrf 3.php 0 1 0 0 0 0

/DVWA/vulnerabilities/ 1 1 0 1 0 1

csrf/test credentials.php

/bWAPP/xss php self.php 0 1 0 1 1 1

In the ﬁrst row, it is represented a vulnerability where

the request was missed by the Wapiti’s crawler but

caught by other one’s crawlers, in which these were

unable to exploit that vulnerability. Observing the

application code, there is a submit button that sends

some values, including one that is in a hidden input

Wapiti was able to manage this hidden input, unlike

the other fuzzers.

The second row is the case mentioned in Section

6.2. Wapiti’s crawler is the only one that found the

URL, being able to explore it. When the URL is

shared between all fuzzers, all of them exploited the

vulnerability too.

In the last row, the w3af’s crawler missed the

URL, unlike the other crawlers. But, ZAP and Wapiti

returned different parameters for this URL. Wapiti

only found the parameters from a form that is used

to update information, missing a parameter that is

needed to send the request; hence, its exploration

failed. ZAP found the correct URL and explored it

successfully. When the correct URL (from ZAP) was

explored by all fuzzers, they all were able to explore

the vulnerability. The code that validates this request

is presented in Listing 1. The vulnerable code can

only be accessible if all the parameters form, ﬁrst-

name and lastname are set, making the parameter

form, discovered by ZAP, crucial in the vulnerability

exploitation.

Listing 1: Source code that validates the requests sent to

/bWAPP/xss php self.php.

if(isset( $_GET [ " fo r m " ]) && isset( $ _ G E T [ " f ir st na me "

]) && isset( $ _ G E T [ " la st n am e " ]) ) {

$fi r s t n am e = $_GET [ " fir s t n a m e " ];

$las t n a m e = $_ G E T [ " lastn a m e " ];

if( $ f i r s tn am e == " " or $ l a s tn am e = = " ")

echo " < fo nt c o l o r =\" red \" > P l e a s e e n t e r b o t h

fields ... </ f on t > " ;

else

echo " W e l co m e " . x ss ( $fi r s t n am e ). " " . xss (

$las t n a m e );

}

6.3.2 Identifying False Positives

By manually performing all the attacks reported by

each fuzzer’s scanner, we conﬁrmed a total of 15 false

positives: 13 from ZAP and 2 from w3af. The last

column of the Table 1 presents them on the three

applications. Most of the ZAP false positives were

XSS attacks in the application bWAPP, as the val-

ues of the variables instantiated by ZAP were not

used, since it was only checked if the variable was

set. One example of a w3af false positive was in

DVWA, as it reported a SQLi attack in “/DVWA/in-

structions.php?doc=”, where the attacked parameter

Improving Web Application Vulnerability Detection Leveraging Ensemble Fuzzing

411

was “doc”. Listing 2 presents a fragment of code that

deals with this parameter. Here, the value of the vari-

able is only used to compare with values of an existing

array, and if it does not match any of it’s values, a de-

fault one is used. The value is not used anywhere else

in the application, and so no SQLi attack is possible.

Listing 2: Source code of the page attacked by the w3af

fuzzer that resulted in a false positive.

$d o c s = array(

’ r e a d m e ’= > array( ’ fi le ’ => ’ README . md ’) ,

’ PDF ’= > array( ’ f i le ’ => ’ do c s / pd f . html ’) ,

);

$s e l e cte d D o cId = isset( $ _ G E T [ ’ d oc ’ ]) ? $_ G E T [ ’ d oc ’

] : ’’;

if( ! ar r a y_k e y _ exi s t s ( $select e d D o c I d , $ d o c s ) ) {

$s e l e cte d D o cId = ’ r ea d m e ’;

}

$rea d F i l e = $d o c s [ $ sel e c t edD o c I d ][ ’ f i le ’ ] ;

7 CONCLUSIONS

The paper presented an ensemble fuzzing approach

for web applications to improve the detection of vul-

nerabilities by exploring all returned requests of all

fuzzers’ crawlers and increase the code coverage of

such applications. The approach was implemented

with three open-source web fuzzers and evaluated

with three well known vulnerable applications. The

preliminary results are promising and showed that

there are advantages to have such ensemble, specially

in those cases where it is able to detect vulnerabilities

that would be missed if the fuzzers would run indi-

vidually. As a further step, we want to identify in the

code of the applications the vulnerabilities exploited

by inspecting the code traces resulting from fuzzers.

ACKNOWLEDGMENTS

This work was partially supported by the na-

tional funds through FCT with reference to

SEAL project (PTDC/CCI-INF/29058/2017) and

LASIGE Research Unit (UIDB/00408/2020 and

UIDP/00408/2020).

REFERENCES

Ara

ujo, F., Medeiros, I., and Neves, N. (2020). Generat-

ing tests for the discovery of security ﬂaws in prod-

uct variants. In Proceedings of the IEEE International

Conference on Software Testing, Veriﬁcation and Val-

idation Workshops, pages 133–142.

Chen, Y., Jiang, Y., Ma, F., Liang, J., Wang, M., Zhou, C.,

Jiao, X., and Su, Z. (2019). Enfuzz: Ensemble fuzzing

with seed synchronization among diverse fuzzers. In

Proceedings of the 28th USENIX Security Symposium,

pages 1967–1983.

Chess, B. and McGraw, G. (2004). Static analysis for secu-

rity. IEEE Security & Privacy, 2(6):76–79.

Demetrio, L., Valenza, A., Costa, G., and Lagorio, G.

(2020). WAF-A-MoLE. Proceedings of the 35th An-

nual ACM Symposium on Applied Computing.

Doup

e, A., Cavedon, L., Kruegel, C., and Vigna, G. (2012).

Enemy of the state: A state-aware black-box web vul-

nerability scanner. In Proceedings of the USENIX

Conference on Security Symposium, pages 26–26.

Duch

ene, F., Rawat, S., Richier, J., and Groz, R. (2013).

Ligre: Reverse-engineering of control and data ﬂow

models for black-box XSS detection. In Proceedings

of the Working Conference on Reverse Engineering,

pages 252–261.

Duchene, F., Rawat, S., Richier, J.-L., and Groz, R. (2014).

Kameleonfuzz: evolutionary fuzzing for black-box

xss detection. In Proceedings of the ACM Conference

on Data and Application Security and Privacy, pages

37–48.

Holler, C., Herzig, K., and Zeller, A. (2012). Fuzzing with

code fragments. In Proceedings of the 21st USENIX

Security Symposium, pages 445–458.

Jovanovic, N., Kruegel, C., and Kirda, E. (2006). Pre-

cise alias analysis for static detection of web appli-

cation vulnerabilities. In Proceedings of the workshop

on Programming languages and analysis for security,

pages 27–36.

Medeiros, I., Neves, N. F., and Correia, M. (2014). Au-

tomatic detection and correction of web application

vulnerabilities using data mining to predict false posi-

tives. In Proceedings of the International Conference

on World Wide Web, pages 63–74.

Miller, B. P., Fredriksen, L., and So, B. (1990). An empiri-

cal study of the reliability of UNIX utilities. Commu-

nications of the ACM, 33(12):32–44.

Ryan, K. (2020). Patched zoom exploit: Altering camera

settings via remote sql injection.

Sargsyan, S., Kurmangaleev, S., Hakobyan, J., Mehrabyan,

M., Asryan, S., and Movsisyan, H. (2019). Directed

fuzzing based on program dynamic instrumentation.

In Proceedings of the International Conference on En-

gineering Technologies and Computer Science, pages

30–33.

Sohoel, H., Jaatun, M., and Boyd, C. (2018). Owasp top 10

- do startups care? pages 1–8.

Sutton, M., Greene, A., and Amini, P. (2007). Fuzzing:

brute force vulnerability discovery. Addison-Wesley.

Vimpari, M. (2015). An evaluation of free fuzzing tools.

Wassermann, G. and Su, Z. (2008). Static detection of

cross-site scripting vulnerabilities. In Proceedings of

the International Conference on Software Engineer-

ing, pages 171–180.

Williams, J. and Wichers, D. (2017). OWASP Top 10 -

2017 rcl - the ten most critical web application secu-

rity risks. Technical report, OWASP Foundation.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

412
