DynamoML: Dynamic Resource Management Operators for Machine

Learning Workloads

Min-Chi Chiang and Jerry Chou

National Tsing Hua University, Hsinchu, Taiwan

Keywords:

Deep Learning, GPU Resource Management, Job Scheduling, Performance Optimization.

Abstract:

The recent success of deep learning applications is driven by the computing power of GPUs. However, as

the workﬂow of deep learning becomes increasingly complicated and resource-intensive, how to manage the

expensive GPU resources for Machine Learning (ML) workload becomes a critical problem. Existing resource

managers mostly only focus on a single speciﬁc type of workload, like batch processing or web services, and

lacks runtime optimization and application performance awareness. Therefore, this paper proposes a set of

runtime dynamic management techniques (including auto-scaling, job preemption, workload-aware schedul-

ing, and elastic GPU sharing) to handle a mixture of ML workloads consisting of modeling, training, and

inference jobs. Our proposed system is implemented as a set of extended operators on Kubernetes and has

the strength of complete transparency and compatibility to the application code as well as the deep learning

frameworks. Our experiments conducted on AWS GPU clusters prove our approach can out-perform the native

Kubernetes by 60% system throughput improvement, 70% training time reduction without causing any SLA

violations on inference services.

1 INTRODUCTION

Deep Learning (DL) is popular in data-center as an

important workload for artiﬁcial intelligence, because

it powers variety of applications, including image

classiﬁcation (He et al., 2016; Krizhevsky et al.,

2017), object detection (Redmon et al., 2015; Xu

et al., 2017), language processing (Vaswani et al.,

2017; Devlin et al., 2018; Yang et al., 2019; Liu et al.,

2019; Lan et al., 2019) to self-driving cars (Tian et al.,

2017) and autonomous robotics (Levine et al., 2016).

However, deep learning is also known to be comput-

ing intensive. As reported in a recent survey (Amodei

and Hernandez, 2018), the amount of computations

used in the largest AI training runs has been increas-

ing exponentially with a 3.4-month doubling time,

which is at the pace even faster than the Moore’s

Law. The increasingly popular trend of AutoML tech-

niques, such as automatic hyper-parameter tuning and

network architecture search, further pushes the need

of computing power as models must be repeatedly

trained with different settings in order to reﬁne DL

models.

GPUs have emerged as a popular choice for deep

learning applications because of their tremendous

throughput powered by massive parallelism. Hence,

today’s deep learning production systems are mostly

built on shared multi-tenant GPU clusters where

abundant computing resources can be utilized and

shared among users to enable large-scaled model

training, and highly efﬁcient model inference serving.

Therefore, it has drawn increasing attention from both

industry and research communities to improve the ef-

ﬁcient and performance of expensive GPU resources

for DL workloads.

Resource management (such as resource alloca-

tion, job scheduling) is one of main approaches for

improving job performance, system throughput and

hardware utilization. But managing the resources of

DL workload on GPU cluster can be challenging be-

cause DL production needs several processing stages

from data pre-processing to model training, valida-

tion, and ﬁnally model deployment for serving in-

ferences. The workﬂow is also known as the ML

pipeline. For simplicity, we refer the computation be-

fore model training as the modeling jobs; the com-

putations for modeling and hyper-parameter tuning

as the training jobs; and the computations for serv-

ing model inference requests as the inference jobs.

The workload characteristics of each of these jobs can

be widely different from each other. For instance,

modeling jobs can be non-GPU bound jobs because

some of the data pre-processing tasks involve inter-

active data analysis, and others may hardly be paral-

122

Chiang, M. and Chou, J.

DynamoML: Dynamic Resource Management Operators for Machine Learning Workloads.

DOI: 10.5220/0010483401220132

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 122-132

ISBN: 978-989-758-510-4

leled using GPU, such as feature extraction in adver-

tisement (He et al., 2014) and data augmentation in

computer vision (Zoph et al., 2019). Training and in-

ference jobs both require GPUs, but training behaves

like parallel batch processing with huge and stable

GPU usage pattern, while inference behaves like web

service with short and bursty GPU usage pattern. In

addition, inference jobs can have strict SLA require-

ments on the request response time. In contrast, train-

ing jobs can be suspended through the checkpoint-

restart mechanism. The mixture and diverse comput-

ing jobs in DL workload creates difﬁculties as well as

opportunities on resource management.

Existing cluster schedulers (e.g., Borg (Verma

et al., 2015), YARN (Vavilapalli et al., 2013)) are de-

signed for general-purpose workload. Their schedul-

ing algorithms (e.g., DRF (Ghodsi et al., 2011),

TetriSched (Tumanov et al., 2016), corral (Jalaparti

et al., 2015), HT-Condor (Tannenbaum et al., 2001))

are mostly designed to ensure resource fairness and

utilization by allocating a ﬁxed amount of resources

for each job according to the resource requirements

speciﬁed by the job owner upon job submission. As a

result, existing approach may lead to sub-optimal ap-

plication performance and system throughput due to

the following reasons.

1. Application-oblivious Scheduling. Existing

schedulers only concern about the amount of re-

sources allocated to each job without being aware

of the application performance and resource char-

acteristics. For training jobs, the location of allo-

cated GPUs can signiﬁcantly affect training time

due to communication overhead. For inference

jobs, their performance is measured by SLA guar-

antee which depends not only on the resource

allocations, but also on the time-varied service

workload (i.e., inference requests from clients).

For modeling jobs, they are consisted of non-GPU

and interactive workload, so their performance

can be much less sensitive to GPU resources.

Hence, without properly considering the perfor-

mance impact from resource allocations can eas-

ily lead to under-utilization or under-provisioning

problems.

2. Static Resource Management. Due to the work-

load diversity and time-varied resource demands

of DL workload, dynamic resource management

like job preemption, auto-scaling, is essential to

guarantee application performance and resource

utilization. But existing cluster managers often

require job owners to manually operate or re-

submit their jobs in order to adjust the resources

of jobs. The lack of resource management expe-

rience and information further discourage users to

adjust their job resources when necessary.

3. Coarse-grained GPU Allocation. Due to the

lack of multi-tasking management of GPU device,

the minimum granularity of GPU allocation today

is a single GPU device. That means an application

can have multiple GPUs, but each GPU can only

be allocated to exactly one application. While DL

jobs can be accelerated using GPUs, a single DL

job may not always utilize the whole GPU card

due to reasons like memory-bound training jobs

with large batch sizes or large network models,

non GPU-bound modeling jobs with human inter-

actions, and inference job with time-varied work-

loads. Hence, existing GPU cluster without sup-

porting GPU sharing can result in low resource

utilization and system throughput.

4. Homogeneous Workload Consideration. Not

until recently, DL domain speciﬁc management

systems (Peng et al., 2018; Xiao et al., 2018; Xiao

et al., 2020) have been proposed to tackle the is-

sues above. However, all of them focus on DL

training jobs only. With the emerging trend of

MLOps and AutoML that requires to unify ML

system development (Dev) and ML system opera-

tion (Ops) together, end-to-end ML pipelines with

mixture workloads are likely to be ran and man-

aged in a shared resource pool provided by a sin-

gle production system. Therefore, resource man-

ager should be designed with the consideration of

jobs with different performance metrics, workload

characteristics, and execution priorities.

To address the aforementioned problems, we present

DynamoML, a Dynamic resource Management Oper-

ators for Machine Learning workloads. DynamoML

consists of three modualized runtime resource man-

agement operators. First operator manages ﬁne-

grained shared GPU allocation to increase GPU uti-

lization. Second operator is an application-aware

scheduler to improves the performance of distributed

model training. Third operator is a performance-

driven auto-scaling controller to guarantees the SLA

requirement of model inference services. The three

operators can further collaborate to each other to

provide dynamic resource allocation across differ-

ent types of jobs through preemptive and priority

scheduling. Our system is designed and implemented

as the extended framework components to the Kuber-

netes, which has become the de facto resource man-

ager of containerized clusters and data centers. Our

experiments running a mixture of ML pipeline work-

load on a 16-GPUs cluster show that DynamoML im-

proves the native Kubernetes by increasing the system

throughput by more than 60%, reducing the average

training time by 70%, and eliminating all the SLA vi-

DynamoML: Dynamic Resource Management Operators for Machine Learning Workloads

123

olations. Our in-depth analysis also show that without

proper coordination and collaboration between differ-

ent management techniques to balance the resource

between training job and inference jobs, several issues

could occur, including SLA violation on inference

service, wasted idle GPUs, prolonged model training

time.

The rest of the paper is structured as follows. Sec-

tion 2 discusses the DL workload characteristics and

overall system architecture. Section 3 describes the

design and implementation of each DynamoML op-

erators. Section 4, and Section 5 presents our exper-

iment setup and results, respectively. Finally, the re-

lated work discussion is in Section 6, and the paper is

concluded in Section 7.

2 SYSTEM AND WORKLOAD

MODEL

2.1 ML Pipeline Workload

In this work, we consider a GPU cluster running a

set of computing jobs produced from the ML pipeline

workﬂow. In general, the jobs can be classiﬁed into

three types: modeling, training, and inference. The

workload characteristics of these three types of jobs

are summarized in Table 1, and brieﬂy discussed as

follows.

• Modeling. We use modeling jobs to represent all

the computing jobs before model training. In gen-

eral, modeling jobs involve neural network model

building and interactive data pre-processing, in-

cluding data cleaning, labeling, validations, and

feature extraction. In practice, users normally per-

form these tasks through web notebooks, such as

Juypter Notebook. Since the computations in this

pipeline stage commonly involves data process-

ing and human interaction, the GPU usage is low,

some execution delay can be tolerated, and the

workload pattern can be bursty.

• Training. Model training can be extremely

time consuming. In order to reduce training

time, distributed model training across multiple

GPU-nodes has been supported by the main-

stream deep learning frameworks, such as Tensor-

ﬂow, PyTorch, and Keras. Most of them adapt

the BSP (Bulk Synchronous Parallel) comput-

ing method to implement the data parallel model

training, where a training job is consisted of a set

of worker processes, and all the workers must syn-

chronously aggregate their gradients at the end of

each training iteration in order to update the model

weights. Since training time can be long, mod-

ern deep learning libraries also support checkpoint

mechanism to tolerant faults and to restart training

with different resource conﬁgurations. Therefore,

comparing other two types of jobs, training has the

highest resource usage and the lowest urgency.

• Inference. To serve model’s inference requests

from clients, an inference job often packages the

model and deploys it as a web service (e.g., TF-

Server). Similar to web services, the workload of

a web service can be time-varied according to the

number of client requests, and the SLA require-

ment of a service can be guaranteed. Therefore,

inference jobs should have the highest urgency

with periodic workload pattern and medium GPU

usage demand.

2.2 DynamoML Operators

According to the aforementioned workload character-

istics, we proposed and implemented a resource man-

agement framework called DynamoML. The goal of

our system is to support efﬁcient ML pipeline work-

load executions on GPU cluster by maximizing re-

source utilization while satisfying application perfor-

mance requirements.

Our work is implemented as an extended frame-

work on Kubernetes, because Kubernetes has become

the most popular resource orchestrator for hosting

containerized computing workload. However, Kuber-

netes, like our cluster schedulers (e.g., Borg (Verma

et al., 2015), YARN (Vavilapalli et al., 2013), HT-

Condor (Tannenbaum et al., 2001)), is lack of proper

resource management for DL workloads. Our re-

source management techniques are implemented as

three modualized operators:

• Shared GPU Allocator. it enables ﬁne-grained

shared GPU allocation in Kubernetes. Hence, the

GPU utilization can be increased by allowing mul-

tiple non-GPU bound modeling jobs to share a sin-

gle GPU. In comparison, the native device plug-in

framework of Kubernetes doesn’t allow fractional

allocation.

• Distributed Training Job Scheduler. It is a runtime

scheduler that addresses several resource alloca-

tion problems of distributed model training jobs.

(1) It reduces the communication overhead of dis-

tributed training by packing the workers of a train-

ing job on a single node . (2) It avoids the idle re-

source problem of synchronous computations by

proving gang scheduling, so that all the workers

of a training job will be scheduled together as a

group. (3) It uses checkpoint mechanism to force

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

124

Table 1: Summary of ML Pipeline workload characteristics and their corresponding resource management solutions.

Job Type Workload Characteristics Problems Solutions Results

type pattern usage urgency

Modeling interactive Bursty Low Med 1.Low utilization Fractional & elastic Increase utilization

(e.g., Notebook) data analysis GPU allocation

BSP (Bulk 1.Resource monopoly 1.Gang & locality 1.Avoid idle resources

Training Synchronous Persistent High Low 2.Communication aware scheduling 2.Reduce training time

(e.g., TFJob) Parallel) 3.Synchronization 2.Task preemption

Inference Web service Periodic Med High 1.SLA requirement Auto-scaling Avoid SLA

(e.g., TFServer) 2.Elastic workload violation

resource preemption on training jobs, so the re-

sources won’t be monopolized by the long run-

ning training jobs. In comparison, the native Ku-

bernetes scheduler cannot achieve these goals be-

cause it lacks of the awareness of application per-

formance.

• Inference Service Auto-scaling Controller. It aims

to dynamic add or remove the server instances of a

service job according to the response time of infer-

ence requests, so that an application level SLA re-

quirement can be guaranteed under workload vari-

ations. In comparison, the existing scaling mech-

anism in Kubernetes is based on resource usage

not application performance. Furthermore, when

the system is lack of resources for inference jobs,

auto-scaling controller can ask job scheduler to re-

lease the resources of training jobs. Therefore, in-

ference jobs always have the highest scheduling

priority in our framework.

2.3 Design Requirements & Strengths

Besides the goal of resource management, Dy-

namoML also has the following strengths from its de-

sign requirements.

• Transparency. All the resource control mechanism

of DynamoML are implemented as the extended

components of Kubernetes using the technique

like custom controller, sidecar container, and li-

brary hooks. Therefore, no code modiﬁcation to

the deep learning computing frameworks or user

program. Because of transparency, our system

can work seamlessly with Kubernetes, and our re-

source management strategy can also be applied

any application with the same targeted workload

characteristics.

• Modularization. each component of DynamoML

provides a standalone management service, such

as GPU sharing, scheduling and auto-scaling.

These services are triggered by their service-

deﬁned API and event. Hence, system administra-

tors can independently deploy the individual com-

ponents of DynamoML according to their needs.

• Agility. To overcome the workload variation and

diversity of ML pipeline jobs, DynamoML fo-

cuses on runtime resource sharing and manage-

ment. Form resource allocation aspect, our GPU

sharing supports elastic allocation which allows

the actual resource usage to be bounded between

a user speciﬁed range speciﬁed by a pair of val-

ues (request, limit), so that the resource within the

range can be elastically shared among users. From

resource usage aspect, DynamoML supports auto-

scaling and preemption on training and inference

jobs, so that resource demands can be adjusted and

adapted to the runtime application behavior and

performance.

3 SYSTEM IMPLEMENTATION

3.1 Shared GPU Allocator

GPU sharing is a necessary mean to improve re-

source utilization, especially for modeling and infer-

ence jobs. Our GPU sharing solution consists of two

parts. First is to enable fractional GPU allocation in

Kubernetes. Second is to ensure the GPU resource

can be shared fairly among containers.

The device plug-in framework of Kubernetes

treats GPU device as a single non-divisible resource

object, so fractional GPU allocation is not allowed.

To overcome this limitation, our system ﬁrst launches

a set of pods to allocate the GPU resources from

Kubernetes, and obtain GPU devices’ UUID. Then

the same GPU can be attached to multiple con-

tainers installed with nvidia docker package by set-

ting the GPU’s UUID in in the environment variable

“NVIDIA VISIBLE DEVICES”. To support frac-

tional allocation, our shared GPU allocator will track

the residual resource amount on each GPU, and en-

sure GPUs are not over-allocated.

After a GPU is attach and accessible by a con-

tainer, we still have to ensure the actual resource us-

age doesn’t exceed the allocation amount. As shown

in Figure 1, to throttle the GPU usage of a container,

DynamoML: Dynamic Resource Management Operators for Machine Learning Workloads

125

ϭϴϯ

Es//ƌŝǀĞƌ

ƉƉůŝĐĂƚŝŽŶWƌŽŐƌĂŵ

,ŽŽŬůŝďƌĂƌǇ͕

ZƵŶƚŝŵĞ

/ŶƚĞƌĐĞƉƚĞĚ

ŬĞƌŶĞůůĂƵŶĐŚ͕

ƐǇŶĐW/Ɛ

^ĐŚĞĚƵůĞƌ

'Wh

W/

ƉĂƐƐͲ

ƚŚƌŽƵŐŚ

dŽŬĞŶƌĞƋƵĞƐƚ

ΘhƐĂŐĞŝŶĨŽ

ƚŽŬĞŶ

ůŝĞŶƚ͗ϭ

KŶůǇĐĂůůƐ

ĂĨƚĞƌƚŽŬĞŶĞǆƉŝƌĞƐ

^ĐŚĞĚƵůŝŶŐƋƵĞƵĞ

Figure 1: GPU usage control framework.

we insert a LD PRELOAD hook library in the con-

tainer to intercept its GPU API. The intercepted GPU

APIs will be blocked until the hook library receives

an execution token from the scheduler of our GPU al-

locator. A time-sharing scheduler is implemented to

pass the token around containers according to their

resource allocation demand. Therefore, the resource

usage of a container cannot exceed its allocated de-

mand. To maximize GPU utilization, we further sup-

port elastic allocation, which allow users to specify

their minimum and maximum demand as (request,

limit), so that the requested resource can be reserved

and guaranteed, while the residual capacity can still

be utilized by the container without exceeding its

limit. More details of the design and implementation

can be found in our previous work (Yeh et al., 2020).

3.2 Training Job Scheduler

The native Kubernetes scheduler schedules the con-

tainer (i.e. pod) of each worker task independently

on random nodes with sufﬁcient resources. However,

distributed training jobs are communication-bound

with task dependency among each other. So the naive

FCFS random scheduling algorithm of native Kuber-

netes scheduler can cause signiﬁcant communication

and synchronization overhead.

To address the above issues, we developed our

own job-level scheduler on top of the task-level na-

tive scheduler to schedule and manage all the tasks

of a training job as a unit. Through our scheduler,

a job is only launched when the system has enough

residual capacity to run all its tasks simultaneously.

Thus, resources will not be occupied by tasks waiting

for synchronization. To minimize the communication

overhead of a job, our scheduler tends to pack all the

tasks of a job on as fewer number of compute nodes

as possible. The location of the task is controlled by

specifying the “node selector” label in the pod spec

of the workers, so the native scheduler can only cre-

ate the pods on the designated nodes of our scheduler.

Finally, our scheduler monitors the system re-

source usage status to dynamically adjust the number

Figure 2: The system design diagram of the inference auto-

scaling controller.

of workers of training jobs. Additional workers are

added to training jobs when the system loading is low,

so that jobs can take advantage of the residual capac-

ity to reduce their execution time. On the other hand,

workers can also be taken from jobs when the system

loading is high, so that the resources can be reclaimed

from the running jobs to launch the waiting jobs as

soon as possible. More details of the design and im-

plementation can be found in our previous work (Lin

et al., 2019).

3.3 Inference Auto-scaling Controller

In order to dynamically scale up and down in re-

sponse to a varied number of users’ requests, we inte-

grated Kubernetes Horizontal Pod Autoscaler (HPA).

However, the na

ıve Kubernetes Horizontal Pod Au-

toscaler (HPA) is limited to scale pods according to

the current state of CPU or memory consumption.

The most direct way to scale pods should depend on

the current number of users’ requests, which requires

us to integrate third-party solutions to fulﬁll this goal.

We further integrate Istio, a popular tool to build ser-

vice mesh in our implementation, to gather the re-

quests’ information within the cluster.

The term service mesh is used to describe the net-

work of microservices that make up such applications

and their interactions. Its requirements can include

service discovery, load balancing, metrics, and moni-

toring. Istio’s solution creates a network of deployed

services with trafﬁc management, security, observ-

ability, and extensibility. It directly attaches a sidecar,

a proxy to help pod exchanging information, to ev-

ery pod. Whenever there exists a need to pass data

between pods, the sidecar would intercept all net-

work communication. By intercepting the commu-

nications, Istio generates metrics for all service traf-

ﬁc in, out, and within an Istio service mesh. These

metrics provide information on behaviors such as the

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

126

overall trafﬁc volume, the error rates within the traf-

ﬁc, and the response times for requests. As a result,

we use Istio as our primary tool to gather the commu-

nications metrics.

As shown in Figure 2, when we successfully fetch

the metrics from Istio, we need to store the informa-

tion for Kubernetes Custom Metrics API to query. Al-

though we’re able to forward data from Istio to Ku-

bernetes Custom Metrics API directly, we could fur-

ther store, query, and monitor the metrics if we store

in Prometheus. By employing Prometheus, a popular

Time-Series Database, to periodically forward infor-

mation to Prometheus, we gather the metrics, includ-

ing the request number per second and response time.

Then, since Kubernetes HPA is only able to fetch met-

rics from Kubernetes Custom Metrics API, we install

the Prometheus Adapter and register it to Kubernetes

Custom Metrics API. Finally, Kubernetes HPA is ca-

pable of scale up and down pods according to the cur-

rent number of users’ requests.

In order to prioritize the inference jobs and pre-

empt the training jobs if needed. Whenever there’s

a necessity to increase the inference pods in re-

sponse to ﬂooded users’ requests, our auto-scaling

controller would check whether current residual re-

sources are available for inference jobs to scale up.

If not, we would sequentially evict the workers of

training jobs (TFJobs), release sufﬁcient GPU re-

sources for inference pods. We leave at least one

worker (chief worker) for every TFJobs in our imple-

mentation, so that TFJobs can proceed training pro-

cess continuously without requiring checkpoint. Fi-

nally, the Kubernetes API scheduler would allocate

GPU resources for the new inference pods, which

makes platform reach inference jobs’ Service Level

Agreement (SLA).

In our implementation, we label the inference

pods ﬁrst, making Kubernetes Operator capable of

identifying inference jobs. Then, by Kubernetes na-

tive event-driven mechanism, we registered OnAdd,

OnUpdate events of inference pods. Whenever Ku-

bernetes HPA decides to scale up inference pods, the

training job scheduler would be notiﬁed by the Ku-

bernetes control manager, check whether the current

residual resource is available for the new pod, and

decide whether to release the resources for inference

jobs by scaling down training workloads. Also, train-

ing job scheduler would periodically check the resid-

ual resources. After Kubernetes HPA scale down in-

ference pods and release the GPU resources, training

job scheduler would scale up training jobs once detect

residual resources.





















   

VSHHGXSRIWUDLQLQJWKURXJKSXW

QXPEHURI*38V

0QLVW

5HVQHW

/LQHDU

Figure 3: The speedup of model training throughput of us-

ing multi-GPUs.

4 EXPERIMENT SETUP

We evaluate our implementation by conducting the

experiments on AWS cloud platform using a Kuber-

netes cluster consisting of 2 nodes (p3.16xlarge in-

stance type). Each node is equipped with a 64-cores

CPU (Intel Xeon E5-2686 v4), 488GB of RAM, and

8 Nvidia Tesla V100 GPUs with 128GB of device

memory. In order to conduct a comprehensive eval-

uation of our implementation, we design workloads

that include the computing jobs for modeling, train-

ing, and inference. The training and inference jobs

are based on the popular DL framework - Tensorﬂow.

The modeling jobs are based on the Jupyter Note-

book, which is a primary tool for developers to build

and test their models.

For the training jobs, we employ two different

common-seen image classiﬁcation models (Mnist,

ResNet-50) and divide all of the Tensorﬂow

jobs (TFJob) into three groups. Every TFJob would

consist of one Parameter Server (PS) and several

workers, where workers can be added or removed

in response to the state of the residual resource in

our implementation. Each worker requests one GPU,

and a TFJob runs for a ﬁxed training iterations. As

shown in Figure 3, both models can have higher train-

ing throughput and shorter training time when using

more GPUs. The speedup of ResNet-50 is close to

linear. The speedup of Mnist doesn’t increase much

with more than 3 GPUs because its model is too small

to have enough computations for parallel processing.

In the experiments, we set the maximum workers to 4

for both models.

For the inference jobs, we use a Resnet-50 model

as our inference service for all requests. Inference job

runs on TF-Serving applications, which computes the

forward propagation upon each arrival client requests.

Hence, its GPU usage is also approximately propor-

tional to the number of client requests. In our experi-

ment, One TF-Serving inference pod is conﬁgured to

consume only one GPU. As a result, the number of in-

ference pods would dynamically increase or decrease

in response to the number of active clients. For the

DynamoML: Dynamic Resource Management Operators for Machine Learning Workloads

127

ϳŵŝŶ

ϬŵŝŶ

ϭϬ

ϰϬ

ϭϬϬ

ϭϲϬ

ϮϮϬ

ϮϴϬ

ϯϰϬ

ϮϴϬ

ϮϮϬ

ϭϲϬ

ϭϬϬ

ϰϬ

ϯϰϬ

ϰϬ

ϭϯŵŝŶ

ϰϬ

ϭϬϬ

ϮϭŵŝŶ

ϭϲϬ

ϮϮϬ

ϭϲϬ

ϭϬϬ

ϰϬ

ϮϴŵŝŶ

ϮϰŵŝŶ

ϰDE/^dƚƌĂŝŶŝŶŐ

ũŽďƐĂƌƌŝǀĞ

ϰZĞƐŶĞƚͲϱϬ

ƚƌĂŝŶŝŶŐũŽďƐĂƌƌŝǀĞ

ϭϬŵŝŶ

ϮϬŵŝŶ

ϰZĞƐŶĞƚͲϱϬͬDE/^d

ƚƌĂŝŶŝŶŐũŽďƐĂƌƌŝǀĞ

/ŶĐƌĞĂƐĞĨƌŽŵϭϬƚŽϯϰϬ

ĞĐƌĞĂƐĞƚŽϰϬ

ϬŵŝŶ

ϮϴŵŝŶ

ZĞŵĂŝŶĂƚϰϬ

/ŶĐƌĞĂƐĞ

ƚŽϮϮϬ

ĞĐƌĞĂƐĞ

ƚŽϰϬ

/ŶĨĞƌĞŶĐĞ

ǁŽƌŬůŽĂĚ

dƌĂŝŶŝŶŐ

ǁŽƌŬůŽĂĚ

Figure 4: Testing workload for system evaluations. The

workload of interface jobs are time-varied by adjusting the

number of active users. The workload of training jobs are

submitted in 4 groups and 4 jobs per group at time 0, 10, 20.

The modeling jobs are consisted of 4 notebook instances

persistently running throughout the experiments.

Table 2: Compared system conﬁgurations. The setting with

a resource management technique is marked by ”V”.

Training Inference GPU

scheduling auto-scaling Sharing

DynamoML V V V

K8S+Sharing V

K8S+Scaling V

Native K8S

purpose of evaluating the response time of inference

job under different workloads, a web client would

keep sending requests with a varied inter-arrival time.

Finally, for the modeling jobs, we sporadically is-

sue model evaluation requests to the Jupyter Note-

book instances, and the average GPU usage of a mod-

eling job never exceeds 25%.

To evaluate the beneﬁts of our resource manage-

ment techniques in a runtime system. We construct

a testing work as shown in Figure 4. It contains a

total of 4 modeling (notebook) jobs, 1 inference job,

and 16 training jobs. The inference jobs and mod-

eling jobs are persistently running in the system, but

their user workload changes over time. As mentioned

above, the modeling has a sporadic random generated

workload with less than 25% GPU usage. The work-

load of the inference job controlled by adjusting the

number of concurrent active web clients in each time

interval (per minute) which can be seen from the bars

at each minute in Figure 4. Finally, the 16 training

jobs are submitted to the system every 10minutes in 4

groups with 4 jobs per group. The ﬁrst group arrives

at 0

minute with 4 Mnist training jobs. The second

group arrives at 10

minute with 4 Resnet-50 train-

ing jobs. The last group arrives at 20

minute with 2

training jobs for each of the two models.

The goal of our evaluation is to compare the sys-

tem and application performance running the above

test work under different resource management con-

ﬁguration settings. The names and resource manage-

ment techniques of each setting are summarized in Ta-

ble 2. The initial number of workers for a training job

is 2, and the initial number of server instance for a in-

ference job is 1. Both training and inference jobs can

be scaled upto to 12 instances (training workers or in-

ference servers) when auto-scaling techniques are ap-

plied (i.e., the total number of GPUs in our testbed is

16.). By default, all types of jobs request one GPU

per container instances (i.e., pods). Only when GPU

sharing technique is applied, a modeling job can allo-

cate 0.25 GPU.

5 EXPERIMENT RESULTS

5.1 System Performance Comparison

Figure 5 plots the GPU resource allocation results

over each time interval under different system set-

tings. Due to space limits, we show the results of

DynamoML and K8S+Scaling to illustrate the key

beneﬁt of our approach. As recall, DynamoML sup-

ports all three proposed techniques: inference scaling,

training scheduling, and GPU sharing. K8S+Scaling

only supports inference scaling. K8S+Scaling also

represents the common use case when people are only

able to use the native Kubernetes installation with the

HPA auto-scaling package to run ML workloads.

According to the workload variation of inference

job, the allocation result can be discussed in the fol-

lowing three time frames from the DynamoML time-

line.

0min∼7min: The inference workload keeps in-

creasing during this time frame. Our auto-scaling op-

erator detected the increased request response time,

and started to launch more inference servers. Hence,

the number of GPUs allocated to inference increases

from 1 to 12. Noted, the inference job can occupy as

many as 12 GPUs because the training jobs are pre-

empted and forced to release their GPUs for inference

jobs. Therefore, some the training job only allocated

1 GPU at times. On the other hand, when there is

residual capacity or un-used GPUs, they can also be

dynamically allocated to the training jobs for reducing

training time. Therefore, the GPU allocation during

this time frame is almost always fully utilized.

8min∼20min: As the inference workload de-

creases, we can observe DynamoML quickly allocate

the available GPUs free from the inference job to the

training jobs. As a result, a training job can use up

to 4 GPUs at a time, and the training time is greatly

reduced. Because the training job ﬁnishes too early,

only 4GPUs needs to be used for handling the infer-

ence requests between time 18min∼20min which can

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

128

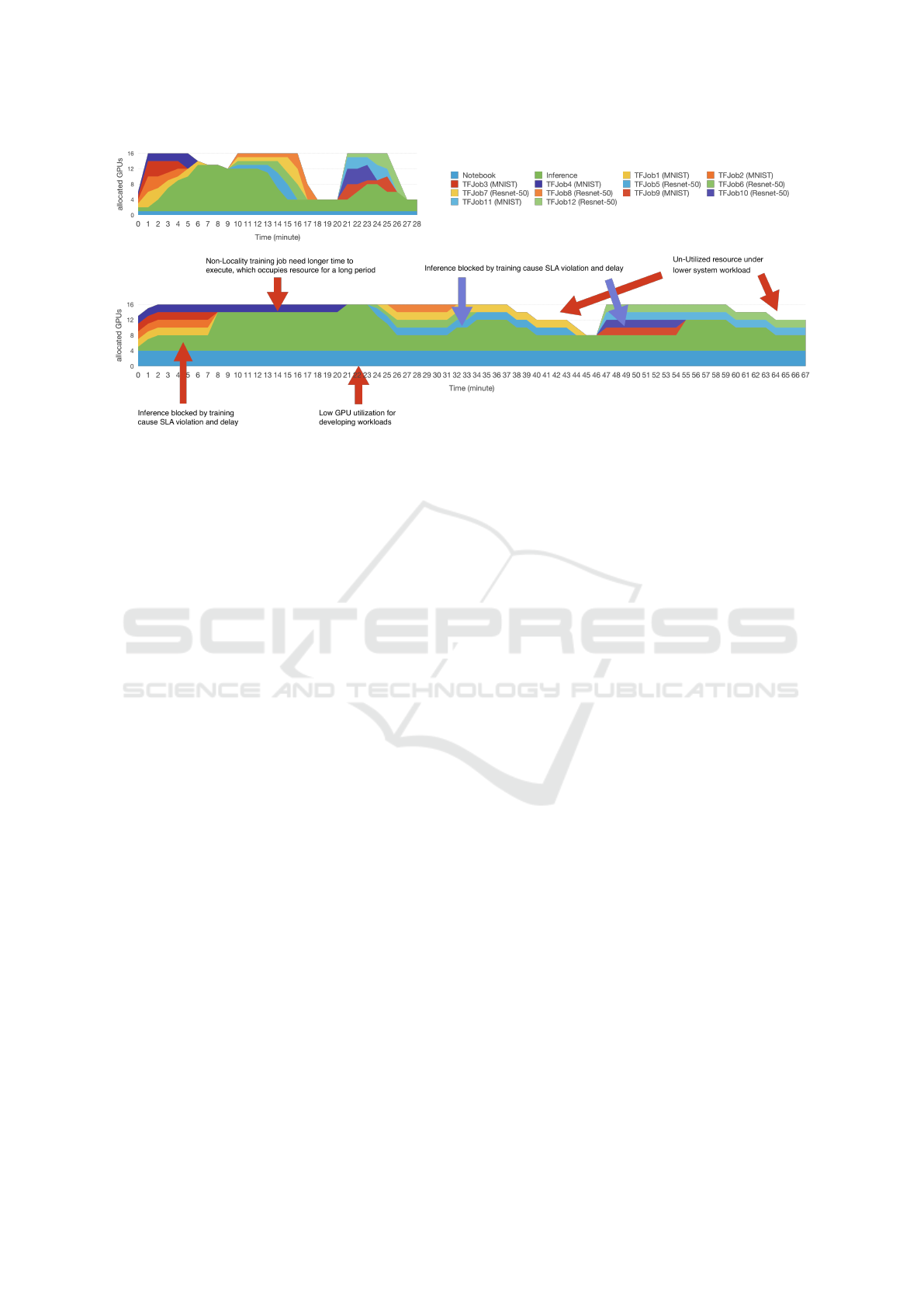

Figure 5: The overall resource allocation for DynamoML (top) and K8S+Scaling (bottom).

lead to an additional beneﬁt of energy and cost saving

for system administrators or service providers.

21min∼28min: The last group of training job ar-

rives at 20min, and the inference workload also starts

to increase at 21min. So similar to the ﬁrst time frame,

both training jobs and inference jobs can get more re-

sources at runtime, but the inference jobs have higher

priority than the training jobs. Also because of the

lower inference workload in this time frame com-

paring to the ﬁrst time frame, training jobs received

more GPUs and complete all the training jobs before

27min.

In comparison, we can observe several problems

from the K8S+Scaling setting. (1) It ﬁxes the allo-

cation of training job to 2 GPUs, and each model-

ing job (Notebook instance) occupies 1 GPU. Hence,

even though the inference job can be scaled to ob-

tain more GPUs, it can only use the residual capacity

from training and modeling jobs. Therefore, between

0min to 7min, the inference job only receives 4 GPUs

while it would receive 11 GPUs by DynamoML. (2)

The Kubernetes scheduler didn’t pack the workers of

a training on the same node which results in much

longer training time. In particularly, the communi-

cation overhead has a greater impact on the small

size models, like MNIST, because their communica-

tion time often takes higher ratio of the overall ex-

ecution time. Therefore, compared to the results of

DynamoML, TFJob4, TFJob7 and TFJob11 all took

much longer time to ﬁnish under the K8S+Scaling

setting. (3)Because the resource of training jobs is

ﬁxed, they can take advantage of the residual capac-

ity in the system when system workload is light. For

instance, there are GPUs available between 37min to

46min, and 59min to 67min, but they cannot be al-

located to training jobs and cause unwanted resource

waste.

In sum, we can observe the important of dynamic

resource management when running complex and di-

verse workloads on a shared resource pool. With

our techniques, the overall workload execution time

is signiﬁcantly reduced from 67mins to 27mins, an

improvement of almost 60%, and there are still rooms

for us to free-up some idle resources for energy or

cost saving. More importantly, DynamoML can im-

prove resource utilization and training performance

while guaranteeing the SLA requirement of inference

jobs. In the next two subsections, we further analyze

the performance of training jobs and the SLA viola-

tions of inference jobs to analyze the reasons of our

improvement.

5.2 Training Time Analysis

This subsection analyzes the impact of our resource

management techniques on the training jobs from run-

ning test workload shown in Section 4. Because

training job has lower execution priority and can be

queued in the submission queue when not enough re-

source available, the total execution time of a train-

ing can be divided into two parts: the training time

and the waiting time. The training time is the ac-

tual running time for training, and the waiting time

is time of a job waiting in the scheduling queue.

Therefore, we compare the improvements of these

two time measurements, and the total execution time

in Figure 6. Interestingly, we found that K8S+Scaling

produces the worst results across all the measure-

ments, even worse than the native K8S. This is be-

cause K8S+Scaling only optimizes for the inference

jobs not for the training jobs. Hence, in order to sat-

isfy the SLA requirements, it allow inference jobs to

DynamoML: Dynamic Resource Management Operators for Machine Learning Workloads

129













ZDLWLQJWLPH WUDLQLQJWLPH H[HFXWLRQWLPH

QRUPDOL]HGWLPH

'\QDPR0/ QDWLYH.6 .66KDULQJ .66FDOLQJ

Figure 6: Training time comparison.











   

3HUFHQWDJHRIWLPH

7KHQXPEHURIZRUNHUV

Figure 7: The distribution of the

number of worker per TFJob un-

der DynamoML.

Ϯϱ

ϱϬ

ϳϱ

ϭϬϬ

Ϭ ϭ Ϯ ϯ ϰ ϱ ϲ ϳ ϴ ϵ ϭϬ ϭϭ ϭϮ ϭϯ

&ŽĨũŽďƐ;йͿ

:ŽďĞǆĞĐƵƚŝŽŶƚŝŵĞ;ŵŝŶƵƚĞͿ

dŚĞĂǀŐƚŝŵĞŽĨŶĂƚŝǀĞ

<ϵ^ŝƐϭϯŵŝŶ

ǇŶĂŵŽD> ƌĞĂĐŚĞƐ

ϭϬϬйǁŝƚŚŝŶϴŵŝŶƐ

Figure 8: The distribution of the training

job execution time under DynamoML.

allocate more resources, and sacriﬁces training jobs.

As a result, training jobs have higher probability to be

blocked or running with few GPUs. K8S+Sharing is

better than native Kubernetes, because it reduces the

amount of GPUs used by the modeling jobs, so train-

ing jobs can gain better performance. However, the

improvement of GPU sharing for training job is lim-

ited, because the communication overhead is the main

performance bottleneck for training jobs as we saw

from the cases like TFjob4 in Figure 5. In compari-

son, DynamoML combines all our techniques to sig-

niﬁcantly reduce the waiting time by 55%, the train-

ing time by 70%, and the total execution time by 70%.

Finally, to prove our training job scheduler did dy-

namically add or remove workers to training jobs ac-

cording to the system loading, Figure 7 shows the

time distribution of a training job with a given number

of workers when using DynamoML. As seen, in av-

erage, about 22% of the job execution time uses only

1 GPU, 63% of the time uses 2 or less GPUs. Only

the reminding 37% of time using 3 or 4 GPUs. But

according to the execution time distribution shown

in Figure 8, DynamoML still signiﬁcantly reduce the

overall training time. With DynamoML, more 60%

of the training jobs ﬁnishes within 5mins, and the

longest execution time is 8mins. In contrast, the aver-

age execution time for native K8S is 13mins.

5.3 Inference Performance Analysis

Lastly, we analyze the SAL violation of inference

job from the running test workload shown in Sec-

tion 4. Figure 9 shows the overall client response

time distribution of the TF-serving inference job un-

der different system settings. K8S+Sharing has the

worst results, where some of the requests have re-

sponse time over 1024ms. This is because it doesn’t

supports auto-scaling on the inference service. Dy-

namoML performs the best with no requests with re-

sponse time over 128ms, because it can preempt train-

ing jobs when necessary. One the other hand, al-

though K8S+Scaling also supports auto-scaling on in-

ference inference, but it cannot preempt training jobs.

As a result, the amount of resources for inference













&')RIFOLHQWUHTXHVWV

UHTXHVWUHVSRQVHWLPHPV

'\DQPR0/

.66FDOLQJ

.66KDULQJ

Figure 9: The comparison of the distribution of the response

time from inference jobs.













     

SHUFHQWDJHRI

6/$YLRODWLRQUHTXHVWV

WKHQXPEHURIDFWLYHFOLHQWV

'\QDPR0/

.66FDOLQJ

QDWLYH.6

Figure 10: SLA Violation of inference jobs under different

number of active users.

jobs can be bounded by the training jobs. Therefore,

the response time of K8S+Scaling is mostly between

128ms∼512ms. Figure 10 further breaks down the

SLA violation probability under different inference

workloads which is controlled by the number of ac-

tive clients. As expected, the violation probability

increases under highly workload. Only DynamoML

can be resilient to the workload because its ability to

obtain enough resources to satisfy the SLA require-

ments.

6 RELATED WORK

In recent years, both research and industry have made

great efforts to improve the performance of deep

learning jobs in a GPU cluster by utilizing domain-

speciﬁc knowledge. However, all these works target

on distributed training jobs alone. While our work

address the ML pipeline workload including model-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

130

ing and inference jobs as well. Also, most of the pro-

posed techniques requires modiﬁcations to the deep

learning frameworks, while our work can be transpar-

ent and general to DL applications.

Gandiva (Xiao et al., 2018) is a scheduling frame-

work developed by Microsoft. It supports many

management techniques together to maximize system

throughput for training jobs. It provides GPU shar-

ing among jobs in both temporal and spatial domains.

In temporal domain, jobs run on GPU in an inter-

leaved manner through suspend-resume mechanism.

In spatial domain, jobs simply run simultaneously on

a GPU at the same time, but jobs can be migrated to

another GPU if performance degradation is detected.

Gandiva also applies scaling mechanism to jobs that

self-declare to have good scalability. In order to min-

imize the overhead of their managing overhead like

migration, suspend-resume, and scaling, Gandiva has

to modify the deep learning frameworks, like Tensor-

ﬂow and Pytorch.

The rest of researches are mainly focus on a more

speciﬁc resource management technique. Some of the

work focus on scaling policy of distributed training

jobs. For instance, Optimus (Peng et al., 2018) pro-

poses a GPU resource scheduler to decide the proper

resource amount and resource allocation according

to a performance model of distributed training jobs.

Similar to Optimus, DL2 (Peng et al., 2021) is a DL

driven scheduler that aims to decide proper resource

allocation to a distributed training job. But the per-

formance model proposed by DL2 is based on deep

reinforcement learning.

Other works focus on the job placement problems

for minimizing the communication time of distributed

training jobs. For instance, (Amaral et al., 2017) pro-

posed a topology aware scheduling to decide the map-

ping between worker tasks and GPU slots based on

the Hierarchical Static Mapping Dual Recursive Bi-

partitioning algorithm. Rather than optimizing the

performance of a single training job, Tiresias (Gu

et al., 2019) is a scheduler based on the Gittins index

policy to minimize the average job completion time

of the whole system.

Finally, there is growing interest to explore GPU

sharing technique for DL jobs. Spatial GPU shar-

ing can suffer from unpredictable performance inter-

ference and resource contention. So, temporal GPU

sharing is more commonly adapted in practice. But

temporal sharing can be limited by the GPU mem-

ory size, and context switch overhead. Salus (Yu

and Chowdhury, 2019) takes advantage of the highly

predictable and largely temporal usage memory pat-

tern to provide a ﬁne-grained sharing mechanism by

switching jobs at the lowest memory usage point.

Antman (Xiao et al., 2020) further modiﬁes the execu-

tion and scheduling engine of deep learn frameworks

to support switching at the unit of operators (GPU

kernels).

7 CONCLUSIONS

Deep learning workﬂow has become one of the pri-

mary workloads in data centers and GPU clusters. In

this paper, we aim to optimize the application perfor-

mance and system utilization through a set of runtime

dynamic resource management techniques. We use

GPU sharing to increase the resource utilization of

non-GPU bounded modeling jobs, use performance-

driven auto-scaling to guarantee the SLA requirement

of inference jobs, and use workload-aware schedul-

ing and preemption to improve training job efﬁciency

and avoid idle GPUs. While all these techniques have

been discussed and used for different kinds of com-

puting workload, we are one of the few work that

really integrate and apply them together speciﬁcally

for the ML pipeline workﬂow. Our system are built

as extended operators on Kubernetes, and transpar-

ent to applications. Hence, our solution can be eas-

ily applied to general GPU clusters and DL workload.

While this work mainly aims to demonstrate the ben-

eﬁt and importance of dynamic resource management

to ML workload, we plan to evaluate our system with

more complex and real ML pipeline workload to fur-

ther study and design more sophisticate algorithms for

each of optimization techniques in the future.

REFERENCES

Amaral, M., Polo, J., Carrera, D., Seelam, S., and Steinder,

M. (2017). Topology-aware gpu scheduling for learn-

ing workloads in cloud environments. In Proceedings

of the International Conference for High Performance

Computing, Networking, Storage and Analysis, pages

1–12.

Amodei, D. and Hernandez, D. (2018). Ai and compute.

https://openai.com/blog/ai-and-compute/.

Devlin, J., Chang, M., Lee, K., and Toutanova, K. (2018).

BERT: pre-training of deep bidirectional transformers

for language understanding. CoRR, abs/1810.04805.

Ghodsi, A., Zaharia, M., Hindman, B., Konwinski, A.,

Shenker, S., and Stoica, I. (2011). Dominant resource

fairness: Fair allocation of multiple resource types. In

NSDI, page 323–336.

Gu, J., Chowdhury, M., Shin, K. G., Zhu, Y., Jeon, M.,

Qian, J., Liu, H., and Guo, C. (2019). Tiresias: A

GPU cluster manager for distributed deep learning. In

NSDI, pages 485–500.

He, K., Zhang, X., Ren, S., and Sun, J. (2016). Deep resid-

DynamoML: Dynamic Resource Management Operators for Machine Learning Workloads

131

ual learning for image recognition. In 2016 IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), pages 770–778.

He, X., Pan, J., Jin, O., Xu, T., Liu, B., Xu, T., Shi, Y.,

Atallah, A., Herbrich, R., Bowers, S., and Candela, J.

Q. n. (2014). Practical lessons from predicting clicks

on ads at facebook. In Proceedings of the Eighth In-

ternational Workshop on Data Mining for Online Ad-

vertising, page 1–9.

Jalaparti, V., Bodik, P., Menache, I., Rao, S., Makarychev,

K., and Caesar, M. (2015). Network-aware scheduling

for data-parallel jobs: Plan when you can. In Proceed-

ings of the 2015 ACM Conference on Special Interest

Group on Data Communication, page 407–420.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2017). Im-

agenet classiﬁcation with deep convolutional neural

networks. Commun. ACM, 60(6):84–90.

Lan, Z., Chen, M., Goodman, S., Gimpel, K., Sharma, P.,

and Soricut, R. (2019). ALBERT: A lite BERT for

self-supervised learning of language representations.

CoRR, abs/1909.11942.

Levine, S., Pastor, P., Krizhevsky, A., and Quillen, D.

(2016). Learning hand-eye coordination for robotic

grasping with deep learning and large-scale data col-

lection. CoRR, abs/1603.02199.

Lin, C.-Y., Yeh, T.-A., and Chou, J. (2019). DRAGON: A

dynamic scheduling and scaling controller for manag-

ing distributed deep learning jobs in kubernetes clus-

ter. In International Conference on Cloud Computing

and Services Science (CLOSER), pages 569–577.

Liu, Y., Ott, M., Goyal, N., Du, J., Joshi, M., Chen, D.,

Levy, O., Lewis, M., Zettlemoyer, L., and Stoyanov,

V. (2019). Roberta: A robustly optimized BERT pre-

training approach. CoRR, abs/1907.11692.

Peng, Y., Bao, Y., Chen, Y., Wu, C., and Guo, C. (2018).

Optimus: An efﬁcient dynamic resource scheduler for

deep learning clusters. In EuroSys, pages 1–14.

Peng, Y., Bao, Y., Chen, Y., Wu, C., Meng, C., and Lin, W.

(2021). DL2: A deep learning-driven scheduler for

deep learning clusters. IEEE Transactions on Parallel

Distributed Systems, 32(08):1947–1960.

Redmon, J., Divvala, S. K., Girshick, R. B., and Farhadi, A.

(2015). You only look once: Uniﬁed, real-time object

detection. CoRR, abs/1506.02640.

Tannenbaum, T., Wright, D., Miller, K., and Livny, M.

(2001). Condor – a distributed job scheduler.

Tian, Y., Pei, K., Jana, S., and Ray, B. (2017). Deeptest:

Automated testing of deep-neural-network-driven au-

tonomous cars. CoRR, abs/1708.08559.

Tumanov, A., Zhu, T., Park, J. W., Kozuch, M. A., Harchol-

Balter, M., and Ganger, G. R. (2016). Tetrisched:

Global rescheduling with adaptive plan-ahead in dy-

namic heterogeneous clusters. In EuroSys, pages 1–

16.

Vaswani, A., Shazeer, N., Parmar, N., Uszkoreit, J., Jones,

L., Gomez, A. N., Kaiser, L. u., and Polosukhin,

I. (2017). Attention is all you need. In Guyon,

I., Luxburg, U. V., Bengio, S., Wallach, H., Fer-

gus, R., Vishwanathan, S., and Garnett, R., editors,

Advances in Neural Information Processing Systems,

volume 30, pages 5998–6008. Curran Associates, Inc.

Vavilapalli, V. K., Murthy, A. C., Douglas, C., Agarwal, S.,

Konar, M., Evans, R., Graves, T., Lowe, J., Shah, H.,

Seth, S., Saha, B., Curino, C., O’Malley, O., Radia,

S., Reed, B., and Baldeschwieler, E. (2013). Apache

hadoop yarn: Yet another resource negotiator. In Pro-

ceedings of Symposium on Cloud Computing.

Verma, A., Pedrosa, L., Korupolu, M., Oppenheimer, D.,

Tune, E., and Wilkes, J. (2015). Large-scale cluster

management at google with borg. In EuroSys, pages

1–17.

Xiao, W., Bhardwaj, R., Ramjee, R., Sivathanu, M., Kwatra,

N., Han, Z., Patel, P., Peng, X., Zhao, H., Zhang, Q.,

Yang, F., and Zhou, L. (2018). Gandiva: Introspective

cluster scheduling for deep learning. In OSDI, pages

595–610.

Xiao, W., Ren, S., Li, Y., Zhang, Y., Hou, P., Li, Z., Feng,

Y., Lin, W., and Jia, Y. (2020). Antman: Dynamic

scaling on GPU clusters for deep learning. In OSDI,

pages 533–548.

Xu, D., Anguelov, D., and Jain, A. (2017). Pointfusion:

Deep sensor fusion for 3d bounding box estimation.

CoRR, abs/1711.10871.

Yang, Z., Dai, Z., Yang, Y., Carbonell, J., Salakhutdinov,

R. R., and Le, Q. V. (2019). Xlnet: Generalized

autoregressive pretraining for language understand-

ing. In Wallach, H., Larochelle, H., Beygelzimer,

A., d'Alch

e-Buc, F., Fox, E., and Garnett, R., editors,

Advances in Neural Information Processing Systems,

volume 32, pages 5753–5763. Curran Associates, Inc.

Yeh, T.-A., Chen, H.-H., and Chou, J. (2020). Kubeshare:

A framework to manage gpus as ﬁrst-class and shared

resources in container cloud. In Proceedings of the

29th International Symposium on High-Performance

Parallel and Distributed Computing, page 173–184.

Yu, P. and Chowdhury, M. (2019). Salus: Fine-grained

GPU sharing primitives for deep learning applica-

tions. CoRR, abs/1902.04610.

Zoph, B., Cubuk, E. D., Ghiasi, G., Lin, T., Shlens, J., and

Le, Q. V. (2019). Learning data augmentation strate-

gies for object detection. CoRR, abs/1906.11172.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

132
