Application Development for Mask Detection and Social Distancing
Violation Detection using Convolutional Neural Networks
Gokul Sudheesh Kumar and Sujala D. Shetty
Department of Computer Science, Birla Institute of Technology & Science, Pilani, Dubai Campus, Academic City,
Dubai, U.A.E.
Keywords: Machine Learning, YOLO Object Detection, Firebase, TensorFlow.
Abstract: This project aims to detect face masks and social distancing on a video feed using Machine Learning and
Object Detection. TensorFlow and Keras were used to build a CNN model to detect face masks and it was
trained on a dataset of 3800 images. YOLO Object detection was used to detect people in a frame and check
for social distancing by calculating the Euclidean distance between the centroids of the detected boxes.
Developed an Android app named “StaySafe” where the user will be notified and can monitor the violations.
For this purpose, Firebase was used as the backend service. If a violation is detected it will upload the image
to a Firebase Cloud Storage with a notification, and the user will be able to view these images on their Android
app along with the date and time. Firebase Cloud Messaging service was used to send notifications which will
be handled in the android app. The app offers various features like viewing history, saving the image to the
device, deleting the images from the cloud etc. A heat map can also be viewed which highlights crowded
regions which can help officials identify the regions that need to be sanitized more often.
1 INTRODUCTION
The year 2020, has brought us a lot of challenges,
especially in the working sectors. Many
establishments are switching to a work from home-
based environment. There are still some businesses
that opened after lockdown and continuing its normal
operation like restaurants, few schools and
universities, construction sector, and a few offices all
ensuring workplace safety such as wearing masks and
social distancing.
The health authorities are working hard on
ensuring that these businesses follow all the protocols
for keeping the employees safe. They are conducting
regular inspections and even shutting down these
establishments if they keep violating the safety
protocols.
Many of these establishments are working
towards the automation of detecting such violations,
thereby reducing the time and labour spent for the
same. The main aim of this project is to detect
violations such as not wearing a mask or not
following social distancing in a workplace and notify
the officials through an Android app.
Technology has advanced tremendously over the
past century, everything starting from the Internet of
Things (IoT) (Raj, 2021) to machine learning and
deep learning. CNN is used in various fields like
medical (Duran-Lopez, 2019), marine science (Sung,
2017) and many other applications (Hansen, 2017)
and has become a prominent domain of machine
learning.
This project was implemented using Keras and
TensorFlow where the CNN (Convolutional Neural
Network) model was trained for face mask detection
and the YOLO Object Detection was used for social
distancing detection. An android app named
“StaySafe” was developed with the help of Firebase
which is the backend service implemented for
pushing notifications and storing these detected
images, from where the user will be able to view them
on their app.
The rest of the paper is arranged as follows:
Section 1 gives a brief introduction to the project.
Section 2 reviews some work related to this project.
Section 3 explains the methodology and
implementation of the project. Section 4 talks about
Social Distance violation detection. Section 5 talks
about Firebase which is the back-end service used to
store detected images and send notifications to the
android app. Section 6 talks about the Android App.
Section 7 discusses the applications. Section 8 is
760
Kumar, G. and Shetty, S.
Application Development for Mask Detection and Social Distancing Violation Detection using Convolutional Neural Networks.
DOI: 10.5220/0010483107600767
In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 760-767
ISBN: 978-989-758-509-8
Copyright
c
2021 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
conclusion and future scope of work. Section 9 is
references.
2 RELATED WORK
This section reviews some of the related works that
implements CNN with the help of TensorFlow, Keras
and YOLO Object detection and improvements in
object detection.
Akanksha Soni et al. (Soni, 2020) developed a
model that detects whether a person is wearing a
helmet in real time thereby, detecting any violations.
This project was also implemented with the help of
TensorFlow, Keras and OpenCV. Their proposed
model showed major improvements when compared
to some previous models that gave wrong predictions
whenever a rider wears clothes over their face. They
achieved an overall accuracy of 98% when tested.
S Chen et al. (Chen, 2020) implemented a model
with the help of TensorFlow to identify ID card
numbers. With the help of OpenCV the image of an
ID card is preprocessed and the number on the ID card
is recognized and given as output with the help of a
trained CNN model. When tested it was observed that
training speed is fast and the accuracy is high.
Emily Caveness et al. (Caveness, 2020)
developed TensorFlow Data Validation (TFDV)
which offers a scalable solution for data analysis and
validation for machine learning. It is deployed in
production which is integrated with TensorFlow
Extended (TFX), which is an end-to-end ML
platform. Their system has gained a lot of traction
ever since they open sourced their project. Other
open-source data validation systems such as Apache
Spark were also heavily inspired from their project.
Apache Spark packs with built-in modules for
streaming and has a fast, easy to use system for big
data processing.(Nair, 2018)
Yonghui Lu et al. (Lu, 2020) proposed an efficient
YOLO Architecture, YOLO-compact for a real time
single category detection. As we know in most
practical applications, the number of categories in
object detection is always single and the authors
aimed to make detections faster and more efficient for
these scenarios. By performing a series of
experiments, the authors were able to come up with
an efficient and compact network with the help of
YOLOv3. It was observed that YOLO-compact is
only of 9MB size, about 26 times smaller than
YOLOv3, 6.7 times smaller than tiny-yolov2 and 3.7
times smaller than tiny-yolov3. The average precision
of YOLO-compact is 86.85% which is significantly
higher than other YOLO models.
M. B. Ullah (Ullah, 2020), proposed a CPU-based
YOLO object detection model that is intended to run
on non-GPU computers. In the proposed method, the
author optimized YOLO with OpenCV in a way that
real time object detection can be much faster on CPU
based computers. Their network architecture
comprises 2 Convolutional layers each followed by
pooling layers and 3 fully connected layers. Their
model detects objects from videos in 10.12 to 16.29
FPS with 80-99% confidence in CPU-based
computers.
3 METHODOLGY AND
IMPLEMENTATION

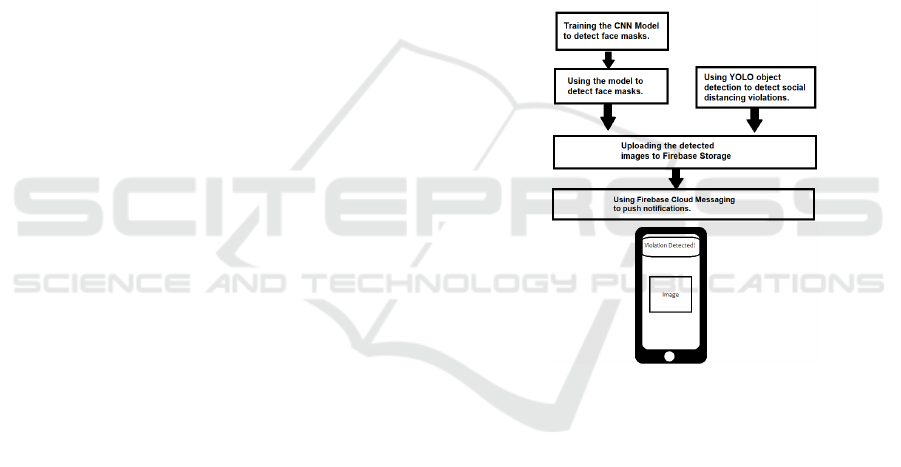

Figure 1 depicts the project architecture.
Figure 1: Project Architecture.
3.1 Face Mask Detection
This project uses TensorFlow and Keras to train a
CNN model for detecting face masks.
3.2 TensorFlow and Keras
TensorFlow is an open-source platform that is used
for Machine Learning, created by the Google Brain
team. It is explicitly used for complex numerical
computation, that packs together a bunch of machine-
learning and deep learning models and algorithms.
It can be used for a variety of applications such as
classifying handwritten digits, object detection,
image recognition, natural language processing
(Natraj, 2019) by training and running deep neural
networks.
Application Development for Mask Detection and Social Distancing Violation Detection using Convolutional Neural Networks
761
Keras which acts as an interface for TensorFlow
is an open-source library that provides an efficient
way of implementing neural networks. It consists of
useful functions such as activation functions, and
optimizers.
3.2.1 How Does TensorFlow Work?
With the help of TensorFlow, developers can create
dataflow graphs which are structures that show how
data passes through the graph, or a series of nodes.
Think of each node as a mathematical operation and
each edge representing a multidimensional data array
or a tensor.
This can be easily implemented in python where
these nodes and tensors act as objects. However, the
mathematical operations are performed in C++
binaries which shows an optimal performance.
Python takes care of directing the traffic and
combines them to work together as a unit.
TensorFlow can be run on multiple platforms such
as in a cloud, a local machine, CPUs or GPUs, iOS,
and Android devices. It can also be run on Google’s
custom TensorFlow Processing Unit (TPUs). The
trained models can be run on any system for
predicting results.
TensorFlow 2.0 which was released in October
2019 made many significant changes from user
feedback. It works more efficiently and is more
convenient with simple Keras API for training models
and better performance. With the help of TensorFlow
Lite, it is possible to train models on a wide variety of
devices.
3.3 Training the Face Mask Detection
Model
In this project a convolutional neural network is used
to detect face masks. The neural network takes in the
input image as a frame from the video, processes it
and classifies it under two categories: mask and no
mask. The model was trained using 3800 images,
1900 images each for “with mask” and “without
mask” categories.

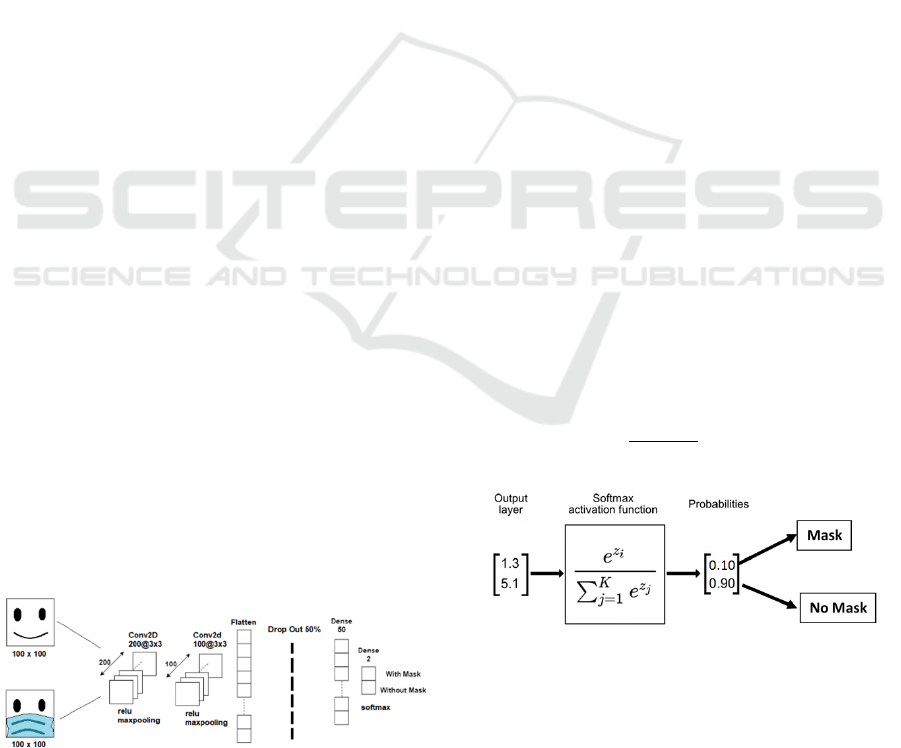

Figure 2: Network Architecture.
The network consists of two convolution layers
each followed by a relu activation function and a max
pooling layer. Figure 2 shows the network
architecture.
Relu function (Rectified Linear Unit) is
introduced for non-linearity in the convolutional
network. It is shown as:
𝑓
𝑥
max0,𝑥
(1)
Pooling layers will reduce the number of
parameters if the images are large. Spatial pooling
also referred to as sub-sampling or down-sampling
helps to reduce the dimensionality of each map
making sure important information is retained. It can
be of different types:
• Sum Pooling Max Pooling
• Average Pooling
Max pooling will take the largest element from the
rectified feature map.
The data is then flattened by converting it to 1-
dimensional array which is passed as the input to the
final output layer. To help prevent overfitting, the
network ignores a certain percentage of neurons
during training. In this case the network drops out
50% of neurons. These units are not considered
during some forward or backward pass.
The final output layer takes the values and
transforms them into a probability distribution, this is
achieved with the help of softmax function. This
function is helpful when it comes to classification
problems or when dealing with multi-class
classification problems. The final predicted class is
the item in the list whose confidence score is the
highest.
It is represented as:
𝑒
𝑒

(2)
Figure 3: Softmax Activation Function.
The final prediction will be based on the class that
has the highest probability. The model was then
compiled using Adam optimizer and trained for 20
epochs with a learning rate of 0.001 and an accuracy
of 96.35% was observed on the validation set.
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
762
Figure 4 plots the accuracy and loss, respectively.
(Goodfellow, 2016) (Belciug, 2020)

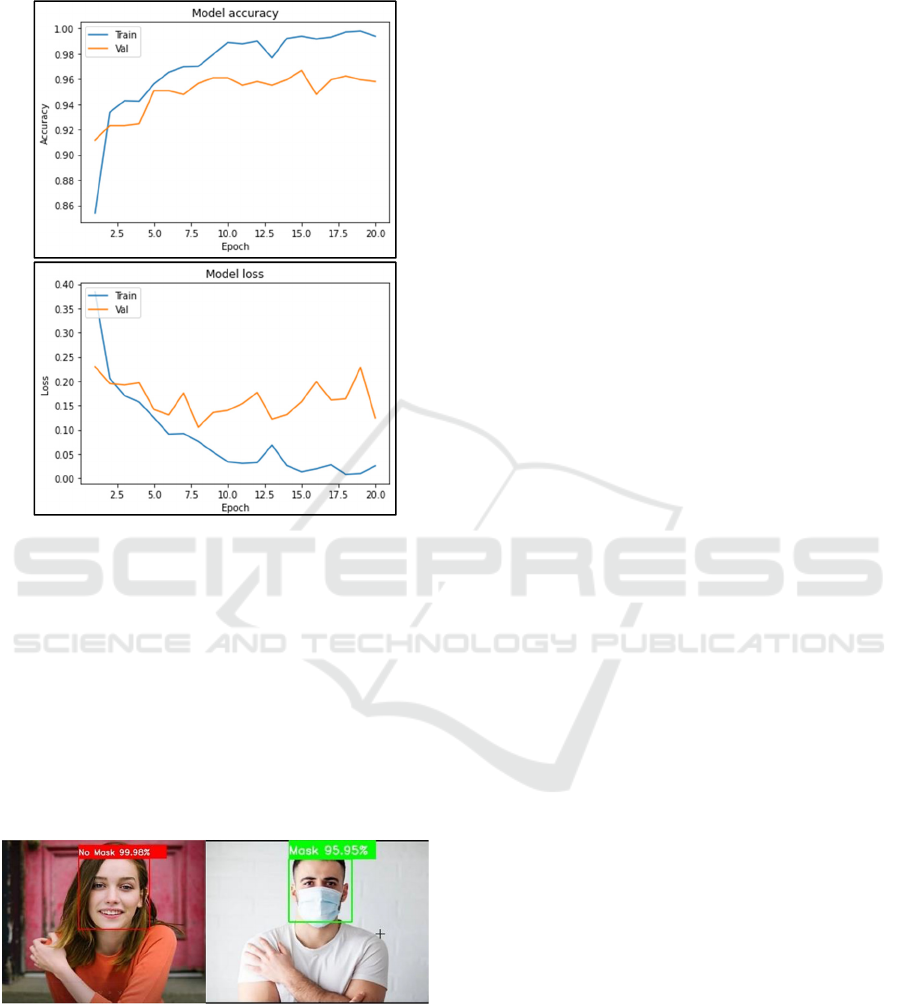

Figure 4: Accuracy and Loss.
3.4 Detection
OpenCV was used to capture the video and the trained
model was loaded using TensorFlow.
A pre-trained model was used to detect faces in a
video. The weights were initialized from the
configuration file with the help of OpenCV.
After getting the bounding boxes for the faces in
the frame, that region of interest is cropped out from
the main frame, reshaped, and is then passed to the
model.
Figure 5: Detecting Face masks (https://en.wikipedia.org/
wiki/File:Victoria_Pedretti.jpg).
Every time a violation is detected that frame will
be saved locally which will later get uploaded to
Firebase Storage.
4 SOCIAL DISTANCING
DETECTION
This project uses YOLO Object detection for
detecting people in a frame and finds the Euclidean
distance between the centroids of the detected boxes.
4.1 YOLO Object Detection
You Only Look Once (YOLO) is an effective real
time object detection system. It considers object
detection as a regression problem and finds the class
probabilities for each of the bounding boxes. In one
evaluation the neural network predicts bounding
boxes and class probabilities from the image, hence
the name YOLO. The base model detects images at
an astonishing speed of 45 frames per second whereas
a smaller version called Fast YOLO detects at 155
frames per second. It performs better than other
detection methods such as Deformable Part Models
(DPM) and Region-based convolutional neural
networks (R-CNN). There are two types of
algorithms that work towards object detection-
Algorithms based on classification, and Algorithms
based on regression. YOLO falls under the latter
category.
4.1.1 How Does YOLO Work?
A single neural network is used to combine separate
parts of object detection. It takes in features from an
image to predict each bounding box. The detection is
modeled as a regression problem where an image is
divided into SxS grids. In Fig. 7, the authors set the
value of S as 7. This can be changed in the YOLO
configuration file. Each grid predicts bounding boxes
(B), their confidence scores, and their class
probabilities (C). These predictions are encoded as an
S x S x (B*5 + C) tensor.
Each bounding box has 5 predictions: (x, y, w, h)
and confidence. Each grid cell predicts conditional
class probabilities (C) as P (Classi | Object).
The architecture for this Convolutional Neural
Network was inspired from GoogLeNet model that is
used for image classification. Just like GoogLeNet
their model was implemented using 24 convolutional
layers that helps to extract features from the image
followed by 2 fully connected layers to predict the
output probabilities and coordinates. They also came
up with a faster version on YOLO named Fast YOLO
that uses a CNN with less layers (9 instead of 24) and
less filters for those layers. Other than that, the
training and testing parameters were the same
between YOLO and Fast YOLO.
Application Development for Mask Detection and Social Distancing Violation Detection using Convolutional Neural Networks
763
Figure 6: The YOLO Architecture (Redmon, 2016).
Figure 7: The YOLO Model (Redmon, 2016).
4.2 Detection
This project uses YOLO v3 to detect people. OpenCV
python package was used to read the weights and set
up the model using the configuration file.
net=cv2.dnn.readNet("./YOLO/yolov3.weig
hts", "./YOLO/yolov3.cfg")
The classes were read from “coco.names” file
which contains the names of 80 different classes such
as person, bicycle, car etc. Open CV was used to
capture the video as shown below. This project was
tested on some sample videos, on the webcam and on
an IP camera as shown below.
cap=cv2.VideoCapture('./Videos/Example
4.mp4')
cap = cv2.VideoCapture(0)
cap=cv2.VideoCapture("http://192.168.2.
2:8080/video")
In each frame, the people are detected, and boxes
are drawn along with their centroids. The centroids
for each box were calculated and appended to a list.
Red boxes indicate that the person is violating social
distancing as shown in Fig. 8 below.
Figure 8: Detecting Social Distancing Violation.
Using Euclidean distance, the distance between
the centroids can be calculated with the help of the
scipy package.
D = dist.cdist(centroids, centroids,
metric="euclidean")
Figure 9: Calculating the Euclidean Distance between
centroids.
Where D is a 2-D array as shown in the table
below:
Table 1: 2-D array containing the Euclidean distance
between each point.
(x1, y1) (x2, y2) (x3, y3)
(x1, y1) 0 5 3
(x2, y2) 5 0 5
(x3, y3) 3 5 0
Where each element in the array is calculated
according to the formula mentioned below:
𝑑𝑖𝑠𝑡𝑥
,𝑦
,𝑥
,𝑦

𝑥
 𝑥
𝑦
𝑦
𝑖,
𝑗
1,..𝑁𝑑𝑒𝑡𝑒𝑐𝑡𝑖𝑜𝑛𝑠
(3)
From the above equation, i and j represents rows
and columns in the 2-D array, respectively.
If this distance is less than a certain threshold
value, the person is violating social distancing.
We can estimate this threshold value by finding
the ratio as follows:
Assuming the pixel density to be 96 dpi, we can
deduce that 1 pixel = 0.26458333 mm or 1 mm =
3.7795 pixels.
Taking the ratio,
𝑅𝑎𝑡𝑖𝑜
Real Height o
f
the person mm
Pixel Hei
g
ht o
f
the person in the frame
mm
(4)
Now to estimate the pixel distance for 1 meter
(1000 mm):
1000
𝑅𝑎𝑡𝑖𝑜
 3.7795
(5)
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
764
This threshold value may or may not be accurate
and it needs to be increased or decreased accordingly.
Every time a violation is detected that frame will
be saved locally which will later get uploaded to
Firebase Storage.
4.3 Heat Map
Heat map is used to detect if people are crowding in
a specific area and hence violating social distancing
norms. By looking at the heat map on their app, it can
help officials identify the places that need to be
sanitized more often.
To plot the heat map, the first frame is read and
every iteration the boxes are drawn on that frame. Red
boxes indicate densely populated and sparsely
populated regions are shown by blue boxes. When the
program terminates this image is saved which is then
uploaded to Firebase storage.
Figure 10: Heat Map showing densely and sparsely
populated areas.
5 FIREBASE
5.1 Introduction
Firebase is a useful platform for mobile and web
applications. It can be a back end for many services
such as user authentication, data storage, static
hosting, real-time database etc. It also offers a
machine learning kit which has face detection, image
labeling, object detection, text recognition, digital ink
recognition and pose detection. It provides a user-
friendly platform for building mobile and web apps.
This project uses cloud storage and cloud
messaging to store detected images and push
notifications to the app.
5.2 Cloud Storage
It is a simple, powerful, and cost-effective storage
service that is built for Google scale. The Firebase
SDKs for cloud storage adds security to uploads and
downloads for the app regardless of the network
quality. These SDKs can be used for storing audio,
video, images etc. Google Cloud Storage can be used
to access the same files on the server.
The uploaded files can be accessed from both
Firebase and Google cloud and each file is stored in a
Google Cloud Storage Bucket. This allows the
developer to download and upload files from mobile
clients through Firebase SDKs and makes it possible
to do server-side processing using Google Cloud.
This project uses the Pyrebase python package to
initialize the storage reference.
A configuration key is used to link the firebase
project with the python program. This key can be
retrieved from the Firebase service. A storage
reference is created using which files can be uploaded
or downloaded.
The images which were saved earlier by the mask
and social distancing detection are uploaded to the
cloud storage.
The local path and path to be uploaded to the
cloud storage are passed as arguments:
storage.child(path_to_cloud_storage).pu
t(path_to_local_storage)
Figure 11: Implementation Path Cloud Storage
(https://firebase.google.com/docs).
Firebase was then added to the Android project by
registering the app on Firebase and setting up the
configuration files. A storage reference is again
created, and the image is downloaded from the cloud
storage. The image then gets updated to the image
view. This can be saved locally to the Android device
as well.
5.3 Firebase Cloud Messaging
Firebase Cloud Messaging (FCM) provides an easy
platform for sending messages. With the help of
FCM, we can notify a client app via the Firebase
Admin SDK or the FCM server protocols.
Using the firebase admin SDK, a notification can
be pushed to the app. While setting up, the credentials
Application Development for Mask Detection and Social Distancing Violation Detection using Convolutional Neural Networks
765
Figure 12: Implementation Path Firebase Cloud
Messaging (https://firebase.google.com/docs).
are verified, and the app is initialized through a
‘. json’ file. A custom notification can be sent with a
title, message, and topic. The topic determines which
user will get the notification. The app will only get
notified depending on this topic which acts as the
username as each user is subscribed to a particular
topic.
In the Android app, a Firebase Message handling
class was added which takes care of handling the
incoming messages and a notification builder for
creating notifications. The app gets notified every
time a violation is detected.
Figure 13: Notifications from StaySafe App.
6 ANDROID APP
The app was developed in Java with the help of
Android Studio which is built on JetBrains' IntelliJ
IDEA software.
The main interface of the app has the recently
updated image along with the date and time. Two
buttons are used to switch to mask detection and
social distancing detection mode. A save button is
used to save the image locally. Refresh button is used
for updating the image view to the recently added
image on the cloud. “View history” button takes the
user to a new activity for checking the history. The
view for history is implemented as a RecyclerView.
RecyclerView makes it easy to display large sets of
data. The data is supplied along with how each item
looks and the RecyclerView library dynamically
creates the elements when needed.
When an item scrolls off the screen, the
RecyclerView recycles the individual elements
instead of destroying the view. By reusing the
previous views that were scrolled off screen, it
reduces power consumption and improves the app’s
performance and responsiveness. (Fatima, 2020)
Figure 14: Main Interface.
7 APPLICATIONS
Hospitals and Clinics: This is an important domain
that needs special attention during a pandemic. To
safeguard the health of doctors and nurses, this
system can be implemented to detect whether a
patient is wearing a mask. A CCTV camera can be
placed to detect mask and social distancing violations
which can in turn help reduce crowding while patients
are waiting in queues for their appointments.
Airports: Many of the destinations around the
world have started easing travel restrictions. This
system can be implemented in airports where people
are waiting in queues at check-in facilities, security
clearance gates, passport control, waiting lobbies etc.
Shops / Workplaces: As many businesses are
opening after lockdown this system can be
implemented to ensure that customers and employees
are following all the COVID 19 safety protocols.
8 CONCLUSION AND FUTURE
SCOPE
This project has been developed to come up with an
efficient way for detecting and notifying officials
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
766
when a person does not follow the COVID 19 safety
protocols in a workplace, business establishments etc.
In this work, we have trained a model for face mask
detection using TensorFlow and Keras and used
YOLO Object detection for detecting social
distancing. The proposed CNN architecture
comprises two convolutional layers followed by relu
activation function and a max pooling layer.
YOLOv3 was used to detect people in a frame and
find the Euclidean distance between them. With the
help of OpenCV we were able to capture the video
feed from different sources like webcam, video file or
an IP camera. An android app was developed which
will get notified every time a violation is detected,
and the detected images can also be viewed through
the app. This was achieved with the help of Firebase
service. As a future study, we can work on finding a
pattern to detect or predict the time at which it gets
crowded the most and the heat map can be plotted in
a more accurate manner.
REFERENCES
Soni, A., & Singh, A. P., 2020. Automatic Motorcyclist
Helmet Rule Violation Detection using Tensorflow &
Keras in OpenCV. In 2020 IEEE International Students
Conference on Electrical, Electronics and Computer
Science (SCEECS).
Chen, S., Wei, Y., Xu, Z., Sun, P., & Wen, C., 2020. Design
and Implementation of Second-generation ID Card
Number Identification Model based on TensorFlow. In
IEEE International Conference on Information
Technology, Big Data and Artificial Intelligence
(ICIBA).
Caveness, E., C., P. S., Peng, Z., Polyzotis, N., Roy, S., &
Zinkevich, M., 2020. TensorFlow Data Validation:
Data Analysis and Validation in Continuous ML
Pipelines. In Proceedings of the 2020 ACM SIGMOD
International Conference on Management of Data.
Lu, Y., Zhang, L., & Xie, W., 2020. YOLO-compact: An
Efficient YOLO Network for Single Category Real-
time Object Detection. In 2020 Chinese Control and
Decision Conference (CCDC).
Ullah, M. B., 2020. CPU Based YOLO: A Real Time
Object Detection Algorithm. In 2020 IEEE Region 10
Symposium (TENSYMP).
Raj, A., Maji, K., & Shetty, S. D., 2021. Ethereum for
Internet of Things security. In Multimedia Tools and
Applications.
Redmon, J., Divvala, S., Girshick, R., & Farhadi, A., 2016.
You Only Look Once: Unified, Real-Time Object
Detection. In 2016 IEEE Conference on Computer
Vision and Pattern Recognition (CVPR).
Natraj, L., & Shetty, S. D., 2019. A Translation System
That Converts English Text to American Sign
Language Enhanced with Deep Learning Modules. In
International Journal of Innovative Technology and
Exploring Engineering Regular Issue, 8(12), 5378-
5383.
Khawas, C., & Shah, P., 2018. Application of Firebase in
Android App Development-A Study. In International
Journal of Computer Applications, 179(46), 49-53.
Fatima, N. S., Steffy, D., Stella, D., & Devi, S. N., 2020.
Enhanced Performance of Android Application Using
RecyclerView. In Advances in Intelligent Systems and
Computing Advanced Computing and Intelligent
Engineering, 189-199.
Nair, L. R., Shetty, S. D., & Shetty, S. D., 2018. Applying
spark based machine learning model on streaming big
data for health status prediction. In Computers &
Electrical Engineering, 65, 393-399.
Duran-Lopez, L., Dominguez-Morales, J., Amaya-
Rodriguez, I., Luna-Perejon, F., Civit-Masot, J.,
Vicente-Diaz, S., & Linares-Barranco, A., 2019. Breast
Cancer Automatic Diagnosis System using Faster
Regional Convolutional Neural Networks. In
Proceedings of the 11th International Joint Conference
on Computational Intelligence.
Sung, M., Yu, S., & Girdhar, Y., 2017. Vision based real-
time fish detection using convolutional neural network.
In OCEANS 2017 - Aberdeen.
Hansen, D. K., Nasrollahi, K., Rasmusen, C. B., &
Moeslund, T. B. (2017). Real-Time Barcode Detection
and Classification using Deep Learning. In Proceedings
of the 9th International Joint Conference on
Computational Intelligence.
Goodfellow, I., Bengio, Y., & Courville, A., 2016. Deep
learning, Cambridge (EE. UU.). MIT Press.
Belciug, S., 2020. Artificial intelligence in cancer:
Diagnostic to tailored treatment, London, United
Kingdom. Academic Press.
Application Development for Mask Detection and Social Distancing Violation Detection using Convolutional Neural Networks
767
