Transformation of BPMN Model into an OWL2 Ontology

Mariem Kchaou

, Wiem Khlif

, Faiez Gargouri

and Mariem Mahfoudh

1,2

Mir@cl Laboratory, University of Sfax, Sfax, Tunisia

University of Kairouan, Kairouan, Tunisia

Keywords: BPMN Model, Ontology, OWL2, Transformation Rules, Business Context.

Abstract: Each enterprise needs to have a clear vision of its business processes in order to increase the quality of its

products/services. To fulfil this need, many enterprises rely on an Information System (IS). Most of the

previous systems were previously framed by applying business process model. In addition, the current trend

expresses a growing demand of reusing data from older information systems, which is very beneficial for the

implementation of semantic knowledge. The transformation of a BPMN model into an ontology leads to

reduce cost by reusing older systems. Although many studies are elaborated for transforming BPMN model

into ontology, they have not fully proposed the transformation rules. This paper suggests the addition of rules

for transforming annotated BPMN models to ontologies by accounting for the semantics of the BPMN model,

and providing for all business objects and activities. In addition, the transformations have the merit of

generating the OWL2 graphical representation.

1 INTRODUCTION

An automated information system (IS) gives

important support to the business process if its

capacities are best exploited. Indeed, the crucial

advantage of designing system by utilizing BPMN

notation lies in its ability to describe, and reflect the

real world of information systems better.

Furthermore, it has also got the further support of

developers. Hence, the BPMN notation has gradually

gained its popularity. However, the specification is

comprehensive and partially conflicting. Therefore,

several researches present an ontology that provides

a formal definition of BPMN and can be used as a

knowledge base (Annane et al., 2019). It is a formal

representation of knowledge and consists of

statements that define concepts, relationships, and

constraints. According to (Noy and McGuinness,

2001), an ontology allows a shared common

understanding, the reuse and the analysis of domain

knowledge. An ontology is, therefore, suited to

represent the BPMN metamodel.

In this context, many researchers proposed

methods for transforming a Business Process Model

(BPM) to the OWL2 ontology (Annane et al., 2019)

(BPMN-onto, 2019). These works are based on the

graphical notation (Annane et al., 2019) or on the

XPDL language (Figueiredo and Oliveira, 2018).

Although these studies are elaborated for

transforming BPMN model into ontology, they have

not fully proposed the transformation rules. In

addition, these transformation rules neglect the

semantic information related to BPMN elements. A

lack of information may reduce the number of

possible components that can be found. For instance,

the relation semantics between classes and their type

such as “is composed of” and “is a part of”, etc.

More specifically, we propose seven

transformation rules to transform BPMN model to an

OWL2 graphical representation. These

transformation rules use an annotated BPMN model

and the proposed business context that describe

semantic information related to BPMN elements.

The remainder of this paper is structured as

follows: Section 2 overviews the business context and

discusses related work. Section 3 shows the

transformation rules to generate an OWL2 graphical

representation from an annotated BPMN model with

its business context. Section 4 evaluates the quality of

the generated OWL2 graphical through the recall and

precision rates and illustrates our transformation rules

through a case study. Finally, Section 5 summarizes

the presented work and outlines its extensions.

380

Kchaou, M., Khlif, W., Gargouri, F. and Mahfoudh, M.

Transformation of BPMN Model into an OWL2 Ontology.

DOI: 10.5220/0010479603800388

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 380-388

ISBN: 978-989-758-508-1

2 BACKGROUND

2.1 BPMN Language

BPMN (ISO/IEC 19510. 2013), adopted by the OMG

group, is the most used notation for modelling

business processes (BP). The graphical objects are

organized into several categories: Activity, Data,

connecting objects (sequence/message flows),

participants (lane, pool). An activity can be a simple

representing Task or composed representing a sub-

process. In BPMN 2.0, there is different Task types

such as service Task which is used when an external

service is called to perform a task. Send task is

designed to send a message to an activity, process, or

lane, while receive task is designed to wait for a

message from an activity, process, or lane. Activities

and processes often need data objects and data store

in order to be realized. Connecting Objects (sequence

flow, message flow) connect the Flow Objects to each

other or other information to create the basic structure

of a BP. Participants represent Pools and Lanes

elements. A pool can be a specific entity or a role. It

is divided into one or more lanes.

2.2 Business Context

Before introducing the business context, we extend

the BPMN source meta-model presented in (Khlif et

al., 2018) (See Figure 1).

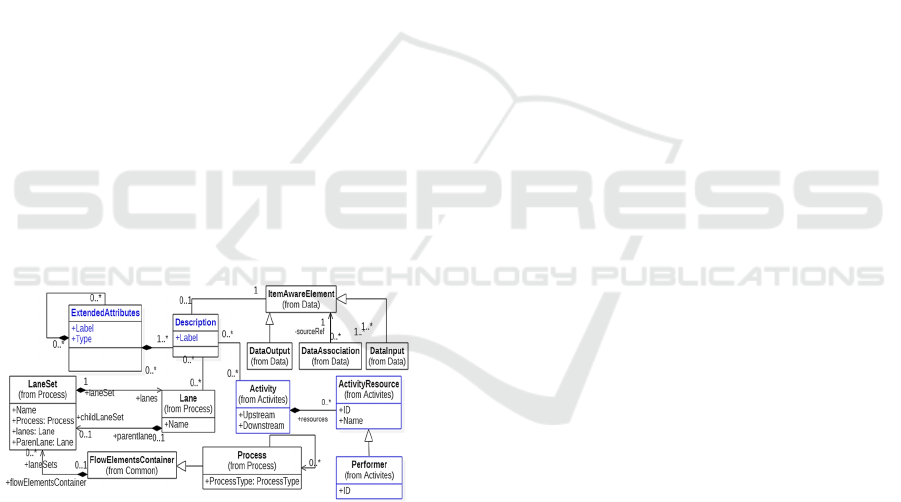

Figure 1: BPMN meta-model.

For each BPMN element, (Khlif et al., 2018)

associate a Description that adds a specific

information to BPMN elements in terms of the

relationships between them. The ExtendedAttributes

class specifies the properties of each BPMN element.

In (Khlif et al., 2018), the authors describe the

business context to annotate different BPMN

elements. The business context add semantic and

structural information specific to all BPMN elements.

Activity node can be simple, representing a task,

or composed that expressing a sub-process. We

enhance each activity with a business context that

contains the following information: 1) the unique

activity identifier (ID), 2) Lane ID which is the

unique identifier of the lane containing the activity, 3)

Performer (actor) ID that express the unique identifier

of the actor responsible of performing the activity, 4)

Upstream and downstream ID is the unique identifier

of the activity on which this activity directly depends,

5) extended attributes which can be a pure value or a

complex one representing a business entity, 6)

activity description indicating the relationships

between the business entities and/or the activity’s

extended complex attributes, 7) resources expressing

the data objects/stores that are required by an activity

to fulfil its goal. The resources are described in terms

of name, extended attributes and description.

The data objects/stores’ extended attributes and

description have the same semantic than the activity’s

extended attributes and description.

The lane and pool elements are described with the

following informations: 1) Unique identifier of lane

(IDL)/pool (IDP), 2) their labels, 3) Lane Description

(LD)/Pool Description (PD) to indicates the semantic

relation between the lane/pool and 4) the tasks/data

object or stores (respectively the lanes or tasks/data

object or stores) that belong to it, 5) Extended

Attributes to describe the lane/pool properties. As the

same of the extended attributes related to the activity,

each one can be a pure value or complex. The

annotated BPMN elements will be transformed into

OWL2 components.

2.3 Related Work

Many researchers proposed a number of methods for

transforming a Business Process Model to the OWL2

ontology (Annane et al., 2019) (BPMN-onto, 2019).

In this context, (Annane et al., 2019) developed

the BBO (BPMN 2.0 Based Ontology) ontology for

business process representation, by reusing existing

ontologies and meta-models like BPMN 2.0. Another

ontology (BPMN-onto, 2019) has been automatically

extracted from BPMN 2.0, but there is no

documentation about how it was generated.

Moreover, this ontology contains no annotations and

less information than the specification document.

(Figueiredo and Oliveira, 2018) propose a systematic

process for the automatic generation of an ontology

from a BP model transformed to the XML Process

Definition Language.

(Ternai, et al., 2016) propose an approach to

transform the BP into process ontology and to

combine it with the knowledge base as a domain

ontology in a well-controlled solution.

Overall, the above works focus on transforming

Transformation of BPMN Model into an OWL2 Ontology

381

BPMN model into ontology from its graphical

notation (Annane et al., 2019) or from the XPDL

language (Figueiredo and Oliveira, 2018). However,

they have not fully proposed the transformation rules.

In addition, these works rely only on the BPMN

elements to produce the corresponding component in

OWL2. In fact, several semantic relations are not

extracted such as “is composed of”, “is a part of”, etc.

In this paper, we propose a set of transformation

rules to transform BPMN model to an OWL2

graphical representation. These transformation rules

use business context that describe semantic

information related to BPMN elements.

3 TRANSFORMATION OF BPMN

MODEL INTO OWL2

In this section, we propose a set of rules for

transforming BPMN into OWL2. The proposed rules

exploit the business concept that describes semantic

information related to BPMN elements i.e. activity

description, lane description, etc. (Khlif et al., 2018).

Before introducing our transformation rules, we

define the following notation: in the BPMN model,

the business object is Bo

(Bo

), the extended attribute

is Exatt, and the relationship between business

objects (Bo

, Boj, etc) is expressed by the description

field (FD). In OWL2, the class is C(Bo

), data type

property is Exatt and object property is Bo

RBo

(R is

the relationship between two classes Bo

and Bo

The OWL2 (W3C, 2005) graphical representation

is described by WebVOWL editor, an open source

software for the visualization of ontologies.

The transformation rules are based on an

annotated BPMN model to generate an aligned

OWL2. It supposes that:

a. The description field of BPMN element follows

this linguistic pattern: «BusinessObject

+VerbalGroup + [Quantifiers]

+BusinessObject».

b. The BPMN tasks are labeled according to the

following linguistic syntax patterns:

 ActionVerb +BusinessObject |NominalGroup ]

 CommunicationVerb + BusinessObject

|NominalGroup + [[to ReceiverName] | [from

SenderName]]

We mean by BusinessObject any entity that

describes the business logic. The NominalGroup is a

set of pre/post-modifiers, which are centred around a

HeadWord that constitutes the BusinessObject. The

pre-modifiers (respectively post-modifiers) can be a

noun, adjective, or an ed/ing-participle (respectively,

a noun, adjective, or adverb). The VerbalGroup

indicates the relationship type between

BusinessObjects. Relationships’ semantic (semantic

of VerbalGroup) must follow these linguistic

patterns: BusinessObject+VerbalGroup+ Quantifiers

+BusinessObject. The verbal group indicates the

relation type as follows:

 “is entirely made of” or “is part of” expresses

an aggregation relationship between the

business objects.

 “is composed of” designates a composition

relation

 “Is a” denotes the generalization/ specialization

relation. We note that the generalization can be

disjoint or complete and disjoint. If the verbal

group doesn’t belong to this set of keywords or

any synonyms, then it specifies a relation

between the business objects. The Quantifiers

gives an idea of the multiplicity.

R1. For each description field of BPMN element,

extract the object property in OWL2 and the

cardinality between the generated classes in OWL2

according to the semantic of VerbalGroup. If it is:

a. “Boi” is entirely made of “Boj” or “Boi” is part

of “Boj” or any synonyms:

We note that “is entirely made of” indicates that

the existence of the part is dependent on the whole. It

represents the relationship between the two business

objects in which the business object of an entity

consists of some objects of the other, but does not

exist in its interior. It is a combination of asymmetric

business objects and this relation indicate that a

business object is not associated with itself.

Therefore, the existence dependency leads to

transform “is entirely made of” into a pair of inverse

object properties with corresponding constraint. The

transformation rule is presented as follows (Figure 2):

 Add two classes C(Bo

) and C(Bo

 Add the object property Bo

RBo

for

representing the relationship between classes

C(Bo

) and C(Bo

), with domain is C(Bo

range is C(Bo

);

 Set InverseFunctionalObjectProperty for

object properties Bo

RBo

 Set IrreflexiveObjectProperty for the object

attribute Bo

RBo

 Set AsymmetricObjectProperty for the object

attribute Bo

RBo

 Add min/max cardinality constraint to the

corresponding classes.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

382

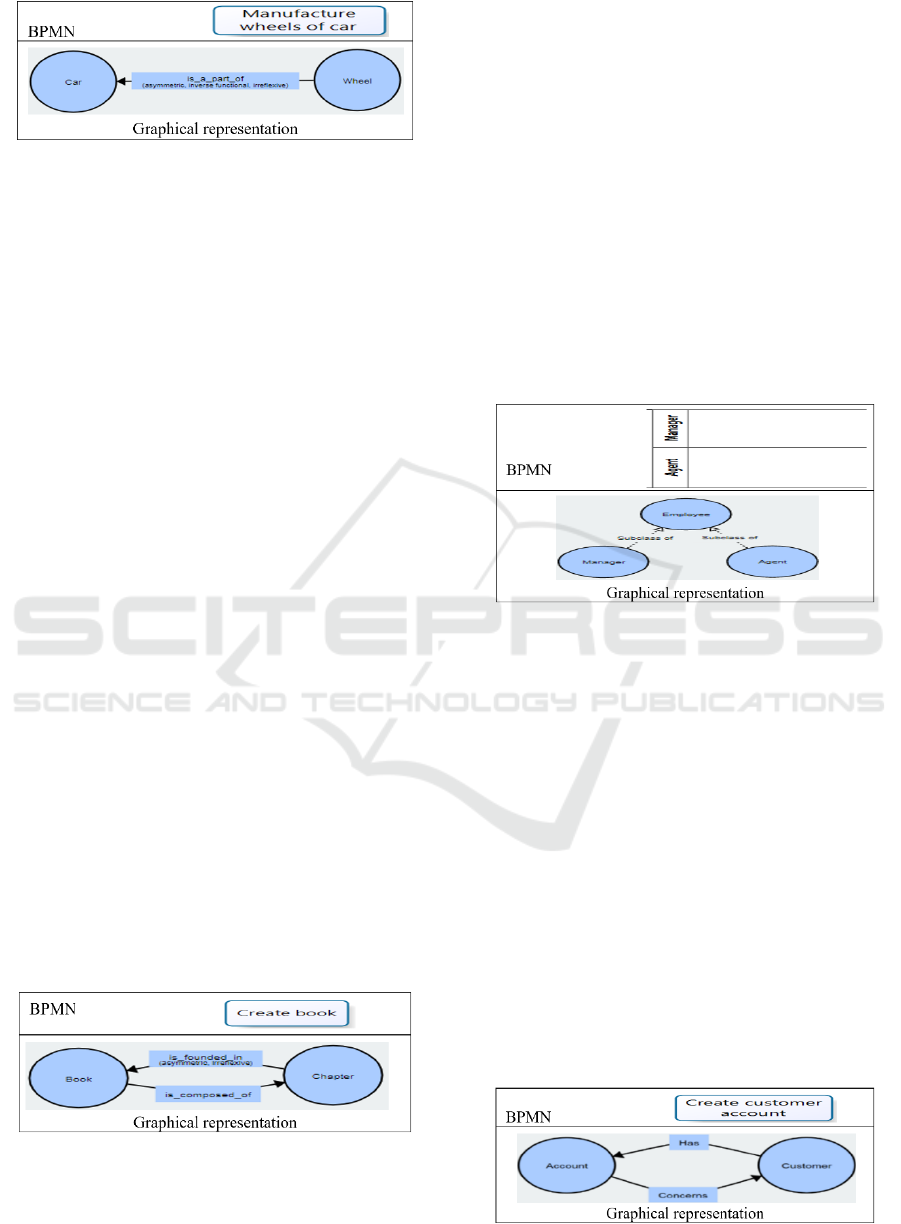

Figure 2: R1 illustration: Case (a).

b. “Bo

is composed of Bo

” or any synonyms:

The expression “is composed of” in the

description field represents the relationship between

two business objects in which the business object of

an entity consists of all objects of the other business

object. It correspond to a pair of inverse object

properties in OWL2 with corresponding constraint.

The term “is composed of” is a combination of

irreflexive, so when transforming into OWL2, it must

use the “IrreflexiveObjectProperty” syntax. “is

composed of” expression is not recursive, a business

object isn’t composed with itself, so must set the

AsymmetricObjectProperty syntax. Therefore, we

propose the transformation rules as follow (Figure 3):

 Add two classes C(Bo

) and C(Bo

 Add two object properties for representing the

relationship between classes C(Bo

) and

C(Bo

): Bo

RBo

with domain is C(Bo

), range

is C(Bo

); Bo

RBo

with domain is C(Bo

range is C(Bo

 Set IrreflexiveObjectProperty for the object

attribute Bo

RBo

 Set AsymmetricObjectProperty for the object

attribute Bo

RBo

 Add min/max cardinality constraint to the

corresponding classes.

In Figure 3, the description field contains a

relationship “is composed of” between the “book” and

the “chapter”. Each book is composed of chapters.

These business objects are transformed to their

corresponding classes which are related by two object

properties: “is composed of” and “is founded in”. In

particular, the object property “is founded in” has the

Irreflexive and Asymmetric characteristics.

Figure 3: R1 illustration: Case (b).

c. “Bo

Is a/an Bo

”,

The expression “is a/an” in the description field

shows the top and bottom views of business objects

hierarchy. It is classified in two kinds of constraints

which are also annotated in the description field:

completeness (“disjoint and complete”) and

disjointness (“disjoint”). The top and bottom views of

business objects correspond to the class and subclass

in OWL2. The constraints “disjoint” corresponds to

the syntax “owl:disjointWith” and the constraint

“disjoint and complete”, corresponds to

“owl:disjointUnion” in OWL2. Therefore, we present

the transformation rules as follow (See Figure 4):

 Add two classes C(Bo

) and C(Bo

) which is

subclass of C(Bo

 If the description field contains the term

“disjoint”, use the syntax “owl:disjointWith”.

 If the description field contains the term

“disjoint and complete”, use syntax

“owl:disjointUnion”..

Figure 4: R1 illustration: Case (c).

d. Else, transform the expression in the

description field into an object property.

Therefore, we present the transformation rules

as follow (See Figure 5):

 Add two class C(Bo

) and class C(Bo

)

 Add two inverse object properties Bo

RBo

and

RBo

which show relationship between

class C(Bo

) and C(Bo

 Add min/max cardinality constraint to the

corresponding object properties.

In Figure 5, the description field of the task

“Create customer account” indicates a relationship

between two business objects “Customer” and

“Account”. The business object Customer has (1..n)

accounts but the business object Account is related to

one customer. These business objects are transformed

to classes in OWL2 that are related by two inverse

object properties “Has” and “concerns”.

Figure 5: R1 illustration: Case (d).

Transformation of BPMN Model into an OWL2 Ontology

383

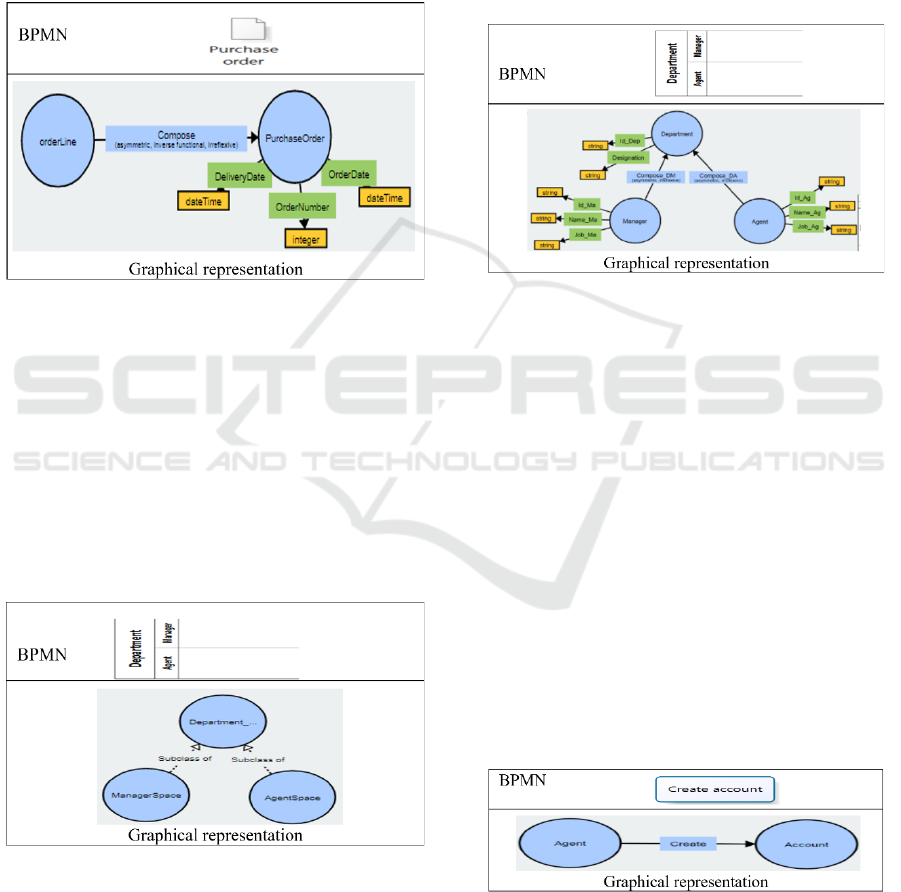

R2. For each extended attribute of the BPMN

element, transform it to (See Figure 6):

a. Data type property in the OWL2 if the type of

the extended attribute merely represents a pure

value or primitive data type.

b. Else, a new class with the name

extendedAttributeLabel, and an object property

between the two generated classes by applying

R1 if the type of the extended attribute is

complex representing a business object.

Figure 6: R2 illustration.

R3: Transform a business object pool/lane

representing a process respectively to a class and a

subclass in OWL2.

R3.1: The business object pool/lane is transformed

respectively to class/subclass in OWL2. The class

name depends on the participant type which is a

performer or an entity. If the participant is a

performer, then the class name corresponds to the

business object name and the word “Space” or “area”.

Else, the class name is a concatenation of the business

object name and the word “Management” (Figure 7).

Figure 7: R3.1 illustration.

R3.2: The business object (pool/lane) has as many

extended attributes. It is transformed to class. The

class name corresponds to the business object

(pool/lane) name. The extended attributes are

transformed to data type properties (See R2). Each

business object (pool/lane) has a description field

which is transformed to object properties (See R1).

In Figure 8, the business object “Department”,

“Manager” and “Agent” are transformed into classes.

The description field of business object Department

(pool), defined in its business context, indicates that

the “department contains many mangers and agents”.

So that, this description is transformed into object

properties between the whole side (Department class)

and the part side (Manager and Agent classes) as well

as the minimum cardinality is 1 on the part side.

Figure 8: R3.2 illustration.

R4. For each service task, we apply R1 and R2

In addition, if the service task label respects the

renaming pattern:

R4.1: « Action verb + BusinessObject », then

transform (See Figure 9):

a. The BusinessObject into a class having the

same name of the BusinessObject.

b. The actor that performs the tasks into a class

with the same name of that actor.

c. The Action verb into an object property

between the generated classes in (a) and (b).

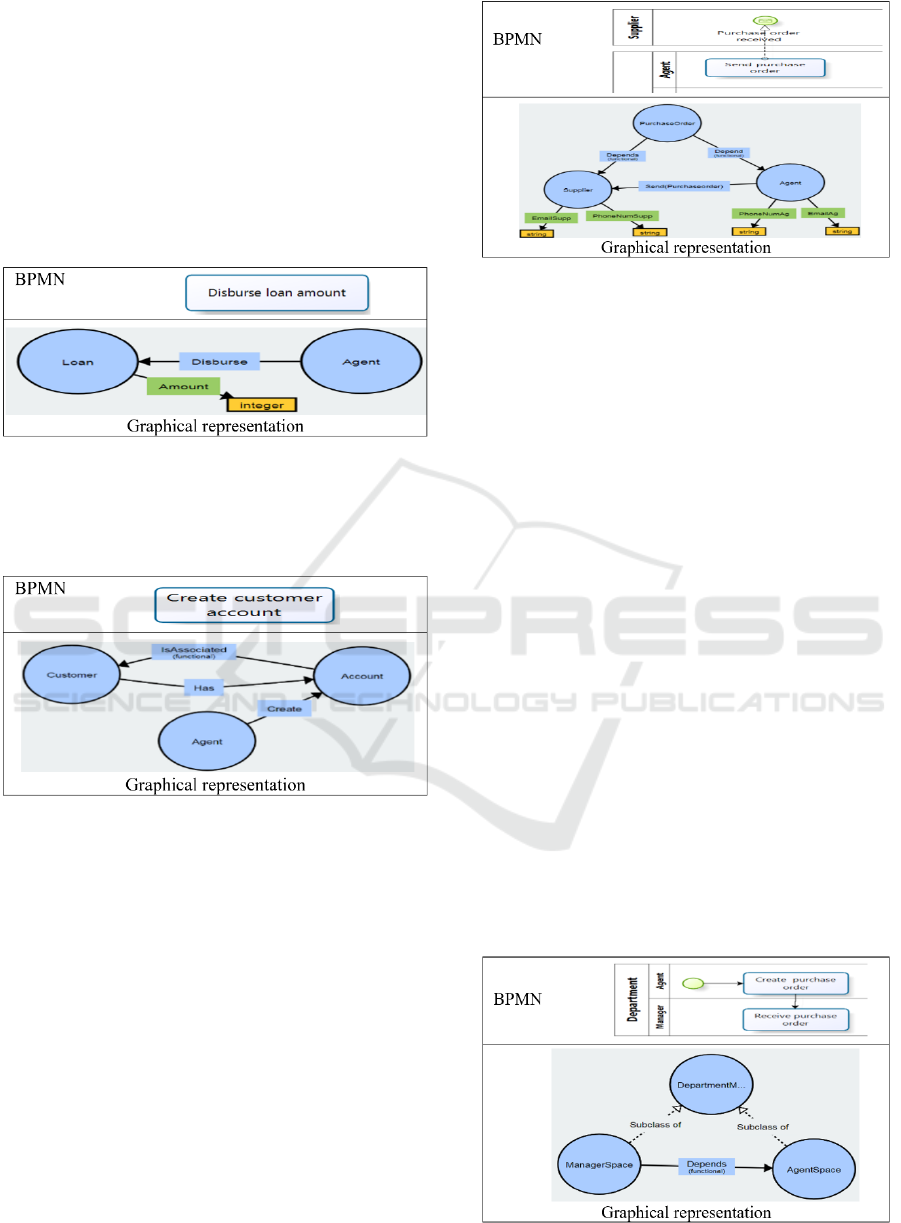

In figure 9, the description field of the task “Create

account” indicates that the “Agent” represents the

actor who creates the account. The Business Object

“Account” corresponds to a class with a name

“Account” in OWL2. The actor “Agent” corresponds

to a class having the same name in OWL2. The

Action verb “Create” is transformed to an object

property between the “Account” and “Agent” classes.

Figure 9: R4.1 illustration.

R4.2: « Action verb + NominalGroup», apply R1.

Then apply R4.1 on the HeadWord and transform:

a. The HeadWord into a class in OWL2.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

384

b. The pre/postmodifier into data type property in

the class corresponding to the HeadWord if it

is a noun that simply represents a pure value.

The data type property has the same name of

pre/postmodifier (See Figure 10);

c. The pre/post-modifier into a class with the

name pre/post-modifier if it is a complex noun.

The relation between the HeadWord and the

pre/post-modifier to two object properties

between the two generated classes (HeadWord

and pre/postmodifier) (See Figure 11).

Figure 10: R4.2 illustration.

We note that adjectives, and ed/ing-participles

pre-modifiers as well as adjectives, and adverbs

postmodifiers are ignored.

Figure 11: R4.2 illustration.

R5. For each send/receive task, we apply R1 and R2.

In addition, when the task name follows this pattern:

R5.1: «CommunicationVerb+ BusinessObject + [[to

ReceiverName] | [from SenderName]] », transform

(See Figure 12):

a. The BusinessObject into a class with the same

name of BusinessObject.

b. The “to ReceiverName” and “from

SenderName” into two classes’ SenderName

and ReceiverName. These classes are related

to the created Business Object class in (a);

Then, add new data type property email or

phoneNumber in each class with a name

SenderName and ReceiverName;

c. The CommunicationVerb into object property

between the SenderName and ReceiverName

classes.

Figure 12: R5.1 illustration.

R5.2: « CommunicationVerb+ NominalGroup + [[to

ReceiverName] | [from SenderName]]», apply

R5.1 on the HeadWord and transform:

a. The HeadWord into a class in OWL2.

b. The pre/postmodifier into data type property in

the class corresponding to the HeadWord if it

is a noun that simply represents a pure value.

c. The pre/post-modifier into a class with the

name pre/post-modifier if it is a complex noun.

The relation between the HeadWord and the

pre/post-modifier into two object properties

between the two generated classes (HeadWord

and pre/postmodifier).

We note when this expression [[to ReceiverName]

| [from SenderName]] is omitted, then we can extract

this semantic information from the description field

of the activity element according to R1.

R6. Transform to a class each data store/object,

identified by a name, if it is not already generated.

The class name has the same data object name.

R7. If the business object (pool/lane) sends or

receives respectively a message/sequence flow

to/from another one, then transform the business

object pool/lane to class/subclass in OWL2 (See

R3.1) and the message/sequence flow into

unidirectional object property with the name

"Depends" between the associated sub classes.

Figure 13: R7 illustration.

Transformation of BPMN Model into an OWL2 Ontology

385

4 EVALUATION OF OWL2

GRAPHICAL

REPRESENTATION

In order to validate the transformation rules, we

measure the quality of the generated OWL2 graphical

representation through the recall and precision rates.

We recall that the precision is the ratio of real

elements generated by our transformation that were

identified by the expert. It indicates how accurate the

transformation rules are in the generation of OWL2

graphical representation (class, data type property and

object property) (see Formula 1).

The recall is the ratio that indicates the capacity of

our transformations to return all elements specified by

the expert. High scores for both ratios show that the

transformations return both an accurate OWL2

graphical representation (high precision), and the

majority of all relevant accurate OWL2 graphical

representation elements (high recall). It means that

the generated OWL2 graphical representation covers

the whole domain precisely in accordance to the

experts’ perspective (see Formula 2).

To have the harmonic mean of recall and

precision, we have used the F-measure. F-measure

has a parameter that sets the trade-off between recall

and precision. The standard F-measure is F1, which

gives equal importance to recall and precision (see

Formula 3). We calculate these rates according the

following equations:

ecision



Pr

)

call

TP FN





)

2*Re *Pr

Re Pr

call ecision





)

Where:

 True positive (TP) is the number of existing

real elements generated by our transformation;

 False Positive (FP) is the number of not

existing real elements generated by our

transformation;

 False Negative (FN) is the number of existing

real elements not generated by our

transformation.

4.2 Case Study

To illustrate the transformation rules, we use the

BPMN model “Purchase department process”

example as illustrated in Figure 14.

First, by applying R3.1, the Purchase Department

pool and the Supplier pool are transformed to classes

named “Purchase department management”, and

“Supplier Space”. Each lane (Agent, Manager) in the

Purchase Department pool is transformed to

subclasses named “Agent space” and “Manger space”

of the “Purchase department management” class.

Second, we generate four classes by applying R3.2,

which are “Purchase Department”, “Agent”

“Manager”, and “Supplier”.

The “Purchase Department” and “Agent” are

subclasses of “Agent space”. While the “Manager”

and the supplier represent respectively subclasses of

“Manager Space” and “Supplier Space” classes.

In addition, the description field of business object

“Purchase Department”, defined in its business

context, indicates that the “Purchase Department

contains many mangers and agents”. This description

is transformed into an object property

between“Purchase Department” and “Manager” and

“Agent” classes. Furthermore, the rule R3.2 calls R2,

which adds the data type property to all classes based

on the business context of the corresponding pool and

lanes. For example, we added the data type properties

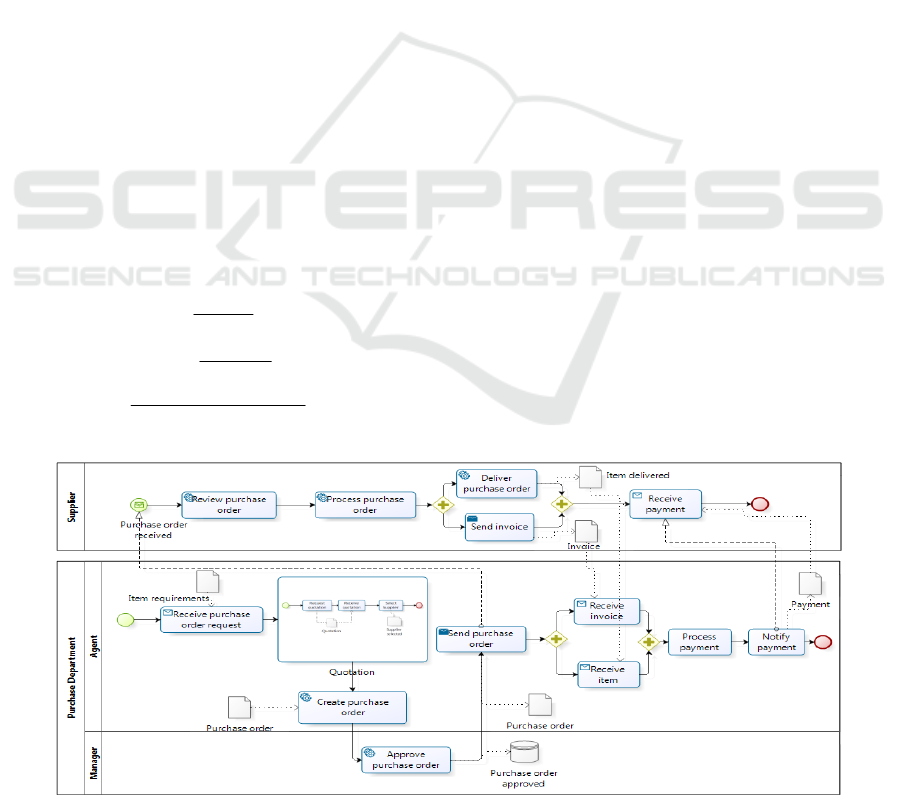

Figure 14: Purchase order Business Process model in BPMN (ISO/IEC 19510, 2013).

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

386

id, name and job to “Manager” and “Agent” classes,

id and designation to “Purchase Department” class.

Third, we apply R4.1 on the following service

tasks: “Create purchase order”, “Approve purchase

order”, “Deliver purchase order”, “Review

purchase order”, “Process purchase order”,

“Process payment”, “Notify payment”, “Request

quotations”, and “Select supplier”. This rule

generates three subclasses: “Purchase order”,

“Payment”, and “Quotation”. The “Supplier” class

is already generated by R3.1. Each action verb of

service tasks presented above is transformed into an

object property between the corresponding business

object and performer classes. For instance: “Create”

and “Process” represent an object property between

the “Purchase order” and “Agent” classes;

“Approve” denotes an object property between the

“Purchase order” and “Manager” classes; “Deliver”

and “Review” express an object property between

the “Purchase order” and “Supplier” classes;

“Process” and “Notify” denote an object property

between the “Payment” and “Agent” classes;

“Request” express an object property between the

“Quotation” and “Agent” classes; “Select”

represent an object property between the “Supplier”

and “Agent” classes.

Afterward, by applying R5.1, the tasks “Send

purchase order” and “Send invoice” generate an

object property with the name “Send” between the

“Agent” and “Supplier” classes.

In addition, we apply R5.1 on receive tasks

which are “Receive invoice” “Receive purchase

order request”, “Receive payment”, “Receive item”,

and “Receive quotation”. For instance: “Receive

invoice”, “Receive payment” and “Receive item”

express object properties with the name “Receive”

between the “Supplier” and “Agent” classes;

“Receive purchase order request” represent an

object property with the name “Receive” between

the “Agent” and “Customer” classes;

By applying R6, the transformation of all data

objects do not add new classes. However, R6

enhances the existing classes by calling R1 and R2,

which add data type properties, classes and object

properties. For example, we added the data type

properties deliveryDate, orderDate, orderNumber to

“Purchase order” class since these extended

attributes are pure values. Furthermore, the

extended attribute “OrderLine” is a complex entity.

According to R2, we extract a new class

“OrderLine”, and an object property between the

latter and “Purchase order”.

Figure 15 shows the generated OWL2 graphical

representation To evaluate the quality of the

generated OWL2 graphical representation, we

calculate the recall and precision rates presented in

section 4.1.

Precision=81/(81+2)=0.97

Recall =81/(81+5) =0.94

F1= (2*0.97*0.94) /(0.97+0.94)= 0.95

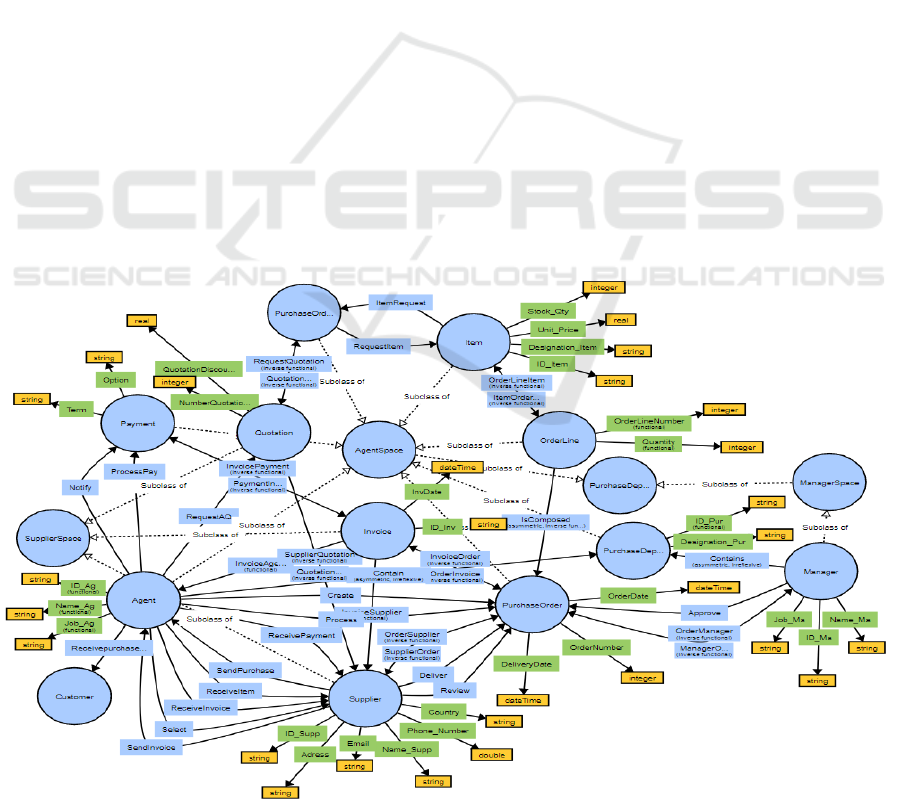

Figure 15: The generated OWL2 graphical representation for the purchase order process.

Transformation of BPMN Model into an OWL2 Ontology

387

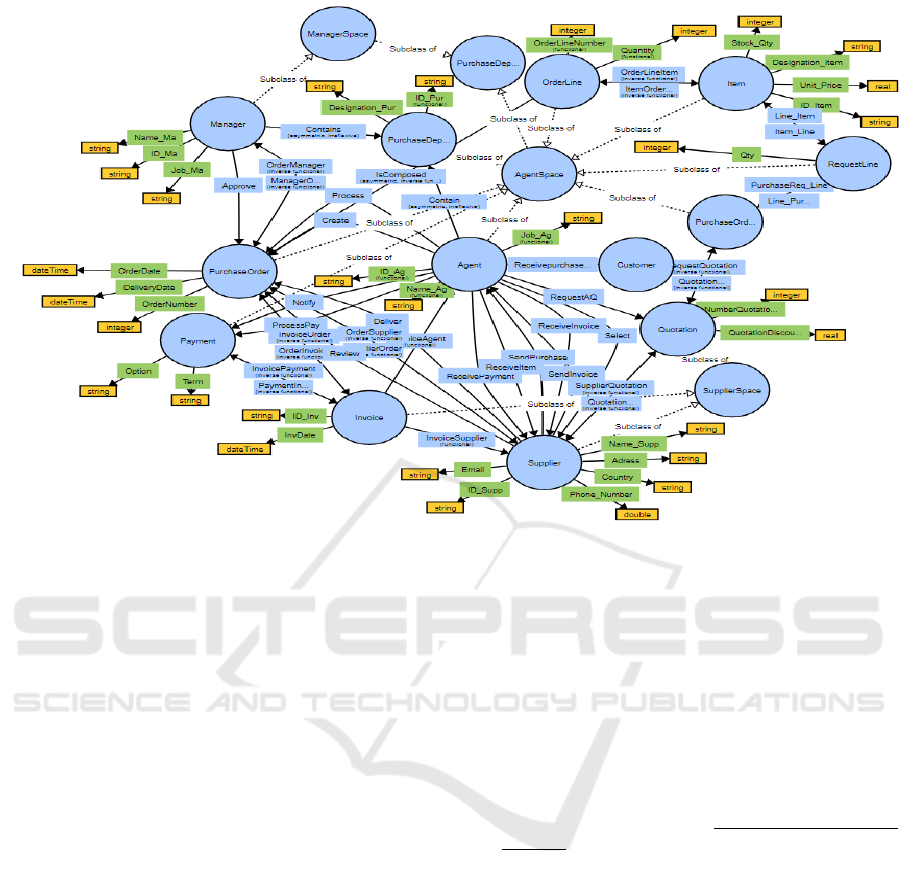

Figure 16: The elaborated OWL2 graphical representation by the expert.

The high values for both ratios mean that the

generated OWL2 graphical representation covers the

whole domain precisely in accordance with the

experts’ perspective (See Figure 16). We can deduce

that the performance of our transformations

approaches the human performance.

Our generated OWL2 graphical representation

contains two object properties between the “Item”

and “Purchase order request” classes. However, the

OWL2 graphical representation generated by the

expert contains: “Request Line” class, two object

properties between “Request Line” and “Item”

classes and two object properties between “Request

Line” and “Purchase order request” classes.

5 CONCLUSION

This paper focuses on transforming the BPMN model

into graphical representation of OWL2 and its

generated code. Compared to existing works, we

proposed a set of transformation rules that consider

the semantic aspects of the business process model.

To do so, we are based on the business process

context expressing the semantics relation and type.

Our future work focuses on two main axes: 1)

enhancing the transformations in order to cover use

case and sequence diagrams. 2) developing a tool for

the automatic generation of an ontology from a

business process model.

REFERENCES

Annane, A., Aussenac-Gilles, N., Kamel, M., 2019. BBO:

BPMN 2.0 Based Ontology for Business Process

Representation. In ECKM’19, 20th European

Conference on Knowledge Management. pp. 49-59.

BPMN-onto, 2019. Available at https://dkm.fbk.eu/bpmn-

ontology.

Figueiredo, L.R., Oliveira, H.C., 2018. Automatic

Generation of Ontologies from Business Process

Models. In Inter. Conf. on Ent. Information Systems.

ISO/IEC 19510. 2013. Information technology -- Object

Management Group Bus. Proc. Model and Notation.

Khlif, W., Elleuch, N., Alotabi, E., Ben-Abdallah, H.,

2018.Designing BP-IS Aligned Models: An MDA-

based Transformation Methodology. In 13th Inter.

Conf. on Evaluation of Novel Approaches to Software

Engineering, pp. 258-266.

Noy, N., McGuinness, D., 2001. Ontology Development

101: A Guide to Creating Your First Ontology.

Ternai, K., Török, M. and Varga, K., 2016. Corporate

Semantic Business Process Management, Corporate

Knowledge Discovery and Organizational Learning:

The Role, Importance, and Application of Semantic

Business Process Management, pp. 33- 57.

W3C, 2005. A survey of RDF/Topic Maps Interoperabil

ity

Proposals W3C Working Draft.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

388
