Asynchronous Data Provenance for Research Data

in a Distributed System

Benedikt Heinrichs

and Marius Politze

IT Center, RWTH Aachen University, Seffenter Weg 23, Aachen, Germany

Keywords:

Research Data Management, Data Provenance, Distributed Systems.

Abstract:

Many provenance systems assume that the data ﬂow is being directly orchestrated by them or logs are present

which describe it. This works well until these assumptions do not hold anymore. The Coscine platform is

a way for researchers to connect to different storage providers and annotate their stored data with discipline-

speciﬁc metadata. These storage providers, however, do not inform the platform of externally induced changes

for example by the user. Therefore, this paper focuses on the need of data provenance that is not directly pro-

duced and has to be deduced after the fact. An approach is proposed for dealing with and creating such

asynchronous data provenance which makes use of change indicators that deduce if a data entity has been

modiﬁed. A representation on how to describe such an asynchronous data provenance in the Resource De-

scription Framework (RDF) is discussed. Finally, a prototypical implementation of the approach in the Coscine

use-case is described and the future steps for the approach and prototype are detailed.

1 INTRODUCTION

The FAIR Guiding Principles have evolved to form a

guideline for research data management (RDM). Ac-

cordingly, data should be ﬁndable, accessible, inter-

operable and re-usable as described by (Wilkinson

et al., 2016). In turn RDM plays an increasingly

important role in today’s university landscape. The

idea is to incorporate those principles in every as-

pect of research where data is being produced and in-

corporate them into the scientiﬁc workﬂow. While

a lot of work has been done to improve the scien-

tiﬁc workﬂow, the different research domains diverge

a lot in their approaches. This diversion starts with

the choice of a storage provider which with the emer-

gence of cloud storage and technologies like object

storage ranges over far more options than just clas-

sic solutions like normal ﬁle systems. Platforms like

Coscine, described by (Politze et al., 2020) and for-

merly called “CoScInE”, or Open Science Frame-

work, described by (Foster and Deardorff, 2017), try

to deal with these issues and integrate solutions like

WaterButler

to make research data accessible across

https://orcid.org/0000-0003-3309-5985

https://orcid.org/0000-0003-3175-0659

Codebase by Center for Open Science:

https://github.com/CenterForOpenScience/waterbutler/

domains and storage providers in one single place.

The further use and capability of creating metadata

makes the research data more in line with the FAIR

Guiding Principles. The main issue however with

such an approach is that due to the distributed na-

ture of the system, it is difﬁcult to represent the path

the research data took and with that, the data prove-

nance. Classic more centralized workﬂow provenance

systems like Taverna, Pegasus, Triana, Askalon, Ke-

pler, GWES, and Karajan described by (Talia et al.,

2013) usually either track the movement of data since

this movement is directly orchestrated by them (ea-

ger) or they can rely on the provenance already be-

ing logged (lazy) as described by (Cruz et al., 2009).

This work presents a different approach to encounter

the fact that researchers can change research data on a

storage provider without the integration platform re-

ceiving any notice, breaking the whole provenance

model. For this reason, this paper will focus on the

generation of data provenance for research data that

has been changed by an external impact with no in-

formation being recorded or event being sent, here

called asynchronous data provenance. In this con-

text the classic approaches are in contrast described

as synchronous data provenance methods since there

is a clear way to track the movement of data and di-

rectly describe its provenance.

Heinrichs, B. and Politze, M.

Asynchronous Data Provenance for Research Data in a Distributed System.

DOI: 10.5220/0010478003610367

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 361-367

ISBN: 978-989-758-509-8

361

2 CURRENT STATE AND

RESEARCH GOAL

Since data provenance is necessary for reproducing

the path data traversed, it is a quite popular ﬁeld and a

lot of research has done in the area. This section will

therefore focus on the most important aspects of data

provenance in regard to the topic of the paper. An

overview on provenance in general will be given and

furthermore it will be looked at how different prove-

nance systems are implemented, how provenance cur-

rently works in distributed systems and how prove-

nance is represented. After this current state, the dis-

covered challenges for this paper are formulated.

2.1 Provenance

Provenance is deﬁned by the researchers in (Herschel

et al., 2017) as “any information describing the pro-

duction process of an end product”. In their sur-

vey they deﬁne different levels of provenance in a

hierarchy. At the top of the hierarchy, data prove-

nance is placed as it looks into the processing of in-

dividual data items at the highest resolution. The re-

searchers in (Davidson et al., 2007) and (Davidson

and Freire, 2008) furthermore deﬁne that provenance

can be prospective, e.g. capturing the speciﬁcation of

a workﬂow, or retrospective, e.g. capturing the exe-

cuted steps of a workﬂow. The problem presented in

this paper however does not really ﬁt into either of

the areas, since here the need for creating provenance

after the fact is expressed. Therefore, previous so-

lutions for recording provenance are here deﬁned as

synchronous provenance while the one being looked

into this paper is deﬁned as asynchronous provenance.

2.2 Current State on Provenance

Systems

In the review conducted by (P

erez et al., 2018) rel-

evant provenance systems were evaluated and their

common characteristics described. The approaches

to tracing data capture are deﬁned as eager and lazy.

These existing approaches are however still scoped

in a very centralized manner, expecting either a way

to directly compute provenance from a workﬂow or

having some kind of logging present to compute

the provenance from. Regarding implementing data

provenance in systems which do not offer full data

provenance yet, examples like the researchers in (In-

terlandi et al., 2018) including data provenance in

Apache Spark show promise. Such solutions are how-

ever too specialized and too centralized to use for

asynchronous data provenance in a distributed sys-

tem.

2.3 Current State on Provenance in

Distributed Systems

The work described by (Mufti and Elkhodr, 2018)

gives an overview on data provenance in the internet

of things (IoT), which is distributed innately. It out-

lines the usefulness and challenges in the area. Fur-

thermore, the researchers in (Hu et al., 2020) look

into data provenance in the IoT as well and review

existing methods based on general and security re-

quirements. Concrete implementations like the one

described in (Smith et al., 2018) and (E. Stephan et al.,

2017) show that still some kind of integration in a sys-

tem is necessary or provenance information needs to

be logged to describe the data provenance. Finally,

(Ametepe et al., 2018) gives an overview on the cur-

rent trends, methods and techniques for provenance in

a distributed environment.

2.4 Representing Provenance

For representing provenance, some standards exist.

In this paper, the focus will be on representing the

provenance as linked data in the Resource Descrip-

tion Framework (RDF), described by (Cyganiak et al.,

2014). The way for representing provenance in this

scope is the W3C standard PROV-O, described by

(Belhajjame et al., 2012), which is an ontology that

provides classes, properties and restrictions to rep-

resent provenance information in RDF. Furthermore,

when looking at a data entity a way has to be declared

to uniquely reference it. One method to do that is us-

ing a persistent identiﬁer (PID) like ePIC, described

by (Schwardmann, 2015), since common ways like

normal URLs might suffer from problems called “link

rot” at some point and identiﬁers like GUIDs cannot

be resolved so easily. PIDs can be efﬁciently used to

connect distributed systems as discussed by (Schmitz

and Politze, 2018).

2.5 Challenges

From the current state-of-the-art the following chal-

lenges in regard towards dealing with asynchronous

data provenance were identiﬁed:

• There is a gap for dealing with and producing

provenance of data where the change does not

produce an event or a log entry

• A way has to be found to describe such asyn-

chronous data provenance items

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

362

3 APPROACH

Following the current state-of-the-art and discussed

challenges, the proposed approach to deal with them

is presented. First the state of the use-case is de-

scribed. Some requirements collected from there on

what amounts to a changed data entity will be dis-

cussed further. Derived from that, the structure of the

use-case will be adapted to support asynchronous data

provenance. Using all these ﬁndings, ﬁnally the rep-

resentation proposal of the asynchronous data prove-

nance will be shown.

3.1 Current State of the Use-case

The open-source platform called Coscine

was de-

scribed by (Politze et al., 2020) and (Bensberg, 2020).

It supports researchers that want to adhere to the FAIR

Guiding Principles by allowing them to access their

research data across multiple domains and distributed

storage providers. This is further enhanced by giv-

ing the researchers the opportunity and guiding them

to annotate their research data with so-called meta-

data which is used as a description of the research

data and represented in RDF. Such a solution, how-

ever, comes with the issue that research data can be

changed externally at any point without the platform

being able to take notice on the change and updat-

ing the provenance information. Furthermore, coordi-

nated approaches towards versioning of research data

or at least their metadata are currently missing and

data and metadata movement in between otherwise

unconnected storage providers is not tracked. These

properties and things to improve upon make Coscine

a natural ﬁt for a use-case to implement and apply

asynchronous data provenance.

The platform currently stores the metadata for all data

entities in an RDF-based knowledge graph uniquely

identifying every data entity with a persistent iden-

tiﬁer (PID) and overwrites the metadata on every

change. The graph name, furthermore, follows the

PID syntax, so that the described data entity can be

resolved and accessed with a simple URL. To realize

this, in the graph name the speciﬁc storage provider

and the location of the particular data entity is de-

scribed. Therefore, the structure is deﬁned as:

https://hdl.handle.net/{prefix}/

{storage-provider}@path={path}.

Codebase: https://git.rwth-aachen.de/coscine

3.2 Determining the Occurrence of

Change

For asynchronous data provenance, a way has to

be established for determining the occurrence of a

change to accurately describe it. For this, in the fol-

lowing the existing types of changes and the indica-

tors that can recognize a change will be deﬁned.

3.2.1 Deﬁnition of Change Types

Following the discussion, it has to be deﬁned what a

change is and what different types of changes exist.

The current state-of-the-art focuses a lot on changes

which are triggered by the addition or update of a data

entity or metadata set and this being directly recog-

nized or logged. Such a kind of change is therefore

described as synchronous because it is clear where,

when and from whom this change is coming from.

For changes where the where, when and from whom

are not entirely clear, however, a new deﬁnition must

be deﬁned. These changes are dependent on external

factors like the external addition or update of a data

entity or metadata set which are not captured by the

integrating platform that wants to describe it. To track

them, the previous state has to be compared with the

current one at some undeﬁned point after the original

change has taken place which is why these changes

are deﬁned as asynchronous.

3.2.2 Deﬁnition of Change Indicators

For determining the asynchronous data provenance,

methods have to be deﬁned which can describe the

occurrence of a change. The following list details the

available methods from the current use-case.

Modiﬁed Timestamp. In general storage providers

keep track of the timestamp when a data entity has

been modiﬁed. This however does not mean that the

content really has changed, just that an operation on

the data entity has been performed.

Hash. A storage provider can provide a hash of the

data entity with an algorithm like SHA-1 which gives

a good indicator and identiﬁer of the current version

of the data entity and if it has changed. Since a hash

is easy to compute and store, this makes this method

a fast indicator of change.

Version. Some storage providers can be trusted to

give accurate information about the version a data en-

tity holds and this is therefore a clear indicator to rep-

resent that a data entity has changed.

Descriptive Metadata. Using the works of (Hein-

richs and Politze, 2020) descriptive metadata that de-

scribes the content of a data entity can be used to

Asynchronous Data Provenance for Research Data in a Distributed System

363

make sure if a data entity has really changed and

more importantly show what has changed. This has

some implications on the deﬁnition of change since

e.g. adding a space to a text ﬁle would not be rec-

ognized as a change because the interpreted content

stays the same. Such a method would, therefore, be

more focused on content-based (e.g. a changed fact)

or structure-based (e.g. different line-count) changes

and not the raw changes that previous indicators are

built on.

Byte-by-Byte Comparison. For completion, a byte-

by-byte comparison could deﬁnitely discover if a

change has happened. However, storing and compar-

ing many versions of data entities is a very storage and

time intensive task and therefore not very favored, es-

pecially since previous indicators are much less com-

plex and achieve similar results.

Content-based Domain-dependent Comparison.

If a method exists which can produce content-based

information from a data entity, this information can

be used to ﬁgure out differences between two data

entities. This however has some limitations because it

is very domain-dependent and there is no generalized

way to represent that information. The descriptive

metadata indicator furthermore is a more deﬁned

variation of this and looks therefore superior.

3.3 Creating a Structure which

Supports Asynchronous Data

Provenance

Following on the deﬁnition of the use-case and the

deﬁnition of change and indicators, a new structure

is proposed that supports asynchronous data prove-

nance. First, the versions which have to be kept track

of for the data entities and metadata will be deﬁned.

Utilizing this information, the new structure is then

presented. Furthermore, the integration in the life-

cycle of data and their metadata is described.

3.3.1 Deﬁnition of Versions

Since data entities and metadata can and should be

versioned, a deﬁnition on what kind of separate ver-

sions in this context exist has to be created. In the

Coscine use-case, one thing which would be neces-

sary for a complete implementation of asynchronous

data provenance is to store every kind of version in

a so-called metadata store to ensure a correct linking

between them. The following lists the version types

and describes the requirements to ensure this correct

linking.

Metadata Version. When a metadata set is created

or updated, it has to receive a version. It is further-

more important to link the current version of the meta-

data set to the previous one.

Data Entity Version. When a change has been de-

tected on a data entity, the data entity should receive

a new version which is either generated or received

from the storage provider. This version change should

trigger an update of the metadata set and the new ver-

sion of the data entity is stored alongside it.

3.3.2 New Graph Structure

Following the previous deﬁnitions, the new graph

structure is now presented which should incorporate

asynchronous data provenance. The previous struc-

ture was adapted in this new concept and improved

upon for an easier adoption. The main structure

revolves around an overarching graph which con-

tains the provenance information, links to every ver-

sioned graph, contains the versions of the data entity

and contains optionally additional metadata for the

change indicators which have been used. Each ver-

sioned graph contains then the metadata for a data en-

tity. The different graphs are a necessity since other-

wise the difference between the versions of metadata

sets cannot be determined. The distinction is made by

an additional parameter in the graph name which de-

ﬁnes the metadata version. Such an approach differ-

entiates itself from current version implementations,

e.g. done in Zenodo and discussed by (European

Organization For Nuclear Research and OpenAIRE,

2013), to keep compatibility with the current graph

name and shift the resolving responsibility more to

the platform receiving these attributes. Furthermore,

for the descriptive metadata a concept is presented

which shows how to represent this kind of metadata

in the new graph structure. The distinction here is an

additional parameter which speciﬁes that the current

graph contains extracted descriptive metadata. The

graph names for the new concept are shown in the

following.

• Overarching Graph:

https://hdl.handle.net/{prefix}/

{storage-provider}@path={path}

• Versioned Graph:

https://hdl.handle.net/{prefix}/

{storage-provider}@path={path}

&version={version}

• Descriptive Metadata Graph:

https://hdl.handle.net/{prefix}/

{storage-provider}@path={path}

&version={version}&extracted

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

364

3.3.3 Integration in the Data Life-cycle

With the new graph structure, it has to be shown that it

ﬁts into the life-cycle of data. The steps being looked

into are the creation, update and deletion of data and

its metadata. Their inclusion and usage is detailed in

the following.

Creation. The creation of a data entity enforces the

manual or automatic creation of a metadata set. Fur-

thermore, the creation of a metadata set should point

to a created data entity. In both cases, the versioned

graph for the metadata set is set to “1”. The parent

graph receives an entry for the new versioned graph

and the version for the data entity which is either “1”

if not provided or the by the storage provider supplied

version.

Update. When a data entity or a metadata set has

been updated and a change has been detected, a new

versioned graph gets created. This graph increases

the last metadata version by “1” and stores the current

metadata with it. The parent graph receives an entry

for the new versioned graph, links the new one to the

old one, stores the version of the data entity and stores

the information about the used change indicator.

Deletion. A deletion of a data entity is seen as a spe-

cial type of update since the metadata set is never

deleted, it is only invalidated. The metadata set itself

can only be emptied according to the requirements on

it, however it can never be deleted. The invalidation

is marked in the parent graph.

3.4 Representing Asynchronous Data

Provenance

Since the questions where and at which step have been

answered, the how question is still open. Therefore, in

the following the concrete proposal for representing

the asynchronous data provenance will be presented.

As PROV-O is a W3C standard for describing

provenance, it was chosen for this approach since the

provided terms are detailed enough for this use-case.

It is to note that when the term “entity” is being used,

in this case a “data entity” is meant and thought of

as represented in the previously deﬁned overarching

graph and directly linked to the respective versioned

graph.

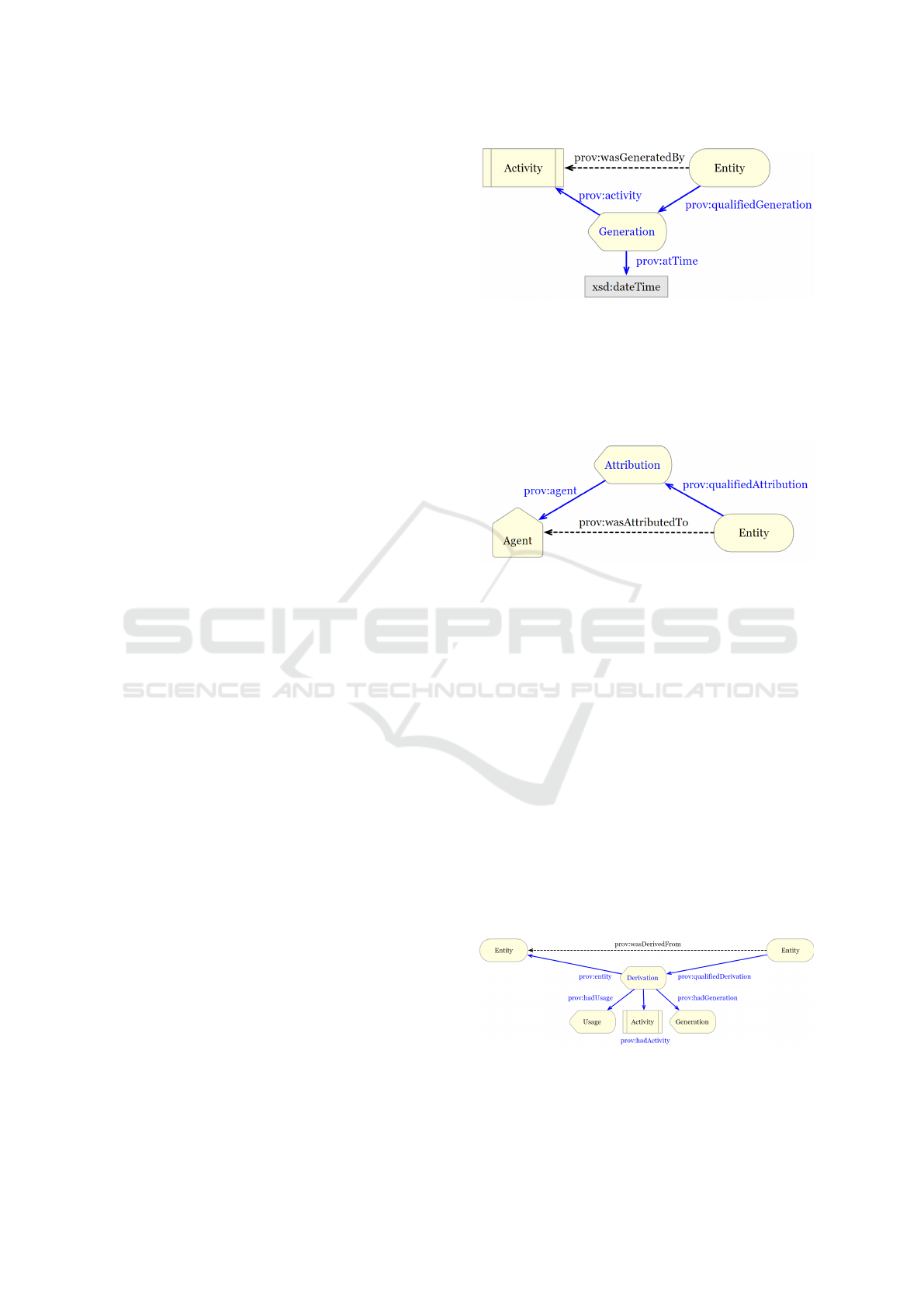

Figure 1 shows the PROV-O representation of an

entity being generated at a certain point. This rep-

resentation is particularly useful in the case of asyn-

chronous data provenance since it can be the case that

a new data entity will just be found at an uncertain

point with no agent which can be attributed to this

data entity. Such a representation therefore can be

Figure 1: Generating an entity with an activity as deﬁned

and visualized by (Belhajjame et al., 2012).

used in this use-case with a data entity as a PROV-O

entity and receiving an asynchronous generation ac-

tivity with the “xsd:dateTime” data type, representing

the time it was discovered.

Figure 2: Attributing an entity to an agent as deﬁned and

visualized by (Belhajjame et al., 2012).

Following on ﬁgure 1, utilizing the concept pre-

sented in ﬁgure 2 moreover produces an entity that

has a generation activity and an agent which is re-

sponsible for this entity. This agent can further-

more be responsible for the generation activity if it

is linked to the generation activity with the predicate

“prov:wasAssociatedWith”. This type of attribution

to an agent is useful in this context since a data entity

can be generated by a platform itself and therefore it is

important to distinguish the asynchronous generation

activity from the synchronous one. The asynchronous

generation activity can however also be associated

with an agent since PROV-O provides the capability

of describing an “Agent” as a “SoftwareAgent”, it just

has to be kept in mind that the agent should differen-

tiate from the synchronous data provenance agents so

that the difference can still be seen.

Figure 3: Deriving an entity from another entity as deﬁned

and visualized by (Belhajjame et al., 2012).

After an entity can be described, ﬁgure 3 focuses

Asynchronous Data Provenance for Research Data in a Distributed System

365

on the derivation of an entity from another. This

is important in the context of updating a data en-

tity and metadata set for describing the path that

entity traversed. It furthermore plays a role in

data entities which move across different storage

providers. Such an update description is either trig-

gered synchronously or asynchronously by looking at

the change indicators and determining that a change

has occurred. Both cases result in a new entity de-

scription and the linking to the old one shown in ﬁg-

ure 3.

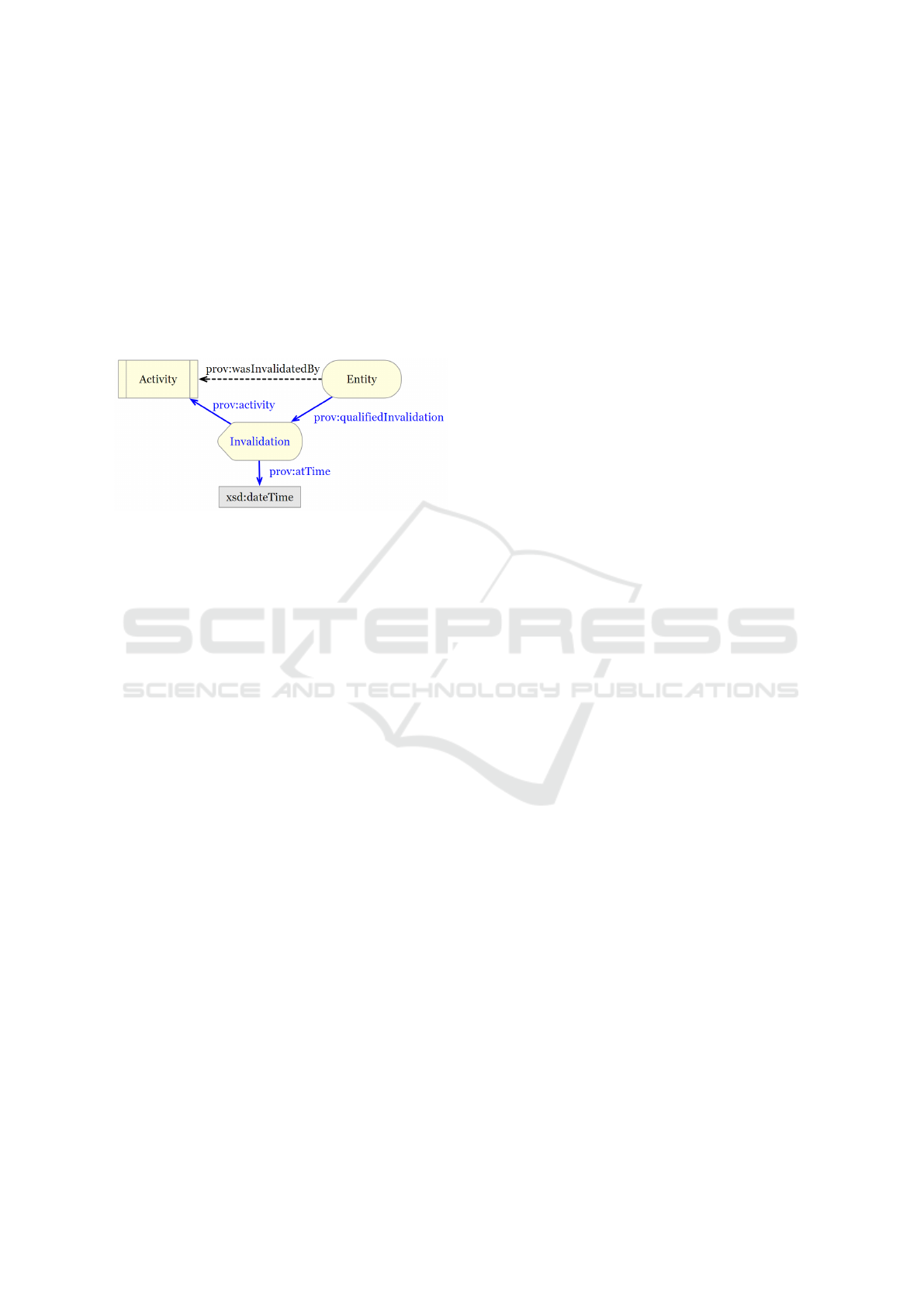

Figure 4: Invalidating an entity with an activity as deﬁned

and visualized by (Belhajjame et al., 2012).

Finally, the end of the path a data entity took has to

be described. If for some reason, the data entity has

been deleted, the representation in 4 can provide a so-

lution for that. The deletion of a data entity therefore

does not mean that the provenance metadata and ev-

erything related to it will be removed, it just means

that the data entity will be marked as invalidated.

4 PRELIMINARY RESULTS

The discussed approach for dealing with asyn-

chronous data provenance has been prototypically im-

plemented for the Coscine use-case. The result is an

application that on execution goes over all data en-

tities that are set to be analyzed. When a new data

entity has been detected or the deﬁned change indi-

cators (in this case “Hash” and “Descriptive meta-

data” as deﬁned in 3.2.2) have been triggered, the

new entity is represented as discussed in section 3.4.

The change indicators are represented by the predi-

cate “foaf:sha1” for the “Hash” change indicator and

the entity is marked as “a foaf:Document” as deﬁned

by (Brickley and Miller, 2014). Furthermore, follow-

ing the work from (Heinrichs and Politze, 2020) the

descriptive metadata is extracted and stored as dis-

cussed in section 3.3.2. The version of the data en-

tity is stored using the predicate of “schema:version”

by declaring the entity as “a schema:CreativeWork”

as discussed by (Guha et al., 2016). The application

is scheduled to run daily, however can be triggered at

any point manually, if a change in data entities is ex-

pected. For representing the synchronous data prove-

nance, event listeners are used to track the creation,

update and deletion of a data entity and a metadata

set and the representation is made according to the

deﬁnitions in section 3.4.

5 CONCLUSION

This paper described the need for a way to capture

data provenance in an environment that does not log

or produce any data provenance related information

since changes are caused by external events like user

interactions in a distributed system. The data prove-

nance being established and needed was deﬁned as

asynchronous data provenance and a concept was pro-

posed which can represent it. A clear need to de-

scribe the type of change for a data entity was estab-

lished and the indicators for a change were presented.

Furthermore, an approach was deﬁned for describing

the provenance information in separate graphs and de-

scribing the interplay between them. With this, a con-

cept was created to describe the path a data entity has

traversed, even if the change is not directly triggered

or logged by the integrating platform.

5.1 Identiﬁed Research Gaps

Although a concept was presented which can deal

with asynchronous data provenance, some questions

are still open that need to be answered for completing

a full implementation and are presented in the follow-

ing.

• There are a lot of possible change indicators pro-

vided and some of them are used in the prototyp-

ical implementation, however a question still re-

mains. Are there any more change indicators out

there and which are the best choice for which sce-

nario?

• How can change indicators be evaluated?

• Can machine learning fuel a change indication al-

gorithm and even get a rough estimation on how

similar the old and new data entity is?

• How can the current graph structure be general-

ized to other persistent identiﬁer and preﬁxes?

• What is a good time frame to try and establish

changes on external storage providers?

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

366

5.2 Future Work

Following on this work, the prototypical implemen-

tation will be enhanced, so that it not only supports

the requirements of the Coscine platform, but can be

used in general. With work looking into different

change indicators and implementing them, it will be

seen how well they perform and which produce the

best results in performance, accuracy and applicabil-

ity. Even new developed methods, which could focus

on machine learning and fueling a change indicator

based on a trained model, could be interesting in this

evaluation. Furthermore, the paper is focused on data

entities however an interesting area to look into is how

to reﬂect this research on collection of data entities

and collection of collections. Since a change indicator

is proposed, another area of future interest is to see if

the difference between data entities in two collections

could tell the similarity between them. Especially

by looking into the descriptive metadata as well, the

deﬁning topics which are similar could be detected by

such a method and most importantly which topics are

not the same.

REFERENCES

Ametepe, W., Wang, C., Ocansey, S., Li, X., and Hussain,

F. (2018). Data provenance collection and security

in a distributed environment: a survey. International

Journal of Computers and Applications, pages 1–15.

Belhajjame, K., Cheney, J., Corsar, D., Garijo, D., Soiland-

Reyes, S., Zednik, S., and Zhao, J. (2012). Prov-o:

The prov ontology.

Bensberg, S. (2020). An efﬁcient semantic search en-

gine for research data in an RDF-based knowledge

graph. Masterarbeit, RWTH Aachen University,

Aachen. Ver

offentlicht auf dem Publikationsserver

der RWTH Aachen University; Masterarbeit, RWTH

Aachen University, 2020.

Brickley, D. and Miller, L. (2014). Foaf vocabulary speciﬁ-

cation. http://xmlns.com/foaf/spec/.

Cruz, S., Campos, M., and Mattoso, M. (2009). Towards a

taxonomy of provenance in scientiﬁc workﬂow man-

agement systems. SERVICES 2009 - 5th 2009 World

Congress on Services.

Cyganiak, R., Lanthaler, M., and Wood, D. (2014). RDF

1.1 concepts and abstract syntax. W3C recommenda-

tion, W3C. http://www.w3.org/TR/2014/REC-rdf11-

concepts-20140225/.

Davidson, S., Cohen-Boulakia, S., Eyal, A., Lud

ascher, B.,

McPhillips, T., Bowers, S., Anand, M., and Freire, J.

(2007). Provenance in scientiﬁc workﬂow systems.

IEEE Data Eng. Bull., 30:44–50.

Davidson, S. and Freire, J. (2008). Provenance and scien-

tiﬁc workﬂows: Challenges and opportunities. pages

1345–1350.

E. Stephan, B. Raju, T. Elsethagen, L. Pouchard, and C.

Gamboa (2017). A scientiﬁc data provenance har-

vester for distributed applications. In 2017 New York

Scientiﬁc Data Summit (NYSDS), pages 1–9.

European Organization For Nuclear Research and Ope-

nAIRE (2013). Zenodo.

Foster, E. D. and Deardorff, A. (2017). Open science frame-

work (osf). Journal of the Medical Library Associa-

tion : JMLA, 105(2):203–206.

Guha, R. V., Brickley, D., and Macbeth, S. (2016).

Schema.org: Evolution of structured data on the web.

Commun. ACM, 59(2):44–51.

Heinrichs, B. and Politze, M. (2020). Moving towards a

general metadata extraction solution for research data

with state-of-the-art methods.

Herschel, M., Diestelk

amper, R., and Ben Lahmar, H.

(2017). A survey on provenance: What for? what

form? what from? The VLDB Journal, 26.

Hu, R., Yan, Z., Ding, W., and Yang, L. T. (2020). A

survey on data provenance in iot. World Wide Web,

23(2):1441–1463.

Interlandi, M., Ekmekji, A., Shah, K., Gulzar, M. A., Tetali,

S. D., Kim, M., Millstein, T., and Condie, T. (2018).

Adding data provenance support to apache spark. The

VLDB Journal, 27(5):595–615.

Mufti, Z. and Elkhodr, M. (2018). Data Provenance in the

Internet of Things: Views and Challenges.

erez, B., Rubio, J., and S

aenz-Ad

an, C. (2018). A system-

atic review of provenance systems. Knowledge and

Information Systems, 57(3):495–543.

Politze, M., Claus, F., Brenger, B. D., Yazdi, M. A., Hein-

richs, B., and Schwarz, A. (2020). How to manage

it resources in research projects? towards a collab-

orative scientiﬁc integration environment. European

journal of higher education IT, 1(2020/1):5.

Schmitz, D. and Politze, M. (2018). Forschungsdaten man-

agen – bausteine f

ur eine dezentrale, forschungsnahe

unterst

utzung. o-bib. Das offene Bibliotheksjournal /

Herausgeber VDB, 5(3):76–91.

Schwardmann, U. (2015). epic persistent identiﬁers for ere-

search. In Presentation at the joint DataCite-ePIC

workshop Persistent Identiﬁers: Enabling Services for

Data Intensive Research, Paris, volume 21.

Smith, W., Moyer, T., and Munson, C. (2018). Curator:

Provenance management for modern distributed sys-

tems. In Proceedings of the 10th USENIX Confer-

ence on Theory and Practice of Provenance, TaPP’18,

page 5, USA. USENIX Association.

Talia, D., Thramboulidis, K., Lai, B. C., and Cao, J. (2013).

Workﬂow systems for science: Concepts and tools.

ISRN Software Engineering, 2013:404525.

Wilkinson, M. D., Dumontier, M., Aalbersberg, I. J. J.,

Appleton, G., Axton, M., Baak, A., Blomberg, N.,

Boiten, J.-W., da Silva Santos, L. B., Bourne, P. E.,

Bouwman, J., Brookes, A. J., Clark, T., Crosas, M.,

Dillo, I., Dumon, O., Edmunds, S., and Evelo, Chris

T. ... Mons, B. (2016). The fair guiding principles for

scientiﬁc data management and stewardship. Scientiﬁc

data, 3:160018.

Asynchronous Data Provenance for Research Data in a Distributed System

367
