Automated Generation of Management Workﬂows for Running

Applications by Deriving and Enriching Instance Models

Lukas Harzenetter

, Tobias Binz

, Uwe Breitenbücher

, Frank Leymann

and Michael Wurster

University of Stuttgart, Institute of Architecture of Application Systems, Universitätsstraße 38, 70569 Stuttgart, Germany

Robert Bosch GmbH, IoT & Digitalization Architecture, 70442 Stuttgart, Germany

Keywords:

Application Management, Management Automation, Cloud Computing, Workﬂows, TOSCA.

Abstract:

As automation is a key driver to achieve efﬁciency in the ever growing IT landscape, many different deploy-

ment automation technologies arose. These technologies to deploy and manage applications have been widely

adopted in industry and research. In larger organizations, usually even multiple deployment technologies are

used in parallel. However, as most of these technologies offer limited or no management capabilities, man-

aging application systems deployed using different deployment technologies is cumbersome. Thus, holistic

management functionalities affecting multiple components of an application, e. g., update or back up all com-

ponents, is impossible. In this paper, we present an approach that enables the automated execution of holistic

management functionalities for running applications. To achieve this, we ﬁrst retrieve instance information of

a running application and derive a standardized instance model of the application. Afterwards, the instance

model is enriched with additional management functionality. We hereby extend the existing Management Fea-

ture Enrichment and Workﬂow Generation approach to support running applications. To execute the enriched

management functionalities on the running application, standard-based workﬂows are generated.

1 INTRODUCTION

The automation of application deployments became

very important, especially in the widely adopted

area of cloud computing as manually deploying ap-

plications is error-prone, cumbersome, and time-

consuming (Oppenheimer, 2003). Today, many

deployment automation technologies are available,

e. g., Kubernetes, Puppet, and AWS CloudFormation.

Most deployment technologies use deployment mod-

els to deploy applications automatically (Bergmayr

et al., 2018). Hereby, deployment models usually de-

scribe applications declaratively in the form of their

structure, i. e., their components and their relations.

For example, a simple web-shop may connect to a

database and is provided by a web-server installed

on a virtual machine (VM). However, large organi-

zations usually employ multiple deployment automa-

tion technologies to manage their wide variety of ap-

plications. Hence, each application must be managed

using different technologies.

Although some technologies enable the manage-

ment of individual application components, e. g., scal-

ing the amount of web-servers, they rarely support

performing component overarching and more com-

plex management functionalities. Thus, holistic man-

agement of an application, i. e., management of all its

components that may be distributed over multiple en-

vironments, is a major challenge and mostly not sup-

ported (Harzenetter et al., 2019b). An example for

a holistic management functionality is the creation of

backups of all stateful components that are distributed

over multiple cloud providers or performing rolling

updates on all components. Thus, to enable holistic

management functionalities, operators must develop

custom automations for each application and em-

ployed runtime technologies. This requires deep tech-

nical knowledge, expertise in different kinds of tech-

nologies, and is very time-consuming. To tackle this,

we introduced an approach to automatically enrich

deployment models with holistic and custom manage-

ment functionalities which can be executed by gener-

ated workﬂows (Harzenetter et al., 2019b). For exam-

ple, if a deployment model is enriched with a backup

functionality, a workﬂow is generated that executes

the backup operations of all stateful components.

The Management Feature Enrichment and Work-

ﬂow Generation approach (Harzenetter et al., 2019b)

is able to enrich applications before their deployment

with additional management functionality by process-

Harzenetter, L., Binz, T., Breitenbücher, U., Leymann, F. and Wurster, M.

Automated Generation of Management Workﬂows for Running Applications by Deriving and Enriching Instance Models.

DOI: 10.5220/0010477900990110

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 99-110

ISBN: 978-989-758-510-4

ing its declarative deployment model and generating

executable management workﬂows. However, it is

not possible to enrich running applications with ad-

ditional management functionalities. Moreover, by

performing management functionalities on a running

application, the application’s state may change, e. g.,

by installing security updates. Since most deployment

technologies also monitor the applications they have

deployed, they may detect performed changes and re-

vert them. Hence, the main research questions (RQ)

we are resolving are:

RQ 1. How can running applications be en-

riched with additional, holistic management

functionalities that are not supported by the used

deployment technology?

We are addressing RQ 1 by splitting it into the follow-

ing questions tackling the two main challenges:

RQ 1.1. How can a normalized, technology-

independent, and typed instance model of a run-

ning application be retrieved automatically from

a speciﬁc used deployment technology?

RQ 1.2. How can the interference of the under-

lying deployment technology be avoided?

To resolve RQ 1.1, we introduce new concepts to

(i) retrieve instance information about the compo-

nents of a running application from its underlying

deployment technology, and to (ii) derive a normal-

ized instance model of the application by interpret-

ing the retrieved component information and mapping

them to normalized component types. Hence, by an-

alyzing the generated instance model, we are able to

tackle RQ 1.2 by (iii) extending the existing Manage-

ment Feature Enrichment and Workﬂow Generation

approach to support the enrichment of management

functionality such that it also considers the underlying

deployment technology the application was originally

deployed with. As a result, management workﬂows

can be generated for each management functionality

that can be executed on the running application, en-

abling the management of all deployed applications

in a company from a single dashboard.

However, the instance information provided by

the deployment technologies is often insufﬁcient to

derive and perform arbitrary management function-

alities for an application. For example, component-

speciﬁc properties, such as the web application con-

text, cannot always be identiﬁed based on the de-

ployment technology-speciﬁc instance information.

Therefore, we are additionally tackling RQ 2:

RQ 2. How can a technology-independent in-

stance model of a running application be reﬁned

to represent details about the application?

To address RQ 2, we are adapting and extending

our previous work (Binz et al., 2013) to automati-

cally reﬁne identiﬁed component types and retrieve

component-speciﬁc runtime properties to create a de-

tailed instance model of a running application.

Hereafter, Sect. 2 provides background followed

by the presentation of our approach in Sect. 3. Sect. 4

outlines the prototype and presents a case study, while

Sect. 5 discusses the approach. Finally, Sect. 6 dis-

cusses related work and Sect. 7 concludes the paper.

2 FUNDAMENTALS, PREVIOUS

WORK, AND PROBLEM

STATEMENT

This section introduces fundamental terms, describes

existing work, and discusses its current limitations.

2.1 Deployment Automation

The automation of application deployments is of vital

importance, as manual deployments are cumbersome

and error-prone (Oppenheimer, 2003). To describe

an application deployment, deployment models which

can be classiﬁed into imperative and declarative mod-

els (Endres et al., 2017) are typically used (Bergmayr

et al., 2018). Imperative deployment models de-

ﬁne the exact order of operations that must be exe-

cuted to deploy an application, e. g., in the form of

a script or workﬂow. In contrast, declarative deploy-

ment models describe the structure of an application

by modeling its components, their relations, and their

conﬁguration—in general as directed and weighted

graphs (Wurster et al., 2019). Thus, a deployment

technology must interpret the declarative model and

derive the necessary steps to deploy the application

including all modelled components and relations.

A standardized language that combines declar-

ative and imperative models is the Topology and

Orchestration Speciﬁcation for Cloud Applications

(TOSCA) (OASIS, 2013, 2020). TOSCA is an ac-

tively maintained standard by OASIS and provides

a vendor- and technology agnostic metamodel to de-

ploy and manage applications. In TOSCA, the de-

ployment of an application can be modeled (i) declar-

atively in the form of Topology Templates, and (ii) as

imperative Plans, i. e., executable workﬂow models,

that are deﬁned by languages such as BPEL (OASIS,

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

100

DB-Name: orders

Database

(MySQL-DB)

Context: /

Order-App

(Java Web App)

Port: 80

Webserver

(Tomcat 9)

Port: 3306

DBMS

(MySQL-DBMS 7)

Public-Address: ~

(Ubuntu 20.04)

Account: myAccount

Public Cloud

(AWS)

Public-Address: ~

(Ubuntu 20.04)

Endpoint: http://...

Private Cloud

(OpenStack)

Legend

Enriched Node Type

(…

)

Test Operation

Backup Operationb

Account: myAccount

Public Cloud

(AWS)

DB-Name: orders

Database

(MySQL-DB

)

Port: 3306

DBMS

(MySQL-DBMS 7

)

Public-Address: ~

(Ubuntu 20.04

)

Endpoint: http://...

Private Cloud

(OpenStack)

Context: /

Order-App

(Java Web App

)

Port: 80

Webserver

(Tomcat-9

)

Public-Address: ~

(Ubuntu 20.04

)

hostedOn Relation

connectsTo Relation

Node Type(…)

Legend

Management

Workflow

Generator

Feature Node

Types Repository

Management

Feature

Enricher

Test

…

Backup

Backup WorkflowTest Workflow

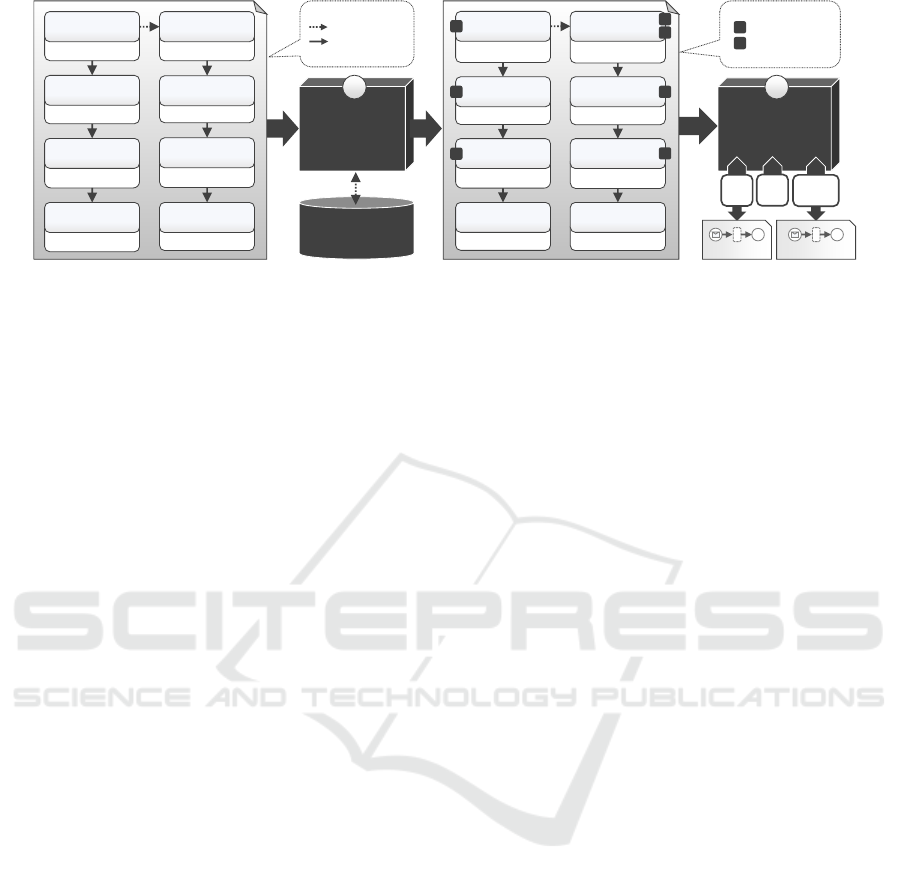

Figure 1: The Management Feature Enrichment and Workﬂow Generation approach (Harzenetter et al., 2019b).

2007). Since imperative models can be derived from

declarative ones automatically (Breitenbücher et al.,

2014), we focus on declarative models. To model ap-

plications in TOSCA, they are declaratively deﬁned

in Topology Templates which are directed graphs in

which nodes are represented by Node Templates and

edges are Relationship Templates. TOSCA deﬁnes a

typing system which makes it ontologically extensi-

ble (Bergmayr et al., 2018) in the form of Node Types

and Relationship Types. These types deﬁne a certain

semantic by using Properties, Interfaces, and their

corresponding Operations. For example, consider the

application shown on the left of Fig. 1: Here, an “Or-

der App” of type Java Web App is running on a Tom-

cat web server that is installed on a Ubuntu VM run-

ning on AWS. Additionally, to store its data, the Or-

der App connects to a database of type MySQL-DB

which is managed by a database management system

(DBMS) of type MySQL DBMS. The DBMS is also

installed on a Ubuntu VM which is, however, running

in an OpenStack infrastructure. To express that, e. g.,

the web server is installed on the VM, the two node

templates are connected by a relationship template

which is an instance of the relation type Hosted-On.

Further, the Tomcat node type, for example, deﬁnes

a Port property to conﬁgure the port the web server

instance should be listening to. Lastly, the whole

application is packaged in a Cloud Service Archive

(CSAR) that contains all necessary elements like node

and relationship types, as well as executables, such as

install scripts, to deploy the modeled application.

2.2 Management Feature Enrichment

and Workﬂow Generation Method

To enrich applications with additional management

functionality, we previously introduced the Manage-

ment Feature Enrichment and Workﬂow Generation

(MFEW) method (Harzenetter et al., 2019b).

2.2.1 Overview of the Management Feature

Enrichment and Workﬂow Generation

The Management Feature Enrichment and Workﬂow

Generation method is illustrated in Fig. 1. In the ﬁrst

step, a declaratively modeled application is passed to

the Management Feature Enricher component which

analyzes the application’s components based on their

types. It hereby searches through a repository con-

taining additional management functionalities that are

realized in the form of Feature Node Types that de-

ﬁne specialized management operations. For exam-

ple, one feature node type may provide an operation to

backup a MySQL database, while another may offer

operations to test the availability and accessibility of

Ubuntu VMs. Thus, if a user wants to have additional

backup and test functionalities, all node types in the

given application are enriched with the correspond-

ing operations, if they are available in the repository,

by generating so-called Enriched Node Types that re-

place the current types in the topology template.

In the second step, management workﬂows, i. e.,

TOSCA management plans, are automatically derived

by a Management Workﬂow Generator: For each en-

riched management functionality, there is a dedicated

workﬂow generation plugin that generates a workﬂow

that executes the corresponding operations on an ap-

plication. Thus, a Test workﬂow and a Backup work-

ﬂow are generated for the application shown in Fig. 1.

2.2.2 Limitations of the Current Method

The current MFEW method is based on declarative

deployment models (Harzenetter et al., 2019b). Thus,

it only works for not-deployed applications. In order

to apply the idea of subsequently adding management

functionality also to running applications, we trans-

fer the general idea of our previous work to instance

models in this paper. Since instance models of run-

ning applications can also be represented as directed

and weighted graphs (Binz et al., 2012; Wurster et al.,

Automated Generation of Management Workﬂows for Running Applications by Deriving and Enriching Instance Models

101

2019), the MFEW approach provides the basic foun-

dation. However, two major extensions and adapta-

tions are required: (i) Instance models must be re-

trieved and normalized to correctly identify the node

types of the components to enable the enrichment of

management functionalities (cf. RQ 1.1). Therefore,

a concept is needed that is capable of transforming de-

ployment technology-speciﬁc instance models to nor-

malized, i. e., technology-agnostic, instance models.

(ii) To enrich instance models with additional man-

agement functionalities, the identiﬁcation of avail-

able management functionalities requires a new con-

cept: If an operation is changing the application’s

state, the underlying deployment technology may re-

vert the performed changes and restore the previous

state. Hence, the available functionalities must be

selected carefully and the implementations must no-

tify the deployment technology to avoid its interfer-

ence. Therefore, we are distinguishing between two

different kinds of management functionalities, state-

changing and state-preserving management function-

alities. State-changing functionalities change the ap-

plications state, e. g., changing the conﬁguration of

components or adding and removing components;

state-preserving functionalities only interact with the

components. For example, installing updates is a

state-changing management functionality, while re-

trieving a backups is a state-preserving functionality.

2.3 Crawling Instance Models

In previous work, we presented an iterative approach

to automatically derive instance models of enterprise

applications (Binz et al., 2013). To achieve this, we

introduced a plugin-based crawler that is able to iden-

tify the components and their corresponding types of

an application. These technology-speciﬁc plugins are

able to perform all kinds of operations in order to de-

rive and reﬁne an instance model of a given applica-

tion (Binz et al., 2013). For example, a plugin may

send HTTP requests to determine a speciﬁc type of

web server based on the response’s headers, while an-

other plugin may be able to log in to a VM via SSH

to identify ﬁles or processes that indicate a speciﬁc

running component. However, as we did not consider

the underlying deployment technology, the generated

models cannot be used to manage the applications as

management functionalities may change the state of

the application, e. g., by installing security updates.

Hence, the deployment technology may interfere and

revert the performed changes. Thus, we cannot use

the crawling approach as we have to consider the de-

pendencies to the deployment technology when per-

forming state-changing management functionalities.

3 MANAGING RUNNING

APPLICATIONS BY

GENERATING WORKFLOWS

To enable the enrichment of management functional-

ities for running applications, a model of the applica-

tion is required. This model must be retrieved from

the running application and normalized to describe

the components of the application in a technology-

independent way. An overview of the proposed ap-

proach is illustrated in Fig. 2: The ﬁrst, new step

retrieves the deployment technology-speciﬁc instance

information about the running application that should

be manageable. Thus, plugins of the Instance Infor-

mation Retriever component (1) access the APIs of

the deployment technologies used to deploy the appli-

cation. Second, the new Instance Model Normalizer

component (2) interprets the gathered technology-

speciﬁc information and derives a normalized in-

stance model of the application. In this step, the infor-

mation about the deployed components are mapped to

known and normalized node types extending the nor-

mative TOSCA node types (OASIS, 2020) by con-

crete technologies such as Ubuntu, MySQL, or Tom-

cat. However, since the deployment technologies do

not always hold all necessary information, the nor-

malized instance model must be completed by a ded-

icated Instance Model Completer component (3) in

the third step. For example, Kubernetes only knows

containers and their conﬁguration that can be passed

from the outside but does not have information about

the components inside, while Puppet usually knows

all installed and conﬁgured components but may not

hold all required properties about them. Fourth, in

the extended Management Feature Enricher compo-

nent (4), available management functionality is added

to the normalized instance model. As described in

Sect. 2.2.2, the identiﬁcation of available manage-

ment functionalities must consider the underlying de-

ployment technology. Finally, the enriched instance

model is interpreted by the Management Workﬂow

Generator component (5) to derive workﬂows for

each enriched management functionality that can be

executed on a suitable Workﬂow Engine (6).

3.1 Instance Information Retriever

In the ﬁrst step, the new Instance Information Re-

triever component retrieves the technology-speciﬁc

instance models from deployment technologies using

specialized plugins as depicted in Fig. 2. When us-

ing existing approaches, e. g., crawling (Binz et al.,

2013) and network scanning (Holm et al., 2014), to

retrieve instance information about running applica-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

102

Instance

Information

Retriever

Instance

Model

Normalizer

Instance

Model

Completer

Kubernetes

Kubernetes API

Puppet

Puppet API

… …

Technology-

specific Information

State Changing

Operations

State-Preserving

Operations

Normalized

Instance Model

API call to

get Information

API call to

get Information

Running

Applications

ManagesManages

Normalized Node

Types Repository

Docker

Completed

Instance Model

Reused Component

(Harzenetter 2019b)

Workflow Engine

Management

Workflow

Generator

Test

…

Backup

Backup WorkflowTest Workflow

Instance

Model

Enricher

Completed & Enrichted

Instance Model

C E

Adapted Component

(Harzenetter 2019b)

Feature Node

Types Repository

…

New Components

Cloud Services

(e.g., IaaS, PaaS)

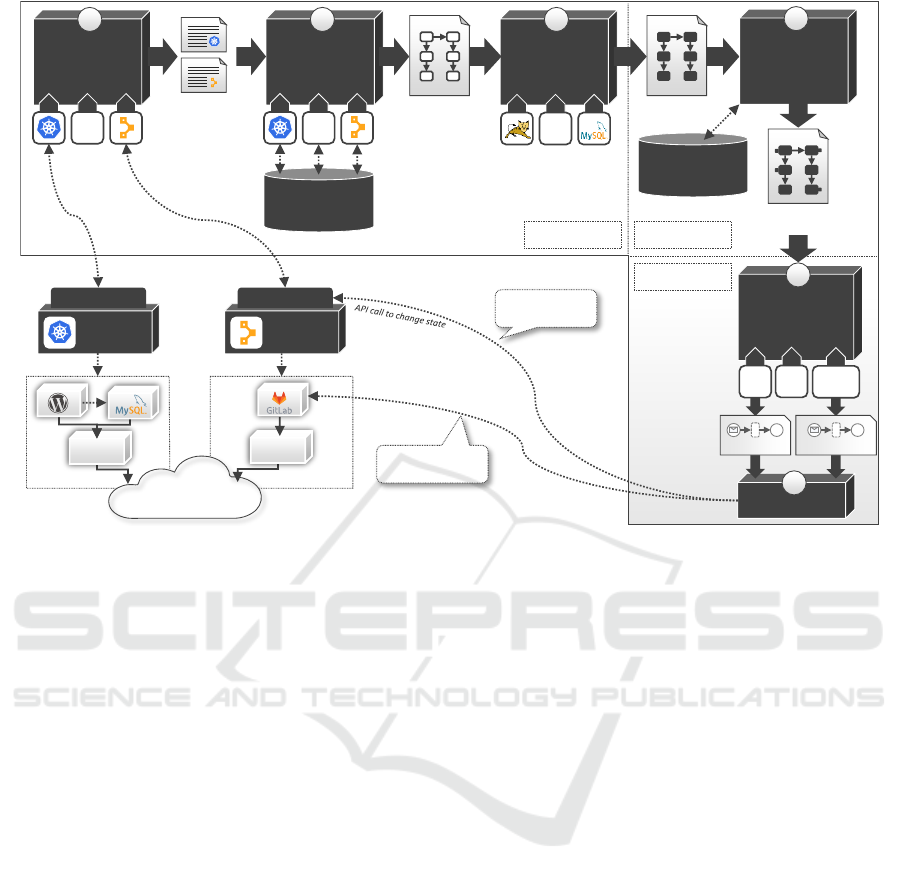

Figure 2: Overview of the approach to generate management workﬂows for running applications.

tions, a major drawback arises if the generated mod-

els are used to manage the applications: The models

do not contain any information about the deployment

technologies used to deploy the applications. Thus, if

a management functionality is changing the state of

the application, e. g., installing security updates, most

deployment technology recognize the changes and try

to revert them to the previous state. To avoid this, we

retrieve the information about running applications

from the API of the respective deployment technology

using plugins and add the information as annotations

to the derived model. Hence, state-changing manage-

ment functionalities are able to notify the deployment

technology about state changes using the annotated

information and, thus, can avoid their interference.

Depending on the deployment technology, the in-

formation about the components of an application that

can be accessed varies in its expressiveness. For ex-

ample, while it is possible to retrieve information

about concrete software components that are installed

on a speciﬁc machine from Chef or Puppet, Terraform

and Kubernetes do not hold such information as they

focus on managing cloud resources, computing in-

frastructure, and containers. Therefore, the granu-

larity level of the instance data retrieved from the

deployment technologies differs from infrastructure

components, i. e., compute instances, such as VMs,

to actual software components, such as applications

and middleware, hosted on these compute instances.

3.2 Instance Model Normalizer

Based on the data retrieved in step one, a normalized

model of the application is derived in the second step

using the new Instance Model Normalizer. As this

data is highly speciﬁc to the deployment technology

it has been retrieved from, custom logic that is able to

interpret the technology-speciﬁc data is required for

further processing. Hence, plugins for the respective

deployment technologies must be able to understand

the retrieved instance data and generate normalized

instance models. Moreover, the generated instance

models must also contain all necessary information

about the underlying deployment technology. For ex-

ample, how it can be accessed, as well as technology-

speciﬁc IDs that identify the components inside the

deployment technology-speciﬁc instance model.

Since TOSCA deﬁnes a vendor and technology

agnostic, as well as ontologically extensible meta

model (Bergmayr et al., 2018), we use it to describe

application instances. Thus, the technology-speciﬁc

components are represented as node templates which

must be mapped to node types deﬁning their seman-

tics. For example, if an instance of a Ubuntu oper-

ating system (OS) is found to be running as a VM,

it can be mapped to a node template that is an in-

stance of the normalized Ubuntu node type. These

normalized node types can be deﬁned in a repository

to specify the semantics of components in a standard-

Automated Generation of Management Workﬂows for Running Applications by Deriving and Enriching Instance Models

103

ized and normalized manner. Additionally, the nor-

malized node types may deﬁne abstract deﬁnitions to

describe the overall semantics and explicit versions.

For example, a Ubuntu node type deﬁnes that the

VM is running a Ubuntu OS, while a Ubuntu 20.04

node type reﬁnes this information with a speciﬁc ver-

sion. However, there are cases in which the deploy-

ment technology-speciﬁc information is not sufﬁcient

enough to identify a component’s type. In this case,

the generic TOSCA Normative Node Types (OASIS,

2020) are used to represent the identiﬁed compo-

nents. For example, TOSCA deﬁnes a generic Soft-

ware Component node type which can be used to rep-

resent any kind of software component. Similarly, the

generic Compute node type is available to represent

computing resources such as VMs or containers if a

more concrete node type cannot be identiﬁed.

Additionally, the instance model normalizer must

map component speciﬁc properties from deployment

technology-speciﬁc information to the normalized

representation in TOSCA. Thus, as node types de-

ﬁne the available properties their node templates have,

four kinds of mappings between instance properties

and properties of the node type, can be differentiated:

(i) A property is named equally. In most cases, the

mapping is straightforward. However, the contents

may be semantically different and a more complex

mapping may be required (cf. case iii). (ii) The name

of a property is different but they are describing the

same element. For example, a property of a VM in the

retrieved instance information is named “IP-address”,

while the Compute node type deﬁnes it as “public-

address”. Hence, the mapping is usually straightfor-

ward. (iii) A property consists of two or more proper-

ties in one model, while it is combined into one in the

other model. This may be the case, if a web compo-

nent has only a property called “url” while the corre-

sponding node type deﬁnes separate properties for the

“hostname”, “port”, and “context-path”. Thus, a more

complex property mapping is required. (iv) Lastly,

there may be properties which cannot be mapped. For

example, if a property cannot be mapped to a property

of a node type, it can be saved in the model as addi-

tional metadata to enable manual reﬁnement of the

component, e. g., to a custom node type that could not

be identiﬁed automatically. In contrast, if a property

is not available in the retrieved instance data, it cannot

be ﬁlled and, thus, will remain empty.

3.3 Instance Model Completer

In the third, new Instance Model Completer com-

ponent, the normalized instance model is reﬁned

with detailed information about component types and

property values. Since the instance information that

are accessible from the deployment technologies may

not produce a complete model of an application, we

introduce the Instance Model Completer as a third

step. The instance model completer is based on

our previously introduced plugin-based crawler (Binz

et al., 2013). Hereby, plugins identify components

of an application, retrieve their conﬁguration, or re-

ﬁne their types. Then, these component-speciﬁc in-

formation are used to improve the derived instance

model. For example, a Tomcat plugin is able to iden-

tify whether a Tomcat web server is running on a VM

or container, reﬁne an already identiﬁed Tomcat com-

ponent to a speciﬁc version, and identify the port it is

listening to. Additionally, plugins may also be able

to reﬁne the properties or types of multiple compo-

nents. For example, as a Tomcat web server provides

access to applications via the internet, it may be able

to identify the context in which a particular web ap-

plication is accessible. Thus, we extended our con-

cepts by a sub-graph mechanism to identify plugins

that are able to reﬁne the instance model and enrich

it with more details. Thus, to reﬁne node types and

ﬁll their properties with additional runtime informa-

tion, the plugins may specify multiple detectors that

deﬁne graph elements they can reﬁne. For example,

the Tomcat plugin may be able to reﬁne the normative

WebServer (OASIS, 2020) node type to a concrete

Tomcat 9 node type if it can identify speciﬁc ﬁles or

processes running an the corresponding VM. To tell

the instance model normalizer, that the Tomcat plugin

may be able reﬁne a node template of type WebServer

to a Tomcat web server, the plugin’s detector contains

a node template of type WebServer. Additionally, to

also deﬁne that the plugin is able to ﬁnd context paths

of applications running on a Tomcat web server, it

also deﬁnes a detector with two node templates: A

Tomcat web server that hosts a node template of type

WebApplication. Thus, to complete a whole applica-

tion, the instance model completer applies all plugins

that have matching detectors, i. e., their detectors are

sub-graphs of the instance model, until there are no

more plugins that can reﬁne the instance model.

3.4 Management Feature Enricher

After a normalized and completed instance model of

the application is generated, it is enriched with addi-

tional management functionalities using the adapted

Management Feature Enricher in the fourth step. The

enrichment of instance models with additional man-

agement functionality is hereby based on the MFEW

method as described in Sect. 2.2. In general, we

can distinguish two kinds of management function-

alities: State-changing and state-preserving manage-

ment functionality. While state-changing functional-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

104

ity alters the application’s components or their con-

ﬁguration, e. g., renewing licenses or updating com-

ponents, state-preserving functionality only interacts

with the components, e. g., to retrieve their data.

Therefore, the derived instance model of an appli-

cation can always be enriched with state-preserving

functionalities. In contrast, to execute state-changing

functionalities on a running application, the under-

lying deployment technology must be taken into ac-

count, as state changes may be detected by the de-

ployment technology which may restore the previous

state. To avoid this, the instance model must be anno-

tated with the deployment technology it was retrieved

from. Using this information, state-changing func-

tionality can be ﬁltered by implementations that sup-

port the propagation of state changes to the respective

deployment technology’s API to avoid its interfer-

ence. Therefore, feature node types that provide state-

changing operations, must also be annotated with the

deployment technologies they support. We extended

the Management Feature Enricher to support ﬁltering

of functionalities based on the annotation of the used

deployment technology. As a result, the enriched in-

stance model contains only management functionali-

ties that either support the deployment technology, or

do not change the application’s state.

3.5 Management Workﬂow Generator

In the ﬁfth step, the reused Management Work-

ﬂow Generator component automatically derives ex-

ecutable management workﬂows. After the instance

model has been enriched with management func-

tionalities, i. e., its node types have been replaced

with generated enriched node types that provide the

selected management functionalities, workﬂows are

generated for each management functionality. For ex-

ample, if a user selected the backup and test func-

tionalities, two workﬂows are generated: One execut-

ing all tests of all components that have test opera-

tions, the second creates backups of the stateful com-

ponents that provide a backup operation. The gener-

ation of these workﬂows is handled by plugins that

implement logic to execute the respective operations

of each component in the correct order.

Finally, the generated workﬂows can be executed

on a compatible Workﬂow Engine. To invoke the

workﬂows’ execution, the application is accessible in

a dashboard enabling users to manage the applica-

tions. Depending on the management operation, the

workﬂow may require additional input. For example,

to perform operations on a VM, a username and pass-

word or private key are required in order to connect to

the VM and execute script-based operations.

4 PROTOTYPICAL VALIDATION

To prove the feasibility of the presented approach,

a prototypical open-source implementation based on

the OpenTOSCA ecosystem (Breitenbücher et al.,

2016; OpenTOSCA, 2020) and the new Instance

Model Retrieval Framework (Mathony, 2020) is pro-

vided. OpenTOSCA consists of three components:

(i) Winery, a web-based modeling environment for

TOSCA applications, (ii) the OpenTOSCA Run-

time Container to deploy TOSCA applications, and

(iii) Vinothek, a UI to manage running applications.

4.1 Ecosystem Overview & Extensions

The extensions to the OpenTOSCA Ecosystem and

the new Instance Model Retrieval Framework are

analogous to the extensions illustrated in Fig. 2.

The new Instance Retrieval Framework implements

both, the information retrieval and the transforma-

tion of the information to a normalized, TOSCA-

based instance model. Thus, we designed a plugin-

based component inside the Instance Model Retrieval

Framework to enable its extensibility for new deploy-

ment technologies. To prove the concepts, we im-

plemented plugins for AWS CloudFormation, Open-

Stack Heat, Puppet, and Kubernetes. These plugins

implement technology-speciﬁc logic to retrieve infor-

mation about running applications, i. e., their compo-

nents, properties, and conﬁgurations, by sending re-

quests to the respective deployment technology’s API.

To derive a normalized instance model, the plug-

ins identify the semantics of technology-speciﬁc com-

ponents by mapping them to normalized node types

deﬁned in a node types repository. Thereby, provider-

speciﬁc properties are mapped to the properties de-

ﬁned by the node types. As a result, a technology-

agnostic model of the running application is gener-

ated which is then imported into the TOSCA mod-

eling tool Winery. Winery not only provides mod-

eling features but also implements the new Instance

Model Completer as well as the Management Feature

Enricher components. Thus, after importing the gen-

erated instance model, ﬁrst the new Instance Model

Completer component is executed to reﬁne the node

types and ﬁll missing property values. Then the up-

dated Management Feature Enricher can be invoked

to identify available management functionalities that

can be selected by the user depending on the desired

functionalities for the current application. Moreover,

to support the enrichment of state-changing manage-

ment functionalities, the Management Feature En-

richer component has been extended to ﬁlter avail-

able management operations based on the supported

Automated Generation of Management Workﬂows for Running Applications by Deriving and Enriching Instance Models

105

Technology-specific

Instance Model

Normalized

Instance Model

1 2

DB-Name:

(MySQL

Database)

Context:

(Java Web

App)

Port:

(Tomcat)

Port:

(MySQL

DBMS)

Public-Address:

205.34.26.197

Frontend

(Ubuntu 20.04)

Endpoint:

(OpenStack)

Public-Address:

15.24.81.107

DB-VM

(Ubuntu 20.04)

“reports“: [ {

"certname": "DB-VM",

"environment": "production",

"resource_events": {

"data": [

{

"status": "success",

"containing_class": "MySQL-DB",

...

] }

}, {

"certname": "Frontend",

"environment": "production",

"resource_events": {

"data": [

{

"status": "success",

"containing_class": "Tomcat",

...

] }

...

]

“facts“: [

{

"certname": "Frntend",

"environment": "production",

"name": "operatingsystem",

"value": "Ubuntu"

{

"certname": "Frontend",

"environment": "production",

"name": "operatingsystemrelease",

"value": "18.04"

{

"certname": "Frontend",

"environment": "production",

"name": "ipaddress",

"value": "205.34.26.197"

...

]

Technology-specific

Properties:

Primary-Server-IP:

15.24.85.33

[…]

“facts“: [

{

"certname": "DB-VM",

"environment": "production",

"name": "operatingsystem",

"value": "Ubuntu"

{

"certname": "DB-VM ,

"environment": "production",

"name": "operatingsystemrelease",

"value": "18.04"

{

"certname": "DB-VM",

"environment": "production",

"name": "ipaddress",

"value": "15.24.81.107"

...

]

Puppet

Puppet API

DB-Name: orders

(MySQL

Database)

Context: /

(Java Web

App)

Port: 8080

(Tomcat 9)

Port: 3306

(MySQL

DBMS 7)

Public-Address:

205.34.26.197

Frontend

(Ubuntu 20.04)

Endpoint: http://...

(OpenStack)

Public-Address:

15.24.81.107

DB-VM

(Ubuntu 20.04)

Technology-specific

Properties:

Primary-Server-IP:

15.24.85.33

[…]

Completed

Instance Model

DB-Name: orders

(MySQL

Database

)

Context: /

(Java Web

App)

Port: 8080

(Tomcat 9

)

Port: 3306

(MySQL

DBMS 7)

Public-Address:

205.34.26.197

Frontend

(Ubuntu 20.04

)

Endpoint: http://...

(OpenStack

)

Public-Address:

15.24.81.107

DB-VM

(Ubuntu 20.04

)

Technology-specific

Prop e rties:

Primary-Server-IP:

15.24.85.33

[…]

Enriched

Instance Model

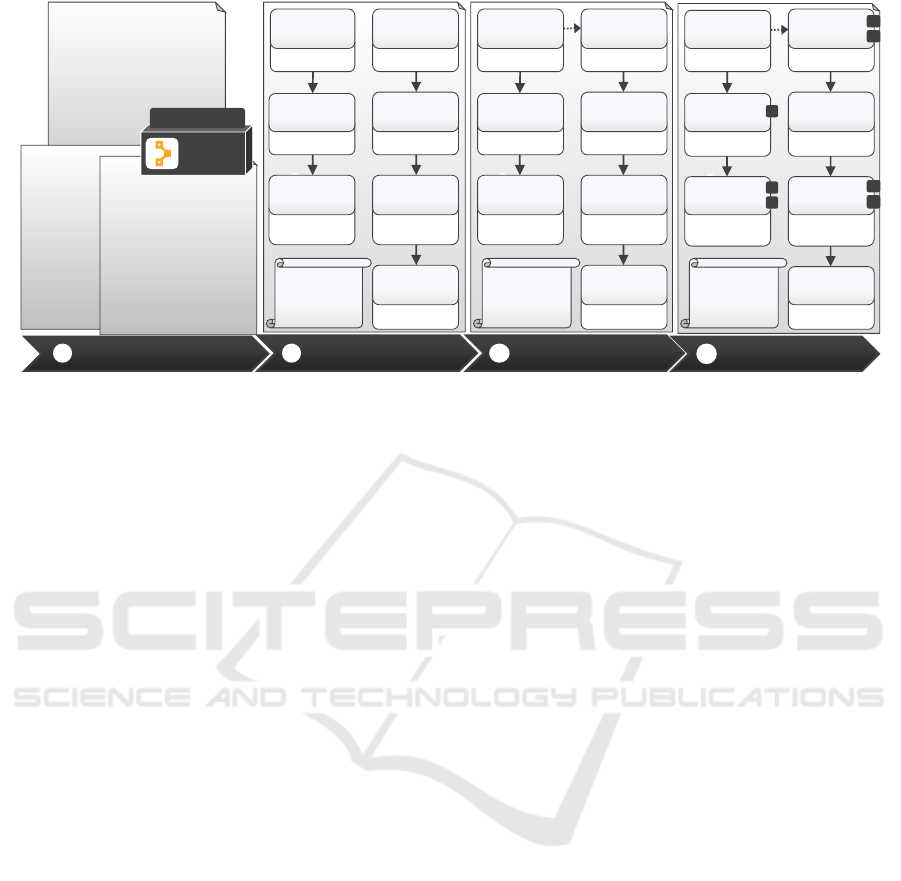

Figure 3: Evolution of the application instance models.

deployment technologies. Thus, feature node types

must deﬁne the set of deployment technologies their

management operation implementations support. For

example, if a feature node type supports updating

VMs managed by Puppet or Chef, the feature node

type must be annotated with Puppet and Chef to indi-

cate that these technologies are supported.

Finally, the manageable instance model is passed

to the OpenTOSCA runtime which generates exe-

cutable BPEL workﬂows (OASIS, 2007) for each

management operation. Then, the application is reg-

istered as a running instance which enables users to

manage the imported application instance using the

Vinothek. Thus, the Vinothek is a single dashboard

that can be used to manage all applications registered

as running applications in the OpenTOSCA runtime.

4.2 Case Study

To proof the feasibility of our approach, we deployed

the application shown in Fig. 1 using Puppet and em-

ployed our prototype to retrieve its instance informa-

tion. In general, Puppet is an agent-based deployment

and conﬁguration management technology (Puppet

Labs, 2020). The agents are managed by a so-called

Primary Server that speciﬁes which software must be

installed in which conﬁguration on which node. A

node is hereby a VM instance on which a Puppet

Agent is installed performing installation and conﬁgu-

ration tasks. The Puppet nodes are uniquely identiﬁed

by certnames. For example, the certname of the VM

hosting the Order App is called “Frontend”, while the

VM hosting the database is called “DB-VM”.

To retrieve an application’s instance information,

our Puppet instance retrieval plugin assumes that all

nodes managed by one primary server are part of one

application, a limitation of the current implementa-

tion we want to tackle in future work. Thus, the In-

stance Information Retriever component requires the

IP-address and a password or private key of the VM

running the primary server. Afterwards, by querying

the list of all certnames registered at the Puppet pri-

mary server, all facts, e. g., IP-addresses and OS prop-

erties, about the nodes can be retrieved. Addition-

ally, as the Puppet agents generate reports about the

performed operations, e. g., which components have

been installed and conﬁgured, they can be used to de-

rive a normalized instance model of the application.

Hence, facts and reports build the puppet-speciﬁc in-

stance model of an application (cf. step 1 in Fig. 3)

that can be accessed via Puppet’s API.

In the next step, the facts and reports are passed

to the Instance Model Normalizer alongside plugin-

speciﬁc information. In the Puppet case, these plugin-

speciﬁc information are, among others, the IP-address

and password of the primary server which are anno-

tated to the instance model as shown in Fig. 3. After-

wards, all facts about Puppet nodes are investigated to

identify the OS, including its release version the VM

is running, as well as its properties, such as the IP

address. In addition, the facts may also contain data

about the hypervisor that is running the VM. How-

ever, as depicted in step 2 of Fig. 3, it is not always

possible to correctly identify a hypervisor. In this

case, the hypervisor information from the facts about

the VM running on AWS are too generic to identify it

as AWS, while OpenStack is directly named. Based

on the reports generated by the Puppet nodes, the plu-

gin is able to derive the node types describing the in-

stalled components. However, the reports do not al-

ways contain properties about which component ver-

sion has been installed or how a component has been

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

106

conﬁgured. Therefore, the normalized instance model

in Fig. 3 does not contain values for all properties.

After the normalized instance model was derived,

it must be completed to describe all required prop-

erties as well as to identify the components’ ver-

sions: The normalized instance model is passed to

the Instance Model Completer component that it-

eratively reﬁnes the instance model to complete it.

Technology-speciﬁc plugins determine whether they

are able to reﬁne the instance model based on a sub-

graph detector (cf. Sect. 3.3). However, to execute a

technology-speciﬁc plugin, it may require additional

input, e. g., a private key to access a VM via SSH.

These inputs can be given to the plugin by the user if

it is not already available in the instance model. As a

result, a completed instance model contains all prop-

erties and, in this case, even horizontal relations (cf.

Fig. 3) can be identiﬁed and added to the model.

The completed instance model can be enriched

with management functionalities using the adapted

Instance Model Enricher component. Hereby, the

available management functionalities are ﬁrst divided

into state-changing and state-preserving functionali-

ties. In contrast to state-changing functionality, state-

preserving functionality can always be enriched to

an instance model. State-changing functionality can

only be enriched, if an implementation is available

that supports notifying the underlying deployment

technology. Hence, a user may have different options

to choose from while enriching different applications

with management functionalities. In this case, the

MySQL Database can be enriched with backup and

testing functionality, the Tomcat web server can be

tested, while the Ubuntu VMs can be tested and up-

dated automatically (cf. step 4 of Fig. 3).

In the last step, the completed and enriched in-

stance model is passed to the Management Work-

ﬂow Generator that derives management workﬂows

for each enriched management functionality. Here, a

test workﬂow, a backup workﬂow, as well as a update

workﬂow are generated that all can be executed on the

running application and, thus, manage it.

5 DISCUSSION

As our main goal is to enrich running applications

with holistic management functionality, we focused

on the retrieval of instance information about the ap-

plication in question from its underlying deployment

technology. However, this poses three major chal-

lenges: (i) The access and expressiveness of an ap-

plication’s instance information provided by a de-

ployment technology differs signiﬁcantly. For exam-

ple, while it is possible to retrieve software compo-

nents and their conﬁgurations from Chef and Puppet,

OpenStack Heat and AWS CloudFormation only al-

low to derive information about infrastructure com-

ponents. Moreover, to enable a speciﬁc management

of all components, the node types must be identiﬁed

as exact as possible. In some cases, speciﬁc nor-

malized types cannot be identiﬁed, and, thus, more

generic ones, such as Software Component (OASIS,

2020), are used. In these cases, the available manage-

ment operations that can be enriched to these com-

ponents are limited as generically providing all man-

agement operations is not always possible. How-

ever, the models can be reﬁned by our Instance Model

Completer component, if corresponding plugins are

available which are able to reﬁne the derived instance

model. (ii) The identiﬁcation and normalization of

node types is difﬁcult and requires immense techni-

cal expertise. Therefore, deployment technology ex-

perts need to maintain the plugins to ensure that they

are future-proof. (iii) Detecting horizontal relations

is difﬁcult or, depending on the deployment technol-

ogy, even impossible to derive from the retrieved in-

stance information. Deriving horizontal relations re-

quires very detailed and component-speciﬁc knowl-

edge about the respective components which is not

maintained by all deployment technologies. However,

by executing technology-speciﬁc plugins, we are able

to identify horizontal relations with the limitation that

a corresponding plugin must be available. Addition-

ally, it is always possible to reﬁne the instance model

manually to enhance its expressiveness.

The enrichment and management of container-

based deployment technologies, such as Kubernetes

or Docker Compose, posses an additional challenge

as containers are usually composed of multiple com-

ponents that cannot be seen from outside. However,

as containers can be accessed from the outside using

an interactive shell, similar to SSH sessions on virtual

machines, corresponding Instance Model Completer

plugins can provide access to the containers. Thus,

other plugins, such as the Tomcat plugin, can be used

to identify components hidden inside the containers.

To enable the enrichment and execution of state-

changing functionalities, the implementations must

be done in a deployment technology-speciﬁc way.

Otherwise, the deployment technology may interfere

and restore the previous state. Therefore, for each

state-changing management functionality, there must

be a corresponding implementation for each sup-

ported deployment technology. Hereby, the imple-

mentations must consider the underlying deployment

technologies when changing the applications’ states.

For example, to manage Kubernetes applications, Ku-

Automated Generation of Management Workﬂows for Running Applications by Deriving and Enriching Instance Models

107

bernetes’ Operators concept can be used to realize an

operation’s implementation, while Puppet or Chef ap-

plications, for instance, can be implemented using the

Puppet domain speciﬁc language (DSL) and the Chef

DSL respectively. Such management operation im-

plementations, however, can be arbitrarily complex as

developers need to use the deployment technologies’

APIs, which differ signiﬁcantly in how to use them

and their maturity level. However, state-preserving

management operations can always be enriched as

they only interact with the applications and do not

change their state. Nevertheless, once implemented,

all operations can be enriched to applications running

instances of the corresponding node types. Thus, our

approach facilitates the reuse of management func-

tionalities in different running applications.

As state-changing functionalities require informa-

tion about the underlying deployment technology, the

instance model must include this information. How-

ever, there are multiple options to store these informa-

tion. For example, the deployment technology spe-

ciﬁc information to access the APIs can be annotated

to the application, as described in Sect. 4.2, or they

can be added as separate model entities. For exam-

ple, in the case of Puppet, the primary server could

be represented as an additional node template of type

Ubuntu 20.04. This node template would have re-

lations to each identiﬁed node template it manages

to indicate their relationship. However, we chose to

use the annotation method to avoid mixing instance

model information with management requirements.

Finally, the generated normalized model of the ap-

plication only represents the retrieved instance data.

In contrast to deployment models, the generated in-

stance model may not be deployable, as artifacts, re-

lationships, and even properties may be missing in the

model. However, the gathered information is sufﬁ-

cient to enrich and execute management operations as

the case study demonstrates.

6 RELATED WORK

To retrieve information about running services and

whole applications, several approaches exist ranging

from service discovery (Brogi et al., 2017) and net-

work scanning (Holm et al., 2014) to identifying ex-

plicit software components as well as their proper-

ties and conﬁgurations (Binz et al., 2013; Farwick

et al., 2011; Machiraju et al., 2000; Menzel et al.,

2013). There are similar approaches available in the

models@runtime community which mostly require

an a priori model of the application (Bencomo et al.,

2019). Thus, Bencomo et al. (2019) consider runtime

model inference to be still an open research area.

To collect data for enterprise architecture (EA)

management and automated maintenance, Farwick

et al. (2011) introduce a semi-automated process to

retrieve the components of an application and to en-

hance the actuality of EA models. Similarly, Binz

et al. (2013) present a crawler to identify components

of an application in an iterative process. Hereby, they

employ a large set of plugins that are executed de-

pending on the retrieved information in the previous

iteration. The plugins are then able to identify new

components or to reﬁne the type of already discov-

ered ones. Holm et al. (2014) use network scan-

ners to identify infrastructure and software compo-

nents. They use multiple authenticated and unauthen-

ticated scanners to derive the components of an appli-

cation and transform it into an ArchiMate model. Ex-

plorViz (Fittkau et al., 2015) is a tool to monitor and

visualize applications and their components. How-

ever, ExplorViz focuses on the visualization appli-

cations and their interactions by employing dynamic

analysis techniques. In contrast to our approach, they

all focus on the retrieval of component instances us-

ing custom software programs, such as crawlers, net-

work scanners, and dynamic analysis techniques. We

depend on instance information provided by the APIs

of the used deployment technologies as our goal is to

enrich applications with management functionalities

that may change their state. This, however, requires

the information about the deployment technology.

Machiraju et al. (2000) introduced a generic ap-

proach to discover application conﬁgurations. To gen-

erate models of running applications, they use prede-

ﬁned application templates specifying, e. g., the dis-

covery technique that should be used, and the required

attributes that should be identiﬁed for the running in-

stance. Thus, an application template model must

be created beforehand, i. e., the components must al-

ready be known and only their conﬁgurations can be

retrieved automatically. Thus, the approach could

also be integrated into our approach to reﬁne the re-

trieved instance model and complete it. However,

we chose to base our Instance Model Completer on

the concepts introduced by Binz et al. (2013) as the

plugin-based architecture facilitates its extension.

To enable the management of cloud applications,

several works exist, such as basic application provi-

sioning (Mietzner et al., 2009; Breitenbücher et al.,

2014; Eilam et al., 2011; Herden et al., 2010), chang-

ing application conﬁgurations (Brown and Keller,

2006), and state-changing management functionali-

ties such as the termination of applications while en-

suring that their internal data is saved and the whole

application can be restored, including its previous

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

108

state (Harzenetter et al., 2019a), or the Context-Aware

Management Method which enables the migration of

applications from one cloud providers to another as

presented by Breitenbücher et al. (2013).

Other work focuses on generating management

workﬂows based on a desired state model that declar-

atively describes the state in which an application

has to be transferred: Breitenbücher (Breitenbücher

et al., 2013; Breitenbücher, 2016) introduced Man-

agement Planlets, which are workﬂow fragments that

can be orchestrated automatically by a Plan Gener-

ator to perform management functionalities for ap-

plications. A Planlet consists (i) of a detector frag-

ment that speciﬁes which Management Annotations a

Planlet realizes on a certain graph of components and

relations and (ii) provides a workﬂow model that im-

plements this functionality. Hereby, a Management

Annotation speciﬁes a management functionality to

be realized, e.g., that a backup has to be done for

a component. These Management Annotations are

used in the desired state model to describe the de-

sired functionalities, which is then executed by or-

chestrating planlets into a workﬂow model that can

be executed automatically. Eilam et al. (2011) intro-

duced automation signatures that deﬁne “patterns” to

specify operations that can be performed on a given

state model of an application. In contrast to these

approaches, we enrich instance models with opera-

tions that are then executed by a generated workﬂow.

Moreover, the mentioned approaches do neither cover

automated retrieval of instance models from underly-

ing deployment technologies nor their normalization

as proposed by our approach.

7 CONCLUSION AND FUTURE

WORK

In this paper, we showed how running applications

can be enriched with additional management opera-

tions and how they can be executed by automatically

generating management workﬂows. To achieve this,

our approach enables the generation of normalized

instance models of running applications in the form

of TOSCA topology templates. The retrieval of in-

stance information about an application from its de-

ployment technology poses multiple challenges and

may not produce a complete instance model. How-

ever, we showed that by reusing and integrating exist-

ing approaches into the proposed approach, a com-

plete instance model of an application can be gen-

erated automatically. Based on the derived instance

model, we are able to perform holistic management

functionalities, such as testing, updating, and backing

up the application’s components, by generating corre-

sponding executable management workﬂows.

In future work, we plan to implement more plu-

gins to (i) support more deployment technologies,

as well as to (ii) support the reﬁnement of more

component-speciﬁc information inside the Instance

Model Completer. Additionally, we want to support

deriving instance models of applications that depend

on multiple deployment technologies.

ACKNOWLEDGEMENT

This work was partially funded by the EU project

RADON (825040) and the German Research Foun-

dation (DFG) projects SustainLife (379522012) and

DiStOPT (252975529). The authors thank Tobias

Mathony for his help in implementing the prototype.

REFERENCES

Bencomo, N., Götz, S., and Song, H. (2019). Mod-

els@run.time: a guided tour of the state of the art and

research challenges. Software and Systems Modeling,

18(5):3049–3082.

Bergmayr, A., Breitenbücher, U., Ferry, N., Rossini, A.,

Solberg, A., Wimmer, M., and Kappel, G. (2018).

A Systematic Review of Cloud Modeling Languages.

ACM Computing Surveys (CSUR), 51(1):1–38.

Binz, T., Breitenbücher, U., Kopp, O., and Leymann, F.

(2013). Automated Discovery and Maintenance of

Enterprise Topology Graphs. In: SOCA 2013, pages

126–134. IEEE.

Binz, T., Fehling, C., Leymann, F., Nowak, A., and

Schumm, D. (2012). Formalizing the Cloud through

Enterprise Topology Graphs. In: CLOUD 2012, pages

742–749. IEEE.

Breitenbücher, U. (2016). Eine musterbasierte Methode

zur Automatisierung des Anwendungsmanagements.

Dissertation, University of Stuttgart, Faculty of Com-

puter Science, Electrical Engineering, and Informa-

tion Technology.

Breitenbücher, U., Binz, T., Képes, K., Kopp, O., Leymann,

F., and Wettinger, J. (2014). Combining Declarative

and Imperative Cloud Application Provisioning based

on TOSCA. In: IC2E 2014, pages 87–96. IEEE.

Breitenbücher, U., Binz, T., Kopp, O., and Leymann, F.

(2013). Pattern-based Runtime Management of Com-

posite Cloud Applications. In: CLOSER 2013, pages

475–482. SciTePress.

Breitenbücher, U. et al. (2016). The OpenTOSCA Ecosys-

tem - Concepts & Tools. In: European Space project

on Smart Systems, Big Data, Future Internet - To-

wards Serving the Grand Societal Challenges - Vol-

ume 1: EPS Rome 2016,, pages 112–130. SciTePress.

Automated Generation of Management Workﬂows for Running Applications by Deriving and Enriching Instance Models

109

Brogi, A., Cifariello, P., and Soldani, J. (2017). DrACO:

Discovering available cloud offerings. Computer Sci-

ence - Research and Development, 32(3-4):269–279.

Brown, A. and Keller, A. (2006). A Best Practice Approach

for Automating IT Management Processes. In: NOMS

2006, pages 33–44. IEEE.

Eilam, T., Elder, M., Konstantinou, A. V., and Snible, E.

(2011). Pattern-based Composite Application Deploy-

ment. In: IM 2011, pages 217–224. IEEE.

Endres, C., Breitenbücher, U., Falkenthal, M., Kopp, O.,

Leymann, F., and Wettinger, J. (2017). Declarative vs.

Imperative: Two Modeling Patterns for the Automated

Deployment of Applications. In: PATTERNS 2017,

pages 22–27. Xpert Publishing Services.

Farwick, M., Agreiter, B., Breu, R., Ryll, S., Voges, K., and

Hanschke, I. (2011). Automation Processes for En-

terprise Architecture Management. In: EDOC 2011,

pages 340–349.

Fittkau, F., Roth, S., and Hasselbring, W. (2015). Ex-

plorViz: Visual runtime behavior analysis of enter-

prise application landscapes. In: ECIS 2015. AIS.

Harzenetter, L., Breitenbücher, U., Képes, K., and Ley-

mann, F. (2019a). Freezing and Defrosting Cloud Ap-

plications: Automated Saving and Restoring of Run-

ning Applications. SICS, 35:101–114.

Harzenetter, L., Breitenbücher, U., Leymann, F., Saatkamp,

K., and Weder, B. (2019b). Automated Generation

of Management Workﬂows for Applications Based on

Deployment Models. In: EDOC 2019, pages 216–

225. IEEE.

Herden, S., Zwanziger, A., and Robinson, P. (2010). Declar-

ative Application Deployment and Change Manage-

ment. In: CNSM 2010, pages 126–133. IEEE.

Holm, H., Buschle, M., Lagerström, R., and Ekstedt, M.

(2014). Automatic data collection for enterprise ar-

chitecture models. Software and Systems Modeling,

13(2):825–841.

Machiraju, V., Dekhil, M., Wurster, K., Garg, P. K., Griss,

M. L., and Holland, J. (2000). Towards Generic Ap-

plication Auto-Discovery. In: NOMS 2000, pages 75–

87. IEEE.

Mathony, T. (2020). Instance Model Retrieval Framework.

https://github.com/ust-edmm/edmm/tree/master/

edmm-instance, 2020-10-30.

Menzel, M., Klems, M., Le, H. A., and Tai, S. (2013). A

conﬁguration crawler for virtual appliances in com-

pute clouds. In: 2013 IEEE International Conference

on Cloud Engineering (IC2E), pages 201–209. IEEE.

Mietzner, R., Unger, T., and Leymann, F. (2009). Cafe: A

Generic Conﬁgurable Customizable Composite Cloud

Application Framework. In: CoopIS 2009, pages 357–

364. Springer.

OASIS (2007). Web Services Business Process Execution

Language (WS-BPEL) Version 2.0. OASIS.

OASIS (2013). Topology and Orchestration Speciﬁcation

for Cloud Applications (TOSCA) Version 1.0. OASIS.

OASIS (2020). TOSCA Simple Proﬁle in YAML Version 1.3.

OASIS.

OpenTOSCA (2020). OpenTOSCA Ecosystem. https:

//github.com/OpenTOCSA, 2020-10-30.

Oppenheimer, D. (2003). The importance of understanding

distributed system conﬁguration. In: CHI 2003. ACM.

Puppet Labs (2020). Puppet Ofﬁcial Site. https:

//puppet.com/solutions/cloud-hybrid-automation/,

2020-10-30.

Wurster, M., Breitenbücher, U., Falkenthal, M., Krieger, C.,

Leymann, F., Saatkamp, K., and Soldani, J. (2019).

The Essential Deployment Metamodel: A System-

atic Review of Deployment Automation Technolo-

gies. SICS, 35:63–75.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

110
