Malicious Activity Detection using Smart Contracts in IoT

Mwangi Eric

, Hany F. Atlam

and Nawfal Fadhel

Faculty of Engineering and Physical Sciences, University of Southamton, Southampton, U.K.

Department of Engineering and Technology, University of Derby, Derby, U.K.

Cyber Security Group, University of Southamtpon, Southampton, U.K.

Keywords:

IoT, Blockchain, Hyperledger Fabric, Smart Contracts, Security, Risk, Attacks, Cybercrime.

Abstract:

Internet of Things (IoT) is a unique element in the realm of Cybersecurity. It constitutes countless applica-

tions, including defense, health, agriculture, ﬁnance, amongst other industries.

The majority of existing studies focus on various developments of IoT products and services essential to our

day-to-day activities, with little emphasis on the security of developed systems. This has led to the prolifera-

tion of IoT solutions acquired through rapid development and overlooking the need for a structured security

framework during the systems’ development stages.

IoT security capability can be improved by using complementary technologies. This paper explores applying

Risk-Based Access Control Model using Blockchain to control access to IoT devices. Although current access

control models provide efﬁcient security measures to control who can access the system resources, there is no

way to detect and prevent malicious attacks after granting access.

The proposed solution utilizes smart contracts under the Hyperledger Fabric (HLF) Blockchain Framework

to create access permissions and measure the security risks associated with any event in the IoT system and

create access permissions to determine what processes may be performed. This will allow the detection of any

malicious activity at the early stages of the attack and grant or deny access based on the risk associated with

any activity.

1 INTRODUCTION

Blockchain is currently receiving much traction from

both corporate and enterprise space as well as govern-

ments and ﬁnancial institutions. COVID 19 pandemic

has also accelerated digital transformation where the

world has witnessed an exponential growth of ICT in-

novations and solutions across all industries during

the pandemic. Similarly, there has been an equal mea-

sure of increase in cyber attacks with hackers contin-

uing to develop sophisticated hacking techniques to

penetrated their targets.

IoT has emerged as a critical target to cybercrim-

inals leading to privacy and security issues where the

attackers use the vulnerabilities in the interconnected

devices to penetrate and compromise the IoT systems.

Apart from DDoS attacks as reported by Natalija and

Daiwei, on their paper titled IoT as a Land of Oppor-

tunity for DDoS Hackers (Vlajic and Zhou, 2018),

other IoT attack vectors include but are not limited to

Botnets, Man-in-the-Middle, Phishing, Social Engi-

neering and Remote Recording.

Because of the limited security capability of the

majority of IoT devices, this research seeks to identify

a viable solution for securely deploying the IoT sys-

tems and ensuring the many devices/things connected

to the internet over the IoT infrastructure operate with

minimal risks and repercussions in the event of ex-

ploitation by intruders and hackers.

IoT devices in general should be capable of re-

mote control, access, monitoring, and management of

things via the internet (Suryadevara and Mukhopad-

hyay, 2015). Most IoT frameworks are built on three

pillars derived from the ability of the smart objects

to:-

(a) Have a unique identiﬁer;

(b) Be able to communicate by receiving and emitting

communication signals and;

capability (Miorandi et al., 2012).

Besides, ”Things” have the ability to understand and

adapt to their environment, learn from each other, and

286

Eric, M., Atlam, H. and Fadhel, N.

Malicious Activity Detection using Smart Contracts in IoT.

DOI: 10.5220/0010474802860295

In Proceedings of the 6th International Conference on Internet of Things, Big Data and Security (IoTBDS 2021), pages 286-295

ISBN: 978-989-758-504-3

make appropriate decisions through their reasoning

capabilities.

In May 2014, the Pew Research Centre released

a paper analysed from feedback obtained for predic-

tions on the future of the Internet from expert re-

searchers with long-standing credibility, titled The In-

ternet of Things will thrive by 2025 (Anderson and

Rainie, ). The interviewed observed that this tech-

nology would come with insurmountable challenges

whose risks have to be minimised to reap the indis-

pensable beneﬁts.

1.1 Problem Statement

Lack of computation power on IoT devices cripples

the security capability which shifts the security mea-

sures from the edge IoT devices to IoT data collection

servers.

1.2 Research Objectives

The research will be based on the following key ob-

jectives:

1. Provide an understanding of the emerging IoT

technology and the threats associated with it.

2. Provide an assessment of the suitability of utilisa-

tion of the Risk-based Access Control Model with

Smart Contracts over a decentralized network, to

mitigate the security risks associated with IoT sys-

tems.

3. Design and implement an IoT prototype system as

a proof of concept for the proposed IoT security

solution.

1.3 Research Question

How can Risk-Based Access Control Model be used

to strengthen the security of the Internet of Things

while mitigating the risks associated with cyber-

attacks?

1.4 Hypothesis

A dynamic Risk-Based Access Control model is ap-

plicable in a distributed network to enhance IoT secu-

rity by determining access decisions for each access

request in the IoT system in Realtime.

The study will be achieved by investigating

the effectiveness of the Risk-Based Access Control

model over Blockchain technology and, more specif-

ically, the Hyperledger Fabric (HLF) framework with

Byzantine fault-tolerant (BFT) ordering service.

1.5 Test Case: Gated Community

Security Solution

Security Guards at a gated community may not be

sufﬁcient to guarantee adequate security for the res-

idents. The gatekeepers generally rely on the infor-

mation provided by the visitors and allow them into

the gated community without any means of veriﬁca-

tion of the details provided.

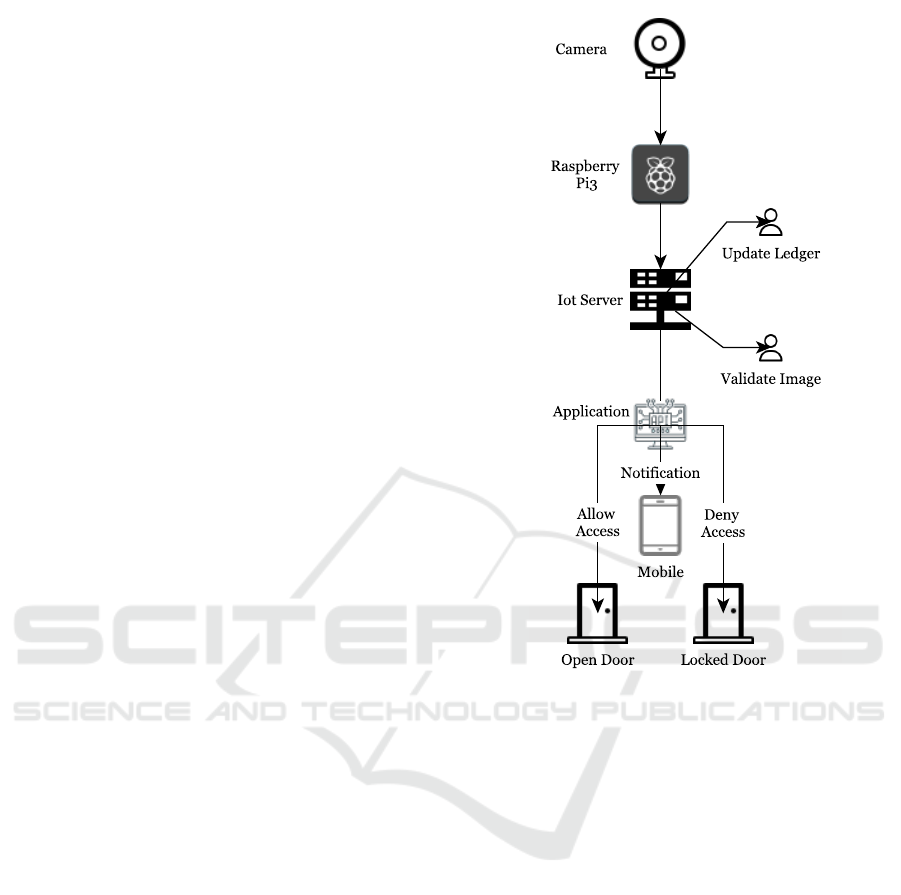

A prototype for an IoT solution for securing ac-

cess to a gated community will be designed and used

to demonstrate the application of a risk-based access

control model to achieve a secure IoT system using

smart contracts over hyperledger fabric blockchain

framework.

2 LITERATURE REVIEW

This section is intended to provide the reader with a

clear understanding of emerging IoT and Blockchain

technology.

2.1 Internet of Things (IoT

The Internet of Things is a rapidly evolving smart

technologies that will soon become indispensable,

with all objects in the world having the ability to inter-

connect and communicate over the Internet. The main

challenge that will impede IoT’s rapid deployment is

the security capability since hackers are increasingly

developing hacking tools and techniques to penetrate

assets available on the Internet.

Intelligence collected over time by the US Direc-

torate of National Intelligence (DNI) during James R.

Clapper’s tenor, who was the longest-serving Director

as at 2016, warned that in addition to the traditional

threats that the US was facing, the Internet of Things

would be a major national security threat in the fore-

seeable future. He further divulged that IoT would

be one of the most destructive technologies intercon-

necting tens of Billions of new exploitable physical

devices (ODNI Public Affairs, 2016)

All these were early warnings that the future of

IoT is bright but will come with insurmountable chal-

lenges whose risks have to be minimized to reap the

indispensable beneﬁts.

2.1.1 Problems Associated with IoT

The most common attack vectors in IoT systems are

Malicious code injection at the endpoint devices to

steal login credentials, Impersonation, Data Modiﬁca-

tion, Denial of Service (DDoS) attack, Side-channel

Malicious Activity Detection using Smart Contracts in IoT

287

attacks (SCAs), Replay attacks, Man-in-the-middle

(MitM) attacks amongst others (Ali and Awad, 2018),

(Jurcut et al., 2020). The aforementioned brings about

the need to have the following challenges associated

with IoT addressed:-

Privacy and Security: The overall control over Per-

sonally Identiﬁable Information (PII), and protec-

tion from unlawful surveillance are fundamental

rights for individuals as stipulated in most coun-

tries’ constitutions (Solove, 2008). Protection

against privacy invasion is a prevalent challenge

that will require to be addressed for the successful

implementation of IoT.

In the IoT domain, privacy, as observed by

Abeer Mohammed Assiri and Haya Almagwashi

in their research on Iot Security and Privacy Is-

sues, can be compromised at the Device level,

Storage level, Processing level, or Communica-

tion level (Assiri and Almagwashi, 2018).

Single Point of Failure: IoT systems are mainly set

up using centralised cloud technology, which cre-

ates a major security weakness in IoT applica-

tions since an attack or downtime occasioned

by power outage or malfunctioning of the cloud

server would bring down the entire IoT applica-

tion (Kshetri, 2017).

Insecurity by Design: The attribute of interconnect-

ing several physical devices poses a signiﬁcant

threat to the IoT system since a successful attack

on one embedded device, e.g. a light bulb, might

lead to the whole system being compromised as

disclosed by Maire O’Niell et al (O’Neill et al.,

2016). Attackers could use an ’unsecured’ re-

frigerator to gain entry to the same network run-

ning the target’s computer, laptop, or data servers

(Arndt, 2018). In the same way, a DDoS attack

on one of the devices on the network could lead

to the whole system being disabled (Lyu et al.,

2017). A chain is as strong as its weakest link,

so any vulnerability in any of the interconnected

devices opens the entire system to attack, leav-

ing individuals and organizations potentially ex-

posed (Shackelford et al., 2017)

2.2 Blockchain

Most of the inherent problems associated with IoT de-

ployed over a centralized network can be overcome

by use of Blockchain, a distributed ledger framework

that ensures a copy of each information in the IoT sys-

tem is stored and synchronized in several nodes over

the distributed network.

Blockchain technology started as a cryptocur-

rency solution with Bitcoin as the ﬁrst public use case.

Blockchain has lately experienced rapid diffusion into

various other economic and social ﬁelds, as witnessed

in its reliable use by governments, ﬁnancial institu-

tions, and corporates to achieve the much-needed de-

centralized applications. As of 2016, Blockchain had

emerged as the most signiﬁcant type of distributed

ledger technology as reported in the journal for the

UK Government Ofﬁce for Science. (Walport et al.,

2016) Immutability is one of the key cornerstones for

blockchain that guarantees non-repudiation and in-

tegrity of the data stored in the distributed ledger.

2.3 Hyperledger Fabric

Hyperledger Fabric (HLF) is a permissioned

blockchain network where all members participating

in the distributed network require prior permission

with authorised crypto keys to enable them gain

access and transact in the blockchain network (An-

droulaki et al., 2018). It is a modular, scalable and

secure framework for implementation of a blockchain

solution that has an inbuilt plug-’n-play ability to

integrate components such as consensus algorithm

and membership services. It has been established that

implementation of HLF with BFT ordering service

increases the transaction processing speeds and “can

achieve up to ten thousand transactions per second

and write a transaction irrevocably in the blockchain

in half a second, even with peers spread in different

continents” (Sousa et al., 2018). This is a crucial

requirement and a signiﬁcant boost for enabling

HLF to achieve multiple ordering service at real time

speeds, given the millions of transactions that are

envisaged in a typical IoT network with multiple

devices.

The proposed solution recommends the use of Hy-

perledger Fabric (HLF) with Byzantine fault-tolerant

(BFT) ordering service. This offers an appropriate

network where only approved residents in the gated

community can join and participate in the blockchain

network.

2.4 Access Control Models

The primary objective of any Access Control Model is

to provide access rights in regard to authorized users

and to avert system abuse from unauthorized persons.

Conﬁdentiality, Integrity, and Availability are the

core elements that guarantee the usability and effec-

tiveness of any given access control model.

2.4.1 Traditional Access Control Models

Traditional access control models are anchored on

protocols that have been established to be static and

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

288

equally rigid. The policies within are predeﬁned,

and they generate the same results no matter the

environment; in essence, they fail to capture the

various elements essential in making critical access

decisions. The widely used traditional models in-

clude Discretionary Access Control (DAC), Role-

Based Access Control (RBAC), and Mandatory Ac-

cess Control (MAC) (Atlam et al., 2018)

The rigidity of traditional and dynamic access

control methods and their context insensitivity ren-

ders them not suitable for IoT ecosystems.

2.4.2 Dynamic Access Control Models

Unlike the traditional access model, the dynamic ac-

cess model is another concept characterized by access

policies and unique contextual attributes that are more

approximated in real-time. The captured elements

consist of trust, history, context, as well as operational

requirements.

2.4.3 Adaptive Risk based Access Control Model

Comparing different access control models, it is

evident that they all have their unique inadequa-

cies. However, the adaptive risk-based access control

model is more dynamic, usable, and scalable. This

approach has diverse advantages, including:

• Using estimation and prediction by exploiting

game theory along with context awareness.

• Exploiting various security protocols based

on real-time estimates, including predictions,

whereby different sources are accessed to build

reliable adaptive decisions.

• And as Habtamu and Langko puts it, Learns,

adapts, prevents, identiﬁes and responds to new

or unknown threats in critical time, much like bi-

ological organisms adapt and respond to threats

in their struggle for survival (Abie and Balasing-

ham, 2012)

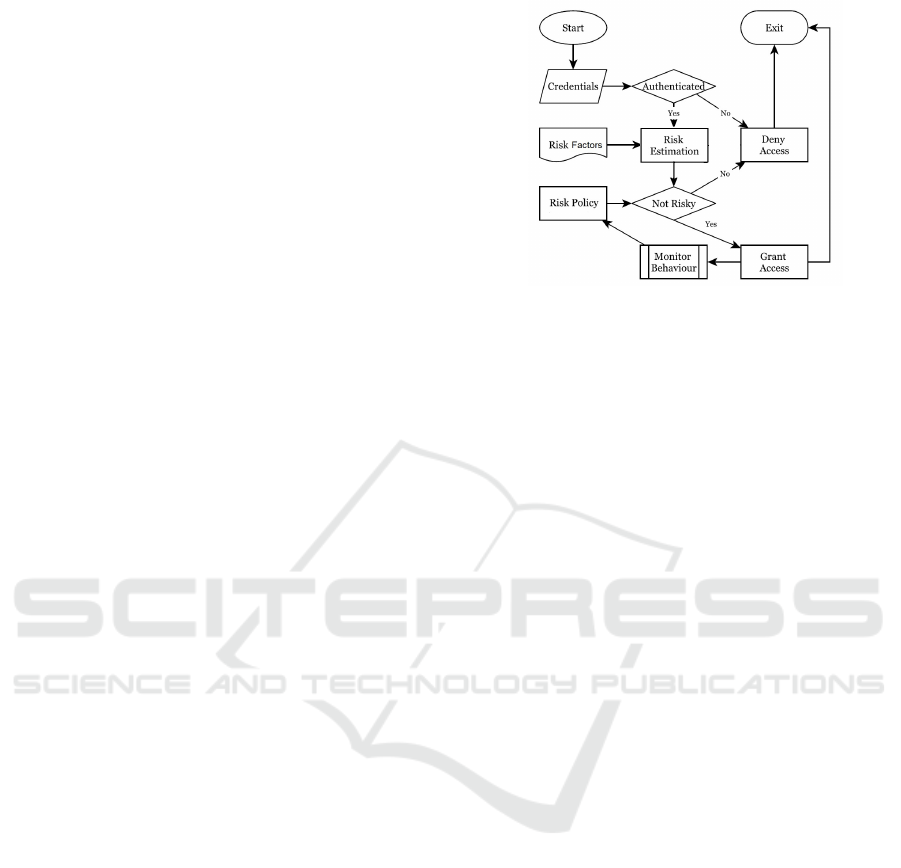

Figure 1 is a ﬂowchart of Adaptive Risk Based

Access Control Model that illustrates the amalgama-

tion of above mention beneﬁts. The ﬂow starts when

the user requested to access system resources. After

the user is authenticated successfully, the risk value

associated with the user is estimated using the risk

estimation module. This risk is estimated based on

various risk factors associated with the access. Then,

if the estimated risk value is higher than a predeﬁned

threshold value deﬁned in the risk policy, the access

will be denied. While if the estimated risk value is

lower than the predeﬁned threshold value, the access

will be granted. Then, the user activities during the

access session will be monitored to detect and prevent

Figure 1: Flowchart of Adaptive Risk Based Access Control

Model.

malicious activities. This approach is essential in as

far as IoT communication is concerned as it aims at

ensuring the system operates with minimal deviations

from the conventional routine.

3 RESEARCH METHODOLOGY

This research will used both qualitative and quantita-

tive data gathering procedures to guarantee the relia-

bility and efﬁciency of the data. Data was collected

using case studies and surveys to ensure the realisa-

tion of sufﬁcient data for the research’s success. This

also ensured accurate scope of analysis and main-

tained research reliability and validity.

3.1 Case Studies and Analysis

Great care was employed in the selection process of

case studies and surveys in this paper. In brief, it was

elicited by necessity for a prime study with high efﬁ-

ciency. Considering the diverse nature of the research

subject, and the multiple industries involved, the re-

search focused on the following three cases:

3.1.1 Case Study No. 1: Healthcare Institutions

The majority of Iran’s leading hospitals are based in

Tehran and are the epitome of healthcare, research,

consultancy, and referral solutions. Most of the health

centers have deployed Computerised Health Informa-

tion Systems (CHISs) (Zarei and Sadoughi, 2016)

to handle sensitive information regarding patient his-

tory and clients’ ﬁnancial obligations, including blood

group, among others; Healthcare systems are suscep-

tible to attacks and any breach of security to this in-

formation would adversely affect the image, trust, and

the operations of the institution.

Malicious Activity Detection using Smart Contracts in IoT

289

The breach would lead to exposure of patients’

personal health history, ﬁnancial losses, loss of rep-

utation, and intellectual properties as recently wit-

nessed in the Hospital Chain Universal Services fa-

cilities in the U.S., where all the 250 facilities were

attacked by ransomware. The affected facilities were

forced to resort to manual systems amidst the COVID

19 pandemic’s overwhelming workload. The attack-

ers’ motive could be ﬁnancial gain through the pay-

ment of the ransom, data theft, or disruption of ser-

vices. (Associated Press, 2020)

3.1.2 Case Study No. 2: Smart Homes - IoT

IoT in smart homes is a growing phenomenon that

is being witnessed globally. In the Western world,

smart homes have become the new buzz where light

bulbs, security cameras, thermostats, fridges, cookers

and doorbells are all being controlled remotely from

a phone. Across the USA and UK, IoT is becom-

ing the standard for diverse home applications that

are being interlinked. The development of intercon-

nected devices and people increases efﬁciency and, at

the same time, risks, and threats. Technologies such

as Bluetooth, WiFi, and cloud storage have become

the most used technologies at home. The IoT makes

smart homes highly sophisticated and intelligent, in-

terlinked, and remotely accessed or controlled (Li

et al., 2015), (Sicari et al., 2018). The Smart homes

interconnected devices that are controlled remotely

are all prone to hacking as witnessed in the baby mon-

itoring IoT system that was hacked and remotely con-

trolled by an attacker at midnight.(nbc, 2015)

A survey of 950 IT and business decision-makers

by Gemalto in 2019 revealed that with the increase

of attacks on IoT systems, security remained a major

challenge. The survey observed that almost half of the

businesses could not even detect that they had been

breached and were seeking government intervention

in securing connected IoT devices. However, the sur-

vey observed that the adoption of blockchain technol-

ogy to secure the IoT was slowly being considered

by some companies as they await government regu-

lations on best security practices and policies to use

for IoT security. (Living, 2019) Additionally, analy-

sis of the US National Vulnerability Database (NVD)

revealed an increase of high severity Common Vul-

nerabilities and Exposures (CVEs) on Internet devices

such as routers, switches and other IoT devices that

were being used by attackers to execute commands

and gain remote access to the systems.

3.1.3 Case Study No. 3: Jurcut et al., 2020

Survey

The survey done by Jurcut et al., 2020 on security

consideration for Internet of Things, where a num-

ber of key IoT security research papers were analysed,

adequately covered the vulnerabilities and threats as-

sociated with IoT and went further to recommend vi-

able solutions to ensure secure deployment of IoT sys-

tems. The authors recommended a myriad of security

risk prevention methods for IoT and noted that mit-

igation of identiﬁed IoT threats required concerted

effort amongst the developers, device manufacturers

consumers and lawmakers. However, with the com-

prehensive IoT best practices and security solutions

provided from the survey, the author admitted that

more research was required as the solutions proposed

would not provide a 100% security (Jurcut et al.,

2020).

3.2 Results Analysis

3.2.1 Analysis of Case Study No. 1: Healthcare

Institutions

The ﬁndings presented by the ﬁrst case study illustrate

that access control measures are handled differently

by organizations and on as per need basis. The var-

ious security frameworks used do not provide a con-

cise scope for information security or how data man-

agement is handled, speciﬁcally by healthcare service

providers. Poor access control at Iran’s public health-

care and the recent attack on the 250 health facilities

in the U.S. indicate weak access control policies and

procedures.

The deployment of a risk-based access control

model to monitor the databases’ behavior in the hos-

pital chain would have helped prevent escalation of

the attack to all the 250 networked facilities.

It is worth noting that several researchers have

identiﬁed the potential of the emerging blockchain

technology combined with smart contracts to solve

the security and privacy issues on healthcare and other

IoT systems. In most of these researches, Smart con-

tracts has emerged as a technology that would en-

sure proper access control where predeﬁned condi-

tions must be met before the execution of the subse-

quent processes. It is however generally noted by the

researchers that there are still several challenges to be

addressed as pernicious users may still exploit the per-

ceived security and compromise the IoT system (Pan

et al., 2019), (Griggs et al., 2018), (Zheng et al.,

2020). For example, the proposal by Griggs, Kris-

ten N., et al. 2018 to integrate the Wireless Body Area

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

290

Networks (WBANs) with smart contracts on a consor-

tium blockchain network addressed the problem of in-

tegrity of the data through immutability of the records

that is offered by Blockchain (Griggs et al., 2018).

The Authors, however, cited securing each node

for the interconnected devices as a signiﬁcant security

challenge. They proposed the introduction of human-

based veriﬁcation before a new transaction was ac-

cepted in the blockchain as a possible solution to en-

sure security and eliminate potential intruders from

the system.

Our proposal is to introduce the deployment of a

risk-based access control model to monitor the risks

associated with every transaction at each of the con-

nected nodes and automatically grant or deny permis-

sion based on the status of the associated risk, thereby

eliminating the need for human-based veriﬁcation.

3.2.2 Analysis of Case Study No. 2: Smart

Homes - IoT

The second case study proves the increased attacks

targeted at smart homes and the increased sophisti-

cation of the attack vectors. The proposed solution

in the case of the compromised baby monitor would

have a smart contract that would detect the abnormal

behavior of attempts to remotely control and move

the baby monitor at midnight. The movement of the

baby monitor at midnight being a suspicious activity

would automatically be denied access and transaction

ﬂagged appropriately. Notice that this would require a

smart contract with predeﬁned conditions on the time

range within which the baby monitor is remotely con-

trolled.

3.2.3 Analysis of Case Study No. 3: Jurcut et al.,

2020 Survey

The survey from the third case shows that a lot of re-

search has gone into securing IoT systems. However,

with the increased sophistication of hackers, there is

still concern about IoT systems’ security as institu-

tions are still being attacked.

With these ﬁndings, it is evident that there is a dire

need for a security solution that would adequately ad-

dress emerging IoT cyber threats.

Our proposed solution ﬁrst aims at adopting the

policies and security controls recommended by other

researchers to mitigate potential cyber attacks and

move a notch higher to provide measures to ensure an

attack is not escalated to the entire system once access

to a speciﬁc interconnected device is compromised.

4 DESIGN AND

IMPLEMENTATION

This section presents the IoT system prototype design

that will be used to build a proof of concept (POC)

for the proposed proof of concept. The section will

also depict the implementation of the risk-based ac-

cess control model and smart contracts over a dis-

tributed ledger network.

4.1 Design

The design focuses on using smart contracts to deﬁne

the process logic on Hyperledger Fabric network. The

smart contracts will be designed to measure the secu-

rity risks associated with any event in the IoT system

and create access permissions to determine what pro-

cesses may be performed. This will allow detection

of any malicious behavior at the early stages of the

cyber attack kill chain and grant or deny access based

on the risk associated with any of the transactions of

the networked devices.

The proof of concept is designed to be imple-

mented on a private and permissioned blockchain net-

work (ie Hyperledger Fabric network) as opposed to

an open permissionless framework that allows un-

known entities to participate in the network. Mem-

bers authorised to participate in the Hyperledger Fab-

ric network will be enrolled through a trusted mem-

bership Service Provider (MSP) to ensure only autho-

rised users (ie residents of the gated community) are

allowed to interact with the network. Any device or

entity in use on the network will be preassigned a dig-

ital certiﬁcate by the certiﬁcation authority and cryp-

tographically linked to the network. This will help

eliminate an attacker’s possibilities of participating in

the network with stolen login credentials.

The Permissioned blockchain network operates

under a distributed ledger framework with a copy

of each information stored and synchronized in all

the nodes over the distributed network. This ensures

transparency, immutability and integrity of the stored

data. Additionally, the use of the channels for com-

munication within the the hyperledger fabric network

enhances the system’s security and privacy.

The proposed IoT prototype for the gated commu-

nity security solution, hereby dubbed HyperGate, will

have an image sensor to capture visitors’ images. The

residents will be required to update the ledger with

the visitor’s information whenever they expect a new

visitor, and update the visit date for returning visitors.

The smart contract will ensure the following condi-

tions are met before any new entry (transaction) takes

place in the ledger:-

Malicious Activity Detection using Smart Contracts in IoT

291

(i) The device from which the request is made is a

known device

(ii) The time the request is made is within the agreed

time range

(iii) The number of approved visitors at any given time

range is within the agreed rules.

If any of these predeﬁned rules are not achieved,

the smart contract will ﬂag the transaction as suspi-

cious and immediately raise an alarm to the appropri-

ate stakeholders.

A transaction can be a change in any of the visi-

tors details in the ledger, update of visit time for re-

turning visitors or an entry of new visitors record(s).

For every successful transaction a new block will be

created that is cryptographically linked to the chain

thereby generating a blockchain containing accurate,

time-stamped and veriﬁable record for every transac-

tion ever made.

Upon arrival at the gated community entrance, the

face image of the visitor will be captured by the im-

age sensor and presented to the resident through a

mobile app for them to validate the image as illus-

trated in ﬁgure 2. The synchronized information will

be immutably stored in a blockchain ledger and used

for subsequent visits. For any subsequent visit by a

visitor whose records have already been updated and

image synchronised, the resident will only require to

update the expected date of visit in the ledger.

The guard at the main entrance will query the in-

formation in the ledger to either allow or deny access

of a visitor to the gated community.

4.2 Functional Requirements

This section identify the actions (features) of the sys-

tem and provides a clear system overview by identify-

ing all the functions that are required to be performed

by each entity.

4.2.1 Resident/User

Average household resident should be able to

(i) Login to system

(ii) Register Visitor

(iii) Query/View Registered Visitors

(iv) Verify Photo

(v) Quarantine Registered Visitor

4.2.2 Guard

Which his duties should allow him to

(i) Login to system

Figure 2: Image sensor connect to IoT Raspberry Pi IoT

device.

(ii) Query/View Visitor details

(iii) Generate Reports

4.2.3 Admin

Which his duties should allow him to

(i) Login to system

(ii) Query/View Registered Visitors

(iii) Query/View Quarantined Visitors

(iv) Quarantine visitor

(v) Reverse quarantine visitor

4.3 Non Functional Requirements

The non functional requirements will offer direction

on how the system will operate and equally set up

constraints on all of its functionalities. The follow-

ing are the identiﬁed non-functional requirements:-

(i) Authorisation and access levels

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

292

(ii) Audit tracking

(iii) Reporting requirements - who the Guards and the

residents report to in respect to various arising is-

sues

(iv) External interfaces eg with law enforcement in

case of a robbery or crime incident in the gated

community

4.4 Implementation

For a proof of concept (POC), the agile approach was

used for the overall project management. The pro-

posed HyperGate prototype was segmented into the

following three modules needed to obtain the com-

plete proof of concept:-

(i) User-based data input module : This is the module

that provides the user with a graphical interface to

accomplish most of the aforementioned functional

requirements.

(ii) Sensor-based data input module : This is the mod-

ule that will require an image sensor mounted and

conﬁgured to provide automated input of the cap-

tured images onto the database

(iii) Mobile application - This is the application to be

used by residents for records update and by the

guards for querying visitor’s information.

The ﬁrst module was implemented using the fol-

lowing key software and coding tools-:

Hyperledger: For the generation and implementa-

tion of a permissioned blockchain network.

Couchdb: The underlying database for storing trans-

actions - Provides GUI through Fauxton for view-

ing current state database.

Nodejs: For development of the backend REST API

- Allow conﬁguration of the server side.

Golang: For Design and Development of Smart Con-

tracts (Chain Code) on the hyperledger fabric.

Docker: For containerisation of the micro-services

of the Hyperledger blockchain. All the participat-

ing peers, orderers and ledgers/couchdb, will run

on separate docker containers.

Postman: For interacting with the API- Provides a

user-friendly interface to make requests (GET,

POST) to the CoachDB.

React: For front end development of the user GUI.

VSCODE: For coding. Any code editor would work

but VSCODE installed with YAML support and

Go extensions is recommend.

The second and third modules have not been im-

plemented in the POC. The second module will re-

quire an IP camera with an image sensor that will

take the image of the visitor for approval by the re-

spective resident before the transaction is committed

in the ledger.

4.5 Hyperledger Fabric Network Setup

Hyperledger fabric version 2.2 was used to create the

Hyperledger fabric network with the various courts in

the gated community representing the Organisations

and the various residents representing the Peers. Each

court (organisation) was designed to have four peers,

each peer representing one residential unit within the

court. Additionally, each court was designed to have

its own Certiﬁcation Authority (CA) and each peer to

have their ledger as shown in ﬁgure 3.

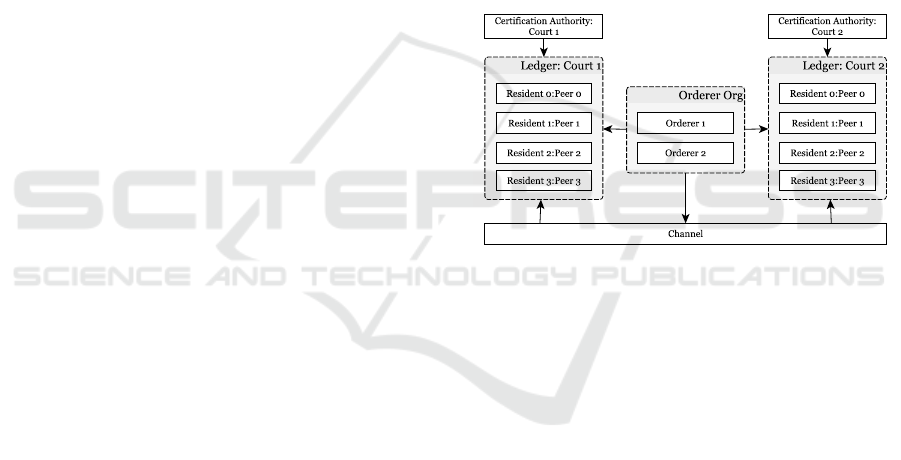

Figure 3: HLF Network setup.

The ledgers were created on the couchdb database

under the docker containers. The docker contain-

ers communicate with each other and ensures prompt

replication of any updates on the data for each peer

under the docker containers.

4.6 Testing

Test data with random names and mobile numbers

was used to create visitors records for the gated com-

munity using the developed user interface (UI) forms

for data input. For each successful transaction, a new

block was generated. The generated blocks in the de-

veloped Hypergate blockchain network are viewable

from the Hyperledger Explorer as depicted in ﬁgure

Notice that each court has their own local Mem-

bership Provider (MSP) for validating the clients and

checking whether they have the required privileges

for committing transactions. This distribution of the

MSPs to all the courts ensures the system remains

truly distributed and there are no bottlenecks for iden-

tity management.

Malicious Activity Detection using Smart Contracts in IoT

293

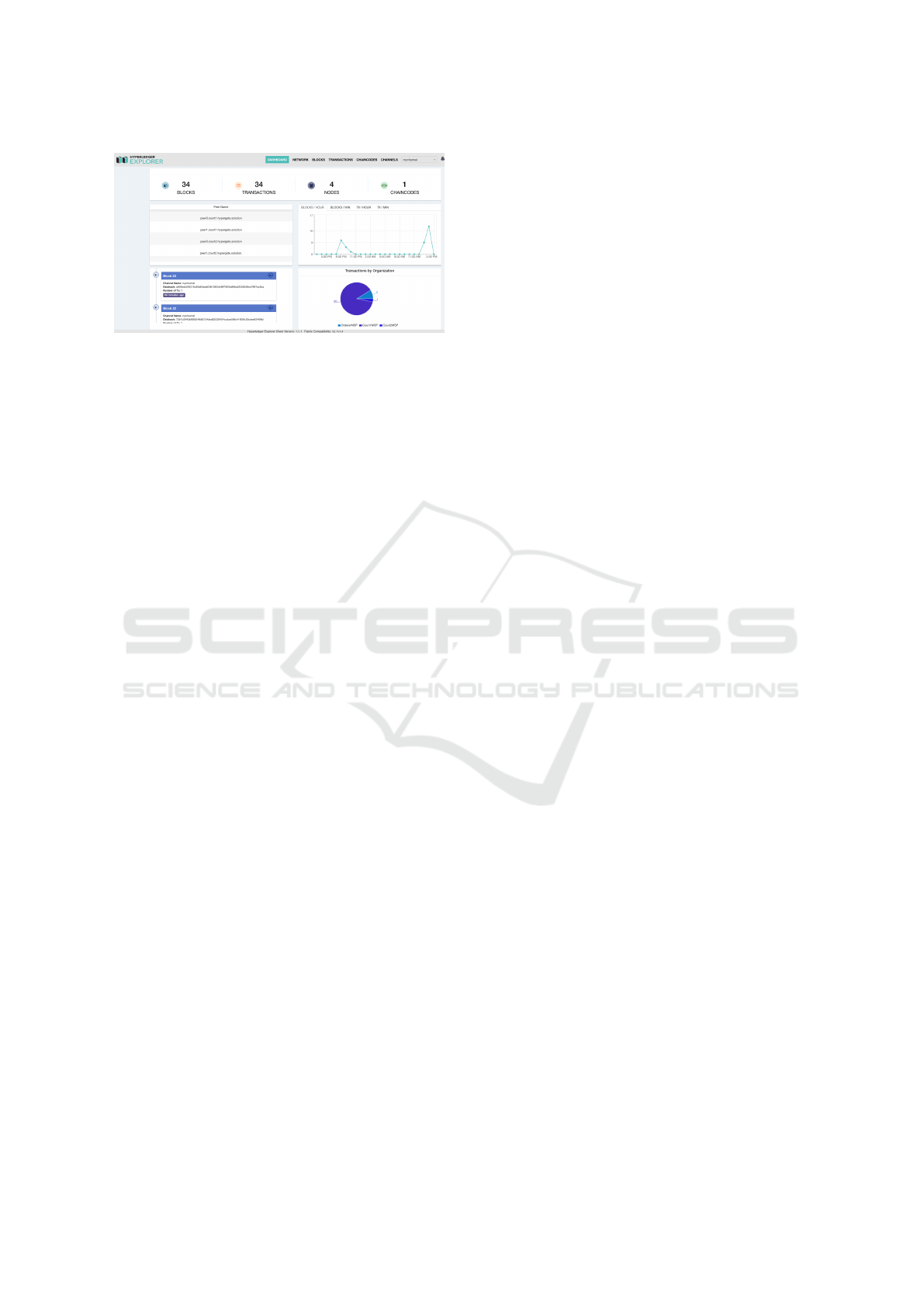

Figure 4: Hyperledger Explorer Blockchain view - with

blocks generated from test transactions.

Any transaction performed by an authorised entity

is ﬂagged as suspicious and access denied.

4.7 Real Life Implementation

The Hypergate proof of concept is developed in a va-

grant box using docker containers and cyptogen com-

mand tool to generate crypto material. The cryptogen

tool is basically used for test environment setups.

Production environment will require real identities

issued by the authorised certiﬁcation authority (CA)

from the Public Key Infrastructure (PKI) of the re-

spective jurisdiction.

Hosting of IoT proof of concept implemented on a

blockchain would best be done using Blockchain-as-

a-Service (BaaS) provider. BaaS offers managed ser-

vices for blockchain to simplify the setup complexity

and reduce hardware costs. The following are some

of the major companies offering BaaS:-

(i) International Business Machines Corporation

(IBM)

(ii) Chainstack

(iii) Microsoft Azure

(iv) Amazon AWS Managed Blockchain and QLDB

(v) Oracle Blockchain Cloud

5 DISCUSSION

The number of interconnected IoT devices is growing

daily in almost all industries. These interconnected

devices communicate in an insecure channel and are,

therefore, exposed to risks of cyber-attacks by design.

In contrast to traditional secured databases, pri-

vate Blockchains are scalable by design. They offer

pre-determined governance capabilities (the consen-

sus algorithm) that clearly deﬁne how the system will

be operated while ensuring that no network partici-

pant can manipulate the stored data to their beneﬁt as

well as are designed to reconcile data efﬁciently and

in real-time across hundreds of participants. It is also

worth noting that data reconciliation between multi-

ple centralized systems requires each participant to

connect their database via APIs with all other partic-

ipant databases. Maintaining these (potentially) hun-

dreds of API connections can create overhead costs

than simply using one common Blockchain to man-

age this data.

The HyperGate solution implemented with Hy-

perledger Fabric provides an excellent use case that

may be adopted in real life to enhance security for

smart homes. The smart contract coupled with the

immutability of the records and the use of certiﬁcates

to validate members participating in the blockchain

network is a sure way of ensuring the security and

privacy of personal data amidst the proliferation of

network attacks by hackers.

6 CONCLUSION

The Permissioned Blockchain framework using smart

contracts on Hyperledger Fabric with Risk-based Ac-

cess control model will eliminate possible hacks and

data tempering thereby making it undoubtedly tech-

nology that organizations can rely on to implement

secure solutions and promote conﬁdence and trust in

the use of the indispensable IoT solutions.

6.1 Future Work

Article 42 and 25 of the General Data Protection reg-

ulation (GDPR) enforces the requirement of ’right to

forget” and ”right to erase” personal information. The

rapidly deployed use case immutably stores Personal

Identiﬁable Data in the Blockchain. To ensure com-

pliance with GDPR, there is need to develop a de-

centralised personal data management system that uti-

lizes zero knowledge proofs in combination with de-

centralised identiﬁers to enable hide speciﬁc pieces of

Personal Identiﬁable Information (PII) during trans-

actions in the gated community blockchain solution.

The visitors will update the decentralized database by

themselves and have full control of their identity. The

only info that a gatekeeper needs to know is: does

this person have permission to enter the gated com-

munity? This proof requires to be coded into a de-

centralized identiﬁer that gives a ”yes” or ”no” results

without divulging any personal information.

IoTBDS 2021 - 6th International Conference on Internet of Things, Big Data and Security

294

ACKNOWLEDGMENT

Our profound gratitude goes to members of the Fac-

ulty of Engineering and Physical Science, Southamp-

ton University, Department of Engineering and Tech-

nology, University of Derby, and the Cyber Security

Group, University of Southampton, for their unre-

served support and guidance that contributed to the

conceptualization of this project.

REFERENCES

(2015). Man hacks monitor, screams at baby girl.

Abie, H. and Balasingham, I. (2012). Risk-based adaptive

security for smart iot in ehealth. In Proceedings of the

7th International Conference on Body Area Networks,

pages 269–275.

Ali, B. and Awad, A. I. (2018). Cyber and physical security

vulnerability assessment for iot-based smart homes.

Sensors, 18:817.

Anderson, J. and Rainie, L. The internet of things will thrive

by 2025, pewresearch internet project, may 2014.

Androulaki, E., Barger, A., Bortnikov, V., Cachin, C.,

Christidis, K., De Caro, A., Enyeart, D., Ferris, C.,

Laventman, G., Manevich, Y., et al. (2018). Hyper-

ledger fabric: a distributed operating system for per-

missioned blockchains. In Proceedings of the thir-

teenth EuroSys conference, pages 1–15.

Arndt, R. Z. (2018). Every device you own can get hacked.

Assiri, A. and Almagwashi, H. (2018). Iot security and

privacy issues. 2018 1st International Conference on

Computer Applications & Information Security (IC-

CAIS), pages 1–5.

Associated Press, F. B. (2020). Hacked hospital chain says

all 250 us facilities affected.

Atlam, H., Alenezi, A., Hussein, R., Hussein, K., Wills, G.,

et al. (2018). Validation of an adaptive risk-based ac-

cess control model for the internet of things. Interna-

tional Journal of Computer Network and Information

Security, 10(1):26–35.

Griggs, K. N., Ossipova, O., Kohlios, C. P., Baccarini,

A. N., Howson, E. A., and Hayajneh, T. (2018).

Healthcare blockchain system using smart contracts

for secure automated remote patient monitoring. Jour-

nal of medical systems, 42(7):130.

Jurcut, A., Niculcea, T., Ranaweera, P., and Le-Khac, N.-A.

(2020). Security considerations for internet of things:

A survey. SN Computer Science, 1(4).

Kshetri, N. (2017). Can blockchain strengthen the internet

of things? IT Professional, 19(4):68–72.

Li, X., Nie, L., Chen, S., Zhan, D., and Xu, X. (2015). An

iot service framework for smart home: Case study on

hem. In 2015 IEEE International Conference on Mo-

bile Services, pages 438–445. IEEE.

Living, G. C. (2019). Almost half of companies still can’t

detect iot device breaches, reveals gemalto study.

Lyu, M., Sherratt, D., Sivanathan, A., Gharakheili, H. H.,

Radford, A., and Sivaraman, V. (2017). Quantifying

the reﬂective ddos attack capability of household iot

devices. In Proceedings of the 10th ACM Conference

on Security and Privacy in Wireless and Mobile Net-

works, pages 46–51.

Miorandi, D., Sicari, S., De Pellegrini, F., and Chlamtac,

I. (2012). Internet of things: Vision, applications and

research challenges. Ad hoc networks, 10(7):1497–

1516.

ODNI Public Affairs, B. M. (2016). Dni clapper provides

series of threat assessments on capitol hill.

O’Neill, M. et al. (2016). Insecurity by design: Today’s iot

device security problem. Engineering, 2(1):48–49.

Pan, J., Wang, J., Hester, A., Alqerm, I., Liu, Y., and Zhao,

Y. (2019). Edgechain: An edge-iot framework and

prototype based on blockchain and smart contracts.

IEEE Internet of Things Journal, 6(3):4719–4732.

Shackelford, S. J., Raymond, A., Charoen, D., Balakrish-

nan, R., Dixit, P., Gjonaj, J., and Kavi, R. (2017).

When toasters attack: A polycentric approach to en-

hancing the security of things. U. Ill. L. Rev., page

415.

Sicari, S., Rizzardi, A., Miorandi, D., and Coen-Porisini, A.

(2018). Securing the smart home: A real case study.

Internet Technology Letters, 1(3):e22.

Solove, D. J. (2008). Understanding privacy. Legal Studies.

Sousa, J., Bessani, A., and Vukolic, M. (2018). A byzan-

tine fault-tolerant ordering service for the hyperledger

fabric blockchain platform. In 2018 48th annual

IEEE/IFIP international conference on dependable

systems and networks (DSN), pages 51–58. IEEE.

Suryadevara, N. K. and Mukhopadhyay, S. C. (2015). Smart

Homes. Springer.

Vlajic, N. and Zhou, D. (2018). Iot as a land of opportunity

for ddos hackers. Computer, 51(7):26–34.

Walport, M. et al. (2016). Distributed ledger technology:

Beyond blockchain. UK Government Ofﬁce for Sci-

ence, 1:1–88.

Zarei, J. and Sadoughi, F. (2016). Information security risk

management for computerized health information sys-

tems in hospitals: a case study of iran. Risk manage-

ment and healthcare policy, 9:75.

Zheng, Z., Xie, S., Dai, H.-N., Chen, W., Chen, X., Weng,

J., and Imran, M. (2020). An overview on smart con-

tracts: Challenges, advances and platforms. Future

Generation Computer Systems, 105:475–491.

Malicious Activity Detection using Smart Contracts in IoT

295
