BloatLibD: Detecting Bloat Libraries in Java Applications

Agrim Dewan

, Poojith U. Rao

, Balwinder Sodhi

and Ritu Kapur

2 a

Department of Computer Science and Engineering, Punjab Engineering College, Chandigarh, India

Department of Computer Science and Engineering, Indian Institute of Technology Ropar, Punjab, India

Keywords:

Third-party Library Detection, Code Similarity, Paragraph Vectors, Software Bloat, Obfuscation.

Abstract:

Third-party libraries (TPLs) provide ready-made implementations of various software functionalities and are

frequently used in software development. However, as software development progresses through various iter-

ations, there often remains an unused set of TPLs referenced in the application’s distributable. These unused

TPLs become a prominent source of software bloating and are responsible for excessive consumption of re-

sources, such as CPU cycles, memory, and mobile devices’ battery-usage. Thus, the identiﬁcation of such

bloat-TPLs is essential. We present a rapid, storage-efﬁcient, obfuscation-resilient method to detect the bloat-

TPLs. Our approach’s novel aspects are i) Computing a vector representation of a .class ﬁle using a model

that we call Jar2Vec. The Jar2Vec model is trained using the Paragraph Vector Algorithm. ii) Before using

it for training the Jar2Vec models, a .class ﬁle is converted to a normalized form via semantics-preserving

transformations. iii) A Bloated Library Detector (BloatLibD) developed and tested with 27 different Jar2Vec

models. These models were trained using different parameters and >30000 .class ﬁles taken from >100

different Java libraries available at MavenCentral.com. BloatLibD achieves an accuracy of 99% with an F1

score of 0.968 and outperforms the existing tools, viz., LibScout, LiteRadar, and LibD with an accuracy

improvement of 74.5%, 30.33%, and 14.1%, respectively. Compared with LibD, BloatLibD achieves a re-

sponse time improvement of 61.37% and a storage reduction of 87.93%. Our program artifacts are available

at https://bit.ly/2WFALXf.

1 INTRODUCTION

The development of a non-trivial software application

invariably involves the use of Third Party Libraries

(TPLs), which provide ready-made implementations

of various functionalities, such as image manipula-

tion, data access and transformation, and advertise-

ment. According to (Wang et al., 2015), 60% of an

application’s code is contributed by TPLs. However,

the unused TPLs present in an application waste al-

most half of the CPU cycles and memory. Such un-

used TPLs have become a prominent source of soft-

ware bloat. We refer to such unused TPLs as bloat-

TPLs. Resource wastage is a critical problem for mo-

bile devices that possess limited computing resources

and signiﬁcantly impact the performance by affect-

ing the execution time, throughput, and scalability of

various applications (Mitchell and Sevitsky, 2007; Xu

et al., 2010). Therefore, the identiﬁcation and re-

moval of the bloat-TPLs present in an application

are desirable.

https://orcid.org/0000-0001-7112-0630

Deﬁnition 1 (Bloat-TPL). We deﬁne a bloat-

TPL as the one bundled in the distributable

binary of a software application A but not rel-

evant to it. The examples of such TPLs would

be the Mockito

or JUnit

Java ARchives

(JARs) that get packaged in the deployable re-

lease archive of a Java application.

The relevance of a TPL is application-speciﬁc.

For instance, relevant vs. irrelevant, reli-

able vs. unreliable, anomalous vs. non-

anomalous, etc. The idea is to compare with

a reference list of relevant libraries or white-

listed libraries

in an automated manner.

https://site.mockito.org/

https://junit.org/

Black libraries matter

126

Dewan, A., Rao, P., Sodhi, B. and Kapur, R.

BloatLibD: Detecting Bloat Libraries in Java Applications.

DOI: 10.5220/0010459401260137

In Proceedings of the 16th Inter national Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 126-137

ISBN: 978-989-758-508-1

1.1 Motivation

Our primary objective is to develop a technique for

detecting bloat-TPLs present in a software applica-

tion’s distributable binary. An essential task for

achieving this objective is to develop a robust tech-

nique for TPL-detection. The existing TPL-detection

methods (Backes et al., 2016; Ma et al., 2016) gen-

erally depend, directly or indirectly, on the package

names or the library’s structural details and code.

Thus, they are potentially affected by various obfus-

cations, such as package-name obfuscation and API

obfuscation. Also, most of the works are restricted to

Android applications (Zhang et al., 2018; Ma et al.,

2016; Li et al., 2017; Backes et al., 2016).

We propose an obfuscation-resilient tool that de-

tects the TPLs present in a given application by iden-

tifying the similarities between the source code of

the “available TPLs” and the TPLs used in the given

application. To obtain this set of “available TPLs,”

we leverage the TPLs present at MavenCentral repos-

itory

that hosts TPLs for various functionalities,

which we assume to be a trustworthy source. An-

other important goal of our work is to evaluate the

Paragraph Vector algorithm (PVA) (Le and Mikolov,

2014) in computing a reliable and accurate represen-

tation of binary and textual code.

1.2 Basic Tenets Behind Our System

In this paper, we present a novel TPL-detection tech-

nique by creating a library embedding using PVA –

we named it Jar2Vec. The central idea underlying our

approach is illustrated in Figure 1 and stated as fol-

lows:

1. Each of the TPLs consists of a collection of binary

.class ﬁles.

2. Semantics-preserving transformations (such as

decompilation and disassembly) are applied to the

binary .class ﬁles to obtain their normalized tex-

tual form(s), viz., the textual forms of source code

and bytecode instructions.

3. With a large corpus of such text, we train Jar2Vec

models, using which a vector representation of

any .class ﬁle can be computed.

4. Further, the vector representations of a TPL can

be computed as a suitable function of the vector

representations of all the .class ﬁles contained in

that TPL.

5. If the vector representations of a TPL J in an ap-

plication, have a considerable cosine similarity

https://mvnrepository.com/repos/central

http://bit.ly/2ODWoEy

with the vector representations of the set of “avail-

able TPLs,” we label J as likely-to-be-non-bloat-

TPL or else likely-to-be-bloat-TPL.

1.3 Handling Obfuscated Libraries

One of the signiﬁcant issues faced in TPL-detection

is the obfuscation of the library code. The TPL-

detection techniques that rely on the obfuscation-

sensitive features of a library would fail to detect a li-

brary under obfuscation. The key idea underlying our

approach towards handling obfuscated libraries is to

produce a “normalized” textual representation of the

library’s binary .class ﬁles before using it to train the

Jar2Vec models and when checking an input .class us-

ing a Jar2Vec model. We perform the decompilation

and disassembly of .class ﬁles to obtain their “nor-

malized” textual forms, viz., source code and byte-

code instructions as text. These operations on a .class

ﬁle are obfuscation-invariant. For example, we trans-

form a .class ﬁle using a decompiler (Strobel, 2019)

(with suitable conﬁguration), which produces almost

identical output for both obfuscated and unobfuscated

versions. The decompiler can emit either bytecode or

the Java source code for the .class ﬁles.

2 RELATED WORK

Most of the existing works that target TPL-detection

assume that “the libraries can be identiﬁed, either

through developer input or inspection of the applica-

tion’s code.” The existing approaches for TPLs detec-

tion can be categorized as follows:

1. Based on a “Reference List” of TPLs: The tech-

niques presented in (Chen et al., 2014; Liu et al.,

2015; Grace et al., 2012; Book et al., 2013) are

signiﬁcant works in this category. A “reference

list” comprises libraries known to be obtained

from a trustworthy source and useful for software

development. The basic idea behind the approach

is ﬁrst to construct a “reference list” of libraries

and then test the application under consideration

using the list. In this process, it is evaluated that

the application’s constituent libraries are present

in the “reference list” or not. All the constituent

libraries, which are not present in the list, are

deemed to be bloat-TPLs. In practice, this ap-

proach requires keeping the “reference list” up-to-

date. Since these methods require manually com-

paring the libraries with the “reference list” and a

periodic update of this list, they tend to be slower,

costly, and storage-inefﬁcient.

BloatLibD: Detecting Bloat Libraries in Java Applications

127

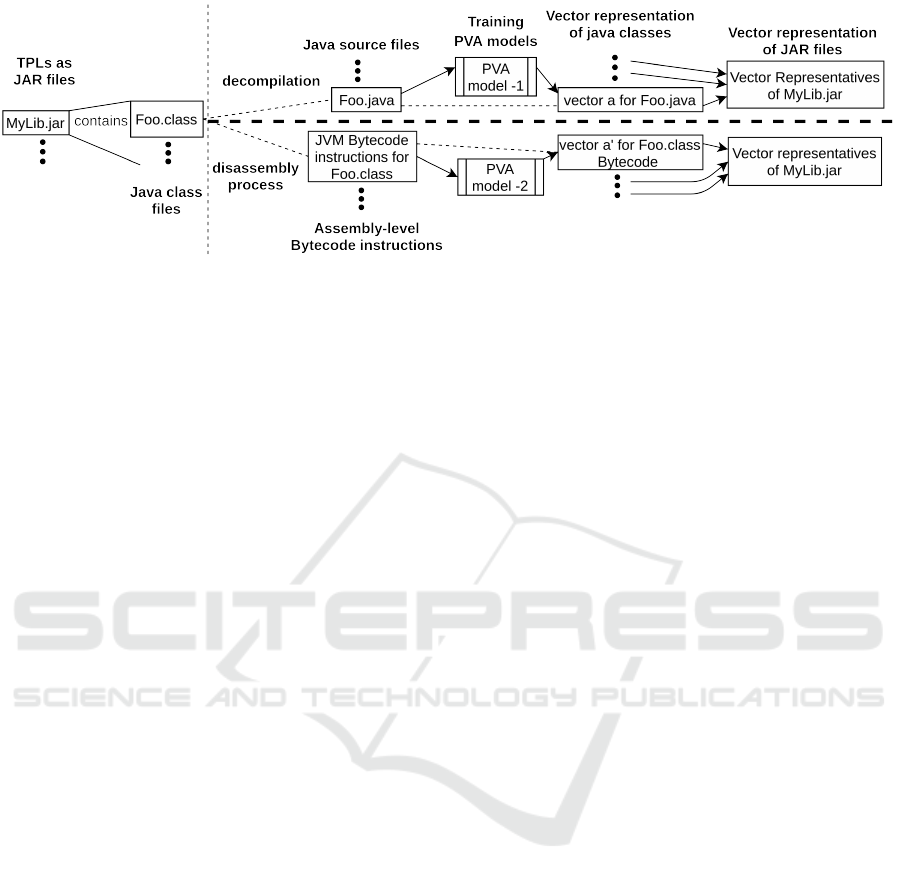

Figure 1: Basic idea of our method.

2. Features-based Approaches: (Backes et al., 2016;

Ma et al., 2016; Li et al., 2017) are some of the

approaches that work by extracting individual li-

braries’ features and then use them to identify li-

braries that are similar to another. The feature-

based methods generally depend, directly or in-

directly, on the package names or the structural

details of the application and source code. A brief

description of these works is provided below:

(a) LibScout (Backes et al., 2016) presents a

TPL-detection technique based on Class Hier-

archical Analysis (CHA) and hashing mecha-

nism performed on the application’s package

names. Though the method has been proven

to be resilient to most code-obfuscation tech-

niques, it fails in certain corner cases. For ex-

ample, modiﬁcation in the class hierarchy or

package names, or when the boundaries be-

tween app and library code become blurred.

Another recent work is (Feichtner and Raben-

steiner, 2019), which relies on the obfuscation-

resilient features extracted from the Abstract

Syntax Tree of code to compute a code ﬁnger-

print. The ﬁngerprint is then used to calculate

the similarity of two libraries.

(b) LibRadar (Ma et al., 2016) is resilient to

the package name obfuscation problem of Lib-

Scout and presents a solution for large-scale

TPL-detection. LibRadar leverages the beneﬁts

of hashing-based representation and multi-level

clustering and works by computing the similar-

ity in the hashing-based representation of static

semantic features of application packages. Li-

bRadar has successfully found the original

package names for an obfuscated library, gen-

erating the list of API permissions used by an

application by leveraging the API-permission

maps generated by PScout (Au et al., 2012).

Though LibRadar is resilient to package obfus-

cation, it depends on the package hierarchy’s

directory structure and requires a library candi-

date to be a sub-tree in the package hierarchy.

Thus, the approach may fail when considering

libraries being packaged in their different ver-

sions (Li et al., 2017). An alternate version of

LibRadar, which uses an online TPL-database,

is named as LiteRadar.

ing to obtain code features, which reduces

the dependency on package information and

supplementary information for TPL-detection.

LibD works by developing library instances

based on the package-structure details extracted

using Apktool, such as the direct relations

among various constituent packages, classes,

methods, and homogeny graphs. Authors em-

ploy Androguard (Anthony Desnos, 2018) to

extract information about central relationships,

viz., inclusion, inheritance, and call relations.

LibD depends upon the directory structure of

applications, which leads to the possibility of

LibD’s failure due to obfuscation in the direc-

tory structure.

Limitations of the Current Works: While the TPL-

detection based on “reference list” methods tend to be

inefﬁcient and costly, the feature-based methods are

potentially affected by various types of obfuscations

and are mostly developed for Android applications.

Therefore, it is desirable to develop TPL-detection

techniques that are resilient against such issues and

can be used for applications not-limited to the An-

droid platform.

3 PROPOSED APPROACH

Our system’s primary goal can be stated as follows:

Given a TPL J, determine if J is likely-to-be-bloat-

TPL or a non-bloat-TPL in the given application. Our

approach’s central idea is to look for source code sim-

ilarity and bytecode similarity between J and the set

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

128

Table 1: Table of Notations.

J , A TPL in its JAR ﬁle format.

C , The collection of JAR ﬁles fetched

from MavenCentral.

Z , The set of PVA tuning-parameter

variation scenarios, listed in Table-

, F

, The collections of bytecode (bc)

and source code (sc) data obtained

by disassembling and decompila-

tion of .class ﬁles f , respectively,

such that f ∈ J, and J ∈ C.

, M

, The collections of Jar2Vec models

trained on F

and F

respectively,

for all the scenarios in Z.

, The best performing Jar2Vec mod-

els among M

and M

, respec-

tively.

, φ

, The PVA vectors corresponding to

a .class ﬁle’s bytecode and source

code data, respectively.

re f

, φ

re f

, The reference PVA vectors for

source code and bytecode, respec-

tively.

D , The database containing the .class

ﬁles’ vectors (φ

and φ

) for C.

β , The number of training iterations

or epochs used for training a PVA

model.

γ , The PVA vector size used for train-

ing a PVA model.

ψ , The number of training samples

used for training a PVA model.

α , The cosine similarity score between

two PVA vectors.

α , The threshold cosine similarity

score.

of “available TPLs.” However, analyzing the detailed

usages of the TPLs in the application is currently out

of scope of this work. Our method can be considered

as similar to the “reference list” methods, but the sim-

ilarity here is determined on the basis of source code

present in the TPL, and not merely the TPL names or

package-hierarchial structure. Table-1 shows the no-

tation used for various terms in this paper.

3.1 Steps of Our Approach

The central ideas behind our approach were presented

in §1.2. Here we expand those steps in more detail

and highlight the relevant design decisions to be ad-

dressed while implementing each step.

1. Preparing the Dataset of “Available TPLs”.

(a) Download a set of TPLs C from MavenCentral.

Design decision: Why use MavenCentral to

collect TPLs? How many TPLs should be col-

lected from different software categories?

(b) For each TPL J ∈ C, obtain the Java source

code and bytecode collections (F

, F

) by per-

forming the decompilation and disassembly

transformation operations.

Design decision: Why are the decompilation

and disassembly transformations appropriate?

and M

on F

and

, respectively, obtained in the previous step.

Design decision: Why use PVA, and what

should be the PVA tuning-parameters for ob-

taining optimal results in our task?

(d) For each source ﬁle f ∈ F

and the bytecode

record b ∈ F

, obtain the corresponding vec-

tor representations (φ

, φ

) using suitable PVA

models trained in the previous step. φ

and φ

obtained for each source code and bytecode in-

stance are stored in the database D.

2. Determining if an Input TPL (J) is a Bloat-TPL

or not for a Given Application.

(a) Compute the vector representation hφ

, φ

i for

the bytecode and source code representations of

(b) Obtain all the vectors hφ

, φ

i ∈ D, such

that the respective similarity scores between

hφ

, φ

i and hφ

, φ

i are above speciﬁc

threshold values (

and

Design decision: What are the optimal values

of similarity thresholds (

and

the given application.

Design decision: How is the nature of J deter-

mined?

3.2 Design Considerations in Our

Approach

In this section, we address the design decisions taken

while implementing our approach.

3.2.1 Collecting TPLs from MavenCentral

The libraries used for training our models (named

Jar2Vec) were taken from MavenCentral. We choose

MavenCentral as it is a public host for a wide variety

of popular Java libraries. MavenCentral categorizes

the Java libraries based on the functionality provided

by the libraries. However, our method is not depen-

dent on MavenCentral; the TPLs could be sourced

BloatLibD: Detecting Bloat Libraries in Java Applications

129

from reliable providers. To collect the Java libraries,

we perform the following steps:

1. Crawl the page https://mvnrepository.com/

open-source, and download the latest version of a

JAR ﬁle for each of the top k libraries listed under

each category. For our experiments, we choose

k=3.

2. Extract and save in a database table the metadata

associated with the downloaded JAR. The meta-

data includes details of the TPL, such as the cate-

gory, tags, and usage stats.

3.2.2 Rationale for Choosing PVA for Training

Models

We train Jar2Vec models using PVA on the source

code and bytecode textual forms of the .class ﬁles ob-

tained by the decompilation and disassembly of vari-

ous TPLs. The key reasons for choosing PVA are i) It

allows us to compute the ﬁxed-length vectors that ac-

curately represent the source code samples. Keeping

the length of vectors same for every source code sam-

ple is critical for implementing an efﬁcient and fast

system. ii) Recent works such as (Alon et al., 2019),

a close variant of PVA, have proven that it is possible

to compute accurate vector representations of source

code and that such vectors can be very useful in com-

puting semantic similarity between two source code

samples.

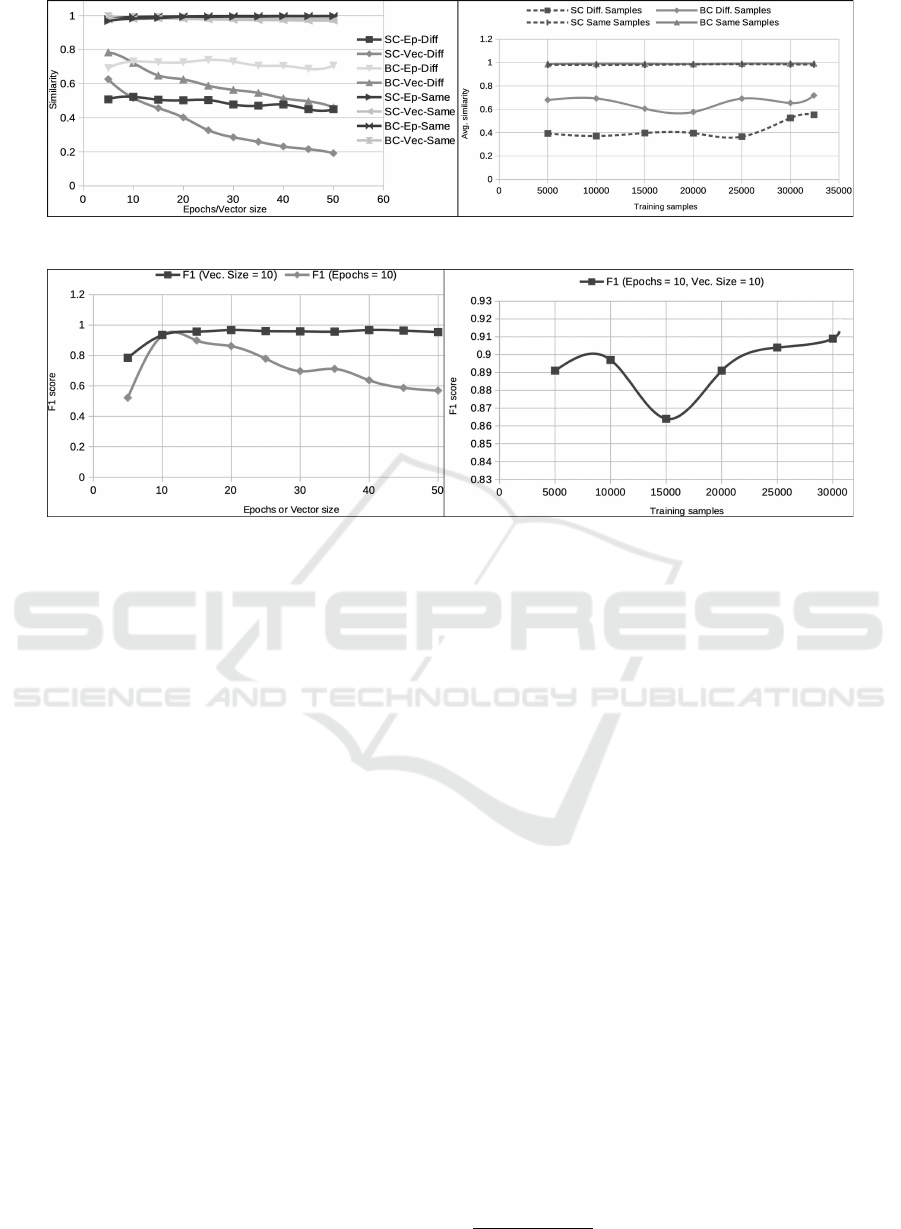

Tuning Parameters for PVA: Performance, in terms

of accuracy, efﬁciency, and speed of PVA, is deter-

mined by its input parameters such as β, γ, and ψ (see

Table-1). Therefore, one of the major tasks is to se-

lect the optimal values of β, γ, and ψ that can result in

the best performing Jar2Vec models (

and

The performance of the Jar2Vec models is evaluated

by measuring their accuracy in detecting the similar-

ity in TPLs. The experiments’ details to determine

β, γ, and ψ are provided in the Appendix.

3.2.3 Rationale for using the Decompilation and

Disassembly Transformations

It is necessary to derive a “normalized” and

obfuscation-resilient textual form of the .class ﬁles to

compute a reliable vector representation. The normal-

ization applies a consistent naming of symbols while

preserving the semantics and structure of the code.

We use the decompilation (giving a source code text)

and disassembly (giving a bytecode text) as transfor-

mations to extract such normalized textual forms of

.class ﬁles.

3.2.4 Employing the Use of Vector

Representations for Performing Similarity

Detection between TPLs

To determine the similarity between libraries efﬁ-

ciently, we create a database (D) of vectors. These

vectors correspond to the .class ﬁles present in a tar-

get repository of libraries (such as MavenCentral, or

an in-house repository maintained by an organiza-

tion). We obtain the vector representations for both

the source code and bytecode of .class ﬁles present

in TPLs using suitably trained PVA models and store

them in D. The PVA vectors enable fast and efﬁcient

detection of TPL similarity.

3.2.5 Computing the Threshold Similarity

Measure

Our method detects two libraries’ similarity by infer-

ring the similarity scores for .class ﬁles contained in

those libraries. To check if two .class vectors are sim-

ilar or not, we compute their cosine similarity

. An

important design decision in this context is:

For reliably detecting a library, what is the accept-

able value of Jar2Vec similarity scores for decompiled

source code and bytecode inputs?

We deem two .class ﬁles as highly similar or iden-

tical when the similarity score for the ﬁles is higher

than a threshold value

α. The value of

α is determined

by running several experiments to measure similarity

scores for independent testing samples. The details of

the experiments are discussed in the Appendix.

3.2.6 Determining the Nature of an Unseen JAR

File J for a Given Application A

To determine if a given JAR ﬁle (J) is “bloat-TPL”

for an application (A), we leverage the best perform-

ing Jar2Vec models (

and

) and the vectors

database D.

If J contains .class ﬁles depicting considerable

similarity (≥

α) with the “available TPLs,” it is

deemed to be as “likely-to-be-non-bloat” for A. If for

at least N .class ﬁles in J, the similarity scores are

≥

α, we label J as a likely-to-be-non-bloat TPL for

A, else a bloat-TPL. In our experiments, we take N as

half of the count of .class ﬁles present in J. For a more

strict matching, a higher value of N can be set. The

complete steps for the detection procedure are listed

in Algorithm 1.

Selection of the Top-similar “Available TPLs”: We

explain it with an example. Suppose we have four

“available TPLs”, with C := {M1.jar, M2.jar, M3.jar,

https://bit.ly/2RZ3W5L

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

130

M4.jar}, such that these contain 15, 6, 10, and 10

.class ﬁles, respectively. Now, D will contain the PVA

vectors corresponding to the source code and byte-

code representations of all the .class ﬁles present in

all the JARs in C. Next, suppose we want to test a

JAR ﬁle Foo.jar that contains ten .class ﬁles, and that

we have the following similarity scenarios:

1. All ten .class ﬁles of Foo.jar are present in M1.jar.

2. All six .class ﬁles of M2.jar are present in Foo.jar.

3. Seven out of ten .class ﬁles of M3.jar are present

in Foo.jar.

4. For M4.jar, none of these ﬁles is identical to those

present in Foo.jar, but they have similarity scores

higher than the threshold.

Which of the JAR ﬁles (M1 – M4) listed above will

be determined as the most similar to Foo.jar?

Our approach determines the most-similar JAR

ﬁle by measuring the total number of distinct .class

ﬁle matches. So with this logic, the similarity order-

ing for Foo.jar is M1, M4, M3, M2.

In this setting, determining the similarity of two

JARs is akin to comparing two sets for similarity.

Here the items of the sets would be the PVA vectors

representing .class ﬁles. We apply the following ap-

proach to determine the TPL-similarity:

1. For each .class c in Foo.jar, ﬁnd each record r ∈ D

such that the similarity score between c and r is

higher than a threshold. Let R ⊂ D denote the set

of all such matched records.

2. Find the set Y of distinct JARs to which each r ∈ R

belongs.

3. Sort Y by the number of classes present in R.

4. Select the top-k items from Y as similar JARs to

Foo.jar.

Algorithm-1 presents the above logic in more detail.

3.3 Implementation Details

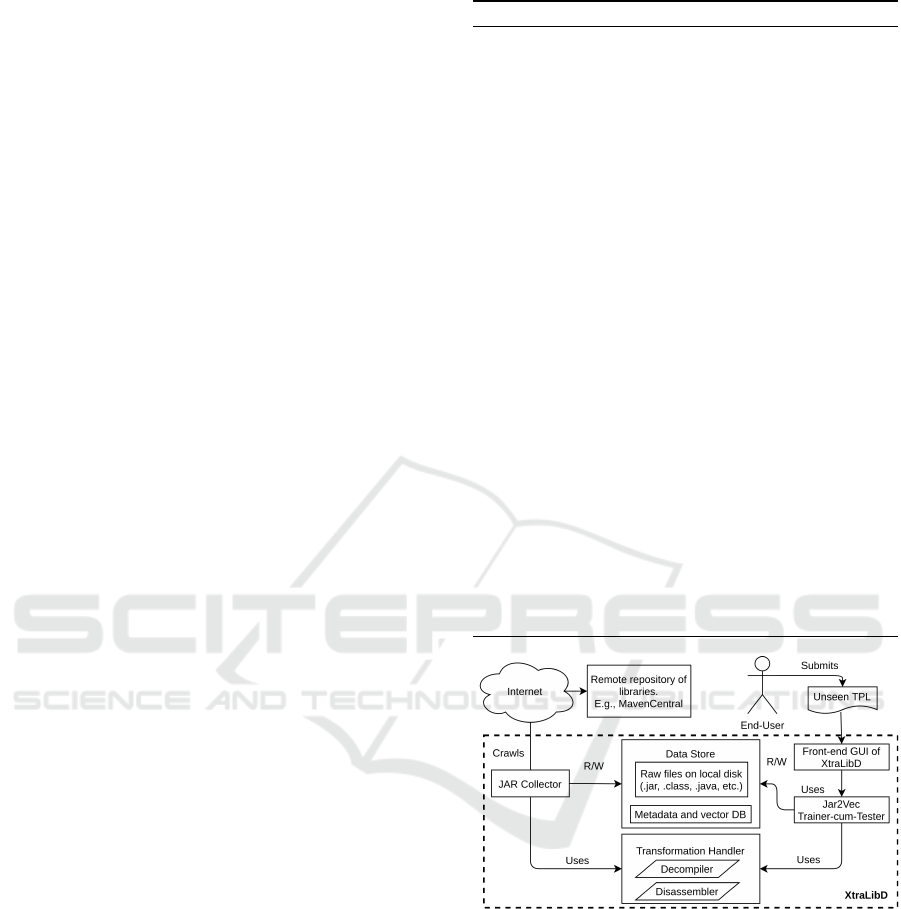

The logical structure of the proposed system is shown

in Figure 2. All components of the system have been

developed using the Python programming language.

Details of each of the components are as follows:

1. JAR File Collector: We developed a crawler pro-

gram to collect the JAR ﬁles and the metadata

associated with each JAR ﬁle. The ﬁles were

downloaded from www.mavencentral.com, a re-

puted public repository of Open Source Software

(OSS) Java libraries. MavenCentral has about

15 million indexed artifacts, which are classiﬁed

into about 150 categories. Some examples of

the categories include JSON Libraries, Logging

Algorithm 1: Steps for determining the nature of a TPL J.

1: Input: J := A TPL ﬁle provided as input by an end-

user.

:= The best performing Jar2Vec models.

:= Threshold similarity scores for source code

and bytecode.

re f

, φ

re f

:= Reference PVA vectors for source code

and bytecode.

D := Database containing the vector representations of

.class ﬁles in C.

2: Output: d := Decision on the nature of J.

/*Please see Table 1 for notation*/

3: S

:= S

:= NULL

4: for all .class ﬁles f ∈ J do

5: Obtain the PVA vectors φ

and φ

using

and

6: Query the database D for top-k most similar vectors

to φ

and φ

7: α

, α

:= Compute the cosine similarity between

hφ

, φ

re f

i and hφ

, φ

re f

8: S

:= S

∪ hα

9: S

:= S

∪ hα

10: end for

11:

d :=











non-bloat if for at least N .class ﬁle

records in both S

and S

in-

dividually, α

and α

respectively.

bloat otherwise

Figure 2: Logical structure of the proposed system.

Frameworks, and Cache Implementations. The

metadata about each JAR includes the follow-

ing main items: License, Categories, HomePage,

Date of Availability, Files, Used By (count, and

links to projects using a library). The JAR ﬁle

categories’ complete details, metadata collected,

and the speciﬁc JAR ﬁles chosen can be found at

https://bit.ly/2WFALXf .

2. Transformation Handler: This module pro-

vides the transformations and preprocessing of the

.class ﬁles present in the input JAR ﬁles. Two

types of transformations implemented are a) De-

BloatLibD: Detecting Bloat Libraries in Java Applications

131

compilation of the .class ﬁle to produce a corre-

sponding Java source and b) Disassembling the

.class ﬁles into human-readable text ﬁles contain-

ing Java Virtual Machine (JVM) bytecode instruc-

tions for the .class ﬁles.

We used the Procyon (Strobel, 2019) tool for per-

forming the decompilation and disassembling of

the .class ﬁles. The respective transformation out-

put is further preprocessed to remove comments

and adjust token whitespaces before storing it as

a text ﬁle in a local repository. The preprocess-

ing was done for decompiled Java source to en-

sure that the keywords and special tokens such

as parentheses and operators were delimited by

whitespace. The preprocessing provides proper

tokenization of the source into meaningful “vo-

cabulary words” expected by the PVA.

3. Jar2Vec Trainer-cum-tester: We use an open-

source implementation of the PVA – called Gen-

sim (Dai et al., 2015), to train our Jar2Vec models.

The Jar2Vec trainer-cum-tester module’s primary

task is to:

(a) Train the Jar2Vec models using bytecode and

Java source ﬁles produced by disassembling

and decompiling the .class ﬁles.

(b) Infer the vectors for unseen .class ﬁles’ byte-

code and source code by using the respective

models.

4. Metadata and the Vectors’ Database: The in-

formation about libraries fetched from Maven-

Central is stored in a relational database. The fol-

lowing are the essential data items stored in the

database:

(a) Name, category, version, size, and usage count

of the library.

(b) Location of the library on the local disk as well

as a remote host.

i. The fully qualiﬁed name of the f .

ii. Sizes of f , and the textual form of its decom-

piled Java source code ( f

) and the disassem-

bled JVM bytecode ( f

iii. Inferred PVA vectors hφ

, φ

i for the above

ﬁles.

iv. Cosine similarity scores α

re f

and α

re f

be-

tween hφ

, φ

re f

i and hφ

, φ

re f

i, respectively.

The values α

re f

and α

re f

are scalar.

5. BloatLibD’s GUI: The user interface of

BloatLibD is a web-based application. End-user

uploads a TPL using this GUI, which is then

processed by our tool at the server-side. The tool

Bloated Library Detector (BloatLibD)

Upload Jar File

Choose File

aws-java-sdk-core-1.8.10.jar

Submit

File nature: likely-to-be-non-bloat-library

Libraries most-similar to aws-java-sdk-core-1.8.10.jar:

Library Similarity score

aws-java-sdk-core-1.8.10.jar 0.9998567

easymock-2.0.jar 0.999789

geronimo-jta_1.1_spec-1.0.jar 0.99975768

maven-dependency-plugin-2.0-alpha-4.jar 0.99974987

commons-validator-1.0.1.jar 0.99974625

Figure 3: Top similar TPLs detected by BloatLibD.

requires the TPLs in JAR format as input. Figure

3 displays the results for a test ﬁle

submitted

to our tool. As shown by the ﬁgure, BloatLibD

displays the input ﬁle’s nature and the top-k

(k=5) similar essential libraries along with the

corresponding similarity scores. As we achieve

higher accuracy with the source code Jar2Vec

models than the bytecode models (discussed in

the Appendix), we use the best performing source

code Jar2Vec model for developing our tool.

4 EXPERIMENTAL EVALUATION

The primary goal of our experiments is to validate

the correctness and accuracy of our tool – BloatLibD.

The efﬁcacy of our tool depends on its accuracy

in performing the task of detecting similar TPLs.

BloatLibD achieves this by detecting the similarity

between the PVA vectors of the .class ﬁles present in

the TPLs. The Jar2Vec models used by BloatLibD

are responsible for generating different PVA vectors.

Therefore, we perform various parameter-tuning ex-

periments to obtain the best performing Jar2Vec mod-

els (discussed in the Appendix). To evaluate the per-

formance of BloatLibD, we develop a test-bed using

the TPLs collected from MavenCentral (discussed in

§4.1) and perform the following experiments:

1. Test the performance of Jar2Vec models (and thus

BloatLibD) in performing the TPL-detection task

(discussed in the Appendix).

2. Compare the performance of BloatLibD with the

existing TPL-detection tools (discussed in §4.2).

https://bit.ly/2yb2eHY

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

132

Table 2: TPL Data summary.

Item Count

Downloaded JAR ﬁles 450

JAR ﬁles selected for experiments 97

JAR ﬁles used for training 76 + 1 (rt.jar)

JAR ﬁles used for testing 20

.class ﬁles used for training 30427

.class ﬁles used for generating test

pairs of bytecode and source code

4033

Unique pairs of bytecode ﬁles used

for testing

20100

Unique pairs of source code ﬁles

used for testing

20100

4.1 Test-bed Setup

We crawled https://mvnrepository.com/open-source?

p=PgNo, where PgNo varied from 1 to 15. Each page

listed ten different categories from the list of most

popular ones, and under each category, the top-three

libraries were listed.

We started by downloading one JAR ﬁle for each

of the above libraries. That is, a total of 15 × 10 ×

3 = 450 JAR ﬁles were fetched. In addition to the

above JAR ﬁles, we also included the JDK1.8 runtime

classes (rt.jar). After removing the invalid ﬁles, we

were left with 97 JAR ﬁles containing 38839 .class

ﬁles.

We chose random 76 JAR ﬁles out of 97 plus the

rt.jar for training the Jar2Vec models, and the re-

maining 20 JAR ﬁles were used for testing. We used

only those .class ﬁles for training whose size was at

least 1kB since such tiny .class ﬁles do not give sufﬁ-

cient Java and byte code, which is necessary to com-

pute a sufﬁciently unique vector representation of the

.class contents. The training JARs had 33,292 .class

ﬁles, out of which only 30427 were of size 1kB or

bigger. We chose the minimum ﬁle size as 1kB be-

cause we observed that the ﬁles smaller than 1kB did

not signiﬁcantly train an accurate Jar2Vec model. The

testing JARs had 4,033 .class ﬁles. A summary of

the TPL data is shown in Table 2. Note: the training

and testing of Jar2Vec models were performed on the

source code and bytecode extracted from the respec-

tive number of .class ﬁles.

4.2 Performance Comparison of

BloatLibD with the Existing

TPL-detection Tools

To the best of our knowledge, no work leverages the

direction of using code similarity (in TPLs) and the

vector representations of code to detect the bloat-

TPLs for Java applications. We present our tool’s

performance comparison (BloatLibD) with some of

the prominently used tools, viz., LiteRadar, LibD, and

LibScout. The details about these tools have been dis-

cussed in §2.

4.2.1 Objective

To compare the performance of BloatLibD with the

existing TPL-detection tools. Through this experi-

ment, we address the following:

How does BloatLibD perform in comparison to the

existing TPL-detection tools? What is the effect on

storage and response time? Is BloatLibD resilient to

the source code obfuscations?

4.2.2 Procedure

To perform this experiment, we invited professional

programmers and asked them to evaluate our tool.

One fundred and nine of them participated in the ex-

periment. We had a mixture of programmers from ﬁ-

nal year computer science undergraduates, postgrad-

uates, and the IT industry with experience between

0-6 years. The participants had considerable knowl-

edge of Java programming language, software engi-

neering fundamentals, and several Java applications.

The experiment was performed in a controlled indus-

trial environment. We provided access to our tool

for performing this experiment by sharing it at https:

//bit.ly/2V80NCT. The tools’ performance was eval-

uated based on their accuracy, response time, and the

storage requirement in performing the TPL-detection

task. We compute the tool’s storage requirement of

the tools by measuring the memory space occupied

in storing the relevant “reference TPLs.” The TPL-

detection tools – LibD, LibScout, and LibRadar, re-

quire the inputs in an Android application PacKage

(APK) format. Therefore, APK ﬁles corresponding

to the JAR versions of the TPLs were generated us-

ing the Android Studio toolkit

(listed in Step 12 of

Algorithm 2).

The programmers were requested to perform the

following steps:

1. Randomly select a sample of 3-5 JAR ﬁles from

the test-bed developed for the experiments (dis-

cussed in §4.1).

2. Test the JAR ﬁle using Algorithm 2.

3. Report the tools’ accuracy and response time, as

observed from the experiment(s).

https://developer.android.com/studio

BloatLibD: Detecting Bloat Libraries in Java Applications

133

Algorithm 2: Steps for performing the comparison.

1: Input: L = Set of TPLs downloaded as JAR ﬁles (J)

randomly from MavenCentral.

X = Set of XML ﬁles required as input by LibScout.

:= The best performing Jar2Vec models.

re f

, φ

re f

:= Reference PVA vectors for source code

and bytecode.

/*Please see Table 1 for notation*/

2: Output: Terminal outputs generated by LibD, LiteR-

adar, and LibScout.

3: F

:= F

:= NULL

4: for all JAR ﬁles J ∈ L do

5: for all .class ﬁles f

∈ J do

6: f

, f

:= Obtain the textual forms of the byte-

code and source code present in f

7: f

, f

:= Modify f

and f

using various trans-

formations listed in §4.1.

8: F

:= F

∪ h f

9: F

:= F

∪ h f

10: end for

11: end for

12: Y := Convert F

into the corresponding APK ﬁles us-

ing Android Studio.

13: Test with LiteRadar, LibD, LibScout using X and Y .

14: Test F

and F

with BloatLibD using Algorithm 1.

4.2.3 Evaluation Criteria

In the context of the TPL-detection task, we deﬁne the

accuracy as:

Accuracy =

Number o f T PLs correctly detected

Total number o f T PLs tested

(1)

4.2.4 Results and Observations

Table 3 lists the accuracy, response time, and storage

space requirement values observed for the tools. We

now present a brief discussion of our results.

Accuracy of the TPL-detection Tools: Some of the

key observations from the experiments are:

1. LiteRadar cannot detect the transformed versions

of the TPLs and fails in some cases when tested

with the TPLs containing no transformations. For

instance, it cannot detect exact matches in the case

of zookeeper-3.3.0.jar library

and kotlin-reﬂect-

1.3.61.jar library

2. LibScout detects the TPLs without any transfor-

mations but suffers from package-name obfusca-

tions as it cannot detect the modiﬁed versions of

TPLs containing package-name transformations.

3. LibD substantially outperforms LibRadar and

LibScout in capturing the similarity between

http://bit.ly/2VymUmA

http://bit.ly/32MvkZe

the TPLs but does not comment on their na-

ture, i.e., hlikely-to-be-bloat-TPL, likely-to-be-

non-bloat-TPLi. It also comes with an additional

cost of manually comparing the TPLs with the

“reference set.”

4. For a given input ﬁle, BloatLibD labels it as

h likely-to-be-bloat-TPL, likely-to-be-non-bloat-

TPLi, and lists the top-k similar libraries and the

respective similarity scores shown in Figure 3.

5. BloatLibD detects the TPLs for 99% of the

test cases. As observed from the table values,

BloatLibD outperforms LiteRadar, LibScout, and

LibD with the improvement scores of 30.33%,

74.5%, and 14.1%, respectively. As BloatLibD

performed equally well on the obfuscated test-

inputs, the results validate that it is resilient to the

considered obfuscation types.

Table 3: Performance comparison of various TPL-detection

tools.

TPL

detection

tools

Performance Metrics values

Accuracy

(in %)

Response Time

(in seconds)

Storage requirement

(in MBs)

LiteRadar 68.97 12.29 1.64

LibScout 25.23 6.46 3.93

LibD 85.06 100.92 12.59

BloatLibD 99 38.98 1.52

Response Time of the TPL-detection Tools:

BloatLibD achieves 61.37% improvement in the re-

sponse time over LibD while delivering higher re-

sponse times than LiteRadar and LibScout.

Storage Requirement of the TPL-detection Tools:

BloatLibD leverages the PVA vectors to detect the

similarity among the TPLs, while the tools used for

comparison, viz., LibD, LibScout, and LiteRadar, use

the “reference lists” of TPLs. These tools contain

the “reference lists” of TPLs as ﬁles within their tool

packages. As observed from the storage requirement

values, BloatLibD has the lowest storage requirement

due to the vector representation format. BloatLibD

reduces the storage requirement by 87.93% compared

to LibD, 61.28% compared to LibScout, and 7.3%

compared to LiteRadar.

4.3 Threats to Validity

For developing our Jar2Vec models and D, we utilize

a subset of Java TPLs (i.e., JAR ﬁles) present in the

MavenCentral repository. We assume that these TPLs

cover a reasonably wide variety of Java code such

that the Jar2Vec models that we train on them will

be accurate. However, there could still be many other

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

134

Java code types that could have improved the Jar2Vec

models’ accuracy. The approach’s efﬁcacy also de-

pends on the completeness and update status of the

reference libraries. For training the Jar2Vec models,

we obtain the normalized textual forms of the source

code and bytecode representations of the .class ﬁles

present in the JAR ﬁles. We obtain the source code

and bytecode by using the decompilation and disas-

sembly operations. Therefore, our Jar2Vec models’

accuracy is subject to the accuracy of the decompila-

tion and disassembly operations.

Next, we treat an unseen TPL that shows con-

siderable similarity with the set of “available TPLs”

as likely-to-be-non-bloat-TPLs. Thus, the labeling of

a TPL as likely-to-be-non-bloat-TPL or bloat-TPL is

strongly dependent on its use in the considered ap-

plication. We do not consider the TPL-usage as per

now, but have included it as part of our future work.

While training the Jar2Vec models, we consider only

the .class ﬁles of size 1kB or larger. However, there

may exist Java libraries where the average class size is

lower than this limit. Excluding such a group of TPLs

from the training might give inaccurate results when

the input TPL being checked happens in such a group.

The main reason for excluding such tiny .class ﬁles is

that they do not give sufﬁcient Java and byte code,

which is necessary to compute a sufﬁciently unique

vector representation of the .class contents.

By reviewing the literature (Ma et al., 2016;

Backes et al., 2016; Li et al., 2017), we realized that

there are a signiﬁcant amount of TPL-detection tools

designed for Android Applications, requiring the in-

put ﬁle in an APK format. To the best of our knowl-

edge, no tool performs the TPL-detection for software

applications existing in JAR formats. Therefore, we

converted our TPLs present from JAR to APK format

using the Android Studio toolkit and choose LibD,

LibRadar, and LibScout – some of the popular TPL-

detection tools for our comparison. However, due to

the fast advances of research in this area, we might

have missed some interesting TPL-detection tool that

works with the JAR ﬁle formats.

5 CONCLUSIONS

We have proposed a novel application of the well-

known PVA to train the Jar2Vec models to detect the

similarity of JAR ﬁles. The uses of the PVA have been

mostly in the domain of natural language processing.

To the best of our knowledge, we are the ﬁrst to ap-

ply it for detecting the similarity of Java libraries and

leverage it to build our tool – BloatLibD. Our work’s

signiﬁcant insight is that the PVA can compute de-

pendable vector representations of various software

code forms.

Our experiments with a large corpus of .class

ﬁles have demonstrated that Java binaries’ similar-

ity can be reliably detected using Jar2Vec. Another

key idea that we have successfully leveraged in our

approach is using the modern, semantics-preserving

Java decompilers to transform the binary .class ﬁles

into an obfuscation-invariant textual form. This trans-

formation allowed us to leverage PVA for detect-

ing binary code similarity while also allowing our

method to be resilient against the obfuscated input.

We have veriﬁed our approach’s efﬁcacy by testing

it with more than 30000 .class ﬁles, where we have

achieved detection accuracy above 99% and an F1

score of 0.968. BloatLibD outperforms the exist-

ing TPL-detection tools, such as LibScout, LiteR-

adar, and LibD, with an accuracy improvement of

74.5%, 30.33%, and 14.1%, respectively. Compared

with LibD, BloatLibD achieves a storage reduction of

87.93% and a response time improvement of 61.37%.

As part of the future work, we plan to extend our

idea of utilizing the source code similarity to detect

software bloat for software written in other program-

ming languages. Further, we plan to explore the di-

rection of actual TPL-usage within the application to

detect the unused parts of TPL-code. The idea can be

leveraged to develop various software artifacts for au-

tomating the SDLC activities, such as software code

review, source code recommendation, and code clone

detection.

REFERENCES

Alon, U., Zilberstein, M., Levy, O., and Yahav, E. (2019).

Code2vec: Learning distributed representations of

code. Proc. ACM Program. Lang., 3(POPL):40:1–

40:29.

Anthony Desnos, Geoffroy Gueguen, S. B. (2018). Wel-

come to androguard’s documentation!

Au, K. W. Y., Zhou, Y. F., Huang, Z., and Lie, D. (2012).

Pscout: analyzing the android permission speciﬁca-

tion. In Proceedings of the 2012 ACM conference on

Computer and communications security, pages 217–

228. ACM.

Backes, M., Bugiel, S., and Derr, E. (2016). Reliable third-

party library detection in android and its security ap-

plications. In Proceedings of the 2016 ACM SIGSAC

Conference on Computer and Communications Secu-

rity, pages 356–367. ACM.

Book, T., Pridgen, A., and Wallach, D. S. (2013). Longitu-

dinal analysis of android ad library permissions. arXiv

preprint arXiv:1303.0857.

Chen, K., Liu, P., and Zhang, Y. (2014). Achieving accu-

racy and scalability simultaneously in detecting appli-

BloatLibD: Detecting Bloat Libraries in Java Applications

135

cation clones on android markets. In Proceedings of

the 36th International Conference on Software Engi-

neering, pages 175–186. ACM.

Dai, A. M., Olah, C., and Le, Q. V. (2015). Document em-

bedding with paragraph vectors. In NIPS Deep Learn-

ing Workshop.

Feichtner, J. and Rabensteiner, C. (2019). Obfuscation-

resilient code recognition in android apps. In Proceed-

ings of the 14th International Conference on Avail-

ability, Reliability and Security, page 8. ACM.

Grace, M. C., Zhou, W., Jiang, X., and Sadeghi, A.-R.

(2012). Unsafe exposure analysis of mobile in-app ad-

vertisements. In Proceedings of the ﬁfth ACM confer-

ence on Security and Privacy in Wireless and Mobile

Networks, pages 101–112. ACM.

Le, Q. and Mikolov, T. (2014). Distributed representations

of sentences and documents. In International confer-

ence on machine learning, pages 1188–1196.

Li, M., Wang, W., Wang, P., Wang, S., Wu, D., Liu, J.,

Xue, R., and Huo, W. (2017). Libd: scalable and pre-

cise third-party library detection in android markets.

In 2017 IEEE/ACM 39th International Conference on

Software Engineering (ICSE), pages 335–346. IEEE.

Liu, B., Liu, B., Jin, H., and Govindan, R. (2015). Efﬁcient

privilege de-escalation for ad libraries in mobile apps.

In Proceedings of the 13th annual international con-

ference on mobile systems, applications, and services,

pages 89–103. ACM.

Ma, Z., Wang, H., Guo, Y., and Chen, X. (2016). Libradar:

fast and accurate detection of third-party libraries in

android apps. In Proceedings of the 38th international

conference on software engineering companion, pages

653–656. ACM.

Mitchell, N. and Sevitsky, G. (2007). The causes of bloat,

the limits of health. In Proceedings of the 22nd an-

nual ACM SIGPLAN conference on Object-oriented

programming systems and applications, pages 245–

260.

Strobel, M. (2019). Procyon: A suite of java metaprogram-

ming tools focused on code generation, analysis, and

decompilation.

Wang, H., Guo, Y., Ma, Z., and Chen, X. (2015). Wukong:

A scalable and accurate two-phase approach to an-

droid app clone detection. In Proceedings of the

2015 International Symposium on Software Testing

and Analysis, pages 71–82. ACM.

Xu, G., Mitchell, N., Arnold, M., Rountev, A., and Sevitsky,

G. (2010). Software bloat analysis: Finding, remov-

ing, and preventing performance problems in modern

large-scale object-oriented applications. In Proceed-

ings of the FSE/SDP workshop on Future of software

engineering research, pages 421–426.

Zhang, Y., Dai, J., Zhang, X., Huang, S., Yang, Z., Yang,

M., and Chen, H. (2018). Detecting third-party li-

braries in android applications with high precision and

recall. In 2018 IEEE 25th International Conference

on Software Analysis, Evolution and Reengineering

(SANER), pages 141–152. IEEE.

APPENDIX

Objective: The objective here is to seek an answer to

our questions:

1. For reliably detecting a library, what is the ac-

ceptable value of Jar2Vec similarity scores for

source code and bytecode inputs?

2. Does the threshold similarity score (

α) vary with

the input parameters (β, γ, and ψ) of PVA?

3. What are the optimal values for the PVA tuning-

parameters β,γ, and ψ?

Please refer to Table-1 for notation deﬁnitions.

Table 4: Scenarios for training Jar2Vec models using PVA.

Parameters varied

Epochs β Vector size γ Training samples ψ Models

Fixed

Vary 5000 to-

CorpusSize in-

steps of 5000

CorpusSize

5000

Vary 5-

to 50 in-

steps of 5

Fixed

Fixed at-

CorpusSize

Fixed

Vary 5-

to 50 in-

steps of 5

Fixed at-

CorpusSize

Test-bed Setup: Using the test partition of the test-

bed developed in §4.1, we generate a test dataset (Y )

containing same, di f f erent ﬁle pairs in 50:50 ratio.

Further, to check if our tool is resilient to source code

transformations, we test it for the following three sce-

narios:

1. Package-name Transformations: Package names

of the classes present in TPLs are modiﬁed.

2. Function (or Method) Transformations: Func-

tion names are changed in the constituent classes’

source code, and function bodies are relocated

within a class.

3. Source Code Transformations: Names of various

variables are changed, source code statements are

inserted, deleted, or modiﬁed, such that it does

not alter the semantics of the source code. For

instance, adding print statements at various places

in the source ﬁle.

We test Jar2Vec models’ efﬁcacy in detecting similar

source code pairs (or bytecode pairs) using Y.

Procedure: The salient steps are:

1. F

, F

:= Obtain the textual forms of bytecode

and source code present in source ﬁles of training

JARs of the test-bed (developed in §4.1).

2. For each parameter combination π ∈ Z (listed in

Table-4):

(a) S

:= S

:= NULL

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

136

Figure 4: Variation of average similarity with PVA tuning-parameters.

Figure 5: Performance metrics with different PVA models trained on source code.

(b) M

, M

:= Train the Jar2Vec models using

, F

and M

to disk.

(d) For each ﬁle pairs hp

, p

i ∈ Y :

i. φ

, φ

:= Obtain PVA vectors for p

, p

using

M(π)

ii. α

i, j

:= Compute cosine similarity between

hφ

, φ

iii. if p

== p

: S

same

= S

same

∪ hα

i, j

iv. else: S

di f f erent

= S

di f f erent

∪ hα

i, j

(e)

:= Obtain the average similarity scores

using S

and S

and save them.

(f) Using the

as thresholds, compute the

accuracy of M

and M

(g) Plot the variation of

, the accuracy of

PVA models for different values of β, γ, and ψ

used in the experiment, and analyze.

Results and Observations: Figure 4 and 5 show the

effect of PVA tuning-parameters on the average sim-

ilarity and the model performance metrics values, re-

spectively. The legend entry BC-Ep-Diff represents

the similarity variation w.r.t epochs for bytecode case

when two samples were different. SC-Vec-Same in-

dicates the variation w.r.t vector size for source code

case when two samples were identical. The following

are the salient observations:

1. Effect of increasing the epochs beyond 10 seems

to have a diminishing improvement in the accu-

racy scores.

2. A noticeable decrease in similarity scores was ob-

served by increasing the vector count beyond 5,

and the epochs count beyond 10.

3. As anticipated, the accuracy (indicated by F1

scores

) improves with the size of training sam-

ples.

Therefore, we take

= 0.98359 and

= 0.99110

as the similarity threshold values for source code data

and bytecode data, respectively. Further, the best ac-

curacy (99.48% for source code and 99.41% for byte-

code) is achieved with the Jar2Vec model trained us-

ing 30427 samples, 10 epochs, and the vector size of

10. The precision and recall values, in this case, were

99.00% and 99.00%, respectively, resulting in an F1

score of 99% for the source code case. As we achieve

the highest accuracy scores at β = γ = 10, we take

these as the optimal input parameter values for PVA.

https://bit.ly/3kHqkNg

BloatLibD: Detecting Bloat Libraries in Java Applications

137
