Technical Debt Tools: A Systematic Mapping Study

Diego Saraiva

, Jos

e Gameleira Neto

, Uir

a Kulesza

, Guilherme Freitas

Rodrigo Reboucas

and Roberta Coelho

Department of Informatics and Applied Mathematics, Federal University of Rio Grande do Norte, Natal, Brazil

Keywords:

Systematic Mapping Study, Technical Debt, Technical Debt Management, Tools.

Abstract:

Context: The concept of technical debt is a metaphor that contextualizes problems faced during software evo-

lution that reﬂect technical compromises in tasks that are not carried out adequately during their development

- they can yield short-term beneﬁt to the project in terms of increased productivity and lower cost, but that may

have to be paid off with interest later. Objective: This work investigates the current state of the art of technical

debt tools by identifying which activities, functionalities and kind of technical debt are handled by existing

tools that support the technical debt management in software projects. Method: A systematic mapping study

is performed to identify and analyze available tools for managing technical debt based on a set of ﬁve research

questions. Results: The work contributes with (i) a systematic mappping of current research on the ﬁeld, (ii)

a highlight of the most referenced tools, their main characteristics, their supported technical debt types and

activities, and (iii) a discussion of emerging ﬁndings and implications for future research. Conclusions: Our

study identiﬁed 50 TD tools where 42 of them are new tools, and 8 tools extend an existing one. Most of the

tools address technical debt related to code, design, and/or architecture artifacts. Besides, the different TD

management activities received different levels of attention. For example, TD identiﬁcation is supported by

80% of the tools, whereas 30% of them handle the TD documentation activity. Tools that deal with TD identi-

ﬁcation and measurement activities are still predominant. However, we observed that recent tools focusing on

TD prevention, replacement, and prioritization activities represent emergent research trends.

1 INTRODUCTION

The concept of technical debt (TD) is a metaphor used

to represent technical compromises that can yield

short-term beneﬁt to the project in terms of increased

productivity and lower cost, which may affect the

software maintenance and evolution (Avgeriou et al.,

2016).

In real-life software development, the presence of

technical debt is inevitable (Martini et al., 2015) and

even desirable to achieve short-term beneﬁts. It can

be proﬁtable (Allman, 2012) if the cost of the tech-

nical debt is manageable. Therefore, it is imperative

to keep the accumulated debts under control. In this

context, the purpose of technical debt management

(TDM) is to support informed decision-making about

https://orcid.org/0000-0002-2512-6692

https://orcid.org/0000-0002-7184-1187

https://orcid.org/0000-0002-5467-6458

https://orcid.org/0000-0003-0272-0071

https://orcid.org/0000-0001-7829-9768

https://orcid.org/0000-0003-0001-435X

the need to mitigate a TD item and the most suitable

time to do this (Guo et al., 2016). It has been emerged

as a new research area over the last years. It con-

sists of a series of activities that prevent the creation

of an unwanted technical debt or allows dealing with

existing debt to keep it below the permissible limit.

However, the efﬁcient management of TD requires

the adoption of tools.

Recently, several tools to manage technical debt

in software projects have been proposed by academia

and industry. In this context, we identiﬁed that an in-

depth characterization of TD tools is missing in the

literature. Existing systematic reviews and mapping

studies focus on speciﬁc aspects of technical debt. (Li

et al., 2015) presents a systematic mapping study that

aims to understand the state of research on TD man-

agement. Their study found that TD was classiﬁed

into 10 types, 8 TDM activities were identiﬁed, and

29 tools for TDM were collected.

(Lenarduzzi et al., 2019) conducted a system-

atic literature review on technical debt prioritization.

They identiﬁed 12 tools related to TD prioritization.

Saraiva, D., Neto, J., Kulesza, U., Freitas, G., Reboucas, R. and Coelho, R.

Technical Debt Tools: A Systematic Mapping Study.

DOI: 10.5220/0010459100880098

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 88-98

ISBN: 978-989-758-509-8

The main purpose of their review is to understand how

the TD is prioritized in software organizations and

which approaches have been proposed. The authors

highlight a lack of a solid, validated, and widely used

set of tools speciﬁcally for TD prioritization. They

did not detail the tools’ features, limiting to present

a brief description of them, the papers that cite the

tools, and the context of their usage.

(Avgeriou et al., 2020) provide an overview of

the current landscape of existing TD measurement

tools. They analyze the features and popularity of

these tools, the existing empirical evidence on their

accuracy, and highlight current shortcomings. The

authors consider initially 26 tools and ﬁltered them

to select only 9 for a complete analysis. Differently

from this work, they focus strictly on analysing tech-

nical debt measurement tools.

In order to mitigate the literature gap, we present

an overview of the currently available tools for tech-

nical debt. The purpose of this paper is to characterize

the state of the art of TD tools. To achieve this goal,

we have conducted a systematic mapping study of the

literature in the area. We synthesize the data obtained

to produce a clear overview of existing TD tools. Our

mapping represent a frame of reference for both: (i)

the academia to identify research opportunities; and

(ii) the industry to understand and to know existing

research results to possibly transfer and mature TD

tools to practice.

The remainder of this paper is structured as fol-

lows: Section 2 details he methodology of the map-

ping study. Section 3 presents the study results and

their implications to researchers and practitioners.

Section 4 presents the threats to validity of the study.

Section 5 discusses related work. Finally, Section 6

presents the paper conclusions.

2 STUDY DESIGN

We conducted a systematic mapping study based

on well-established guidelines in software engineer-

ing (Petersen et al., 2015) (Kitchenham and Char-

ters, 2007). The purpose of this study is to provide an

overview of the currently available tools for managing

technical debt for professionals and researchers. In

particular, we focus on the following research ques-

tions (RQs):

RQ1: What Are the Publication Trends of Re-

search Studies about TD Tools?

RQ2: What Are the Main Characteristics of the

Tools?

RQ3: What Are the TD Tools Reported in the Lit-

erature?

RQ4: Which TD Types and Activities Are Ad-

dressed by the Proposed Tools?

RQ5: What Kind of Studies Have Been Conducted

to Evaluate TD Tools?

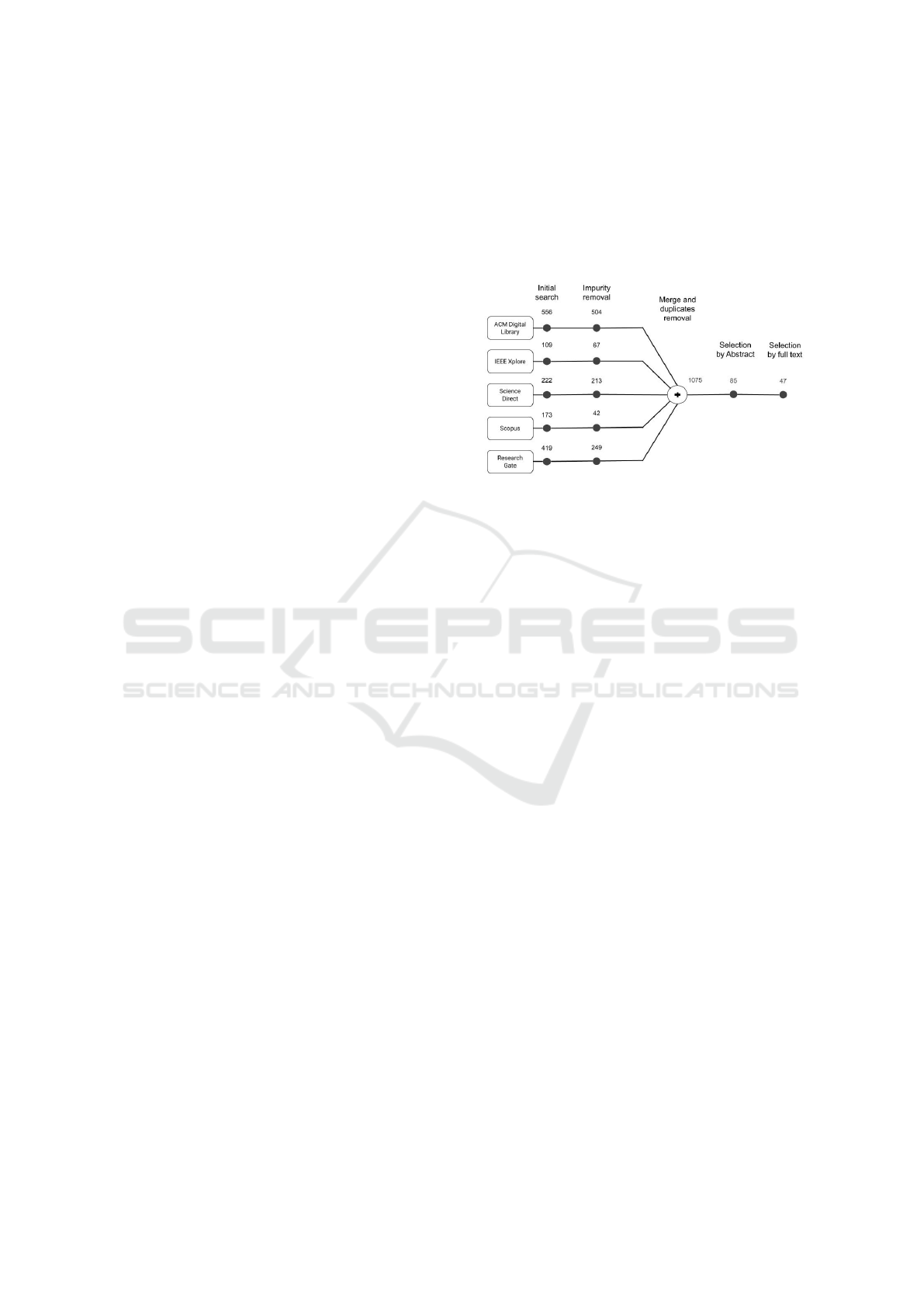

Figure 1: Overview of the search and selection process.

Figure 1 shows the search and selection process of

the systematic mapping study. The search process of

our study considered journal, conference, book chap-

ter and workshop papers indexed in the following dig-

ital libraries: ACM, IEEE, Science Direct, Research

Gate and Scopus. These databases were selected be-

cause they are the largest and most complete scien-

tiﬁc databases in software engineering (Petersen et al.,

2015) (Kitchenham and Charters, 2007). They have

been recognised as being an effective means to con-

duct systematic literature studies in software engi-

neering (Petersen et al., 2015). Our search string is

shown in the Listing 1. For consistency, the search

string has been applied to the title, abstract, and key-

words of papers in the selected electronic databases

and indexing systems. The search in the selected

databases was conducted in February 05 - 2020.

Listing 1: Search string used for automatic research studies.

(" Te c h n i c a l D e bt ") AN D

(" T o o l " OR " S o f t w a r e S o l u t i o n ")

Based on our research questions, we deﬁned in-

clusion and exclusion criteria. These criteria are es-

sential to identify relevant primary studies that answer

the RQs. We devised the following inclusion criteria:

(i) the paper was written in English, (ii) the paper was

published in conference proceedings, workshop pro-

ceedings, book chapters or journal; and (iii) the pa-

per proposes, extends or evaluates one or more TD

tools. We retrieved 1479 primary papers in the initial

search. Next, in the merge and removal step, we re-

moved invalid results returned by the execution of the

search query, given that some results are duplicates or

Technical Debt Tools: A Systematic Mapping Study

are not research papers (patents, standards, etc). We

include papers that address the inclusion criteria (i)

and (ii) for each database. Finally, we join all the pa-

pers in a single set having as a result of total of 1075

papers. However, only 85 candidate papers were ob-

tained after applying the inclusion criteria based upon

title and abstract in the stage of selection by abstract

and applying the criterion (iii). Finally, we selected

only 47 primary papers after reading the full paper.

Additional information about the study protocol and

its results can be found in (td-tools study, 2020).

3 RESULTS AND DISCUSSION

In this section, we discuss the answers to our RQs

presented in Section 2. In each case, we highlight the

utility of these results for researchers and practition-

ers. Additional information about the study results

can be found in (td-tools study, 2020).

3.1 RQ1: What Are the Publication

Trends of Research Studies about

TD Tools?

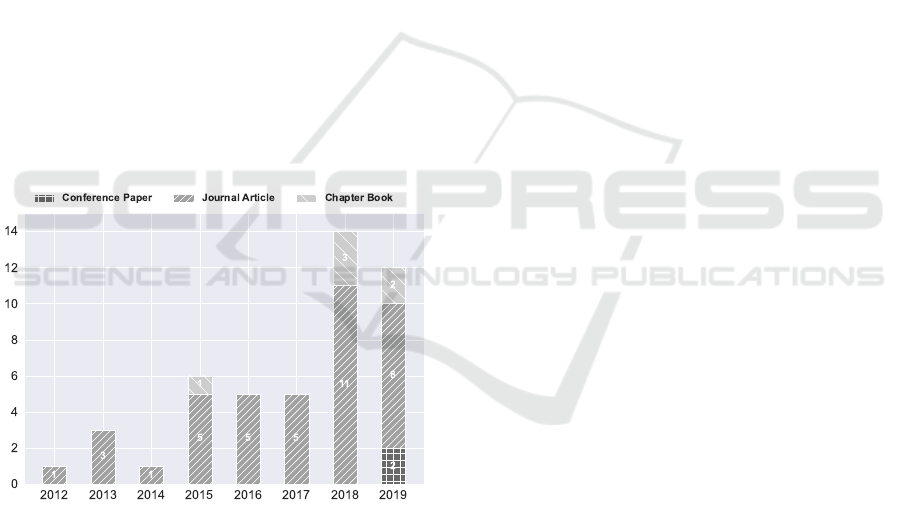

Figure 2: Distribution of selected studies over publication

types.

The purpose of this research question is to provide

an overview of the number and types of publications

on the topic during the last years. Figure 2 presents

the distribution of publications on technical debt tools

over the years. We can see that conference papers

are the main kind of publication selected in our study

with 83% (39/47) of the papers. The journal pa-

pers represent 12.8% (6/47) of the selected studies.

Finally, only 4.3% (2/47) fall into the category of

the book chapter. The high number of conference

and journal papers indicate that technical debt tools

is a trending research topic and indicates researchers

target more scientiﬁcally-rewarding publication when

working with tools to support technical debt. Figure

2 emphasizes an explicit conﬁrmation of the scien-

tiﬁc interest on technical debt tools in the years 2015

through 2019. Since 2015, there are at least ﬁve stud-

ies per year, which represents a good increment com-

pared with the years before 2015. One reason for that

could be that technical debt becomes a more known

and popular concept, increasing the interest of incor-

porating TD tools in the daily practice of software

development. The most recurrent places for publi-

cations about TD tools were: (i) the International

Conference on Technical Debt (TechDebt) and (ii) the

International Workshop on Managing Technical Debt

(MTD) with a total of 15 papers. The TechDebt con-

ference is an evolution of the MTD workshop. Sec-

ondly, the Euromicro Conference on Software Engi-

neering and Advanced Applications (SEAA) with 5

papers. Following by textitSymposium on Applied

Computing (ACM) and Journal of the Brazilian Com-

puter Society with 2 papers. We can observe a frag-

mentation in terms of publication venues, where re-

search on TDM tools is spread across 20 venues.

The results of this research question help re-

searchers and practitioners: (i) to estimate the en-

thusiasm of scientiﬁc engagement on technical debt

tools; (ii) to identify the academic venues where re-

lated papers about technical debt tools are published;

and (iii) to identify the academic venues where new

results about technical debt tools may be better re-

ceived and recognized by the scientiﬁc community.

3.2 RQ2: What Are the Main

Characteristics of the TD Tools?

In this subsection, we present the obtained results

when analyzing the main characteristics of the se-

lected tools. We analyzed the following aspects of

the selected tools: (I) main purpose; (II) target lan-

guages; and (III) the tool was developed as stand-

alone or it represents an extension of an existing tool.

Table 1 presents the identiﬁed tools considering their

main purpose.

Concerning the primary purpose of the tools, we

classify them using a categorization, inspired and

adapted from the Li et al. study (Li et al., 2015). Fig-

ure 3 shows the categorization, which aggregates the

background approaches that support the investigated

TD tools. It also presents the distribution of tools

considering the different categories for their main pur-

pose.

Our study identiﬁed that 28% (14/50) of the

TD tools aims of quantifying code metrics. These

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

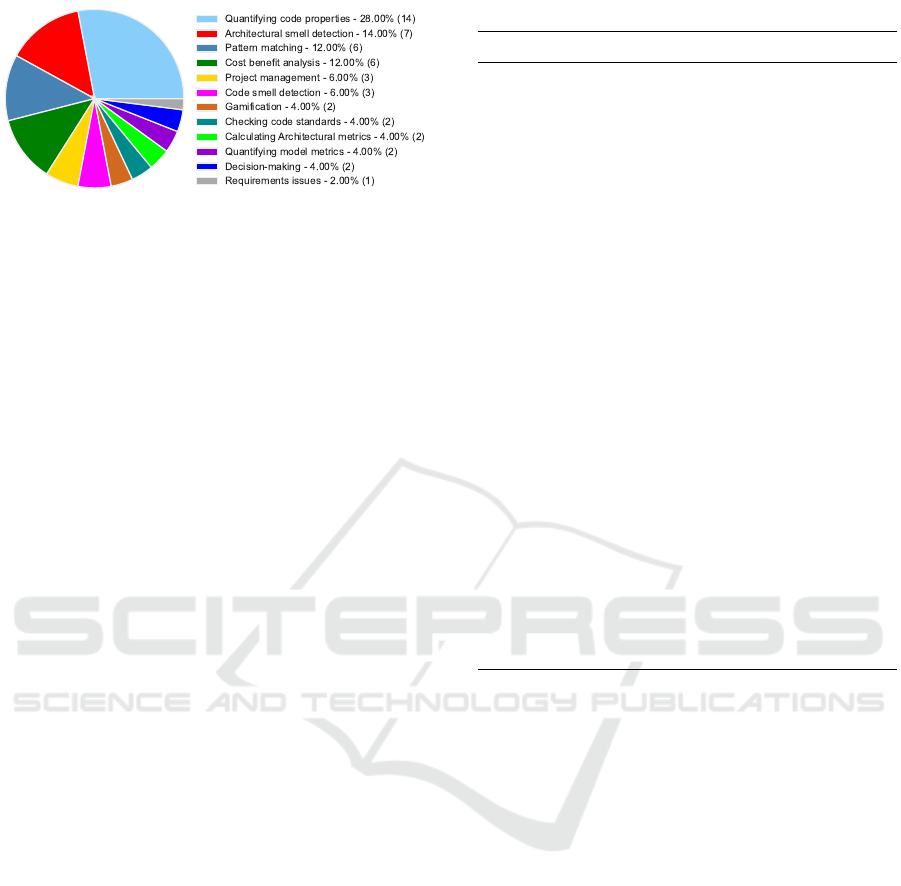

Figure 3: Distribution of tools over the categories.

tools quantify TD using code metrics, and/or ana-

lyze source code to identify coding rules violations,

detect potential bugs, and many other speciﬁc code

issues. Architectural smell detection represents the

second most common category, with a total of 14%

(7/50) of the tools. This result was expected because

architectural problems, such as modularity violations,

are a common source of the perception of technical

debt in software industry (Apa et al., 2020). These

results indicate that most of the existing TD tools fo-

cus on the quality assurance over source code and re-

lated services, i.e. quantifying code metrics, archi-

tectural smell, code smell, and checking code stan-

dards. This mainly occurs because there is a consoli-

dated set of metrics to the measurement of the source

code quality; therefore, static code analysis tools can

be used to extract TD indicators. For example, by us-

ing source code analysis tools, it is possible to identify

refactoring opportunities, detect security vulnerabili-

ties, highlight performance bottlenecks, and identify

bad programming practices, such as code smells. An-

other potential explanation for emphasis of the tools

in the source code is that the body of knowledge in

technical debt is still consolidating on software devel-

opment (Alves et al., 2016). Issues related to source

code are more visible to developers as they are more

focused on implementation artifacts.

It is also possible to observe that there are tech-

nical debts throughout many software artifacts of dif-

ferent stages of software development. However, few

tools utilise non-code artifacts as input. More speciﬁ-

cally, only 4% (2 tools) of them apply a model-driven

approach to calculate technical debt related to model

elements, and only 1 tool addresses TD related to re-

quirements speciﬁcations. These tools have the ad-

vantage of acting on early phases of software devel-

opment, avoiding technical debt later consequences in

the projects (Giraldo and Osorio, 2017).

The literature reports that developers often lack

the motivation to address technical debt (Foucault

et al., 2018). In this context, some tools apply gam-

iﬁcation techniques to manage TD providing sugges-

tions for developers on where to focus their effort,

visualizations to track technical debt activities, and

Table 1: Technical Debt Tools by Main Purpose.

Main Purpose Tool Name

Architectural smell

detection

Arcan, Arcan C++, Desig-

nite, Designite Java, DV8,

Lattix, Sonargraph

Quantifying Architec-

tural metrics

Dependency Tool, Structure

101

Quantifying code met-

rics

CBRI Calculation, Code

Analysis, CodeScene,

DBCritics, DeepSource,

inFusion, Jacoco, ProDebt,

Sonarcloud, SonarQube,

Squore, Teamscale,

TEDMA, VisminerTD

Quantifying model

metrics

EMF-SonarQube, BPMN-

spector

Code smell detection CodeVizard, JSpIRIT, Nde-

pend, FindBugs, checkstyle

Cost beneﬁt analysis AnaConDebt, CAST, FIT-

TED, JCaliper, MIND, TD

Tool

Decision-making Georgios Tool, TD-Tracker

Tool

Gamiﬁcation Build Game, Themis

Pattern matching SAApy, DebtFlag, Debt-

grep, eXcomment, MAT,

SATD Detector

Project management Hansoft, Jira, Redmine

Requirements issues Requirements Speciﬁcation

Tool

stimulating TD prevention. However, this kind of ini-

tiative is in an early phase since only 4% (2/50) of the

tools implement this approach.

The pattern matching approaches analyze the

source code to identify patterns that characterize tech-

nical debt. 12% (6/50) of the selected tools imple-

ment a solution based on pattern matching. Most of

pattern matching tools (3/6) are intended to recog-

nize self-admitted technical debt (SATD) from source

code comments. This kind of technical debt considers

that they are intentionally introduced and admitted by

developers.

The above-cited approaches, such as code smell

detection, have been developed to identify particu-

lar TD types to detect components that need to repay

debt. However, an important issue is to provide more

guidance for decisions about whether or not to pay off

particular TD instances at a given point in time (Guo

et al., 2016) (Seaman and Guo, 2011). The cost-

beneﬁt analysis tools provide approximation methods

for helping in the prioritization of resources and ef-

forts concerning refactoring strategies. The tools in

this category represent 12% of the total. For example,

the AnaconDebt tool allows you to assess the prin-

Technical Debt Tools: A Systematic Mapping Study

cipal (cost of refactoring) and interest (current and

future extra costs) of the technical debt. Unfortu-

nately, the AnaconDebt is not open source and the

formula used to estimate the principal and interest

are conﬁdential. Another highlight is JCaliper. This

tool applies a local search algorithm to obtain a near-

optimum design for the software. It also proposes

TD repayment actions (a sequence of refactorings) to

reach it. The distance quantiﬁes the difference in the

selected ﬁtness function and reﬂects the architectural

quality of the examined system. The distance also

translates to a number of refactorings required to con-

vert the actual system to the corresponding optimum

one.

A correlated category is decision-making tools,

4% (2/50) of the tools, that concentrates tools with

a reﬂection on the value of the TD from a more

business-driven approach taking into account other

aspects besides project-related beneﬁt (Riegel and

Doerr, 2015). In this group, we call attention to the

TD Tracker tool. It presents an approach to create an

integrated catalogue as metadata from different soft-

ware development tasks in order to register technical

debt properties and support managers in the decision

process.

Finally, the project management category aggre-

gates 6% (3/51) of the tools. The tools in this group do

not address any speciﬁc TD type, focusing on track-

ing and monitoring technical debt. In this category,

we found tools like Hansoft, Jira and Redmine.

Concerning the target languages of the tools, we

have classiﬁed as language-speciﬁc the tools that are

speciﬁc to one particular language (e.g., C++). A to-

tal of 56% (28/50) of the tools are language-speciﬁc,

while the remaining 26% (13/50) of them are not

language-speciﬁc, and 18% (9/50) tools do not ad-

dress any speciﬁc language. The predominance of

language-speciﬁc tools is not a good indicator be-

cause they can not be reused across different tech-

nologies and languages. Therefore, their applicabil-

ity and portability in the future can be limited. How-

ever, language-speciﬁc tools have the advantage of

being more tailored to the domain. They have the

potential to address speciﬁc characteristics of the lan-

guages that allow better analysis. Our investigation

concluded that Java with 58% (29/50) of them, C#

with 22% (11/50), and C++ with 20% (10/50) are the

most common target languages.

At last, we analyzed whether a solution is an ex-

tension of other existing one or is a novel solution.

84% (42/50) of the tools are new tools and are not

based on other existing ones, while the remaining

16% (8/50) extends a previous solution. In this con-

text, our research found a limited number of tools that

provide extension mechanisms that allow third-party

development. SonarQube and Arcan were the tools

with most extensions available with three and two ex-

tensions, respectively. We considered as extensions

since the simple addition of new features until deriva-

tion for new tools based existing tool.

3.3 RQ3: What Are the TD Tools

Reported in the Literature?

The purpose of this research question is to analyze the

state of the art of TD tools from two different aspects:

(i) the explicit support to the technical debt concept;

and (ii) the research type.

Previous work (Mamun et al., 2019) reported the

lack of specialized tools to deal with the TD concept.

The explicit usage of the TD concept in the tools helps

to identify whether a particular tool aims to address

technical debt management (TDM) issues. This work

considers as a specialized tool those ones that model

or implement explicitly the TD concept/abstraction.

Otherwise, we classify them as a generic tool that is

adapted to deal with TD issues. In our study, we found

that 80% (40/50) of the tools provide explicit support

to the technical debt concept, while only 20% (10/50)

do not explicitly use the TD abstraction in the tool but

are used to address some kind of TD reported in the

respective paper.

To categorize the TD studies, we adapted the re-

search types classiﬁcation suggested by (Wieringa

et al., 2005): (I) proposing new tools; (II) extending

existing tools; or (III) evaluating existing tools. The

proposition of new tools is present in 57% (27/47) of

the selected papers, indicating that the TD tools are

still in their maturing phase with new ones being pro-

posed over the last years. There is a large number

of researchers proposing their own solutions for ei-

ther recurrent or speciﬁc problems. The evaluation of

existing tools is the subject of 25% (12/47) papers,

which represents the second most recurrent research

strategy. This highlights the fact that researchers are

looking for some level of evidence about their pro-

posed tools by investigating and applying them in

practice, and conducting evaluations to validate their

claims. At the other end of the spectrum, the research

about the extension of existing tools is performed in

only 17% (8/47) of papers.

The results of this research question can help re-

searchers and practitioners (i) to have an overview of

the currently available tools for managing technical

debt, and (ii) to quantify the degree of scientiﬁc inter-

est on TD tools.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

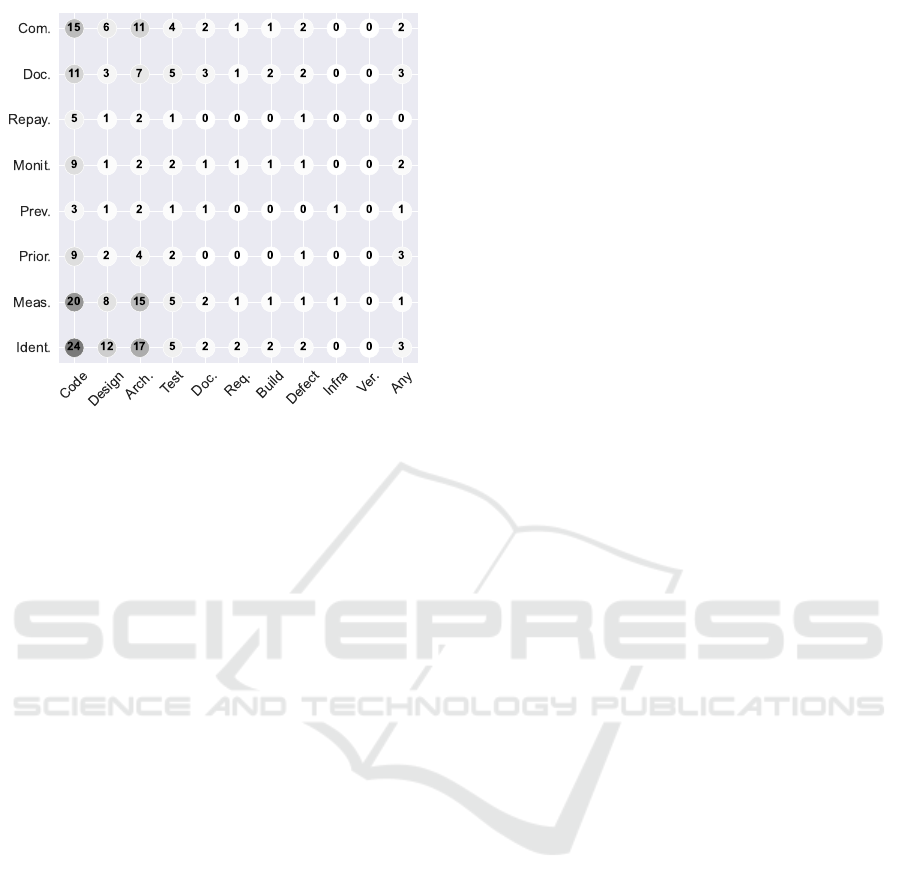

3.4 RQ4: Which TD Types and

Activities Are Addressed by the

Proposed Tools?

This research question investigates how the 50 TD

tools identiﬁed in our systematic mapping study ad-

dress existing kinds of technical debt and technical

debt management (TDM) activities.

3.4.1 RQ 4.1: What Are Kinds of TD That the

Tools Focus On?

This subsection discusses the TD types addressed

by the selected tools. The present work points out

that the main TD types addressed by tools deal with

source code (60% - 30/50), architectural issues (40%

- 20/50) and design issues (28% - 14/50). Previous

studies (Rios et al., 2018) (Li et al., 2015) found simi-

lar results, meaning that researchers on technical debt

tools have maintained their interest in these TD types

over the last years. This trend is in line with the origi-

nal deﬁnition of technical debt, which is heavily inﬂu-

enced by concepts coming from source code and re-

lated issues. As mentioned before, most of TD studies

concern code mainly because there are several avail-

able tools providing useful information about code

quality.

In compensation, there are many TD types (build,

defect, requirements, infrastructure) that are ad-

dressed by a reduced number of tools (respectively,

2, 2, 2 and 1). One potential reason is that despite

these TD types impact on the productivity of software

development, they do not have a direct impact on the

software quality as the code related TD types have.

Our mapping study shows that there are gaps for fu-

ture research in tools for supporting these TD types.

Our analysis also shows that some existing tools

(3/50) do not focus on a speciﬁc TD type. For ex-

ample, Hansoft

and Jira

are tools predominantly

designed for software development project manage-

ment. Hansoft allows recording technical debt in the

form of a list or with a graph which is manually elab-

orated. In turn, JIRA provides support to register the

technical debt items and assign them a priority score.

Thus, these tools are mainly used for the technical

debt management to explore the backlog. In compari-

son, TD-Tracker TD amount estimation besides tech-

nical debt management (Pavli

c and Hli

s, 2019). The

reduced number of tools that address project manage-

ment activities shows that there are opportunities for

improving the existing ones to provide efﬁcient man-

agement of technical debts.

https://www.perforce.com/products/hansoft

https://www.atlassian.com/software/jira

Our investigation shows that most of the tools,

60% (30/50) of them, are tailored to a particular TD

type. On the other hand, 34% (17/50) of the tools

are not dedicated to a particular TD type, such as

SonarQube and Arcan. Finally, 6% (3/50) of the tools

do not address any speciﬁc TD type, such as TD-

Tracker. TD-Tracker implements an approach to tabu-

lating and managing TD properties to support project

managers in the decision process. It integrates with

different TD identiﬁcation tools to import technical

debt already identiﬁed. This later kind of tool handles

with TD concept in a generic way. It is worth to high-

light that 16% (8/50) of tools are associated with two

TD types, notably the TD tools related to code, archi-

tecture and design. In this group, we have, for exam-

ple, Structure101 that address code and architectural

TD, and Lattix that handles design and architectural

TD. Finally, we found a huge gap on the TD tools

concerning the support to versioning debt, once this

is the unique one without a dedicated tool to support

it. The versioning debt refers to problems in code ver-

sioning, such as to identify unnecessary code forks or

the need to have multi-version support.

Comparing our results with previous work, we ob-

served an increase of tools that focus on architectural

TD over the last years. Li et al. (Li et al., 2015)

mentioned that only 10% of the tools provide support

to architectural TD against 40% found in our review.

Although a great deal of theoretical work on the ar-

chitectural aspects of TD has recently been produced,

there was still a lack of TD tools to deal with architec-

tural issues. However, this scenario has been chang-

ing in recent years. We can conjecture that this trend

will continue over the next years due to its signiﬁcant

impact on the quality of software systems. Similarly,

design TD has also received more attention over the

last years. This reﬂects a better understanding of the

impact of design debt on the quality of software sys-

tems.

3.4.2 RQ 4.2: Which TD Management Activities

Do the Tools Focus On?

The results point out TD identiﬁcation is widely sup-

ported by 80% (40/50) of the tools. TD measurement

also received huge support from the tools with 64%

(32/50) of them addressing this activity. We observe a

strong interest of the existing tools to provide support

to TD identiﬁcation and measurement activities since

2015. However, comparing the growth rates between

TD identiﬁcation and TD measurement activities, we

observe a small negative trend on TD identiﬁcation,

meaning that a growing number of research work are

now focusing on TD measurement.

When we compared our results with the previous

Technical Debt Tools: A Systematic Mapping Study

ones found in literature, we recognise a spike in the

communication activity support in the last year. Li et

al. (Li et al., 2015) mentioned that only 28% of the

tools provide support to communication, contrasting

with 63% identiﬁed during our systematic mapping.

Tools like AnaConDebt supports the creation of a TD-

enhanced backlog, allowing the tracking of TD items,

and thus facilitating their estimation and communica-

tion among the stakeholders. We can conjecture that

this trend will continue over the next years since com-

munication activities make the technical debts more

visible and understandable to stakeholders allowing

them to be discussed and managed appropriately. In

line with this trend, we also identiﬁed an increase on

the support to the TD documentation activity, indi-

cating that researchers are studying and devising new

approaches to address technical debts that are not di-

rectly related to source code. We identiﬁed that TD

documentation is supported by 30% (15/50) of tools.

For example, Teamscale applies code quality analyses

to detect missing software documentation.

Regarding the TD prioritization activity, our map-

ping study found 13 tools, i.e. 23% of them, that han-

dle this activity. However, most of these tools only

provide means to assign priority to a given TD, thus

only a few tools implement an approach to assign a

priority to a TD automatically. Currently, there is no

consensus on what are the critical factors and how to

prioritize them. This context is mirrored in the frag-

mented support offered by the tools, leading to a lack

of widely used and validated set of tools speciﬁc to

TD prioritization (Lenarduzzi et al., 2019). Besides

that, our work revealed a scarcity of approaches that

account for cost, value, and resources constraint, and

a lack of industry evaluation of this kind of tool. Nev-

ertheless, this context reveals exciting gaps in the lit-

erature. We believe research on TD prioritization is

still evolving and is a promising research direction.

Next, we have the prevention and repayment ac-

tivities, both supported by 12% (6/50) of the tools.

Although there are several strategies proposed to TD

management in the literature, preventing the TD in-

sertion with explicit actions is not yet common prac-

tice (Rios et al., 2018). This can be the reason for

the relatively low number of tools that address this

activity. However, interestingly, we can also observe

that the scientiﬁc interest on prevention approaches

has been increasing since 2015. We conjecture that

this trend derives from the awareness of the technical

debt cost and the consensus that TD prevention can

occasionally be cheaper than its repayment. More-

over, prevention may also help other TD manage-

ment activities, as well as help in catching inexperi-

enced developer (Yli-Huumo et al., 2016). For ex-

ample, Themis (Foucault et al., 2018) is a customized

gamiﬁcation tool that integrates with SonarQube and

version control tools with the aim of identifying and

measuring TD. Themis uses gamiﬁed features such

as points, leaderboards, and challenges as a way to

provide suggestions for developers on where to focus

their effort, and visualizations for managers to track

technical debt activities. The monitoring features pro-

vided by Themis become the technical debt more visi-

ble to the developers helping in the prevention of tech-

nical debts.

Regarding the repayment activity, it usually con-

cerns resolving technical debt through techniques

such as reengineering or refactoring. There are many

challenges in applying refactorings to repay technical

debt in large-scale industrial software projects (Surya-

narayana et al., 2015). For example, it is hard to en-

sure that the behavior of the software is unchanged af-

ter the refactorings. It is not surprising that the num-

ber of tools addressing this concern is low. For ex-

ample, JCaliper (Kouros et al., 2019) applies search-

based software engineering techniques as a means of

assessing TD and proposing a set of refactorings to

address it. It performs local search algorithms to ob-

tain a near-optimum solution and to propose TD re-

payment actions, automatically extracting the num-

ber, type and sequence of refactoring activities re-

quired to obtain the design without TD.

Our study also identiﬁed that 78% (39/50) of the

tools are dedicated to more than one TD activity. The

tools are usually associated with at least two different

TD activities, like Arcan that deals with identiﬁcation

and measurement activities, or SATD that provides

support to TD monitoring and identiﬁcation. On the

other hand, 22% (11/50) of the tools are specialized in

just one TDM activity, like FITTED that only focuses

on measurement.

Figure 4 presents the different level of attention re-

ceived by each TDM activity and TD type. The num-

ber into the bubbles represents the number of tools

associated with both a TD type and a TDM activity.

Among the ten TD types, as mentioned before, the TD

code is the most investigated in the selected papers.

It is also the TD type that is approached for all TD

activities, especially identiﬁcation and measurement.

Therefore, code is the most valuable source of infor-

mation for technical debt tools. Most of the technical

debt tools exploit static code analysis techniques, so

this ﬁnding is in line with the expectations.

The RQ4 results are useful to inform practitioners

what approaches they have addressing speciﬁc TDM

activities, and also to help researchers to identify re-

search gaps in approaches for various TDM activities.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

Figure 4: Relationship between TD types and TDM activi-

ties.

3.5 RQ5: What Kind of Studies Have

Been Conducted to Evaluate TD

Tools?

The motivation behind this research question is an

evaluation of the potential for industrial adoption of

existing TD tools. From a practitioner’s point of view,

it is important to have a reasonable level of conﬁdence

to use a given TD tool in software projects. In this

context, there are different kinds of empirical studies

that could be used to gain evidence about the feasibil-

ity and effectiveness of proposed tools. The applica-

tion of the empirical paradigm to support an evalua-

tion in software engineering is important because they

contribute to a higher level of maturity of the tools and

better acceptance in the software industry.

Wohlin et al. (Wohlin et al., 2012) classify the

studies according to the research method used as fol-

lows: Case study, Survey (questionnaire, observation,

interview), and Experiment. Besides, we have in-

cluded a new category called Not reported; represent-

ing the papers that do not make explicit the research

method of the evaluation.

Our work points out that most of them - 46.81%

(22/47) - applied Case Study as the methodology to

evaluate their research. The second most frequent

study type was Survey, present in 21.28% (10/47) of

the papers. The third most used study, the Experi-

ment methodology was the least used to the evalua-

tion of TD tools, present in only 14.89% (7/47) of the

papers. Finally, 17.02% (8/47) of the studies do not

present any formal or systematic evaluation. The lit-

erature reports that both academia and industry have

signiﬁcant interest in the TD tools (Li et al., 2015). It

is important to emphasize that our study only assesses

if the mentioned tools have some evaluation evidence

of their usage based on the selected papers of our sys-

tematic review.

We also collected data on the type of re-

search methodology of the studies by discriminat-

ing among qualitative, quantitative, or mixed analy-

sis approaches. The data reports that 17% (8/47) of

studies did not report any analysis approach. The

most frequent type of analysis was qualitative, which

is present in 44% (21/47) of selected papers. 36%

(17/47) of them used a quantitative approach. Fi-

nally, we found that mixed analysis (qualitative/quan-

titative) was used only in 19% (9/47) of the studies.

We also identiﬁed that SonarQube (7 papers),

CodeScene (3 papers), TeamScale (3 papers) and

SonarGraph (3 papers) were the most evaluated tools

by the literature.

4 THREATS TO VALIDITY

In this section, the threats to validity of our study are

described:

Construct Validity. The procedure of our map-

ping study followed the guidelines for performing

secondary studies proposed by Kitchenham et al.

(Kitchenham and Charters, 2007). First of all, sys-

tematic mapping studies are known for not guaran-

teeing the inclusion of all the relevant works on the

ﬁeld. A possible lack of a set of keywords in the

string search deﬁned for the study can exclude some

relevant papers. To deal with this threat, we used a

broader search criterion to include a high number of

related papers. Another problem can be the deﬁnition

of what is a technical debt tool. We consider as TD

tools the ones that the authors reported as dealing with

TD concepts in their respective papers.

Internal Validity. In order to reduce this threat, the

stages of selection of the studies and data extraction

were carried out by three PhD students using a proto-

col rigorously deﬁned. The results found by each one

were tabulated and compared so that any kind of bias

could be identiﬁed, and when in disagreement, the au-

thors could debate and a consensus was reached.

External Validity. This threat concerns the general-

izability of the obtained results (Wohlin et al., 2012).

The most severe potential external threat to the valid-

ity of our study is our primary studies not being repre-

sentative of state of the art on technical debt tools. To

avoid it, we performed an automatic search in the ﬁve

most popular electronic databases. We are reasonably

conﬁdent about the construction of the search string

Technical Debt Tools: A Systematic Mapping Study

since the used terms are generic, allowing us to ex-

plore the ﬁeld in a wide scope. This was reﬂected on

the signiﬁcant number of papers gathered during the

process.

Conclusion Validity. Bias on the data extraction pro-

cess may result in the inaccuracy of the extracted data

items, which may affect the analysis and classiﬁca-

tion of the results of the selected studies. It was nec-

essary to guarantee that the data extraction process

was aligned with our research questions. We also

mitigated potential threats related to conclusion valid-

ity by applying the following actions. First, the data

items extracted in this mapping study were discussed

among the researchers and agreement on the meaning

of each data item was achieved. Second, a trial data

extraction was performed among researchers, and dis-

agreements on the results of the trial data extrac-

tion were discussed with two additional researchers

to achieve a consensus. Finally, the data extraction

results were checked by two researchers, and again

disagreements were discussed and resolved with two

additional researchers. All these actions improved the

accuracy of the extracted data items.

5 RELATED WORK

Verdecchia et al. (Verdecchia et al., 2018) conduct a

secondary study that focuses on the analysis of the lit-

erature related to architectural technical debt (ATD).

The authors selected and inspected 47 primary stud-

ies to provide a characterization for ATD identiﬁca-

tion techniques in terms of publication trends, their

characteristics, and their potential for industrial adop-

tion. Our study differs from theirs by zooming out the

analysis of TDM tools, not being restricted to only

ATD related tools. Their work unveils some promis-

ing areas for future research on ATD, such as (i) the

exploitation of the temporal dimension when identify-

ing ATD; and (ii) the related resolution of ATD. The

authors highlight that further industrial involvement

when formulating, designing, and evaluating the ATD

identiﬁcation techniques is needed.

Lenarduzzi et al. (Lenarduzzi et al., 2019) con-

ducted a systematic literature review about techni-

cal debt prioritization. Their work considered pa-

pers published before December 2018. The study was

based on 37 selected studies, which represent the state

of the art concerning approaches, factors, measures

and tools used in practice or research to prioritize

technical debt. They identiﬁed 7 tools that address

the technical debt prioritization. The main outcome

of their study is that there is no consensus on what are

the important factors to prioritize TD and how to mea-

sure them. Their results report that code and archi-

tectural debt are by far the most investigated kind of

debt when considering the prioritization. This trend

was conﬁrmed by our study, indicating that existing

TD tools focus more on code and architectural issues.

Another ﬁnding conﬁrmed by their and our study is

the lack of a solid, validated and widely used set of

tools speciﬁc to TD prioritization.

Behutiye et al. (Behutiye et al., 2017) report the

results of a systematic literature review that addressed

the concept of technical debt in the agile software de-

velopment context. The authors analyzed 38 papers

out of 346 studies to pinpoint research areas of inter-

est, TD cause and effect classiﬁcations, management

strategies and tools. They mentioned the DebtFlag

and NDepend as effective tools that can be used in

agile development to detect TD in source code. Their

ﬁndings indicate the need for more tools, models, and

guidelines that support the TD management in agile

development.

Ampatzoglou et al. (Ampatzoglou et al., 2015)

conducted a systematic literature review to under-

stand which are the most common ﬁnancial terms

used in the context of TD management. The col-

lected data produced a glossary and a classiﬁcation

schema of ﬁnancial approaches used in TD manage-

ment. They identify seven tools that use this kind of

strategy to support TD management. We examined

ﬁve of them in our study. The search protocol applied

in this study did not capture only two tools: AIP and

Microsoft Mapper Tree. We excluded these tools be-

cause their papers focused on static code analysis, but

do not make explicit mention to any technical debt

concept.

Li et al. (Li et al., 2015) conducted a systematic

mapping study to provide an overview of the cur-

rent state of research on technical debt management

(TDM), including related activities, approaches, and

tools. They pointed out a list of 10 TD types, 8 TD

management activities, and 29 tools for TD manage-

ment extracted from 94 primary studies. Regarding

technical debt tools, they report their functionality,

vendor, TD types and artifacts covered. The research

indicates that there is a demand for more dedicated

TD management tools. They identiﬁed that only 4

tools out of 29 tools are dedicated to TD management.

The other 25 tools are adapted for TD identiﬁcation

from other software development areas such as static

analysis tools or code smell detection tools. One simi-

larity between their study and ours is the considerable

number of analyzed TD tools in both studies. All the

29 tools identiﬁed in their study was selected in our

systematic mapping study.

Avgeriou et al. (Avgeriou et al., 2020) present an

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

overview of the current landscape of TD tools, focus-

ing on those offering support for measuring technical

debt. The scope of their research limits to examine

code, design and architectural TD, comparing them

based on the features offered, popularity, empirical

validation, and current shortcomings. Our study dif-

fers from the Avgeriou et al.’s study because we focus

on different kinds of TD tools, not only the ones that

provide the TD measurement. Therefore, our study

has a broader scope and provides a mappping of state

of the art of existing TD tools. Their study focused

on a set of 9 tools: CAST, Sonargraph, NDepend,

SonarQube, DV8, Squore, CodeMRI, Code Inspector,

and SymfonyInsight. The search protocol performed

in our study caught the ﬁrst 6 tools. The last three

tools are less popular and have few research work dis-

cussing them (Avgeriou et al., 2020).

None of the mentioned studies aims: (i) to char-

acterize the existing TD tools; (ii) to cover the differ-

ent contexts and activities of software development

in which they are applied; and (iii) to investigate the

different TD types supported by them. The goal of

our work, therefore, differs from the other existing

secondary studies in terms of the broad scope of TD

tools.

6 CONCLUSIONS

In this paper, we performed a systematic mapping

study of 47 primary studies and produced an overview

of the state of the art of TD tools. The presented re-

sults indicate an increasing interest from the commu-

nity about technical debt and how to manage it prop-

erly in a automated way. All the additional details

about our study can be found in (td-tools study, 2020).

We identiﬁed a total of 50 tools that supports dif-

ferent TD types and activities. Comparing with pre-

vious studies, it represents a huge increasing on the

number of TD tools that have been proposed over the

last years. 80% (40/50) of these tools provide explicit

support to the technical debt concept. Most of tools

offer support to managing TD related to the system

code, design and/or architecture. This conﬁrms the

leading role that code is playing in the ﬁeld. On the

other hand, there is a growing number of TD tools

that deals with artifacts other than source code, such

as models and requirements. We believe it is fruit-

ful to design and develop tools dealing with artifacts

other than source code to manage TD.

A total of 56% (28/50) of the tools are language

speciﬁc, while the remaining 44% (22/50) of them

do not focus in a speciﬁc language. Java is the most

common target language with 58%. We also found

that 84% (42/50) of the tools are original solutions

and only 16% represent extensions of existing tools.

SonarQube is the current tool with the highest number

of extensions.

The different TD management activities received

different levels of attention by the tools: (i) most of

tools have focused on the identiﬁcation and measure-

ment activities; (ii) on the other hand, the TD preven-

tion and replacement activities are still not supported

by many existing tools. However, we observed that

the scientiﬁc interest in prevention approaches is in-

creasing. We can conjecture that this trend derives

from the awareness of the technical debt cost and that

prevention can occasionally be cheaper than its repay-

ment. Similarly, we can notice increasing of the sup-

port to the prioritization activity. We believe that the

popularization of the TD concept in software devel-

opment might give rise to new trends for the TDM

activities addressed by the tools.

As future work, we plan to conduct a study with

practitioners and researchers to compare the tools

based on concrete TD management activities and

tasks. This would complement the current study with

information on the usability and usefulness of the

tools.

ACKNOLEDGEMENTS

This work is partially supported by INES

(www.ines.org.br), CNPq grant 465614/2014-0,

CAPES grant 88887.136410/2017-00, and FACEPE

grants APQ-0399-1.03/17 and PRONEX APQ/0388-

1.03/14.

REFERENCES

Allman, E. (2012). Managing technical debt. Commun.

ACM, 55(5):50–55.

Alves, N. S. et al. (2016). Identiﬁcation and management

of technical debt: A systematic mapping study. Infor-

mation and Software Technology, 70:100 – 121.

Ampatzoglou, A. et al. (2015). The ﬁnancial aspect of man-

aging technical debt: A systematic literature review.

Information and Software Technology, 64:52–73.

Apa, C. et al. (2020). The perception and management

of technical debt in software startups. In Fundamen-

tals of Software Startups: Essential Engineering and

Business Aspects, pages 61–78. Springer International

Publishing, Cham.

Avgeriou, P. et al. (2016). Managing technical debt in soft-

ware engineering (dagstuhl seminar 16162). Dagstuhl

Reports, 6(4):110–138.

Technical Debt Tools: A Systematic Mapping Study

Avgeriou, P. et al. (2020). An overview and comparison of

technical debt measurement tools. IEEE Software.

Behutiye, W. N. et al. (2017). Analyzing the concept of

technical debt in the context of agile software devel-

opment: A systematic literature review. Information

and Software Technology, 82:139–158.

Foucault, M. et al. (2018). Gamiﬁcation: a game changer

for managing technical debt? A design study. CoRR,

abs/1802.02693.

Giraldo, F. D. and Osorio, F. (2017). Evaluating quality is-

sues in BPMN models by extending a technical debt

software platform. In International Conference on

Conceptual Modeling, pages 205–215.

Guo, Y. et al. (2016). Exploring the costs of technical debt

management — a case study. Empirical Softw. Engg.,

21(1):159–182.

Kitchenham, B. and Charters, S. (2007). Guidelines for per-

forming systematic literature reviews in software en-

gineering. Technical report, Technical report, Ver. 2.3

EBSE Technical Report. EBSE.

Kouros, P. et al. (2019). JCaliper: search-based techni-

cal debt management. In Proceedings of the 34th

ACM/SIGAPP Symposium on Applied Computing,

SAC ’19, pages 1721–1730. Association for Comput-

ing Machinery.

Lenarduzzi, V. et al. (2019). Technical debt prioritization:

State of the art. A systematic literature review. CoRR,

abs/1904.12538.

Li, Z. et al. (2015). A systematic mapping study on techni-

cal debt and its management. Journal of Systems and

Software, 101:193 – 220.

Mamun, M. et al. (2019). Evolution of technical debt: An

exploratory study. In International Workshop on Soft-

ware Measurement and International Conference on

Software Process and Product Measurement (IWSM

Mensura), volume 2476, pages 87–102.

Martini, A., Bosch, J., and Chaudron, M. (2015). Inves-

tigating architectural technical debt accumulation and

refactoring over time: A multiple-case study. Infor-

mation and Software Technology, 67:237 – 253.

Pavli

c, L. and Hli

s, T. (2019). The technical debt manage-

ment tools comparison. In Eighth Workshop on Soft-

ware Quality Analysis, Monitoring, Improvement, and

Applications, pages 10:1—-10:9.

Petersen, K. et al. (2015). Guidelines for conducting sys-

tematic mapping studies in software engineering: An

update. Information and Software Technology, 64:1 –

18.

Riegel, N. and Doerr, J. (2015). A systematic literature re-

view of requirements prioritization criteria. In Fricker,

S. A. and Schneider, K., editors, Requirements Engi-

neering: Foundation for Software Quality, pages 300–

317, Cham. Springer International Publishing.

Rios, N. et al. (2018). A study of factors that lead

development teams to incur technical debt in soft-

ware projects. In 2018 44th Euromicro Conference

on Software Engineering and Advanced Applications

(SEAA), pages 429–436.

Rios, N. et al. (2018). A tertiary study on technical debt:

Types, management strategies, research trends, and

base information for practitioners. Information and

Software Technology, 102:117–145.

Seaman, C. and Guo, Y. (2011). Measuring and monitoring

technical debt. In Zelkowitz, M. V., editor, Advances

in Computers, volume 82 of Advances in Computers,

pages 25 – 46. Elsevier.

Suryanarayana, G. et al. (2015). Chapter 8 - repaying

technical debt in practice. In Suryanarayana, G.,

Samarthyam, G., and Sharma, T., editors, Refactoring

for Software Design Smells, pages 203 – 212. Morgan

Kaufmann, Boston.

td-tools study (2020). Project title. https://github.com/

td-tools-study/td-tools-study.

Verdecchia, R. et al. (2018). Architectural technical debt

identiﬁcation: The research landscape. In Proceed-

ings of the 2018 International Conference on Techni-

cal Debt, TechDebt ’18, page 11–20, New York, NY,

USA. Association for Computing Machinery.

Wieringa, R. et al. (2005). Requirements engineering paper

classiﬁcation and evaluation criteria: A proposal and

a discussion. Requir. Eng., 11(1):102–107.

Wohlin, C. et al. (2012). Experimentation in software engi-

neering. Springer Science & Business Media.

Yli-Huumo, J. et al. (2016). How do software development

teams manage technical debt? – an empirical study.

Journal of Systems and Software, 120:195–218.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
