A Methodology for Generating BPEL Models from a Business

Process Textual Description

Wiem Khlif

, Nadia Aloui

and Nourchène Elleuch Ben Ayed

Mir@cl Laboratory, University of Sfax, Sfax, Tunisia

Higher Colleges of Technology, ADW, U.A.E.

Keywords: BPEL Model, Alignment Textual Description.

Abstract: Generating BPEL model from a Textual Description (TD) is essential to its reliable analysis. Nonetheless,

creating or preserving TD-BPEL alignment is an issue when an organization develops or changes a BEPL

model. Hence, it is possible to detect misalignment between BPEL model and text if changes are not applied

to both representations. This paper proposes a new methodology that assists business analyst to derive BPEL

models, which are aligned with their corresponding textual description. It uses the business concept’s

template that is augmented by a set of transformation rules. Compared to existing methods, our methodology

offers a complete alignment, which covers all BPEL elements. It is evaluated experimentally using the recall

and precision rates.

1 INTRODUCTION

Business process modelling constitutes an important

asset for expressing software requirements and

handling organizational change. What becomes

challenging with business process modelling is the

fact that the development of Business Process Models

(BPM) is a time-consuming task due to the

availability of different notations. The business

analyst uses Business Process Modelling Notation

(BPMN) for designing and improving the business

process, whereas Business Process Execution

Language (BPEL) is used by the technical analyst and

programmer when implementing it. These BPMN

models are as blueprints to define the BPEL model.

Several approaches were proposed in the literature

(Aysolmaz et al., 2018) (Doux et al., 2013) (Van der

Aa et al., 2019) to increase the agility of model. These

approaches are classified into two categories: the first

category addresses the transformation of BPMN

model into a textual description and vice versa

(Aysolmaz et al., 2018) (Van der Aa et al., 2019),

while the second category deals with the

transformation from the BPMN model into BPEL and

vice versa (Doux et al., 2013).

Regarding the first category, the transformation

from BPMN model to textual description can be

automatic or semi-automatic (Aysolmaz et al., 2018).

For the transformation from textual description to

BPMN model, (Van der Aa et al., 2019) present an

automatic approach that combines existing tools

from natural language processing in an innovative

way and augments them with a suitable anaphora

resolution mechanism.

For the second category, (Doux et al., 2013)

propose a set of BPMN patterns and their

corresponding BPEL structured constructs as well as

an algorithm automating this mapping. The latter

turns out to be rather complex because of inherent

differences between these two languages: BPMN

process models are graph-oriented (with only minor

topological restrictions), while BPEL process

definitions are block-structured.

To overcome these limitations, this paper

addresses the challenge of deriving a BPEL model

from a textual description. We propose to enhance

MONET (a systeMatic derivatiOn of a bpmN modEl

from business process Textual description)

methodology (Khlif et al., 2020) which mainly focus

on the derivation of BPMN models from given textual

descriptions. This generation is based on the business

concepts used as a mean to split the business process

textual description into goal-specific descriptions.

Each business concept (BC) is described by a well-

formed template respecting a set of linguistic

patterns. In addition, MONET proposes business

transformation rules that transform each linguistic

Khlif, W., Aloui, N. and Ben Ayed, N.

A Methodology for Generating BPEL Models from a Business Process Textual Description.

DOI: 10.5220/0010457403230330

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 323-330

ISBN: 978-989-758-508-1

323

pattern to its corresponding BPMN elements. The

enhancement of MONET methodology goes through

differents steps. First, defining new transformation

rules that aim to derive BPEL from a textual decription

(TD). Second, evaluating the quality of the produced

model in terms of their precision and domain coverage.

The remainder of the paper is structured as

follows: Section 2 presents an overview of MONET

methodology (a systeMatic derivatiOn of a

bpmN modEls from business process Textual

description) and the related works. Section 3

determines the transformation rules that allow the

derivation of BPEL model from the business concept

template. Section 4 illustrates our tool MONEET that

implements the transformation rules and the ontology

to produce BPEL model and evaluate it through the

recall and precision. Finally, Section 5 summarizes

the results and draws the future works.

2 BACKGROUND

2.1 Overview of MONET

MONET (a systeMatic derivatiOn of a bpmN modEls

from business process Textual description) is a

methodology that generates BPMN model from its

corresponding documentation (Khlif et al., 2020). It

is composed of two phases: BPMN model derivation

phase and evaluation phase. The derivation phase is

organized around a set of three steps that are a pre-

processing, a definition of the transformation rules,

and their implementations. A pre-processing step

during which the business analyst cleans first the

business process description, written with a natural

language. Then, the business analyst identifies the

business goals to divide the business process

description into business concepts. For each business

concept, the business analyst prepares its TD

according to a specific template (Khlif et al., 2020)

which is composed of three blocks. The first block

summarizes the business concept. The second block

describes the main, alternative, and error scenarios.

The third block illustrates business objects as result

of the execution of the BC. For more details, reader

can refer to (Khlif et al., 2020).

A transformation-definition step during which the

business designer defines an ontology to analyze the

semantic of the business concepts’ template. It is used

to define the business transformation rules.

A Transformation-implementation step during

which the business engineer formalizes/implements

the transformation rules, which provide for the

automated generation of the BPMN model.

2.2 Related Work

Many researchers proposed a number of methods for

generating BPMN model from its textual description

and vice versa (Aysolmaz et al., 2018) (Van der Aa et

al., 2019), and from model to another at different

abstraction levels ie. from BPMN to BPEL and vice

versa (Doux et al., 2013).

On the one hand, model-to-text transformation

(Aysolmaz et al., 2018) proposed a semi-automated

approach technique that transforms process models

into intuitive natural language texts.

On the other hand, text-to-model transformation

techniques cover a diversity of models. (Van der Aa

et al., 2019) offered an approach that derives

automatically BPMN models from natural language

text based on a tailored Natural Language Processing

technique that identifies activities and their inter-

relations. The authors of (Doux et al., 2013) address

the issues related to model-to-model transformation

from BPMN to BPEL and vice versa. They proposed

pattern-based transformation from BPMN to BPEL

using ATL.

What become problematic with these works

(Doux et al., 2013) is the patterns identification and

the different types of process models: BPEL (block-

based) and BPMN (graph based). To overcome these

limits, (Yongchareon et al., 2020) present a unified

framework, namely UniFlexView, for supporting

automatic and consistent process view construction.

Based on this framework, process modellers can use

the proposed View Definition Language to specify

their view construction requirements disregarding the

types of process models.

In summary, many researchers studied the

transformation between BPMN model and its textual

description or between BPMN and BPEL models.

However, there is no works that focus on the

generation of BPEL from the documentation of the

business process. Our objective is to facilitate the task

of the business designer and developer to obtain

BPEL model at a high level of granularity.

3 FROM TEXTUAL

DESCRIPTION TO BPEL

MODEL

We propose to extend MONET methodology to

generate BPEL model from its textual description.

We called the new methodology MONEET (a

systeMatic derivatiOn of a bpmN and bpEl modEls

from business process Textual description).

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

324

MONEET is composed of two phases: BPEL model

derivation phase and evaluation phase. As MONET,

the derivation phase is organized around a set of three

steps that are a pre-processing, a definition of the

transformation rules, and their implementations. The

pre-processing step is quite similar to MONET.

However, we defined new transformation rules to

generate the BPEL model. We describe in the

following sections the transformation rules and we

evaluate the obtained model.

We defined eighteen transformation rules. Each

transformation rule operates on the different

components of the template.

R1. Each trigger is transformed into an event that

will be linked to the first element of the current

business concept. Based on the trigger type, we add

the corresponding event.

R1.1. If the trigger type describes the time, so add

the following code:

 Case of start event, which is only applied on an

Event Sub-Process :

<eventHandlers> <onAlarm>[timer-spec]

<scope> [current business concept] </scope>

</onAlarm>

</eventHandlers>

 Case of intermediate event:

<wait name = "[trigger-name]" for="[trigger-

TimeC

cle]"/>

R1.2. If the trigger type describes any action that

refers to a specific addressee and represents or

contains information for the addressee, so add the

following code:

 Case of start event:

<receive name= [trigger-name] partnerLink =

[Partici

ant] createInstance="

no"/>

 Case of intermediate event

<receive name= [trigger-name] partnerLink =

[Participant] createInstance="no"/>

We note that conditional and signal event cannot be

mapped to BPEL.

R2. Each participant is transformed into partner

link depending on its type.

R2.1. If a participant invokes the BPEL process,

so add the following code:

<partenerLink name="[participant name]" myRole =

"[processNameProvider]"/>

R2.2. if a participant is invoked by the BPEL

process, so add the following code:

<partnerLink name="[participant name]" myRole =

"[processNameProvider]"

artnerRole= "[Partici

antNameRe

uester]"/>

R3. Each relationship between a business concept

and its successors respects the linguistic pattern:

[<Pre-condition>] <Current Business Concept

ID> is related <sequentially | exclusively | parallel

| inclusively>to<Business Concept ID>.

R3.1. If the relationship is <sequentially>, then

add the following code:

<sequence> <scope> [current BC] </scope>

<scope> [successor of the current BC] </scope>

</sequence>

R3.2. If the relationship is <parallel>, then add the

following code:

<flow> [current BC] [successor of the current BC]

</flow>

R3.3. If the relationship is <exclusively> and

there is a precondition, then add following code:

<if >[precondition] [current BC]

<else> [BC successor] </else> </if>

R3.4. If the relationship is <inclusively> and there

is a precondition, add the following code:

precondition1 <transitioncondition>

</source>

<transitioncondition>precondition2

<flow>

[current BC] </flow>

[business concept successor] </flow>

</flow>

R4. For each step of a BC’s scenario respecting

the linguistic pattern: [<Pre-condition>] <Task#> <

Task Description > <Task Type >, then add the

following:

A Methodology for Generating BPEL Models from a Business Process Textual Description

325

R4.1. If the task description is « Action verb +

BusinessObject », then add an invoke activity

presented by the following BPEL code and call R4.4,

R4.5, and/or R4.6.

< invoke name="[Action verb + BusinessObject]"

portType="[Task-operation-interface]"

operation="[Tas

-operation]" > </invoke>

R4.2. If the task description is « Action verb +

NominalGroup », then add an invoke activity that has

the same name of the pattern and call R4.4, R4.5

and/or R4.6. If the pre/post-modifier is a noun that

merely represents a pure value, so there is no variable

(data object) to add. Otherwise, if the pre/post-

modifier is a complex noun (an entity) then add a

variable corresponding to the data object.

<invoke name="[Action verb + NominalGroup]"

partnerLink="[participant]"

portType="[Task-operation-interface]"

eration="[Tas

-o

eration]"> </invoke>

R4.3. If the task description is

« CommunicationVerb + BusinessObject |

NominalGroup+ [[to ReceiverName(s)] | [from

SenderName]] », then add the following code

corresponding to an invoke or receive activity that has

the same name of the pattern and a variable for each

BusinessObject or NominalGroup.

<invoke

name="[CommunicationVerb+BusinessObject|Nomina

lGroup]" partenerLink= "[ReceiverName]">

<toPart part ="[variable.name]"

fromVariable="[variable.name]"/>

</invoke>

<receive

name="[CommunicationVerb+BusinessObject|Nomina

lGroup]"

partnerLink=[SenderName] portType="[Task-

operation-interface]" operation="[Task-operation]" >

<fromPart part ="[variable.name]" fromVariable =

"[variable.name]"/>

</receive>

R4.4. If the task type is ActivePER, then add a

variable presented by the following code:

<fromPart part = "[variable.name]" fromVariable =

"[variable.name]"/>

R4.5. If the task type is ActiveRET, then add a

variable expressed as follows:

<toPart part = "[variable.name]" fromVariable =

"[variable.name]"/>

R4.6. If the task type is ActiveREP, then add a

reply activity represented as follows:

<re

> </re

R5. Each relationship between the task and its

successors respects the linguistic pattern: [<Pre-

condition>] <Current Task ID> is related

<sequentially | exclusively | parallel |

inclusively>to<Task ID>

R5.1. If the relationship is <sequentially> and if

the current activity and its direct successor are in the

same main process, then add the following code:

</sequence> [current task] [successor task]

</se

uence>

Otherwise add

 Receive activity

<receive name="[direct successor task]"

artenerLink="[

artici

ant]"></receive>

 Invoke activity

<invoke name= "[direct successor task]"

artenerLink="[

artici

ant]" ></invoke>

R5.2. If the relationship is <parallel>, then add

<flow> [current task] [successor task] </flow>

R5.3. If the relationship is <exclusively> and

there is a precondition, add the following code:

<if >[precondition][current task]

<else> [ task successor] </else> </if>

R5.4. If the relationship is <inclusively> and there

is a precondition, then add the following code:

<transitioncondition>precondition1

<transitioncondition>precondition2

<flow>

[current task] </flow>

<tar

et linkName= " link3" ></tar

et> </flow>

R5.5. If the relationship is <sequentially>, and

there is a <complete> construct related to a task, then

add an end event based on the following code:

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

326

 None end event

 Message End Events

<invoke name="[e-name]"

partnerLink="[Q, e-operation-interface]"

portType="[e-operation-interface]" operation="[e-

operation]"> </invoke>

 Error end event:

 Compensation end event

<compensate/> or <compensateScope

target="[referencedActivity]"/>

 Terminate End Events

4 MONEET TOOL

To facilitate the application of our methodology, we

enrich MONET tool (Khlif et al., 2020) by a module

that derives BPEL model from a given textual

description. We called MONEET Tool, which is

implemented as an EclipseTM plug-in (Eclipse,

2011) and is composed of three main modules: Parser,

generator, and evaluator.

The pre-processing engine uses as input the TD of

a BPEL model written in a natural language. It cleans

the file using. The cleaned file is used by the business

analyst to manually determine the business goals. The

Business Goal (BG4) definition and its description is

presented in (Khlif et al., 2020). Figure 1 shows the

template corresponding to BC4.

Next, the analyst selects one or more BCs. If he

selects one BC, the corresponding fragment is

generated. Else, the business analyst can select all

business concepts to transform. The generator engine

uses the ontology and applies the transformation rules

to derive the BPEL model. Figure 2 illustrates the

generated BPEL model: “Supply Management

Process”. First, by applying R2.1 we add a process

name "Supply Management Process" and a

partnerLink "Inventory Management". Second by

applying R1, the process is activated by the trigger

"Item and Invoice are received". The transformation

of the main scenario calls R4.2 and R4.5 that generate

an invoke activity labelled "Check item and invoice".

Then, we add two variables labelled "item" and

"invoice" to this activity. R4.2 produces an invoke

activity labelled "Establish a payment" (respectively,

"Put items in stock"). By applying R5.1, we generate

an orchestration logic between "Control result" and

"Check item and invoice". Then, by applying R5.2,

we add a flow activity between "establish payment"

and "put item in stock". The transformation of the

alternative scenario calls R4.2, R4.5 and R4.6 that

produces an invoke activity labelled "Reconciliation

order/invoice". Then, we add two variables labelled

"order" and "invoice" to this activity and we add a

reply activity "send expired product". R4.1 produces

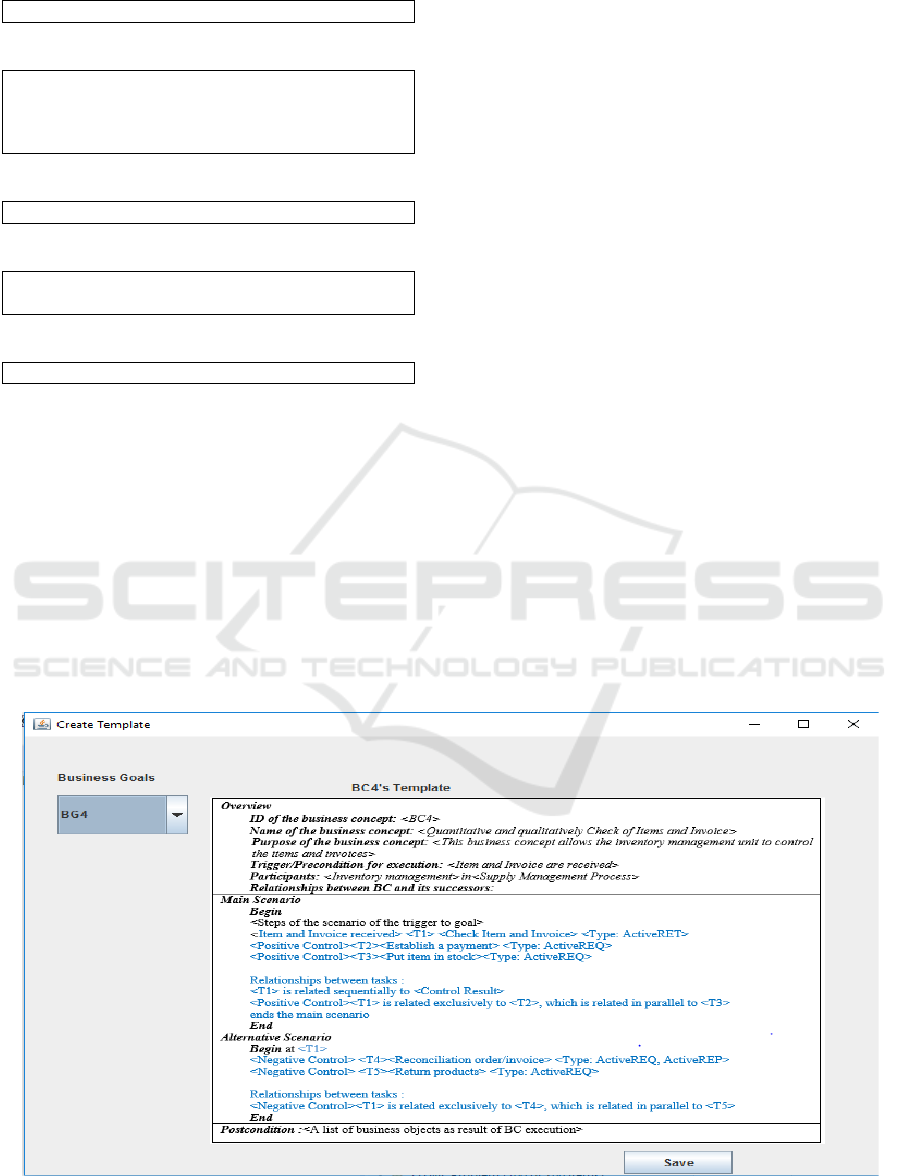

Figure 1: BC4’s enhanced template (Khlif et al., 2020).

A Methodology for Generating BPEL Models from a Business Process Textual Description

327

an invoke activity labelled "return products".

Then, by applying R5.2, we add a flow activity

between "reconciliation order/invoice" and "return

products".

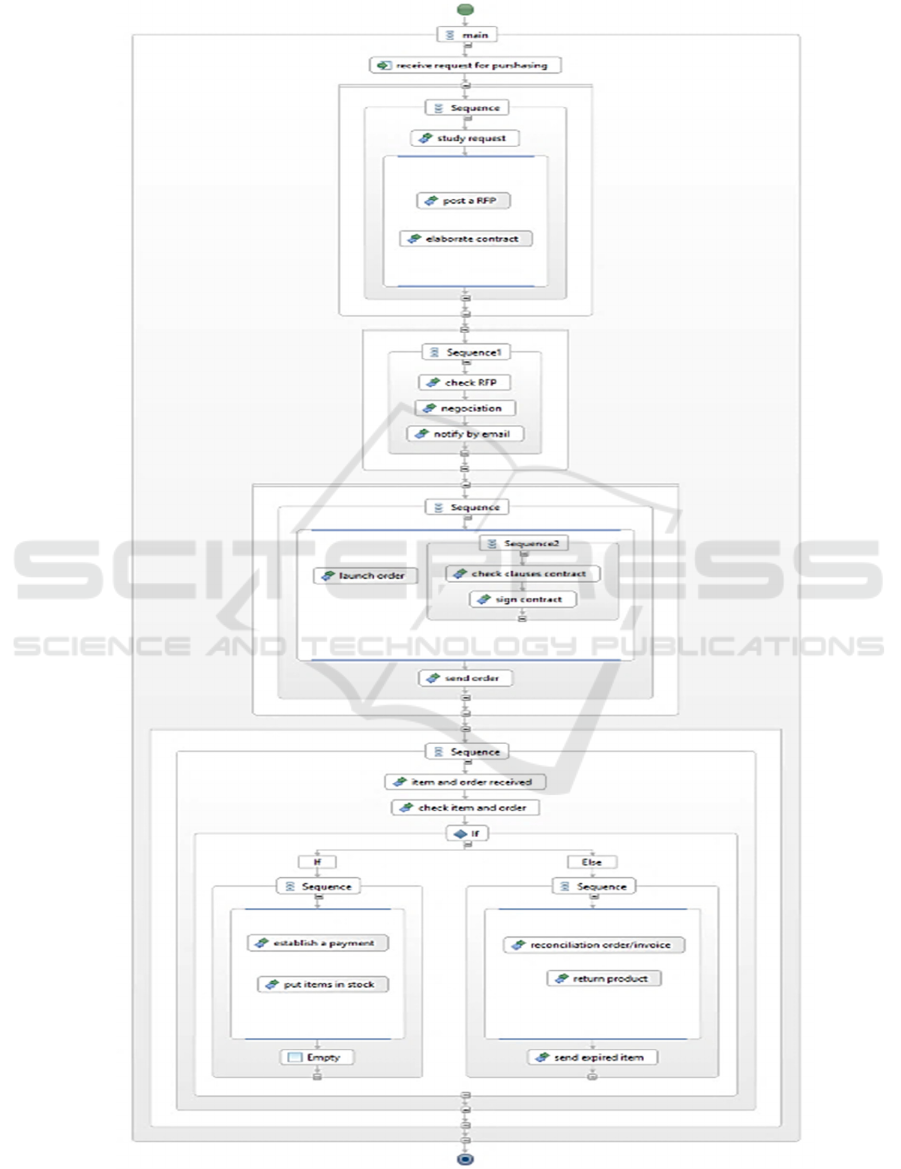

Figure 2: The generated BPEL model:"SupplyManagementProcess ".

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

328

Table 1: BPEL code corresponding to BC4.

BC4 Textual descri

tion Rules Code BPEL

Overview

Participants:

In<Su

Mana

ement Process>

R2.1

<partnerLink name= "InventoryManagemen"

Role="Su

Mana

ementProcesProvide

" />

<Item and Invoice are received> R1

<receive name= item and invoice received partnerLink= "supplier"

createInstance="yes"/>

Main scenario

<Type: ActiveRET>

R4.2

R4.5

<invoke name="check item and invoice "

<toPart

art = "invoice" fromVariable = "invoice"/>

e: ActiveREQ>

R4.2

< invoke name="establish a payment" portType="[T2-operation-

interface]" operation="[T2-operation]"> </invoke>

<T3><Put item in stock><Type:

ActiveREQ>

R4.2

< invoke name="put item in stock" portType="[T3-operation-

interface]" o

eration="[T3-o

eration]"> </invoke>

<T1> is related sequentially to

R5.1 <sequence><T1><control result></sequence>

which is related in parallel to <T3> R5.2 <flow> [T2] [T3] </flow>

Alternative scenario

<T4><Reconciliation

order/invoice>

<Type:ActiveRET, ActiveREP>

R4.2

R4.5

R4.6

<invoke name="reconciliation order/invoice "

portType="[T4-operation-interface]"

operation="[T4-operation]"> </invoke>

<T5><Return products> <Type:

ActiveREQ>

R4.1

< invoke name="return products"

portType="[T5-operation-interface]"

operation="[T5-operation]"> </invoke>

<T4> is related in

arallel to<T5> R5.2 <flow> [T4] [T5] </flow>

Table 1 illustrates the BPEL code corresponding

to BC4. The evaluator evaluates the BPEL model

through the calculation of recall and precision rates.

The high scores for both ratios (Recall=0,86 and

Precision=0,95) mean that the generated BPEL

model covers the whole domain precisely in

accordance with the experts’(See Figure 3).

5 CONCLUSIONS

Deriving BPEL model from BPMN model can be a

challenging task in the business process modelling

project. The difference between the notations may

degrade the quality of generated BPEL model. For

that reason, this paper proposed a transformation-

based methodology to generate a BPEL model from

its textual description instead of BPMN models. To

our best knowledge, there are no works that have

investigated this research problem. Furthermore,

compared to existing works dealing with BPMN-to-

BPEL transformation, our methodology provided

an enriched template defined in terms of structured

linguistic patterns, as the starting point. Then, it

defined transformation rules that derive each

linguistic patterns to its corresponding BPEL

elements. These transformation rules are automated

and MONEET tool is implemented to derive the

BPEL model an evaluate its quality using the recall

and precision ratios.

REFERENCES

Aysolmaz, B., Leopold, H., Reijers, H.A., Demirörs, O.,

2018. A semi-automated approach for generating

natural language requirements documents based on

business process models. In Journal of Information &

Software Technology, V. 93, pp. 14-29.

Doux, G., Jouault, F., Bézivin, J., 2013. Transforming

BPMN process models to BPEL process definitions

with ATL. In Proceedings of the 5th International

Workshop on Graph-Based Tools.

Eclipse Specification, 2011. Available from:

http://www.eclipse.org/.

Khlif, W., Elleuch Ben Ayed, N., Chihi, F., 2020.

Towards a systematic derivation of BPMN model

from business process textual description. In

International Conference on Software Engineering

and Knowledge Engineering venue 2020. july 9 – 19.

Van der Aa, H., Ciccio, C.D., Leopold, H., Reijers, H.A.,

2019. Extracting Declarative Process Models from

Natural Language. In 31

International Proceedings

of Conference on Advanced Information Systems

A Methodology for Generating BPEL Models from a Business Process Textual Description

329

Engineering. Rome, Italy, June 3-7, pp. 365-38.

Yongchareon, S., Liu, C., Zhao,X., 2020. UniFlexView:

A unified framework for consistent construction of

BPMN and BPEL process views. In journal of

concurrency and computation: Practice and

experience, V 32.

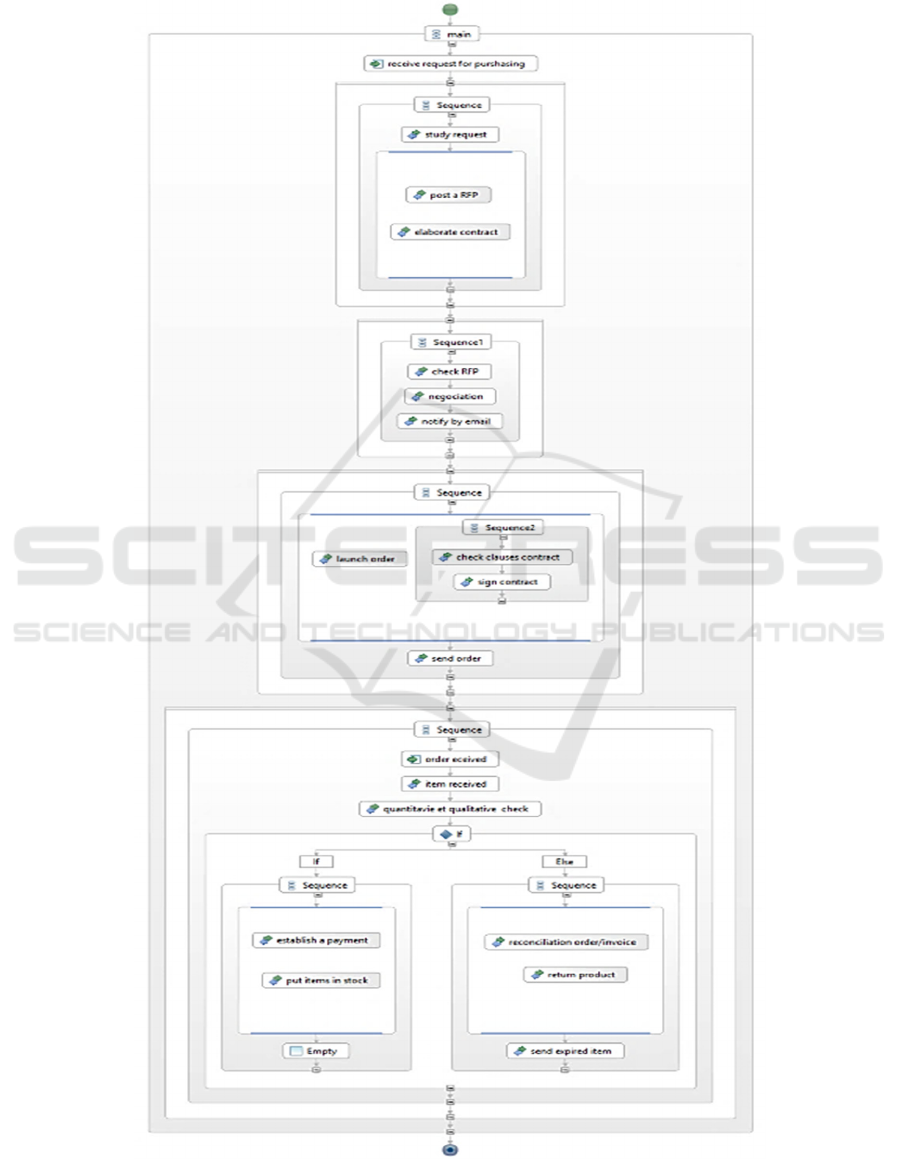

Figure 3: The elaborated BPEL model by the expert.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

330
