An Ontology for Service-Oriented Dynamic Software Product Lines

Knowledge Management

Najla Maalaoui

1 a

, Raoudha Beltaifa

1 b

, Lamia Labed Jilani

1 c

and Raul Mazo

2 d

RIADI Lab., National School of Computer Sciences, Manouba University, Tunisia

Lab-STICC, ENSTA Bretagne, Brest, France

Keywords:

Service-Oriented Dynamic Software Product Lines, Knowledge Management, Ontology.

Abstract:

Service oriented dynamic software product line (SO-DSPL) engineering provides a development paradigm for

building conﬁgurable service-oriented applications and adapting them at runtime according to their context.

To support context-aware and runtime adaptation of services, SO-DSPLs consider various aspects of knowl-

edge, such as users’ contexts, product lines properties, services description and QoS. In fact, the knowledge

variety produces variability that must be taken into account. Thus, wealth and diversity of this knowledge

require an efﬁcient knowledge management (KM) tool to ensure knowledge-based SO-DSPL engineering.

The main challenge is to overcome the lack of a multi-dimensional and uniﬁed conceptualization of knowl-

edge. Practically, most of existing knowledge representations consider particular dimensions that depend on

speciﬁc product lines, ignore the semantic between them and do not handle knowledge variability. To tackle

this challenge, we propose in this paper an ontology for SO-DSPL knowledge management that establishes a

common conceptualization about SO-DSPLs dimensions and provides a uniﬁed and sharable knowledge base.

This ontology can serve several SO-DSPL activities and KM-related purposes, such as deﬁning a common

vocabulary for knowledge workers with respect to the SO-DSPL domain, structuring SO-DSPL knowledge

repositories, and providing a knowledge base to conﬁgure and recommend services to be used for the building

and dynamic adaptation of conﬁgurable service-oriented applications. In this paper, we present the ontology

dimensions by means of sub-ontologies in order to promote their reuse.

1 INTRODUCTION

Service oriented architecture (SOA) provides a

promising mechanism for supporting continuously

changing customers’ needs, context and expectations,

as more sophisticated software systems are connected

to the Internet. With the variability of user needs and

context, developing reusable and dynamically recon-

ﬁgurable service-based systems that can combine ser-

vices in various conﬁgurations and tailored to meet

different customers’ needs and contexts became a

main challenge. To tackle this challenge, Service

Oriented Dynamic Product Lines (SO-DSPL) Engi-

neering is addressed by combining SOA with Dy-

namic Software Product Lines Engineering (DSPLE)

in order to achieve the development of more ﬂexible

https://orcid.org/0000-0002-3896-920X

https://orcid.org/0000-0003-4096-5010

https://orcid.org/0000-0001-7842-0185

https://orcid.org/0000-0003-0629-1542

and customized service-oriented applications (Capilla

et al., 2014). The fusion of these two popular model-

ing paradigms provides a great potential to develop

service-based solutions that can tackle various chal-

lenges in development and infrastructure manage-

ment of service-oriented systems. To deliver on these

promises, SO-DSPLs overcome a number of software

engineering challenges. 1) Ensure runtime variabil-

ity by the activation and deactivation of features. 2)

Adapting system functionalities to a new context. 3)

Considering context-aware and self-adaptation prop-

erties to handle changes in system variants dynam-

ically. The complexity and the importance of the

overcome challenges makes the knowledge to be

considered more diverse, rich and carries semantics

whose exploitation and management can serve dif-

ferent activities of the product line(PL). To tackle

the mentioned challenges, SO-DSPL considers a va-

riety of knowledge including user context and re-

quirements, PL variability, services knowledge and

service-oriented applications adaptation knowledge.

314

Maalaoui, N., Beltaifa, R., Jilani, L. and Mazo, R.

An Ontology for Service-Oriented Dynamic Software Product Lines Knowledge Management.

DOI: 10.5220/0010457203140322

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 314-322

ISBN: 978-989-758-508-1

Therefore, Knowledge Management (KM) emerges

as an important means to manage SO-DSPL knowl-

edge since KM principles can help capturing and

representing SO-DSPL knowledge in a manageable

way. In this context, representing and sharing knowl-

edge by using ontologies have emerged as a promis-

ing means to minimize ambiguity, unify and concep-

tualize knowledge. With the lack of a uniﬁed SO-

DSPL knowledge conceptualization, we tackle the

aforementioned challenges by proposing an ontology

for SO-DSPL knowledge management. Our ontology

aims to conceptualize, unify and emphasize the se-

mantics carried by the different SO-DSPL knowledge

in a sharable, exploitable and reusable way. As well,

our proposal focuses on knowledge variability which

must be considered in the context of SO-DSPL frame-

work. In order to promote reusability, our proposed

ontology is structured by sub-ontologies.

The rest of the paper is organized as follows: Sec-

tion 2 introduces SO-DSPL engineering with a brief

overview. Section 3 presents the construction of the

ontology. Ontology implementation is presented in

section 4. Section 5 reports the evaluation of the pro-

posed ontology. Related works are presented in Sec-

tion 6. Finally, Section 7 concludes the paper and de-

scribes future works.

2 SERVICE-ORIENTED

DYNAMIC SOFTWARE

PRODUCT LINES

Software product line engineering is a software reuse

paradigm that aims to develop a family of products

with reduced time to market and improved quality

(Capilla et al., 2014). Within the SPLE ﬁeld, dy-

namic software product lines (DSPLs) have emerged

as a promising means to develop reusable and dynam-

ically reconﬁgurable core assets. Service-oriented dy-

namic software product lines (SO-DSPL) represent a

class of DSPLs that are built on services and service-

oriented architectures (SOAs) (Capilla et al., 2014).

SO-DSPL support user needs and expectations in a

continuously changing environment. SO-DSPL com-

bine services in various conﬁgurations and contexts,

simplifying the deployment of product variants that

are mostly based on the same core services but tai-

lored to meet different customers’ needs. Feature

modeling is the main activity to represent and manage

PL requirements as reusable assets by allowing users

to derive customized product conﬁgurations. Product

conﬁguration refers to the decision-making process of

selecting an optimal set of features from the PL that

comply with the feature model (FM) constraints. FMs

are hierarchical models that capture the commonal-

ity and variability of a PL by deﬁning its feature,their

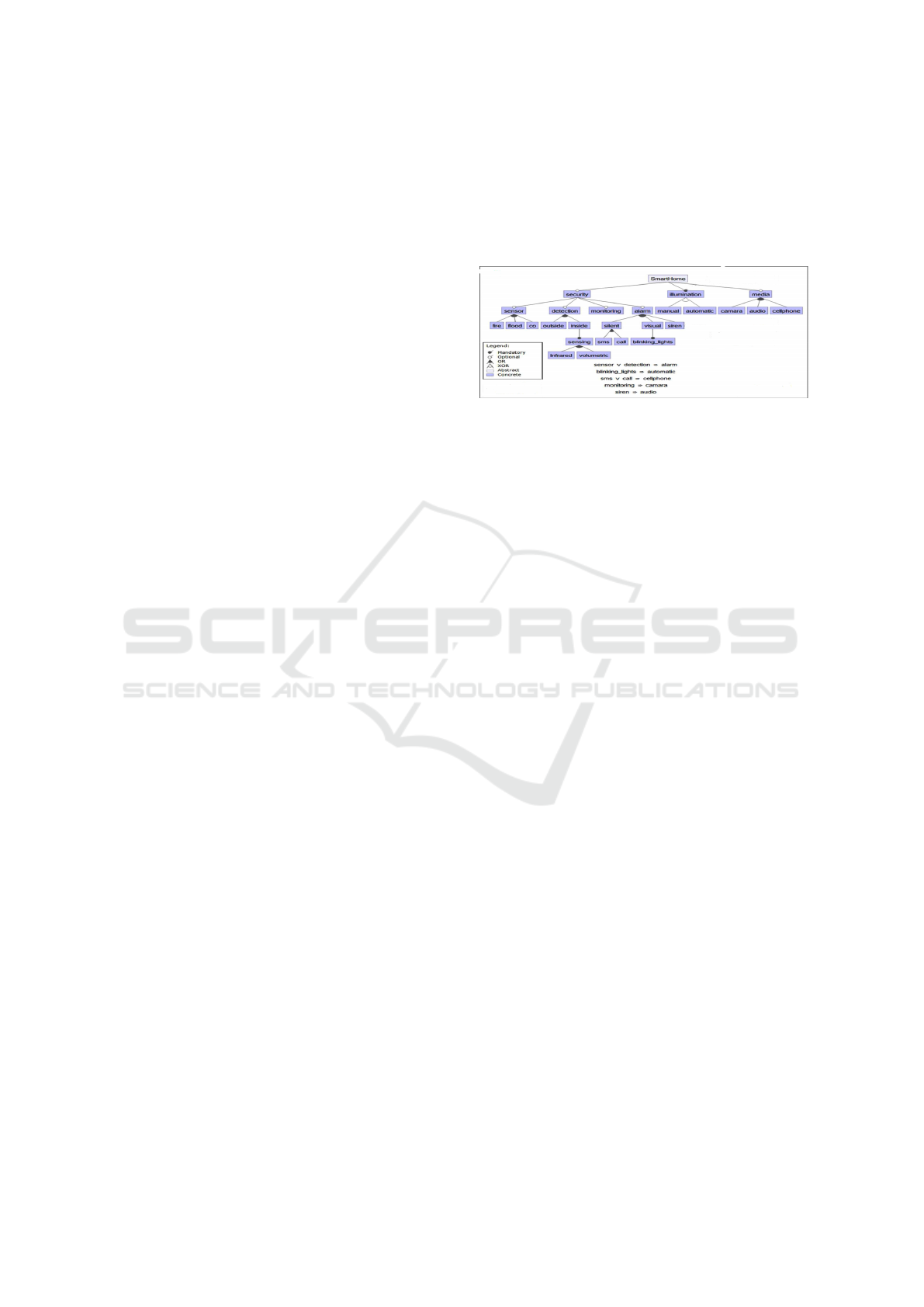

dependencies and constraint between them. Figure 1

shows an example of a feature model associated to a

Smart Home PL.

Figure 1: Extract of Smart home feature model.

3 OntoSO-DSPL: ONTOLOGY

FOR SO-DSPL

This section presents an ontology for Knowledge

management of SO-DSPL to be used in SO-DSPL

activities and related purposes. Our proposed ontol-

ogy is responsible for structuring, unifying, reason-

ing, disseminating SO-DSPL data and to be used in

SO-DSPL activities such as services recommenda-

tion and selection, dynamic adaptation, runtime vari-

ability management and SO-DSPL context reason-

ing. In addition, our ontology includes swrl rules that

are responsible for inferring new knowledge and pro-

viding new facts through its reasoning capabilities.

The method for constructing our proposed ontology

is adapted from ontology construction methods pro-

posed by (Fern

andez-L

opez et al., 1997). The con-

struction process contains ﬁve main steps: objective,

knowledge acquisition, conceptualization, implemen-

tation and validation.

3.1 Objective

The main objective of the target ontology is to pro-

vide a knowledge capitalization in SO-DSPL frame-

work. Our proposed ontology aims to describe com-

mon conceptualization of useful knowledge includ-

ing concepts considered in a SO-DSPL framework

and knowledge related to user context and require-

ments, PL, services and dynamic adaption. Thus, we

address to conceptualize a uniﬁed model for a SO-

DSPL from different dimensions. Our proposed on-

tology should harmonize the SO-DSPL terminology

and help engineers and researchers to conﬁgure prod-

ucts, build and propose approaches that address the

SO-DSPL’s activities. Our proposed ontology is de-

An Ontology for Service-Oriented Dynamic Software Product Lines Knowledge Management

315

signed as a core conceptual model to be used for sev-

eral purposes, such as: 1) A reference model for anno-

tating SO-DSPL knowledge in a semantic documen-

tation approach, 2) To support human-learning about

key concepts related to SO-DSPLE, 3) To be used

by SO-DSPL activities and 4) To Reuse and integrate

proposed sub-ontologies independently.

3.2 Knowledge Acquisition

The ontology that we propose is multi-dimensional.

Its dimensions represent the SO-DSPL areas for

which various ontologies, models and frameworks

was deﬁned in literature. These areas are SO-DSPL,

dynamic adaptation, web service (WS) modeling

and user context modeling. In our work, we ana-

lyzed these works and then we deﬁned a common

knowledge for each area based on advices given in

(Fern

andez-L

opez et al., 1997). In the following, we

present the knowledge acquisition resources. For SO-

DSPL area, knowledge are extracted from (Capilla

et al., 2014) and (Bashari et al., 2017), which provide

a more comprehensive treatment of DSPL models,

properties, challenges and their solution architectures.

In addition, we have exploited ontologies dealing

with semantic DSPL variability modeling (Dehmouch

et al., 2019). As well, we have exploited the work

(Alf

erez et al., 2014) to extract knowledge accord-

ing to the dynamic adaptation of service composition

using SO-DSPL. Accordingly, dynamic, runtime and

self-adaptation knowledge are acquired from: (An-

dersson et al., 2007) that deﬁne MAPE-K loop model,

(Sabatucci et al., 2018) that presents self-adaptive

systems meta-model, (Jaroucheh et al., 2010) that

considers the context in feature selection activity and

(Guinea et al., 2012) that presents a set of dimen-

sions which explain how runtime adaptation could be

realized using DSPLE. To acquire WS knowledge,

we are based on standards and ontologies focusing

on WS description. Thus, we are based on previous

literature surveys (Li et al., 2006) to select relevant

works. For instance, we have analyzed the basic WS

standard developed by IBM and Microsoft, namely

WSDL and its semantic annotated extensions, such as

WSDL-S and SAWSDL (Battle, 2007). In addition,

we have analyzed the semantic markup of WS ap-

proaches that address the service description with the

consideration of semantic. The analyzed proposals

include WSMO, OWL-S, SWSA and SWSL(Battle,

2005). Due to the semantic expressivity richness in

OWL-S and SAWSDL, we have decided to use termi-

nologies, concepts and terms extracted from these two

most used standards to conceptualize our proposed

WS Sub-ontology. As well, we have focused on ac-

quiring SLA knowledge that plays an important role

in WS selection activity. Thus, we have considered in

our work knowledge extracted from USDL standard,

WSLA Framework and the PaaS Level SLA Descrip-

tion Language presented in (Hofman et al., 2020). To

acquire context knowledge, we have reused different

context ontologies. We analyzed about ten context

ontologies such as (Fensel et al., 2010; Zhong-Jun

et al., 2016; Aguilar et al., 2018; Brickley and Miller,

2014), based on previous literature surveys. From the

mentioned resources, relevant concepts and relation-

ships were extracted through their systematic and syn-

tactic analysis and terms are uniﬁed using ”WordNet”

framework.

3.3 Conceptualization

The conceptual modeling of the proposed sub-

ontologies is presented as an OntoUML meta-model

(Guizzardi, 2005). The meta-model classes corre-

spond to classes of our ontology; the dependencies

between meta-model classes are represented as on-

tology object properties; and the attributes of meta-

model classes are represented as ontology datatype

properties. Since SO-DSPL domain is complex, our

proposed ontology (OntoSO-DSPL) was developed

in a modular way. OntoSO-DSPL has four mod-

ules (sub-ontologies) deﬁned as: User context sub-

ontology, service sub-ontology, DSPL sub-ontology

and adaptation sub-ontology where each of them is

interested in covering a particular dimension.

User Context Sub-ontology Meta-model. This sub-

ontology meta-model (see Figure2) consolidates and

uniﬁes relevant user context knowledge in one hand,

and emphasizes context and requirement variability in

the other hand.

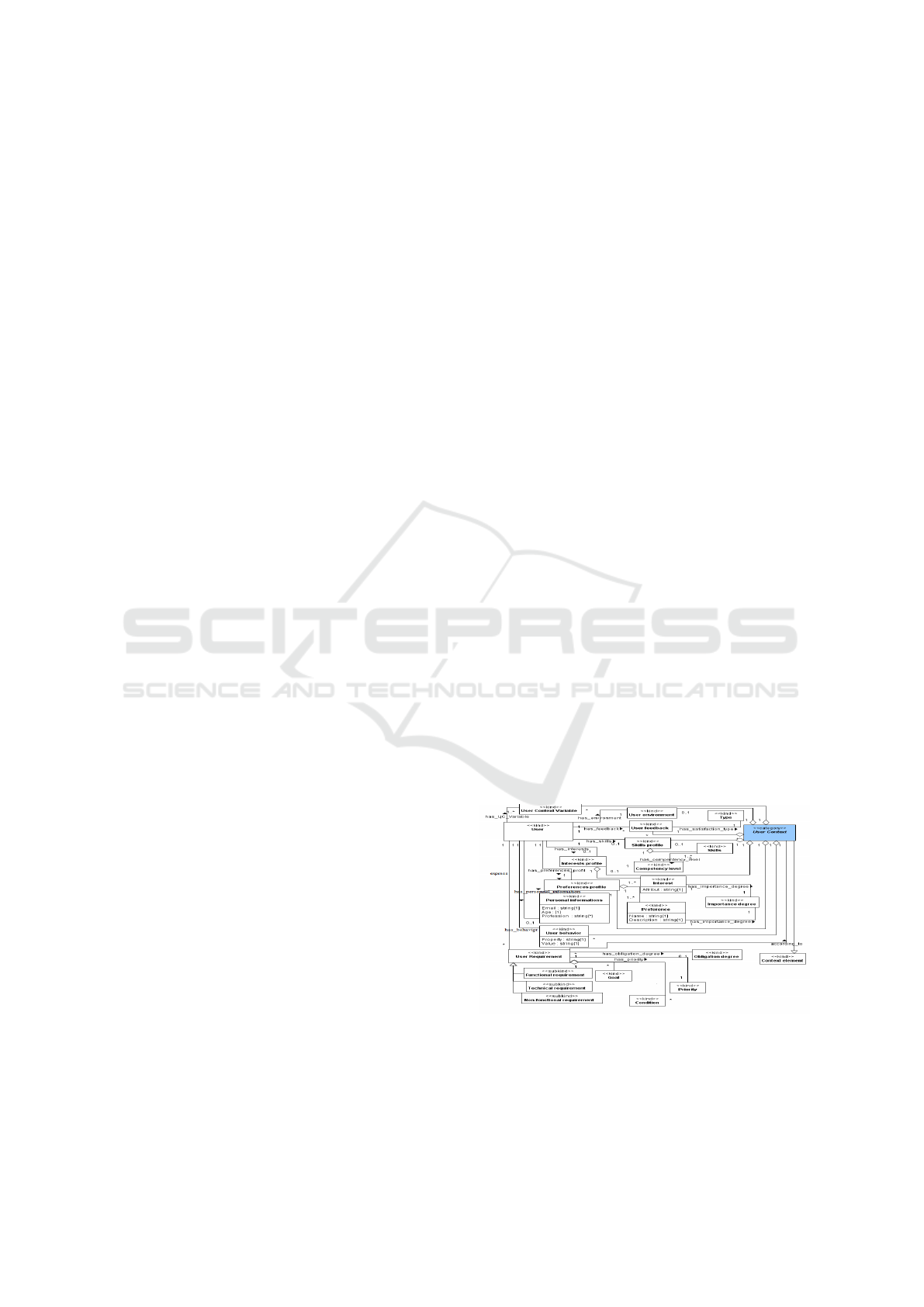

Figure 2: User context sub-Ontology meta-model.

The user context is deﬁned by Preferences pro-

ﬁle(PP), Skills proﬁle(SP), Interests proﬁle (IP), User

behavior (UB), User feedback (UF), Personal infor-

mation (PI), User environment (UE) and User context

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

316

variable (UCv). “PP” represents soft requirements

provided by users that reﬂect a favored wish from the

ﬁnal derived application. “SP”represents competen-

cies and abilities denoted by the user. “IP”denotes

the subjects that a user wants. “UB” represents the

behavior of the user during the use of an applica-

tion. It can be represented by the number of its use.

“UF”represents user’s reactions and opinions about

an application or a service. “UE” presents informa-

tion about the surrounding environment such as user

location or weather. Variability modeling of the user

context is considered in our ontology. For example,

preferences can be expressed by a natural language

or by rating SO-DSPL options. As well, the speci-

ﬁed preferences can be mandatory or optional. Thus,

we assign to user preferences an “Importance degree”,

which can be “low”, “high” or “medium”. As well, to

give more semantic to the representation of user pref-

erences, we offer the possibility of specifying depen-

dencies between preferences by deﬁning the seman-

tic relations “and” and “or” between them. In addi-

tion, we address interests and skills variability by as-

signing to interests an “Importance degree” (“low”,

“high” or “medium”) and to skills a “Competency

level” (beginner and expert). In addition, “UF” can

be positive or negative, and it concerns a SO-DSPL

asset (feature, service or goal). Since contextual in-

formation is difﬁcult to count because each domain

has its own context properties, we assign to the user

context variables that represent contextual informa-

tion related to the domain of the used PL. For exam-

ple, these variables can represent biometric and bi-

ological data, which is needed for medical context-

aware applications. The success of the product deriva-

tion activity in the PL is based on the satisfaction of

user requirements, which carries a semantics allow-

ing the infer of new knowledge that promote their sat-

isfaction. For this purpose, we have integrated the

user requirements knowledge to the user’s context.

Since users express their needs by various require-

ments with different importance degrees, our ontol-

ogy represents their variability. In fact, a user require-

ment(UR) may be a “Functional requirement” (FR),

a “Non-functional requirement” (NFR) or a “Techni-

cal requirement”. A “Functional requirement” speci-

ﬁes the operations and activities that the derived ap-

plication must be able to perform. Based on our

running example, a ”FR” FR1 can be speciﬁed by a

user as follows:‘ the sensor ﬁre shall trigger the alarm

when a ﬁre is detected’. A “Non-functional require-

ment” describes the application‘s operation capabil-

ities, properties and constraints required by the end-

user. Based on our running example, an example of a

“NFR” requirement is: the sensor ﬁre has a response

time that does not exceeds 0.02 milliseconds’. In turn,

the “UR” may contain conditions that describe con-

straints or properties. For example, in the ”FR” “FR1”

presented above, the condition is “when a ﬁre is de-

tected”. As well, “UR” have ”Goals” that must be

achieved by the derived application. As an example,

the accorded goal to the “FR” “FR1” is underlined. A

user may express his requirement’s importance by us-

ing an obligation degree and by assigning a priority to

it. The priority indicates that the ”UR” is “Essential”,

“Recommended” or “Desirable”. ”Essential” UR in-

dicates that the requirement must be achieved , while

a “Recommended” one is advisable to be achieved.

However, Desirable ”UR” is not necessarily achiev-

able. An obligation degree represents a term used to

add a precision to the “UR”. The term can be ”shall”,

”should”, ”could”, ”must” or ”may”.

DSPL Sub-ontology Meta-model. This section

presents the DSPL sub-ontology meta-model (see

Figure3), which is interested in conceptualizing

DSPLs variability expressed through FMs in one hand

and in modeling the possible interactions between

the DSPL knowledge, contextual data and its derived

conﬁgurations in the other hand. As well, it focuses

on reducing the lack of expressiveness of FMs in

DSPL framework.

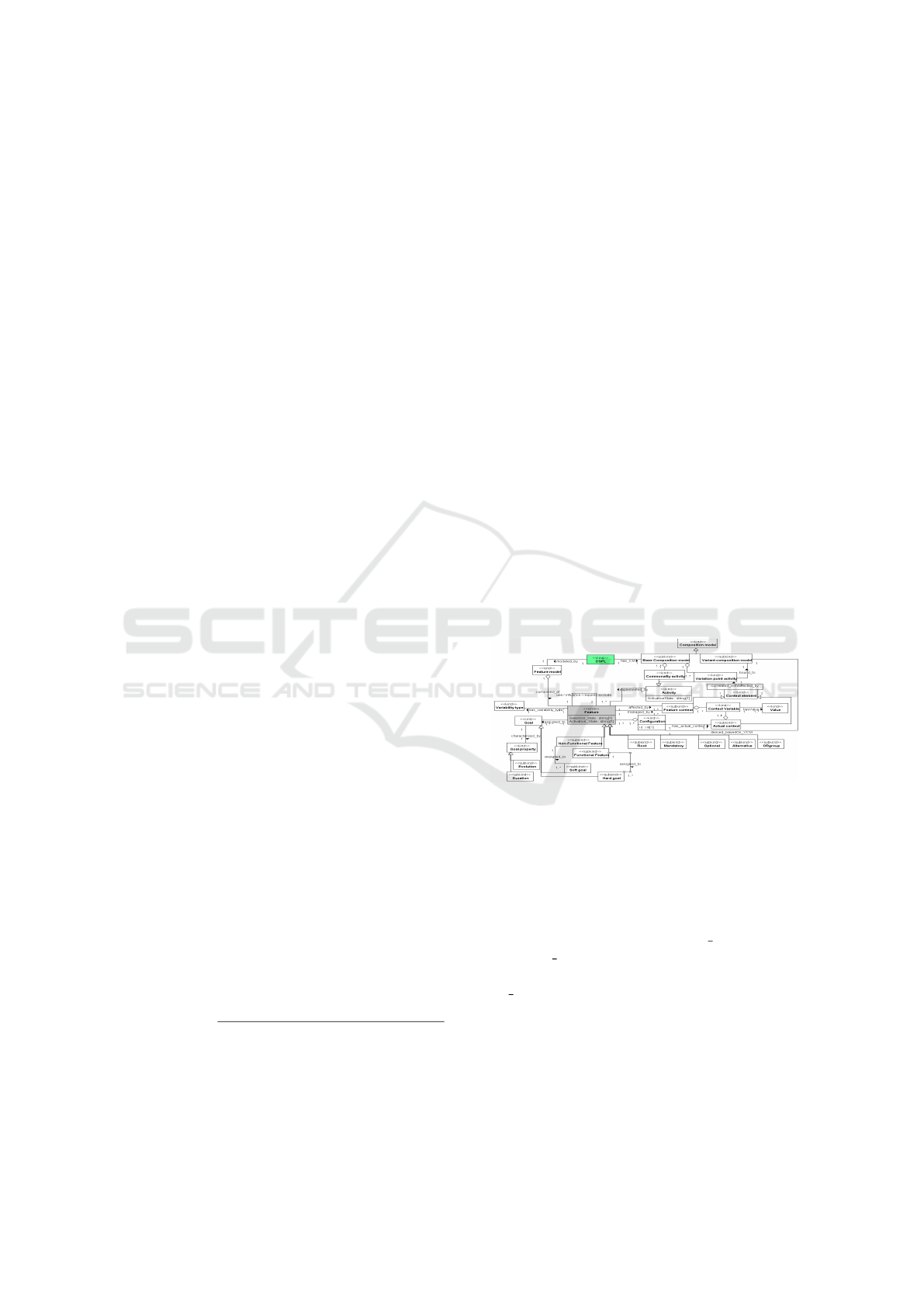

Figure 3: DSPL sub-ontology meta-model.

As an ontological representation, the “Feature

model” is composed of “Features” that can be

“Mandatory” or “Optional”. Its dependency with its

parent can be “Alternative” or “ORgroup”. A fea-

ture model has a root feature. Besides, each two fea-

tures can be related with a “Relation”. Two types

of relations are identiﬁed: “feature constraint” and

“behavioral relation”. A “feature constraint” can

be “require” or “exclude” constraint. The “behav-

ioral relation” can be divided into “use” and “inﬂu-

ence” relations. A “use” relation denotes that a fea-

ture uses another one to accomplish its job and the

“inﬂuence” relation indicates that the behavior of a

feature has an impact on the behavior of the related

feature. A “Feature” can be divided into “Functional

feature” (e.g.: illumination) and “Non-functional fea-

ture” (e.g.: response time). Besides, a DSPL promote

An Ontology for Service-Oriented Dynamic Software Product Lines Knowledge Management

317

variability management according to the actual con-

text, thus, a “Feature” can have a variability type that

can be “Static” or “Dynamic”. Static variability is

managed during product derivation process while a

dynamic variability is managed at runtime based on

the current context. In this sense, the property “se-

lection state” of the feature indicates whether the fea-

ture belongs or not to a particular product. This prop-

erty presents the following range of values: “elim-

inated”,“selected”. Thus, a set of selected features

represents a conﬁguration that turn in its actual con-

text (eg. ”Runny weather” context in the case of

Smart home conﬁguration). The dynamic reconﬁg-

uration/adaptation of a conﬁguration, is managed by

the property “activation state” of its features. This

property can be represented by the values: active and

inactive. The selection/activation of features is man-

aged by the feature context that denote the condition

that must be true to take decision. A “Feature” re-

alizes one or more Goals and a “Goal”, which can

be Hard or Soft. Based on our running example, a

hard goal can be “detect ﬁre in the smart home” and

a soft goal can be “ﬁre detection very fast”. In the

DSPL framework, a “Goal” is characterized by its

”Duration” and ”Evolution” properties. These two

properties indicate respectively whether the goal can

change within the lifetime of the system and its valid-

ity through the system lifetime. In order to promote

the automatic derivation of the conﬁguration, a base

composition model which is composed of activities is

assigned to the DSPL to describes its business pro-

cesses (Alf

erez et al., 2014).

Service Sub-ontology Meta-model. Our proposed

service sub-ontology (see Figure 4) aims to unify WS

description in a SO-DSPL framework in one hand,

and to focus on WS variability introduced by the SO-

DSPL engineering.

Figure 4: Service sub-ontology meta-model.

A service is identiﬁed by its general description.

In addition, it is categorized by its domain of interest

(“Category”), i.e. security, ﬁnance, etc. A service is

deployed in a “Region”, which is deﬁned as a cluster

of data centers. Each region has one or more availabil-

ity zone, and local zone. An Availability Zone con-

sists of one or more data centers inside a region while

a “Local Zone” is not inside a “Region” boundary

and places closer to our end-users. A service can be

atomic or composite. A service interface encapsulates

operations provided by the service. It is characterized

by input, output, precondition and post condition that

can be described by SWRL rules. Each operation is

semantically described through its purposes that de-

scribe its business functionalities. As well, a service

“requires” one or more other services interfaces to ac-

complish its tasks. A service is executed in its own

context. This latter is divided into ” Platform context”

that denote the hardware and the software which the

service is executed on, and ”Infrastructure context”

which denotes its infrastructure characteristics. The

service sub-ontology takes intention of SLA which

play an important role in service related activities.

The SLA binds between two parties presented by ser-

vice provider and service customer. Each SLA con-

tains the concept “Agreement Term” which is com-

posed of “Service Property Term” and “Guarentees

Terms” which composed of “SLO”. The “SLA pa-

rameter” represents the QoS to calculate that are de-

ﬁned by “CalculateFunction” in order to measure the

SLA parameters values (e.g. Response Time). The

SLA parameter is deﬁned by metrics, “CalculateMet-

ric”. The “SLO” represents the service level objec-

tives that must be respected by the provider. It has

a “Predicate” that Speciﬁes what is promised by the

service provider to its consumer. In addition, for each

SLA violation, a policies are used to calculate the re-

quired penalty value. For example, if the response

time value of the WS exceeds the threshold deﬁned

in the SLO, a penalty is charged to the provider. Ac-

cording to the SO-DSPL framework, a service can be

activated for a feature and deactivated for another, as

well, it can be mandatory for a feature and optional

for another. This variety introduces service variabil-

ity. Thus, we specify service variability by assigning

“Activation State”and “Obligation degree” to the ser-

vice “according to” the feature. “Activation State” in-

dicates that the service will be used or not to satisfy

feature goals, it only receive the values: “Active” or

‘inactive’. A service ”Obligation degree” receives the

values “Mandatory” or “Optional”.

Adaptation Sub-ontology Meta-model. SO-DSPLs

provides a mechanism to automatically adapt prod-

ucts at runtime due to changes of the system, its re-

quirements, or the environment in which they are de-

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

318

ployed. In this section, adaptation sub-ontology meta-

model (see Figure5) conceptualizes various knowl-

edge to characterize the adaptation of PL products.

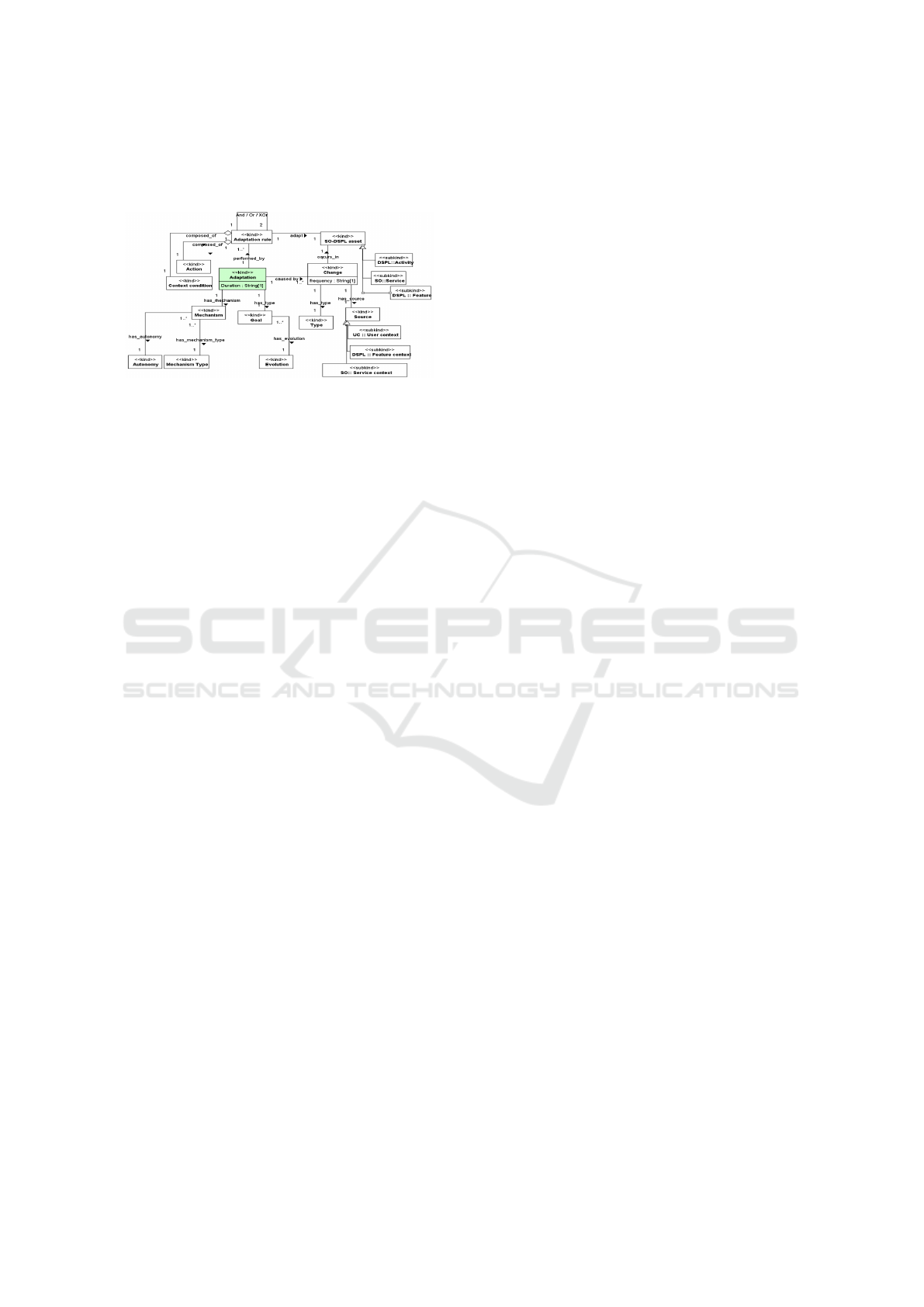

Figure 5: Adaptation sub-ontology meta-model.

An adaptation is caused by a change that can

be produced by different sources such as: (i) user

context, (ii) feature context and (iii) service con-

text. An adaptation change can be functional (e.g.,

user requirement change), non-functional (e.g., QOS

change) or technological (e.g., service execution en-

vironment). Besides, an adaptation change is charac-

terized by a frequency of its occurrence that presents

the following range of values: “frequent”,“rare”. Fre-

quent indicates that adaptation change is frequently

occurred in the current application and ‘rare’ denotes

the opposite case. In the context of SO-DSPL, two

types of adaptation mechanism can be performed: Ar-

chitectural adaptation or service adaptation. The ar-

chitectural adaptation refers to the structure or the

architecture changes to modify the collaboration be-

tween services or the incorporation of new ones. The

service adaptation refers to substitution of a service

with another one. To indicate how long the adaptation

lasts, a duration property characterizes it. An adapta-

tion is performed by adaptation rules. The adapta-

tion rule is composed of a condition that triggers the

adaptation, an action that presents the following range

of values: “active”, “inactive” and “substitute” and a

DSPL asset in which the action is performed. As an

example of an adaptation rule :‘if the availability of

the service S1 is less than 0,3, substitute S1 with S2.

“if the availability of the service S1 is less than 0,3”

is the condition, “substitute” is the action and “S1” in

the service. In order to present composite adaptation

rules, semantic relation “and”, “or” and “xor” are de-

ﬁned to relate them. The adaptation is characterized

by its autonomy that can be Manual or Automatic. An

adaptation is triggered for different goals such as Self-

conﬁguring, Self-optimizing and Self-healing goals.

3.3.1 OntoSO-DSPL Rules

Based on the semantic and the relationship expressed

by SO-DSPL sub-ontologies, new knowledge can be

automatically inferred by the SWRL rules. In table 1,

we present some examples of the deﬁned rules.

4 ONTOLOGY

IMPLEMENTATION

Among the different editors of ontologies, Protege

(version 5.2.0) (Horridge et al., 2004) was chosen

since it is an extensible environment for creating,

checking constraints, and extracting ontologies and

knowledge bases. OWL 1.0 (Web Ontology Lan-

guage) was used for the development of OntoSO-

DSPL as recommended by the World Wide Web Con-

sortium (W3C). For the creation of inference rules,

SWRL (Semantic Web Rule Language) was used. In

the following section, in order to check the ability

of OntoSO-DSPL to represent concrete SO-DSPL of

the real world, we instantiated its concepts and re-

lations to represent “smart home SO-DSPL” knowl-

edge. Figure 6 represents an extract of the DSPL sub-

ontology instantiation for Smart home SO-DSPL. As

it can be seen in the ﬁgure 6, a ”smartHome” DSPL,

its according feature model and features with differ-

ent kinds are instantiated. Indeed, instances of fea-

ture context (Sunny,Rainy) are accorded to the fea-

tures ”Open, Close” and some goals are assigned to

the instantiated features. Based on the instantiated

features, a conﬁguration (Conf1) is derived and its ac-

tual context ”WeatherContext” is assigned.

5 ONTOLOGY EVALUATION

Several ontology evaluation approaches have been

proposed. Studying the most common evaluation

approaches has conducted us to choose the criteria-

based evaluation approach (Jonathan et al., 2005).

This approach consists on using a set of criteria to

verify the ontology. We selected a list of criteria

among those which are outlined in the work of Yu et

al.(Jonathan et al., 2005). These criteria are: consis-

tency, correctness and usability.

Evaluating Correctness and Consistency: To carry

out this validation we rely on the advices given in

(Stuckenschmidt et al., 2009) that speciﬁes that “a ba-

sic requirement for a modular ontology to be correct

is that each module is correct”. This is the ﬁrst per-

spective that we have adopted to conduct the correct-

ness validation of the proposed ontology. Second, we

have conducted a syntactic correctness, consistency,

and consistency between instances. For this purpose,

we have used 1) the Pellet reasoning engine (Hor-

An Ontology for Service-Oriented Dynamic Software Product Lines Knowledge Management

319

Table 1: SO-DSPL SWRL rules.

ID SO-DSPL SWRL rules

Requirement(?r) ∧ swrlb:contains (?r, “ Should ”)-> has priority(?r,Recommended): If the

requirement contains the term ‘Should’ then its priority is ‘Recommended’

Goal (?g) ∧ characterized by(?g,Temporary duration) ∧ Feature(?f) ∧ assigned to(?f,?g)->

has variability type(?f, Dynamic): If the goal is assigned to a feature and characterized by a

temporary duration then the feature has a dynamic variability.

Requirement(?r) ∧ Goal(?g) ∧ Feature(?f) ∧ satisfy(?g,r) ∧ assigned to(?f,?g) -> selection state

(?f,“ selected ”):If a goal satisfy a user requirement then the feature assigned to the requirement

has a ”selected” state

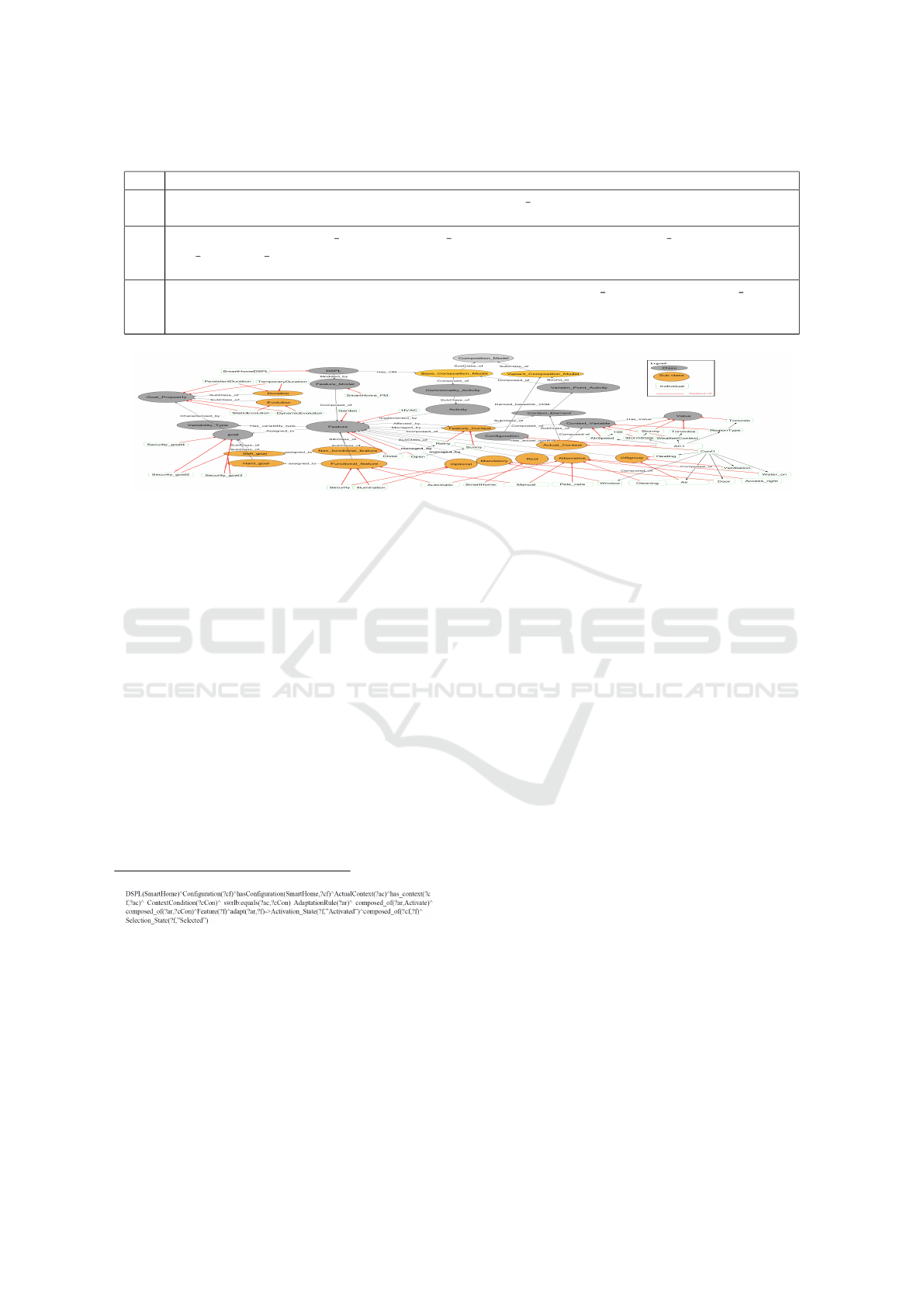

Figure 6: Extract of smart home DSPL sub-ontology.

ridge et al., 2004) 2) RaDON (Ji et al., 2009) plugging

to verify inconsistencies and incoherencies in ontolo-

gies. In this validation process, the obtained results

showed that none inconsistency were found in any of

the modules of the proposed ontology.

Usage: In this section, we validate the usage of the

proposed ontology in SO-DSPL activities as we have

mentioned in section 3 by triggering reasoning over

the ontology. Speciﬁcally, to validate OntoSO-DSPL

usage, we illustrate its exploitation in the dynamic

adaptation activity in a smart home DSPL.

OntoSO-DSPL Dynamic Adaptation: The reason-

ing capabilities of our proposed OntoSO-DSPL in the

case of dynamic adaptation are deﬁned as the ability

of deducing new knowledge and triggering a dynamic

adaptation of the smart home conﬁguration according

to its actual context.

Triggering Dynamic Adaptation Rule:

Using the rule ”Triggering Dynamic Adaptation”, the

dynamic adaptation of a conﬁguration can be trig-

gered based on the actual context that must be equal

to the context condition of the adaptation rule in order

to activate, deactivate, select or deselect a feature.

6 RELATED WORKS

In this section, we present the state of the art related

to the modeling of SO-DSPL, DSPL, context, self-

adaptation and services. Knowledge management

for SO-DSPL are not yet devoted. However, differ-

ent works are interested in the considered SO-DSPL

dimensions areas. Regarding SO-DSPL knowledge

description, reference framework and standards are

addressed to this purpose. Capilla et al. (Capilla

et al., 2014) present an overview of DSPL architec-

tures, properties, challenges and its application do-

mains such as SO-DSPL. As well, different works

are focusing on self-adaptive systems modeling. In

(Sabatucci et al., 2018), a uniﬁed metamodel of four

types of adaptation is proposed to smart systems.

Concerning WS description, many standards and ap-

proaches have been proposed. IBM and Microsoft

have developed a standard based on XML format to

describe WS, namely WSDL (Battle, 2007), which

is the most used WS description language until to-

day. With the lacks semantic expressivity in WSDL,

WSDL-S and SAWSDL(Battle, 2007) are proposed to

extend WSDL with semantic annotations. In addition,

semantic markup of WS has been proposed to address

the service description such as OWL-S (Martin, ). Fo-

cusing on context modeling, there are several works

that have developed the modeling of context through

ontologies. In (Brickley and Miller, 2014), FOAF on-

tology is presented for describing people and the re-

lationships between them. In (Fensel et al., 2010), an

ontological modeling of the user proﬁle is proposed.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

320

In (Zhong-Jun et al., 2016),the authors present a Meta

Context Ontology Model(MCOnt), where the context

is divided in three categories: the internal context,

the external context and the boundary context. In

(Aguilar et al., 2018), the authors present a context

awareness meta ontology modeling called “CAMe-

Onto”, which groups six contextual classes (user, ser-

vice, location, activity, time and device). Based on

the studied works, we conclude that SO-DSPL man-

agement and conceptualization knowledge are not yet

adressed. As well, considered dimensions are mod-

eled undependably which make the relationship be-

tween them absolutely absent. Thus, we propose an

ontology for SO-DSPL framework in order to con-

ceptualize and unify the considered knowledge.

7 CONCLUSION

In this paper, we have proposed a SO-DSPL knowl-

edge management ontology, called OntoSO-DSPL.

This latter highlights relationships between different

dimensions in a SO-DSPL framework as knowledge

related to user context and requirements, PL, services

and dynamic adaption. The main objective of the

target ontology is to provide a knowledge capitaliza-

tion. Compared to existing ontologies for DSPL, our

proposed one contains all the knowledge necessary

in several activities related to SO-DSPL framework,

such as contextual services recommendation and dy-

namic adaptation of recommended service-oriented

applications. As perspectives for the near future work,

we are going to add semantics to all the meta-models

(like OCL). Also, we will use the conceptualized

knowledge to evaluate the performance of OntoSO-

DSPL in different domains related to real cases.

REFERENCES

Aguilar, J., Jerez, M., and Rodr

ıguez, T. (2018). Cameonto:

Context awareness meta ontology modeling. Applied

Computing and Informatics, 14(2):202 – 213.

Alf

erez, G., Pelechano, V., Mazo, R., Salinesi, C., and Diaz,

D. (2014). Dynamic adaptation of service composi-

tions with variability models. Journal of Systems and

Software, 91:24 – 47.

Andersson, J., de Lemos, R., Malek, S., and Weyns, D.

(2007). Modeling Dimensions of Self-Adaptive Soft-

ware Systems, volume 5525. Springer International

Publishing, Berlin, Heidelberg.

Bashari, M., Bagheri, E., and W.Du (2017). Dynamic soft-

ware product line engineering: A reference frame-

work. International Journal of Software Engineering

and Knowledge Engineering, pages 191–234.

Battle, S. (2005). SWSF. https://www.w3.org/Submission/

SWSF-SWSL/. [Online; accessed 19-mars-2020].

Battle, S. (2007). SAWDSL. https://www.w3.org/TR/

sawsdl/. [Online; accessed 19-mars-2020].

Brickley, D. and Miller, L. (2014). FOAF ontology. http:

//xmlns.com/foaf/spec/. [Online; accessed 19-mars-

2020].

Capilla, R., Bosch, J., Trinidad, P., Ruiz-Cortes, A., and

Hinchey, M. (2014). Overview of dynamic software

product line architectures and techniques:observations

from research and industry. The Journal of Systems

and Software, pages 3–23.

Dehmouch, I., Asri, B., Rhanoui, M., and Elmaallam, M.

(2019). Feature models preconﬁguration based on

user proﬁling. Comput. Inf, 12:59–71.

Fensel, D., Lausen, H., Polleres, A., Bruijn, J. D., Stollberg,

M., Roman, D., and Domingue, J. (2010). Enabling

Semantic Web Services. Springer, ﬁrst ed. edition.

Fern

andez-L

opez, M., G

omez-P

erez, A., and Juristo, N. M.

(1997). From ontological art towards ontological en-

gineering. In: Proceedings of the Ontological Engi-

neering AAAI-, 97:33–40.

Guinea, S., Baresi, L., and Pasquale, L. (2012). Service-

oriented dynamic software product lines. Computer,

45(10):42–48.

Guizzardi, G. (2005). OntoUML. https://ontouml.org/.

[Online; accessed 19-January-2020].

Hofman, C., , and Roubtsova, E. (2020). A reference model

for a service level agreement. In Business Modeling

and Software Design, pages 55–68, Cham. Springer

International Publishing.

Horridge, M., Knublauch, H., Rector, A., Stevens, R., and

Wroe, C. (2004). A Practical Guide To Building OWL

Ontologies Using The Prot

e-OWL Plugin and CO-

ODE Tools Edition 1.0. University of Manchester.

Jaroucheh, Z., Liu, X., and Smith, S. (2010). Candel: Prod-

uct line based dynamic context management for per-

vasive applications. In 2010 International Conference

on Complex, Intelligent and Software Intensive Sys-

tems, pages 209–216.

Ji, Q., Haase, P., Qi, G., Hitzler, P., and Stadtm

uller, S.

(2009). Radon — repair and diagnosis in ontology

networks. In Aroyo, L., Traverso, P., Ciravegna, F.,

Cimiano, P., Heath, T., Hyv

onen, E., Mizoguchi, R.,

Oren, E., Sabou, M., , and Simperl, E., editors, The Se-

mantic Web: Research and Applications, pages 863–

867, Berlin, Heidelberg. Springer Berlin Heidelberg.

Jonathan, Y., James, T., and Audrey, T. (2005). Evaluat-

ing ontology criteria for requirements in a geographic

travel domain. In Meersman, Robert, Tari, and Za-

hir, editors, On the Move to Meaningful Internet Sys-

tems 2005: CoopIS, DOA, and ODBASE, pages 1517–

1534, Berlin, Heidelberg. Springer Berlin Heidelberg.

Li, K., Verma, K., Mulye, R., Rabbani, R., Miller, J., and

Sheth, A. (2006). Designing Semantic Web Processes:

The Wsdl-S Approach, pages 161–193. Springer US,

Boston, MA.

Martin, D. OWL-S. https://www.w3.org/Submission/

OWL-S/. [Online; accessed 19-mars-2020].

An Ontology for Service-Oriented Dynamic Software Product Lines Knowledge Management

321

Sabatucci, L., Seidita, V., , and Cossentino, M. (2018). The

four types of self-adaptive systems: A metamodel. In

Pietro, G. D., Gallo, L., Howlett, R., and Jain, L., ed-

itors, Intelligent Interactive Multimedia Systems and

Services 2017, pages 440–450, Cham. Springer Inter-

national Publishing.

Stuckenschmidt, H., Parent, C., and Spaccapietra, S.

(2009). concepts, theories and techniques for knowl-

edge modularization. Springer.

Zhong-Jun, L., Guan-Yu, L., and Ying, P. (2016). A method

of meta-context ontology modeling and uncertainty

reasoning in swot. In International Conference on

Cyber-Enabled Distributed Computing and Knowl-

edge Discovery, pages 128—- 135, china. IEEE.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

322
