Facilitating the Compliance of Process Models with Critical System

Engineering Standards using Natural Language Processing

Faiz Ul Muram

1 a

, Muhammad Atif Javed

2 b

and Samina Kanwal

3 c

School of Innovation, Design and Engineering, Mälardalen University, Västerås, Sweden

RISE, Research Institutes of Sweden, Västerås, Sweden

National University of Sciences and Technology, Islamabad, Pakistan

Keywords:

Process Engineering, Standard Documents, Natural Language Processing, Mapping Rules, Model Extraction,

SPEM 2.0, EPF Composer, Compliance Management.

Abstract:

Compliance of process models with relevant standards is mandatory for certifying the critical systems. How-

ever, it is often carried out in a manual manner, which is complex and labour-intensive. Previous studies have

not considered the automated processing of standard documents for achieving and demonstrating the process

compliance. This paper leverages natural language processing for extracting the normative process models

embedded in the standard documents. The mapping rules are established for structuring the standard require-

ments and content elements of process models, such as tasks, roles and work products. They are organized

into a process structure by considering the phases, activities and milestones. During the planning phase, the

standard requirements, process models and compliance mappings are generated in EPF Composer; it supports

the major parts of the OMG’s Software & Systems Process Engineering Metamodel (SPEM) 2.0. The re-

verse compliance of extended or pre-existing process models can be carried out during the execution phase;

speciﬁcally, the compliance gaps are detected, possible measures for their resolution are provided and missing

elements are added after the process engineer approval. The applicability of the proposed methodology is

demonstrated for the ECSS-E-ST-40C compliant space system engineering process.

1 INTRODUCTION

Compliance of process models with relevant stan-

dards is mandatory for getting the approval or ac-

ceptance from the certiﬁcation body. The normative

process models embedded in the standards typically

include planning of units of work such as activities

and tasks, which are expected to be executed dur-

ing the development; work products to be taken as

input or produced as output; involved roles, and a

set of methods to be used. To achieve and demon-

strate process compliance, the standard documents

are processed. In addition to the extraction of stan-

dard requirements and process, there is a need to pro-

vide the reference between them. However, it is a

complex and labour-intensive task to extract, under-

stand, model such knowledge and manage traceabil-

ity in a manual manner (Javed et al., 2016; Javed

et al., 2018). The published studies focused on the

automatic extraction from natural language descrip-

https://orcid.org/0000-0001-6613-4149

https://orcid.org/0000-0003-3781-4756

https://orcid.org/0000-0002-1079-9712

tions and mapping to the Business Process Model

and Notation (BPMN) (OMG, 2011). To date, how-

ever, the automatic extraction from standard docu-

ments and generation of Software & Systems Pro-

cess Engineering Metamodel (SPEM) (OMG, 2008)

compliant requirements, process models and compli-

ance mappings have not been considered. Both SPEM

and BPMN are Object Management Group (OMG)

speciﬁcations. SPEM 2.0 provides additional infor-

mation structures needed for the processes modelled

with UML 2.0 activities or BPMN to describe an ac-

tual development process (OMG, 2008).

This paper focuses on the compliance manage-

ment during planning and execution phases. The

standard documents are processed for achieving and

demonstrating the process compliance. The extracted

parts of standard documents are mapped to the re-

quirements and process elements based on the spec-

iﬁed rules. The requirements hierarchy is maintained,

while the reusable content elements, such as tasks,

work products, roles, and guidance are organized in

the process structure, with the consideration of iter-

ation, phase, activity and milestone elements. Dur-

ing the planning phase, the SPEM-compliant require-

306

Muram, F., Javed, M. and Kanwal, S.

Facilitating the Compliance of Process Models with Critical System Engineering Standards using Natural Language Processing.

DOI: 10.5220/0010455903060313

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineer ing (ENASE 2021), pages 306-313

ISBN: 978-989-758-508-1

Table 1: Process Modelling Elements in SPEM.

Capability

Pattern

Iteration

Phase

Milestone

Task

Role

Work

Products

Guidance

Practice

Role

Sets

Tool

Discipline

Task

Role

Work

Product

Category

Role Set

Guidance

Practice

Activity

Capability

Pattern

Delivery

Process

Iteration

Phase

Milestone

ments, process models and compliance mappings

are generated in its reference implementation, more

speciﬁcally the Eclipse Process Framework (EPF)

Composer

is utilised. By automatically generating

requirements and process models within an environ-

ment that supports traceability, this paper facilitates

the compliance management and demonstration dur-

ing the planning phase. The reverse compliance of

process during the execution phase is also supported.

Speciﬁcally, we provide comprehensive feedback to

inform the compliance gaps, possible options for their

resolutions, and take measures based on process en-

gineer feedback. The applicability of the proposed

methodology is demonstrated by extracting text from

the space engineering standard documents, generat-

ing the requirements, process models and compliance

mappings in EPF Composer, and reverse compliance

of process models with standards.

The rest of this paper is organized as follows:

Section 2 discusses the process engineering meta-

model. Section 3 presents the methodology for au-

tomatic extraction of requirements and process ele-

ments, their organization and mappings, generation

of corresponding models in EPF Composer, as well

as the reverse compliance with standards. Section 4

demonstrates the applicability of proposed method-

ology for ECSS-E-ST-40C standard. Section 5 dis-

cusses the related work. Section 6 concludes the pa-

per and presents future research directions.

2 PROCESS ENGINEERING

METAMODEL

SPEM 2.0 (OMG, 2008) is the OMG’s standard,

which provides the necessary concepts for modelling,

documenting, interchanging, and managing systems

and software development processes. The frame-

work of SPEM 2.0 comprises of Method Content and

the Process. Method Content provides support for

the deﬁnition of reusable process content, i.e., Task,

https://www.eclipse.org/epf/

which deﬁnes the unit of work being performed by

one or many Role(s) and may generate the Work Prod-

ucts that can be a type of artefact, deliverable, or out-

come; and the Category that can be used to catego-

rize any number of content elements, such as Domain,

Discipline, Tool Category and Role Set. Guidance

is deﬁned in the intersection of Method Content and

Process. It describes additional information of work

and is classiﬁed into various kinds such as guideline,

practice, example, etc. Process takes the content ele-

ments and relate them into partially-ordered sequence

of work in breakdown structures that are customized

to speciﬁc types of projects. For instance, Phase that

represents a signiﬁcant period in a project and nor-

mally ends with major milestones, or a set of deliv-

erables. To deﬁne a Process, tasks can be grouped to

form an Activity and a set of nested activities can be

grouped into Iteration in order to indicate that the set

can be repeated more than once. There are two pro-

cess kinds: (1) process patterns (referred as capability

patterns in EPF Composer) are building blocks that

hold process knowledge for a key area of interest; and

(2) complete life cycles that are modelled as delivery

processes. Table 1 shows the main structural elements

for deﬁning the process.

EPF Composer is an extensible process engineer-

ing framework, based on the OMG’s SPEM. It is

evolved from Eclipse Galileo 3.5.2 to Eclipse Neon

4.6.3 (Javed and Gallina, 2018; Javed et al., 2019) af-

ter 11 years. It is possible to launch the EPF Com-

poser as a stand-alone application, but also in the

Eclipse integrated development environment (IDE).

EPF Composer is used to model standards and de-

velopment process, as well as to show that process

comply with standards (Muram et al., 2018; Muram

et al., 2019). In EPF Composer, a method library

is a repository of method elements, which is com-

posed of a set of Method Plugins and Conﬁgurations.

The Method Plugins are containers of process related

information, while a Conﬁguration is a selection of

sub-sets of library content to be shown in the brows-

ing perspective. To model the requirements listed in

the standards, the guidance kinds Practice can be cus-

Facilitating the Compliance of Process Models with Critical System Engineering Standards using Natural Language Processing

307

tomized with an icon in a separate Customized_Icon

plugin. The Standards_Requirements plugin captures

the standard’s requirements and has the variability re-

lationship Extends with the previously mentioned plu-

gin. The Process_Lifecycle plugin deﬁnes the process

life cycle, whereas the mapping between standard re-

quirements and process life cycle is provided in Map-

ping_Requirements plugin (Muram et al., 2018; Mu-

ram et al., 2019).

3 METHODOLOGY

This section describes our proposed methodology to

facilitate the approval process, more speciﬁcally, the

automatic extraction, generation and management of

process-related compliance information. The natural

language processing of standard documents is carried

out for automatic extraction of requirements and pro-

cess models (see Section 3.1). The mapping rules

are deﬁned for structuring of extracted information in

compliant with SPEM 2.0 (see Section 3.2). During

the planning phase, the requirements, process mod-

els and compliance mappings are generated (see Sec-

tion 3.3). After that, the engineers can update or

evolve the generated models and provide the evidence

of compliance for review. The reverse compliance of

process models is also supported during the execution

phase (see Section 3.4). The emphasis is placed on

avoiding re-generation and replacement of extended

models. Accordingly, the support is provided for

identifying gaps with standards, determining possible

measures for their resolution, and updating parts of

models based on process engineer feedback. The pro-

cess compliance could be further explained via argu-

mentation (Muram et al., 2018).

3.1 Natural Language Processing

The standards are typically available in Word or

Portable Document Format (PDF). In some cases, the

Excel ﬁle containing all standard requirements is pro-

vided; the standard documents may need to be pro-

cessed in conjunction. Their natural language pro-

cessing includes tokenization, part-of-speech tagging

and named entity recognition. The part containing

standard requirements is located. In addition, the

clauses, part-based distinction criteria and hierarchi-

cal levels in standard documents are considered. The

standard documents may contain introductory mate-

rial, examples, note and other text, which are marked

as a “NOTE” or “EXAMPLE” (ECSS, 2009). This

information is only for guidance in understanding, or

for clariﬁcation of the associated requirement, there-

fore this text is not considered as a requirement. The

expected output of requirement, such as “Real-time

software dynamic design model [DDF, SDD; CDR]”

is interpreted as the output is part of the DDF, con-

tained in the SDD separated by comma and requested

for the review CDR that is separated by semicolon.

The sentences describing the requirement statements

and associated information, such as identiﬁers, pre-

requisites/inputs and expected outputs are retrieved.

The information, where necessary, is further followed

in the normative and informative parts of the standard,

for instance, to gather additional details of input and

output work products, roles responsible for them, and

applicability based on the certain tailoring criteria.

3.2 Structuring and Mapping Rules

For providing the convincing justiﬁcation to the cer-

tiﬁcation body about compliance means, the transfor-

mation of extracted information from standard doc-

uments into requirements, process models and com-

pliance mappings is performed. In particular, the

mapping rules are deﬁned to structure and map the

information (e.g., original requirements, inputs, out-

puts, tasks and roles) to the requirements and process

models compliant with SPEM 2.0. Standards require-

ments and recommendations are mapped into require-

ments (i.e., Practice under the content packages) in

SPEM 2.0. The statements or text leading to outputs

or work products are not only mapped to the require-

ments, but also the tasks are created for them. If stan-

dard documents have clause, part-based distinction

criteria and hierarchical levels, then the requirements

are mapped as nested requirements (a requirement in-

side another requirement). Identiﬁer with name, re-

quirement description and objective are mapped into

Practice ﬁelds name, brief description and purpose.

Examples and note are mapped to the guidance kinds

i.e., example and guideline that are linked to the cor-

responding task. The inputs or prerequisites for a spe-

ciﬁc requirement or task are mapped to the work prod-

ucts and linked to associated task as mandatory or op-

tional inputs based on the keywords speciﬁed in the

documents. Similarly, the expected outputs or deliv-

erables are mapped to the work products. Typically, a

task is assigned to a speciﬁc role, who is responsible

for the execution of work, if document contained the

role-related information then a role (e.g., supplier, re-

quirements manager and designer) is created for the

corresponding task. A new task is created for each

piece of information or requirement. The hierarchical

levels are also mapped to the process in SPEM 2.0.

In particular, the main clause is mapped to the De-

liveryProcess or the CapabilityPattern. The mapping

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

308

Algorithm 1: Generating the Requirements, Process Model and Compliance Mappings.

Input: Extracted Information of Standard Documents

Output: Requirements, Process Model, Compliance Mappings

while ExtractedIn f ormation ! = null do

Transform

(ProcessComponent & ContentPackage ← MainClause);

for all Requirements do

(Practice & Phase | Activity ← Structure);

Link Practice to breakdownElements Activity or Phase Practice.activityRe f erences;

for Requirement in ExtractedIn f ormation() do

(subPractice & Task ← Requirement);

Link subPractice to Task subPractice.contentRe f erences;

//Map <requirement>.puid to <element>.guid;

<requirement>.id & <requirment>.name to <element>.name;

<requirment>.description to <element>.briefDescription;

<requirment>.objective to <element>.purpose;

end for

for Input & Prerequisite in ExtractedIn f ormation() do

(WorkProduct ← Input & Prerequisite);

//Link WorkProduct to Task as optional/mandatoryInput;

end for

for Role in ExtractedIn f ormation() do

(Role ← Role);

//Link Role to WorkProduct as responsibleFor;

end for

...

end for

end while

is focused on the Work Breakdown Structure of pro-

cesses in EPF Composer. From there, the phases, ac-

tivities and iterations are created such that structures

are associated to phases, activities and so on. The ac-

tivities are subsequently populated by applying tasks

(as task descriptors) from the method content.

3.3 Generation of Requirements and

Process Models

In this subsection, we present our algorithmic solution

for the generation of the requirements and the pro-

cess model compliant with SPEM in EPF Composer.

This step is based on the structured information of

standard documents. The mapping is focused on the

method content elements and Work Breakdown Struc-

ture of process (decomposed linked elements, such as

phases, activities etc.) in EPF Composer, as described

in the previous subsection. Algorithm 1 shows the

skeleton of our transformation. It starts by generat-

ing the ContentPackage and ProcessComponent for

the main clauses. Then, it generates the content el-

ements, such as tasks, roles, work products and guid-

ance kinds practice (i.e., requirements) under Con-

tentPackage. A delivery process in EPF Composer

is contained in the metamodel class ProcessCompo-

nent, it is automatically created each time a delivery

process or capability pattern is created. After that,

all the phases, activities, iterations and milestones are

created, and for each activity corresponding tasks are

assigned. The corresponding process elements (i.e.,

phase, activity, task) are linked by using “activityRef-

erences” and “contentReferences”. The engineers can

extend the process by providing additional informa-

tion to the process description like its version, au-

thors or team proﬁles required for the execution of

the process. They may also dedicate their time for

the manual production of portions of expected out-

puts/deliverables that require human intervention.

3.4 Reverse Compliance with Standard

Documents

The reverse compliance of updated and extended pro-

cess models is required during the execution phase to

detect inconsistencies. To carry out the reverse com-

pliance, the EPF composer models need to be pro-

cessed in conjunction with the information extracted

Facilitating the Compliance of Process Models with Critical System Engineering Standards using Natural Language Processing

309

Figure 1: Portion of the ECSS EARM File.

from standard documents. This not just gives the pos-

sibility to verify the reverse compliance of extended

models, but also the previously existing processes

with the standard documents. It is noteworthy that the

standards may not present all the information, such as

used tools and roles. On the other hand, the customer

or technical requirements and additional content ele-

ments are speciﬁed in process models. We focus on

the delta analysis between models for identifying the

gaps and measures for their resolution instead of the

generation or replacement of extended or previously

existing process models. In particular, the analysis is

performed to identify the missing elements; for them,

the potential candidates in process model are checked.

The similarity assessment of missing and potential

candidate elements is carried out based on their ﬁelds,

such as name, description, roles and work products.

The elements are added in an automatic manner af-

ter the approval from process engineer. Furthermore,

the reverse compliance veriﬁcation results include the

list of elements containing sufﬁcient and insufﬁcient

information (i.e., detected fallacies); appropriate rec-

ommendations to resolve the particular deviations are

although provided, but they require manual effort for

resolving them (Muram et al., 2018).

4 CASE STUDY

The ECSS Applicability Requirement Matrix

(EARM) (ECSS, 2019) is Microsoft Excel ﬁle ex-

ported from the ECSS DOORS database containing

all requirements with their identiﬁers, recommen-

dations, expected outputs and permissions of the

respective ECSS standard. The ECSS EARM ﬁle

can be used for projects tailoring. Portion of the

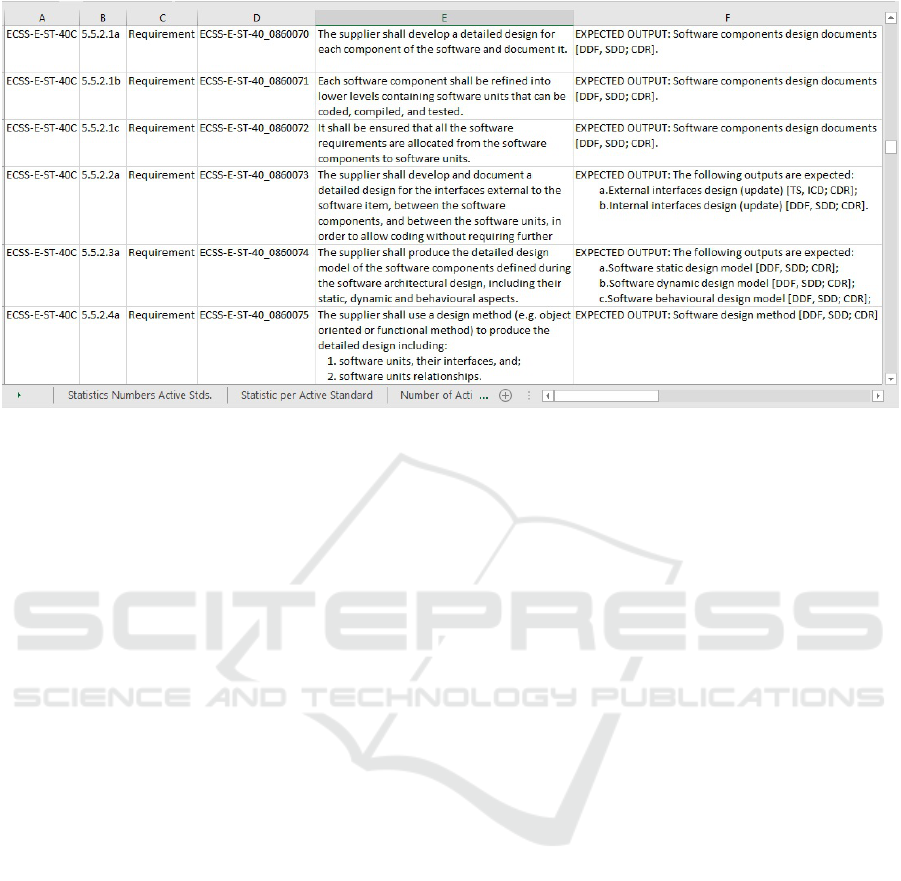

particular ﬁle is shown in Figure 1. ECSS-E-ST-40C

standard (ECSS, 2009) is one of the series of Euro-

pean Cooperation for Space Standardization (ECSS)

standards, which focuses on space software engi-

neering processes requirements and their expected

outputs. This standard contains one normative clause

(clause 5), which deﬁnes the requirements for engi-

neering software for space systems, applicable to any

space projects producing computer software. In this

paper, we limit our attention on clause 5.5 software

design and implementation engineering process of

ECSS-E-ST-40C standard, which consists of three

phases (i.e., activity kinds): design of software items,

coding and testing, and integration (ECSS, 2009),

which may contain various activities. Each phase or

activity in turn consists of one or more tasks, and

each task is associated with one or more outputs,

which are given in the expected output section.

The requirements related to the tasks are identi-

ﬁed by a hierarchical number, made of the four digits

of the clause (e.g., 5.5.2.1), followed by a letter (e.g.,

a, b or c) to further distinguish them. For instance,

a requirement “The supplier shall develop a detailed

design for each component of the software and docu-

ment it” has an identiﬁer “5.5.2.1a”. In circumstances

when several outputs are expected from a task, they

are identiﬁed by a letter (e.g., a or b) and the destina-

tion ﬁle of the output is indicated in brackets. The ex-

pected output of “5.5.2.1a” requirement is “software

components design documents [DDF, SDD; CDR]”,

as shown in Figure 1. This means that the output is

the part of DDF (Design Deﬁnition File), contained

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

310

Figure 2: Generated Requirements and Process.

in the SDD (Software Design Document) separated

by comma and requested for the review CDR (Critical

Design Review) that is separated by semicolon. The

work product details are further checked in the nor-

mative and informative parts of the standard. This is

particularly relevant for detecting inconsistencies (or

fallacies) during the reverse compliance checking.

The EARM ﬁle is processed to extract the

information, in particular, requirement identiﬁer

(5.5.2.1a), requirement description and expected out-

puts are retrieved. The text is located in the ECSS-

E-ST-40C standard document to obtain additional de-

tails. The section names are extracted for giving ti-

tles to the process component, phases and activities.

For instance, “Design of software items” and “De-

tailed design of each software component” are ex-

tracted from the standard document. The require-

ments and process model are automatically gener-

ated in EPF Composer. In particular, four plugins

are generated: (1) Customized_Icon plugin; (2) Stan-

dard requirements (ECSS-E-ST-40C_Requirements);

(3) ECSS-E-ST-40C_Lifecycle plugin and (4) Map-

ping_Requirements plugin. The subsubsections in

clause 5 “Requirements” are generated as high-level

requirements i.e., Practices in EPF Composer (e.g.,

5.5.2 Design of software items, 5.5.3 Coding and test-

ing), whereas the next hierarchy level under these

subsubsections is regarded as subrequirements (e.g.,

5.5.2.1 Detailed design of each software component),

as shown in Figure 2. Finally, the requirements that

have outputs are created as subsubrequirements; their

identiﬁer has four digits and an alphabet.

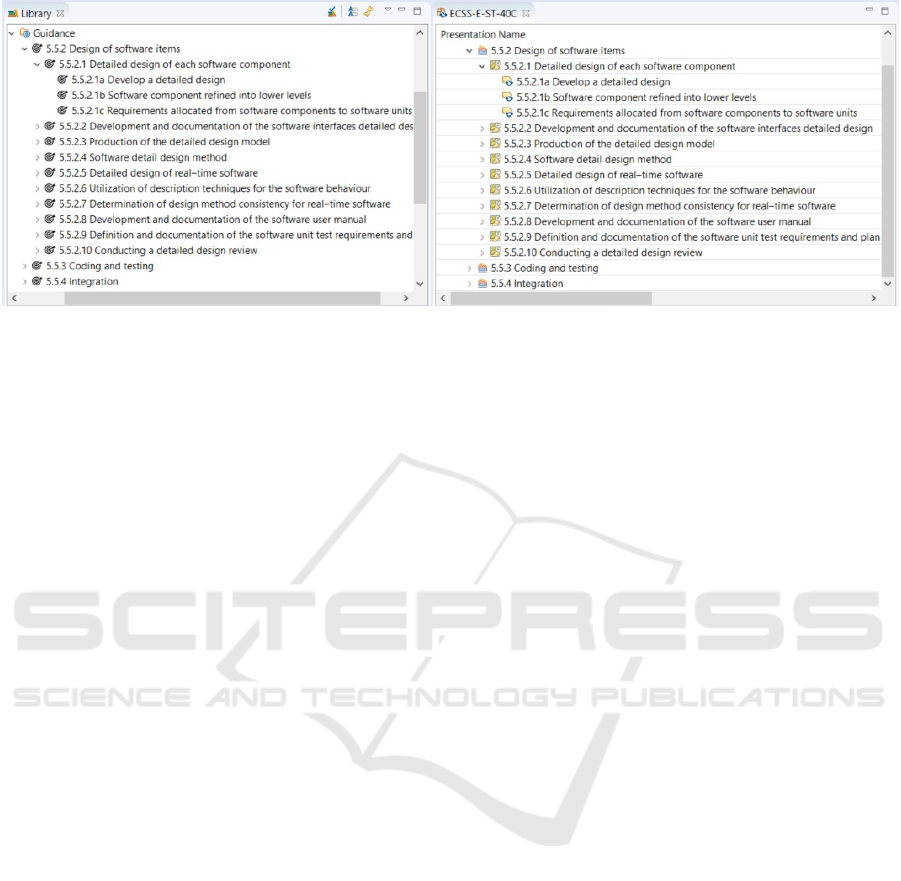

Figure 2 shows the generated requirements and the

process model compliant to the SPEM 2.0. The Ca-

pabilityPattern is created for the standard clause, in

particular, a Work Breakdown Structure of process

in EPF Composer. The high-level requirements are

associated to phases, all subrequirements are associ-

ated to activities and subsubrequirements are asso-

ciated to tasks. The expected outputs and responsi-

ble roles are linked to the corresponding task. The

content elements such as tasks, work products, roles,

which are the part of process are linked to the corre-

sponding standard requirements through contentRef-

erences; whereas the phases and activities in process

are linked to the requirements through activityRefer-

ences. The generated requirements and process model

can evolve during the life cycle. In the absence of

support for automatic extraction of information from

standard documents and generation of requirements,

process models and compliance mappings, engineers

would have to model them manually which is re-

garded as complex and labour-intensive. During the

reverse compliance management, the missing process

elements and insufﬁcient information (i.e., fallacies)

are detected in process model and corresponding mea-

sures for their resolution are informed to the engi-

neers. The missing elements are automatically added

after approval; however, the insufﬁcient information

need to be manually added by engineers.

5 RELATED WORK

The discussion of related work concerns two topics:

process extraction and compliance management.

5.1 Process Extraction

The work presented in (Friedrich et al., 2011) utilised

the existing syntax parsing and semantic analysing

mechanisms in combination with anaphora resolu-

tion for generating a BPMN model. In particular, a

model that includes the extracted actions, actors and

ﬂows is generated. However, the processing of para-

graphs and tables were not considered. Leopold et

al. (Leopold et al., 2014) presented an approach that

Facilitating the Compliance of Process Models with Critical System Engineering Standards using Natural Language Processing

311

transforms the BPMN models into natural language

texts. The proposed approach is based on existing

parsing and annotation technique, and reﬁned process

structure tree. van der Aa et al. (van der Aa et al.,

2019) focused on the automated extraction of declar-

ative process models from textual descriptions. The

authors extended existing natural language process-

ing techniques in order to identify activities and their

inter-relations in constraint descriptions and trans-

form these into declarative constraints. Yanuariﬁani

et al. (Yanuariﬁani et al., 2019) proposed a methodol-

ogy for mapping the requirements ontology to BPMN

elements and generating the BPMN XML ﬁle. The re-

quirements ontology consists of three classes: action,

position and object. Qian et al. (Qian et al., 2020)

proposed a hierarchical neural network to extract pro-

cess models from process texts. They focused on

the coarse-to-ﬁne learning mechanism, training multi-

grained tasks in coarse-to-ﬁne grained order, to ap-

ply the high-level knowledge for the low-level tasks.

Previous studies have just focused on the extraction

and generation of BPMN model elements. In this pa-

per, we targeted the automatic extraction of SPEM-

based requirements and a broad set of process ele-

ments, such as tasks, roles, work products, guidance

and iteration. They are generated in EPF Composer.

5.2 Compliance Management

Sànchez-Ferreres et al. (Sànchez-Ferreres et al., 2017)

used existing natural language processing techniques

for aligning a textual description and a process model.

They converted both inputs into an identical represen-

tation of feature vectors and compared by means of

standard distance metrics. Winter et al. (Winter et al.,

2020) also exploited the natural language processing

to enable assessment of compliance between a set of

paragraphs from a regulatory document and BPMN

models. Delicado et al. (Delicado et al., 2017) intro-

duced an online platform called NLP4BPM that con-

verts a textual description into a BPMN model and

vice versa. The platform also computes the align-

ment between two BPMN models and a textual de-

scription with a BPMN model. The presented inter-

face adapted or modiﬁed techniques appeared in the

last years (Friedrich et al., 2011; Leopold et al., 2014;

Sànchez-Ferreres et al., 2017).

Ardila et al. (Ardila et al., 2018) presented the

transformation of SPEM 2.0-compatible requirements

and process models into input models of Regor-

ous to perform compliance checking. However, not

only standards information is manually extracted but

also requirements and process models are manually

modelled in EPF Composer. Jiang et al. (Jiang

et al., 2015) proposed a consistency and compliance

checker framework that analyses the consistency of

a set of regulations itself and also veriﬁes the busi-

ness process compliance with a set of interrelated

regulations. However, the translation of natural lan-

guage regulations into a formal model is manually

performed. This paper targets the automated pro-

cessing of standard documents, generation of require-

ments, process models and compliance mappings at

planning phase, as well as reverse compliance man-

agement during execution phase.

6 CONCLUSION AND FUTURE

WORK

To support the process compliance, which is manda-

tory for several industrial domains, the central theme

of this paper focuses on four particular aspects: (i)

natural language processing of standard documents

for automated extraction; (ii) structuring of require-

ments and process models by considering the SPEM

based mapping rules; (iii) generation of requirements,

process models and compliance mappings in EPF

Composer; and (iv) reverse compliance management

of process models. The natural language processing

of standard documents is carried out for extracting

the requirements and content elements of processes,

such as tasks, roles and work products. The require-

ments are organized into a hierarchy, while the con-

tent elements of process are organized into a work

breakdown structure by considering the phases, activ-

ities and milestones. During the planning phase, the

requirements, process models and compliance map-

pings are generated in EPF Composer. In the con-

text of reverse compliance that can be carried out dur-

ing execution phase, the gaps with extended or pre-

exiting process models are detected and resolution

measures are provided; missing elements are added

based on approvals. The application of the proposed

methodology is illustrated for the ECSS-E-ST-40C

compliant space system engineering.

This research is primarily based on the natural

language processing investigations that are performed

for the ECSS-E-ST-40C standard. However, there is

a need to conduct further evaluations for the process

extraction and reverse compliance management with

other standards. In the future, we intend to support the

extraction of process models from digital twins (Mu-

ram et al., 2020) and their reverse compliance man-

agement. The processing of assurance (safety and se-

curity) cases in free text and tabular representations,

and generation of Goal Structuring Notation (GSN) is

also a part of our future work agenda. Another direc-

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

312

tion for future work is to achieve the synchronisation

between process, product and assurance cases.

ACKNOWLEDGEMENTS

This work is partially supported by FiC (Future fac-

tories in the Cloud) project funded by SSF (Swedish

Foundation for Strategic Research). The second au-

thor has also participated during the tenure of an

ERCIM “Alain Bensoussan” Fellowship Programme.

REFERENCES

Ardila, J. P. C., Gallina, B., and Muram, F. U. (2018). Trans-

forming SPEM 2.0-compatible process models into

models checkable for compliance. In International

Conference on Software Process Improvement and

Capability Determination, SPICE ’18, Tessaloniki,

Greece, pages 233–247.

Delicado, L., Sànchez-Ferreres, J., Carmona, J., and Padró,

L. (2017). NLP4BPM - natural language processing

tools for business process management. In 15th In-

ternational Conference on Business Process Manage-

ment, BPM ’17 Demo Track, Barcelona, Spain.

ECSS (2009). European Cooperation for Space Standard-

ization, ECSS-E-ST-40C, Space Engineering Soft-

ware.

ECSS (2019). European Cooperation for Space Stan-

dardization, ECSS Applicability Requirement Matrix

(EARM). https://ecss.nl/standards/downloads/earm/.

Friedrich, F., Mendling, J., and Puhlmann, F. (2011). Pro-

cess model generation from natural language text. In

23rd International Conference on Advanced Informa-

tion Systems Engineering, CAiSE ’11, London, UK,

pages 482–496.

Javed, M. A. and Gallina, B. (2018). Safety-oriented pro-

cess line engineering via seamless integration between

EPF composer and BVR tool. In 22nd International

Systems and Software Product Line Conference - Vol-

ume 2, SPLC ’18, Gothenburg, Sweden, pages 23–28.

Javed, M. A., Gallina, B., and Carlsson, A. (2019). To-

wards variant management and change impact anal-

ysis in safety-oriented process-product lines. In

34th ACM/SIGAPP Symposium on Applied Comput-

ing, SAC 2019, Limassol, Cyprus, pages 2372–2375.

Javed, M. A., Muram, F. U., and Zdun, U. (2018). On-

demand automated traceability maintenance and evo-

lution. In 17th International Conference on New Op-

portunities for Software Reuse, ICSR ’18, Madrid,

Spain, volume 10826, pages 111–120.

Javed, M. A., Stevanetic, S., and Zdun, U. (2016). To-

wards a pattern language for construction and main-

tenance of software architecture traceability links.

In 21st European Conference on Pattern Languages

of Programs, EuroPLoP ’16, Kaufbeuren, Germany,

page 24.

Jiang, J., Aldewereld, H., Dignum, V., Wang, S., and Baida,

Z. (2015). Regulatory compliance of business pro-

cesses. AI Soc., 30(3):393–402.

Leopold, H., Mendling, J., and Polyvyanyy, A. (2014).

Supporting process model validation through natu-

ral language generation. IEEE Trans. Software Eng.,

40(8):818–840.

Muram, F. U., Gallina, B., and Kanwal, S. (2019). A

tool-supported model-based method for facilitating

the EN50129-compliant safety approval process. In

Third International Conference on Reliability, Safety,

and Security of Railway Systems. Modelling, Analy-

sis, Veriﬁcation, and Certiﬁcation, RSSRail ’19, Lille,

France, pages 125–141.

Muram, F. U., Gallina, B., and Rodriguez, L. G. (2018).

Preventing omission of key evidence fallacy in

process-based argumentations. In 11th International

Conference on the Quality of Information and Com-

munications Technology, QUATIC ’18, Coimbra, Por-

tugal, pages 65–73.

Muram, F. U., Javed, M. A., Hansson, H., and Punnekkat,

S. (2020). Dynamic reconﬁguration of safety-critical

production systems. In 25th IEEE Paciﬁc Rim Interna-

tional Symposium on Dependable Computing, PRDC

’20, Perth, Australia, pages 120–129.

OMG (2008). Object Management Group, Soft-

ware & Systems Process Engineering Meta-

model Speciﬁcation (SPEM), Version 2.0.

http://www.omg.org/spec/SPEM/2.0/.

OMG (2011). Object Management Group, Business Pro-

cess Model And Notation (BPMN), Version 2.0.

https://www.omg.org/spec/BPMN/2.0.

Qian, C., Wen, L., Kumar, A., Lin, L., Lin, L., Zong, Z.,

Li, S., and Wang, J. (2020). An approach for pro-

cess model extraction by multi-grained text classiﬁca-

tion. In 32nd International Conference on Advanced

Information Systems Engineering, CAiSE ’20, Greno-

ble, France, pages 268–282.

Sànchez-Ferreres, J., Carmona, J., and Padró, L. (2017).

Aligning textual and graphical descriptions of pro-

cesses through ILP techniques. In 29th International

Conference on Advanced Information Systems Engi-

neering, CAiSE ’17, Essen, Germany, pages 413–427.

van der Aa, H., Ciccio, C. D., Leopold, H., and Reijers,

H. A. (2019). Extracting declarative process models

from natural language. In 31st International Confer-

ence on Advanced Information Systems Engineering,

CAiSE ’19, Rome, Italy, pages 365–382.

Winter, K., van der Aa, H., Rinderle-Ma, S., and Weidlich,

M. (2020). Assessing the compliance of business pro-

cess models with regulatory documents. In 39th In-

ternational Conference on Conceptual Modeling, ER

’20, Vienna, Austria, volume 12400, pages 189–203.

Yanuariﬁani, A. P., Chua, F., and Chan, G. (2019). Au-

tomating business process model generation from

ontology-based requirements. In 8th International

Conference on Software and Computer Applications,

ICSCA ’19, Penang, Malaysia, February 19-21, pages

205–209.

Facilitating the Compliance of Process Models with Critical System Engineering Standards using Natural Language Processing

313
