Design and Development of a Technique for the Automation of the Risk

Analysis Process in IT Security

Daniele Granata and Massimiliano Rak

Department of Engineering, University of Campania Luigi Vanvitelli, Aversa, Italy

Keywords:

Threat Modeling, Risk Analysis, Threat Agent, Protocols.

Abstract:

Cloud service architectures are very heterogeneous and commonly relies on components managed by third

parties. As a consequence, the security veriﬁcation process of these architectures is a complex and costly

process. Moreover, development of application that runs in cloud should take into account the agile software

design and development methodologies and a really short time-to market, which are often incompatible with

deep security testing. This article aims at addressing such issues proposing a technique, compatible with

Security-By-Design methodologies, that automates the threat modeling and risk evaluation of a system, re-

ducing the costs and requiring a limited set of security skills. Through the proposed approach, the software

system is analysed identifying the threats that affects the system technical assets, ranking the level of risk

associated to each threat and suggesting a set of countermeasures in standard terms; the process requires a

minimal user interaction. The proposed technique, was implemented through a dedicated tool and, correctly

integrated in development processes, can signiﬁcantly reduce the need of costly security experts and shorten

the time needed to execute a full system security assessment. In order to validate the technique, we compared

our results with approaches available in literature and existing tools.

1 INTRODUCTION

The Cloud Computing paradigm, that relies on

service-based approach and on delegation of re-

sources and services, affects the way in which ap-

plications are being developed: Cloud-native applica-

tions often rely on micro-services architectures and/or

on integration of Commercial-off-the-shelf (COTS)

components. Despite the great advantages that such

an approach have in terms of costs and time-to-

market, security of Cloud applications is an issue,

due to the loss of control over resources and on the

code, often property of third parties. At same time,

the large exposition over internet of Cloud applica-

tions and the new regulations (e.g. GDPR, NIS Direc-

tive, Cybersecurity act) imposes to take into account

strict security and privacy requirements. In order to

address security issues the recommended best prac-

tice is Security-by-Design, which relies on the idea of

taking into account security from the very early de-

sign phases. However, threat modeling, identiﬁcation

of countermeasures, weakness and vulnerability iden-

tiﬁcation, security and penetration testing are time-

and cost- expensive procedures, which hardly match

with the market needs of fast adaptation to new re-

quirements and release of new functionalities. In this

paper we propose a technique that aims at automat-

ing as much as possible the Threat modeling, Risk

Analysis and Countermeasure identiﬁcation process,

enabling its integration in agile development method-

ologies. The approach proposed on this paper relies

on the experiences and the proposals made in (Casola

et al., 2020b; Casola, 2019) and extends the approach,

taking into consideration additional factors, simplify-

ing and empowering the evaluation procedure. In par-

ticular this paper offers the following original contri-

bution respect to the state of art: (i) the automated

Threat Agent identiﬁcation, (ii) the automated Threat

identiﬁcation according to assets and protocols in-

volved, (iii) automated Risk ranking and countermea-

sures suggestion, (iv) a tool that implements the ap-

proach. Next Section will summarize the proposed

methodology and introduces a simple example that

will be used to illustrate the approach. Each of the

following sections will describe in detail the proposed

steps, demonstrating and validating the approach ap-

plying it to the illustrated example. The paper ends

with a section on conclusions and future work.

Granata, D. and Rak, M.

Design and Development of a Technique for the Automation of the Risk Analysis Process in IT Security.

DOI: 10.5220/0010455200870098

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 87-98

ISBN: 978-989-758-510-4

Figure 1: The Steps of the proposed methodology.

2 THE TECHNIQUE

According to security best practices, like the ones

suggested by (Ross et al., 2016), development of

security-critical application, relies on a clear Threat

Modeling (Marback et al., 2013), deﬁned as a sys-

tematic process of identifying, analyzing, document-

ing, and mitigating security threats to a software sys-

tem .

The main goal of our approach is to automate

as much as possible the Threat modeling and Risk

Analysis process, in order to enable its integration in

security-by-design methodologies, like the one pro-

posed in (Casola et al., 2020b) and extended in (Ca-

sola et al., 2020a). As a matter of fact, we will

produce a list of possible threats and suggest a list

of countermeasures in terms of security controls that

should be veriﬁed before deploying the application

in production, after a very simpliﬁed modeling phase

and with minimal user interaction. It is worth noticing

that the list of threat is as complete as possible, a dis-

cussion about completeness validation will be done in

section 5.

A Threat, according to NIST (Ross et al., 2016), is

An event or condition that has the potential for caus-

ing asset loss and the undesirable consequences or

impact from such loss. Identify all possible events

is, clearly a very complex task. Moreover such

threats may be related to design choice, to the in-

volved technologies and/or to custom code develop-

ment. In order to automate their identiﬁcation in

a generic cloud application, we model a threat as a

triple: T hreatAgent, Asset, Behaviour.

Considering the concepts in literature ((Fraunholz

et al., ) (Casey, 2007), (Dobrovoljc et al., 2017)),

we deﬁne Threat Agent an actor that maliciously

act in order to generate the threat event into the sys-

tem under attack. An Asset is, according to NIST

(Ross et al., 2016), An item of value to achievement

of organizational mission/business objectives. In our

methodology we focus on technical aspects, so we

consider only the technical components of the system

under attack as possible assets. We have identiﬁed

different Asset Types that are the classes of asset that

can be considered in a system. Our automation pro-

cess will be able to consider all the threats respect to

the asset types considered. In section 3, we will list

the supported asset type, adopted in our model.

We deﬁne Behaviour the natural language descrip-

tion of the malicious event. It is worth noticing that

this description is relevant, because gives to the secu-

rity expert information that helps in clearly identify

the issues to be mitigated. Our automation process

relies on a catalogue of threats, uniquely identiﬁed by

the above triple, enriched by a set of additional in-

formation: (i) for each threat we outline which secu-

rity requirement in the CIA triad (Conﬁdentiality, In-

tegrity, Availability) is affected and (ii) we classify the

threat according to the STRIDE classiﬁcation (Kohn-

felder and Garg, 1999).

Thanks to the collected information, we evalu-

ate,for each identiﬁed Threat, the associated Risk, i.e.

the probability that such a threat will take place. This

value is calculated as the combination of probability

and consequence value, as suggested by (Williams,

2020). Last, but no least, we suggest the list of stan-

dard countermeasures, in terms of NIST security con-

trols (Group, 2020).

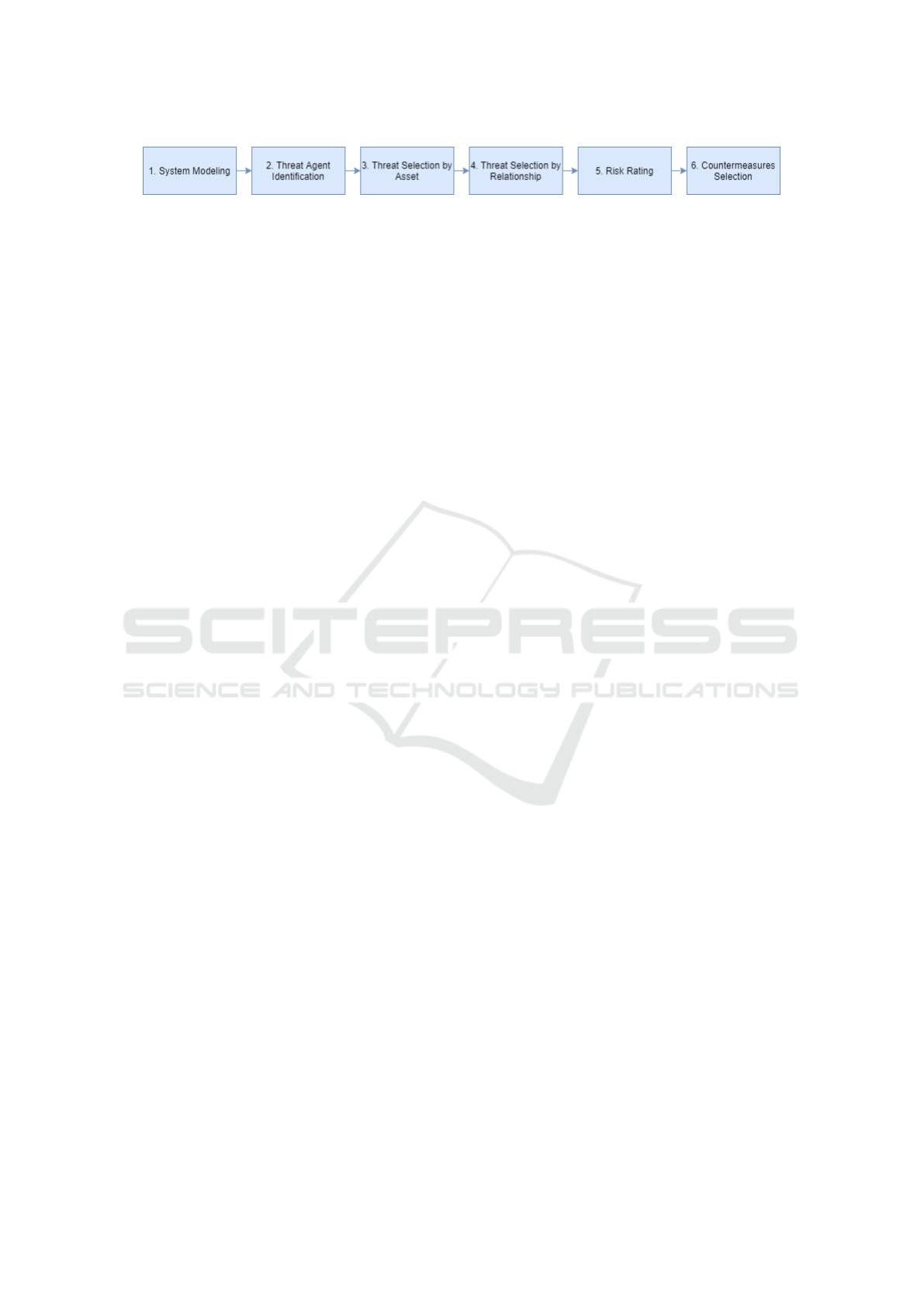

As illustrated in Figure 1, our approach relies on

six steps, even if we ask for user interaction only at

start of the procedure (during system modeling) and

at end of the procedure (during the risk rating phase),

as will be outlined in the following.

The ﬁrst phase, Modeling, aims at identifying the

application architecture and, in practice, the Assets in-

volved in the system and their interactions, Section

3 summarizes the main steps involved in this phase,

which is the one that needs major user interaction.

The second phase, described in Section 4 aims at

identifying the possible Threat Agents that will char-

acterize the threats and will be needed to rank the risks

associated to the threats.

Third and fourth steps, described together in sec-

tion 5, identify the possible threats that affect the sys-

tem taking into account the asset types and the rela-

tionship among them. The Risk Rating step evaluates

the probability associated to each threat according to

the OWASP methodology, estimating the needed pa-

rameters for the evaluation thanks to the information

generated by the model and the collected catalogues.

Last, but no least, we generate a list of Security

Controls, according to NIST control framework in SP

800-53 (Group, 2020), that should be veriﬁed on each

asset; such list takes into account both the threat list

and their risk evaluation.

It is worth noticing that the methodology does not

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

assume any interaction with the end user, excluded at

start of the process (modeling phase and a set of ques-

tions related to threat agent selection) and at end of the

process (in order to evaluate the impact of threats on

the business, that can be evaluated only by the system

owner.

2.1 A Simple Case Study

In order to validate the proposed technique, we will

use a very common system, typically executed on a

cloud infrastructure: an e-commerce site developed

on top of WordPress. WordPress (WP) is an open

source content management system, which allows the

creation and distribution of an internet site made up

of textual or multimedia contents, which can be man-

aged and updated dynamically. The web application

WP is hosted on a cloud virtual machine on top of

an Apache web server and interfaced with a mySQL

database. In order to enable scalability, the WordPress

component can be deployed multiple time, reusing al-

ways the same Database (that can scale only verti-

cally, i.e. adding memory and/or CPU to the hosting

VM). A Load Balancer (LB) distributes the Client re-

quests to the connected WP instances. The developer

simply customize the WP instances , through custom

plugins and customizing the application behaviour.

Even if development of such systems is simple and

commonly relies on very limited skills from the de-

veloper/system administrators, the application man-

age moneys and personal data, so it has strict security

requirements. It must be considered that an incredible

amount of WordPress instances on the web are vul-

nerable (see (Abela, 2020)), due to incorrect security

planning and management.

3 MODELING

The ﬁrst step of technique is the system Modeling

that relies on the MACM (Multi-Application Cloud

Composition Model) formalism (Rak, 2017), a graph-

based model in which each node of the graph repre-

sents the component of the system, and each edge is a

connection between the components.

Each Node has a different label that classify it re-

spect to the system deployment. Model labels can

be related to typical cloud roles (CSP, Cloud Service

Provider, or CSC, Cloud Service Customer) or to ser-

vice models, e.g. IaaS (Infrastructure-as-a-Service),

PaaS (Platform-as-a-Service), and SaaS (Software-

as-a-Service),. Labels affect the relationships (graph

edges) in which the nodes can be involved.

Moreover, each node has a set of properties that

Table 1: Assets and their types in the case Study.

Node Label Asset Type

Client CSC CSC

CSP CSP CSP

LB (Load Bal-

ancer)

SaaS WebApplication

WP (Work-

Press)

SaaS WebApplication

DB (Database) SaaS Database

VM (Virtual

Machine)

IaaS VirtualMachine

Table 2: Relation between components in case study.

Start Node Relation End Node Protocol

Client uses LB https

LB uses Wordpress https

Wordpress uses DB mysql

VM hosts Wordpress -

VM hosts LB -

VM hosts DB -

CSP provides VMs -

speciﬁes the characteristic of the node. A mandatory

property, for the services, is the type, that speciﬁes the

Asset Type, according to the concept expressed in the

previous section. As an example IaaS nodes can be of

VM or container asset type, while SaaS can be of Web

Application, Database or IDM (Identity Management

System), asset types. New asset types can be easily

added, as an example the MACM model was extended

to support IoT systems in (Casola, 2019).

The (directed) edges of the graph represent the re-

lationship among the nodes. The model adopts few

different kind of relationship, namely: provides, hosts

and uses. The relationship outlines the way in which

the different type of components may interact, as an

example the uses relationship among two services,

outlines that a service uses the capabilities offered by

the other. The model allows to associate properties to

relationships, e.g. it is possible to specify a protocol

attribute to a uses relationship, whose value indicates

the protocols involved in the interaction.

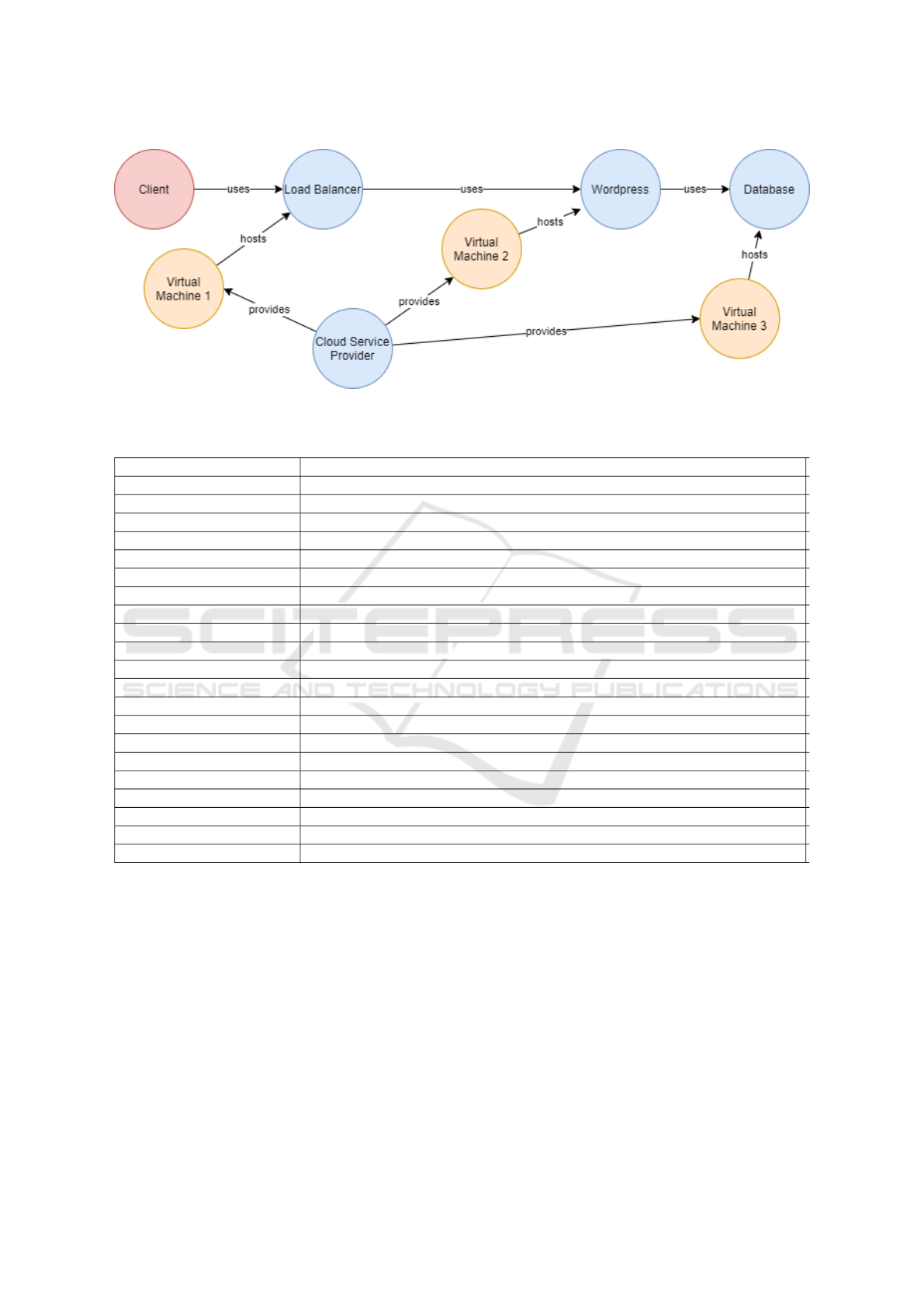

Figure 2 shows the MACM model of our case study,

each label affect the color of the nodes, while at-

tributes are not visible in the picture. As anticipated,

the system is composed by a Cloud Service Provider

(e.g. Amazon or a private Cloud) that provides three

virtual machines. which are labeled as IaaS, and their

Asset Type is VM, e.g. virtual machine. One VM

hosts a Load Balancer service while the other two

VMs hosts respectively a WordPress instance and a

MySQL a database instance. We modeled the Load

Balancer (LB) and WordPress (WP) as SaaS nodes

Design and Development of a Technique for the Automation of the Risk Analysis Process in IT Security

and we set their Asset Type as Web Application. The

MySQL instance, instead, was labeled as a SaaS, but

with Database (DB) value as Asset Type. The LB

uses the WP that, in turn, uses the DB. The Cus-

tomer(s) (modeled as a CSC node) uses the LB node,

that acts as application interface. Tables 1 and 2 sum-

marize the model.

In order to manage the MACM model our tools

represent them in a graph database, namely Neo4j

Our Tools, available at link

, are able to automati-

cally manage and generate MACM models in many

different ways, however, in this paper, we assume that

the MACM model is simply available to the tool and

stored in the graph database.

4 THREAT AGENT SELECTION

As already outlined, Threat Agents are any person or

thing that has the power to act to cause, carry, trans-

mit, or support a threat. In a security assessment pro-

cess the identiﬁcation of Threat Agents is a funda-

mental part and its results inﬂuence the Risk Rating

activities. In order to identify possible threat agents,

we adopted the taxonomy proposed in (Casey, 2007),

that suggests the categories described in table 3.

The classiﬁcation proposed in (Casey, 2007) asso-

ciate to each class of threat agents a set of attributes

and proposes a mapping that outlines which are the at-

tribute values associated to each Threat Agent. Table

4 summarizes the attributes and the possible values of

the attribute.

In order to select the Threat Agents (TAs) and

evaluate the risk associate to each of them, we classify

the proposed attributes in two classes: (i) attributes

useful to identify the TAs that are meaningful for the

system under analysis and (ii) attributes useful to risk

evaluation.

In the selection process we concentrate on the ﬁrst

class, which, according to our consideration are In-

tent, Access, Outcome, Objective. Accordingly we

identiﬁed four questions to which the system owner

should answer, that enable us to select the TAs.

• Q1: Are there someone who can gain an advan-

tage implementing a cyber threat against your sys-

tem?

• Q2: Do you trust all employees and do you as-

sume that they are not a possible Threat agent?

• Q3: What are the goals of the attackers that repre-

sent the most threat to you?

https://neo4j.com

https://bitbucket.org/daniele94/sla-generator

• Q4: What could be the expected results of a pos-

sible attacker in the phases of a possible attack on

the software system?

Q1 identiﬁes the threat agent’s hostility. Q2 is used

to consider the threat agents that have internal access

to the application. For example, if the user marks

the employees ( or partners who have access to con-

ﬁdential data) as “trusted”, these categories are re-

moved from the ﬁnal threat agent list. Q3 and Q4,

instead, allow multiple answers and apply the ﬁlter

to the threat agents in relation to the steps they take

to attack the system and the desired result of the at-

tacker. The answers to these questions are used to se-

lect the threat agent categories. For example, Terrorist

or Data miner can not be selected if the user consider

”Embarrassment” the only outcome. The result of the

ﬁrst step is a threat agent list containing a description

of the threat agent and common actions he takes to

attack the target.

4.1 Application to Our Case Study

In our case study we assume that the system’s

cyber-security ofﬁcer considers only the hostile threat

agents. This may due to the exposure of threats that

can bring ﬁnancial advantage to the agent, especially

on Wordpress site such as e-commerce. We also as-

sumed that the director has complete trust of the em-

ployees, which excludes them from the results. Hav-

ing made these answers to the questionnaire, the cate-

gories interested in attacking the system are described

by the table 5.

It should be noted that some categories are always

considered as outputs of the algorithm as they repre-

sent a set of threat agents that do not have a speciﬁc

reason for attacking the system, so they should be

considered to every kind of systems. In our case the

user provides a multiple answer to questions Q3 and

Q4. He answers ”Copy” to Q3 question and ”Tech

Advantage” and ”Business Advantage to Q4 ques-

tion. When an user gives multiple answer to Q3 or

Q4 question, a set of threat agent categories is cal-

culated for each answer and the ﬁnal result is the

union of each set. For example, in our case study

the answers considers both a Technological Advan-

tage and a Business Advantage. The result of the

algorithm is the union of the sets obtained from the

categories associated with the technological advan-

tage and the business advantage. In our case study,

therefore, ﬁve categories are detected to be consider

as possible threat agents and these categories will be

used for risk rating phase, as shown in table 5.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

Figure 2: MACM Wordpress Case study.

Table 3: Threat Agent Taxonomy.

Category Description

Employee Reckless Employee who circumvents safeguards for expediency,but intends no harm

Employee Untrained Employee with harmless intent but unknowingly misuses system or safeguards

Info Partner Someone with whom the company has voluntarily shared sensitive data

Anarchist Someone who rejects all forms of structure and acts with few constraints

Civil Activist Highly motivated but non-violent supporter of cause

Competitor Business adversary who competes for revenues or resources (acquisitions,etc.)

Corrupt Government Person who uses his position within the government to acquire resources

Data Miner Professional data gatherer external to the company (includes cyber methods)

Employee Disgruntled Current or former employee with intent to harm the company

Government Cyberwarrior State-sponsored attacker with signiﬁcant resources to affect major disruption

Government Spy State-sponsored spy as a trusted insider,supporting idealistic goal

Internal Spy Professional data gatherer as a trusted insider

Irrational Individual Someone with illogical purpose and irrational behavior

Legal Adversary Adversary in legal proceedings against the company, warranted or not

Mobster Manager of organized crime organization with signiﬁcant resources

Radical Activist Highly motivated,potentially destructive supporter of cause

Sensationalist Attention-grabber who may employ any method for notoriety

Terrorist Person who relies on the use of violence for socio-political purposes

Thief Opportunistic individual with simple proﬁt motive

Cyber Vandal Derives thrills from intrusion or destruction of property, without strong agenda

Vendor Business partner who seeks inside information for ﬁnancial advantage

4.2 Implementation

We implemented the Selection Process as a wizard in

which all the information necessary to obtain the list

of threat agents is obtained from the user, submitting

the answers to the above proposed questions.

The Threat Agent selection process involves the

use of a speciﬁc data model, which allows us to per-

form the described operations, which is logically or-

ganized in two parts:

• A static part that contains a set of data already de-

ﬁned upstream of the process.

• A dynamic part that contains the results of the

wizard related to the selected application.

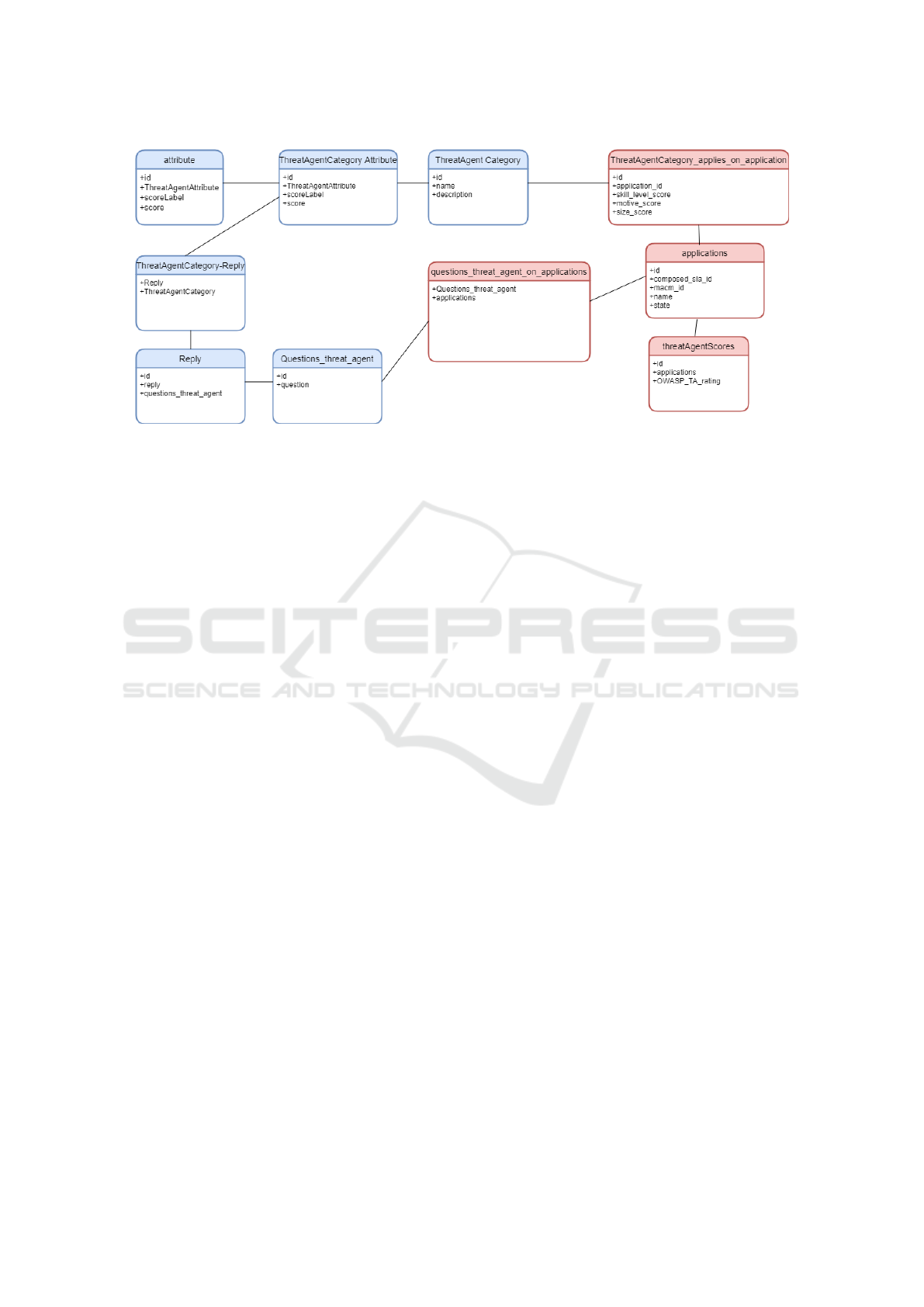

Figure 3, illustrates the E-R model of data model.

Blue tables are the static part of data model, made

of 6 tables, devoted to collect on one side the Threat

Agent Categories, the Attributes and their mapping,

according to the referenced paper (Casey, 2007) and ,

on the other side, Questions, Replies of questionnaire

and a table, which links each answer to a category that

satisﬁes it.

It is worth noticing that it will be easy, in future works

and after additional validation processes to enhance

Design and Development of a Technique for the Automation of the Risk Analysis Process in IT Security

Table 4: Threat Agent Attributes.

Attribute Description Attribute Values

Access Privileged position of the target infrastructure Internal,External

Intent Whether the agent intends harm Hostile, Not Hostile

Limits Legal and ethical limits of threat agent Code of Conduct, Legal, Extra-legal Minor,

Extra-legal Major

Outcome Primary goal of threat agent Acquisition, Business Advantage, Damage,

Embarrassment, Technical Advantage

Objective Method agent uses for achieving goals Copy, Deny, Destroy, Damage, Take, All

Resources Available time, money and technological

means

Individual, Club, Contest, Team, Organiza-

tion, Government

Skills Special training and expertise None, Minimal, Operational, Adept

Visibility How hidden are identity and actions Overt, Covert, Clandestine, Don’t Care

Table 5: Results of Threat Agent Selection phase in the example Scenario.

Category Description Common Actions

Competitor Business adversary who competes for re-

sources

Theft of IP or business data

Cyber Vandal Derives thrills from intrusion or destruction

of property, without strong agenda

Network/Computing disruption,

web hijacking, malware

Irrational Individual Someone with illogical purpose and irra-

tional behavior

Personal violence resulting in

physical business disruption

Data Miner Professional data gatherer external to the

company

Theft of Personally Identiﬁable

Information, IP or business data

Sensationalist Attention-grabber who may employ any

method for notoriety of fame

Public announcements for PR

crises, theft of business data

the approach, adding new categories, attributes and,

eventually, additional questions.

The dynamic part,shown in ﬁgure 3 in red, is cre-

ated at run-time, and refers to each single user. The

Applications table contains all information about the

application to be subjected to security assessment. At

the end of the questionnaire, a speciﬁc application is

associated with a table, called questionThreatAgen-

tOnApplications, which contains all the answers of

the questionnaire. ThreatAgentCategoryAppliesOn-

Application table contains all OWASP parameters cal-

culated by the algorithm. Finally,the algorithm calcu-

lates some Threat Agent scores associated to the ap-

plication and save them in ThreatAgentScores table,

according to the algorithm shown in section 6.

5 THREATS SELECTION PHASE

As anticipated, the core of the selection phase, al-

ready presented in (Casola et al., 2020b) (Casola

et al., 2020a) (Casola et al., 2016), relies on a Threat

Catalogue, built in the context of the MUSA H2020

project, that organize the threats according to their as-

set type. The threats of the catalogue were collected

using a set of well known sources, like OWASP top

threats or referenced scientiﬁc paper, maintaining the

link to the adopted source in the catalogue. The threat

catalogue is available as open data.

However, in this paper, we enhanced our ap-

proach, considering not only the asset types, but even

the relationships among the assets. As outlined in sec-

tion 3, the attribute protocol associated to the MACM

relationships outlines the protocol(s) adopted in com-

munication among different nodes. Moreover, we use

the direction of the edge among the node (MACM re-

lies a directed graph) in order to assign a role to each

asset involved in the communication. As an example,

if a Customer (CSC) and a web application through

the HTTP protocol, the MACM model will add the

HTTP attributes to the uses relationship among them,

assigning the the CSC the role of HTTP client, while

the application assumes the role of server. At state of

art, the proposed approach supports only client-server

relationships among assets, in future works we aims

at extending the approach to different paradigms.

Accordingly we enriched our threat catalogue

with protocol-related threats. At state of art we sup-

In case you are interested send an email to massimil-

iano.rak@unicampania.it to request the latest version.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

Figure 3: Data model.

ported the threats related to TCP, HTTP, SSL/TLS,

HTTPS and OAUTH using standard and well-known

threat models for protocols like (Qualys, 2013) and

(T. Lodderstedt, 2012).

The proposed approach produce a pretty

large list of threats: one for each triple

< T hreatAgent, Asset, Behaviour >. Accord-

ingly some of the threat behaviours collected in the

catalogue may appear more than one time, being

applied to different assets. Moreover, it should be

noted that, even if the threats are selected according

to the protocols, we associate them to each single

asset, according to the role they have in the protocol.

This enable us to focus on different countermeasures

for each asset , taking all the threats in consideration.

5.1 Implementation and Data Model

The enhancement of the proposed approach has im-

plied an improvement of the Data Model needed to

maintain the Threat catalogue, which is summarized

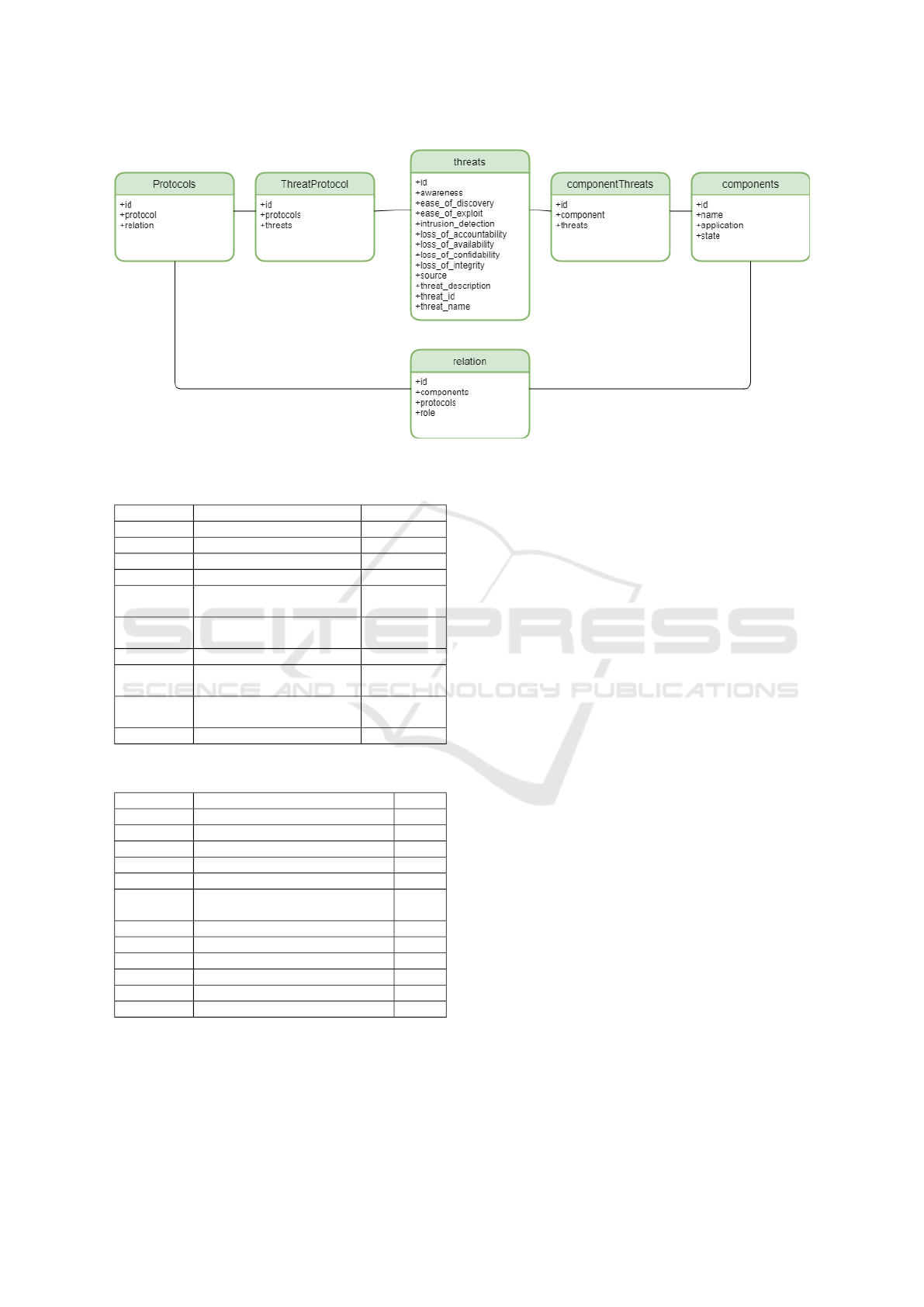

in Figure 4.

The proposed data model provides a dynamic ta-

ble named ”components” linked through an N:M re-

lationship to a table containing the catalog of threats.

Threats due to protocols are mapped to Protocols ta-

ble through a table named threatprotocol. All proto-

col information is extracted from MACM and relation

are stored in database through a Relation table witch

maps component to the used protocol and also deﬁnes

the role that component plays in that communication.

In this step role attribute is stored in Relation table

based on the orientation of the arch. All Threats are

extracted from database using a query that select all

threats linked to a speciﬁc protocol ﬁltering by role

attribute. In this way we distinguish threats related to

two components of the same type and which commu-

nicate with a speciﬁc protocol, but which have differ-

ent roles in the communication.

5.2 Threat Selection Example

According to our case study, the assets are the ones

already anticipated in the previous sections and sum-

marized in tables 1 and 2 of the Modeling section.

Applying the proposed approach we produce a list of

threats that we have summarized, for simplicity’ sake

we summarized some of the threats due to HTTPS

in Table 7 and some of the Threats obtain per asset

in Table 6. A list of Threats is not compatible with

the length of the paper. Note that we manage it di-

rectly through our tools, that enable easy exploration

of threats through a web interface.

Analyzing the tables it is possible to outline, as

an example, that Wordpress can be exposed to threats

such as Injection. Other threats that affects the VMs

are linked to data and policy violation such as Data

Breaches and Unauthorized access to admin inter-

face. Moreover, data can be sniffed by threat agents in

communication channel between SQL-database and

Wordpress or the data could even be physically de-

stroyed.

5.3 Validation through Comparison

with Microsoft Tool

Validation of threat modeling processes is always an

issue, because there are no common ways to demon-

strate completeness (i.e. that all threats are consid-

ered) and consistency (i.e. that the threats consid-

ered are concretely applicable to the system under

analysis). We made a comparison with the results of

Design and Development of a Technique for the Automation of the Risk Analysis Process in IT Security

Figure 4: Table Protocols, Threats and Components in data model.

Table 6: Threat Selection results per Asset (snippet).

Threat ID Threat Name Asset

T94 Injection Wordpress

T98 Security Misconﬁguration Wordpress

T99 Cross Site Scripting Wordpress

T70 Snifﬁng Storage Trafﬁc DB

T87 Physical Destruction of

Storage Media

T77 Exhausting Log Data and

Metadata Space

T59 Data Breaches VM

T59 Unauthorized access to ad-

min interface

T59 Weak Identity, Credential

and Access Management

... ... ...

Table 7: Threats due to HTTPS in LB-Wordpress relation.

Threat ID Behavior Asset

T117 Eavesdropping WP

T118 Message Reply LB

T119 Message Injection WP

T120 Message Deleting LB

T121 Spooﬁng users WP

T122 Gaining unauthorized entry to a

server or account

T124 Denying service to other entities WP

T126 Denial Of Services WP

T127 Truncation LB

T128 Message Modiﬁcation WP

T128 Message Modiﬁcation LB

.. .. ..

a similar tool, The Microsoft Threat modeling Tool,

that relies on similar approaches, even if it does not

support threat agent selection and risk ranking eval-

uation. The Microsoft application model relies on a

graph-based very similar to MACM. The main dif-

ference among our approach the MS one, is that the

Microsoft tool associates the threats to the arcs of the

graph, while the proposed technique provides a list of

threats for each component. Microsoft threat model

per-Component is extrapolated considering threats re-

lated to arcs in-going or out-going the component.

As an example, considering the WordPress com-

ponent, are listed in 8 (for space motivation we re-

port only the table related to this asset). Our approach

proposes 18 threats, against 27 using Microsoft tool.

The main difference among the approaches is that the

MS tool suggestes more low level threats, which sup-

ports a technician in a technology oriented problem

solution, while our tool suggests high level threats,

more prone to policy deﬁnition and audit veriﬁca-

tion procedures. Moreover, table 8 outlines how a set

of threats proposed by MS tool are speciﬁc cases of

the threats suggested by our approach, as an exam-

ple we outlines the threat of security misconﬁgura-

tions (whose countermeasure could be the adoption

of an audit procedure and/or of automatic tools based

on SCAP (D. Waltermire, 2018)), while the MS tools

suggests a speciﬁc list of security misconﬁguration

cases. For what regard the detected threats affect-

ing the MYSQL-Database, we suggested 22 threats,

against the 7 suggested by the Microsoft tool. For

VM asset, instead, we considered 17 different threats

while Microsoft shows only 2 threats. In both cases

the threats suggested by MS are subcases of the ones

identiﬁed by us.

The difference in the last two asset types is prob-

ably due to the asset-oriented approach we adopt,

against the communication oriented suggested by Mi-

crosoft. These results demonstrated the reliability of

the proposed threat modeling approach, considering

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

Table 8: Comparison Table.

Asset Our Threat Microsoft Threat

Wordpress Injection SQL injection through Web App

Wordpress Security Misconﬁguration Gaining access to sensitive data

from log ﬁles

Gaining access to sensitive infor-

mation through error

Spooﬁng due to insecure TLS cer-

tiﬁcate conﬁguration

Improper logout or timeout con-

ﬁguration

Insecure coding practices

Wordpress Cross Site Scripting XSS

DB Snifﬁng Storage Trafﬁc Snifﬁng trafﬁc to database

DB Exhausting Log Data and Meta-

data Space

VM Data breaches -

VM Unauthorized access to admin in-

terface

Unauthorized admin privileges

Weak Identity, Credential and Ac-

cess Management

that the commercial tool was not able to identify a

threat that we are not able to consider (at least at an

higher level of generality). As a matter of fact, the MS

tool is a powerful tool that directly suggest technician

on possible security issues and helps them in directly

apply countermeasures, while our technique is more

prone to identify an higher level security policy and

identify development procedures that enables to solve

the security problems.

6 RISK EVALUATION

Threat Modeling offers a clear idea of the possible

menaces that threaten the system under analysis, how-

ever addressing them all could be a (costly) overkill,

not compatible with time-to-market and application

costs. Risk Analysis aims at offering a (rough) eval-

uation of the risk (i.e. the probability that a threat

happens) in order to prioritize the implementation of

the countermeasures. We adopted the Risk Rating

Methodology proposed by OWASP (Williams, 2020)

that evaluate (as commonly happen) the risk through

the composition of two indicators: Likelihood and Im-

pact. Likelihood is an indicator that expresses how

likely a threat agent is to implement a threat. OWASP

quantitatively models it considering two set of factors:

Threat Agent Factors and Vulnerability Factors. The

ﬁrst ones are related to the group of threat agents, con-

sidering : Skill Level , Motive, Opportunity and Size

While Vulnerability Factors are related to the vulner-

abilities needed to exploit a speciﬁc threat agent and

take into account Ease of Discovery, Ease of Exploit

, Awareness and Intrusion Detection.

Even Impact relies on two set of factors, namely

technical and business factors. The technical impact

is estimated taking into account how threat affect the

security requirement of the asset in terms of the Loss

of Conﬁdentiality , Loss of Integrity , Loss of Avail-

ability and Loss of Accountability .

Last but no least Business factors take into ac-

count what is important to the company running the

application, evaluating Financial damage Reputa-

tion damage , Non-compliance and Privacy violation

The OWASP methodology offers a descriptive cri-

teria in order to assign to each of the above factors

a number between 1 and 10. Likelihood and Impact

will assume a level of risk (Low, Medium or High)

if the average of the values of their factors is respec-

tively in the range 1 − 3, 4 − 6 or 7 − 10. The risk

value of a threat is assigned through a table that as-

sign the ﬁnal risk level according to the Likelihood

and Impact levels.

Thanks to our approach, Threat Agents and the

behaviour of the threats are well known in advance,

so it is possible to evaluate 12 on 16 of the factors

without any user involvement. The only factors that

we will ask as an input are related to business impact,

which are strictly related to the context of execution

of the application and its market considerations.

Design and Development of a Technique for the Automation of the Risk Analysis Process in IT Security

Table 9: Mapping OWASP Threat Agent parameters with

TAL parameters.

OWASP parameter TAL Parameter

Skill Level Skill

Motive Limits, Outcome, In-

tent

Opportunity Access, Resources,

Visibility

Size Resources

6.1 Threat Agent Rating

As a consequence, Threat Agent Factors are calcu-

lated on the basis of the considerations made in sec-

tion 4. We considered these values to be associated

with the system and therefore they are the same for

every threat in threat model.

The evaluation of the OWASP parameters relat-

ing to threat agents is based on the categories result-

ing from the questionnaire described in the chapter 5

Each category has a TAL attribute set that describe

it. Each attribute has a score which we use to cal-

culate the OWASP values. At this step, both attribute

classes, described in chapter 5 are considered. For ex-

ample, we assume that OWASP Motive depends only

on Intent, Outcome and Limits and it is calculated as

follows:

OWASPMotive =

Intent

Outcome

Limits

x10 (1)

For multiple responses related to attributes ( such as

Outcome values) , the considered value is the average

of the single associated ones.

The process in this way calculates four OWASP

parameters for each category, using the mapping de-

scribed in the table 9. In order to produce the param-

eters relating to the system, it is necessary to evalu-

ate the combination of all the OWASP parameters for

each category of the Wizard result. For example, the

total OWASP Motive value is given by the formula:

OWASPMotiveTOT =

∑

i=1

tot

(2)

N represents the number of categories resulting from

the Wizard and M

the OWASP score of the reason re-

lating to the i-th category and d A

instead represents

the i-th weight assigned by the user to the single out-

put category through a Low-Medium-High qualitative

approach. In this way, the user decides which output

category is more dangerous for the application.

6.2 Vulnerability and Technical Impact

Factors

In order to evaluate the risk of a threat, we still

miss the factors related to Vulnerability and Tech-

nical Impact. According to OWASP, a security ex-

pert, should make such evaluations, taking into ac-

count (i) how to implement an attack, exploiting the

vulnerabilities to implement the threat, and (ii) which

are the effect of the threat over the asset. How-

ever, as outlined in section 5, we collected in the

catalogue the full set of possible threats in terms of

the couple < Asset, Behaviour > together with addi-

tional information, namely the security requirements

affected and the STRIDE classiﬁcation of the threat.

This enabled us to made an evaluation of each pair

< Asset, Behaviour >, and identify the default value

for the eight factors, associated to such a pair. In

practice, we evaluated in advance all the possible

threats assigning the values in order to avoid any addi-

tional request. In future works we aims at improving

such an evaluation, through additional attributes to the

MACM model: knowing the technologies that imple-

ment a node, as an example, it is possible to make a

search over threat intelligence knowledge bases (like

NVD

or the MITRE CVE, CWE, ATT&CK or

CAPEC, in order to make an additional automated

evaluation.

6.3 Overall Evaluation and Input

Collection

As a summary, for each threat, given by the triple

< T hreatAgent, Asset, Behaviour >, we are automat-

ically able to estimate 12 over 16 of the factors re-

quested by the OWASP methodology. However, the

number of possible threats remains pretty long and in-

volving the user in order to collect the last four factor

for each of the (tens, if not hundreds) identiﬁed pos-

sible threats is unpractical. Accordingly we followed

a simpliﬁed approach,: each threat was associated to

one or more STRIDE (Kohnfelder and Garg, 1999)

categories, Spooﬁng, Tampering, Reputation, Infor-

mation Disclosure, Denial of Services and Elevation

of Privileges. Then we ask the user to express the im-

pact factor of each STRIDE category over the overall

system (it is possible to make a per-asset request if the

user is interested to a ﬁner grain evaluation). Finally,

we evaluate the impact of a threat on an asset con-

sidering the higher impact among the ones that the

user declared for each STRIDE category to which the

National Vulnerabiity Database NVD, https://nvd.nist.

gov

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

threat belong to.

As a ﬁnal result we are able to make a Detailed

risk analysis, outlining, for each threat, the associated

Risk Level (as a value Low, Medium or High).

Validation of the proposed evaluation is, however,

almost impossible, as often happens in Risk analysis

approaches. We relies on a well-established method-

ology (the OWASP one) that assign a relevant role to

security-experts. Our technique anticipated the work

of the security experts, so that it is possible to auto-

mate the process, delegating it to developers with lim-

ited security skills. As a consequence, it is possible to

involve the (costly) experts only for validating the re-

sults on the speciﬁc case studies or in given phases of

the project development.

6.4 Evaluation of the Case Study

In our case study, we selected ﬁve different Threat

Agents, listed in table 5. Let’s consider, for example,

the OWASP Factor Motive for the Data Miner agent:

DataMinerMotive =

x10 = 7 (3)

Accordingly, the OWASP Motive values calculated by

3 give the value 7, it means that threat agents might

be strongly motivated to attack the system. A similar

approach is used for the OWASP Size, Motive and

Opportunity parameters.

The calculation of threat agent parameters is

unique for each resulting threat described by tables

7 and 6. Other OWASP parameters depends on

threat, so for greater readability we take into account

some example of threats in table 6. Evaluating the

Cross-site Scripting threat, all OWASP related val-

ues are shown in ﬁgure 5. Considering the result-

ing threat agents and Cross-site scripting threat, the

related overall risk is considered MEDIUM (that typ-

ically implies that countermeasures must be applied

in a short amount of time)

7 SECURITY CONTROL

SELECTION

In order to close the process we propose a set of (stan-

dard) countermeasures to mitigate the threats and en-

hance the overall level of security associated to the

system. This step of the technique were already avail-

able in previous work, (Casola et al., 2020b; Casola

et al., 2020a) and simply relies on the additional in-

formation collected in the threat catalogue. Counter-

measures are modeled according to the NIST security

control framework ((Group, 2020)) which provides a

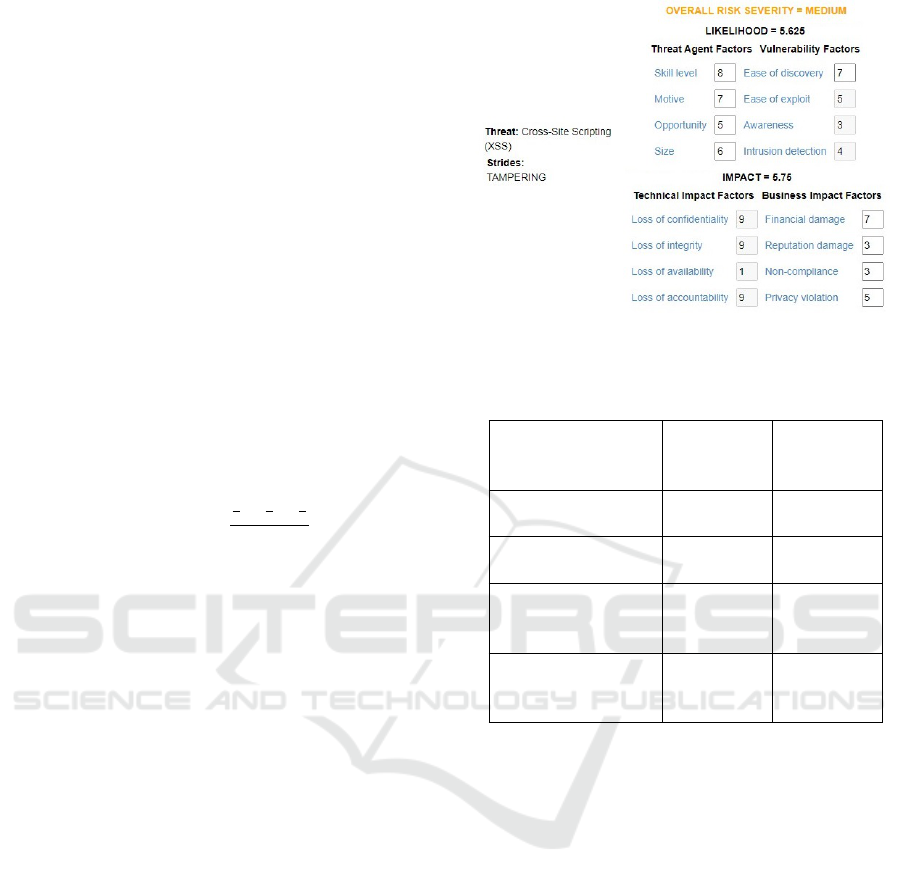

Figure 5: Risk values of Cross-site Scripting Threat.

Table 10: Controls suggested for some threats in Threat

Model.

Control Name NIST

Control

Threat

Name

Information input

validation

SI-10 Injection

Information input

validation

SI-10 Cross Site

Scripting

Transmission con-

ﬁdentiality and in-

tegrity

SC-8 Snifﬁng

Storage

Trafﬁc

Protection of in-

formation at rest

SC-18 Snifﬁng

Storage

Trafﬁc

large catalogue of security controls (e.g. countermea-

sures) organized in families, controls and control en-

hancements. For each threat provided by the threat

model, we query the threat catalogue that contains, as

additional information, a list of nist security controls

able to mitigate each couple Asset, behaviour, avail-

able in the catalogue. It is worth noticing that the

NIST framework suggests a reference baseline, asso-

ciating to each control the security level that require

the control as a mandatory countermeasures, accord-

ingly we select all the security controls, associated to

the identiﬁed threats, that are needed when the risk is

higher than the one we have evaluated according to

the process illustrated in previous sections. Table 10,

illustrated some of the NIST controls suggested for

our case study. For example to avoid Injection threats

for Web Application, this phase of methodology sug-

gest to use a validation system for input and output

values. Being a previous work, we does not spend

additional space in the details related to such control

selection.

Design and Development of a Technique for the Automation of the Risk Analysis Process in IT Security

8 CONCLUSIONS

In this paper we presented a technique that aims at au-

tomating thee process of threat modeling, risk anal-

ysis and security policy deﬁnition. The proposed

approach, thought to be easily adopted in security-

by-design development methodologies, enables non-

security experts to automate many of the typical steps

performed by security experts. It is worth noticing

that our goal is not to substitute the experts, but en-

abling their (costly) involvement only when strictly

necessary, in order to validate and eventually enrich

the policies, and during the development in order to

verify the correctness of the automated decisions.

The proposed approach require a very simpliﬁed

model of the application, similar to state of art tools,

like the Microsoft Threat modeling tool, and the reply

to few very simple questions, that are needed to make

the risk evaluation. The proposed technique was val-

idated comparing its result with existing tools (like

the Microsoft one) and relying on standard and exist-

ing methodologies for the more subjective phases of

the procedure. The comparison with the MS threat

modeling tool, as already outlined in section 5, out-

lined that we identiﬁed all the threats suggested by

the competitor, sometime suggesting a more general

threat respect to the one proposed by the tool. At best

of author’s knowledge, no other tool and technique is

able to support in a coherent and homogeneous way

threat agents identiﬁcation, threat modeling, risk anal-

ysis and countermeasures identiﬁcation without any

user interaction of not few initial questions and the

starting model we require. In future works we aims

at studying a technique to validate risk analysis tech-

niques like the one proposed, adopting threat intel-

ligence data-sets, in order to both, offer additional

grants on our results and improve the quality of our

risk level evaluations.

Moreover we aims at automating, as much as possi-

ble, the process of enrichment of the threat catalogue,

collecting data from open data sets and enriching the

risk factor evaluation through dedicated analysis and

testing procedures.

REFERENCES

Abela, R. (2020). Statistics show why wordpress is a popu-

lar hacker target.

Casey, T. (2007). Threat agent library helps identify infor-

mation security risks. page 12.

Casola, V. (2019). Toward the automation of threat mod-

eling and risk assessment in IoT systems. Internet of

Things, page 13.

Casola, V., De Benedictis, A., Rak, M., and Rios, E. (2016).

Security-by-design in clouds: A security-sla driven

methodology to build secure cloud applications. Pro-

cedia Computer Science, 97:53 – 62. 2nd International

Conference on Cloud Forward: From Distributed to

Complete Computing.

Casola, V., De Benedictis, A., Rak, M., and Salzillo, G.

(2020a). A cloud secdevops methodology: From de-

sign to testing. In International Conference on the

Quality of Information and Communications Technol-

ogy, pages 317–331. Springer, Cham.

Casola, V., De Benedictis, A., Rak, M., and Villano, U.

(2020b). A novel Security-by-Design methodology:

Modeling and assessing security by SLAs with a

quantitative approach. Journal of Systems and Soft-

ware, 163:110537.

D. Waltermire, J.-M. (2018). Transitioning to the Secu-

rity Content Automation Protocol (SCAP) Version 2.

White Paper, NIST.

Dobrovoljc, A., Tr

cek, D., and Likar, B. (2017). Predicting

Exploitations of Information Systems Vulnerabilities

Through Attackers’ Characteristics. 5:13.

Fraunholz, D., Anton, S. D., and Schotten, H. D. Introduc-

ing GAMfIS: A Generic Attacker Model for Informa-

tion Security. page 6.

Group, J. T. F. I. W. (2020). Security and Privacy Controls

for Information Systems and Organizations. NIST.

Kohnfelder, L. and Garg, P. (1999). The threats to our prod-

ucts. Microsoft Interface, Microsoft Corporation, 33.

Marback, A., Do, H., He, K., Kondamarri, S., and Xu, D.

(2013). A threat model-based approach to security

testing. Software: Practice and Experience, 43.

Qualys (2013). SSL Threat Model. https://www.ssllabs.

com/projects/ssl-threat-mode.

Rak, M. (2017). Security assurance of (multi-)cloud ap-

plication with security sla composition. In Au, M.

H. A., Castiglione, A., Choo, K.-K. R., Palmieri, F.,

and Li, K.-C., editors, Green, Pervasive, and Cloud

Computing, pages 786–799, Cham. Springer Interna-

tional Publishing.

Ross, R., McEvilley, M., and Oren, J. C. (2016). Systems

security engineering considerations for a multidisci-

plinary approach in the engineering of trustworthy se-

cure systems.

T. Lodderstedt, M. McGloin, P. H. (2012). OAuth 2.0

Threat Model and Security Considerations draft-ietf-

oauth-v2-threatmodel-08. RFC 6819, RFC Editor.

Williams, J. (2020). OWASP Risk Rating Methodol-

ogy. https://owasp.org/www-community/OWASP

Risk Rating Methodology.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
