Scripted Step-based Visualizations: A Pilot Study

Aleksi Lukkarinen

, Lassi Haaranen

and Lauri Malmi

Aalto University, Department of Computer Science, P.O. Box 15400, FI-00076 Aalto, Finland

Keywords:

Visualization, Client, Server, Messaging.

Abstract:

Software visualization has numerous educational applications that focus on illustrating code, structure, be-

havior, and/or evolution of software. However, there are few available solutions that (1) illustrate arbitrary

high-level concepts according to the scripts speciﬁed by the instructor and (2) can be easily integrated into

various existing learning materials. To evaluate the feasibility of such a tool, we developed a proof-of-concept

system that can be used as a part of many web-based course materials and that is supported by Acos content

server. As a pilot study, we introduced the tool in an introductory web development course to visualize mes-

saging between clients and servers. We analyzed the usage log data and student questionnaire data and the

results were mostly positive, which prompts for further research on the subject.

1 INTRODUCTION

Software visualization is a broad research area that

aims to develop useful visual presentations of, for in-

stance, program code, structure, behavior, and evo-

lution of computer software. Many applications of

software visualization are targeted to professional

software developers and system administrators who

seek to investigate and visualize both statistics of

large-scale software projects and relationships be-

tween their parts. On the other hand, educational soft-

ware visualization has been actively researched in the

ﬁelds of program visualization and algorithm visu-

alization, where the applications are mainly targeted

for introductory courses in programming, data struc-

tures, and algorithms. These are highly important tar-

get areas; however, computer science also deals with

higher-level abstract concepts presented with many

other types of visualizations, such as various process

diagrams and Uniﬁed Modeling Language diagrams.

Such diagrams are often static, and they are typically

created and manipulated with generic drawing tools

or tools that support certain speciﬁc diagram types.

In this paper, we explore this more abstract domain

for dynamic computer science visualizations.

We formulate our research goal as follows: We

seek to develop a free and open-source software plat-

form that empowers teachers to create visualizations

https://orcid.org/0000-0002-3827-6243

https://orcid.org/0000-0002-6500-6425

https://orcid.org/0000-0003-1064-796X

of arbitrary high-level concepts in computing educa-

tion, such that

• have interactive elements based on

teacher-made scripts

• are easily integrable into web pages and

learning management systems

• enable logging of students’ activities

• are shareable between colleagues

• are versionable using regular

version control systems

• can be created with a relatively low

learning curve, and

• can be augmented and tailored to

speciﬁc use cases.

According to the above goal, we developed a pi-

lot application for a web development course: An

interactive widget that visualizes messaging and the

related processes between an Internet browser and

a web server. In this paper, we present our visualiza-

tion platform and discuss the teacher’s point of view

in using it—the advantages that the platform offers for

creating novel interactive learning content. To sup-

port our proof-of-concept, we also present the results

of a small pilot evaluation study, where we posed the

following research questions:

RQ 1. How do students use the visualizations?

RQ 2. How do students experience

the visualizations?

The rest of this paper is structured as follows: In

Section 2, we discuss work related to our visualization

240

Lukkarinen, A., Haaranen, L. and Malmi, L.

Scripted Step-based Visualizations: A Pilot Study.

DOI: 10.5220/0010454502400247

In Proceedings of the 13th International Conference on Computer Supported Education (CSEDU 2021) - Volume 2, pages 240-247

ISBN: 978-989-758-502-9

platform. We continue by discussing the platform and

its usage in Section 3 as well as presenting the eval-

uation study and answering our research questions in

Section 4. Finally, we conclude our work and present

ideas for future work in Section 5.

2 RELATED WORK

In this section, we discuss related research and multi-

ple existing software tools and contrast them with the

set of requirements given in the Introduction.

Computer science education has a long tradition

of using visualizations to clarify concepts and ideas

for students: A well-known example of early edu-

cational applications of software visualization—turtle

graphics and physical robots drawing with pens Pa-

pert (1980)—takes us back to the end of the 1960s.

Typical educational applications of software visu-

alization include illustrating data structures as well as

executing individual algorithms or entire programs,

for instance, line-by-line, by the logical step, or as

a whole (e.g., Shaffer et al., 2010; Sorva et al., 2013).

Most of these solutions have been developed espe-

cially as specialized visualizations, but often other ap-

proaches are used for software visualization purposes,

as well. Such approaches include (1) various static

diagrams (e.g., ﬂow, entity-relationship, and those of

Uniﬁed Modeling Language), (2) charts (bar, line,

pie, etc.) for statistical information of the software,

(3) graphs for relationships, as well as (4) different

forms of animations with varying options for interact-

ing with the visualization. Three-dimensional models

and virtual reality have been researched, as well (e.g.,

Averbukh et al., 2019; Milne and Rowe, 2004).

General-purpose Visualizations. Whereas the

above software usually targets a single speciﬁc use

case, our visualization platform is not tailored for

any speciﬁc domain. Rather, it is a general-level

solution for creating visualizations for the Internet

browser. Obviously, many other more or less similar

approaches are available. Probably the most primitive

option would be to code a visualization as a series

of Hypertext Markup Language (HTML) pages and

related resources. Graphics could be static images,

animated image ﬁles,

and video ﬁles. Furthermore,

JavaScript libraries

can be used to create animation

and dynamic visualizations directly to web pages. Vi-

Examples: Graphics Interchange Format (GIF), Ani-

mated Portable Network Graphics (APNG), WEBP, and Free

Lossless Image Format (FLIF).

Examples: General-purpose libraries, such as jQuery

and Anime.js, as well as more specialized ones, such as

Chart.js and D3.js.

sualizations as animated images and videos can be

created and converted to suitable formats with regu-

lar graphics applications and video editors.

Developing visualizations by coding the necessary

infrastructure from scratch or by tapping into exist-

ing libraries, however, requires signiﬁcant effort: One

must learn the necessary technologies and then apply

them, which takes time, might be tedious, or might

not even be worth the effort. An alternative option

is to exploit technologies that have been designed

for authoring learning material. Unfortunately, sev-

eral solutions, which supported Internet browsers and

were popular in the past, have become obsolete

dur-

ing the recent years, partly due to emerging newer

technologies, such as HTML5. Still, many other op-

tions are available.

One possibility for delivering visualizations that

have low interaction would be to create slideshows us-

ing conventional presentation graphics applications,

such as Google Slides, LibreOfﬁce Impress, Microsoft

PowerPoint, and Apple Keynote. The native ﬁle for-

mats of these applications—or, for instance, Portable

Document Format conversions of the slide sets—can

be linked on web pages to be downloaded and viewed

outside the Internet browser. Furthermore, Power-

Point for Microsoft Windows allows exporting pre-

sentations to both video ﬁles and animated Graphics

Interchange Format ﬁles, that can be made available

in a similar fashion.

Presentations can also be embedded to web pages.

For instance, the cloud version of PowerPoint enables

users to generate HTML chunks for embedding pre-

sentations to web pages in IFRAME elements. In ad-

dition, lightweight solutions, such as WebSlides, ex-

ist to aid creating slideshows by manual coding, and

slide sets can be shared via (social) sharing platforms,

such as Scribd, SlideShare, SlideServe, and Speaker

Deck. For embedding videos, (social) video sharing

platforms, such as Google YouTube and Vimeo, might

also be helpful.

The above kinds of presentation graphics appli-

cations are available for most educators, but it might

be impossible or impractical to customize the results,

for instance, to implement a detailed usage logging

facility for collecting learning analytics about stu-

dents’ usage of the generated dynamic learning re-

sources. In addition, many of these tools are com-

Examples of obsolete authoring technologies: Adobe

(FutureWave/Macromedia) Flash (Adobe Inc., 2021),

Adobe (Macromedia) Shockwave (Adobe Inc., 2019), Mi-

crosoft ActiveX (in Internet Explorer 11, e.g., Microsoft

Corporation, 2021a), Microsoft Silverlight (Microsoft Cor-

poration, 2021b), Oracle (Sun) Java Applets (Oracle Corpo-

ration, 2020), and SumTotal Systems (Asymetrix) Toolbook

(e.g., SumTotal Systems, LLC, 2021).

Scripted Step-based Visualizations: A Pilot Study

241

mercial whereas, in some contexts, using commercial

solutions can be out of the question due to reasons

such as principles, legislation, or a lack of funding.

A more advanced option for non-specialized vi-

sualization tools is using various eLearning author-

ing solutions.

They can enable creating non-linear

course materials with multiple exercise types to be

transferred to various learning management systems.

The results often resemble slideshows or videos but

are more interactive than conventional slide decks.

However, also these solutions carry the above com-

plications, including the time and effort necessary to

learn the tool itself. In addition, they can be more ex-

pensive than their simpler alternatives, which is why

free and open-source options might be preferred.

Protocol Visualizations. Whereas our visualization

platform is not tailored for any subject area, we pi-

loted it in a case study concerned with visualizing the

concept of communication between web browsers and

web servers. Tools that visualize protocols at a simi-

lar abstraction level than the visualizations in our pi-

lot study include NetPrIDE (Crescenzi et al., 2005)

for network protocols and GRASP (Schweitzer et al.,

2006; Schweitzer and Brown, 2007) for security pro-

tocols. In addition, there are numerous professional-

level network analysis and visualization tools (e.g.,

Awodele et al., 2015; Fuentes and Kar, 2005; Hall

et al., 2003) that, unfortunately, do not lend them-

selves well for illustrating high-level concepts for

novices due to their complexity as well as different

design goals and features.

Crescenzi and Innocenti (2002) have suggested

a taxonomy speciﬁcally focused on tools for visual-

izing network protocols. However, as our need for vi-

sualizations is of more general nature instead of spe-

cializing (and being limited), for instance, to network

protocol visualization, considering it using a special-

ized taxonomy, such as the above one, as well as com-

paring the tool itself to other network protocol visual-

ization tools, is of little use.

Scriptable Visualizations. For our visualization plat-

form, teachers create the visualizations as textual

scripts (more of this in the next section) to ﬁt their

own teaching materials. Hundhausen and Douglas

(2000) provide a differing example, in which, to in-

crease the level of student engagement, students cre-

ate scripts for low-ﬁdelity visualizations themselves

using the authors’ ALVIS system and SALSA lan-

guage. An obvious third possibility would be the

scripts to be created by some third party, such as an

Internet-based community or an external supplier of

the visualization system.

Examples: Adobe Captivate, Articulate Storyline 360,

Lectora, and iSpring Suite.

Another example of scriptability could be the pre-

sentation ﬁle formats based on Extensible Markup

Language (XML). Even though the .pptx ﬁles of

PowerPoint are binary packages, they contain XML

ﬁles that can be generated manually or programmati-

cally to realize visualizations. However, binary pack-

ages, such as PowerPoint’s native ﬁles, are not ideal

to be stored into version control systems. Moreover, it

can be tedious to learn the details of PresentationML

(Microsoft Corporation, 2017) as well as to produce

it and the binary packages manually. Finally, this spe-

ciﬁc format obviously enables the creation of Power-

Point presentations only.

Learning Objects. The visualizations realized by

using our platform can be thought as learning ob-

jects (LO). Standards and other speciﬁcations exist for

many aspects related to LOs. For instance, LOs can

be described based on the Learning Object Metadata

standard (IEEE Computer Society, 2020), and com-

munication between clients and servers could exploit

speciﬁcations such as Shareable Content Object Ref-

erence Model (Advanced Distributed Learning Initia-

tive, 2009) and Learning Tools Interoperability (IMS

Global Learning Consortium, 2021). However, our

platform is intended to exist inside learning objects

as a part that enables creating them, and such higher-

level speciﬁcations are not of primary relevance here.

3 THE PLATFORM

Our visualization platform, currently dubbed as

CSMV for Client-Server Messaging Visualizer, is

based on scripts that 1) describe the content of the

visualization exactly as it will be presented and 2) are

used to conﬁgure the platform. As mentioned earlier,

for our platform, the scripts are tailored by the instruc-

tor to ﬁt their own teaching materials.

A second characteristic of CSMV is that the visu-

alizations are divided into static steps, between which

the student can move one at a time. This allows them

to explore the animation on their own pace and back-

track, if needed, to understand some steps better. Con-

tinuous animation from the beginning to the end with-

out interaction between the visualization and the stu-

dent was not considered important in this phase and is

not currently supported.

As the idea of CSMV is not to facilitate visualiz-

ing “data” in the sense of measurements from simu-

lations or the real world, applying a data-based ref-

erence model (e.g., Aaltonen and Lehikoinen, 2005;

Brodlie and Mohd Noor, 2007; Chi, 2000; Maletic

et al., 2002; Schulz et al., 2016) is not beneﬁcial in

general. However, to position CSMV with other visu-

CSEDU 2021 - 13th International Conference on Computer Supported Education

242

Can I please GET a resource?

GET / HTTP/1.1

Host: some.server.com

...

Simplied GET request

Please use the buttons below to browse through the steps of communication.

Beginning

Back

Forward

Browser

Web Server

Step 2/4

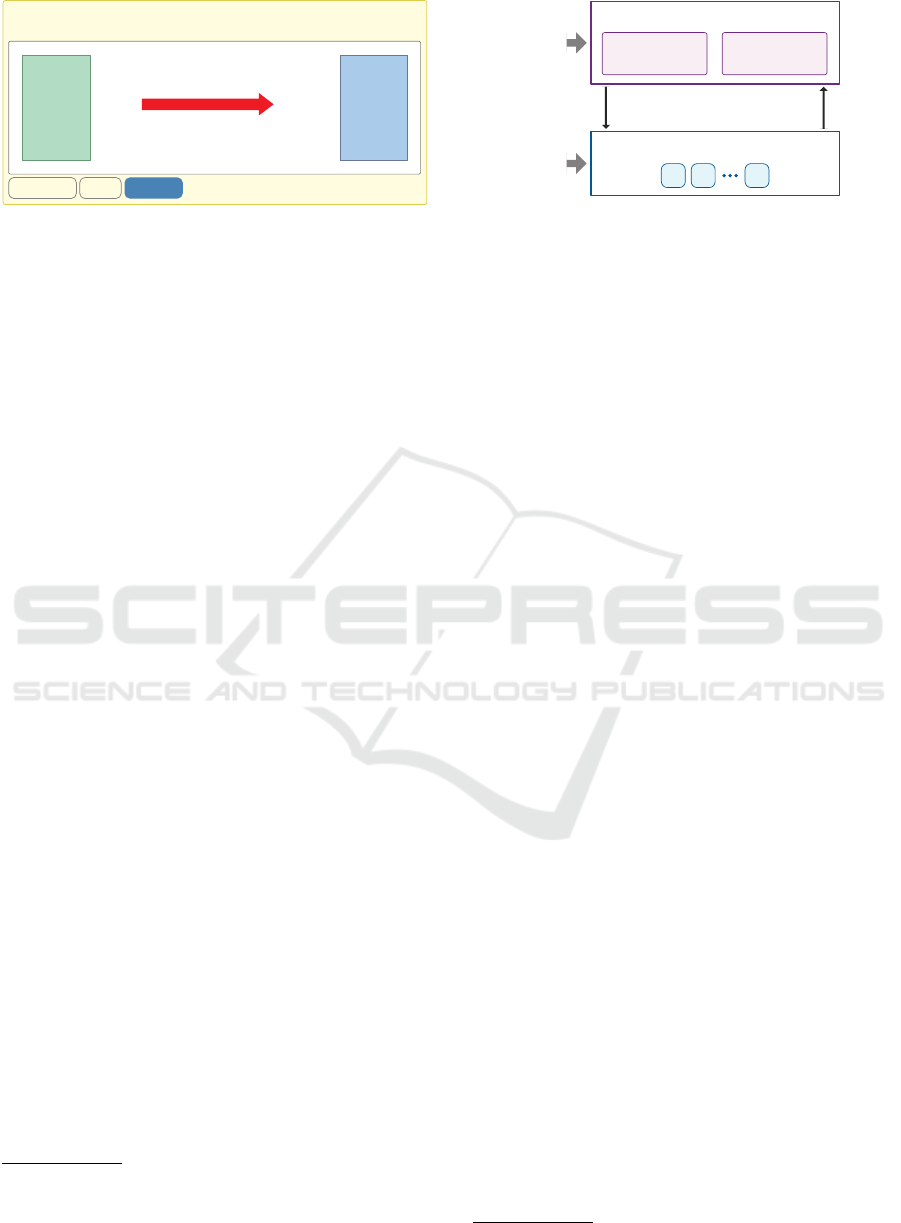

Figure 1: An example of a visualization step.

alization solutions, we can consider it, for instance, in

terms of the model of Maletic et al. (2002). From it,

we only need the two ﬁnal phases. The instructor pre-

pares the Visual Structures (conﬁgured in the script)

and the user transforms the Views by moving between

the steps of the visualization.

We implemented CSMV to work in a modern In-

ternet browser.

Figure 1 presents the user interface

created by the visualization platform while a step of

a visualization is being displayed. One web page can

have several of them, each independent with their own

visualization. One can add the platform to a web page

by (1) including the necessary JavaScript and Cascad-

ing Style Sheet ﬁles as well as (2) adding an anno-

tated DIV element for each visualization on the page

as placeholders for their user interfaces.

The essential high-level architecture of CSMV is

presented in Figure 2 below. The User Interface (UI)

consists of the Visualization Content and the related

controls, the latter of which are buttons for browsing

the visualization. The UI is backed by JavaScript code

that includes a Model—a state machine that contains,

among other things, instructions for visualizing indi-

vidual steps (S

, S

, . . . S

) of the visualization and up-

dates the UI based on user’s input. When a web page

that uses CSMV is loaded into a web browser, CSMV

reads the provided conﬁguration, ﬁnds the DIV ele-

ments that correspond the conﬁgured visualizations,

and initializes both the UI and the Model for each vi-

sualization.

From the instructor’s point of view, creating visu-

alizations is relatively straightforward since they are

deﬁned as simple JavaScript ﬁles that set a value of

one variable (see Listing 1 below). This value is a list

of setting blocks—one for each visualization on an

HTML page. For each visualization, there are essen-

tially three types of information: general settings, ac-

tors (such as text, code, and images) to be used in the

visualization, and steps that contain instructions for

The development language is EcmaScript 6 that is tran-

spiled into EcmaScript 5 by using Babel. Of third-party

run-time libraries, CSMV uses jQuery. The build process is

automatized with Gulp.

User Interface

User's

Commands

Update Requests UI Updates

Initialization

Data

Model

Controls

Visualization

Content

Figure 2: The essential architecture of CSMV.

using those actors.

After initial planning, the instructor deﬁnes both

the actors and the steps that form the visualization.

For actors, there are a few conﬁgurable presets, such

as the Browser and Web Server boxes visible in Fig-

ure 1 above. In addition, actors containing text and

graphics can be deﬁned as chunks of unrestricted

HTML code. The visualization sequence is then com-

posed step-by-step by applying available operations

to the actor deﬁnitions. At the moment, three actor

operations are available: hiding and showing them as

well as setting their positions in terms of absolute co-

ordinates. In the lack of a visualization editor, all of

this is manual work. One can ease it a little by using

the provided debugging settings for displaying bor-

ders of actors and ignoring visibility.

docu m e nt . C SM e sVi s Set u pD a t a = [

{

name : "" ,

title : " " ,

des c ript i on : " " ,

debug : {} ,

// Contro l size , butto n s , etc .:

env i ronm e nt : {} ,

// Actors in the visu a l iza t ion :

actors : [] ,

// In s t ruc t i ons for the actors :

steps : [] ,

{ · · · } , // next vis u ali z a ti o n

];

Listing 1: A conﬁguration ﬁle stub of CSMV.

Due to the multiple learning protocols available

in Acos content server

(Sirkiä and Haaranen, 2017),

embedding the visualizations to the learning material

itself is typically straightforward. Whether using LTI

or some of the more university-speciﬁc protocols, the

visualizations can be reused in different courses or re-

peated within a single course. Finally, because the

visualization objects and steps are JavaScript entities,

See: https://github.com/acos-server/acos-server

Scripted Step-based Visualizations: A Pilot Study

243

it is possible to implement customized functionality.

For example, clicking a particular object could affect

the visualization in some way, such as by skipping

certain steps or by launching a questionnaire.

4 THE PILOT STUDY

To evaluate the feasibility of the scripted step-based

visualizations and the visualization platform CSMV

(Section 3), we piloted them during Spring 2020 on

an introductory course in web application develop-

ment. The course is an open online course targeted

mainly for adult learners interested in web develop-

ment. Experience in programming is not required

and, in general, the course is built with life-long learn-

ing in mind.

127 students enrolled on this course

implementation, including high-school students, pro-

fessionals with jobs related to web development, and

people who intend to change career.

Learning goals of the above course include the

following: (1) Basic principles of web pages using

Hyper-Text Markup Language and Cascading Style

Sheets. (2) Event-driven programming in Internet

browsers using JavaScript. (3) Client-server model

in web development with Hyper-Text Transfer Proto-

col (HTTP) as well as Asynchronous JavaScript and

XML (AJAX). (4) Simple server-side applications us-

ing NodeJS.

Study Arrangements. The course had eight rounds

of content and exercises, of which two contained our

visualizations. At the beginning of the reading ma-

terial for the ﬁfth round was a visualization called

Simple Get, and at the end of the material there was

a more elaborated Detailed Get visualization. At the

beginning of round seven, the Simple Get was pre-

sented again as a recapitulation, after which the third

visualization—Simple

JAX

—was shown.

Simple Get visualization had four steps and illus-

trated a request–response pair when a client requests

the default web page from a web server using HTTP

(Figure 1). Detailed Get had essentially the same con-

tent but also included an additional step to explain the

processing of the request on the web server. Simple

JAX

had eight steps and continued from Simple Get

by visualizing an AJAX call triggered by a pressed

button on the downloaded web page.

We used Acos content server (Sirkiä and Haara-

nen, 2017) to host the client-side ﬁles and store the

usage logs. The logging facility recorded the events

generated by CSMV, so that we were able to examine

For the regular students of our university, we provide

a more extensive course in web application development.

the presses of the movement buttons in the user in-

terface of CSMV. From the logged sessions, we had

to ﬁlter out the valid ones—those that were inside

the ofﬁcial availability times of the rounds,

were

not empty, and contained events for movement but-

ton presses in addition to, for instance, other clicks as

well as window focuses and blurs.

Usage of the Visualizations. Our ﬁrst research ques-

tion concerned the usage of the visualizations we in-

corporated to the above target course, and our results

are based on analyzing the usage logs of the visualiza-

tions. This is useful, for instance, to discover whether

visualizations are viewed in full and if students review

the material later, as well as to assess the attentive-

ness of the students, as in an earlier study of Sirkiä

and Sorva (2015).

To start with, for Simple Get we found 59 valid

sessions. The shortest ones were approximately 5 sec-

onds and contained only one button press. For the

second and third step, the step-speciﬁc average dura-

tion was about seven seconds. In 34 sessions (58 %),

the visualization was watched from the beginning to

the end exactly once, and in 5 sessions (8 %) exactly

twice. Two sessions (3 %) contained essentially three

passes over the visualization, and the other sessions

were some variations of going backwards and for-

wards. The realized step transition sequences varied

between 2 and 16 steps in length. In eleven sessions

(19 %), the student went back from the third step after

they ﬁrst arrived in it.

Next, Detailed Get was associated with 69 valid

sessions starting from 10 seconds. The step-speciﬁc

average length of the three middle steps was about

twelve seconds. In 55 sessions (80 %), the visu-

alization was watched once, and the other sessions

contained variations of going back and forth. The

length of the step transition sequences varied from

4 to 13 steps.

Finally, 65 valid sessions were recorded for Sim-

ple

JAX

—the longest of the visualizations with

8 steps. Here the session durations increased from

approximately 8 seconds upwards. The average step-

speciﬁc duration of the six middle steps was slightly

over three seconds. 32 sessions (49 %) represented

watching the visualization exactly once and 2 sessions

exactly twice. Interestingly, in 18 sessions (28 %) the

user did not proceed beyond the ﬁfth step, which was

the ﬁrst of the additional content compared to Simple

Get. The rest of the sequences varied in step order.

The rounds had deadlines, after which the content was

still browsable but no exercise points were given anymore.

Thus, most students viewed the visualization during the

time the round was ofﬁcially active.

CSEDU 2021 - 13th International Conference on Computer Supported Education

244

The above results demonstrate some simple possi-

bilities for learning analytics that the platform will en-

able. However, this was a pilot study to test our frame-

work as a proof-of-concept, and the available data

logging had still restrictions for the analysis. First

of them was that user identiﬁers were not recorded,

which made us unable to relate sessions to each in-

dividual user and analyze the behavior of individual

users over session boundaries. These limitations are

currently being resolved and more complete logging

will be carried out during the next spring implemen-

tation of the course.

Another limitation was the lack of specifying the

beginning and ending states in the visualizations. The

ﬁrst step in our visualizations was automatically vis-

ible after the web page was loaded (i.e., the user did

not have to indicate the moment they started to use the

visualization), so we were unable to measure the ac-

tual time used for those steps. Similarly, as the last

steps were the ﬁnal steps of the visualizations, we

were not able to identify the moments the users ceased

using the visualizations. Consequently, the total time

used for the visualizations could not be reliably mea-

sured. Furthermore, while we were able to measure

the duration of the middle steps, we obviously can-

not know what the user has really been thinking and

doing during that time (they might not have been re-

ally studying at all). In our analysis, we limited the

session duration to 700 seconds (11

min). For each

visualization, several sessions were longer than that.

Student Feedback. In our second research ques-

tion, we were interested in what the students think

about the visualizations, and we answer it based on

an end-of-course survey. Out of the 127 enrolled

students, 43 (34 %) both gave a research consent

and answered the survey question regarding CSMV.

We gathered feedback with a seven-point Likert scale

(from strongly disagree to strongly agree, with a neu-

tral option) with the statement “I found the client-

server visualizations useful for my learning.” 35 stu-

dents agreed with the presented statement on some

level: 25 agreed or strongly agreed and 10 students

somewhat agreed. Seven students chose the neutral

option, and only one disagreed with the statement

with somewhat disagree option.

We also solicited open feedback regarding CSMV

with “Is there something else you’d like to say about

the client-server visualizations?” To this question,

we received 12 answers. One of these we categorized

as negative (“I struggled with these a bit”), seven as

neutral (e.g., “Concept is good but I didn’t beneﬁt

from it that much”), and four as positive (e.g., “These

were helpful for more abstract topics”).

5 DISCUSSION

In this paper, we have described a visualization plat-

form, CSMV, that was developed according to the

research goal that we presented in the Introduction

earlier. As a general-purpose platform, it allows the

teacher to visualize a wide variety of subjects (e.g.,

network protocols). The teachers create visualizations

as textual scripts, after which they can easily exploit

them in learning management systems that allow the

usage of web pages that integrate custom JavaScript

and Cascading Style Sheets. For learning analytics,

CSMV supports logging of students’ activities, and is

also open-source

—free to be used and customized.

To evaluate CSMV, we also described a pilot

study in the context of visualizing messaging between

clients and servers. Our results from the study show

that from a technical perspective, CSMV functions as

expected. A minor shortcoming concerned logging

the durations of the ﬁrst and the last steps—this is

ﬁxed by simply adding a “starting” step and a “com-

pleted” step.

Pilot Study. Our research questions were concerned

with both how the visualizations in our pilot were

used and what the students thought about them. Re-

garding the ﬁrst question, the analysis of the log data

conﬁrms that the course participants actually used the

visualizations. Moreover, the average step viewing

time strongly suggests that they considered the steps

separately, reading the available content, instead of

just clicking through all steps quickly. Each interme-

diate step included a short text to read, and some steps

included a brief JavaScript code snippet.

Based on this pilot study, we found conﬁrma-

tion that the visualizations are explored by students.

Furthermore, our end-of-course survey related to the

second question provided mostly positive feedback,

even if the visualization content was only used in two

rounds during the course.

What is particularly encouraging is that some of

the students not only viewed the steps once in a se-

quence but also went back and forth in the visualiza-

tions. This seems to indicate that especially these stu-

dents were actively engaged with the material instead

of just “skimming it through.” As Detailed Get vi-

sualization was only a slightly modiﬁed derivation of

Simple Get, it was to be expected that a larger number

of sessions (80 % compared to 58 %) contained only

a single pass-through of the visualization.

On the next implementation of the course during

Spring 2021, we will carry out a more comprehensive

study about the potential learning gains with our vi-

See: https://github.com/aleksi-lukkarinen/Client-

Server-Messaging-Visualizer

Scripted Step-based Visualizations: A Pilot Study

245

sualizations and the platform. Then, we are able to

combine the visualization log data with other course

performance data (e.g., weekly exercise points) and

investigate the actual learning gains.

Rich Learning Content. The type of visualization

that interacts with the student is what Brusilovsky

et al. (2014) call smart learning content (SLC). Their

three-dimensional classiﬁcation of SLC systems, as

well as the position of CSMV in it, is illustrated in Fig-

ure 3. As CSMV accepts only pre-speciﬁed input in

the form of button presses to switch from step to step,

it is in the unintelligent end of the Input dimension.

Similarly, CSMV produces generic output, that is, the

same input produces the same output for all students;

this positions it to the unintelligent end of the Out-

put dimension. The characteristic that makes CSMV

“smart” in terms of this classiﬁcation is that the pro-

cess to produce the output is—in its all simplicity—

fully computational: Our scripts are self-sufﬁcient,

so while students study the visualizations, the un-

derlying scripts can be executed by the visualization

platform without any third-party intervention. Thus,

CSMV is located in the “intelligent” end of the Pro-

cess dimension.

The idea of scripts and steps might affect student

engagement with CSMV. For instance, Sorva et al.

(2013) suggested a two-dimensional engagement tax-

onomy (DET) that constructs its ﬁrst dimension on

the basis of both an earlier taxonomy by Naps et al.

(2002) and its extension by Myller et al. (2009). In its

ﬁrst dimension, Direct Engagement, CSMV currently

enables achieving the third level: Controlled View-

ing. In it, students can change the view—in this case,

move between the steps—but more advanced activity

(Responding, Applying, Presenting, Creating) is not

supported yet. However, a simple extension would

pre-specified free-form

generic customized

fully com-

putational

non-com-

putational

INPUT

PROCESS

OUTPUT

OUR

PLATFORM

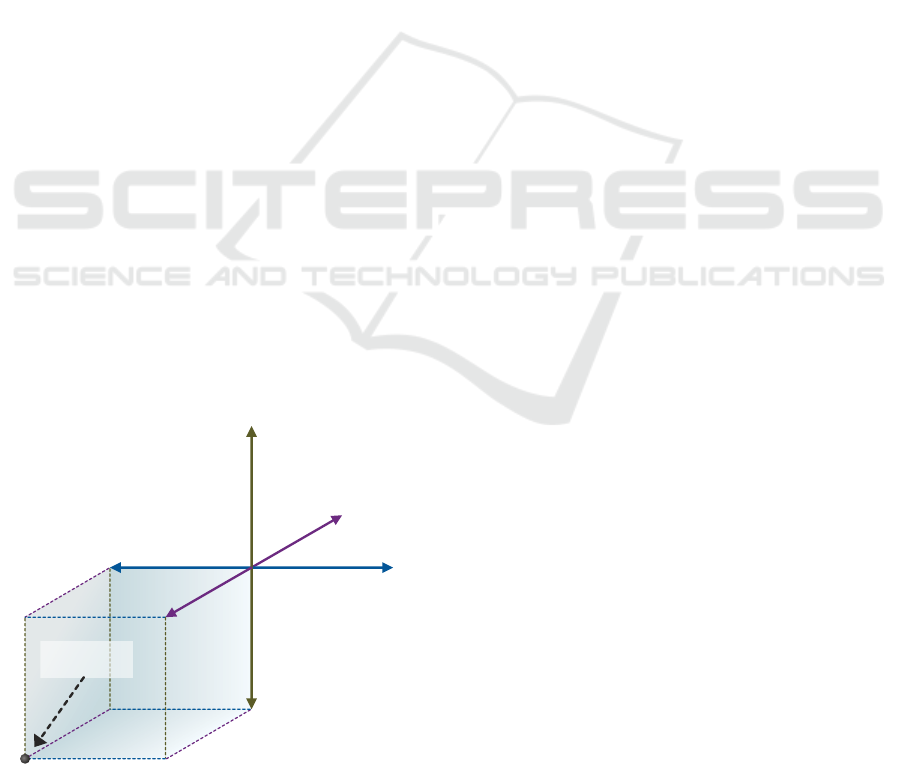

Figure 3: The position of CSMV in the smart learning con-

tent classiﬁcation system of Brusilovsky et al. (2014).

be to include, for instance, multiple choice questions

between some steps, which would correspond to Re-

sponding level. The second dimension of DET is

about Content Ownership with the expectation that

a greater feeling of ownership increases caring and

thus the engagement. As CSMV, by design, delivers

only Given Content (the ﬁrst level), it cannot reach

the three higher levels (Own Cases, Modiﬁed Content,

and Own Content) in this dimension.

Future Work. We intend to continue development

and research with CSMV. We are developing a more

comprehensive and overarching logging to overcome

the limitations with the logging in our pilot study. Af-

ter that, there are many directions to take CSMV. They

include (1) integrating various exercise types to vi-

sualizations; (2) actions for elements, including vari-

ables and conditions; (3) non-linear scripts; (4) step

and actor templates; (5) reusing steps; (6) deﬁning

actors using Scalable Vector Graphics; and (7) adding

better animation capabilities.

In the future, we can study student engagement

more closely, which could be supported by increas-

ing the level of interactivity between the students and

the visualization. Of the above directions of devel-

opment, the exercises, actions, and non-linear scripts

have the potential to affect positively in this respect.

Also, using more elegant visuals and animating them

might have the same effect. Furthermore, it would

be of interest to understand more thoroughly how stu-

dents use the visualizations to create proﬁles of typ-

ical usage. This information could be related with

students’ learning gains, which could be measured in

terms of performance in added multiple choice ques-

tions and coding exercises incorporated into the corre-

sponding rounds. The results could aid in further de-

velopment of CSMV as well as in predicting students’

success and identifying their points of struggle.

REFERENCES

Aaltonen, A. and Lehikoinen, J. (2005). Reﬁning visual-

ization reference model for context information. Pers

Ubiquit Comput, 9(6):381–394.

Adobe Inc. (2019). End of Life (EOL) for Adobe Shock-

wave. https://helpx.adobe.com/shockwave

/shockwave-end-of-life-faq.html;

Accessed: Feb. 16, 2021.

Adobe Inc. (2021). Adobe Flash Player End of Life.

https://www.adobe.com/products/ﬂashplayer/end-of-

life.html; Accessed: Feb. 16, 2021.

Advanced Distributed Learning Initiative (2009). SCORM

2004 4th Edition. https://adlnet.gov/projects/scorm-

2004-4th-edition/; Accessed: Feb. 16, 2021.

CSEDU 2021 - 13th International Conference on Computer Supported Education

246

Averbukh, V., Averbukh, N., Vasev, P., Gvozdarev, I., et al.

(2019). Metaphors for Software Visualization Sys-

tems Based on Virtual Reality, AVR 2019. In De Pao-

lis, L. T. and Bourdot, P., editors, Augmented Real-

ity, Virtual Reality, and Computer Graphics, LNCS,

vol. 11613, pages 60–70, Cham, Zug, CH. Springer

International Publishing.

Awodele, O., Oluwabukola, O., Ogbonna, C., and Ajayi, A.

(2015). Packet Sniffer—A Comparative Characteris-

tic Evaluation Study. In Proc InSITE, pages 91–100,

Santa Rosa, CA, USA. Informing Science Institute.

Brodlie, K. W. and Mohd Noor, N. F. (2007). Visualiza-

tion Notations, Models and Taxonomies. In Lim, I. S.

and Duce, D., editors, Theory and Practice of Com-

puter Graphics 2007, Eurographics UK Chapter Proc,

pages 207–212, Goslar, DE. Eurographics Assoc.

Brusilovsky, P., Edwards, S., Kumar, A., Malmi, L., et al.

(2014). Increasing Adoption of Smart Learning Con-

tent for Computer Science Education. In Proc ITiCSE-

WGR, pages 31–57, New York, NY, USA. ACM.

Chi, E. H.-H. (2000). A Taxonomy of Visualization Tech-

niques Using the Data State Reference Model. In Proc

INFOVIS, pages 69–75, Piscataway, NJ, USA. IEEE.

Crescenzi, P., Gambosi, G., and Innocenti, G. (2005). Net-

PrIDE: An Integrated Environment for Developing

and Visualizing Computer Network Prot. In Proc 10th

ITiCSE, page 306–310, New York, NY, USA. ACM.

Crescenzi, P. and Innocenti, G. (2002). Towards a Taxono-

my of Network Protocol Visualization Tools. In Diehl,

S., editor, Software Visualization, LNCS, vol. 2269,

pages 241–255, Berlin, Heidelberg, DE. Springer

Berlin Heidelberg.

Fuentes, F. and Kar, D. C. (2005). Ethereal vs. Tcpdump: A

Comparative Study on Packet Snifﬁng Tools for Edu-

cational Purpose. J Comput Sci Coll, 20(4):169–176.

Hall, J., Moore, A., Pratt, I., and Leslie, I. (2003). Multi-

Protocol Visualization: A Tool Demonstr. In Proc Mo-

MeTools, pages 13–22, New York, NY, USA. ACM.

Hundhausen, C. and Douglas, S. A. (2000). SALSA and

ALVIS: A Language and System for Constructing and

Presenting Low Fidelity Algorithm Visualiz. In Proc

IEEE VL, pages 67–68, Piscataway, NJ, USA. IEEE.

IEEE Computer Society (2020). IEEE Standard for Learn-

ing Object Metadata (1484.12.1-2020). Standard,

IEEE, New York, NY, USA.

IMS Global Learning Consortium (2021). Learning Tools

Interoperability. https://www.imsglobal.org/activity

/learning-tools-interoperability; Accessed:

Feb. 16, 2021.

Maletic, J. I., Marcus, A., and Collard, M. L. (2002). A Task

Oriented View of Software Visualization. In Proc 1st

VISSOFT, pages 32–40, Piscataway, NJ, USA. IEEE.

Microsoft Corporation (2017). Welcome to the Open XML

SDK 2.5 for Ofﬁce | Microsoft Docs. https://docs

.microsoft.com/en-us/ofﬁce/open-xml/open-xml-sdk;

Accessed: Feb. 16, 2021.

Microsoft Corporation (2021a). Lifecycle FAQ - Internet

Explorer and Microsoft Edge - Microsoft Lifecycle |

Microsoft Docs. https://docs.microsoft.com/en-us

/lifecycle/faq/internet-explorer-microsoft-edge;

Accessed: Feb. 16, 2021.

Microsoft Corporation (2021b). Silverlight End of Support.

https://support.microsoft.com/en-us/windows

/silverlight-end-of-support-0a3be3c7-bead-e203-

2dfd-74f0a64f1788; Accessed: Feb. 16, 2021.

Milne, I. and Rowe, G. (2004). OGRE: Three-Dimensional

Program Visualization for Novice Programmers. Educ

Inform Tech, 9(3):219–237.

Myller, N., Bednarik, R., Sutinen, E., and Ben-Ari, M.

(2009). Extending the Engagement Taxonomy: Soft-

ware Visualization and Collaborative Learning. ACM

Trans Comput Educ, 9(1):Article 7.

Naps, T. L., Rößling, G., Almstrum, V., Dann, W., et al.

(2002). Exploring the Role of Visualization and En-

gagement in Computer Science Educ. In Proc ITiCSE-

WGR, pages 131–152, New York, NY, USA. ACM.

Oracle Corporation (2020). Java SE Support Roadmap.

https://www.oracle.com/java/technologies/java-se-

support-roadmap.html; Accessed: Feb. 16, 2021.

Papert, S. (1980). Mindstorms: Children, Computers, and

Powerful Ideas. Basic Books, Inc., New York, NY,

USA. https://mindstorms.media.mit.edu/; Accessed:

Feb. 16, 2021.

Schulz, H.-J., Angelini, M., Santucci, G., and Schumann,

H. (2016). An Enhanced Visualization Process Model

for Incremental Visualization. IEEE Trans Vis Comput

Graph, 22(7):1830–1842.

Schweitzer, D., Baird, L., Collins, M., Brown, W., et al.

(2006). GRASP: A Visualization Tool for Teaching

Security Protocols. In Proc 10th CISSE, pages 75–81,

MD, USA. University of Maryland.

Schweitzer, D. and Brown, W. (2007). Interactive Visu-

alization for the Active Learning Classr. In Proc 38th

SIGCSE, pages 208–212, New York, NY, USA. ACM.

Shaffer, C. A., Cooper, M. L., Alon, A. J. D., Akbar, M.,

et al. (2010). Algorithm visualization: The state of

the ﬁeld. ACM Trans Comput Educ, 10(3):Article 9.

Sirkiä, T. and Haaranen, L. (2017). Improving online learn-

ing activity interoperability with Acos server. Softw

Pract Exper, 47(11):1657–1676.

Sirkiä, T. and Sorva, J. (2015). How Do Students Use

Program Visualizations within an Interactive Ebook?

In Proc 11th ICER, pages 179–188, New York, NY,

USA. ACM.

Sorva, J., Karavirta, V., and Malmi, L. (2013). A Review

of Generic Program Visualization Systems for Intro-

ductory Programming Education. ACM Trans Comput

Educ, 13(4):Article 15.

SumTotal Systems, LLC (2021). Toolbook Knowledge

Base: Does Toolbook support Edge?

http://tb.sumtotalsystems.com/KBFiles/kb

/EdgeSupport.html; Accessed: Feb. 16, 2021.

Scripted Step-based Visualizations: A Pilot Study

247
