RT-MongoDB: A NoSQL Database with Differentiated Performance

Remo Andreoli

1,2 a

, Tommaso Cucinotta

1 b

and Dino Pedreschi

2 c

Scuola Superiore Sant’Anna, Pisa, Italy

University of Pisa, Pisa, Italy

Keywords:

Cloud Computing, NoSQL Databases, Real-time Systems.

Abstract:

The advent of Cloud Computing and Big Data brought several changes and innovations in the landscape of

database management systems. Nowadays, a cloud-friendly storage system is required to reliably support data

that is in continuous motion and of previously unthinkable magnitude, while guaranteeing high availability and

optimal performance to thousands of clients. In particular, NoSQL database services are taking momentum

as a key technology thanks to their relaxed requirements with respect to their relational counterparts, that are

not designed to scale massively on distributed systems. Most research papers on performance of cloud storage

systems propose solutions that aim to achieve the highest possible throughput, while neglecting the problem of

controlling the response latency for speciﬁc users or queries. The latter research topic is particularly important

for distributed real-time applications, where task completion is bounded by precise timing constraints.

In this paper, the popular MongoDB NoSQL database software is modiﬁed introducing a per-client/request

prioritization mechanism within the request processing engine, allowing for a better control of the temporal

interference among competing requests with different priorities. Extensive experimentation with synthetic

stress workloads demonstrates that the proposed solution is able to assure differentiated per-client/request

performance in a shared MongoDB instance. Namely, requests with higher priorities achieve reduced and

signiﬁcantly more stable response times, with respect to lower priorities ones. This constitutes a basic but fun-

damental brick in providing assured performance to distributed real-time applications making use of NoSQL

database services.

1 INTRODUCTION

The importance and disruptive capabilities of

Cloud Computing have become increasingly evident

throughout the last decade for the development of

modern web applications. Indeed, it is a technol-

ogy that offers to any-size business organizations the

tremendous beneﬁts of relieving them from the bur-

den of investing into dedicated datacenters. Albeit

a number of studies (Ara et al., 2019; Lettieri et al.,

2017) apply high-performance computing techniques

to distributed and cloud applications for the purpose

of achieving the highest possible performance, only

a few works focus on providing customizable end-to-

end service-level objectives with differentiated QoS

offered to different users/customers. While increas-

ing the overall throughput of a system brings naturally

to a decrease of its average response-time, the trade-

https://orcid.org/0000-0002-3268-4289

https://orcid.org/0000-0002-0362-0657

https://orcid.org/0000-0003-4801-3225

off between throughput and response-time becomes

evident when designing services that need to balance

throughput maximization and quick reaction to asyn-

chronous real-time requests: the former calls for ap-

proaches based on aggregating many requests into big

batches to be processed at once with minimum over-

heads, and the use of long intermediate buffers so that

worker threads minimize their idle times; whilst the

latter requires preemptible short-lived activities that

can be suspended if higher-priority ones arrive, and

the use of small buffers so to minimize the processing

latency of individual requests. Designing distributed

software systems seeking the right balance between

these requirements is all but trivial.

Scenarios that would beneﬁt the most from a de-

sign supporting differentiated per-user/request perfor-

mance are those where highly heterogeneous types of

applications need to submit requests to the same com-

ponent(s). For example, a database system in a cloud

datacenter that needs to serve heavyweight requests

for batch or high-performance applications, alongside

lightweight requests coming from soft real-time appli-

Andreoli, R., Cucinotta, T. and Pedreschi, D.

RT-MongoDB: A NoSQL Database with Differentiated Performance.

DOI: 10.5220/0010452400770086

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 77-86

ISBN: 978-989-758-510-4

cations that need to react promptly to user interaction

or asynchronous conditions, such as on-line gaming

or collaborative editing of documents.

In this paper, focusing on the ﬁeld of storage sys-

tems, the problem is addressed by using the priori-

tized access principle, a trade-off widely adopted in

the design of real-time systems: higher priority activ-

ities are allowed to take resources earlier than lower

priority ones, and sometimes even able to preempt

them by revoking their resource access in the mid-

dle of a task, or to starve them for arbitrarily long

time windows. While the priority-based access tech-

nique by itself may not be enough to achieve pre-

dictable performance, when coupled with strong real-

time design principles and analysis it is possible to

ensure correct operation and sufﬁcient resources to

all hosted real-time activities (Buttazzo et al., 2005).

In this context, NoSQL database services are taking

momentum as a key technology for replicated and in-

ﬁnitely scalable data storage services, thanks to their

often reduced consistency and functionality require-

ments with respect to their relational counterparts.

1.1 Contributions

In this paper, an approach is presented to support

differentiated per-client/request performance in Mon-

goDB, a well-known open-source NoSQL database

widely used in cloud applications. A special API is

introduced to let clients declare their needed service

priority, and modiﬁcations to the MongoDB backend

daemon allow for prioritizing requests with higher

priorities. The result is a set of modiﬁcations to

MongoDB allowing for a differentiated performance

mechanism that creates an on-demand prioritized ac-

cess channel with reduced response times. These

changes integrate well with the internal architecture

of the base software without affecting the expected

performance and reliability capabilities when not in

use. In order to become usable in a production envi-

ronment, the proposed approach has to be completed

with a formal performance analysis and an appropri-

ate multi-user access-control model, which are sub-

jects of future work.

1.2 Paper Organization

This paper is organized as follows. In Section 2,

related work in the research literature is brieﬂy dis-

cussed. In Section 3, a few background concepts

and terminology useful for a better understanding of

the paper are recalled. In Section 4, our proposed

approach to support differentiated per-client/request

performance levels in MongoDB is presented. In Sec-

tion 5, experimental results are discussed, gathered

on a real platform running our modiﬁed MongoDB

on Linux, demonstrating the effectiveness of the ap-

proach in tackling the problem introduced above. Fi-

nally, conclusions are drawn in Section 6, along with a

brief discussion of possible further work on the topic.

2 RELATED WORK

This section includes a summary of the research liter-

ature related to real-time and scalable data stores, and

well-known mechanisms for optimizating their per-

formance in practical cloud deployments.

2.1 Real-time Database Systems

In the research literature, a real-time database system

(RTDBS) (Kao and Garcia-Molina, 1994; Bestavros

et al., 1997; Lindström, 2008) is a data storage and

retrieval system designed in a way that it is possible

to rely on a predictable timing of the operations re-

quested by clients. This in turn enables the possibility

to design real-time applications or services with pre-

cise guarantees regarding their execution times and

their ability to respect their timing constraints, like

deadlines. Research efforts in this area complemented

research on scheduling of processes on the CPU (But-

tazzo et al., 2005; Baruah et al., 2015), with investi-

gations on scheduling of transactions. This is a com-

plex area where different requirements may have to

be considered: from maximization of throughput and

efﬁcient execution vs fairness trade-offs, as generally

required in general-purpose systems, to predictable

execution and prioritization of clients, as needed in

real-time systems. Real-time database systems found

applications in a number of traditional hard real-time

application domains, ranging from mission control

in aerospace to process control in industrial plants,

telecommunication systems and stock trading (Kang

et al., 2007). A number of challenges was typi-

cally due to the high seek latency of traditional ro-

tational disks, a problem either tackled using special

disk access scheduling techniques coupled with suf-

ﬁciently pessimistic analysis techniques, or avoided

using memory-only database systems (Garcia-Molina

and Salem, 1992). In the last decade, the introduc-

tion in industry of SSD drives caused a major shift

of the panorama, getting rid of the high seek latency

problem, albeit predictability is impaired by the often

non-disclosed sector allocation, prefetch and caching

logic within the drive controllers. Another problem

is the presence of dynamic workload conditions, that

pushed towards the adoption of adaptive feedback-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

based scheduling techniques (Amirijoo et al., 2006;

Kang et al., 2007). Unfortunately, the great focus of

real-time database research on hard real-time systems,

and the necessarily pessimistic analysis accompany-

ing their design, causing poor utilization at run-time,

caused these systems to remain of interest only in a

restricted domain area.

2.2 Scalable Real-time Data Stores

Recent developments of highly scalable cloud infras-

tructures, with sophisticated and highly adaptive per-

formance monitoring and control techniques that are

deployed in cloud systems, raised a certain interest

in cloud-hosted database systems also for real-time

applications, particularly soft real-time ones. Here,

the focus on big-data workloads that do not focus

on a single system, coupled with high-performance

and high-reliability requirements forcing the adop-

tion of data sharding and replication techniques,

caused an increasing interest in dropping the typi-

cal feature-richness of relational databases, in favour

of NoSQL architectures (Jing Han et al., 2011; Li

and Manoharan, 2013) that implement essentially re-

liable/replicated distributed hash tables with the abil-

ity to ingest arbitrarily high volumes of data, scaling

at will on several nodes. A commercial database that

is almost unique in this context is DynamoDB

from

AWS, a fully managed 24/7 NoSQL data store for

AWS customers. Its major selling point is the abil-

ity to declare a desired per-table read and write oper-

ations per second, and the system is able to guarantee

these requirements with a per-request latency lower

than 10ms with a high probability.

More recently, in the area of distributed com-

puting in cloud infrastructures, an increasing at-

tention has been given by researchers and indus-

try practitioners to real-time stream processing ser-

vices (Wingerath et al., 2016; Basanta-Val et al.,

2017; Kulkarni et al., 2015). These are services de-

signed for immediate processing of data as it comes

from sources like IoT devices or data stores, in a way

that the computation results are made available with

a short latency from when new data becomes avail-

able. These systems are developed using specialized

platforms on top of which complex analytics perform-

ing continuous queries (Babu and Widom, 2001) can

be realized in the form of arbitrary topology of pro-

cessing functions to be applied to each incoming data

item, distributed throughout the network. Cloud tech-

nologies let these systems scale easily to tens or hun-

dreds of nodes. Often, performance and latency con-

trol is heuristically achieved by applying elastic scal-

See: https://aws.amazon.com/dynamodb/.

ing to individual functions in the topology. A few

works (Theeten et al., 2014; Li et al., 2016) tried to

build empirical performance models of these system,

so to employ more precise control logics for the end-

to-end performance.

2.3 Performance Optimizations

Database practitioners are used to a number of tricks

to ﬁne-tune the conﬁguration of the runtime envi-

ronment to maximize performance (Navrátil et al.,

2020). For example, for databases running on the

Linux operating system (OS), it is typical to drop

the default Ext4 ﬁle-system (FS) used by most dis-

tributions, in favour of faster solutions like XFS

, a

high-performance, scalable ﬁle-system originated on

SGI IRIX. This comes at the very acceptable cost of

losing some ﬂexibility in FS management operations

that may not be needed on production servers (RHE,

2020; Navrátil et al., 2020). Another useful conﬁgu-

ration of servers that need to host memory-intensive

workloads (as needed to host several virtual machines

or database systems), is the one of reserving in the

OS a portion of the main memory to huge pages

This is a hardware mechanism generally available

in modern architectures, that allows for the manage-

ment of memory pages of different sizes, often 2MB

pages (and more rarely also 1GB pages) in addition

to the standard 4KB ones. This allows for decreasing

the pressure on the memory pages descriptor cache,

and it becomes particularly effective when there are

memory-hungry processes that need to allocate big

amounts of RAM, like in the case of KVM processes,

each hosting an entire virtual machine, or database

processes, that need to optimize read performance

by caching large quantities of data in RAM. As a

drawback, huge pages reduce the granularity at which

memory can be allocated and assigned by the OS to

the running processes, thus it is used on big multi-core

servers with plenty of RAM available.

Systems with a Non-Uniform Memory Architec-

ture (NUMA) have a number of nodes, where each

node includes a set of CPUs and a memory controller

with a fastpath switching logic, so that memory from

the same node can be accessed faster than the one

from different nodes. On these systems, it is com-

monplace to conﬁgure the OS and the software so

to deploy a complex software along with most of its

memory pages within the same node, to maximize the

throughput.

More information at: https://www.kernel.org/doc/html/

latest/admin-guide/xfs.html.

More information at: https://www.kernel.org/doc/

Documentation/vm/hugetlbpage.txt.

RT-MongoDB: A NoSQL Database with Differentiated Performance

Traditionally, real-time systems have been using

priorities to distinguish among processes with vari-

ous urgency requirements, and CPU schedulers have

been exposing to the user-space APIs like the standard

nice

mechanism and the setpriority() system call

of POSIX OSes, for use by general-purpose applica-

tions. However, these have been wildly customized

in individual OSes with heuristics that dynamically

catch and prioritize interactive workloads over batch

computations, causing a somewhat unpredictable be-

havior. Therefore, real-time systems have been re-

lying on much more predictable real-time scheduling

extensions like the SCHED

RT and SCHED

FIFO POSIX

disciplines (POS, 2004), made available through the

sched

setscheduler() syscall. Some works (Kim

et al., 2017) proposed to engineer better heuristics

able to differentiate among long-running batch data-

intensive activities versus short-lived interactive ones,

within the Linux kernel, to dynamically tune pri-

oritization of the disk scheduler in serving I/O re-

quests issued by various tasks, or just adopt a dif-

ferent weighted fair queueing strategy (Valente and

Avanzini, 2015) to differentiate among competing

tasks. The Linux kernel has the ionice

subsystem to

tune the priority associated to disk requests, similarly

to the nice one mentioned above. These tricks can

be useful to maximize the average performance of a

database server, however in order to support differen-

tiated levels of service depending on per-user/request

requirements, the software needs to be changed, ap-

plying non-trivial modiﬁcations to the request pro-

cessing and handling code path, as proposed in this

paper, to be added to other certainly useful mecha-

nisms at the disk access layer, like the just mentioned

ones.

3 BACKGROUND CONCEPTS

This section provides a brief introduction to the Mon-

goDB software, along with details of the CFS Sched-

uler within the Linux kernel. These are useful for a

better understanding of the modiﬁcations performed

to MongoDB.

3.1 MongoDB

MongoDB is an open-source document-oriented

data store often appreciated in comparative stud-

ies (Palanisamy and SuvithaVani, 2020) due to its

More information at: https://www.kernel.org/doc/html/

latest/scheduler/sched-nice-design.html.

More information at: https://www.kernel.org/doc/html/

latest/block/ioprio.html.

ﬂexibility and ease to use, while offering all the ca-

pabilities needed to meet the complex requirements

of modern applications. The name MongoDB derives

from humongous, which can be literally translated to

“extraordinarily large", to highlight its capability to

store and serve big amounts of data. This ability to

efﬁciently handle large-scale trafﬁc, which is a typ-

ical use-case for content-delivery services, is some-

thing that relational database technologies are not able

to easily achieve: for instance, the MongoDB access

speed is 10 times higher than the MySQL one, when

the data exceeds 50GB (Rubio et al., 2020). Mon-

goDB stores documents in a format called BSON,

a binary-encoded serialization of JSON designed to

be efﬁcient both in storage space and scan-speed.

A BSON document contains multiple named ﬁelds

and an automatically generated identiﬁer to uniquely

identify it. A ﬁeld comprises three components: a

name, a data type and a value. BSON supports com-

plex JSON data types, such as arrays and nested doc-

uments, but also additional types like binary, inte-

ger, ﬂoating point or datetime. Documents are kept

in schemaless tables, called collections, allowing for

heterogeneous documents to coexist in the same col-

lection (although similarity is recommended for index

efﬁciency). The users interact with the database sys-

tem using a query language expressed in JSON that

is supplied via API libraries, called drivers, avail-

able for all the major programming languages. Mon-

goDB supports data durability/availability and easy

horizontal scaling through replication and sharding:

the ﬁrst consists in deploying multiple physical copies

of the same database, which together form a replica

set, while the second consists in deploying a cluster

of different databases, called a sharded cluster, each

storing a subsets of data distributed according to user-

deﬁned criteria.

3.2 Linux Scheduler/POSIX Niceness

A typical multi-tasking OS has to service multiple

runnable thread or process, often generically referred

to as tasks (Anderson and Dahlin, 2014), making

sure that each one gets equal opportunity to execute.

The component responsible for granting CPU time to

the tasks is the scheduler, which chooses the execu-

tion order via a scheduling policy. For instance, the

Linux kernel provides a scheduling framework that

comprises three categories, each suitable for speciﬁc

use cases: fair scheduling for general-purpose appli-

cations, ﬁxed-priority and reservation/deadline-based

scheduling for real-time scenarios. The two latter cat-

egories are used in typical embedded real-time sce-

narios where the total real-time workload is known

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

upfront, and failing a proper analysis on the require-

ments would cause problems that could compromise

the functioning of the entire system. However, there

are studies (Cucinotta et al., 2019) exploring applica-

bility of these scheduling strategies to deploy highly

time-sensitive applications in Cloud infrastructures.

The default Linux scheduler, the Completely Fair

Scheduler (CFS) (Wong et al., 2008), tries to elim-

inate the unfairness of a real CPU by emulating an

ideal, precise multi-tasking CPU in software: namely,

a CPU where each task/thread runs in parallel and it is

given an equal share of “power". This scheduler tack-

les the problem by giving CPU access to the task that

waited the most. In particular the scheduling order is

deﬁned according to the lowest vruntime, a per-thread

multi-factor parameter that measures the amount of

“virtual" time spent on the CPU. There are several

parameters taken into account when computing this

value, one of these being the nice level. This alters the

scheduling order by weighting the vruntime value: a

numerically large nice value increases the willingness

of a thread to give precedence to others. The valid

range of nice level values is between -20 (highest pri-

ority) to 19 (lowest priority). Negative nice values

are usually only available to privileged tasks, but it is

possible to make them accessible to unprivileged ones

as well, by proper conﬁguration of the permissions in

limits.conf

4 PROPOSED APPROACH

This section describes the internal components and

mechanisms of the MongoDB software that have been

examined and how our proposal integrates with them.

The considered version of the software is the 4.2 one,

which can be found on GitHub

4.1 MongoDB Internals

A MongoDB database system is designed as a con-

ﬁgurable client-server architecture. The main com-

ponent is the mongod service, which performs all the

core database activities: it handles requests, applies

changes to the storage unit and performs the man-

agement and logging processes. Our proposal relies

upon two design choices regarding the default execu-

tion model and the concurrency control mechanism

employed by a mongod instance, which are leveraged

to fully integrate the modiﬁcations to the core soft-

ware with minimal overhead:

More information at: https://manpages.debian.org/

jessie/libpam-modules/limits.conf.5.en.html.

See: https://github.com/mongodb/mongo/tree/v4.2

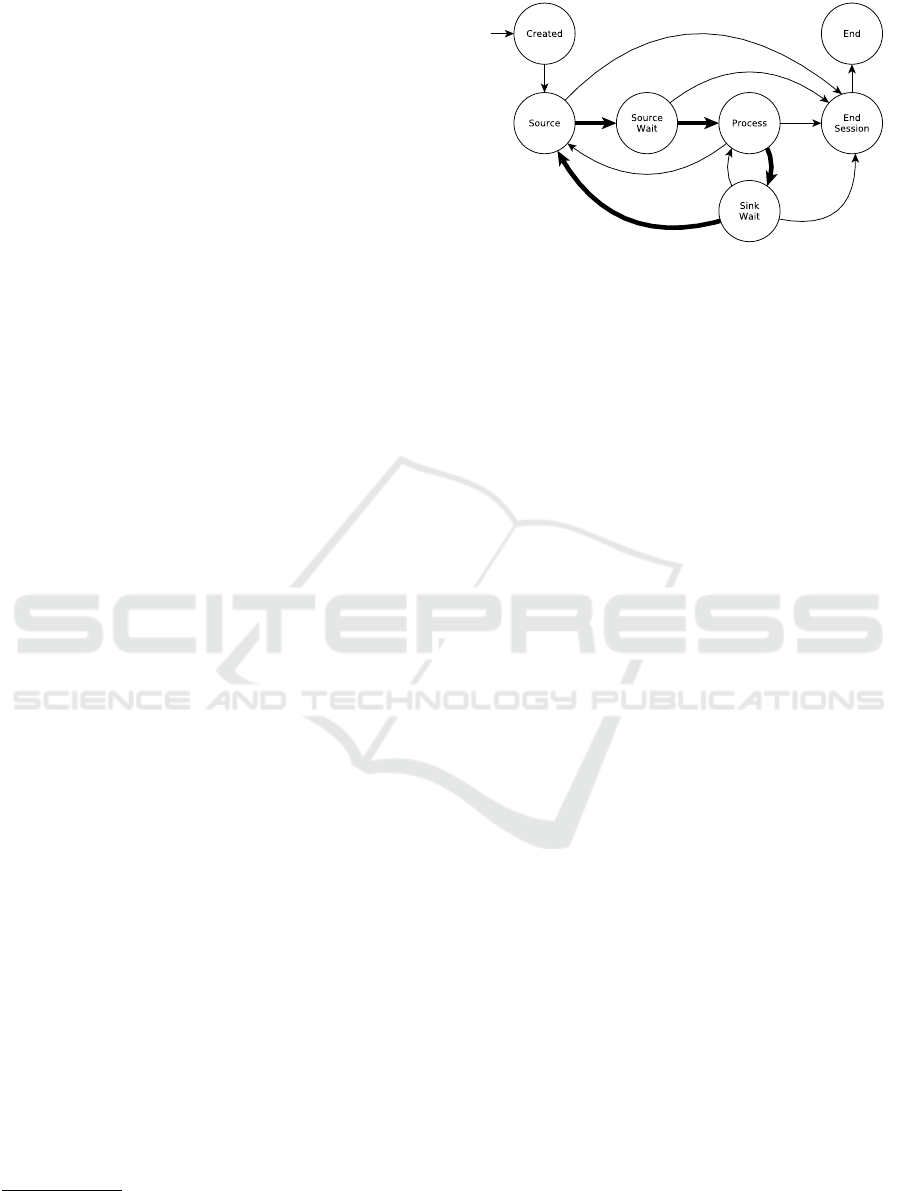

Figure 1: FSM modeling the session life-cycle of a client

connection. Highlighted in bold, the Standard RPC transi-

tion path, which corresponds to the following events: wait

for a client request, process it, and send a response back.

1) MongoDB manages networking synchronously:

each incoming connection is given its own dedi-

cated server-side client worker thread to perform

database operations and handle the session life-cycle.

The workﬂow of such worker threads is modeled

as a ﬁnite-state machine (FSM). The main request-

response interaction comprises multiple “walks" over

the transition path called Standard RPC, which cor-

responds to the following events: wait for a request

from the client, process it, wait for a result from the

underlying storage unit, send back a response (Fig-

ure 1). The thread is reclaimed when the connection

is closed. In short, as of MongoDB Version 4.2, it is

safe to assume that a given incoming connection cor-

responds to a dedicated server-side worker thread.

2) MongoDB uses an optimistic version of the Mul-

tiversion Concurrency Control mechanism (Bernstein

and Goodman, 1983), which allows for lock-free con-

current write operations. More speciﬁcally, data con-

sistency is enforced by displaying to the connected

users a version of the database at a particular instant

of time, therefore any changes made by a writer will

not be seen by other users until the operation has been

completed without conﬂicts. A write conﬂict is the

result of simultaneous updates to the same document,

and is solved by accepting only one write operation as

valid and transparently retrying the other ones. Multi-

ple mongod services can be instantiated on different

physical machines and interconnected via a simple

socket-based, request-response style protocol called

MongoDBWire Protocol to allow for more complex

deployments capable of data redundancy and/or hor-

izontal scalability. A group of independent mongod

instances that maintain the same data set is called a

replica set: the primary node handles all write oper-

ations and records the changes to the data set into an

operations log (in short, oplog); the secondary nodes

replicate the primary’s oplog and apply the changes

asynchronously to their local copies. The members

RT-MongoDB: A NoSQL Database with Differentiated Performance

of a replica set communicate frequently via heart-

beat messages to detect topology changes and react

accordingly: for instance, if the primary node be-

comes unavailable, the replica set goes through an

election process to determine a new one. Both the

primary election and the oplog replication process are

built upon a variation of the RAFT consensus algo-

rithm (Ongaro and Ousterhout, 2016). The oplog is

a ﬁxed-size collection stored in the mongod instance

itself, thus its records are handled as normal docu-

ments, but with a ﬁxed structure. These oplog en-

tries describe the changes applied to the data set in

an idempotent format and are uniquely identiﬁed by

the opTime ﬁeld, a tuple consisting of two values: a

timestamp and a node-speciﬁc term that identiﬁes the

primary node that serviced the write operation. There-

fore, this ﬁeld determines the order in which the oper-

ations are carried out. A secondary mongod instance

performs the replication process using the following

components (as depicted in Figure 2):

1) The OplogFetcher, that fetches oplog entries from

the primary by issuing a number of find and getMore

commands to the same endpoint of a user connection.

The entries are returned in batches that are then stored

in a buffer, called the OplogBuffer.

2) The OplogBatcher, which pulls the fetched batches

off the OplogBuffer and creates the next batch of op-

erations to be applied to the local data set replica.

3)The OplogApplier, that applies the batches created

by the OplogBatcher to the local oplog and stor-

age unit. In particular, it manages a thread pool of

writer threads that, for the sake of performance, may

not respect the chronological order of the operations

within a batch by applying them in parallel (thus a

few operations require singleton batches, like the drop

one). Whenever a secondary node ﬁnishes replicat-

ing a batch, it notiﬁes the opTime of the last applied

entry to the primary. This is crucial for those scenar-

ios where the users request a certain degree of data

durability (the write-concern level, using MongoDB

terminology): the primary node will wait for a user-

deﬁned number of such notiﬁcations before sending

a positive response to a write operation in order to

ensure that the change was replicated to a sufﬁcient

number of nodes. A high write concern value deterio-

rates throughput, while a low one leads to higher risks

of data loss in case of failure. Often, one wants to set

the write concern to ensure that the majority of repli-

cas have safely stored the written data before respond-

ing to the client. An analogous feature for read oper-

ations is also available, the read concern, which in

turn is used to control data consistency. Both options

should be tuned according to the application needs.

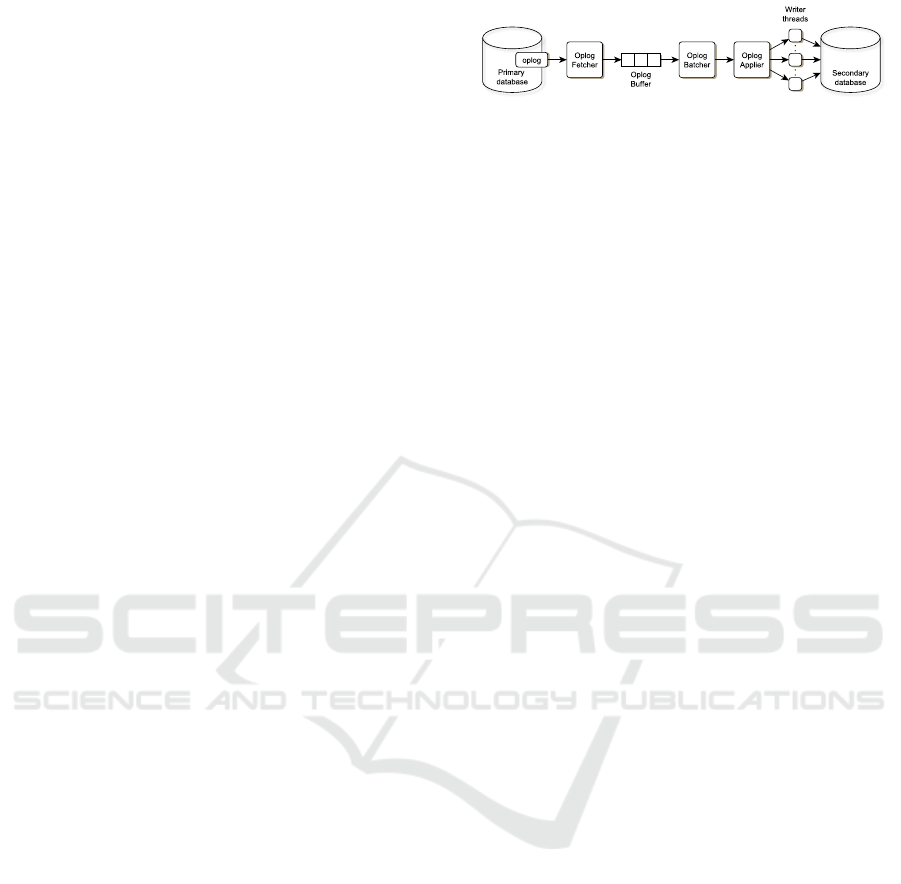

Figure 2: The replication process pipeline: a secondary

node fetches the oplog entries from the primary node and

stores them, in batches, into a buffer. Afterward, they are

pulled and arranged in another set of batches which are ap-

plicable in parallel by the writer threads. The latter modify

the local copy of the secondary’s oplog and database.

4.2 RT-MongoDB

The proposed modiﬁed version of the MongoDB soft-

ware, called RT-MongoDB, introduces an application-

level notion of priority among concurrent requests, re-

alized exploiting: (i) the nice scheduling parameter

available in the underlying OS scheduler, (ii) a check-

point system described later in this section.

Prioritization is achieved by giving to the user

direct control over the nice value of the underlying

client worker thread that services its requests. In this

way, it is possible to alter the thread scheduling or-

der according to users needs: for instance, the queries

for a real-time task could increase the priority of their

session by setting a lower nice value, thus reducing

the response times even in the presence of an unim-

portant long-lasting query. We assume that the RT-

MongoDB daemon is launched with the capability to

exploit the entire range of nice values. For the sake

of simplicity, the current version of RT-MongoDB re-

duces the range to three values: -20 (high-priority), 0

(normal-priority) and +19 (low-priority). Thanks to

the synchronous execution model, it is trivial to iden-

tify the target thread without incurring in side-effects,

because throughout the whole life cycle of the client

session, the underlying worker thread will be always

the same. For this reason, the terms “high-priority

user" and “high-priority worker thread" will be used

interchangeably in what follows. However, achieving

differentiated performance by just lowering the nice

value for high priority sessions proved to be ineffec-

tive in replicated scenarios where data durability is

enforced. The key issue here is that the primary mon-

god node must wait for a number of replica nodes

to ﬁnish replicating the change, before acknowledg-

ing it to the requesting user. Since the replica nodes

are unaware of the nice levels declared on the pri-

mary node, because they are deployed on different

physical machines, they perform an unbiased repli-

cation. To circumvent this problem, RT-MongoDB

employs a soft checkpoint system to temporarily re-

voke CPU access to lower priority worker threads.

It comprises two primitives, check-in and check-out,

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

that have been integrated in the life cycle of the client

session in order to delimit the start and end point of

the Standard RPC transition path. The idea is to en-

force a prioritized access channel for the time win-

dow required to complete a high priority request by

putting to sleep the competing, lower priority worker

threads. In order to do so, each worker declares their

niceness before servicing the user request (check-in)

to eventually get stopped by the checkpoint system,

if there are higher priority requests already being pro-

cessed. Whenever a worker thread completes a re-

quest, it invokes the check-out primitive to notify pos-

sible blocked threads and eventually wake them up, if

there are no more higher priority requests (Figure 3).

The adjective soft refers to the fact that this mecha-

nism does not interfere with certain threads: namely

those serving the users wishing to declare a different

priority level, the unrelated “service" threads instanti-

ated by the database to manage the deployment, and

those worker threads serving the secondary nodes.

In fact, the oplog fetching operation happens on the

same communication channel that the end-users use

to interact with the storage unit, and thus it is manda-

tory to distinguish between an external, namely an

end-user, and an internal client connection. An acci-

dental revocation of CPU access to a secondary node

would lead to unexpected slowdowns of the entire

system. In conclusion, the checkpoint system pro-

vides a prioritized channel to high priority sessions by

temporarily restricting the CPU access to lower prior-

ity ones.

In terms of API, RT-MongoDB offers a new

database command, named setClientPriority, and a

revised version of the runCommand command to sup-

port differentiated performance on per-user and per-

request basis, respectively. Both commands act on the

same mechanisms, carry out the same activities and

support every operation, but the priority declared with

runCommand lasts for a Standard RPC transition only,

thus allowing for a temporary prioritization of the

client session, whereas the setClientPriority declares

the priority of all subsequent requests until the session

is closed, or until the priority is changed again.

5 EXPERIMENTAL RESULTS

The proposed approach has been assessed with a set

of synthetic stress scenarios using a testing frame-

work built for the occasion. The test environment

comprises two twin multi-core NUMA machines in-

terconnected by a 1 gbE connection. The ﬁrst one

has been used to host a 2-member replica set, core

pinned to different NUMA nodes and conﬁgured to

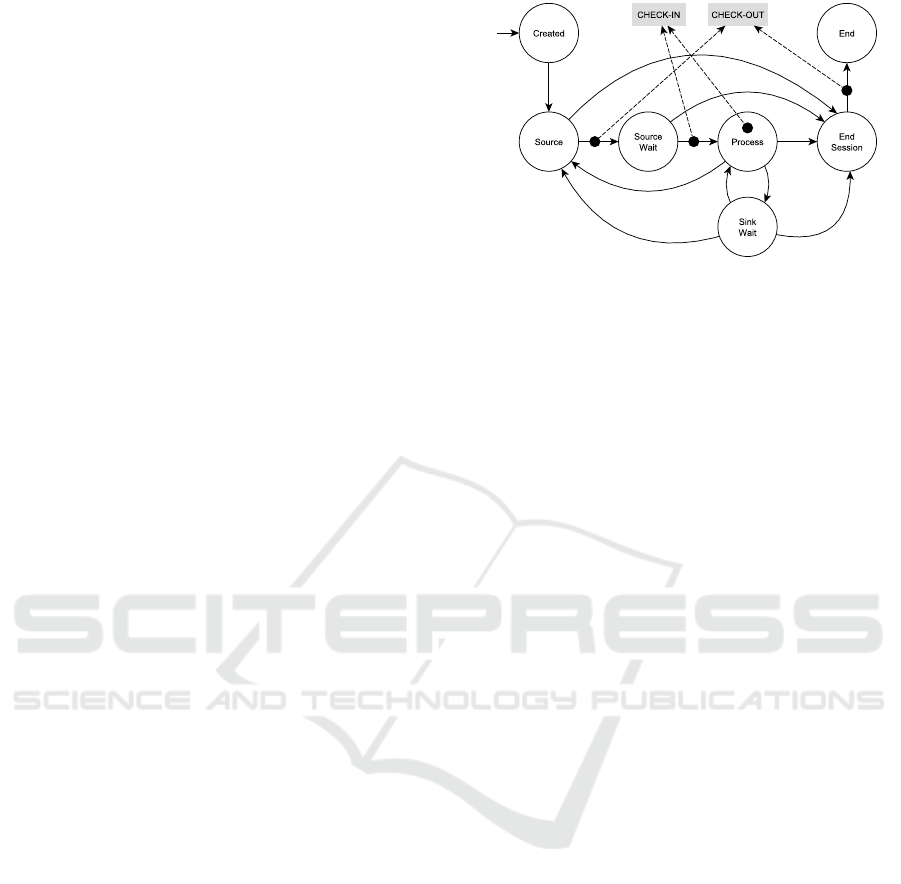

Figure 3: The same ﬁnite-state machine proposed in Fig-

ure 1, but integrated with the checkpoint system. The

primitive check-in declares the nice value of the underly-

ing worker threads that is about to service its client. The

checkpoint system will block it, if higher priority ones are

running. The primitive check-out notiﬁes the conclusion of

a Standard RPC path to the checkpoint system, which will

wake up the lower priority threads, if no more higher prior-

ity ones are running.

use different independent disks, in order to emulate

a distributed system. The second machine has been

used to host the concurrent users interacting with the

database. Each test follows the same workﬂow: the

users connect to the replica set, declare their priorities

with the setClientPriority command, and start sub-

mitting concurrently a total of 500 write operations

each, with no wait time between subsequent requests

from the same user.

From a preliminary assessment, it has been ob-

served that, with this test environment, a 2-member

replica set can service a single client request in 200

microseconds on average when data durability is not

enforced, assuming that the database has full control

over the CPU cores and no other concurrent opera-

tion has been issued. Under the same conditions, but

with data durability enabled, the response time rises to

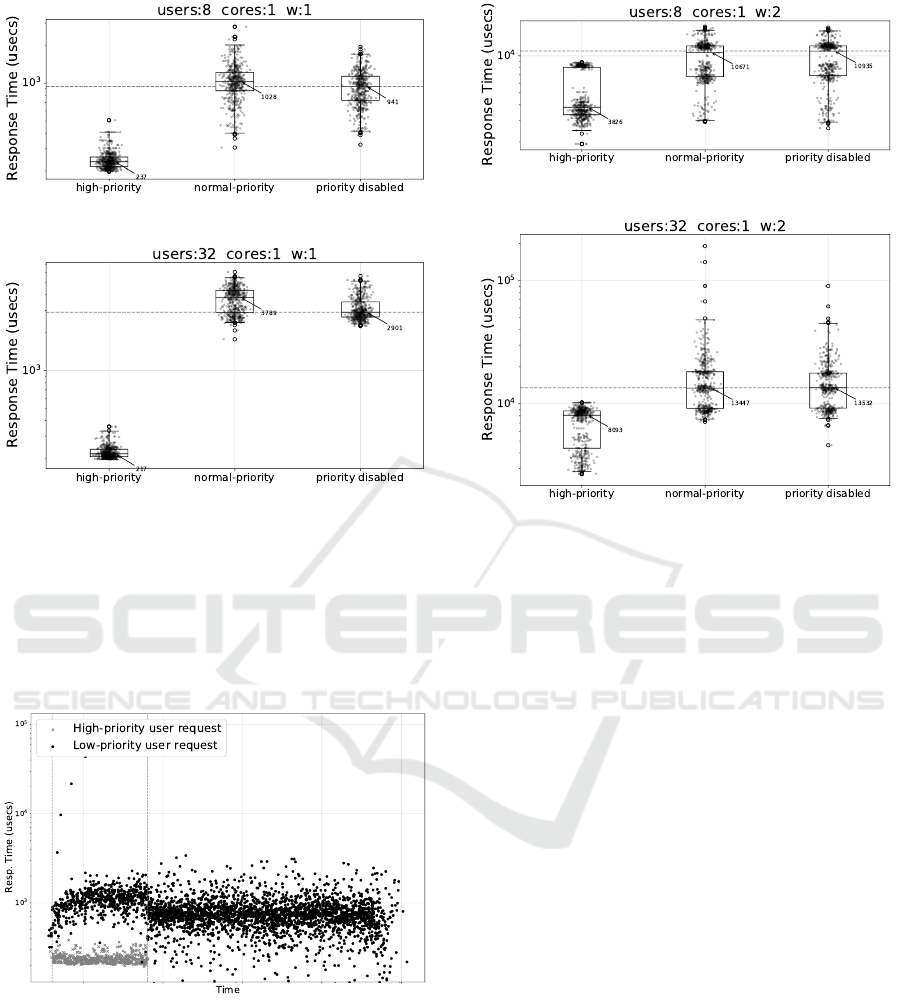

3000 microseconds on average. The rest of this sec-

tion presents a subset of the collected results regard-

ing the distribution of response times over 20 re-runs

of the same test during a portion of the so-called pri-

ority window, namely the time period where a high-

priority user is being serviced. More speciﬁcally, the

analyzed results concern the interval where the lower

priority users have yet to be blocked, in order to high-

light the moment where performance differs across

user requests. The chart used for data visualization

is the box-plot with whiskers set to the 5% and 95%

percentiles: each box represents the response time for

a given user per priority level, including an indica-

tive box-plot (the rightmost one) to represent the sce-

nario where no prioritization is enforced. This way,

it is easier to trace the improvements compared to the

original median baseline.

RT-MongoDB: A NoSQL Database with Differentiated Performance

(a)

(b)

Figure 4: Boxplots of the response times (on the Y axis)

obtained for a single high-priority client competing with

several normal-priority ones (different boxplots) during the

priority window, compared to the one obtained in the orig-

inal unmodiﬁed MongoDB (rightmost boxplot). The top

and bottom subplots refer to scenarios with 8 and 32 total

clients, respectively, with MongoDB conﬁgured on 1 core

and write-concern 1.

Figure 5: Example timelapse of a run with 1 high-priority

client and 7 normal-priority ones with MongoDB conﬁg-

ured on 1 core and write-concern 1. The location between

dashed vertical lines is the so-called priority window, the

time interval while the high-priority user is serviced.

The ﬁrst set of box-plots shown in Figure 4 presents

the results for the scenario where the primary node

is pinned to one core only, a single user is declared

as high-priority and data durability is not enforced.

The separation between the high-priority user and the

(a)

(b)

Figure 6: Boxplots of the response times (on the Y axis)

obtained for a single high-priority client competing with

several normal-priority ones (different boxplots) during the

priority window, compared to the one obtained in the orig-

inal unmodiﬁed MongoDB (rightmost boxplot). The top

and bottom subplots refer to scenarios with 8 and 32 total

clients, respectively, with MongoDB conﬁgured on 1 core

and write-concern 2.

normal-priority ones is quite noticeable, especially

in the crowded 32-users scenario, where the normal-

priority users lose almost a millisecond with respect

to the “no-priority" case and also experience higher

variation, while the high-priority user is timely ser-

viced. This is the natural course of events, as depicted

in the example timelapse in Figure 5 for the 8-users

scenario, which shows the response times distribution

over time. The normal-priority users are frequently

not allowed to run in order to give precedence to the

high-priority users during their priority window, and

to ensure fairness between same-priority users. While

the unrelated “service" threads run by the primary

node will also give precedence to the high-priority

clients, there are some periodic internal MongoDB

tasks that delay the execution of some requests, caus-

ing the visible outliers. They could not be blocked as

done with lower priority worker threads, not to com-

promise the database system correct operation.

A similar but smaller improvement can be seen in

the second set of box-plots in Figure 6, which dis-

plays the results for the same two scenarios, but with

data durability enforced. As expected, the values are

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

(a)

(b)

Figure 7: Boxplots of the response times (on the Y axis)

obtained in a given time window with several clients dif-

ferentiated by priority levels (different boxplots), compared

to the one obtained in the original unmodiﬁed MongoDB

(rightmost boxplot). The top subplot refers to a scenario

with 6 users, with 2 users per priority level. The bottom one

refers to a 12-users scenario, with 4 users per priority level.

Both deployments are conﬁgured to offer a core per high-

priority client, in order to service evenly all of them. The

write-concern is 1.

higher due to the replication process to which the pri-

mary must undergo. The response times group in two

distinct clusters: it appears that, since the secondary

node replicates the changes in batches, a subset of un-

lucky requests experience higher latency because they

are included in big lower-priority batches.

The last set of box-plots in Figure 7 show how RT-

MongoDB is capable of providing differentiated per-

formance for several users depending on the speciﬁed

priority level: high, normal or low. In order to evenly

service every high priority user, the primary node is

allowed to use more than one core. The ﬁrst scenario

has 2 users for each priority level across high, nor-

mal and low priority, and the primary node is pinned

to a dual-core CPU deployment. The second scenario

considers 4 users for each priority level. In both cases

the write operations are issued with no data durabil-

ity requirement. RT-MongoDB is capable of making

use of the different CPUs and provide almost optimal

latencies for normal-priority and high-priority users,

but it is evident that the high-priority ones experience

less variation, especially in the second scenario.

6 CONCLUSIONS AND FUTURE

WORK

This paper presents an extension to the MongoDB

software that enables differentiated per-user/request

performance among competing clients. Preliminary

results suggest that the technique seems promising for

obtaining a priority-based differentiation of the ser-

vice level received by multiple clients when access-

ing a shared MongoDB instance. This is beneﬁcial

for real-time cloud applications, such online video

streaming or gaming, where more important and/or

critical activities need to be prioritized over less im-

portant ones.

Concerning possible future works on the topic, it

might be interesting to extend the proposed modiﬁ-

cations so to achieve a predictable performance in

accessing the system, letting clients specify a cus-

tom relative deadline within which their submitted

requests should be completed. This might be cou-

pled with a formal performance analysis using real-

world workloads and larger replica sets, and with

the use of more advanced scheduling techniques, like

SCHED_DEADLINE, that has been made recently

available in the Linux kernel for real-time workloads.

Other viable paths of investigations are those mixing

prioritization at the CPU scheduling level with the one

at the I/O disk access layer (Valente and Avanzini,

2015), tuning both CPU and block layer schedulers,

trying to avoid priority inversion scenarios (Kim et al.,

2017). In this kind of investigations, performance

monitoring and tuning frameworks like the one pre-

sented in (Malki et al., 2018), supporting MongoDB

among others, may help to gain additional insights

about the points of intervention within the system.

Another future work would be to address the secu-

rity issue of giving access to the proposed feature to

all users, by implementing an access-control mecha-

nism (Sandhu, 1998). In fact, the current prototype

assumes no greediness, but every user could declare

himself as high-priority, making the mechanism inef-

fective. Therefore, the idea is to give to the MongoDB

sysadmin the possibility to restrict the accessible pri-

ority levels, depending on system-wide access-control

conﬁguration settings.

RT-MongoDB: A NoSQL Database with Differentiated Performance

REFERENCES

(2004). The Open Group Base Speciﬁcations Issue 6 – IEEE

Std 1003.1, 2004 Edition. The IEEE and The Open

Group.

(2020). How to Choose Your Red Hat Enterprise Linux File

System. [Online] Accessed November 22nd, 2020.

Amirijoo, M., Hansson, J., and Son, S. H. (2006). IEEE

Transactions on Computers, title=Speciﬁcation and

management of QoS in real-time databases support-

ing imprecise computations, 55(3):304–319.

Anderson, T. and Dahlin, M. (2014). Operating Systems:

Principles and Practice, volume 1: Kernel and Pro-

cesses. Recursive books.

Ara, G., Abeni, L., Cucinotta, T., and Vitucci, C. (2019).

On the use of kernel bypass mechanisms for high-

performance inter-container communications. In High

Performance Computing, pages 1–12. Springer Inter-

national Publishing.

Babu, S. and Widom, J. (2001). Continuous queries over

data streams. SIGMOD Rec., 30(3):109–120.

Baruah, S., Bertogna, M., and Buttazzo, G. (2015). Multi-

processor Scheduling for Real-Time Systems. Springer

Publishing Company, Incorporated.

Basanta-Val, P., Fernández-García, N., Sánchez-Fernández,

L., and Arias-Fisteus, J. (2017). Patterns for

distributed real-time stream processing. IEEE

Transactions on Parallel and Distributed Systems,

28(11):3243–3257.

Bernstein, P. A. and Goodman, N. (1983). Multiversion

concurrency control—theory and algorithms. ACM

Trans. Database Syst., 8(4):465–483.

Bestavros, A., Lin, K.-J., and Son, S. H. (1997). Real-Time

Database Systems: Issues and Applications. Springer

Science+Business Media, LLC.

Buttazzo, G., Lipari, G., Abeni, L., and Caccamo, M.

(2005). Soft real-time systems: Predictability vs. ef-

ﬁciency. Springer US.

Cucinotta, T., Abeni, L., Marinoni, M., Balsini, A., and Vi-

tucci, C. (2019). Reducing temporal interference in

private clouds through real-time containers. In 2019

IEEE International Conference on Edge Computing

(EDGE), pages 124–131. IEEE.

Garcia-Molina, H. and Salem, K. (1992). Main memory

database systems: an overview. IEEE Transactions on

Knowledge and Data Engineering, 4(6):509–516.

Jing Han, Haihong E, Guan Le, and Jian Du (2011). Sur-

vey on NoSQL database. In 6th International Confer-

ence on Pervasive Computing and Applications, pages

363–366.

Kang, K., Oh, J., and Son, S. H. (2007). Chronos: Feed-

back control of a real database system performance.

In 28th IEEE International Real-Time Systems Sym-

posium (RTSS 2007), pages 267–276.

Kao, B. and Garcia-Molina, H. (1994). An Overview of

Real-Time Database Systems.

Kim, S., Kim, H., Lee, J., and Jeong, J. (2017). Enlighten-

ing the i/o path: A holistic approach for application

performance. In 15th USENIX Conference on File

and Storage Technologies (FAST 17), pages 345–358,

Santa Clara, CA. USENIX Association.

Kulkarni, S., Bhagat, N., Fu, M., Kedigehalli, V., Kellogg,

C., Mittal, S., Patel, J. M., Ramasamy, K., and Taneja,

S. (2015). Twitter heron: Stream processing at scale.

In Proceedings of the 2015 ACM SIGMOD Interna-

tional Conference on Management of Data, SIGMOD

’15, pages 239–250, New York, NY, USA. ACM.

Lettieri, G., Mafﬁone, V., and Rizzo, L. (2017). A survey

of fast packet I/O technologies for Network Function

Virtualization. In Lecture Notes in Computer Science,

pages 579–590. Springer International Publishing.

Li, T., Tang, J., and Xu, J. (2016). Performance model-

ing and predictive scheduling for distributed stream

data processing. IEEE Transactions on Big Data,

2(4):353–364.

Li, Y. and Manoharan, S. (2013). A performance compari-

son of sql and nosql databases. In 2013 IEEE Paciﬁc

Rim Conference on Communications, Computers and

Signal Processing (PACRIM), pages 15–19.

Lindström, J. (2008). Real Time Database Systems, pages

1–13. American Cancer Society.

Malki, M. E., Hamadou, H. B., Malki, N. E., and Kop-

liku, A. (2018). MPT: Suite tools to support per-

formance tuning in noSQL systems. In 20th Inter-

national Conference on Enterprise Information Sys-

tems (ICEIS 2018), volume 1, pages 127–134, Fun-

chal, Madeira, PT. SciTePress.

Navrátil, M., Bailey, L., and Boyle, C. (2020). Red Hat En-

terprise Linux 7 – Performance Tuning Guide – Moni-

toring and optimizing subsystem throughput in RHEL

7. [Online] Accessed November 22nd, 2020.

Ongaro, D. and Ousterhout, J. (2016). In search of an un-

derstandable consensus algorithm (extended version).

Retrieved July, 20:2018.

Palanisamy, S. and SuvithaVani, P. (2020). A survey on

rdbms and nosql databases mysql vs mongodb. In

2020 International Conference on Computer Commu-

nication and Informatics (ICCCI), pages 1–7.

Rubio, F., ., P. V., and Reyes Ch, R. P. (2020). Nosql vs.

sql in big data management: An empirical study. KnE

Engineering, 5(1):40–49.

Sandhu, R. S. (1998). Role-based access control. In Ad-

vances in computers, volume 46, pages 237–286. El-

sevier.

Theeten, B., Bedini, I., Cogan, P., Sala, A., and Cucinotta,

T. (2014). Towards the optimization of a parallel

streaming engine for telco applications. Bell Labs

Technical Journal, 18(4):181–197.

Valente, P. and Avanzini, A. (2015). Evolution of the BFQ

Storage-I/O Scheduler. In 2015 Mobile Systems Tech-

nologies Workshop (MST), pages 15–20.

Wingerath, W., Gessert, F., Friedrich, S., and Ritter, N. (28

Aug. 2016). Real-time stream processing for big data.

it - Information Technology, 58(4):186 – 194.

Wong, C. S., Tan, I., Kumari, R. D., and Wey, F. (2008).

Towards achieving fairness in the linux scheduler.

SIGOPS Oper. Syst. Rev., 42(5):34–43.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
