Empirical Evaluation of a Textual Approach to Database Design in a
Modeling Tool
Jonnathan Lopes
a
, Maicon Bernardino
b
, Fábio Basso
c
and Elder Rodrigues
d
Postgraduate Program in Software Engineering (PPGES),
Laboratory of Empirical Studies in Software Engineering (LESSE),
Federal University of Pampa (UNIPAMPA), Av. Tiarajú, 810, Ibirapuitã, CEP 97546-550, Alegrete, RS, Brazil
Keywords:
Domain Specific Language, Conceptual Data Model, Conceptual Model, Database Modeling.
Abstract:
This article reports an empirical assessment study conducted with 27 subjects intended to verify the effort
(time spent), precision, recall, F-Measure of a proposed tool based on a textual approach (ERtext), thereby a
study developed for comparative reasons of ERtext with a tool based on graphical approach: thebrModelo. The
results are: 1) less effort is associated with the graphical approach and that ERtext, and 2) regarding the model
quality, brModelo have similar performances in both approaches. Since the results shows no considerable
statistical differences among the two design approaches, we conclude that the usage of a textual approach is
feasible, thus ERtext is a good tool alternative in the context of conceptual database modeling.
1 INTRODUCTION
Software Engineering is not feasible without persis-
tence and data manipulation. A database is a collec-
tion of stored operational data, used by the application
systems of a given organization. For Elmasri and Na-
vathe (2011), a database can be defined as an abstrac-
tion from the real world, also called the mini-world,
since it represents aspects that, together, carry an im-
plicit meaning.
Analyzing more objectively, databases can be con-
sidered the most important organizational assets to-
day. This is due to the fact that they do not only store
trivial information but, e.g. also billing data, and other
aspects assisting in decision making. However, its
importance is not only focused on organizations, it is
also possible to attest that the use of database can play
a critical role in the lives of end users when they are
analyzed individually. In this scenario, it is notable
that there is an increasing effort of the academia to
provide a good level of preparation for future profes-
sionals who will enter an increasingly demanding in-
dustry. Higher education institutions often approach
the database area with specific courses converging in
their programs. The database teaching area is an es-
a
https://orcid.org/0000-0001-9402-801X
b
https://orcid.org/0000-0003-2776-8020
c
https://orcid.org/0000-0003-4275-0638
d
https://orcid.org/0000-0003-3431-2814
sential part of computer professional training. The
focus on database teaching is generally divided into
four stages: design and modeling, database manage-
ment systems, comparative studies between these sys-
tems and the development of applications (Al-Dmour,
2010). Assuming that there is a growing search for
instruments supporting the teaching-learning process
in academia, we present a study focusing on the first
stage. In general, the teaching of database design
and modeling is conducted with the presentation of
essential topics and the subsequent introduction to
the use of modeling tools using generally graphic ap-
proaches. Hence, this paper is motivated to offer a
software product for the conceptual modeling of rela-
tional database. This software makes use of the tex-
tual approach, built on a grammar perceived in the
proposed study as “ease to use” and as “useful”. Thus,
the main objective of this paper is to report the evalu-
ation of ERtext, a modeling tool based on a Domain-
Specific Language (DSL) (Kelly and Tolvanen, 2008)
for database designing and modeling with the scope
in conceptual level modeling.
This paper is organized as it follows. Section 2
presents the related work. Section 3 describes an
overview of the ERtext modeling tool. Section 4 pro-
vides the detailed planning and execution of the ex-
periment. Section 5 briefly summarizes the threats to
validity. Finally, Section 6 concludes this paper.
208
Lopes, J., Bernardino, M., Basso, F. and Rodrigues, E.
Empirical Evaluation of a Textual Approach to Database Design in a Modeling Tool.
DOI: 10.5220/0010450602080215
In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 1, pages 208-215
ISBN: 978-989-758-509-8
Copyright
c
2021 by SCITEPRESS Science and Technology Publications, Lda. All rights reserved
2 RELATED WORK
According to Brambilla et al. (2017), since the be-
ginning developers have used text to specify software
products. Programming languages increase the level
of abstraction in a similar way to models. Therefore,
as a logical consequence, this results in textual model-
ing languages. A textual modeling language is usually
processed by mechanisms that transform the informa-
tion expressed in textual format for models.
Hence, it can be inferred that textual models
can bring some benefits Obeo and TypeFox (2020):
(i) Transmission of many details: when it comes to
elements with numerous properties, the textual ap-
proach often stands out in relation to graphics. (ii) In-
crease model cohesion: a textual model usually speci-
fies the elements entirely in one place. While this can
be a disadvantage for high-level display, on the other
hand it can make it easier to find out low-level prop-
erty definitions. (iii) Perform a quick edit: during the
creation and editing of textual models there is no need
for a recurring switch between keyboard and mouse.
Therefore, it is likely that less time will be spent for-
matting textual models; (iv) Use generic editors: there
is not necessarily a requirement for a specific tool to
create or modify textual models. For simple changes
it is possible to use any generic text editor. However,
for larger tasks it is better to have some support for
modeling language. Hence, this work includes the in-
tegration of a language with an Eclipse editor.
Complementary to aforementioned work, our pro-
posal involves new findings from an evaluation of a
tool that implements a textual DSL. After an exten-
sive literature study, composed by a systematic litera-
ture mapping and by a multivocal review, we selected
proposals and tools whose approaches are closest to
the ERtext, discussed as follows.
Celikovic et al. (2014) and Dimitrieski et al.
(2015) present a tool called Multi-Paradigm Informa-
tion System Modeling Tool (MIST). This tool uses a
DSL called EERDSL, a language based on the im-
proved Extended Entity-Relationship (EER). MIST
presents a bidirectional (graphical and textual) ap-
proach to database modeling. The purpose of the tool
is to apply it both to the professional market and for
teaching database design and modeling in academia.
MIST was developed with the help of Xtext and Eu-
gene frameworks, a project that has been discontin-
ued, for its graphical version. As a result, Eugene
was replaced by Sirius framework. Besides, MIST
also supports the generation of SQL code.
dbdiagram.io is a free web-based tool for ER di-
agram design, with a textual approach implementing
its own DSL. This DSL uses a model very close to
the logical data models. The tool’s differential is a
fast learning curve and the presentation of a graphical
representation. The presentation of the diagram ele-
ments can be freely organized by the user in real time.
However, it is important to note that all the modeling
is in fact done textually. Furthermore, the tool also
offers automatic generation of SQL code.
Likewise, QuickDBD is a web-based tool with sim-
ilar operational mode as dbdiagram.io, also imple-
menting its own textual DSL for modeling databases.
However, it is a proprietary tool with a clear focus
on the industry. Both tools are also very similar in
terms of the generation of graphic representations and
present several attributes for their adoption, such as
the quick DSL understanding, the perspective of car-
rying out fluid works, the access of any platform and
the sharing of models with other users.
Finally, we can mention the free Web-based tool
RelaX (Relational Algebra Calculator) Kessler et al.
(2019). It is a tool aimed at teaching relational alge-
bra by performing operations on relational databases.
It has a textual approach, using a DSL called RelAlg,
and even presenting two operation perspectives: Re-
lAlg instructions and SQL statements. RelaX uses a
modeling approach already at a physical data model
level, e.g. data definition and data manipulation lan-
guages. Despite its functionality, RelaX is not charac-
terized as a database designing and modeling tool and
their use is restricted to teaching within the academia.
3 ERTEXT MODELING TOOL
3.1 Software Requirements
Our focus is on the teaching process, so it is essen-
tial to tag ERText as an open-source license, allowing
the evolution and collaborative maintenance with the
involvement of other developers.
In the following, we listed the Software Require-
ments (SR) that were defined based on the surveyed
literature: SR1. DSL must be made available under
an open-source license. SR2. The DSL should allow
for the textual representation of conceptual data mod-
els. SR3. Conceptual data models should support the
definition of fundamental domain concepts such as
entities, attributes, relationships, and their cardinali-
ties. SR4. Conceptual data models should support
the definition of attributes, identifiers, generalization
and specialization, self-relationships, and ternary re-
lationships. SR5. DSL implementation must trans-
form from the conceptual to the logical model dis-
playing the result generated to the user.
Empirical Evaluation of a Textual Approach to Database Design in a Modeling Tool
209
3.2 The Language
In the current phase of the work, the language at the
conceptual level is not fully finalized. There are top-
ics related to scope validation, as in the case of the
treatment of unwanted cross-references and other re-
strictions inherent to the ER model that must be an-
alyzed and then implemented. The definition of the
created DSL is displayed in Figure 1.
grammar o r g . x t e x t . un ip am pa . l e s s e . e r t e x t . E Rte x t
with o r g . e c l i p s e . x t e x t . common . Termi n a l s
g e n e r a t e ERt e x t " x te xt . or g / u ni p am pa / l es se / e rt ex t "
ERModel :
do main =Domain ;
( Ent it ie s { ) e n t i t i e s += E n t i t y + ( } ; )
( R el a ti o ns h ip s { ) r e l a t i o n s += R e l a t i o nΛ( ’} ;
) ;
Dom ain :
Do ma i n name=ID ;
A t t r i b u t e :
name=ID t y p e =DataType ( i s Ke y ?= i s Id e nt i fi er ) ? ;
E n t i t y :
name=ID ( is i s += [ E n t i t y ] )Λ
( { a t t r i b u t e s += A t t r i b u t e
( , a t t r i b u t e s += A t t r i b u t e )Λ } ) ? ;
R e l a t i o n :
( name=ID ) ? ( [ l e f t E n d i n g = R e l a t i o n S i d e
re l at es
r i g h t E n d i n g = R e l a t i o n S i d e ] )
( { a t t r i b u t e s += A t t r i b u t e
( , a t t r i b u t e s += A t t r i b u t e )Λ } )Λ;
R e l a t i o n S i d e :
c a r d i n a l i t y =( ( 0: 1) | ( 1: 1) | (0 : N ) | (1 : N
) )
t a r g e t =[ E n t i t y ] | t a r g e t =[ Re l a t i o n ] ;
enum DataType :
INT= int | DOUBLE= d ou bl e |
MONEY= m on ey | STRING= s tr i ng |
BOOLEAN= b oo l ea n | DATETIME= da tet im e |
BLOB= fi le ;
Figure 1: Grammar definition of the DSL.
4 EMPIRICAL EVALUATION
This section exposes the controlled experiment that
was performed in order to verify the feasibility of us-
ing the textual approach (ERtext) developed in this
work in the context of teaching entity-relationship
modeling. We followed the guidances and recommen-
dations raised in Wohlin et al. (2012).
4.1 Planning
The experiment aims to obtain evidence from the
comparison of two approaches to the modeling of re-
lational databases, one in a graphical and another in
a textual way. The titled treatments, were: (i) Con-
trol treatment: the brModelo tool, with a graphical
approach, and; (ii) Experimental treatment: the ER-
text tool, with a textual approach. The purpose of this
experiment is to assess the feasibility of using a tex-
tual approach to support the teaching-learning process
of conceptual modeling of relational databases.
Research Questions (RQs): For the discussion of the
experiment results, we decided to formulate four RQs
that were related to the activities performed.
RQ1. Which approach requires the most effort
spent on average during the modeling activity? RQ2.
What is the quality level of the models produced using
the graphical and textual approaches? RQ3. What is
the subjects perception regarding the perceived ease
of use (PEOU) and perceived usefulness (PU) of the
proposed DSL? RQ4. What is the subjects assess-
ment in relation to the representation of the ER mod-
eling builders supported in the proposed DSL?
Context: The experiment context is characterized ac-
cording to four dimensions: (i) Process: An in-vitro
approach was used, since the tasks were performed
in the lab under controlled conditions and without
online activities. (ii) Subjects: Undergrad, master
and doctoral students in Computer Science and Soft-
ware Engineering. (iii) Reality: The experiment ad-
dressed a real problem, that is, the difference in the
effort spent of subjects in the conceptual modeling
of relational databases, the artifacts quality produced
and the subjects perceived usefulness (PU) using both
approaches. (iv) Generality: This evaluation is in-
serted in a specific context, involving database mod-
eling students. However, the general ideas of this ex-
periment can be replicated in another set of subjects,
approaches or DSLs that support database modeling.
Hypotheses Formulation: the first two RQs were
taken into account. Regarding to RQ1. the average
effort spent required using each approach, our scien-
tific hypotheses are as follows:
Null Hypothesis: H
0
: µTime
G
= µTime
T
: There is
no difference in average effort spent measure between
textual and graphical approaches during conceptual
modeling of relational databases.
Alternative Hypothesis: H
1
: µTime
T
6= Time
G
:
There is a significant difference in average effort spent
measure between textual and graphical approaches
during conceptual modeling of relational databases.
Regarding to RQ2. the modeling effectiveness us-
ing each approach, our hypotheses are as follows:
Null Hypothesis: H
0
: µE f f ectiveness
G
= µ
E f f ectiveness
T
: There is no difference in effec-
tiveness measure between textual and graphical ap-
proaches during conceptual modeling.
Alternative Hypothesis: H
1
: µE f f ectiveness
T
6=
µE f f ectiveness
G
: There is a significant difference in
effectiveness measure between textual and graphical
approaches during conceptual modeling.
For the evaluation related to the effort measure,
the Shapiro-Wilk normality test and the paired T-test
for dependent samples were used, in which the times
collected during the execution of the modeling activi-
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
210
ties of the experiment were taken into account.
For the effectiveness tests, the same statistical
methods were adopted, but instead of using the time
metric, another quantity was necessary. Thus, the F-
Measure calculations were performed, which is de-
rived from harmonic mean of Precision and Recall
metrics, for each of the models produced in the ap-
proaches. The F-Measure (Derczynski, 2016) calcu-
lation takes into account variables known as True Pos-
itives, False Positives and False Negatives. From the
variables identification it is then possible to calculate
the Precision, Recall and F-Measure of each model.
Selection of Subjects: The subjects were selected by
non-probabilistic sampling, indicated for exploratory
studies. This type of sampling is characterized by the
deliberate choice of subjects with one or more char-
acteristics that interest to the study object.
In this context, 27 undergrads (Computer Sci-
ence and Software Engineering) and post-grads (Soft-
ware Engineering) students from our university par-
ticipated In this experiment. Among the subjects there
were 14 students enrolled in database course. After
identifying the potential subjects, the execution date
of the controlled experiment was defined, which in-
cluded training in both approaches. In addition, be-
fore the training, subjects would be asked to complete
a profile questionnaire for leveling. From the data ex-
tracted of questionnaires, the subjects were randomly
distributed into two groups composed of 13 and 14
subjects. The reason for that it is because the to-
tal number of subjects was odd, and we also tried to
maintain a balanced level of skills among the groups.
Experiment Design: According to Wohlin et al.
(2012), a controlled experiment must meet some fun-
damental concepts: (i) Standard Design Type: There
are a few possible types for the standard design in an
experiment, and this study adopted One Factor with
Two Treatments. The Factor was the modeling of re-
lational databases, and the Treatments were the two
approaches used (graphical and textual). (ii) Block-
ing: This item refers to the fact that the subjects of
the controlled experiment may have different expe-
rience levels in database modeling and design. As
a result, a profile questionnaire was applied to level
the subjects. (iii) Balancing: Subjects were separated
into two groups with similar background levels. In
this way, both approaches were carried out by homo-
geneous groups. (iv) Randomization: The subjects
were randomly allocated to each group and approach.
They performed both treatments, featuring a paired
comparison design. The execution sequence of the
treatments for each group was also randomly defined.
After all the activities performed by the subjects
using the treatments, we collect the data results. This
stage consists of the qualitative assessment made by
the subjects and the saving of the models produced
by the treatments application. These models serve for
a qualitative assessment. Finally, the analysis stage
is performed, where the result data are compiled and
analyzed with the aim of drawing conclusions.
Instrumentation: As participation in this experiment
was voluntary, a Free, Prior and Informed Consent
(FPIC) was prepared to record the agreement of all
them in carrying out the activities. Profile ques-
tionnaires were created and applied to balance the
groups. Beyond, a glossary was also developed for
concepts that were used in the opening presentation
of the controlled experiment and during training. In
order to provide support to the evaluation subjects,
instruments were provided describing the step by step
with use examples of both tools (brModelo and ER-
text) used in this experiment. In addition, training
was conducted that included videos with tutorials on
how to use the approaches in each tool. The videos
showed how to start modeling, problem examples of
the builders foreseen that they would solve and rec-
ommendations for saving the artifacts produced.
We elaborated two instruments that contained
a problem each, with similar levels of complexity,
which should be modeled and also noted the start
and end times of the activity. For further subjects
evaluation, we prepared two other instruments. The
first instrument presented 7 quality attributes based
on ISO/IEC 25010, a standard for software product
quality, and served to evaluate the approaches of the
two tools from the point of view of the subjects who
performed the ER modeling activities. The second
instrument was used to evaluate the ER modeling
builders representation of the textual approach solu-
tion evaluated in this study. The data generated by
these instruments served for us to answer the quali-
tative RQs defined for this experiment. In addition,
we also created an equal working environment for all
experiment subjects. To this end, a Virtual Machine
(VM) was created using the Xubuntu OS, In this envi-
ronment, the support materials previously mentioned
were made available, as well as the ER modeling
tools. To avoid possible external influences, the VMs
did not have access to the Internet, thus ensuring that
the subjects could not consult external content. Thus,
it was possible to ensure that all subjects performed
the same tasks, and under the same conditions.
4.2 Conduction
Preparation: Initially, we took place meetings
among the researchers involved to define the planning
and the mode of operation that should be adopted.
Empirical Evaluation of a Textual Approach to Database Design in a Modeling Tool
211
Seeking to capture a significant sample for the study
object, we decided to contact the lecturer respon-
sible for teaching two courses for different under-
grad programs: Database (Software Engineering)
and Database I (Computer Science) in the second
semester from 2019. With the initial objectives
aligned, the lecturer who collaborated made the dis-
semination of the profile questionnaires via learning
management system (Moodle) to the participants.
After the elaboration of all the artifacts that would
be used in the experiment, they were analyzed and
validated jointly by the researchers involved in this
study, and there it was still a need to adapt some in-
struments along the way regarding the suggestions
and possible corrections necessary.
Execution: On the experiment day, the first activity
carried out was a brief initial presentation, where we
informed that the experiment was of an unavailable
character. With that clarified, the FPIC was then made
available to all subjects. After signing, we distributed
the profile questionnaires to the subjects who have not
yet been completed previously. We found that there
were no strong discrepancies among the subjects’ lev-
els of knowledge, thus demonstrating that there was a
homogeneous sample in general.
Before the random division of the groups, we car-
ried out the training phase. During this phase, both
database modeling tools that would be used were pre-
sented, providing an overview of operation and an-
swering possible questions that might arise. Then, we
began the modeling phase of the proposed problems.
All subjects received Instrument 1 and were informed
with which tool they should develop the solution. We
asked for each subject to write down in the instrument
their identification and the start time of the task. We
no stipulated time limit for completion and, accord-
ing the subjects completed the modeling task, they
were asked to comply with the guidelines included
in the support material for saving the generated arti-
facts. With the models saved, we collected and moved
the instruments on to the next task described in Instru-
ment 2, although it was necessary to use the reverse
approach to the one they had initially used. At the end
of the instruments that contained the modeling prob-
lems, we delivered the qualitative assessment instru-
ments. As the subjects had completed then we had
thanked and released them.
4.3 Results and Data Analysis
Effort: To answer RQ1. regarding the effort to use
the approaches, the execution times were extracted
from the instruments. From the gross amount of the
execution times, we calculated the difference in order
to be able to perform the Shapiro-Wilk normality test.
Because it is a statistical test, this technique has the
product of measuring the p-value. For this test, we
adopted a significance level of α = 5%.
After calculations with the set of time differences,
we reached a p-value of 0.606530. As p-value > α,
we accepted the null hypothesis, thus concluding that
the data is normally distributed, i.e., the difference be-
tween the data sample and the normal distribution is
not large enough to be statistically significant.
It is important to note that the higher the p-value,
the more it supports a null hypothesis. In the case
of the result obtained, the chance of type 1 error (re-
jecting a null hypothesis that is correct) is very high,
and can be translated into 60.65% (0.606530). Still in
relation to the normality test, the calculated value of
W was 0.970178, being within the accepted range of
the confidence level of 95% (0.9242: 1.0000). This
means that there is a 95% chance that the sample
comes from a normal population.
Once we performed the normality tests on the
sample, we carried out the hypothesis test of the av-
erage effort regarding to RQ1. In the paired T-test
for dependent samples, we used a significance level
of α = 5%, with which we reached a measure of
0.000962084 for the p-value. Because it is a two-
tailed test, i.e. it includes equality in its null hypoth-
esis, this p-value shows enough evidence to guaran-
tee the rejection of the statement of H
0
: µTime
G
=
µTime
T
. Therefore, we accepted the alternative hy-
pothesis that the approaches have different efforts,
once according to the test this difference is statisti-

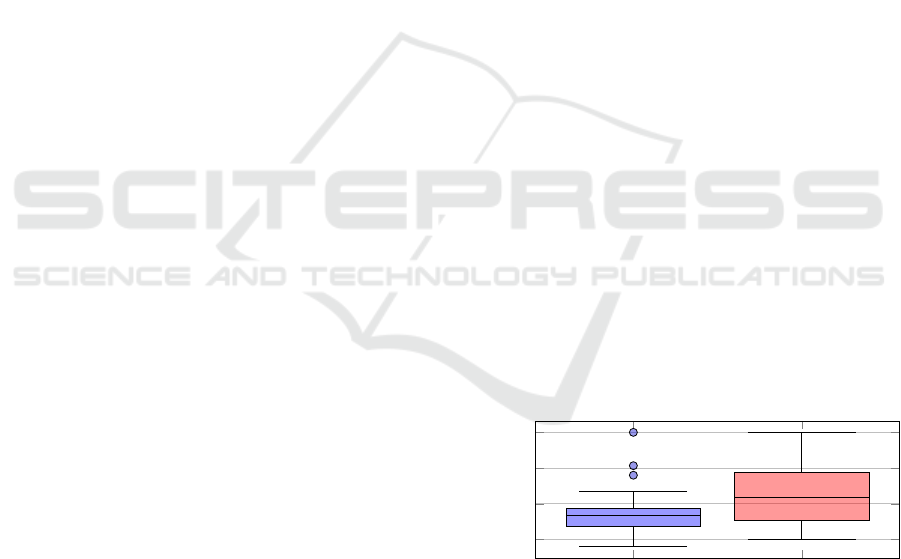

cally significant. Figure 2 displays a box-plot with the
variation of data observed through these data. Based
on these data it was possible to verify that the graphi-
cal approach has an advantage on average.
Graphical Treatment Textual Treatment
15
30
45
60
Time (minutes)
Figure 2: Box-plot - Effort per treatments.
Effectiveness: To answer RQ2. regarding the effec-
tiveness of the use of approaches, we evaluated the
artifacts produced by the subjects according to the es-
tablished reference models. F-Measure represents the
combination of the observed accuracy and recallabil-
ity of a result in relation to a reference. By definition,
this combination refers to Precision and Recall met-
rics, where Precision is the fraction of recovered in-
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
212
stances that are relevant and Recall is the fraction of
relevant instances that are recovered.
In addiction, we performed the Shapiro-Wilk nor-
mality test to F-Measure for each model. After cal-
culations with the set of differences in F-Measure for
each model, we reached a p-value of 0.404455. With
this test result, the chance of type 1 error (rejecting a
null hypothesis that is correct) can be very high, and
can be translated into 40.45% (0.404455). As the p-
value > α, we accepted the null hypothesis, thus re-
alizing that the data is normally distributed, i.e. the
difference between the data sample and the normal
distribution is not large enough to be statistically sig-
nificant. After the sample was tested for normality,
we tested the second hypothesis defined in this exper-
iment. This time, in the paired sample T-test, we used
again a significance level of α = 5%, with which we
reached a measure of 0.396468 for the p-value.
By the original statement including an equality,
also characterizing this test as two-tailed, it was con-
cluded that the calculated p-value demonstrates that
there is not enough evidence to guarantee the rejection
of the statement of the original null hypothesis, de-
noted as H
0
: µE f f ectiveness
G
= µE f f ectiveness
T
.
Therefore, we accepted the null hypothesis that the
approaches have equal effectiveness, because accord-
ing to the statistical test, the average difference of F-
Measure between treatments is not statistically signif-
icant. Table 1 shows average measures of the evalu-
ated values, and also provides the possibility to carry

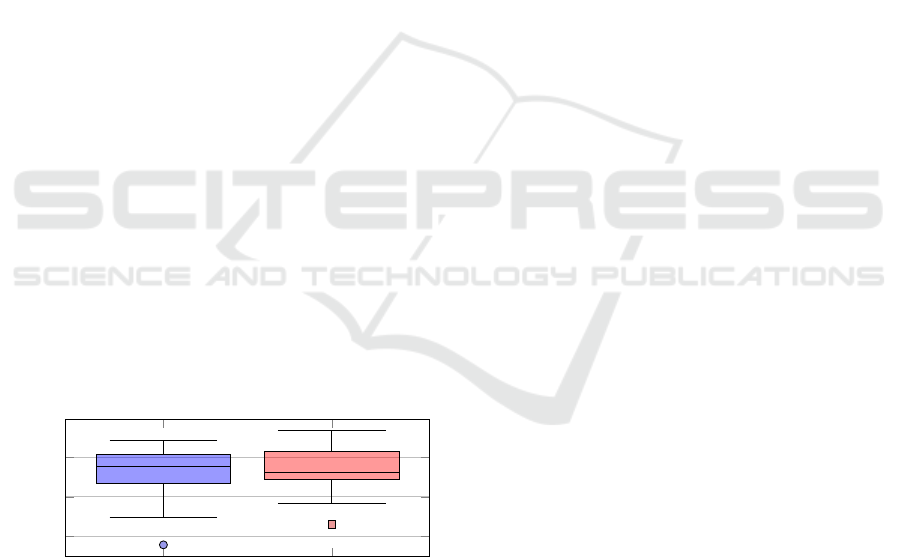

out a dispersion analysis. Figure 3 box-plot graph
displays of the F-Measure for each treatment applied.
Based on this graph, it is possible to verify the result
obtained in the hypothesis test because the data dis-
persion does not present much difference between the
approaches.
Graphical Treatment Textual Treatment
40
60
80
Percentage (%)
Figure 3: Box-plot - F-Measure per treatments.
Qualitative Evaluation: took place with the analy-
sis of the two instruments applied after the model-
ing tasks. The first was used to respond to RQ3.
regarding the Perceived Ease Of Use (PEOU) and
Perceived Usefulness (PU) of treatments, according
to the TAM model (Davis, 1989). This occurred
through the selection of quality attributes described
in ISO/IEC 25010. For this, we established a Likert
scale from one to six points. This scale served to mea-
sure the level of agreement of the subjects in the face
of the statements exposed in the form. We chosen
an even number of alternatives to avoid possible neu-
tral responses. Thus, the seven quality attributes are
grouped in three categories, being defined as follows:
Functionality: Conformity: ability level to which
the software to achieve specified goals with func-
tional completeness, correctness and appropriateness
related to their functionalities.
Usability: Understandability: ability level to
which users can recognize whether a software is ap-
propriate for their needs; Learnability: ability level
to which the software enables the user to learn how to
use it with effectiveness, efficiency in emergency situ-
ations; Operability: ability level to which the software
is easy to operate, control and appropriate to use.
Quality in Use: Quality in Use: ability level to
which the software to achieve specified goals with ef-
fectiveness and efficiency with their users in specific
contexts of use; Productivity: ability level to which
the software to achieve specified goals with time-
behavior, resources utilization and capacity, when
performing its functions, meet requirements; Satis-
faction: ability level to which the software to achieve
specified goals with usefulness, trust, pleasure and
comfort with their users in specific contexts of use.
After summarizing the results, we observed a
good acceptance by the subjects for the ERtext tool,

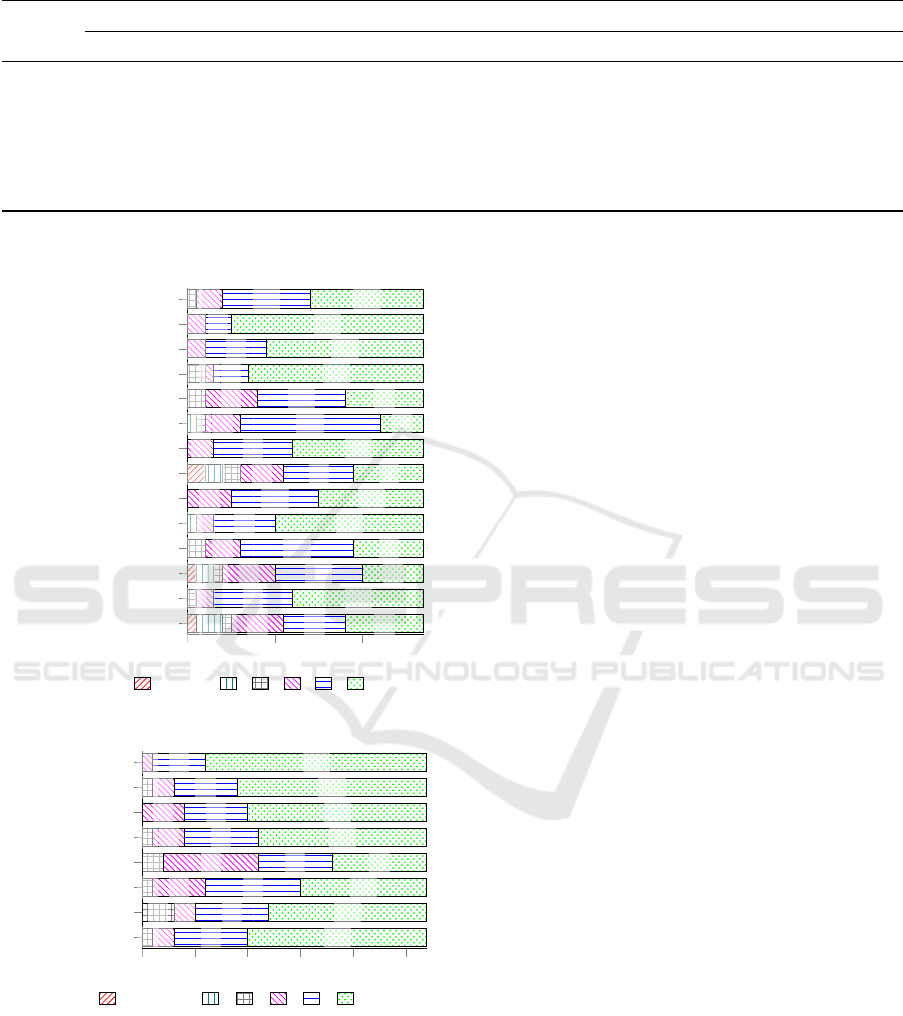

developed in this work. Figure 4 synthesizes the re-
sponses received for each quality attributes, showing
a certain degree of similarity in the subjects percep-
tion during the treatments application. A point that
can be emphasized is the set of positive responses in
relation to the Productivity quality attribute, since in
the hypothesis test related to the effort, the treatment
using the brModelo demonstrated a lesser need for ex-
ecution time.
In analyzing the open comments on this evaluation
form, which asked subjects to indicate positive and
negative points of the tools, it was explicitly reported
that the code completion feature provided a sense of
agility in the modeling database process.
With regard to RQ4. on the assessment of DSL
designers, we analyzed the artifacts of the 2nd qual-
itative assessment instrument. This instrument listed
the 8 ER modeling builders covered by DSL, arranged
with a Likert scale from one to six points. Again, an
even number was chosen on the scale to avoid neutral
responses that could lead to a more subjective bias.
Figure 5 compiles all the responses received, the
builders related to Entities and Descriptive Attributes
were the best evaluated, with all 27 agreeing with
their current representation. In contrast, all the other 6
Empirical Evaluation of a Textual Approach to Database Design in a Modeling Tool
213
Table 1: Measures of the conceptual data models produced in the experiment.
Graphical Treatment Textual Treatment
Measure MI RI Precision(%) Recall(%) F-Measure(%) MI RI Precision(%) Recall(%) F-Measure(%)
Maximum 53.00 35.00 96.00 89.74 88.61 67.00 43.00 95.56 97.50 93.48
3
Quartile 39.50 33.00 87.50 82.05 81.66 44.50 37.00 89.44 80.43 82.93
Median 36.00 29.00 82.93 71.74 77.11 38.00 31.00 83.78 75.00 72.46
Average 35.70 28.26 79.61 68.57 72.79 38.89 31.30 81.50 70.88 74.73
1
Quartile 32.00 25.00 73.80 59.03 67.10 32.50 26.00 73.30 60.85 69.72
Minimum 23.00 13.00 38.24 33.33 35.62 20.00 18.00 58.06 38.30 46.15
SD 6.33 5.63 11.94 15.39 12.16 9.97 7.30 10.44 15.36 10.94
Legend: SD = Standard Deviation; MI = Modeled Items; RI = Relevant Items.
0 10 20
Conformity-ERtext
Conformity-brModelo
Understandability-ERtext
Understandability-brModelo
Learnability-ERtext
Learnability-brModelo
Operability-ERtext
Operability-brModelo
Quality in Use-ERtext
Quality in Use-brModelo
Productivity-ERtext
Productivity-brModelo
Satisfaction-ERtext
Satisfaction-brModelo
13
22
18
20
9
5
15
8
12
17
8
7
15
9
10
3
7
4
10
16
9
8
10
7
13
10
9
7
3
2
2
1
6
4
3
5
5
2
4
6
2
6
1
2
2
1
2
2
1
1
1
1
2
1
2
3
2
1
1
1-Disagree 2 3 4 5 6-Agree
Figure 4: Quality attributes per treatments.
0
5
10
15
20
25
Entity
Referential Attribute
Descriptive Attribute
Binary Relationship
Ternary Relationship
Self-relationship
Cardinality
Generalization
21
18
17
16
9
12
15
17
5
6
6
7
7
9
7
7
1
2
4
3
9
5
2
2
1
1
2
1
3
1
1-Disagree 2 3 4 5 6-Agree
Figure 5: Evaluation of DSL designers.
obtained at least one disagreement. In this sense, the
contributors of Ternary Relationship and Cardinality
stand out, with 2 and 3 evaluations disagreeing with
their current representations respectively.
5 THREATS TO VALIDITY
In this section we discuss the main threats to valid-
ity of our study and present the strategies we used to
mitigate them (Cook and Campbell, 1979).
Construct Validity - Inappropriate Pre-operational
Explanation: To mitigate this threat, the effort of each
approach was compared, as well as their effective-
ness carried out according to the Precision and Recall
metrics. Interaction of Different Treatments: We fol-
lowed a paired design, all subjects are executed both
treatments. However, learning issues among the ex-
ecution of activities were not observed. This can be
verified through the analyzed distributions normality
of the both samples: effort and effectiveness, demon-
strating that the results remained similar as a whole
with a low variation, i.e. low standard deviation indi-
cates that the data points tend to be very close to the
mean.
Internal Validity - History: To soothe this threat, we
carried out the experiment in an academic environ-
ment, and because we conducted the entire process in
August, when in general students are not necessarily
overwhelmed with academic activities. Maturation:
In order to alleviate this threat, we informed subjects
from the beginning that they could terminate their par-
ticipation at any time, without any penalty.
External Validity - Experiment Subjects: Seeking to
mitigate this threat, the experiment was carried out
with undergrad students of Software Engineering and
Computer Science programs, and soon, inserted in the
context of using the conceptual modeling of relational
databases. However, the fact that the sample has less
than 30 subjects is a statistical threat in the analyzed
area, and it was not possible to mitigate this fact. Sub-
jects Interaction with the Evaluation Artifacts: De-
pending on the moment this can affect the experimen-
tal results. For instance, if a questionnaire is answered
a few days after the execution experiment, people tend
to answer differently than they would do moments af-
ter the activities.
ICEIS 2021 - 23rd International Conference on Enterprise Information Systems
214
Conclusion Validity - Low Statistical Power: To try
mitigating this threat, some statistical methods were
adopted, such as the Shapiro-Wilk normality test, the
paired T-test as a hypothesis test for dependent sam-
ples, and the F-Measure for qualitative analysis of the
models produced. Reliability of Measurements: To
mitigate this threat, it was adopted objective measure-
ments that did not depend on subjective judgment (ef-
fort, measured in time spent, and F-Measure). On the
other hand, the metrics used for the qualitative evalu-
ation still served as a complementary input in the dis-
cussion of the results obtained. Experimental Envi-
ronment: In order to mitigate this possible threat, we
instructed subjects that conversations could not take
place during the entire activities execution, or leave
the environment or access electronic devices.
6 CONCLUSION
This study presented a controlled experiment evalu-
ating ERText, a proposed textual DSL for database
conceptual modeling. ERText is compared with the
brModelo, a graphical DSL well-known in Software
Engineering ER lectures.
From the analysis it is possible to highlight the fol-
lowing aspects: (i) Effort: the graphical approach to
ER modeling requires less effort to perform the eval-
uated tasks. However, we considered that this differ-
ence is small and it can be reduced with future im-
provements in the proposed DSL. (ii) Effectiveness:
the computed average difference states that there is
no differences between the approaches, i.e., one ap-
proach is not better than the other. However, we ob-
served that there is a need to carry out tests involv-
ing problems of greater complexities for better as-
sessment. (iii) Qualitative comparison between treat-
ments: We observed a certain balance between treat-
ments, but with a positive evaluation for ERtext re-
garding the “Productivity” attribute. Because it was
the first time that the subjects had contact with our
grammar, and also considering a first release of our
DSL, we conclude that ERText is on the rails for
achieving better productivity indexes.
We also collected qualitative feedback from par-
ticipants. As a result, there are some improvements
regarding the language design that need to be revised,
in particular to the cardinalities and ternary relation-
ships. From the experimental results we conclude
that there is feasibility and good perspectives for the
motivated context, i.e., as a tool for teaching entity-
relationship modeling with the differential of adopt-
ing a textual approach for conceptual database mod-
eling in classrooms instead of a graphical notation.
This conclusion is sustained by the results, which did
not obtained expressive differences with regard to the
evaluated quality attributes between the tools.
ACKNOWLEDGEMENTS
This study was partially funded by PROPESQ
through AGP, and by FAPERGS, through the ARD
project N
o
19/2551-0001268-3.
REFERENCES
Al-Dmour, A. (2010). A cognitive apprenticeship based ap-
proach to teaching relational database analysis and de-
sign. Inf. & Comp. Science, 7(12):2495–2502.
Brambilla, M., Cabot, J., and Wimmer, M. (2017). Model-
Driven Software Engineering in Practice, Second Edi-
tion. Synthesis Lectures on Software Engineering.
Morgan & Claypool, San Rafael, CA, USA.
Celikovic, M., Dimitrieski, V., Aleksic, S., Ristic, S., and
Lukovic, I. (2014). A DSL for EER data model
specification. In 23rd Int. Conf. on Information Sys-
tems Development, pages 290–297, Varaždin, Croatia.
Springer.
Cook, T. D. and Campbell, D. T. (1979). Quasi-
Experimentation: Design and Analysis Issues for
Field Settings. Houghton Mifflin, Chicago, IL, USA.
Davis, F. D. (1989). Perceived Usefulness, Perceived Ease
of Use, and User Acceptance of Information Technol-
ogy. Management Inf. Systems Quarterly, 13(3):319–
340.
Derczynski, L. (2016). Complementarity, f-score, and NLP
evaluation. In 10th Int. Conf. on Language Resources
and Evaluation, pages 261–266. ELRA.
Dimitrieski, V.,
ˇ
Celikovi
´
c, M., Aleksi
´
c, S., Risti
´
c, S.,
Alargt, A., and Lukovi
´
c, I. (2015). Concepts and eval-
uation of the extended entity-relationship approach
to database design in a multi-paradigm information
system modeling tool. Comput. Lang. Syst. Struct.,
44:299–318.
Elmasri, R. and Navathe, S. (2011). Sistemas de Banco de
Dados. Pearson Universidades, Franca, SP, Brasil.
Kelly, S. and Tolvanen, J.-P. (2008). Domain Specific Mod-
eling: Enabling Full Code Generation. John Wiley &
Sons.
Kessler, J., Tschuggnall, M., and Specht, G. (2019). Relax:
A webbased execution and learning tool for relational
algebra. In Datenbanksysteme für Business, Technolo-
gie und Web, pages 503–506. Gesellschaft für Infor-
matik.
Obeo and TypeFox (2020). Xtext/sirius - integration the
main use-cases. Technical report, Obeo and TypeFox.
Wohlin, C., Runeson, P., Hst, M., Ohlsson, M. C., Regnell,
B., and Wessln, A. (2012). Experimentation in Soft-
ware Engineering. Springer, London, England.
Empirical Evaluation of a Textual Approach to Database Design in a Modeling Tool
215
