Enterprise Architecture Patterns for GDPR Compliance

Clara Teixeira

, André Vasconcelos

, Pedro Sousa

and Mª João Marques

Instituto Superior Técnico, Avenida Rovisco Pais 1, Lisbon, Portugal

Admnistrive Modernization Agency, Rua de Santa Marta 55, Lisbon, Portugal

Keywords: GDPR, Compliance, Personal Data, Enterprise Architecture Patterns.

Abstract: With the growth of technology and the personalization and customization of the internet experiences, personal

data has been stored and processed more and more. In some cases, the data subject has not agreed with the

retrieval and the purpose of the processing. To solve this, the European Union (EU) parliament approved the

General Data Protection Regulation (GDPR), a regulation that has the data subjects’ interests in mind. Since

some of the concepts and requirements are hard to comprehend, patterns can help system architects and

engineers to deliver GDPR compliant information systems. It is important to emphasize that these privacy-

related concerns should be addressed at a design level, not after the implementation. This methodology is

mostly known as privacy by design. This work focuses on the requirements brought by the GDPR and in

providing enterprise architecture patterns to achieve GDPR compliance by proposing a library of patterns.

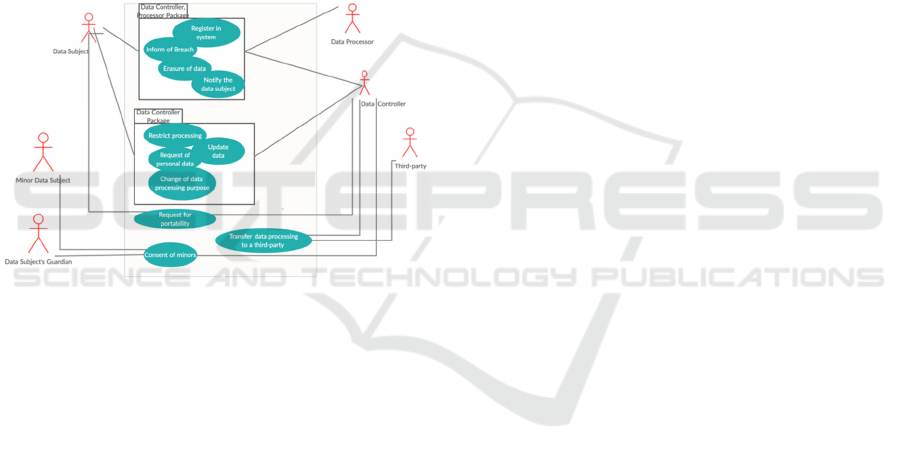

This library is organized in 11 use cases with the GDPR principles that they address; it has 22 patterns, each

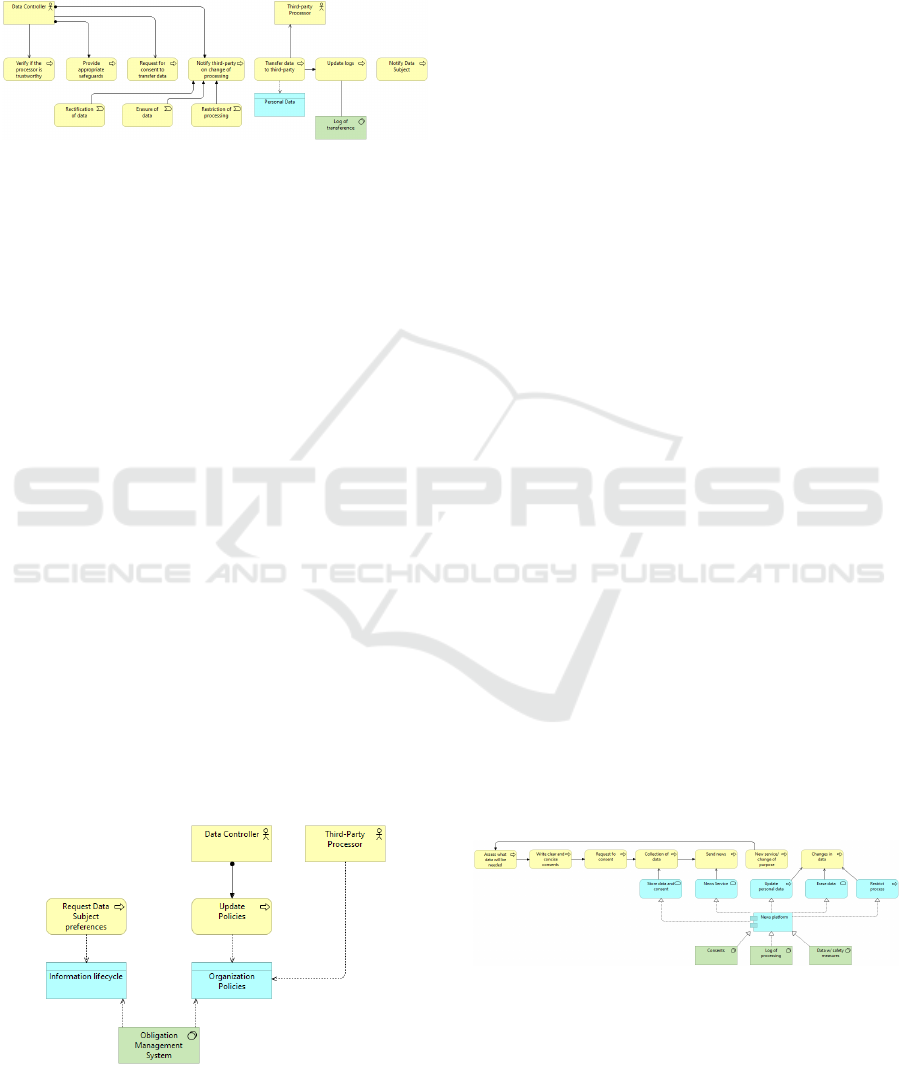

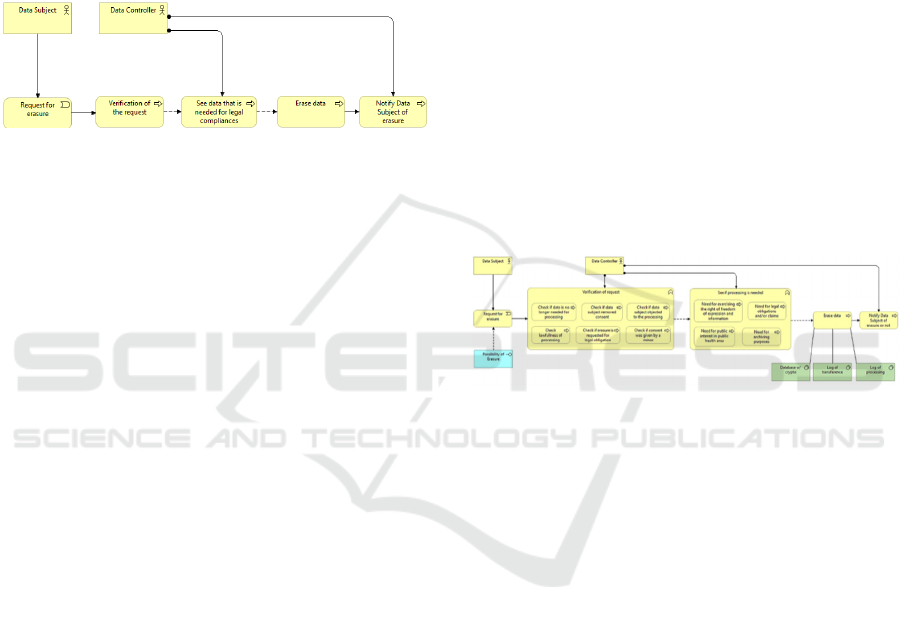

one handling one or more use cases, modeled in ArchiMate, for a clearer understanding of the solutions. The

patterns are applied to a case study, and the impacts are assessed.

1 INTRODUCTION

The importance of securing clients’ and employees’

personal information has always been evident.

However, the growth of technology and the need to

ensure that data is safely stored required a common

regulation (Intersoft Consulting, 2020). Thus, the

General Data Protection Regulation (GDPR) was

created and applied. Although several countries

already had some legislation regarding this issue, it

was not the same for everyone; some countries had an

easy adaption, and others had to start from the ground.

Companies and other organizations had to question:

“How do we achieve GDPR compliance?”. To

answer this question, the requirements brought by the

GDPR and the steps needed for compliance were

collected and analyzed. Nevertheless, only knowing

what is new is not enough; what would be helpful is

to know how to achieve this compliance. By reading

the regulation, we have an idea about the changes but

not a solution to address those changes, and here is

where patterns appear.

According to Alexander, et al. (1977), “each

pattern describes a problem which occurs over and

over again in our environment, and then describes the

core of the solution to that problem, in such a way that

you can use this solution a million times over, without

ever doing it the same way twice.” and are used in

different domains, like meta-programming, games,

etc. Since patterns provide solutions for recurring

problems and can be used multiple times, they are a

great tool to solve the constraints brought by the

GDPR. Unfortunately, in the regulation itself, these

new concerns do not come with “how to’s” for its

implementation in projects and services; but the

patterns can help. This work aims to identify relevant

patterns that can provide solutions to the

implementation problems and present them organized

according to GDPR principles and requirements.

Some work has already been in progress to help

companies with this matter, as presented in section 2

but most are tools or work done for specific cases.

Privacy by design is also a domain that is very

connected to the matter and already has many

patterns, but they are not organized to help with the

specific case of GDPR.

This document is structured in 5 sections. In the

next section, some background and related work are

described, including GDPR principles, Privacy by

Design, Patterns, as well as existing tools and

practices for GDPR compliance. Section 3 shows the

solution's proposal with an overview of it, followed

Teixeira, C., Vasconcelos, A., Sousa, P. and Marques, M.

Enterprise Architecture Patterns for GDPR Compliance.

DOI: 10.5220/0010441307150725

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 715-725

ISBN: 978-989-758-509-8

 2021 by SCITEPRESS – Science and Technology Publications, Lda. All rights reser ved

715

by the definition of the solution's approach and the

solution itself. Next, in chapter 4, a demonstration of

how the library can be applied using a case study is

presented. In the last section, we conclude and present

the future work.

2 BACKGROUND AND RELATED

WORK

2.1 GDPR

The General Data Protection Regulation (GDPR) is a

standardized and enforceable law across all EU

Member States (Moné, 2018), allowing citizens to

understand “how” and “what for” their data is being

used. In simple terms, this regulation applies to any

person, the data subject, in the EU whose data is being

processed by an organization (e.g., legal person,

public authority, institute, etc.) that operates within

the EU, whether the processing is done in or outside

of the European Union (Art. 3 of GDPR).

The regulation has terms like Data Controller,

which is “the natural or legal person, public authority,

agency or other body which, alone or jointly with

others, determines the purposes and means of the

processing of personal data” (Art4, paragraph 8).

Moreover, enforces Consent, “any freely given,

specific, informed and unambiguous indication of the

data subject’s wishes by which he or she, by a

statement or by a clear affirmative action, signifies

agreement to the processing of personal data relating

to him or her” (Art4, paragraph 11).

2.1.1 GDPR Principles

The GDPR brings a set of principles that are related

to the processing of personal data. Verheijen (2017)

resumes them in 6 principles, which we can find in

Article 5 (Intersoft Consulting, 2020). These are the

principle of purpose limitation (paragraph 1, sub b

GDPR, Principle of data minimization (paragraph 1,

sub c GDPR), the principle of trueness and accuracy

(paragraph 1, sub d GDPR), the Principle of storage

limitation (paragraph 1, sub e GDPR), and the

Principle of integrity and confidentiality (paragraph

1, sub f GDPR).

The principles of lawfulness, fairness, and

transparency (paragraph 1, sub a GDPR) are further

explained in Articles 7, 8, 9 GDPR; the transparency

part is in Art. 12.

Besides the ones resumed by Verheijen (2017),

Art. 5(2) also indicates the principle of accountability.

2.1.2 Rights of the Data Subject

In chapter 3 of the GDPR, the regulation describes the

data subject’s rights that controllers need to ensure to

comply with the regulation. Articles 13 and 14

express what needs to be informed to the data subject

when the data is collected. Article 22 discusses

automated individual decision-making, and Article

22 the restrictions. For this work, we will focus on

Articles 15 to 21.

The rights are: Right of access by the data subject

(Art. 15), Right to rectification (Art. 16), Right to

erasure (‘right to be forgotten’) (Art. 17), Right to

restriction of processing (Art. 18), Notification

obligation regarding rectification or erasure of

personal data or restriction of processing (Art. 19),

Right to data portability (Art. 20), and Right to object

(Art. 21).

2.2 Privacy by Design

Privacy by Design is about considering privacy when

designing systems and relates to GDPR Compliance

because some of its principles are similar to the

legislation’s requirements. Verheijen (2017) in EXIN

Privacy & Data Protection states that: “required level

of data protection must already be taken into account

at the design stage for the processing method”.

2.2.1 Privacy by Design Principles

Cavoukian (2010) names the principles in the

foundation of this approach which have several

similarities to the GDPR principles.

• First – Proactive and Preventive

• Second – Privacy as the Default

• Third – Privacy embedded into Design

• Fourth – Full functionality (Positive-Sum)

• Fifth – End-to-end Security

• Sixth – Visibility and Transparency

2.2.2 Privacy by Design Strategies

Colesky et al. (2016) divides the requirements into

strategies, which are “architectural goals in privacy

by design to achieve a certain level of privacy

protection”. These goals are: Minimize, Hide,

Separate, Abstract, Inform, Control, Enforce and

Demonstrate.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

716

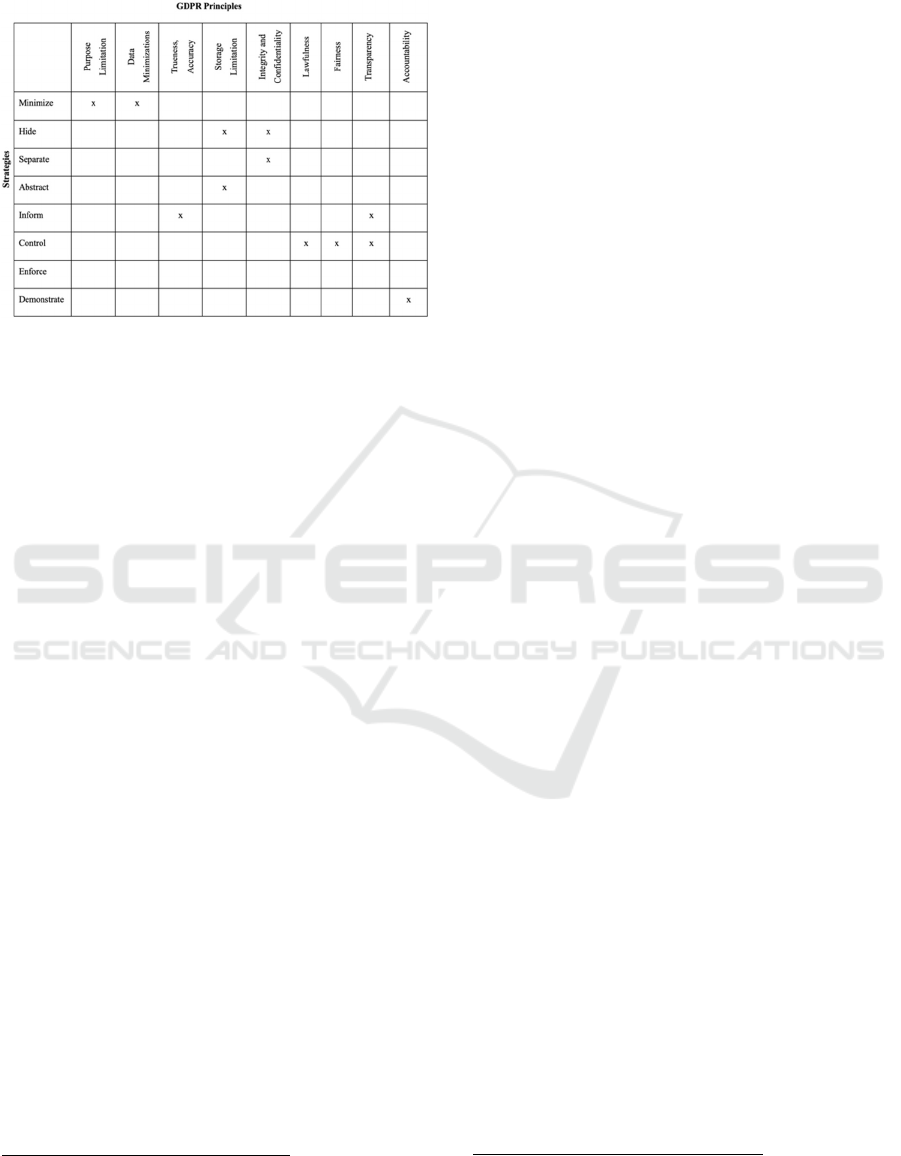

Table 1: Association of Hoepman’s Privacy by Design

Strategies and GDPR Principles.

In Table 1, we can see how the GDPR principles

and Hoepman’s Privacy by Design strategies can be

associated.

When designing the systems, it is necessary to keep

in mind these requirements and principles to achieve

GDPR compliance. The principles and strategies are

great checkmarks and guidelines for the work.

2.3 Patterns

As mentioned in the introduction, patterns are used to

solve recurrent problems in an outlined way we can

use patterns. There are and have many domains to

which they can be applied, has Privacy by Design; to

better comprehend this topic, previous works and

studies were analyzed.

In Doty & Gupta (2013), three sample patterns are

provided from privacypatterns.org. One of them has

a strong correlation to GDPR compliance; Location

granularity: Collecting more information than needed

can harm the user's privacy and increase the risk for

the service (in the case of a security breach, for

example), but the location data may still need to be

collected to provide the service

. The other two,

Asynchronous notice and Privacy Dashboard, at a

first read, may not appear to be relevant to GDPR

compliance, but they are.

This project’s (privacypatterns.org) goal is “for

this to be a living document constructed by the

community of engineers, designers, lawyers and

regulators involved in this topic”

. So, since the

publication of Doty & Gupta (2013), more patterns

were added. In this website, the patterns are divided

by Privacy by Design strategies and are generally

defined by Summary, Context, Problem, Solution,

https://privacypatterns.org/patterns/Location-granularity

https://privacypatterns.org/about/

and Consequences. This library is very relevant to the

solution we are proposing.

In 2017, a literature study was conducted on

privacy patterns; in this research, the authors found a

lack of studies focused on pattern catalogs since some

were quite specialized (Lenhard et al., 2017). In the

study, the authors state that “the published research

results show a clear focus on the privacy design

strategies of hide and separate” (Lenhard et al., 2017).

No patterns were provided in Lenhard et al. (2017)

since the goal was to characterize and classify the

different researches on this topic.

2.4 Existing Tools and Practices for

GDPR Compliance

With the emergence of the regulation, many

companies started to provide frameworks, like

LeanIX (2020), a framework that helps the companies

in categorizing data objects in terms of privacy

sensitivity, identifying responsibilities, classify the

data in heatmaps, and many other concerns. However,

it does not show what is needed in terms of

information architecture. Instead, it does that job for

the user.

The PDP4E (2020) is a project that aims to

“widespread the creation of products, systems and

services that better protect the privacy and personal

data of EU citizen”. PDP4E presents some papers and

have participated in conferences about risk

management

, privacy-aware design

, and other

topics. The PDP4E project focuses more on tools and

GDPR/privacy awareness, so no specific solution is

provided.

A practical and design-oriented approach in order

to solve GDPR’s requirements is provided in Hjerppe

et al. (2019). The article divides the requirements and

principles mentioned above into nine requirements

that a system should take into account in its

architecture: system security and privacy, data

minimization, consent control, data traceability, user

access, data rectification, data erasure, data

restrictions, and data’s physical location. This work

provides what requirements need to be in mind and

some architectural solutions (like logs), but it does not

provide patterns.

Rösch et al. (2019) provides patterns (technical

solutions) for some of the GDPR principles (or

requirements as definied in the paper) and data

subject’s rights. This paper is very relevant to this

research but lacks modeling, and it is incomplete, as

https://www.pdp4e-project.eu/risk-management/

https://www.pdp4e-project.eu/privacy-aware-design/

Enterprise Architecture Patterns for GDPR Compliance

717

they mention in the paper; so, these patterns will be

kept in mind for the solution but do not satisfy what

is needed.

A BPMN proposal for a better understanding of

the requirements brought in with the GDPR is created

in Calabró et al. (2019). The authors’ approach

involves defining a use case (a simple BPMN), gather

authorization requirements, business requirements,

and security best practices. Then an identification of

the business process affected by the GDPR

requirements is performed, and the statements are

transformed into machine-interpretable language.

The final steps are the test of the architecture, its

deployment, the policies, and, at last, an access

review. Nevertheless, they present are no patterns.

Palmér (2017) proposes an architectural meta-

model for the EU Directive (Directive 2016/680). It

is a directive concerned with the protection of people

regarding the processing of data, created in April of

2016. Although both regulations concern processing

data, they are not the same, so it has some differences

in requirements and constraints. The work presents

models in ArchiMate, but some mismatch occurs

because it follows the EU Directive 2016/680 and not

with the General Data Protection Regulation; also, a

map of the architecture is modeled and not a pattern.

Some researches lack modeling, while others lack

a more pattern-oriented approach, and some others

are incomplete; nevertheless, all the learnings

acquired when assessing these documents were

considered when proposing and creating the final

solution. The goal of this work is to create a library

that guides companies and provides solutions in order

for them to achieve GDPR compliance, so patterns

from privacypatterns.org (the website referenced in

Doty & Gupta (2013)) and from Rösch et al. (2019)

were considered to be part of the library.

3 BUILDING AND ORGANIZING

PATTERNS FOR GDPR

COMPLIANCE

3.1 Solution Overview

As presented previously, there are already patterns in

the Privacy by Design domain. However, a collection

of patterns organized in terms of the General Data

Protection Regulation principles and the data

subject’s rights intertwined does not exist.

Another particularity of the proposed solution is

the definition of use cases. This approach is expected

to make it easier to search and find which patterns

make sense for each case (since not all the patterns

need to be applied to all projects). Also, we based

most of the use cases on the data subject’s rights,

providing a connection between these rights and the

principles relating to the processing of personal data.

The proposed solution starts by identifying the

entities (stakeholders and objects), then proceeds to

define the use cases by analyzing the business

processes needed, select the GDPR principles

associated and the entities present, and later, if

possible, model them.

For each use case and its principles, relevant

patterns are retrieved from sources

privacypatterns.org and Rösch et al. (2019) and

adapted to our template. We will then check if all the

use cases have at least one pattern associated, and if

not, we create or adapt a pattern for it.

After creating a GDPR pattern library, we verify

if the patterns are relevant and applicable to a Case

Study. After the application of the patterns, the last

step is their evaluation.

3.2 Entities and Use Cases

To better organize the library, use cases were defined,

and the entities present were selected.

The entities identified are the data subject (who

can be a child), the data controller, the data processor,

third-party, and data subject’s holder of parental

responsibility, that for the rest of the paper will be

expressed as guardian (or guardian of the minor).

Figure 1: Entities and their relations.

Since most of the use cases are related to the data

subject’s rights, we can presume that the data subject

will be present in almost all the use cases. This

happens because of requests performed by the data

subject itself, as the request for erasure, or because of

controller’s requests, like the request for consent.

The data subject is the holder of personal data that

can be identified by reference to that personal data.

However, in this library, the data subject will only be

the client/user of the organizations’ services.

It is also relevant to point out the difference

between controller and processor since they are

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

718

related. As explained in section 2.1, a controller is a

person with legal authority that determines the

purposes and means of personal data processing. A

processor is a person who processes (“any operation

or set of operations which is performed on personal

data or on sets of personal data”) the personal data on

behalf of the controller. All these definitions are

explained in depth in Article 4 of the regulation.

A third-party is an entity that is not a data subject,

a controller, or a processor authorized to process

personal data. It be from another country or even from

outside of the European Union (EU).

All the entities related to a “minor” are for a child

that, according to the regulation, is a data subject

below the age of 16 years old, but the Member States

can change it (although the age cannot go below 13

years) Art. 8. In Figure 1we can see the relations

between the entities and some of their roles.

Figure 2: Use Cases.

Figure 2 is a UML Use Case diagram with all the

use cases. The use cases with the same entities are

grouped in packages for a clearer view.

Before declaring the use cases, an explanation of

their use is necessary. The use cases work as a way to

organize the library per se and organize it in terms of

the GDPR. The use cases are mostly situations that

come from the rights of the data subject, and in each

use case, we also have the general principles that

govern data processing.

The first use case is register in system. It concerns

all the constraints organizations need to be aware of

when collecting data in registration.

Inform of a breach is a use case that is probably

already addressed by many organizations. However,

the GDPR brings some requirements that probably

were not contemplated before, like the controller

notifying the supervisory authority of the breach

within 72 hours and, if necessary, inform the data

subject; it also has to follow the guidelines present in

Article 33(3).

The next use cases are particular to the regulation,

mostly with the data subject’s rights, and are related

to requests.

Request for restriction on personal data’s

processing focuses on the right to restrict the

processing that is being performed.

The other request is when the data subject asks for

the data being processed and other information stated

in Art. 15(1). It is called request of personal data.

The request for portability concerns the right to

request the data from the data controller in “a

commonly used and machine-readable way” (Art. 20

of GDPR). This allows the transfer of the data to

another controller or request the data to be directly

transmitted, if possible.

The most commonly known might be the request

for erasure, also known as “the right to be forgotten.

The data subject has the right to request to the

controller the erasure of their data if the processing is

longer necessary or if it was made without their

consent, for example.

Finally, in terms of use cases related to the data

subject’s rights, we have the request for or the ability

to update their personal data. The data subject must

be able to access their data quickly and update it.

Another use case contemplates when new policies

or purposes appear in the data processing; this is

called change of data processing purpose.

Regarding consent of minors, as mentioned in the

entities, a minor, in the regulation, a child younger

than 16 years old, cannot consent for the processing;

the same has to be given by a guardian, the holder of

parental responsibility over the child.

Many companies subcontract others to process

the data they collected, in or outside of the country or

EU; so, a use case regarding Transfer data processing

to a third-party is relevant.

Lastly, we have a use case present in others, but

since it is very relevant and can be used for other

cases, it is on its own; this is the notification of the

data subject.

The use cases were selected considering the

broadest concerns and requirements of the regulation;

more specific or industry-specific use cases are not

addressed in this research.

3.3 Template for Patterns

One of the characteristics of patterns is their template,

an explanation of what problem it addresses, and the

proposed solution.

In this research, the template created has the base

elements, Context, Problem, and Solution and

elements present on the website. The pattern template

Enterprise Architecture Patterns for GDPR Compliance

719

proposed considers what and how the pattern

addresses the problem and the use cases for the search

in the library.

The template for the patterns has the following

fields:

Associated Use Case: The use case in which the

pattern is applicable and a brief description of it (with

a model of some of the general processes necessary).

Associated GDPR Principles: The GDPR

principles that the patterns aim to solve.

Name: Name of the pattern.

Context: The situation where the pattern may be

applied.

Problem: The problem the pattern addresses.

Solution: The solution principle underlining the

pattern.

Source: If the pattern exists in the accessible

libraries, the source is included.

A simple diagram of the pattern is also present in

the library to give a general idea of the pattern’s

solutions and requirements.

In the template, we see that, for each use case,

GDPR principles are associated; this helps to see the

main concerns to the problem, but it also helped in the

search for the patterns. As was shown in Table 1, the

principles are related to different Hoepman’s Privacy

by Design strategies; since these patterns are in the

Privacy by Design domain, the strategies are some of

the categories through which the search is done.

However, not all the patterns for Privacy by Design

are related to the GDPR, since the concern for privacy

in the early stages of a “project” is prior to the

creation of the regulation, and there are more

problems related to privacy than the ones the GDPR

brings. Some of the problems that patterns address are

for specific cases, like mobile applications, so a

thorough and careful search was performed to find

patterns that focused on more broad scenarios.

In each use case, the models provide an overview

of the constraints and requirements that come with the

GDPR and show some of the “sub-processes” needed

to take into account. A model of the pattern is

relevant; although not all solutions have architectural

bases, a simple and image type of view helps to see

what is needed to be implemented clearly. A brief

explanation of what it is and what articles in the

GDPR are related to the problems that need to be

addressed is also contemplated. This way, any person

can analyze the regulation if they have a specific

concern that is not covered in the library already with

an idea of what to search for, making the search

quicker.

A use case does not address only one principle,

consequently, doesn’t have only one problem

associated with it, so the context of the pattern is

important to see each situation (or process in the use

case) we may apply the pattern. The problem and the

solution are essentials for this type of library.

3.4 Retrieval of Patterns

When it came to retrieving patterns from the sources,

not all use cases had the same ease. In this section, the

list of the patterns will be presented, but first, some of

the difficulties that came with the retrieval of patterns

will be assessed.

One of the terms/concerns in the GDPR is

Consent, and probably because it was the most visible

change that companies and organizations had to

comply to and it was already a known concept from

its predecessor (i.e., Directive 95/46), a variety of

patterns were found in this category. Not all could be

used in the library because they are focused on

particular cases, like the one presented above:

Location granularity, which only focuses on the data

subject’s location-related data. Notification is also

vastly addressed, but for many specific cases like

pop-up notifications or icons for mobile applications.

In contrast, patterns related to the data subject’s

rights were trickier to find since it is not a visible

change, and many users may not be fully aware of its

existence. For example, we found patterns that some

companies have already used for the data subject

requesting their data. For the case of portability, it

was harder to find patterns that addressed this matter,

specifically when controllers provide the data directly

to other controllers by the request of the data subject.

This was solved using other use case patterns but

adding a process of requesting to whom and how to

send the information.

The erasure request also does not have many

patterns. Although it may seem simple to erase data

from a database, the GDPR also requests additional

information to be stored and saved that has to be

eliminated as well.

The concerns related to processing minors’

personal data were also not easy to find; not only the

child’s age must be known, but the guardian also has

to be aware of the processing and give consent. In this

case, the controller has to decide if minors will use

the service or not because if they will, age has to be a

requested data. If not, it may not be relevant to

process the data subject’s age.

Here is the list of all the patterns and their use

cases, accompanied by a brief explanation of what

they address:

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

720

Table 2: Selected Patterns.

Use Case Patterns Brief Explanation

system

Minimal

Information

Asymmetry

The first two

patterns are related

to purpose

limitation, and

data minimization,

the next four are

about integrity and

confidentiality and

the last three are

about consent.

Awareness

Feed

Encryption

with user-

managed keys

Aggregation

Gateway

User data

confinement

pattern

Personal Data

Store

Lawful

Consent

Informed

Implicit

Consent

Obtaining

Explicit

Consent

Inform of

Breach

Data Breach

Notification

Pattern

The first pattern

focuses on quickly

detecting and

reacting to data

breaches, and the

second one is more

related to

authentication.

Unusual

Activities

Request for

restriction

on personal

data’s

processing

Negotiation of

These patterns are

about a data

subject negotiating

and being able to

push and pull data

for processing.

Reasonable

Level of

Control

Request of

personal

data

Personal Data

Table

These patterns give

the data subject the

ability to see the

data and logs and

transfer the data to

their computer.

Privacy

Dashboard

Request for

portability

Personal Data

Table

(adapted)

These patterns are

primarily for

portability for the

data subject, so the

possibility of

sending directly to

another party can

be added.

Request for

erasure of

data

Technical

Solution for

Right of

Erasure

This pattern states

what the services

must have to

provide a simple

way of processing

the request of

erasure of data.

Request

for/and

update of

data

Technical

Solution for

Update of data

This pattern is a

simple solution for

what is needed for

the data subject to

see their data and

update any mistakes

or changes.

Change of

data

processing

purpose

Negotiation of

This pattern is

already used for

another use case

but is also relevant

because of the opt-

in/opt-out options

since new purposes

can be added and

request for new

consents.

Consent of

minors

Lawful

Consent

(adapted)

The idea is to adapt

the lawful consent

pattern but use the

guardian of the

child for

consenting.

Transfer

data

processing

to a third-

party

Sticky Policies/

Obligation

Management

The patterns focus

on building trust

and assuring that

the third-party

follow the GDPR.

Trust

Evaluation of

Services Sides

Notify the

data subject

Asynchronous

notice

One pattern covers

possible breaches,

and the other

covers more

general matters.

Unusual

Activities

3.5 Example of Library

Since the library is extensive, it is impracticable to

present it all in this paper. We selected two patterns

from different use cases to show the patterns in the

designed template.

Associated Use Case: Request for erasure of data

The data subject has the right to have the data

concerning him/her erased if the terms in Art 17(1)

are met without unjustified delays. The controller or

processor has to ensure that all the data is deleted,

while taking into account the available technology

Enterprise Architecture Patterns for GDPR Compliance

721

and the cost of implementation, and he must inform

the processors of what was requested to be erased.

The entities present in this use case are:

• Data Subject (Client)

• Data Controller

Associated GDPR Requirements:

• Purpose limitation

• Principles of lawfulness, fairness and

transparency

• Data subject’s right to erasure or “right to be

forgotten”.

Figure 3: Model of Request for erasure of data use case.

Name: Technical Solution for Right of Erasure

Context: Services that process personal data want

their users to trust in them and comply with the new

regulations. In some cases, the users do not want to use

the services anymore or may want their data to be

removed from the service database for various reasons.

Problem: Since the appearance of the GDPR,

many users are familiar with the right to be forgotten

but may not know precisely when to use it. The

controller then has to make sure that the request is

liable and that if some unlawful processing is

occurring, it should be addressed and resolved. It is

also vital that the data needed for legal concerns

cannot be deleted. The user needs to be made aware

of these situations to be transparent (a store cannot

delete the registry of a purchase because of financial

constraints).

A controller may not want the users to withdraw

their data, but it is crucial to guarantee the user that

their rights are being fulfilled and increase the trust

with the user.

Forces and Concerns:

• Users want to have the possibility to have

their data removed not only from processing

but also from the services database entirely.

• Users may not fully understand in what

terms they can request for the erasure of their

data.

• Controllers want to ensure the users trust in

their service.

• Controllers need to check if the data has

reasonable reasons for its erasure.

• Controllers must verify if the data is required

for legal claims and if so, they need to notify

the user about it.

Solution: The first step to take is to create an

interface that enables personal data’s subsequent

erasure. Data of individual persons must be

retrievable and separately erasable. Subsequent

reproduction of the data after deletion is not

permitted.

After the data subject requests for the erasure of

their data, the controller must assure that the request

has the right grounds for the erasure to be conducted.

If one of the grounds is met, then the controller must

check if some of the data needs to be kept to comply

with legal obligations. When all of the erasure

requirements are met, the data then has to be tracked

and deleted from the services database, as well as the

logs related to the data subject in question, them a

notification of the deletion is sent.

When no ground is encountered or other

obligations require the data to be kept, the data

subject should be notified of the matter.

Source: adapted from Privacy Control Patterns

for Compliant Application of GDPR (Rösch et al.,

2019).

Figure 4: Model of Technical Solution for Right of Erasure.

Associated Use Case: Transfer data processing to

a third-party In some cases (like subcontracts), the

processor or controller share the data with a third-

party. When this happens, the data subject must be

notified of such actions. For this transfer to be valid,

the Commission has to decide that the third-party is

trustworthy, i.e., follows the processing policies/

restrictions present in the GDPR legislation. In the

absence of a decision by the Commission, the transfer

may also be made if “the controller or processor has

provided appropriate safeguards” (Art.46) or the data

subject has to consent to the processing being aware

of all the risks (Art.49). According to article 19, “any

rectification or erasure of personal data or restriction

of processing” must be notified to whom the data was

transferred. It is also important to point out that this is

referent to other companies in the same country and a

third country or an international organization

(Chapter 5, Art. 44-50).

The entities present in this use case are:

• Data Controller

• Third-party

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

722

Associated GDPR Principles:

• We come across all of the GDPR

principles (since all the regulation must

be followed)

• Accountability

Figure 5: Model of Transfer data processing to a third-party

use case.

Name: Sticky Policies or Obligation

Management

Context: Multiple parties are aware of and act

according to a certain policy when privacy-sensitive

data is passed along the multiple successive parties

storing, processing and sharing that data.

Problem: Data may be accessed or handled by

multiple parties that share data with an organisation

in ways that may not be approved by the data subject.

Solution: Service providers use an obligation

management system. Obligation management

handles information lifecycle management based on

individual preferences and organisational policies.

The obligation management system manipulates data

over time, ensuring data minimization, deletion and

notifications to data subjects.

The goal of the pattern is to enable users to allow

users to control access to their personal information.

Examples of policy specification languages include

EPAL, OASIS XACML and W3C P3P. Tracing of

services can use Identifier-Based Encryption and

trusted technologies.

Source:

https://privacypatterns.org/patterns/Sticky-policy

https://privacypatterns.org/patterns/Obligation-

management

Figure 6: Model of Sticky Policies or Obligation

Management.

4 CASE STUDY AND

DISCUSSION

This library’s central goal is to help companies better

understand how the GDPR affects the design of their

services and what are some of the solutions for it. A

simple case study will be presented to show how the

library can be applied.

For demonstration purposes, consider a platform

that provides some news to the client. The client must

case regarding registration can be used, not just the

ones related to consent. The system needs to ensure

that the retrieved data is only the essential one; for

example, if the news only comes through email, a

phone number does not need to be collected. A

relevant pattern is Minimal Information Asymmetry.

For this kind of service, not all the patterns are

relevant, but that is the benefit of this library’s

organization. Since minors probably will not use this

service and the processing of data is internal to the

company, the use cases related to these matters can be

ignored, so the search for patterns to use becomes

quicker. Also, since the idea of patterns is to provide

a solution that can be used multiple times in different

ways, the company can adapt them to the platform

and re-use them for other services. If the platform

changes or new information is provided for some

reason, the use case for a change of purpose and its

patterns becomes essential.

In terms of storage, the patterns provide different

solutions, and so the controller and the processor must

discuss which ones apply. The patterns focus more on

processing the data and having access to it without

being entirely responsible for storing it internally.

These may be more suitable for smaller companies or

ones that do not need that much information (as in this

example).

An ArchiMate diagram presents some of the

changes the patterns brought in the case study

described.

Figure 7: Simple model of the case study after the

application of the patterns.

In Figure 7, we can see the presence of logs and

the consents’ storage to which the data subject agreed.

This storage is not present in many services since

Enterprise Architecture Patterns for GDPR Compliance

723

consent is not the only way to have lawful data

processing. The pattern Minimal Information

Asymmetry requires new business processes. The

careful analysis of what data is strictly necessary for

the service, the writing of concise and straightforward

consent to each purpose, and considering the data

subject’s comprehension for what their data will be

used are some of the processes necessary to comply

with the GDPR. Also, application services for

compliance with the data subject rights are required

and essential.

This case study demonstrated how the proposed

library is helpful in the context of GDPR compliance.

It is easier to implement design modifications in

new projects, but these patterns may be used for

already working services. The diagrams support the

description of the use cases and solutions, making it

easier to understand what needs to be implemented

and added to ensure GDPR compliance.

The library can be applied to other cases. A way

to select patterns is by considering the use cases the

project must deliver and relate them with the use

cases of the library. Then, the patterns are analyzed to

see which can make more sense to apply to the

project.

5 CONCLUSIONS

Data protection is important and crucial in a business,

especially when personal data is stored and

processed. The creation of GDPR confirms it. In an

era where our data is easily acquired and processed

without the owners' knowledge and sometimes

without their consent, the regulation gives guidelines

and rules for the organizations that operate in the EU

to follow. The challenge is that there is much

information and constraints to follow, and the

language is not very explicit nor give objective rules

to follow. This research contributes to ensuring

Information Systems compliance to the GDPR,

presenting ways of achieving it, using a library of

patterns. When creating this library, the description

and modeling of the use cases were performed, and

the definition of the associated entities and GDPR

principles. A search through the sources was

conducted to select the patterns that better solve the

problems that the GDPR requirements bring to the

use cases, and when needed, new patterns were

created. In total, 22 patterns compose the library. This

collection of patterns is used in the case study,

demonstrating how services that require personal data

processing may use the proposed solution and what

changes when the patterns are applied. Although very

important in the design phase of a project, these

concerns are permanent throughout its lifecycle. To

point out that data processing occurs not only for

users but also for the company's employees.

In the future, we expect to add other patterns to

the library, especially to the use cases where the

patterns were hard to retrieve. Additionally, an

interface could be created to show the collection of

the use cases and patterns in a more dynamic way.

Another future path to explore is developing a library

that is focused on use cases for inner-company

problems since the employees are also data subjects.

With this, other concerns appear since the processing

of personal data may not require consent due to

contractual reasons.

ACKNOWLEDGMENTS

This work was supported by national funds through

Fundação para a Ciência e a Tecnologia (FCT) with

reference UIDB/50021/2020 and by the European

Commission program H2020 under the grant

agreement 822404 (project QualiChain).

REFERENCES

Intersoft Consulting, n.d. General Data Protection

Regulation (GDPR). https://gdpr-info.eu/. Last

accessed in 24.11.2020

Alexander, C., Ishikawa, S., Silverstein, M., 1977. A

Pattern Language: Towns, Buildings, Construction,

Oxford University Press.

Moné, L., 2018. How to Solve GDPR with Enterprise

Architecture: A Case Study, LeanIX.

https://www.leanix.net/en/blog/how-to-solve-gdpr-

with-enterprise-architecture Last accessed in

24.11.2020

Verheijen, R., 2017. EXIN: Privacy & Data Protection,

Whitepaper: Data Protection: Compliance is a Top -

Level Sport, EXIN and Secura.

Cavoukian, A., 2010. Privacy by Design The 7

Foundational Principles, Implementation and Mapping

of Fair Information Practices. Ontario, Canada.

Colesky, M., Hoepman, J., Hillen, C., 2016 A Critical

Analysis of Privacy Design Strategies. In 2016 IEEE

Security and Privacy Workshops (SPW), San Jose, CA.

Doty, N., Gupta, M., 2013. Privacy Design Patterns and

Anti-Patterns. UC Berkeley, School of Information.

California.

Lenhard, J., Fritsch, L., Herol, S., 2017. A Literature Study

on Privacy Patterns Research. In 2017 43rd Euromicro

Conference on Software Engineering and Advanced

Applications (SEAA). Vienna.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

724

LeanIX GmbH, n.d.. Mastering the GDPR with Enterprise

Architecture, LeanIX. Bonn, Germany.

PDP4E Project, n.d.. PDP4E. https://www.pdp4e-

project.eu/ Last accessed in 24.11.2020

Hjerppe, K., Ruohonen, J., Leppänen, V., 2019. "The

General Data Protection Regulation: Requirements,

Architectures, and Constraints". In 2019 IEEE 27th

International Requirements Engineering Conference

(RE). Jeju Island, Korea (South).

Rösch, D., Schuster, T., Waidelich, L., Alpers, S., 2019.

Privacy Control Patterns for Compliant Application of

GDPR. In 25th Americas Conference on Information

Systems. Cancun.

Calabró, A., Daoudagh, S., Marchetti, E., 2019. Integrating

Access Control and Business Process for GDPR

Compliance: A Preliminary Study. ITASEC. Pisa, Italy.

Palmér, C., 2017. Modelling EU DIRECTIVE 2016/680

using Enterprise Architecture, KTH, School of

Electrica l Engineering (EES). Stockholm, Sverige.

Enterprise Architecture Patterns for GDPR Compliance

725
