Comparative Performance Study of Lightweight Hypervisors Used

in Container Environment

Guoqing Li

1 a

, Keichi Takahashi

1 b

, Kohei Ichikawa

1 c

, Hajimu Iida

1 d

Pree Thiengburanathum

2 e

and Passakorn Phannachitta

2 f

Nara Institute of Science and Technology, Nara, Japan

Chiang Mai University, Chiang Mai, Thailand

Keywords:

Lightweight Hypervisor, Container, Virtualization, Performance Evaluation.

Abstract:

Virtual Machines (VMs) are used extensively in cloud computing. The underlying hypervisor allows hardware

resources to be split into multiple virtual units which enhances resource utilization. However, VMs with

traditional architecture introduce heavy overhead and reduce application performance. Containers have been

introduced to overcome this drawback, yet such a solution raises security concerns due to poor isolation.

Lightweight hypervisors have been leveraged to strike a balance between performance and isolation. However,

there has been no comprehensive performance comparison among them. To identify the best ﬁt use case,

we investigate the performance characteristics of Docker container, Kata containers, gVisor, Firecracker and

QEMU/KVM by measuring the performance on disk storage, main memory, CPU, network, system call and

startup time. In addition, we evaluate their performance of running Nginx web server and MySQL database

management system. We use QEMU/KVM as an example of traditional VM, Docker as the standard container

and the rest as the representatives of lightweight hypervisors. We compare and analyze the benchmarking

results, discuss the possible implications, explain the trade-off each organization made and elaborate on the

pros and cons of each architecture.

1 INTRODUCTION

The traditional VM architecture exempliﬁed by

QEMU/KVM offers strong isolation (Matthews et al.,

2007) since a thin layer of hypervisor sits in between

the hardware and guest OS, which is the only way

for the guest VM to communicate with the hard-

ware. However, emulating hardware resources im-

poses heavy performance overhead (McDougall and

Anderson, 2010). In contrast, Docker containers

utilize Linux’s builtin features such as cgroups and

namespaces to manage resources which have signiﬁ-

cantly less overhead (Li et al., 2017). Although con-

tainers excel at performance, their isolation is gener-

ally poor and expose a large attack surface (Combe

et al., 2016) compared to VMs as they share the

same host kernel. In 2017 alone, 454 vulnerabili-

https://orcid.org/0000-0001-9915-252X

https://orcid.org/0000-0002-1607-5694

https://orcid.org/0000-0003-0094-3984

https://orcid.org/0000-0002-2919-6620

https://orcid.org/0000-0001-6983-8336

https://orcid.org/0000-0003-3931-9097

ties were found in the Linux kernel

, which can be

devastating for containerized environments. Public

cloud service providers who base their services on

containers are highly concerned since they have no

control of the kind applications that are running in

their cloud. Several organizations responded by de-

veloping lightweight hypervisors in order to strike a

balance between traditional VMs and containers. As

the current trend of container technology is rapidly

reshaping the architecture of virtualization platforms,

a comprehensive performance evaluation is important

in considering the trade-offs of different approaches.

This paper takes a detailed look at lightweight hy-

pervisors and compares the performance benchmark-

ing results. We use the host machine as the baseline

and measure different aspects of the computing sys-

tem. The performance measurement is divided into

two parts. Part I - the low level aspect which cov-

ers startup time, memory footprint, system call la-

tency, network throughput, Disk I/O and CPU per-

formance. Part II - the high level aspect which cov-

https://www.cvedetails.com/product/47/Linux-Linux-

Kernel.html?vendor id=33

Li, G., Takahashi, K., Ichikawa, K., Iida, H., Thiengburanathum, P. and Phannachitta, P.

Comparative Performance Study of Lightweight Hypervisors Used in Container Environment.

DOI: 10.5220/0010440502150223

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 215-223

ISBN: 978-989-758-510-4

215

ers two real-world applications: Nginx webserver and

MySQL database. Our goal is to understand the over-

head imposed by KVM/QEMU, gVisor, Kata-qemu

and Kata-ﬁrecracker. This paper makes the following

three contributions:

• We provide an extensive comparative perfor-

mance analysis of QEMU/KVM VM, Docker

container, gVisor container, Kata-qemu and Kata-

ﬁrecracker containers.

• We identify the best ﬁt use case for practitioners

by analyzing the pros and cons of each architec-

ture in detail.

• We elaborate on the limitations of each architec-

ture that affect virtualization performance.

The rest of the paper is organized as follows. Sec-

tion 2 describes the motivation and architecture of

each environment. Section 3 describes the evaluation

results of low level and high level aspect across all

environments. Section 4 presents the discussion and

Section 5 reviews related work. Lastly, Section 6 con-

cludes the paper and suggests possible future work.

2 BACKGROUND

2.1 Motivation

Various lightweight hypervisors are gaining traction.

Because the trade-off between isolation and perfor-

mance is almost inescapable, different organizations

choose to optimize their hypervisors according to

their requirements. Taking Firecracker as an example,

its design is tailored to serverless applications (Bal-

dini et al., 2017). It is crucial to understand (1) what

trade-off each organization made and (2) the perfor-

mance characteristics and limitations of each archi-

tecture to make informed decisions. The following

subsection presents the overall architecture of each

hypervisor.

2.2 Architecture of Each Lightweight

Hypervisor

QEMU/KVM (Bellard, 2005; Kivity et al., 2007)

represents the traditional VM architecture. QEMU

is an emulator that is often used in conjunction with

KVM. KVM is a Linux kernel module that acts as a

hypervisor and take the advantage of hardware vir-

tualization support such as Intel VT-x (Neiger et al.,

2006) to improve performance. In our experiments,

we make use of paravirtual drivers (i.e. virtio (Rus-

sell, 2008)) to improve disk I/O and network perfor-

mance.

seccompKVM or ptrace

Container

Sentry (user space

kernel)

Sandbox

runsc

Gofer

User

space

Kernel

space

I/O

Host Kernel

Figure 1: Architecture of gVisor.

Docker (Merkel, 2014) utilizes the builtin features

of Linux such as cgroups,namespaces and Overlay

to isolate the resources between processes. It in-

troduces little overhead since containers run directly

on top of the host kernel.

Google’s gVisor

is a combined user space ker-

nel and lightweight hypervisor that provides an isola-

tion layer between applications and host kernel. Fig-

ure 1 shows the high-level architecture of gVisor. The

Sentry is a user space kernel that implements Linux

system calls by using a limited set of system calls.

To intercept the system calls from applications, gVi-

sor provides two platforms

: ptrace and KVM. The

ptrace platform uses the ptrace system call to inter-

cept system calls whereas the KVM platform takes

advantage of hardware virtualization support through

KVM. System calls invoked from the Sentry are fur-

ther ﬁltered using seccomp

. File I/O is handled by

a separate process called Gofer, which communicates

with the Sentry through the 9P protocol (Pike et al.,

1995). These layers of isolation imposed by gVisor

enhance security but also increase performance over-

head.

Amazon’s Firecracker (Agache et al., 2020) began

as a fork of Google’s hypervisor crosvm

. Its high

level architecture is similar to QEMU/KVM, but de-

vices that are unnecessary in serverless applications

(such as USB, video and audio devices) are not imple-

mented thereby reducing memory footprint and attack

surface.

Kata containers

is a common effort by the In-

tel Clear container

and hyper.sh

communities. It

https://www.kernel.org/doc/Documentation/ﬁlesystems/

overlayfs.txt

https://gvisor.dev/

https://gvisor.dev/docs/architecture guide/platforms/

https://www.kernel.org/doc/html/v4.16/userspace-api/

seccomp ﬁlter.html

https://chromium.googlesource.com/chromiumos/

platform/crosvm/

https://katacontainers.io/

https://software.intel.com/content/dam/develop/

external/us/en/documents/intel-clear-containers-2-using-

clear-containers-with-docker-706454.pdf

https://github.com/hyperhq

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

216

Kata-qemu or Firecracker

Custom Kernel

Agent

Container 1

VM 1

Custom Kernel

Agent

Container 2

VM 2

kata-runtime

Host Kernel

KVM

Figure 2: Architecture of Kata Containers.

is a container runtime that builds lightweight VMs

which seamlessly integrate with the container ecosys-

tem. Its default hypervisor is Kata-qemu

, which

is based on QEMU/KVM. However, signiﬁcant op-

timization has been made. It comes with an highly

optimized guest kernel which reduces boot time and

memory footprint. Figure 2 shows Kata’s high-level

architecture. Each Kata container runs inside a dedi-

cated lightweight VM to enforce strong isolation be-

tween containers. This VM is created and booted ev-

ery time a new container is created. In addition, an

agent runs on top of the guest kernel to orchestrate

the containers. Recent releases of Kata support run-

ning VMs on Firecracker as well.

3 EVALUATION

We ﬁrst evaluate the low level aspects of a comput-

ing system: startup time, memory footprint, system

call latency, network throughput, disk I/O and CPU

throughput. We then benchmark two common ap-

plications: Nginx webserver and MySQL database,

which serve the purpose of conﬁrming the CPU,

Memory and Disk I/O benchmark results. Low level

benchmark metrics serve as the fundamental indica-

tor of performance characteristics for each system and

the high level benchmark metrics are used develop a

better understanding of how different hypervisors per-

form in a more realistic setting.

All tests were executed on a x86-64 machine

with a six-core Intel Core i7-9750H CPU (hyper-

threading enabled), 32GB of DDR4 SDRAM and

1TB of NVMe SSD. Table 1 shows the details of each

execution environment.

https://github.com/kata-containers/qemu

Table 1: Execution Environment.

Environment Software Versions

host Ubuntu 19.10 (Eoan), Kernel 5.3

qemu kvm QEMU 4.4.0, libvirt 5.4.0, Guest Kernel 5.3

kata

qemu Kata 1.11.0-rc0, Guest Kernel 5.4, QEMU 4.1.0

kata fc Kata 1.11.0-rc0, Guest Kernel 5.4, Firecracker v0.21.1

gV kvm gVisor release-20200115.0-94, Guest Kernel 4.4.0

gV ptr gVisor release-20200115.0-94, Guest Kernel 4.4.0

docker Docker 1.0.0-rc10, containerd 1.2.13

Figure 3: Startup Time.

3.1 Low Level Aspect

3.1.1 Startup Time

Fast startup time is crucial for container/VM provi-

sioning (Mao and Humphrey, 2012). We used the

time command to measure the time from launch-

ing a container/VM to the stage of the network

stack being successfully initialized. Ubuntu:Eoan

base image and bash program runs inside of the

container. In the case of QEMU/KVM VM, we

placed the systemd-analyze time command in the

startup script to collect the startup time for 100

rounds. Figure 3 shows the elapsed time of 100 com-

plete container creations. Since the startup time for

QEMU/KVM was signiﬁcantly slower, the inaccura-

cies resulted from from the virtual clock is negligible.

On average, gVisor-kvm and gVisor-ptrace were

0.13 seconds faster than Docker. Kata-ﬁrecracker was

0.50 seconds slower than gVisor and Kata-qemu was

only 0.10 seconds slower than Kata-ﬁrecracker. Over-

all, the startup time of all containers were signiﬁcantly

faster than QEMU/KVM. On average, It took 8.76

seconds for QEMU/KVM to ﬁnish booting the kernel

and initializing the same user space.

Some important factors that affect start-up time

are the size of the image, conﬁguration ﬁles and etc.

Comparative Performance Study of Lightweight Hypervisors Used in Container Environment

217

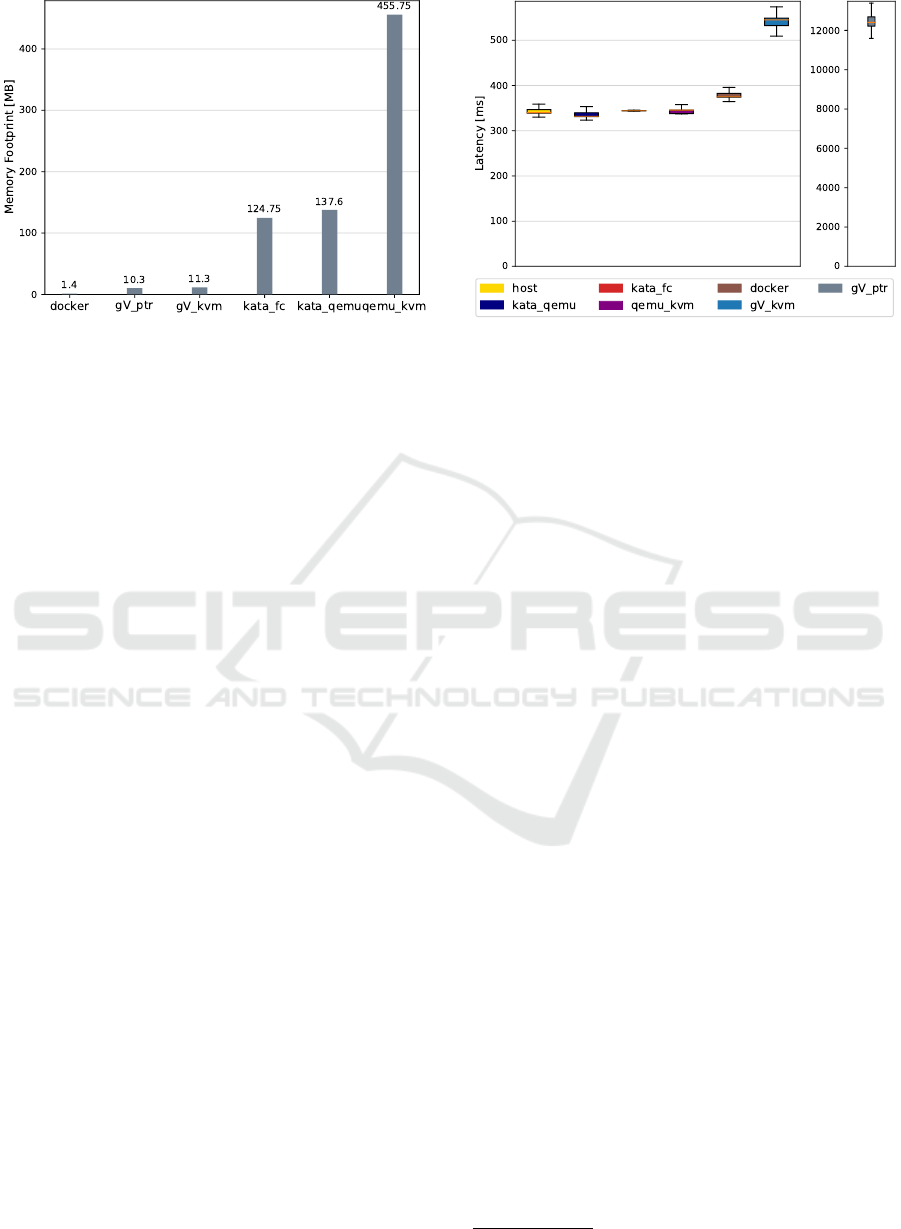

Figure 4: Average Memory Footprint of 100 containers.

The time it takes to load these images and ﬁles from

disk is directly proportional to its size. Docker and

gVisor showed much faster startup time compared to

Kata and QEMU due to the signiﬁcantly smaller im-

age size.

3.1.2 Memory Footprint

Smaller memory footprint allows the user to cre-

ate higher density of containers. We quantiﬁed

the memory footprint of each container running the

Ubuntu:Eoan base image by measuring the size of pri-

vate dirty pages of related processes. We launched

100 containers in total and calculated the average

size of private dirty pages. We chose private page

size because it is the closest approximation of the ac-

tual memory usage for each process as the number

of containers scale to inﬁnity. We allocated 700MB

of memory for each QEMU/KVM VM, which is the

minimal size the guest can boot a full ubuntu im-

age successfully. In case of Kata-qemu and Kata-

Firecracker, we used the default conﬁguration which

allocates 2048MB of memory for each VM.

As Fig. 4 indicates, Docker has the smallest foot-

print. This is because Docker does not run its

own kernel and requires only one additional process

(container-shim) to launch a container. Note that there

is a daemon shared by all containers (dockerd), which

uses around 40MB of memory. gVisor-ptrace and

gVisor-kvm were comparable to Docker, but still used

7× more memory. Kata-qemu used slightly more

memory than Kata-ﬁrecracker, but both consumed

88× more memory than Docker and 10× more than

gVisor. Kata containers run their own guest kernel

and many processes such as virtiofsd, qemu-virtiofs-

system-x86, Kata-proxy and Kata-shim, which lead to

signiﬁcant larger memory footprint than both Docker

and gVisor. However, none of these containers

were comparable with QEMU/KVM. QEMU/KVM

Figure 5: System Call Latency.

needed 325× more memory than Docker. Since the

guest kernel used by Kata is highly optimized, it leads

to much smaller memory footprint compared to a

QEMU/KVM VM running a full Ubuntu:Eoan server

distribution.

3.1.3 System Call

System call performance gives insight into the cost

of user-kernel context switching. Figure 5 shows the

total latency of invoking the getpid() system call

for 10,000 times. There was a signiﬁcant overhead

with gVisor. In particular, gVisor-ptrace showed 36×

larger larger latency than the host. This is a direct

result of intercepting every system call using ptrace

to examine the system call before passing it down

to the host kernel. KVM makes gVisor-kvm faster

than gVisor-ptrace because the use of KVM reduces

the cost of system call interception. Nevertheless,

gVisor-kvm’s system call performance was still ap-

proximately 1.5× slower than the rest. Kata-qemu,

Kata-ﬁrecracker and QEMU/KVM were comparable

with the host. However, Docker performed slightly

slower than the host on average. This is potentially

caused by the use of seccomp, a kernel facility that

restricts the system calls that can be invoked by appli-

cations.

3.1.4 Network Throughput

We measured the network throughput from the host

to each virtual environment by using iPerf 3.6

. A

TCP stream the from host to each virtual environment

was generated for a total duration of 40 seconds. The

graph in Fig. 6 shows the measured average network

throughput. gVisor scored the worst on both KVM

and Ptrace platforms. This attributes to its user space

https://github.com/esnet/iperf

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

218

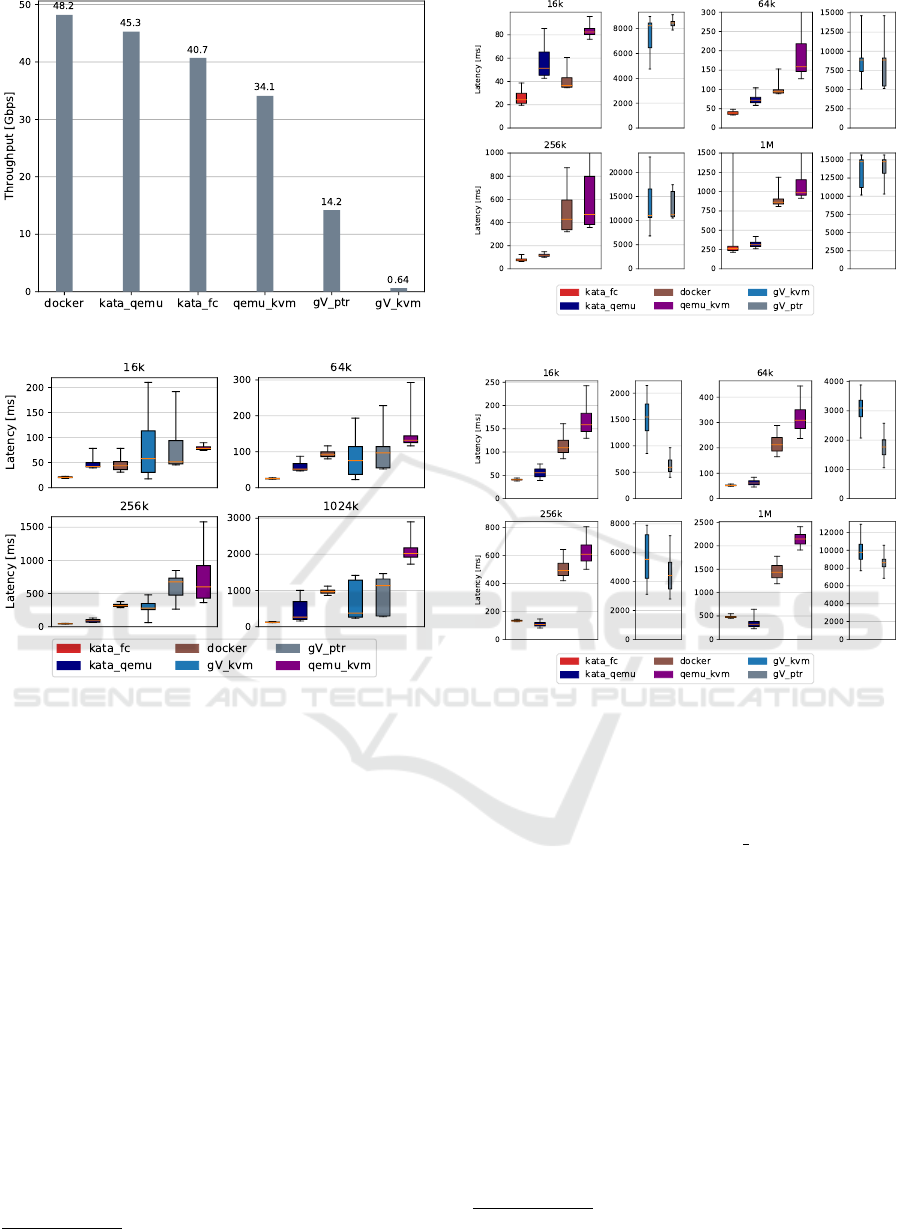

Figure 6: Network Throughput.

Figure 7: Sequential Read Latency.

network stack netstack. Netstack handles all aspects

of network stack in the user space to ensure isola-

tion from the host network, but this design also in-

troduces heavy overhead. It should be noted that re-

cent releases of gVisor allow network pass-through so

that containers can use host network stack directly at

the cost of weaker isolation. gVisor-kvm is still in

its experimental stage and the network performance

was poor and therefore it should be used with caution.

QEMU/KVM shows good network throughput thanks

to the paravirtual virtio driver. Docker scored the best

network throughput indicating that little overhead is

imposed.

3.1.5 Disk I/O

Disk I/O performance is important to applications that

perform frequent ﬁle I/O operations. Fio-3.12

was

used to measure the Disk I/O performance. Each

environment was allocated 2GB of memory and six

virtual CPUs. Docker was conﬁgured to use the

https://github.com/axboe/ﬁo/

Figure 8: Sequential Write Latency.

Figure 9: Random Read Latency

device mapper storage driver

in direct-lvm mode.

QEMU/KVM was conﬁgured to use paravirtual vir-

tio drivers. We created a dedicated LVM logical vol-

ume formatted paravirtual ext4 ﬁle system to bypass

the host ﬁle system. We set the O DIRECT ﬂag to en-

able non-buffered I/O and used a 10GB ﬁle (5× of the

allocated memory) to minimize the effect of memory

caching.

Figure 7 demonstrates the sequential read latency

for different block sizes. QEMU/KVM had the worst

mean performance among all block sizes. In contrast,

Kata-ﬁrecracker had the best mean performance and

least variance compared to all others. In the case of

16KB block size, Kata-ﬁrecracker was 3.8× faster

than QEMU/KVM, 2.8× faster than gVisor-kvm,

2.5× faster than gVisor-ptrace and almost 2× faster

than both Kata-qemu and Docker. There was not

much latency increase when the block size changed to

64KB. However, when we used 256KB block size, the

latency increased sharply. Kata-ﬁrecracker was 13×

https://docs.docker.com/storage/storagedriver/device

-mapper-driver

Comparative Performance Study of Lightweight Hypervisors Used in Container Environment

219

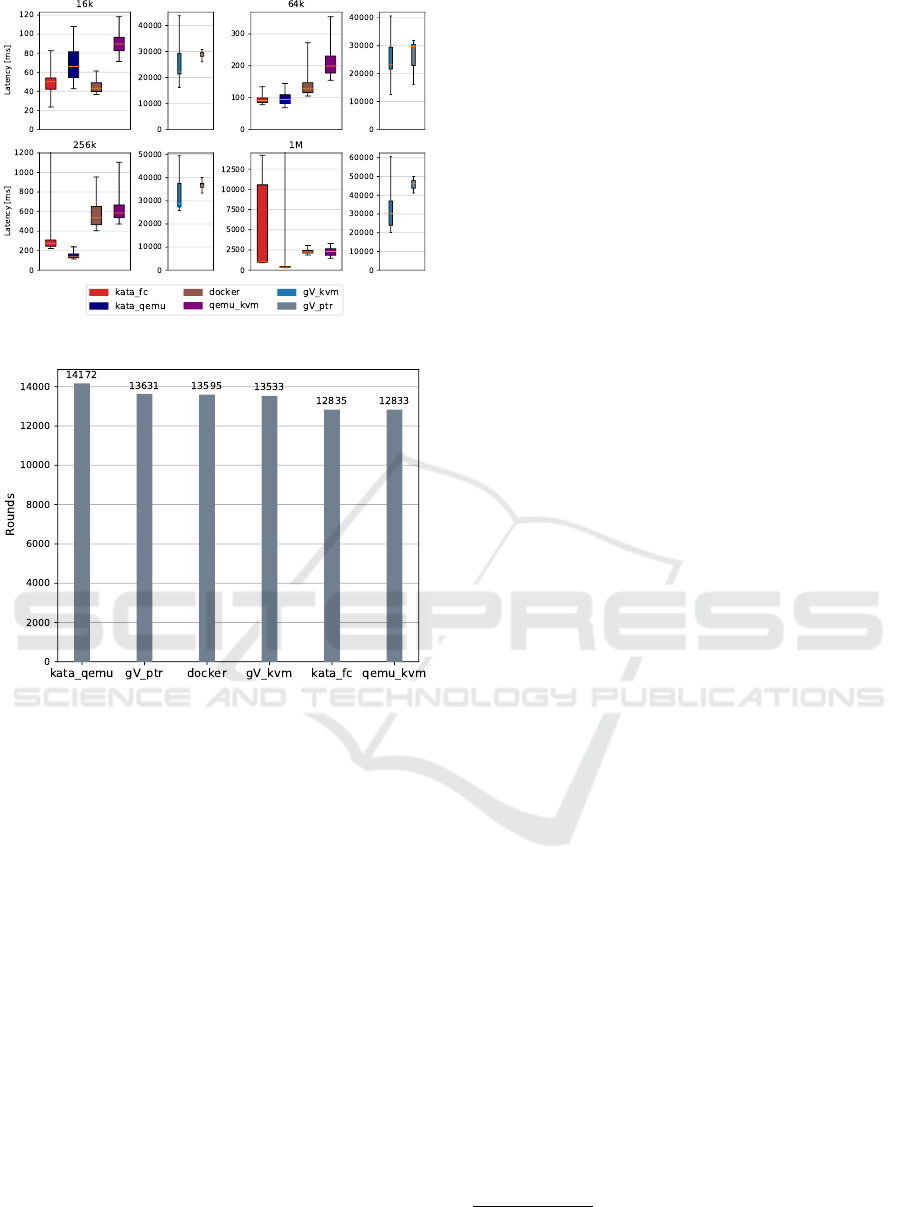

Figure 10: Random Write Latency.

Figure 11: CPU Performance.

faster than QEMU/KVM, 15× faster than gVisor-

kvm, 7× faster than Docker, 6.2× faster than gVisor-

ptrace and 2× faster than Kata-qemu. Similar trend

was observed with 1MB block size.

Both gVisor-kvm and gVisor-ptrace had massive

performance overhead when it came to sequential

write as indicated in Fig. 8. Kata-ﬁrecracker became

the dark horse again in all cases, followed by Kata-

qemu, Docker and QEMU/KVM. In the case of 16KB

block size, both gVisor modes started from 103×

slower than QEMU/KVM to 342× slower than Kata-

ﬁrecracker. There was a similar trend with 64KB

block size. The gap became half smaller when the

block size is 1MB. QEMU/KVM showed a large vari-

ance at the fourth quartile in both 64KB and 256KB

block. Kata-ﬁrecracker had signiﬁcant variance at the

fourth quartile with 1MB block.

Figure 9 shows the random read latency. It shows

the similar trend to sequential read. However, Kata-

qemu surpassed the performance of Kata-ﬁrecracker

when the block size was greater than 64KB. In con-

trast to sequential read, gVisor-ptrace performed bet-

ter than gVisor-kvm, but both still ranked the lowest.

As Fig. 10 indicates, Docker has the best perfor-

mance with 16KB block size in the case of random

write. Kata-ﬁrecracker and Kata-qemu outperformed

Docker when the block size is bigger than 16KB.

At the same time, Kata-qemu beats Kata-ﬁrecracker

again. When the block size is 256KB and bigger. All

environments except for gVisor showed similar per-

formance results.

Kata container comes with a special device-

mapper storage driver which uses dedicated block de-

vices rather formatted ﬁle systems. Instead of using

an overlay ﬁle system for the container’s root ﬁle sys-

tem, a block device can be used directly and map to

the top read-write layer. This approach allows Kata

container to excel at all aspect of Disk I/O perfor-

mance.

In contrast, gVisor introduces overhead in several

places: communication between components needs to

cross the sandbox boundary and I/O operations must

be routed through the Gofer process to enforce the

gVisor security model. More importantly, the internal

virtual ﬁle system implementation in Sentry has seri-

ous performance issues due to the fact that I/O oper-

ations need to perform path walks (every ﬁle access,

such as open(path) and stat(path), requires a re-

mote procedure call to the Gofer to access the ﬁle).

gVisor engineers have started working on rewriting

the current virtual ﬁle system to address this issue by

delegating the path resolution to the ﬁle system. This

new virtual ﬁle system implementation is being tested

at Google internally at the time of writing.

3.1.6 CPU

We used sysbench

1.0.17 to measure the CPU per-

formance. Figure 11 shows the total number of

rounds ﬁnished verifying prime numbers between 2

to 200,000 using a single thread for a duration of 600

seconds (higher is better). The difference between hy-

pervisors is small. This is expected since the hypervi-

sor could utilize the CPU built-in hardware accelera-

tion feature Intel VT-x.

3.2 High Level Aspect

3.2.1 MySQL

Sysbench 1.0.17 and MySQL

8.0.20 were used to

measure the database performance. We populated

a table with 10 million rows of data and bench-

marked the throughput and latency using a mixture

https://github.com/akopytov/sysbench

https://www.mysql.com/

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

220

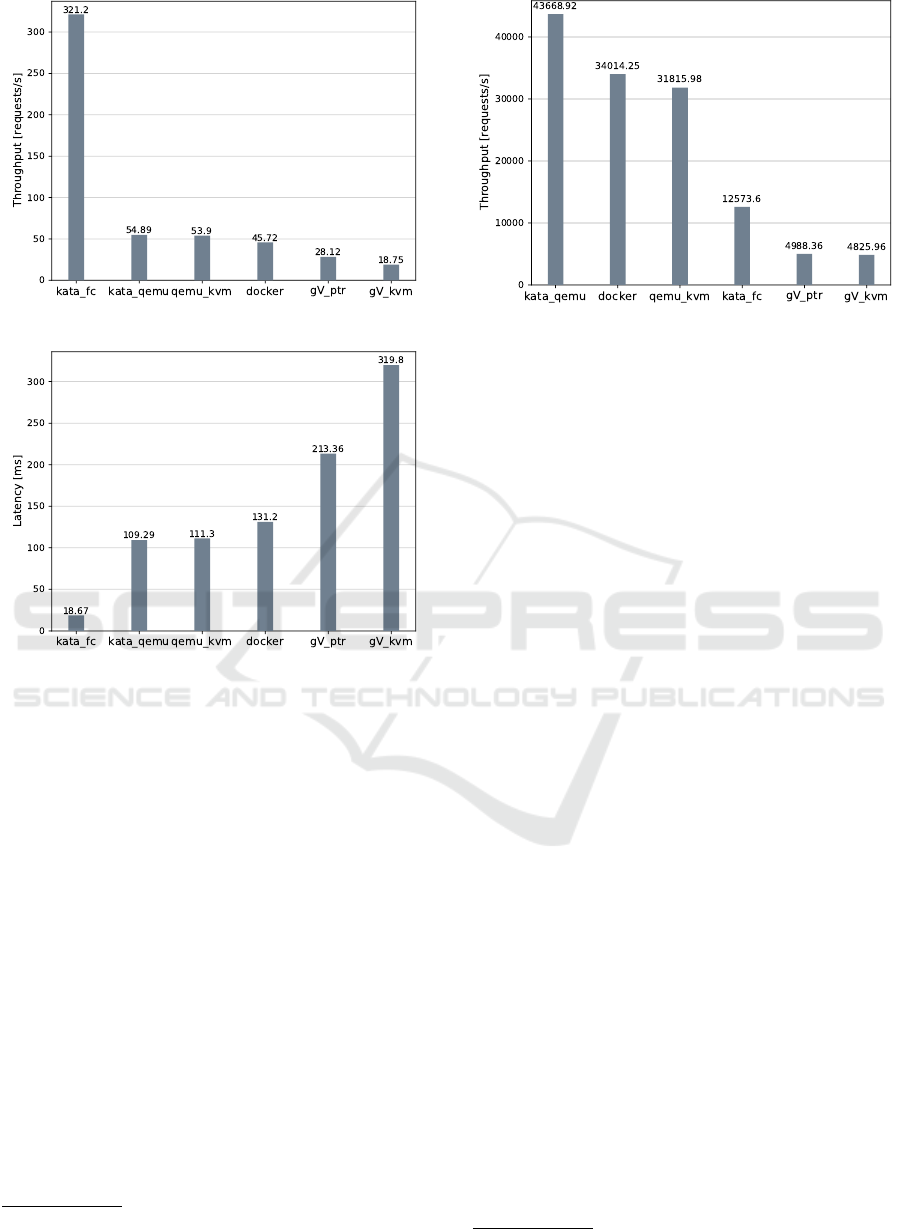

Figure 12: MySQL OLTP Throughput.

Figure 13: MySQL OLTP Latency.

of queries consisting of: Select (70%), Insert (20%),

Update and Delete (10%) queries. Figures 12 and

13 show the throughput and average latency, respec-

tively. gVisor-kvm and gVisor-ptrace had the worst

performance which achieves only 6% and 9% of

what Kata-ﬁrecracker achieved, respectively. Docker,

QEMU/KVM and Kata-qemu were comparable, but

still ranged from 5.68 to 6.82× less throughput than

Kata-ﬁrecracker. The average latency was negatively

correlated with the throughput. The larger the latency,

the less throughput was achieved. Both throughput

and latency results were consistent with the disk I/O

benchmark.

3.2.2 Nginx with Static Web Page

We used wrk

4.10 to measure the throughput of Ng-

inx

serving a 4KB static web page. Each environ-

ment was conﬁgured to allow 1 worker process and

maximum of 1024 concurrent connections. We used

wrk to simulate HTTP GET requests for a duration of

10 seconds with 1,000 open connections.

https://github.com/wg/wrk

https://nginx.org

Figure 14: Nginx Webserver Throughput.

Figure 14 shows the throughput of HTTP GET re-

quest for each environment. Kata-qemu performed

the best which was slightly better than qemu-kvm and

Docker. However, its throughput was 3.47× higher

than Kata-ﬁrecracker. Low throughput from Kata-

ﬁrecracker might attribute to its limitation of handling

I/O serially (Agache et al., 2020). Both gVisor-kvm

and gVisor-ptrace had almost the same throughput sit-

ting at the bottom of the list.

4 DISCUSSION

As the benchmark results indicate, different system

has different performance characteristics because of

different motivation and purpose.

Google developed gVisor to mitigate the security

risk of untrusted applications running in their pub-

lic cloud. gVisor provides a secure container sand-

box that has been built into Google’s infrastructure to

provide serverless computing services such as Google

App Engine, Cloud Run and Cloud Functions. These

services are used to run cloud native applications,

which are small and loosely coupled. Apart from its

wide deployment on Google’s infrastructure, gVisor

is seamlessly integrated with Docker and follows the

OCI standard

, which allow users to run Docker con-

tainers with better isolation. However, gVisor in both

modes exhibits the worst performance in almost every

aspect. Having a user space kernel adds an extra layer

of isolation, but it also reduces application perfor-

mance. In principle, gVisor-kvm should have perfor-

mance advantage over gVisor-ptrace since KVM uti-

lizes CPU’s hardware virtualization support. gVisor-

kvm is still in its experimental stage, and thus its per-

formance result might change in the future. Databases

or applications that require high performance net-

https://opencontainers.org/

Comparative Performance Study of Lightweight Hypervisors Used in Container Environment

221

working should avoid using gVisor. In addition, gVi-

sor only covers around 73% of the Linux system

calls

. Therefore, applications that require the unim-

plemented system calls cannot be executed on gVi-

sor. However, gVisor has much smaller memory foot-

print compared to Kata containers and QEMU/KVM

VMs, which gives economic advantage since the user

can launch more instances given the same amount of

available memory.

Docker is not necessarily a good option for

database applications due to the fact that its image is

build up from a series of layers. Storage drivers such

as device-mapper might perform poorly. However,

Docker and gVisor containers showed much faster

startup time and smaller memory footprint compared

to Kata containers. Despite these performance ad-

vantages, Docker containers share the same kernel

of the host. This might not be as secure as gVisor

since gVisor provides a dedicated user-space kernel

for each container. Docker still has very competi-

tive advantages not only to mention its low memory

footprint and fast startup time, but more importantly

its ecosystem and methodologies (e.g. Docker Hub)

which make deploying, testing and shipping applica-

tions much quicker.

QEMU/KVM clearly shows its heavyweight na-

ture. Even with the performance boosts powered by

paravirtual drivers, it is still not comparable with other

systems, especially in terms of memory footprint and

startup time. However, QEMU/KVM and traditional

VMs are by far one of the most mature and best sup-

ported solutions. They are well tested and have been

in the market for decades, and the strong isolation

provided by traditional VMs is credible.

Kata-ﬁrecracker can be the best option for

database applications. This is indicated by both disk

I/O and MySQL benchmark results. Firecracker is

the backbone of AWS Lambda

and Fargate

that

power Amazon’s serverless computing. It is com-

monly seen as an alternative lightweight hypervisor

for Kata-qemu. Amazon implemented its own con-

tainer runtime interfaces which does not comply with

OCI standard. The good news is that Kata containers

offers multi-hypervisor support which allow users to

run Kata containers in ﬁrecracker based VMs.

Kata containers strikes a good balance between

isolation and performance. Both Kata-qemu and

Kata-ﬁrecracker have much less memory footprint

comparing to a traditional QEMU/KVM VM and

offers competitive performance advantage. Kata-

https://gvisor.dev/docs/user guide/compatibility/linux/

amd64/

https://aws.amazon.com/lambda/

https://aws.amazon.com/fargate/

containers can start many times faster than traditional

QEMU/KVM VMs, which is mainly because the im-

age we used to boot QEMU/KVM is bulky. If mem-

ory footprint is not a concern, Kata containers can

easily beat all other options. Currently, Baidu Cloud

AI has adopted Kata containers

. However, Kata

container also has several limitations. At the time of

writing, SELinux is not supported by Kata’s guest ker-

nel and joining an existing VM networks is not possi-

ble due to its architectural limitation

5 RELATED WORK

IBM (Felter et al., 2015) studied the CPU, memory,

storage and network performance of Docker contain-

ers and VMs, and elaborated on the limitations that

impact virtualization performance and concluded that

containers result in equal or better performance than

VMs in all aspects. However, (Li et al., 2017) dis-

agreed with IBM’s conclusion and they investigated

the performance variability and found out that con-

tainer’s performance variability overhead could reach

as high as 500%. (Kozhirbayev and Sinnott, 2017)

adopted a similar methodology as IBM; however, they

targeted Docker and its rival Flockport (LXC). Their

results were similar to IBM’s, but they pointed out

that Docker allows only one application per container,

which reduces utilization, whereas Flockport does not

impose such restriction.

On top of all, none of these previous works studied

the memory footprint and boot time, which are criti-

cal to the cloud. More importantly, container tech-

nologies have been marching forward over the years,

and a hybrid approach—running containers inside of

lightweight VMs is becoming a promising alterna-

tive. Yet there has been no existing research provid-

ing detailed analysis. Our research focuses on those

emerging technologies backed up by Google, Ama-

zon, Baidu and Intel, and gives the community a bet-

ter picture of the current technological trend.

6 CONCLUSION AND FUTURE

WORK

We have conducted a comprehensive performance

analysis of various popular lightweight hypervisors

https://katacontainers.io/collateral/ApplicationOfKata

ContainersInBaiduAICloud.pdf

https://github.com/kata-containers/documentation/blob/

master/Limitations.md

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

222

that are backed by Docker, Amazon, Google and In-

tel. The benchmark results showed that various trade-

offs are made by each organization and a number of

bottlenecks that affect virtualization performance are

identiﬁed. The pros and cons of each system are dis-

cussed in detail and some limitations that could be

potentially addressed in the future are also pointed

out. It is evident that the current architectural trend of

lightweight hypervisors tends to march forward a new

era and lightweight VMs might have the potential to

partially replace the role of traditional VMs. How-

ever, these lightweight hypervisors have not reached

the point to become a mature alternative, and thus tra-

ditional VMs would still be the preferred options for

many organizations. Kata is on the right track to earn

the title of having the security of a VM and offering

the performance of a container.

Future research on reducing the memory footprint

of lightweight hypervisor based containers would be

practical. A research using optimized Xen hypervi-

sor with customized unikernels (Manco et al., 2017)

opens the possibility of creating lighter and safer VMs

than containers is worth looking into.

REFERENCES

Agache, A., Brooker, M., Iordache, A., Liguori, A., Neuge-

bauer, R., Piwonka, P., and Popa, D.-M. (2020). Fire-

cracker: Lightweight virtualization for serverless ap-

plications. In 17th USENIX Symposium on Networked

Systems Design and Implementation (NSDI’20), pages

419–434.

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., et al. (2017). Serverless comput-

ing: Current trends and open problems. In Research

Advances in Cloud Computing, pages 1–20. Springer.

Bellard, F. (2005). QEMU, a fast and portable dynamic

translator. In USENIX Annual Technical Conference

(ATC’05), pages 41–46.

Combe, T., Martin, A., and Di Pietro, R. (2016). To Docker

or not to Docker: A security perspective. IEEE Cloud

Computing, 3(5):54–62.

Felter, W., Ferreira, A., Rajamony, R., and Rubio, J. (2015).

An updated performance comparison of virtual ma-

chines and Linux containers. In 2015 IEEE Inter-

national Symposium on Performance Analysis of Sys-

tems and Software (ISPASS), pages 171–172.

Kivity, A., Kamay, Y., Laor, D., Lublin, U., and Liguori, A.

(2007). KVM: The Linux virtual machine monitor. In

the Linux symposium, volume 1, pages 225–230.

Kozhirbayev, Z. and Sinnott, R. O. (2017). A performance

comparison of container-based technologies for the

cloud. Future Generation Computer Systems, 68:175–

182.

Li, Z., Kihl, M., Lu, Q., and Andersson, J. A. (2017). Per-

formance overhead comparison between hypervisor

and container based virtualization. In IEEE 31st In-

ternational Conference on Advanced Information Net-

working and Applications (AINA), pages 955–962.

Manco, F., Lupu, C., Schmidt, F., Mendes, J., Kuenzer,

S., Sati, S., Yasukata, K., Raiciu, C., and Huici, F.

(2017). My VM is lighter (and safer) than your con-

tainer. In 26th Symposium on Operating Systems Prin-

ciples (SOSP’17), pages 218–233.

Mao, M. and Humphrey, M. (2012). A performance study

on the VM startup time in the cloud. In IEEE

Fifth International Conference on Cloud Computing

(CLOUD 2012), pages 423–430.

Matthews, J. N., Hu, W., Hapuarachchi, M., Deshane, T.,

Dimatos, D., Hamilton, G., McCabe, M., and Owens,

J. (2007). Quantifying the performance isolation prop-

erties of virtualization systems. In 2007 Workshop on

Experimental Computer Science, pages 6–es.

McDougall, R. and Anderson, J. (2010). Virtualization per-

formance: perspectives and challenges ahead. ACM

SIGOPS Operating Systems Review, 44(4):40–56.

Merkel, D. (2014). Docker: lightweight Linux containers

for consistent development and deployment. Linux

journal, 2014(239):2.

Neiger, G., Santoni, A., Leung, F., Rodgers, D., and Uh-

lig, R. (2006). Intel virtualization technology: Hard-

ware support for efﬁcient processor virtualization. In-

tel Technology Journal, 10(3).

Pike, R., Presotto, D., Dorward, S., Flandrena, B., Thomp-

son, K., Trickey, H., and Winterbottom, P. (1995).

Plan 9 from Bell Labs. Computing systems, 8(2):221–

254.

Russell, R. (2008). Virtio: towards a de-facto standard for

virtual I/O devices. ACM SIGOPS Operating Systems

Review, 42(5):95–103.

Comparative Performance Study of Lightweight Hypervisors Used in Container Environment

223
