Data Flow Testing of Serverless Functions

Stefan Winzinger

and Guido Wirtz

Distributed Systems Group, University of Bamberg, An der Weberei 5, 96047 Bamberg, Germany

Keywords:

Serverless Computing, Faas, Integration Testing, Data Flow, Coverage Criteria.

Abstract:

Serverless functions are a popular trend on the cloud computing market offered by many cloud platform

providers. The statelessness of serverless functions enables the dynamic scalability by providing additional

instances running these functions. However, statelessness doesn’t guarantee the persistence of the state of a

container running a serverless function for the next call. Therefore, serverless functions must interact with

other services to save their state. This results in systems whose interaction with other services is complex and

hard to test.

Considering the data ﬂow resulting from the integration of different components is an adequate approach in

an integration testing process. Therefore, we investigated the external factors inﬂuencing the execution of

serverless functions to use this insight for the creation of a testing framework.

The framework helps measure important data ﬂow coverage aspects supporting developers in their evaluation

of test cases for the integration process of a serverless application. We showed that data ﬂow criteria between

serverless functions can be measured with a small overhead of run time making it attractive for developers to

use.

1 INTRODUCTION

Serverless computing started to become popular with

the introduction of Amazon’s AWS Lambda

in 2014.

Other tech companies, like Google

, Microsoft

and

IBM

, followed and started to offer their own server-

less solutions. Not only commercial serverless com-

puting solutions are available but also open-source so-

lutions, such as OpenFaas

or Fission

. In contrast to

the proprietary ones, they can be deployed on an on-

premise infrastructure.

Serverless computing is based on serverless func-

tions, whereas serverless is in some way a misnomer

since servers are still used in serverless computing.

The term serverless means that servers are abstracted

away. This enables developers to focus on the busi-

ness logic without worrying about the infrastructure

laying below (Baldini et al., 2017). In contrast to

https://orcid.org/0000-0002-4526-286X

https://orcid.org/0000-0002-0438-8482

https://aws.amazon.com/de/lambda/

https://cloud.google.com/functions/

https://azure.microsoft.com/en-us/services/functions/

https://www.ibm.com/cloud/functions/

https://github.com/openfaas

https://ﬁssion.io/

other cloud solutions, serverless functions only have

to be paid for if they are actually used. The costs for

the usage of serverless functions depend also on the

composition of the function and its computing power

assigned (Elgamal et al., 2018). But also other ser-

vices provided by the cloud platform provider are usu-

ally used in a serverless application and have to be

paid which could make alternative approaches like a

VM running in the cloud cheaper, in particular if the

computing workload is constant (Leitner et al., 2019).

The automatic scalability of serverless functions

managed by the cloud platform provider makes them

attractive for applications with an infrequent and

bursty workload (Baldini et al., 2017). The scalabil-

ity is based on the assumption that the serverless func-

tions are stateless. Thus, cloud platform providers can

host new instances running the serverless functions

without violating the functionality of the application.

Depending on the workload having to be processed

by a serverless function, the cloud platform provider

can deploy new instances of functions handling the

requests or reduce the number of instances. How-

ever, statelessness simply means that the state within a

serverless function is not guaranteed to be saved if the

same function is executed again. Therefore, the state

of an application is not eliminated, it is just moved to

other parts of the application.

Winzinger, S. and Wirtz, G.

Data Flow Testing of Serverless Functions.

DOI: 10.5220/0010439600560064

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 56-64

ISBN: 978-989-758-510-4

The scalability provided by serverless functions is

tempting and might give the impression that there are

no bottlenecks at all. However, the services used to

handle the state by reading or changing data are the

actual bottlenecks of a serverless application.

Connecting these services to serverless functions

leads to an overall complex structure which makes it

hard to ﬁnd faults. While stateless serverless func-

tions simplify unit testing, integration testing be-

comes more complex in serverless applications and

tool-support is still missing (Kratzke, 2018). Integra-

tion testing is an important testing phase for server-

less functions and is a challenge in industrial prac-

tice (Leitner et al., 2019). In order to improve the

testing process of serverless functions and their de-

pendencies, we investigated how serverless functions

interact with their environment and how the knowl-

edge of the data ﬂow with their environment can be

used for testing.

Therefore, we sifted through the hosting platform

GitHub to identify some publicly available serverless

functions and analyzed their source code looking for

external dependencies and their usage. The analysis

showed that most of the serverless functions use ex-

ternal stateful services making it hard to scale server-

less functions independently without considering the

external services. But also the return values and pa-

rameters passed are potential data ﬂows which have

to be monitored.

These insights motivated us to implement a data

ﬂow testing framework measuring the coverage of im-

portant and relevant data ﬂow criteria between server-

less functions.

Furthermore, we described the workﬂow to mea-

sure the data ﬂow of serverless applications and evalu-

ated the run time for our framework. By interviewing

some serverless experts, Lenarduzzi and Panichella

stated in (Lenarduzzi and Panichella, 2021) that

serverless applications need test adequacy criteria,

in particular since serverless applications need to

be tested with events generated by other serverless

functions. Besides our previous work (Winzinger

and Wirtz, 2019a; Winzinger and Wirtz, 2019b;

Winzinger and Wirtz, 2020) where we addressed cov-

erage criteria but didn’t investigate the inﬂuence of

external resources and measure the run time of an im-

plementation of coverage criteria, to our knowledge,

there is no work available yet handling this issue for

serverless applications. Formal models of serverless

computing were introduced in (Jangda et al., 2019)

and (Gabbrielli et al., 2019) but didn’t describe the

inﬂuential factors of serverless functions in detail.

While Lin et al. showed in their work (Lin et al.,

2018a; Lin et al., 2018b) how serverless functions

can be tracked causally which is useful for debug-

ging, data ﬂow criteria cannot be measured by their

method. In (Sreekanti et al., 2020) an additional layer

was added between serverless functions and the data

storage service to improve fault-tolerance in contrast

to our work where we only manipulated the access

of serverless functions to data storage to measure the

data ﬂow. Furthermore, there is also other work avail-

able investigating serverless applications and their

functions (Eismann et al., 2020), but without focus

on the data ﬂow between the serverless functions.

Although coverage criteria considering the data ﬂow

for integration are not new (compare (Spillner, 1995;

Frankl and Weyuker, 1988; Clarke et al., 1989)), they

were not yet applied to serverless applications.

The structure of the paper is as follows. Section 2

describes how we investigated serverless functions

and gives a model of data ﬂows of serverless func-

tions. The implementation of a testing approach for

data ﬂow coverage criteria is presented in section 3

followed by an evaluation of its run time. Finally, a

conclusion is drawn and an outlook is given to future

work in section 4.

2 DATA FLOW OF SERVERLESS

FUNCTIONS

The data ﬂows of serverless functions with their envi-

ronment are relevant for the creation of test cases in

order to cover the dependencies to other resources of

the system. These data ﬂows to other services can in-

ﬂuence the state of the system. Therefore, we investi-

gated several serverless functions in order to see how

the execution process of a serverless function is inﬂu-

enced by external data ﬂows to use these insights for

our testing framework. Since there aren’t many appli-

cations currently available using serverless functions,

we searched for serverless functions on GitHub and

analyzed them. We built a model showing the factors

inﬂuencing the execution of serverless functions.

2.1 Selection of Serverless Functions

We decided to investigate serverless functions pub-

lished on GitHub to build a model of factors inﬂu-

encing the execution of serverless functions. Similar

to our previous work (Winzinger and Wirtz, 2020),

we searched for applications focusing on Amazon

Web service (AWS) and its usage with the Serverless

Framework

on GitHub. This framework is often ap-

plied to describe the components of serverless appli-

https://www.serverless.com/

Data Flow Testing of Serverless Functions

Table 1: Languages used in applications.

Language Number of projects

JavaScript 459

Python 59

Java 6

dotNet 3

cations and deploy their serverless functions. We used

the GitHub REST API

for our search which provides,

in contrast to GHTorrent

, the possibility to search for

ﬁlename and keywords contained in the ﬁles.

Files with the name ’serverless.yml’ were selected

which is the name of the ﬁle used by the Serverless

Framework

describing the infrastructure of the ap-

plication. Furthermore, the request to the API was

set to ﬁlter for the keywords ’AWS’ and ’handler’ to

ensure that serverless functions were used on AWS.

Thus, ﬁles could be identiﬁed which are usable on

AWS Lambda and contain serverless functions which

are deployable by the Serverless Framework.

The API provided 1000 results for ﬁles describing

serverless application with our search done on July

30, 2020. The ﬁles identiﬁed are part of 527 differ-

ent projects. The projects were sorted by its number

of stars which roughly indicates the popularity of a

project. Afterwards, we analyzed the ﬁrst 27 projects

resulting in 323 serverless functions, after functions

of projects had been sorted out which were not com-

pletely implemented, just boilerplate code or just a

very simple demonstration. Furthermore, we only in-

vestigated projects with serverless functions written

in JavaScript which was the most popular language

used in the applications identiﬁed (see Table 1) in or-

der to stay in the same domain of a programming lan-

guage. The program with its data measured can be

found online

2.2 Investigation of Data Flows

We investigated several serverless functions and their

structure to identify factors inﬂuencing the execution

of serverless functions which have to be considered

for the interaction of serverless functions with their

environment. Therefore, we noted all types of calls

requiring dependencies not running within the con-

tainer of the serverless function.

https://docs.github.com/en/rest

https://ghtorrent.org/

https://www.serverless.com/

https://github.com/snwinz/ServerlessApplication

Searcher/releases/tag/v1.0

We divided the calls made into calls made to

platform-speciﬁc services, e.g., data storages, and

calls made to external services like calls made via

HTTP. If the service was a data storage service of

Amazon (i.e., DynamoDB or S3) where data are saved

or read, we took a note if data were written (e.g., up-

dating, deleting or creating data) or read. The direct

invocation of another serverless functions was noted

too.

Additionally, we checked if the arguments passed

to a serverless function were used at all. This indi-

cates the direct inﬂuence of an external call. Further-

more, we evaluated how the usage of services inﬂu-

enced the return values of our functions.

Therefore, we categorized the return values of

functions using services in state, value and nothing.

State was noted if the return value just indicates that

the execution was successful by returning a simple

state message. The categorization value on the other

hand was used for return values which were calcu-

lated depending on the input of other resources and

contains more information than the pure state of the

successful execution. If no return value was returned

at all, nothing was used. Since usually the state of a

service call is returned if its call fails, all return values

investigated were inﬂuenced by the services called.

This categorization helps to see if there is a data

ﬂow between the calling resource and the callee or if

the function is just called and only its successful ex-

ecution is relevant for the caller (e.g., an orchestrator

or a user).

Finally, we checked the function for the usage of

object variables of a previous call and potential back-

ground processes.

2.3 Inﬂuential Factors of Serverless

Functions

Based on our investigation, we could build a model of

the interfaces of a serverless function describing both

the inﬂuential factors to its execution coming from its

environment and the inﬂuential factors of a serverless

function to its environment (see Figure 1). In general,

a serverless function gets the information needed to be

processed by its arguments assigned to the parameters

of the serverless function and can return a value. But

there are also other factors we identiﬁed inﬂuencing

the execution and the result of a serverless function.

Environment variables set for the conﬁguration of

the system can also be accessed by a serverless func-

tion during run time and inﬂuence its execution. A

typical example of such a variable is the name used

for a data storage. These variables cannot be set di-

rectly within a serverless function and are usually set

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

when a new version of a serverless function is de-

ployed. Therefore, they are not really relevant for our

data ﬂow evaluation since they can be considered as a

constant factor after deployment.

Another factor which inﬂuences the execution

process of a serverless function are processes run-

ning in the background. A serverless function can

return a value and stop its execution without having

background processes completed. These processes

are continued if the same container is started again

which can inﬂuence the state of the application even

if the background process was started by another in-

vocation. In the serverless functions we investigated,

we didn’t identify such processes started in the back-

ground.

A similar behavior occurs when a global variable

is used in the same container again and changed dur-

ing the execution of the container. If so, the value

used by a previous call could inﬂuence the state of the

application. If the instance variable is always instan-

tiated the same way, it doesn’t inﬂuence the system.

However, we didn’t identify such a behavior imple-

mented in the serverless functions investigated where

a previous call inﬂuences the value of a subsequent

one. This behavior could be utilized in order to cache

some data.

Besides these factors, there is also the possibility

that a serverless function gets data to be processed

by calling a service. The service can be platform-

speciﬁc, like a data storage access, or external, like

a call to an HTTP API. Of course, services can also

be used to store data.

funcon

parameters

(e.g., data as

JSON)

services

plaorm-specic services

external services

(environment

sengs)

(object variables)

services

plaorm-specic services

external services

return value

(event loop)

Figure 1: Data interfaces of serverless functions.

2.4 Analysis of the Interfaces of

Serverless Functions

Our analysis showed that nearly all of the functions

used services. Therefore, it is not enough to test only

the function in isolation, but also other dependencies

have to be considered. 306 (≈ 94.44%) of the func-

tions investigated used at least one service. A pop-

ular service containing and preserving the state of

an application are data storages. More than half of

the functions (162) used at least one platform-speciﬁc

data storage like DynamoDB or S3 where 142 of these

(≈ 87.65%) used at least once DynamoDB. 68 of

these functions read data from and 77 changed data

on DynamoDB. This shows the importance of plat-

form services, in particular data storages.

Furthermore, all return values of the functions us-

ing services were inﬂuenced by the service called.

Only 40 functions (≈ 12.38%) didn’t return anything

explicitly at all, whereas nearly every third function

(104) returned a value. The majority of the func-

tions (179) returned a value indicating the successful

execution of the function. A return value indicating

only if the execution was successful is an indicator

that the return value is only used for its orchestration,

e.g., reexecuting the function by an orchestrator if the

function fails. The parameters of a serverless function

are instantiated by the events triggering the serverless

functions and had also an effect on the execution of

the serverless functions. 271 functions (≈ 83.90%)

used the parameter for its execution. However, there

were only 13 serverless functions (≈ 4.02%) invoking

another serverless function directly.

Even if this analysis on GitHub cannot be

representative for all serverless applications since

many projects on GitHub are personal and inactive

(Kalliamvakou et al., 2014), it still shows the differ-

ent usages of serverless functions and its reliance on

services, in particular data storages.

3 TESTING DATA FLOW

BETWEEN FUNCTIONS

The investigation described in the previous that there

are different ways serverless functions can exchange

data with their environment. Even if there are several

ways how the internal data ﬂow during execution is

inﬂuenced, the most relevant factor are services be-

ing called. So, the data ﬂow of these services can

inﬂuence the state of the system if data are written.

If data are read, the execution process depends on an

external state. Therefore, the state of the application

resides in the data ﬂow and the state of other services,

mostly data storages. The services where the infor-

mation is passed to, can process, save or route the

information to another service. The most common

service detected in our investigation was DynamoDB

which is a key value storage. In general, each of the

services called by a serverless function is a potential

data storage where data could be saved and read by

other parts of the system. Therefore, while develop-

ing a serverless application, it is not enough to test

only the serverless function in isolation but also the

inﬂuence of the data changed to the system. Thus,

Data Flow Testing of Serverless Functions

not only the relations between services are tested, but

also a direct inﬂuence between different services. We

evaluated different coverage criteria and showed the

applicability of data ﬂow coverage for several appli-

cations in our previous work (Winzinger and Wirtz,

2020). Here, we show an implementation of a frame-

work measuring the data ﬂow coverage of a serverless

application while focusing on different kinds of data

ﬂow: data ﬂow between serverless functions via a ser-

vice, here DynamoDB, data ﬂow via return values and

data ﬂow via function invocation demonstrating the

usage of a parameter set by an event. In addition, we

present the work ﬂow to measure this data ﬂow and

the minimal run time overhead of this measurement.

3.1 Data Flow Criteria

The data ﬂow of the serverless functions is measured

by modifying the source code with additional instru-

mentations. These instrumentations help to pass the

information where the deﬁnition of a value took place

and evaluate its usage. The data ﬂow is only measured

between serverless functions where the deﬁnition is

in one serverless function and the usage of data is in

another serverless function. Other services, like data

storages, can interrupt the data ﬂow between server-

less functions. Therefore, the information of the data

deﬁnition has to be stored in such services too.

The coverage criteria all-resource-defs and all-

resource-uses were implemented in our tool which

can be found online with the data of its run time anal-

ysis

. These criteria were introduced in (Winzinger

and Wirtz, 2019a) and are deﬁned as follows where x

is a deﬁnition of a value within a serverless function

which is used by another resource:

• All-resource-defs: requires that every x is at least

used once in another resource without being rede-

ﬁned before its usage.

• All-resource-uses: requires that every x is used by

all other usages of x in other resources without

being redeﬁned before its usage.

Applied to our serverless applications, resources are

to be considered as serverless functions which use the

value deﬁned.

In contrast to all-resource-defs, all-resource-uses

considers the coverage of uses explicitly. This re-

sults in a potential higher amount of test cases needed

to fulﬁll this criterion. The maximal number of test

cases required for both criteria to be fully fulﬁlled is

listed in Table 2 if each testing aspect is covered by

only one test case where I is the set of couplings (e.g.,

https://github.com/snwinz/ServerlessApplicationTool/

releases/tag/v0.2-beta.1

couplings via data storages or function invocations)

and D

are the defs and U

the uses of a coupling i ∈ I.

Serverless functions are often coupled externally by

Table 2: Coverage items of criteria.

Criterion Maximal Number of Items

All-resource-defs

∑

i∈I

All-resource-defuse

∑

i∈I

| + |U

All-resource-uses

∑

i∈I

| · |U

communicating through an external data storage. If

there is a data storage with many functions writing

and reading data from it and each test case is respon-

sible for only one coverage aspect, the test cases to

fulﬁll all-resource-uses are much higher. Therefore,

we deﬁned and implemented an additional coverage

criteria. While the fulﬁllment of the all-resource-uses

criterion requires that all def-use pairs are covered,

we deﬁned the weaker criterion all-resource-defuse

which requires that:

• each deﬁnition of a value within a serverless func-

tion which is used by another resource is used at

least once in another resource without being rede-

ﬁned before its usage.

• each usage of a value deﬁned in another resource

is used at least once in combination with any def-

inition without being redeﬁned before its usage.

This requires less coverage objects than all-resource-

uses but has the advantage that all usages have to be

tested at least once. The three test criteria result in the

subsumption hierarchy shown in Figure 2.

All-resource-uses

All-resource-defs

All-resource-defuse

Figure 2: Subsumption hierarchy of data ﬂow criteria.

3.2 Criteria Implementation

Our implementation of the criteria is done be extend-

ing our previous work (Winzinger and Wirtz, 2020).

By instrumenting the source code with our tool, the

information of the location where a value was deﬁned

is added to the arguments which are passed when the

context of the serverless function is left. For example,

if another serverless function is called where a value

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

is passed or a service like write access to data storage

is made, the information of the deﬁnition of the data

is passed too. Thus, when the value is used, a corre-

sponding log statement can be created indicating that

the deﬁnition is used with the actual usage. Based on

our investigation from section 2, we implemented the

data ﬂow criteria for different kinds of data ﬂows.

We implemented this for serverless functions

which were invoked by other serverless functions

by attaching the relevant information to the payload.

Even if direct function invocation wasn’t used very

often in our analysis, this behavior is relevant, since

the callee uses the information passed via a parame-

ter of the event which is a common scenario, e.g., if a

data storage triggers a serverless function when a new

entry is added.

If a function returns a value, we attached also

an identiﬁer of its deﬁnition making it possible for

the caller to interpret the source of the result. This

was only implemented if the return value is a JSON-

Object where the information can easily be attached

to an additional ﬁeld. If another data format is used,

the usage of the additional information has to be

adapted in a way that other resources using the return

value can handle the additional information. Thus, if

a string value should be returned, it would only make

sense to attach the identiﬁer of the deﬁnition if all

services using the return value can handle it, e.g., by

parsing the relevant value by a delimiter.

Finally, we implemented the criteria for serverless

functions which are coupled via a data storage, here

DynamoDB, by supporting write and get operations.

Additionally, we implemented a support for the delete

operation to measure the usage of deleted values. This

required to replace the delete operations by write op-

erations which added a marker to the corresponding

value but removed the value. The get operation had to

be replaced too in order to interpret the marked entry.

If they identify a marker, an empty entry is returned

to indicate that the entry is not available.

If a variable of a serverless function is used to pass

information via a coupling, each of its deﬁnitions be-

fore the coupling was instrumented adding the infor-

mation of the usage to the variable. Thus, when the

variable is used, the latest deﬁnition of the variable

can be read. The usage of variables is implemented

similarly. Each usage of a variable coming from a

coupling is instrumented by logging its usage. Thus,

the ﬁrst usage after a coupling can be identiﬁed later.

3.3 Workﬂow for Measuring Coverage

First of all, our program reads the source code with

a parser. We used ANTLR

to create a parser for

JavaScript. Other languages have to be implemented

explicitly in the framework. The parser was adapted

to identify relevant parts of the source code, e.g.,

statements responsible for passing data and deﬁni-

tions and usages of variables. These parts were en-

riched with JavaScript source code which added rele-

vant information to the variables and added log state-

ments to the source code. The generated source code

has to be deployed afterwards and the test cases be

run. In contrast to the implementation of (Offutt et al.,

2000) where a global array is used to log usages,

serverless applications are distributed. Therefore, we

used CloudWatch for saving our information of us-

ages, deﬁnitions, calls etc. However, in contrast to a

global array where the values could be read directly,

the log ﬁles have to be downloaded and evaluated ex-

plicitly. This is done after the execution of test cases.

Monitoring the coverage of a system during its execu-

tion could be supported by scripts constantly polling

and evaluating these logs. For each variable which

was deﬁned and passed, the log ﬁle is searched for an

entry where the corresponding variable is used. This

log statement contains the information of the deﬁ-

nition which was originally attached to the variable

passed and, if necessary, relevant information of the

usage. By reading the log statements, all usages are

counted and can be displayed.

3.4 Run Time Evaluation

This section shows the run time behavior of the code

instrumented by our framework compared to the orig-

inal code without instrumentation. We evaluated three

different scenarios covering different kinds of data

ﬂow between serverless functions.

3.4.1 Scenarios

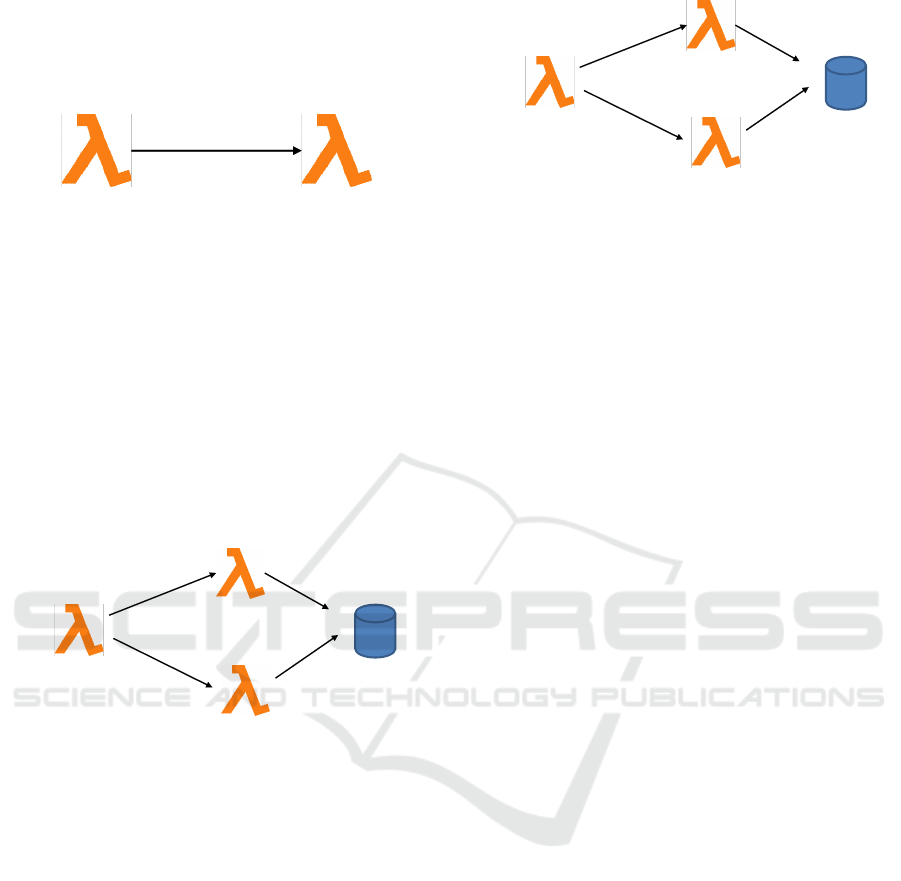

Our ﬁrst scenario (Figure 3) is a serverless function

calling another serverless function where the callee

uses a value of the caller. The serverless function

called returns a value to the calling serverless func-

tion which results in another coupling. Therefore,

there exists a def-use pair both between the caller and

the callee and the callee and the caller. The ﬁrst def-

use pair is a typical example for a serverless function

using the argument of an event, whereas the second

def-use pair is an example for a coupling through a

return value. We measured the run time of the calling

https://www.antlr.org/

Data Flow Testing of Serverless Functions

function on cloud side since the caller calls the callee

synchronously and has to wait for its answer. There-

fore, the run time of the calling function includes the

run time of the callee.

sync

Caller

Callee

Figure 3: Model of function calling another function.

The second scenario (Figure 4) is a scenario with a

write operation to a DynamoDB data storage whose

value is read by another serverless function. Both

functions are called synchronously by another server-

less function whose run time is measured on cloud

side. The read operation is set to be a consistent read

which guarantees that the latest value of the data stor-

age is read. Otherwise, only eventual consistency is

guaranteed where potentially the latest write opera-

tion is not read. Thus, both serverless functions are

coupled by a value on the DynamoDB storage.

Coordinator

Writer

Getter

1. sync

2. sync

Figure 4: Model of scenario for coupling via a write opera-

tion.

The third scenario (Figure 5) is similar to the second

one, but a value written to a data storage is deleted

by a serverless function. This value is read by an-

other serverless function with a consistent read like

in the previous scenario. Both the deleting and read-

ing functions are coordinated by a serverless func-

tion calling these functions synchronously. All values

were written to the data storage before the coordinator

function was called.

3.4.2 Execution

All tests were run on September 25, 2020. We exe-

cuted each of these scenarios with its original source

code and a version instrumented by our tool for each

of the three coverage criteria. Furthermore, we veri-

ﬁed that each def-use pair was tracked correctly.

Therefore, each scenario was executed with four

different versions. The four versions were tested for

Coordinator

Deleter

Getter

1. sync

2. sync

Figure 5: Model of scenario for coupling via a delete oper-

ation.

each scenario in one test run making sure that the uti-

lization of resources of the cloud platform is similar.

Each run was divided in 100 blocks where in each

block each version was executed eleven times.

Before each single execution, the conﬁguration

of the serverless functions was upgraded. Thus, we

could enforce a cold start of the serverless function

for each ﬁrst run of a block since the platform de-

ploys a new container if the description of a server-

less function is changed. This reduced the risk that a

serverless function is only running on the same ma-

chine. Furthermore, we set the memory assigned to

the maximal size of 3008 MB enforcing a deploy-

ment to a fast machine. Otherwise, slower machines

could be compared to faster ones since sometimes if

slower resources are assigned to a serverless func-

tion, faster ones are assigned by the cloud platform

provider (Malawski et al., 2018; Figiela et al., 2018).

Since logs got lost when the description of a server-

less function was changed immediately after its ex-

ecution, we waited 10 seconds after each execution

block.

All in all, we compared 1000 warm runs for each

of the versions of the scenarios and checked that the

coupling was tracked.

3.4.3 Results

The results of our ﬁrst scenario showed that there was

nearly no difference in the execution times if a func-

tion was instrumented or it was run without any in-

strumentation, as can be seen in Figure 6 where a box

plot is shown with the median execution time. The

instrumentation is only limited to the addition of a

value to the parameter and a few log messages where

there were only small differences in the instrumenta-

tion added for the criteria.

The second criteria showed also no relevant differ-

ences in its run time (compare Figure 7). The instru-

mentation included additional checks for parameters

passed and the value received from the data storage.

The criteria themselves have only a few differences in

its implementation by logging the concrete statement

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

●

Normal All−defs All−defuse All−uses

20 30 40 50 60 70

run time in ms

22.985

23.16

23.305

23.33

Figure 6: Box plot of the run times of caller scenario.

●

Normal All−defs All−defuse All−uses

80 100 120 140 160 180 200

run time in ms

84.01

85.72

84.525

83.93

Figure 7: Box plot of run time of writer scenario.

●

Normal All−defs All−defuse All−uses

80 100 120 140 160 180 200

runtime in ms

90.285

91.54

92.82

91.275

Figure 8: Box plot of run time of deleter scenario.

of the usage of a deﬁnition for all-resource-uses and

all-resource-defuse. The median execution time for

all-resource-uses was even faster, even if more state-

ments have to be executed.

Our last scenario showed a bigger difference in its

run time even if the scenario is quite similar to the

previous one (compare Figure 8). However, the in-

strumented versions of this scenario don’t use a delete

operation but a write operation. Additionally, the en-

tries on the data storage are overwritten which could

also be a source of additional run time on the data

storage caused by additional entries. Therefore, this

scenario depends more on the service than the previ-

ous scenario where the same write operation was used

with additional values whereas here the delete opera-

tion is replaced by a write operation.

There were only a small differences in the execu-

tion times of the instrumented scenarios compared to

the original ones which shows that the execution time

of the instrumentations is not so relevant for these sce-

narios. Even if these scenarios are very simple, they

cover all the interfaces where an additional instrumen-

tation is needed. Therefore, the execution of the in-

strumentation of a more complex function would only

take much longer if it used more services or required

more instrumentations to log the deﬁnitions and us-

ages of variables used by its interfaces.

4 CONCLUSION AND FUTURE

WORK

In this paper, we investigated the data ﬂows of server-

less functions with their environment. Most of the

serverless functions of our analysis are inﬂuenced

by its parameters passed and the usage of services,

whereas data are mostly passed to the environment

via services and return values. Therefore, we intro-

duced a framework measuring the usage of these data

ﬂows. Serverless applications consist of many in-

terconnected serverless functions and services whose

complexity of interactions has to be covered. The

measurement of the data ﬂow with our framework

doesn’t require much additional run time. Therefore,

developers can beneﬁt from using it to detect and

measure their data ﬂows easily and create new test

cases.

Our tool supports a dynamic coverage of data

ﬂows between serverless functions, whereas we plan

to develop some static testing support for our future

work, in particular to support the test case generation.

Furthermore, since our tool measures the coverage af-

ter the execution of test cases, a live measurement of

the coverage could support developers in the creation

of test cases. There is still a lack of practical evalua-

tions about the usage of the data ﬂow coverage criteria

for serverless applications. Therefore, we plan to in-

terview some experts on the ﬁeld and evaluate some

real life applications.

Data Flow Testing of Serverless Functions

REFERENCES

Baldini, I., Castro, P., Chang, K., Cheng, P., Fink, S.,

Ishakian, V., Mitchell, N., Muthusamy, V., Rabbah,

R., Slominski, A., and Suter, P. (2017). Serverless

Computing: Current Trends and Open Problems. In

Research Advances in Cloud Computing, pages 1–20.

Springer Singapore.

Clarke, L. A., Podgurski, A., Richardson, D. J., and Zeil,

S. J. (1989). A formal evaluation of data ﬂow path

selection criteria. IEEE Transactions on Software En-

gineering, 15(11):1318–1332.

Eismann, S., Scheuner, J., van Eyk, E., Schwinger, M.,

Grohmann, J., Herbst, N., Abad, C., and Iosup, A.

(2020). Serverless applications: Why, when, and

how? IEEE Software, 38(1):32–39.

Elgamal, T., Sandur, A., Nahrstedt, K., and Agha, G.

(2018). Costless: Optimizing Cost of Serverless

Computing through Function Fusion and Placement.

In 2018 IEEE/ACM Symposium on Edge Computing

(SEC), pages 300–312. IEEE.

Figiela, K., Gajek, A., Zima, A., Obrok, B., and Malawski,

M. (2018). Performance evaluation of heteroge-

neous cloud functions. Concurrency and Computa-

tion: Practice and Experience, page e4792.

Frankl, P. G. and Weyuker, E. J. (1988). An applicable fam-

ily of data ﬂow testing criteria. IEEE Transactions on

Software Engineering, 14(10):1483–1498.

Gabbrielli, M., Giallorenzo, S., Lanese, I., Montesi, F., Per-

essotti, M., and Zingaro, S. P. (2019). No more, no

less. In Lecture Notes in Computer Science, pages

148–157. Springer International Publishing.

Jangda, A., Pinckney, D., Brun, Y., and Guha, A. (2019).

Formal foundations of serverless computing. Pro-

ceedings of the ACM on Programming Languages,

3(OOPSLA):1–26.

Kalliamvakou, E., Gousios, G., Blincoe, K., Singer, L., Ger-

man, D. M., and Damian, D. (2014). The promises and

perils of mining GitHub. In Proceedings of the 11th

Working Conference on Mining Software Repositories

- MSR 2014. ACM Press.

Kratzke, N. (2018). A Brief History of Cloud Application

Architectures. Applied Sciences, 8(8):1368.

Leitner, P., Wittern, E., Spillner, J., and Hummer, W. (2019).

A mixed-method empirical study of Function-as-a-

Service software development in industrial practice.

Journal of Systems and Software, 149:340–359.

Lenarduzzi, V. and Panichella, A. (2021). Serverless test-

ing: Tool vendors’ and experts’ points of view. IEEE

Software, 38(1):54–60.

Lin, W.-T., Krintz, C., and Wolski, R. (2018a). Tracing

Function Dependencies across Clouds. In 2018 IEEE

11th International Conference on Cloud Computing

(CLOUD). IEEE.

Lin, W.-T., Krintz, C., Wolski, R., Zhang, M., Cai, X., Li,

T., and Xu, W. (2018b). Tracking causal order in AWS

lambda applications. In 2018 IEEE International Con-

ference on Cloud Engineering (IC2E). IEEE.

Malawski, M., Figiela, K., Gajek, A., and Zima, A.

(2018). Benchmarking Heterogeneous Cloud Func-

tions. In Heras, D. B. and Boug

e, L., editors, Euro-

Par 2017: Parallel Processing Workshops, pages 415–

426. Springer International Publishing.

Offutt, A., Abdurazik, A., and Alexander, R. (2000). An

analysis tool for coupling-based integration testing. In

Proceedings Sixth IEEE International Conference on

Engineering of Complex Computer Systems. ICECCS

2000. IEEE Comput. Soc.

Spillner, A. (1995). Test criteria and coverage measures for

software integration testing. Software Quality Jour-

nal, 4(4):275–286.

Sreekanti, V., Wu, C., Chhatrapati, S., Gonzalez, J. E.,

Hellerstein, J. M., and Faleiro, J. M. (2020). A fault-

tolerance shim for serverless computing. In Proceed-

ings of the Fifteenth European Conference on Com-

puter Systems. ACM.

Winzinger, S. and Wirtz, G. (2019a). Coverage criteria for

integration testing of serverless applications. In 13th

Symposium and Summer School On Service-Oriented

Computing.

Winzinger, S. and Wirtz, G. (2019b). Model-based Analysis

of Serverless Applications. In 2019 IEEE/ACM 11th

International Workshop on Modelling in Software En-

gineering (MiSE). IEEE.

Winzinger, S. and Wirtz, G. (2020). Applicability of Cover-

age Criteria for Serverless Applications. In 2020 IEEE

International Conference on Service Oriented Systems

Engineering (SOSE). IEEE.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science
