Digital Laboratory Notifications First Rollout Results for Sars-CoV-2

and the Extension towards Generic Pathogen Reporting

Andreea Ancuta Corici, Olaf Rode, René Wiegmann Rollet and Max Bureck

Institute of Fraunhofer FOKUS, Berlin, Germany

Keywords: eHealth, SARS-CoV-2, FHIR, Authentication, LDTv2, OAuth2.0, Mutual TLS.

Abstract: In each country, there is a set of pathogens that require the laboratories to announce the results to local au-

thorities. The current systems based on Fax technologies are overwhelmed with the numerous results that

laboratories have to communicate for SARS-CoV-2. For enabling the upgrade of the infrastructure in terms

of communication technology employing security, data protection and routing of notifications towards the list

of corresponding entities, a digital communication system was developed during the DEMIS SARS-CoV-2

project. In this paper, we present the design and implementation, the testbed used for development and the

performance test results, as well as rollout status and the lessons learned.

1 INTRODUCTION

As the number of infections with SARS-CoV-2 are in

the attention of the public health authorities, it is most

valuable to convey the needed information about the

undergone tests and their results to the institutions in

charge of counselling the patients and taking

decisions. It is clear that the initial system based on

Fax communication, although widespread and well

known, tend to a low quality of acquired data due to

sending per hand information from one system to

another remote system.

At the same time, using Fax technology when

handling the tremendous number of positive results

while the teams handling the reports also go through

a rapid increase in work force and extra work hours,

can lead to a poor accounting of the positive cases.

Loosing track of an infected person due to human

error can lead to serious negative impacts on that

person health and their contacts.

Taking into account these aspects, a digital system

for allowing accounting and efficient communication

of the reported cases between entitled parties was

initiated together with multiple stakeholders

including the Robert Koch-Institute (RKI) during

the DEMIS SARS-CoV-2 project (see Figure 1 and

Homepage of DEMIS project). The project started in

Spring 2020, as a follow-up of a research project

initially carried out for enabling doctors to report the

pathogens that are compulsory to notify to the local

health authorities. During the currently running

project, the nation-wide network of laboratories are

being digitally upgraded in order to accurately send

the legally required information about the positive

cases of SARS-CoV-2. The next phase of the project

rollout, that will start in Spring of 2021, will cover

also other pathogen notification, starting with

influenza.

In this paper, we present the state of the art and

background technology in section 2, an overview of

the requirements in section 3 and the description of

the derived system implementation in section 4.

Section 5 presents the performance tests for the

component handling the dispatching logic and the

first phase rollout insights in section 6. Section 7

closes the article with the conclusion and future work.

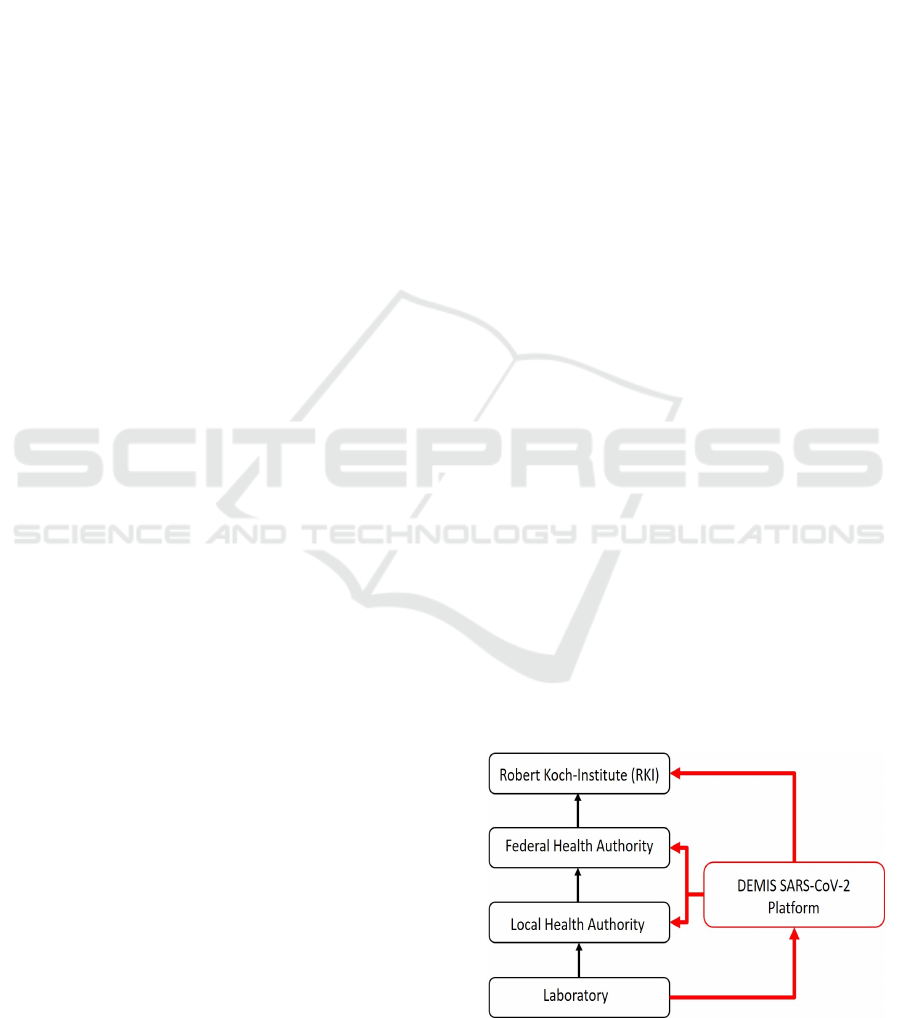

Figure 1: DEMIS SARS-CoV-2 approach compared to the

old three steps procedure for centralizing the results.

Corici, A., Rode, O., Rollet, R. and Bureck, M.

Digital Laboratory Notiﬁcations First Rollout Results for Sars-CoV-2 and the Extension towards Generic Pathogen Reporting.

DOI: 10.5220/0010433800170025

In Proceedings of the 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health (ICT4AWE 2021), pages 17-25

ISBN: 978-989-758-506-7

2 BACKGROUND

2.1 Fast Healthcare Interoperability

Resources (FHIR)

FHIR (see HL7, FHIR standard) is a standard defined

by HL7 for electronic health records exchange

defining data objects and the operations that can be

performed upon them. Stored data objects (e.g.

Observations, DiagnosticReports, Patients,

Organizations) can reference each other, creating

complex resource trees. The standard uses a RESTful

approach for creating, updating, deleting and

retrieving data objects. What is notable is the retrieval

of big amounts of data, where the mechanism of

Paging is recommended, in order to split the results

into chunks. Another important aspect is the

standardized search function, in which resource field

values can be used to filter the results. The JSON,

XML and RDF encoded payloads is transported using

HTTP or HTTPS.

2.2 Authentication Mechanisms

A best practice for securing the traffic between the

system components, such as those between the

backend services and the end users (laboratories and

public health institutions) of the DEMIS SARS-CoV-

2 project, is to employ strong authentication

mechanisms like those from the OAuth2.0 framework

(see D. Hardt, 2020), JSON Web Tokens (JWT) (see

M. Jones et al., 2015) and mutual TLS for generating

the tokens using the certificates of the end users. The

OAuth2.0 was defined in order to enable delegated

access to protected resources by introducing a token

access retrieval from an authorization server before

requesting the access to the protected resource.

Mutual TLS was recently finalized in the IETF

RFC 8705 (see B. Campbell at al., 2020) in order to

define a mechanism in which both client and server

hosting the protected resource can authenticate to

each other, having a result a much stronger data

security than authenticating only the server via TLS.

2.3 Laboratory Data Transfer (LDT)

In Germany, the standard LDT (Laboratory Data

Transfer) (see QMS und KBV) was employed as

early as the 1990s for encoding and sending the

laboratory results. The encoding is using labels for the

type of grouped elements of the notification, with

each element being Tag-Length-Value encoded. The

file structure consists of a header, a set of records and

a closing label. The microbiology and laboratory

reports are those used primarily to communicate

pathogen test results. Each record can hold one or

more pathogen tests. Using Jokerfields one can

extend the semantics of the LDT and introduce new

fields that are needed but not yet standardized.

2.4 Deployment Tools

Running an application inside a container translates

into executing the application in an instance of the

hosting operating system, in comparison to

mechanism of running the application in a virtual

machine, executing on its own operating system.

OpenShift (see Openshift platform) is a PaaS

(platform as a service) for the development and

deployment of applications within containers. The

software is based on the container virtualization tool

Docker (see Docker tool) and the orchestration tool

Kubernetes (see Kubernetes tool). Some of the

functionalities of Kubernetes are container grouping,

auto-scaling, load-balancing or self-healing. As a

result, the features of OpenShift are that of a full-

fledged development platform, like automated

installation and updates, a webinterface, command

line tools, support of continuous integration and

deployment, logging- and monitoring support.

3 SYSTEM REQUIREMENTS

The DEMIS SARS-CoV-2 system has to respond to a

wide range of functional as well as non-functional

requirements. These are:

 Notification Validation: All notification about

positive SARS-CoV-2 test results that are send

by laboratories must conform to the HL7 FHIR

based information model defined by RKI. The

system must reject non-conformant

notifications.

 Notification Enrichment: The system must

add contextual information to inbound

notifications. This includes, e.g. a timestamp,

the verifiable identifier of the sender as well as

information regarding the receiver of the

notification.

 Automatic Receiver Calculation: The

receiver of the notification (a specific public

health office) must be computed by the system

using information that is included in the

notification. Relevant information include, e.g.

the address of the infected person as well as the

address of the sender of the specimen.

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

 Generation of Notification Receipts: For

every notification that is send by a laboratory a

receipt must be generated that includes

information regarding the content of the

notification itself as well as information on the

calculated receiving public health office (e.g.

contact information). The receipt should be

encoded in the portable document format

(PDF). In addition selected information should

be returned in a machine processable format as

well.

 Support for the Detection of Duplicate

Notifications: The system must support the

detection of notifications that where

accidentally sent by a laboratory multiple times

or notifications that are send by different

laboratories but that refer to the same case

(person and pathogen). As it is forbidden to

store unencrypted personal data within the

system the functionality must be implemented

using pseudonymized notification data.

 Receiver Oriented Encryption of Personal

Data in Notifications: Personal data of

patients will not be stored unencrypted.

Therefore the system must encrypt

notifications as soon as the pre-processing has

been finished. The implemented encryption

mechanism must guarantee that only the

receiving public health office is able to decrypt

the notification.

 Derivation of Epidemiological Information

from Notifications: The system must extract

information from the notifications for getting

an overview about the current epidemiological

situation for the whole country. Personal data

must not be included or must be replaced by

pseudonyms. This information should be

accessible by the RKI.

 Extensibility to Support Additional

Pathogens in the Future: The first version of

DEMIS will only support SARS-CoV-2

notifications. Nevertheless, the system must be

designed in a way that additional pathogens can

be supported with ease.

 Usage of Strong Authentication and

Authorization Means: The system must use

an authentication mechanism based on X.509

certificates. After an initial authentication with

the corresponding cryptographic keys, derived

security tokens may be used to access the API

for sending or receiving notifications. An

access control framework must guarantee that

the APIs of the business services are only

accessible when all access requirements are

met and therefore a positive access control

decision will be rendered. Attributes for the

rendering of the access control decision must

be extractable from the used security tokens

(e.g. role information) as well as from the

request or response payload (e.g. the

notification itself).

 Adaption of a Widely Used Laboratory Data

Transfer Protocol to Support a Fast Rollout:

Implementing the HL7 FHIR based data format

natively within the laboratory information

system or within the connected communication

servers might lead to delay in the planned

rollout, as laboratories do not employ currently

such technology. Therefore an adapter must be

provided during a period of transition that is

able to map LDTv2 based laboratory reports

(that are widely used withing Germany) to HL7

FHIR based SARS-CoV-2 notifications.

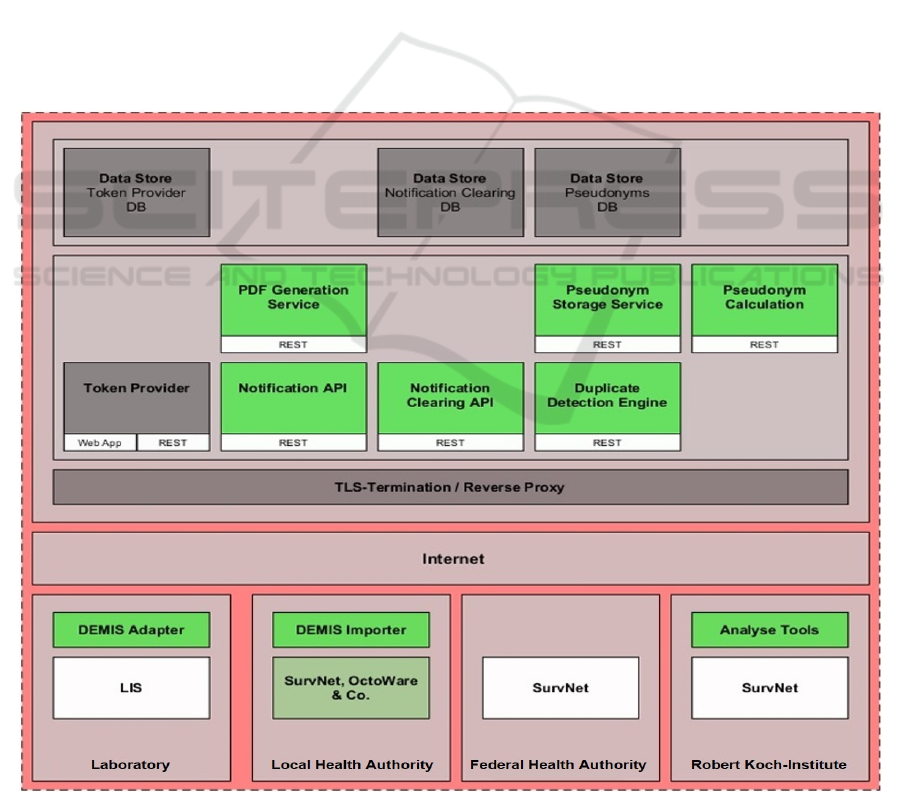

4 SYSTEM DESCRIPTION

In this section we provide a system overview of both

the backend services and the frontend components,

followed by the description of the implementation

during the first phase of the project in which only

SARS-CoV-2 tests were handled and the currently

under development extension for supporting multiple

pathogens.

4.1 System Overview

4.1.1 Backend Services

On the server side of the system, the functional

requirements were clustered around the entry point

for the messages that are send by laboratories, the

DEMIS Notification API. One of the main

functionalities of this component is the validation of

message (notifications) against a defined set of rules

and as well as the routing to entitled parties (see

Figure 2).

Further responsibilities of this component are:

 The enrichment of the message with additional

attributes, such as the time of message receipt

or the ID of the sending service provider

 the generation and persistence of pseudonyms

using the DEMIS Pseudonym Calculation

Digital Laboratory Notiﬁcations First Rollout Results for Sars-CoV-2 and the Extension towards Generic Pathogen Reporting

Service and the DEMIS Pseudonym Storage

Service,

 the generation of report receipts with the help

of the DEMIS PDF Generation Service,

 the generation of non-named reports

(information objects for better evaluation of the

current epidemiological situation) for the RKI,

 encryption of the notification

 the transfer of the notifications and the

generated information objects to the DEMIS

Notification Clearing API

Furthermore, on the DEMIS Notification

Clearing API both the encrypted notification and the

information objects required for the evaluation of the

current epidemiological situation are persisted in a

database (DEMIS Notification Clearing DB) by the

DEMIS Notification Clearing API and held for

retrieval by the respective authorized agencies.

The service thus functions primarily as a retrieval

point for the corresponding notifications and

information objects and, in this context, implements

the access rules defined indirectly via the health law.

Although for a detailed assessment of the

epidemiological situation, it is helpful to identify all

SARS-CoV-2-related reporting events for a person in

the data set and to consider them accordingly. For

good reason, the infection protection act allows only

the respective competent health authorities to access

personal information, such as the name of an affected

person. A centralized search, for persons reported

multiple times on a central database with personal

information available in plain text, is thus explicitly

not allowed. For this reason, the DEMIS Pseudonym

Calculation Service creates special pseudonyms via

selected personal characteristics (first name, last

name, date of birth) in the course of pre-processing

the reports. These pseudonyms later make it possible

to recognize all SARS-CoV-2 related reporting

processes for a person in a defined time interval

without revealing the identity of the respective person

concerned.

Figure 2: Demis SARS-CoV-2 system overview.

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

In order to be able to recognize all SARS-CoV-2-

related reports or reporting processes for a person

within a defined time interval, the DEMIS Duplicate

Detection Engine was developed. The DEMIS

analysis tools can pass a pseudonym to this service

and have it check whether the pseudonym has more

than one reporting procedure associated in the

system. The implemented pseudonymization

procedure also supports a fuzzy search, i.e. if desired,

reporting procedures for persons in the database with

a very similar name are also matching, for supporting

the case of typing error).

All access to the central specialized services of

the DEMIS infrastructure is protected by an access

control system. In order to be able to call the

operations required for the respective use case, the

client must include a standardized security token in

the header of the call. The DEMIS Token Provider

issues these security tokens after successful

authentication of the respective user. The

authentication of the user is certificate-based. The

DEMIS Token Provider also manages the user

accounts. Corresponding information is persisted in a

database (DEMIS Token Provider DB).

4.1.2 Frontend Components

For the first expansion stages of the DEMIS a highly

specialized software component (DEMIS Adapter)

is offered to the reporting laboratories. It fulfils the

following tasks:

 Loading of LDT messages supplemented by

Jokerfields from a data transfer directory

 Transforming LDT information into the data

format defined by the RKI for the presentation

of SARS-CoV-2 notifications (based on HL7

FHIR)

 Authenticating the laboratory against the

DEMIS Token Provider

 Secure sending of notification message to the

DEMIS Notification API

 Creation of audit logs for tracing the processing

steps

 Saving the notification transaction receipt

(PDF) returned by the DEMIS Notification

API.

In coordination with the producers of software for

public health office, the DEMIS Importer was

developed for the first expansion stages of the system.

It serves as a reference implementation for the

adaptation of the various processes and will also be

used in selected health offices for a transitional

period. The DEMIS Importer fulfils the following

tasks, among others:

 Authentication of the respective health office

against the DEMIS Token Provider

 Retrieval of encrypted notification messages

via the DEMIS Notification Clearing API

 Decryption and storage of the messages in the

file system

The actual processing of notification content is

implemented in the various software products (e.g.

SurvNet@RKI) that is used by the different public

health offices.

For future versions of the system it is envisioned

that neither the DEMIS Adapter nor the DEMIS

Importer will be used any longer. The corresponding

functionality is planned to be implemented by the

vendors of the respective sending and receiving

information systems by then.

4.2 Implementation

To guarantee a good portability of the DEMIS

services and components, only Java-based software

published under an Open Source licence was selected

or developed. In this context especially the extensive

use of Hapi FHIR library (see UHN, Hapi FHIR

library) should be mentioned.

The FHIR profiles are publicly available so that

all involved participants can access them. Especially

that some of the laboratories have decided to

implement the last hop component in order to have a

deep integration with the DEMIS platform and

system. The profiles, code systems (for country code,

material, method, postal codes) and value sets (test

code values) have been published on the platform

simplifier.net.

In the initial design, the DEMIS Adapter had also

the role to verify the values received in the LDT file.

The advantage of this solution was to have a fast

feedback on possible errors due to the input values

and not overload the system with error notifications.

In the end it was decided to have the validation only

at the Notification API, in order to have a uniform

approach in technical support for laboratories that use

the DEMIS Adapter or their own software.

The following sections will only focus on selected

implementation aspects for the first and second

development phase of the system.

Digital Laboratory Notiﬁcations First Rollout Results for Sars-CoV-2 and the Extension towards Generic Pathogen Reporting

4.2.1 First Phase: SARS-CoV-2 Only Tests

During the first phase of development the backend

service had to go into maintenance mode quite often,

e.g. to rollout new versions of the software.

Therefore, special care was needed for detecting the

maintenance and handling the error codes received by

the frontend components from the DEMIS Token

Provider (see Table 1) as well as the DEMIS

Notification (Clearing) API (see Table 2).

Both the DEMIS Adapter and DEMIS Importer

assume that there is an established internet connection

when starting. This is why timeouts by connecting are

considered as configuration failure, or in the case of

DEMIS Adapter a misconfiguration of the proxy.

When designing the error handling in the case of

the responses from the Notification API, it was also

included the case that a component called by the

Notification API, like the Notification Clearing API

for example, would return error to the Notification

API, thus a retransmission is necessary, similar to the

maintenance state.

As the pandemic situation progressed, it was

decided to include more information than the positive

diagnostic and that encompasses information about

the virus variant and the genomic information.

Currently only the support for the case when the

laboratory itself has the necessary analysis devices.

The next step is to enable correlation between

primary laboratories that receive the probes and the

secondary laboratories that provide the genomic

information or even invalidate the initial positive

diagnostic.

4.2.2 Second Phase: Multi Pathogen Tests

During the development of the system it became clear

that the DEMIS information model, especially certain

ValueSets (e.g. test codes), had to be updated from

time to time. Therefore, a functionality was

developed that downloads the most recent versions

from the FHIR data model server. Nevertheless, to

implement the support for additional pathogens (e.g.

influenza virus) this mechanism needs to be refined.

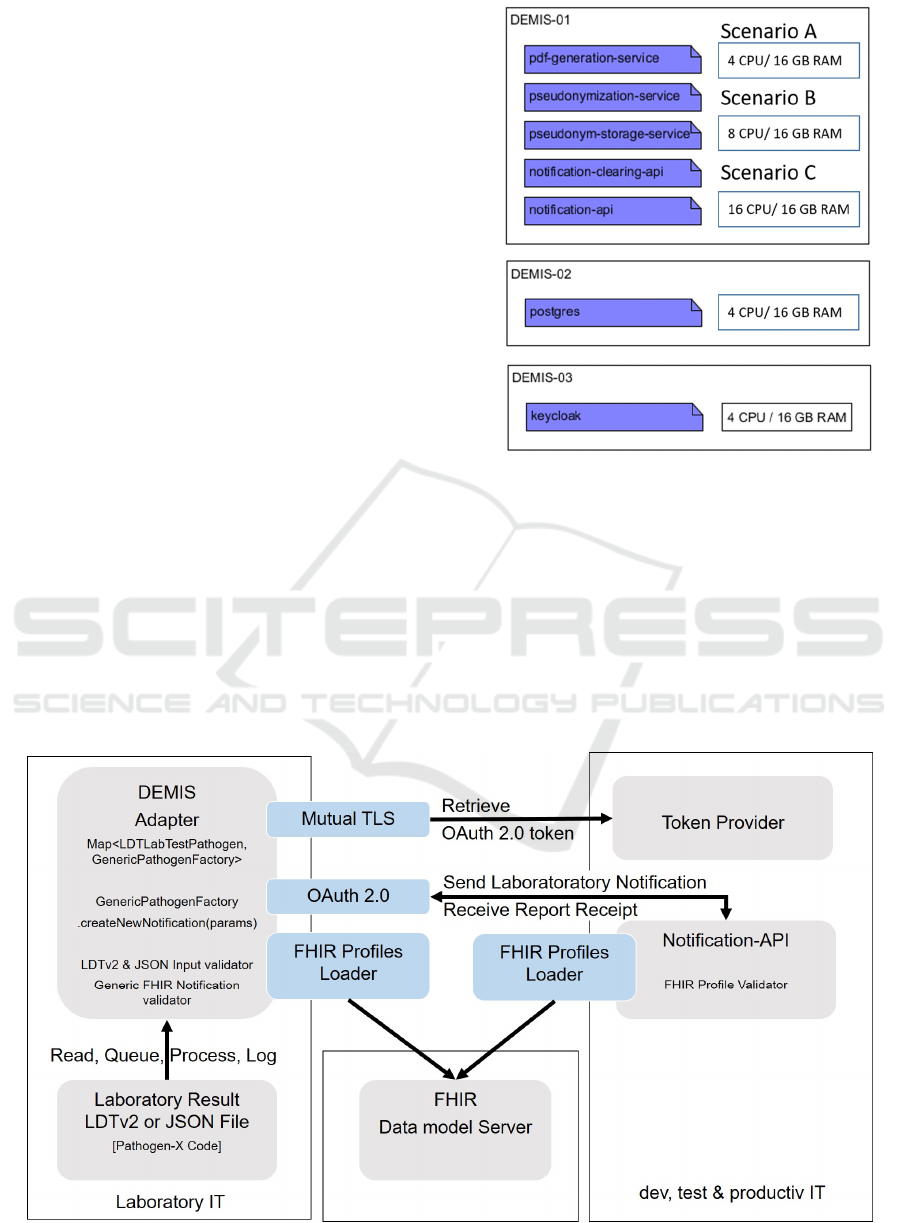

Both the DEMIS Adapter and the DEMIS

Notification API have to be extended in order to be

able to programmatically download, process and

interpret not only updated ValueSets and

CodeSystems but complete FHIR profiles (including

StructureDefinition resources (see Figure 3).

While loading the profile into memory, the

DEMIS Adapter implementation will be extended in

order to build generic classes and factories that can

model the notifications elements. A new input

information element Pathogen Code will be added in

order to retrieve the GenericPathogenFactory object

from the internal mapping built during the loading of

profiles. Using this GenericPathogenFactory, the

input values that have an associated FHIR ValueSet

are validated and the correct Profile URL is set in the

notification elements that depend on the pathogen.

The DEMIS Notification API inherits the

validation mechanism from the HAPI FHIR library

validator that needs the profiles downloaded

Table 1: Token Provider response codes processing.

Type of

Response

Action

Token Provider DEMIS

Adapter

DEMIS

Importer

Could not

connect

Signal misconfiguration and

shutdown

Unknown

resource path

Invalid

credentials

Maintenance Retry after a specific interval

All ok Save token for sending the FHIR

Request

Table 2: Notification API and Notification Clearing API er-

ror response codes handling at the DEMIS Adapter and

DEMIS Importer respectively.

Type of Response Action

DEMIS

Notification API

& Notification

Clearing API

DEMIS

Adapter

DEMIS

Importer

Could not connect

Signal misconfiguration and

shutdown

Unknown resource

path

Input Data invalid Move input

file to error

folder

Abort

operation

Internal Error

Retry after a specific interval

Maintenance

All ok Move input

file to

submitted

folder and save

the Report

Receipt

Save data in

the local

database

beforehand. Thus, downloading of the profiles is

decoupled from the validation of notification so that

the profiles download occurs during packaging and

the validation during runtime. Although the FHIR

Profile Loader has slightly different usage in the two

components, the shared functionality of profiles

download is quite important, especially that some

special handling was needed because some aspects

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

related to snapshot download from the publicly

available FHIR data model server of simplifier.net are

not yet available.

5 PERFORMANCE TESTS

There were several tests carried out in a laboratory

setup, from which here selected are those related to

the performance tests of the Notification API, the

system entry component.

In the setup, depicted in Figure 4, the VMware

ESXi, 6.7.0 hypervisor was deployed on a

PowerEdge MX740c hardware with an Intel(R)

Xeon(R) Gold 6126 CPU @ 2.60GHz processor. The

VMware configuration included twenty-four logical

processors and three network cards.

The Token Provider keycloak and the Postgres

database of the Notification Clearing API were

dedicated each a virtual machine of 4 virtual CPUs

and for the rest of the system components the number

of CPUs was increased starting from scenario A with

4 CPUs and finishing with scenario C with 16 CPUs.

The simulator for generating the requests was

developed based on the Scala based gatling test load

generator (see Gatling Toolkit) and it was used to

simulate 20, 40, 80 and 160 parallel laboratories.

In Figure 5 the measurement results regard the

mean response time and the associated standard

deviation on the enfolded scenarios.

Figure 4: Test setup.

One can observe that the response time is

decreasing when the number of allocated CPUs

increase. At the same time, in scenario C,80 the

highest mean speed is reached at about 49 000

requests per second and there are error response codes

encountered. It was concluded that the Notification

API is the bottleneck and an adjustment of the setup

using load balancing between multiple instances of

the Notification API has proven to extend the

performance of the system as a whole.

Figure 3: Support for multiple pathogens.

Digital Laboratory Notiﬁcations First Rollout Results for Sars-CoV-2 and the Extension towards Generic Pathogen Reporting

6 ROLLOUT

In order to prepare for the productive system, the

development team deployed a replica of the DEMIS

platform on an internal network Openshift testbed in

order to have preliminary validation of the releases.

Another replica was used for the most recent develop

version as stub test system.

A replica of the productive system was deployed

for testing purposes, so that both laboratories and

local health authorities can test their settings and

implementation.

The rollout of the system took place gradually,

starting with the first validated release of the project

and only a small number of laboratories and public

health offices in July 2020. By now (January 2021)

more than 250 laboratories and all public health

offices (375) are using the system (see Figure 6).

During the rollout numerous workshops took

place for familiarizing the laboratories and local

health authorities’ workers with the new platform.

Their feedback was used to adapt the system and

build the roadmap for future releases. For example,

on the side of the laboratories, some of them decided

to have a deep integration, with their primary

information system, either implementing the

interfaces towards the DEMIS Token Provider and

DEMIS Notification API from scratch or using the

code from DEMIS Adapter. Others, due to lack of IT

resources, decided to continue the use of the DEMIS

Figure 6: Number of laboratory notifications sent per day

via the DEMIS SARS-CoV-2 platform.

Adapter and asked to include additional

functionality, e.g. support for an alternative input

format (proprietary JSON), a monitoring interface,

multiple test results in a single notification as well as

the support for multiple notifications within one LDT

file.

An important feature request from RKI has been

to support the transfer of information that is

associated with a molecular surveillance system for

SARS-CoV-2 and other pathogens. This functionality

was already implemented and rolled out.

Figure 5: Test results.

ICT4AWE 2021 - 7th International Conference on Information and Communication Technologies for Ageing Well and e-Health

7 CONCLUSION AND FUTURE

WORK

The DEMIS SARS-CoV-2 project included a broad

set of stakeholders in the domain of laboratory tests

that ranged from hospitals to laboratories of all sizes,

including mobile test sites and even veterinary

laboratories that decided to help by performing

SARS-CoV-2 tests. Their feedback and engagement

have contributed tremendously to the success of the

project and upgrade of the infrastructure in a matter

of a few months.

The next milestone will be the support for the other

more than 50 notifiable pathogens defined within the

German Infection Protection Act. This major

extension - as well as many other smaller

improvements - will make the DEMIS platform even

more powerful and ready to be adapted to other

countries that need to improve their reporting

systems.

ACKNOWLEDGEMENTS

DEMIS SARS-CoV-2 was financed by the German

Ministry of Health (BMG). The functional

requirements as well as the data model were defined

by the Robert Koch-Institute (RKI), Fraunhofer

FOKUS was responsible for the design and

development of the system, gematik GmbH and RKI

accompanied the design and development process

and coordinated the test, operation and rollout.

REFERENCES

RKI, Homepage of DEMIS project, https://www.rki.de/DE/

Content/Infekt/IfSG/DEMIS/DEMIS_node.html

HL7, FHIR standard, http://hl7.org/implement/standards/

fhir/

D. Hardt, 2012, OAuth 2.0 authorization framework, RFC

6749, IETF

M. Jones, J. Bradley, N. Sakimura, 2015, Json Web Token

(JWT), RFC 7519, IETF

B. Campbell, J. Bradley, N. Sakimura, T. Lodderstedt,

2020, OAuth 2.0 Mutual-TLS Client Authentication

and Certificate-Bound Access Tokens, RFC 8705,

IETF

QMS and KBV, LDT Standard (Labordaten-Transfer),

https://www.qms-standards.de/standards/ldt-

schnittstelle

Openshift Platform, https://learn.openshift.com/

Docker tool, https://www.docker.com/

Kubernetes tool, https://kubernetes.io/

RKI, Homepage of SurvNet tool, https://www.rki.de/ DE/

Content/Infekt/IfSG/Software/software_inhalt.html

University of Health Network (UHN), Hapi FHIR library,

https://hapifhir.io/

Gatling Corp, Gatling Toolkit, https://gatling.io

Digital Laboratory Notiﬁcations First Rollout Results for Sars-CoV-2 and the Extension towards Generic Pathogen Reporting
