A Blockchain-based Architecture for Enterprise Ballot

Paulo Henrique Alves

1 a

, Isabella Frajhof

Elisson Michael Ara

ujo

, Yang Ricardo Miranda

1 b

Rafael Nasser

1 c

, Gustavo Robichez

, Alessandro Garcia

, Cristiane Lodi

, Flavia Pacheco

and Marcus Moreno

Software Engineering Laboratory, Department of Informatics, Pontiﬁcial University Catholic of Rio de Janeiro, RJ, Brazil

Petrobras, Rio de Janeiro, Brazil

Keywords:

Ballot, Electronic Voting Systems, Blockchain, Architecture.

Abstract:

Enterprise ballots are usually applied to support the decision-making process in voting-related scenarios. They

allow its members to manifest their opinion and settle their position in regards to a speciﬁc topic, such as the

approval of budgets and the acquisition of goods and services. Even though we are living in a data-driven

society, highly digitized, enterprise ballots still rely on a paper based process. Thus, migrating to an electronic

voting system, in which all the resolution process happens online, triggers various issues on veriﬁability,

correctness and secrecy. Blockchain plays a vital role in this environment, as it is able to provide a trustable

and secure enterprise decision-making system. Therefore, we developed BallotBR, an enterprise ballot system

under a permissioned blockchain platform, to address all the requirements based on a challenging enterprise

consortium context. This consortium is representative of many consortia across the oil and gas industry and

other domains. Furthermore, we contrasted the open-source proposals available in the literature with the

BallotBR needs. Also, we discussed how our solution addresses security and trustworthiness requirements

usually faced in e-voting systems.

1 INTRODUCTION

Despite the tradition of some countries in the use of

e-voting systems for public and democratic elections,

this culture has not yet reached the enterprise am-

biance. Enterprise ballots (EB) are usually applied

to support the decision-making process in many sce-

narios (Yan et al., 2019). They allow stakeholders to

inform, discuss and settle their position on important

topics related to their business operation. Thus, EBs

can be understood to be a means by which an orga-

nization’s deliberative body discusses and deliberate

issues related to its operations. Through the exercise

of the stakeholders’ vote, such questions are decided

and the decisions executed.

The migration from a paper based ballot pro-

cess to an e-voting system requires the development

of systems that provide veriﬁability, correctness and

secrecy, common security requirements in crypto-

https://orcid.org/0000-0002-0084-9157

https://orcid.org/0000-0002-7414-1899

https://orcid.org/0000-0002-6118-0151

graphic e-voting systems (Juels et al., 2010), (Clark-

son et al., 2008), (Specter et al., 2020). The prevailing

goals of such requirements are to: (i) guarantee the

correct execution of the company rules regarding its

resolutions, (ii) verify that the votes were counted as it

were cast, and (iii) maintain the secrecy (iii.a) regard-

ing the voter identity and how s/he voted, avoiding

the coercion and inﬂuence on how one should vote,

and/or (iii.b) restrict unauthorized access to the sys-

tem, maintaining the conﬁdentiality of deliberation to

its participants. In a nutshell, electronic ballot sys-

tems must provide a secure resolution process in order

to ensure the legitimacy and trust of the results.

Given the aforementioned goals, blockchain-

based systems play a vital role in this environment

(Pawlak et al., 2018). Blockchain is a novel technol-

ogy with the potential for creating a new paradigm of

trust and cooperation when involving multiple parties

(Alves et al., 2020; Nasser et al., 2020; Paskin et al.,

2020). Blockchain is a decentralized data structure

responsible for storing data in a chronological, digital

and immutable manner. The registration of such data

depends on the network participants consensus, which

232

Alves, P., Frajhof, I., Araújo, É., Miranda, Y., Nasser, R., Robichez, G., Garcia, A., Lodi, C., Pacheco, F. and Moreno, M.

A Blockchain-based Architecture for Enterprise Ballot.

DOI: 10.5220/0010432102320240

In Proceedings of the 23rd International Conference on Enterprise Information Systems (ICEIS 2021) - Volume 2, pages 232-240

ISBN: 978-989-758-509-8; ISSN: 2184-4992

 2023 by SCITEPRESS – Science and Technology Publications, Lda. Under CC license (CC BY-NC-ND 4.0)

validates the transactions without the need of a cen-

tral authority (Pilkington, 2016). When applied to an

e-voting system, due to its properties, blockchain al-

lows for the veriﬁcation of the stored data. Thus, par-

ticipants can verify the results and attest their correct-

ness, without the need of third parties (Pawlak et al.,

2018).

In this sense, we have listed the main require-

ments and features that an EB system must present.

Our analysis was based on the context of an oil and

gas consortium, the Libra consortium. This context

is challenging for manifold reasons. First, this con-

sortium is composed of ﬁve different organizations.

Therefore, the consortium dynamics depend on the

non-trivial coordination and discussion of these or-

ganizations, for which important decisions must be

deliberated through ballots. Such process is well reg-

ulated by the Libra consortium agreement, which the

ballot procedure must comply with.

Also, three open-source voting projects were eval-

uated to investigate the proposed features with the

Libra ballot requirements. Such requirements were

listed according to the Libra consortium Agreement,

and validated and complemented by stakeholders

during regular meetings. None of the open-source

projects have presented a complete environment to

manage enterprise ballots and satisfy the Libra con-

sortium speciﬁcations.

Therefore, we developed BallotBR, an EB system

under a permissioned blockchain and evaluated the

open-source voting projects (Section 4). This system

addresses Libra consortium agreement needs, and its

architecture was developed considering further adap-

tation to be reused in other enterprise contexts (Sec-

tion 5). We also discuss how we addressed security re-

quirements, which are often faced in electronic voting

systems: correctness, veriﬁability and privacy (Sec-

tion 6). Section 7 presents conclusions and future per-

spectives.

2 BACKGROUND

The migration to e-voting systems means that all

the resolution process happens online (from partici-

pants authentication to ballot tallying). This migra-

tion can provide for a more efﬁcient, easy, engag-

ing, and sustainable process. However, this transfor-

mation can trigger security issues, especially regard-

ing the system’s veriﬁability, correctness, and pri-

vacy. Even though paper based and electronic bal-

lots (Silva, 2019) are not exempted from this criti-

cism, researchers are constantly aware of those issues

when developing e-voting systems (Juels et al., 2010;

Clarkson et al., 2008; Specter et al., 2020). Thus,

mapping and addressing such vulnerabilities become

a fundamental step towards the development of a safe

and reliable e-voting system.

Electronic voting systems raise many technical

challenges that must be dealt within democratic elec-

tions, which are potentially exacerbated in an elec-

tronic voting system (Juels et al., 2010). The main

security requirements that must be dealt are: veriﬁa-

bility, correctness and secrecy.

Attacker-aware Correctness and Veriﬁability.

Juels et al. (Juels et al., 2010) identify, among others,

two security requirements that an electronic voting

scheme must deal with: correctness and veriﬁability.

Correctness is deﬁned with a twofold meaning. First,

an attacker “cannot pre-empt, alter, or cancel” the

vote of the participants. Second, the attacker must not

be able to vote two times for the same person. Thus,

it means that votes must be counted once, according

to the intention of the voter. Veriﬁability is deﬁned

as the ability of the voters to conﬁrm if the vote was

correctly computed, in which the system must be able

to detect voting misbehaviors. Clarkson et al. (2008)

afﬁrm that veriﬁability can also be considered an in-

tegrity property (Clarkson et al., 2008). The integrity

of the election means that participants must be con-

vinced that their votes were correctly counted.

Voting Security Requirements. Moreover,

Specter et al. (Specter et al., 2020) organize the main

security requirements and their deﬁnitions in the vot-

ing system literature, which are: (i) correctness and

usability, (ii) secret ballot and (iii) end-to-end veriﬁ-

ability. According to the authors, correctness and us-

ability are deﬁned as the system’s capacity to demon-

strate that “votes were cast as intended, collected as

cast, and counted as collected”. End-to-end veriﬁa-

bility means that the participant must have proof that

his vote was cast as intended and unmodiﬁed. This

veriﬁcation must be done “without the need to trust

any separate authority to do so”.

Ballot Secrecy. The concept of ballot secrecy

refers to the need to maintain the anonymity of the

voter identity and to his/her vote to avoid voter coer-

cion and vote buying. We questioned the Libra con-

sortium if anonymity was an important element for

the ballot context, which was not. The votes of each

organization are kept open for all members of the con-

sortium. Although we recognize that anonymous vot-

ing can be demanded in other EB contexts, we did not

deal with such feature, since it was not a priority.

Nevertheless, in BallotBR secrecy can be deﬁned

as the need to avoid unauthorized access to the ballot

and to the shared documents during resolutions. In

this sense, there is the need to implement a robust user

A Blockchain-based Architecture for Enterprise Ballot

233

authentication procedure. Overall, electronic voting

systems must be developed taking in consideration

such aforementioned security requirements. In sec-

tion 6 we demonstrate how the BallotBR architecture

attends to such speciﬁcations. Complying with such

requirements is important to guarantee a secure voting

procedure, hence, a legitimate and trustworthy result.

3 RELATED WORK

This section aims to describe the state of art of

open-source electronic voting systems. Five selected

projects also proposed the usage of blockchain tech-

nology. The goal is to understand the proposed so-

lutions’ gaps to build a more accurate, veriﬁable and

secure system in the enterprise scenario.

Hardwick et al. presented an e-voting system un-

der the private Ethereum network destined for pub-

lic elections

(Hardwick et al., 2018). They deﬁned

six requirements that such system should satisfy and

how their system dealt with them: (i) fairness, (ii) el-

igibility, (iii) privacy, (iv) veriﬁability, (v) coercion-

resistance, and (iv) forgiveness. The use of a pub-

lic blockchain does not allow for the creation of data

sharing options and all network members have access

to registered information. An EB needs to assure that

shared information during a deliberation is kept pri-

vate and restricted to its members. This can be im-

plemented with the use of a permissioned blockchain,

such as Hyperledger Fabric (HF).

Dagher et al. proposed the BroncoVote, a veriﬁ-

able e-voting system also designed under Ethereum

blockchain (Dagher et al., 2018). The system tests

were performed in the Ropsten public network (Kim

et al., 2018). The authors mentioned that blockchain

smart contracts (BSCs) could be deployed on an

Ethereum private network. However, (Hardwick

et al., 2018) identiﬁed limitations regarding such ap-

proach, for instance, the majority of encryption proto-

cols require larger numbers than 256 bits available on

solidity unsigned int. Thus, HF emerges as a secure

option to overcome this.

almarsson et al. (Hj

almarsson et al., 2018) and

Patil et al. (Patil et al., 2019) defended the usage of

permissioned blockchains in the voting scenario as an

alternative to public blockchains to provide secrecy.

The argument concerns the BSC execution and trans-

action costs. They argue that this involves not only

performance, i.e., permissioned blockchains perform

Private Ethereum Network. Available at: https://geth.

ethereum.org/docs/interface/private-network Accessed at:

11/06/2020.

better than the public blockchains in regards to trans-

action per second, but permissioned blockchains also

deliver more data privacy. However, the authors only

evaluated an election voting scenario instead of an

EB.

Last but not least, the authors in (Specter et al.,

2020) analyze and criticize the security of the Voaz

blockchain-based system for Federal Elections in

the U.S. under a permissioned blockchain. Even

though Voatz developers afﬁrm that a permissioned

blockchain is used, they do not specify which plat-

form. Furthermore, the authors address privacy con-

cerns and discuss system vulnerabilities that would al-

low hacker attacks. However, the proposed solution

does not comply with the enterprise requirements for

balloting processes, as demonstrated by (Villalobos

et al., 2019). Thus, the gap of the blockchain plat-

forms for EBs is still an open discussion.

Regarding non-blockchain-based e-voting solu-

tions, Helios and Civitas are open-source platforms

proposed by (Alonso et al., 2018) and (Clarkson et al.,

2008). Concerns regarding the coercion resistance in

public and democratic elections scenario were pre-

sented. However, other useful features that we could

approach were also presented, e.g., approval rates

and abstention behavior conﬁguration. Therefore, we

have considered both platforms to develop our solu-

tion and the comparative analysis (Section 4.3).

Thus, as none of the previous work proposed a so-

lution for the EB environment, neither the use of a

permissioned blockchains in such domain, we devel-

oped BallotBR. Our proposal considered the gaps pre-

sented by previous works. Also, our system is based

on the Libra consortium requirements, and must deal

with security issues related to the correctness, veri-

ﬁability and secrecy of the system (Section 2). The

details of our study are described in the following sec-

tions.

4 REQUIREMENTS ANALYSIS

4.1 Application Scenario

Libra “was offered in the ﬁrst bidding round executed

by the Brazilian government under the new Produc-

tion Sharing Contract for presalt areas, in 2013” (Car-

lotto et al., 2017). Currently, it is one of the seventeen

contracts in force in Brazil

. Libra is explored by

ﬁve companies that compose the consortium: Petro-

Available at: http://www.presalpetroleo.gov.br/

ppsa eng/sharing-contracts/sharing-contracts Accessed at:

11/27/2020.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

234

bras (Operator, upholding 40%), Shell Brasil (20%),

Total (20%), China National Petroleum Corporation

(CNPC) (10%), and China National Offshore Oil Cor-

poration (CNOOC) (10%). The Production Shar-

ing Contract establishes that PPSA (Pre-Sal Petroleo

S.A.), a public company, must be part of the con-

sortium to represent the Federal Government’s inter-

ests. The company chairs the Operational Committee

and is responsible for managing the sharing contracts.

One of the company’s role is to ensure that the con-

sortium complies with the agreement rules.

Hence, PPSA presents an essential role during the

deliberation process of the Operational Committee. A

ballot must take place whenever the consortium needs

to acquire goods and services. When a ballot is pro-

posed, such companies’ participation is proportion-

ally distributed to allow the involvement of PPSA.

Thus, in the deliberation process, which is called “res-

olution” in the consortium agreement, each company

will have the following participation: Petrobras with

20%, Shell Brasil and Total with 10% each, CNPC

and CNOOC with 5% each, and PPSA with 50%.

Moreover, other than the ballot, there is another

communication mechanism called notice, which con-

sists of a notiﬁcation. Both ballot and notice are cur-

rently part of paper-based processes. These manual

activities delay the decision-making process and re-

quire many manual interventions to initiate and end

resolutions. Thus, in order to automate this proce-

dure and provide more efﬁciency, we mapped bal-

lot requirements of the Libra consortium to stream-

line the development of the BallotBR, an enterprise

blockchain-based ballot system.

The BallotBR had to be strictly adherent to the Li-

bra consortium Agreement. Such requirements were

listed according to that legal document, and vali-

dated and complemented by stakeholders during reg-

ular meetings. The decision to develop such a sys-

tem was motivated after the analysis of three open-

source voting projects. Non of these open-source

projects fully satisﬁed the requirements and features

demanded by the Agreement and stakeholders. Some

of these were: a ﬂexible conﬁguration of the resolu-

tions, well-deﬁned roles, system availability and full

transparency. The use of a permissioned blockchain

was essential to reinforce key aspects of electronic

voting systems listed in Section 2, as well as to pro-

vide a transparent and legitimate ballot process.

4.2 BallotBR Requirements

Enterprise ballots require the creation of voting

groups to deliberate on different topics. Hence, such

systems must provide the creation of a committee,

group companies and voting sections. In Libra con-

sortium, the deliberation process is named resolution.

Additionally, a speciﬁc feature of Libra consor-

tium is the use of the notice instrument. The notice is

used on behalf of the operator of the consortium for

the acquisition of goods or services. Due to its value,

the operator only informs the other members, not re-

quiring a resolution. Situations where a notice is nec-

essary, and not a ballot, are listed in the Consortium

Agreement.

In decision-making processes with multiple-

agent, an interaction guideline is important. In the

Libra consortium, members can require more details

or information when the resolution (or a notice) is

opened. Such resource decreases bureaucracy and

friction between members, as concerns are transpar-

ently addressed. This question and answer tool act as

a private forum, restricted to consortium members.

Moreover, EBs require different forms and

weights of participation. They demand more roles

than required by general election systems. Hence, we

incorporated six main user roles with different per-

mission rights:

Staff. This role provides committee members

(CMs) permission to: (i) create, edit, and delete reso-

lutions; (ii) create, answer, and resolve questions; (iii)

create notices; and (iv) remove companies from reso-

lutions and withdraw resolutions.

Representative. This role allows CMs to vote in

resolutions and answer questions from the committee

s/he is part.

Alternative. This role enables CMs to substitute

a Representative when necessary. The Alternative has

the same permissions as the Representative role.

Assistant. This role enables CMs to view resolu-

tions only. People with this role are restricted only to

visualize a resolution status.

Viewer. As the name suggests, this role allows

the CM-only to view resolutions and notices from the

committee s/he is part.

Partner Staff. This role allows the CM to create

notices, as well as create and answer questions.

The Libra consortium agreement sets different

participation percentages for each company, reﬂect-

ing percentage rates of the result. Hence, the system

should set distinct participation weights. Thus, EB

system must allow the conﬁguration of approval rates

and abstention behaviors.

The approval rates calculate the required percent-

age to approve or disapprove a resolution, and de-

ﬁnes how absentee votes will be tallied. Therefore,

the EB system should allow the setup of percentages

of acceptance at the committee level and abstention

behavior at the resolution level. To do so, we present

A Blockchain-based Architecture for Enterprise Ballot

235

Table 1: Voting Systems Evaluation.

Feature BallotBR Helios Civitas BroncoVote

[F01] Account management Yes Partially Yes Yes

[F02]Committee management Yes No No No

[F03] Resolution management Yes Yes Yes Partially

[F04] E-mail notiﬁcation Yes Yes No N/A

[F05] Dashboard of on-going resolutions Yes No No No

[F06] Resolution due date extension Yes Yes N/A No

[F07] Suspension of resolution Yes Yes N/A No

[F08] Withdraw resolution Yes No Yes No

[F09] Removal of participant in-progress Resolution Yes No N/A No

[F10] Approval rate conﬁguration Yes Partially No No

[F11] Abstention Vote Behavior Conﬁguration Yes Partially No No

[F12] Multiple Voting Options Conﬁguration Yes Yes Yes Yes

[F13] Send notice Yes No No No

[F14] Resolution questions and answers Yes No No No

[F15] Notice questions and answers Yes No No No

[F16] Search questions and answers Yes No No No

[F17] Real time visualization of partial and ﬁnal result Yes No No No

[F18] Export resolution result to PDF Yes No No No

[F19] Search attachments Yes No No No

[F20] Implemented in blockchain Yes No No Yes

two approval rates: majority and unanimity. However,

other acceptance percentages can also be set.

In regards to abstention behavior, the resolution

creator can set different behaviors. The absentee vote

can: (i) be proportionally distributed to the remaining

companies, (ii) follow the majority option, (iii) follow

the minority option, or (iv) not be tallied. Further-

more, the resolution creator can also require the jus-

tiﬁcation for a vote option. For instance, the consor-

tium may always require a vote justiﬁcation when a

participant intentionally votes for abstention or when

s/he disagrees.

The voting options in EB systems are different

from public and democratic e-voting systems. In en-

terprise systems, the possibilities are usually “agree”

or “disagree”. However, such systems should also al-

low other voting options. Therefore, we have enabled

such conﬁguration (i.e, organization of an election).

Also, it is possible to link resolutions, e.g., a budget

resolution of 2019 may be related to the budget reso-

lution of 2020.

The Libra consortium also requires a transparent

business process to avoid friction. As partners have

to present evidence of expenses to share operational

costs, decisions must be securely stored and available

for auditing.

4.3 Systems Comparison

To position the BallotBR over the already proposed

e-voting solutions, Table 1 presents the main system’s

requirements and a comparative analysis between the

proposed solution and three open-source platforms:

(i) Helios (Alonso et al., 2018), (ii) Civitas (Clark-

son et al., 2008), and (iii) BroncoVote (Dagher et al.,

2018). Those requirements were listed with the stake-

holders before deciding to develop a system from the

very beginning.

There are three pillars that the system should pro-

vide to perform EBs: (i) account management, (ii)

committee management, and (iii) resolution manage-

ment. First, as information is not public in enterprise

solutions, they often require a restricted area for au-

thenticated users. So, the ﬁrst step into the analysis is

the existence of user credential management. Second,

EBs usually require multiple and often related reso-

lutions during the corporation life cycle; hence, the

system should support the grouping of different bal-

lots from the same committee, or committee manage-

ment. Finally, the system should also allow resolution

management, i.e., a conﬁguration of voting options,

approval rates, different ways for tallying votes, relat-

ing different resolutions, and deﬁnition of abstention

behavior.

We have based our evaluation on related works

that provide the code repository. Some of the listed

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

236

requirements Section 4.2 could not be evaluated be-

cause there is no information reported about them.

Such requirements were classiﬁed as N/A (not avail-

able). Furthermore, if a system addressed or not a

certain requirement, we gave three different values for

the response: (i) Yes, meet the requirement, (ii) Par-

tially meet the requirement, and (iii) No, it does not

meet the requirement.

Moreover, the system shall offer a dashboard to

evaluate the on-going resolutions and provide a space

for users to send questions to other enterprise mem-

bers while the resolution is open. Also, the sys-

tem needed to support default participants, i.e., non-

compliant ﬁnancial status. Also, the system should

not allow the company participation during a resolu-

tion if it presents any ﬁnancial issue. In this case, the

entity must not have a vote until the situation is ﬁxed.

The Libra consortium presents two additional re-

quirements that the system should provide. First, the

notice event described above, when the operator an-

nounces a decision to the other consortium members

that does not demand a ballot. Second, the system

should also allow the visualization of partial and ﬁnal

results.

Table 1 shows that the Helios platform fully at-

tends to the requirements [F03], [F04], [F06], [F07],

and [F12]. Also, Helios partially attends the fol-

lowing requirements: accounting management, ap-

proval rate and abstention vote behavior conﬁgura-

tion. As for Civitas, it fully attends to BallotBR re-

quirements [F01], [F03], [F08], and [F12]. How-

ever, Civitas does not partially attend to other require-

ments. Finally BroncoVote, meets BallotBR require-

ments [F01], [F12], and [F20]. On its turn, the plat-

form only partially attends to the resolution manage-

ment requirement.

Thus, Table 1 shows that no evaluated platform

adequately complies with the consortium agreement

requirements. The Helios platform (Alonso et al.,

2018) offered more features. However, even though

this platform provides an open-source project, we de-

cided not to use the Helios source-code given the lack

of documentation and the mismatch features regard-

ing our requirements.

5 BALLOTBR: AN ENTERPRISE

Ballot SYSTEM

In order to meet the identiﬁed requirements, we de-

signed the BallotBR architecture and fully developed

the system. Figure 1 depicts BallotBR software ar-

chitecture, which has two main layers: the BallotBR

interface, and the HF permissioned blockchain. The

former is responsible for providing most of the fea-

tures listed above as EB requirements. The architec-

ture persists data regarding the committee, resolution,

and notice in the Postgres database. This guarantees

that data will not be lost if any problem occurs while

it is not stored in the blockchain. The latter is respon-

sible for guaranteeing the ballot rules providing the

correctness, veriﬁability, and privacy required in EB.

The use of a permissioned blockchain in the Bal-

lotBR solution was motivated by the technology’s

intrinsic characteristics and the Libra consortium’s

needs. In this sense, the integration of the BallotBR

to a permissioned blockchain can ensure important

properties to the ballot process.

The technology is able to reduce errors when ex-

amining ballot results, since the resolution rules are

hard-coded into immutable BSCs. This allows partic-

ipants to conﬁrm that their votes were tallied accord-

ingly. Furthermore, the distributed consensus guaran-

tees that all members accept the ballot rules and trans-

actions before they are registered in the blockchain.

Also, data access can be restricted to speciﬁc mem-

bers of the network. Organizations can access the

results and verify their correctness depending on the

Certiﬁcate Authority’s previous authentication.

Hyperledger Fabric.The developed solution was

based on the HF framework (version 1.4). A strong

motivation for this decision was the offered possibili-

ties. Hyperledger allows creating different data access

and writing policies associated with the Channels and

Chaincodes. This means that data ﬂow and access are

governed by immutable and self-enforcing rules pre-

viously deﬁned.

Channel and Peers. The Channel is the layer that

allows data isolation and conﬁdentiality. Each Chan-

nel has a speciﬁc ledger that is shared between the

Peers (the nodes in HF) of each organization, which

are part of the network. These nodes are associated

with the permission policies that rule each Channel.

For BallotBR, the Libra channel was created. Ac-

cess to this Channel is restricted to the Libra con-

sortium organizations (Petrobras, Shell Brasil, Total

CNPC, CNOOC and PPSA). Each organization has

its own Peer, Orderer, Fabric CA and API.

Chaincodes. The Chaincodes are the BSCs in HF.

They are instantiated and operated by the Peers. Their

role is to implement businesses rules that will vali-

date and modify the Channels’s states. These business

rules are part of the established consensus between

the organizations, which are represented by Chain-

codes’s methods. Each executed Chaincode method

represents a transaction that will be: evaluated, when

intended to validate or to consult the blockchain, and

submitted, when it wishes to change the state of the

A Blockchain-based Architecture for Enterprise Ballot

237

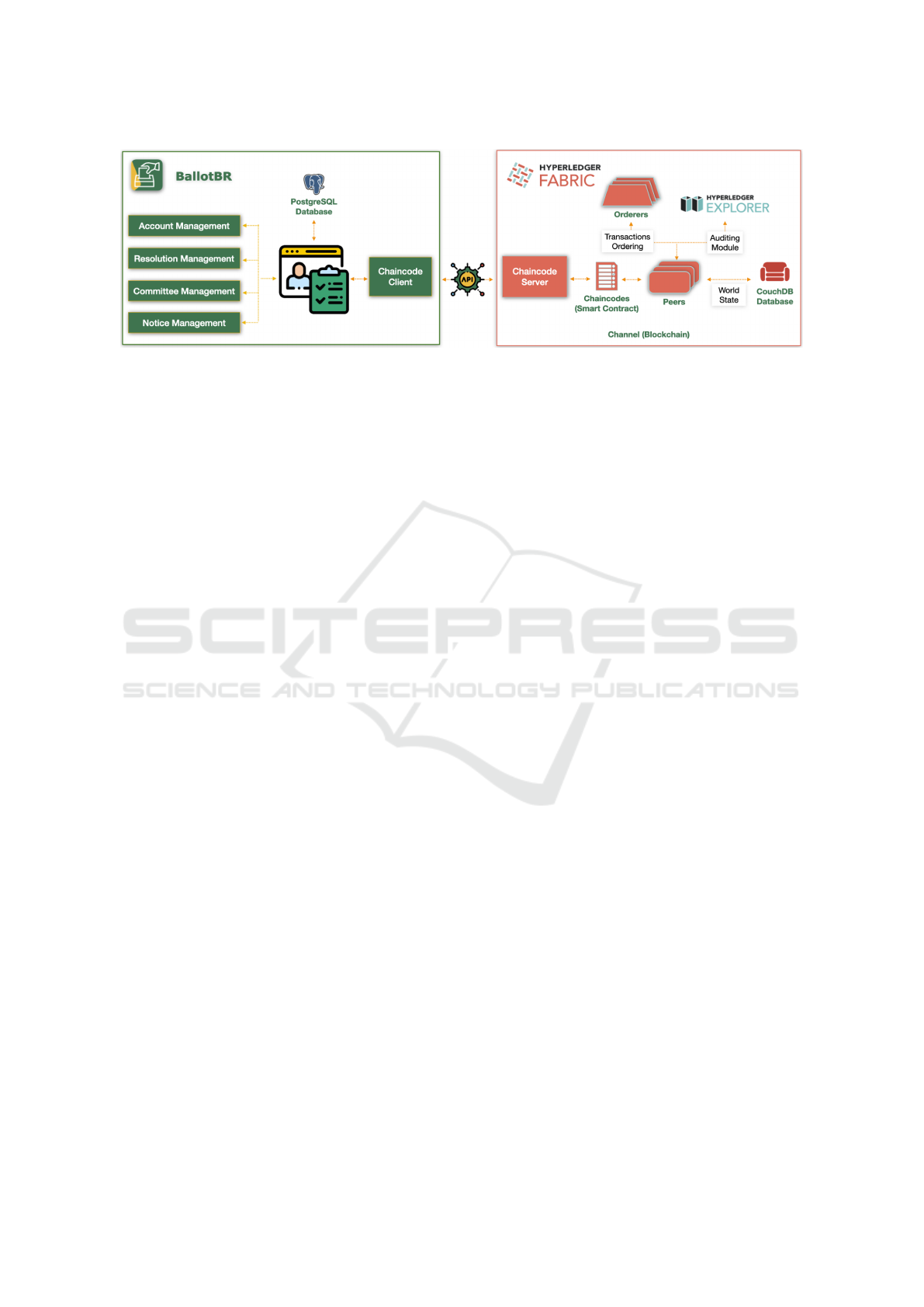

Figure 1: BallotBR architecture.

ledger related to the Channel (i.e., to share data with

other organizations).

Thus, BallotBR business rules are implemented

in the Chaincodes to create resolutions, notices and

exercise the right to vote. This is important for two

reasons: it means that the EB rules are hardcoded in

BSCs and that participants can conﬁrm that their vote

was registered as intended, and counted correctly.

Endorsement Policies, Ordering Service and

Orders Node. Each submitted transaction called by

the Chaincode method should satisfy an endorsement

policy. It shall present a minimum quantity of spe-

ciﬁc signatures based on the standard conﬁguration of

the Channel. If a transaction attends the endorsement

policy, it will be submitted to the Ordering Service,

responsible for ordering the block transactions by the

Orders nodes. Finally, these blocks are transmitted

to the Leading Peers of each organization, which will

replicate the transaction blocks between the associ-

ated Followers Peers, according to the HF Raft con-

sensus. In the end, the current states of the ledgers of

each associated Peer to a Channel are updated.

The endorsement policy is related to the dis-

tributed consensus of HF. For instance, when a vote is

cast, all Libra consortium organizations are commu-

nicated. Before registering the vote in the blockchain,

they must all validate such activity, and collectively

verify the vote before registering it.

Private Data. These transactions can also contain

a collection of private data that will be kept secret.

Only a subset of the Channel organizations can access

it, according to previous deﬁnition, which is similar to

the endorsement policy deﬁnitions. Non-authorized

organizations will only access the document hash of

the private data, not the data per se. The hash, thus,

is evidence of the transaction of the data and of its

ordering by the Order node.

This conﬁguration of the architecture allows for

data governance, i.e., only speciﬁc organizations can

access certain data, and secrecy of shared informa-

tion. Also, the hash veriﬁes the validity that a certain

transaction happened, without disclosing information.

Fabric CA. These mentioned functions are only

executed if the organization uses the HF Certiﬁcate

Authority (“Fabric CA”). The latter is responsible

for creating the digital identity (credentials) of each

member of an organization network, such as the nodes

types Peer and Orderer, and the clients of the appli-

cation. The credentials are issued by the Member-

ship Service Provider (MSP), which is an authorized

user responsible for issuing credentials to the network

members and creating afﬁliations and identities. The

use of these afﬁliations and the Organization Unity

(OU) of the digital certiﬁcate can create broad en-

dorsement policies and access to data.

Each organization in the Libra channel has its own

Fabric CA. This means that each company has auton-

omy and independence to issue its members’ digital

identity. Each digital identity has certain attributes

that follow the standard X.509 (Kinkelin et al., 2020),

such as: Common Name, which uses the corporate e-

mail; Organization, related to the companies that are

part of the Libra consortium (Petrobras, PPSA, Total,

Shell Brasil, CNPC or CNOOC), and Country.

Chaincode Server. The Chaincode Server is an

API that implements the integration between these

two applications: Client (i.e., BallotBR) and HF.

Moreover, another component, named Chaincode

Server, manages the user keys and issue the trans-

actions proposals or the submission of states to the

network to which the node is connected.

Furthermore, such server is agnostic to the Chain-

code. Its role is to abstract the transaction execution

and facilitate interaction with the Peer nodes. This is

made possible by the conﬁguration archive, that con-

nects the different Channels which the Peers are as-

sociated. This simpliﬁes IT activities and allows the

integration with different systems, being necessary

(i) the connection archive indicating the Peer nodes

and the Fabric CA; (ii) the user ID and password, is-

sued by the Fabric CA, necessary to obtain the keys;

(iii) the indication to the API of the transaction body,

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

238

including the names of the Channel, Chaincode, its

function and arguments, and/or private data (if any).

The API is responsible for validating digital iden-

tities and submissions of the transactions to the Libra

channel. Thus, the API plays an important role in the

authentication procedure and in conﬁrming the eligi-

bility of the users that can participate of the BallotBR.

Challenges of the Architecture. HF has an in-

herent complexity related to its conﬁguration. Before

implementing the network, it is necessary to deﬁne

what will be the network governance, such as: which

organizations will be part of the Channel; Certiﬁcate

Authorities creation (if each organization will have a

Fabric CA, or if only one Fabric CA will be consti-

tuted for the whole Channel); if an organization will

participate of the Channel of an Orderer; and which

Endorsement Policies will be implemented.

Moreover, creating a Channel can be done with

little complexity once the governance is deﬁned.

However, once it is implemented, adding new par-

ticipants and updating the Endorsement Policies of

a Channel is still an operational challenge. Also,

managing different services that need to be integrated

raises traditional challenges of distributed networks

(i.e., communication, orchestrating containers, etc).

Finally, the deployment of this application allows

for the development of the Chaincode and how a

client application will interact with it, since all the

infrastructure details related to such application are

standardized by different applications. This allows

the allocation of time and effort to structure the con-

sortium organizations and how its applications will

interoperate with HF. Therefore, the blockchain layer

was essential to develop a veriﬁable, correct and se-

cure electronic voting system.

6 DISCUSSION

Generally, blockchain technology provides data in-

tegrity as, by deﬁnition, stored data are immutable.

Such technology supports append-only transactions

and creates a linked list of blocks identiﬁed by the

hash of such block. All blocks have the hashed in-

formation of the previous block. Hence, it enables

data integrity. Once the data is changed, its hash will

also be changed, which will generate an inconsistency

in the chain. This is a standard characteristic of all

blockchain solutions, either permissioned or not.

The permissioned blockchain allows the creation

of smaller networks and subgroups to share data.

Even though this approach is more susceptible to

availability issues, as it presents a smaller number of

nodes, other features are worth its usage. As a side

effect of this smaller network, the consensus mech-

anism performs better than the presented by public

blockchains. Moreover, the HF enables data gover-

nance, providing privacy management and creating

channels to share information between a speciﬁc sub-

set of participants.

Blockchain technology provides data availability.

As a subset of Distributed Ledger Technology (DLT)

(Ølnes et al., 2017), all the information is distributed

among the participant nodes. Also, the possibility

of establishing data governance related to data access

and writing in the blockchain provides the necessary

secrecy in an enterprise consortium.

As an immutable distributed database, blockchain

technology also supports veriﬁability, which is neces-

sary to e-voting systems. Users can verify the trans-

actions in the blockchain without the need for a third

party. Moreover, such technology is a timekeeping

mechanism for the data structure, so the proof of data

history is easily reportable. Thus, the system correct-

ness and veriﬁability requirements were mitigated by

using permissioned blockchain and the system’s re-

quirements.

The blockchain layer, especially the Fabric CA,

plays an important role in authenticating user’s iden-

tity. This avoids the participation of an unauthorized

party in the resolution and offers a secure manner in

certifying who is eligible to participate. Also, the sys-

tem’s roles and their permission to interact in the Bal-

lotBR according to their responsibilities restrict unde-

sired and unauthorized behavior.

Blockchain immutability does not allow further

alterations of a registered transaction. Thus, the vote

can not be modiﬁed after it was cast. Even though

the system allows the participant to change its vote

throughout the resolution, once it is resolved, and all

votes are cast, the result is registered indeﬁnitely and

irrevocably in the blockchain.

The technology also allows tracking users’ behav-

ior and actions in the BallotBR, i.e., creation of reso-

lution and notice, voting, etc, in a transparent and dis-

tributed manner. Additionally, the blockchain’s cryp-

tographic feature also allows participants to verify the

results and integrity of the votes individually.

7 CONCLUSION AND FUTURE

WORK

This paper proposes BallotBR, an enterprise ballot

system implemented in a permissioned blockchain,

Hyperledger Fabric, applied to a company consor-

tium. The main contributions of this research are:

(i) the development of a permissioned blockchain-

A Blockchain-based Architecture for Enterprise Ballot

239

based architecture to enterprise ballot systems; (ii)

it is ﬂexible enough to be applied to other contexts;

and (iii) it deals with the main security and trustwor-

thiness requirements of e-voting systems, due to its

architecture with the implementation of a blockchain

layer. Furthermore, we compared our enterprise so-

lution with related work approaches and revealed the

newly-developed features.

The developed architecture is modular and the de-

veloped API allows the BallotBR application layer to

be changed for other scenarios. Some limitations in-

clude: (i) the chosen scope, i.e., the Libra consortium

scenario; (ii) challenges related to vote anonymiza-

tion, as the consortium did not present any concern

on this issue; (iii) coercion issues were not expressly

dealt, (iv) interoperability issues may arise in the fu-

ture through the use of different blockchain platforms

(e.g., Corda, Ethereum), and (v) performance tests

were not available yet. Addressing these limitations is

the target of our future work. We also aim to develop

digital identity management applied to HF permis-

sioned blockchain systems as a complementary mod-

ule of BallotBR.

REFERENCES

Alonso, L. P., Gasco, M., del Blanco, D. Y. M., Alonso, J.

A. H., Barrat, J., and Moreton, H. A. (2018). E-voting

system evaluation based on the council of europe rec-

ommendations: Helios voting. IEEE Transactions on

Emerging Topics in Computing.

Alves, P. H. C., Paskin, R., Frajhof, I., Miranda, Y. R.,

Jardim, J. G., Cardoso, J. J. B., Tress, E. H. H.,

da Cunha, R. F., Nasser, R., and Robichez, G. (2020).

Exploring blockchain technology to improve multi-

party relationship in business process management

systems. In ICEIS (2), pages 817–825.

Carlotto, M. A., da Silva, R. C. B., Yamato, A. A., Trindade,

W. L., Moreira, J. L. P., Fernandes, R. A. R., Ribeiro,

O. J. S., Gouveia Jr, W. P., Carminati, J. P., Qicai, D.,

et al. (2017). Libra: A newborn giant in the brazilian

presalt province.

Clarkson, M. R., Chong, S., and Myers, A. C. (2008). Civ-

itas: Toward a secure voting system. In 2008 IEEE

Symposium on Security and Privacy (sp 2008), pages

354–368. IEEE.

Dagher, G., Marella, P., Milojkovic, M., and Mohler, J.

(2018). Broncovote: Secure voting system using

ethereum’s blockchain. pages 96–107.

Hardwick, F. S., Gioulis, A., Akram, R. N., and Markan-

tonakis, K. (2018). E-voting with blockchain: An

e-voting protocol with decentralisation and voter pri-

vacy. In 2018 IEEE International Conference on In-

ternet of Things (iThings) and IEEE Green Computing

and Communications (GreenCom) and IEEE Cyber,

Physical and Social Computing (CPSCom) and IEEE

Smart Data (SmartData), pages 1561–1567. IEEE.

almarsson, F., Hreiarsson, G. K., Hamdaqa, M., and

almt

ysson, G. (2018). Blockchain-based e-voting

system. In 2018 IEEE 11th International Confer-

ence on Cloud Computing (CLOUD), pages 983–986.

IEEE.

Juels, A., Catalano, D., and Jakobsson, M. (2010).

Coercion-resistant electronic elections. In Towards

Trustworthy Elections, pages 37–63. Springer.

Kim, S. K., Ma, Z., Murali, S., Mason, J., Miller, A.,

and Bailey, M. (2018). Measuring ethereum network

peers. In Proceedings of the Internet Measurement

Conference 2018, pages 91–104.

Kinkelin, H., von Seck, R., Rudolf, C., and Carle, G.

(2020). Hardening x. 509 certiﬁcate issuance us-

ing distributed ledger technology. In NOMS 2020-

2020 IEEE/IFIP Network Operations and Manage-

ment Symposium, pages 1–6. IEEE.

Nasser, R. B., Lodi, C., Alves, P. H. C., Frajhof, I. Z., Mi-

randa, Y. R., Araujo, E. M. F., Silva, F. P. T., Vianna,

R., and Moreno, M. V. B. (2020). Distributed ledger

technology in the oil and gas sector: Libra ballot use

case. Rio Oil and Gas.

Ølnes, S., Ubacht, J., and Janssen, M. (2017). Blockchain in

government: Beneﬁts and implications of distributed

ledger technology for information sharing.

Paskin, R., Jardim, J. G., Miranda, Y. R., Frajhof, I., Alves,

P. H. C., Miranda, F. P., Gama, C., Ladeira, R., Nasser,

R. B., and Robichez, G. (2020). Blockchain digital

signatures in a big corporation: a challenge for costs

management sector. Rio Oil and Gas.

Patil, H., Ladkat, P., Jituri, A., Desai, R., Shinde, D.,

et al. (2019). Blockchain based e-voting system.

Blockchain Based E-Voting System (May 18, 2019).

Pawlak, M., Poniszewska-Mara

nda, A., and Kryvinska,

N. (2018). Towards the intelligent agents for

blockchain e-voting system. Procedia Computer Sci-

ence, 141:239–246.

Pilkington, M. (2016). Blockchain technology: principles

and applications. In Research handbook on digital

transformations. Edward Elgar Publishing.

Silva, M. P. (2019). A seguranc¸a da democracia e a

blockchain. Estudos eleitorais: vol. 13, n. 3 (set./dez.

2018).

Specter, M. A., Koppel, J., and Weitzner, D. (2020). The

ballot is busted before the blockchain: A security anal-

ysis of voatz, the ﬁrst internet voting application used

in us federal elections. In 29th {USENIX} Security

Symposium ({USENIX} Security 20), pages 1535–

1553.

Villalobos, K. M., Altamirano, C., and Chandra, R. (2019).

Blockchain voting : Implementation and analysis.

Yan, Z., Liu, J., and Liu, S. (2019). Dpwevote: differ-

entially private weighted voting protocol for cloud-

based decision-making. Enterprise Information Sys-

tems, 13(2):236–256.

ICEIS 2021 - 23rd International Conference on Enterprise Information Systems

240
