Experimental Evaluation of Description Logic Concept Learning

Algorithms for Static Malware Detection

Peter

Svec

Stefan Balogh

and Martin Homola

Institute of Computer Science and Mathematics, Faculty of Electrical Engineering and Information Technology,

Slovak University of Technology, Ilkovi

cova 3, Bratislava, Slovakia, Slovak Republic

Department of Applied Informatics, Faculty of Mathematics, Physics and Informatics, Comenius University,

Mlynsk

a Dolina, Bratislava, Slovakia, Slovak Republic

Keywords:

Malware Detection, Ontology, Description Logics, Machine Learning, Concept Learning.

Abstract:

In this paper, we propose a novel approach for malware detection by using description logics learning algo-

rithms. Over the last years, there has been a huge growth in the number of detected malware, leading to over

a million unique samples observed per day. Although traditional machine learning approaches seem to be

ideal for the malware detection task, we see very few of them deployed in real world solutions. Our proof-

of-concept solution performs learning task from semantic input data and provides fully explainable results

together with a higher robustness against adversarial attacks. Experimental results show that our solution is

suitable for malware detection and we can achieve higher detection rates with additional improvements, such

as enhancing the ontology with a larger amount of expert knowledge.

1 INTRODUCTION

In recent years, machine learning algorithms have

been increasingly applied to solve various problems

in the application domains such as image classiﬁca-

tion or natural language processing. With an alarm-

ing rate of unique malware samples observed in the

wild every day, machine learning approaches are con-

sidered to be the ﬁnal solution to malware detection

instead of traditional signature based algorithms.

In fact, there has been a lot of research focused

on using machine learning algorithms in malware de-

tection, utilizing static features, dynamic features or

their combinations. Hassen et al. (2017) used the

random forest algorithm with static features extracted

from disassembled malicious binaries. Kilgallon et al.

(2017), on the other hand, used dynamic features

in the form of an API calls made by the monitored

binary and applied various machine learning algo-

rithms such as SVM, decision trees or neural net-

works.

Incer Romeo et al. (2018) introduced an ad-

versarially robust classiﬁer based on monotonic static

features and gradient boosting decision trees. Raff

et al. (2017) proposed a slightly different approach,

where they used whole binaries as an input into con-

volutional neural networks. An interesting approach

proposed by Nataraj et al. (2011), transformed a mali-

cious binary into a gray scale image and adopted tra-

ditional algorithms used in computer vision for mal-

ware classiﬁcation.

Despite the potential of machine learning algo-

rithms and high accuracies reported in the literature,

we see few, if any, deployed in the real world systems

(Smith et al., 2020). Separating malicious and benign

binaries is a hard problem, therefore we argue that it

is most likely impossible to create a deployable clas-

siﬁer without enhancing our detection mechanisms

with a large amount of expert knowledge. Previously

mentioned approaches used either feature engineer-

ing techniques, to craft a vector representation, suit-

able for machine learning algorithms or used whole

binaries (and their transformations). Traditional vec-

tor representations often lack semantics and a lot of

valuable information is lost during the transformation

process. Solutions that are not using feature engi-

neering and apply the whole binary in an appropri-

ate form as an input, often rely on the fact that ma-

chine learning algorithms should automatically learn

the features. However, executable ﬁles lack proximity

relationships and continuity that are present in other

domains (Smith et al., 2020). Hence, in the image

classiﬁcation domain, if two neighboring pixels have

similar values, the algorithm would assume a proxi-

mal relationship. In binaries, on the other hand, in-

792

Švec, P., Balogh, Š. and Homola, M.

Experimental Evaluation of Description Logic Concept Learning Algorithms for Static Malware Detection.

DOI: 10.5220/0010429707920799

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 792-799

ISBN: 978-989-758-491-6

structions can jump to a different location in the code

section and the values next to each other can have sig-

niﬁcantly different meaning. Saad et al. (2019) iden-

tiﬁed a few challenges that limit the success of ma-

chine learning based classiﬁers. That is: using larger

amount of smaller classiﬁers (specialized for different

malicious behaviors) instead of a single classiﬁer, in-

terpretable results and robustness against adversarial

attacks (Kolosnjaji et al., 2018).

In this paper, we propose a proof-of-concept mal-

ware detection technique based on description logics

learning algorithms. Compared to traditional machine

learning techniques, our solution works on a semantic

input space and implicitly provides fully interpretable

decisions. Our experimental results show that de-

scription logics learning is in fact suitable for malware

detection systems and can achieve even higher accu-

racies with larger and richer ontologies, while main-

taining the explainability and to some degree robust-

ness against adversarial examples.

This paper is organized as follows. In Section 2,

we describe concept learning algorithms in descrip-

tion logics. In Section 3 we discuss our ontology we

used during the learning process. Section 4 describes

the malware dataset we used in our experiments and

its transformation to a semantic dataset annotated by

an ontology. Section 5 is devoted to evaluation of our

results. Finally, in Section 6 we summarize the re-

sults and ideas which we aim to further investigate in

the future.

2 DESCRIPTION LOGICS

LEARNING

In this section we describe basics of description log-

ics and knowledge bases. Next, we discuss the fun-

damentals of a concept learning problem. Lastly, we

brieﬂy describe our approach and compare the work-

ﬂow with a traditional machine learning approach.

2.1 Description Logics

Generally, description logics (DLs) are a family

of formal knowledge representation languages used

mainly for expressing structured knowledge about

a speciﬁc domain (Baader et al., 2003). DLs are

based on three disjoint sets of basic elements: con-

cepts N

= {A, B, ...}, referring to classes of enti-

ties; roles N

= {R, S, ...}, denoting a binary rela-

tionships between individuals of a domain; individ-

uals N

= {a, b, ...} referring to instances of concepts.

More complex concepts can be built by using a set

of various operators such as conjunction, disjunction,

etc. The set of provided operators determines the ex-

pressiveness of a particular language.

In DLs, the speciﬁc domain knowledge is modeled

using terminological axioms (TBbox), assertional ax-

ioms (ABox) and relational axioms (RBox). TBox

represents intensional knowledge between the con-

cepts such as A v B (A is subsumed by B). ABox con-

tains assertions about named individuals. Such facts

are called concept assertions such as A(a) (the indi-

vidual a belongs to the class A) and role assertions

R(a, b) (the individual a is in the relation that is de-

noted by R to the individual b). RBox refers to addi-

tional properties of roles such as R v S (R is a subrole

of S) and in our work it is considered to be a part of a

TBox.

Hence, a DLs knowledge base K is deﬁned as

a couple K = (T , A), where T is the TBox and A

refers to the ABox.

2.2 Concept Learning Problem

Concept learning can be deﬁned as follows (Lehmann

and Hitzler, 2010). Suppose we have a knowledge

base K = (T , A), a target concept C and a training

set T = Ps ∪ Ns, where Ps are positive examples and

Ns are negative examples. The goal of the learning

algorithm is to ﬁnd a concept description D, which

approximates C, such that:

∀a ∈ Ps : K |= D(a) (1)

∀b ∈ Ns : K |= ¬D(b) (2)

Generally, the concept learning algorithms can be de-

ﬁned as a search process in the space of all the pos-

sible concepts. These algorithms use a so called re-

ﬁnement operator, which returns a set of more spe-

ciﬁc concepts (in case of a downward operator) from a

given concept and heuristics to control how the search

tree is traversed.

For our experiments we investigated two learning

algorithms: OCEL (OWL Class Expression Learner)

and CELOE (Class Expression Learning for Ontol-

ogy Engineering). Both are implemented in DL-

Learner, which is considered to be the state of the

art framework for supervised machine learning in DL

uhmann et al., 2018).

OCEL is the most basic concept learning algo-

rithm. It uses the ρ reﬁnement operator (Lehmann,

2010). The Algorithm provides various techniques to

cope with redundancy and inﬁnity by revisiting nodes

in the search tree several times and performing addi-

tional reﬁnements.

CELOE is a variation of the OCEL algorithm.

It uses the same reﬁnement operator, but different

Experimental Evaluation of Description Logic Concept Learning Algorithms for Static Malware Detection

793

heuristics that are biased towards shorter concepts. As

the algorithm was designed mainly for ontology engi-

neering, shorter concepts are usually more useful for

enhancing knowledge bases.

Except from previously mentioned algorithms,

there are more approaches that are yet to be fully

supported by the DL-Learner framework. Tran et al.

(2012) proposed the PARCEL algorithm; parallel im-

plementation of a concept learning algorithm. Hua

and Hein (2019) presented an interesting hill climb-

ing heuristics for concept learning. Rizzo et al. (2016)

proposed new DL concept learning algorithms in-

spired by the traditional decision trees that can also

handle uncertainty in the dataset. There are also simi-

lar systems to DL-Learner, such as DL-FOIL (Fanizzi

et al., 2008) and its variation for fuzzy DLs (Straccia

and Mucci, 2015).

2.3 Approach

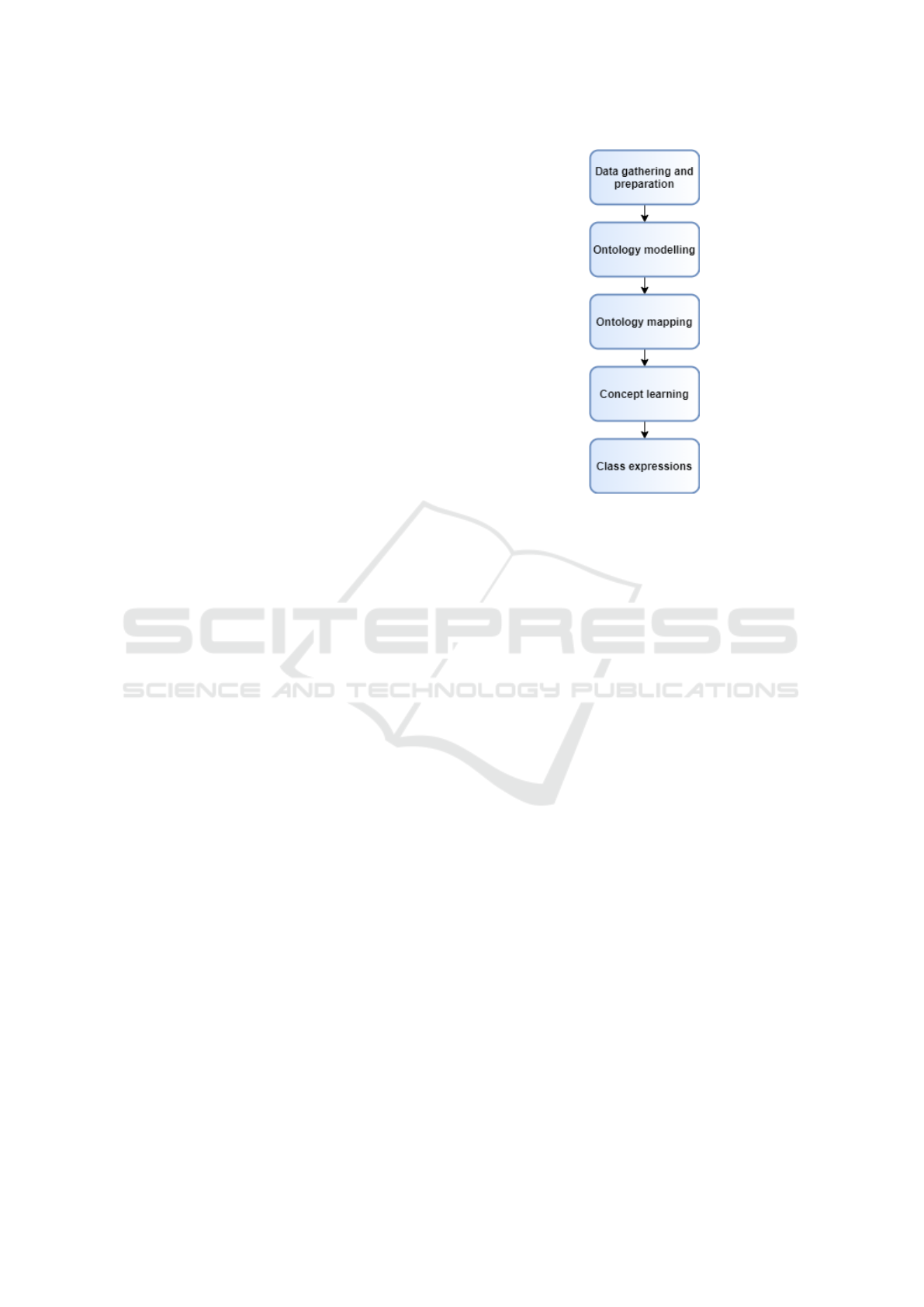

We can see our approach in Figure 1. Compared to

traditional machine learning approaches, ﬁrst step is

the same; that is preparing the dataset. It is important

to have a quality dataset, which is sufﬁciently repre-

sentative. Speciﬁcally in our case, this step includes

gathering the benign/malicious binary samples.

One of the most important step in our workﬂow is

ontology modelling. As we will see in the next sec-

tions, designing a rich ontology that is suitable for DL

concept learning algorithms is a crucial step. More

details are provided in Section 3.

When we have our dataset prepared and the ﬁnal

ontology is designed, binary samples from the dataset

have to be mapped in the ontology to create the ﬁnal

knowledge base. Usually the data is in the different

format, so the samples have to be mapped to the cor-

rect format used by the ontology.

Training phase is again similar to traditional ma-

chine learning approaches. We can divide our dataset

into the training and the testing set. The training set

is used by a DL concept learning algorithm, which in-

crementally produces better and better class descrip-

tions until a sufﬁcient accuracy is achieved.

The ﬁnal output is in the form of a class expres-

sion (or alternatively a set of the most successful class

expressions), that can differentiate between malicious

and benign samples with a reasonably high accuracy.

Using the ﬁnal class expressions on previously unseen

samples is similar as in the previous steps. We sim-

ply map the samples into ontology, creating a small

knowledge base and applying the class expressions.

If the sample is satisﬁed by the class expression, we

consider it to be a malware. Otherwise, we label it as

a benign application.

Figure 1: Description logics learning workﬂow.

3 ONTOLOGY DESIGN

As we mentioned earlier, designing an ontology is

a crucial step. During our experiments we designed

many models, starting from an overly generalized on-

tology, representing all aspects of a PE ﬁle with high

amount of classes, object properties and data proper-

ties. However, we found out that these kind of on-

tologies are too complicated for DL concept learn-

ing algorithms and we simply cannot expect to ﬁnd

a sufﬁcient concept description in a reasonable time.

Inspired by the work of Oyama et al. (2019), we re-

duced the complexity and added more granularity into

PE imports, creating a subclasses that group together

various imports that are used in a similar context.

Some examples include process manipulation func-

tions (e.g. CreateProcess, ExitProcess) or ﬁle manip-

ulation functions (e.g. ReadFile, WriteFile). With

these modiﬁcations, the results got better, nonethe-

less we also tried different approaches. We came to

the conclusion that we need to inject more semantics

and expert knowledge into the ontology, as we still

worked with features that are not sufﬁciently discrim-

inative between malicious and benign behaviour.

Our ﬁnal ontology can be seen in Figure 2. It fea-

tures 15 classes, 9 object properties and 3 data prop-

erties. We decided to include the following main con-

cepts:

• Debug. This feature represents the fact that the

binary has debugging symbols. In many cases,

malware authors are stripping debugging symbols

from their executables, as they are used mainly

ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering

794

during the development and their presence in the

deployed binary signiﬁcantly helps with reverse

engineering.

• TLS. Thread-local storage is a special section in

PE ﬁles that enables malware authors to run code

stealthily before the original entry point.

• Signature. Ofﬁcial benign applications use sig-

natures to prove their non-maliciousness to the

operating system. Although signatures used to

be present solely in benign applications, in recent

years the malware authors are slowly ﬁnding their

ways on how to sign their binaries.

• Section. We also deﬁned the concept of sections

in our ontology. This includes three additional

concepts representing facts that section has high

value of entropy, nonstandard section name (i.e.

name that is not usually generated by the most

common compilers) or has a read/write/execute

permissions enabled. These concepts are present

in an ontology mainly for detecting packed bina-

ries. Packers are popular tools that enable to hide

the original functionality of a binary (Marpaung

et al., 2012).

• Malicious Behavior. We decided to group the

imported functions based on a malicious behav-

ior they are used for. In total, we deﬁned 6 dis-

tinct concepts. For example, anti-debug repre-

sents functions that are used for hindering the

dynamic analysis, such as IsDebuggerPresent or

OutputDebugString or load API, for dynamically

loaded API functions (common for packers) such

as LoadLibrary or GetProcAddress (Sikorski and

Honig, 2012).

It is important to note that the presented ontology is

only a proof-of-concept model. Additional concepts

can be added or existing concepts can be extended to

add more granularity into the ontology. For instance

we can deﬁne an injection concept and model various

injection techniques such as DLL injection, Reﬂective

DLL injection or Process Hollowing as its subclasses

(Mohanta and Saldanha, 2020).

Modelling an ontology is the most important step

in our approach. While creating an appropriate model

requires a lot of effort, well designed ontology should

be sufﬁciently universal for a speciﬁc domain. In

our case, the presented model is general for static

malware features and various datasets can be eas-

ily mapped to the ontology. Additionally, when new

trends emerge in the malware domain, ontology can

be easily extented by introducing new concepts.

4 DATASET

For our experimental purposes we have decided to use

data from the EMBER dataset (Anderson and Roth,

2018). This dataset is a collection of statically ex-

tracted features from approximately 1.1 million be-

nign/malicious Windows executables. During the last

few years EMBER has emerged as one of the most

popular datasets and various research has been done

regarding the feature usefulness (Oyama et al., 2019).

Each sample in the dataset consists of a single

JSON ﬁle describing various features of a Portable

Executable (PE) ﬁle. Features are organized in the

following categories:

• General File Information. These set of fea-

tures are dedicated to a more general ﬁle infor-

mation such as virtual/raw size, number of im-

ported/exported functions, presence of a signa-

ture, etc.

• Header Information. This category contains var-

ious information from the Common Object File

Format (COFF) and Optional headers such as tar-

get machine, timestamps, linker version, etc.

• Section Information. Various properties of the

sections contained in the executable. These prop-

erties include section name, entropy or virtual

sizes.

• Imported Functions. This list contains imported

library functions organized by the library.

• Exported Functions. Similar to previous section,

this category includes list of exported functions.

These are usually included only in dynamic link

libraries.

Despite the large amount of different features for each

ﬁle, we have decided to use only a fraction of them,

based on our expert knowledge and their usefulness

in terms of malicious/benign ﬁle separation and their

suitability for DL representation (more on this in Sec-

tion 3). Traditional machine learning approaches that

use EMBER dataset, usually vectorize the whole fea-

ture space, which leads to almost trivial adversarial

examples generation simply by modifying/appending

a few bytes in an executable.

The malware classiﬁcation problem is known for

its class imbalance issue. Huge case study was made

by Li et al. (2017), where they showed that distribu-

tion of benign/malicious ﬁles in the real world fol-

lows approximately 80:1 ratio. However, it is still an

open research question on how to correctly prepare

the datasets in terms of their malware/benign binaries

distribution. We have decided to prepare 4 training

sets and 3 testing sets of various distributions. Prop-

erties of datasets that we used can be seen in Table 1.

Experimental Evaluation of Description Logic Concept Learning Algorithms for Static Malware Detection

795

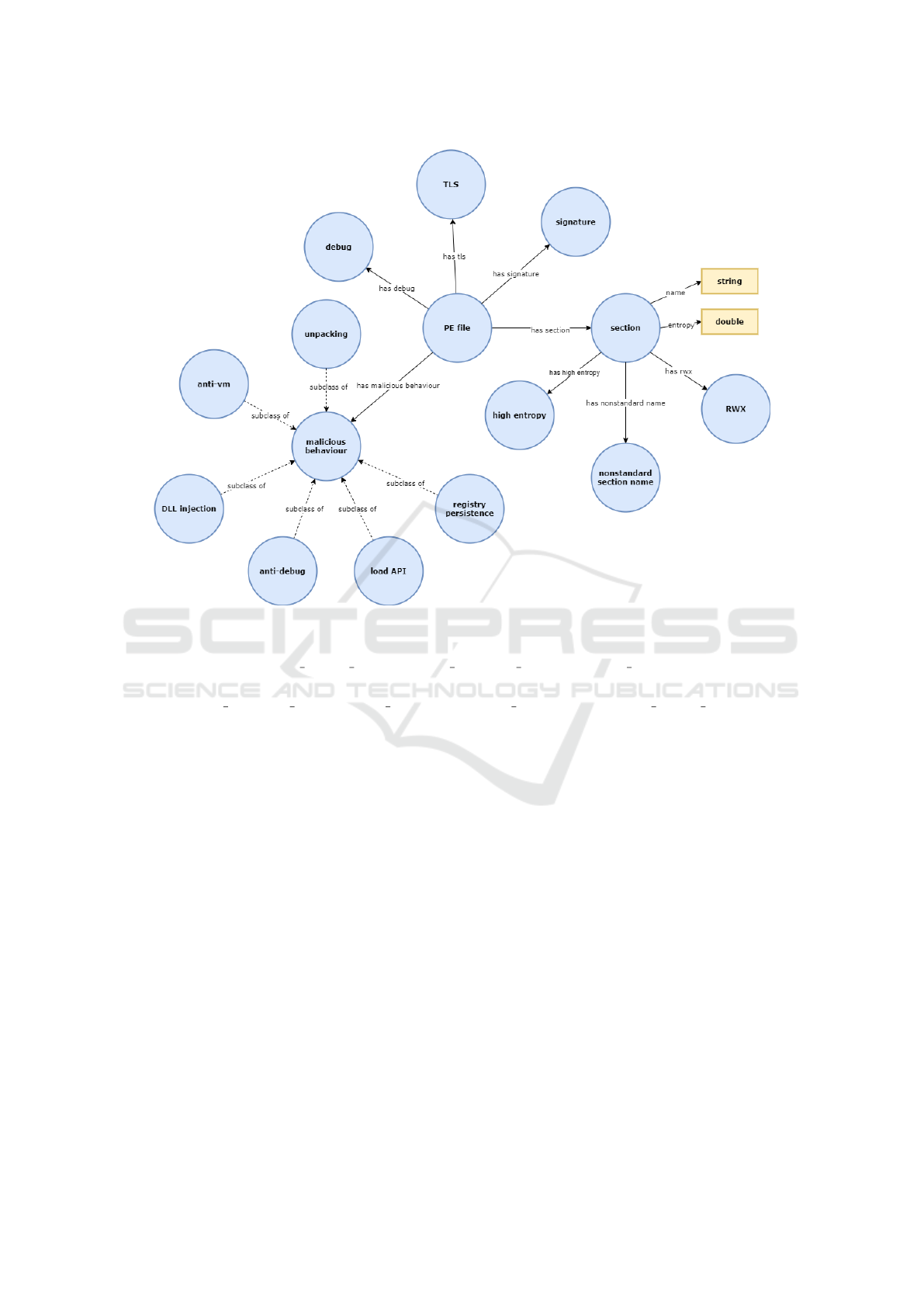

Figure 2: Ontology for static malware features.

(∃has tls.{pe tls}) t (≥ 3has malicious behaviour.¬load api) (3)

(∃has malicious behaviour.(dll in jection t registry persistence)) t (∃has tls.{pe tls}) (4)

Figure 3.

5 RESULTS

This section is devoted for discussion about our ex-

perimental results.

As we mentioned in previous sections, we evalu-

ated our approach with 4 training and 3 testing sets

(with various benign/malware samples distribution),

using two concept learning algorithms that is OCEL

and CELOE.

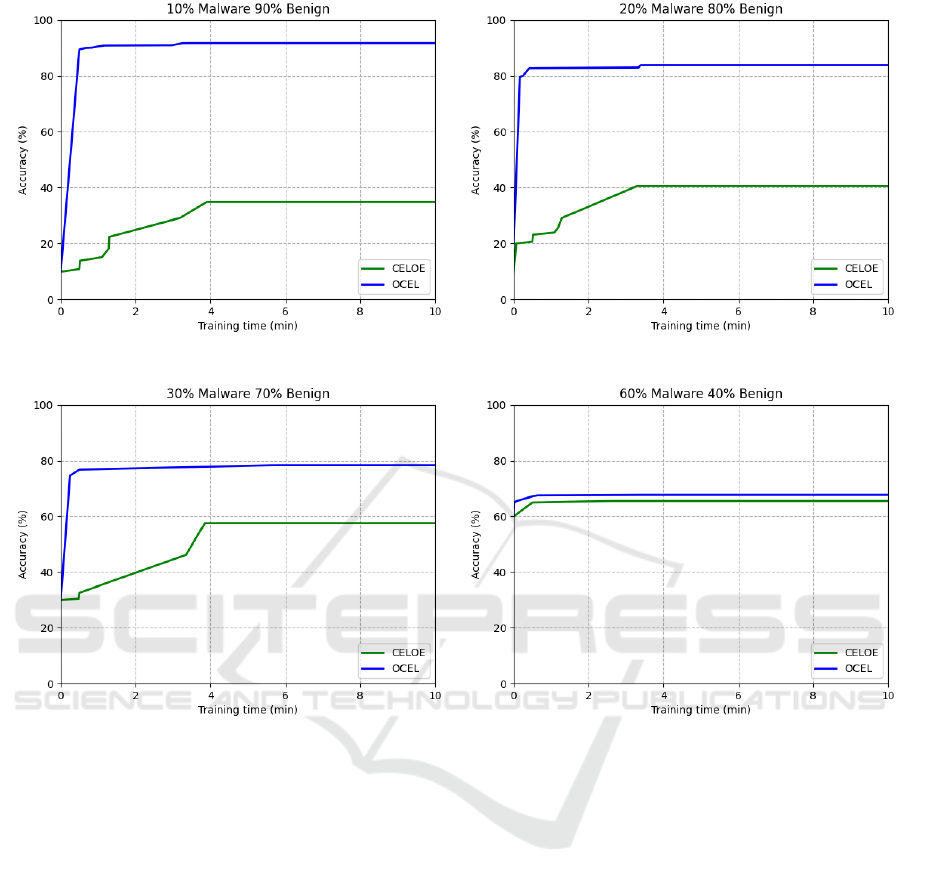

Results from the training phase can be seen in Fig-

ure 4. Although we selected a time window of 10 min-

utes, all the tests were run for exactly 1 hour. This is

mainly because we noticed the largest gains in terms

of accuracy, during the ﬁrst 4 minutes. The training

accuracy continued to grow, however we observed a

radical slowdown after the initial 0 to 4 minutes. This

trend was observed in all tests. We can immediately

see that in all cases, the training accuracy starting

value was based on the percentage of malware sam-

ples we used in a particular dataset. The reason be-

hind this fact is that we deﬁned malware binaries as

positive examples and the most simple concept that

can describe these examples with some value of ac-

curacy is the top concept > (which is usually the root

node in the traversal tree). Hence, if we use a dataset

with 10% of positive examples, > concept can differ-

entiate between positive and negative examples with

an accuracy of 10%. We can see that the OCEL algo-

rithm achieved higher training accuracies compared

to CELOE. This is mainly because the CELOE al-

gorithm heuristics implicitly prefer shorter class de-

scriptions that should be not suitable in malware ap-

plication domain as we need more complex concepts.

Although we can see that the accuracies are much

closer to each other with an increasing percentage of

malware samples in the dataset. It is also important

to note that while we used datatype properties in the

ontology, we disabled numeric and string constructors

ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering

796

Table 1: Properties of datasets used during the experiments.

Name Malware Benign Class

assertions

Object property

assertions

Data property

assertions

Testing set T

500 500 5674 7600 9324

Testing set T

200 800 5796 7244 9598

Testing set T

800 200 5693 8023 9362

Training set A 1000 9000 57 068 69 730 94 112

Training set B 2000 8000 57 030 71 434 94 036

Training set C 3000 7000 57 082 72 902 94 140

Training set D 6000 4000 57 791 78 391 95 558

Table 2: Accuracies detected for various class expressions.

A(OCEL) A(CELOE) B(OCEL) B(CELOE) C (OCEL) C (CELOE) D(OCEL) D(CELOE)

66.20% 55.90% 66.20% 55.90% 66.60% 60.30% 66.40% 60.30%

82.40% 40.10% 82.40% 40.10% 76.50% 54.40% 72.40% 54.40%

54.80% 72.27% 54.80% 72.27% 79.70% 67.8% 60.10% 67.80%

for the reﬁnement operator ρ, since they proved to be

very problematic during the learning process and in-

stead we deﬁned concepts such as high entropy and

nonstandard section name. Despite that we kept that

information in the ontology for more explainability.

We can see some of the most successful class de-

scriptions in (3) and (4). Class description (3) can

be directly interpreted as follows: a binary is mali-

cious if the TLS section is present or if it has at least

three malicious behaviors, except dynamic API load-

ing. Second class expression (4) can be interpreted

similarly: binary is malicious if it has a malicious

behavior that is either DLL injection or registry per-

sistence or if the TLS section is present. So we can

see that from the limited training dataset we used,

concept learning algorithms considered concepts such

as TLS or malicious behaviour important in terms of

malware/benign separation.

Then, we applied the most successful class de-

scriptions learned from various training sets to 3 dif-

ferent testing sets, which contained samples that were

not used during the training phase. We can see the

results in Table 2. As expected, the OCEL algo-

rithm performed much better almost in all cases. Al-

though at ﬁrst glance the results may seem average,

especially compared with the state of the art ma-

chine learning classiﬁers, we consider them to be very

promising. It has to be noted that the experiments

were done with limited dataset and more importantly,

limited ontology. We believe that with richer and

more complex ontology we can achieve similar re-

sults as current classiﬁers, while offering additional

properties. As previously mentioned, one of the prop-

erties is full explainability. Another property is higher

robustness against adversarial attacks. Current ma-

chine learning classiﬁers are vulnerable against var-

ious forms of attacks, especially in the static detec-

tion that includes appending bytes to binaries, adding

imports or perturbating unused sections (Suciu et al.,

2019). These attacks would simply not work even for

our smaller class expressions. In order to evade our

class expression based classiﬁer, the attacker would

need to get rid of the TLS section or rewrite the orig-

inal code, so that it uses dynamic loading (however

this behavior may be also learned as dangerous in case

of previously mentioned possible improvements). So

there are deﬁnitely methods of evasion, however, they

come at a higher cost.

6 CONCLUSION AND FUTURE

WORK

Our work has led us to the conclusion that DL concept

learning algorithms are in fact suitable for malware

detection. Further possible improvements have to be

investigated in the future research, which include:

• Ontology Enhancement. As we mentioned in

previous sections, in order to achieve higher ac-

curacy and robustness, we need to inject more ex-

pert knowledge. This includes specifying various

additional malicious properties as concepts or ex-

panding different concepts into subclasses.

• Larger Datasets. Since our work is mainly proof-

of-concept, we used relatively small datasets for

training and testing. This could be the main rea-

son why various concepts included in our ontol-

ogy were ignored in the ﬁnal class expressions.

Using larger amount of samples could improve

DL heuristics and lead the algorithm to ﬁnd addi-

tional malicious patterns, hence producing more

Experimental Evaluation of Description Logic Concept Learning Algorithms for Static Malware Detection

797

(a) Training set A. (b) Training set B.

Figure 4: Training results for various datasets.

complex and robust class expressions.

• Parallelism. In this work we explored two differ-

ent DL concept learning algorithms, that is OCEL

and CELOE. However, both algorithms suffer in

terms of performance, as they are both imple-

mented as single threaded applications. There are

two parallel algorithms available in DL-Learner,

such as PCELOE or PARCEL, although currently,

they are not fully supported. Since the DL con-

cept learning is a search problem, utilizing more

threads would potentially result in traversing more

concepts, hence leading to better class descrip-

tions in the same time.

• Fuzzy Ontology. Some concepts in our ontology,

such as high entropy, were speciﬁed based on a

threshold value. This kind of concepts are how-

ever more suitable for representation in fuzzy log-

ics (supported to some degree by DL-Learner).

Similar fuzzy functions could be also applied to

additional features present in an EMBER dataset,

such as number of exports, amount of strings rec-

ognized as registry values, etc.

In this paper we investigated static malware features,

although presented approach could be in similar man-

ner applied to a dynamic features or even various sys-

tem events (Balogh and Moj

s, 2019). Lot of re-

search focus on static malware detection, however, it

is still questionable, if various static binary proper-

ties provide enough information for malware/benign

separation, due to the large amount of different ob-

fuscation techniques. An interesting approach was

proposed by Biondi et al. (2019), where they used

static features and machine learning only for detect-

ing packed binaries, as the packers are mainly used

in malicious samples. Various DL concept learning

algorithms could be potentially also applied for this

kind of objective.

ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering

798

ACKNOWLEDGEMENTS

This research was sponsored by Slovak Republic

under grants VEGA 1/0159/17 and APVV-19-0220

and by the EU H2020 programme under Contract

no. 952215 (TAILOR).

REFERENCES

Anderson, H. S. and Roth, P. (2018). Ember: an open

dataset for training static pe malware machine learning

models. arXiv preprint arXiv:1804.04637.

Baader, F., Calvanese, D., McGuinness, D., Patel-

Schneider, P., Nardi, D., et al. (2003). The description

logic handbook: Theory, implementation and applica-

tions. Cambridge university press.

Balogh,

S. and Moj

s, J. (2019). New direction for mal-

ware detection using system features. In 2019 10th IEEE

International Conference on Intelligent Data Acquisition

and Advanced Computing Systems: Technology and Ap-

plications (IDAACS), volume 1, pages 176–183. IEEE.

Biondi, F., Enescu, M. A., Given-Wilson, T., Legay, A.,

Noureddine, L., and Verma, V. (2019). Effective, ef-

ﬁcient, and robust packing detection and classiﬁcation.

Computers & Security, 85:436–451.

uhmann, L., Lehmann, J., Westphal, P., and Bin, S.

(2018). Dl-learner structured machine learning on se-

mantic web data. In Companion Proceedings of the The

Web Conference 2018, pages 467–471.

Fanizzi, N., d’Amato, C., and Esposito, F. (2008). Dl-

foil concept learning in description logics. In Inter-

national Conference on Inductive Logic Programming,

pages 107–121. Springer.

Hassen, M., Carvalho, M. M., and Chan, P. K. (2017). Mal-

ware classiﬁcation using static analysis based features.

In 2017 IEEE Symposium Series on Computational In-

telligence (SSCI), pages 1–7. IEEE.

Hua, Y. and Hein, B. (2019). Rapid restart hill climbing

for learning description logic concepts. In International

Conference on Inductive Logic Programming, pages 46–

61. Springer.

Incer Romeo,

I., Theodorides, M., Afroz, S., and Wagner,

D. (2018). Adversarially robust malware detection using

monotonic classiﬁcation. In Proceedings of the Fourth

ACM International Workshop on Security and Privacy

Analytics, pages 54–63.

Kilgallon, S., De La Rosa, L., and Cavazos, J. (2017). Im-

proving the effectiveness and efﬁciency of dynamic mal-

ware analysis with machine learning. In 2017 Resilience

Week (RWS), pages 30–36. IEEE.

Kolosnjaji, B., Demontis, A., Biggio, B., Maiorca, D., Gi-

acinto, G., Eckert, C., and Roli, F. (2018). Adversar-

ial malware binaries: Evading deep learning for malware

detection in executables. In 2018 26th European Sig-

nal Processing Conference (EUSIPCO), pages 533–537.

IEEE.

Lehmann, J. (2010). Learning OWL class expressions, vol-

ume 22. IOS Press.

Lehmann, J. and Hitzler, P. (2010). Concept learning in

description logics using reﬁnement operators. Machine

Learning, 78(1-2):203.

Li, B., Roundy, K., Gates, C., and Vorobeychik, Y. (2017).

Large-scale identiﬁcation of malicious singleton ﬁles. In

Proceedings of the Seventh ACM on Conference on Data

and Application Security and Privacy, pages 227–238.

Marpaung, J. A., Sain, M., and Lee, H.-J. (2012). Sur-

vey on malware evasion techniques: State of the art and

challenges. In 2012 14th International Conference on

Advanced Communication Technology (ICACT), pages

744–749. IEEE.

Mohanta, A. and Saldanha, A. (2020). Code injection, pro-

cess hollowing, and api hooking. In Malware Analysis

and Detection Engineering, pages 267–329. Springer.

Nataraj, L., Karthikeyan, S., Jacob, G., and Manjunath,

B. S. (2011). Malware images: visualization and au-

tomatic classiﬁcation. In Proceedings of the 8th inter-

national symposium on visualization for cyber security,

pages 1–7.

Oyama, Y., Miyashita, T., and Kokubo, H. (2019). Iden-

tifying useful features for malware detection in the em-

ber dataset. In 2019 Seventh International Symposium

on Computing and Networking Workshops (CANDARW),

pages 360–366. IEEE.

Raff, E., Barker, J., Sylvester, J., Brandon, R., Catanzaro,

B., and Nicholas, C. (2017). Malware detection by eating

a whole exe. arXiv preprint arXiv:1710.09435.

Rizzo, G., Fanizzi, N., Lehmann, J., and B

uhmann, L.

(2016). Integrating new reﬁnement operators in termino-

logical decision trees learning. In European Knowledge

Acquisition Workshop, pages 511–526. Springer.

Saad, S., Briguglio, W., and Elmiligi, H. (2019). The curi-

ous case of machine learning in malware detection. arXiv

preprint arXiv:1905.07573.

Sikorski, M. and Honig, A. (2012). Practical malware anal-

ysis: the hands-on guide to dissecting malicious soft-

ware. no starch press.

Smith, M. R., Johnson, N. T., Ingram, J. B., Carbajal, A. J.,

Haus, B. I., Domschot, E., Ramyaa, R., Lamb, C. C.,

Verzi, S. J., and Kegelmeyer, W. P. (2020). Mind the gap:

On bridging the semantic gap between machine learning

and malware analysis. In Proceedings of the 13th ACM

Workshop on Artiﬁcial Intelligence and Security, pages

49–60.

Straccia, U. and Mucci, M. (2015). pfoil-dl: Learning

(fuzzy) el concept descriptions from crisp owl data us-

ing a probabilistic ensemble estimation. In Proceedings

of the 30th Annual ACM Symposium on Applied Comput-

ing, pages 345–352.

Suciu, O., Coull, S. E., and Johns, J. (2019). Explor-

ing adversarial examples in malware detection. In 2019

IEEE Security and Privacy Workshops (SPW), pages 8–

14. IEEE.

Tran, A. C., Dietrich, J., Guesgen, H. W., and Marsland,

S. (2012). An approach to parallel class expression

learning. In International Workshop on Rules and Rule

Markup Languages for the Semantic Web, pages 302–

316. Springer.

Experimental Evaluation of Description Logic Concept Learning Algorithms for Static Malware Detection

799
