Beneﬁts of Layered Software Architecture in Machine Learning

Applications

Armin Romh

anyi and Zolt

an V

amossy

John von Neumann Faculty of Informatics, Obuda University, B

ecsi Street, Budapest, Hungary

Keywords:

Machine Learning, Layered Architecture, Software Engineering, Facial Authentication, Facial Landmark

Points.

Abstract:

The beneﬁts of layering in software applications are well-known not only to authors and industry experts,

but to software enthusiasts as well because the layering provides a testable and more error-proof framing for

applications. Despite the beneﬁts, however, the increasingly popular area of machine learning is yet to embrace

the advantages of such a design. In the present paper, we aim to investigate if characteristic beneﬁts of layered

architecture can be applied to machine learning by designing and building a system that uses a layered machine

learning approach. Then, the implemented system is compared to other already existing implementations in

the literature targeting the ﬁeld of facial recognition. Although we chose this ﬁeld as our example for its

literature being rich in both theoretical foundations and practical implementations, the principles and practices

outlined by the present work are also applicable in a more general sense.

1 INTRODUCTION

Using a layered architecture in software applications

has become a popular element of software design.

Beneﬁts such as a more future-proof design or the

use of the “Law of Demeter”, are not only listed by

acknowledged works on software engineering (Som-

merville, 2011; Fowler, 2012) but industry experts

and enthusiasts alike also organize their work in this

manner to produce more testable, understandable and

robust software. This manner of design, however pro-

found it may be in the industry, does not seem to in-

ﬂuence the architectural design of machine learning

applications. Theoretical works aiming to improve

on already existing techniques (Wu et al., 2017; Ro-

driguez and Marcel, 2006; Wu and Ji, 2015) as well

as practical software solutions of this kind (Aydin and

Othman, 2017; Kumar and Saravanan, 2013; Wein-

stein et al., 2002) adopt a rather monolithic way of

organizing machine solver algorithms into one single

component. In these works, there is either no refer-

ence to the architecture whatsoever (since a new prin-

ciple is at scrutiny not its immediate applications),

or the designed system adopts a well-known archi-

tectural design principle (e.g., client-server) and one

of the components is solely responsible for machine

learning operations. This component is usually de-

ployed to a performant server computer, but building

on the increasing computational power available to

mobile devices, there are applications where a hand-

held device assumes this role (Hazen et al., 2003; We-

instein et al., 2002).

In an attempt to connect this software engineering

principle to machine learning, the present work aims

to apply the concept of layering to a machine learning

solution from an arbitrarily-chosen ﬁeld: facial recog-

nition. This is achieved by adapting well-established

characteristics of layering to the problem in question,

resulting in a software application in which multiple

components working in tandem are responsible for

the task of identifying persons based on their facial

features. Since this work concentrates on principles

rather than concrete applications, the software in de-

sign is intended to be a prototype only and as such,

the building blocks from which it is composed of are

purposefully made as simple as possible to determine

the lower limits of such systems. For this reason,

the component structure of the prototype is based on

the simple client-server architecture and even its most

complicated part - the server-side neural network so-

lution - is conﬁned to the bare minimum of its poten-

tial.

In the remainder of this article, the problem in

question is brieﬂy presented ﬁrst accompanied by a

literature review strictly restricted to the topics rele-

vant to the present work. This is followed by estab-

lishing design principles for solving it using a client-

server conﬁguration. The components of the system

Romhányi, Á. and Vámossy, Z.

Beneﬁts of Layered Software Architecture in Machine Learning Applications.

DOI: 10.5220/0010424500660072

In Proceedings of the International Conference on Image Processing and Vision Engineering (IMPROVE 2021), pages 66-72

ISBN: 978-989-758-511-1

are described afterwards with special attention de-

voted to the purpose they play in solving the machine

learning problem. The system is also evaluated as to

what extent it adheres to the established principles and

comparisons are made between the performance of al-

ready existing applications of similar purposes.

2 LITERATURE REVIEW

One of the most widely-studied element of machine

vision is facial recognition, a ﬁeld revolving around

searching for visual cues of human faces on images

without any assumption of its portrayed contents.

This problem is solved using a toolbox similar to im-

age clustering and shape identiﬁcation as facial fea-

tures proven to exhibit a degree of variance within the

individual are at the center of recognition attempts.

Searching for the shape of the eyes, mouth and the

nose is most common (Manjunath et al., 1992), but

studies exist on using the contour lines of the chin and

the brows (Walker et al., 1998) and it is also possible

to exploit the difference in the geometric depth of fa-

cial features (BenAbdelkader and Grifﬁn, 2005). The

literature commonly refers to these features under the

umbrella term facial landmark points (Walker et al.,

1998; Wu et al., 2017; Wu and Ji, 2015).

Although using the same tools, the area the

present study choses to explore is not facial recogni-

tion, but the problem of facial authentication, a sub-

category of the previous, in which the images under

scrutiny are guaranteed to portray human faces and

the task is to make distinction between certain indi-

viduals using these images only. The main component

of this practice is to calculate a difference between the

reference image of an individual and the image given

as a task for evaluation. There is a wide range of tech-

niques applied to solve these kinds of problems from

formal methods such as principal component analy-

sis to machine learning approaches including artiﬁcial

neural networks, but at the end of the process, all of

these methods commonly produce a probability score

as to how likely it is that the image in question in-

deed portrays the same person as the image used as

a basis of reference. To thoroughly investigate the

problem, the present study implements two kinds of

facial authentication: one in which the system needs

to identify which person is found on the image out

of 3 pre-deﬁned individuals, and another that decides

whether a given image portrays the same person as

the one used as a reference of that person.

A core component of performing facial recogni-

tion analyses is inevitably linked to how comparisons

are made between existing and new information and

thus, how data is stored and accessed during these

processes. Using labelled images was the most com-

mon practice for earlier methods, which was pre-

ceded by the application of abstraction layers gener-

ated from the raw images: these techniques aimed to

extract certain sub-elements of importance (e.g., col-

ors or prominent image segments) this way reducing

the size of the data to store (Liu et al., 2007). The

literature commonly refers to image searches using

these methods under the umbrella term Content Based

Image Retrieval (CBIR). One of the most common

methods of CBIR is applying formal transformations

to image segments (Liu et al., 2007). (Karnila et al.,

2019), for example, uses the mechanism of Discrete

Cosine Transform (DCT), one of the building blocks

of the JPG image format (Miklos et al., 2020), to ex-

tract coefﬁcients from JPG images, which are stored

in a database afterwards, reducing the ﬁle size from

14 kB to around 3 kb, which is even preceded by their

own methods called Discrete Wavelet Transform that

achieved a storage size of 0.4 kB. During compar-

isons, histograms can be created which are subjected

to mathematical operations once again (e.g., simple

euclidean distance) to calculate a difference. Ma-

chine learning approaches usually replace these for-

mal processes with prediction procedures, but due to

the statistical nature of machine learning data, stor-

age methods can be largely the same. To put data

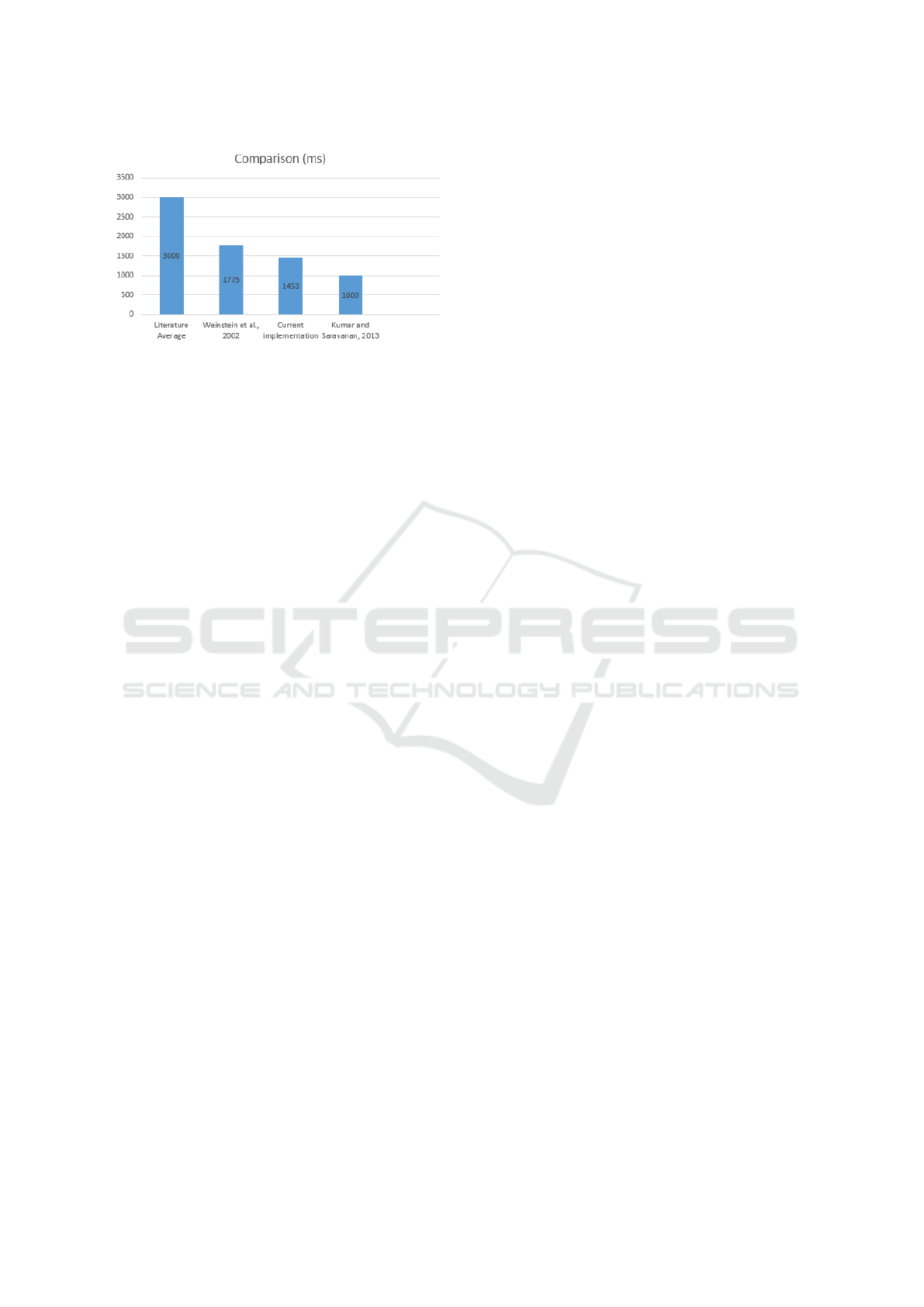

retrieval speeds into perspective, (Kumar and Sara-

vanan, 2013) recorded measurements of multiple im-

plementations using 500 images: an implementation

using common methods in the literature achieved an

average retrieval speed of 3 sec. (Weinstein et al.,

2002) reports measurements of approximately 2 sec,

while a special DCT-based implementation by the

previous authors is reported to have a retrieval speed

of 1 sec, on average.

3 DESIGN PRINCIPLES

Although there have been a number of nature-inspired

methodological improvements in the ﬁeld of Machine

Learning (Chaczko et al., 2020), to establish the core

concepts of a layered machine learning solution, we

rather turned to tried and proven methods applied by

the ﬁeld of software engineering. We chose to base

our designing principles on how layering is portrayed

by Ian Sommerville as his books are among the most

widely-recognized works on the subject. One of the

core concepts of layering in his works is the complex

idea that, although layered architecture allows for

the creation of individual components (Sommerville,

2011) restricting changes to a minimum number of el-

Beneﬁts of Layered Software Architecture in Machine Learning Applications

ements, these parts also have to maintain a certain de-

gree of dependence on each other. Speciﬁcally, each

layer should only transfer data to layers directly be-

low it - a concept commonly referred to as “Law of

Demeter”. These characteristic features, he argues,

not only promote incremental development cycles (an

idea widely adopted by software developer companies

to increase customer satisfaction), but it also allows

for the application of “exchangable” components, in

which the exact implementation of a sub-process is

not part of the system, but rather included as a de-

pendency that can be changed without any effect to

surrounding other components. This decreases “brit-

tleness” in a system by allowing for the use more ro-

bust tools to cope with changing requirements, while

software testing and validation are also enhanced as

“test components” can be substituted with real ones

to eliminate any effects other than those of the com-

ponent under test.

Building on Sommerville’s ideas, the core con-

cepts of our design principles are also going to revolve

around component individualism and exchangeabil-

ity. In this manner, we can conclude that any ma-

chine learning implementation using a layered archi-

tecture has to apply components that can function on

their own allowing for the use of exchangeable im-

plementations in them. This, in turn, also guaran-

tees that changes regarding the exact problem-solving

in that component cannot affect other components in

any way. This is only possible if certain layers near

the “extremities” of these components have a com-

mon way of passing information from one layer to

another functioning as interfaces. We can achieve this

by carefully choosing compatible input/output layers

on conjoined poles of components, in other words, the

output of the n. component should be the input of the

n+1. component. In this case, the process of solving

the problem as a whole can be described as consecu-

tive acts of data transformation and at each stage (or

component) the initial data is changed just enough to

be acceptable by the next stage in line. This can also

accommodate the idea of “Law of Demeter” implied

by Sommerville: unless these processes are equiva-

lent transformations, i.e., the output of a layer could

also be its input, there can be only one direction of

information exchange originating at the “uppermost”

layer closest to the original input and a backward-

oriented ﬂow of information is not possible. In brief,

therefore, we can conclude that a machine learning

solution using a layered architecture:

• has to operate with individually usable compo-

nents

• these components has to have compatible layers

in their adjoined edges

Figure 1: The image of one of the authors and the landmark

points on his face as captured by the client application.

• the machine learning solution as a whole is real-

ized as a series of acts of data transformation

• these consecutive transformations are operated on

a ﬂow of data that is expected to have a prede-

ﬁned, non-changeable direction

4 IMPLEMENTATION DETAILS

Conforming to both the principles outlined above and

those of client-server architecture, we divided the

problem into two separate sub-problems and assigned

each of them to one of the components. In this man-

ner, the client side of the software is responsible for

extracting information regarding facial features in the

form of landmark point coordinates that are trans-

ferred to the server for analysis in JSON format.

4.1 The Client

To be able to better compare our solution to existing

methods, we implemented an Android mobile appli-

cation in which the Google Firebase API is respon-

sible for feature extraction. The workﬂow is inten-

tionally kept very rudimentary and it only consists of

capturing an image within the application that is fol-

lowed by an automatic analysis right away. At this

point, the user is given visual feedback on the result

of the analysis and s/he can decide to send the image

to the server or capture another image. An example

can be seen in Figure 1.

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

4.2 The Server

The server component is implemented using a

Javascript-based server-side framework because it al-

lows for an easy cooperation with any machine learn-

ing library provided that the machine learning (ML)

architecture is convertible to the format used by one

of the most popular machine learning libraries Ten-

sorﬂow by way of using one of its derivative projects,

TensorﬂowJS. Since executing predictions with the

designed machine learning models is delegated to

TensorﬂowJS, this component is only responsible for

handling web requests and controlling which authen-

tication method out of the two are taken into consid-

eration during predictions.

Although technically not part of the server layer, a

brief mention must be made of the database layer here

as well. The system is completely database-agnostic,

thus we decided to use Microsoft SQL to store data

as this is one of the most frequent database conﬁgura-

tions at the time of writing. The application has one

database table with a number of columns represent-

ing data collected during the user registration process.

From the perspective of the problem, the only relevant

piece of information is that the list of landmark points

extracted from the user is also stored here as a basis

of comparison for predictions. This data is stored as a

comma-delimited consecutive line of string in which

coordinates are placed next to each other.

4.3 The Machine Learning Units

The ML units were implemented using the Tensor-

ﬂow ML library and the Keras API in Python. Two

kinds of neural network conﬁgurations were imple-

mented for the prototype: one for choosing a person

from a pre-established pool of 3 persons (I) and an-

other one that compares facial data of a person to data

stored in the database (II). Dispite that I uses only

1 person as input, while II also needs the reference

given, the two networks are using the same informa-

tion from the client to produce a prediction. In this

fashion, the input layer of I consists of 262 neurons (1

for each coordinate in the 131 point landmark map),

while II expects an input size of 524. The output of I

is a probability score for the occurrence of each per-

son in the pool, the prediction in II results in a binary

answer of whether the two data stream given as pa-

rameters represent the same person or not.

As previously stated, the system was intention-

ally conﬁned to a minimum level of complexity and

this is reﬂected in the shallow nature of the imple-

mented network architectures. Although the solu-

tions were tested with a great variability in conﬁg-

Table 1: Hyper-parameters for the implemented neural net-

works.

Hyper parameter Hyper parameter Value

Name I II

Input layer size 262 524

Output layer size 3 2

Batch size 500 32

Maximum epochs 1500 1000

Weight initiliazer LeCun uniform LeCun uniform

Activation function SELU ReLU

Loss function SCC SCC

Optimizer Adamax Adam

urable hyper-parameters such as the activation and

loss functions, optimizers or weight initializers, their

core architectures are simple. Apart from the input

and output layers, I has two, while II has three fully-

connected hidden layers only. It does not come as

a surprise, therefore, that performance-wise the im-

plemented networks are falling behind the established

standards of an accuracy score well above 90%: on

an average, I achieved an accuracy score of 75-80%,

while II reached as high as 85-90%. Given that the

key factor was that both of these networks are oper-

ating on the same inputs, this was deemed sufﬁcient

for the purpose of the prototype system. The details

of the implemented architectures are given in Table 1.

5 EVALUATION

In this section, we present our preliminary ﬁndings

and measurements in support of our claims that using

a distributed approach for machine learning problems

combines the advantages of layered software systems

with the beneﬁts inherent to components of the orig-

inal design. Therefore, ﬁrst we list two aspects of

practical facial recognition, in which using landmark

points - of any architectural design - can produce su-

perior results to other common forms used in the lit-

erature, then we present measurements to support that

the implemented system indeed possesses the charac-

teristics for these aspects and ﬁnally, we show that

from a software design point of view, implementing a

layered facial recognition system is even more bene-

ﬁcial to a “monolithic” approach.

Beneﬁts of Layered Software Architecture in Machine Learning Applications

5.1 Data Storage

The present system uses the landmark extraction fea-

ture of the Android client to reduce the size of the

data that needs to be stored for an analysis. Given

how little information has to reside in the database,

our ﬁrst assumption was that this method of storage

outperforms other methods in economical terms. To

test this hypothesis, we conducted measurements us-

ing MSSQL for a comparison to common database-

related methods and we also made estimations as to

how much storage space would be required using

some formal methods based on (Karnila et al., 2019).

Table 2: Preliminary measurements on storage space.

Implementation Storage (in B)

Original JPG 5120

MSSQL image 4537

Base64 Encoded 12104

131 point landmark 5120

dlib 68 pont landmark 960

DCT (estimated) 2778

DWT (estimated) 487

The original .jpg image used a storage space of

5120 B on disk and we loaded it to the database us-

ing two formats: MSSQL image format intended for

image storage and Base64 format - a possible, but

not recommended method. We also loaded one in-

stance of a 131 point landmark data of the original

image made with our software as well as a 68 point

one made with the popular image processing library

dlib. Using a simple mathematical analogy, we also

calculated what result the formal methods referenced

above would achieve using our image. The results are

summarized in Table 2.

Our own Firebase API 131 point approach did not

achieve a data extraction rate as efﬁcient as most of

the more common methods due to the small size of

the original image, but the dlib implementation man-

aged to outperform the most common DCT approach.

This could even be improved taking into considera-

tion that dlib is experimenting with a 5 landmark point

approach that would largely excel in this area. The us-

ability of this method in facial recognition, however,

is unclear at this point. It is also worth mentioning

that all the landmark approaches produce an output of

constant size, irrespective of the size of the original

Figure 2: Storage space for 1 record in the database.

image, whereas other solutions grow in size with the

original ﬁle. Therefore, we can conclude that despite

that the prototype underperformed multiple methods,

landmark extraction is a powerful alternative to com-

mon methods in the literature. Mention must also be

made of how storage size is also a relevant factor in in-

ternet communication as lower bandwidths also con-

sume a lower amount of resources.

5.2 Data Retrieval

Using the referenced speed data as a basis of refer-

ence, we also conducted measurements both on infer-

ence speed and database storage. Since end-to-end

testing results are not available at this point, we mea-

sured the corresponding components one by one sum-

ming the results afterwards. Inference speeds were

measured using the Tensorﬂow library test framework

that loads the testing chunks of the data and performs

predicitons on each of them, simulating the worse

possible scenario when the data in question is only

found at the end. For both I and II, the whole pro-

cess took approximately 1 s to run to completion with

I conducting predictions on a sample size of 1215,

while in the case of II, 8221 chunks were used.

Database retrieval speeds are no doubt uniquely

speciﬁc to each implementation, so at this stage, we

only measured the speed of our own MSSQL infras-

tructure to provide a basis of comparison for other

methods. A Microsoft benchmarking software pub-

lically available on Github

was used to conduct

the measurements. This utility software can gener-

ate a data chunk of any size after which data re-

trival processes are launched and measured for a pre-

conﬁgured time. Using the storage space required to

store 1 record of our data (Figure 2), we estimated

1000 records to be approximately of 24 MB in size.

The measurements were running for 120 s, and as

a result, an average retrieval speed of 453 ms was

recorded. The preliminary results of retrieval speeds

are summarized in Figure 3.

5.3 Beneﬁts of Layering in the

Prototype

At this point, the prototype is outperformed in cer-

tain areas, but it successfully implements one of

https://github.com/microsoft/diskspd

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering

Figure 3: Priliminary measurements on retrieval speeds.

the main ideas related to a layered architecture: it

uses exchangeable components and the implementa-

tion of these components are completely invisible to

the other component due to network communication.

This is also supported by how the two implementa-

tions of facial authentication are able to use the very

same data sent by the Android client despite their

completely different approach to the problem. With

having similar architectures for different approaches,

these solutions resemble two separate implementa-

tions of the same interface rather than different ML

problem solvers.

This also means that unlike conventional ap-

proaches, in which the whole of the system has to

be reconﬁgured for functional changes, functional-

ity in either side of the system is arbitrarily modiﬁ-

able. Although this is shadowed by how uncommon

the 131 landmark point implementation is making in-

put size changes necessary for other implementations,

both ends of the system can be changed with little

effort needed on the other half. Adding additional

functionality to the server side, facial landmark-based

lie detection (Upadhyay and Roy, ) or emotion anal-

ysis (Day, 2016) for instance, does not require any

changes on client side. In fact, the client is completely

oblivious to any kind of changes on server side as long

as the common way of communication is upheld, con-

trary to current approaches in the literature that re-

quire retraining in the entirety of the process. In this

manner, improvements can also be made on both sides

of the system, an implementation using 64 or even 5

landmark points can be used on the client, while more

complex ML architectures can be integrated into the

server. In the general sense, this not only means that

a complete retraining of the architecture is unneces-

sary, but certain sub-elements can also be added in-

crementally to it, a great advantage over “ordinary”

approaches in terms of productivity.

6 CONCLUSIONS

We investigated the idea of extending layering to ma-

chine learning solutions by ﬁrst establishing the fun-

damental principles of such a design and then, using

a prototype system, we compared it to techniques and

implementations focusing on facial recognition.

Even though our system was intentionally de-

signed to target the lower end of its potential, we suc-

cessfully demonstrated that facial recognition prob-

lems can be solved using a layered approach. We

also demonstrated that even our simplistic system is

capable of connecting the beneﬁts of layering to the

already existing beneﬁts of current approaches. We

achieved this by building two interchangeable Neural

Nets on the server that both use the same landmark

point approach to facial recognition as an input. We

can conclude that even though the current prototype

implementation has much to improve at this stage,

preliminary ﬁndings suggest that the beneﬁts inherent

to the original systems can be integrated into a lay-

ered approach with the addition of time-proven suc-

cess factors, which contemporary solutions are unable

to provide.

Although producing promising preliminary re-

sults, the concept of layered approach to machine

learning problems requires a great deal of further re-

search before real-world applications can come in fo-

cus. For example, one of the most challenging as-

pects of software design is how the level of com-

plexity rises with each piece of software component

added to a system. Comprised of already intricate in-

ner mechanisms, stacking machine learning solutions

might prove too complex to economically scale. An-

other question coming to mind is how reusable can

machine learning subcomponents really be when the

system that uses them requires a certain “common

denominator”, an interface, such as the use of facial

landmark points, to work. Such questions need to

be answered before attempts at large-scale application

can start.

ACKNOWLEDGMENT

The authors would like to thank both the GPGPU

Programming Research Group of

Obuda University

and the Hungarian National Talent Program (NTP-

HHTDK-20) for their valuable support.

Beneﬁts of Layered Software Architecture in Machine Learning Applications

REFERENCES

Aydin, I. and Othman, N. A. (2017). A new iot combined

face detection of people by using computer vision for

security application. In 2017 International Artiﬁcial

Intelligence and Data Processing Symposium (IDAP),

pages 1–6. IEEE.

BenAbdelkader, C. and Grifﬁn, P. A. (2005). Comparing

and combining depth and texture cues for face recog-

nition. Image and Vision Computing, 23(3):339–352.

Chaczko, Z., Klempous, R., Rozenblit, J., Adegbija, T.,

Chiu, C., Kluwak, K., and Smutnicki, C. (2020).

Biomimetic middleware design principles for iot in-

frastructures. Acta Polytechnica Hungarica, 17(5).

Day, M. (2016). Exploiting facial landmarks for emo-

tion recognition in the wild. arXiv preprint

arXiv:1603.09129.

Fowler, M. (2012). Patterns of Enterprise Application Ar-

chitecture: Pattern Enterpr Applica Arch. Addison-

Wesley.

Hazen, T. J., Weinstein, E., and Park, A. (2003). Towards

robust person recognition on handheld devices using

face and speaker identiﬁcation technologies. In Pro-

ceedings of the 5th international conference on Multi-

modal interfaces, pages 289–292.

Karnila, S., Irianto, S., and Kurniawan, R. (2019). Face

recognition using content based image retrieval for in-

telligent security. International Journal of Advanced

Engineering Research and Science, 6(1).

Kumar, A. R. and Saravanan, D. (2013). Content based

image retrieval using color histogram. International

journal of computer science and information tech-

nologies, 4(2):242–245.

Liu, Y., Zhang, D., Lu, G., and Ma, W.-Y. (2007). A sur-

vey of content-based image retrieval with high-level

semantics. Pattern recognition, 40(1):262–282.

Manjunath, B., Chellappa, R., and von der Malsburg, C.

(1992). A feature based approach to face recogni-

tion. In Proceedings 1992 IEEE Computer Society

Conference on Computer Vision and Pattern Recog-

nition, pages 373–378. IEEE.

Miklos, P., Zeljen, T., and Tatjana, L.-T. (2020). Analysis

and improvement of jpeg compression performance

using custom quantization and block boundary clas-

siﬁcations. Acta Polytechnica Hungarica, 17(6):171–

191.

Rodriguez, Y. and Marcel, S. (2006). Face authentication

using adapted local binary pattern histograms. In Eu-

ropean Conference on Computer Vision, pages 321–

332. Springer.

Sommerville, I. (2011). Software engineering 9th edition.

ISBN-10, 137035152:18.

Upadhyay, T. and Roy, D. Lie detection based on human

facial gestures.

Walker, K. N., Cootes, T. F., and Taylor, C. J. (1998). Lo-

cating salient object features. In BMVC, volume 98,

pages 557–566. Citeseer.

Weinstein, E., Ho, P., Heisele, B., Poggio, T., Steele, K.,

and Agarwal, A. (2002). Handheld face identiﬁcation

technology in a pervasive computing environment. In

Short Paper Proceedings, Pervasive 2002, pages 48–

54.

Wu, Y., Hassner, T., Kim, K., Medioni, G., and Natarajan, P.

(2017). Facial landmark detection with tweaked con-

volutional neural networks. IEEE transactions on pat-

tern analysis and machine intelligence, 40(12):3067–

3074.

Wu, Y. and Ji, Q. (2015). Robust facial landmark detec-

tion under signiﬁcant head poses and occlusion. In

Proceedings of the IEEE International Conference on

Computer Vision, pages 3658–3666.

IMPROVE 2021 - International Conference on Image Processing and Vision Engineering
