Cognitive-Driven Development: Preliminary Results on Software

Refactorings

Victor Hugo Santiago C. Pinto

1,2 a

, Alberto Luiz Oliveira Tavares de Souza

Yuri Matheus Barboza de Oliveira

and Danilo Monteiro Ribeiro

Zup Innovation, S

ao Paulo, SP, Brazil

Federal University of Par

a (UFPA), Bel

em, PA, Brazil

Keywords:

Cognitive-Driven Development, Software Refactoring, Experimental Study.

Abstract:

Refactoring is a maintenance activity intended to restructure code to improve different quality attributes with-

out changing its observable behavior. However, if this activity is not guided by a clear purpose such as reducing

complexity and the coupling between objects, there is a risk that the source code can become worse than the

previous version. Developers often lose sight of the business problems being solved and forget the importance

of managing complexity. As a result, after refactorings many software parts continue to have low readability

levels. Cognitive-Driven Development (CDD) is our recent strategy for reducing cognitive overload during

development when improving the code design. This paper provides an experimental study carried out in an

industrial context to evaluate refactorings through the use of conventional practices guided by a cognitive

constraint for complexity, a principle pointed out by CDD. Eighteen experienced participants took part in

this experiment. Different software metrics were employed through static analysis, such as CBO (Coupling

between objects), WMC (Weight Method Class), RFC (Response for a Class), LCOM (Lack of Cohesion of

Methods) and LOC (Lines of Code). The result suggests that CDD can guide the restructuring process since it

is designed to obtain a coherent and balanced separation of concerns.

1 INTRODUCTION

Refactoring is the process of changing the internal

structure of software to improve its quality with-

out changing its observable behavior (Fowler et al.,

1999). Empirical studies have shown there is a pos-

itive correlation between refactoring operations and

code quality metrics (Abid et al., 2020; AlOmar et al.,

2019; Alshayeb, 2009; Kataoka et al., 2002). Refac-

toring can have a positive impact on the readability

and maintenance of software systems.

However, many studies have pointed out that if the

refactoring is not guided by a clear purpose, the code

can often become worse than the original version,

or the changes might fail to have a signiﬁcant im-

pact (Baqais and Alshayeb, 2020; Alomar, 2019), i.e.,

the nature of the improvements can be questionable.

This effect becomes even more problematic when the

refactoring is not guided by a quality metric or the

improvements are assessed by developers who have a

restricted outlook. Deciding when and what changes

https://orcid.org/0000-0001-8562-6384

are required, as well as understanding the particular

reason for restructuring some code, is still a challeng-

ing task for many of them.

Over the years, the continuous expansion and

growing complexity of software has led to a good deal

of discussions among the software engineering com-

munity (Zuse, 2019; Clarke et al., 2016; Weyuker,

1988; Shepperd, 1988). Most researchers are continu-

ally seeking better and novel methods for handling the

complexity involved in the design and maintenance of

software systems. Approaches have been adopted to

support code design based on architectural styles and

code quality metrics. Nevertheless, there is a lack of

practical and clear strategies for changing the way that

we develop software for reduced testing and mainte-

nance efforts efﬁciently.

Most research involving human cognition in soft-

ware engineering focuses on evaluating programs and

learning rather than on understanding how software

development could be guided by this perspective (Du-

ran et al., 2018). Cognitive complexity is a depar-

ture from the standard practice of using strictly nu-

meric values to assess software maintainability. It

Pinto, V., Tavares de Souza, A., Barboza de Oliveira, Y. and Ribeiro, D.

Cognitive-Driven Development: Preliminary Results on Software Refactorings.

DOI: 10.5220/0010408100920102

In Proceedings of the 16th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2021), pages 92-102

ISBN: 978-989-758-508-1

starts with the precedents set by cyclomatic complex-

ity (CYC) (McCabe, 1976), but uses human judgment

to assess how the code’s structures should be inter-

preted. Object-oriented cognitive complexity metrics

were proposed by Shao and Wang’s work in (Shao

and Wang, 2003) and extended by Misra et al. (Misra

et al., 2018), where the use of basic control structured

and corresponding weights were suggested. Although

the cognitive complexity measurements can assist in

assessing the understanding of the source code, there

is a lack of studies in the literature that works explor-

ing how this strategy can perspective could be applied

to reducing complexity in the period ranging from the

early stages of development until in the future, where

the process incurs costs related to maintenance and

testing activities.

This paper extends our recent research study

termed Cognitive-Driven Development (CDD)

(Souza and Pinto, 2020) that is based on cognitive

complexity measurements and Cognitive Load

Theory (Sweller, 1988; Sweller, 2010). CDD

is an inspiration from cognitive psychology, or

more speciﬁcally, of the recognition of the limited

human capacity for dealing with the the expan-

sion of software complexity. The need for new

empirically-based studies concerning the generation

of high-quality code by means of CDD principles

led to an experiment being conducted involving

refactoring scenarios. Our main premise was that the

deﬁnition of cognitive complexity constraints during

refactorings could guide the developer to use more

types of refactorings and generate a more readable

code than conventional refactoring practices without

this kind of constraint.

Eighteen software engineers participated in the

experiment. Classes from an open-source applica-

tion called Student Success Portal

(SSP) were cho-

sen for the refactorings. We analyzed the devel-

opers’ productivity by taking account of their time

spent in the restructuring process using conventional

practices, both with and without a complexity con-

straint. Both the original and refactored classes were

analyzed and these included the following object-

oriented metrics: CBO (Coupling between objects),

WMC (Weight Method Class), RFC (Response for a

Class), LCOM (Lack of Cohesion of Methods) and

LOC (Lines of Code). The results suggested that CDD

is a promising and useful method for restructuring

code since it can achieve better levels of cohesion,

readability and separation of concerns.

The remainder of the paper is structured as fol-

lows: Section 2 discusses the key characteristics of

the CDD; Section 3 outlines the structure of our ex-

https://github.com/Jasig/SSP

perimental study and results. Section 4 describes re-

lated work. Finally, Section 5 summarizes the conclu-

sions and sets out future perspectives.

2 BACKGROUND

The continuous expansion of the software scale is one

of the main challenges for industry and a current soft-

ware engineering problem (Zuse, 2019; Pawade et al.,

2016). According to the classic statement made by

Robert M. Pirsig: “There’s so much talk about the

system. And so little understanding” (Pirsig, 1999).

As there is a greater degree of complexity in software,

from the standpoint of people, there is a risk that un-

derstanding can be compromised (Kabbur et al., 2020;

Briggs and Nunamaker, 2020), since they are unable

to follow it in a proportional way.

SOLID design principles (Martin, 2000), Clean

Architecture (Martin, 2018), Hexagonal Architecture

(Cockburn, 2005) and other well-known practices

are usually adopted to make the software designs

more ﬂexible and maintainable. Domain-driven de-

sign (DDD) practices (Evans, 2004) suggest that the

source code should be aligned with the business do-

main. Although not all the proposals are related to

code and modeling, the common goal is to provide

strategies for dealing with complexity at different de-

velopmental stages.

However, elements with low cohesion and an inef-

ﬁcient separation of concerns are still being produced

and residing in ﬁnal releases (Souza and Pinto, 2020).

It is a challenging task to limit the frontiers for con-

cerns and reduce their complexities. The goal of soft-

ware design is to create chunks or slices that ﬁt into

a human mind. However, code tangled and spread

in addition to the lack of a clear strategy to mitigate

them contribute to that the developers can be affected

by cognitive overload.

In the cognitive psychology ﬁeld, cognitive load

means the amount of information that working mem-

ory resources can hold at once. Cognitive Load The-

ory (CLT) (Sweller, 2010; Chandler and Sweller,

1991; Sweller, 1988) is generally discussed with re-

gard to learning and instructional design. Problems

that require a large number of items to be stored in

our short-term memory may lead to an excessive cog-

nitive load. According to Sweller (Sweller, 2010),

some material has its own complexity and is inher-

ently difﬁcult to understand. This proposition is re-

lated to the number of elements that we are supposed

to be able to process simultaneously in our working

memory. According to the experimental studies con-

ducted by Miller (Miller, 1956), humans are generally

Cognitive-Driven Development: Preliminary Results on Software Refactorings

able to hold only seven plus or minus two units of in-

formation in short-term memory, an important work

known as “Magical Number 7”.

Efﬁcient programmers write code that people can

understand (Fowler et al., 1999). However, there

is often so much information in a single implemen-

tation unit that developers cannot easily process it.

The recognition of this human limitation should guide

software development, since the source code has an

intrinsic load. Cognitive-Driven Development (CDD)

is based on cognitive complexity measurements and

CLT. The main contribution provided by CDD is

that based on a common concept to assist our un-

derstanding; this enables developers to set a limit

on cognitive complexity and implementation units

can be kept within this constraint, even with the

expansion of the system (Souza and Pinto, 2020).

Although the theory behind the CDD is not lim-

ited to speciﬁc metrics or numerical values to assess

code readability, cognitive complexity metrics (Shao

and Wang, 2003) were included to introduce the con-

cept of the Intrinsic Complexity Points (ICPs). In

our previous work (Souza and Pinto, 2020), our ob-

jective was to take note of some basic control struc-

tures (BCS) and resources such as ICPs. It should

be stressed that other alternatives may be valid. For

instance, we could deﬁne metrics that cover dif-

ferent types of projects (web applications, libraries,

etc.), programming languages and developer experi-

ence levels.

With the aid of our guidelines, the total of ICPs

can be increased for each branch analyzed. For in-

stance, if-else has 2 points and try-catch-ﬁnally, 3.

For contextual coupling, if a class was created to deal

with a speciﬁc concern inside the project, however it

collaborates with the class under analysis, 1 point is

also increased. Functions that can accept other func-

tions as arguments, so-called higher-order functions,

can also be regarded as ICPs.

The coupling with objects provided by a certain

framework can be included in the total number of

ICPs, but it should be noted that code designed for

crosscutting requirements is mainly related to in-

frastructure resources, i.e., it is reused or extended

for speciﬁc project purposes. Although this kind of

code is not trivial, we suggest not considering them

for the following reasons: (i) these codes are less of-

ten changed than codes related to business logic, and

(ii) it is expected that the practitioners have a wide

knowledge of the language and framework resources.

In previous experiences with real development sce-

narios, we observed that these kinds of deﬁnitions

can be used to improve the level of the team. How-

ever, this matter still requires further investigation and

empirically-based experiments.

3 EXPERIMENT

This section describes an empirical study that com-

pares object-oriented metrics for original Java classes

and their corresponding refactored versions. A set

containing 145 Java web projects with more than 500

revisions was collected

from gitHub using a domain-

speciﬁc language and infrastructure for mining soft-

ware repositories called BOA (Dyer et al., 2013).

These projects were analyzed to identify representa-

tive classes and assess the approximate complexity

of those found in real projects from industry. Stu-

dent Success Plan

(SSP) was the application chosen

on the basis of these criteria. The experiment sought

to determine if the refactoring guided by a cognitive

complexity constraint suggested by CDD, yielded re-

sults in code of a higher quality than that produced

when only conventional refactoring practices were

employed without a limit. This involved carrying out

a static code analysis through object-oriented metrics

that were applicable to all versions.

3.1 Planning

The experiment was planned following the guidelines

of the Goal Question Metric (GQM) (Van Solingen

et al., 2002) model for deﬁning the goals and evalua-

tion methods. The principles formulated by Wohlin et

al. (Wohlin et al., 2012) were adopted for the experi-

mentation process. The characterization of this study

can be formally summarized as follows:

Analyzing resulting pieces of code from refactorings

with conventional methods and CDD’s principles

with the aim of comparing their quality through

object-oriented metrics, regarding the complexity

reduction from the standpoint of software engineers

in the context of industry.

The questions addressed, formulated hypotheses, and

objectives for the experimental study are described in

detail as follows.

: Is There a Difference in Terms of Quality

Metrics for Refactorings Conducted with a Strat-

egy Based on CDD and Conventional Methods?

To answer this question, all the resulting refactorings

were evaluated with the aid of a tool for static analysis

to collect values for object-oriented metrics.

http://boa.cs.iastate.edu/boa/?q=boa/job/public/91048

https://github.com/Jasig/SSP.git

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

: Is Productivity Different When a Strategy is

Adopted based on CDD and Conventional Prac-

tices for Refactorings? When addressing this ques-

tion, we gathered and assessed the time spent to make

the refactorings. The time spent includes all the stages

involved in the refactoring activity from the code

analysis to identify the potential candidate structures

until the compilation process.

It should be noted that the single difference when

using CDD here is determining the ICPs and impos-

ing a feasible limit to guide the refactorings. We sug-

gested a strategy for the subjects to deﬁne this limit

and proceed with the refactorings. First, it was de-

cided to calculate the number of ICPs by looking at

the refactoring target. Second, an attempt was made

to face the growing number of challenges, such as re-

ducing the number of ICPs by 10%, 30%, and even

50% in a class under refactoring. Finally, the subjects

were able of obtaining a refactoring cluster keeping

the implementation units at a balanced level of com-

plexity.

The planning phase was divided into six parts

which are described in the next subsections.

3.1.1 Context Selection

The experiment was conducted involving full and se-

nior developers from the same company and it was

performed in a controlled way.

3.1.2 Formulation of the Hypothesis

The RQ

was formalized into two hypotheses. Null

hypothesis (H

): There is no difference between the

conventional refactoring practices and the use of CDD

based refactoring, given the quality metrics adopted in

this study.

Alternative Hypothesis (H

): There is a difference

between conventional refactoring methods and the

use of a strategy based on CDD, from the perspective

of the quality metrics employed. These hypotheses

can be formalized by Equations 1 and 2:

: (µConventional

metrics

= µCDD

metrics

)

(1)

: (µConventional

metrics

6= µCDD

metrics

)

(2)

Similarly, the RQ

was also formalized into two

hypotheses. Null hypothesis (H

): There is no sig-

niﬁcant difference between the productivity of the de-

velopers when account is taken of the time spent for

refactorings with conventional practices and a strat-

egy based on CDD, since they are equivalent. Al-

ternative hypothesis (H

): There is a difference be-

tween the time spent on refactorings when conven-

tional practices are employed and a strategy based on

CDD. The hypotheses for the RQ2 can be formalized

by Equations 3 and 4:

: (µConventional

time

= µCDD

time

)

(3)

: (µConventional

time

6= µCDD

time

)

(4)

3.1.3 Variable Selection

The dependent variables are: “the values from static

analysis for object-oriented metrics (CBO, WMC,

RFC, LCOM and LOC)” and “time spent refactor-

ing the provided classes”. CBO (Coupling between

objects): this counts the number of dependencies for

a certain class, such as ﬁeld declaration, method re-

turn types, variable declarations, etc. For this experi-

ment, dependencies to Java itself were ignored. WMC

(Weight Method Class), so-called McCabe’s complex-

ity (McCabe, 1976), this counts the number of branch

instructions in a class. RFC (Response for a Class)

counts the number of unique method invocations in a

class. LCOM (Lack of Cohesion of Methods) calcu-

lates the LCOM metric. Finally, LOC (Lines of code)

counts the lines of code, when ignoring empty lines

and comments. Note that these metrics were selected

because they are considered important for the com-

pany.

The independent variables is the SSP, in partic-

ular the candidate classes to be refactored in the

experiment: The subjects were asked to refactor two

components from the given application. The main dif-

ferences between these features are their complexity

and each subject should only apply one method, i.e.,

either conventional practices or CDD for refactorings.

3.1.4 Selection of Subjects

The subjects were selected according to convenience

sampling (Wohlin et al., 2012). Eighteen software en-

gineers who took part in the experiment were work-

ing on the development of web projects and they had

a degree of knowledge of the Java language.

3.1.5 Experimental Design

The experimental principle of assembling subjects

in homogeneous blocks (Wohlin et al., 2012) was

adopted to increase the accuracy of this experiment.

We looked for ways to mitigate interference from the

experience of the subjects in the treatment outcomes.

Two pilot experiments were carried out with a re-

stricted number of subjects. It should be noted that

they were not included in the real experiment and the

gathered data were useful to select proper classes for

refactorings and enable the groups to be rearranged

for the real experiment.

Cognitive-Driven Development: Preliminary Results on Software Refactorings

When separating the subjects into balanced

groups, we ﬁrst asked them to ﬁll out a Categorization

Form with questions about their experience in areas

related to the experiment, i.e., it was a self-evaluation.

Based on data that was obtained, we divided them

into two blocks: one with eight subjects and another

with ten subjects. The ﬁrst group had to apply con-

ventional practices to improve the readability of the

provided classes, while the second group attended a

planned training session designed for employing the

CDD principles for refactorings.

The Categorization Form included questions re-

garding knowledge about: (i) Object-oriented pro-

gramming, Java, the number of books read about

software development (e.g., Java, Clean Code, Clean

Architecture, Domain-Driven Design, etc.), number

of real (corporate) projects with active participation,

number of projects for “training and learning”, i.e.,

personal projects aimed at improving technical skills;

(ii) software metrics known to them and that can even-

tually be used to improve code cohesion and the sepa-

ration of responsibilities; (iii) practices for software

refactorings; (iv) practices usually adopted to min-

imally understand a legacy project and start imple-

menting new features; (v) programming practices and

code design; Finally, (vi) testing activities and tools.

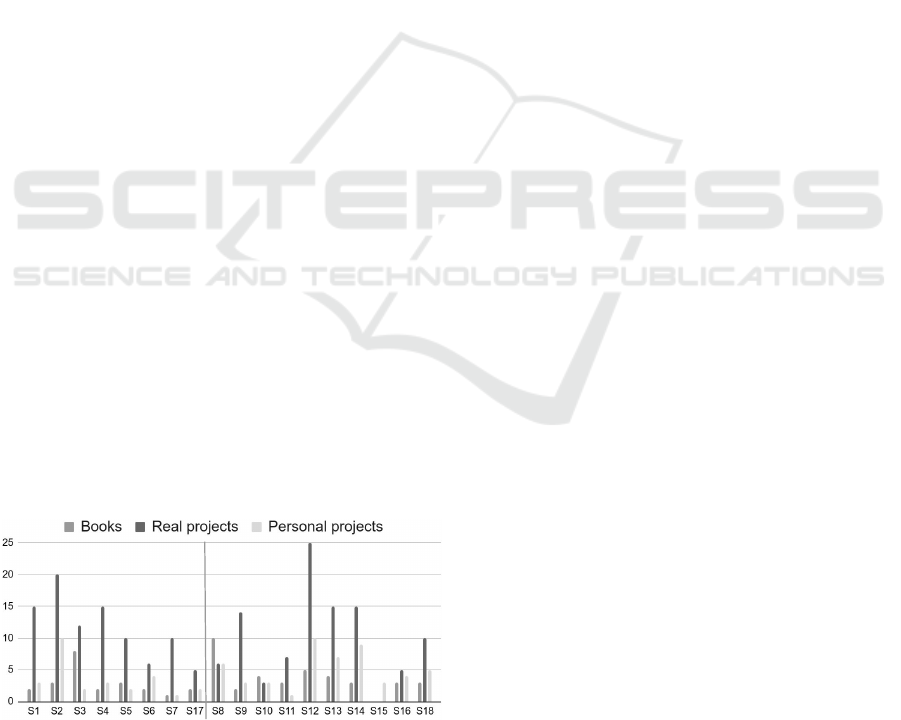

Figure 1 describes the results of the application of

this form in a grouped bar chart, that only takes ac-

count of numeric values (number of books, real and

personal projects) for each subject. The main reason

to use these elements is that the “time experience” is

a relative measurement. For instance, it is likely that

a programmer with little time for development but

who has attended a higher number of projects can per-

form better than a person with more time experience

and attended a low number of projects. The subjects

“S1-S7;S17” belong to the group that are deﬁned as

adopting conventional practices without a complexity

constraint and the subjects “S8-S16;S18”, CDD for

refactorings.

Figure 1: Gathered data with the Categorization Form.

Additional information was obtained to deﬁne this

separation which can be described as follows, includ-

ing corresponding percentages of answers.

With regard to software metrics, we asked the

participants which one they use to generate code

thinking about readability, cohesion and separation of

concerns. The choices/answers (not limited) where

as follows: Fan-in/Fan-out (5.5%), Cyclomatic Com-

plexity (50%), KLOC (11%), Number of root classes

(0 %), Coupling between objects (72 %), Lack of co-

hesion in methods (27 %), Class size (67 %), Cou-

pling factor (16 %) or Software Maturity Index (SMI)

value (0%).

As regards the practices involved in software

refactoring, most subjects underlined the importance

of following principles from: Clean Code, Clean Ar-

chitecture, SOLID, Design patterns, Complexity anal-

ysis, identifying classes or methods overloaded with

various tasks, DDD for deﬁning domains and sepa-

rating concerns more clearly. Another question was

targeted at the practices to minimally understand a

legacy project for including new features or chang-

ing any one available. In most cases, the strategies

were related to searching for data entry points from

the user’s perspective and from there, tracing the exe-

cution ﬂows or conducting debugging and analysis of

automated tests.

With regard to programming practices, the op-

tions/answers (not limited) were as follows: Clean

Architecture (55 %), SOLID (83 %), DDD (55 %),

TDD (33 %), Conventional practices for code cohe-

sion (33%) and other practices (5 %). Finally, for

testing techniques and tools they were as follows:

functional testing techniques (72 %), structural test-

ing techniques (39 %), defect-based testing (mutation

testing) (0 %) and ad hoc testing (non-systematic test-

ing) (56 %). For tools, JUnit (89 %), Mockito (78

%), Cucumber (11 %), Selenium (5.5 %), Jest (15 %),

Mocha (0 %), REST Assured (28 %) and pitest (0 %).

3.1.6 Instrumentation

A document was provided to the subjects that de-

scribed constraints and guidelines to assist them in

both the refactoring and the data submission process,

as follows:

• The package structure had to be kept and they

could not create new packages;

• Automated tests must be kept working completely

without any changes;

• Public, protected or package-private methods

could not be removed from the original classes.

With regard to the guidelines, our suggestion was to

clone the SSP repository from gitHub and import it

into IDEs. The classes chosen for refactorings were

JournalEntryServiceImpl and EarlyAlertServiceImpl

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

taking into account our cognitive complexity criteria,

i.e., a considerable amount of ICPs compared with

classes in real-world projects. After the refactorings,

the subjects were requested to submit the URLs of

their remote repositories, together with the time spent

and their perceptions about the experiment, using a

web form.

3.2 Operation

Once the experiment had been deﬁned and planned, it

was undertaken through the following stages: prepa-

ration, operation and validation of the collected data.

3.2.1 Preparation

At this stage, the subjects were committed to carry-

ing out the experiment and they were made aware its

purpose. They accepted the conﬁdentiality terms re-

garding the provided data, which would be only used

for research purposes, and were granted their freedom

to withdraw, by signing a Consent Form. In addition,

other objects were provided:

• Characterization Form: A questionnaire in which

the subjects assessed their knowledge of the tech-

nologies and concepts used in the experiment;

• Instructions: A document describing all the

stages, including the instructions about the SSP

and classes chosen for refactoring;

• Data Collection Form: Document to be ﬁlled in

by the participants to record the start and ﬁnishing

time of each activity during the experiment.

The platform adopted had Java as its implementation

language and Eclipse or IntelliJ IDEA as development

environments. The group that would use CDD re-

ceived 1 hour training in a web meeting format. A

class from a real-world project was selected to illus-

trate the identiﬁcation process of ICPs. The CDD fun-

damentals were explained by highlighting the impor-

tance of deﬁning a cognitive complexity constraint to

guide the refactorings (Souza and Pinto, 2020). Com-

plementary materials were provided and a web chat

was created for settling doubts before the experiment,

which lasted one week.

3.3 Data Analysis

This section examines our ﬁndings. The analysis is

divided into two areas: (i) descriptive statistics and

(ii) hypotheses testing.

3.3.1 Descriptive Statistics

The quality of the input data (Wohlin et al., 2012)

was veriﬁed before the statistical methods were ap-

plied. There is a risk that incorrect data sets can be

obtained as the result of some error or the presence of

outliers, which are data values much higher or much

lower than the remaining data.

The metrics adopted in this study have different

scales and when taking note of the “refactoring clus-

ters” we decided to be conservative and analyze all

the gathered data, in an individual way per metric.

Refactoring clusters can be understood as a) the set

of changes produced during refactoring; b) as new

classes or c) interfaces, including the implementation

units provided by the SSP project that were modiﬁed.

When clarifying descriptive statistics and mak-

ing comparisons, it is important to keep certain val-

ues in mind. The following values were obtained for

the original version of the Class JournalEntryServi-

ceImpl: CBO=23; WMC=20; RFC=27; LCOM=15

and LOC=82. Similarly, EarlyAlertServiceImpl,

CBO=70; WMC=136; RFC=161; LCOM=136 and

LOC=560, respectively.

Averages were calculated for each refactoring

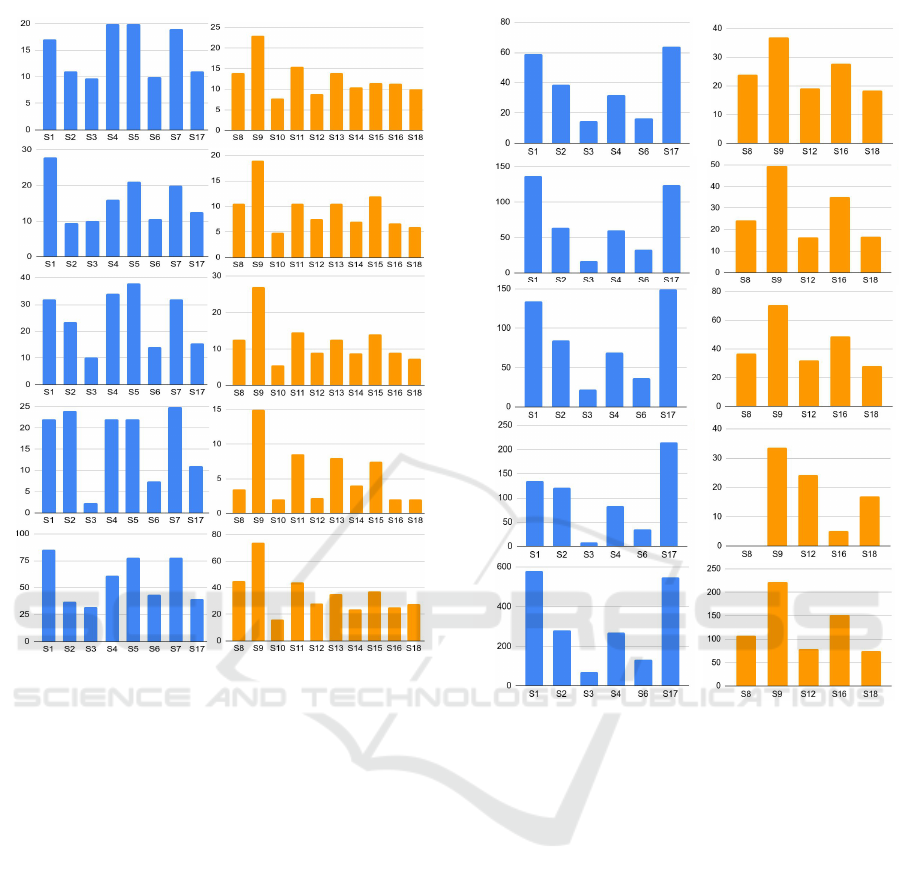

cluster per subject. Figures 2 and 3 include

these kinds of data for JournalEntryServiceImpl and

EarlyAlertServiceImpl refactoring clusters, respec-

tively. The reason why there is a difference between

the number of subjects that attended both refactorings

is that not all the subjects ﬁnished the activities dur-

ing the time of four hours and thirty minutes. With

regard to the averages, the clusters that were gen-

erated following the cognitive complexity constraint

(just called CDD) tend to keep more balanced and

lower levels for the metrics than refactorings without

this restriction.

Although it is not possible to have a conclusive re-

sult when analyzing these values, we believe that the

adoption of a quality criterion based on understand-

ing can generate code with better modularity levels.

For instance, in Figure 2 the gathered data when CDD

was followed the RFC was kept between 10 and 20,

in most cases; LCOM 5 and 10; and LOC, 20 and 40

on average. As regards the same metrics when con-

ventional practices were applied without a complex-

ity constraint, it should be noted that the limits had

higher values in the intervals than was the case with

the aforementioned data.

Figure 4 displays box plots for each metric per

samples. The box plots are “A-E” for JournalEntry-

ServiceImpl and “F-J” EarlyAlertServiceImpl, CBO,

WMC RFC, LCOM and LOC, respectively. Note that

each interior of a box plot refers to a speciﬁc sample,

Cognitive-Driven Development: Preliminary Results on Software Refactorings

Conventional

CDD

CBOWMCRFCLCOMLOC

Figure 2: JournalEntryServiceImpl refactoring clusters.

“Conventional”, where the subjects strictly used the

conventional practices for refactoring or “CDD”, us-

ing the same practices but guided by a cognitive com-

plexity constraint.

In addition, Table 1 shows the types of refactor-

ing detected using Refactoring Miner (Tsantalis et al.,

2018), an API that can detect types of refactorings

applied in the history of a Java project. As a result,

24 different types of refactorings were identiﬁed that

took account of all the changes brought about in this

study. This graph is useful to observe that the sub-

jects (S8-S16;S18) that followed a complexity con-

straint were implicitly guided to explore more types

of refactorings than the remaining developers.

Figure 5 shows two box plots based on the time

spent by all the subjects (grouped by Time (min)).

The boxes inside each graph refer to speciﬁc samples,

Conventional and CDD. In case of JournalEntrySer-

viceImpl: (A) the average time spent using CDD was

higher in the sample where the subjects were worried

about the cognitive complexity constraint, which is

likely to be the main reason for this difference. As

regards the EarlyAlertServiceImpl (B), some subjects

were guided by a constraint for separating the respon-

Conventional

CDD

CBO

WMCRFCLCOMLOC

Figure 3: EarlyAlertServiceImpl refactoring clusters.

sibilities into more implementation units, but the re-

maining subjects that also adopted this constraint only

kept their focus on the target class, indicated in the

experiment, which meant, they spent less time com-

pleting their activities. As a result, the interquartile

range represented by box plot (B) was higher than the

ﬁrst box plot (A).

3.3.2 Hypotheses Testing

Hypothesis Testing - Metrics: Since some statistical

tests only apply if the population follows a normal

distribution, before choosing a statistical test we ex-

amined whether our gathered data departed from lin-

earity. This involved conducting the Shapiro-Wilk

normality test to check if the samples had a normal

(ND) or non-normal distribution (NND).

Table 2 shows the results of testing for normality

for all the samples, i.e., for JournalEntryServiceImpl

and EarlyAlertServiceImpl refactorings clusters, re-

spectively. The results refer to the analysis for each

metric, including the corresponding samples. For in-

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

CBO - Conv. CBO - CDD WMC - Conv. WMC - CDD

RFC - Conv. RFC - CDD LCOM - Conv. LCOM - CDD LOC - Conv. LOC - CDD

CBO - Conv. CBO - CDD WMC - Conv. WMC - CDD

RFC - Conv. RFC - CDD LCOM - Conv. LCOM - CDD LOC - Conv. LOC - CDD

Figure 4: Box plots for JournalEntryServiceImpl (A-E) and EarlyAlertServiceImpl (F-J) refactoring clusters.

Table 1: Types of refactorings detected by Refactoring Miner considering all changes.

Extract Method

Inline Method

Rename Method

Move Method

Move Attribute

Rename Class

Extract and Move Method

Extract Class

Extract Variable

Parameterize Variable

Rename Parameter

Rename Attribute

Replace Variable with Attribute

Change Variable Type

Change Parameter Type

Change Return Type

Change Attribute Type

Move and Rename Method

Add Method Annotation

Remove Method Annotation

Remove Attribute Annotation

Remove Parameter Annotation

Add Parameter

Remove Parameter

Conv.

S1 2 3 20

S2 4 4 1 1

S3 4 19 3 3

S4 3 1 20

S6 2 2 1

S17 5 1 2 1 20 1

CDD

S8 7 13 2 4 1

S9 10 3 1 3 2

S10 2 1 1

S11 6 10 4 1

S12 1 1 2 7 1 4 1 3 1

S13 3 6 1 1 1 1

S14 1 1 1 1 1

S15 1

S16 3 6 5 3

S18 3 11 2 6 2 1 2 1 3 2

Time (min) Conv. Time (min) CDD

A B

Time (min) Conv. Time (min) CDD

Figure 5: Box plots for the time spent by the subjects when

refactoring JournalEntryServiceImpl (A) and EarlyAlert-

ServiceImpl (B).

stance, taking into account the CBO metric from the

“CDD” sample, we do not reject the hypothesis that

the data are from a normally distributed population,

although the “Conventional” sample follows a non-

normal distribution. Variance testing was performed

for WMC and LOC and took note of the JournalEntry-

ServiceImpl refactoring clusters and CBO for the sam-

ples related to the EarlyAlertServiceImpl. In the case

of these metrics, the p-values were 0.1841, 0.4392

and 0.6918 (based on α = 0.05, respectively).

Unpaired Two-Samples T-test (or unpaired t-test)

can be used to compare the means of two unrelated

groups of samples. This kind of statistical testing was

conducted for WMC and LOC by taking note of the

JournalEntryServiceImpl refactoring clusters and the

p-values were 0.02109 and 0.02993. Therefore, with

degrees of freedom being d f = 16, it is possible to

reject the null hypothesis for these metrics. However,

there is no considerable difference between the mean

averages for CBO of the EarlyAlertServiceImpl refac-

Cognitive-Driven Development: Preliminary Results on Software Refactorings

Table 2: Shapiro-Wilk normality tests for JournalEntrySer-

viceImpl and EarlyAlertServiceImpl refactoring clusters.

JournalEntryServiceImpl

Metric Samples Results

CBO

Conventional p-value = 0.03153 NND

CDD p-value = 0.1042

WMC

Conventional p-value = 0.256 ND

CDD p-value = 0.09061

RFC

Conventional p-value = 0.2886

CDD p-value = 0.02513 NND

LCOM

Conventional p-value = 0.04899

CDD p-value = 0.02381 NND

LOC

Conventional p-value = 0.1484 ND

CDD p-value = 0.1191

EarlyAlertServiceImpl

CBO

Conventional p-value = 0.4334 ND

CDD p-value = 0.07191

WMC

Conventional p-value = 0.4435

CDD p-value = 0.0196 NND

RFC

Conventional p-value = 0.6283

CDD p-value = 0.02769 NND

LCOM

Conventional p-value = 0.9084

CDD p-value = 0.001319 NND

LOC

Conventional p-value = 0.3581

CDD p-value = 0.01908 NND

toring clusters.

The Mann-Whitney U Test is a nonparametric test

that can be used when one of the samples does not

follow a normal distribution. We applied this kind

of testing for CBO, RFC and LCOM taking account

the JournalEntryServiceImpl refactoring clusters. As

a result, the p-values were 0.4763, 0.007561 and

0.009632, respectively. Therefore, it is impossible to

reject the null hypothesis for CBO, even though in

the case of RFC and LCOM the null hypothesis can

be rejected. As regards the WMC, RFC, LCOM and

LOC for EarlyAlertServiceImpl, the p-values were as

follows: 0.2615, 0.6304, 0.1488 and 0.3358, which

means, it is not possible to reject the null hypothesis

for these samples.

Summarizing the results, when comparing the

samples for the JournalEntryServiceImpl refactoring

clusters, we can conclude that there was no statisti-

cal difference for CBO, although there was for the re-

maining metrics WMC, LCOM, LOC and RFC, i.e.,

the use of a cognitive complexity constraint was use-

ful for the reduction of the code complexity. How-

ever, for EarlyAlertServiceImpl refactoring clusters,

we concluded that there was no statistically signiﬁ-

cant difference between the observed samples. This

can still be a highly signiﬁcant result if there is a

reduction of intrinsic complexity points for the code

generated following a complexity constraint.

Hypothesis Testing - Time: Similarly, we applied sta-

tistical tests to evaluate the time spent on refactor-

ing activities. According to the normality tests, we

cannot reject the hypothesis that all the time sam-

ples have a normal distribution, p-value = 0.2384

and 0.4711 for JournalEntryServiceImpl; 0.3306 and

0.1099 for EarlyAlertServiceImpl refactoring clusters

with and without the suggested complexity constraint,

respectively. With regard to the variance testing,

we obtained p-value = 0.3601 for JournalEntrySer-

viceImpl and 0.1451 for EarlyAlertServiceImpl. Fi-

nally, Two sample t testing returned p-value = 0.7761

and 0.4338. Therefore, it is not possible to reject the

null hypothesis for the time spent between the sam-

ples, i.e., the productivity in terms of time was not

affected by employing a complexity constraint.

3.4 Threats to Validity

Internal Validity. Level of Experience of Subjects:

One can argue that the heterogeneous knowledge of

the subjects could have affected the collected data.

To overcome this threat, the participants were divided

into two-balanced blocks that took account of their

level of experience.

During the training, the subjects that had to apply

the cognitive complexity constraint attended a train-

ing session on how to use this limit to guide the refac-

toring process. Thus, they adopted conventional prac-

tices to restructure the code like the other group but

following such limit;

Productivity under Evaluation: the results may have

been affected because the subjects often tend to think

they are being evaluated during an experiment. We

attempted to overcome this problem by explaining to

the subjects that no one was being evaluated and their

participation would be treated as anonymous;

Validity by Construction. Hypothesis Expectations:

the subjects already knew the researchers, a point

which is reﬂected in one of our hypotheses. This issue

could have affected the collected data and caused the

experiment to be less impartial. Impartiality was kept

by insisting that the participants had to keep a steady

pace during the whole of the study.

External Validity. Interaction between Conﬁgura-

tion and Treatment: it is possible that the exercises

carried out in the experiment are not accurate for ev-

ery Java web application. To mitigate this threat, an

open-source application was selected based on the

real-world criterion, i.e., the complexity of the appli-

cations and the fact that the researchers have contact

with real-world projects of the company.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

100

Conclusion Validity. Measure Reliability: this refers

to the metrics used to measure the refactoring effort.

To mitigate this threat we only made use of the time

spent, which was captured in forms ﬁlled in by the

subjects;

Low Statistical Power: the ability of a statistical test is

to reveal reliable data. Unpaired Two-Samples T-test

and Mann-Whitney U Test were adopted to statisti-

cally analyze the metrics for all the refactoring clus-

ters and the time spent during the restructuring pro-

cess.

4 RELATED WORK

Duran et al. (Duran et al., 2018) established a frame-

work for the Cognitive Complexity of Computer Pro-

grams (CCCP) that describes programs in terms of the

demands they place on human cognition. CCCP is

based on a model that recognizes factors when we are

mentally manipulating a program. The contribution

made by this work is to concentrate on the cognitive

complexity present in program designs rather than on

how the source code could be developed or restruc-

tured from this perspective, as suggested by CDD.

Gonc¸ales et al. (Gonc¸ales et al., 2019) provided

a classiﬁcation of cognitive loads in software engi-

neering. Recent advances have been made in the ar-

eas of the programming tasks, machine learning tech-

niques to identify a programmer’s level of difﬁculty

and their code-level comprehensibility. CDD can be

regarded as a complementary design scheme for tack-

ling the increase in cognitive complexity regardless of

the software size.

Cognitive Complexity is a signiﬁcant metric to as-

sess code understandability. According to the system-

atic literature review conducted by Mu

noz Bar

on et

al. (Mu

noz Bar

on et al., 2020) the Cognitive Com-

plexity positively correlates with comprehension time

and the subjective ratings of understandability. This

underlines the importance of an intrinsic complexity

constraint for the implementation units.

5 CONCLUSION

The human factor imposes several challenges in soft-

ware development. For instance, the developers’

varying level of experience or involvement in team

restructuring during the software process, can affect

software estimates and quality. As writing and main-

taining code are human processes, the priority is not

only to solve business problems, but also to write code

that other people can understand.

However, complex objects without a clear deﬁ-

nition of class roles are still being produced and re-

side in ﬁnal releases, even when developers widely

familiar with certain programming language and de-

velopment stacks. Cognitive Load Theory is a frame-

work for investigating the effects of human cogni-

tion on task performance and learning (Sweller, 1988;

Sweller, 2010). Cognition is constrained by a bottle-

neck created by working memory, in which we hu-

mans can only hold a handful of elements at a time for

active processing; to the best of our knowledge, the

cognitive complexity constraint has not been applied

previously to guide software development. Thus, we

proposed a method called Cognitive-driven develop-

ment (CDD) in which a pre-deﬁned cognitive com-

plexity for application code can be used to limit the

number of intrinsic complexity points and tackling the

growing problem of software complexity, by reducing

the cognitive overload.

The main focus of this work was to assess the ef-

fects of adopting a complexity constraint on refactor-

ings and on the productivity of developers. Although

we do not have conclusive results, refactorings using

conventional practices guided by a complexity limit

were better evaluated when they were compared with

the refactoring clusters generated without this kind

of constraint. The main ﬁndings of our experiment

showed that, in terms of productivity, there was no

statistically signiﬁcant difference between samples of

time spent on refactorings, with or without complex-

ity constraint. A package containing the tools, mate-

rials and more details about the experimental stages is

available at http://bit.ly/3mElnp5.

As future investigations, we intend to explore the

following factors: (i) deﬁning an automated refactor-

ing strategy by means of search-based refactoring and

cognitive complexity constraints and (ii) carrying out

new empirical-based studies in an industrial context

to evaluate restructured projects with CDD principles,

by exploring the number of faults and understanding

development in the medium and long term.

REFERENCES

Abid, C., Kessentini, M., Alizadeh, V., Dhouadi, M., and

Kazman, R. (2020). How does refactoring impact

security when improving quality? a security-aware

refactoring approach. IEEE Transactions on Software

Engineering.

Alomar, E. A. (2019). Towards better understanding de-

veloper perception of refactoring. In 2019 IEEE In-

ternational Conference on Software Maintenance and

Evolution (ICSME), pages 624–628. IEEE.

AlOmar, E. A., Mkaouer, M. W., Ouni, A., and Kessentini,

Cognitive-Driven Development: Preliminary Results on Software Refactorings

101

M. (2019). On the impact of refactoring on the re-

lationship between quality attributes and design met-

rics. In 2019 ACM/IEEE International Symposium

on Empirical Software Engineering and Measurement

(ESEM), pages 1–11. IEEE.

Alshayeb, M. (2009). Empirical investigation of refactoring

effect on software quality. Information and software

technology, 51(9):1319–1326.

Baqais, A. A. B. and Alshayeb, M. (2020). Automatic soft-

ware refactoring: a systematic literature review. Soft-

ware Quality Journal, 28(2):459–502.

Briggs, R. O. and Nunamaker, J. F. (2020). The growing

complexity of enterprise software.

Chandler, P. and Sweller, J. (1991). Cognitive load theory

and the format of instruction. Cognition and instruc-

tion, 8(4):293–332.

Clarke, P., O’Connor, R. V., and Leavy, B. (2016). A com-

plexity theory viewpoint on the software development

process and situational context. In Proceedings of

the International Conference on Software and Systems

Process, pages 86–90.

Cockburn, A. (2005). Hexagonal architecture. https://

alistair.cockburn.us/hexagonal-architecture/. [Online;

accessed 2 August 2020].

Duran, R., Sorva, J., and Leite, S. (2018). Towards an anal-

ysis of program complexity from a cognitive perspec-

tive. In Proceedings of the 2018 ACM Conference on

International Computing Education Research, pages

21–30.

Dyer, R., Nguyen, H. A., Rajan, H., and Nguyen, T. N.

(2013). Boa: A language and infrastructure for ana-

lyzing ultra-large-scale software repositories. In 2013

35th International Conference on Software Engineer-

ing (ICSE), pages 422–431. IEEE.

Evans, E. (2004). Domain-driven design: tackling complex-

ity in the heart of software. Addison-Wesley Profes-

sional.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: improving the design of ex-

isting code, ser. In Addison Wesley object technology

series. Addison-Wesley.

Gonc¸ales, L., Farias, K., da Silva, B., and Fessler, J. (2019).

Measuring the cognitive load of software developers:

a systematic mapping study. In 2019 IEEE/ACM 27th

International Conference on Program Comprehension

(ICPC), pages 42–52. IEEE.

Kabbur, P. K., Mani, V., and Schuelein, J. (2020). Prioritiz-

ing trust in a globally distributed software engineer-

ing team to overcome complexity and make releases a

non-event. In Proceedings of the 15th International

Conference on Global Software Engineering, pages

66–70.

Kataoka, Y., Imai, T., Andou, H., and Fukaya, T. (2002).

A quantitative evaluation of maintainability enhance-

ment by refactoring. In International Conference

on Software Maintenance, 2002. Proceedings., pages

576–585. IEEE.

Martin, R. C. (2000). Design principles and design patterns.

Object Mentor, 1(34):597.

Martin, R. C. (2018). Clean architecture: a craftsman’s

guide to software structure and design. Prentice Hall.

McCabe, T. J. (1976). A complexity measure. IEEE Trans-

actions on software Engineering, (4):308–320.

Miller, G. A. (1956). The magical number seven, plus or

minus two: Some limits on our capacity for processing

information. Psychological review, 63(2):81.

Misra, S., Adewumi, A., Fernandez-Sanz, L., and Damase-

vicius, R. (2018). A suite of object oriented cognitive

complexity metrics. IEEE Access, 6:8782–8796.

noz Bar

on, M., Wyrich, M., and Wagner, S. (2020). An

empirical validation of cognitive complexity as a mea-

sure of source code understandability. In Proceed-

ings of the 14th ACM/IEEE International Symposium

on Empirical Software Engineering and Measurement

(ESEM), pages 1–12.

Pawade, D., Dave, D. J., and Kamath, A. (2016). Explor-

ing software complexity metric from procedure ori-

ented to object oriented. In 2016 6th International

Conference-Cloud System and Big Data Engineering

(Conﬂuence), pages 630–634. IEEE.

Pirsig, R. M. (1999). Zen and the art of motorcycle mainte-

nance: An inquiry into values. Random House.

Shao, J. and Wang, Y. (2003). A new measure of soft-

ware complexity based on cognitive weights. Cana-

dian Journal of Electrical and Computer Engineering,

28(2):69–74.

Shepperd, M. (1988). A critique of cyclomatic complexity

as a software metric. Software Engineering Journal,

3(2):30–36.

Souza, A. L. O. T. d. and Pinto, V. H. S. C. (2020). Toward

a deﬁnition of cognitive-driven development. In Pro-

ceedings of 36th IEEE International Conference on

Software Maintenance and Evolution (ICSME), pages

776–778.

Sweller, J. (1988). Cognitive load during problem solving:

Effects on learning. Cognitive science, 12(2):257–

285.

Sweller, J. (2010). Cognitive load theory: Recent theoreti-

cal advances.

Tsantalis, N., Mansouri, M., Eshkevari, L. M., Mazinanian,

D., and Dig, D. (2018). Accurate and efﬁcient refac-

toring detection in commit history. In Proceedings of

the 40th International Conference on Software Engi-

neering, ICSE ’18, pages 483–494, New York, NY,

USA. ACM.

Van Solingen, R., Basili, V., Caldiera, G., and Rombach,

H. D. (2002). Goal question metric (gqm) approach.

Encyclopedia of software engineering.

Weyuker, E. J. (1988). Evaluating software complexity

measures. IEEE transactions on Software Engineer-

ing, 14(9):1357–1365.

Wohlin, C., Runeson, P., H

ost, M., Ohlsson, M. C., Reg-

nell, B., and Wessl

en, A. (2012). Experimentation in

Software Engineering. Springer Berlin Heidelberg.

Zuse, H. (2019). Software complexity: measures and meth-

ods, volume 4. Walter de Gruyter GmbH & Co KG.

ENASE 2021 - 16th International Conference on Evaluation of Novel Approaches to Software Engineering

102
