Specialized Network Self-conﬁguration: An Approach using

Self-Organizing Networks Architecture (SONAr)

Daniel Ricardo Cunha Oliveira

, Maur

ıcio Amaral Gonc¸alves

, Natal Vieira de Souza Neto

avio de Oliveira Silva

and Pedro Frosi Rosa

Faculty of Computing, Federal University of Uberl

andia, Uberl

andia, Brazil

Keywords:

Self-management, Self-conﬁguration, Self-Organizing Networks, SDN, NFV, Cloud Computing.

Abstract:

The increasing complexity of computer networks is constantly requiring the proposal of new network au-

tomation models. These are mostly based on Software-Deﬁned Networks (SDN) and Network Functions

Virtualization (NFV) with implementation of the features called self-* within the concept of Self-Organizing

Networks (SON), which includes self-conﬁguration. Regarding this matter, some models have already been

proposed at a higher level of deﬁnition, but there is still a lot of practical work to be done. In this paper, we

present the modeling, implementation and performance of a network self-conﬁguration system when a new

edge element, which demands a specialized type of conﬁguration, has been inserted. This is a typical case

of a telecom network, in which edge network elements (NEs) usually require a very speciﬁc set of network

parameters to be conﬁgured. The system recognizes the element and implements this speciﬁc network seg-

ment parameterization, acting as a specialized ”plug-and-play” feature. The approach will be based on the

Self-Organized Networks Architecture (SONAr) framework, which was very suitable for this functionality.

1 INTRODUCTION

If there is an unquestionable fact in the recent his-

tory of technology, it is the fast growth of applica-

tions and the densiﬁcation of devices connected to

the Internet, especially if we take into account ac-

cess on mobile devices. This growth tends to remain

at exponential levels, especially with technological

adventures such as 8K ultra-resolution TV, new vir-

tual/augmented reality devices, cloud gaming, mas-

sive Internet of Things (IoT) and other applications

that new access technologies, e.g. 5G, will support.

All this evolution brings intrinsic concerns with the

infrastructure that will support all this load.

In 2001, IBM demonstrated an apprehension with

the increase in the complexity of computer net-

works and the respective increase in cost that it im-

plies, in an article that deﬁnes the bases and con-

cepts for autonomic computing, including the con-

cepts of self-* (Ganek and Corbi, 2003), namely self-

https://orcid.org/0000-0003-4767-5518

https://orcid.org/0000-0002-6985-638X

https://orcid.org/0000-0001-5047-4106

https://orcid.org/0000-0001-7051-7396

https://orcid.org/0000-0001-8820-9113

conﬁguration, self-healing, self-protection and self-

optimization, which deﬁnes the basis of “autonomic

computing”.

In this work, we aim at a Self-Organizing Net-

works (SON) implementation focused in the ﬁrst

property, the self-conﬁguration, which was imple-

mented in the context of a more complete frame-

work called Self-Organizing Networks Architecture

(SONAr), which provides the basis for implementing

the self-* functionalities that make up a SON system.

Furthermore, this proposal for a self-conﬁguration

system will focus on network elements that require a

highly specialized network conﬁguration to support

them (rather than the more usual generic network el-

ements), typically edge elements in a telecommuni-

cations network. It will present a model for describ-

ing this specialized conﬁguration and the automated

process to implement it on a network without human

intervention.

2 BACKGROUND

In general, the term SON was popularized in the con-

text of automation of mobile network management,

Oliveira, D., Gonçalves, M., Neto, N., Silva, F. and Rosa, P.

Specialized Network Self-conﬁguration: An Approach using Self-Organizing Networks Architecture (SONAr).

DOI: 10.5220/0010403601610168

In Proceedings of the 11th International Conference on Cloud Computing and Services Science (CLOSER 2021), pages 161-168

ISBN: 978-989-758-510-4

161

having been standardized by 3GPP as a solution for

the administration of the increasing quantity and com-

plexity of network parameters since Release 8 (3GPP,

2018b) (3GPP, 2018a).

The SON properties in mobile networks allow the

minimization of human intervention in certain aspects

of its management. However, SON functionalities

in mobile networks concern the parameterization of

access network conﬁgurations and not extend to net-

work core elements (TELUS and Huawei, 2016).

2.1 SDN and NFV Paradigm

SDN and NFV concepts were born out of the indus-

try requirements to evolve traditional network archi-

tectures into more ﬂexible models that would allow a

greater degree of automation and freedom from ven-

dors. The ﬁrst allows the infrastructure to be ab-

stracted into network applications and services, so

that it can be treated as a logical or virtual entity

(Open Networking Foundation, 2012) and the later

involves the implementation of network functions in

software that can run on a range of industry standard

server hardware (Chiosi et al., 2012).

In this work, it is assumed the adherence of both

paradigms in the target networks.

2.2 Related Work

An approach towards establishing a framework and a

reference architecture for SON combining the SDN

and NFV approaches was made in (Neves et al.,

2016), with the SELFNET project. It proposes high

level SON functions, focusing on self-healing, self-

protection and self-optimization, with more emphasis

on the latter, with self-conﬁguration not being treated.

The article itself does not present practical implemen-

tations or results, however other later publications al-

ready show measured results, especially dealing with

self-optimization (Jiang et al., 2017).

Superﬂuidity is a project within Horizon 2020

program and aims to present a ﬂexible and adaptive

network architecture, focusing mainly on important

aspects for 5G, in a context of NFV and SDN net-

works (Bianchi and et al., 2016). It deﬁnes logical

entities that perform a set of functionalities and the

objective is to obtain a formal and agnostic descrip-

tion of how these entities should work. Nevertheless,

the work does not present any practical implementa-

tion proposal other than the framework itself.

(Katiyar et al., 2015) proposes a self-conﬁguration

mechanism for a new SDN switch inserted in hybrid

SDN and non-SDN networks. The system was imple-

mented and tested in a simple network model, but no

response time or convergence metrics were presented,

and it is also not inserted in a larger context of SON.

Finally, it does not address the self-conﬁguration of

specialized NEs.

To the best of our knowledge, no work with a com-

plete range of the self-* properties – specially with a

particular focus on self-conﬁguration for specialized

elements – has been presented yet.

3 SELF-ORGANIZING

NETWORKS ARCHITECTURE

(SONAr)

A SON system must run on a well-deﬁned archi-

tecture. A practical framework and implementa-

tion was proposed in our previous work (Gonc¸alves

et al., 2020), the Self-Organizing Networks Architec-

ture (SONAr), which was chosen to be the basis for

the specialized self-conﬁguration features presented

in this work.

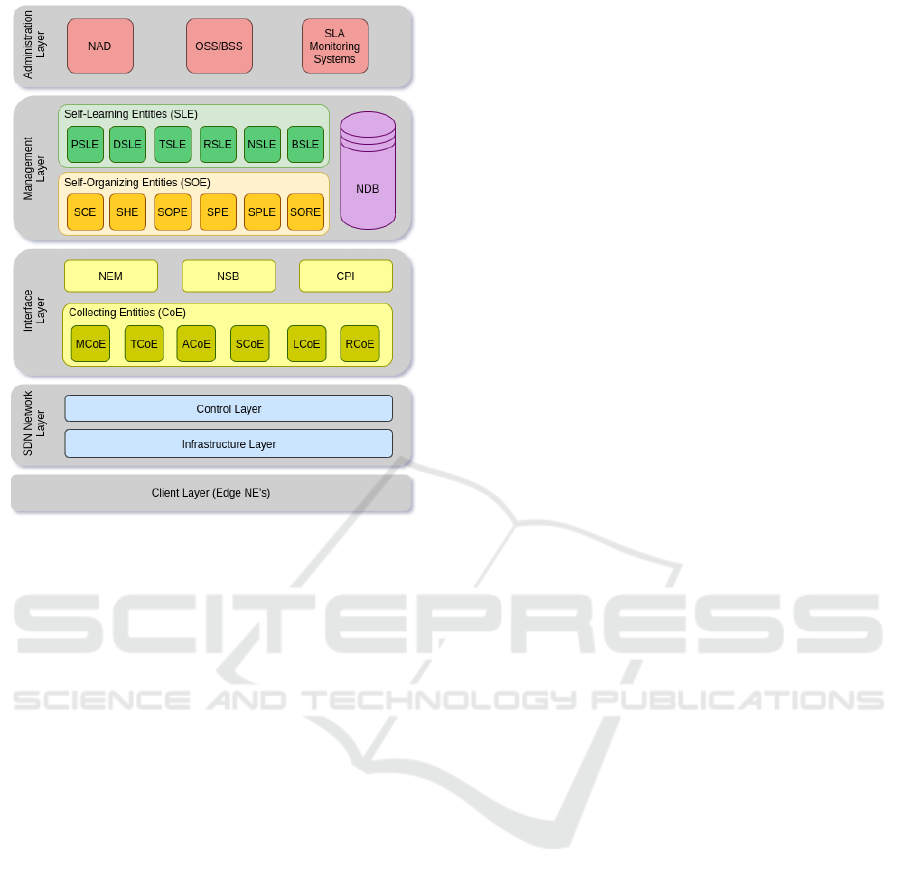

The SONAr framework is shown in the Figure 1.

It consists of ﬁve layers that have speciﬁc functions

and functionalities, which will be described below. In

the next subsections, a brief description of the lay-

ers and components of this framework will be pre-

sented and all component descriptions will be based

on (Gonc¸alves et al., 2020), unless otherwise men-

tioned.

3.1 Client Layer and SDN Network

Layer

In the Client Layer are placed the edge elements that

will be added to the network and that will require an

automatic conﬁguration in order to allow full opera-

tion within it, a process which is the object of study

of this work (specialized self-conﬁguration).

The SDN Network Layer can be logically divided

into two: the lower one represents an infrastructure

sublayer, composed of the network elements them-

selves, e.g. switches, routers and bridges, whether

they are physical or virtual elements , while the up-

per sub-layer, centralizing the control plane, hold the

primary “intelligence” of the network.

3.2 Interface Layer

This layer comprises the Collecting Entities (CoEs)

– composed of several modules that together collect

metrics, topology information, alarms, samples, logs

and results during the network operation – and other

components that will be presented below.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

162

Figure 1: Simpliﬁed layered diagram of the SONAr archi-

tecture.

Network Event Manager (NEM): it is a pub-

lisher/subscriber provider that manages events,

which, in turn, are categorized into topics. Network

Service Broker (NSB): it is used to conﬁgure services

based on intentions expressed in natural or formal lan-

guage by customers or system administrators. Control

Primitives Interceptor (CPI): It is located in the South-

bound Interface (SBI), acting as a proxy between the

network and the controller. It collects a large base of

information related to network management and store

it in the Network Database (NDB).

3.3 Management Layer

The management layer can be divided into two sub-

layers: the ﬁrst integrates the Self-Organizing Entities

(SOE) and the last combines the Self-Learning Enti-

ties (SLE). SOEs are responsible for performing real-

time algorithms related to the fundamentals of auto-

nomic computing. The components of the SOE sub-

layer are as follows.

Self-Conﬁguration Entity (SCE) is the most rel-

evant to this work. It acts in two moments, in the

network bootstrapping process and when a new NE

is plugged into it, in the process called plug-and-play.

The last can be further divided into self-conﬁguration

of general cases and speciﬁc cases applicable to spe-

cialized edge NE (Oliveira et al., 2020), which will be

the investigation topic of this work.

Self-Healing Entity (SHE) implements algorithms

that allow to predict or detect failures in all the ele-

ments shown in the Figure 1, providing solutions for

recovering them. Self-Optimization Entity (SOPE)

aims to intervene in the network in order to maximize

its performance, based on the collected and analyzed

statistics. Self-Protection Entity (SPE) guarantees

the protection of all layers presented in the Figure 1

against internal and external attacks. Self-Planning

Entity (SPLE) organizes, controls and schedules all

actions on the network coming from the other enti-

ties of this layer. Self-Orchestration Entity (SORE)

has the role of receiving all actions from other enti-

ties and organizing them in queues, prioritizing these

actions.

Above the SOE sub-layer is the SLE sub-layer.

The purpose of these components is to provide AI-

based mechanisms to overcome the absence of hu-

man intervention. Finally, the NDB implements the

databases that aggregate all information generated

and stored in SONAr.

3.4 Administration Layer

The Administration Layer makes up the last level of

the SONAr. It implements the Network Adminis-

tration Dashboard (NAD), where network operators

can access SONAr data and administrate the system,

Operations Support System (OSS), Business Support

System (BSS) and Service Level Agreement (SLA)

Monitoring Systems.

4 SPECIALIZED

SELF-CONFIGURATION

MODULE (SSCM)

The purpose of this work is the implementation of

a module within the SCE in the SONAr system, i.e.

Specialized Self-Conﬁguration Module (SSCM).

The goal of SSCM is to allow for a speciﬁc con-

ﬁguration of a segment of a network in response to

the insertion of a new network element that requires

a specialized level of conﬁguration, such as an edge

element that requires speciﬁc network parameteriza-

tion for its functioning. The module must identify

this new NE (typically an edge element with tele-

com functions), check if there are speciﬁc conﬁgura-

tions described for it and, if any, implement them on

the network, acting as a specialized plug-and-play. It

should be ﬂexible for use in any practical cases, that

is, support the conﬁguration for any types of edge el-

ements and all topology settings.

Specialized Network Self-conﬁguration: An Approach using Self-Organizing Networks Architecture (SONAr)

163

4.1 SSCM Domain and Architecture

The applicability of SSCM operation presupposes

that there are two well-deﬁned points for the begin-

ning and ending of the specialized conﬁguration: the

ﬁrst point is the exit interface of the edge network el-

ement itself (edge NE), and the second the exit inter-

face of the element where the network converges, usu-

ally a gateway router or an aggregating switch, where

the conﬁguration process will stop. The ﬁnal desti-

nation elements of the packets sent by the edge ele-

ment can be inside or outside the SONAr domain and

can be one or more, but the edge element itself must

be unique (identiﬁable by its outgoing interface) and

must also be necessarily within the SONAr domain.

Both SONAr and SSCM domains are represented in

the Figure 2.

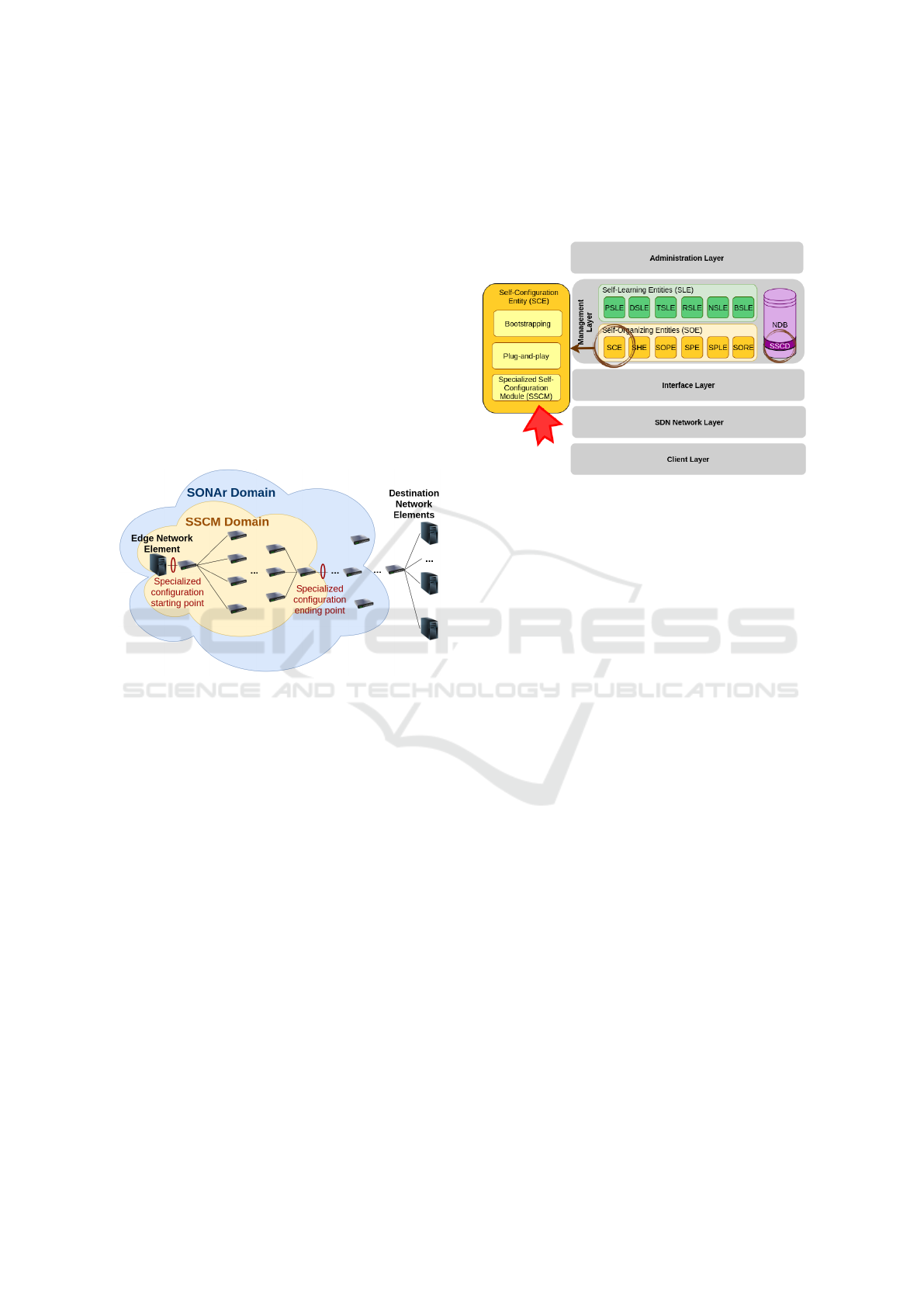

Figure 2: Topology requirements for SSCM applicability.

For the network to be conﬁgured correctly after the

insertion of an edge element, a detailed description

of this conﬁguration must be informed to SONAr.

This is done by an speciﬁc entry in a keyspace on

NDB, named Specialized Self-Conﬁguration Descrip-

tion (SSCD).

SSCM is a module within the SCE that acts only

when, during the plug-and-play process, the MAC ad-

dress of the element is matched to an SSCD. If not,

the plug-and-play process normally occurs, consid-

ering that the connected element is a standard NE.

But, if the physical address of the connected inter-

face belongs to an element contained in this NDB ta-

ble, a change in the SCE ﬂow will be done, so that

the speciﬁc conﬁguration is made. This SSCD is im-

plemented in JSON content-type format and contains

the conﬁguration characteristics for the network that

will receive the element. The SSCD is added into the

NDB through the NAD module, in the Administra-

tion Layer, which provides a friendly interface with

the operator or system administrator.

The architecture of the SONAr system can be re-

vised, including the SSCM module and the table with

the SSCDs, as shown in Figure 3. This ﬁgure com-

plements the Figure 1, with the identiﬁcation and lo-

cation of the new modules within the layers that com-

pose the SONAr.

Figure 3: Simpliﬁed layered diagram of SONAr architec-

ture showing SSCM module and SSCD database.

Note that SSCM is a module in SCE, together with

bootstrapping and plug-and-play and SSCD is within

NDB.

4.2 SSCM Operation

SSCM is a SONAr additional service for plug-and-

play service: once active, when it detects that the in-

serted element is described by an SSCD in NDB, thus

demanding a speciﬁc conﬁguration, SSCM is started

to carry out this process. The key that triggers it is

the MAC address of the added edge element, which

is also the key ﬁeld in the NDB’s speciﬁc keyspace,

which may correspond to an SSCD. While plug-and-

play continues to play its roles, conﬁguring the natural

routes between elements – enabling ARP and LLDP

routing amongst other default signaling forwarding –

SSCM takes care of more specialized conﬁgurations,

such as packets with IEEE 802.1Q header (VLAN),

prioritization in layer 2 (PCP), layer 3 (DiffServ), spe-

ciﬁc routes and other actions, depending on the spec-

iﬁcation described in the SSCD. These conﬁgurations

are performed on all NEs in the path between the ini-

tial element (edge NE) and the ﬁnal element identiﬁed

on the SSCD (which is not necessarily the ﬁnal des-

tination element of the packets); additionally, speciﬁc

ﬂow rules are implemented to all elements in the path

between these two NEs. Thus, SSCM assumes that

the bootstrapping has already been performed (which

is always true) and the basic plug-and-play conﬁgura-

tions have already been implemented, so that SSCM

is the last module to be executed within the SCE.

The insertion of SSCM in the context of self-

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

164

conﬁguration in SONAr leads to some changes in the

established ﬂows of SCE. Essentially, two processes

are changed to ﬁt the SSCM module. These changes

are shown in Figure 4.

The ﬁrst change is in the Address Provider (AP),

which is SONAR’s customized DHCP server: when

receiving the DHCPDISCOVERY message, the AP

ﬁrst queries the NDB to check if there is an SSCD

associated with the MAC address contained in the

broadcast message. If so, in the DHCPOFFER mes-

sage it offers the IP address and gateway address spec-

iﬁed on the SSCD, instead of searching for a unre-

served IP on NDB. This ensures that the edge NE can

have its IP and gateway set by the engineer or network

operator even before it is plugged into the network.

The second change occurs in the SCE: after gen-

erating the ﬂow rules with the default routes, the SCE

checks the MAC address of the inserted element’s in-

terface. If it is in the SSCD base in NDB, SCE starts

a specialized conﬁguration process, generating spe-

ciﬁc ﬂow rules. This process allows that, in addition

to generic actions, e.g. simple default signaling route

conﬁgurations, the SCE makes more elaborated con-

ﬁgurations in the topology, as speciﬁed in the SSCD.

After the generation of all ﬂow rules is ﬁnished, they

are all sent to the controller through NBI.

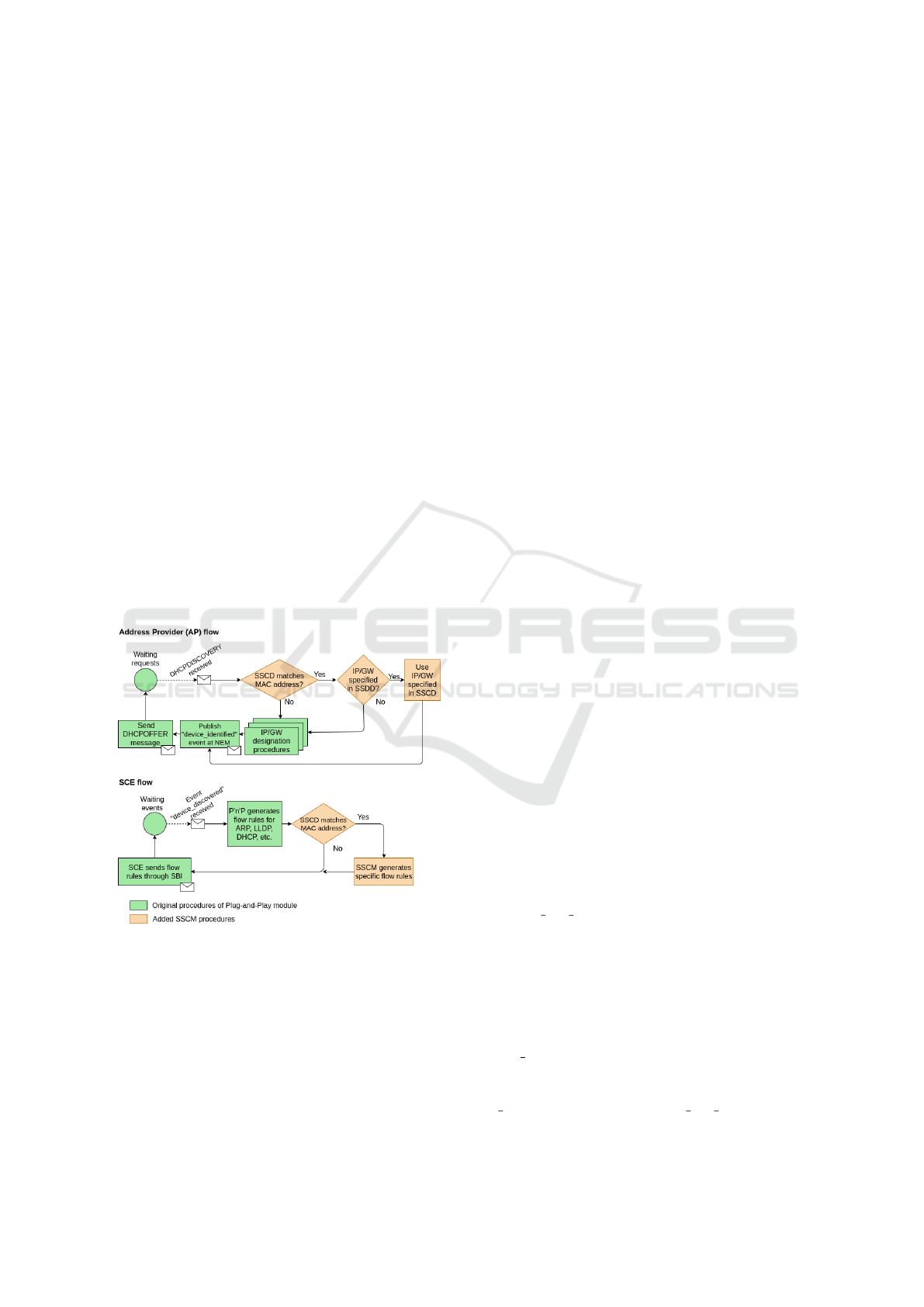

Figure 4: Message ﬂow exchanges in SONAr elements by

implementing SSCM.

4.3 SSCD Format and Functionalities

The entire process of self-conﬁguration in SSCM be-

gins with the speciﬁcation of the specialized conﬁg-

uration to be made on the network so that it is pre-

pared to connect a given edge element to its destina-

tion. This speciﬁcation is performed through an ob-

ject in JSON format containing the attributes describ-

ing the speciﬁcities of the network in question, the

SSCD. This SSCD is a record in the NEBootConﬁg-

uration keyspace, on NDB. An example of an SSCD

entry is shown below:

{

"id": {

"mac_address": "00:00:00:00:00:01",

"description": "Edge NE",

"ip": "192.168.0.100",

"gateway": "192.168.0.200"

"config_end_node": {

"mac_address": "00:00:00:00:00:02",

"ip": "192.168.0.200",

"description": "Provider edge router"

"dst_node": [

{

"description": "First Destination",

"ip": "10.1.1.1",

"priority": 5000,

"vlan": 10,

"pcp_cos": 1.

...

{

"description": "Second Destination",

...

}

]

}

The attributes of this SSCD object are interpreted

as follows:

id: It is the identiﬁer of the edge element to be au-

tomatically inserted in the network and the one that

marks the starting point of the network conﬁguration.

It speciﬁes the MAC address, which is the main iden-

tiﬁer of the element (and which will be used to trigger

the SSCM process) and other complementary infor-

mation, such as the IP and gateway. If the IP and

gateway identiﬁers do not exist, they will be deﬁned

and assigned by the AP, otherwise the AP will read

these identiﬁers and send them in the DHCPOFFER

message to the edge NE. The description and respon-

sible identiﬁers only fulﬁll documentation roles.

conﬁg end node: It identiﬁes the ﬁnal element of

the network’s self-conﬁguration scope, that is, the

self-conﬁguration process is carried out in the path

between the edge element and the element indicated

in this ﬁeld. This element is typically a gateway or

an aggregator element. Its main identiﬁer is also the

MAC address of the outgoing port for the next ele-

ment (which will not be automatically conﬁgured).

dst node: It is an array containing the possible

destinations of the packets sent by the edge element

and the speciﬁcation of what to do with them. The

dst node must be beyond conﬁg end node and may

Specialized Network Self-conﬁguration: An Approach using Self-Organizing Networks Architecture (SONAr)

165

be outside the SONAr domain. This is where the ac-

tions to be implemented in the network settings are

characterized. For example, a packet sent from the

edge element to a server (identiﬁed by the IP address)

must travel on a speciﬁc VLAN with a given Class

of Service (CoS). The priority ﬁeld refers to the pri-

ority of the ﬂow within the SDN context and not to

the prioritization of the packet on the network, and

it is recommended that it should be higher than those

of the generic ﬂow rules inserted by the plug-and-play

(4,000 by default). The list of possible matching crite-

ria and actions to be implemented is given by (ONOS

Project, 2019). This array can contain as many target

elements with speciﬁc actions as required, depending

on the type of application.

4.4 Typical Application

The typical application for specialized self-

conﬁguration is in telecommunications networks,

where it is compulsory to specify exactly the conﬁgu-

ration domain and the parameters to be implemented.

We can take as an example the integration of an

eNodeB (4G cellular station) to a network of an

MNO, as shown in Figure 5.

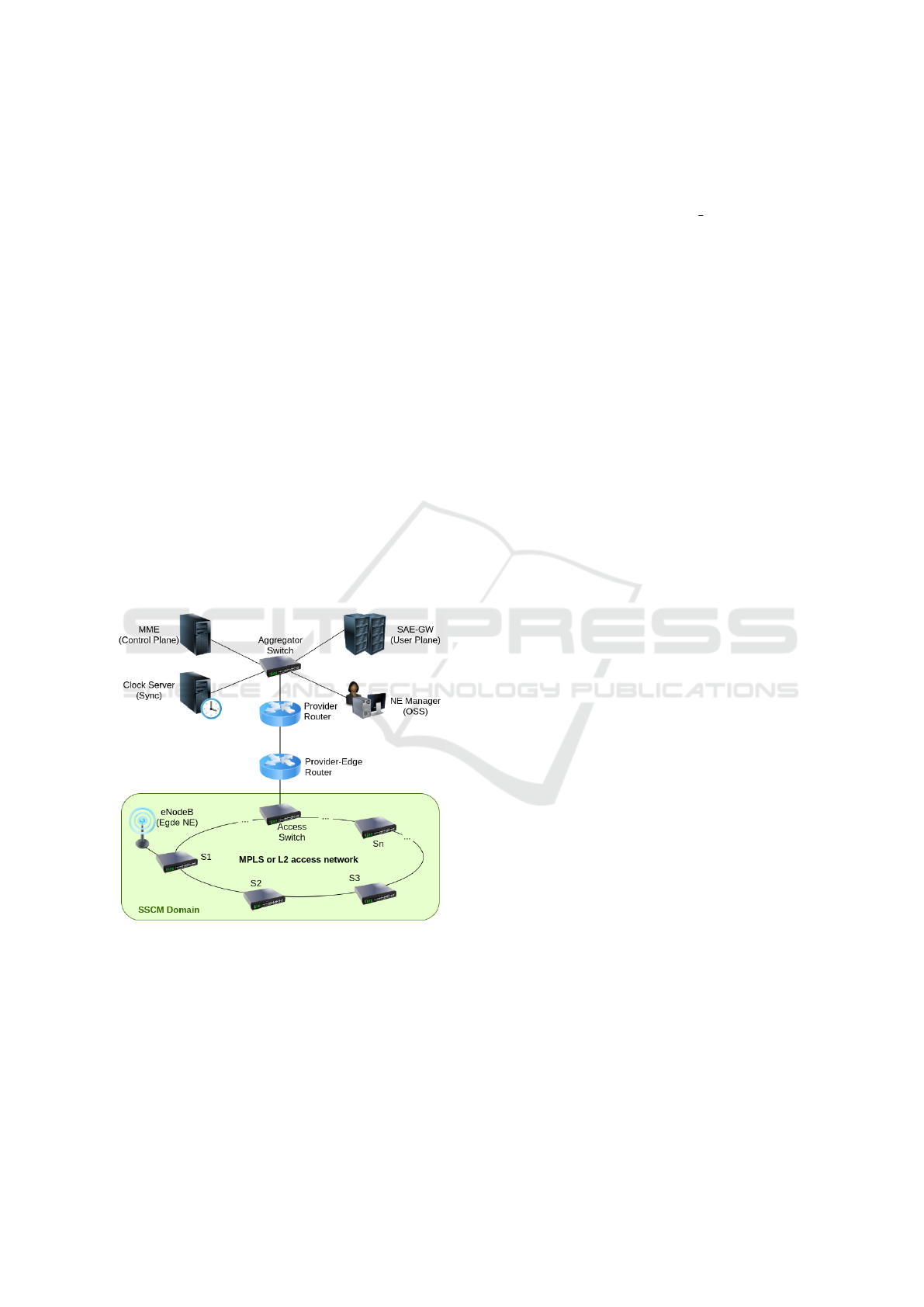

Figure 5: Example of a mobile network topology using

SSCM for specialized conﬁguration.

The eNodeB in Figure 5 is the start node identiﬁed by

the id attribute on the SSCD, and is connected through

an access network, usually an MPLS or a metro ether-

net ring. This ring is integrated into the carrier’s trans-

port network by a provider edge router, and the net-

work core elements are in a third network, accessed

by a provider router. In the case of a cellular network,

the target elements are the Mobility Management En-

tity (MME), the System Architecture Evolution Gate-

way (SAE-GW), the OSS server and the clock (or

sync) server. These four core elements are the des-

tination nodes, speciﬁed by the dst node attribute on

the SSCD.

For each of the four destinations, the ﬁrst switch

(S1) must, in order, insert an IEEE 802.1Q header

containing the VLAN tag in the package, mark the

package with a speciﬁc CoS, assign a priority to this

ﬂow rule (recommended to be higher than the prior-

ities of the default ﬂow rules which are 4,000 by de-

fault) and forward the packet on the correct outgo-

ing interface. The other switches on the path to the

provider edge router must forward the packets cor-

rectly and, ﬁnally, the last switch (access switch) must

remove the IEEE 802.1Q header (and with it, the CoS

mark) and forward the packet to the router. The same

conﬁguration procedure must be performed for pack-

ets coming from the core of the network to eNodeB:

the access switch makes the markings while switch

S1 removes them.

5 EXPERIMENTS

In this section, we present the experimentation per-

formed in order to evaluate the overall performance

of SSCM and discuss the results we have obtained.

5.1 Experimentation Environment

For emulation of the network environment, GNS3

software version 2.1.16 was chosen for several rea-

sons. SONAr Server consists of all components of

the SONAr system and the SDN Controller (ONOS

2.1.0); it was implemented in VM VirtualBox 6.0, OS

Ubuntu Server 16.04 and developed using JDK 1.8.0-

151. NDB was implemented with Cassandra 3.11.4

and NEM with RAbbitMQ 3.8.0. The core and edge

elements were implemented using Docker 18.06.2-ce

containers, with OS Ubuntu 19.04. The switches and

routers were based on Open vSwitch (OvS) 2.10.1

and implemented as containers on Docker Engine

18.06.2-ce, with OS Linux Alpine 3.9.

The topology used was as shown in Figure 6.

In the access network (SSCM domain), different

amounts of in-line switches were used to assess per-

formance in each scenario.

5.2 Performance Evaluation

In this section, the experiments that evaluated the be-

havior of SSCM in networks with different amounts

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

166

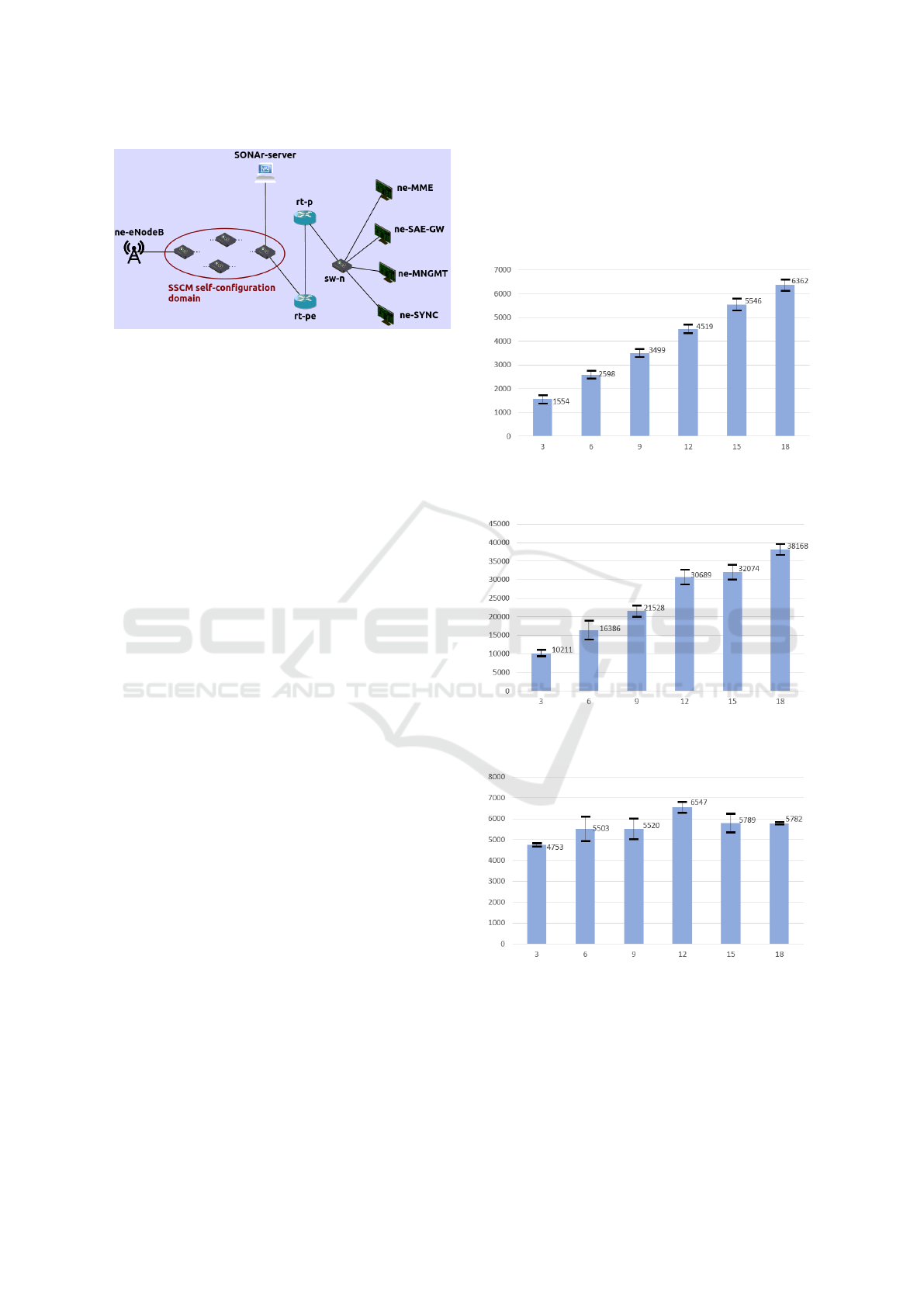

Figure 6: GNS3 topology adopted on experiments.

of elements in the access network will be dis-

cussed. Speciﬁcally, the scenarios for specialized

self-conﬁguration for 3, 6, 9, 12, 15 and 18 in-

line switches were evaluated. All of these scenarios

were simulated starting from the network bootstrap-

ping to assess the impact of SSCM on the total self-

conﬁguration convergence time, starting from discov-

ery until the ﬁnal conﬁguration of the network. There-

fore, we have three stages:

• The discovery stage: when SONAr ﬁnds all net-

work elements in its domain through the TCoE

module, it establishes a topology in the form of a

graph, records this topology in the NDB and noti-

ﬁes the other components of the completion of the

process by publishing an event in the NEM.

• The generic conﬁguration stage: it begins when

the SCE receives the discovery completion event

and the plug-and-play starts the conﬁguration pro-

cess, which involves calculating the shortest path

between the SONAr server and the others net-

work components and the generation of ﬂow rules

that will allow the communication of the elements

through the control and signaling protocols (ARP,

DHCP, LLDP, etc).

• The specialized conﬁguration stage: an SSCD,

corresponding to one of the network elements, is

matched in the NDB. In this case, SSCM performs

the calculation and generation of specialized ﬂow

rules for the network, after which all these ﬂow

rules (including the generic ones generated by the

plug-and-play module) are sent to SDNC via NBI.

For this experiment, each scenario was simulated ﬁve

times from the bootstrap and the times for each stage

mentioned above were measured in milliseconds by a

speciﬁc class, which recorded the intervals between

the events received at the NEM. In this way, we have

a very accurate measurement of the duration of the

three stages of the network self-conﬁguration. Af-

ter measuring the times, the averages for each inter-

val and for each scenario were calculated, and then

the 95% conﬁdence intervals were determined. All

graphs show the average along with the lower and up-

per limits of that range.

The results obtained for network discovery,

generic conﬁguration and specialized conﬁguration

are respectively shown in Figures 7, 8 and 9.

Figure 7: Time (in milliseconds) for network discovery for

each in-line amount of switches.

Figure 8: Time (in milliseconds) for network generic con-

ﬁguration for each in-line amount of switches.

Figure 9: Time (in milliseconds) for network specialized

conﬁguration for each in-line amount of switches.

Looking only at the Figure 9, we notice that the

SSCM convergence time does not vary substantially

with respect to the number of switches that are in

the path between the edge element and the provider

edge router. This is explained by the fact that, when

Specialized Network Self-conﬁguration: An Approach using Self-Organizing Networks Architecture (SONAr)

167

the specialized conﬁguration stage starts, all elements

have already been identiﬁed, all routes have already

been calculated and all generic conﬁgurations have

been carried out, so that SONAr already has full

knowledge of the network structure. There is, of

course, an increase in the time involved in the calcu-

lation of the speciﬁc ﬂow rules (the greater the num-

ber of elements, the longer the time of this calcu-

lation), however the duration of this process is very

short when compared to the total self-conﬁguration

time, remaining at tens of milliseconds.

In discovery and generic network conﬁguration,

this relationship is much more obvious. In both cases,

discovery and the conﬁguration are done element by

element in sequence, that is, it is necessary that one

is done for another to start. This means that there is

a direct and visually evident relationship between the

convergence time of both stages and the number of

elements in the path between the beginning and the

end of the network.

In general, the time for the specialized conﬁgura-

tion process – which is the one being evaluated in this

study – was between 4 and 7 seconds for all samples

obtained. It is noticeable that SONAr’s response to an

edge element addition in the network is fast enough

for use in practice, exceeding by several orders of

magnitude the time of manual conﬁguration of a net-

work even using semi-automated processes.

6 CONCLUSIONS

The Specialized Self-Conﬁguration Module (SSCM),

was proposed as a solution for the demand of net-

work conﬁguration automation. The main objective

of the research was to investigate the alternatives for

a network self-conﬁguration system for elements with

speciﬁc requirements, together with a model to de-

scribe these requirements. During the investigation,

several approaches to this problem were studied, and

the SONAr framework was well suited to the purpose.

Within this architecture, a new module was designed

and implemented (the SSCM) and a way to describe

the speciﬁcs of the network conﬁguration was pro-

posed (the SSCD format).

In the experiments carried out, it was visible

that the SSCM’s performance far exceeds the esti-

mated time for manual conﬁguration, being a suit-

able approach to real life applications, specially in the

telecommunications industry.

REFERENCES

3GPP (2018a). Telecommunication management; Self-

conﬁguration of network elements; Concepts and re-

quirements. Technical Speciﬁcation (TS) 32.501, 3rd

Generation Partnership Project (3GPP).

3GPP (2018b). Telecommunication management; Self-

Organizing Networks (SON); Concepts and require-

ments. Technical Speciﬁcation (TS) 32.500, 3rd Gen-

eration Partnership Project (3GPP).

Bianchi, G. and et al. (2016). Superﬂuidity: a ﬂexible func-

tional architecture for 5G networks: G. Bianchi et al.

Transactions on Emerging Telecommunications Tech-

nologies, 27(9):1178–1186.

Chiosi, M., Clarke, D., Willis, P., Reid, A., Ferger, J., Bu-

genhagen, M., Khan, W., Fargano, M., Cui, C., Deng,

H., Benitez, J., and et all (2012). Network Func-

tions Virtualisation, An Introduction, Beneﬁts, En-

ablers, Challenges & Call for Action.

Ganek, A. G. and Corbi, T. A. (2003). The dawning of

the autonomic computing era. IBM Systems Journal,

42(1):5–18.

Gonc¸alves, M., Souza Neto, N., Oliveira, D., Silva, F., and

Frosi, P. (2020). Bootstrapping and plug-and-play op-

erations on software deﬁned networks: A case study

on self-conﬁguration using the sonar architecture. In

Proceedings of the 10th International Conference on

Cloud Computing and Services Science - Volume 1:

CLOSER,, pages 103–114. INSTICC, SciTePress.

Jiang, W., Strufe, M., and Schotten, H. D. (2017). A SON

decision-making framework for intelligent manage-

ment in 5G mobile networks. In 2017 3rd IEEE In-

ternational Conference on Computer and Communi-

cations (ICCC), pages 1158–1162, Chengdu. IEEE.

Katiyar, R., Pawar, P., Gupta, A., and Kataoka, K. (2015).

Auto-Conﬁguration of SDN Switches in SDN/Non-

SDN Hybrid Network. In Proceedings of the Asian

Internet Engineering Conference on - AINTEC ’15,

pages 48–53, Bangkok, Thailand. ACM Press.

Neves, P., Cal

e, R., Costa, M. R., Parada, C., Parreira,

B., Alcaraz-Calero, J., Wang, Q., Nightingale, J.,

Chirivella-Perez, E., Jiang, W., Schotten, H. D., Kout-

sopoulos, K., Gavras, A., and Barros, M. J. (2016).

The SELFNET Approach for Autonomic Manage-

ment in an NFV/SDN Networking Paradigm. In-

ternational Journal of Distributed Sensor Networks,

12(2):2897479.

Oliveira, D., Souza Neto, N., Gonc¸alves, M., Silva, F., and

Frosi, P. (2020). Network self-conﬁguration for edge

elements using self-organizing networks architecture

(sonar). In Proceedings of the 10th International Con-

ference on Cloud Computing and Services Science -

Volume 1: CLOSER,, pages 408–414.

ONOS Project (2019). Flow Rules - ONOS. Available at

wiki.onosproject.org/display/ONOS/Flow+Rules.

Open Networking Foundation (2012). Software-deﬁned

networking: The new norm for networks. White pa-

per.

TELUS and Huawei (2016). Next generation son for 5g.

CLOSER 2021 - 11th International Conference on Cloud Computing and Services Science

168
