Colluding Covert Channel for Malicious Information Exfiltration in
Android Environment
Rosangela Casolare
1
, Fabio Martinelli
3
, Francesco Mercaldo
2,3
and Antonella Santone
2
1
Department of Biosciences and Territory, University of Molise, Pesche (IS), Italy
2
Department of Medicine and Health Sciences “Vincenzo Tiberio”, University of Molise, Campobasso, Italy
3
Institute for Informatics and Telematics, National Research Council of Italy, Pisa, Italy
{fabio.martinelli, francesco.mercaldo}@iit.cnr.it
Keywords:
Android, Security, Model Checking, Formal Methods, Privacy.
Abstract:
Mobile devices store a lot of sensitive and private information. It is easy from the developer point of view
to release the access to sensitive and critical assets in mobile application development, such as Android. For
this reason it can happen that the developer inadvertently causes sensitive data leak, putting users’ privacy
at risk. Recently, a type of attack that creates a capability to transfer sensitive data between two (or more)
applications is emerging i.e., the so-called colluding covert channel. To demonstrate this possibility, in this
work we design and develop a set of applications exploiting covert channels for malicious purposes, which
uses the smartphone accelerometer to perform a collusion between two Android applications. The vibration
engine sends information from the source application to the sink application, translating it into a vibration
pattern. The applications have been checked by more than sixty antimalware which did not classify them as
malware, except for two antimalware which returned a false positive.
1 INTRODUCTION
The large-scale spread of Android based devices has
led to the implementation of a large number of mali-
cious software (i.e., malware) aimed at stealing con-
fidential information. Sensitive data, managed and
stored inside our smartphones, attract the attention
of malicious developers that, by exploiting the weak-
nesses of the security features provided by the oper-
ating system developed by Google and taking advan-
tage of users’ carelessness, can cause great damage.
In May 2020, there were about 430,000 malware
attacks on Android devices, a 3.6% increase over the
previous month. Instead, in August 2020 the growth
was 6.26% compared to July
1
.
Android is the operating system in mobile en-
vironment most popular, with a market share about
74.6%
2
. This feature combined with being open
source, makes Android interesting in the eyes of cy-
bercriminals, because by rebuilding the source code
1
https://news.drweb.com/show/review/?i=13991&lng=
en
2
https://www.statista.com/statistics/272698/global-
market-share-held-by-mobile-operating-systems-since-
2009/
it is possible to create customized operating systems
(Enck et al., 2014; Enck, 2011). There is also the
possibility of installing applications from third-party
stores, but downloading applications from sources of
unknown origin is very dangerous, as they are not
subject to the security controls present in the official
stores (for Android it is Google Play Store), even if
malicious applications may also be present in the offi-
cial stores, in smaller quantities than to unofficial ones
(Nguyen et al., 2020; Canfora et al., 2018).
Recently, cybercriminals are working for develop-
ing new threats to perpetrate more and more harm-
ful actions, with the aim to evade the current free
and commercial antimalware, mainly signature-based
(Cimitile et al., 2018; Mercaldo et al., 2016a). One
of these new threats is represented by the collusion
attack. The rationale behind this emerging attack is
to split the malicious action in two or more applica-
tions able to perform a communication for sensitive
data exfiltration and sharing (Casolare et al., 2020a).
This type of attack avoids that an application with too
many permissions being immediately reported by the
security mechanisms (i.e., antimalware) or that makes
the user suspicious (Mahboubi et al., 2017; Cimino
et al., 2020; Mercaldo et al., 2016b).
Casolare, R., Martinelli, F., Mercaldo, F. and Santone, A.
Colluding Covert Channel for Malicious Information Exfiltration in Android Environment.
DOI: 10.5220/0010396708110818
In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 811-818
ISBN: 978-989-758-491-6
Copyright
c
2021 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
811
As matter of fact, to access to user sensitive re-
sources stored in the devices (for instance the contact
list or the device localisation), the developer must ex-
plicitly declare the related permissions in the appli-
cation. To avoid a single application having all ac-
cesses guaranteed to complete the attack and there-
fore being classified as a threat from the antimalware,
it is possible to split the malicious action (i.e., the per-
mission request) into multiple applications which will
then ”complete” each other. For example, an appli-
cation could have the authorization to read sensitive
data but not the one to access the internet, so it would
not represent any threat to the user and would come
out unscathed from an antimalware scan. Similarly,
an application with network access permissions but
without the ability to access sensitive data would not
arouse suspicion.
If the two applications are performing a collusion,
they will be able to collect the data and send it over
the network without the attack being intercepted. To
ensure that transmission between applications occurs
undetected, it is important to create a hidden, unde-
tectable communication channel.
This type of attack is called covert channel pre-
cisely because it allows data to be transferred through
a channel not designed to transmit information, but
which can be used for this purpose to hide communi-
cation (Shrestha et al., 2015). The advantage is that,
unlike communication channels, covert channels are
not subjected to the control and security mechanisms
of the operating system, making transmission partic-
ularly difficult to identify.
In this article we design and we implement the
colluding cover channel attack in Android environ-
ment. To do this, we exploit the vibration sensor,
present on all mobile devices, as a communication
channel to send sensitive information between appli-
cations installed on the same device. To test the func-
tioning of the communication, three different real-
world smartphones have been considered, in order to
validate the correctness of the work.
The goal of this work is to demonstrate the
effectiveness of this attack and to make available
to the research community a data-set that per-
forms this type of colluding attack, which can
be downloaded for research purposes at the fol-
lowing link: https://mega.nz/folder/E0wwRABD#
YM7U7sru5ZvD6ijsCbKH4Q.
The paper’s organization is the following: in sec-
tion 2 we describe the different types of covert chan-
nels and their functionality; in section 3 we explain
how is composed the proposed data-set and in partic-
ular which is the process to obtain the necessary per-
missions; section 4 shows how data are converted and
sent, and the results obtained with antimalware anal-
ysis; in section 5 current state-of-the-art literature is
analyzed and, finally, conclusion and future research
lines are drawn in section 6.
2 UNDERSTANDING THE
COVERT CHANNEL
COMMUNICATION
Android implements a permissions-based security
model in order to limit the actions that each appli-
cation can perform. A collusion attack is able to
”break” this model, distributing the permissions it
needs across multiple applications.
Applications are classified as source when they al-
low information to escape from the device thanks to
read permissions, instead they are classified as sink
when they receive data and send it outside thanks to
connection permissions.
The covert channels are those channels not in-
tended for the transfer of information, which can be
used for this purpose through the manipulation of a
specific resource, ensuring a particularly useful com-
munication when you want to steal sensitive informa-
tion. We have two type of covert channels (Shrestha
et al., 2015):
Covert Storage Channel: it communicates infor-
mation by modifying the data of a specific re-
source, which will then be read by the recipient.
Covert Timing Channel: it works by altering the
time required to perform a function or to use a re-
source, the recipient decodes the message by in-
terpreting these time gap between packets.
In both cases it is necessary to access a shared re-
source by the process that sends the data and by the
process that receives them, in order for communica-
tion to take place.
In (Marforio et al., 2012) authors report some of
the most relevant covert channels, among which we
have:
Single and Multiple Settings: here the source ap-
plication changes a smartphone system setting
(i.e., volume, vibrations, screen) and the sink ap-
plication then read the altered resource.
Type of Intents: the data are sent via an intent,
not by inserting them in the payload, but they are
encoded in the intent type.
Threads Enumeration: in this case the source ap-
plication encodes the information for a certain
number of threads, then the sink application reads
data by monitoring the number of active threads.
ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering
812
UNIX Socket Discovery: the source application
uses two sockets, one for synchronization and one
for communication, the application sink reads the
data by checking the status of the latter socket.
Fee Space on Filesystem: the information is sent
by source application by writing and deleting data
from the disk.
Timing Channel: the source application performs
high intensity activities to send bits of value 1, in-
stead, for the transmission of bits of value 0, it
does not perform any activity. The application
sink continuously performs high-intensity activi-
ties and depending on the time it takes to complete
them, is able to detect the message.
Processor Frequency: it is an improvement of
Timing Channel, where the source application
have the same behaviour just described, instead
the sink application checks the CPU frequency
with queries and read the bit sent via the alter-
ations caused by the source.
3 THE COLLUDING COVERT
CHANNEL ATTACK DESIGN
In this work we have designed and developed a data-
set composed by six source applications to obtain sen-
sitive and private data and another one (i.e., the sink
application) that receives it. In order to launch a col-
luding attack, the source applications have the nec-
essary permissions to access the data of their interest,
while the sink applications have access permissions to
internet so they can transmit this data to the attacker.
3.1 Source Applications
We implement a hidden communication for the infor-
mation exchange, based on the variation of the ac-
celerometer data on Android devices. To encode the
messages, the source applications exploit the vibra-
tion engine considered to modulate the sensor data
able to detect device movements. Consequently, the
sink application extracts the data contained into the

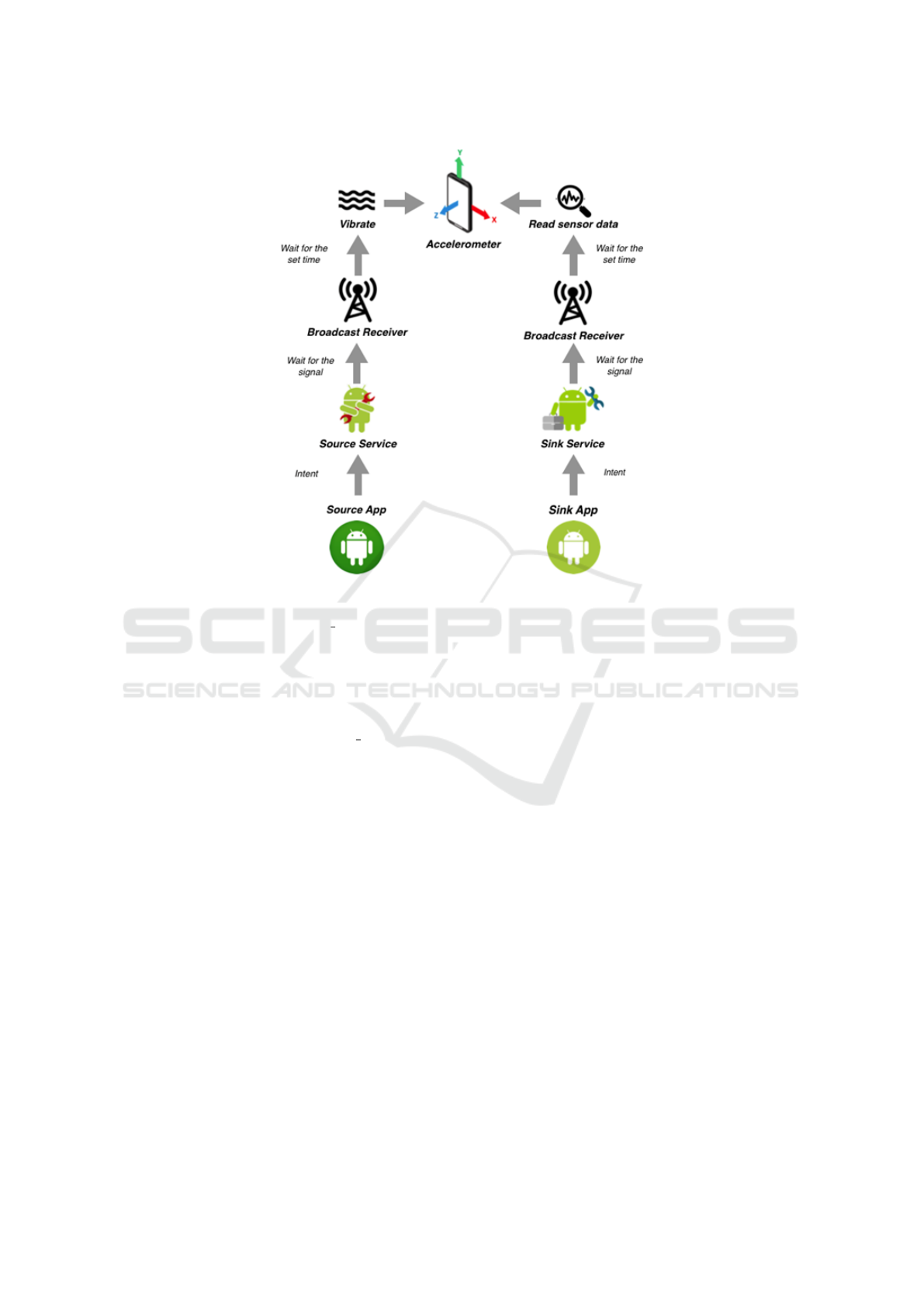

variation of vibrations, as shown in Figure 1. This
communication takes place during the night hours,
when the device is less used, so as not to arouse sus-
picion in the unaware user.
Once the authorizations to read the data have been
received, the source applications start a service to set
up the encryption, the synchronization of the trans-
mission and the sending of data. The required per-
missions are:
Foreground Service: they are used to ensure that
the background services of the source applications
are not subject to limitations due to excessive bat-
tery consumption. The Foreground Services man-
ifest their activity to the user through a notifica-
tion that cannot be deleted unless the service is
stopped and they continue their execution even if
the user does not interact with the application.
To start the Foreground Service, the application
uses the startForegroundService() method and it
has five seconds to call startForeground() method,
in order to show the notification before the service
is stopped. This procedure needs the appropriate
permission.
Vibrate: it gives permission for access to the vi-
bration motor, which guarantees the encoding of
the data to be sent to the sink application by alter-
ing the sensor values.
Wake Lock: they keep the CPU active and pre-
vent the screen from turning off. The device can-
not enter sleep state as long as there is an ac-
tive Wake Lock, thus causing the battery to drain
quickly. To take advantage of this permission, the
PowerManager class is used.
In addition to the permissions listed above, which be-
ing normal permissions do not require the consent of
the user, each application of the data-set has a fourth
permission that must be explicitly given by the user
and changes according to the information to be ac-
cessed (and which will then be sent to the sink appli-
cation).
The developed applications are able to steal sensi-
tive and private information, such as:
SMS: using the READ STATE permission, a ma-
licious application has the ability to read the last
SMS sent (or received), thus accessing the user’s
private conversations.
E-mail Address: using the GET ACCOUNTS
permission, the application is able to retrieve all
e-mail addresses stored in AccountManager.
Telephone Number: using the
READ PHONE STATE permission, the ap-
plication can access to the telephone number and
know the information about the network and the
status of ongoing calls.
IMEI code: it is a 15 digit numeric code that
uniquely identifies the smartphone. It is useful
for locking the device in case of theft and pro-
vides its location at a given time. Also in this case
the permission used to obtain the IMEI code is
READ PHONE STATE.
Colluding Covert Channel for Malicious Information Exfiltration in Android Environment
813
Figure 1: Workflow of the proposed colluding attack.
Contact List: using the READ CONTACTS per-
mission, the malicious application is able to ac-
cess to the user’s contact list by obtaining for
each contact: number and name. The attacker can
thus use the contacts obtained to obtain others and
launch new attacks.
Calendar Events: using the READ CALENDAR
permission, the application can read information
about the events contained into the calendar, such
as title, description, position, date and time. The
attacker can thus learn the user’s habits or know
where he will be on a certain day at a certain time.
The antimalware are not able to classify these applica-
tions as threats and the same goes for users, because
they can only read data. It will be the sink applica-
tion to help them to share the information through the
network.
The six source applications are composed by the
same components, the difference concerns the per-
missions to read data described above. We have
three components: MainActivity, SourceService and
AlarmBroadcastReceiver.
MainActivity requires the permissions for access
to sensitive information, once obtained, by means of
an intent is started SourceService, thanks to startFore-
groundService() method. The SourceService calls the
createNotification() method, which is used to create
the notification to be passed as a parameter to the
startForeground() method, to avoid stopping the ser-
vice.
The SourceService collects the target data of the at-
tack through a different method for each of the six
source applications (in some cases this function is per-
formed by the MainActivity, which will then pass the
information within the intent to start the service).
Using an AlarmManager, the time at which synchro-
nization with the sink application takes place to start
sending data is set. Then AlarmManager creates an
alarm that sends an intent to the AlarmBroadcastRe-
ceiver, so that the service can transmit the data every
day at the same time (Figure 2).
Before sending the data, the service must encode
them in such a way as to create a vibration pattern to
allow the accelerometer values to be changed. The
information must be converted to binary, as there are
two states of the vibration engine: 1 vibration, 0 no
vibration. Extended ASCII code, an 8-bit coding sys-
tem, was used for data encoding.
The Vibrator class is used to manage vibrations,
which, using the vibrate() method, makes the smart-
phone vibrate in a certain way. An array of type long
is passed to the method indicating how to turn vi-
bration on and off. Each element of the array rep-
resents the time (in milliseconds) in which the device
must vibrate or not. The first value indicates the time
to wait before the vibration motor is activated; the
ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering
814

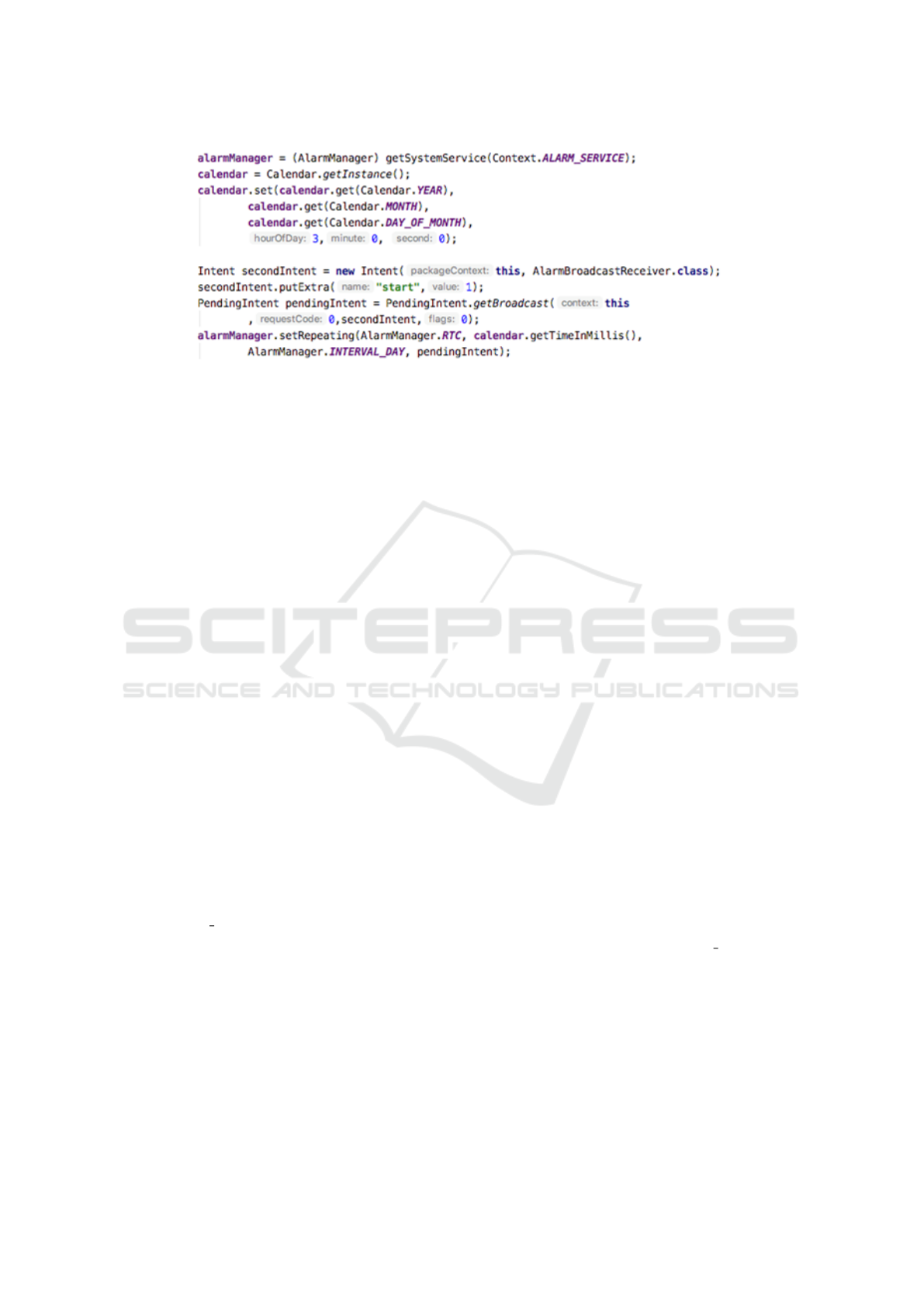

Figure 2: Code snippet about the time setting to synchronize the two colluding apps.
second value indicates the time in which it must vi-
brate; the third value indicates the time in which it
must deactivate and so on, alternating periods of vi-
brations and periods of ”rest”. The createPattern()
method was implemented to create the pattern. With
the onSensorChanged() method, contained in the Sen-
sorEventListener class implemented by the service, it
is possible to check whether the user is using the de-
vice or not. This method is called when there is a
new sensor event. If onSensorChanged() does not de-
tect any movement of the device during the agreed
time period, it calls sendData() after this time, with
which the actual data transmission begins. The send-
Data() method invokes createPattern() and gives the
created pattern to the Vibrate method, which receives
the value ”-1” to avoid to repeat the vibration path just
executed. Then is invoked postDelayed, a method that
uses two parameters (Runnable and an Int value) to
postpone screenOn method according to the duration
of the vibration path.
3.2 Sink Application
The sink application, after starting the service, syn-
chronizes with the source application and begins read-
ing the accelerometer data, recording them and enter-
ing them into the network. The sink application re-
quires two permissions:
Foreground Service: as described above, it cre-
ates the service for communication.
Internet: it allows to use network sockets to con-
nect to the internet, so as to send data to the at-
tacker and terminate the attack.
Also the sink application is composed by three com-
ponents: MainActivity, SinkService and AlarmBroad-
castReceiver.
MainActivity and AlarmBroadcastReceiver per-
form the same functions described for the source ap-
plication, except for requesting permissions, which is
not needed for the sink application. The SinkService
must call the createNotification() to avoid a shutdown
and then set the alarm to synchronize its operation
with that of the other applications.
Once it receives the signal from the AlarmBroadcas-
tReceiver, it checks that the device is not using onSen-
sorChanged(). This method assigns the acceletome-
ter three float variables, according to the x, y and z
coordinates, allowing us to read the changes in the
sensor data caused by vibrations and capture the in-
formation sent. If the smartphone movement is de-
tected, the communication stops, otherwise the ser-
vice invokes receiveData(), that checks that the de-
vice is suspended. The communication then contin-
ues in the manner described above, until the source
application communicates to the SinkService that it
can terminate the data collection.
If the screen is off, the postDelayed() method is
called by the handler to start recData() in order to
read the data in another way: this method records the
values related to the three of the accelerometer in a
float-type array, repeating this process several times
during the time it takes the source application service
to send a single bit. Meanwhile, the first mode is per-
formed, which consists of inserting bits with value 1
or value 0 in an int type array, based on the value as-
sumed by one of the three sensor coordinates. Each
time interval (equals to the milliseconds in which a
single bit is sent by the SourceService) is restarted re-
ceiveData(). If the screen turns on, the PowerMan-
ager class, having detected the Wake Lock, calls the
method to save the float array in an internal applica-
tion file and the one to decode the bits, extracting the
information (Figure 3).
4 ANTIMALWARE ANALYSIS
To test the effectiveness of attack model we designed,
the developed Android applications have been in-
Colluding Covert Channel for Malicious Information Exfiltration in Android Environment
815

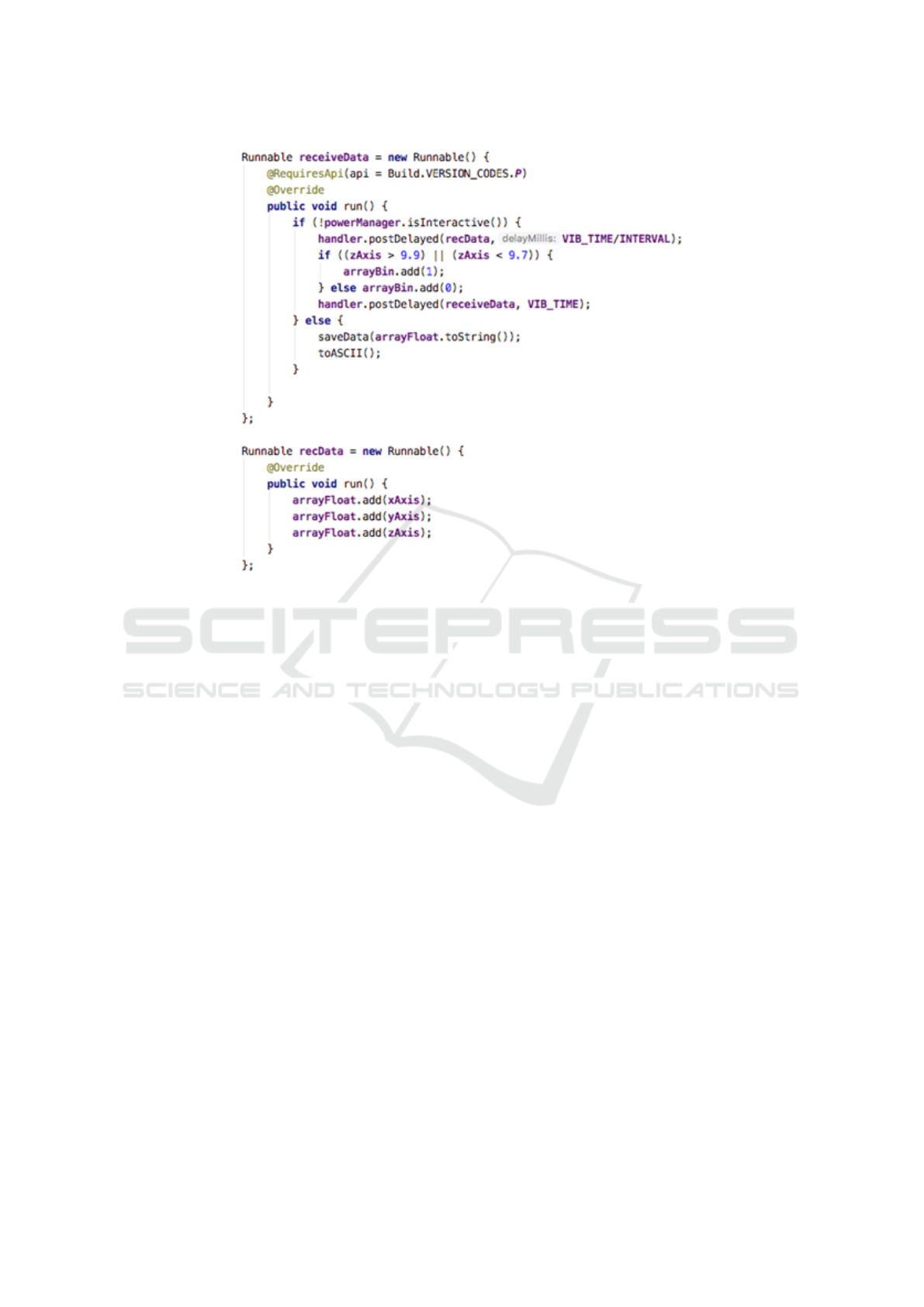

Figure 3: Code snippet related to the accelerometer data collection.
stalled on three different real-world devices: Sam-
sung Galaxy S8 (released in 2017, Android version:
Android 7.0 Nougat), Huawei P10 Plus (released in
2017, Android version: Android 7.0 Nougat), Oppo
Reno2 (released in 2019, Android version: Android
9.0 Pie).
On all the considered Android device models the
attacks were correctly perpetrated. During the ex-
perimental analysis, the applications always managed
to synchronize, sending and receiving data on sched-
ule. Tests were carried out on the ability to be able to
pick up data, encode them without errors in the vibra-
tion pattern, and the actual ability of the channel to
carry data was tested, so that the sink application can
receive the correct message. The channel has been
tested by sending messages of various lengths, based
on the type of information contained.
Here there is an example of a message exchanged
between the colluding apps based on the e-mail,
along with its binary representation:
attacker@collusion.com
01100001 01110100 01110100 01100001 01100011
01101011 01100101 01110010 01000000 01100011
01101111 01101100 01101100 01110101 01110011
01101001 01101111 01101110 00101110 01100011
01101111 01101101
Each bit is transmitted with an interval of 400
milliseconds, making the vibration motor follow the
following pattern:
0, 800, 1600, 400, 400, 1200, 400, 400, 1200,
1200, 400, 400, 1200, 800, 1600, 400, 400, 800,
1200, 800, 400, 800, 400, 400, 400, 800, 400, 800,
800, 400, 400, 400, 400, 1200, 800, 400, 800, 400,
2800, 800, 1200, 800, 400, 800, 400, 1600, 400, 800,
400, 800, 1200, 800, 400, 800, 1200, 1200, 400, 400,
400, 400, 400, 1200, 800, 800, 400, 800, 400, 400,
800, 400, 400, 800, 400, 1600, 400, 800, 400, 1200,
1200, 400, 400, 1200, 800, 800, 1200, 800, 400, 800,
400, 1600, 400, 800, 400, 800, 400, 400
The part highlighted in red in the pattern is the
one corresponding to the first byte of the e-mail
conversion to binary. When there are consecutive
bits of the same type, the 400 milliseconds interval
is added by their number (i.e., 011100 will be [0,
1200, 800]). The 400 milliseconds interval allowed to
eliminate the error rate, otherwise the sink application
would not be able to separate the bits correctly. It
took 70.4 seconds for the message to be sent (with a
transmission rate equal to 2.5 bps).
About the data extraction carried out on the
device, we had problems choosing the coordinate
from which to read the vibration: x, y, z or a com-
ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering
816
Table 1: VirusTotal classification results.
Application Name Trusted For N
Antimalware Not Trusted For N
Antimalware FP
SinkApp.apk 62/62 0/62 0
SMSSourceApp.apk 61/62 1/62 1
EmailSourceApp.apk 63/63 0/63 0
TelSourceApp.apk 62/63 1/63 1
IMEISourceApp.apk 62/62 0/62 0
ContactsSourceApp.apk 62/62 0/62 0
CalendarSourceApp.apk 63/63 0/63 0
bination of them. Acceleration along the x axis and
acceleration along the z axis were the best figures
for Samsung and Huawei. For the Oppo it was only
possible to obtain information on the x axis.
The applications developed have been checked
by VirusTotal
3
, an online antivirus service owned by
Google, which scans files and URLs to detect any
malware. The analysis takes place with more than 60
scanning engines and can also be used to find ”false
positives” (i.e., files that are not dangerous but recog-
nized as such).
Once scanned, applications were not classified as
malware. The SMS reader and the Telephone Num-
ber applications have been classified as generic threat
by the TrustLook antimalware, as shown in the Table
1, due to the fact that they have permission to access
messages and contact numbers, actions not allowed
by the antimalware. For this reason, a test was per-
formed, by submitting to VirusTotal an application
with an empty activity and the READ SMS permis-
sion (contained in both applications), and it was also
classified as generic threat by the TrustLook antimal-
ware.
5 RELATED WORK
Covert channels allow an hidden communication to
launch a colluding attack, in this regard in (Wang
et al., 2020) the authors have developed Multichan-
nel Communication System (MSYM), a mechanism
for the transmission of sensitive data in a mobile en-
vironment. Its operation is based on the use of the An-
droid VpnService interface, allowing the interception
of the data sent and split it in different parts that will
be disordered and encrypted across multiple transmis-
sion channels.
The authors in (Al-Haiqi et al., 2014) have de-
cided to exploit the accelerometer as a covert channel
and have developed a source and a sink application in
Android to demonstrate that through this sensor it is
3
https://www.virustotal.com/
possible to pass encrypted information between appli-
cations. Applications cannot directly generate or ma-
nipulate sensor data to transmit information, they can
only read sensor signals to obtain information about
the environment and user actions.
MAGNETO (Guri, 2020) is a secret communica-
tion proposal on air-gap systems and nearby smart-
phones based on the magnetic fields generated by the
CPU. This attack uses the magnetometer, which is the
magnetic sensor inside the devices used for orienta-
tion and positioning, to steal data from computers.
The generation of magnetic signals occurs as the CPU
workload changes.
The researchers in (Denney et al., 2018) propose
a method to create a covert channel starting from the
notifications shown on an Android device when we
receive e-mails or SMS messages. This covert chan-
nel uses Android Wearable notifications to send data
through applications sited on the same device or on
different devices. There are two applications: the first
one creates the notification that will be used as covert
channel, the second one reads the notification and de-
termines the hidden message.
6 CONCLUSION AND FUTURE
WORK
The large amount of resources present in mobile de-
vices makes it possible to implement various types of
covert channels to initiate a hidden communication of
sensitive information. One of these is to use the ac-
celerometer data, modified through the vibration mo-
tor according to certain coding patterns.
The proposed covert channel proved capable of
transmitting data effectively and in a silent way. Such
a channel is particularly difficult to detect, as it does
not establish any explicit communication between
colluding applications. This made it possible for ap-
plications to launch the attack, without being classi-
fied as threats.
As future work we plan to extend the communica-
tion to other sensors of the device, so as to create new
Colluding Covert Channel for Malicious Information Exfiltration in Android Environment
817
covert channels. Moreover, we will study techniques
aimed to detect this kind of communication.
As a matter of fact, we plan to apply formal meth-
ods for implementing an approach for identifying
these communications, so as to demonstrate how it
is possible to counter them. As a matter of fact, in
literature formal methods already demonstrated their
ability to detect malicious communication between
Android applications (Iadarola et al., 2020; Casolare
et al., 2020b).
ACKNOWLEDGEMENTS
This work has been partially supported by MIUR -
SecureOpenNets, EU SPARTA, CyberSANE and E-
CORRIDOR projects.
REFERENCES
Al-Haiqi, A., Ismail, M., and Nordin, R. (2014). A new
sensors-based covert channel on android. The Scien-
tific World Journal, 2014.
Canfora, G., Martinelli, F., Mercaldo, F., Nardone, V., San-
tone, A., and Visaggio, C. A. (2018). Leila: formal
tool for identifying mobile malicious behaviour. IEEE
Transactions on Software Engineering, 45(12):1230–
1252.
Casolare, R., Martinelli, F., Mercaldo, F., and Santone, A.
(2020a). Android collusion: Detecting malicious ap-
plications inter-communication through sharedprefer-
ences. Information, 11(6):304.
Casolare, R., Martinelli, F., Mercaldo, F., and Santone, A.
(2020b). Malicious collusion detection in mobile en-
vironment by means of model checking. In 2020
International Joint Conference on Neural Networks
(IJCNN), pages 1–6. IEEE.
Cimino, M. G., De Francesco, N., Mercaldo, F., San-
tone, A., and Vaglini, G. (2020). Model checking
for malicious family detection and phylogenetic anal-
ysis in mobile environment. Computers & Security,
90:101691.
Cimitile, A., Mercaldo, F., Nardone, V., Santone, A., and
Visaggio, C. A. (2018). Talos: no more ransomware
victims with formal methods. International Journal of
Information Security, 17(6):719–738.
Denney, K., Uluagac, A. S., Aksu, H., and Akkaya, K.
(2018). An android-based covert channel framework
on wearables using status bar notifications. In Versa-
tile Cybersecurity, pages 1–17. Springer.
Enck, W. (2011). Defending users against smartphone apps:
Techniques and future directions. In International
Conference on Information Systems Security, pages
49–70. Springer.
Enck, W., Gilbert, P., Han, S., Tendulkar, V., Chun, B.-
G., Cox, L. P., Jung, J., McDaniel, P., and Sheth,
A. N. (2014). Taintdroid: an information-flow track-
ing system for realtime privacy monitoring on smart-
phones. ACM Transactions on Computer Systems
(TOCS), 32(2):1–29.
Guri, M. (2020). Magneto: Covert channel between air-
gapped systems and nearby smartphones via cpu-
generated magnetic fields. Future Generation Com-
puter Systems.
Iadarola, G., Martinelli, F., Mercaldo, F., and Santone,
A. (2020). Call graph and model checking for fine-
grained android malicious behaviour detection. Ap-
plied Sciences, 10(22):7975.
Mahboubi, A., Camtepe, S., and Morarji, H. (2017). A
study on formal methods to generalize heterogeneous
mobile malware propagation and their impacts. IEEE
Access, 5:27740–27756.
Marforio, C., Ritzdorf, H., Francillon, A., and Capkun, S.
(2012). Analysis of the communication between col-
luding applications on modern smartphones. In Pro-
ceedings of the 28th Annual Computer Security Appli-
cations Conference, pages 51–60.
Mercaldo, F., Nardone, V., Santone, A., and Visaggio,
C. A. (2016a). Hey malware, i can find you! In
2016 IEEE 25th International Conference on En-
abling Technologies: Infrastructure for Collaborative
Enterprises (WETICE), pages 261–262. IEEE.
Mercaldo, F., Visaggio, C. A., Canfora, G., and Cimitile,
A. (2016b). Mobile malware detection in the real
world. In 2016 IEEE/ACM 38th International Confer-
ence on Software Engineering Companion (ICSE-C),
pages 744–746. IEEE.
Nguyen, T., Mcdonald, J., Glisson, W., and Andel, T.
(2020). Detecting repackaged android applications us-
ing perceptual hashing. In Proceedings of the 53rd
Hawaii International Conference on System Sciences.
Shrestha, P. L., Hempel, M., Rezaei, F., and Sharif, H.
(2015). A support vector machine-based frame-
work for detection of covert timing channels. IEEE
Transactions on Dependable and Secure Computing,
13(2):274–283.
Wang, W., Tian, D., Meng, W., Jia, X., Zhao, R., and
Ma, R. (2020). Msym: A multichannel communica-
tion system for android devices. Computer Networks,
168:107024.
ForSE 2021 - 5th International Workshop on FORmal methods for Security Engineering
818
