Security Property Modeling

Hiba Hnaini

, Luka Le Roux, Joel Champeau and Ciprian Teodorov

Lab STICC, SL Department, ENSTA Bretagne, Brest, France

Keywords:

Cyber-security, Modeling, Attacker, Methodology, Formal Methods, Model-checking, Property Speciﬁcation,

Case Study.

Abstract:

With the increasing number of cyber-attacks on cyber-physical systems, many security precautions and so-

lutions have been suggested. However, most of these solutions aim to prevent the access of an adversary to

the system. Though, with the increasing number of elements used in a system, and thus vulnerabilities, it is

essential to study the risks introduced to the system to make the system itself efﬁcient enough to react to the

attacks once an attacker has obtained access. Analyzing and discovering the risks is the ﬁrst step to making

the system more resilient.

This paper proposes a methodology that combines the qualitative risk analysis with formal methods ( model

checking ) to identify the risks that were not recognized during testing or functional modeling phases.

To examine this methodology, a car reservation system is modeled with an attacker, and then its security prop-

erties are veriﬁed using UPPAAL model checking tool. As a result, some risks were identiﬁed and tested for

the possibility of them occurring and their effects on the system.

1 INTRODUCTION

The rapid advancement and progress of the Informa-

tion Technology sector over the past years has made

it possible to integrate technology in almost all do-

mains. Some of these domains require systems with

solid coordination between hardware and software or

physical and cyber elements, known as cyber-physical

systems. They are present in ﬁelds such as transporta-

tion, health care, and infrastructure. Due to their im-

pacts on the real world these systems form an appeal-

ing target to cyber attackers.

A cyber-physical system is composed of many el-

ements, each with its own weaknesses or vulnerabil-

ities, all of which are inherited by the system, thus

leading to a lot of opportunities for potential attacks.

To address this issue, several approaches have been

proposed (Wardell et al., 2016).

A multiple protective layer or “Defense in Depth”

strategy has been proposed to handle such threats

(Wardell et al., 2016). Regardless of the essential

role this strategy has in system protection, it only pro-

vides preventive measures that help control the ac-

cess to the system and its components. Previous work

around the use of formal methods in cyber-security

focuses on uncovering critical vulnerabilities in a sys-

tem (Mitchell and Bau, 2011; Yu et al., 2016; Wardell

et al., 2016; Kalaie et al., 2015). However, we be-

lieve it is important to use formal methods to unveil

the risks as well as the vulnerabilities. The qualitative

risk analysis approach may be more challenging, but

it helps render the system more resilient if an adver-

sary is to gain access to the system.

This paper proposes a methodology that uses for-

mal methods (model checking) and qualitative risk

analysis to identify the risks on the system after the

adversary has acquired access.

The proposed methodology is applied to a car

reservation system to discover the risks present in the

system. The case study presented in this article shows

the effectiveness of this methodology over other ones.

The paper is structured as follows. Section 2

overviews some related works. Section 3 introduces

a motivating example from the automotive domain.

Section 4 presents the proposed security modeling

methodology. Section 5 discusses the results obtained

on the car reservation system. Section 6 concludes

this study emphasizing open research questions.

2 RELATED WORK

This study is linked to work done on qualitative

risk analysis of cyber-physical systems using formal

methods based on model checking.

694

Hnaini, H., Roux, L., Champeau, J. and Teodorov, C.

Security Property Modeling.

DOI: 10.5220/0010388206940701

In Proceedings of the 7th International Conference on Information Systems Security and Privacy (ICISSP 2021), pages 694-701

ISBN: 978-989-758-491-6

A risk in cyber-security is known as a potential

loss or damage of an asset due to a threat exploiting a

vulnerability. Where an asset is a resource to be pro-

tected, a threat is anything that can exploit a weakness

and cause damage to an asset, and a vulnerability is a

weakness or gap in the security or protection of the

system(Kbar, 2008).

A system with no threat is not vulnerable. The

vulnerabilities of a system appear only in the exis-

tence of a threat. Also, a secured system or a sys-

tem that is not vulnerable to an activity representing

a threat is not threatened. Then, a threat is not con-

sidered as a genuine threat if the system is immune or

not vulnerable to its actions(Taveras, 2019).

Thus, a risk is the coexistence of a vulnerability

and a threat(Taveras, 2019). To reveal risks in a vul-

nerable system, a threat needs to be introduced.

Then, to test the possible impact of the risk, risk

assessment is used. There are two types of risk as-

sessment, qualitative and quantitative. In the quanti-

tative method, risk characterization produces numer-

ical estimates of the risk. Whereas in the qualita-

tive approach, the estimates are non-numerical. There

are two primary functions of qualitative risk assess-

ment: ”risk identiﬁcation” and ”risk characterization

and analysis”. The ﬁrst function, risk identiﬁcation,

is to ﬁnd, recognize, and describe the risks in natural

language or a narrative manner. The second function,

qualitative risk analysis, is the risk characterization

that generates a non-numerical evaluation of the risk

(US Army Corps of Engineers, 2018).

A way of evaluating risks is by using formal meth-

ods. Formal methods are built on consistent math-

ematical fundamentals. Formal veriﬁcation is “the

act of proving or disproving the correctness of un-

derlying system algorithms concerning certain for-

mal speciﬁcations using formal methods of mathe-

matics.”.(Akhtar, 2014)

One type of formal methods is model-checking,

in which a system’s state space is extensively pro-

cessed. Model-checking tackles ﬁnite-state systems,

but in complex systems, state-explosion can cause a

limitation. However, errors that are undetected us-

ing testing and simulation are discovered by model

checking.(Akhtar, 2014)

As shown in ﬁgure 1 (Christel Baier, 2008),

model-checking necessities the existence of a sys-

tem model derived from the actual system and formal

properties deduced from the system requirements,

known as safety properties. Then, the properties are

evaluated on the system model to give two outcomes:

satisﬁed or violated.

A property is a statement that describes what the

system should or should not do. It translates a require-

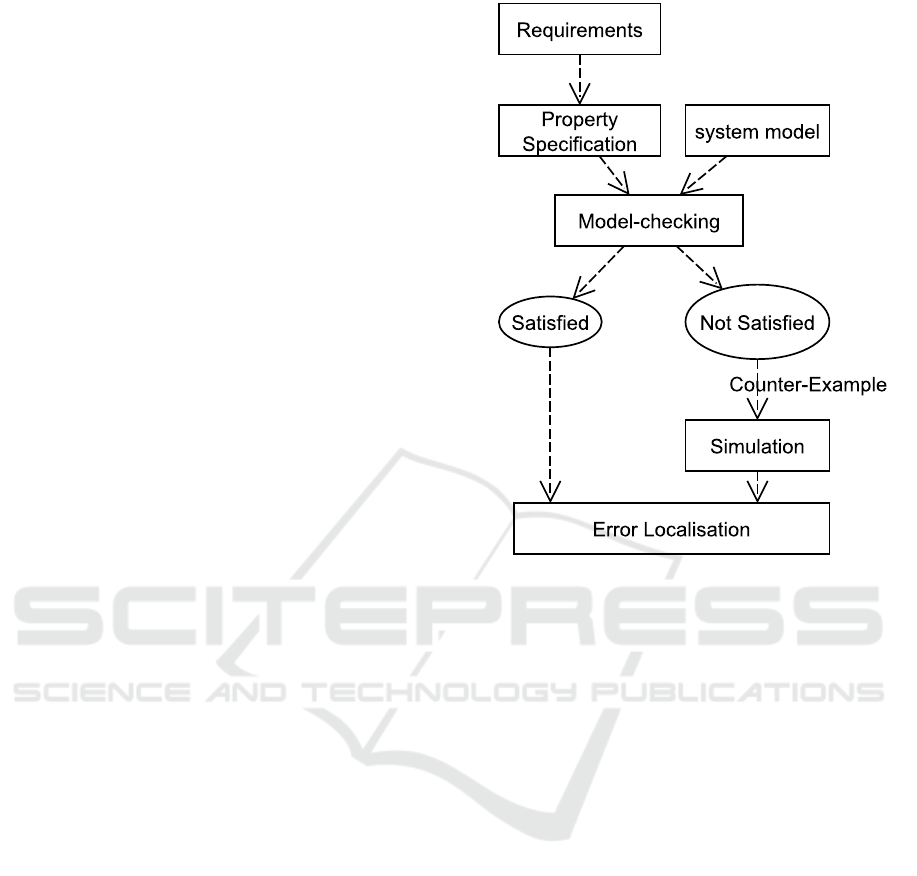

Figure 1: Model-Checking Representation.

ment from natural or informal language into a formal

expression, whereas a model describes how the sys-

tem behaves.

A model-checker examines all pertinent states in

a system model to validate if they meet a property. A

counter-example of the property is given if it is not

satisﬁed, showing how the undesired state is reached

(As seen in ﬁgure 1)(Christel Baier, 2008).

Model-checking has many domains of applica-

tion, such as verifying military systems, aircraft

reservation systems, spacecraft, industrial control

systems, and storm surge barriers, as mentioned

in(Christel Baier, 2008).

There are different approaches to model a sys-

tem, and thus the meaning of the deﬁned properties

changes accordingly. For example, a property in a

safety-critical system, such as an airplane, a car, or a

medical facility ensures the safety of the user where a

malfunction can cause a tragedy(Hsiung et al., 2007).

However, a property in network protocols security in-

tends to check if the protocol is secure against security

threats. (Basin et al., 2018)

There are also different purposes for using prop-

erties. The most common one is to verify that the

system satisﬁes all the requirements. Another is to

ﬁnd the problems in a model of an algorithm, sys-

tem, protocol, etc..., and propose solutions that handle

these problems one by one(Lamport, 2000). However,

Security Property Modeling

695

these are not our objectives as we are deﬁning proper-

ties to ﬁnd security risks in the existing model, similar

to (Mitchell and Bau, 2011; Yu et al., 2016; Wardell

et al., 2016; Kalaie et al., 2015).

We can describe our work as close to (Mitchell

and Bau, 2011; Yu et al., 2016). However, our work

assumes that the adversary has all the knowledge to

access the system and studies the attack’s effects. Un-

like (Mitchell and Bau, 2011), that experiments if the

attacker can gain access based on protocol analysis.

(Yu et al., 2016) is very speciﬁc to the online shopping

business, whereas our methodology is more general.

There are many works around model checking and

cybersecurity analysis (Mitchell and Bau, 2011; Yu

et al., 2016; Wardell et al., 2016; Kalaie et al., 2015).

However, most of them focus on model-checking

techniques and tools, but not on properties modeling

related to the qualitative risk analysis method.

Through our research, we have found many pa-

pers related to qualitative risk analysis. We have also

found papers addressing formal methods. However,

to our knowledge, none of the papers found addressed

both at the same time. And thus, this paper presents

a methodology that targets using formal methods in

qualitative risk analysis, with emphasis on properties

modeling.

3 MOTIVATING EXAMPLE

This section introduces the case study used through-

out this paper to illustrate the proposed approach from

its concepts to expected outcomes. The Car Reserva-

tion Embedded System (CRES) assumes a provider

company (that owns the cars) and users (who are

equipped with a personal badge). Users can book a

car from the company through a website, then unlock,

drive, and return that car using their badge. To make

it possible, the cars are equipped with a system that

knows the bookings, controls the access to the car,

and can be interacted with using a badge.

From a cyber-security perspective, such a system

is a desirable target for malicious adversaries and ex-

poses a large attack surface. In this paper, we focus on

one car, its embedded system, and the environment.

In particular, we suppose that the online booking web-

site is secure.

This paper focuses on security analysis given a be-

havioral model and abstract speciﬁcation of the ad-

versary goal and capabilities. Those are considered

entry-points to our contributions. Sub-section 3.1 pro-

vides a more detailed introduction to the system under

study. Sub-section 3.2 introduces its modeled behav-

iors.

3.1 System Presentation

To discover the functionalities and behaviors of the

system, we have studied a car reservation embed-

ded system. Its original speciﬁcations include desired

nominal scenarios and (C) source code.

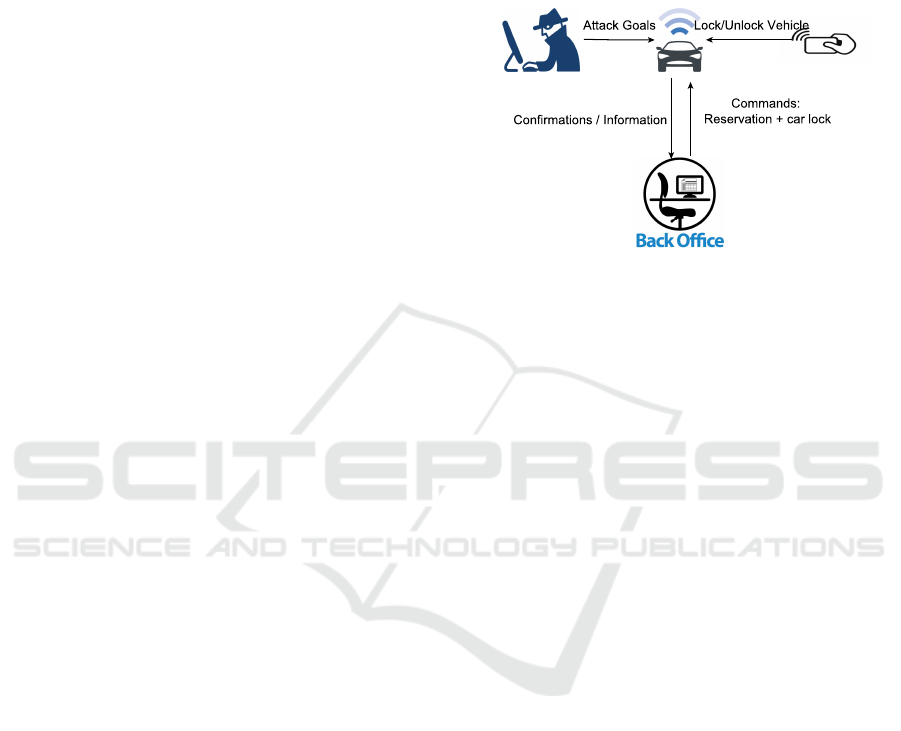

Figure 2: System Architecture.

The entire system is composed of a system or

computer embedded in the car, a server or back of-

ﬁce, and an ID badge for each user.

The reservation is ﬁrst made and added to the

computer in the car. Then, the booking is started. The

user can now lock the car and resume the session later

or request to end the reservation if the trip has ended.

If the session is not ended, the user can unlock the car

again to continue the session.

The embedded system interacts with one compo-

nent at a time, either the server or the ID badge.

The driver uses the ID badge or user to lock and

unlock the vehicle, whereas the owning reservation

company uses the server to control the car.

These components (the embedded system in the

car, the server, and the badge) are connected through

many technologies and protocols. This signiﬁes that

the system inherits all the vulnerabilities and weak-

nesses of these technologies and protocols. Adver-

saries can exploit them to target or access the system.

When applying the methodology discussed in sec-

tion 4, an interesting target in our system under study

(Car Reservations System) would be, for example, a

car lock. The feared events would be that the attacker

might want to keep the car locked or unlocked accord-

ing to the desired outcome.

3.2 System Model

As a ﬁrst step, the system under study is modeled by

identifying the behaviors.

To obtain the formal model of the system, a func-

tional model is derived from the textual speciﬁcation

of of the system, as explained in (Mitchell and Bau,

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

696

2011). A high-level of abstraction is considered since

the aim of the formal model is to check the behavioral

functions of the system.

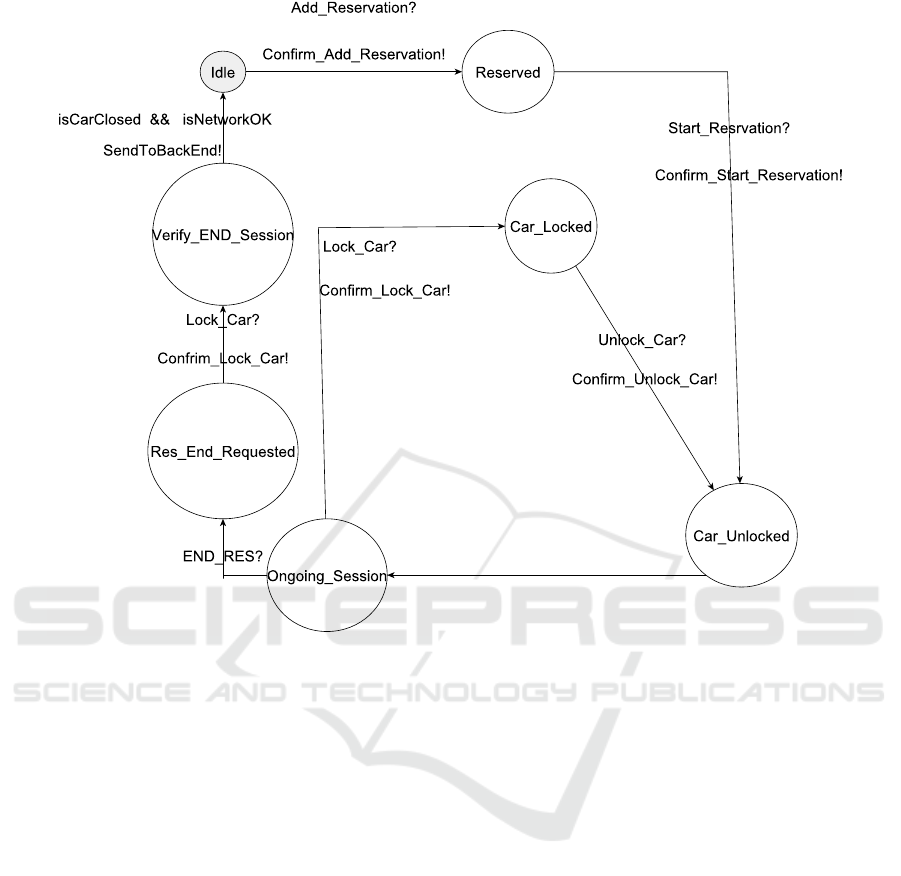

Figure 3 illustrates the behavior of the software

deployed on the car in the Car Reservation System.

The ﬁgure shows the different states the system can

have, with the transitions from and to each state. The

states, represented by the circle, are the system’s con-

ditions after or before a transition. One state the sys-

tem can have is idle. It is the initial state of the sys-

tem that shows that there is no ongoing process or

reservation. Another state is ”Car Unlocked” which is

reached after receiving a Car Unlock or Start Reser-

vation message. This state shows that there is an on-

going reservation or that the car is currently unlocked

and that the engine can now be started. The other

states are Reserved, Car Locked, Ongoing Session,

Res End Requested, and Verify END Session.

The transitions are the messages exchanged be-

tween the different components of the system to com-

mand it to act in a certain way. The transition mes-

sages with a question mark (?) mean that the system

is waiting to receive this message from another com-

ponent (Back Ofﬁce, Mobile App, Badge, etc.). The

other transition messages with an exclamation mark

(!) represent the ones sent by the system to another

component after receiving the expected message. The

other labels are guards to verify some system condi-

tions.

The ﬁrst step is for the server to send an Add

Reservation request to the system embedded in the

car. Then, the reservation is initiated by the Start

Reservation request, where the car is unlocked, and a

driving session is started. The car at this stage can be

locked using a Lock Car request for an intermediate

stop. Then, the car is unlocked, using the Unlock Car

request, and the session resumes. The session can be

ﬁnished using the END RES Request. Then, the car

is locked using the Lock Car request, and it goes back

to idle after verifying the conditions of the car lock

and the network connection. Also, after each request,

a conﬁrmation message is sent to the server.

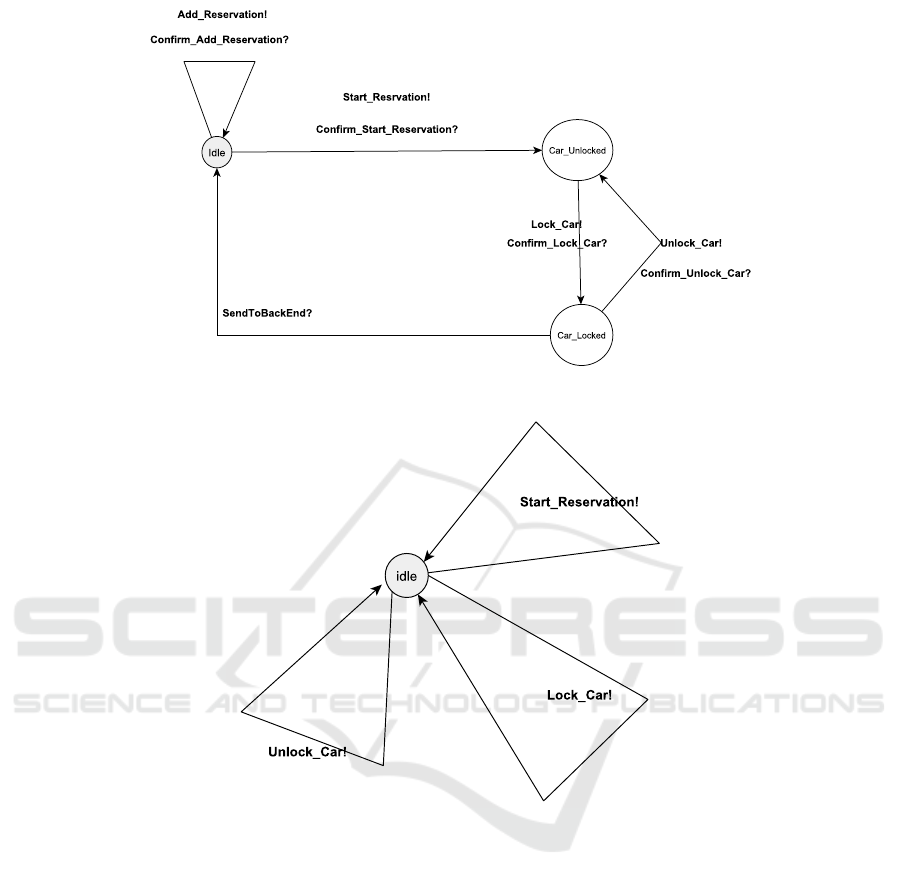

Figure 4 shows an abstract model of the server

which, based on the requests previously deﬁne, com-

municates with the system embedded in the car.

We show another model in Figure 5. It represents

using an ID badge to control the car lock using the

Lock Car and Unlock Car requests. Then, the entire

model, with its different components, is veriﬁed to en-

sure the well functioning of the system.

Some of these functional requirements are:

- If the car is unlocked by the server or the ID, the

state in the server should also be car unlocked.

- If the car is locked by the server or the ID, the

state in the server should also be car locked.

- If the car is in the Ongoing Session state, the

state in the server should be car unlocked (In service

of the user).

- If the car is in the reservation end requested state,

the state in the server should be car unlocked.

- If the car is in the Verify end session state, the

state in the server should be car locked.

Using the methodology presented in Figure 1,

these functional requirements have been encoded in

queries and veriﬁed on this model. However, this

level of speciﬁcation lacks the conditions necessary

for identifying and formalizing the security require-

ments. To achieve this, we identify the main method-

ological tasks needed to formalize the security re-

quirements, and we integrated them into the model-

checking methodology. The experimental section il-

lustrates these in the car-sharing system.

4 SECURITY MODELING

METHODOLOGY:

CONTRIBUTION

We adopt the Qualitative Risk Analysis approach in

our modeling methodology. The model comprises 3

principal components, the system, the attacker, and

the properties.

The aim of having a model with these three com-

ponents is to produce the co-existence of a vulnerable

system and a threat to reveal the risks.

The attacker model is considered being a threat.

It is used to uncover the risk in the system, which is

assumed to be vulnerable. Then, the properties which

represent the risks are checked on the entire model.

This serves to use model-checking in qualitative risk

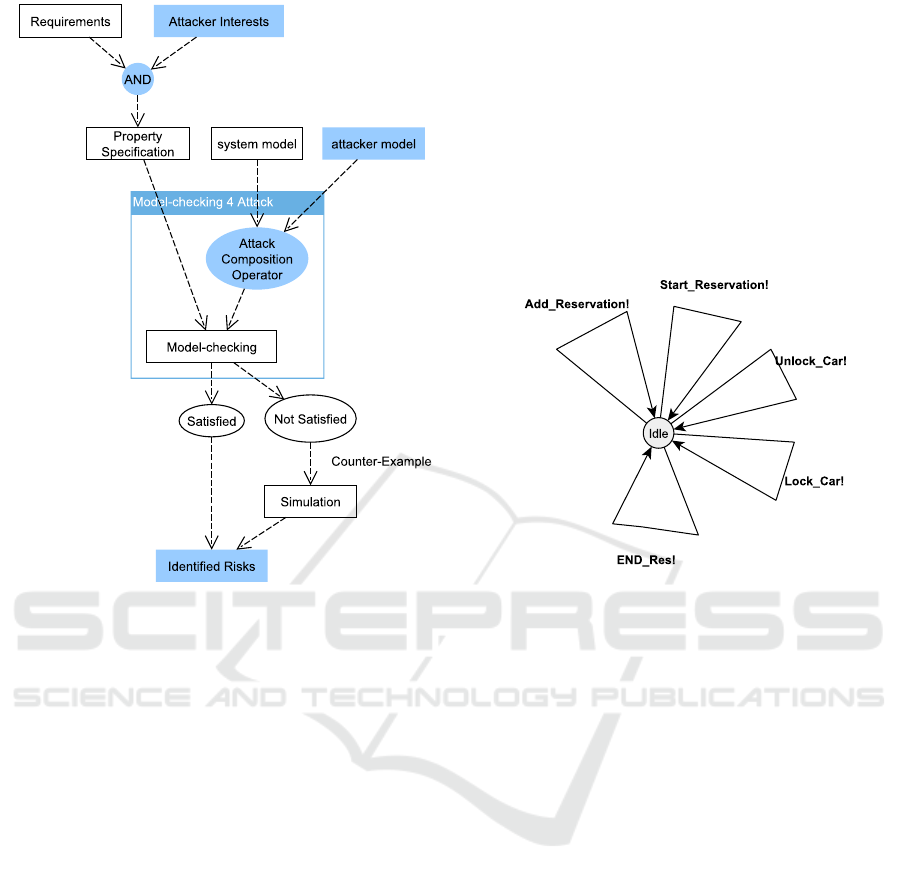

analysis. This is represented in ﬁgure 6, where an at-

tacker model is added to ﬁgure 1. The ﬁgure shows

how the attacker is integrated into model checking.

The attacker model is composed of the system model

using an attack composition operator, and the attacker

interests are combined with the system requirements

to specify the properties. Then, the combined proper-

ties, requirements, and attacker interests are veriﬁed

on the composed model: system and attacker. This

results in identifying the genuineness of the risks and

if there is a possibility of them happening.

4.1 Attacker Model

After the system is modeled and veriﬁed, the vulner-

abilities, that form potential targets of the attacker in

Security Property Modeling

697

Figure 3: System Model (General Representation).

the system, are identiﬁed. By considering the adver-

sary’s perspective as in (Mitchell and Bau, 2011) and

(Yu et al., 2016), it is made possible to recognize some

behaviors that form appealing targets for the attacker.

The attacker is then modeled, representing the threat

to the system to exploit these vulnerabilities. This

step aims to reveal the risks on the system when an

attacker attacks.

An attacker is modeled assuming that they have

initial knowledge of the messages transmitted be-

tween the different components of the system. Thus,

the adversary is given the ability to manipulate system

states similarly to the legitimate system.

The attacker can be given all capabilities to manip-

ulate the system at any point in the execution. This

type of attack model can help discover all potential

attack scenarios (Figure 7). This method aims to as

many risks as possible in the system by introducing

an attacker that carries most of the threats that can

threaten the system. Also, this method is employed

because there is no ultimate way of modeling a single

attack scenario. And this is because there is no way

to be sure of the intentions of the attacker.

However, in larger systems, this can cause a state

explosion problem, so there are too many states and

scenarios. This makes large models impossible to ex-

plore exhaustively. A solution to this problem would

be to break down the attacks into several scenarios

where the attacker is not given full capabilities, but

only the ones enough to achieve a certain attack sce-

nario.

This can also be resolved using the Partially

Bounded Context-Aware Veriﬁcation technique dis-

cussed in (Roux and Teodorov, 2019). This approach

aims to decompose the state-space and the veriﬁca-

tion problem using environment-based guides that can

help select or remove attack scenarios.

Another approach is to use the scenarios to limit

the capabilities of the attacker and observe the effects

on the system. Or to use the scenarios to observe how

much damage an attacker with minimal capabilities

can cause. This approach helps identify the resistance

a system has to a different type of attacks represented

by different scenarios.

Another important aspect to be modeled in the

context of model checking and qualitative risk analy-

sis is the properties. They allow to verify the behavior

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

698

Figure 4: Server Model (General Representation).

Figure 5: ID badge Model (General Representation).

or functioning of the system in it is a normal case or

when it is under an attack. Section 4 discusses how

the properties are modeled and the link between them

and risk identiﬁcation.

4.2 Security Properties

After determining the potential targets, the attacker’s

goals, or the feared events as deﬁned in the EBIOS

methodology(Fortat et al., 2015), are translated into

properties. Each property represents one feared event.

Verifying the properties helps determine if the attack

issued on the system has been successful or not and

whether the system is resilient to this attack. The

properties check if a certain attack on the system

reached the feared event.

Thus, properties represent risks on the system. A

system would want to prevent the risk, but an adver-

sary would want the opposite, as in Table 1.

According to which perspective is considered,

there are two ways to write the security properties.

The ﬁrst way is to take the system’s point of view

and create properties that ensure the well function-

ing of the system during or after an attack. After

the model is simulated and the property is checked,

if the property veriﬁcation is successful, the system is

resilient to this attack and its risks. However, if the

property veriﬁcation fails, the system is faulty, or the

attack issued was successful in changing the original

behavior of the system and thus reaching the risk.

Another way to write the properties is to consider

the attacker’s perspective. Here, properties ensure

that the goals of the attack or risks are reached. In

Security Property Modeling

699

Figure 6: Model-Checking with Attacker.

contrary to the previous case, where the system’s per-

spective was considered, the successful veriﬁcation of

a property shows that the system is faulty, or that the

attack has successfully reached its goals of altering

the system’s behavior. This means that the attack has

introduced a risk to the system. However, the failed

veriﬁcation of the property implies that the attack was

unsuccessful, and the system is resilient to the attack

the property describes. Thus, there is no risk caused

by this threat.

Table 1 summarizes the security property veriﬁca-

tion from both perspectives (system and attacker).

From a system’s perspective, (in table 1) it is to be

made sure that the potential targets or assets are not

put at risk by the attacks or the threats.

However, from an adversary’s perspective, it is

the opposite. The properties, in this case, are written

to verify that the threats on the targeted assets were

successful in creating a risk by controlling, altering,

blocking... the target or the entire system.

To cover all the risks or properties, the methodol-

ogy can adopt both perspectives.

5 APPLICATION TO THE

MOTIVATING EXAMPLE

In this case-study, the attacker is given all possible ca-

pabilities to manipulate the system at any point in the

simulation. We have adopted this method because our

aim of modeling the attacker is not to abstract generic

behaviors based on classiﬁed attacks, but to reveal all

the risks on the system. This is represented in Figure

7 where the attacker can send all messages that can be

received by the car’s computer model (Figure 3).

Figure 7: Attacker Model (General Representation).

In our model, we are considering the system’s

point of view to construct the properties since we aim

to verify the well functioning and the resilience of the

system during or after an attack.

Considering the previously given example of a po-

tential target or targeted asset, the car lock, the follow-

ing property can be deduced:

- If the car is unlocked, it should be able to go back

to idle and be booked again.

This means that the attacker, representing the

threat, should not be able to keep the car unlocked

after the session has ended. Keeping a car unlocked

would cause the risk that the car becomes out of ser-

vice and cannot be booked again.

Then, the property is translated from natural lan-

guage into a query to be veriﬁed upon simulation of

the model.

6 CONCLUSION

The use of many components and protocols in one

system increases the number of vulnerabilities. This

is because the system inherits all of the vulnerabilities

of each element and protocol added. Even though re-

searchers have developed a multiple-protective-layer

strategy and other security protocols, these solutions

ICISSP 2021 - 7th International Conference on Information Systems Security and Privacy

700

Table 1: Security Property Modeling.

* System Perspective (+) Attacker Perspective (-)

Property Successful (+) Threat causes no risk (+) Threat causes risk(-)

Property Failed (-) Threat causes risk(-) Threat causes no risk (+)

have focused on preventing the adversary from gain-

ing access to the system.

However, with the many vulnerabilities present in

a system, one must assume that the attacker is to gain

access at some point. And thus, in the presence of a

vulnerability and a threat, the attack will introduce a

risk on the system by changing its normal behavior.

This paper has introduced a methodology that em-

ploys formal methods and model checking to help

discover these risks through qualitative risk analysis,

where uncovering the risks is the ﬁrst step to making

a system itself more resilient to attacks. This method-

ology was applied to a study case composed of a Car

Reservation System. As a result, we identiﬁed risks

in the system, such as the attacker could keep the car

locked or unlocked.

In the study case, the adversary is given full ca-

pabilities to attack the system. As for future work,

these capabilities are to be broken down into scenar-

ios. This approach helps determine the extent of dam-

age or risks an attacker with minimal or different ca-

pabilities can cause. Also, scenarios that attack all the

elements of the model are to be added.

ACKNOWLEDGMENTS

This project has been supported by the French Direc-

torate General of Armaments (DGA), the European

Regional Development Fund (ERDF) of the EU, the

Brittany Region, the Departmental Council of Fin-

ist

ere and Brest M

etropole as part of the Cyber-SSI

project within the framework of the Brittany 2015-

2020 State-Region Contract (CPER).

REFERENCES

Akhtar, N. (2014). Requirements, formal veriﬁcation and

model transformations of an agent-based system: A

case study. Computer Engineering and Intelligent Sys-

tems - IISTE, 5:1–16.

Basin, D., Cremers, C., and Meadows, C. (2018).

Model Checking Security Protocols, pages 727–762.

Springer International Publishing, Cham.

Christel Baier, J.-P. K. (2008). Principles of Model Check-

ing. International series of monographs on physics.

The MIT Press.

Fortat, F., Laurent, M., and Simatic, M. (2015). Games

based on active nfc objects: Model and security re-

quirements. In 2015 International Workshop on Net-

work and Systems Support for Games (NetGames),

pages 1–3.

Hsiung, P.-A., Chen, Y.-R., and Lin, Y.-H. (2007). Model

checking safety-critical systems using safecharts.

Computers, IEEE Transactions on, 56:692–705.

Kalaie, A., Bhatia, S., Koutsoukos, X., Stouffer, K., Tang,

C., and Candell, R. (2015). Towards a systematic

threat modeling approach for cyber-physical systems.

volume 2015.

Kbar, G. (2008). Security risk analysis for asset in relation

to vulnerability, probability of threats and attacks. In

2008 International Conference on Innovations in In-

formation Technology, pages 668–672.

Lamport, L. (2000). The mutual exclusion problem part ii:

Statement and solutions. Journal of the ACM.

Mitchell, J. C. and Bau, J. (2011). Security modeling and

analysis. IEEE Security & Privacy, 9(03):18–25.

Roux, L. and Teodorov, C. (2019). Partially Bounded

Context-Aware Veriﬁcation, pages 532–548.

Taveras, P. (2019). Cyber risk management, procedures and

considerations to address the threats of a cyber attack.

US Army Corps of Engineers (2018). Risk assessment -

quantitative methods. In Corps Risk Analysis Online

Training Modules, pages 1–49.

Wardell, D. C., Mills, R. F., Peterson, G. L., and Oxley,

M. E. (2016). A method for revealing and address-

ing security vulnerabilities in cyber-physical systems

by modeling malicious agent interactions with formal

veriﬁcation. Procedia Computer Science, 95:24 – 31.

Complex Adaptive Systems Los Angeles, CA Novem-

ber 2-4, 2016.

Yu, W., Yan, C. G., Ding, Z., Jiang, C., and Zhou, M.

(2016). Modeling and veriﬁcation of online shopping

business processes by considering malicious behavior

patterns. IEEE Transactions on Automation Science

and Engineering, 13(2):647–662.

Security Property Modeling

701
